GSL23

Toyota SIENNA · 2006 · 3,624 parts · 174 categories
GSL23 ×

← Back to categories

3,624 items

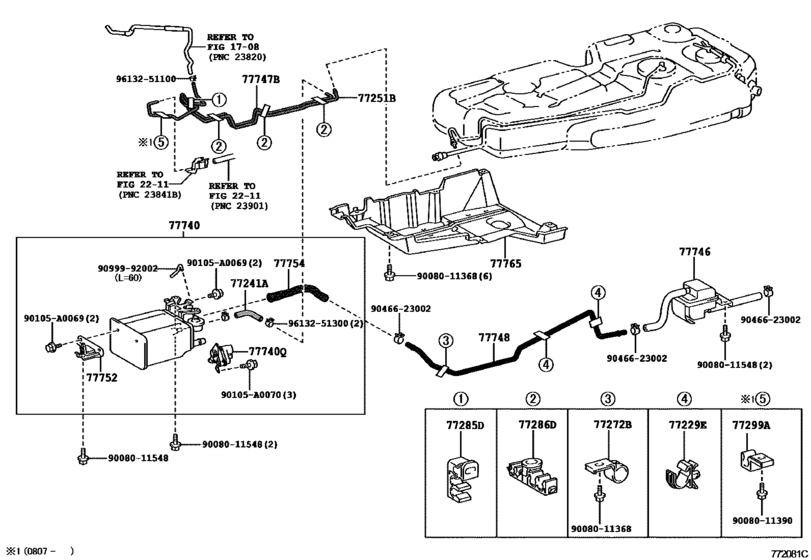

Fuel Tank & Tube ([12.2006 - ] FUEL TUBE (0612- )) 28
#OEMPart name
77229 77229-08030 Clamp, Breather Tube
77241 77754-0C050 Hose, Fuel, No.1 (For Main Tube, No.1) - CHARCOAL CANISTER OUTLET, NO.1
77251 77251-08042 Tube, Fuel Main
77251 77251-08043 Tube, Fuel Main
77272 77272-08020 Support, Breather Tube, No.1
77285 77285-08191 Clamp, Fuel Tube, No.1
77285 77285-08192 Clamp, Fuel Tube, No.1
77286 77286-08090 Clamp, Fuel Tube, No.2
77299 77299-48010 Clamp, Fuel Tube, No.5
77740 77740-08060 Canister Assy, Charcoal
77740 90910-AF002 Leak Detection Pump Sub-Assy, Charcoal Canister
77740 90910-AF005 Leak Detection Pump Sub-Assy, Charcoal Canister
77746 77746-08010 Filter, Charcoal Canister, No.2
77747 77747-08010 Tube, Charcoal Canister, No.1
77748 77748-08010 Pipe, Charcoal Canister, No.2
77752 77752-08040 Bracket, Charcoal Canister Support
77754 77754-08020 Hose, Charcoal Canister Outlet, No.1
77765 77765-08020 Protector, Charcoal Canister
90105 90105-A0069 New Genuine Part
90105 90105-A0070 New Genuine Part
9008011368 90080-11368 New Genuine Part
9008011390 90080-11390 New Genuine Part
9008011390 90080-11216 BOLT WWASHER
9008011548 90080-11548 New Genuine Part
9046623002 90466-23002 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
