Search › Model › GRS200

GRS200

Toyota CROWN-MAJESTA · 2008 · 6,002 parts · 225 categories

6,002 items

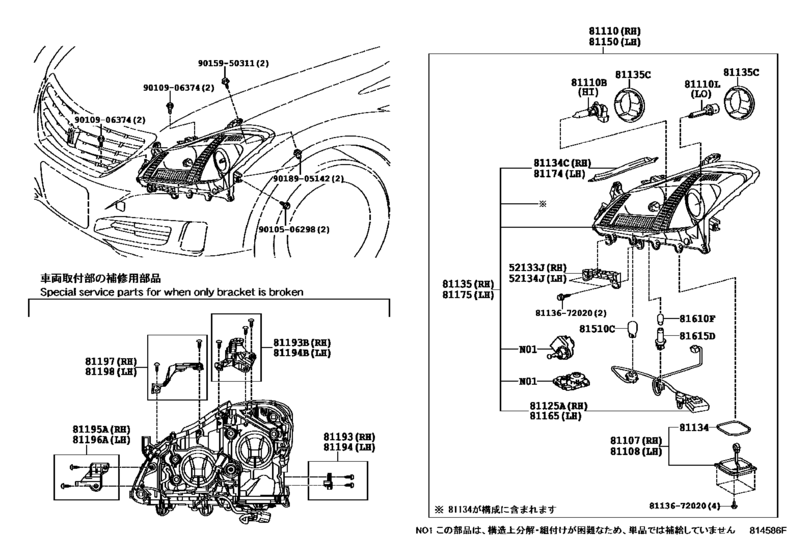

Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#) 80

#	OEM	Part name
52133	52133-30140	Reinforcement, Front Bumper Bar, Rh
52134	52134-30120	Reinforcement, Front Bumper Bar, Lh
81107	81107-22A10	Computer Sub-Assy, Headlamp Light Control
81107	81107-33761	Computer Sub-Assy, Headlamp Light Control
81110	81110-30C60	Headlamp Assy, Rh
81110	81110-30C63	Headlamp Assy, Rh
81110	81110-30C61	Headlamp Assy, Rh
81110	81110-30C62	Headlamp Assy, Rh
81110	81110-30J90	Headlamp Assy, Rh
81110	81110-30J91	Headlamp Assy, Rh
81110	90080-81041	Bulb(For Headlamp, No.1)
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-20026	Bulb, Discharge Headlamp
81110	90981-20027	Bulb, Discharge Headlamp (45V 35W), D4S
81110	81110-30C50	Headlamp Assy, Rh
81110	81110-30C53	Headlamp Assy, Rh
81110	81110-30C51	Headlamp Assy, Rh
81110	81110-30C52	Headlamp Assy, Rh
81110	81110-30J80	Headlamp Assy, Rh
81110	81110-30J81	Headlamp Assy, Rh
81125	81125-30C50	Cord, Headlamp, Rh
81134	90075-68007	Gasket, Headlamp
81134	81134-30C50	Gasket, Headlamp Body, Rh
81135	81145-30C60	Unit Assy, Headlamp, Rh
81135	81145-30C63	Unit Assy, Headlamp, Rh
81135	81145-30C61	Unit Assy, Headlamp, Rh
81135	81145-30C62	Unit Assy, Headlamp, Rh
81135	81145-30J90	Unit Assy, Headlamp, Rh
81135	81145-30J91	Unit Assy, Headlamp, Rh
81135	81135-30A60	Cover, Headlamp Back, No.1
81135	81145-30C50	Unit Assy, Headlamp, Rh
81135	81145-30C53	Unit Assy, Headlamp, Rh
81135	81145-30C51	Unit Assy, Headlamp, Rh
81135	81145-30C52	Unit Assy, Headlamp, Rh
81135	81145-30J80	Unit Assy, Headlamp, Rh
81135	81145-30J81	Unit Assy, Headlamp, Rh
81150	81150-30C60	Headlamp Assy, Lh
81150	81150-30C63	Headlamp Assy, Lh
81150	81150-30C61	Headlamp Assy, Lh
81150	81150-30C62	Headlamp Assy, Lh
81150	81150-30J90	Headlamp Assy, Lh
81150	81150-30J91	Headlamp Assy, Lh
81150	81150-30C50	Headlamp Assy, Lh
81150	81150-30C53	Headlamp Assy, Lh
81150	81150-30C51	Headlamp Assy, Lh
81150	81150-30C52	Headlamp Assy, Lh
81150	81150-30J80	Headlamp Assy, Lh
81150	81150-30J81	Headlamp Assy, Lh
81165	81165-30C50	Cord, Headlamp, Lh
81174	81174-30C50	Gasket, Headlamp Body, Lh
81175	81185-30C60	Unit Assy, Headlamp, Lh
81175	81185-30C63	Unit Assy, Headlamp, Lh
81175	81185-30C61	Unit Assy, Headlamp, Lh
81175	81185-30C62	Unit Assy, Headlamp, Lh
81175	81185-30J90	Unit Assy, Headlamp, Lh
81175	81185-30J91	Unit Assy, Headlamp, Lh
81175	81185-30C50	Unit Assy, Headlamp, Lh
81175	81185-30C53	Unit Assy, Headlamp, Lh
81175	81185-30C51	Unit Assy, Headlamp, Lh
81175	81185-30C52	Unit Assy, Headlamp, Lh
81175	81185-30J80	Unit Assy, Headlamp, Lh
81175	81185-30J81	Unit Assy, Headlamp, Lh
81193	81193-30030	Retainer, Headlamp Protector, Upper Rh
81193	81193-30040	Retainer, Headlamp Protector, Upper Rh No.2
81194	81194-30040	Retainer, Headlamp Protector, Upper Lh
81194	81194-30050	Retainer, Headlamp Protector, Upper Lh No.2
81195	81195-30030	Retainer, Headlamp Protector, Lower Rh
81196	81196-30030	Retainer, Headlamp Protector, Lower Lh
81197	81197-30030	Bracket, Headlamp, Lower Rh
81198	81198-30030	Bracket, Headlamp, Lwr Lh
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	81138-22680	Socket, Headlamp
8113672020	81136-72020	Protector, Headlamp, No.1 Rh
9010506298	90105-06298	BOLT FLANGE
9010906374	90109-06374	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
52133-30140	Reinforcement, Front Bumper Bar, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
52134-30120	Reinforcement, Front Bumper Bar, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81107-22A10	Computer Sub-Assy, Headlamp Light Control	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81107-33761	Computer Sub-Assy, Headlamp Light Control	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30C50	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30C51	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30C52	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30C53	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30C60	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30C61	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30C62	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30C63	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30J80	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30J81	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30J90	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81110-30J91	Headlamp Assy, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81125-30C50	Cord, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81134-30C50	Gasket, Headlamp Body, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81135-30A60	Cover, Headlamp Back, No.1	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81136-72020	Protector, Headlamp, No.1 Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81138-22680	Socket, Headlamp	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30C50	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30C51	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30C52	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30C53	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30C60	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30C61	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30C62	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30C63	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30J80	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30J81	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30J90	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81145-30J91	Unit Assy, Headlamp, Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30C50	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30C51	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30C52	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30C53	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30C60	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30C61	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30C62	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30C63	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30J80	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30J81	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30J90	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81150-30J91	Headlamp Assy, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81165-30C50	Cord, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81174-30C50	Gasket, Headlamp Body, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30C50	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30C51	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30C52	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30C53	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30C60	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30C61	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30C62	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30C63	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30J80	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30J81	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30J90	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81185-30J91	Unit Assy, Headlamp, Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81193-30030	Retainer, Headlamp Protector, Upper Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81193-30040	Retainer, Headlamp Protector, Upper Rh No.2	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81194-30040	Retainer, Headlamp Protector, Upper Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81194-30050	Retainer, Headlamp Protector, Upper Lh No.2	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81195-30030	Retainer, Headlamp Protector, Lower Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81196-30030	Retainer, Headlamp Protector, Lower Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81197-30030	Bracket, Headlamp, Lower Rh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
81198-30030	Bracket, Headlamp, Lwr Lh	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90075-68007	Gasket, Headlamp	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90080-81041	Bulb(For Headlamp, No.1)	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90105-06298	BOLT FLANGE	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90109-06374	BOLT	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90159-50311	SCREW	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90159-A0034	SCREW WWASHER	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90189-05142	GROMMET, SCREW	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90981-20026	Bulb, Discharge Headlamp	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
90981-20027	Bulb, Discharge Headlamp (45V 35W), D4S	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)
99132-12050	Bulb (12V 5W)	Headlamp ([02.2008 - 02.2010] (0802-1002)GRS20#)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 225
Collected: 2026-08-02
