GRS200

Toyota CROWN-MAJESTA · 2008 · 6,002 parts · 225 categories
GRS200 ×

← Back to categories

6,002 items

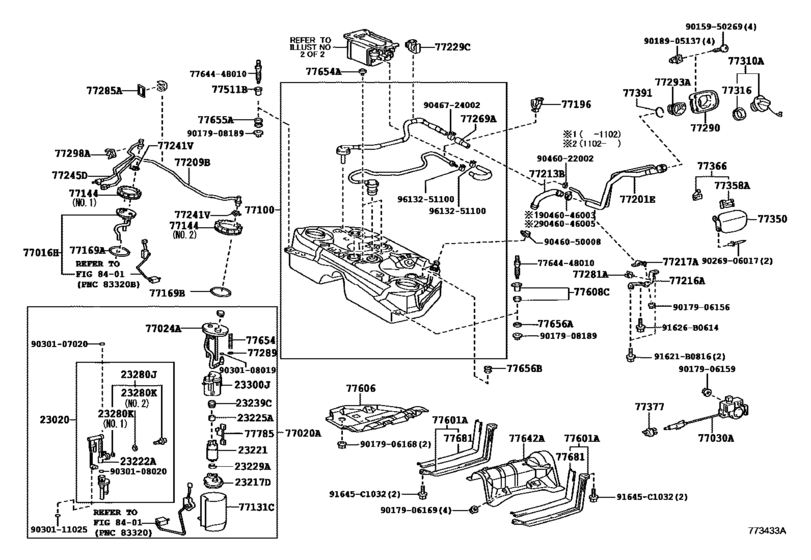

Fuel Tank & Tube ([02.2010 - ] ﾌｭｰｴﾙ ﾀﾝｸ (1002- )GRS200,201,202,203) 88
#OEMPart name
23020 23020-31030 Regulator Assy, Fuel Pressure W/jet Pump
23217 23217-31100 Filter, Fuel Pump
23221 23221-31020 Pump, Fuel
23221 23221-31340 Pump, Fuel
23222 23222-31020 Tube, Fuel Return Jet
23225 23225-21010 Spacer, Fuel Pump
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23239 23239-21010 Seal, Fuel Pump Filter
23280 23280-31020 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
23300 23300-31140 Filter Assy, Fuel
77016 77016-30080 Tube Sub-Assy, Fuel Return Vent
77020 77020-30292 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-30331 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-30110 Plate Sub-Assy, Fuel Suction
77030 77030-30170 Lock Assy, Fuel Lid W/motor
77100 77001-30561 Tank Assy, Fuel
77131 77131-30071 Sub-Tank, Fuel, No.1
77144 77144-30020 Retainer, Fuel Pump Gauge
77144 77144-47020 Retainer, Fuel Pump Gauge
77169 77169-30010 Gasket, Fuel Suction Tube Set
77169 77169-47030 Gasket, Fuel Suction Tube Set
77196 77196-30050 Clamp, Evaporation Vent Tube, No.1
77201 77201-30490 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-30180 Tube Sub-Assy, Fuel Pump
77213 77213-30191 Hose, Fuel Tank To Filler Pipe
77216 77216-30050 Support, Fuel Tank Filler Pipe, No.1
77216 77216-30051 Support, Fuel Tank Filler Pipe, No.1
77217 77217-30130 Support, Fuel Tank Filler Pipe, No.2
77217 77217-30131 Support, Fuel Tank Filler Pipe, No.2
77229 77229-30050 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77241 77241-60320 Clip, Tube Joint
77245 77245-30170 Tube, Fuel Tank Return Vent
77269 77269-30060 Hose, Fuel Tank Breather
77281 77281-50020 Clamp, Fuel Filler Pipe
77285 77285-30230 Support, Fuel Return And Main Tube
77289 77289-52090 Holder, Fuel Tank Pipe Setting
77290 77290-30130 Shield Assy, Fuel Tank Filler Pipe
77293 77293-30090 Shield, Fuel Tank Filler Pipe, No.3
77298 77298-30180 Clamp, Fuel Tube, No.4
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-30390 Lid Assy, Fuel Filler Opening
77358 77358-30060 Stopper, Fuel Filler Opening Lid
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77511 77511-48030 Bracket, Fuel Tank
77601 77601-30170 Band Sub-Assy, Fuel Tank, No.1
77601 77601-30171 Band Sub-Assy, Fuel Tank, No.1
77606 77606-30190 Protector Sub-Assy, Fuel Tank, No.1
77608 77608-48010 Cushion Set, Fuel Tank
77642 77642-30030 Protector, Fuel Tank, No.2
77654 77652-30090 Cushion, Fuel Tank, No.1
77654 77654-30020 Cushion, Fuel Tank, No.4
77655 77655-30080 Cushion, Fuel Tank, No.5
77656 77655-48010 Cushion, Fuel Tank
77656 77656-30030 Cushion, Fuel Tank, No.6
77681 77681-30010 Seat, Fuel Tank Band, Rh
77785 77785-30040 Harness, Fuel Pump
77785 77785-30041 Harness, Fuel Pump
91621 91621-B0816 BOLT WWASHER
91626 91626-B0614 BOLT, W/WASHER
91645 91645-C1032 Bolt, Fuel Tank
7764448010 77644-48010 Bolt, Fuel Tank
9015950269 90159-50269 SCREW WWASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906159 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017906159 90080-17210 Nut, Rear Wiper Link Pivot, No.1
9017906168 90179-06168 Nut & Washer Assy
9017906169 90179-06169 Nut
9017908189 90179-08189 NUT
9018905137 90189-05137 GROMMET SCREW
9026906017 90269-06017 RIVET
9030107020 90301-07020 Ring, O(For Fuel Pressure Regulator)
9030108019 90301-08019 Ring, O(For Fuel Pressure Regulator)
9030108020 90301-08020 Ring, O(For Fuel Pump)
9030111025 90301-11025 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046724002 90467-24002 Clip(For Water By-Pass Hose No.2)
9613251100 96132-51100 Clip (For Hose)
