GRN325

Toyota TACOMA · 2015 · 3,529 parts · 194 categories

← Back to categories

3,529 items

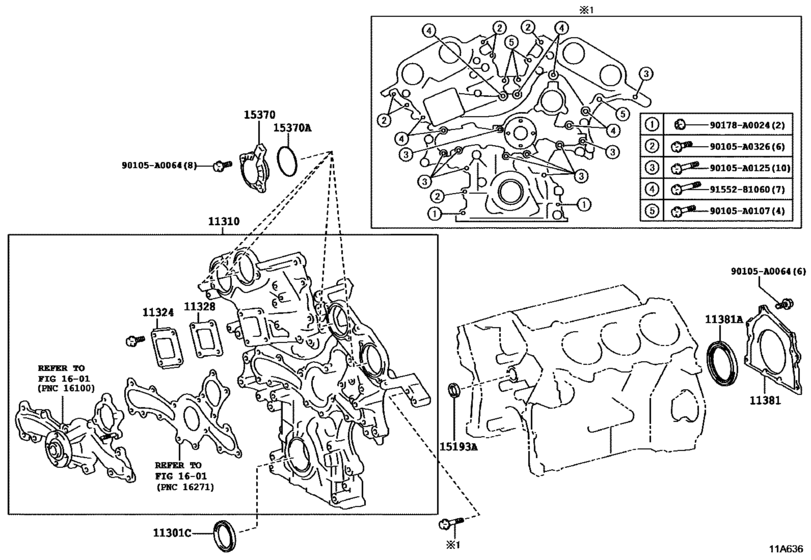

Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS) 18

#	OEM	Part name
11301	90311-A0028	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11310	11310-0P061	Cover Assy, Timing Chain
11324	11324-0P010	Plate, Timing Chain Cover
11328	11328-0P010	Gasket, Timing Gear Or Chain Cover
11381	11381-0P020	Retainer, Engine Rear Oil Seal
11381	90311-A0027	Seal, Engine Rear Oil
15193	15193-0P010	Gasket, Oil Pump
15193	15193-31020	Gasket, Oil Pump
15370	15370-0P010	Solenoid Assy, Cam Timing Oil Control
15370	15370-0P011	Solenoid Assy, Cam Timing Oil Control
15370	15370-0P020	Solenoid Assy, Cam Timing Oil Control
15370	90301-50003	Ring, O(For Cam Timing Oil Control Solenoid)
90105	90105-A0064	New Genuine Part
90105	90105-A0107	Bolt(For Alternator)
90105	90105-A0125	Bolt(For Cylinder Head Set Sub)
90105	90105-A0326	New Genuine Part
90178	90178-A0024	New Genuine Part
9155281060	91552-81060	Bolt, No.3(For Alternator)

OEM	Part name	Category
11310-0P061	Cover Assy, Timing Chain	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
11324-0P010	Plate, Timing Chain Cover	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
11328-0P010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
11381-0P020	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
15193-0P010	Gasket, Oil Pump	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
15193-31020	Gasket, Oil Pump	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
15370-0P010	Solenoid Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
15370-0P011	Solenoid Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
15370-0P020	Solenoid Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
90105-A0064	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
90105-A0107	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
90105-A0125	Bolt(For Cylinder Head Set Sub)	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
90105-A0326	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
90178-A0024	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
90301-50003	Ring, O(For Cam Timing Oil Control Solenoid)	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
90311-A0027	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
90311-A0028	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)
91552-81060	Bolt, No.3(For Alternator)	Timing Gear Cover & Rear End Plate ([08.2015 - ] (1508- )2GRFKS)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 194
Collected: 2026-08-04
