Search › Model › GRN325

GRN325

Toyota TACOMA · 2015 · 3,529 parts · 194 categories

3,529 items

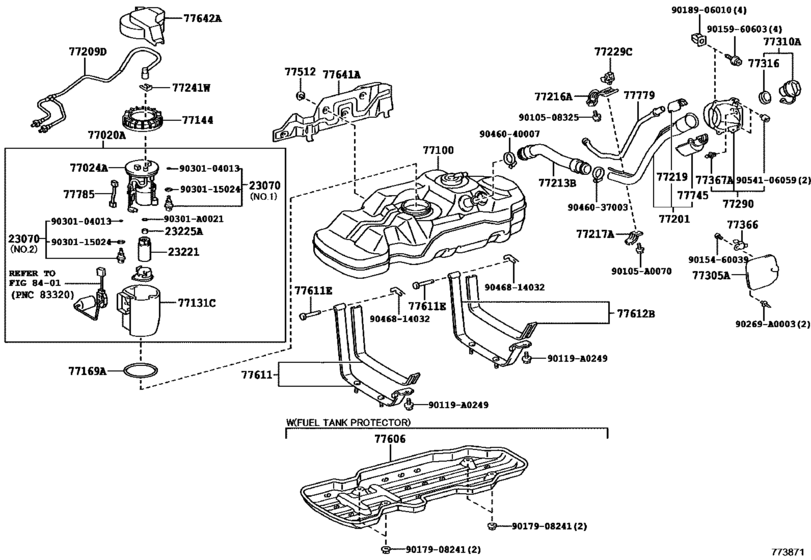

Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330) 51

#	OEM	Part name
23070	23070-31030	Valve Assy, Fuel Main
23070	23070-36010	Valve Assy, Fuel Main
23221	23221-31130	Pump, Fuel
23225	23225-0P010	Spacer, Fuel Pump
77020	77020-04090	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-04020	Plate Sub-Assy, Fuel Suction
77100	77001-04200	Tank Assy, Fuel
77100	77001-04201	Tank Assy, Fuel
77131	77131-04060	Sub-Tank, Fuel, No.1
77144	77144-04020	Retainer, Fuel Pump Gauge
77169	77169-02050	Gasket, Fuel Suction Tube Set
77201	77201-04161	Pipe Sub-Assy, Fuel Tank Inlet
77209	77209-04040	Tube Sub-Assy, Fuel Tank Main
77213	77213-04080	Hose, Fuel Tank To Filler Pipe
77216	77216-04070	Support, Fuel Tank Filler Pipe, No.1
77217	77217-04020	Support, Fuel Tank Filler Pipe, No.2
77219	77219-0E010	Cover, Fuel Tank Filler Pipe
77229	77229-04010	Clamp, Breather Tube
77241	77241-02010	Clip, Tube Joint
77290	77290-04050	Shield Assy, Fuel Tank Filler Pipe
77305	77305-04906	Lid Sub-Assy, Fuel Filler Opening
77310	77300-07030	Cap Assy, Fuel Tank
77316	77316-06070	Gasket, Fuel Tank Cap
77366	77366-35030	Spring, Fuel Filler Opening Lid Hinge
77367	77367-35010	Stopper, Fuel Filler Opening Lid - FUEL FILLER LID PIN, NO.1
77512	77512-35140	Bracket, Fuel Tank
77606	77606-04020	Protector Sub-Assy, Fuel Tank, No.1
77611	77601-04050	Band, Fuel Tank
77611	77601-04060	Band, Fuel Tank
77611	77653-35040	Pin (For Fuel Tank Band)
77612	77602-04050	Band, Fuel Tank, No.2
77612	77602-04060	Band, Fuel Tank, No.2
77641	77697-04010	Protector, Fuel Tank, No.1
77745	77745-0E010	Holder, Fuel Tank Filler Pipe Cover
77779	77779-04050	Tube, Charcoal Canister Outlet
77785	77785-04020	Harness, Fuel Pump
90105	90105-A0070	New Genuine Part
90119	90119-A0249	Bolt, Fuel Tank
90269	90269-A0003	RIVET
90301	90301-A0021	Seal, Fuel Pump Filter
9010508325	90105-08325	New Genuine Part
9015460039	90154-60039	New Genuine Part
9015960603	90159-60603	SCREW WITH-WASHER
9017908241	90179-08241	NUT
9018906010	90189-06010	Clip(For Front Door Inside Handle)
9030104013	90301-04013	Ring, O(For Fuel Pump)
9030115024	90301-15024	Ring, O(For Fuel Pump)
9046037003	90460-37003	Clamp, Fuel Hose
9046040007	90460-40007	Clamp (For Fuel Filler Pipe)
9046814032	90468-14032	CLIP
9054106059	90541-06059	Cushion(For Luggage Compartment Door Panel)

OEM	Part name	Category
23070-31030	Valve Assy, Fuel Main	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
23070-36010	Valve Assy, Fuel Main	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
23221-31130	Pump, Fuel	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
23225-0P010	Spacer, Fuel Pump	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77001-04200	Tank Assy, Fuel	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77001-04201	Tank Assy, Fuel	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77020-04090	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77024-04020	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77131-04060	Sub-Tank, Fuel, No.1	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77144-04020	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77169-02050	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77201-04161	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77209-04040	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77213-04080	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77216-04070	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77217-04020	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77219-0E010	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77229-04010	Clamp, Breather Tube	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77241-02010	Clip, Tube Joint	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77290-04050	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77300-07030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77305-04906	Lid Sub-Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77316-06070	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77366-35030	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77367-35010	Stopper, Fuel Filler Opening Lid - FUEL FILLER LID PIN, NO.1	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77512-35140	Bracket, Fuel Tank	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77601-04050	Band, Fuel Tank	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77601-04060	Band, Fuel Tank	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77602-04050	Band, Fuel Tank, No.2	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77602-04060	Band, Fuel Tank, No.2	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77606-04020	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77653-35040	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77697-04010	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77745-0E010	Holder, Fuel Tank Filler Pipe Cover	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77779-04050	Tube, Charcoal Canister Outlet	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
77785-04020	Harness, Fuel Pump	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90105-08325	New Genuine Part	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90105-A0070	New Genuine Part	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90119-A0249	Bolt, Fuel Tank	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90154-60039	New Genuine Part	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90159-60603	SCREW WITH-WASHER	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90179-08241	NUT	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90189-06010	Clip(For Front Door Inside Handle)	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90269-A0003	RIVET	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90301-04013	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90301-A0021	Seal, Fuel Pump Filter	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90460-37003	Clamp, Fuel Hose	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90460-40007	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90468-14032	CLIP	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
90541-06059	Cushion(For Luggage Compartment Door Panel)	Fuel Tank & Tube ([08.2015 - ] FUEL TANK (1508- )GRN305,310,325,330)
