Search › Model › GRN285

GRN285

Toyota HILUX-SURF-4RUNNER · 2009 · 5,630 parts · 234 categories

← Back to categories

5,630 items

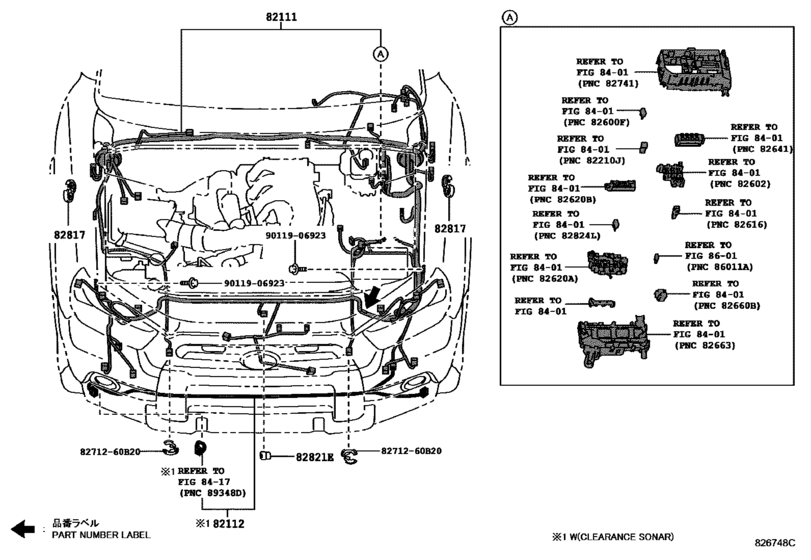

Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- )) 13

#	OEM	Part name
82111	82111-35E90	Wire, Engine Room Main
82111	82111-35K50	Wire, Engine Room Main
82111	82111-35M70	Wire, Engine Room Main
82111	82111-35P70	Wire, Engine Room Main
82111	82111-35Q40	Wire, Engine Room Main
82111	82111-35Q80	Wire, Engine Room Main
82111	82111-35R40	Wire, Engine Room Main
82111	82111-35R80	Wire, Engine Room Main
82112	82112-35080	Wire, Engine Room, No.2
82817	82817-32840	Protector, Wiring Harness, No.1
82821	82821-35130	Cover, Connector - CONECTOR
8271260	82712-60B20	Support, Wiring Harness
9011906923	90119-06923	BOLT WWASHER

OEM	Part name	Category
82111-35E90	Wire, Engine Room Main	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82111-35K50	Wire, Engine Room Main	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82111-35M70	Wire, Engine Room Main	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82111-35P70	Wire, Engine Room Main	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82111-35Q40	Wire, Engine Room Main	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82111-35Q80	Wire, Engine Room Main	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82111-35R40	Wire, Engine Room Main	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82111-35R80	Wire, Engine Room Main	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82112-35080	Wire, Engine Room, No.2	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82712-60B20	Support, Wiring Harness	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82817-32840	Protector, Wiring Harness, No.1	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
82821-35130	Cover, Connector - CONECTOR	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))
90119-06923	BOLT WWASHER	Wiring & Clamp ([08.2009 - ] ENGINE ROOM (0908- ))

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 234
Collected: 2026-08-03
