GRN285

Toyota HILUX-SURF-4RUNNER · 2009 · 5,630 parts · 234 categories

5,630 items

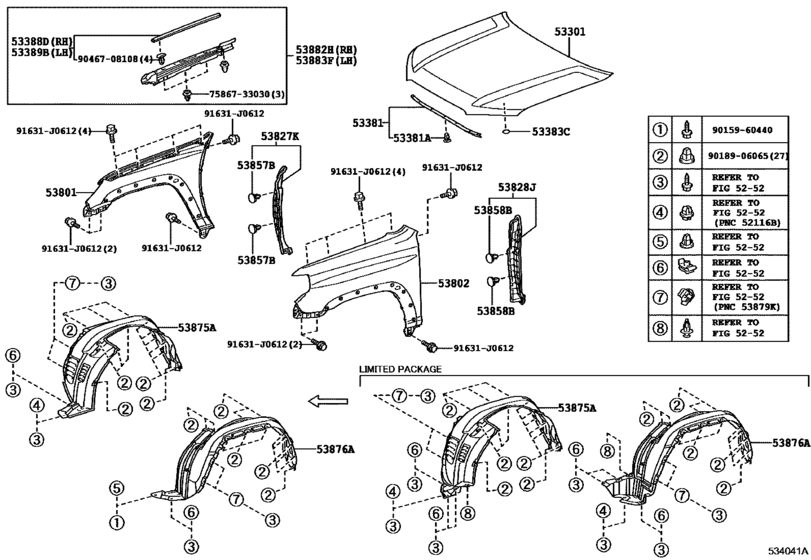

Hood & Front Fender ([08.2013 - ] (1308- )) 31

#	OEM	Part name
53301	53301-35200	Hood Sub-Assy
53381	53381-60140	Seal, Hood To Radiator Support
53381	90467-08011	Clip(For Headlamp Cover Seal)
53381	90467-08011-TH	CLIP
53381	90467-08011-83	Clip(For Headlamp Cover Seal)
53383	90950-06096	Plug, Hole(For Hood)
53383	90950-06124	Tape, Seal
53388	53388-35020	Seal, Hood To Front Fender, Rh
53389	53389-35010	Seal, Hood To Front Fender, Lh
53801	53811-35420	Fender Sub-Assy, Front Rh
53801	53811-35430	Fender Sub-Assy, Front Rh
53802	53812-35510	Fender Sub-Assy, Front Lh
53827	53827-35050	Protector, Front Fender Side Panel, Rh
53828	53828-35070	Protector, Front Fender Side Panel, Lh
53857	53857-47011	Retainer, Front Wheel Opening Extension, Rh
53857	90467-06205-C0	Clip, Front Fender Side Panel Protector, No.1
53875	53805-35030	Liner, Front Fender, Rh
53875	53875-35120	Liner, Front Fender, Rh
53875	53875-35130	Liner, Front Fender, Rh
53875	53875-35150	Liner, Front Fender, Rh
53876	53806-35020	Liner, Front Fender, Lh
53876	53806-35030	Liner, Front Fender, Lh
53876	53876-35120	Liner, Front Fender, Lh
53876	53876-35150	Liner, Front Fender, Lh
53882	53807-35120	Seal, Front Fender Main, Rh
53883	53808-35120	Seal, Front Fender Main, Lh
91631	91631-J0612	BRACKET
7586733030	75867-33030	Clip (For Center Lower Garnish)
9015960440	90159-60440	SCREW WWASHER
9018906065	90189-06065	CLIP
9046708108	90467-08108	Clip(For Hood To Cowl Top Seal)

OEM	Part name	Category
53301-35200	Hood Sub-Assy	Hood & Front Fender ([08.2013 - ] (1308- ))
53381-60140	Seal, Hood To Radiator Support	Hood & Front Fender ([08.2013 - ] (1308- ))
53388-35020	Seal, Hood To Front Fender, Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53389-35010	Seal, Hood To Front Fender, Lh	Hood & Front Fender ([08.2013 - ] (1308- ))
53805-35030	Liner, Front Fender, Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53806-35020	Liner, Front Fender, Lh	Hood & Front Fender ([08.2013 - ] (1308- ))
53806-35030	Liner, Front Fender, Lh	Hood & Front Fender ([08.2013 - ] (1308- ))
53807-35120	Seal, Front Fender Main, Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53808-35120	Seal, Front Fender Main, Lh	Hood & Front Fender ([08.2013 - ] (1308- ))
53811-35420	Fender Sub-Assy, Front Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53811-35430	Fender Sub-Assy, Front Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53812-35510	Fender Sub-Assy, Front Lh	Hood & Front Fender ([08.2013 - ] (1308- ))
53827-35050	Protector, Front Fender Side Panel, Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53828-35070	Protector, Front Fender Side Panel, Lh	Hood & Front Fender ([08.2013 - ] (1308- ))
53857-47011	Retainer, Front Wheel Opening Extension, Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53875-35120	Liner, Front Fender, Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53875-35130	Liner, Front Fender, Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53875-35150	Liner, Front Fender, Rh	Hood & Front Fender ([08.2013 - ] (1308- ))
53876-35120	Liner, Front Fender, Lh	Hood & Front Fender ([08.2013 - ] (1308- ))
53876-35150	Liner, Front Fender, Lh	Hood & Front Fender ([08.2013 - ] (1308- ))
75867-33030	Clip (For Center Lower Garnish)	Hood & Front Fender ([08.2013 - ] (1308- ))
90159-60440	SCREW WWASHER	Hood & Front Fender ([08.2013 - ] (1308- ))
90189-06065	CLIP	Hood & Front Fender ([08.2013 - ] (1308- ))
90467-06205-C0	Clip, Front Fender Side Panel Protector, No.1	Hood & Front Fender ([08.2013 - ] (1308- ))
90467-08011	Clip(For Headlamp Cover Seal)	Hood & Front Fender ([08.2013 - ] (1308- ))
90467-08011-83	Clip(For Headlamp Cover Seal)	Hood & Front Fender ([08.2013 - ] (1308- ))
90467-08011-TH	CLIP	Hood & Front Fender ([08.2013 - ] (1308- ))
90467-08108	Clip(For Hood To Cowl Top Seal)	Hood & Front Fender ([08.2013 - ] (1308- ))
90950-06096	Plug, Hole(For Hood)	Hood & Front Fender ([08.2013 - ] (1308- ))
90950-06124	Tape, Seal	Hood & Front Fender ([08.2013 - ] (1308- ))
91631-J0612	BRACKET	Hood & Front Fender ([08.2013 - ] (1308- ))
