GRN285

Toyota HILUX-SURF-4RUNNER · 2009 · 5,630 parts · 234 categories
GRN285 ×

← Back to categories

5,630 items

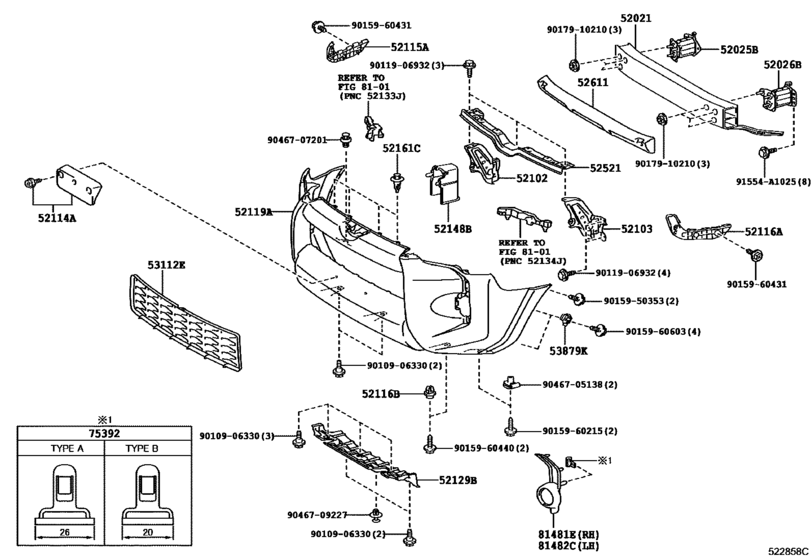

Front Bumper & Bumper Stay ([08.2013 - ] (1308- )) 73
#OEMPart name
52021 52021-35100 Reinforcement Sub-Assy, Front Bumper
52021 52021-35180 Reinforcement Sub-Assy, Front Bumper
52021 52021-35110 Reinforcement Sub-Assy, Front Bumper
52021 52021-35190 Reinforcement Sub-Assy, Front Bumper
52021 52021-35140 Reinforcement Sub-Assy, Front Bumper
52021 52021-35150 Reinforcement Sub-Assy, Front Bumper
52021 52021-35151 Reinforcement Sub-Assy, Front Bumper
52025 52025-60040 Extension Sub-Assy, Front Bumper, No.2 Rh
52025 52025-60050 Extension Sub-Assy, Front Bumper, No.2 Rh
52026 52026-60040 Extension Sub-Assy, Front Bumper, No.2 Lh
52026 52026-60050 Extension Sub-Assy, Front Bumper, No.2 Lh
52102 52102-35090 Bracket Sub-Assy, Front Bumper, Rh
52102 52102-35100 Bracket Sub-Assy, Front Bumper, Rh
52103 52103-35100 Bracket Sub-Assy, Front Bumper, Lh
52103 52103-35110 Bracket Sub-Assy, Front Bumper, Lh
52114 52114-35040 Bracket, Front Bumper Extention Mounting
52114 52114-35050 Bracket, Front Bumper Extention Mounting
52115 52115-35130 Support, Front Bumper Side, Rh
52115 52115-35131 Support, Front Bumper Side, Rh
52115 52541-35040 Protector, Front Bumper
52115 52115-35140 Support, Front Bumper Side, Rh
52115 52115-35141 Support, Front Bumper Side, Rh
52115 52115-35150 Support, Front Bumper Side, Rh
52115 52115-35151 Support, Front Bumper Side, Rh
52116 52116-35120 Support, Front Bumper Side, Lh
52116 52116-35121 Support, Front Bumper Side, Lh
52116 52116-35130 Support, Front Bumper Side, Lh
52116 52116-35131 Support, Front Bumper Side, Lh
52116 52116-35150 Support, Front Bumper Side, Lh
52116 52116-35151 Support, Front Bumper Side, Lh
52116 52116-35153 SUPPORT, FR BUMPER
52116 52116-35140 Retainer, Front Bumper
52119 52119-35905 Cover, Front Bumper
52119 52119-35908 Cover, Front Bumper
52119 52119-35906 Cover, Front Bumper
52119 52119-35909 Cover, Front Bumper
52119 52119-35912 Cover, Front Bumper
52119 52119-35913 Cover, Front Bumper
52129 52101-35690 Cover, Front Bumper, Lower
52129 52101-35700 Cover, Front Bumper, Lower
52129 52129-35010 Cover, Front Bumper, Lower
52129 52129-35030 Cover, Front Bumper, Lower
52148 52148-35120 Stopper, Fr Bumper Reinforcement, Rh
52161 52161-16010 Clip
52161 52161-0K040 Clip
52161 52161-02020 Clip
52521 52521-35040 Retainer, Front Bumper, Upper Center
52521 52521-35060 Retainer, Front Bumper, Upper Center
52611 52611-35030 Absorber, Front Bumper Energy
52611 52611-35040 Absorber, Front Bumper Energy
53112 53112-35050 Grille, Radiator, Lower No.1
53112 53112-35060 Grille, Radiator, Lower No.1
53879 53879-58010 Retainer, Front Fender Liner
75392 75392-35200 Retainer
75392 75392-35220 Retainer, Rear Bumper
81481 52127-35070 Cover, Fog Lamp, Rh
81481 52127-35080 Cover, Fog Lamp, Rh
81481 52127-35100 Cover, Fog Lamp, Rh
81482 52128-35060 Cover, Fog Lamp, Lh
81482 52128-35070 Cover, Fog Lamp, Lh
81482 52128-35080 Cover, Fog Lamp, Lh
91554 91554-A1025 BOLT FLANGE
9010906330 90109-06330 BOLT
9011906932 90119-06932 BOLT WWASHER
9015950353 90159-50353 SCREW, W-WASHER
9015960215 90159-60215 SCREW
9015960431 90159-60431 SCREW
9015960440 90159-60440 SCREW WWASHER
9015960603 90159-60603 SCREW WITH-WASHER
9017910210 90179-10210 NUT
9046705138 90467-05138 Clip(For Front Bumper Retainer)
9046707201 90467-07201 Clamp(For Cool Air Intake)
9046709227 90467-09227 Clip, Engine Under Cover, No.2
