GRN285

Toyota HILUX-SURF-4RUNNER · 2009 · 5,630 parts · 234 categories

← Back to categories

5,630 items

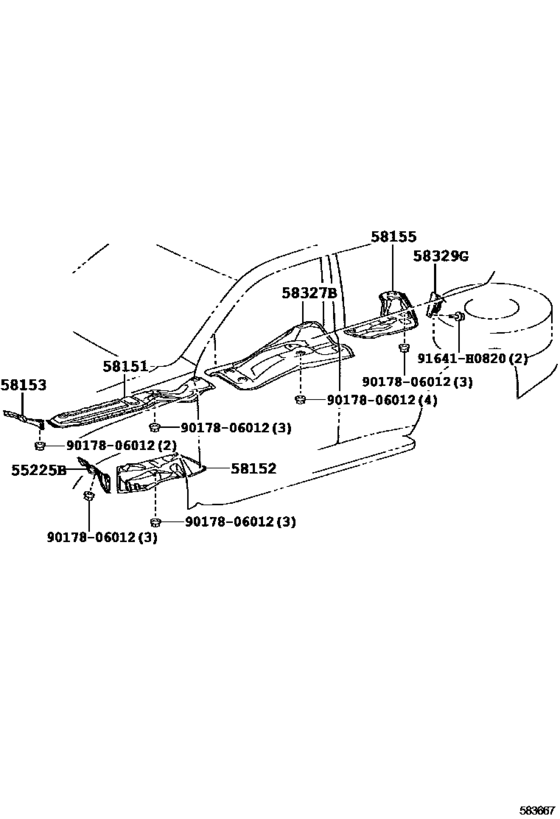

Floor Insulator ([08.2009 - ] (0908- )) 12

#	OEM	Part name
55225	55225-60050	Insulator, Dash Panel Heat
58151	58151-60120	Insulator, Front Floor Heat, No.1
58151	58151-60121	Insulator, Front Floor Heat, No.1
58151	58151-60122	Insulator, Front Floor Heat, No.1
58152	58152-60060	Insulator, Front Floor Heat, No.2 Lower - FR FLOOR HEATER, NO.2 LOWER
58153	58153-35130	Insulator, Front Floor Heat, No.2
58153	58153-60130	INSULATOR FLOOR
58155	58155-60070	Insulator, Front Floor Heat, No.3
58327	58327-60100	Insulator, Main Muffler Heat
58327	58327-60101	Insulator, Main Muffler Heat
91641	91641-H0820	Bolt
9017806012	90178-06012	NUT FLANGE

OEM	Part name	Category
55225-60050	Insulator, Dash Panel Heat	Floor Insulator ([08.2009 - ] (0908- ))
58151-60120	Insulator, Front Floor Heat, No.1	Floor Insulator ([08.2009 - ] (0908- ))
58151-60121	Insulator, Front Floor Heat, No.1	Floor Insulator ([08.2009 - ] (0908- ))
58151-60122	Insulator, Front Floor Heat, No.1	Floor Insulator ([08.2009 - ] (0908- ))
58152-60060	Insulator, Front Floor Heat, No.2 Lower - FR FLOOR HEATER, NO.2 LOWER	Floor Insulator ([08.2009 - ] (0908- ))
58153-35130	Insulator, Front Floor Heat, No.2	Floor Insulator ([08.2009 - ] (0908- ))
58153-60130	INSULATOR FLOOR	Floor Insulator ([08.2009 - ] (0908- ))
58155-60070	Insulator, Front Floor Heat, No.3	Floor Insulator ([08.2009 - ] (0908- ))
58327-60100	Insulator, Main Muffler Heat	Floor Insulator ([08.2009 - ] (0908- ))
58327-60101	Insulator, Main Muffler Heat	Floor Insulator ([08.2009 - ] (0908- ))
90178-06012	NUT FLANGE	Floor Insulator ([08.2009 - ] (0908- ))
91641-H0820	Bolt	Floor Insulator ([08.2009 - ] (0908- ))

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 234
Collected: 2026-08-03
