Search › Model › GRN285

GRN285

Toyota HILUX-SURF-4RUNNER · 2009 · 5,630 parts · 234 categories

5,630 items

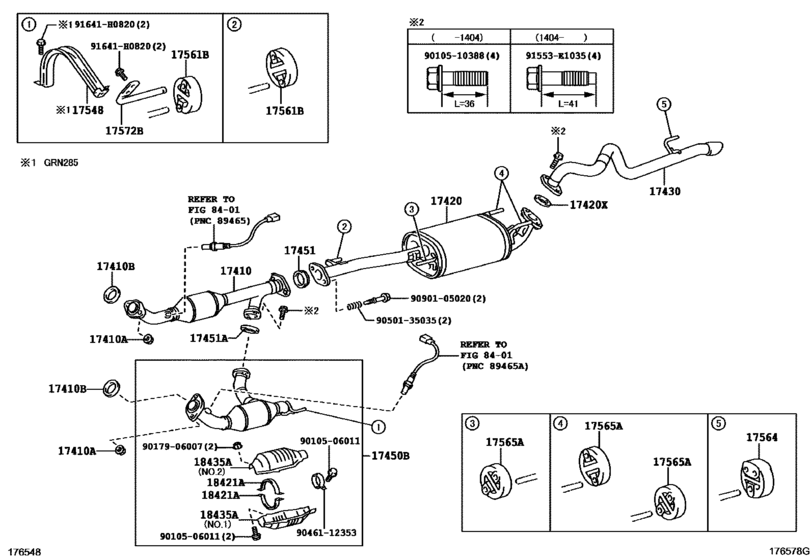

Exhaust Pipe ([08.2009 - ] (0908- )) 29

#	OEM	Part name
0	91553-E1035	BOLT FLANGE
17410	17410-31A10	Pipe Assy, Exhaust, Front
17410	17410-31F60	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06089	Gasket, Exhaust Pipe
17420	17420-31340	Pipe Assy, Exhaust, Center
17420	17420-31360	Pipe Assy, Exhaust, Center
17420	90917-06090	Gasket, Exhaust Pipe
17430	17430-31870	Pipe Assy, Exhaust, Tail
17450	17450-31111	Pipe Assy, Exhaust, Front No.2
17450	17450-31190	Pipe Assy, Exhaust, Front No.2
17451	17451-28070	Gasket, Exhaust Pipe
17451	17451-28041	Gasket, Exhaust Pipe
17451	17451-31020	Gasket, Exhaust Pipe
17548	17548-31011	Bracket, Exhaust Pipe Stopper
17561	17565-22040	Support, Exhaust Pipe, No.1
17564	17565-31050	Support, Exhaust Pipe, No.1
17572	17572-31110	Bracket, Exhaust Pipe Support, No.2
18421	18421-75010	Stay, Converter Protector, Lh
18435	18435-31030	Protector, Monolithic Converter
18435	18445-31010	Protector, Monolithic Converter
91641	91641-H0820	Bolt
9010506011	90105-06011	BOLT
9010510388	90105-10388	BOLT
9017906007	90179-06007	Nut
9046112353	90461-12353	Clamp, Exhaust Pipe
9050135035	90501-35035	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
17410-31A10	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.2009 - ] (0908- ))
17410-31F60	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.2009 - ] (0908- ))
17420-31340	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.2009 - ] (0908- ))
17420-31360	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.2009 - ] (0908- ))
17430-31870	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.2009 - ] (0908- ))
17450-31111	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([08.2009 - ] (0908- ))
17450-31190	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([08.2009 - ] (0908- ))
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2009 - ] (0908- ))
17451-28070	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2009 - ] (0908- ))
17451-31020	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2009 - ] (0908- ))
17548-31011	Bracket, Exhaust Pipe Stopper	Exhaust Pipe ([08.2009 - ] (0908- ))
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([08.2009 - ] (0908- ))
17565-31050	Support, Exhaust Pipe, No.1	Exhaust Pipe ([08.2009 - ] (0908- ))
17572-31110	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([08.2009 - ] (0908- ))
18421-75010	Stay, Converter Protector, Lh	Exhaust Pipe ([08.2009 - ] (0908- ))
18435-31030	Protector, Monolithic Converter	Exhaust Pipe ([08.2009 - ] (0908- ))
18445-31010	Protector, Monolithic Converter	Exhaust Pipe ([08.2009 - ] (0908- ))
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.2009 - ] (0908- ))
90105-06011	BOLT	Exhaust Pipe ([08.2009 - ] (0908- ))
90105-10388	BOLT	Exhaust Pipe ([08.2009 - ] (0908- ))
90179-06007	Nut	Exhaust Pipe ([08.2009 - ] (0908- ))
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.2009 - ] (0908- ))
90461-12353	Clamp, Exhaust Pipe	Exhaust Pipe ([08.2009 - ] (0908- ))
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([08.2009 - ] (0908- ))
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.2009 - ] (0908- ))
90917-06089	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2009 - ] (0908- ))
90917-06090	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2009 - ] (0908- ))
91553-E1035	BOLT FLANGE	Exhaust Pipe ([08.2009 - ] (0908- ))
91641-H0820	Bolt	Exhaust Pipe ([08.2009 - ] (0908- ))
