Search › Model › GGN135

GGN135

Toyota HILUX-4RUNNER-TRUCK · 2016 · 2,878 parts · 208 categories

← Back to categories

2,878 items

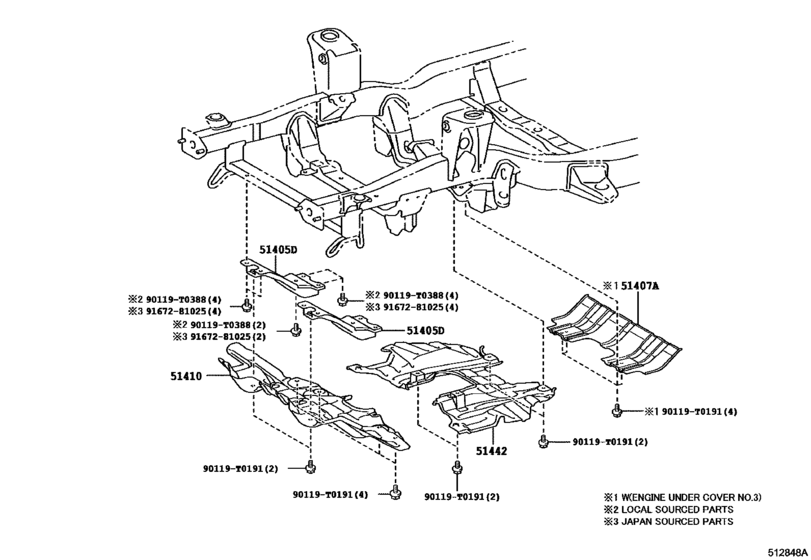

Suspension Crossmember & Under Cover ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) 7

#	OEM	Part name
51405	51405-KK030	Brace Sub-Assy, Engine Under
51407	51407-0K020	Cover Sub-Assy, Engine Under, No.3
51410	51410-KK020	Cover Assy, Engine Under, No.1
51442	51420-KK020	Cover, Engine Under, No.2
90119	90119-T0191	BOLT WWASHER
90119	90119-T0388	Bolt, Washer
9167281025	91672-81025	Bolt, Center Support Bearing Bracket

OEM	Part name	Category
51405-KK030	Brace Sub-Assy, Engine Under	Suspension Crossmember & Under Cover ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#)
51407-0K020	Cover Sub-Assy, Engine Under, No.3	Suspension Crossmember & Under Cover ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#)
51410-KK020	Cover Assy, Engine Under, No.1	Suspension Crossmember & Under Cover ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#)
51420-KK020	Cover, Engine Under, No.2	Suspension Crossmember & Under Cover ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#)
90119-T0191	BOLT WWASHER	Suspension Crossmember & Under Cover ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#)
90119-T0388	Bolt, Washer	Suspension Crossmember & Under Cover ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#)
91672-81025	Bolt, Center Support Bearing Bracket	Suspension Crossmember & Under Cover ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 208
Collected: 2026-08-03
