| 04483-KK010 |
Shackle Kit, Rear Spring, Rh |

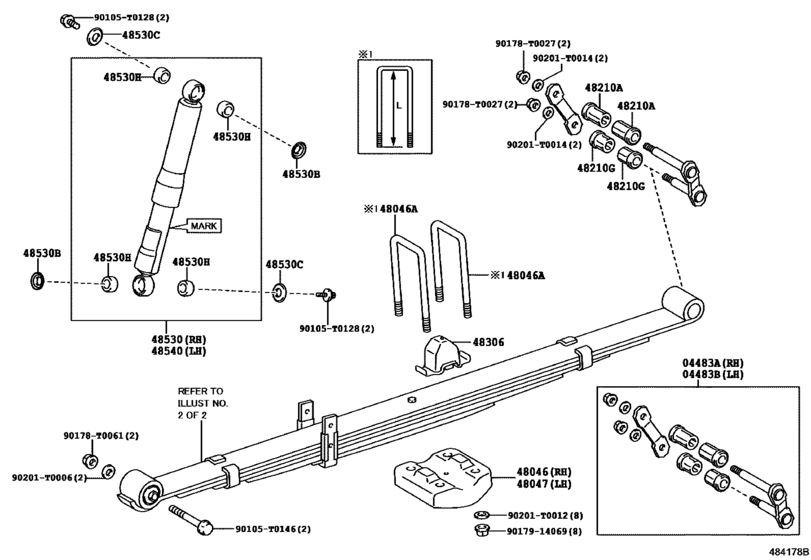

Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 48046-KK010 |
Seat Sub-Assy, Spring U Bolt, Rh |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 48046-KK050 |
Seat Sub-Assy, Spring U Bolt, Rh |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 48306-0K050 |
Bumper Sub-Assy, Rear Spring |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 48531-8Z010 |
Absorber Assy, Shock, Rear Rh |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 48541-09330 |
Absorber Assy, Shock, Rear Lh |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90105-T0128 |
BOLT FLANGE |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90105-T0146 |
BOLT FLANGE |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90117-F0001 |
Bolt, U(For Rear Spring) |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90178-T0027 |
Nut(For Front Suspension Upper Arm Rh) |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90178-T0061 |
NUT FLANGE |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90179-14069 |
Nut |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90201-T0006 |
WASHER PLATE |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90201-T0012 |
WASHER PLATE |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90201-T0014 |
TY STANDARD PARTS REF ART |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90385-T0014 |
Bush(For Rear Spring Shackle Upper) |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90385-T0017 |
Bush(For Rear Spring Shackle Lower) |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90385-T0019 |
Bush, Rear Shock Absorber |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90948-T3001 |
Washer, Rear Shock Absorber Cushion, No.1 |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
| 90948-T3002 |
Washer, Rear Shock Absorber Cushion, No.2 |
Rear Spring & Shock Absorber ([05.2015 - ] (1505- )GGN125,135,GUN125,126,13#,KUN125,126, 13#,LAN125,TGN126,128,13#) |
