Search › Model › GGN125

GGN125

Toyota HILUX-4RUNNER-TRUCK · 2015 · 3,344 parts · 219 categories

3,344 items

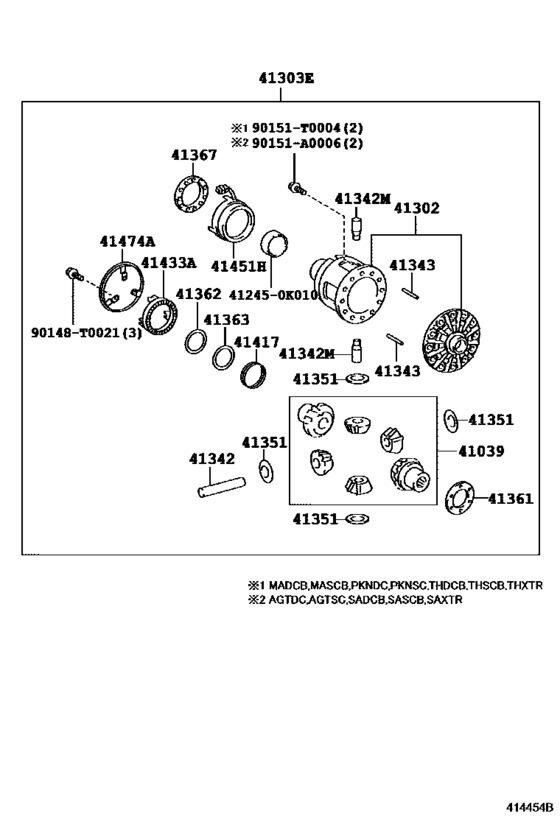

Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA) 20

#	OEM	Part name
41039	41039-0K010	Gear Kit, Differential, Rear
41302	41302-0K030	Case Sub-Assy, Rear Differential
41303	41303-0K030	Case Sub-Assy, Electronic Differential Lock
41342	41342-0K080	Shaft, Rear Differential Pinion
41342	41342-0K090	Shaft, Rear Differential Pinion, No.2
41343	41343-0K020	Pin, Rear Differential Pinion Shaft
41351	41351-0K060	Washer, Rear Differential Pinion Thrust
41361	41361-0K460	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-0K470	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-0K480	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-0K490	Washer, Rear Differential Side Gear Thrust, No.1
41362	41361-0K500	Washer, Rear Differential Side Gear Thrust, No.2
41362	41361-0K510	Washer, Rear Differential Side Gear Thrust, No.2
41362	41361-0K520	Washer, Rear Differential Side Gear Thrust, No.2
41362	41361-0K530	Washer, Rear Differential Side Gear Thrust, No.2
41367	41367-0K010	Washer, Differential Solenoid
41417	41417-0K020	Spring, Differential Lock
41433	41433-0K010	Ring, Differential Lock Cam
41451	41451-0K010	Coil, Differential Lock
41474	41474-0K010	Plate, Differential Lock Position

OEM	Part name	Category
41039-0K010	Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41302-0K030	Case Sub-Assy, Rear Differential	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41303-0K030	Case Sub-Assy, Electronic Differential Lock	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41342-0K080	Shaft, Rear Differential Pinion	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41342-0K090	Shaft, Rear Differential Pinion, No.2	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41343-0K020	Pin, Rear Differential Pinion Shaft	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41351-0K060	Washer, Rear Differential Pinion Thrust	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41361-0K460	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41361-0K470	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41361-0K480	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41361-0K490	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41361-0K500	Washer, Rear Differential Side Gear Thrust, No.2	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41361-0K510	Washer, Rear Differential Side Gear Thrust, No.2	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41361-0K520	Washer, Rear Differential Side Gear Thrust, No.2	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41361-0K530	Washer, Rear Differential Side Gear Thrust, No.2	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41367-0K010	Washer, Differential Solenoid	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41417-0K020	Spring, Differential Lock	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41433-0K010	Ring, Differential Lock Cam	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41451-0K010	Coil, Differential Lock	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
41474-0K010	Plate, Differential Lock Position	Rear Axle Housing & Differential ([01.2016 - ] W(DIFFERENTIAL LOCK) (1601- )GGN125,135,GUN125,126,13#,KUN125,126, 135,LAN125,TGN126,136..H,M,S,X..MA, SA)
