Search › Model › GGN125

GGN125

Toyota HILUX-4RUNNER-TRUCK · 2015 · 3,344 parts · 219 categories

3,344 items

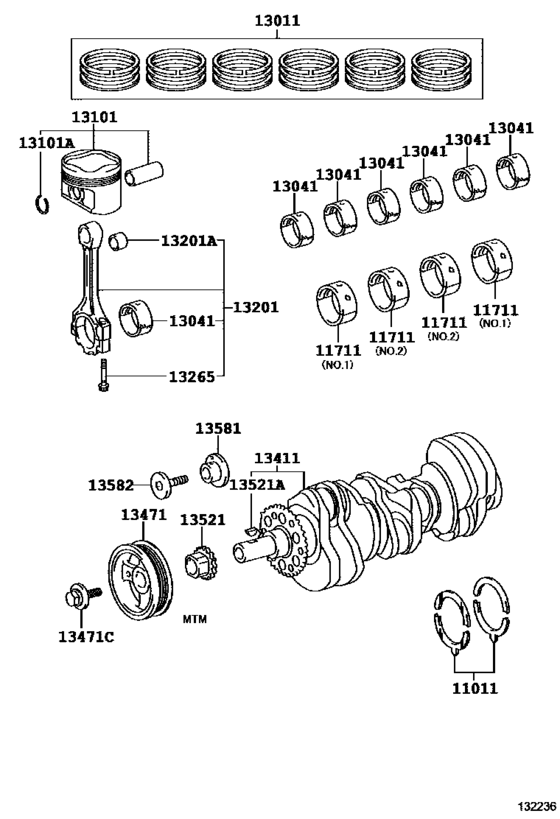

Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE) 43

#	OEM	Part name
11011	11011-31071	Washer Set, Crankshaft Thrust
11711	11071-31011-01	Bearing, Crankshaft
11711	11071-31050-01	Bearing, Crankshaft
11711	11071-31011-02	Bearing, Crankshaft
11711	11071-31050-02	Bearing, Crankshaft
11711	11071-31011-03	Bearing, Crankshaft
11711	11071-31050-03	Bearing, Crankshaft
11711	11071-31011-04	Bearing, Crankshaft
11711	11071-31050-04	Bearing, Crankshaft
11711	11071-31011-05	Bearing, Crankshaft
11711	11071-31050-05	Bearing, Crankshaft
11711	11701-31041-01	Bearing, Crankshaft
11711	11701-31080-01	Bearing, Crankshaft
11711	11701-31041-02	Bearing, Crankshaft
11711	11701-31080-02	Bearing, Crankshaft
11711	11701-31041-03	Bearing, Crankshaft
11711	11701-31080-03	Bearing, Crankshaft
11711	11701-31041-04	Bearing, Crankshaft
11711	11701-31080-04	Bearing, Crankshaft
11711	11701-31041-05	Bearing, Crankshaft
11711	11701-31080-05	Bearing, Crankshaft
13011	13011-31200	Ring Set, Piston (STD)
13041	13041-31090-01	Bearing, Connecting Rod
13041	13041-31090-02	Bearing, Connecting Rod
13041	13041-31090-03	Bearing, Connecting Rod
13041	13041-31090-04	Bearing, Connecting Rod
13101	13101-31030-A0	Piston Sub-Assy, W/pin
13101	13101-31030-B0	Piston Sub-Assy, W/pin
13101	13101-31030-C0	Piston Sub-Assy, W/pin
13101	90520-22025	Ring, Hole Snap(For Piston Pin)
13201	13201-39235-A0	Rod Sub-Assy, Connecting
13201	13201-39235-B0	Rod Sub-Assy, Connecting
13201	13201-39235-C0	Rod Sub-Assy, Connecting
13201	90999-73144	Bush(For Connecting Rod Small End)
13265	13265-28010	Bolt, Connecting Rod
13265	13265-28020	BOLT CONNECTING ROD
13411	13401-31011	Crankshaft
13471	13470-31014	Pulley, Crankshaft
13471	90119-16004	Bolt(For Crankshaft Pulley Set)
13521	13521-31060	Gear Or Sprocket, Crankshaft Timing
13521	95161-30516	Key(For Oil Pump Drive Spline)
13581	13581-31030	Shaft, Idle Gear, No.1
13582	13582-31010	Shaft, Idle Gear, No.2

OEM	Part name	Category
11011-31071	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31011-01	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31011-02	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31011-03	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31011-04	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31011-05	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31050-01	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31050-02	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31050-03	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31050-04	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11071-31050-05	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31041-01	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31041-02	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31041-03	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31041-04	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31041-05	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31080-01	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31080-02	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31080-03	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31080-04	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
11701-31080-05	Bearing, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13011-31200	Ring Set, Piston (STD)	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13041-31090-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13041-31090-02	Bearing, Connecting Rod	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13041-31090-03	Bearing, Connecting Rod	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13041-31090-04	Bearing, Connecting Rod	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13101-31030-A0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13101-31030-B0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13101-31030-C0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13201-39235-A0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13201-39235-B0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13201-39235-C0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13265-28010	Bolt, Connecting Rod	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13265-28020	BOLT CONNECTING ROD	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13401-31011	Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13470-31014	Pulley, Crankshaft	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13521-31060	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13581-31030	Shaft, Idle Gear, No.1	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
13582-31010	Shaft, Idle Gear, No.2	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
90119-16004	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
90520-22025	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
90999-73144	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([05.2015 - ] (1505- )1GRFE)
