Search › Model › GGH20

GGH20

Toyota ALPHARD-VELLFIRE · 2008 · 5,477 parts · 290 categories

5,477 items

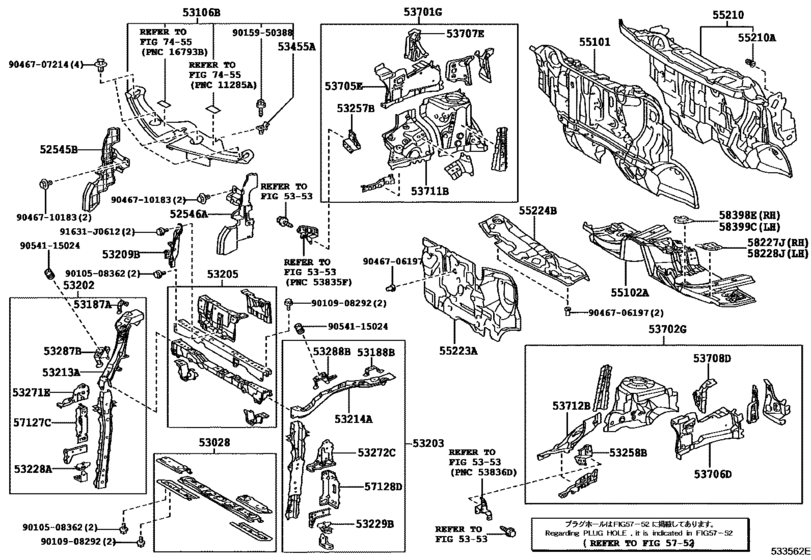

Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD) 63

#	OEM	Part name
52545	52545-58010	Seal, Front Bumper Side, No.2 Rh
52545	52545-58030	Seal, Front Bumper Side, No.2 Rh
52546	52546-58010	Seal, Front Bumper Side, No.2 Lh
52546	52546-58030	Seal, Front Bumper Side, No.2 Lh
53028	53028-28050	Support Sub-Assy, Radiator, Lower
53106	53106-58010	Cover Sub-Assy, Raidiator
53106	53106-58030	Cover Sub-Assy, Raidiator
53187	53187-58010	Stay, Radiator Support, Rh
53188	53188-58010	Stay, Radiator Support, Lh
53202	53202-58020	Support Sub-Assy, Radiator, Rh
53202	53202-58040	Support Sub-Assy, Radiator, Rh
53202	53202-58030	Support Sub-Assy, Radiator, Rh
53203	53203-58030	Support Sub-Assy, Radiator, Lh
53203	53203-58050	Support Sub-Assy, Radiator, Lh
53203	53203-58040	Support Sub-Assy, Radiator, Lh
53205	53205-58050	Support Sub-Assy, Radiator, Upper
53205	53205-58060	Support Sub-Assy, Radiator, Upper
53209	53209-58010	Brace Sub-Assy, Hood Lock Support
53209	53209-58030	Brace Sub-Assy, Hood Lock Support
53213	53213-58020	Support, Radiator, Upper Rh
53214	53214-58020	Support, Radiator, Upper Lh
53228	53228-28040	Bracket, Radiator Mounting, Lower No.1
53229	53229-28030	Bracket, Radiator Mounting, Lower No.2
53257	53257-58010	Bracket, Radiator Support To Front Fender
53258	53258-58010	Bracket, Radiator Support To Front Fender, Lh
53271	53271-58010	Bracket, Headlamp Mounting, Rh
53272	53272-58010	Bracket, Headlamp Mounting, Lh
53287	53287-58010	Extension, Radiator Support, Rh
53288	53288-58010	Extension, Radiator Support, Lh
53455	53455-26020	Clamp, Hood Support Rod
53701	53701-58060	Apron Sub-Assy, Front Fender, Rh
53702	53702-58050	Apron Sub-Assy, Front Fender, Lh
53705	53705-58021	Member Sub-Assy, Front Apron To Cowl Side, Rh
53706	53706-58021	Member Sub-Assy, Front Apron To Cowl Side, Lh
53707	53707-58020	Apron Sub-Assy, Fender Side, Rh
53708	53708-58020	Apron Sub-Assy, Fender Side, Lh
53711	53711-28100	Apron, Front Fender, Front Rh
53712	53712-28080	Apron, Front Fender, Front Lh
55101	55015-58020	Panel Sub-Assy, Dash
55101	55015-58021	Panel Sub-Assy, Dash
55101	90179-06274	Nut
55102	55102-58020	Panel Sub-Assy, Dash, Lower
55210	55210-58050	Insulator Assy, Dash Panel
55210	55210-58051	Insulator Assy, Dash Panel
55210	90467-13079	Clip
55223	55223-58040	Insulator, Dash Panel, Outer
55223	55223-58041	Insulator, Dash Panel, Outer
55224	55224-58020	Insulator, Dash Panel, Outer No.2
55224	55224-58021	Insulator, Dash Panel, Outer No.2
57127	57127-28110	Reinforcement, Front Side Member, Rear Rh
57128	57128-28080	Reinforcement, Front Side Member, Rear Lh
58227	58227-28070	Plate, Floor Panel Side, Rh
58228	58228-28040	Plate, Floor Panel Side, Lh
58398	58398-28070	Cover, Floor Under, No.1
58399	58399-28010	Cover, Floor Under, No.2
91631	91631-J0612	BRACKET
9010508362	90105-08362	BOLT WASHER BASED
9010908292	90109-08292	New Genuine Part
9015950388	90159-50388	SCREW, W/WASHER
9046706197	90467-06197	Clip
9046707214	90467-07214	Clip, Front Fender Liner
9046710183	90467-10183	Clip(For Luggage Compartment Trim Inner Cover)
9054115024	90541-15024	Cushion, Radiator Support

OEM	Part name	Category
52545-58010	Seal, Front Bumper Side, No.2 Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
52545-58030	Seal, Front Bumper Side, No.2 Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
52546-58010	Seal, Front Bumper Side, No.2 Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
52546-58030	Seal, Front Bumper Side, No.2 Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53028-28050	Support Sub-Assy, Radiator, Lower	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53106-58010	Cover Sub-Assy, Raidiator	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53106-58030	Cover Sub-Assy, Raidiator	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53187-58010	Stay, Radiator Support, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53188-58010	Stay, Radiator Support, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53202-58020	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53202-58030	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53202-58040	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53203-58030	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53203-58040	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53203-58050	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53205-58050	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53205-58060	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53209-58010	Brace Sub-Assy, Hood Lock Support	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53209-58030	Brace Sub-Assy, Hood Lock Support	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53213-58020	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53214-58020	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53228-28040	Bracket, Radiator Mounting, Lower No.1	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53229-28030	Bracket, Radiator Mounting, Lower No.2	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53257-58010	Bracket, Radiator Support To Front Fender	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53258-58010	Bracket, Radiator Support To Front Fender, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53271-58010	Bracket, Headlamp Mounting, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53272-58010	Bracket, Headlamp Mounting, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53287-58010	Extension, Radiator Support, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53288-58010	Extension, Radiator Support, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53455-26020	Clamp, Hood Support Rod	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53701-58060	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53702-58050	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53705-58021	Member Sub-Assy, Front Apron To Cowl Side, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53706-58021	Member Sub-Assy, Front Apron To Cowl Side, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53707-58020	Apron Sub-Assy, Fender Side, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53708-58020	Apron Sub-Assy, Fender Side, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53711-28100	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
53712-28080	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55015-58020	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55015-58021	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55102-58020	Panel Sub-Assy, Dash, Lower	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55210-58050	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55210-58051	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55223-58040	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55223-58041	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55224-58020	Insulator, Dash Panel, Outer No.2	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
55224-58021	Insulator, Dash Panel, Outer No.2	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
57127-28110	Reinforcement, Front Side Member, Rear Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
57128-28080	Reinforcement, Front Side Member, Rear Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
58227-28070	Plate, Floor Panel Side, Rh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
58228-28040	Plate, Floor Panel Side, Lh	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
58398-28070	Cover, Floor Under, No.1	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
58399-28010	Cover, Floor Under, No.2	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90105-08362	BOLT WASHER BASED	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90109-08292	New Genuine Part	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90159-50388	SCREW, W/WASHER	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90179-06274	Nut	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90467-06197	Clip	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90467-07214	Clip, Front Fender Liner	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90467-10183	Clip(For Luggage Compartment Trim Inner Cover)	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90467-13079	Clip	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
90541-15024	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
91631-J0612	BRACKET	Front Fender Apron & Dash Panel ([06.2010 - ] (1006- )LHD)
