GGH20

Toyota ALPHARD-VELLFIRE · 2008 · 5,477 parts · 290 categories

5,477 items

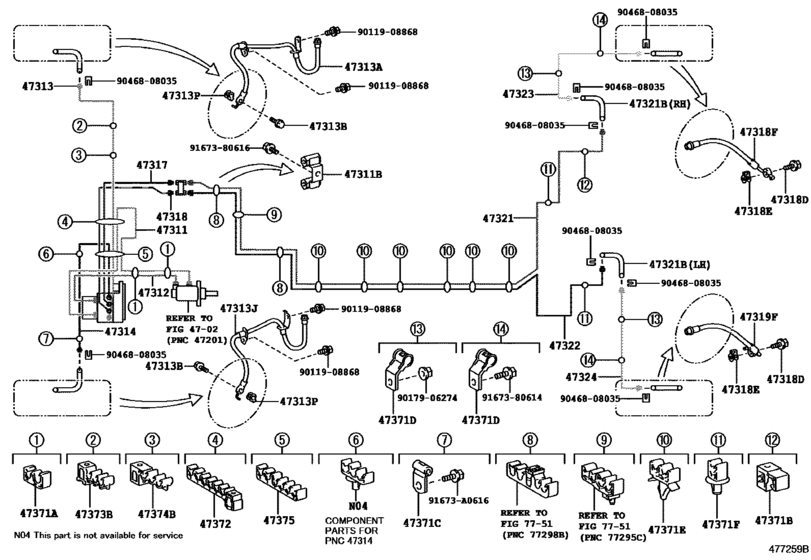

Brake Tube & Clamp ([06.2010 - ] (1006- )LHD) 39

#	OEM	Part name
47311	47311-58050	Tube, Front Brake, No.1
47311	90412-10260	Way, No.1(For Front Brake Tube)
47311	90412-10285	Way, No.1(For Front Brake Tube)
47312	47312-58060	Tube, Front Brake, No.2
47313	47313-58030	Tube, Front Brake, No.3
47313	90947-02F47	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-02F48	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-28370	Tube, Front Brake, No.4
47317	47317-28250	Tube, Front Brake, No.7
47318	47318-28070	Tube, Front Brake, No.8
47318	90947-02F45	Hose, Flexible(For Rear Rh)
47319	90947-02F46	Hose, Flexible(For Rear Lh)
47321	47321-28540	Tube, Rear Brake, No.1
47321	90947-02E60	Hose, Flexible(For Rear Brake Tube)
47321	90947-02F44	Hose, Flexible(For Rear Brake Tube)
47322	47322-28350	Tube, Rear Brake, No.2
47323	47323-28360	Tube, Rear Brake, No.3
47323	47323-28420	Tube, Rear Brake, No.3
47324	47324-28260	Tube, Rear Brake, No.4
47371	90464-00899	Clamp, Brake Tube, No.1
47371	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
47371	90461-08730	Clamp, Brake Tube, No.6
47371	90461-10731	Clamp, Brake Tube, No.8
47371	90469-07019	Clamp, Brake Tube, No.1
47371	90949-01D29	Clamp(For Clutch Tube)
47371	90949-01E01	Clamp, Brake Tube, No.9
47372	90949-01D34	Clamp, Brake Tube, No.2
47373	90949-01C95	Clamp, Brake Tube, No.8
47374	47371-13040	Clamp, Brake Tube, No.4
47375	90464-00892	Clamp, Brake Tube, No.2
91673	91673-A0616	BOLT, FLANGE
9011908868	90119-08868	BOLT WWASHER
9017906274	90179-06274	Nut
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9167380614	91673-80614	BOLT, FLANGE W/WASER
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
47311-58050	Tube, Front Brake, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47312-58060	Tube, Front Brake, No.2	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47313-58030	Tube, Front Brake, No.3	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47314-28370	Tube, Front Brake, No.4	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47317-28250	Tube, Front Brake, No.7	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47318-28070	Tube, Front Brake, No.8	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47321-28540	Tube, Rear Brake, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47322-28350	Tube, Rear Brake, No.2	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47323-28360	Tube, Rear Brake, No.3	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47323-28420	Tube, Rear Brake, No.3	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47324-28260	Tube, Rear Brake, No.4	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47371-13040	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90179-06274	Nut	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90412-10260	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90412-10285	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90461-08730	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90461-10731	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90464-00892	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90464-00899	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90468-08035	CLIP	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90469-07019	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90947-02E60	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90947-02F44	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90947-02F45	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90947-02F46	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90947-02F47	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90947-02F48	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90949-01C95	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90949-01D34	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
90949-01E01	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
91673-80614	BOLT, FLANGE W/WASER	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
91673-80616	Bolt, W/washer	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
91673-A0616	BOLT, FLANGE	Brake Tube & Clamp ([06.2010 - ] (1006- )LHD)
