Abs modulator (DIESEL; 2 .0L) 4

#	OEM	部品名
1	57101-S5A-A00	Damper
2	57102-S5A-A00	Bolt - ABS MOUNTING
3	57110-S6D-G60	Modulator assy
4	57115-S5T-E01	Bracket comp. - MODULATOR

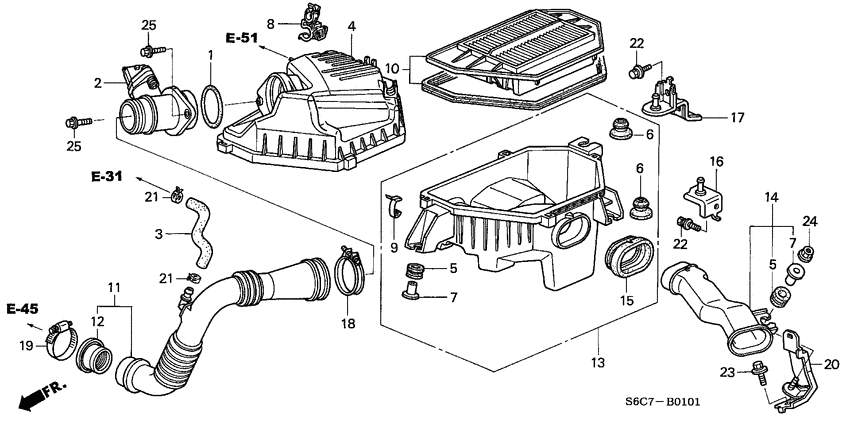

Air cleaner (DIESEL) 21

#	OEM	部品名
1	16176-PLZ-E00	O-ring - AIR FLOW SENSOR
2	16400-PLZ-E01	Sensor assy - AIR FLOW
3	17131-PLZ-E00	Tube - PCV
4	17210-PLZ-E01	Cover comp. - AIR CLEANER
5	17212-PLZ-E01	Rubber - AIR CLEANER MOUNTING
6	17212-P2J-000	Rubber - AIR CLEANER MOUNTING
7	17216-P2A-005	Collar - AIR CLEANER MOUNTING
8	17219-PLZ-E01	Clamp - AIR CLEANER
9	17219-P2A-005	Clip - AIR CLEANER
10	17220-PLZ-E01	Element - AIR CLEANER
11	17225-PLZ-E01	Tube assy - AIR FLOW
12	17229-PLZ-E01	Insulator - AIR FLOW TUBE
13	17240-PLZ-E01	Case assy. - AIR CLEANER
14	17243-PLZ-E01	Tube assy - AIR INTAKE
15	17244-PLZ-E01	Rubber - AIR INTAKE SEAL
16	17261-PLZ-G00	Stay comp. a - AIR CLEANER
17	17262-PLZ-G00	Stay comp. b - AIR CLEANER
18	17315-P5K-000	Clamp - AIR FLOW TUBE (74)
19	17316-PLZ-E01	Clamp - AIR FLOW TUBE (56)
20	38251-S6F-000	Bracket a - RELAY BOX
21	90682-SB0-671	Clamp - CANISTER HOSE

Air conditioner (COMPRESSOR; DIESEL) 10

#	OEM	部品名
1	38800-PLZ-D00	Compressor assy
2	38901-PLZ-D00	Armature
3	38906-PLZ-D00	Pulley - MAGNET CLUTCH
4	38912-PLZ-D00	Seal - SHAFT
5	38920-PLZ-D00	Belt - GENERATOR DRIVE
6	38924-PLZ-D00	Coil - FIELD MAGNET CLUTCH
7	38930-PLZ-D00	Bracket - COMPRESSOR
8	38940-PLZ-D00	Idler assy
9	90033-PLZ-D00	Bolt - BRACKET
10	90085-PLZ-D00	Bolt - COMPRESSOR BRACKET

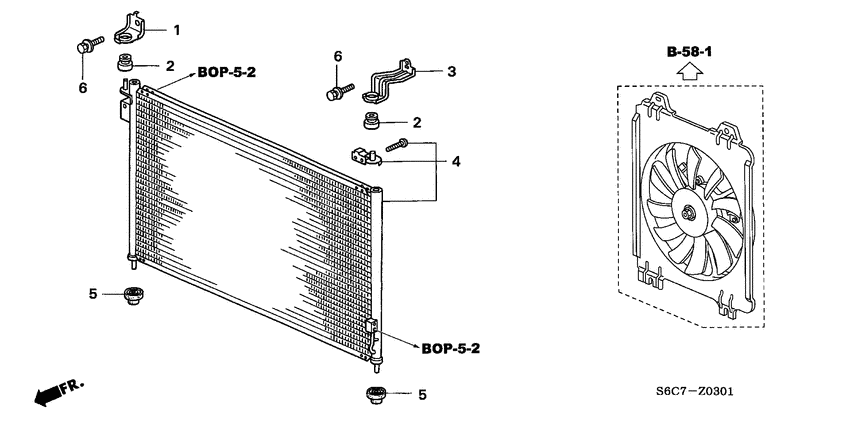

Air conditioner (CONDENSER; DIESEL) 12

#	OEM	部品名
1	80107-S6F-000	Bracket - R. CONDENSER UPPER
1	38611-PLZ-E01	Fan - COOLING
2	80107-S87-A01	Rubber - CONDENSER UPPER
2	38615-PLZ-E01	Sub shroud comp.
3	80108-S6F-000	Bracket - L. CONDENSER UPPER
3	38616-PLZ-E01	Motor - COOLING FAN
4	80110-S6F-E01	Condenser comp.
4	38619-PLZ-E01	Protector - FAN MOTOR HEAT
5	80175-S87-A01	Rubber - CONDENSER MOUNTING
10	90041-P3G-003	Screw-washer - 5X11
11	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
12	90043-PD2-003	Nut - HEX., 5MM (DENSO)

Air conditioner (COOLING UNIT; LH) 13

#	OEM	部品名
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
2	53747-SA5-003	Clip - POWER STEERING HOSE
3	79511-S6D-G01	Knob - A/C
5	80211-S6D-G12	Evaporator assy.
6	80215-S6A-003	Plate
7	80216-S6A-003	Insulator - EXPANSION VALVE
9	80271-S6F-000	Hose - DRAIN
10	80430-S6A-003	Thermostat - AIR CONDITIONER
12	80460-S6F-E00	Harness - AIR CONDITIONER WIRE
13	80871-ST7-000	O-ring - 5/8"
14	80872-ST7-000	O-ring - 1/2"
15	90125-S6A-003	Bolt - 5X35

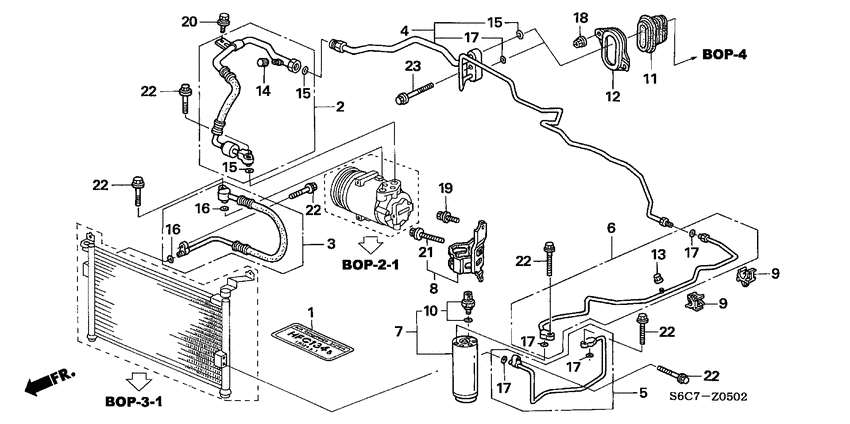

Air conditioner (HOSES/PI PES; LH; DIESEL) 18

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-S6F-G02	Hose comp. - SUCTION
3	80315-S6F-E01	Hose comp. - DISCHARGE
4	80325-S6F-G02	Pipe assy. - AIR CONDITIONER
5	80331-S6F-E01	Pipe - CONDENSER
6	80341-S6F-E01	Pipe comp - RECEIVER
7	80351-S6F-E21	Receiver comp - ###
8	80352-S5A-000	Bracket - LIQUID TANK
9	80387-SM4-A01	Clip - RECEIVER PIPE
10	80440-S6F-003	Switch - TRIPLE PRESSURE (CALSONIC)
11	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
12	80465-S5A-A00	Cover - AIR CONDITIONER PIPE
13	80865-S6D-003	Cap - VALVE (H)
14	80866-S6A-003	Cap - VALVE (L)
15	80871-ST7-000	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"
17	80873-ST7-000	O-ring - 8MM
18	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Air conditioner (KIT) 1

#	OEM	部品名
3	80000-S6F-G54	General assy. - AIR CONDITIONER

Alloy wheel - 14x5.5jj- 5 spoke 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Alloy wheel - 15x6.0jj 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Alloy wheel 15x6j / es-r6 6-spoke 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Antenna/speaker 15

#	OEM	部品名
1	39120-SEL-902	Speaker assy - 17CM SINGLE) (FR.) (MATSUSHITA
1	39120-S5A-911	Speaker assy - 17CM SINGLE) (PIONEER
3	39122-S5A-000	Seal - SPEAKER HOLE
4	39151-S6A-E02	Element assy. - YOKOO
4	39151-S6A-E03	ELEMENT ASSY YOKOO
5	39152-S6A-E01	Base comp. - ANTENNA (YOKOO)
6	39153-S5T-J51	Nut - FLANGE (YOKOO)
7	39154-S6A-E01	Pad - YOKOO
8	39156-S6A-G00	Sub feeder
9	39160-S6A-G00	Feeder assy. - ROOF ANTENNA
10	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
11	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
12	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
13	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
14	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Auto radio 1

#	OEM	部品名
8	91551-SE0-003	Bolt - FLANGE, 5X7

Battery (DIESEL) 17

#	OEM	部品名
1	31500-S6F-G01	Battery - 096-MF) (YUASA
2	31510-S37-D00	Cover - BATTERY TERMINAL
3	31512-S6F-000	Plate - BATTERY SETTING
4	31513-SM4-000	Bolt - BATTERY SETTING(195MM)
5	31531-S6F-000	Cover - BATTERY
6	32116-P64-003	Holder - CORRUGATED (DARK GREEN) (13MM)
7	32410-S6F-000	Cable assy - STARTER
8	32600-S6F-000	Cable assy - BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL
11	90153-SE0-003	Bolt - EARTH, 6X12
12	90182-SB6-000	Bolt-washer - 6X16
13	90337-SJ4-003	Nut - A.L.B.
14	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
15	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
16	91551-S6F-G01	Clamp
17	91571-SP0-003	Clip - WIRE HARNESS (BLACK) (64MM)

Brake lines (ABS; LH; DIESEL) 35

#	OEM	部品名
1	01464-S6D-000	Hose set - R. FR. BRAKE
2	01465-S6D-000	Hose set - L. FR. BRAKE
3	01466-S5A-J04	Hose set - R. RR. BRAKE
4	01468-S5A-J04	Hose set - L. RR. BRAKE
5	46330-S6A-Y00	Pipe comp. c - BRAKE
6	46340-S6A-Y00	Pipe comp. d - BRAKE
7	46374-S6F-G50	Pipe comp. u - BRAKE
8	46375-S6F-G50	Pipe comp. v - BRAKE
9	46376-S6F-E00	Pipe comp. w - BRAKE
10	46377-S6F-G01	Pipe comp. x - BRAKE
11	46378-S6F-G00	Pipe comp. y - BRAKE
12	46379-S6F-G01	Pipe comp. z - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE
14	46391-S5A-J01	Clip - BRAKE PIPE
15	46391-S5A-Z01	Clip - BRAKE PIPE
16	46391-S5T-G01	Clip - BRAKE PIPE
17	46391-S6F-000	Clip - BRAKE PIPE
18	46392-SB2-014	Clip b - BRAKE PIPE
19	46392-S0X-A01	Clip - BRAKE PIPE
20	46393-SZ3-003	Clip - BRAKE PIPE
21	46393-S6D-010	Clip - BRAKE PIPE
22	46393-S6M-A11	Clip - PIPE
23	46395-SR3-J01	Clip b - BRAKE PIPE
24	46396-S7A-003	Clip - BRAKE PIPE
25	46397-S5A-000	Clamp - R. BRAKE PIPE
26	46398-S5A-000	Clamp - L. BRAKE PIPE
27	46435-S5A-900	Bracket a - R. RR. BRAKE HOSE
28	46436-S5A-900	Bracket a - L. RR. BRAKE HOSE
29	46437-S5A-J00	Bracket - R. RR. BRAKE HOSE
30	46438-S5A-J00	Bracket - L. RR. BRAKE HOSE
31	46462-SE0-000	Bolt - OIL
32	46470-S5T-E01	Joint - FOUR WAY
33	46472-568-000	Packing - OIL BOLT
34	90361-SV4-003	Nut - PAINT CUTTING, 6MM
35	90651-SN7-003	Clip - BRAKE HOSE

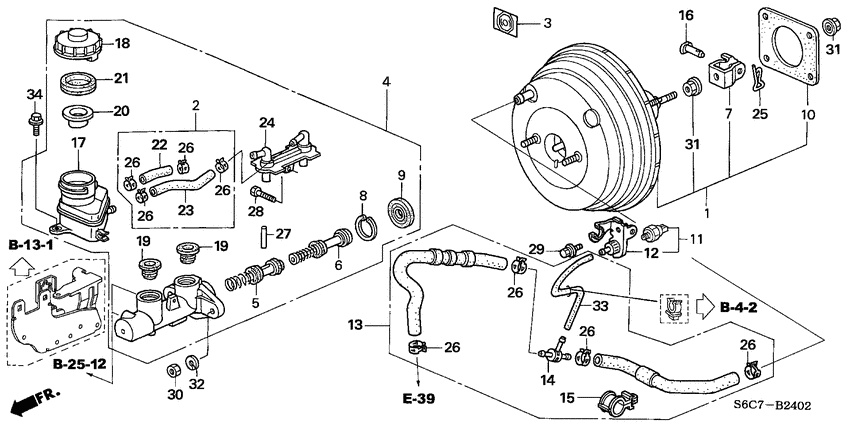

Brake master cylinder/ master power (LH; DIESEL) 27

#	OEM	部品名
1	01469-S6F-G00	Power set - MASTER (9")
2	46017-S6A-000	Hose set - RESERVE TANK
3	46070-SL0-G01	Plate - SYMBOL MARK
4	46100-S6F-G02	Cylinder assy. - MASTER
5	46120-S0A-013	Piston assy. - PRIMARY
6	46122-S10-013	Piston assy. - SECONDARY
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
8	46182-S10-003	Circlip
9	46185-S04-J01	Seal - ROD
10	46191-S2K-000	Packing - MASTER POWER
11	46401-S6F-E01	Switch assy - VACUUM
12	46401-S6F-000	Bracket comp. - VACUUM SWITCH
13	46402-S6F-G03	Tube assy - MASTER POWER
14	46403-S1B-E00	Joint - THREE WAY
15	46407-S84-A01	Clamp - TUBE
16	46512-S70-000	Pin - PEDAL
17	46661-S6F-G01	Reservoir set
18	46662-S5A-003	Cap comp. - RESERVE TANK
19	46665-S04-J01	Grommet
20	46666-S2K-003	Filter - BRAKE RESERVOIR
21	46669-S5A-003	Diaphragm
22	46672-S6A-003	Hose - RESERVE TANK
23	46673-S6A-003	Hose - RESERVE TANK
24	46680-S6A-013	Union - RESERVOIR
25	46911-S70-003	Pin, LOCK(8MM)
26	53729-671-003	Clamp d - 15.5MM
27	57515-S30-003	Pin - STOP

Bumpers 21

#	OEM	部品名
3	33505-S6A-003	Reflector assy - R. RR.
4	33555-S6A-003	Reflector assy - L. RR.
5	71110-S6A-000	Spoiler - FR. BUMPER AIR
11	71190-S6A-000	Beam comp - L. FR. BUMPER UPPER
12	71193-S6A-000	Spacer - R. FR. BUMPER SIDE
13	71198-S6A-000	Spacer - L. FR. BUMPER SIDE
15	71505-S5A-J00	Bracket - R. RR. BUMPER SIDE
17	71555-S5A-J00	Bracket - L. RR. BUMPER SIDE
20	71592-S6A-000	Clip assy. - BUMPER SPACER
21	71593-S6A-003	Spacer - R. RR. BUMPER SIDE
22	71598-S6A-003	Spacer - L. RR. BUMPER SIDE
23	90105-634-000	Bolt-washer (8x20)
24	90109-SS0-000	Screw - TAPPING, 5X20
25	90126-SR4-000	Screw-washer - 5X16
26	90149-SA0-003	Bolt - BUMPER
27	90150-S84-003	Bolt - EARTH, 8X16
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM
29	90302-SD2-003	Nut-washer - 8MM
31	90682-SB0-003	Grommet - SCREW, 5MM
32	91503-SZ3-003	Clip A
33	91503-SZ5-003	Clip - BUMPER FACE

Camshaft/valve (DIESEL) 70

#	OEM	部品名
1	13621-PLZ-D00	Pulley - CRANKSHAFT TIMING BELT
2	13622-PLZ-D00	Plate - TIMING BELT GUIDE
3	14011-PLZ-D00	Gear - CAMSHAFT
4	14012-PLZ-D00	Plate - CAMSHAFT END
5	14111-PLZ-D00	Camshaft - INTAKE
6	14121-PLZ-D00	Camshaft - EX.
7	14210-PLZ-D00	Pulley - CAMSHAFT TIMING
8	14211-PLZ-D00	Flange - CAMSHAFT PULLEY
9	14400-PLZ-D00	Belt - TIMING
10	14520-PLZ-D00	Pulley - IDLE TIMING
11	14530-PLZ-D00	Pulley - TENSIONER
12	14621-PLZ-D00	Tappet - VALVE
13	14711-PLZ-D00	Valve - IN.
14	14721-PLZ-D10	Valve - EX.
15	14752-PLZ-D00	Spring - VALVE
16	14765-PLZ-D00	Seat - SPRING
17	14775-PLZ-D00	Seat - SPRING
18	14781-PLZ-D00	Collar - SPLIT
19	14791-PLZ-D20	Adjuster - VALVE GAP (2.74MM)
19	14793-PLZ-D90	Adjuster - VALVE GAP (3.28MM)
19	14793-PLZ-D40	Adjuster - VALVE GAP (3.18MM)
19	14792-PLZ-D90	Adjuster - VALVE GAP (3.08MM)
19	14792-PLZ-D40	Adjuster - VALVE GAP (2.98MM)
19	14791-PLZ-D90	Adjuster - VALVE GAP (2.88MM)
19	14791-PLZ-D40	Adjuster - VALVE GAP (2.78MM)
19	14793-PLZ-D60	Adjuster - VALVE GAP (3.22MM)
19	14793-PLZ-D10	Adjuster - VALVE GAP (3.12MM)
19	14792-PLZ-D60	Adjuster - VALVE GAP (3.02MM)
19	14792-PLZ-D10	Adjuster - VALVE GAP (2.92MM)
19	14791-PLZ-D60	Adjuster - VALVE GAP (2.82MM)
19	14791-PLZ-D10	Adjuster - VALVE GAP (2.72MM)
19	14793-PLZ-D80	Adjuster - VALVE GAP (3.26MM)
19	14793-PLZ-D30	Adjuster - VALVE GAP (3.16MM)
19	14792-PLZ-D80	Adjuster - VALVE GAP (3.06MM)
19	14792-PLZ-D30	Adjuster - VALVE GAP (2.96MM)
19	14791-PLZ-D80	Adjuster - VALVE GAP (2.86MM)
19	14791-PLZ-D30	Adjuster - VALVE GAP (2.76MM)
19	14794-PLZ-D00	Adjuster - VALVE GAP (3.30MM)
19	14793-PLZ-D50	Adjuster - VALVE GAP (3.20MM)
19	14793-PLZ-D00	Adjuster - VALVE GAP (3.10MM)
19	14792-PLZ-D50	Adjuster - VALVE GAP (3.00MM)
19	14792-PLZ-D00	Adjuster - VALVE GAP (2.90MM)
19	14791-PLZ-D50	Adjuster - VALVE GAP (2.80MM)
19	14791-PLZ-D00	Adjuster - VALVE GAP (2.70MM)
19	14793-PLZ-D70	Adjuster - VALVE GAP (3.24MM)
19	14793-PLZ-D20	Adjuster - VALVE GAP (3.14MM)
19	14792-PLZ-D70	Adjuster - VALVE GAP (3.04MM)
19	14792-PLZ-D20	Adjuster - VALVE GAP (2.94MM)
19	14791-PLZ-D70	Adjuster - VALVE GAP (2.84MM)
20	15111-PLZ-D00	Pulley - OIL PUMP TIMING
21	17042-PLZ-D00	Pulley - INJECTION PUMP TIMING
22	37841-PLZ-D00	Sensor - CAM ANGLE
23	37845-PLZ-D00	Bracket - CAM SENSOR
24	90014-PLZ-D00	Bolt - CAM PULLEY
25	90014-PLZ-D10	Bolt - BRACKET
26	90014-PLZ-D20	Bolt - IDLE PULLEY
27	90014-PLZ-D30	Screw - FLANGE
28	90014-PLZ-D40	Bolt - TENSIONER
29	90014-PLZ-D50	Bolt - SENSOR
30	90114-PLZ-D00	Stud - SPRING STOPPER
31	90214-PLZ-D00	Nut - PULLEY
32	90214-PLZ-D10	Nut - PULLEY
33	90414-PLZ-D00	Washer - CAMSHAFT GEAR
34	90414-PLZ-D10	Washer - GEAR CAM
35	90614-PLZ-D00	Ring - SNAP
36	90614-PLZ-D10	Spring - GEAR
37	90714-PLZ-D00	Pin - CAMSHAFT
38	90714-PLZ-D10	Pin - PULLEY KNOCK
39	90714-PLZ-D20	Pin - GEAR SET
40	91214-PLZ-D00	Seal - CAMSHAFT OIL

Clutch (DIESEL) 4

#	OEM	部品名
1	21100-PMZ-D40	Adapter set
2	22200-PLZ-016	Disk - CLUTCH
3	22300-PLZ-006	Plate assy. - PRESSURE
4	90034-PLZ-D40	Bolt - CLUTCH COVER

Clutch master cylinder (LH; DIESEL) 38

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke
4	46182-500-013	Circlip
5	46391-S5A-Z01	Clip - BRAKE PIPE
6	46394-S04-003	Clip A
7	46911-S70-003	Pin, LOCK(8MM)
8	46912-S84-A00	Pin - CLUTCH PEDAL
9	46920-S5A-G04	Cylinder assy. - CLUTCH MASTER
10	46921-S5A-003	Plate - STOPPER
11	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
12	46928-S5A-A01	Seal - MASTER CYLINDER
13	46930-S6F-E01	Cylinder assy. - CLUTCH SLAVE
14	46931-S5A-003	Pin - SPRING
15	46932-S5A-003	Piston - SLAVE CYLINDER
16	46937-SS1-003	Boot - SLAVE CYLINDER
17	46939-S6F-000	Adapter - CYLINDER
18	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
19	46942-S5A-003	Pin - SNAP
20	46943-S5A-003	Seal - RING
21	46944-S5A-J01	Connector
22	46945-S5A-003	O-ring
23	46946-S5A-003	Screw-washer - 4X12
24	46947-S5A-003	Rod - PUSH
25	46948-S5A-003	Rod - PUSH
26	46949-S5A-003	Seal - RING
27	46960-S6F-G03	Pipe comp. a - CLUTCH
28	46960-S6F-902	Pipe comp. c - CLUTCH
29	46961-S7C-003	Hose, Clutch
30	46965-S6F-G01	Tank assy. - CLUTCH
31	46968-S6F-E01	Bracket b - CLUTCH PIPE
32	46970-S6F-E02	Pipe comp. b - CLUTCH
33	46971-S6F-G01	Tube - CLUTCH FLUID
34	46972-S6F-E01	Clamp - TUBE (D12)
35	46985-SV4-003	Damper - CLUTCH
36	46995-S6F-023	Bracket a - CLUTCH PIPE
37	90651-538-000	Clip - BRAKE HOSE
38	91593-SV4-003	Clip - FUEL PIPE (C)

Clutch shift fork (DIESEL) 4

#	OEM	部品名
1	22821-PMZ-D40	Fork assy - CLUTCH
2	22822-PMZ-D40	Lever - CLUTCH INTERNAL
3	90010-PMZ-D40	Bolt - INTERNAL LEVER
4	91103-PMZ-D40	Bearing - CLUTCH SHAFT

Combination switch 18

#	OEM	部品名
1	06350-S6D-R21	Cylinder set - KEY
2	35100-S6A-E21	Lock assy - STEERING
2	35100-SJD-G01	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35113-S0X-Y01	Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER)
6	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
8	35130-S7S-J01	Switch comp - STEERING
9	35251-S5A-Y03	Body comp - SWITCH
10	35255-S5A-G02	Switch assy - LIGHTING & TURN SIGNAL
13	35256-S6A-G01	Switch assy
14	35257-S5A-J01	Bracket
15	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)
16	39730-SEA-E01	Immobilizer unit
17	72118-ST7-003	Screw - TAPPING, 3X5
22	90132-S2H-G11	Screw - ET, 5.5X18
22	90132-S2H-G01	Screw - ET, 5X18

Control unit (CABIN; LH) 20

#	OEM	部品名
3	37821-PLZ-G00	Bracket comp. a - ELECTRONIC CONTROL UNIT (LH)
4	37822-PLZ-G00	Bracket comp. b - ELECTRONIC CONTROL UNIT (LH)
6	37828-PLZ-G00	Bracket - RELAY (LH)
8	37910-PLZ-G01	Control unit - FUEL HEATER
9	37911-PLZ-G00	Bracket comp. - FUEL HEATER CONTROL UNIT
13	38200-S6A-G21	Box assy - FUSE
14	38201-S5A-A01	Bracket - FUSE BOX
15	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
15	38300-S5P-A01	Relay assy - TURN SIGNAL & HAZARD (OMRON)
15	38300-S5T-004	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
19	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
19	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
19	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
19	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
19	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
22	39794-S5A-901	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
27	39980-S6F-G03	Eps unit
29	90137-SF1-000	Bolt-washer - 6X25
30	90153-SE0-003	Bolt - EARTH, 6X12
31	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; DIESEL; LH) 37

#	OEM	部品名
1	32120-PLZ-G00	Holder - HARNESS
2	38100-S04-A01	Horn assy - LOW (MITSUBA)
5	38150-ST7-G01	Horn assy - HIGH (MITSUBA)
6	38192-S6F-G01	Cover - MULTI RELAY
7	38196-PLZ-G00	Bracket - SUB RELAY BOX
8	38199-PLZ-G00	Bracket comp. - SUB RELAY BOX (LH)
9	38213-SM4-003	Fuse - BLOCK (50A)
10	38214-SS1-003	Fuse - BLOCK (60A)
11	38215-SX8-003	Fuse - BLOCK (70A)
12	38218-SM4-003	Fuse - BLOCK (100A)
13	38230-S6F-G02	Box assy - SUB FUSE
14	38231-S04-003	Fuse - BLOCK (30A)
15	38231-S04-961	Fuse - BLOCK (40A)
16	38231-S6F-G01	Cover comp. - UPPER
17	38233-S6F-000	Bracket comp. - SUB FUSE BOX
18	38235-S04-003	Puller - MINI FUSE (SUMITOMO)
19	38250-S6F-G02	Box assy - RELAY
20	38252-S5A-003	Cover - LOWER
21	38252-S6F-000	Bracket comp. b - RELAY BOX
22	38253-S5T-000	Bracket - RELAY BOX SIDE
23	38254-S6F-G02	Cover - UPPER
24	38255-S6F-G01	Busbar assy. - SHORT
25	39762-SG0-003	Relay assy - POWER (5P) (DENSO) (056700-8160)
26	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
27	39792-S6F-E01	Relay - NORMAL OPEN
28	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
28	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
29	39794-SL0-J01	Relay assy - POWER (4P) (MITSUBA) (RC-2226) (BROWN)
30	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
30	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
30	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
31	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
32	90114-SG0-003	Bolt - 5X13
33	90114-SM4-900	Bolt - 6X15
34	90129-SP0-000	Screw-washer - 5X12
35	90129-SX8-003	Screw-washer - 5X12
36	90150-S84-003	Bolt - EARTH, 8X16

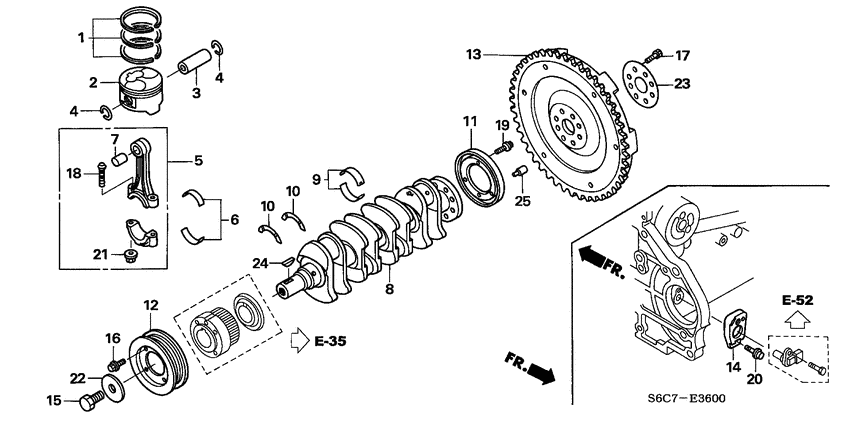

Crankshaft/piston/flywhee l (DIESEL) 32

#	OEM	部品名
1	13011-PLZ-D00	Ring set - PISTON (STD.)
2	13102-PLZ-D00	Piston - B
2	13101-PLZ-D00	Piston - A
2	13103-PLZ-D00	Piston - C
3	13111-PLZ-D00	Pin - PISTON
4	13115-PLZ-D00	Ring - PISTON PIN SNAP
5	13210-PLZ-D00	Rod assy - CONNECTING
6	13211-PLZ-D00	Metal set - CONNECTING ROD (STD.) (BLUE)
6	13213-PLZ-D00	Metal set - CONNECTING ROD (STD.) (BROWN)
6	13212-PLZ-D00	Metal set - CONNECTING ROD (STD.) (BLACK)
7	13232-PLZ-D00	Bush - CONNECTING ROD
8	13310-PLZ-D00	Crankshaft
9	13324-PLZ-D00	Metal set - CRANKSHAFT (STD.) (GREEN)
9	13321-PLZ-D00	Metal set - CRANKSHAFT (STD.) (BLUE)
9	13323-PLZ-D00	Metal set - CRANKSHAFT (STD.) (BROWN)
9	13322-PLZ-D00	Metal set - CRANKSHAFT (STD.) (BLACK)
10	13331-PLZ-D00	Washer - CRANKSHAFT THRUST
11	13623-PLZ-D00	Rotor - CRANKSHAFT SENSOR
12	13810-PLZ-D10	Pulley - CRANKSHAFT DAMPER
13	22100-PLZ-D40	Flywheel
14	37505-PLZ-D00	Spacer - CRANK SENSOR
15	90015-PLZ-D00	Bolt - PULLEY CENTER
16	90015-PLZ-D10	Bolt - DAMPER
17	90015-PLZ-D20	Bolt - FLYWHEEL
18	90015-PLZ-D30	Bolt - CONNECTING ROD
19	90015-PLZ-D40	Screw - ROTOR
20	90015-PLZ-D50	Bolt - SPACER
21	90215-PLZ-D00	Nut - CONNECTING ROD
22	90415-PLZ-D00	Washer - CRANKSHAFT PULLEY
23	90415-PLZ-D10	Washer - FLYWHEEL
24	90715-PLZ-D00	Key - CRANKSHAFT WOODRUFF
25	90715-PLZ-D10	Pin - CRANKSHAFT

Cylinder block (DIESEL) 22

#	OEM	部品名
1	11000-PLZ-D00	Block assy - CYLINDER
2	15140-PLZ-D00	Orifice
3	15280-PLZ-D00	Pipe - OIL JET
4	15711-PLZ-D00	Pipe - OIL RETURN
5	15712-PLZ-D00	Pipe - TURBOCHARGER OIL RETURN (B)
6	15713-PLZ-D10	Adapter - OIL FEED PIPE (B)
7	15714-PLZ-D00	Pipe - TURBOCHARGER OIL RETURN (A)
8	15715-PLZ-D00	Valve - OIL CHECK
9	15716-PLZ-D00	Adapter - OIL FEED PIPE (A)
10	19225-PLZ-D00	Guide - GALLERY
11	37240-PLZ-D00	Switch - OIL PRESSURE
12	90012-PLZ-D10	Bolt - BEARING CAP
13	90112-PLZ-D20	Stud - PUMP HOLE
14	90112-PLZ-D10	Stud - EX. PIPE
15	90412-PLZ-D00	Gasket - OIL FEED NIPPLE
16	90412-PLZ-D10	Gasket - ADAPTER
17	90712-PLZ-D00	Dowel pin - CYLINDER BLOCK- HEAD
18	90812-PLZ-D00	Cup - OIL GALLERY SEALING (A)
19	90812-PLZ-D10	Cup - OIL GALLERY SEALING (B)
20	90812-PLZ-D20	Cup - SEALING
21	90812-PLZ-D30	Cup - OIL GALLERY SEALING
22	91312-PLZ-D00	Gasket - PLUG

Cylinder head (DIESEL) 24

#	OEM	部品名
1	11912-PLZ-D00	Hanger - ENGINE
2	11913-PLZ-D00	Hanger - ENGINE
3	12100-PLZ-D10	Head assy - CYLINDER
4	12204-PLZ-D00	Guide - VALVE
5	12205-PLZ-D00	Sleeve - INJECTOR
6	12210-PLZ-D20	Seat - VALVE INSERT
7	12210-PLZ-D30	Seat - VALVE INSERT
8	12211-PLZ-D00	Seal - OIL VALVE GUIDE
9	12230-PLZ-D10	Carrier - CAMSHAFT
10	12235-PLZ-D10	Gasket - CARRIER
11	12251-PLZ-D30	Gasket - CYLINDER HEAD (1.35MM)
11	12251-PLZ-D50	Gasket - CYLINDER HEAD (1.45MM)
11	12251-PLZ-D40	Gasket - CYLINDER HEAD (1.40MM)
12	12291-PLZ-D10	Plug - GLOW
13	90011-PLZ-D00	Bolt - CYLINDER HEAD
14	90011-PLZ-D10	Bolt - HANGER
15	90011-PLZ-D20	Bolt - CARRIER
16	90011-PLZ-D30	Bolt - CARRIER
17	90111-PLZ-D00	Stud - EX. MANIFOLD
18	90111-PLZ-D10	Stud - CAM BRACKET
19	90211-PLZ-D00	Nut - CAM BRACKET
20	90711-PLZ-D00	Dowel pin - CYLINDER HEAD
21	90811-PLZ-D00	Cup - CYLINDER HEAD SEALING
22	91311-PLZ-D00	Gasket - INJECTOR SLEEVE

Cylinder head cover (DIESEL) 13

#	OEM	部品名
1	12310-PLZ-D00	Cover - CYLINDER HEAD
2	12316-PLZ-D00	Collar - HEAD COVER
3	12317-PLZ-D00	Mounting - HEAD COVER
4	12341-PLZ-D00	Gasket - CYLINDER HEAD COVER
5	12342-PLZ-D00	Cover - NOZZLE SEAL
6	12342-PLZ-D10	Cover - NOZZLE SEAL
7	12500-PLZ-D00	Cover - CYLINDER HEAD NOISE
8	15610-PLZ-D00	Cap - OIL FILLER
9	15613-PLZ-D00	Gasket - OIL FILLER
10	90010-PLZ-D00	Bolt - CYLINDER HEAD COVER
11	90010-PLZ-D10	Bolt - COVER
12	90010-PLZ-D20	Bolt - COVER
13	90010-PLZ-D30	Bolt - COVER

Differential (DIESEL) 38

#	OEM	部品名
1	41221-PMZ-D40	Gear - DIFFERENTIAL SIDE
2	41233-PMZ-D40	Gear - RING
3	41311-PMZ-D40	Case - DIFFERENTIAL
4	41312-PMZ-D40	Gear - SPEEDOMETER DRIVE
5	41313-PMZ-D40	Pin - CROSS LOCK
6	41321-PMZ-D40	Pin - DIFFERENTIAL PINION CROSS
7	41341-PMZ-D40	Gear - DIFFERENTIAL PINION
8	41351-PMZ-D40	Washer - THRUST SIDE GEAR (1.00MM)
8	41353-PMZ-D40	Washer - THRUST SIDE GEAR (1.10MM)
8	41352-PMZ-D40	Washer - THRUST SIDE GEAR (1.05MM)
9	41371-PMZ-D40	Washer - THRUST SIDE GEAR
10	41390-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.84MM)
10	41385-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.44MM)
10	41402-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.80MM)
10	41397-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.40MM)
10	41392-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (2.00MM)
10	41387-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.60MM)
10	41382-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.20MM)
10	41404-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.96MM)
10	41399-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.56MM)
10	41394-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.16MM)
10	41389-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.76MM)
10	41384-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.36MM)
10	41401-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.72MM)
10	41396-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.32MM)
10	41391-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.92MM)
10	41386-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.52MM)
10	41381-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.12MM)
10	41403-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.88MM)
10	41398-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.48MM)
10	41393-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.08MM)
10	41388-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.68MM)
10	41383-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.28MM)
10	41400-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.64MM)
10	41395-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.24MM)
11	90017-PMZ-D40	Bolt - RING GEAR SET
12	91005-PMZ-D42	Bearing - DIFFERENTIAL (KOYO)
12	91005-PMZ-D41	Bearing - DIFFERENTIAL (NSK)

Duct (LH) 5

#	OEM	部品名
1	77400-S6A-G01	Duct assy - INSTRUMENT
2	83331-S6D-G01	Duct assy - RR. HEATER LOWER
3	83332-S6D-G00	Duct assy - RR. HEATER MIDDLE
4	83333-S6D-G00	Duct assy - RR. HEATER UPPER
5	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Emblems/caution labels 11

#	OEM	部品名
1	17669-PLZ-E01	Label - FUEL FILLER CAUTION (DIESEL)
2	19043-PLZ-E00	Label - COOLANT INFORMATION
3	42760-S6F-G00	Plate - TIRE PRESSURE CAUTION
4	75700-S9A-G00	Front Honda Emblem - (H)
5	75701-S6A-E11	Emblem - RR. (H)
7	75722-S5A-000	Emblem - RR. (CIVIC)
10	75723-S6F-G01	Emblem - RR. (CTDI)
13	77875-S84-G80	Label - SRS CAUTION
14	78031-S1A-E80	Label - SIDE AIRBAG CAUTION
15	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
16	90301-ST0-003	push nut, 3mm

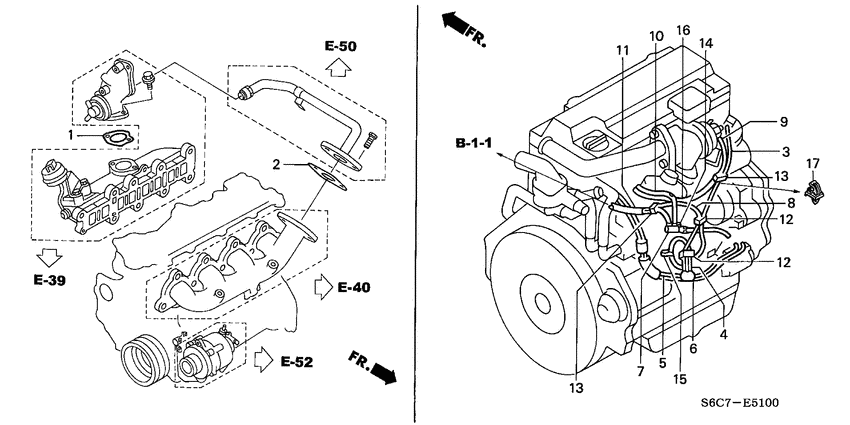

Emission piping (DIESEL) 17

#	OEM	部品名
1	18715-PLZ-D00	Gasket - EGR VALVE
2	18716-PLZ-D00	Gasket - EGR PIPE
3	36161-PLZ-D00	Hose - VACUUM (A)
4	36162-PLZ-D00	Hose - VACUUM (B)
5	36163-PLZ-D00	Hose - VACUUM (C)
6	36165-PLZ-D00	Joint - FOUR WAY
7	36166-PLZ-D00	Joint - THREE WAY
8	36173-PLZ-D00	Hose - EGR VALVE (A)
9	36174-PLZ-D10	Hose - EGR VALVE (B)
10	36178-PLZ-D10	Hose - EGR VALVE (C)
11	36179-PLZ-D10	Hose - THREE WAY
12	90657-PLZ-D00	Clip - VACUUM HOSE (A)
13	90657-PLZ-D10	Clip - VACUUM HOSE (B)
14	90657-PLZ-D20	Clip - VACUUM HOSE (D)
15	90657-PLZ-D30	Clip - VACUUM HOSE (E)
16	90657-PLZ-D40	Clip - VACUUM HOSE (C)
17	90657-PLZ-D50	Clip - VACUUM HOSE (F)

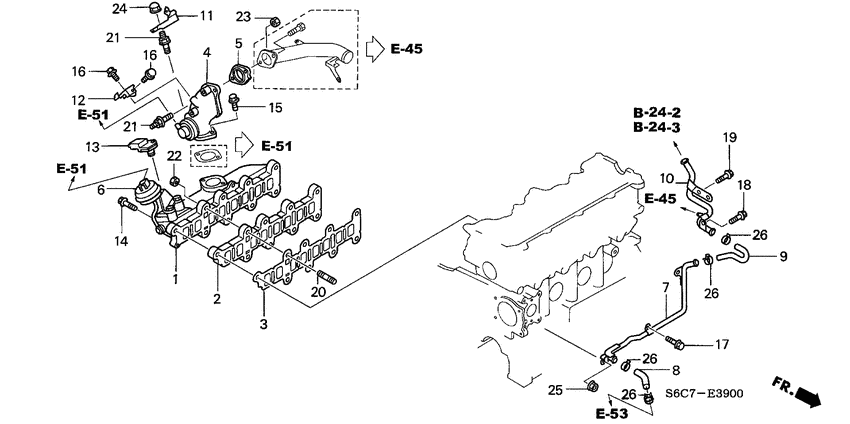

Emission system (DIESEL) 8

#	OEM	部品名
1	17145-PLZ-D00	Pipe - EGR
2	36170-PLZ-D11	Valve - REGULATING (A)
3	36175-PLZ-D00	Bracket - VSV & EVRV
4	36176-PLZ-D00	Bracket - REGULATING VALVE
5	90056-PLZ-D00	Bolt - EGR PIPE
6	90056-PLZ-D10	Bolt - EGR PIPE
7	90056-PLZ-D20	Bolt - BRACKET
8	90056-PLZ-D30	Bolt - VALVE

Engine electrical (DIESEL) 25

#	OEM	部品名
1	31100-PLZ-D00	Alternator assy.
2	31160-PLZ-D00	Bracket - GENERATOR
3	31200-PLZ-D00	Starter assy
4	31221-PLZ-E00	Bush - INSULATION
5	32110-PLZ-D10	Harness - ENGINE WIRE
6	32745-PLZ-D00	Bracket - HARNESS
7	37501-PLZ-D00	Sensor - CRANK ANGLE
8	37820-PLZ-E10	Control module - ENGINE
9	37870-PLZ-D00	Sensor - GLOW PLUG THERMO
10	90056-PLZ-D20	Bolt - BRACKET
11	90060-PLZ-D00	Bolt - STARTER, 12X90
12	90060-PLZ-D10	Bolt - STARTER, 10X35
13	90060-PLZ-F00	Bolt - GENERATOR BRACKET
14	90060-PLZ-D30	Bolt - GENERATOR BRACKET, 8X30
15	90060-PLZ-D40	Bolt - GENERATOR BRACKET, 14X35
16	90060-PLZ-D50	Bolt - GENERATOR BRACKET, 10X40
17	90060-PLZ-D60	Bolt - PROTECTOR, 6X20
18	90060-PLZ-D70	Bolt - PROTECTOR, 6X12
19	90060-PLZ-D80	Bolt - HARNESS, 4X8
20	90060-PLZ-D90	Bolt - SENSOR, 6X12
21	90061-PLZ-D00	Bolt - GENERATOR BRACKET, 10X60
22	90260-PLZ-D00	Nut - GENERATOR
23	90460-PLZ-D00	Washer - TERMINAL
24	90760-PLZ-D00	Distance - STARTER
25	91360-PLZ-D00	Gasket - CRANKSHAFT SENSOR

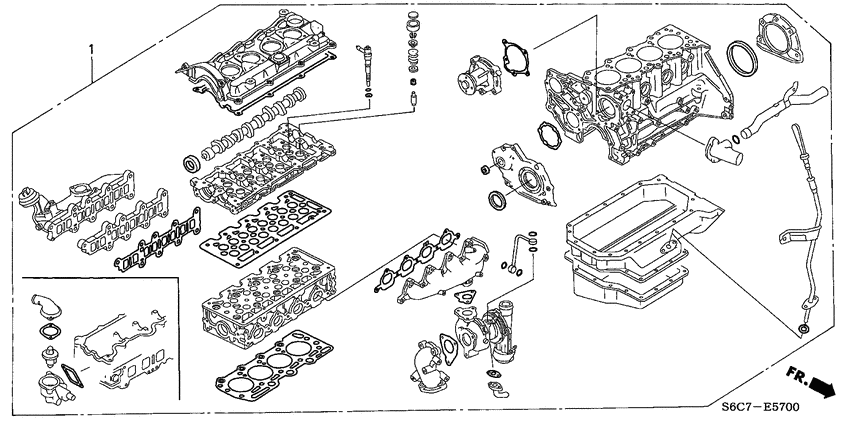

Engine head gasket kit (DIESEL) 3

#	OEM	部品名
1	06110-PLZ-D30	Gasket set - ENGINE HEAD (1.45MM)
1	06110-PLZ-D50	Gasket set - ENGINE HEAD (1.55MM)
1	06110-PLZ-D40	Gasket set - ENGINE HEAD (1.50MM)

Engine mount (DIESEL) 2

#	OEM	部品名
1	11900-PLZ-D00	Foot - ENGINE
2	90022-PLZ-D00	Bolt - ENGINE FOOT

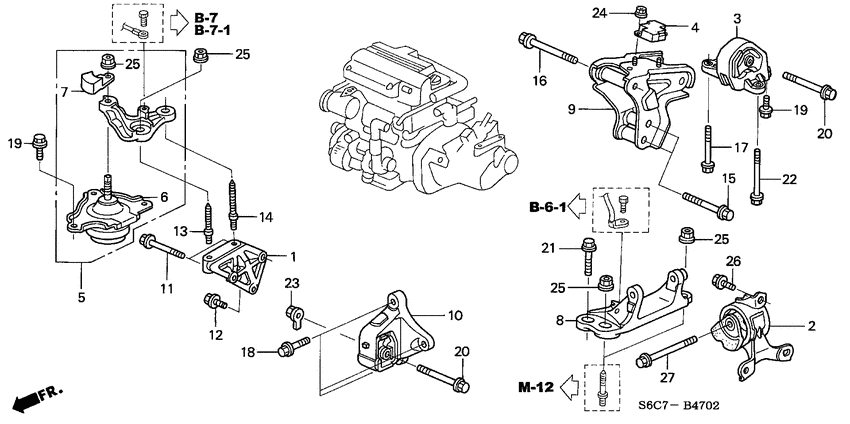

Engine mounts (DIESEL) 23

#	OEM	部品名
1	11910-PLZ-E00	Bracket - ENGINE MOUNTING
2	50805-S6F-E02	Rubber assy. - TRANSMISSION MOUNTING
3	50810-S6F-E02	Insulator - RR. ENGINE RUBBER (MT)
4	50815-S6F-E00	Damper - RR. ENGINE MOUNTING BRACKET
5	50820-S6F-E03	Rubber assy. - ENGINE SIDE MOUNTING
6	50821-S6F-E01	Rubber, ENGINE SIDE MOUNTING
7	50824-S6F-E01	Mass - ENGINE SIDE
8	50825-S6F-E01	Bracket - TRANSMISSION MOUNTING
9	50827-S6F-E00	Bracket - RR. ENGINE MOUNTING
10	50840-S6F-E02	Stopper - FR. ENGINE
11	90008-PLZ-E00	Bolt a - ENGINE MOUNTING BRACKET
12	90009-PLZ-E00	Bolt b - ENGINE MOUNT BRACKET
13	90041-PT0-000	Bolt - STUD, 12X60
14	90043-PNA-010	Bolt - STUD, 12X91
15	90160-S6F-E00	Bolt - FLANGE, 14X85
16	90161-S6F-E00	Bolt - FLANGE, 14X110
17	90162-S5B-010	Bolt - FLANGE, 10X75
18	90162-S6F-E00	Bolt - FLANGE, 12X40
19	90163-S5A-000	Bolt - FLANGE, 10X20
20	90167-S5A-010	Bolt - FLANGE, 12X88
21	90168-S5A-000	Bolt - FLANGE, 12X35
22	90326-SL0-A00	Bolt - 10X97
23	90371-S5A-000	Nut - YOKE, 12MM

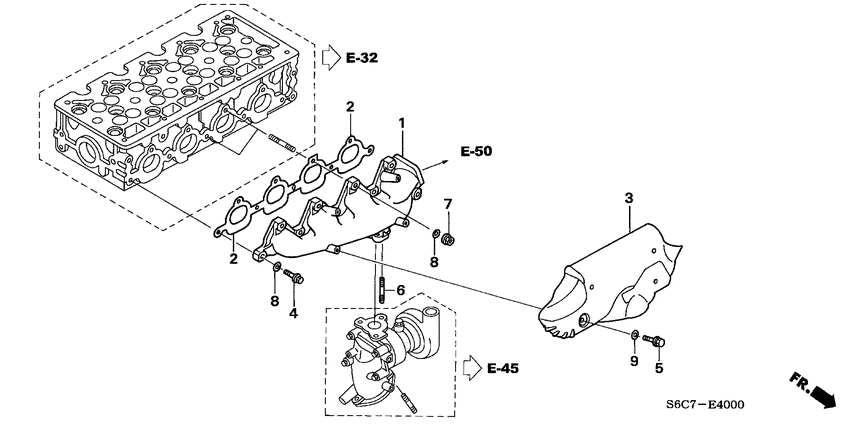

Exhaust manifold (DIESEL) 9

#	OEM	部品名
1	18100-PLZ-D00	Manifold - EX.
2	18115-PLZ-D00	Gasket - EX. MANIFOLD
3	18120-PLZ-D00	Protector - EX. MANIFOLD HEAT
4	90027-PLZ-D00	Bolt - EX. MANIFOLD
5	90027-PLZ-D10	Bolt - HEAT PROTECTOR
6	90127-PLZ-D00	Stud - MANIFOLD-TURBOCHARGER
7	90227-PLZ-D00	Nut - EX. MANIFOLD
8	90427-PLZ-D00	Washer - EX. MANIFOLD
9	90427-PLZ-D10	Washer - HEAT PROTECTOR

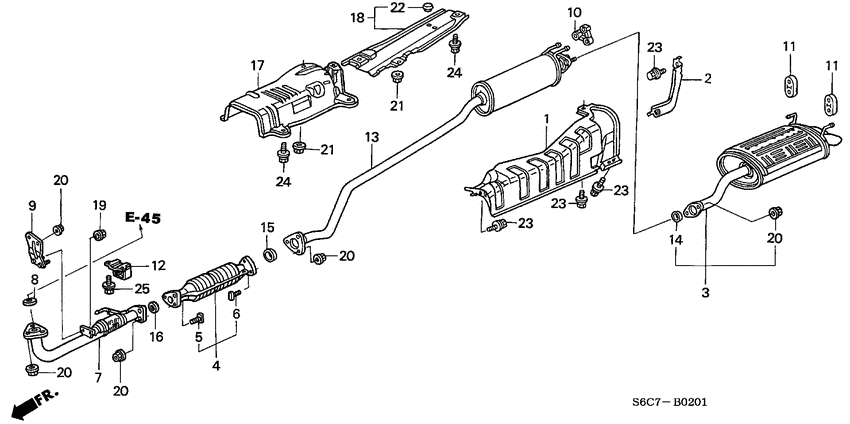

Exhaust pipe (DIESEL) 22

#	OEM	部品名
1	17519-S5A-931	Protector, FUEL TANK
2	17520-S5A-931	Stay - FUEL TANK PROTECTOR
3	18030-S5V-E01	Silencer set - EX.
4	18160-PLZ-E00	Converter comp.
5	18176-PT0-003	Bolt - CONVERTER
6	18176-P08-003	Bolt - CONVERTER
7	18210-S6F-E01	Pipe a - EX.
8	18212-SM4-003	Gasket - EX. PIPE (ISHINO)
9	18213-S6F-E00	Stay - EX. MOUNTING
10	18215-S5A-A11	Rubber - EX. MOUNTING
11	18215-S5D-A01	Rubber - EX. MOUNTING
12	18215-S6F-E01	Rubber - EX. MOUNTING
13	18220-S6F-E01	Pipe b - EX.
14	18303-SM4-020	Gasket - SILENCER
15	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
16	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
17	74601-S6F-E00	Plate a - FLOOR HEAT BAFFLE
18	74605-S6A-000	Plate - FLOOR HEAT BAFFLE (B)
19	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
20	90212-SA5-003	Nut - SELF-LOCK, 10MM
21	90301-SP0-003	Nut - PAINT CUTTING, 6MM
22	90852-SA5-000	Plug - HOLE, 10MM

Floor mat 10

#	OEM	部品名
1	74251-S6D-G00	Insulator - DASHBOARD LOWER OUTER
2	74260-S6F-G00	Insulator - DASHBOARD
15	90667-ST8-003	Clip - SIDE LINING
17	90676-SB2-003	Clip - DASHBOARD INSULATOR
18	90676-S5A-003	Clip - DASHBOARD INSULATOR
19	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
20	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)
21	91547-SM4-003	Cap - INSULATOR
22	91560-S04-003	Clip - SIDE GARNISH (NATURAL)
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Floor/inner panels 1

#	OEM	部品名
37	90108-S0A-003	Bolt - FLANGE, 6X15

Fog light kit 3

#	OEM	部品名
8	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY
8	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO
10	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)

Fr mesh grille 2

#	OEM	部品名
2	75700-S9A-G00	Front Honda Emblem - (H)
3	90301-ST0-003	push nut, 3mm

Front brake (2) 21

#	OEM	部品名
2	01463-S1A-E02	Caliper set - FR. (LUCAS57MM)
3	44300-S6D-E01	Bearing assy - FR. HUB
4	44600-S5A-J00	Hub assy - FR. (14")
5	45012-S6F-E01	Body comp - R. CALIPER
6	45013-S6F-E01	Body comp - L. CALIPER
7	45014-S1A-E62	Bracket comp. - R. FR. CALIPER
8	45015-S1A-E62	Bracket comp. - L. FR. CALIPER
9	45022-S6F-E50	Pad set - FR.
9	45022-S6F-305	Pad set - FR. (ADHESIVE SIM)
10	45216-S1A-E01	Piston
11	45240-SK3-E00	Bolt
12	45251-S6F-E10	Disk - FR. BRAKE (14",23T)
13	45255-S6D-E00	Guard - FR. BRAKE SPLASH (14")
14	45352-SN7-G41	Screw - BLEEDER
15	45353-SN7-G41	Cap - BLEEDER
16	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
17	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
17	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
17	90113-SA0-006	Bolt - WHEEL (SAGA)
18	90681-ST3-E00	Circlip - INTERNAL, 79MM
21	45011-S6F-305	Shim set - ADHESIVE

Front bulkhead/dashboard 4

#	OEM	部品名
57	74232-S5A-000	Rod - BRAKE PEDAL SUPPORT
58	90101-S6A-000	Bolt-washer - 8MM
59	90105-634-000	Bolt-washer (8x20)
60	90108-S0A-003	Bolt - FLANGE, 6X15

Front door lining (LH) 7

#	OEM	部品名
4	72335-S6A-003	Weatherstrip - R. FR. DOOR INNER
5	72375-S6A-003	Weatherstrip - L. FR. DOOR INNER
16	90132-SE3-003	Screw - TAPPING, 4X12
17	90662-SB2-003	Grommet - SCREW, 5MM
18	90666-S84-A01	Clip - SNAP FITTING
19	90682-SB0-003	Grommet - SCREW, 5MM
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Front door locks/outer ha ndle 40

#	OEM	部品名
1	72110-S6D-G11	Lock assy - R. FR. DOOR POWER
2	72112-SR4-004	Snap - BROWN
3	72113-SR4-004	Snap - BLACK
4	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
6	72116-S04-003	Holder - ROD(SKY BLUE)
7	72117-S04-003	Holder - ROD (YELLOW)
8	72117-S6A-Q01	Protector - R. FR. DOOR LOCK
9	72118-ST7-003	Screw - TAPPING, 3X5
10	72119-S04-003	Stopper a - OUTSIDE HANDLE
12	72123-SR0-003	Ring - OUTSIDE HANDLE
13	72130-S6A-E01	Protector - R. FR. DOOR OUTER HANDLE
14	72131-S6A-E01	Rod - R. FR. INSIDE HANDLE
15	72135-S5A-003	Striker assy - DOOR LOCK
17	72138-S6D-E02	Protector - R. FR. DOOR KEY ROD
18	72139-SR0-A01	Snap - VIOLET
19	72139-S6D-E01	Protector - R. FR. DOOR KNOB ROD
20	72140-S7A-003	Handle assy - R. FR. DOOR OUTSIDE
21	72141-SD4-004	Bush - R. JOINT
23	72143-S04-003	Packing
24	72145-S0X-A51	Cylinder - R. DOOR
26	72146-S0X-A51	Cylinder - L. DOOR
27	72149-SR4-000	Snap - R.
28	72150-S6D-G11	Lock assy - L. FR. DOOR POWER
29	72156-S5A-003	Switch assy - L. FR. DOOR LOCK
31	72157-S6A-Q01	Protector - L. FR. DOOR LOCK
32	72170-S6A-E01	Protector - L. FR. DOOR OUTER HANDLE
33	72171-S6A-E01	Rod - L. FR. INSIDE HANDLE
34	72175-SH3-003	Holder - DOOR LOCK ROD
35	72178-S6D-E02	Protector - L. FR. DOOR KEY ROD
36	72179-S6D-E01	Protector - L. FR. DOOR KNOB ROD
37	72180-S7A-003	Handle assy - L. FR. DOOR OUTSIDE
38	72181-SD4-004	Bush - L. JOINT
41	72189-SR4-000	Snap - L.
42	72616-SM4-003	Snap - NATURAL
45	90120-SM4-000	Screw - TAPPING
46	90120-SV4-000	Bolt - LOCK STRIKER
47	90141-S84-003	Screw - 3X10
48	90866-SA0-000	Grommet - SCREW, 4MM
49	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
51	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front door panels 19

#	OEM	部品名
5	67325-S6A-013	Tape - R. FR. DOOR SASH UPPER
6	67326-S6A-003	Tape - R. FR. DOOR SASH CENTER
7	67365-S6A-013	Tape - L. FR. DOOR SASH UPPER
8	67366-S6A-003	Tape - L. FR. DOOR SASH CENTER
13	72310-S6D-E01	Weatherstrip - R. FR. DOOR
14	72311-S5S-003	Clip A - DOOR WEATHERSTRIP
15	72311-S6D-E01	Clip b
16	72321-S6D-G01	Seal - R. FR. DOOR HOLE
17	72336-S6A-E00	Tape - REFLECTOR
18	72340-S5D-A03	Checker comp. - R. FR. DOOR
19	72350-S6D-E01	Weatherstrip - L. FR. DOOR
20	72361-S6D-G01	Seal - L. FR. DOOR HOLE
21	72380-S5D-A03	Checker comp. - L. FR. DOOR
22	75891-SA7-000	Stopper - DOOR
23	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
24	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
24	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
25	90141-S04-000	Bolt - FLANGE, 8X22
26	91563-SP0-003	Clip - DOOR WEATHERSTRIP OFFSET

Front door windows/regula tor 13

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72210-S6D-G11	Regulator assy - R. FR. DOOR POWER
3	72230-S6D-E01	Sash - R. FR. DOOR FR. LOWER
4	72231-S6D-G01	Sash - R. FR. DOOR CENTER LOWER
5	72235-S6D-E02	Runchannel - R. FR. DOOR
6	72250-S6D-Y02	Regulator assy - L. FR. DOOR POWER
7	72270-S6D-E01	Sash - L. FR. DOOR FR. LOWER
8	72271-S6D-G01	Sash - L. FR. DOOR CENTER LOWER
9	72275-S6D-E02	Runchannel - L. FR. DOOR
10	73300-S6D-E00	Glass assy - R. FR. DOOR (GREEN)(SAINT-GOBAIN)
11	73350-S6D-E00	Glass assy - L. FR. DOOR (GREEN)(SAINT-GOBAIN)
12	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
13	91580-SM4-003	Clip - COUPLER(ORANGE)

Front driveshaft 16

#	OEM	部品名
1	44014-S6F-E01	Joint set - OUTBOARD (GKN HSP)
2	44017-S6F-E01	Boot set - INBOARD (GKN HSP)
3	44018-S6F-E01	Boot set - OUTBOARD (GKN HSP)
4	44305-S6F-E51	Driveshaft assy. - R.
5	44306-S6F-E51	Driveshaft assy. - L.
6	44310-S6F-E01	Joint comp - INBOARD
8	44327-S6F-E01	Band - OUTBOARD BOOT (GKN)
9	44318-S1A-E01	Band r - BOOT (GKN)
10	44319-S6F-E01	Set ring
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-S1A-E01	Ring b - STOPPER
15	44338-S6F-E01	Circlip
16	44351-S6F-E11	Damper - DYNAMIC
17	44351-S6F-E01	Damper - DYNAMIC
24	90305-S1A-000	Nut - SPINDLE

Front fenders 22

#	OEM	部品名
3	74101-S6D-E10	Fender - R. FR. INNER
4	74105-S6F-E00	Fairing - R. FR. FENDER
5	74108-S6A-000	Tape - STIFFENER(225X110)
6	74110-S6F-E00	Tray assy - R. UNDER COVER
8	74115-S6F-E00	Tray assy - L. UNDER COVER
9	74151-S6D-E10	Fender - L. FR. INNER
10	74155-S6F-E00	Fairing - L. FR. FENDER
11	74206-S6F-E00	Garnish - R. FR. FENDER
12	74207-S6F-E00	Garnish - L. FR. FENDER
13	90108-S0A-003	Bolt - FLANGE, 6X15
14	90114-SE0-000	Screw - TAPPING, 5X20
15	90126-SR4-000	Screw-washer - 5X16
16	90308-SB2-013	Nut - SUSPENSION, 5MM
17	90682-SB0-003	Grommet - SCREW, 5MM
18	91501-S04-003	Clip - INNER FENDER
19	91503-SZ3-003	Clip A
20	91512-SD2-003	Clip - HEADLIGHT GARNISH
21	91532-S6F-E01	Clip A - FAIRING INSULATOR
22	91533-SG0-000	Clip b - FAIRING
23	91533-S6F-E01	Clip b - FAIRING INSULATOR
24	91545-SE0-003	Clip assy. - 8MM
25	91609-S6D-E00	Protector - FR. FENDER

Front grille 3

#	OEM	部品名
2	71121-S6D-000	Base - FR. GRILLE
3	71122-S6E-000	Cover - FR. GRILLE
7	91503-SZ3-003	Clip A

Front seat (LH; DRIVER SIDE) 12

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
4	81138-S6D-G21	Clip - H
10	81223-S04-000	Clip - SHAFT, 8MM
13	81522-S6D-E13	Pad assy - L. FR. SEATBACK
14	81526-S6D-U12	Frame comp - L. FR. SEATBACK
15	81528-S5A-J01	Holder - L. MODULE
17	81532-S6D-J12	Pad assy - L. FR. SEAT CUSHION
20	90134-SE3-003	Screw - TAPPING, 5X10
21	90321-SP0-A80	Nut-washer - 6MM
22	90610-SR3-003	Clip - GARNISH (KATO)
23	90656-PB1-003	Band - OIL HOSE

Front seat (LH; PASSENGER SIDE) 10

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	81122-S6D-E13	Pad assy - R. FR. SEATBACK
6	81126-S5S-G02	Frame comp - R. FR. SEATBACK
7	81128-S5A-J01	Holder - R. MODULE
9	81132-S6D-J02	Pad assy - R. FR. SEAT CUSHION
11	81138-S6D-G21	Clip - H
18	90321-SP0-A80	Nut-washer - 6MM
19	90610-S10-003	Clip - GARNISH
20	90656-PB1-003	Band - OIL HOSE

Front seat components (L.; 2) 11

#	OEM	部品名
2	81139-S3N-003	Link - FR.
3	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
4	81271-S5A-J01	Lever
5	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
6	81536-S6D-E12	Frame comp - L. FR. SEAT CUSHION
12	90135-S5A-003	Bolt-washer - 10X27
13	90143-SR3-000	Bolt-washer - 10X22
14	90303-S3N-003	Nut - FLANGE
15	90501-S3N-003	Washer a
16	90502-S3N-013	Bush a
17	90503-S3N-003	Spacer

Front seat components (R.; 1) 6

#	OEM	部品名
2	81136-S6D-E01	Frame comp - R. FR. SEAT CUSHION
7	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
8	81271-S5A-J01	Lever
9	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
11	90135-S5A-003	Bolt-washer - 10X27
12	90143-SR3-000	Bolt-washer - 10X22

Front shock absorber 15

#	OEM	部品名
1	51401-S6F-E01	Spring - FR.
2	51402-S6M-014	Rubber - SPRING UPPER SEAT
3	51601-S6F-E05	Absorber assy - R. FR. SHOCK
4	51602-S6F-E05	Absorber assy - L. FR. SHOCK
5	51605-S6F-E05	Absorber unit - R. FR. SHOCK
6	51606-S6F-E05	Absorber unit - L. FR. SHOCK
7	51688-S6M-014	Seat - FR. SPRING UPPER
8	51722-S6A-004	Rubber - FR. BUMP STOPPER
9	51726-S5A-004	BEARING, FR. SHOCK ABSORBER MOUNT
10	51920-S6A-014	Mount comp - R. FR. SHOCK ABSORBER
11	51925-S6A-014	Mount comp - L. FR. SHOCK ABSORBER
12	90002-S10-000	Nut - FLANGE, 10MM
13	90119-S6M-Z01	Bolt - FLANGE, 16X62
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
15	90382-S6M-Z01	Nut - FLANGE, 16MM

Front sub frame 4

#	OEM	部品名
1	50200-S6F-E01	Sub frame comp. - FR.
4	50205-S6F-E00	Damper - FR. SUB FRAME RR.
14	90174-S5A-003	Bolt-washer - 10X32
15	90175-S5A-000	Bolt - FLANGE, 14X115

Front windshield 13

#	OEM	部品名
1	73111-S6D-E10	Glass set - FR. WINDSHIELD (GREEN) (SPLINTEX)
2	73125-S6A-000	Rubber a - FR. WINDSHIELD DAM
3	73150-S6D-E01	Molding - FR. WINDSHIELD
4	73152-S6A-003	Garnish assy - R. FR. WINDSHIELD SIDE
5	73162-S6A-003	Garnish assy - L. FR. WINDSHIELD SIDE
6	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
7	91519-S6A-003	Clip A - BLACK
8	91520-S6A-003	Clip b - ORANGE
9	91521-S6A-003	Clip A - FR. WINDSHIELD SIDE GARNISH (GRAY)
10	91522-S6A-003	Clip b - FR. WINDSHIELD SIDE GARNISH (LIGHT BLUE)
11	91525-S6A-003	Clip d - FR. WINDSHIELD SIDE GARNISH
12	91568-SX0-003	Fastener a - WINDSHIELD
13	91577-S84-A01	Fastener - WINDSHIELD

Front wiper (LH) 23

#	OEM	部品名
1	76222-S6D-G01	Rubber - BLADE (600MM)
2	76505-S6D-G01	Motor comp - FR. WIPER
3	76510-SN7-E05	Rubber - MOUNTING
4	76516-S6D-G01	Rubber - MOUNTING
5	76517-S6D-G01	Collar
6	76518-S6D-G01	Rubber - MOUNTING
7	76519-S6D-G01	Collar
8	76520-S6D-G01	Link assy
9	76524-SN7-E05	Dust seal
10	76525-S6D-G01	Screw - 6X14
11	76530-S6D-G01	Link comp - WIPER
12	76540-S6D-G01	Rod unit a
13	76550-S6D-G01	Rod unit b
14	76561-S6D-G01	Cap - LEAF
15	76600-S6D-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76601-S5S-G01	Cover - ARM
17	76610-S5S-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
18	76620-S6D-G01	Blade - WINDSHIELD WIPER (600MM)
19	76630-S5S-G01	Blade - WINDSHIELD WIPER (380MM)
20	76632-S5S-G01	Rubber - BLADE (380MM)
21	90126-SR3-000	Bolt-washer - 6X32
22	90317-SN7-E05	Nut - HEX., 8MM
23	91611-S5A-000	Cap - FR. WIPER

Fuel injection system (DIESEL) 45

#	OEM	部品名
1	16450-PLZ-D00	Nozzle assy. - INJECTOR
2	16472-PLZ-D00	Gasket - INJECTOR NOZZLE
3	16473-PLZ-D00	Gasket - LEAK OFF PIPE
4	16620-PLZ-D10	Rail - COMMON
5	16621-PLZ-D10	Pipe - INJECTION (1)
6	16622-PLZ-D10	Pipe - INJECTION (2)
7	16623-PLZ-D00	Pipe - INJECTION (3)
8	16624-PLZ-D00	Pipe - INJECTION (4)
9	16625-PLZ-D00	Pipe - COMMON RAIL INJECTION
10	16722-PLZ-D00	Hose - FUEL LEAK RUBBER
11	16723-PLZ-D00	Pipe - FUEL
12	16724-PLZ-D00	Hose - FUEL
13	16725-PLZ-D00	Nipple - RAIL
14	16726-PLZ-D00	Bracket - HOSE
15	17040-PLZ-D00	Pump assy. - INJECTION
16	17046-PLZ-D10	Bracket - INJECTOR NOZZLE
17	17051-PLZ-D00	Protector - INJECTION PUMP
18	17052-PLZ-D10	Protector - INJECTION PUMP
19	17053-PLZ-D00	Stay - PROTECTOR
20	17054-PLZ-D00	Stay - PROTECTOR
21	17055-PLZ-D00	Stay - PROTECTOR
22	90040-PLZ-D00	Bolt - BRACKET
23	90040-PLZ-D10	Bolt - BRACKET
24	90040-PLZ-D40	Bolt - COMMON RAIL
25	90040-PLZ-D50	Bolt - COMMON RAIL
26	90040-PLZ-D60	Bolt - PROTECTOR, 6X12
27	90040-PLZ-D70	Bolt - BRACKET-INJECTION PUMP
28	90140-PLZ-D00	Stud - STAY
29	90240-PLZ-D00	Nut - INJECTION PUMP
30	90240-PLZ-D10	Nut - BRACKET
31	90240-PLZ-D20	Nut - STAY
32	90440-PLZ-D00	Gasket - FUEL PIPE JOINT
33	90440-PLZ-D10	Gasket
34	90440-PLZ-D20	Washer - PLAIN, 6MM
35	90640-PLZ-D00	Clip
36	90640-PLZ-D10	Clip - INJECTION PIPE
37	90640-PLZ-D20	Clip - INJECTION PIPE
38	90740-PLZ-D00	Spacer - COMMON RAIL
39	90740-PLZ-D10	Spacer - COMMON RAIL
40	90740-PLZ-D20	Pin
41	17056-PLZ-D00	Protector - INJECTION PUMP
42	17057-PLZ-D00	Protector - INJECTION PUMP
43	17058-PLZ-D00	Bracket - PROTECTOR INJECTION PUMP
44	90040-PLZ-D80	Bolt - PROTECTOR, 6X45
45	90740-PLZ-D30	Spacer - PROTECTOR

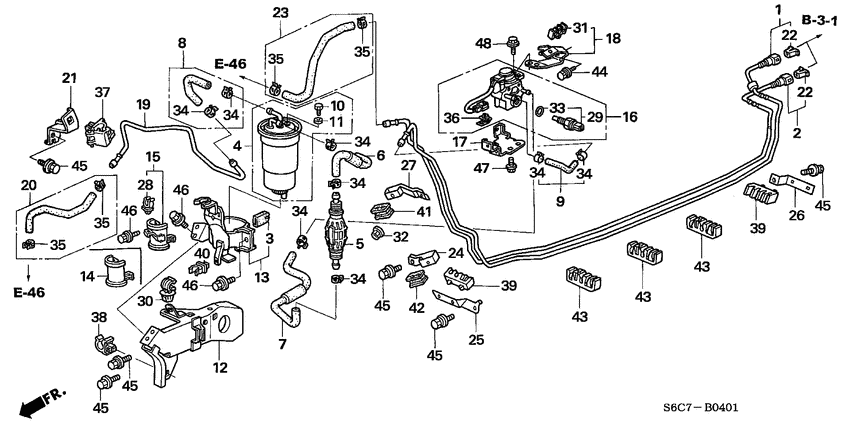

Fuel pipe (DIESEL) 42

#	OEM	部品名
1	16040-S6F-G01	Pipe comp - FUEL FEED
2	16041-S6F-G01	Pipe comp - FUEL RETURN
3	16713-SZ3-000	Cushion - FUEL STRAINER
4	16901-S6F-E01	Strainer comp. - FUEL
5	16902-S6F-E01	Primer - HAND
6	16903-S6F-E02	Tube - OUTLET
7	16904-S6F-G03	Tube - INLET
8	16906-S6F-E00	Tube - FUEL STRAINER
9	16907-S6F-G01	Tube - FUEL FEED
10	16908-S6F-E00	Screw - HEX. HEAD
11	16909-S6F-E00	Washer - SEALING
12	16917-S6F-G01	Stay a - FUEL STRAINER
13	16918-S6F-E03	Stay - FUEL STRAINER
15	16919-S6F-G01	Guard - HAND PRIMER
16	16930-PLZ-G01	Heater assy - FUEL
17	16931-PLZ-G01	Stay - HEATER HARNESS
18	16932-PLZ-G00	Stay - FUEL HEATER
19	17701-S6F-G01	Pipe comp - FUEL JOINT
20	17702-S6F-G00	Hose - FUEL FEED
21	17703-S6F-G00	Stay - FUEL FEED PIPE
22	17711-S84-004	Retainer - WHITE)(SANOH
23	17723-S6F-G02	Hose - FUEL RETURN
24	17762-S6D-G30	Stay b - FUEL PIPE
25	17763-S6D-G30	Stay c - FUEL PIPE
26	17764-S6D-G30	Stay d - FUEL PIPE
27	17765-S6D-G30	Stay e - FUEL PIPE
28	36367-P13-003	Clamp - TUBE, 7.5
29	37895-RBD-E01	Sensor assy - TEMP FUEL
30	41936-P6R-003	Clamp - BREATHER TUBE
31	46393-S6M-A11	Clip - PIPE
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM
33	91307-PZA-004	O-ring - 9.5X1.9
34	91406-SAA-J00	Clamp - TUBE (D12)
35	91407-SDB-000	Clamp - TUBE (D12.5)
36	91565-SEL-003	Clip - COUPLER(BLACK)
37	91591-S6F-E01	Clip - FUEL PIPE
38	91592-S6F-E01	Clamp - FUEL TUBE
39	91595-S6F-E01	Clamp a - FUEL PIPE
40	91597-S5A-931	Clip - DRAIN TUBE
41	91597-S6F-E00	Rubber a - FUEL PIPE INSULATOR
42	91598-S6F-E00	Rubber b - FUEL PIPE INSULATOR
43	91599-S6F-E01	Clamp b - FUEL PIPE

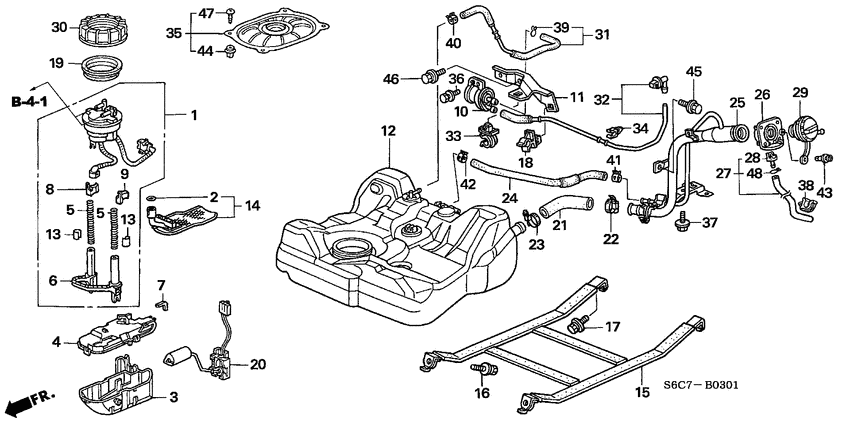

Fuel tank (DIESEL) 45

#	OEM	部品名
1	16017-S6F-E30	Flange comp
2	17041-S5A-930	O-ring
3	17043-S5A-941	Reservoir - DENSO
4	17044-S5A-930	Cap - RESERVOIR
5	17045-S5A-931	Spring
6	17046-S5A-931	Linkage
7	17047-S6F-E30	Clamp
8	17052-S5A-930	Stopper a
9	17053-S5A-930	Stopper b
10	17371-S6F-E01	Valve - TWO WAY
11	17373-S6F-E00	Stay - TWO WAY VALVE
12	17500-S6D-E32	Tank comp. - FUEL
13	17501-S5A-930	Collar
14	17516-S6F-E30	Filter set - FUEL PUMP
15	17521-S5A-931	Band - FUEL TANK MOUNTING
16	17525-SM4-000	Bolt-washer - 10X35
17	17525-S0X-A00	Bolt-washer - 10X25
18	17556-SP0-003	Clip - FUEL PIPE
19	17574-S1A-E01	Packing - BASE
19	17574-S0X-A01	Packing - BASE
20	17630-S5B-931	Meter comp
21	17651-S5A-930	Tube - FILLER NECK
22	17652-S6M-J01	Clip - FILLER TUBE
23	17652-S6M-J51	Clip - FILLER TUBE
24	17653-S5A-930	Tube - BREATHER
25	17660-S5A-M31	Pipe comp - FUEL FILLER
26	17662-SDA-A01	Packing - FUEL FILLER
27	17663-S6D-E00	Tube assy - FUEL FILLER PIPE DRAIN
28	17664-S6D-E01	Joint - DRAIN TUBE
29	17670-S6F-E01	Cap comp. - FUEL FILLER (TOYODA)
30	17719-S1A-E01	Nut - FUEL PUMP MODULE LOCK
31	17722-S6F-E00	Tube b - FUEL VENT
32	17724-S6F-E00	Tube c - FUEL VENT
33	19108-PHM-003	Clamp - RESERVE TANK TUBE (GRAY)
34	53723-SF1-951	Clip - RETURN PIPE, 6MM
35	74660-S5A-000	Cap assy. - FLOOR MAINTENANCE HOLE
36	90102-S2A-000	Bolt-washer - 5X12
37	90150-S04-003	Bolt - EARTH, 6X16
38	90684-693-013	Clip - FUEL HOSE
39	91401-SDC-000	Clip - TUBE(B10)
40	91404-SDC-000	Clamp - TUBE (D10)
41	91413-S5A-003	Clamp - FUEL TUBE (D17)
42	91462-SDA-003	Clamp - FUEL TUBE (D18)
43	91594-S1A-E01	Clip - FUEL FILLER CAP
44	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Gasket kit (DIESEL) 3

#	OEM	部品名
1	06111-PLZ-D30	Gasket set - ENGINE (1.45MM)
1	06111-PLZ-D50	Gasket set - ENGINE (1.55MM)
1	06111-PLZ-D40	Gasket set - ENGINE (1.50MM)

Generator (COMPONENT PART S; DIESEL) 7

#	OEM	部品名
1	31115-PLZ-D00	Seal - GENERATOR RR. COVER
2	31127-PLZ-D00	Rectifier - GENERATOR
3	31141-PLZ-D00	Pulley - GENERATOR
4	31170-PLZ-D00	Pump assy. - VACUUM GENERATOR
5	90066-PLZ-D00	Bolt set - GENERATOR
6	90266-PLZ-D00	Nut - PULLEY
7	91366-PLZ-D00	Gasket - VACUUM PUMP

Generator belt (DIESEL) 1

#	OEM	部品名
1	31110-PLZ-D00	Belt - GENERATOR DRIVE

Grommet (FRONT) 12

#	OEM	部品名
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM
2	74177-SD4-000	Cushion a - HOOD
3	74827-SP0-000	Stopper - TRUNK LID
4	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM
5	90615-SR3-000	Cap - WELD HOLE, 51X77
6	90615-S5A-003	Plug - HOLE, 27X56
8	90672-S5A-003	Holder - ROD
10	91602-S10-000	Stopper a - HOOD
12	91604-S5A-003	Grommet - HOOD STAY
13	91608-S5A-003	Boot - FLOOR
14	91615-SH3-000	Cap - FLOOR HOLE, 49MM
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (REAR) 9

#	OEM	部品名
1	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90615-S5A-003	Plug - HOLE, 27X56
4	90857-SD4-000	Cap - WELD HOLE
5	91603-S04-003	Plug - HOLE, 20MM
6	91611-SS0-003	Plug - HOLE, 25MM
7	91615-S6E-E00	Block a - DASHBOARD UPPER
8	91627-S50-G01	Grommet - 7X7
9	91631-S5A-000	Plug - AIR CONDITIONER HOLE (36X74)

Grommet (SIDE) 6

#	OEM	部品名
1	91603-S04-003	Plug - HOLE, 20MM
3	91616-S5T-A00	Block - FR. PILLAR INNER LOWER
4	91616-S50-000	Block - FR. PILLAR INNER LOWER
5	91618-SE3-010	Seal - RR. PILLAR UPPER
6	91618-S5A-000	Seal - HOLE, 30X90
8	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (UNDER) 4

#	OEM	部品名
1	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
2	90810-SB2-660	Grommet - TIE DOWN, 20X35
3	90852-671-003	Plug - HOLE
4	91606-SK7-003	Plug - BLIND, 25MM

Harness band/bracket (LH) 46

#	OEM	部品名
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)
2	32112-S2K-003	Band - CABLE (90MM)
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
5	32131-SV4-003	Cap - COUPLER (CP 2P, 3P)
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
11	32146-SD2-013	Diode - 3P
12	32146-SH3-003	Connector - DIODE(2P)
14	32203-S6D-G00	Bracket - WIRE HARNESS
15	32204-S5A-020	Bracket - ENGINE WIRE HARNESS (A)
17	32741-PLM-A00	Stay a - ENGINE WIRE HARNESS
18	32742-PLZ-G01	Stay b - ENGINE WIRE HARNESS
19	32748-PLZ-E01	Stay c - GENERATOR HARNESS
20	32748-PLZ-G50	Stay c - GENERATOR HARNESS
21	32749-PLZ-E00	Stay d - GENERATOR HARNESS
22	38204-S6F-G00	Bracket - COUPLER
23	38617-S5A-J01	Filter comp - NOISE
24	90001-PLZ-G50	Bolt - SPECIAL, 10X16
25	90126-SR4-000	Screw-washer - 5X16
26	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
27	90677-692-003	Clip - WIRE HARNESS (HARNESS TAPING)
29	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
30	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
31	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)
32	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
33	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
37	91540-S6A-003	Clip - HARNESS BAND(NATURAL) (150MM)
38	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
40	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
41	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
43	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)
44	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
45	91555-SM4-003	Clip - COUPLER (RED)
46	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
47	91559-ST5-901	Clip - WIRE HARNESS (32.5MM)
48	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
50	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
51	91577-SM4-003	Holder - BRACKET(NATURAL)
52	91577-SS0-003	Clip - WIRE HARNESS (BLUE) (122.5MM)
53	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
54	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)
55	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Headlight (2) 19

#	OEM	部品名
1	32118-S6A-900	Cord - SIDE TURN
2	33101-S6A-G41	Headlight unit - R.
4	33105-S5N-C01	Nut - SPECIAL
5	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
5	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6	33116-S84-A01	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)
6	33116-S84-A11	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)
7	33126-S6A-J61	Cover - RUBBER
8	33130-S5A-G01	Adjuster unit - HEADLIGHT
9	33151-S6A-G41	Headlight unit - L.
11	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)
13	33303-SAA-003	Socket comp - T20 S) (AMBER
14	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
15	33304-S5A-003	Socket comp - T10
16	33305-S5A-003	Socket comp - T10
17	34301-S5H-T02	Lamp unit
18	90101-S5A-003	Tapping - SPECIAL, 5X18
19	90682-SB0-003	Grommet - SCREW, 5MM

Heater blower (LH) 19

#	OEM	部品名
1	79303-S6A-013	Lid - FILTER
2	79305-S6D-G01	Blower sub assy.
3	79307-S6M-A42	Motor sub assy. - BLOWER
4	79330-S30-003	Resistor - BLOWER
6	79350-S6D-G41	Motor assy. - FRESH & RECIRCULAR
7	79370-S2H-003	Hose - MOTOR COOLING
8	80291-SCA-E01	Plate assy. - BLOWER (A)
9	80291-SCA-E11	Frame, Filter (A)
10	80292-SCA-E11	Element - FILTER
11	80292-SCA-G01	Element - FILTER
12	80296-SCA-E01	Plate assy. - BLOWER (B)
13	80296-SCA-G01	Frame, Filter (B)
14	80297-SCA-E11	Seal - BLOWER PLATE
15	80297-SCA-G01	Seal - BLOWER PLATE
16	90122-S30-003	Screw - TAPPING, 5X12
17	90123-S30-003	Screw - TAPPING, 5X12
18	90156-SH3-000	Bolt-washer - 6X24
19	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
20	79310-S6M-A42	Motor assy. - FAN

Heater control (LH; 1) 11

#	OEM	部品名
5	79505-S6A-E01	Lamp assy. - HARNESS
6	79506-S6A-003	Clamp - CONTROL CABLE
8	79511-S6D-G01	Knob - A/C
9	79512-S6D-G01	Knob - REC
10	79513-S6D-G01	Knob - DEF
11	79515-S6D-G01	Lid - A/C
12	79542-S6D-G11	Cable - TEMPERATURE CONTROL
13	79541-S6D-G11	Cable - MODE CONTROL
14	79570-S6A-003	Switch assy - HEATER FAN
16	79672-SW5-941	Bulb - NEO WEDGE (14V 65MA)
16	35851-SB2-505	NEO WEDGE BULB

Heater unit (LH) 36

#	OEM	部品名
1	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
2	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
3	53747-SA5-003	Clip - POWER STEERING HOSE
4	79009-S6D-G01	Dummy - EXPANSION VALVE
5	79100-S6F-G12	Heater unit
5	79100-S6F-G02	Heater unit
6	79106-S6F-G01	Heater sub assy.
7	79107-S6D-G01	Duct sub assy. - CASE
8	79110-S6F-G02	Core comp - HEATER
11	79165-S6F-E01	Switch assy
13	79193-S6A-003	Bolt - FLANGE, 6X20
14	79194-S6A-003	Nut - 6MM
15	79544-S6D-G00	Cable, WATER VALVE CONTROL
16	79770-SE0-000	Grommet - WATER VALVE CABLE
17	80211-S5S-G21	Dummy - EVAPORATOR
18	80211-S6D-G12	Evaporator assy.
19	80215-S6A-003	Plate
20	80216-S6A-003	Insulator - EXPANSION VALVE
21	80220-S6F-013	Valve - EXPANSION
22	80271-S6F-000	Hose - DRAIN
23	80430-S6A-003	Thermostat - AIR CONDITIONER
24	80431-S6D-G01	Dummy - THERMOSTAT
26	80650-S6F-G02	Sub harness - AIR CONDITIONER
27	80871-ST7-000	O-ring - 5/8"
28	80872-ST7-000	O-ring - 1/2"
29	90122-S30-003	Screw - TAPPING, 5X12
30	90123-S30-003	Screw - TAPPING, 5X12
31	90124-S30-003	Screw-washer - 5X12
32	90125-S6A-003	Bolt - 5X35
33	90156-SH3-000	Bolt-washer - 6X24
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
36	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
37	91580-SM4-003	Clip - COUPLER(ORANGE)
38	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
42	79192-S6A-003	Packing - STUD BOLT

Hood (LH) 20

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
6	74120-S6A-E01	Lock assy - HOOD
8	74141-S6A-E01	Insulator - HOOD
9	74144-S6A-000	Rubber - RR. HOOD SEAL
10	74145-S5T-G00	Stay - HOOD OPENER
11	74146-S6A-E01	Rubber - HOOD SEAL
12	74210-S6D-G01	Cowl top assy. - FR. DRIVER SIDE
13	74212-S6D-G00	Cover - L. HOOD HINGE
14	74220-S6D-G01	Cowl top assy. - FR. PASSENGER SIDE
15	74222-S6D-G00	Cover - R. HOOD HINGE
16	74231-S6A-000	Valve - DRAIN
17	90108-S0A-003	Bolt - FLANGE, 6X15
18	90601-S30-003	Grommet - COWL TOP
19	90602-SJK-003	Clip - COWL TOP
20	90602-SX0-003	Clip - COWL TOP
21	90602-S2A-003	Clip - COWL TOP
22	90603-S2A-003	Grommet - COWL TOP
23	91501-SL4-003	Clip - FR. COWL
24	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
25	91518-SM4-003	Clip - TRUNK MOLDING

Inlet manifold (DIESEL) 26

#	OEM	部品名
1	17100-PLZ-D00	Manifold - INTAKE (A)
2	17102-PLZ-D00	Manifold - INTAKE (B)
3	17105-PLZ-D00	Gasket - INTAKE MANIFOLD
4	17110-PLZ-D10	Pipe - IN. (EGR VALVE)
5	17115-PLZ-D00	Gasket - IN. PIPE
6	17129-PLZ-D00	Actuator - IN.
7	17400-PLZ-D00	Pipe - VACUUM (A)
8	17401-PLZ-D00	Hose - VACUUM RUBBER (A)
9	17402-PLZ-D00	Hose - VACUUM RUBBER (B)
10	17405-PLZ-D00	Pipe - VACUUM (B)
11	32738-PLZ-D00	Bracket - HARNESS
12	32739-PLZ-D00	Bracket - CONNECTOR
13	37830-PLZ-D00	Sensor - BOOST
14	90025-PLZ-D00	Bolt - INTAKE MANIFOLD
15	90025-PLZ-D10	Bolt - INTAKE PIPE
16	90025-PLZ-D20	Bolt - BRACKET FIXING
17	90025-PLZ-D30	Bolt - PIPE
18	90025-PLZ-D40	Bolt - PIPE
19	90025-PLZ-D50	Bolt - PIPE
20	90125-PLZ-D00	Stud - INTAKE MANIFOLD
21	90125-PLZ-D10	Stud - INTAKE PIPE
22	90225-PLZ-D00	Nut - INTAKE MANIFOLD
23	90225-PLZ-D10	Nut - BRACKET
24	90225-PLZ-D20	Nut - BRACKET
25	90225-PLZ-D30	Nut - PIPE FIXING
26	90625-PLZ-D00	Clip - RUBBER HOSE

Instrument panel (LH) 15

#	OEM	部品名
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
5	77104-S5S-E00	Insulator - R. INSTRUMENT PANEL LOWER
8	77109-S5S-E00	Insulator - L. INSTRUMENT PANEL LOWER
10	77150-S2X-003	Holder - INSTRUMENT UPPER
11	77170-S6A-J00	Bracket - INSTRUMENT CENTER
16	77466-S2G-000	Seal - FR. INSTRUMENT
17	77550-S6A-G00	Frame comp - GLOVE BOX
19	77982-S04-N81	Holder - COUPLER (2P)
20	90101-S6A-000	Bolt-washer - 8MM
21	90106-S5H-000	Bolt-washer - 8X40
22	90140-SH3-003	Bolt-washer - 5X18
23	90157-SA0-000	Bolt-washer - 8X25
24	90321-SP0-A80	Nut-washer - 6MM
25	91640-SM4-003	Grommet - SCREW, 4MM
26	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH; DRIVER SIDE) 8

#	OEM	部品名
1	38205-S6F-E01	Label - FUSE
5	77235-S6A-003	Holder assy.
12	77628-S6A-G00	Label - OUTLET OPEN
13	77629-S6A-G00	Label - OUTLET SHUT
17	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
20	90302-SA4-003	Nut - SPRING, 4MM
21	90665-S04-003	Clip - SNAP FITTING
22	90666-S84-A01	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 21

#	OEM	部品名
4	39610-S6A-003	Knob assy
5	39620-S6A-003	Housing assy.
6	39625-S6A-003	Ring - MOUNTING
7	66405-S04-010	Stay - GLOVE BOX HINGE
8	66417-SB3-670	Rubber - GLOVE BOX STOPPER
9	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
16	77255-S6A-J00	Bracket comp. - CENTER PANEL
17	77255-S6D-E01	Cap - CENTER
26	77506-S6A-000	Stopper - GLOVE BOX LID
29	77541-S6A-G10	Striker comp. - GLOVE BOX
30	77628-S6A-G00	Label - OUTLET OPEN
31	77629-S6A-G00	Label - OUTLET SHUT
35	77730-S6A-003	Holder comp - FR.
36	88315-S6A-003	Spring - FIRE PROTECTOR
37	90101-S03-000	Screw - TAPPING, 4X16
38	90133-SM4-003	Bolt-washer - 5X16
39	90140-SH3-003	Bolt-washer - 5X18
40	90144-SM4-003	Screw - 4X12
41	90302-SA4-003	Nut - SPRING, 4MM
43	90665-S04-003	Clip - SNAP FITTING
44	90666-S84-A01	Clip - SNAP FITTING

Intercooler (DIESEL) 14

#	OEM	部品名
1	17281-PLZ-E01	Hose a - INTERCOOLER IN.
2	17282-PLZ-E01	Hose b - INTERCOOLER IN.
3	17284-PLZ-E01	Hose - INTERCOOLER OUTLET
4	17284-PP8-003	Band - HOSE (D52)
5	17288-PLZ-E00	Chamber - INTAKE
6	17318-PLZ-E01	Band - HOSE (D50)
7	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE
8	19700-PLZ-E01	Intercooler comp.
9	31124-PLZ-E00	Clamp - GENERATOR HARNESS
10	74172-S84-000	Cushion - RADIATOR MOUNTING LOWER
11	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
12	90042-PLZ-E01	Bolt-washer - 8X20
13	90051-PLZ-E01	Bush
14	90052-PLZ-E01	Collar

Interior light 7

#	OEM	部品名
3	34251-S5A-003	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W
8	34261-S6D-E01	Lens comp
10	34262-S6D-E01	Cover
12	34295-S6D-E01	Bulb - 12V 5W
17	90148-S6A-003	Bolt - EARTH, 5X14

Knuckle 19

#	OEM	部品名
1	51210-S6F-E01	Knuckle comp - R. FR.
2	51215-S6F-E01	Knuckle comp - L. FR.
3	51225-S5A-003	Boot - LOWER BALL DUST
4	51300-S6F-E01	Spring - FR. STABILIZER
5	51306-S6D-005	Bush - STABILIZER HOLDER
6	51308-S5A-000	Holder - FR. STABILIZER
7	51320-S5A-003	RH FR. STABILIZER LINK
8	51321-S5A-003	LH FR. STABILIZER LINK
9	51350-S6F-E00	Arm comp - R. FR. LOWER
10	51360-S6F-E00	Arm comp - L. FR. LOWER
11	51391-S5A-024	Bush - FR. COMPLIANCE (YAMASHITA)
12	51392-S5A-004	Bush - FR. LOWER ARM (YAMASHITA)
13	57450-S6D-E01	Sensor assy - R. FR.
14	57455-S6D-E01	Sensor assy - L. FR.
15	90002-S10-000	Nut - FLANGE, 10MM
16	90118-S5A-000	Bolt - FLANGE, 14X91
17	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
18	90363-S47-000	Nut - LOWER ARM, 12MM
19	90701-SX0-003	Clip - UPPER ARM

Meter components (NS; 1) 4

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37115-SA0-601	Packing - NS
6	78156-S6A-N01	Lens - METER
7	90302-SA4-003	Nut - SPRING, 4MM

Mirror (MANUAL) 6

#	OEM	部品名
1	76200-S6D-G01	Mirror assy - R. DOOR
2	76203-S6D-G01	Mirror sub assy. - R. (SR1400)
4	76250-S6D-G01	Mirror assy - L. DOOR
5	76253-S6D-G01	Mirror sub assy. - L. (SR1400)
7	76400-SEA-004	Mirror assy - RR. VIEW (DAY/NIGHT)
8	90615-SK7-003	Clip - MIRROR GARNISH

Molding/side sill garnish 32

#	OEM	部品名
3	72410-S6A-013	Molding assy. - R. FR. DOOR
4	72450-S6A-013	Molding assy. - L. FR. DOOR
5	72721-S6D-E01	Garnish - R. RR. DOOR PILLAR (RR.)
6	72761-S6D-E01	Garnish - L. RR. DOOR PILLAR (RR.)
7	72910-S6A-003	Molding assy. - R. RR. DOOR
8	72950-S6A-003	Molding assy. - L. RR. DOOR
9	74306-S6A-003	Molding assy. - R. ROOF
10	74308-ST0-003	Bracket - ROOF MOLDING
11	74316-S6A-003	Molding assy. - L. ROOF
12	74551-S6D-E00	Fender - R. RR. INNER
13	74552-S6D-E00	Stiffener - R. RR. INNER FENDER
14	74591-S6D-E00	Fender - L. RR. INNER
15	74592-S6D-E00	Stiffener - L. RR. INNER FENDER
16	75302-S6D-E01	Protector comp - R. FR. DOOR
17	75303-S6D-E01	Protector comp - R. RR. DOOR
18	75313-ST3-E00	Clip - SIDE PROTECTOR
19	75322-S6D-E01	Protector comp - L. FR. DOOR
20	75323-S6D-E01	Protector comp - L. RR. DOOR
23	76222-SP1-003	Clip - DOOR MIRROR COVER
24	90102-S6A-000	Bolt - SPECIAL, 6X9
25	90126-SA7-000	Screw-washer - 5X20
25	90114-SZ3-000	Screw-washer - 5X20
26	90142-S04-000	Screw - TAPPING, 4X10
27	90324-S6A-000	Nut - SUSPENSION, 5MM
28	90657-SA5-003	Clip - SIDE APRON MOLDING
29	90682-SB0-003	Grommet - SCREW, 5MM
30	91501-S04-003	Clip - INNER FENDER
31	91501-S5A-003	Clip - DOOR MOLDING
32	91502-S5A-003	Clip - DOOR MOLDING END
33	91503-SZ3-003	Clip A
34	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH
35	91513-S6A-003	Clip - SIDE SILL GARNISH UPPER

Oil cooler/oil filter (DIESEL) 15

#	OEM	部品名
1	15230-PLZ-D00	Valve assy. - RELIEF
2	15230-PLZ-D10	Valve assy. - RELIEF
3	15300-PLZ-D00	Filter & cooler assy. - OIL
4	15305-PLZ-D00	Valve assy. - OIL COOLER
5	15400-PLZ-D00	Element & cap assy. - OIL FILTER
6	15430-PLZ-D00	Element - OIL FILTER
7	15500-PLZ-D00	Cooler assy. - OIL
8	15701-PLZ-D00	Hose - OIL DRAIN
9	90050-PLZ-D00	Bolt - CENTER
10	90050-PLZ-D10	Bolt - OIL COOLER
11	90450-PLZ-D00	Gasket - CENTER BOLT
12	90450-PLZ-D10	Gasket - OIL COOLER VALVE
13	90650-PLZ-D00	Clip - DRAIN HOSE
14	91350-PLZ-D00	Gasket - COOLER-BRACKET
15	91350-PLZ-D10	Gasket - OIL FILTER-CYLINDER BLOCK

Oil pan/level gauge (DIESEL) 15

#	OEM	部品名
1	11201-PLZ-D20	Pan assy - OIL (B)
2	11201-PLZ-D30	Pan assy - OIL (A)
3	11221-PLZ-D10	Plate - CRANKCASE BAFFLE
4	15200-PLZ-D00	Tube - OIL LEVEL GAUGE GUIDE
5	15650-PLZ-D00	Gauge - OIL LEVEL
6	90013-PLZ-D00	Plug - OIL DRAIN
7	90013-PLZ-D10	Bolt - GUIDE TUBE
8	90013-PLZ-D20	Bolt - GUIDE TUBE
9	90013-PLZ-D30	Bolt - CRANKCASE BAFFLE PLATE
10	90013-PLZ-D40	Bolt - OIL PAN
11	90013-PLZ-D50	Bolt - OIL PAN
12	90013-PLZ-D60	Bolt - OIL PAN
13	90213-PLZ-D00	Nut - OIL PAN
14	90413-PLZ-D00	Gasket - DRAIN PLUG
15	91313-PLZ-D10	Gasket - OIL LEVEL GAUGE GUIDE TUBE

Oil piping/vacuum piping (DIESEL) 20

#	OEM	部品名
1	15530-PLZ-D00	Pipe - TURBOCHARGER OIL FEED
2	15540-PLZ-D00	Pipe assy. - TURBOCHARGER OIL RETURN
3	15542-PLZ-D00	Hose - TURBOCHARGER RETURN RUBBER
4	15543-PLZ-D00	Gasket - OIL PIPE & TURBOCHARGER
5	15545-PLZ-D00	Hose - VACUUM PUMP RETURN
6	15546-PLZ-D00	Hose - RUBBER
7	90052-PLZ-D00	Bolt - OIL PIPE-TURBOCHARGER
8	90052-PLZ-D10	Bolt - OIL PIPE JOINT
9	90052-PLZ-D20	Bolt - TURBOCHARGER EYE
10	90052-PLZ-D30	Bolt - JOINT
11	90052-PLZ-D40	Bolt - OIL PIPE EYE
12	90452-PLZ-D00	Gasket - OIL PIPE
13	90452-PLZ-D10	Gasket - OIL PIPE NIPPLE
14	90452-PLZ-D20	Gasket - OIL PIPE-TURBOCHARGER
15	90452-PLZ-D30	Gasket - JOINT BOLT
16	90652-PLZ-D00	Clip - TURBOCHARGER RETURN HOSE
17	90652-PLZ-D10	Clip - HOSE
18	90652-PLZ-D20	Clip - OIL COOLER HOSE
19	90652-PLZ-D30	Clip - OIL COOLER HOSE
20	90652-PLZ-D40	Clip - RUBBER HOSE

Oil pump/oil strainer (DIESEL) 12

#	OEM	部品名
1	15100-PLZ-D00	Pump assy. - OIL
1	15100-PLZ-D01	Pump assy.
3	15220-PLZ-D00	Strainer assy - OIL
4	15221-PLZ-D00	Hose - OIL STRAINER RUBBER
5	90051-PLZ-D00	Bolt - OIL PIPE
6	90051-PLZ-D10	Bolt - OIL PUMP FLANGE
7	90051-PLZ-D20	Bolt - OIL PUMP FLANGE
8	90120-PLZ-D00	Stud - BODY-CYLINDER BLOCK
9	90451-PLZ-D00	Gasket - RELIEF VALVE
10	90751-PLZ-D00	Dowel pin - OIL PUMP
11	91220-PLZ-D00	Seal - CRANKSHAFT FR. OIL
12	91251-PLZ-D00	Seal - OIL PUMP OIL

Outer panels/roof panel 12

#	OEM	部品名
27	73219-693-951	Seal - FUEL LID OPENER (GREEN)
28	74411-S6D-G00	Cable - FUEL LID OPENER
29	74421-SS1-010	Spring - FUEL LID OPENER
30	74422-ST5-000	Cushion - FUEL FILLER LID
31	74423-S1A-E01	Holder - FUEL CAP
34	75450-S6A-000	Outlet assy - RR. AIR
35	90103-SM4-010	Bolt - FLANGE, 6X18
36	90103-SS1-000	Bolt - FUEL FILLER LID
37	90108-S0A-003	Bolt - FLANGE, 6X15
38	90684-SD4-003	Clip - FUEL LID OPENER
39	91558-SE3-003	Clip - HOOD WIRE
40	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

P.s. gear box (EPS; LH) 18

#	OEM	部品名
1	53010-S5S-000	Bush set - STEERING GEAR BOX MOUNTING
2	53434-S5D-A01	Bracket b - STEERING GEAR BOX
4	53438-S5A-G01	Bracket - R. STEERING GEAR BOX
9	53501-S5A-000	Grommet - STEERING
10	53521-S5A-003	Rod sub assy. - TIE (###)
11	53536-S5A-900	Washer - TIE ROD LOCK
12	53541-S5A-000	Rod assy - TIE
13	53541-S5A-003	End comp - TIE ROD
14	53546-S84-003	Boot - TIE ROD END (NOK)
15	53606-S6F-G63	Box assy - POWER STEERING GEAR
16	53685-S6M-000	Bush - STEERING GEAR BOX MOUNTING
17	53686-S5A-010	Collar - STEERING GEAR BOX MOUNTING (A)
18	90108-S5A-000	Bolt - GEAR BOX MOUNTING
19	90301-S5A-003	Nut - HEX.
20	90450-S5A-020	Nut - FLANGE, 10MM
21	90505-S5A-000	Washer - PLAIN, 10MM
22	90506-S5A-010	Washer - PLAIN, 10MM
23	90801-S5A-000	BOLT, FLANGE, 8X25

P.s. gear box components (EPS; LH) 19

#	OEM	部品名
1	53413-SZ3-000	Spring - RACK GUIDE PRESSURE
2	53414-S5A-003	Screw - RACK GUIDE
3	53416-S5S-G01	Guide - STEERING RACK
4	53418-S5A-003	Washer - DISK
5	53448-S5A-J01	Band b - BELLOWS
6	53449-S5A-J01	Band a - BELLOWS
7	53455-S5A-003	Ring b - STOPPER
8	53457-S5A-003	Lock - SCREW
9	53458-SM4-J60	Nut - RACK SCREW LOCK
10	53535-S5A-003	Washer - LOCK
11	53602-S5S-G61	Motor set
12	53603-S5A-J01	Boot set
13	53604-S5A-003	Bracket
14	53605-S5A-003	Slider
15	53611-S5A-G61	Housing comp - SLIDER
16	53662-S5A-003	O-ring - 11.5X1.5
17	90105-S0A-003	Bolt - FLANGE, 8X25
18	90455-S5A-003	Bolt - FLANGE, 12X40
19	91351-S5A-003	O-ring - MOTOR

Parking brake (1) 13

#	OEM	部品名
6	47342-S6A-E11	Switch - PARKING BRAKE
6	47342-S6A-E01	Switch - PARKING BRAKE
7	47360-S1A-E01	Equalizer
8	47365-SN7-003	Pin - EQUALIZER
9	47510-S6A-G01	Wire b - R. PARKING BRAKE
11	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING
12	47537-SN7-003	Spring - PARKING BRAKE ROD
13	47560-S6A-G01	Wire b - L. PARKING BRAKE
15	47572-S6A-G02	Base comp. - WIRE GUIDE
16	47577-S7A-G00	Guard - BRAKE WIRE
19	90651-SN7-003	Clip - BRAKE HOSE
20	90666-S84-A01	Clip - SNAP FITTING
22	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Partial engine (DIESEL) 1

#	OEM	部品名
1	10002-PLZ-D00	Engine assy - PARTIAL

Pedal (LH) 29

#	OEM	部品名
1	17256-PD6-000	Rubber - RESONATOR MOUNTING
2	17800-S6A-G01	Pedal assy - ACCELERATOR
3	17818-S5A-A01	Stopper - ACCELERATOR STROKE
4	17910-S6F-G01	Wire - THROTTLE
5	17921-SA4-730	Seal - THROTTLE CABLE
9	17931-S6F-G01	Clip
11	36750-S5A-J02	Switch assy - STOP & CRUISE (MATSUSHITA)
12	36641-PP8-000	Collar - ACTUATOR MOUNT
13	36760-PT0-004	Switch assy - CLUTCH
15	37972-PLZ-G00	Stay comp - ACCELERATOR PEDAL SENSOR (LH)
16	37974-PLZ-G00	Bracket comp. - ACCELERATOR PEDAL SENSOR (LH)
17	37975-PLZ-E00	Sensor comp - ACCELERATION
18	37996-PLZ-G00	Cover - ACCELERATOR PEDAL SENSOR (LH)
19	46505-SA5-000	Pad - PEDAL STOPPER
20	46505-SA7-000	Pad - PEDAL STOPPER
21	46530-S5A-003	Spring assy - PEDAL RETURN
22	46545-SA5-000	Cover, Pedal
24	46600-S5A-G01	Pedal assy - BRAKE
25	46900-S6F-G52	Pedal assy - CLUTCH
26	46905-SK7-000	Stopper - CLUTCH PEDAL
27	46907-S7A-A01	Spring - CLUTCH ASSISTANT
28	46911-SD4-930	Bush - PEDAL PIN
29	46981-S2A-003	Bush a - CLUTCH ASSISTANT
30	46982-S2A-003	Bush b - ASSISTANT
31	46991-S5A-A01	Bracket comp. - FOOTREST
32	46992-SV4-003	Clip - FOOTREST
34	90301-SP0-003	Nut - PAINT CUTTING, 6MM
35	90301-S5A-000	Nut - PAINT CUTTING, 6MM
36	91503-PLZ-E01	Clip - COVER

Pillar garnish 5

#	OEM	部品名
20	90666-S84-A01	Clip - SNAP FITTING
22	90682-SB0-003	Grommet - SCREW, 5MM
23	91560-S6A-003	Clip - DOOR LINING(ORANGE)
24	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
25	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Radiator (DENSO; DIESEL) 14

#	OEM	部品名
1	19010-PLZ-E01	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19013-PLZ-E01	Seal
5	19015-PLZ-E01	Main shroud comp.
6	19020-PLZ-E01	Fan - COOLING
7	19030-PLZ-E01	Motor - COOLING FAN
8	37773-PLZ-E01	Switch - THERMO (A-95)
9	37773-PLZ-E51	Switch - THERMO (A-100)
10	90041-P3G-003	Screw-washer - 5X11
11	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
12	90043-PD2-003	Nut - HEX., 5MM (DENSO)
13	91307-PN4-000	O-ring - 17.5X1.4
13	91307-PN3-000	O-ring,17.8x1.4

Radiator hose (DIESEL) 22

#	OEM	部品名
1	19045-P1K-E01	Cap comp. - RADIATOR (CALSONIC)
2	19101-PLZ-E02	Tank comp. - EXPANSION
3	19103-PLZ-E00	Hose a - EXPANSION TANK
4	19105-PLZ-E01	Hose - OVERFLOW
5	19106-PLZ-E00	Hose b - EXPANSION TANK
6	19107-PLZ-E00	Hose c - EXPANSION TANK
7	19108-PLZ-E00	Hose d - EXPANSION TANK
8	19109-PLZ-E00	Connector - HOSE
9	19110-PLZ-E00	Pipe - WATER
10	19111-PLZ-E00	Hose - WATER
11	19115-PLZ-E01	Bracket comp. - EXPANSION TANK
12	19501-PLZ-E00	Hose - WATER UPPER
13	19502-PLZ-E00	Hose - WATER LOWER
14	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE
15	19511-PLZ-E51	Clip - HOSE WITH HOLDER (D41)
16	74171-S5T-G00	Bracket - RADIATOR MOUNT UPPER
17	74172-S84-000	Cushion - RADIATOR MOUNTING LOWER
18	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
20	91405-PK1-003	Clip, WATER HOSE, 24MM
20	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
21	91551-SD5-003	Clamp - HEATER

Rear brake (DISK) 44

#	OEM	部品名
1	01473-SV4-000	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER
2	06430-S6D-E50	Pad set - RR. (WITHOUT SHIM) (###)
3	06435-S2A-000	Shim set - RR.
4	42200-S5A-J01	Bearing assy - RR. HUB UNIT
5	42326-S5A-000	Cap - HUB UNIT
5	42326-SLA-000	Cap - HUB UNIT
6	42510-S6D-E00	Disk - RR. BRAKE
7	43018-S5A-J02	Caliper sub assy. R. RR.
8	43019-S5A-J02	Caliper sub assy. L. RR.
9	43022-S6D-E50	Pad set - RR.
10	43215-SM4-951	Piston assy.
11	43223-SD2-932	BEARING A
12	43224-SD2-931	Spring b - ADJUSTING
13	43227-SG0-013	Spring - PAD
14	43228-SD2-933	Shaft a
15	43229-SD2-931	Rod
16	43233-S5A-J01	Piston comp - SLEEVE
16	43233-TR0-A01	Piston, sleeve
17	43235-S84-A51	Pin a
18	43236-S04-003	Spacer
19	43238-SF1-003	Ring - RETAINING
20	43241-S5A-003	Guide - SPRING
21	43243-SD2-931	Nut - PARKING
22	43244-SG0-003	Retainer
23	43245-S5A-J01	Lever - R.
24	43246-SD2-931	Spring - R. RETURN
25	43247-S5A-J01	Arm - R.
26	43248-SD2-933	Shaft b
27	43249-S04-003	Bolt - ADJUSTER
28	43253-S6D-E50	Guard - R. RR. SPLASH
29	43254-S6D-E50	Guard - L. RR. SPLASH
30	43262-S84-A51	Pin b
31	43265-S5A-J01	Lever - L.
32	43266-SD2-931	Spring - L. RETURN
33	43267-S5A-J01	Arm - L.
34	43352-SM4-951	Screw - BLEEDER
35	43353-SD5-003	Cap - BLEEDER SCREW
36	45240-SC2-003	Bolt - FLANGE, 8X22
37	90103-SN7-003	Bolt - FLANGE, 10X25
38	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
38	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
38	90113-SA0-006	Bolt - WHEEL (SAGA)
39	90305-S30-003	Nut - SPINDLE

Rear door lining 5

#	OEM	部品名
4	72835-S6A-003	Weatherstrip - R. RR. DOOR INNER
5	72875-S6A-003	Weatherstrip - L. RR. DOOR INNER
22	90662-SB2-003	Grommet - SCREW, 5MM
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
24	91610-SJ4-003	Grommet - MIRROR GARNISH

Rear door locks/outer han dle 31

#	OEM	部品名
1	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
2	72119-S04-003	Stopper a - OUTSIDE HANDLE
4	72135-S5A-003	Striker assy - DOOR LOCK
6	72139-S0A-003	Snap - PINK
6	72139-SR0-A01	Snap - VIOLET
7	72616-SM4-003	Snap - NATURAL
8	72143-S04-003	Packing
9	72149-SR4-000	Snap - R.
10	72155-S5A-003	ACTUATOR ASSY, DOOR LOCK (L. RR.)
11	72175-SH3-901	Holder - DOOR LOCK ROD
12	72189-SR4-000	Snap - L.
13	72610-S6A-Q02	LOCK ASSY., R. RR. DOOR (POWER)
14	72612-S84-A00	Cap - R. CHILD LOCK
16	72617-S6A-Q02	Protector - R. RR. DOOR LOCK
18	72630-S84-A01	Crank assy - LOCK ROD
19	72631-S6A-E01	Rod - R. RR. INSIDE HANDLE
20	72632-S6A-Q01	Rod - R. RR. INSIDE LOCK
21	72633-S6A-E01	Rod - RR. DOOR LOCK KNOB
22	72639-S6A-Q00	Protector - R. RR. DOOR ROD
23	72640-S6A-003	Handle assy - R. RR. DOOR OUTSIDE
25	72650-S6A-Q02	LOCK ASSY., L. RR. DOOR (POWER)
26	72652-S84-A00	Cap - L. CHILD LOCK
28	72657-S6A-Q02	Protector - L. RR. DOOR LOCK
30	72671-S6A-E01	Rod - L. RR. INSIDE HANDLE
31	72672-S6A-Q01	Rod - L. RR. INSIDE LOCK
32	72679-S6A-Q00	Protector - L. RR. DOOR ROD
33	72680-S6A-003	Handle assy - L. RR. DOOR OUTSIDE
35	90120-SM4-000	Screw - TAPPING
36	90120-SV4-000	Bolt - LOCK STRIKER
37	90141-S84-003	Screw - 3X10
38	90866-SA0-000	Grommet - SCREW, 4MM

Rear door panels 20

#	OEM	部品名
5	67825-S6A-003	Tape - R. RR. DOOR SASH UPPER
6	67826-S6A-003	Tape - R. RR. DOOR SASH CENTER
7	67865-S6A-003	Tape - L. RR. DOOR SASH UPPER
8	67866-S6A-003	Tape - L. RR. DOOR SASH CENTER
13	72311-S5S-003	Clip A - DOOR WEATHERSTRIP
14	72311-S6D-E01	Clip b
15	72312-S6D-E01	Seal - R. DOOR CENTER
16	72336-S6A-E00	Tape - REFLECTOR
17	72352-S6D-E01	Seal - L. DOOR CENTER
18	72810-S6D-E01	Weatherstrip - R. RR. DOOR
19	72811-S6D-E01	Clip - DOOR WEATHERSTRIP OFFSET
20	72821-S6D-G00	Seal - RR. DOOR HOLE
21	72840-S5D-A01	Checker comp. - R. RR. DOOR
22	72850-S6D-E01	Weatherstrip - L. RR. DOOR
24	72880-S5D-A01	Checker comp. - L. RR. DOOR
25	75891-SA7-000	Stopper - DOOR
26	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
26	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
27	90141-S04-000	Bolt - FLANGE, 8X22
28	90361-SR3-000	Nut - FLANGE, 8MM

Rear door windows/regulat or 9

#	OEM	部品名
1	72710-S6A-J01	Regulator assy - R. RR. DOOR (MANUAL)
3	72731-S6D-E01	Sash - R. RR. DOOR RR. LOWER
4	72735-S6D-E02	Runchannel - R. RR. DOOR
5	72750-S6A-J01	Regulator assy - L. RR. DOOR (MANUAL)
7	72771-S6D-E01	Sash - L. RR. DOOR RR. LOWER
8	72775-S6D-E02	Runchannel - L. RR. DOOR
9	73400-S6D-E00	Glass assy - R. RR. DOOR (GREEN)(SAINT-GOBAIN)
10	73450-S6D-E00	Glass assy - L. RR. DOOR (GREEN)(SAINT-GOBAIN)
12	75342-SA7-000	Pin - WINDOW REGULATOR HANDLE

Rear lower arm 26

#	OEM	部品名
1	52210-S6D-G00	Knuckle comp - R. RR.
3	52215-S6D-G00	Knuckle comp - L. RR.
5	52300-S6D-G02	Spring - RR. STABILIZER
6	52306-S6D-005	Bush - STABILIZER HOLDER
7	52308-S5A-000	Holder - R. RR. STABILIZER BUSH
8	52309-S5A-000	Holder - L. RR. STABILIZER BUSH
9	52320-S5A-013	RH. RR. STABILIZER Link comp
10	52321-S5A-013	LH RR. STABILIZER Link comp
11	52352-S5A-A01	Protector - RR. LOWER ARM
12	52364-S5A-004	BUSH, REAR LOWER ARM INNER
12	52364-S6M-004	BUSH, REAR LOWER ARM INNER
15	52370-S6D-G10	Arm comp - R. RR. TRAILING
16	52371-S6D-G10	Arm comp - L. RR. TRAILING
17	52387-S7A-000	Bolt - TRAILING ARM ADJUST
18	52388-S7A-013	Plate - CAM
19	52390-S5A-981	Arm comp - RR. UPPER
21	57470-S6D-003	Sensor assy - R. RR.
22	57475-S6D-E01	Sensor assy - L. RR.
23	90002-S10-000	Nut - FLANGE, 10MM
24	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
25	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)
26	90396-S5A-000	Bolt - FLANGE, 12X75
27	90397-S5A-000	Bolt - FLANGE, 12X48
27	90186-SR3-000	Bolt - FLANGE, 12X48
28	90398-S5A-000	Bolt - FLANGE, 12X81.5
29	90399-S5A-000	Bolt - FLANGE, 12X73

Rear seat 19

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
7	82122-S6D-E03	Pad assy - R. RR. SEATBACK
8	82126-S6D-E01	Frame comp - R. RR. SEATBACK
10	82129-S5T-003	Bolt - SEATBELT, 6MM
11	82129-S6A-000	Collar - RR. SEAT PIVOT
13	82132-S6D-J03	Pad - R. RR. SEAT CUSHION
14	82136-S6A-J01	Frame comp - R. RR. SEAT CUSHION
28	82225-S6A-003	Striker comp. - RR. SEAT
29	82228-S6D-E01	Cover - RR. SEATBELT (B)
30	82291-S04-000	Cover - RR. CENTER PIVOT
31	82292-S04-000	Collar - RR. CENTER SEAT PIVOT
34	82295-S6A-003	Bracket assy - CENTER SEAT PIVOT
36	82522-S6D-E02	Pad assy - L. RR. SEATBACK
37	82526-S6A-U11	Frame comp - L. RR. SEATBACK
39	82532-S6D-J03	Pad - L. RR. SEAT CUSHION
40	82536-S6A-J02	Frame comp - L. RR. SEAT CUSHION
45	90139-S6A-003	Bolt - FLANGE, 8X35
46	90610-SR3-003	Clip - GARNISH (KATO)

Rear shock absorber 19

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
3	52441-S6F-E02	Spring - RR.
4	52610-S6F-E04	Absorber assy - R. RR. SHOCK
5	52611-S6F-E03	Absorber unit - RR. SHOCK
6	52620-S6F-E04	Absorber assy - L. RR. SHOCK
7	52622-S5A-004	Bush - RR. SHOCK ABSORBER LOWER
8	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING
9	52675-S5A-004	Base - RR. SHOCK ABSORBER MOUNTING
9	52675-S7A-004	Base - RR. SHOCK ABSORBER MOUNTING
10	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING
11	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT
12	52686-S5A-004	Rubber - RR. SPRING MOUNTING
13	52687-S5A-014	Cover - RR. DUST
14	52689-S5A-004	Cover - RR. BUMP STOP
15	52690-S5A-004	Plate - BUMP STOP
16	52722-S5A-004	Rubber - BUMP STOPPER
17	90181-S84-A00	Bolt - TRAILING ARM, 12X68
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear windshield/ quarter windows 17

#	OEM	部品名
1	04733-S6D-E10	Rubber set - RR. WINDSHIELD DAM
2	73211-S6D-E03	Glass set - RR. WINDSHIELD (GREEN) (SPLINTEX)
3	73221-S2A-000	Spacer - RR. WINDSHIELD
4	73226-S6A-J00	Rubber b - WINDSHIELD DAM
5	73511-S6D-E01	Glass - R. QUARTER (GREEN) (SPLINTEX)
6	73526-S6A-J00	Rubber - WINDSHIELD DAM
7	73561-S6D-E01	Glass - L. QUARTER (GREEN) (SPLINTEX)
8	73810-S6A-013	Seal - R. QUARTER GLASS (FR.)
9	73850-S6A-013	Seal - L. QUARTER GLASS (FR.)
10	76707-S6D-E00	Seal a
11	91501-S2H-003	Clip - QUARTER GLASS
12	91502-SR3-003	Clip b - QUARTER WINDOW (NATURAL)
13	91506-S47-003	Clip c - QUARTER WINDOW
14	91536-SS0-J01	Fastener a - WINDSHIELD
15	91536-S5S-E01	Fastener a - SPOILER
16	91568-SX0-003	Fastener a - WINDSHIELD
17	91569-SZ3-013	Fastener b - WINDSHIELD

Rear wiper (1) 11

#	OEM	部品名
1	76700-S6D-E02	Motor assy. - RR. WINDSHIELD WIPER
2	76701-S6D-E01	Rubber - MOUNTING
3	76702-S6D-E01	Collar
4	76706-S1C-E01	Washer a - SPECIAL
5	76708-S1C-E01	Washer b - SPECIAL
6	76709-S6D-E01	Nut - 16MM
7	76711-S1C-E01	Cap - PIVOT
8	76720-S6D-E11	Arm - RR. WIPER
9	76721-S6D-E01	Cap
10	76730-S6D-E01	Blade - RR. WIPER (300MM)
11	90001-S6D-E00	Nut - HEX., 8MM

Roof lining 5

#	OEM	部品名
8	83241-S5A-000	Bracket - GRAB RAIL
14	90131-SH3-A12	Screw - PAN, 5X16
15	90136-S0A-003	Screw - ET, 5X28
15	90137-S0A-003	Screw - ET, 6X28
16	91562-S0X-A01	Clip - ROOF LINING (BLACK)

Seatbelts 9

#	OEM	部品名
6	81491-S6A-000	Protector - R. FR. SEATBELT
10	81891-S6A-000	Protector - L. FR. SEATBELT
11	82129-S6D-E01	Cover - RR. SEAT CENTER ELR
12	82410-S02-C00	Plate assy. - CHILD SEAT ANCHOR
18	90101-S84-A00	Screw - ET, 6X16
18	90133-SZ4-003	Screw - ET, 7X16
19	90134-SE3-003	Screw - TAPPING, 5X10
20	90135-S1F-003	Bolt - FLANGE, 7/16"
21	90142-S6A-J01	Bolt-washer - 7/16"X28

Shift lever 10

#	OEM	部品名
1	54100-S5S-003	Lever sub assy. - CHANGE
3	54117-S6A-003	Rubber - FLOATING
4	54119-S30-003	Collar - FLOATING
5	54310-S6F-013	Wire comp - CHANGE
6	54357-SN7-000	Plate - CHANGE WIRE
7	90361-SV4-003	Nut - PAINT CUTTING, 6MM
8	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
9	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
10	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
11	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Shift rod/shift arm (DIESEL) 35

#	OEM	部品名
1	21396-PMZ-D40	Breather assy - AIR
2	21520-PMZ-D40	Control unit
3	21811-PMZ-D40	Packing
4	24201-PMZ-D40	Arm assy. - SHIFT FIFTH
5	24202-PMZ-D40	Rod - GEARSHIFT REVERSE
6	24211-PMZ-D40	Arm assy. - SHIFT THIRD-FOURTH
7	24212-PMZ-D40	Rod - GEARSHIFT THIRD-FOURTH
8	24221-PMZ-D40	Arm - SHIFT LOW-SECOND
9	24222-PMZ-D40	Rod - GEARSHIFT LOW-SECOND
10	24223-PMZ-D40	Block - SHIFT FIRST-SECOND
11	24231-PMZ-D40	Lever - REVERSE SHIFT
12	24232-PMZ-D40	Rod - GEARSHIFT FIFTH
13	24233-PMZ-D40	Pin - FULCRUM BRACKET
14	24234-PMZ-D40	Bracket - FULCRUM REVERSE LEVER
15	24235-PMZ-D40	Lever - REVERSE
16	24243-PMZ-D40	Block - SHIFT REVERSE-FIFTH
17	24452-PMZ-D40	Spring - DETENT (1-2,3-4,5)
18	24453-PMZ-D40	Spring - DETENT REVERSE
19	24519-PMZ-D40	Plug - DETENT SPRING
20	24601-PMZ-D40	Bracket - CABLE (A)
21	24602-PMZ-D40	Bracket - CABLE (B)
22	24603-PMZ-D40	Bracket - TRANSMISSION CABLE
23	35600-PMZ-D40	Switch - REVERSE
24	90001-PMZ-D40	Bolt - BRACKET
25	90002-PMZ-D40	Bolt - CONTROL BOX
26	90021-PMZ-D40	Bolt - FULCRUM BRACKET
27	90601-PMZ-D40	Ring - SNAP
28	90703-PMZ-D40	Pin - REVERSE-FIFTH LOCK
29	90704-PMZ-D40	Pin - ROD ARM SPRING
30	90705-PMZ-D41	Pin - SHIFT ROD SPRING
31	90707-PMZ-D40	Pin - FULCRUM BRACKET SNAP
32	90708-PMZ-D40	Pin - FIFTH ROD LOCK
33	90709-PMZ-D40	Pin - INTER LOCK
34	90710-PMZ-D40	Pin - THIRD-FOURTH ROD LOCK
35	90901-PMZ-D40	Ball - DETENT

Side lining 4

#	OEM	部品名
5	84433-S6D-E00	Strap comp
6	84521-S6A-000	Lid comp - SPARE TIRE
14	90610-SR3-003	Clip - GARNISH (KATO)
18	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Srs unit (LH) 8

#	OEM	部品名
1	77900-S5A-G03	Reel assy - CABLE (SUMITOMO)
1	77900-S5A-G04	Reel assy - CABLE (FURUKAWA)
2	77930-S6A-N91	Sensor assy - R. FR. SIDE
3	77940-S6A-N91	Sensor assy - L. FR. SIDE
4	77960-S6A-G96	Srs unit - SIEMENS
4	77960-S6A-G95	Srs unit - KEIHIN
5	77970-S6A-J91	Sensor assy - SIDE IMPACT
6	90137-S84-A01	Bolt - TORX EARTH, 6X20

Starter motor components (DIESEL) 8

#	OEM	部品名
1	30202-PLZ-D00	Washer kit - STARTER
2	31204-PLZ-D00	Switch - ENGINE STARTER
3	31205-PLZ-D00	Bracket - STARTER CENTER
4	31207-PLZ-D00	Pinion - CLUTCH STARTER
5	31208-PLZ-D00	Holder - BRUSH STARTER
6	31210-PLZ-D00	Case & rr. cover kit - STARTER
7	90065-PLZ-D00	Bolt - STARTER THROUGH
8	90265-PLZ-D00	Nut - STARTER

Steering column 5

#	OEM	部品名
1	53200-S6D-G01	Column assy - STEERING
2	53323-S5A-003	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS; 2) 7

#	OEM	部品名
5	78502-SCA-G61	Plate comp - HORN
9	78520-S6D-G11	Damper comp - STEERING
10	78521-SCA-G61	Cover - HORN PLATE
11	90134-S6A-A80	Bolt - HEX., 6X23
12	90135-SCA-G61	Screw - TAPPING, 4X16 (PO)
13	90137-SCA-G61	Screw - TAPPING, 5X10
14	90163-S04-000	Nut - STEERING WHEEL

Switch (LH) 5

#	OEM	部品名
4	35510-S6A-J01	Switch assy - HAZARD
8	35850-S5A-G01	Bulb comp. - 14V 60MA
9	35850-S6A-J01	Bulb comp. - 14V 60MA
12	35910-S04-G01	Switch assy - INERTIA
15	90666-SD4-003	Clip - FITTING

Tailgate 26

#	OEM	部品名
6	72113-SR4-004	Snap - BLACK
7	72117-S04-003	Holder - ROD (YELLOW)
8	74440-S6D-E01	Weatherstrip - TAILGATE
10	74801-SAA-003	Lock - TAILGATE
11	74806-S05-003	Screw
12	74810-S6A-003	Handle assy - TAILGATE
13	74813-S6D-E01	Striker assy - TAILGATE
14	74816-S2G-003	Band
15	74820-S6D-E02	Stay assy - R. TAILGATE OPEN
17	74829-S84-A00	Stopper - TRUNK LID
18	74830-S6D-003	Cable - TAILGATE OPENER
19	74861-S5T-A51	Cylinder - TRUNK
23	74870-S6D-E02	Stay assy - L. TAILGATE OPEN
24	74896-SAA-003	Actuator assy - TAILGATE
26	90102-SV4-003	Bolt-washer - 6X12
27	90105-634-000	Bolt-washer (8x20)
28	90107-S2G-003	Bolt - TAILGATE LOCK
29	90108-S6D-E01	Stud - BALL
30	90120-SV4-000	Bolt - LOCK STRIKER
31	90303-S5S-E00	Nut - 6MM
33	90501-SAA-003	Washer
34	90661-SC7-003	Grommet - SCREW, 5MM
35	91501-S5S-E01	Fastener b - SPOILER
36	91512-S50-003	Clip - LICENSE GARNISH
37	91560-S0X-A01	Clip - DOOR LINING (NATURAL)
38	91580-SM4-003	Clip - COUPLER(ORANGE)

Tailgate lining 5

#	OEM	部品名
2	84432-SH3-000	Stopper - CENTER SHELF
5	84436-S1C-E00	Pin - SHELF STRAP
9	90662-SB2-003	Grommet - SCREW, 5MM
11	91560-SZ3-003	Clip, DOOR LINING (NATURAL)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Taillight 21

#	OEM	部品名
1	33301-SAP-003	Bulb - AMBER) (12V 21W
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33303-S2R-901	Bulb - 12V 21W
5	33501-S6A-G51	Lamp unit - R. TAIL
6	33502-S6A-J51	Gasket - BASE
7	33513-SAA-003	Socket - T20W W4
8	33514-SAA-003	Socket - T20W S3
9	33515-SAA-G01	Socket - T20W S2
10	33515-SAA-003	Socket - T20W S2
11	33551-S6A-G51	Lamp unit - L. TAIL
12	34101-S5A-A01	Lens comp
13	34102-S60-003	Housing comp
14	34103-S5A-A01	Gasket
15	34270-S6A-003	Light assy - HIGH MOUNT STOP
16	34351-SN7-G00	Bulb - POSITION (12V 5W)
17	34906-S2K-003	Bulb - 12V 21/5W
18	74890-S6D-E02	Garnish assy - RR. LICENSE
19	90303-S9A-003	Nut - GARNISH, 6MM
20	90650-S5A-003	Grommet - RR. COMBINATION LIGHT
21	91512-S50-003	Clip - LICENSE GARNISH
22	91560-S0X-A01	Clip - DOOR LINING (NATURAL)

Thermostat (DIESEL) 14

#	OEM	部品名
1	19301-PLZ-D00	Thermostat
2	19305-PLZ-D00	Gasket - OUTLET PIPE HOUSING
3	19311-PLZ-D00	Pipe - WATER OUTLET
4	19313-PLZ-D00	Gasket - THERMOSTAT HOUSING
5	19320-PLZ-D00	Housing - THERMOSTAT
6	19322-PLZ-D00	Pipe - HOUSING HEATER
7	19323-PLZ-D00	Pipe - VENTILATION
8	19340-PLZ-D00	Pipe - BYPASS
9	19601-PLZ-D00	Plug - WATER GLOW (B) (200W)
10	19602-PLZ-D00	Plug - WATER GLOW (A) (300W)
11	90031-PLZ-D00	Bolt - HOUSING-HEAD
12	90031-PLZ-D10	Bolt - OUTLET PIPE
13	90231-PLZ-D00	Nut - PLUG
14	90631-PLZ-D00	Clip - WATER HOSE

Timing gear case/flywheel housing (DIESEL) 15

#	OEM	部品名
1	11300-PLZ-D00	Retainer - CRANKSHAFT
2	11811-PLZ-D00	Cover - TIMING BELT LOWER
3	11821-PLZ-D00	Cover - TIMING BELT UPPER
4	11840-PLZ-D00	Cover - DUST
5	13625-PLZ-D00	Pointer - TIMING
6	15115-PLZ-D10	Gasket - OIL PUMP
7	90020-PLZ-D00	Bolt - COVER FIXING
8	90020-PLZ-D10	Bolt - TIMING BELT COVER
9	90020-PLZ-D20	Bolt - TIMING BELT COVER
10	90020-PLZ-D30	Bolt - TIMING BELT COVER
11	90020-PLZ-D40	Bolt - TIMING BELT COVER
12	90020-PLZ-D50	Bolt - TIMING BELT COVER
13	90020-PLZ-D60	Bolt - RETAINER-CYLINDER BLOCK
14	90720-PLZ-D00	Dowel pin - RETAINER-CYLINDER BLOCK
15	91220-PLZ-D10	Seal - CRANKSHAFT RR. OIL

Tire/wheel disks 38

#	OEM	部品名
1	42700-S6D-E11	Disk - WHEEL (15X6J) (DUNLOP) (BLACK)
4	42700-S6D-E91	Disk - WHEEL (15X4T) (DUNLOP)
5	42751-SV4-905	Tire - T125/70D15 95M) (BRIDGESTONE
5	42751-SV4-906	Tire - T125/70D15 95M) (DUNLOP
5	42751-S6D-901	Tire - T125/70D15 95M) (MICHELIN
6	42751-S6D-G64	Tire - 195/60R15 88H) (BRIDGESTONE
6	42751-S6D-G65	Tire - 195/60R15 88H) (MICHELIN
7	42753-SK3-000	Valve - RIM(A.R.G.)
7	42753-SN8-E00	Valve - RIM
7	42753-SG9-000	Valve - RIM(A.R.G.)
8	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
8	42767-SS0-G20	Plate - SPARE TIRE CAUTION (T-TYPE) (GERMANY)
9	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
12	44723-SEA-004	Weight - BALANCE (30G) (TOHO)
12	44721-SEA-004	Weight - BALANCE (10G) (TOHO)
12	44726-SEA-004	Weight - BALANCE (5G) (TOHO)
12	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)
12	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)
12	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)
12	44729-S5A-A00	Weight - BALANCE (35G) (SP)
12	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)
12	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)
12	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)
12	44728-S5A-A00	Weight - BALANCE (25G) (SP)
12	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)
12	44722-S5A-A00	Weight - BALANCE (20G) (SP)
12	44727-S5A-A00	Weight - BALANCE (15G) (SP)
12	44723-S5A-A00	Weight - BALANCE (30G) (SP)
12	44721-S5A-A00	Weight - BALANCE (10G) (SP)
12	44726-S5A-A00	Weight - BALANCE (5G) (SP)
12	44729-SEA-004	Weight - BALANCE (35G) (TOHO)
12	44728-SEA-004	Weight - BALANCE (25G) (TOHO)
12	44722-SEA-004	Weight - BALANCE (20G) (TOHO)
12	44727-SEA-004	Weight - BALANCE (15G) (TOHO)
15	44733-S6D-E10	Trim - WHEEL (15")
17	90381-SV1-981	Nut comp. - WHEEL (SATO RASHI)
19	83850-SH3-000	Plate - ANCHOR BOLT
20	83853-SX0-000	Bolt - ANCHOR

Tools/jack (2) 6

#	OEM	部品名
2	89000-S6D-E02	Tool set
4	89101-S6D-E01	Bag - TOOL
5	89211-SCA-E00	Wrench - WHEEL
6	89310-SDA-A01	Jack assy - PANTOGRAPH
7	89311-SDA-A01	Label - JACK CAUTION
8	89320-SCA-E00	Bar - JACK

Transmission (DIESEL) 31

#	OEM	部品名
1	20011-PMZ-D40	Transmission assy - MT
2	21000-PMZ-D40	Housing - CLUTCH
3	21103-PMZ-D40	Nozzle - FR. OUTPUT OIL
4	21210-PMZ-D41	Case - TRANSMISSION
5	21211-PMZ-D40	Gutter - TRANSMISSION CASE
6	21212-PMZ-D40	Retainer - BEARING
7	21230-PMZ-D41	Cover - RR.
8	21233-PMZ-D40	Gutter - RR. COVER INPUT SHAFT
9	22810-PMZ-D40	Bearing - CLUTCH RELEASE
10	22851-PMZ-D40	Spring - RELEASE BEARING
11	46939-S6F-000	Adapter - CYLINDER
12	90003-PMZ-D40	Bolt - CLUTCH HOUSING-CASE
13	90004-PMZ-D40	Bolt - CLUTCH HOUSING-CASE
14	90005-PMZ-D40	Bolt - GUTTER
15	90006-PMZ-D40	Bolt - RR. COVER-GUTTER
16	90051-PMZ-D40	Bolt - CYLINDER BLOCK- TRANSMISSION
17	90052-PMZ-D40	Bolt - CYLINDER BLOCK- TRANSMISSION
18	90053-PMZ-D40	Bolt - CYLINDER BLOCK- TRANSMISSION
19	90054-PMZ-D40	Bolt - CYLINDER BLOCK- TRANSMISSION
20	90082-PMZ-D40	Plug - DRAIN
21	90101-PMZ-D40	Screw - RETAINER TORQUE
22	90102-PMZ-D40	Screw - RETAINER TORQUE
23	90380-S04-000	Bolt - STUD, 12X73
24	90401-PMZ-D40	Washer - RR. COVER
25	90702-PMZ-D40	Pin - STRAIGHT
26	91101-PMZ-D40	Bearing - FR. INPUT
27	91102-PMZ-D40	Bearing - CLUTCH SHAFT NEEDLE
28	91205-PMZ-D40	Seal - DRIVE SHAFT OIL
29	91208-PMZ-D40	Cover - CLUTCH DUST
30	91216-PMZ-D40	Seal - INPUT SHAFT OIL
31	91301-PMZ-D40	O-ring - PLUG

Transmission gasket set (DIESEL) 1

#	OEM	部品名
1	06112-PMZ-D40	Gasket set - TRANSMISSION

Transmission gear (DIESEL) 73

#	OEM	部品名
1	21815-PMZ-D40	Gasket
2	23210-PMZ-D40	Shaft - TRANSAXLE INPUT
3	23221-PMZ-D41	Countershaft
4	23261-PMZ-D40	Shaft - REVERSE IDLE
5	23421-PMZ-D40	Gear assy. - FIRST OUTPUT
6	23431-PMZ-D40	Gear assy. - SECOND OUTPUT
7	23440-PMZ-D40	Gear assy. - THIRD INPUT
8	23451-PMZ-D40	Gear assy. - FOURTH INPUT
9	23461-PMZ-D40	Gear assy. - FIFTH OUTPUT
10	23471-PMZ-D40	Gear - THIRD-FOURTH
11	23521-PMZ-D40	Sleeve set - SYNCHRONIZER (1-2)
12	23540-PMZ-D40	Gear - REVERSE IDLE
13	23581-PMZ-D40	Gear - FIFTH INPUT
14	23623-PMZ-D41	Sleeve set - SYNCHRONIZER (3-4)
15	23624-PMZ-D40	Insert - 3-4
16	23625-PMZ-D40	Insert - 5
17	23626-PMZ-D40	Sleeve set - SYNCHRONIZER (5)
18	23632-PMZ-D40	Insert - 1-2
19	23641-PMZ-D40	Ring - BLOCKING
20	23642-PMZ-D40	Ring - OUTSIDE FIRST-SECOND
21	23643-PMZ-D40	Ring - BLOCKING
22	23651-PMZ-D40	Spring - INSERT
23	23652-PMZ-D40	Spring - INSERT
24	23653-PMZ-D40	Spring - INSERT FIRST-SECOND
25	23661-PMZ-D40	Ring - INSIDE FIRST-SECOND
26	23672-PMZ-D40	Ring - BLOCKING FIRST-SECOND
27	23813-PMZ-D40	Retainer - SPEED SENSOR
28	23820-PMZ-D40	Gear - SPEEDOMETER DRIVEN
29	23914-PMZ-D40	Collar - INPUT SHAFT FR.
30	23915-PMZ-D40	Collar - NEEDLE
31	23916-PMZ-D40	Washer - FOURTH GEAR THRUST
32	23917-PMZ-D40	Collar - SECOND GEAR NEEDLE
33	23918-PMZ-D40	Washer - FIFTH THRUST
34	23919-PMZ-D40	Collar - NEEDLE
35	23921-PMZ-D40	Plate - BEARING STOPPER
36	23922-PMZ-D40	Plate - STOPPER INSERT
37	23957-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.16MM)
37	23952-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.56MM)
37	23947-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.96MM)
37	23942-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.36MM)
37	23954-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.40MM)
37	23949-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.80MM)
37	23944-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.20MM)
37	23956-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.24MM)
37	23951-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.64MM)
37	23946-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.04MM)
37	23941-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.44MM)
37	23953-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.48MM)
37	23948-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.88MM)
37	23943-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.28MM)
37	23955-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.32MM)
37	23950-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.72MM)
37	23945-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.12MM)
38	78410-PMZ-D41	Sensor assy - SPEED
39	78411-PMZ-D41	Sensor - SPEED
40	78412-PMZ-D40	Bushing - GEAR
41	78417-PMZ-D40	Pin - SPRING
42	78419-PMZ-D40	Gasket - BUSHING
43	90022-PMZ-D40	Bolt - REVERSE IDLE SHAFT
44	90023-PMZ-D40	Bolt - RETAINER
45	90201-PMZ-D40	Nut
46	90202-PMZ-D40	Nut
47	90602-PMZ-D40	Ring - BEARING RETAINER
48	90711-PMZ-D40	Key - THIRD & FOURTH GEAR
49	90712-PMZ-D40	Pin - STRAIGHT
50	91001-PMZ-D40	Bearing - RR. INPUT BALL
51	91104-PMZ-D40	Bearing - NEEDLE
52	91105-PMZ-D41	Bearing - OUTPUT SHAFT FR.
53	91107-PMZ-D40	Bearing - FIRST THRUST NEEDLE
54	91108-PMZ-D41	Bearing - FIRST & SECOND NEEDLE (NTN)
54	91108-PMZ-D42	Bearing - FIRST & SECOND NEEDLE (NSK)
55	91110-PMZ-D41	Bearing - OUTPUT SHAFT RR.
56	91112-PMZ-D40	Bearing - NEEDLE

Transmission hanger (DIESEL) 7

#	OEM	部品名
1	21120-PMZ-D40	Magnet - CASE
2	21220-PMZ-D40	Hanger - TRANSMISSION
3	90007-PMZ-D40	Bolt - RR. COVER
4	90008-PMZ-D40	Bolt - RR. COVER
5	90009-PMZ-D40	Bolt - RR. COVER
6	90081-PMZ-D40	Plug
7	90701-PMZ-D40	Dowel pin - CYLINDER BLOCK- TRANSMISSION

Turbocharger system (DIESEL) 24

#	OEM	部品名
1	17112-PLZ-D00	Pipe - INTAKE MANIFOLD TURBOCHARGER
2	18130-PLZ-D00	Protector - EX. PIPE HEAT
3	18233-PLZ-D00	Gasket - TURBOCHARGER & EX. MANIFOLD
4	18234-PLZ-D00	Gasket - TURBOCHARGER & ADAPTER
5	18900-PLZ-D00	Turbocharger assy
6	18915-PLZ-D00	Pipe - TURBOCHARGER EX.
7	36160-PLZ-D00	Valve - REGULATING (B)
8	36170-PLZ-D11	Valve - REGULATING (A)
9	36171-PLZ-D00	Hose - VACUUM (A)
10	36172-PLZ-D00	Hose - VACUUM (B)
11	36177-PLZ-D10	Hose - TURBOCHARGER
12	90025-PLZ-D50	Bolt - PIPE
13	90027-PLZ-D10	Bolt - HEAT PROTECTOR
14	90036-PLZ-D00	Bolt - PIPE
15	90036-PLZ-D10	Bolt
16	90036-PLZ-D20	Bolt
17	90065-PC1-300	Bolt - STUD, 10X34.5
18	90136-PLZ-D00	Stud - MANIFOLD-EX. PIPE
19	90236-PLZ-D00	Nut - TURBOCHARGER
20	90236-PLZ-D10	Nut - EX. PIPE-TURBOCHARGER
21	90436-PLZ-D00	Washer
22	90436-PLZ-D10	Washer
23	90636-PLZ-D00	Clip - VACUUM HOSE
24	90636-PLZ-D10	Clip - VACUUM HOSE

Water Pipe (DIESEL) 9

#	OEM	部品名
1	19315-PLZ-D00	Pipe - WATER IN.
2	19422-PLZ-D00	Hose - THERMOSTAT & OIL COOLER
3	19423-PLZ-D00	Hose - WATER PIPE
4	19424-PLZ-D00	Hose - WATER PIPE
5	19505-PLZ-D00	Pipe - WATER
6	90032-PLZ-D00	Bolt - SUCTION PIPE
7	90032-PLZ-D10	Bolt - WATER PIPE
8	90432-PLZ-D00	Washer - WATER PIPE
9	91332-PLZ-D00	Gasket - WATER PIPE

Water pump (DIESEL) 5

#	OEM	部品名
1	19200-PLZ-D00	Pump assy. - WATER
2	19222-PLZ-D00	Gasket - WATER PUMP
3	19224-PLZ-D10	Pulley - WATER PUMP
4	90030-PLZ-D00	Bolt - WATER PUMP-CYLINDER BLOCK
5	90030-PLZ-D10	Bolt - PULLEY

Water valve (LH; DIESEL) 10

#	OEM	部品名
1	79710-S5D-A02	Valve assy, Water
2	79721-S6F-G00	Hose a - WATER IN.
3	79722-S6D-G00	Hose b - WATER IN.
4	79725-S6F-G00	Hose - WATER OUTLET
5	79731-S5A-000	Grommet - HEATER PIPE
6	79746-SL4-003	Clamp - HEATER HOSE
7	79746-S6F-G01	Clamp - HEATER HOSE (BLACK)
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	91551-SD5-003	Clamp - HEATER

Wheel disk al 15x 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Wheel disk al 16x 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Windshield washer (4) 27

#	OEM	部品名
1	76806-S6D-E01	Motor - FR. WASHER
2	76806-S6D-E11	Motor - RR. WASHER
3	76810-S6D-E01	Nozzle assy. - R. WINDSHIELD WASHER
4	76812-S6D-E11	Cap assy. - MOUTH
5	76815-S6D-E01	Nozzle assy. - L. WINDSHIELD WASHER
6	76819-S6D-E01	Cushion
7	76826-S6D-E11	Valve - ONE WAY (L TYPE)
8	76828-ST3-E01	Joint l - WASHER
9	76828-S1E-E01	Joint l - WASHER
10	76829-SN7-G05	Joint i - WASHER
11	76830-S6D-E01	Y-joint - ONE WAY VALVE
12	76832-S6D-E02	Tube - 4X7X550
13	76834-S6D-E01	Tube - 4X7X980
14	76835-S6D-E01	Tube - 4X7X440
15	76837-S6D-E01	Tube - 4X7X190
16	76838-S6F-E01	Tube - 4X7X4630
17	76840-S5T-E01	Tank set - WASHER
18	76842-S6D-E01	Bush - WASHER TANK
19	76851-S1C-E01	Grommet - WASHER TUBE
20	76851-S6D-E01	Grommet - WASHER TUBE
21	76852-S6D-E01	Grommet - WASHER TUBE (RR.)
22	76875-S6D-E01	Bellows - RR. WASHER
23	90652-SB2-023	Clip - TUBE, 7MM
24	90676-SK7-013	Clip - WASHER TUBE
25	91501-SJ6-003	Clip - WASHER TUBE
26	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
27	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Wire harness (LH) 27

#	OEM	部品名
1	30510-SCC-013	Condenser comp.
2	32103-S6F-G11	Sub cord - COMBINATION
3	32107-S6D-G12	Harness - FLOOR WIRE
4	32109-S6A-010	Harness - TAILGATE WIRE
5	32111-PLZ-E00	Harness - GENERATOR
6	32115-PLZ-G00	Sub harness - FUEL HEATER
7	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
9	32117-S6F-G12	Harness - INSTRUMENT WIRE
10	32125-S6D-G10	Sub cord - EPS
11	32155-S6D-G01	Cord - INTERIOR & SUNROOF
12	32200-S6F-G12	Harness - ENGINE ROOM WIRE
12	32200-S6F-G02	Harness - ENGINE ROOM WIRE
13	32201-S6F-G01	Sub cord - ENGINE CONTROL MODULE
14	32610-S6F-G00	Cable - SUB EARTH
15	32751-S6D-G40	Harness - DRIVER DOOR WIRE
16	32752-S6D-G10	Harness - PASSENGER DOOR WIRE
17	32753-S6D-G20	Harness - R. RR. DOOR WIRE
20	35505-692-003	Bulb - 14V 1.4W
21	90137-S84-A01	Bolt - TORX EARTH, 6X20
22	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
23	90149-SE0-003	Bolt - EARTH, 6X16
24	90153-SE0-003	Bolt - EARTH, 6X12
25	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
26	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
27	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
28	91559-SM4-003	Clip - POWER STEERING TUBE (135MM)
29	91565-SEL-003	Clip - COUPLER(BLACK)
