17" alloy wheel 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Abs modulator (2) 4

#	OEM	部品名
1	57101-S5A-A00	Damper
2	57102-S5A-A00	Bolt - ABS MOUNTING
3	57110-S5T-E50	Modulator assy
4	57115-S5T-E01	Bracket comp. - MODULATOR

Air cleaner (DIESEL) 21

#	OEM	部品名
1	16176-PLZ-E00	O-ring - AIR FLOW SENSOR
2	16400-PLZ-E01	Sensor assy - AIR FLOW
3	17131-PLZ-E00	Tube - PCV
4	17210-PLZ-E01	Cover comp. - AIR CLEANER
5	17212-PLZ-E01	Rubber - AIR CLEANER MOUNTING
6	17212-P2J-000	Rubber - AIR CLEANER MOUNTING
7	17216-P2A-005	Collar - AIR CLEANER MOUNTING
8	17219-PLZ-E01	Clamp - AIR CLEANER
9	17219-P2A-005	Clip - AIR CLEANER
10	17220-PLZ-E01	Element - AIR CLEANER
11	17225-PLZ-E01	Tube assy - AIR FLOW
12	17229-PLZ-E01	Insulator - AIR FLOW TUBE
13	17240-PLZ-E01	Case assy. - AIR CLEANER
14	17243-PLZ-E01	Tube assy - AIR INTAKE
15	17244-PLZ-E01	Rubber - AIR INTAKE SEAL
16	17261-PLZ-G00	Stay comp. a - AIR CLEANER
17	17262-PLZ-G00	Stay comp. b - AIR CLEANER
18	17315-P5K-000	Clamp - AIR FLOW TUBE (74)
19	17316-PLZ-E01	Clamp - AIR FLOW TUBE (56)
20	38251-S6F-000	Bracket a - RELAY BOX
21	90682-SB0-671	Clamp - CANISTER HOSE

Air conditioner (COMPRESSOR; DIESEL) 10

#	OEM	部品名
1	38800-PLZ-D00	Compressor assy
2	38901-PLZ-D00	Armature
3	38906-PLZ-D00	Pulley - MAGNET CLUTCH
4	38912-PLZ-D00	Seal - SHAFT
5	38920-PLZ-D00	Belt - GENERATOR DRIVE
6	38924-PLZ-D00	Coil - FIELD MAGNET CLUTCH
7	38930-PLZ-D00	Bracket - COMPRESSOR
8	38940-PLZ-D00	Idler assy
9	90033-PLZ-D00	Bolt - BRACKET
10	90085-PLZ-D00	Bolt - COMPRESSOR BRACKET

Air conditioner (CONDENSER; DIESEL) 12

#	OEM	部品名
1	38611-PLZ-E01	Fan - COOLING
2	38615-PLZ-E01	Sub shroud comp.
3	38616-PLZ-E01	Motor - COOLING FAN
4	38619-PLZ-E01	Protector - FAN MOTOR HEAT
5	80107-S6F-000	Bracket - R. CONDENSER UPPER
6	80107-S87-A01	Rubber - CONDENSER UPPER
7	80108-S6F-000	Bracket - L. CONDENSER UPPER
8	80110-S6F-E01	Condenser comp.
9	80175-S87-A01	Rubber - CONDENSER MOUNTING
10	90041-P3G-003	Screw-washer - 5X11
11	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
12	90043-PD2-003	Nut - HEX., 5MM (DENSO)

Air conditioner (COOLING UNIT; LH) 14

#	OEM	部品名
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
2	53747-SA5-003	Clip - POWER STEERING HOSE
3	79511-S6D-G01	Knob - A/C
5	80211-S6D-G12	Evaporator assy.
6	80215-S6A-003	Plate
7	80216-S6A-003	Insulator - EXPANSION VALVE
8	80220-S6F-013	Valve - EXPANSION
9	80271-S6F-000	Hose - DRAIN
10	80430-S6A-003	Thermostat - AIR CONDITIONER
14	80460-S6F-E00	Harness - AIR CONDITIONER WIRE
15	80871-ST7-000	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"
17	90125-S6A-003	Bolt - 5X35

Air conditioner (HOSES/PIPES; LH; DIESEL) 19

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
1	32748-PLZ-E01	Stay c - GENERATOR HARNESS
2	80311-S6F-G02	Hose comp. - SUCTION
3	80315-S6F-E01	Hose comp. - DISCHARGE
4	80325-S6F-G02	Pipe assy. - AIR CONDITIONER
5	80331-S6F-E01	Pipe - CONDENSER
6	80341-S6F-E01	Pipe comp - RECEIVER
7	80351-S6F-E21	Receiver comp - ###
8	80352-S5A-000	Bracket - LIQUID TANK
9	80387-SM4-A01	Clip - RECEIVER PIPE
10	80440-S6F-003	Switch - TRIPLE PRESSURE (CALSONIC)
11	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
12	80465-S5A-A00	Cover - AIR CONDITIONER PIPE
13	80865-S6D-003	Cap - VALVE (H)
14	80866-S6A-003	Cap - VALVE (L)
15	80871-ST7-000	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"
17	80873-ST7-000	O-ring - 8MM
18	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Air conditioner (KIT; LH) 1

#	OEM	部品名
3	80000-S6F-G54	General assy. - AIR CONDITIONER

Air conditioner (SENSOR) 6

#	OEM	部品名
1	80510-S0A-941	Sensor - SUN BEAM
2	80521-S6F-E00	Bracket - AMBIENT SENSOR
3	80525-S30-941	Sensor assy - AMBIENT
4	80530-S4N-941	Sensor assy - IN CAR
5	80541-S6D-G01	Hose - ASPIRATOR (LH)
6	91555-SL0-A01	Clip - COUPLER

Alloy wheel - 14x5.5jj- 5 spoke 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Alloy wheel - 15x6.0jj 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Alloy wheel 15x6j / es-r6 6-spoke 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Antenna/speaker 18

#	OEM	部品名
1	39120-SEL-902	Speaker assy - 17CM SINGLE) (FR.) (MATSUSHITA
1	39120-S5A-911	Speaker assy - 17CM SINGLE) (PIONEER
2	39120-SEL-951	Speaker assy - 17CM SINGLE) (RR.) (MATSUSHITA
3	39122-S5A-000	Seal - SPEAKER HOLE
4	39151-S6A-E02	Element assy. - YOKOO
4	39151-S6A-E03	ELEMENT ASSY YOKOO
5	39152-S6A-E01	Base comp. - ANTENNA (YOKOO)
6	39153-S5T-J51	Nut - FLANGE (YOKOO)
7	39154-S6A-E01	Pad - YOKOO
8	39156-S6A-G00	Sub feeder
9	39160-S5S-000	Feeder assy. - ROOF ANTENNA
10	74536-S5S-E00	Insulator - RR. INSIDE PANEL
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
15	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
16	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
17	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Auto radio 6

#	OEM	部品名
1	39100-S5S-B30	Tuner assy - AUTO RADIO (PIONEER) (35WX4)
1	39100-S5S-B70	Tuner assy - AUTO RADIO (PIONEER) (35WX4)
2	39100-S5S-R30	Tuner assy - MATSUSHITA) (30WX4
4	39103-S5S-E31	Knob - VOLUME TUNE
5	39103-S6A-X11	Knob - VOLUME
6	91551-SE0-003	Bolt - FLANGE, 5X7

Battery (DIESEL) 17

#	OEM	部品名
1	31500-S6F-G01	Battery - 096-MF) (YUASA
2	31510-S37-D00	Cover - BATTERY TERMINAL
3	31512-S6F-000	Plate - BATTERY SETTING
4	31513-SM4-000	Bolt - BATTERY SETTING(195MM)
5	31531-S6F-000	Cover - BATTERY
6	32116-P64-003	Holder - CORRUGATED (DARK GREEN) (13MM)
7	32410-S6F-000	Cable assy - STARTER
8	32600-S6F-000	Cable assy - BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL
11	90153-SE0-003	Bolt - EARTH, 6X12
12	90182-SB6-000	Bolt-washer - 6X16
13	90337-SJ4-003	Nut - A.L.B.
14	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
15	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
16	91551-S6F-G01	Clamp
17	91571-SP0-003	Clip - WIRE HARNESS (BLACK) (64MM)

Brake lines (ABS; LH; 2) 33

#	OEM	部品名
1	01464-S6D-000	Hose set - R. FR. BRAKE
2	01465-S6D-000	Hose set - L. FR. BRAKE
3	01466-S5A-J04	Hose set - R. RR. BRAKE
4	01468-S5A-J04	Hose set - L. RR. BRAKE
5	46330-S5T-E00	Pipe comp. c - BRAKE
6	46340-S5T-E00	Pipe comp. d - BRAKE
7	46374-S6F-G50	Pipe comp. u - BRAKE
8	46375-S6F-G50	Pipe comp. v - BRAKE
9	46376-S6F-E00	Pipe comp. w - BRAKE
10	46377-S6F-G01	Pipe comp. x - BRAKE
11	46378-S6F-G00	Pipe comp. y - BRAKE
12	46379-S6F-G01	Pipe comp. z - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE
14	46391-S5A-J01	Clip - BRAKE PIPE
15	46391-S5A-Z01	Clip - BRAKE PIPE
16	46391-S6F-000	Clip - BRAKE PIPE
18	46392-SB2-014	Clip b - BRAKE PIPE
19	46392-S0X-A01	Clip - BRAKE PIPE
21	46393-SZ3-003	Clip - BRAKE PIPE
22	46393-S6D-010	Clip - BRAKE PIPE
24	46395-SR3-J01	Clip b - BRAKE PIPE
25	46396-S7A-003	Clip - BRAKE PIPE
26	46397-S5A-000	Clamp - R. BRAKE PIPE
27	46398-S5A-000	Clamp - L. BRAKE PIPE
28	46435-S5A-900	Bracket a - R. RR. BRAKE HOSE
29	46436-S5A-900	Bracket a - L. RR. BRAKE HOSE
30	46437-S5A-J00	Bracket - R. RR. BRAKE HOSE
31	46438-S5A-J00	Bracket - L. RR. BRAKE HOSE
32	46462-SE0-000	Bolt - OIL
33	46470-S5T-E01	Joint - FOUR WAY
34	46472-568-000	Packing - OIL BOLT
35	90361-SV4-003	Nut - PAINT CUTTING, 6MM
36	90651-SN7-003	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH; DIESEL) 27

#	OEM	部品名
1	01469-S6F-G00	Power set - MASTER (9")
2	46017-S6A-000	Hose set - RESERVE TANK
3	46070-SL0-G01	Plate - SYMBOL MARK
4	46100-S6F-G02	Cylinder assy. - MASTER
5	46120-S0A-013	Piston assy. - PRIMARY
6	46122-S10-013	Piston assy. - SECONDARY
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
8	46182-S10-003	Circlip
9	46185-S04-J01	Seal - ROD
10	46191-S2K-000	Packing - MASTER POWER
11	46401-S6F-E01	Switch assy - VACUUM
12	46401-S6F-000	Bracket comp. - VACUUM SWITCH
13	46402-S6F-G03	Tube assy - MASTER POWER
14	46403-S1B-E00	Joint - THREE WAY
15	46407-S84-A01	Clamp - TUBE
16	46512-S70-000	Pin - PEDAL
17	46661-S6F-G01	Reservoir set
18	46662-S5A-003	Cap comp. - RESERVE TANK
19	46665-S04-J01	Grommet
20	46666-S2K-003	Filter - BRAKE RESERVOIR
21	46669-S5A-003	Diaphragm
22	46672-S6A-003	Hose - RESERVE TANK
23	46673-S6A-003	Hose - RESERVE TANK
24	46680-S6A-013	Union - RESERVOIR
25	46911-S70-003	Pin, LOCK(8MM)
26	53729-671-003	Clamp d - 15.5MM
27	57515-S30-003	Pin - STOP

Bumpers 29

#	OEM	部品名
3	71110-S6A-000	Spoiler - FR. BUMPER AIR
8	71190-S6A-000	Beam comp - L. FR. BUMPER UPPER
9	71193-S6A-000	Spacer - R. FR. BUMPER SIDE
10	71198-S6A-000	Spacer - L. FR. BUMPER SIDE
13	71505-S5A-J00	Bracket - R. RR. BUMPER SIDE
15	71514-S6M-Z00	Spacer comp - RR. BUMPER AIR SPOILER
17	71555-S5A-J00	Bracket - L. RR. BUMPER SIDE
18	71592-S6A-000	Clip assy. - BUMPER SPACER
19	71593-S5S-G00	Spacer - R. RR. BUMPER SIDE
20	71594-S5S-G00	Spacer - R. RR. BUMPER UPPER
21	71598-S5S-G00	Spacer - L. RR. BUMPER SIDE
22	71599-S5S-G00	Spacer - L. RR. BUMPER UPPER
23	90105-634-000	Bolt-washer (8x20)
24	90109-SS0-000	Screw - TAPPING, 5X20
25	90111-SM4-003	Bolt - BUMPER
26	90126-SA7-000	Screw-washer - 5X20
26	90114-SZ3-000	Screw-washer - 5X20
27	90126-SR4-000	Screw-washer - 5X16
28	90141-S5T-G01	Bolt - BUMPER SPOILER
29	90149-SA0-003	Bolt - BUMPER
30	90149-S5S-G00	Bolt - BUMPER
31	90150-S84-003	Bolt - EARTH, 8X16
32	90301-SP0-003	Nut - PAINT CUTTING, 6MM
33	90303-S5T-G00	Nut - GARNISH, 6MM
34	90305-SH3-000	Nut - AIR SPOILER CLIP
35	90345-S04-000	Nut - SUSPENSION, 5MM
36	90682-SB0-003	Grommet - SCREW, 5MM
37	91503-SZ3-003	Clip A
38	91503-SZ5-003	Clip - BUMPER FACE

Camshaft/valve (DIESEL) 70

#	OEM	部品名
1	13621-PLZ-D00	Pulley - CRANKSHAFT TIMING BELT
2	13622-PLZ-D00	Plate - TIMING BELT GUIDE
3	14011-PLZ-D00	Gear - CAMSHAFT
4	14012-PLZ-D00	Plate - CAMSHAFT END
5	14111-PLZ-D00	Camshaft - INTAKE
6	14121-PLZ-D00	Camshaft - EX.
7	14210-PLZ-D00	Pulley - CAMSHAFT TIMING
8	14211-PLZ-D00	Flange - CAMSHAFT PULLEY
9	14400-PLZ-D00	Belt - TIMING
10	14520-PLZ-D00	Pulley - IDLE TIMING
11	14530-PLZ-D00	Pulley - TENSIONER
12	14621-PLZ-D00	Tappet - VALVE
13	14711-PLZ-D00	Valve - IN.
14	14721-PLZ-D10	Valve - EX.
15	14752-PLZ-D00	Spring - VALVE
16	14765-PLZ-D00	Seat - SPRING
17	14775-PLZ-D00	Seat - SPRING
18	14781-PLZ-D00	Collar - SPLIT
19	14791-PLZ-D20	Adjuster - VALVE GAP (2.74MM)
19	14793-PLZ-D90	Adjuster - VALVE GAP (3.28MM)
19	14793-PLZ-D40	Adjuster - VALVE GAP (3.18MM)
19	14792-PLZ-D90	Adjuster - VALVE GAP (3.08MM)
19	14792-PLZ-D40	Adjuster - VALVE GAP (2.98MM)
19	14791-PLZ-D90	Adjuster - VALVE GAP (2.88MM)
19	14791-PLZ-D40	Adjuster - VALVE GAP (2.78MM)
19	14793-PLZ-D60	Adjuster - VALVE GAP (3.22MM)
19	14793-PLZ-D10	Adjuster - VALVE GAP (3.12MM)
19	14792-PLZ-D60	Adjuster - VALVE GAP (3.02MM)
19	14792-PLZ-D10	Adjuster - VALVE GAP (2.92MM)
19	14791-PLZ-D60	Adjuster - VALVE GAP (2.82MM)
19	14791-PLZ-D10	Adjuster - VALVE GAP (2.72MM)
19	14793-PLZ-D80	Adjuster - VALVE GAP (3.26MM)
19	14793-PLZ-D30	Adjuster - VALVE GAP (3.16MM)
19	14792-PLZ-D80	Adjuster - VALVE GAP (3.06MM)
19	14792-PLZ-D30	Adjuster - VALVE GAP (2.96MM)
19	14791-PLZ-D80	Adjuster - VALVE GAP (2.86MM)
19	14791-PLZ-D30	Adjuster - VALVE GAP (2.76MM)
19	14794-PLZ-D00	Adjuster - VALVE GAP (3.30MM)
19	14793-PLZ-D50	Adjuster - VALVE GAP (3.20MM)
19	14793-PLZ-D00	Adjuster - VALVE GAP (3.10MM)
19	14792-PLZ-D50	Adjuster - VALVE GAP (3.00MM)
19	14792-PLZ-D00	Adjuster - VALVE GAP (2.90MM)
19	14791-PLZ-D50	Adjuster - VALVE GAP (2.80MM)
19	14791-PLZ-D00	Adjuster - VALVE GAP (2.70MM)
19	14793-PLZ-D70	Adjuster - VALVE GAP (3.24MM)
19	14793-PLZ-D20	Adjuster - VALVE GAP (3.14MM)
19	14792-PLZ-D70	Adjuster - VALVE GAP (3.04MM)
19	14792-PLZ-D20	Adjuster - VALVE GAP (2.94MM)
19	14791-PLZ-D70	Adjuster - VALVE GAP (2.84MM)
20	15111-PLZ-D00	Pulley - OIL PUMP TIMING
21	17042-PLZ-D00	Pulley - INJECTION PUMP TIMING
22	37841-PLZ-D00	Sensor - CAM ANGLE
23	37845-PLZ-D00	Bracket - CAM SENSOR
24	90014-PLZ-D00	Bolt - CAM PULLEY
25	90014-PLZ-D10	Bolt - BRACKET
26	90014-PLZ-D20	Bolt - IDLE PULLEY
27	90014-PLZ-D30	Screw - FLANGE
28	90014-PLZ-D40	Bolt - TENSIONER
29	90014-PLZ-D50	Bolt - SENSOR
30	90114-PLZ-D00	Stud - SPRING STOPPER
31	90214-PLZ-D00	Nut - PULLEY
32	90214-PLZ-D10	Nut - PULLEY
33	90414-PLZ-D00	Washer - CAMSHAFT GEAR
34	90414-PLZ-D10	Washer - GEAR CAM
35	90614-PLZ-D00	Ring - SNAP
36	90614-PLZ-D10	Spring - GEAR
37	90714-PLZ-D00	Pin - CAMSHAFT
38	90714-PLZ-D10	Pin - PULLEY KNOCK
39	90714-PLZ-D20	Pin - GEAR SET
40	91214-PLZ-D00	Seal - CAMSHAFT OIL

Clutch (DIESEL) 4

#	OEM	部品名
1	21100-PMZ-D40	Adapter set
2	22200-PLZ-016	Disk - CLUTCH
3	22300-PLZ-006	Plate assy. - PRESSURE
4	90034-PLZ-D40	Bolt - CLUTCH COVER

Clutch master cylinder (LH; DIESEL) 38

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke
4	46182-500-013	Circlip
5	46391-S5A-Z01	Clip - BRAKE PIPE
6	46394-S04-003	Clip A
7	46911-S70-003	Pin, LOCK(8MM)
8	46912-S84-A00	Pin - CLUTCH PEDAL
9	46920-S5A-G04	Cylinder assy. - CLUTCH MASTER
10	46921-S5A-003	Plate - STOPPER
11	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
12	46928-S5A-A01	Seal - MASTER CYLINDER
13	46930-S6F-E01	Cylinder assy. - CLUTCH SLAVE
14	46931-S5A-003	Pin - SPRING
15	46932-S5A-003	Piston - SLAVE CYLINDER
16	46937-SS1-003	Boot - SLAVE CYLINDER
17	46939-S6F-000	Adapter - CYLINDER
18	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
19	46942-S5A-003	Pin - SNAP
20	46943-S5A-003	Seal - RING
21	46944-S5A-J01	Connector
22	46945-S5A-003	O-ring
23	46946-S5A-003	Screw-washer - 4X12
24	46947-S5A-003	Rod - PUSH
25	46948-S5A-003	Rod - PUSH
26	46949-S5A-003	Seal - RING
27	46960-S6F-G03	Pipe comp. a - CLUTCH
28	46960-S6F-902	Pipe comp. c - CLUTCH
29	46961-S7C-003	Hose, Clutch
30	46965-S6F-G01	Tank assy. - CLUTCH
31	46968-S6F-E01	Bracket b - CLUTCH PIPE
32	46970-S6F-E02	Pipe comp. b - CLUTCH
33	46971-S6F-G01	Tube - CLUTCH FLUID
34	46972-S6F-E01	Clamp - TUBE (D12)
35	46985-SV4-003	Damper - CLUTCH
36	46995-S6F-023	Bracket a - CLUTCH PIPE
37	90651-538-000	Clip - BRAKE HOSE
38	91593-SV4-003	Clip - FUEL PIPE (C)

Clutch shift fork (DIESEL) 4

#	OEM	部品名
1	22821-PMZ-D40	Fork assy - CLUTCH
2	22822-PMZ-D40	Lever - CLUTCH INTERNAL
3	90010-PMZ-D40	Bolt - INTERNAL LEVER
4	91103-PMZ-D40	Bearing - CLUTCH SHAFT

Combination switch 25

#	OEM	部品名
1	06350-S6D-R31	Cylinder set - KEY
1	06350-S6D-R21	Cylinder set - KEY
2	35100-S6A-E21	Lock assy - STEERING
2	35100-SJD-G01	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35113-S0X-Y01	Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER)
6	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
8	35130-S7S-J01	Switch comp - STEERING
9	35251-S5A-Y03	Body comp - SWITCH
10	35255-S5A-A22	Switch assy - LIGHTING & TURN SIGNAL
10	35255-S5A-G02	Switch assy - LIGHTING & TURN SIGNAL
11	35256-S6A-G01	Switch assy
12	35257-S5A-J01	Bracket
13	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)
14	39730-SEA-E01	Immobilizer unit
15	72118-ST7-003	Screw - TAPPING, 3X5
16	72146-S5A-G01	Cover - BATTERY
17	72147-S6A-G01	Transmitter assy - KEYLESS
18	72148-S10-003	Battery - CR2025
18	72148-S84-A10	Battery - CR2025
19	72149-S10-003	O-ring
20	90132-S2H-G01	Screw - ET, 5X18
20	90132-S2H-G11	Screw - ET, 5.5X18

Console 4

#	OEM	部品名
8	77293-S5S-E01	Mat - CONSOLE BOX
9	77295-S5V-E01	Insulator - R. CONSOLE
10	77296-S5V-E01	Insulator - L. CONSOLE
13	90666-S84-A01	Clip - SNAP FITTING

Control unit (CABIN; LH) 24

#	OEM	部品名
7	37821-PLZ-G00	Bracket comp. a - ELECTRONIC CONTROL UNIT (LH)
8	37822-PLZ-G00	Bracket comp. b - ELECTRONIC CONTROL UNIT (LH)
10	37828-PLZ-G00	Bracket - RELAY (LH)
12	37910-PLZ-G01	Control unit - FUEL HEATER
13	37911-PLZ-G00	Bracket comp. - FUEL HEATER CONTROL UNIT
14	38140-S3N-003	Control unit - RR. WIPER
17	38200-S6A-G21	Box assy - FUSE
18	38201-S5A-A01	Bracket - FUSE BOX
19	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
19	38300-S5P-A01	Relay assy - TURN SIGNAL & HAZARD (OMRON)
19	38300-S5T-004	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
21	38385-S6A-G01	Receiver unit - KEYLESS ENTRY
23	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
23	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
23	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
23	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
23	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
26	39794-S5A-901	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
28	39980-S5V-G13	Eps unit
28	39980-S5V-G03	Eps unit
30	90137-SF1-000	Bolt-washer - 6X25
31	90153-SE0-003	Bolt - EARTH, 6X12
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM
33	91755-S7S-000	Bracket - RELAY BLOCK (ISO)

Control unit (ENGINE ROOM; DIESEL; LH) 39

#	OEM	部品名
1	32120-PLZ-G00	Holder - HARNESS
2	38100-S04-A01	Horn assy - LOW (MITSUBA)
5	38150-ST7-G01	Horn assy - HIGH (MITSUBA)
6	38192-S6F-G01	Cover - MULTI RELAY
7	38196-PLZ-G00	Bracket - SUB RELAY BOX
8	38199-PLZ-G00	Bracket comp. - SUB RELAY BOX (LH)
9	38213-SM4-003	Fuse - BLOCK (50A)
10	38214-SS1-003	Fuse - BLOCK (60A)
11	38215-SX8-003	Fuse - BLOCK (70A)
12	38218-SM4-003	Fuse - BLOCK (100A)
13	38230-S6F-G02	Box assy - SUB FUSE
14	38231-S04-003	Fuse - BLOCK (30A)
15	38231-S04-961	Fuse - BLOCK (40A)
16	38231-S6F-G01	Cover comp. - UPPER
17	38233-S6F-000	Bracket comp. - SUB FUSE BOX
18	38235-S04-003	Puller - MINI FUSE (SUMITOMO)
19	38250-S6F-G02	Box assy - RELAY
20	38252-S5A-003	Cover - LOWER
21	38252-S6F-000	Bracket comp. b - RELAY BOX
22	38253-S5T-000	Bracket - RELAY BOX SIDE
23	38254-S6F-G02	Cover - UPPER
24	38255-S6F-G01	Busbar assy. - SHORT
25	39762-SG0-003	Relay assy - POWER (5P) (DENSO) (056700-8160)
26	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
27	39792-S6F-E01	Relay - NORMAL OPEN
28	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
28	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
29	39794-SL0-J01	Relay assy - POWER (4P) (MITSUBA) (RC-2226) (BROWN)
30	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
30	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
30	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
30	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
30	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
31	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
32	90114-SG0-003	Bolt - 5X13
33	90114-SM4-900	Bolt - 6X15
34	90129-SP0-000	Screw-washer - 5X12
35	90129-SX8-003	Screw-washer - 5X12
36	90150-S84-003	Bolt - EARTH, 8X16

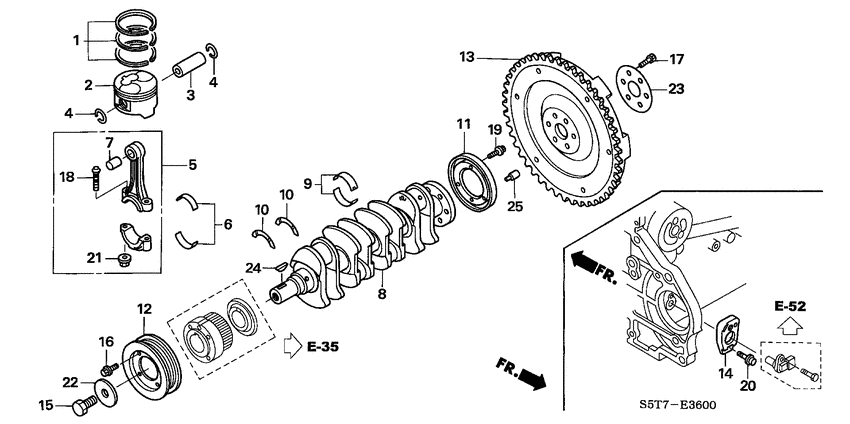

Crankshaft/piston/flywhee l (DIESEL) 32

#	OEM	部品名
1	13011-PLZ-D00	Ring set - PISTON (STD.)
2	13102-PLZ-D00	Piston - B
2	13101-PLZ-D00	Piston - A
2	13103-PLZ-D00	Piston - C
3	13111-PLZ-D00	Pin - PISTON
4	13115-PLZ-D00	Ring - PISTON PIN SNAP
5	13210-PLZ-D00	Rod assy - CONNECTING
6	13211-PLZ-D00	Metal set - CONNECTING ROD (STD.) (BLUE)
6	13213-PLZ-D00	Metal set - CONNECTING ROD (STD.) (BROWN)
6	13212-PLZ-D00	Metal set - CONNECTING ROD (STD.) (BLACK)
7	13232-PLZ-D00	Bush - CONNECTING ROD
8	13310-PLZ-D00	Crankshaft
9	13324-PLZ-D00	Metal set - CRANKSHAFT (STD.) (GREEN)
9	13321-PLZ-D00	Metal set - CRANKSHAFT (STD.) (BLUE)
9	13323-PLZ-D00	Metal set - CRANKSHAFT (STD.) (BROWN)
9	13322-PLZ-D00	Metal set - CRANKSHAFT (STD.) (BLACK)
10	13331-PLZ-D00	Washer - CRANKSHAFT THRUST
11	13623-PLZ-D00	Rotor - CRANKSHAFT SENSOR
12	13810-PLZ-D10	Pulley - CRANKSHAFT DAMPER
13	22100-PLZ-D40	Flywheel
14	37505-PLZ-D00	Spacer - CRANK SENSOR
15	90015-PLZ-D00	Bolt - PULLEY CENTER
16	90015-PLZ-D10	Bolt - DAMPER
17	90015-PLZ-D20	Bolt - FLYWHEEL
18	90015-PLZ-D30	Bolt - CONNECTING ROD
19	90015-PLZ-D40	Screw - ROTOR
20	90015-PLZ-D50	Bolt - SPACER
21	90215-PLZ-D00	Nut - CONNECTING ROD
22	90415-PLZ-D00	Washer - CRANKSHAFT PULLEY
23	90415-PLZ-D10	Washer - FLYWHEEL
24	90715-PLZ-D00	Key - CRANKSHAFT WOODRUFF
25	90715-PLZ-D10	Pin - CRANKSHAFT

Cylinder block (DIESEL) 22

#	OEM	部品名
1	11000-PLZ-D00	Block assy - CYLINDER
2	15140-PLZ-D00	Orifice
3	15280-PLZ-D00	Pipe - OIL JET
4	15711-PLZ-D00	Pipe - OIL RETURN
5	15712-PLZ-D00	Pipe - TURBOCHARGER OIL RETURN (B)
6	15713-PLZ-D10	Adapter - OIL FEED PIPE (B)
7	15714-PLZ-D00	Pipe - TURBOCHARGER OIL RETURN (A)
8	15715-PLZ-D00	Valve - OIL CHECK
9	15716-PLZ-D00	Adapter - OIL FEED PIPE (A)
10	19225-PLZ-D00	Guide - GALLERY
11	37240-PLZ-D00	Switch - OIL PRESSURE
12	90012-PLZ-D10	Bolt - BEARING CAP
13	90112-PLZ-D20	Stud - PUMP HOLE
14	90112-PLZ-D10	Stud - EX. PIPE
15	90412-PLZ-D00	Gasket - OIL FEED NIPPLE
16	90412-PLZ-D10	Gasket - ADAPTER
17	90712-PLZ-D00	Dowel pin - CYLINDER BLOCK- HEAD
18	90812-PLZ-D00	Cup - OIL GALLERY SEALING (A)
19	90812-PLZ-D10	Cup - OIL GALLERY SEALING (B)
20	90812-PLZ-D20	Cup - SEALING
21	90812-PLZ-D30	Cup - OIL GALLERY SEALING
22	91312-PLZ-D00	Gasket - PLUG

Cylinder head (DIESEL) 24

#	OEM	部品名
1	11912-PLZ-D00	Hanger - ENGINE
2	11913-PLZ-D00	Hanger - ENGINE
3	12100-PLZ-D10	Head assy - CYLINDER
4	12204-PLZ-D00	Guide - VALVE
5	12205-PLZ-D00	Sleeve - INJECTOR
6	12210-PLZ-D20	Seat - VALVE INSERT
7	12210-PLZ-D30	Seat - VALVE INSERT
8	12211-PLZ-D00	Seal - OIL VALVE GUIDE
9	12230-PLZ-D10	Carrier - CAMSHAFT
10	12235-PLZ-D10	Gasket - CARRIER
11	12251-PLZ-D30	Gasket - CYLINDER HEAD (1.35MM)
11	12251-PLZ-D50	Gasket - CYLINDER HEAD (1.45MM)
11	12251-PLZ-D40	Gasket - CYLINDER HEAD (1.40MM)
12	12291-PLZ-D10	Plug - GLOW
13	90011-PLZ-D00	Bolt - CYLINDER HEAD
14	90011-PLZ-D10	Bolt - HANGER
15	90011-PLZ-D20	Bolt - CARRIER
16	90011-PLZ-D30	Bolt - CARRIER
17	90111-PLZ-D00	Stud - EX. MANIFOLD
18	90111-PLZ-D10	Stud - CAM BRACKET
19	90211-PLZ-D00	Nut - CAM BRACKET
20	90711-PLZ-D00	Dowel pin - CYLINDER HEAD
21	90811-PLZ-D00	Cup - CYLINDER HEAD SEALING
22	91311-PLZ-D00	Gasket - INJECTOR SLEEVE

Cylinder head cover (DIESEL) 13

#	OEM	部品名
1	12310-PLZ-D00	Cover - CYLINDER HEAD
2	12316-PLZ-D00	Collar - HEAD COVER
3	12317-PLZ-D00	Mounting - HEAD COVER
4	12341-PLZ-D00	Gasket - CYLINDER HEAD COVER
5	12342-PLZ-D00	Cover - NOZZLE SEAL
6	12342-PLZ-D10	Cover - NOZZLE SEAL
7	12500-PLZ-D00	Cover - CYLINDER HEAD NOISE
8	15610-PLZ-D00	Cap - OIL FILLER
9	15613-PLZ-D00	Gasket - OIL FILLER
10	90010-PLZ-D00	Bolt - CYLINDER HEAD COVER
11	90010-PLZ-D10	Bolt - COVER
12	90010-PLZ-D20	Bolt - COVER
13	90010-PLZ-D30	Bolt - COVER

Differential (DIESEL) 38

#	OEM	部品名
1	41221-PMZ-D40	Gear - DIFFERENTIAL SIDE
2	41233-PMZ-D40	Gear - RING
3	41311-PMZ-D40	Case - DIFFERENTIAL
4	41312-PMZ-D40	Gear - SPEEDOMETER DRIVE
5	41313-PMZ-D40	Pin - CROSS LOCK
6	41321-PMZ-D40	Pin - DIFFERENTIAL PINION CROSS
7	41341-PMZ-D40	Gear - DIFFERENTIAL PINION
8	41351-PMZ-D40	Washer - THRUST SIDE GEAR (1.00MM)
8	41353-PMZ-D40	Washer - THRUST SIDE GEAR (1.10MM)
8	41352-PMZ-D40	Washer - THRUST SIDE GEAR (1.05MM)
9	41371-PMZ-D40	Washer - THRUST SIDE GEAR
10	41390-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.84MM)
10	41385-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.44MM)
10	41402-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.80MM)
10	41397-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.40MM)
10	41392-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (2.00MM)
10	41387-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.60MM)
10	41382-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.20MM)
10	41404-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.96MM)
10	41399-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.56MM)
10	41394-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.16MM)
10	41389-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.76MM)
10	41384-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.36MM)
10	41401-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.72MM)
10	41396-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.32MM)
10	41391-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.92MM)
10	41386-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.52MM)
10	41381-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.12MM)
10	41403-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.88MM)
10	41398-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.48MM)
10	41393-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.08MM)
10	41388-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.68MM)
10	41383-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.28MM)
10	41400-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.64MM)
10	41395-PMZ-D40	Shim - BEARING DIFFERENTIAL SIDE (1.24MM)
11	90017-PMZ-D40	Bolt - RING GEAR SET
12	91005-PMZ-D42	Bearing - DIFFERENTIAL (KOYO)
12	91005-PMZ-D41	Bearing - DIFFERENTIAL (NSK)

Door lining (LH) 4

#	OEM	部品名
6	72335-S5S-E01	Weatherstrip - R. FR. DOOR INNER
7	72375-S5S-E01	Weatherstrip - L. FR. DOOR INNER
18	90662-SB2-003	Grommet - SCREW, 5MM
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Duct (LH) 1

#	OEM	部品名
1	77400-S6A-G01	Duct assy - INSTRUMENT

Emblems/caution labels 13

#	OEM	部品名
1	17669-PLZ-E01	Label - FUEL FILLER CAUTION (DIESEL)
2	19043-PLZ-E00	Label - COOLANT INFORMATION
3	42760-S5V-G00	Plate - TIRE PRESSURE CAUTION
3	42760-S6F-G00	Plate - TIRE PRESSURE CAUTION
5	75700-S9A-G00	Front Honda Emblem - (H)
6	75701-S5S-E00	Emblem - RR. CENTER (H)
9	75722-S5S-E00	Emblem, RR. (CIVIC)
10	75723-S5S-E31	Emblem - RR. (SPORT)
11	75723-S5V-G00	Emblem - RR. (CTDI)
18	77875-S84-G80	Label - SRS CAUTION
19	78031-S1A-E80	Label - SIDE AIRBAG CAUTION
20	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
21	90301-ST0-003	push nut, 3mm

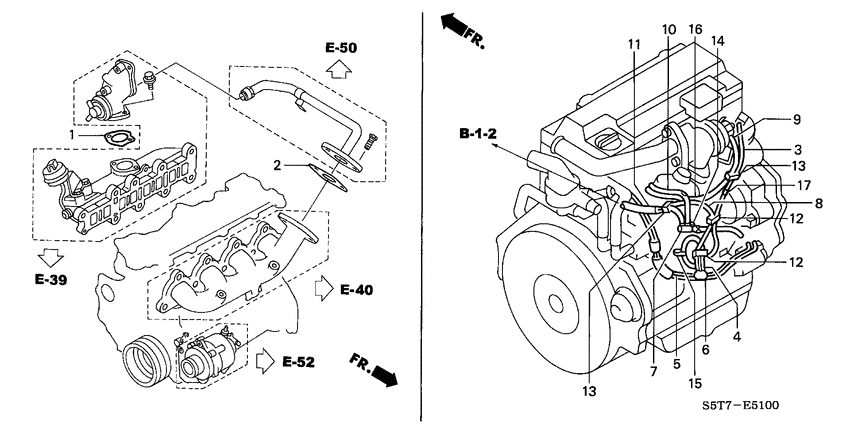

Emission piping (DIESEL) 17

#	OEM	部品名
1	18715-PLZ-D00	Gasket - EGR VALVE
2	18716-PLZ-D00	Gasket - EGR PIPE
3	36161-PLZ-D00	Hose - VACUUM (A)
4	36162-PLZ-D00	Hose - VACUUM (B)
5	36163-PLZ-D00	Hose - VACUUM (C)
6	36165-PLZ-D00	Joint - FOUR WAY
7	36166-PLZ-D00	Joint - THREE WAY
8	36173-PLZ-D00	Hose - EGR VALVE (A)
9	36174-PLZ-D10	Hose - EGR VALVE (B)
10	36178-PLZ-D10	Hose - EGR VALVE (C)
11	36179-PLZ-D10	Hose - THREE WAY
12	90657-PLZ-D00	Clip - VACUUM HOSE (A)
13	90657-PLZ-D10	Clip - VACUUM HOSE (B)
14	90657-PLZ-D20	Clip - VACUUM HOSE (D)
15	90657-PLZ-D30	Clip - VACUUM HOSE (E)
16	90657-PLZ-D40	Clip - VACUUM HOSE (C)
17	90657-PLZ-D50	Clip - VACUUM HOSE (F)

Emission system (DIESEL) 8

#	OEM	部品名
1	17145-PLZ-D00	Pipe - EGR
2	36170-PLZ-D11	Valve - REGULATING (A)
3	36175-PLZ-D00	Bracket - VSV & EVRV
4	36176-PLZ-D00	Bracket - REGULATING VALVE
5	90056-PLZ-D00	Bolt - EGR PIPE
6	90056-PLZ-D10	Bolt - EGR PIPE
7	90056-PLZ-D20	Bolt - BRACKET
8	90056-PLZ-D30	Bolt - VALVE

Engine electrical (DIESEL) 25

#	OEM	部品名
1	31100-PLZ-D00	Alternator assy.
2	31160-PLZ-D00	Bracket - GENERATOR
3	31200-PLZ-D00	Starter assy
4	31221-PLZ-E00	Bush - INSULATION
5	32110-PLZ-D10	Harness - ENGINE WIRE
6	32745-PLZ-D00	Bracket - HARNESS
7	37501-PLZ-D00	Sensor - CRANK ANGLE
8	37820-PLZ-E10	Control module - ENGINE
9	37870-PLZ-D00	Sensor - GLOW PLUG THERMO
10	90056-PLZ-D20	Bolt - BRACKET
11	90060-PLZ-D00	Bolt - STARTER, 12X90
12	90060-PLZ-D10	Bolt - STARTER, 10X35
13	90060-PLZ-F00	Bolt - GENERATOR BRACKET
14	90060-PLZ-D30	Bolt - GENERATOR BRACKET, 8X30
15	90060-PLZ-D40	Bolt - GENERATOR BRACKET, 14X35
16	90060-PLZ-D50	Bolt - GENERATOR BRACKET, 10X40
17	90060-PLZ-D60	Bolt - PROTECTOR, 6X20
18	90060-PLZ-D70	Bolt - PROTECTOR, 6X12
19	90060-PLZ-D80	Bolt - HARNESS, 4X8
20	90060-PLZ-D90	Bolt - SENSOR, 6X12
21	90061-PLZ-D00	Bolt - GENERATOR BRACKET, 10X60
22	90260-PLZ-D00	Nut - GENERATOR
23	90460-PLZ-D00	Washer - TERMINAL
24	90760-PLZ-D00	Distance - STARTER
25	91360-PLZ-D00	Gasket - CRANKSHAFT SENSOR

Engine head gasket kit (DIESEL) 3

#	OEM	部品名
1	06110-PLZ-D30	Gasket set - ENGINE HEAD (1.45MM)
1	06110-PLZ-D50	Gasket set - ENGINE HEAD (1.55MM)
1	06110-PLZ-D40	Gasket set - ENGINE HEAD (1.50MM)

Engine mount (DIESEL) 2

#	OEM	部品名
1	11900-PLZ-D00	Foot - ENGINE
2	90022-PLZ-D00	Bolt - ENGINE FOOT

Engine mounts (DIESEL) 23

#	OEM	部品名
1	11910-PLZ-E00	Bracket - ENGINE MOUNTING
2	50805-S6F-E02	Rubber assy. - TRANSMISSION MOUNTING
3	50810-S6F-E02	Insulator - RR. ENGINE RUBBER (MT)
4	50815-S6F-E00	Damper - RR. ENGINE MOUNTING BRACKET
5	50820-S6F-E03	Rubber assy. - ENGINE SIDE MOUNTING
6	50821-S6F-E01	Rubber, ENGINE SIDE MOUNTING
7	50824-S6F-E01	Mass - ENGINE SIDE
8	50825-S6F-E01	Bracket - TRANSMISSION MOUNTING
9	50827-S6F-E00	Bracket - RR. ENGINE MOUNTING
10	50840-S6F-E02	Stopper - FR. ENGINE
11	90008-PLZ-E00	Bolt a - ENGINE MOUNTING BRACKET
12	90009-PLZ-E00	Bolt b - ENGINE MOUNT BRACKET
13	90041-PT0-000	Bolt - STUD, 12X60
14	90043-PNA-010	Bolt - STUD, 12X91
15	90160-S6F-E00	Bolt - FLANGE, 14X85
16	90161-S6F-E00	Bolt - FLANGE, 14X110
17	90162-S5B-010	Bolt - FLANGE, 10X75
18	90162-S6F-E00	Bolt - FLANGE, 12X40
19	90163-S5A-000	Bolt - FLANGE, 10X20
20	90167-S5A-010	Bolt - FLANGE, 12X88
21	90168-S5A-000	Bolt - FLANGE, 12X35
22	90326-SL0-A00	Bolt - 10X97
23	90371-S5A-000	Nut - YOKE, 12MM

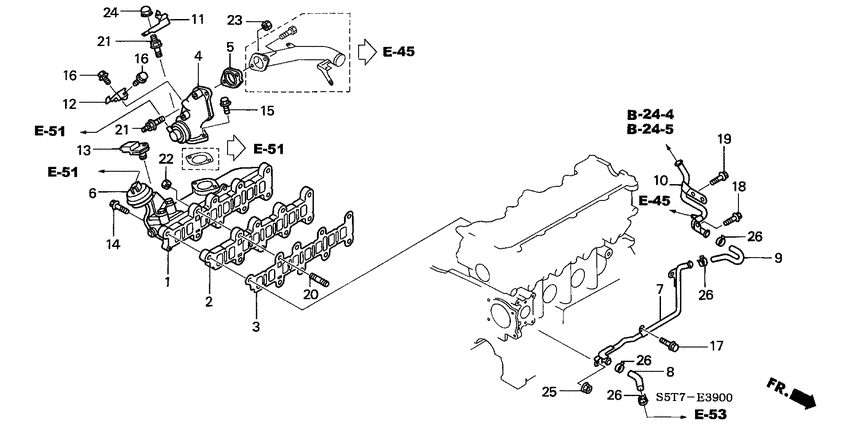

Exhaust manifold (DIESEL) 9

#	OEM	部品名
1	18100-PLZ-D00	Manifold - EX.
2	18115-PLZ-D00	Gasket - EX. MANIFOLD
3	18120-PLZ-D00	Protector - EX. MANIFOLD HEAT
4	90027-PLZ-D00	Bolt - EX. MANIFOLD
5	90027-PLZ-D10	Bolt - HEAT PROTECTOR
6	90127-PLZ-D00	Stud - MANIFOLD-TURBOCHARGER
7	90227-PLZ-D00	Nut - EX. MANIFOLD
8	90427-PLZ-D00	Washer - EX. MANIFOLD
9	90427-PLZ-D10	Washer - HEAT PROTECTOR

Exhaust pipe/silencer (DIESEL) 22

#	OEM	部品名
1	17519-S5A-931	Protector, FUEL TANK
2	17520-S5A-931	Stay - FUEL TANK PROTECTOR
3	18030-S5V-E10	Silencer set - EX.
3	18030-S5V-E01	Silencer set - EX.
4	18160-PLZ-E00	Converter comp.
5	18176-PT0-003	Bolt - CONVERTER
6	18176-P08-003	Bolt - CONVERTER
7	18210-S6F-E01	Pipe a - EX.
8	18212-SM4-003	Gasket - EX. PIPE (ISHINO)
9	18213-S6F-E00	Stay - EX. MOUNTING
10	18215-S5A-A11	Rubber - EX. MOUNTING
11	18215-S5D-A01	Rubber - EX. MOUNTING
12	18215-S6F-E01	Rubber - EX. MOUNTING
13	18220-S5V-E01	Pipe b - EX.
14	18303-SM4-020	Gasket - SILENCER
15	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
16	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
17	74601-S6F-E00	Plate a - FLOOR HEAT BAFFLE
18	74605-S5S-G00	Plate - FLOOR HEAT BAFFLE (B)
19	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
20	90212-SA5-003	Nut - SELF-LOCK, 10MM
21	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Floor mat 8

#	OEM	部品名
1	74251-S6D-G00	Insulator - DASHBOARD LOWER OUTER
2	74260-S6F-G00	Insulator - DASHBOARD
10	90676-SB2-003	Clip - DASHBOARD INSULATOR
11	90676-S5A-003	Clip - DASHBOARD INSULATOR
12	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
13	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)
14	91547-SM4-003	Cap - INSULATOR
15	91560-S04-003	Clip - SIDE GARNISH (NATURAL)

Fog light 5

#	OEM	部品名
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO
2	33901-S6A-003	Light unit - R. FOG
4	33951-S6A-003	Light unit - L. FOG
6	90331-SD5-003	Nut - SPRING, 5MM

Fog light kit 3

#	OEM	部品名
8	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
11	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY
11	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO

Front brake (1) 24

#	OEM	部品名
2	01463-S1A-E02	Caliper set - FR. (LUCAS57MM)
3	44300-S1A-E01	Bearing assy - FR. HUB
3	44300-S6D-E01	Bearing assy - FR. HUB
4	44600-S87-A00	Hub assy - FR.
4	44600-S5A-J00	Hub assy - FR. (14")
5	45012-S6F-E01	Body comp - R. CALIPER
6	45013-S6F-E01	Body comp - L. CALIPER
7	45014-S1A-E62	Bracket comp. - R. FR. CALIPER
8	45015-S1A-E62	Bracket comp. - L. FR. CALIPER
9	45022-S6F-E50	Pad set - FR.
9	45022-S6F-305	Pad set - FR. (ADHESIVE SIM)
10	45216-S1A-E01	Piston
11	45240-SK3-E00	Bolt
12	45251-S30-000	Disk - FR. BRAKE
12	45251-S6F-E10	Disk - FR. BRAKE (14",23T)
13	45255-S6D-E00	Guard - FR. BRAKE SPLASH (14")
14	45352-SN7-G41	Screw - BLEEDER
15	45353-SN7-G41	Cap - BLEEDER
16	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
17	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
17	90113-SA0-006	Bolt - WHEEL (SAGA)
17	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
18	90681-ST3-E00	Circlip - INTERNAL, 79MM
21	45011-S6F-305	Shim set - ADHESIVE

Front bulkhead 4

#	OEM	部品名
53	74232-S5A-000	Rod - BRAKE PEDAL SUPPORT
54	90101-S6A-000	Bolt-washer - 8MM
55	90105-634-000	Bolt-washer (8x20)
56	90108-S0A-003	Bolt - FLANGE, 6X15

Front door locks 29

#	OEM	部品名
1	72110-S5S-G21	Lock assy - R. FR. DOOR POWER
1	72110-S5S-G01	Lock assy - R. FR. DOOR POWER
2	72112-SR4-004	Snap - BROWN
3	72113-SR4-004	Snap - BLACK
4	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
6	72116-S04-003	Holder - ROD(SKY BLUE)
7	72117-S04-003	Holder - ROD (YELLOW)
10	72119-S5S-E01	Patch - R. DOOR LOCK
13	72131-S5S-E01	Cable - INSIDE HANDLE
15	72134-S2X-003	Snap - R. (NATURAL)
16	72135-S5A-003	Striker assy - DOOR LOCK
19	72139-SR0-A01	Snap - VIOLET
20	72140-S7A-003	Handle assy - R. FR. DOOR OUTSIDE
21	72123-SR0-003	Ring - OUTSIDE HANDLE
22	72119-S04-003	Stopper a - OUTSIDE HANDLE
24	72141-SD4-004	Bush - R. JOINT
25	72143-S04-003	Packing
26	72145-S0X-A51	Cylinder - R. DOOR
28	72146-S0X-A51	Cylinder - L. DOOR
29	72150-S5S-G01	Lock assy - L. FR. DOOR POWER
30	72155-S5A-A01	Actuator assy - DOOR LOCK
33	72159-S5S-E01	Patch - L. DOOR LOCK
37	72174-S2X-003	Snap - L. (BLACK)
39	72180-S7A-003	Handle assy - L. FR. DOOR OUTSIDE
41	72181-SD4-004	Bush - L. JOINT
43	72616-SM4-003	Snap - NATURAL
44	90120-SV4-000	Bolt - LOCK STRIKER
45	90141-S84-003	Screw - 3X10
46	90623-SB5-000	Clip - HARNESS

Front door panels 16

#	OEM	部品名
5	67325-S5S-E00	Tape - R. FR. DOOR SASH UPPER
6	67365-S5S-E00	Tape - L. FR. DOOR SASH UPPER
11	72310-S5S-E01	Weatherstrip - R. FR. DOOR
12	72311-S5S-003	Clip A - DOOR WEATHERSTRIP
13	72312-S5S-003	Clip - DOOR WEATHERSTRIP
14	72321-S5S-G00	Seal - R. FR. DOOR HOLE
15	72336-S6A-E00	Tape - REFLECTOR
16	72340-S5S-E01	Checker comp. - R. FR. DOOR
17	72350-S5S-E01	Weatherstrip - L. FR. DOOR
18	72361-S5S-G00	Seal - L. FR. DOOR HOLE
19	72380-S5S-E01	Checker comp. - L. FR. DOOR
20	75891-SA7-000	Stopper - DOOR
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
23	90141-S04-000	Bolt - FLANGE, 8X22

Front door windows 15

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72210-S5S-G02	Regulator assy - R. FR. DOOR POWER
3	72230-S5S-E01	Sash - R. FR. DOOR FR. LOWER
4	72231-S5S-G01	Sash - R. FR. DOOR CENTER LOWER
5	72235-S5S-E11	Runchannel - R. FR. DOOR
5	72235-S5S-E12	Runchannel - R. FR. DOOR
7	72250-S5S-G11	Regulator assy - L. FR. DOOR POWER
8	72270-S5S-E01	Sash - L. FR. DOOR FR. LOWER
9	72271-S5S-G01	Sash - L. FR. DOOR CENTER LOWER
10	72275-S5S-E11	Runchannel - L. FR. DOOR
10	72275-S5S-E12	Runchannel - L. FR. DOOR
11	73300-S5S-E00	Glass assy - R. FR. DOOR (GREEN)(SAINT-GOBAIN)
12	73350-S5S-E00	Glass assy - L. FR. DOOR (GREEN)(SAINT-GOBAIN)
13	91533-S04-003	Clip - COUPLER (NATURAL)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front driveshaft/half sha ft 22

#	OEM	部品名
1	44014-S6F-G51	Joint set - OUTBOARD (GKN HSP)
1	44014-S6F-E01	Joint set - OUTBOARD (GKN HSP)
2	44017-S6F-G51	Boot set - INBOARD (GKN HSP)
2	44017-S6F-E01	Boot set - INBOARD (GKN HSP)
3	44018-S6F-G51	Boot set - OUTBOARD (GKN HSP)
3	44018-S6F-E01	Boot set - OUTBOARD (GKN HSP)
4	44305-S6F-G51	Driveshaft assy. - R.
4	44305-S6F-E51	Driveshaft assy. - R.
5	44306-S6F-G51	Driveshaft assy. - L.
5	44306-S6F-E51	Driveshaft assy. - L.
6	44310-S6F-E01	Joint comp - INBOARD
8	44327-S6F-E01	Band - OUTBOARD BOOT (GKN)
9	44318-S1A-E01	Band r - BOOT (GKN)
11	44319-S6F-E01	Set ring
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-S1A-E01	Ring b - STOPPER
15	44338-S6F-E01	Circlip
16	44351-S6F-E11	Damper - DYNAMIC
17	44351-S6F-E01	Damper - DYNAMIC
24	90305-SD4-003	Nut - SPINDLE (24MM)
24	90305-S1A-000	Nut - SPINDLE

Front fenders 22

#	OEM	部品名
3	74101-S6D-E10	Fender - R. FR. INNER
4	74105-S6F-E00	Fairing - R. FR. FENDER
5	74108-S6A-000	Tape - STIFFENER(225X110)
6	74110-S6F-E00	Tray assy - R. UNDER COVER
8	74115-S6F-E00	Tray assy - L. UNDER COVER
9	74151-S6D-E10	Fender - L. FR. INNER
10	74155-S6F-E00	Fairing - L. FR. FENDER
11	74206-S6F-E00	Garnish - R. FR. FENDER
12	74207-S6F-E00	Garnish - L. FR. FENDER
13	90108-S0A-003	Bolt - FLANGE, 6X15
14	90114-SE0-000	Screw - TAPPING, 5X20
15	90126-SR4-000	Screw-washer - 5X16
16	90308-SB2-013	Nut - SUSPENSION, 5MM
17	90682-SB0-003	Grommet - SCREW, 5MM
18	91501-S04-003	Clip - INNER FENDER
19	91503-SZ3-003	Clip A
20	91512-SD2-003	Clip - HEADLIGHT GARNISH
21	91532-S6F-E01	Clip A - FAIRING INSULATOR
22	91533-SG0-000	Clip b - FAIRING
23	91533-S6F-E01	Clip b - FAIRING INSULATOR
24	91545-SE0-003	Clip assy. - 8MM
25	91609-S6D-E00	Protector - FR. FENDER

Front grille 3

#	OEM	部品名
1	71121-S5S-E10	Base - FR. GRILLE
2	71122-S6E-000	Cover - FR. GRILLE
3	91503-SZ3-003	Clip A

Front seat (L.) 12

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
6	81138-S5A-G21	Clip - H
12	81223-S04-000	Clip - SHAFT, 8MM
17	81522-S5S-E01	Pad assy - L. FR. SEATBACK
18	81526-S5S-G02	Frame comp - L. FR. SEATBACK
19	81528-S5A-J01	Holder - L. MODULE
21	81532-S5S-G01	Pad assy - L. FR. SEAT CUSHION
26	90134-SE3-003	Screw - TAPPING, 5X10
27	90321-SP0-A80	Nut-washer - 6MM
28	90610-SR3-003	Clip - GARNISH (KATO)
30	90656-PB1-003	Band - OIL HOSE

Front seat (R.) 15

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	81108-S5S-003	Clip A - HARNESS BAND
4	81109-S5S-003	Clip b - HARNESS BAND
7	81122-S5S-G01	Pad assy - R. FR. SEATBACK
8	81126-S5S-G12	Frame comp - R. FR. SEATBACK
9	81128-S5A-J01	Holder - R. MODULE
11	81132-S5S-G01	Pad assy - R. FR. SEAT CUSHION
13	81138-S5A-G21	Clip - H
23	81237-S5T-A01	Cable assy
27	90321-SP0-A80	Nut-washer - 6MM
28	90610-SR3-003	Clip - GARNISH (KATO)
29	90610-S10-003	Clip - GARNISH
30	90656-PB1-003	Band - OIL HOSE
31	91559-SM4-003	Clip - POWER STEERING TUBE (135MM)

Front seat components (L.; MANUAL HEIGHT) 11

#	OEM	部品名
2	81139-S3N-003	Link - FR.
4	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
5	81271-S5A-J01	Lever
6	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
7	81536-S5A-J12	Frame comp - L. FR. SEAT CUSHION
10	90135-S5A-003	Bolt-washer - 10X27
11	90143-SR3-000	Bolt-washer - 10X22
12	90303-S3N-003	Nut - FLANGE
13	90501-S3N-003	Washer a
14	90502-S3N-013	Bush a
15	90503-S3N-003	Spacer

Front seat components (R.) 6

#	OEM	部品名
2	81136-S5S-G01	Frame comp - R. FR. SEAT CUSHION (WALK-IN)
5	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
6	81271-S5A-J01	Lever
7	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
9	90135-S5A-003	Bolt-washer - 10X27
10	90143-SR3-000	Bolt-washer - 10X22

Front shock absorber 22

#	OEM	部品名
1	51401-S5V-R01	Spring - FR. (SHOWA)
1	51401-S5V-E02	Spring - FR. (SHOWA)
2	51402-S6M-014	Rubber - SPRING UPPER SEAT
4	51601-S5V-R02	Absorber assy - R. FR. SHOCK
4	51601-S5V-E05	Absorber assy - R. FR. SHOCK
5	51602-S5V-R02	Absorber assy - L. FR. SHOCK
5	51602-S5V-E05	Absorber assy - L. FR. SHOCK
6	51605-S5V-R03	Absorber unit - R. FR. SHOCK
6	51605-S5V-E05	Absorber unit - R. FR. SHOCK
7	51606-S5V-R03	Absorber unit - L. FR. SHOCK
7	51606-S5V-E05	Absorber unit - L. FR. SHOCK
8	51688-S6M-014	Seat - FR. SPRING UPPER
10	51722-S6A-004	Rubber - FR. BUMP STOPPER
11	51726-S5A-004	BEARING, FR. SHOCK ABSORBER MOUNT
12	51920-S5A-024	Mount comp - R. FR. SHOCK ABSORBER
12	51920-S6A-014	Mount comp - R. FR. SHOCK ABSORBER
13	51925-S5A-024	Mount comp - L. FR. SHOCK ABSORBER
13	51925-S6A-014	Mount comp - L. FR. SHOCK ABSORBER
14	90002-S10-000	Nut - FLANGE, 10MM
15	90119-S6M-Z01	Bolt - FLANGE, 16X62
16	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
17	90382-S6M-Z01	Nut - FLANGE, 16MM

Front skirt 7

#	OEM	部品名
2	90126-SA7-000	Screw-washer - 5X20
2	90114-SZ3-000	Screw-washer - 5X20
3	90345-S04-000	Nut - SUSPENSION, 5MM
4	90111-SM4-003	Bolt - BUMPER
5	90149-SA0-003	Bolt - BUMPER
6	90323-SE0-000	Nut - CLIP, 6MM
6	90305-SH3-000	Nut - AIR SPOILER CLIP

Front sub frame 7

#	OEM	部品名
1	50200-S6F-E01	Sub frame comp. - FR.
4	50205-S6F-E00	Damper - FR. SUB FRAME RR.
10	74611-S5T-G00	Pipe - RR. TOWER BAR
11	74612-S5T-G01	Bracket - R. RR. TOWER BAR
12	74662-S5T-G01	Bracket - L. RR. TOWER BAR
14	90174-S5A-003	Bolt-washer - 10X32
15	90175-S5A-000	Bolt - FLANGE, 14X115

Front windshield 13

#	OEM	部品名
1	04731-S5S-E00	Rubber set - FR. WINDSHIELD DAM
2	73111-S5S-E10	Glass set - FR. WINDSHIELD (GREEN) (SPLINTEX)
3	73150-S5S-E01	Molding - FR. WINDSHIELD
4	73152-S5S-E01	Garnish Assy., R. FR. Windshield Side
5	73162-S5S-E01	Garnish Assy., L. FR. Windshield Side
6	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
7	91519-S6A-003	Clip A - BLACK
8	91520-S6A-003	Clip b - ORANGE
9	91521-S6A-003	Clip A - FR. WINDSHIELD SIDE GARNISH (GRAY)
10	91522-S6A-003	Clip b - FR. WINDSHIELD SIDE GARNISH (LIGHT BLUE)
11	91525-S6A-003	Clip d - FR. WINDSHIELD SIDE GARNISH
12	91568-SX0-003	Fastener a - WINDSHIELD
13	91577-S84-A01	Fastener - WINDSHIELD

Front wiper (LH) 23

#	OEM	部品名
1	76505-S6D-G01	Motor comp - FR. WIPER
2	76510-SN7-E05	Rubber - MOUNTING
3	76516-S6D-G01	Rubber - MOUNTING
4	76517-S6D-G01	Collar
5	76518-S6D-G01	Rubber - MOUNTING
6	76519-S6D-G01	Collar
7	76520-S6D-G01	Link assy
8	76524-SN7-E05	Dust seal
9	76525-S6D-G01	Screw - 6X14
10	76530-S6D-G01	Link comp - WIPER
11	76540-S6D-G01	Rod unit a
12	76550-S6D-G01	Rod unit b
13	76561-S6D-G01	Cap - LEAF
14	76600-S5S-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76601-S5S-G01	Cover - ARM
16	76610-S5S-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-S5S-G01	Blade - WINDSHIELD WIPER (600MM)
18	76622-S5S-G01	Rubber - BLADE (600MM)
19	76630-S5S-G01	Blade - WINDSHIELD WIPER (380MM)
20	76632-S5S-G01	Rubber - BLADE (380MM)
21	90126-SR3-000	Bolt-washer - 6X32
22	90317-SN7-E05	Nut - HEX., 8MM
23	91611-S5A-000	Cap - FR. WIPER

Fuel injection system (DIESEL) 45

#	OEM	部品名
1	16450-PLZ-D00	Nozzle assy. - INJECTOR
2	16472-PLZ-D00	Gasket - INJECTOR NOZZLE
3	16473-PLZ-D00	Gasket - LEAK OFF PIPE
4	16620-PLZ-D10	Rail - COMMON
5	16621-PLZ-D10	Pipe - INJECTION (1)
6	16622-PLZ-D10	Pipe - INJECTION (2)
7	16623-PLZ-D00	Pipe - INJECTION (3)
8	16624-PLZ-D00	Pipe - INJECTION (4)
9	16625-PLZ-D00	Pipe - COMMON RAIL INJECTION
10	16722-PLZ-D00	Hose - FUEL LEAK RUBBER
11	16723-PLZ-D00	Pipe - FUEL
12	16724-PLZ-D00	Hose - FUEL
13	16725-PLZ-D00	Nipple - RAIL
14	16726-PLZ-D00	Bracket - HOSE
15	17040-PLZ-D00	Pump assy. - INJECTION
16	17046-PLZ-D10	Bracket - INJECTOR NOZZLE
17	17051-PLZ-D00	Protector - INJECTION PUMP
18	17052-PLZ-D10	Protector - INJECTION PUMP
19	17053-PLZ-D00	Stay - PROTECTOR
20	17054-PLZ-D00	Stay - PROTECTOR
21	17055-PLZ-D00	Stay - PROTECTOR
22	90040-PLZ-D00	Bolt - BRACKET
23	90040-PLZ-D10	Bolt - BRACKET
24	90040-PLZ-D40	Bolt - COMMON RAIL
25	90040-PLZ-D50	Bolt - COMMON RAIL
26	90040-PLZ-D60	Bolt - PROTECTOR, 6X12
27	90040-PLZ-D70	Bolt - BRACKET-INJECTION PUMP
28	90140-PLZ-D00	Stud - STAY
29	90240-PLZ-D00	Nut - INJECTION PUMP
30	90240-PLZ-D10	Nut - BRACKET
31	90240-PLZ-D20	Nut - STAY
32	90440-PLZ-D00	Gasket - FUEL PIPE JOINT
33	90440-PLZ-D10	Gasket
34	90440-PLZ-D20	Washer - PLAIN, 6MM
35	90640-PLZ-D00	Clip
36	90640-PLZ-D10	Clip - INJECTION PIPE
37	90640-PLZ-D20	Clip - INJECTION PIPE
38	90740-PLZ-D00	Spacer - COMMON RAIL
39	90740-PLZ-D10	Spacer - COMMON RAIL
40	90740-PLZ-D20	Pin
41	17056-PLZ-D00	Protector - INJECTION PUMP
42	17057-PLZ-D00	Protector - INJECTION PUMP
43	17058-PLZ-D00	Bracket - PROTECTOR INJECTION PUMP
44	90040-PLZ-D80	Bolt - PROTECTOR, 6X45
45	90740-PLZ-D30	Spacer - PROTECTOR

Fuel pipe (DIESEL) 42

#	OEM	部品名
1	16040-S5V-G01	Pipe comp - FUEL FEED
2	16041-S5V-G01	Pipe comp - FUEL RETURN
3	16713-SZ3-000	Cushion - FUEL STRAINER
4	16901-S6F-E01	Strainer comp. - FUEL
5	16902-S6F-E01	Primer - HAND
6	16903-S6F-E02	Tube - OUTLET
7	16904-S6F-G03	Tube - INLET
8	16906-S6F-E00	Tube - FUEL STRAINER
9	16907-S6F-G01	Tube - FUEL FEED
10	16908-S6F-E00	Screw - HEX. HEAD
11	16909-S6F-E00	Washer - SEALING
12	16917-S6F-G01	Stay a - FUEL STRAINER
13	16918-S6F-E03	Stay - FUEL STRAINER
15	16919-S6F-G01	Guard - HAND PRIMER
16	16930-PLZ-G01	Heater assy - FUEL
17	16931-PLZ-G01	Stay - HEATER HARNESS
18	16932-PLZ-G00	Stay - FUEL HEATER
19	17701-S6F-G01	Pipe comp - FUEL JOINT
20	17702-S6F-G00	Hose - FUEL FEED
21	17703-S6F-G00	Stay - FUEL FEED PIPE
22	17711-S84-004	Retainer - WHITE)(SANOH
23	17723-S6F-G02	Hose - FUEL RETURN
24	17762-S6D-G30	Stay b - FUEL PIPE
25	17763-S6D-G30	Stay c - FUEL PIPE
26	17764-S6D-G30	Stay d - FUEL PIPE
27	17765-S6D-G30	Stay e - FUEL PIPE
28	36367-P13-003	Clamp - TUBE, 7.5
29	37895-RBD-E01	Sensor assy - TEMP FUEL
30	41936-P6R-003	Clamp - BREATHER TUBE
31	46393-S6M-A11	Clip - PIPE
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM
33	91307-PZA-004	O-ring - 9.5X1.9
34	91406-SAA-J00	Clamp - TUBE (D12)
35	91407-SDB-000	Clamp - TUBE (D12.5)
36	91565-SEL-003	Clip - COUPLER(BLACK)
37	91591-S6F-E01	Clip - FUEL PIPE
38	91592-S6F-E01	Clamp - FUEL TUBE
39	91595-S6F-E01	Clamp a - FUEL PIPE
40	91597-S5A-931	Clip - DRAIN TUBE
41	91597-S6F-E00	Rubber a - FUEL PIPE INSULATOR
42	91598-S6F-E00	Rubber b - FUEL PIPE INSULATOR
43	91599-S6F-E01	Clamp b - FUEL PIPE

Fuel tank (DIESEL) 45

#	OEM	部品名
1	16017-S6F-E30	Flange comp
2	17041-S5A-930	O-ring
3	17043-S5A-941	Reservoir - DENSO
4	17044-S5A-930	Cap - RESERVOIR
5	17045-S5A-931	Spring
6	17046-S5A-931	Linkage
7	17047-S6F-E30	Clamp
8	17052-S5A-930	Stopper a
9	17053-S5A-930	Stopper b
10	17371-S6F-E01	Valve - TWO WAY
11	17373-S6F-E00	Stay - TWO WAY VALVE
12	17500-S6D-E32	Tank comp. - FUEL
13	17501-S5A-930	Collar
14	17516-S6F-E30	Filter set - FUEL PUMP
15	17521-S5A-931	Band - FUEL TANK MOUNTING
16	17525-SM4-000	Bolt-washer - 10X35
17	17525-S0X-A00	Bolt-washer - 10X25
18	17556-SP0-003	Clip - FUEL PIPE
19	17574-S1A-E01	Packing - BASE
19	17574-S0X-A01	Packing - BASE
20	17630-S5B-931	Meter comp
21	17651-S5A-930	Tube - FILLER NECK
22	17652-S6M-J01	Clip - FILLER TUBE
23	17652-S6M-J51	Clip - FILLER TUBE
24	17653-S5A-930	Tube - BREATHER
25	17660-S5A-M31	Pipe comp - FUEL FILLER
26	17662-SDA-A01	Packing - FUEL FILLER
27	17663-S6D-E00	Tube assy - FUEL FILLER PIPE DRAIN
28	17664-S6D-E01	Joint - DRAIN TUBE
29	17670-S6F-E01	Cap comp. - FUEL FILLER (TOYODA)
30	17719-S1A-E01	Nut - FUEL PUMP MODULE LOCK
31	17722-S6F-E00	Tube b - FUEL VENT
32	17724-S6F-E00	Tube c - FUEL VENT
33	19108-PHM-003	Clamp - RESERVE TANK TUBE (GRAY)
34	53723-SF1-951	Clip - RETURN PIPE, 6MM
35	74660-S5A-000	Cap assy. - FLOOR MAINTENANCE HOLE
36	90102-S2A-000	Bolt-washer - 5X12
37	90150-S04-003	Bolt - EARTH, 6X16
38	90684-693-013	Clip - FUEL HOSE
39	91401-SDC-000	Clip - TUBE(B10)
40	91404-SDC-000	Clamp - TUBE (D10)
41	91413-S5A-003	Clamp - FUEL TUBE (D17)
42	91462-SDA-003	Clamp - FUEL TUBE (D18)
43	91594-S1A-E01	Clip - FUEL FILLER CAP
44	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Gasket kit (DIESEL) 3

#	OEM	部品名
1	06111-PLZ-D30	Gasket set - ENGINE (1.45MM)
1	06111-PLZ-D50	Gasket set - ENGINE (1.55MM)
1	06111-PLZ-D40	Gasket set - ENGINE (1.50MM)

Generator (COMPONENT PART S; DIESEL) 7

#	OEM	部品名
1	31115-PLZ-D00	Seal - GENERATOR RR. COVER
2	31127-PLZ-D00	Rectifier - GENERATOR
3	31141-PLZ-D00	Pulley - GENERATOR
4	31170-PLZ-D00	Pump assy. - VACUUM GENERATOR
5	90066-PLZ-D00	Bolt set - GENERATOR
6	90266-PLZ-D00	Nut - PULLEY
7	91366-PLZ-D00	Gasket - VACUUM PUMP

Generator belt (DIESEL) 1

#	OEM	部品名
1	31110-PLZ-D00	Belt - GENERATOR DRIVE

Grommet (FRONT) 13

#	OEM	部品名
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM
2	74177-SD4-000	Cushion a - HOOD
3	74827-SP0-000	Stopper - TRUNK LID
4	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM
5	90615-SR3-000	Cap - WELD HOLE, 51X77
6	90615-S5A-003	Plug - HOLE, 27X56
8	90672-S5A-003	Holder - ROD
10	91602-S10-000	Stopper a - HOOD
12	91604-S5A-003	Grommet - HOOD STAY
13	91608-S5A-003	Boot - FLOOR
14	91615-SH3-000	Cap - FLOOR HOLE, 49MM
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
16	91630-SD5-003	Plug - NUT, 8MM

Grommet (REAR) 7

#	OEM	部品名
1	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90857-SD4-000	Cap - WELD HOLE
4	91603-S04-003	Plug - HOLE, 20MM
5	91611-SS0-003	Plug - HOLE, 25MM
6	91615-S6E-E00	Block a - DASHBOARD UPPER
8	91631-S5A-000	Plug - AIR CONDITIONER HOLE (36X74)

Grommet (SIDE) 6

#	OEM	部品名
1	91603-S04-003	Plug - HOLE, 20MM
2	91616-S5T-A00	Block - FR. PILLAR INNER LOWER
3	91616-S50-000	Block - FR. PILLAR INNER LOWER
4	91617-S5S-E00	Block - RR. PILLAR INNER
5	91618-S5A-000	Seal - HOLE, 30X90
6	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (UNDER) 2

#	OEM	部品名
1	90852-671-003	Plug - HOLE
2	91606-SK7-003	Plug - BLIND, 25MM

Harness band/bracket (LH) 46

#	OEM	部品名
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)
2	32112-S2K-003	Band - CABLE (90MM)
3	32112-S5A-900	Grommet - WIRE HARNESS
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
5	32131-SV4-003	Cap - COUPLER (CP 2P, 3P)
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	32146-SH3-003	Connector - DIODE(2P)
14	32203-S6D-G00	Bracket - WIRE HARNESS
15	32204-S5A-020	Bracket - ENGINE WIRE HARNESS (A)
17	32741-PLM-A00	Stay a - ENGINE WIRE HARNESS
18	32742-PLZ-G01	Stay b - ENGINE WIRE HARNESS
19	32748-PLZ-E01	Stay c - GENERATOR HARNESS
20	32748-PLZ-G50	Stay c - GENERATOR HARNESS
21	32749-PLZ-E00	Stay d - GENERATOR HARNESS
22	38204-S6F-G00	Bracket - COUPLER
23	38617-S5A-J01	Filter comp - NOISE
24	90001-PLZ-G50	Bolt - SPECIAL, 10X16
25	90126-SR4-000	Screw-washer - 5X16
26	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
27	90677-692-003	Clip - WIRE HARNESS (HARNESS TAPING)
29	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
30	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
31	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)
32	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
33	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
36	91540-S6A-003	Clip - HARNESS BAND(NATURAL) (150MM)
37	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
38	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)
39	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
40	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
41	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
44	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)
45	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
46	91555-SM4-003	Clip - COUPLER (RED)
47	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
49	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
50	91577-SM4-003	Holder - BRACKET(NATURAL)
51	91647-SJ6-003	Grommet - WIRE HARNESS (25X45)
52	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
53	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)
54	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Headlight (1) 16

#	OEM	部品名
2	33101-S5T-G62	Headlight unit - R.
3	33105-S5N-C01	Nut - SPECIAL
8	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
8	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
9	33116-SD4-961	Socket - BULB (OSRAM) (HALOGEN)
12	33126-S0A-003	Cover - RUBBER
13	33126-S6A-J61	Cover - RUBBER
16	33130-S5A-G01	Adjuster unit - HEADLIGHT
18	33151-S5T-G62	Headlight unit - L.
19	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
21	33303-SAA-003	Socket comp - T20 S) (AMBER
22	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
24	33305-S5A-003	Socket comp - T10
26	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)
27	90101-S5A-003	Tapping - SPECIAL, 5X18
28	90682-SB0-003	Grommet - SCREW, 5MM

Headlight (2) 19

#	OEM	部品名
1	32118-S6A-900	Cord - SIDE TURN
2	33101-S6A-G41	Headlight unit - R.
3	33105-S5N-C01	Nut - SPECIAL
4	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
4	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
5	33116-S84-A11	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)
5	33116-S84-A01	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)
6	33126-S6A-J61	Cover - RUBBER
7	33130-S5A-G01	Adjuster unit - HEADLIGHT
8	33151-S6A-G41	Headlight unit - L.
9	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
10	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)
11	33303-SAA-003	Socket comp - T20 S) (AMBER
12	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
13	33304-S5A-003	Socket comp - T10
14	33305-S5A-003	Socket comp - T10
15	34301-S5H-T02	Lamp unit
16	90101-S5A-003	Tapping - SPECIAL, 5X18
17	90682-SB0-003	Grommet - SCREW, 5MM

Heater blower (LH) 20

#	OEM	部品名
1	79303-S6A-013	Lid - FILTER
2	79305-S6D-G01	Blower sub assy.
3	79307-S6M-A42	Motor sub assy. - BLOWER
4	79330-S30-003	Resistor - BLOWER
5	79330-S6A-941	Transistor - POWER
6	79350-S6D-G41	Motor assy. - FRESH & RECIRCULAR
7	79370-S2H-003	Hose - MOTOR COOLING
8	80291-SCA-E11	Frame, Filter (A)
8	80291-SCA-E01	Plate assy. - BLOWER (A)
9	80292-SCA-E11	Element - FILTER
10	80292-SCA-G01	Element - FILTER
11	80296-SCA-G01	Frame, Filter (B)
11	80296-SCA-E01	Plate assy. - BLOWER (B)
12	80297-SCA-E11	Seal - BLOWER PLATE
13	80297-SCA-G01	Seal - BLOWER PLATE
14	90122-S30-003	Screw - TAPPING, 5X12
15	90123-S30-003	Screw - TAPPING, 5X12
16	90156-SH3-000	Bolt-washer - 6X24
17	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
18	79310-S6M-A42	Motor assy. - FAN

Heater control (LH; 1) 11

#	OEM	部品名
5	79505-S6A-E01	Lamp assy. - HARNESS
6	79506-S6A-003	Clamp - CONTROL CABLE
8	79511-S6D-G01	Knob - A/C
9	79512-S6D-G01	Knob - REC
10	79513-S6D-G01	Knob - DEF
11	79515-S6D-G01	Lid - A/C
12	79541-S6D-G11	Cable - MODE CONTROL
13	79542-S6D-G11	Cable - TEMPERATURE CONTROL
14	79570-S6A-003	Switch assy - HEATER FAN
16	79672-SW5-941	Bulb - NEO WEDGE (14V 65MA)
16	35851-SB2-505	NEO WEDGE BULB

Heater control (LH; 2) 3

#	OEM	部品名
1	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)
2	80600-S6F-G42	Control assy. - AUTO AIR CONDITIONER
11	79609-S5A-003	Bulb - NEO WEDGE (14V 100MA)

Heater unit (LH) 43

#	OEM	部品名
1	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
2	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
3	53747-SA5-003	Clip - POWER STEERING HOSE
4	79009-S6D-G01	Dummy - EXPANSION VALVE
5	79100-S5V-G42	Heater unit
5	79100-S5V-G12	Heater unit
5	79100-S5V-G02	Heater unit
6	79106-S5V-G41	Heater sub assy.
6	79106-S5V-G01	Heater sub assy.
7	79107-S6D-G01	Duct sub assy. - CASE
8	79110-S6F-G02	Core comp - HEATER
9	79140-S6D-G41	Motor assy. - MODE
10	79161-S6D-G41	Motor assy. - AIR MIX
11	79165-S6F-E01	Switch assy
12	79170-S6A-941	Aspirator
13	79193-S6A-003	Bolt - FLANGE, 6X20
14	79194-S6A-003	Nut - 6MM
15	79544-S6D-G00	Cable, WATER VALVE CONTROL
16	79770-SE0-000	Grommet - WATER VALVE CABLE
17	80211-S5S-G21	Dummy - EVAPORATOR
18	80211-S6D-G12	Evaporator assy.
19	80215-S6A-003	Plate
20	80216-S6A-003	Insulator - EXPANSION VALVE
21	80220-S6F-013	Valve - EXPANSION
22	80271-S6F-000	Hose - DRAIN
23	80430-S6A-003	Thermostat - AIR CONDITIONER
24	80431-S6D-G01	Dummy - THERMOSTAT
25	80560-S6A-941	Thermistor - AIR CONDITIONER
26	80650-S6F-G40	Sub harness - AIR CONDITIONER
26	80650-S6F-G02	Sub harness - AIR CONDITIONER
27	80871-ST7-000	O-ring - 5/8"
28	80872-ST7-000	O-ring - 1/2"
29	90122-S30-003	Screw - TAPPING, 5X12
30	90123-S30-003	Screw - TAPPING, 5X12
31	90124-S30-003	Screw-washer - 5X12
32	90125-S6A-003	Bolt - 5X35
33	90156-SH3-000	Bolt-washer - 6X24
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
36	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
37	91580-SM4-003	Clip - COUPLER(ORANGE)
38	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
42	79192-S6A-003	Packing - STUD BOLT

Hood (LH) 20

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
6	74120-S6A-E01	Lock assy - HOOD
8	74141-S6A-E01	Insulator - HOOD
9	74144-S6A-000	Rubber - RR. HOOD SEAL
10	74145-S5T-G00	Stay - HOOD OPENER
11	74146-S6A-E01	Rubber - HOOD SEAL
12	74210-S5S-G01	Cowl top assy. - FR. DRIVER SIDE
13	74212-S5S-G00	Cover - HOOD HINGE DRIVER SIDE
14	74220-S5S-G01	Cowl top assy. - FR. PASSENGER SIDE
15	74222-S5S-G00	Cover - HOOD HINGE PASSENGER SIDE
16	74231-S6A-000	Valve - DRAIN
17	90108-S0A-003	Bolt - FLANGE, 6X15
18	90601-S30-003	Grommet - COWL TOP
19	90602-SJK-003	Clip - COWL TOP
20	90602-SX0-003	Clip - COWL TOP
21	90602-S2A-003	Clip - COWL TOP
22	90603-S2A-003	Grommet - COWL TOP
23	91501-SL4-003	Clip - FR. COWL
24	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
25	91518-SM4-003	Clip - TRUNK MOLDING

Inlet manifold (DIESEL) 26

#	OEM	部品名
1	17100-PLZ-D00	Manifold - INTAKE (A)
2	17102-PLZ-D00	Manifold - INTAKE (B)
3	17105-PLZ-D00	Gasket - INTAKE MANIFOLD
4	17110-PLZ-D10	Pipe - IN. (EGR VALVE)
5	17115-PLZ-D00	Gasket - IN. PIPE
6	17129-PLZ-D00	Actuator - IN.
7	17400-PLZ-D00	Pipe - VACUUM (A)
8	17401-PLZ-D00	Hose - VACUUM RUBBER (A)
9	17402-PLZ-D00	Hose - VACUUM RUBBER (B)
10	17405-PLZ-D00	Pipe - VACUUM (B)
11	32738-PLZ-D00	Bracket - HARNESS
12	32739-PLZ-D00	Bracket - CONNECTOR
13	37830-PLZ-D00	Sensor - BOOST
14	90025-PLZ-D00	Bolt - INTAKE MANIFOLD
15	90025-PLZ-D10	Bolt - INTAKE PIPE
16	90025-PLZ-D20	Bolt - BRACKET FIXING
17	90025-PLZ-D30	Bolt - PIPE
18	90025-PLZ-D40	Bolt - PIPE
19	90025-PLZ-D50	Bolt - PIPE
20	90125-PLZ-D00	Stud - INTAKE MANIFOLD
21	90125-PLZ-D10	Stud - INTAKE PIPE
22	90225-PLZ-D00	Nut - INTAKE MANIFOLD
23	90225-PLZ-D10	Nut - BRACKET
24	90225-PLZ-D20	Nut - BRACKET
25	90225-PLZ-D30	Nut - PIPE FIXING
26	90625-PLZ-D00	Clip - RUBBER HOSE

Inner panels 1

#	OEM	部品名
40	90108-S0A-003	Bolt - FLANGE, 6X15

Instrument panel (LH) 18

#	OEM	部品名
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
5	77104-S5S-E00	Insulator - R. INSTRUMENT PANEL LOWER
7	77107-S6E-G00	Insulator - R. INSTRUMENT
9	77108-S6E-G00	Insulator - L. INSTRUMENT
10	77109-S5S-E00	Insulator - L. INSTRUMENT PANEL LOWER
12	77150-S2X-003	Holder - INSTRUMENT UPPER
13	77170-S6A-000	Bracket - INSTRUMENT CENTER
13	77170-S6A-J00	Bracket - INSTRUMENT CENTER
18	77466-S2G-000	Seal - FR. INSTRUMENT
19	77550-S6A-G00	Frame comp - GLOVE BOX
21	77982-S04-N81	Holder - COUPLER (2P)
22	90101-S6A-000	Bolt-washer - 8MM
23	90106-S5H-000	Bolt-washer - 8X40
24	90140-SH3-003	Bolt-washer - 5X18
25	90157-SA0-000	Bolt-washer - 8X25
26	90321-SP0-A80	Nut-washer - 6MM
27	91640-SM4-003	Grommet - SCREW, 4MM
28	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH; DRIVER SIDE) 8

#	OEM	部品名
1	38205-S6F-E01	Label - FUSE
5	77235-S6A-003	Holder assy.
11	77628-S6A-G00	Label - OUTLET OPEN
12	77629-S6A-G00	Label - OUTLET SHUT
16	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18	90302-SA4-003	Nut - SPRING, 4MM
19	90665-S04-003	Clip - SNAP FITTING
20	90666-S84-A01	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 21

#	OEM	部品名
4	39610-S6A-003	Knob assy
5	39620-S6A-003	Housing assy.
6	39625-S6A-003	Ring - MOUNTING
7	66405-S04-010	Stay - GLOVE BOX HINGE
8	66417-SB3-670	Rubber - GLOVE BOX STOPPER
9	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
16	77255-S6A-G00	Bracket comp. - CENTER PANEL
16	77255-S6A-J00	Bracket comp. - CENTER PANEL
17	77255-S6D-E01	Cap - CENTER
24	77506-S6A-000	Stopper - GLOVE BOX LID
27	77541-S6A-G10	Striker comp. - GLOVE BOX
28	77628-S6A-G00	Label - OUTLET OPEN
29	77629-S6A-G00	Label - OUTLET SHUT
33	77730-S5S-E01	Holder comp - FR.
34	88315-S6A-003	Spring - FIRE PROTECTOR
35	90101-S03-000	Screw - TAPPING, 4X16
36	90133-SM4-003	Bolt-washer - 5X16
37	90140-SH3-003	Bolt-washer - 5X18
38	90144-SM4-003	Screw - 4X12
40	90665-S04-003	Clip - SNAP FITTING
41	90666-S84-A01	Clip - SNAP FITTING

Intercooler (DIESEL) 14

#	OEM	部品名
1	17281-PLZ-E01	Hose a - INTERCOOLER IN.
2	17282-PLZ-E01	Hose b - INTERCOOLER IN.
3	17284-PLZ-E01	Hose - INTERCOOLER OUTLET
4	17284-PP8-003	Band - HOSE (D52)
5	17288-PLZ-E00	Chamber - INTAKE
6	17318-PLZ-E01	Band - HOSE (D50)
7	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE
8	19700-PLZ-E01	Intercooler comp.
9	31124-PLZ-E00	Clamp - GENERATOR HARNESS
10	74172-S84-000	Cushion - RADIATOR MOUNTING LOWER
11	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
12	90042-PLZ-E01	Bolt-washer - 8X20
13	90051-PLZ-E01	Bush
14	90052-PLZ-E01	Collar

Interior light 7

#	OEM	部品名
3	34251-S5A-003	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W
7	34261-S6D-E01	Lens comp
8	34262-S6D-E01	Cover
9	34295-S6D-E01	Bulb - 12V 5W
13	90131-S47-003	Screw - ET, 5X16

Knuckle 26

#	OEM	部品名
1	51210-S5T-Z00	R. FR. Knuckle comp
1	51210-S6F-E01	Knuckle comp - R. FR.
2	51215-S5T-Z00	L. FR. Knuckle comp
2	51215-S6F-E01	Knuckle comp - L. FR.
3	51225-S5A-003	Boot - LOWER BALL DUST
4	51300-S6F-E01	Spring - FR. STABILIZER
5	51306-S6D-005	Bush - STABILIZER HOLDER
6	51308-S5A-000	Holder - FR. STABILIZER
7	51320-S5A-003	RH FR. STABILIZER LINK
8	51321-S5A-003	LH FR. STABILIZER LINK
9	51350-S5T-Z00	Arm comp - R. FR. LOWER
9	51350-S6F-E00	Arm comp - R. FR. LOWER
10	51360-S5T-Z00	Arm comp - L. FR. LOWER
10	51360-S6F-E00	Arm comp - L. FR. LOWER
11	51391-S5T-Z01	Bush - FR. COMPLIANCE
11	51391-S5A-024	Bush - FR. COMPLIANCE (YAMASHITA)
12	51392-S5A-004	Bush - FR. LOWER ARM (YAMASHITA)
13	57450-S5T-E01	Sensor assy - R. FR.
13	57450-S6D-E01	Sensor assy - R. FR.
14	57455-S5T-E01	Sensor assy - L. FR.
14	57455-S6D-E01	Sensor assy - L. FR.
15	90002-S10-000	Nut - FLANGE, 10MM
16	90118-S5A-000	Bolt - FLANGE, 14X91
17	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
18	90363-S47-000	Nut - LOWER ARM, 12MM
19	90701-SX0-003	Clip - UPPER ARM

Meter components (NS; 1) 6

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37115-SA0-601	Packing - NS
5	78155-S6A-N01	Visor
6	78156-S6A-N01	Lens - METER
7	90302-SA4-003	Nut - SPRING, 4MM
10	78100-S5V-R52	Meter assy - COMBINATION

Mirror (1) 8

#	OEM	部品名
1	76200-S5S-G01	Mirror assy - R. DOOR
2	76203-S6D-G01	Mirror sub assy. - R. (SR1400)
4	76250-S5S-G01	Mirror assy - L. DOOR
5	76253-S6D-G01	Mirror sub assy. - L. (SR1400)
7	76400-SEA-004	Mirror assy - RR. VIEW (DAY/NIGHT)
8	90107-S5S-003	Screw - TAPPING, 5X12
9	90108-S5S-003	Washer
10	90615-SK7-003	Clip - MIRROR GARNISH

Mirror (3) 15

#	OEM	部品名
1	34300-SEA-003	Light assy - R. SIDE TURN
2	34350-SEA-003	Light assy - L. SIDE TURN
4	76203-S6D-H41	Mirror sub assy. - R. (R1400) (HEATED)
5	76203-S6D-E61	Actuator set - R. (HEATED)
6	76208-SEA-003	Sticker
8	76239-S6M-003	Screw - PAN, 5X10
10	76253-S6D-H41	Mirror sub assy. - L. (R1400) (HEATED)
11	76253-S6D-E61	Actuator set - L. (HEATED)
13	76400-SEA-004	Mirror assy - RR. VIEW (DAY/NIGHT)
14	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)
15	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)
16	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)
17	90615-SK7-003	Clip - MIRROR GARNISH
18	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
19	91565-SEA-003	Clamp - HARNESS

Molding/side sill garnish 30

#	OEM	部品名
3	71804-S5A-R00	Stay assy - SIDE SILL GARNISH
6	72410-S5S-E01	Molding assy. - R. FR. DOOR
7	72430-S5S-E01	Garnish - R. FR. DOOR SASH
8	72431-S2X-003	Clip - CENTER PILLAR GARNISH
9	72450-S5S-E01	Molding assy. - L. FR. DOOR
10	72470-S5S-E01	Garnish - L. FR. DOOR SASH
11	74306-S5S-E01	Molding assy. R. ROOF
12	74308-ST0-003	Bracket - ROOF MOLDING
13	74316-S5S-E01	Molding assy. L. ROOF
15	74551-S5S-E00	Fender - R. RR. INNER
16	74552-S6D-E00	Stiffener - R. RR. INNER FENDER
17	74591-S5S-E00	Fender - L. RR. INNER
18	74592-S6D-E00	Stiffener - L. RR. INNER FENDER
21	76222-SP1-003	Clip - DOOR MIRROR COVER
22	90102-S6A-000	Bolt - SPECIAL, 6X9
23	90104-SR2-003	Bolt c - BUMPER
25	90126-SA7-000	Screw-washer - 5X20
25	90114-SZ3-000	Screw-washer - 5X20
26	90142-S04-000	Screw - TAPPING, 4X10
27	90305-SM4-000	Nut - AIR SPOILER CLIP
28	90324-S6A-000	Nut - SUSPENSION, 5MM
29	90657-SA5-003	Clip - SIDE APRON MOLDING
30	90682-SB0-003	Grommet - SCREW, 5MM
31	91501-S04-003	Clip - INNER FENDER
32	91501-S5A-003	Clip - DOOR MOLDING
33	91503-SZ3-003	Clip A
34	91503-S2X-003	Clip - SIDE SILL COVER
35	91504-SP1-003	Clip - FR. FENDER LOWER
36	91513-S47-000	Clip - SIDE SILL GARNISH UPPER
37	91513-S5S-E01	Clip - SIDE SILL GARNISH UPPER

Oil cooler/oil filter (DIESEL) 15

#	OEM	部品名
1	15230-PLZ-D00	Valve assy. - RELIEF
2	15230-PLZ-D10	Valve assy. - RELIEF
3	15300-PLZ-D00	Filter & cooler assy. - OIL
4	15305-PLZ-D00	Valve assy. - OIL COOLER
5	15400-PLZ-D00	Element & cap assy. - OIL FILTER
6	15430-PLZ-D00	Element - OIL FILTER
7	15500-PLZ-D00	Cooler assy. - OIL
8	15701-PLZ-D00	Hose - OIL DRAIN
9	90050-PLZ-D00	Bolt - CENTER
10	90050-PLZ-D10	Bolt - OIL COOLER
11	90450-PLZ-D00	Gasket - CENTER BOLT
12	90450-PLZ-D10	Gasket - OIL COOLER VALVE
13	90650-PLZ-D00	Clip - DRAIN HOSE
14	91350-PLZ-D00	Gasket - COOLER-BRACKET
15	91350-PLZ-D10	Gasket - OIL FILTER-CYLINDER BLOCK

Oil pan/level gauge (DIESEL) 15

#	OEM	部品名
1	11201-PLZ-D20	Pan assy - OIL (B)
2	11201-PLZ-D30	Pan assy - OIL (A)
3	11221-PLZ-D10	Plate - CRANKCASE BAFFLE
4	15200-PLZ-D00	Tube - OIL LEVEL GAUGE GUIDE
5	15650-PLZ-D00	Gauge - OIL LEVEL
6	90013-PLZ-D00	Plug - OIL DRAIN
7	90013-PLZ-D10	Bolt - GUIDE TUBE
8	90013-PLZ-D20	Bolt - GUIDE TUBE
9	90013-PLZ-D30	Bolt - CRANKCASE BAFFLE PLATE
10	90013-PLZ-D40	Bolt - OIL PAN
11	90013-PLZ-D50	Bolt - OIL PAN
12	90013-PLZ-D60	Bolt - OIL PAN
13	90213-PLZ-D00	Nut - OIL PAN
14	90413-PLZ-D00	Gasket - DRAIN PLUG
15	91313-PLZ-D10	Gasket - OIL LEVEL GAUGE GUIDE TUBE

Oil piping/vacuum piping (DIESEL) 20

#	OEM	部品名
1	15530-PLZ-D00	Pipe - TURBOCHARGER OIL FEED
2	15540-PLZ-D00	Pipe assy. - TURBOCHARGER OIL RETURN
3	15542-PLZ-D00	Hose - TURBOCHARGER RETURN RUBBER
4	15543-PLZ-D00	Gasket - OIL PIPE & TURBOCHARGER
5	15545-PLZ-D00	Hose - VACUUM PUMP RETURN
6	15546-PLZ-D00	Hose - RUBBER
7	90052-PLZ-D00	Bolt - OIL PIPE-TURBOCHARGER
8	90052-PLZ-D10	Bolt - OIL PIPE JOINT
9	90052-PLZ-D20	Bolt - TURBOCHARGER EYE
10	90052-PLZ-D30	Bolt - JOINT
11	90052-PLZ-D40	Bolt - OIL PIPE EYE
12	90452-PLZ-D00	Gasket - OIL PIPE
13	90452-PLZ-D10	Gasket - OIL PIPE NIPPLE
14	90452-PLZ-D20	Gasket - OIL PIPE-TURBOCHARGER
15	90452-PLZ-D30	Gasket - JOINT BOLT
16	90652-PLZ-D00	Clip - TURBOCHARGER RETURN HOSE
17	90652-PLZ-D10	Clip - HOSE
18	90652-PLZ-D20	Clip - OIL COOLER HOSE
19	90652-PLZ-D30	Clip - OIL COOLER HOSE
20	90652-PLZ-D40	Clip - RUBBER HOSE

Oil pump/oil strainer (DIESEL) 12

#	OEM	部品名
1	15100-PLZ-D00	Pump assy. - OIL
1	15100-PLZ-D01	Pump assy.
3	15220-PLZ-D00	Strainer assy - OIL
4	15221-PLZ-D00	Hose - OIL STRAINER RUBBER
5	90051-PLZ-D00	Bolt - OIL PIPE
6	90051-PLZ-D10	Bolt - OIL PUMP FLANGE
7	90051-PLZ-D20	Bolt - OIL PUMP FLANGE
8	90120-PLZ-D00	Stud - BODY-CYLINDER BLOCK
9	90451-PLZ-D00	Gasket - RELIEF VALVE
10	90751-PLZ-D00	Dowel pin - OIL PUMP
11	91220-PLZ-D00	Seal - CRANKSHAFT FR. OIL
12	91251-PLZ-D00	Seal - OIL PUMP OIL

Outer panels 11

#	OEM	部品名
18	73219-693-951	Seal - FUEL LID OPENER (GREEN)
19	74411-S5S-G00	Cable - FUEL LID OPENER
20	74421-SS1-010	Spring - FUEL LID OPENER
21	74422-ST5-000	Cushion - FUEL FILLER LID
22	74423-S1A-E01	Holder - FUEL CAP
25	75450-S2K-000	Outlet assy - RR. AIR
26	90103-SM4-010	Bolt - FLANGE, 6X18
27	90103-SS1-000	Bolt - FUEL FILLER LID
28	90684-SD4-003	Clip - FUEL LID OPENER
29	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
30	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

P.s. gear box (EPS; LH) 24

#	OEM	部品名
1	53010-S5S-000	Bush set - STEERING GEAR BOX MOUNTING
2	53434-S5D-A01	Bracket b - STEERING GEAR BOX
3	53435-S5A-A00	Stiffener a - STEERING GEAR BOX
4	53438-S5A-G01	Bracket - R. STEERING GEAR BOX
5	53438-S5A-G50	Bracket - R. STEERING GEAR BOX
5	53438-S5A-A50	Bracket - R. STEERING GEAR BOX
6	53439-S5A-000	Stiffener b - STEERING GEAR BOX
7	53501-S5A-000	Grommet - STEERING
8	53521-S5A-003	Rod sub assy. - TIE (###)
9	53536-S5A-900	Washer - TIE ROD LOCK
10	53541-S5A-000	Rod assy - TIE
11	53541-S5A-003	End comp - TIE ROD
12	53546-S84-003	Boot - TIE ROD END (NOK)
13	53606-S5V-P31	BOX ASSY., POWER STEERING GEAR (PORTUGAL)
13	53606-S5V-G31	BOX ASSY., POWER STEERING GEAR
13	53606-S6F-G63	Box assy - POWER STEERING GEAR
14	53685-S6M-000	Bush - STEERING GEAR BOX MOUNTING
15	53686-S5A-010	Collar - STEERING GEAR BOX MOUNTING (A)
16	90108-S5A-000	Bolt - GEAR BOX MOUNTING
17	90301-S5A-003	Nut - HEX.
18	90450-S5A-020	Nut - FLANGE, 10MM
19	90505-S5A-000	Washer - PLAIN, 10MM
20	90506-S5A-010	Washer - PLAIN, 10MM
21	90801-S5A-000	BOLT, FLANGE, 8X25

P.s. gear box components (EPS; LH) 21

#	OEM	部品名
1	53413-SZ3-000	Spring - RACK GUIDE PRESSURE
2	53414-S5A-003	Screw - RACK GUIDE
3	53416-S5S-G01	Guide - STEERING RACK
4	53418-S5A-003	Washer - DISK
5	53448-S5A-J01	Band b - BELLOWS
6	53449-S5A-J01	Band a - BELLOWS
7	53455-S5A-003	Ring b - STOPPER
8	53457-S5A-003	Lock - SCREW
9	53458-SM4-J60	Nut - RACK SCREW LOCK
10	53535-S5A-003	Washer - LOCK
11	53602-S5T-G31	Motor set
11	53602-S5S-G61	Motor set
12	53603-S5A-J01	Boot set
13	53604-S5A-003	Bracket
14	53605-S5A-003	Slider
15	53611-S5T-G32	Housing comp - SLIDER
15	53611-S5A-G61	Housing comp - SLIDER
16	53662-S5A-003	O-ring - 11.5X1.5
17	90105-S0A-003	Bolt - FLANGE, 8X25
18	90455-S5A-003	Bolt - FLANGE, 12X40
19	91351-S5A-003	O-ring - MOTOR

Parking brake 12

#	OEM	部品名
2	47342-S6A-E11	Switch - PARKING BRAKE
3	47360-S1A-E01	Equalizer
4	47365-SN7-003	Pin - EQUALIZER
6	47510-S5T-E13	Wire b - R. PARKING BRAKE
7	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING
8	47537-SN7-003	Spring - PARKING BRAKE ROD
10	47560-S5S-E14	Wire b - L. PARKING BRAKE
11	47571-S5S-E02	Stay - WIRE BASE GUIDE
12	47572-ST0-000	Base - WIRE GUIDE
13	47577-S5S-E00	Guard - BRAKE WIRE
14	90651-SN7-003	Clip - BRAKE HOSE
15	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Partial engine (DIESEL) 1

#	OEM	部品名
1	10002-PLZ-D00	Engine assy - PARTIAL

Pedal (LH) 29

#	OEM	部品名
1	17256-PD6-000	Rubber - RESONATOR MOUNTING
2	17800-S6A-G01	Pedal assy - ACCELERATOR
3	17818-S5A-A01	Stopper - ACCELERATOR STROKE
4	17910-S6F-G01	Wire - THROTTLE
5	17921-SA4-730	Seal - THROTTLE CABLE
10	17931-S6F-G01	Clip
12	36750-S5A-J02	Switch assy - STOP & CRUISE (MATSUSHITA)
13	36641-PP8-000	Collar - ACTUATOR MOUNT
14	36760-PT0-004	Switch assy - CLUTCH
15	37972-PLZ-G00	Stay comp - ACCELERATOR PEDAL SENSOR (LH)
16	37974-PLZ-G00	Bracket comp. - ACCELERATOR PEDAL SENSOR (LH)
17	37975-PLZ-E00	Sensor comp - ACCELERATION
18	37996-PLZ-G00	Cover - ACCELERATOR PEDAL SENSOR (LH)
19	46505-SA5-000	Pad - PEDAL STOPPER
20	46505-SA7-000	Pad - PEDAL STOPPER
21	46530-S5A-003	Spring assy - PEDAL RETURN
22	46545-SA5-000	Cover, Pedal
24	46600-S5A-G01	Pedal assy - BRAKE
25	46900-S6F-G52	Pedal assy - CLUTCH
26	46905-SK7-000	Stopper - CLUTCH PEDAL
27	46907-S7A-A01	Spring - CLUTCH ASSISTANT
28	46911-SD4-930	Bush - PEDAL PIN
29	46981-S2A-003	Bush a - CLUTCH ASSISTANT
30	46982-S2A-003	Bush b - ASSISTANT
31	46991-S5A-A01	Bracket comp. - FOOTREST
32	46992-SV4-003	Clip - FOOTREST
34	90301-SP0-003	Nut - PAINT CUTTING, 6MM
35	90301-S5A-000	Nut - PAINT CUTTING, 6MM
36	91503-PLZ-E01	Clip - COVER

Pillar garnish (LH) 5

#	OEM	部品名
1	72315-S5S-E01	Seal - R. FR. DOOR OPENING
2	72355-S5S-E01	Seal - L. FR. DOOR OPENING
11	91560-S6A-003	Clip - DOOR LINING(ORANGE)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
13	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Radiator (DENSO; DIESEL) 14

#	OEM	部品名
1	19010-PLZ-E01	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19013-PLZ-E01	Seal
5	19015-PLZ-E01	Main shroud comp.
6	19020-PLZ-E01	Fan - COOLING
7	19030-PLZ-E01	Motor - COOLING FAN
8	37773-PLZ-E01	Switch - THERMO (A-95)
9	37773-PLZ-E51	Switch - THERMO (A-100)
10	90041-P3G-003	Screw-washer - 5X11
11	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
12	90043-PD2-003	Nut - HEX., 5MM (DENSO)
13	91307-PN4-000	O-ring - 17.5X1.4
13	91307-PN3-000	O-ring,17.8x1.4

Radiator hose (DIESEL) 21

#	OEM	部品名
1	19045-P1K-E01	Cap comp. - RADIATOR (CALSONIC)
2	19101-PLZ-E02	Tank comp. - EXPANSION
3	19103-PLZ-E00	Hose a - EXPANSION TANK
4	19105-PLZ-E01	Hose - OVERFLOW
5	19106-PLZ-E00	Hose b - EXPANSION TANK
6	19107-PLZ-E00	Hose c - EXPANSION TANK
7	19108-PLZ-E00	Hose d - EXPANSION TANK
8	19109-PLZ-E00	Connector - HOSE
9	19110-PLZ-E00	Pipe - WATER
10	19111-PLZ-E00	Hose - WATER
11	19115-PLZ-E01	Bracket comp. - EXPANSION TANK
12	19501-PLZ-E00	Hose - WATER UPPER
13	19502-PLZ-E00	Hose - WATER LOWER
14	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE
15	19511-PLZ-E51	Clip - HOSE WITH HOLDER (D41)
16	74171-S5T-G00	Bracket - RADIATOR MOUNT UPPER
17	74172-S84-000	Cushion - RADIATOR MOUNTING LOWER
18	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
20	91405-PK1-003	Clip, WATER HOSE, 24MM
20	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Rear brake (DISK) 48

#	OEM	部品名
1	01473-SV4-000	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER
2	06430-S6D-E50	Pad set - RR. (WITHOUT SHIM) (###)
3	06435-S2A-000	Shim set - RR.
4	42200-S5A-J01	Bearing assy - RR. HUB UNIT
5	42200-S7A-008	Bearing assy - RR. HUB UNIT
6	42326-ST7-Z00	Cap - HUB UNIT
6	42326-SLJ-000	Cap, Hub unit
6	42326-S5A-000	Cap - HUB UNIT
6	42326-SLA-000	Cap - HUB UNIT
7	42510-S5T-E00	Disk - RR. BRAKE
8	42510-S6D-E00	Disk - RR. BRAKE
9	43018-S5A-J02	Caliper sub assy. R. RR.
10	43019-S5A-J02	Caliper sub assy. L. RR.
11	43022-S6D-E50	Pad set - RR.
12	43215-SM4-951	Piston assy.
13	43223-SD2-932	BEARING A
14	43224-SD2-931	Spring b - ADJUSTING
15	43227-SG0-013	Spring - PAD
16	43228-SD2-933	Shaft a
17	43229-SD2-931	Rod
18	43233-S5A-J01	Piston comp - SLEEVE
18	43233-TR0-A01	Piston, sleeve
19	43235-S84-A51	Pin a
20	43236-S04-003	Spacer
21	43238-SF1-003	Ring - RETAINING
22	43241-S5A-003	Guide - SPRING
23	43243-SD2-931	Nut - PARKING
24	43244-SG0-003	Retainer
25	43245-S5A-J01	Lever - R.
26	43246-SD2-931	Spring - R. RETURN
27	43247-S5A-J01	Arm - R.
28	43248-SD2-933	Shaft b
29	43249-S04-003	Bolt - ADJUSTER
30	43253-S6D-E50	Guard - R. RR. SPLASH
31	43254-S6D-E50	Guard - L. RR. SPLASH
32	43262-S84-A51	Pin b
33	43265-S5A-J01	Lever - L.
34	43266-SD2-931	Spring - L. RETURN
35	43267-S5A-J01	Arm - L.
36	43352-SM4-951	Screw - BLEEDER
37	43353-SD5-003	Cap - BLEEDER SCREW
38	45240-SC2-003	Bolt - FLANGE, 8X22
39	90103-SN7-003	Bolt - FLANGE, 10X25
40	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
40	90113-SA0-006	Bolt - WHEEL (SAGA)
40	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
41	90305-S30-003	Nut - SPINDLE

Rear lower arm 42

#	OEM	部品名
1	52210-S6D-G00	Knuckle comp - R. RR.
2	52210-S5T-A00	Knuckle comp - R. RR. (ABS)
3	52215-S6D-G00	Knuckle comp - L. RR.
4	52215-S5T-A00	Knuckle comp - L. RR. (ABS)
5	52300-S5T-A11	Spring - RR. STABILIZER
5	52300-S5V-E01	Spring - RR. STABILIZER
6	52306-S5T-A11	Bush - RR. STABILIZER HOLDER
6	52306-S5V-E01	Bush - STABILIZER HOLDER
7	52308-S6M-000	Holder - R. RR. STABILIZER BUSH
7	52308-S5A-000	Holder - R. RR. STABILIZER BUSH
8	52309-S6M-000	Holder - L. RR. STABILIZER BUSH
8	52309-S5A-000	Holder - L. RR. STABILIZER BUSH
9	52320-S5T-J01	Link comp - R. RR. STABILIZER
9	52320-S5A-013	RH. RR. STABILIZER Link comp
10	52321-S5T-J01	Link comp - L. RR. STABILIZER
10	52321-S5A-013	LH RR. STABILIZER Link comp
11	52352-S5A-A01	Protector - RR. LOWER ARM
12	52364-S5A-004	BUSH, REAR LOWER ARM INNER
12	52364-S6M-004	BUSH, REAR LOWER ARM INNER
13	52365-S5A-802	Bush a - RR. LOWER ARM OUTER
13	52365-S5A-024	Bush - RR. LOWER ARM OUTER
14	52366-S5A-024	Bush b - RR. LOWER ARM
15	52370-S5T-Z01	Arm comp - R. RR. TRAILING
15	52370-S5T-Z02	TRAILING ARM COMP
15	52370-S6D-G10	Arm comp - R. RR. TRAILING
16	52371-S5T-Z01	Arm comp - L. RR. TRAILING
16	52371-S5T-Z02	Arm comp
16	52371-S6D-G10	Arm comp - L. RR. TRAILING
17	52387-S7A-000	Bolt - TRAILING ARM ADJUST
18	52388-S7A-013	Plate - CAM
19	52390-S5A-981	Arm comp - RR. UPPER
20	52395-S5A-004	Bush - RR. UPPER ARM
21	57470-S5D-013	Sensor assy - R. RR.
22	57475-S6D-E01	Sensor assy - L. RR.
23	90002-S10-000	Nut - FLANGE, 10MM
24	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
25	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)
26	90396-S5A-000	Bolt - FLANGE, 12X75
27	90397-S5A-000	Bolt - FLANGE, 12X48
27	90186-SR3-000	Bolt - FLANGE, 12X48
28	90398-S5A-000	Bolt - FLANGE, 12X81.5
29	90399-S5A-000	Bolt - FLANGE, 12X73

Rear seat 20

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
7	82122-S5S-G11	Pad assy - R. RR. SEATBACK
7	82122-S5S-E11	Pad assy - R. RR. SEATBACK
8	82126-S5S-G11	Frame comp - R. RR. SEATBACK
10	82129-S5T-003	Bolt - SEATBELT, 6MM
11	82129-S6A-000	Collar - RR. SEAT PIVOT
13	82132-S5S-G01	Pad & frame comp. - RR. SEAT CUSHION
14	82137-S5A-003	Clip - RR. SEAT CUSHION
20	82225-S5S-003	Striker comp. - RR. SEAT
21	82228-S6A-E01	Collar - RR. SEATBACK SETTING
22	82291-S04-000	Cover - RR. CENTER PIVOT
23	82292-S04-000	Collar - RR. CENTER SEAT PIVOT
26	82295-S5S-003	Bracket assy - CENTER SEAT PIVOT
28	82522-S5S-G11	Pad assy - L. RR. SEATBACK
28	82522-S5S-G01	Pad assy - L. RR. SEATBACK
29	82526-S5S-G01	Frame comp - L. RR. SEATBACK
32	90128-SA7-000	Bolt-washer - 6X25
33	90139-S5S-000	Bolt - FLANGE, 8X30
34	90610-SR3-003	Clip - GARNISH (KATO)

Rear shock absorber 26

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51689-SH3-004	Plate - BUMP STOP (SHOWA)
2	52690-S5A-004	Plate - BUMP STOP
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
4	52441-S5V-R01	Spring - RR. (SHOWA)
4	52441-S5V-E03	Spring - RR. (SHOWA)
5	52610-S5V-R02	Absorber assy - R. RR. SHOCK
5	52610-S5V-E05	Absorber assy - R. RR. SHOCK
6	52611-S5V-R02	Absorber unit - RR. SHOCK
6	52611-S5V-E04	Absorber unit - RR. SHOCK
7	52620-S5V-R02	Absorber assy - L. RR. SHOCK
7	52620-S5V-E05	Absorber assy - L. RR. SHOCK
8	52622-S5A-004	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING
9	52631-SCA-004	Rubber - SHOCK ABSORBER MOUNTING
10	52675-S7A-004	Base - RR. SHOCK ABSORBER MOUNTING
10	52675-S5A-004	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING
12	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT
13	52686-S5A-004	Rubber - RR. SPRING MOUNTING
14	52687-S5A-014	Cover - RR. DUST
15	52689-S5A-004	Cover - RR. BUMP STOP
16	52722-S5A-004	Rubber - BUMP STOPPER
17	52722-S5T-Z03	Rubber - RR. BUMP STOPPER
18	90181-S84-A00	Bolt - TRAILING ARM, 12X68
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear under spoiler 7

#	OEM	部品名
2	90126-SR4-000	Screw-washer - 5X16
3	90141-S5T-G01	Bolt - BUMPER SPOILER
4	90303-S5T-G00	Nut - GARNISH, 6MM
5	90305-SH3-000	Nut - AIR SPOILER CLIP
6	90345-S04-000	Nut - SUSPENSION, 5MM
7	90126-SA7-000	Screw-washer - 5X20
7	90114-SZ3-000	Screw-washer - 5X20

Rear windshield/ quarter glass 16

#	OEM	部品名
1	04733-S5S-E00	Rubber set - RR. WINDSHIELD DAM
1	04733-S5S-305	RUBBER SETRR WSH
2	73211-S5S-E00	Glass set - RR. WINDSHIELD (GREEN)(SPLINTEX)
3	73511-S5S-E00	Glass - R. QUARTER (GREEN) (SPLINTEX)
4	73525-S5S-E00	Rubber - QUARTER WINDSHIELD DAM
5	73561-S5S-E00	Glass - L. QUARTER (GREEN) (SPLINTEX)
6	73810-S5S-E01	Seal - R. FR. QUARTER GLASS
7	73850-S5S-E01	Seal - L. FR. QUARTER GLASS
8	76707-S6D-E00	Seal a
9	91501-S2R-003	Clip - QUARTER WINDSHIELD
10	91501-S70-003	Fastener b - WINDSHIELD
11	91502-S5S-E00	Clip b - QUARTER GLASS
12	91502-S70-003	Fastener b - RR. WINDSHIELD
13	91506-S47-003	Clip c - QUARTER WINDOW
14	91536-SS0-J01	Fastener a - WINDSHIELD
15	91536-S5S-E01	Fastener a - SPOILER

Rear wiper 11

#	OEM	部品名
1	76700-S5S-E01	Motor assy. - RR. WINDSHIELD WIPER
2	76701-S6D-E01	Rubber - MOUNTING
3	76702-S6D-E01	Collar
4	76706-S1C-E01	Washer a - SPECIAL
5	76708-S1C-E01	Washer b - SPECIAL
6	76709-S6D-E01	Nut - 16MM
7	76711-S1C-E01	Cap - PIVOT
8	76720-S6D-E01	Arm - RR. WIPER
9	76721-S6D-E01	Cap
10	76730-S6D-E01	Blade - RR. WIPER (300MM)
11	90001-S6D-E00	Nut - HEX., 8MM

Roof lining 2

#	OEM	部品名
12	90131-SH3-A12	Screw - PAN, 5X16
13	91562-S0X-A01	Clip - ROOF LINING (BLACK)

Seatbelts 8

#	OEM	部品名
6	81491-S5S-000	Protector - R. FR. SEATBELT
10	81891-S5S-000	Protector - L. FR. SEATBELT
11	82127-S6A-E01	Cover - RR. SEATBACK ELR
19	90101-S84-A00	Screw - ET, 6X16
19	90133-SZ4-003	Screw - ET, 7X16
20	90134-SE3-003	Screw - TAPPING, 5X10
21	90135-S1F-003	Bolt - FLANGE, 7/16"
22	90142-S6A-J01	Bolt-washer - 7/16"X28

Shift lever 10

#	OEM	部品名
1	54100-S5S-003	Lever sub assy. - CHANGE
4	54117-S6A-003	Rubber - FLOATING
5	54119-S30-003	Collar - FLOATING
6	54310-S6F-013	Wire comp - CHANGE
7	54357-SN7-000	Plate - CHANGE WIRE
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM
10	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
11	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
12	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
13	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Shift rod/shift arm (DIES EL) 35

#	OEM	部品名
1	21396-PMZ-D40	Breather assy - AIR
2	21520-PMZ-D40	Control unit
3	21811-PMZ-D40	Packing
4	24201-PMZ-D40	Arm assy. - SHIFT FIFTH
5	24202-PMZ-D40	Rod - GEARSHIFT REVERSE
6	24211-PMZ-D40	Arm assy. - SHIFT THIRD-FOURTH
7	24212-PMZ-D40	Rod - GEARSHIFT THIRD-FOURTH
8	24221-PMZ-D40	Arm - SHIFT LOW-SECOND
9	24222-PMZ-D40	Rod - GEARSHIFT LOW-SECOND
10	24223-PMZ-D40	Block - SHIFT FIRST-SECOND
11	24231-PMZ-D40	Lever - REVERSE SHIFT
12	24232-PMZ-D40	Rod - GEARSHIFT FIFTH
13	24233-PMZ-D40	Pin - FULCRUM BRACKET
14	24234-PMZ-D40	Bracket - FULCRUM REVERSE LEVER
15	24235-PMZ-D40	Lever - REVERSE
16	24243-PMZ-D40	Block - SHIFT REVERSE-FIFTH
17	24452-PMZ-D40	Spring - DETENT (1-2,3-4,5)
18	24453-PMZ-D40	Spring - DETENT REVERSE
19	24519-PMZ-D40	Plug - DETENT SPRING
20	24601-PMZ-D40	Bracket - CABLE (A)
21	24602-PMZ-D40	Bracket - CABLE (B)
22	24603-PMZ-D40	Bracket - TRANSMISSION CABLE
23	35600-PMZ-D40	Switch - REVERSE
24	90001-PMZ-D40	Bolt - BRACKET
25	90002-PMZ-D40	Bolt - CONTROL BOX
26	90021-PMZ-D40	Bolt - FULCRUM BRACKET
27	90601-PMZ-D40	Ring - SNAP
28	90703-PMZ-D40	Pin - REVERSE-FIFTH LOCK
29	90704-PMZ-D40	Pin - ROD ARM SPRING
30	90705-PMZ-D41	Pin - SHIFT ROD SPRING
31	90707-PMZ-D40	Pin - FULCRUM BRACKET SNAP
32	90708-PMZ-D40	Pin - FIFTH ROD LOCK
33	90709-PMZ-D40	Pin - INTER LOCK
34	90710-PMZ-D40	Pin - THIRD-FOURTH ROD LOCK
35	90901-PMZ-D40	Ball - DETENT

Side lining 14

#	OEM	部品名
1	74514-S5S-E00	Seal - R. QUARTER HOLE
2	74554-S5S-E00	Seal - L. QUARTER HOLE
7	83738-S5S-E01	Rivet
8	83739-S5S-E01	Buckle assy - SEATBELT
15	84433-S5S-E00	Strap comp
17	84521-S5T-E00	Lid comp - SPARE TIRE
17	84521-S5S-G00	Lid comp - SPARE TIRE
21	90137-S1A-E01	Screw - ET, 6X18
21	90134-S30-003	Screw - EARTH, 5X18
22	90302-SN7-E00	Nut - SPRING, 4MM
25	90668-ST3-E01	Clip - SIDE LINING
26	90670-SG0-003	Grommet - SCREW, 4MM
28	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
29	91560-S9A-A01	Clip - DOOR LINING (LIGHT BLUE)

Side skirts primer coated 3

#	OEM	部品名
8	71804-S5A-R00	Stay assy - SIDE SILL GARNISH
9	91503-SZ3-003	Clip A
10	90104-SR2-003	Bolt c - BUMPER

Srs unit (LH) 8

#	OEM	部品名
1	77900-S6M-Q01	Reel assy - CABLE (SUMITOMO)
1	77900-S6A-G01	Reel assy - CABLE (SUMITOMO)
1	77900-S6A-G02	Reel assy - CABLE (FURUKAWA)
2	77930-S6A-N91	Sensor assy - R. FR. SIDE
3	77940-S6A-N91	Sensor assy - L. FR. SIDE
4	77960-S5S-G92	Srs unit - SIEMENS
5	77970-S5S-G92	Sensor assy - SIDE IMPACT
6	90137-S84-A01	Bolt - TORX EARTH, 6X20

Starter motor components (DIESEL) 8

#	OEM	部品名
1	30202-PLZ-D00	Washer kit - STARTER
2	31204-PLZ-D00	Switch - ENGINE STARTER
3	31205-PLZ-D00	Bracket - STARTER CENTER
4	31207-PLZ-D00	Pinion - CLUTCH STARTER
5	31208-PLZ-D00	Holder - BRUSH STARTER
6	31210-PLZ-D00	Case & rr. cover kit - STARTER
7	90065-PLZ-D00	Bolt - STARTER THROUGH
8	90265-PLZ-D00	Nut - STARTER

Steering column 5

#	OEM	部品名
1	53200-S5S-G01	Column assy - STEERING
2	53323-S5A-003	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS; 1) 3

#	OEM	部品名
5	78525-S5S-N61	Guide - CORD
6	90134-S6A-A80	Bolt - HEX., 6X23
7	90163-S04-000	Nut - STEERING WHEEL

Steering wheel (SRS; 2) 6

#	OEM	部品名
6	78519-S6M-N61	Holder - COUPLER (2P)
7	78523-S6M-N61	Plate - CONTACT
8	78524-S6M-N61	Screw-washer - 6X16
9	78540-S6M-N61	Bracket comp.
10	90134-S6A-A80	Bolt - HEX., 6X23
11	90163-S04-000	Nut - STEERING WHEEL

Switch (LH) 5

#	OEM	部品名
3	35510-S6A-J01	Switch assy - HAZARD
6	35850-S7A-G01	Bulb comp. - 14V 60MA
7	35850-S6A-J01	Bulb comp. - 14V 60MA
8	35910-S04-G01	Switch assy - INERTIA
10	90666-SD4-003	Clip - FITTING

Tailgate 28

#	OEM	部品名
11	72113-SR4-004	Snap - BLACK
12	72117-S04-003	Holder - ROD (YELLOW)
13	74440-S5S-E11	Weatherstrip - TAILGATE
14	74801-S5S-E11	Lock - TAILGATE
16	74810-S6A-003	Handle assy - TAILGATE
17	74813-S6D-E01	Striker assy - TAILGATE
18	74815-S5S-E11	Rod - TAILGATE CYLINDER
19	74816-S2G-003	Band
20	74820-S5S-E01	Stay assy - R. TAILGATE OPEN
21	74829-S1C-E00	Stopper - TAILGATE
22	74830-S5S-E01	Cable - TAILGATE OPENER
23	74861-S5T-A51	Cylinder - TRUNK
26	74870-S5S-E01	Stay assy - L. TAILGATE OPEN
28	74896-S1C-E11	Actuator assy - TAILGATE
29	90101-S50-003	Screw-washer - 3X22
30	90102-SV4-003	Bolt-washer - 6X12
32	90105-S5S-E01	Bolt - SPOILER, 6X10
33	90105-634-000	Bolt-washer (8x20)
34	90107-S2G-003	Bolt - TAILGATE LOCK
35	90108-S6D-E01	Stud - BALL
36	90111-SK3-E00	Stud-ball - TAILGATE
37	90120-SV4-000	Bolt - LOCK STRIKER
38	90303-S5S-E00	Nut - 6MM
39	90501-SAA-003	Washer
40	90501-SL9-003	Clip - LICENSE GARNISH
41	90661-SC7-003	Grommet - SCREW, 5MM
42	91501-S5S-E01	Fastener b - SPOILER
43	91580-SM4-003	Clip - COUPLER(ORANGE)

Tailgate lining 7

#	OEM	部品名
3	84432-SH3-000	Stopper - CENTER SHELF
5	84436-S1C-E00	Pin - SHELF STRAP
10	90662-SB2-003	Grommet - SCREW, 5MM
11	90666-S84-A01	Clip - SNAP FITTING
13	91560-SP0-003	Clip - DOOR LINING (GRAY)
13	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
15	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Taillight/license light 22

#	OEM	部品名
1	33302-ST7-A01	Plug - SOCKET
2	33302-ST7-003	Socket comp.
3	33501-S5S-G31	Lamp unit - R. TAIL
4	33502-S5S-G01	Gasket - BASE
5	33506-SJ6-004	Bulb - 12V 18W) (KOITO
6	33511-S5P-A01	Socket comp. - T16
7	33514-S2A-003	Socket comp - PY21W
8	33551-S5S-G31	Lamp unit - L. TAIL
9	34101-S5T-003	Lens comp
10	34102-S60-003	Housing comp
11	34103-S60-003	Gasket
12	34270-S6A-003	Light assy - HIGH MOUNT STOP
13	34351-SN7-G00	Bulb - POSITION (12V 5W)
14	34901-SB0-671	Bulb - 12V 5W 3CP) (STANLEY
15	34903-ST3-E00	Bulb - 12V 21W) (AMBER
16	34908-ST3-E01	Bulb - 12V 21W
17	34911-ST3-E01	Bulb - 12V 21-5W
18	74890-S5S-E01	Garnish assy - RR. LICENSE
19	90303-S2G-003	Nut - 6MM
20	90501-SL9-003	Clip - LICENSE GARNISH
21	90650-S5A-003	Grommet - RR. COMBINATION LIGHT
22	91512-S50-003	Clip - LICENSE GARNISH

Thermostat (DIESEL) 14

#	OEM	部品名
1	19301-PLZ-D00	Thermostat
2	19305-PLZ-D00	Gasket - OUTLET PIPE HOUSING
3	19311-PLZ-D00	Pipe - WATER OUTLET
4	19313-PLZ-D00	Gasket - THERMOSTAT HOUSING
5	19320-PLZ-D00	Housing - THERMOSTAT
6	19322-PLZ-D00	Pipe - HOUSING HEATER
7	19323-PLZ-D00	Pipe - VENTILATION
8	19340-PLZ-D00	Pipe - BYPASS
9	19601-PLZ-D00	Plug - WATER GLOW (B) (200W)
10	19602-PLZ-D00	Plug - WATER GLOW (A) (300W)
11	90031-PLZ-D00	Bolt - HOUSING-HEAD
12	90031-PLZ-D10	Bolt - OUTLET PIPE
13	90231-PLZ-D00	Nut - PLUG
14	90631-PLZ-D00	Clip - WATER HOSE

Timing gear case/flywheel housing (DIESEL) 15

#	OEM	部品名
1	11300-PLZ-D00	Retainer - CRANKSHAFT
2	11811-PLZ-D00	Cover - TIMING BELT LOWER
3	11821-PLZ-D00	Cover - TIMING BELT UPPER
4	11840-PLZ-D00	Cover - DUST
5	13625-PLZ-D00	Pointer - TIMING
6	15115-PLZ-D10	Gasket - OIL PUMP
7	90020-PLZ-D00	Bolt - COVER FIXING
8	90020-PLZ-D10	Bolt - TIMING BELT COVER
9	90020-PLZ-D20	Bolt - TIMING BELT COVER
10	90020-PLZ-D30	Bolt - TIMING BELT COVER
11	90020-PLZ-D40	Bolt - TIMING BELT COVER
12	90020-PLZ-D50	Bolt - TIMING BELT COVER
13	90020-PLZ-D60	Bolt - RETAINER-CYLINDER BLOCK
14	90720-PLZ-D00	Dowel pin - RETAINER-CYLINDER BLOCK
15	91220-PLZ-D10	Seal - CRANKSHAFT RR. OIL

Tire/wheel disks 102

#	OEM	部品名
1	42700-SZ3-E01	Disk - WHEEL (15X4T) (KANAI)
1	42700-S6D-E91	Disk - WHEEL (15X4T) (DUNLOP)
2	42700-S5S-E82	Disk - ALUMINIUM WHEEL (16X6 1/2J) (HAYES LEMMERZ)
3	42700-S6D-E11	Disk - WHEEL (15X6J) (DUNLOP) (BLACK)
6	42751-S04-945	Tire - T135/70D15 99M) (BRIDGESTONE
6	42751-SV4-905	Tire - T125/70D15 95M) (BRIDGESTONE
6	42751-SV4-906	Tire - T125/70D15 95M) (DUNLOP
6	42751-S6D-901	Tire - T125/70D15 95M) (MICHELIN
7	42751-S5S-G72	Tire - 205/55R16 89V) (BRIDGESTONE
7	42751-S6D-G64	Tire - 195/60R15 88H) (BRIDGESTONE
7	42751-S6D-G65	Tire - 195/60R15 88H) (MICHELIN
8	42753-SK3-000	Valve - RIM(A.R.G.)
8	42753-SG9-000	Valve - RIM(A.R.G.)
8	42753-SN8-E00	Valve - RIM
9	42767-S04-P00	Plate - SPARE TIRE CAUTION (T-TYPE)(PORTUGAL)
9	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
9	42767-SS0-G20	Plate - SPARE TIRE CAUTION (T-TYPE) (GERMANY)
10	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
11	44729-S5A-A10	Weight - BALANCE (35G) (AL)
11	44723-S5A-A10	Weight - BALANCE (30G) (AL)
11	44728-S5A-A10	Weight - BALANCE (25G) (AL)
11	44722-S5A-A10	Weight - BALANCE (20G) (AL)
11	44727-S5A-A10	Weight - BALANCE (15G) (AL)
11	44721-S5A-A10	Weight - BALANCE (10G) (AL)
11	44726-S5A-A10	Weight - BALANCE (5G) (AL)
11	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)
11	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)
11	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)
11	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)
11	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)
11	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)
11	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)
11	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)
11	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)
11	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)
11	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)
11	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)
11	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)
11	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)
12	44727-SEA-004	Weight - BALANCE (15G) (TOHO)
12	44721-SEA-004	Weight - BALANCE (10G) (TOHO)
12	44726-SEA-004	Weight - BALANCE (5G) (TOHO)
12	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)
12	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)
12	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)
12	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)
12	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)
12	44729-S5A-A00	Weight - BALANCE (35G) (SP)
12	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)
12	44723-S5A-A00	Weight - BALANCE (30G) (SP)
12	44728-S5A-A00	Weight - BALANCE (25G) (SP)
12	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)
12	44722-S5A-A00	Weight - BALANCE (20G) (SP)
12	44727-S5A-A00	Weight - BALANCE (15G) (SP)
12	44721-S5A-A00	Weight - BALANCE (10G) (SP)
12	44726-S5A-A00	Weight - BALANCE (5G) (SP)
12	44729-SEA-004	Weight - BALANCE (35G) (TOHO)
12	44723-SEA-004	Weight - BALANCE (30G) (TOHO)
12	44728-SEA-004	Weight - BALANCE (25G) (TOHO)
12	44722-SEA-004	Weight - BALANCE (20G) (TOHO)
13	44724-S5A-A20	Weight - BALANCE (40G)
13	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)
13	44724-TP6-A01	WEIGHT (20G)
13	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)
13	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)
13	44723-TP6-A01	WEIGHT (15G)
13	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)
13	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)
13	44721-S5A-A20	Weight - BALANCE (10G)
13	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)
13	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)
13	44721-TP6-A01	WEIGHT, BALANCE (5G)
13	44730-S5A-A20	Weight - BALANCE (45G)
13	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)
13	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)
13	44729-S5A-A20	Weight - BALANCE (35G)
13	44727-TP6-A01	WEIGHT (35G)
13	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)
13	44728-S5A-A20	Weight - BALANCE (25G)
13	44725-TP6-A01	WEIGHT (25G)
13	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)
13	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)
13	44722-S5A-A20	Weight - BALANCE (20G)
13	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)
13	44727-S5A-A20	Weight - BALANCE (15G)
13	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)
13	44723-S5A-A20	Weight - BALANCE (30G)
13	44726-TP6-A01	WEIGHT (30G)
13	44726-S5A-A20	Weight - BALANCE (5G)
13	44725-S5A-A20	Weight - BALANCE (50G)
13	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)
13	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)
13	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)
13	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)
13	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)
13	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)
15	44732-S7C-000	Cap - ALUMINIUM WHEEL CENTER
17	44733-S5S-G10	Trim - WHEEL (15")
18	83850-SH3-000	Plate - ANCHOR BOLT
19	83853-SX0-000	Bolt - ANCHOR
20	90381-SV1-981	Nut comp. - WHEEL (SATO RASHI)
21	90304-SF0-751	Nut - WHEEL (FUSE RASHI)

Tools/jack 6

#	OEM	部品名
2	89000-S5S-E01	Tool set
6	89101-S6D-E01	Bag - TOOL
7	89211-SCA-E00	Wrench - WHEEL
8	89310-SDA-A01	Jack assy - PANTOGRAPH
9	89311-SDA-A01	Label - JACK CAUTION
10	89320-SCA-E00	Bar - JACK

Trailer harness 7pin 1

#	OEM	部品名
10	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)

Transmission (DIESEL) 31

#	OEM	部品名
1	20011-PMZ-D40	Transmission assy - MT
2	21000-PMZ-D40	Housing - CLUTCH
3	21103-PMZ-D40	Nozzle - FR. OUTPUT OIL
4	21210-PMZ-D41	Case - TRANSMISSION
5	21211-PMZ-D40	Gutter - TRANSMISSION CASE
6	21212-PMZ-D40	Retainer - BEARING
7	21230-PMZ-D41	Cover - RR.
8	21233-PMZ-D40	Gutter - RR. COVER INPUT SHAFT
9	22810-PMZ-D40	Bearing - CLUTCH RELEASE
10	22851-PMZ-D40	Spring - RELEASE BEARING
11	46939-S6F-000	Adapter - CYLINDER
12	90003-PMZ-D40	Bolt - CLUTCH HOUSING-CASE
13	90004-PMZ-D40	Bolt - CLUTCH HOUSING-CASE
14	90005-PMZ-D40	Bolt - GUTTER
15	90006-PMZ-D40	Bolt - RR. COVER-GUTTER
16	90051-PMZ-D40	Bolt - CYLINDER BLOCK- TRANSMISSION
17	90052-PMZ-D40	Bolt - CYLINDER BLOCK- TRANSMISSION
18	90053-PMZ-D40	Bolt - CYLINDER BLOCK- TRANSMISSION
19	90054-PMZ-D40	Bolt - CYLINDER BLOCK- TRANSMISSION
20	90082-PMZ-D40	Plug - DRAIN
21	90101-PMZ-D40	Screw - RETAINER TORQUE
22	90102-PMZ-D40	Screw - RETAINER TORQUE
23	90380-S04-000	Bolt - STUD, 12X73
24	90401-PMZ-D40	Washer - RR. COVER
25	90702-PMZ-D40	Pin - STRAIGHT
26	91101-PMZ-D40	Bearing - FR. INPUT
27	91102-PMZ-D40	Bearing - CLUTCH SHAFT NEEDLE
28	91205-PMZ-D40	Seal - DRIVE SHAFT OIL
29	91208-PMZ-D40	Cover - CLUTCH DUST
30	91216-PMZ-D40	Seal - INPUT SHAFT OIL
31	91301-PMZ-D40	O-ring - PLUG

Transmission gasket set (DIESEL) 1

#	OEM	部品名
1	06112-PMZ-D40	Gasket set - TRANSMISSION

Transmission gear (DIESEL) 73

#	OEM	部品名
1	21815-PMZ-D40	Gasket
2	23210-PMZ-D40	Shaft - TRANSAXLE INPUT
3	23221-PMZ-D41	Countershaft
4	23261-PMZ-D40	Shaft - REVERSE IDLE
5	23421-PMZ-D40	Gear assy. - FIRST OUTPUT
6	23431-PMZ-D40	Gear assy. - SECOND OUTPUT
7	23440-PMZ-D40	Gear assy. - THIRD INPUT
8	23451-PMZ-D40	Gear assy. - FOURTH INPUT
9	23461-PMZ-D40	Gear assy. - FIFTH OUTPUT
10	23471-PMZ-D40	Gear - THIRD-FOURTH
11	23521-PMZ-D40	Sleeve set - SYNCHRONIZER (1-2)
12	23540-PMZ-D40	Gear - REVERSE IDLE
13	23581-PMZ-D40	Gear - FIFTH INPUT
14	23623-PMZ-D41	Sleeve set - SYNCHRONIZER (3-4)
15	23624-PMZ-D40	Insert - 3-4
16	23625-PMZ-D40	Insert - 5
17	23626-PMZ-D40	Sleeve set - SYNCHRONIZER (5)
18	23632-PMZ-D40	Insert - 1-2
19	23641-PMZ-D40	Ring - BLOCKING
20	23642-PMZ-D40	Ring - OUTSIDE FIRST-SECOND
21	23643-PMZ-D40	Ring - BLOCKING
22	23651-PMZ-D40	Spring - INSERT
23	23652-PMZ-D40	Spring - INSERT
24	23653-PMZ-D40	Spring - INSERT FIRST-SECOND
25	23661-PMZ-D40	Ring - INSIDE FIRST-SECOND
26	23672-PMZ-D40	Ring - BLOCKING FIRST-SECOND
27	23813-PMZ-D40	Retainer - SPEED SENSOR
28	23820-PMZ-D40	Gear - SPEEDOMETER DRIVEN
29	23914-PMZ-D40	Collar - INPUT SHAFT FR.
30	23915-PMZ-D40	Collar - NEEDLE
31	23916-PMZ-D40	Washer - FOURTH GEAR THRUST
32	23917-PMZ-D40	Collar - SECOND GEAR NEEDLE
33	23918-PMZ-D40	Washer - FIFTH THRUST
34	23919-PMZ-D40	Collar - NEEDLE
35	23921-PMZ-D40	Plate - BEARING STOPPER
36	23922-PMZ-D40	Plate - STOPPER INSERT
37	23957-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.16MM)
37	23952-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.56MM)
37	23947-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.96MM)
37	23942-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.36MM)
37	23954-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.40MM)
37	23949-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.80MM)
37	23944-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.20MM)
37	23956-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.24MM)
37	23951-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.64MM)
37	23946-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.04MM)
37	23941-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.44MM)
37	23953-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.48MM)
37	23948-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.88MM)
37	23943-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.28MM)
37	23955-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.32MM)
37	23950-PMZ-D40	Shim - OUTPUT SHAFT BEARING (1.72MM)
37	23945-PMZ-D40	Shim - OUTPUT SHAFT BEARING (2.12MM)
38	78410-PMZ-D41	Sensor assy - SPEED
39	78411-PMZ-D41	Sensor - SPEED
40	78412-PMZ-D40	Bushing - GEAR
41	78417-PMZ-D40	Pin - SPRING
42	78419-PMZ-D40	Gasket - BUSHING
43	90022-PMZ-D40	Bolt - REVERSE IDLE SHAFT
44	90023-PMZ-D40	Bolt - RETAINER
45	90201-PMZ-D40	Nut
46	90202-PMZ-D40	Nut
47	90602-PMZ-D40	Ring - BEARING RETAINER
48	90711-PMZ-D40	Key - THIRD & FOURTH GEAR
49	90712-PMZ-D40	Pin - STRAIGHT
50	91001-PMZ-D40	Bearing - RR. INPUT BALL
51	91104-PMZ-D40	Bearing - NEEDLE
52	91105-PMZ-D41	Bearing - OUTPUT SHAFT FR.
53	91107-PMZ-D40	Bearing - FIRST THRUST NEEDLE
54	91108-PMZ-D41	Bearing - FIRST & SECOND NEEDLE (NTN)
54	91108-PMZ-D42	Bearing - FIRST & SECOND NEEDLE (NSK)
55	91110-PMZ-D41	Bearing - OUTPUT SHAFT RR.
56	91112-PMZ-D40	Bearing - NEEDLE

Transmission hanger (DIES EL) 7

#	OEM	部品名
1	21120-PMZ-D40	Magnet - CASE
2	21220-PMZ-D40	Hanger - TRANSMISSION
3	90007-PMZ-D40	Bolt - RR. COVER
4	90008-PMZ-D40	Bolt - RR. COVER
5	90009-PMZ-D40	Bolt - RR. COVER
6	90081-PMZ-D40	Plug
7	90701-PMZ-D40	Dowel pin - CYLINDER BLOCK- TRANSMISSION

Turbocharger system (DIESEL) 24

#	OEM	部品名
1	17112-PLZ-D00	Pipe - INTAKE MANIFOLD TURBOCHARGER
2	18130-PLZ-D00	Protector - EX. PIPE HEAT
3	18233-PLZ-D00	Gasket - TURBOCHARGER & EX. MANIFOLD
4	18234-PLZ-D00	Gasket - TURBOCHARGER & ADAPTER
5	18900-PLZ-D00	Turbocharger assy
6	18915-PLZ-D00	Pipe - TURBOCHARGER EX.
7	36160-PLZ-D00	Valve - REGULATING (B)
8	36170-PLZ-D11	Valve - REGULATING (A)
9	36171-PLZ-D00	Hose - VACUUM (A)
10	36172-PLZ-D00	Hose - VACUUM (B)
11	36177-PLZ-D10	Hose - TURBOCHARGER
12	90025-PLZ-D50	Bolt - PIPE
13	90027-PLZ-D10	Bolt - HEAT PROTECTOR
14	90036-PLZ-D00	Bolt - PIPE
15	90036-PLZ-D10	Bolt
16	90036-PLZ-D20	Bolt
17	90065-PC1-300	Bolt - STUD, 10X34.5
18	90136-PLZ-D00	Stud - MANIFOLD-EX. PIPE
19	90236-PLZ-D00	Nut - TURBOCHARGER
20	90236-PLZ-D10	Nut - EX. PIPE-TURBOCHARGER
21	90436-PLZ-D00	Washer
22	90436-PLZ-D10	Washer
23	90636-PLZ-D00	Clip - VACUUM HOSE
24	90636-PLZ-D10	Clip - VACUUM HOSE

Water Pipe (DIESEL) 9

#	OEM	部品名
1	19315-PLZ-D00	Pipe - WATER IN.
2	19422-PLZ-D00	Hose - THERMOSTAT & OIL COOLER
3	19423-PLZ-D00	Hose - WATER PIPE
4	19424-PLZ-D00	Hose - WATER PIPE
5	19505-PLZ-D00	Pipe - WATER
6	90032-PLZ-D00	Bolt - SUCTION PIPE
7	90032-PLZ-D10	Bolt - WATER PIPE
8	90432-PLZ-D00	Washer - WATER PIPE
9	91332-PLZ-D00	Gasket - WATER PIPE

Water pump (DIESEL) 5

#	OEM	部品名
1	19200-PLZ-D00	Pump assy. - WATER
2	19222-PLZ-D00	Gasket - WATER PUMP
3	19224-PLZ-D10	Pulley - WATER PUMP
4	90030-PLZ-D00	Bolt - WATER PUMP-CYLINDER BLOCK
5	90030-PLZ-D10	Bolt - PULLEY

Water valve (LH; DIESEL) 10

#	OEM	部品名
1	79710-S5D-A02	Valve assy, Water
2	79721-S6F-G00	Hose a - WATER IN.
3	79722-S6D-G00	Hose b - WATER IN.
4	79725-S6F-G00	Hose - WATER OUTLET
5	79731-S5A-000	Grommet - HEATER PIPE
6	79746-SL4-003	Clamp - HEATER HOSE
7	79746-S6F-G01	Clamp - HEATER HOSE (BLACK)
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	91551-SD5-003	Clamp - HEATER

Wheel disk al 15x 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Wheel disk al 16x 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Windshield washer (3) 28

#	OEM	部品名
1	76806-S6D-E01	Motor - FR. WASHER
2	76806-S6D-E11	Motor - RR. WASHER
3	76810-S5S-E01	Nozzle assy. - R. WINDSHIELD WASHER
3	76810-S2G-003	Nozzle assy. - R. WINDSHIELD WASHER
4	76812-S6D-E11	Cap assy. - MOUTH
5	76815-S5S-E01	Nozzle assy. - L. WINDSHIELD WASHER
6	76819-S5S-E01	Cushion
7	76820-S5S-E01	Cushion
8	76826-S6D-E11	Valve - ONE WAY (L TYPE)
9	76828-ST3-E01	Joint l - WASHER
10	76828-S1E-E01	Joint l - WASHER
11	76829-SN7-G05	Joint i - WASHER
12	76830-S6D-E01	Y-joint - ONE WAY VALVE
13	76832-S6D-E02	Tube - 4X7X550
14	76834-S6D-E01	Tube - 4X7X980
15	76835-S6D-E01	Tube - 4X7X440
16	76837-S6D-E01	Tube - 4X7X190
17	76838-S5T-E01	Tube - 4X7X4X4400
18	76840-S5T-E01	Tank set - WASHER
19	76842-S6D-E01	Bush - WASHER TANK
20	76851-S1C-E01	Grommet - WASHER TUBE
21	76851-S6D-E01	Grommet - WASHER TUBE
22	76852-S6D-E01	Grommet - WASHER TUBE (RR.)
23	76875-S6D-E01	Bellows - RR. WASHER
24	90652-SB2-023	Clip - TUBE, 7MM
25	91501-SJ6-003	Clip - WASHER TUBE
26	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
27	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Wire harness (LH) 36

#	OEM	部品名
1	30510-SCC-013	Condenser comp.
2	32103-S6F-G20	Sub cord - COMBINATION
2	32103-S6F-G11	Sub cord - COMBINATION
4	32107-S5S-G60	Harness - FLOOR WIRE
4	32107-S5S-G12	Harness - FLOOR WIRE
5	32109-S5S-G10	Cord - TAILGATE
6	32111-PLZ-E00	Harness - GENERATOR
7	32115-PLZ-G00	Sub harness - FUEL HEATER
8	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
9	32116-S6A-G00	Sub cord - FR. FOG LIGHT
10	32117-S5V-G80	Harness - INSTRUMENT WIRE
10	32117-S6F-G12	Harness - INSTRUMENT WIRE
11	32125-S6D-G10	Sub cord - EPS
12	32155-S5S-G00	Cord - INTERIOR & SUNROOF
13	32200-S6F-R01	Harness - ENGINE ROOM WIRE
13	32200-S6F-R00	Harness - ENGINE ROOM WIRE
13	32200-S6F-G81	Harness - ENGINE ROOM WIRE
13	32200-S6F-G91	Harness - ENGINE ROOM WIRE
13	32200-S6F-G80	Harness - ENGINE ROOM WIRE
13	32200-S6F-G90	Harness - ENGINE ROOM WIRE
14	32201-S6F-G21	Sub cord - ENGINE CONTROL MODULE
14	32201-S6F-G01	Sub cord - ENGINE CONTROL MODULE
16	32610-S6F-G00	Cable - SUB EARTH
17	32751-S5S-G40	Harness - DRIVER DOOR WIRE
17	32751-S5S-G50	Harness - DRIVER DOOR WIRE
18	32752-S5S-G40	Harness - PASSENGER DOOR WIRE
18	32752-S5S-G20	Harness - PASSENGER DOOR WIRE
21	35505-692-003	Bulb - 14V 1.4W
22	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
23	90149-SE0-003	Bolt - EARTH, 6X16
24	90153-SE0-003	Bolt - EARTH, 6X12
25	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
26	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
27	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
28	91559-SM4-003	Clip - POWER STEERING TUBE (135MM)
29	91565-SEL-003	Clip - COUPLER(BLACK)
