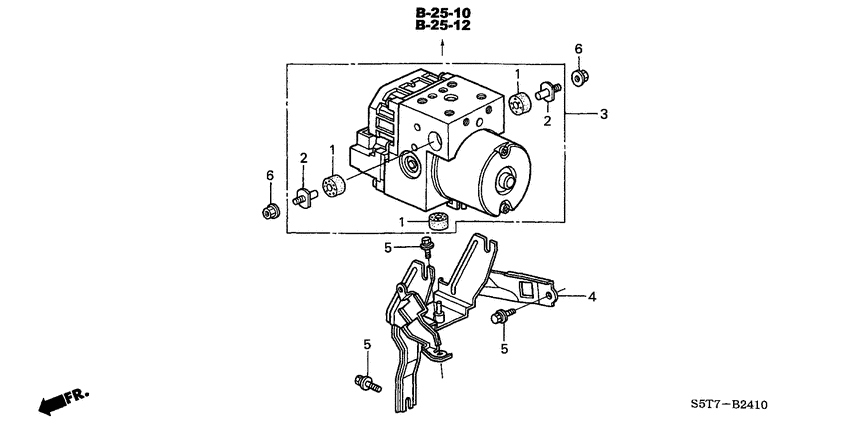

Abs modulator (1) 4

#	OEM	部品名
1	57101-S5A-A00	Damper
2	57102-S5A-A00	Bolt - ABS MOUNTING
3	57110-S6D-G60	Modulator assy
4	57115-S6A-G00	Bracket comp. - MODULATOR

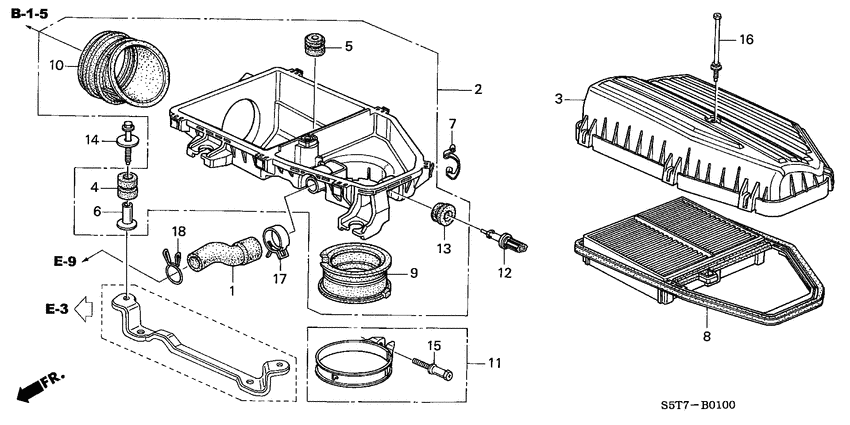

Air cleaner (1.4L/1.6L) 19

#	OEM	部品名
1	17153-PLC-000	Tube - BREATHER
2	17205-PLD-000	Case set - AIR CLEANER
3	17211-PLD-000	Cover comp. - AIR CLEANER
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
5	17213-P13-000	Rubber - AIR CLEANER CASE MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING
7	17217-PLD-300	Clip - AIR CLEANER
8	17220-PLD-000	Element assy. - AIR CLEANER
9	17228-PLC-000	Rubber - THROTTLE JOINT
10	17247-PLC-000	Grommet - INTAKE
11	17315-PLC-000	Band - THROTTLE CABLE
12	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
13	37881-P2A-000	Grommet - TA SENSOR
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
15	90002-PLC-000	Bolt-washer - 5X35
16	90091-PLD-000	Bolt-washer - 5X75
17	91405-PLC-000	Clamp - TUBE (D24)
18	91406-PLC-003	Clip - TUBE (D21.5)

Air conditioner (COMPRESSOR; 1.4L/1.6L) 14

#	OEM	部品名
1	38801-PDF-E02	Valve sub assy. - SAFETY
2	38810-PLA-E01	Compressor comp. - SANDEN
3	38829-PDF-E02	Nut - 9MM
4	38900-PLA-E01	Clutch set - COMPRESSOR
5	38908-PLA-E01	Protector set - THERMAL
6	38912-PE1-702	Shim set
7	38913-PP4-E02	Ring - SNAP
8	38914-P07-004	Ring f - SNAP
9	38920-PSG-T01	Belt - COMPRESSOR (BANDO)
9	38920-PLC-003	Belt - COMPRESSOR (BANDO)
9	38920-PLC-004	Belt - COMPRESSOR (MITSUBOSHI)
10	38924-PLM-A01	Coil set - FIELD
11	38930-PLC-000	Bracket - COMPRESSOR
12	90023-P2A-000	Bolt - FLANGE, 8X100

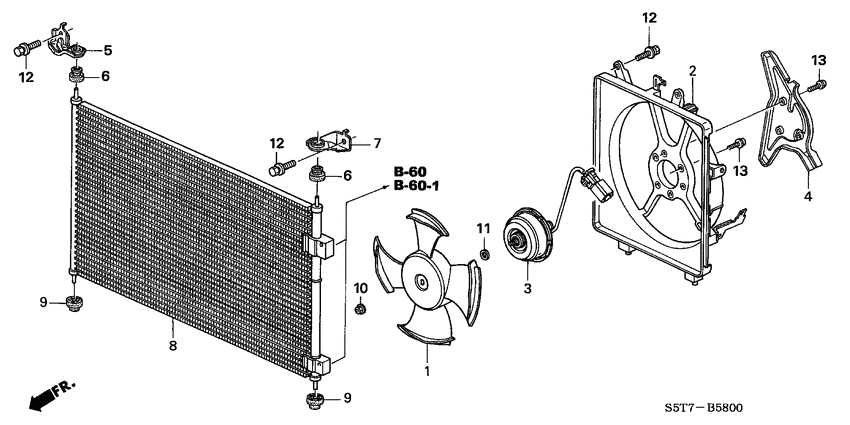

Air conditioner (CONDENSER; 1.4L/1.6L) 15

#	OEM	部品名
1	38611-PLC-J01	Fan comp - COOLING (KEIHIN)
1	38611-PMM-A01	Fan comp - COOLING (MITSUBA/CME)
2	38615-PLC-N01	Shroud comp. - AIR CONDITIONER (KEIHIN)
2	38615-PMM-C00	Shroud comp. - AIR CONDITIONER
3	38616-PMM-A01	Motor - COOLING FAN (MITSUBA/CME)
3	38616-PLC-J01	Motor - COOLING FAN (KEIHIN)
4	38619-PLC-J01	Protector - FAN MOTOR (KEIHIN)
4	38619-PMM-A00	Protector - FAN MOTOR
5	80107-S5A-000	Bracket - R. CONDENSER UPPER
6	80107-S87-A01	Rubber - CONDENSER UPPER
7	80108-S5A-000	Bracket - L. CONDENSER UPPER
8	80110-S6D-G01	Condenser comp.
9	80175-S87-A01	Rubber - CONDENSER MOUNTING
10	90041-PAA-A01	Nut - TOOTHED, 5MM
11	90430-PAA-A01	Washer - PLAIN, 8MM

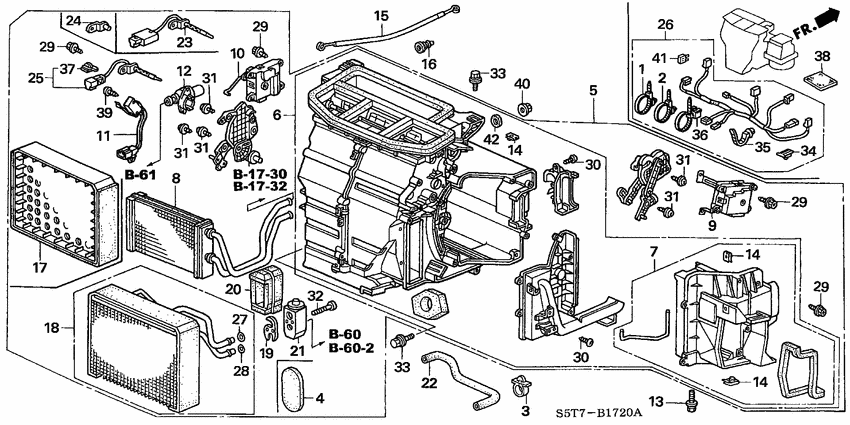

Air conditioner (COOLING UNIT; LH) 16

#	OEM	部品名
1	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
1	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
2	53747-SA5-003	Clip - POWER STEERING HOSE
5	80211-S6D-G12	Evaporator assy.
6	80215-S6A-003	Plate
7	80216-S6A-003	Insulator - EXPANSION VALVE
8	80220-S6A-013	Valve - EXPANSION
9	80271-S5A-000	Hose - DRAIN
11	80560-S6D-E41	Thermistor - AIR CONDITIONER
12	80460-S5A-000	Harness - AIR CONDITIONER WIRE
15	80871-ST7-000	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"
17	90125-S6A-003	Bolt - 5X35
18	90153-SE0-003	Bolt - EARTH, 6X12
20	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
22	91580-SM4-003	Clip - COUPLER(ORANGE)

Air conditioner (HOSES/PI PES; LH; 1.4L/1.6L) 27

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80285-S5A-A00	Holder
3	80311-S6D-G01	Hose comp. - SUCTION
4	80315-S6A-003	Hose comp. - DISCHARGE
5	80325-S6D-G01	Pipe assy. - AIR CONDITIONER
6	80331-S6D-G01	Pipe - CONDENSER
7	80341-S6D-G01	Pipe comp - RECEIVER
8	80351-S6D-E21	Receiver comp - ###
9	80352-S5A-000	Bracket - LIQUID TANK
10	80360-S5A-A00	Clamp a - SUCTION HOSE
11	80361-S6D-G00	Stay - SUCTION HOSE
12	80362-S5A-A00	Clamp - AIR CONDITIONER PIPE
13	80363-S5A-G10	Stay - SUCTION PIPE
14	80364-S6D-G00	Clamp - SUCTION PIPE
15	80387-SM4-A01	Clip - RECEIVER PIPE
16	80440-S6A-003	Switch - DUAL PRESSURE (CALSONIC)
17	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
18	80465-S5A-A00	Cover - AIR CONDITIONER PIPE
19	80466-S5A-A00	Rubber - AIR CONDITIONER HOSE
20	80865-S6D-003	Cap - VALVE (H)
21	80866-S6A-003	Cap - VALVE (L)
22	80871-ST7-000	O-ring - 5/8"
23	80872-ST7-000	O-ring - 1/2"
24	80873-ST7-000	O-ring - 8MM
25	90106-S5D-A00	Bolt - FEED HOSE CLAMP
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM
27	91531-S6D-003	Clamp - 8MM-5MM

Air conditioner (KIT; LH) 1

#	OEM	部品名
2	80000-S6D-G52	General assy. - AIR CONDITIONER

Air conditioner (SENSOR) 2

#	OEM	部品名
3	80525-S30-941	Sensor assy - AMBIENT
6	91555-SL0-A01	Clip - COUPLER

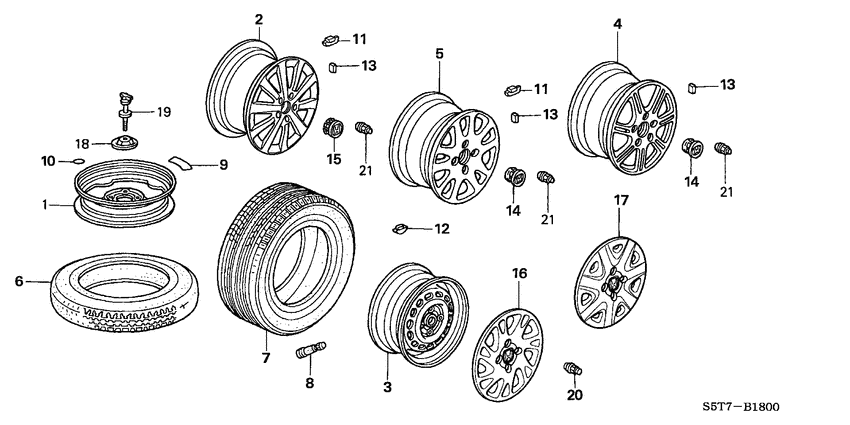

Alloy wheel - 14x5.5jj- 5 spoke 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Alloy wheel - 15x6.0jj 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Alloy wheel 15x6j / es-r6 6-spoke 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

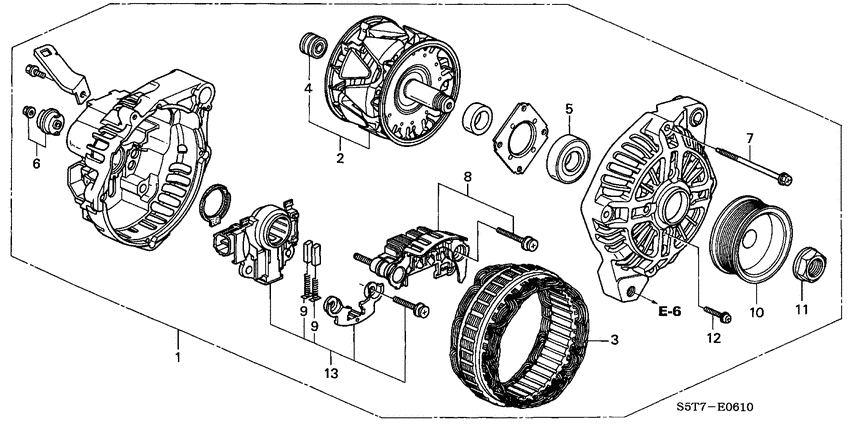

Alternator (MITSUBISHI) 14

#	OEM	部品名
1	31100-PLM-A02	Alternator assy - AHGA50) (MITSUBISHI
2	31101-PLC-004	Rotor assy.
3	31102-PLC-004	Stator
4	31111-P08-J02	Bearing - RR. GENERATOR
5	31114-PLC-004	Bearing - FR.
6	31123-PWA-004	Terminal set
7	31125-P08-J02	Bolt - FLANGE
8	31127-PLC-004	Rectifier assy.
9	31140-P64-902	Brush set
10	31141-PLM-A01	Pulley
10	31141-PLC-004	Pulley
11	31142-P08-J02	Nut
12	31146-PE0-004	Screw
13	31150-PLM-A01	Regulator set

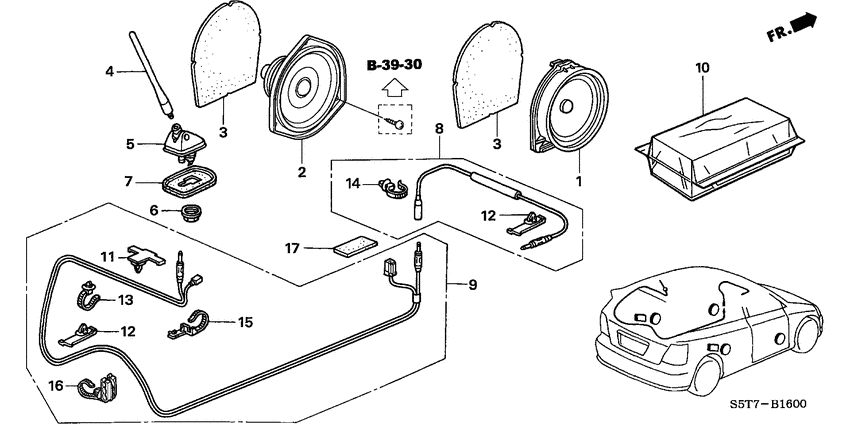

Antenna/speaker 16

#	OEM	部品名
1	39120-SEL-902	Speaker assy - 17CM SINGLE) (FR.) (MATSUSHITA
3	39122-S5A-000	Seal - SPEAKER HOLE
4	39151-S6A-E02	Element assy. - YOKOO
4	39151-S6A-E03	ELEMENT ASSY YOKOO
5	39152-S6A-E01	Base comp. - ANTENNA (YOKOO)
6	39153-S5T-J51	Nut - FLANGE (YOKOO)
7	39154-S6A-E01	Pad - YOKOO
8	39156-S6A-G00	Sub feeder
9	39160-S5S-000	Feeder assy. - ROOF ANTENNA
10	74536-S5S-E00	Insulator - RR. INSIDE PANEL
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
15	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
16	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
17	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

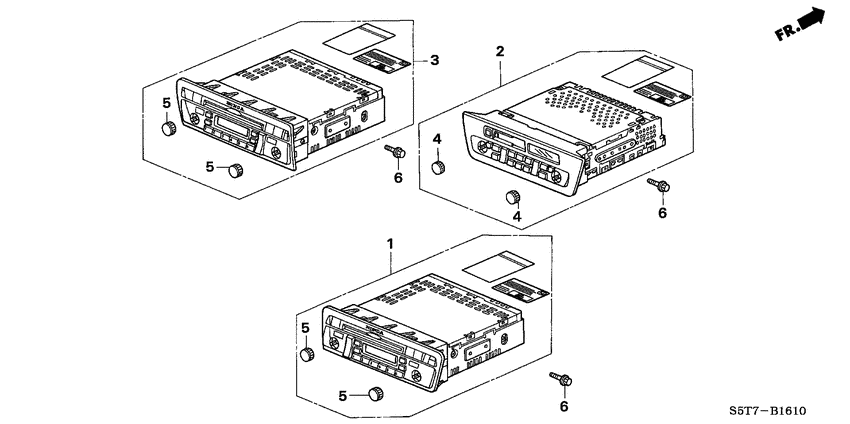

Auto radio 3

#	OEM	部品名
1	39100-S5S-B30	Tuner assy - AUTO RADIO (PIONEER) (35WX4)
5	39103-S6A-X11	Knob - VOLUME
6	91551-SE0-003	Bolt - FLANGE, 5X7

Battery (1.4L/1.6L) 12

#	OEM	部品名
1	31500-S6D-G02	Battery - 46B24R<S>-MF) (YUASA
2	31512-S5A-000	Plate - BATTERY SETTING
3	31513-SM4-000	Bolt - BATTERY SETTING(195MM)
4	31521-S5A-000	Box - BATTERY
5	31531-S5A-000	Cover - BATTERY
6	31542-ST3-E01	Plug - VENT (MF) (YUASA)
7	32418-PLA-300	Cover - BATTERY TERMINAL
8	32600-S5A-910	Cable assy, BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL
11	90153-SE0-003	Bolt - EARTH, 6X12
12	90182-SB6-000	Bolt-washer - 6X16

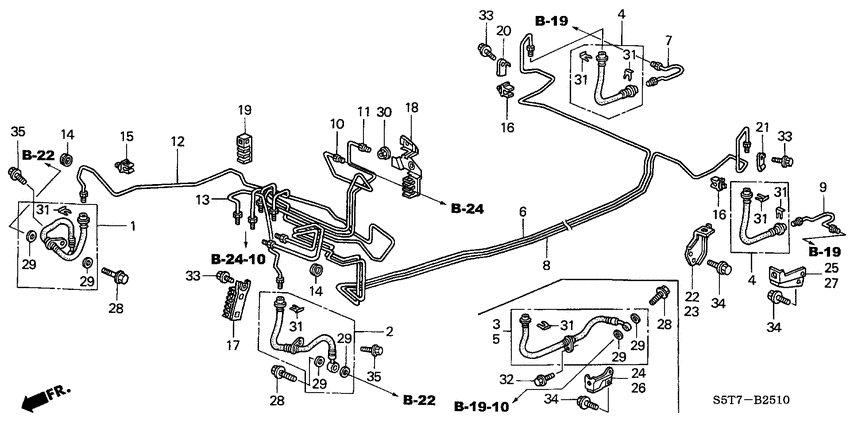

Brake lines (ABS; LH; 1) 27

#	OEM	部品名
1	01464-S6D-000	Hose set - R. FR. BRAKE
2	01465-S6D-000	Hose set - L. FR. BRAKE
4	01466-S5A-000	Hose set - RR. BRAKE
6	46330-S5S-E00	Pipe comp. c - BRAKE
7	46331-S5J-M00	Pipe comp. e - R. BRAKE
8	46340-S5S-E00	Pipe comp. d - BRAKE
9	46361-S5J-M00	Pipe comp. e - L. BRAKE
10	46374-S6A-G00	Pipe comp. u - BRAKE
11	46375-S6A-G00	Pipe comp. v - BRAKE
12	46376-S6A-G00	Pipe comp. w - BRAKE
13	46377-S6A-E01	Pipe comp. x - BRAKE
14	46380-SH3-000	Grommet a - BRAKE PIPE
15	46391-SX8-T01	Clip - BRAKE PIPE
16	46391-S5A-J01	Clip - BRAKE PIPE
17	46391-S5A-000	Clip - BRAKE PIPE
18	46393-S6D-010	Clip - BRAKE PIPE
19	46396-S7A-003	Clip - BRAKE PIPE
20	46397-S5A-000	Clamp - R. BRAKE PIPE
21	46398-S5A-000	Clamp - L. BRAKE PIPE
22	46435-S5A-900	Bracket a - R. RR. BRAKE HOSE
23	46436-S5A-900	Bracket a - L. RR. BRAKE HOSE
25	46437-S5A-000	Bracket - R. RR. BRAKE HOSE
27	46438-S5A-000	Bracket - L. RR. BRAKE HOSE
28	46462-SE0-000	Bolt - OIL
29	46472-568-000	Packing - OIL BOLT
30	90361-SV4-003	Nut - PAINT CUTTING, 6MM
31	90651-SN7-003	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH; 1) 27

#	OEM	部品名
1	01469-S5S-G00	Power set - MASTER (9")
3	46017-S6A-000	Hose set - RESERVE TANK
4	46070-SL0-G01	Plate - SYMBOL MARK
5	46100-S5S-G01	Cylinder assy, Master
7	46120-S04-J71	Piston assy. - PRIMARY
8	46122-S04-J12	Piston assy. - SECONDARY
11	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
12	46182-S04-J11	Circlip
14	46185-S04-J01	Seal - ROD
15	46191-S2K-000	Packing - MASTER POWER
16	46402-S5S-R01	Tube assy - MASTER POWER
17	46403-S6A-000	Joint - TWO WAY
18	46404-S6A-G00	Tube assy. a - MASTER POWER
19	46406-S6A-G00	Clamp - MASTER POWER TUBE
20	46512-S70-000	Pin - PEDAL
21	46661-S6D-G00	Reservoir set
22	46662-S5A-003	Cap comp. - RESERVE TANK
23	46665-S04-J01	Grommet
24	46666-S2K-003	Filter - BRAKE RESERVOIR
25	46669-S5A-003	Diaphragm
26	46672-S6A-003	Hose - RESERVE TANK
27	46673-S6A-003	Hose - RESERVE TANK
28	46674-S6D-E60	Bracket comp. - RESERVE TANK
29	46680-S6A-013	Union - RESERVOIR
30	46911-S70-003	Pin, LOCK(8MM)
31	53729-671-003	Clamp d - 15.5MM
33	57515-S30-003	Pin - STOP

Breather cover (1.4L/1.6L) 4

#	OEM	部品名
1	11850-PLA-000	Cover comp. - BREATHER
2	11855-P72-000	Grommet, PCV Valve
3	17130-PH1-003	Valve assy. - PCV
4	17131-PLC-000	Tube - PCV

Bumpers 21

#	OEM	部品名
3	71110-S6A-000	Spoiler - FR. BUMPER AIR
8	71190-S6A-000	Beam comp - L. FR. BUMPER UPPER
9	71193-S6A-000	Spacer - R. FR. BUMPER SIDE
10	71198-S6A-000	Spacer - L. FR. BUMPER SIDE
13	71505-S5A-J00	Bracket - R. RR. BUMPER SIDE
17	71555-S5A-J00	Bracket - L. RR. BUMPER SIDE
18	71592-S6A-000	Clip assy. - BUMPER SPACER
19	71593-S5S-G00	Spacer - R. RR. BUMPER SIDE
20	71594-S5S-G00	Spacer - R. RR. BUMPER UPPER
21	71598-S5S-G00	Spacer - L. RR. BUMPER SIDE
22	71599-S5S-G00	Spacer - L. RR. BUMPER UPPER
23	90105-634-000	Bolt-washer (8x20)
24	90109-SS0-000	Screw - TAPPING, 5X20
26	90126-SA7-000	Screw-washer - 5X20
26	90114-SZ3-000	Screw-washer - 5X20
30	90149-S5S-G00	Bolt - BUMPER
31	90150-S84-003	Bolt - EARTH, 8X16
32	90301-SP0-003	Nut - PAINT CUTTING, 6MM
36	90682-SB0-003	Grommet - SCREW, 5MM
37	91503-SZ3-003	Clip A
38	91503-SZ5-003	Clip - BUMPER FACE

Camshaft/timing belt 19

#	OEM	部品名
1	11811-PLC-000	TIMING BELT LOWER COVER
2	11812-PLC-000	LOWER TIMING BELT COVER GROMMET
3	11821-PLC-000	Cover - TIMING BELT UPPER
4	11831-PLC-000	LOWER COVER RUBBER SEAL
5	11832-P08-000	Rubber - R. BACK SEAL
6	11833-PLC-000	Rubber - L. BACK SEAL
7	11840-PLC-000	Cover comp. - TIMING BELT BACK
8	14111-PLA-G10	Camshaft
9	14210-PLC-003	Pulley comp - TIMING BELT DRIVEN
10	14400-PLA-004	Belt - TIMING (103RU22 B-333)
11	14516-PLC-000	Spring comp - TIMING BELT ADJUSTER
12	14517-PLC-013	Bolt a - TENSIONER
13	14520-PLC-335	Tensioner set - TIMING BELT
14	90007-PLC-000	Bolt a - TIMING BELT COVER
15	90007-679-000	Bolt a - TIMING BELT COVER
16	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING
17	90031-PT0-003	Bolt-washer - 8X22
17	90032-ZW5-003	Bolt-washer, 8x22
18	91213-PE1-722	Oil seal - 29X45X8 (NOK)

Clutch case (1.4L/1.6L) 9

#	OEM	部品名
1	21000-PLW-A00	Case comp. - CLUTCH
2	21103-PLW-000	Plate c - OIL GUIDE
3	21120-PLW-000	Magnet - TRANSMISSION
4	24601-PLW-000	Stay - CHANGE WIRE
5	91002-PHR-003	Bearing - BALL, 26X52X15
6	91101-PHR-003	Bearing - NEEDLE, 34X59X20
7	91205-PL3-A02	Oil seal - 35X56X8(NOK)
7	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
8	91216-PL3-005	Oil seal - 26X42X7 (NOK)

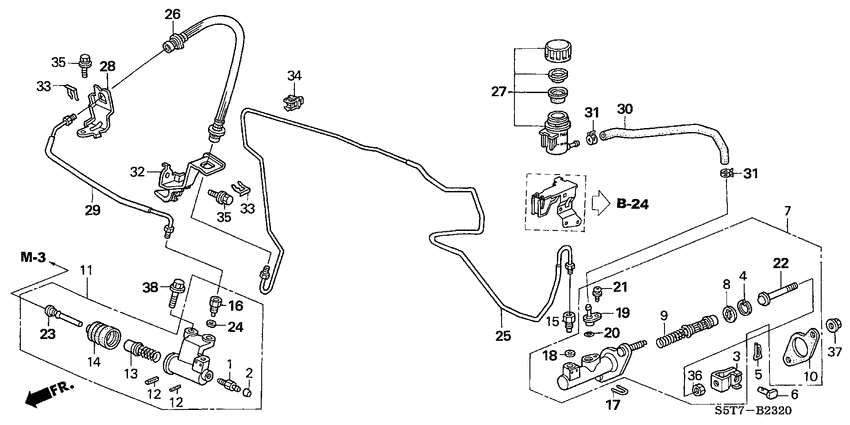

Clutch master cylinder (LH; 1) 34

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke
4	46182-500-013	Circlip
5	46911-S70-003	Pin, LOCK(8MM)
6	46912-S84-A00	Pin - CLUTCH PEDAL
7	46920-S5A-G04	Cylinder assy. - CLUTCH MASTER
8	46921-S5A-003	Plate - STOPPER
9	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
10	46928-S5A-A01	Seal - MASTER CYLINDER
11	46930-S5A-013	Cylinder assy. - CLUTCH SLAVE
12	46931-S5A-003	Pin - SPRING
13	46932-S5A-003	Piston - SLAVE CYLINDER
14	46937-SS1-003	Boot - SLAVE CYLINDER
15	46941-S5A-A01	Connector - CLUTCH MASTER CYLINDER
16	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
17	46942-S5A-003	Pin - SNAP
18	46943-S5A-003	Seal - RING
19	46944-S5A-J01	Connector
20	46945-S5A-003	O-ring
21	46946-S5A-003	Screw-washer - 4X12
22	46947-S5A-003	Rod - PUSH
23	46948-S5A-003	Rod - PUSH
24	46949-S5A-003	Seal - RING
25	46960-S6A-A02	Pipe comp. a - CLUTCH
26	46961-S5A-A01	Hose - CLUTCH
27	46965-S5A-013	Tank assy. - CLUTCH FLUID
28	46968-S5A-000	Bracket a - CLUTCH PIPE
29	46970-S5A-013	Pipe comp. b - CLUTCH
30	46971-S6A-A01	Tube - CLUTCH FLUID
31	46972-S6F-E01	Clamp - TUBE (D12)
32	46995-S5A-G01	Bracket a - CLUTCH PIPE
33	90651-538-000	Clip - BRAKE HOSE
34	91597-S50-013	Clip A - FUEL PIPE

Clutch release (1.4L/1.6L) 11

#	OEM	部品名
1	22810-PLW-005	Bearing, CLUTCH RELEASE (NSK)
2	22821-P20-010	Fork - CLUTCH RELEASE
3	22825-PX5-A00	Bolt - RELEASE FORK
4	22835-P7N-000	Spring - RELEASE FORK SETTING
5	22841-P20-000	Boot - RELEASE FORK
6	78410-S5L-952	Sensor assy - SPEED (NS)
7	78415-S5A-J01	Gear
8	78416-S2R-003	Washer
9	78417-S2R-003	Ring - STOP (C-TYPE)
10	78418-S2R-003	Spring
11	78419-S2R-003	Seal - RING

Clutch/torque converter (1.4L/1.6L) 7

#	OEM	部品名
1	21350-PLA-010	Cover - CLUTCH CASE
3	22100-P2Y-005	Flywheel comp.
4	22200-PLC-005	Disk comp - FRICTION
5	22300-P2Y-005	Disk comp - PRESSURE
8	90011-PM0-000	Bolt - 12MM
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
13	91006-634-008	Bearing - CLUTCH PILOT (NTN)

Combination switch 18

#	OEM	部品名
1	06350-S6D-R21	Cylinder set - KEY
2	35100-S6A-E21	Lock assy - STEERING
2	35100-SJD-G01	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35113-S0X-Y01	Key - BLANK (BLACK) (IMMOBILIZER)(H-MARK:SILVER)
6	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
8	35130-S7S-J01	Switch comp - STEERING
9	35251-S5A-Y03	Body comp - SWITCH
10	35255-S5A-G02	Switch assy - LIGHTING & TURN SIGNAL
11	35256-S6A-G01	Switch assy
12	35257-S5A-J01	Bracket
13	35400-S5A-013	Switch assy - DOOR (MATSUSHITA)
14	39730-SEA-E01	Immobilizer unit
15	72118-ST7-003	Screw - TAPPING, 3X5
20	90132-S2H-G01	Screw - ET, 5X18
20	90132-S2H-G11	Screw - ET, 5.5X18

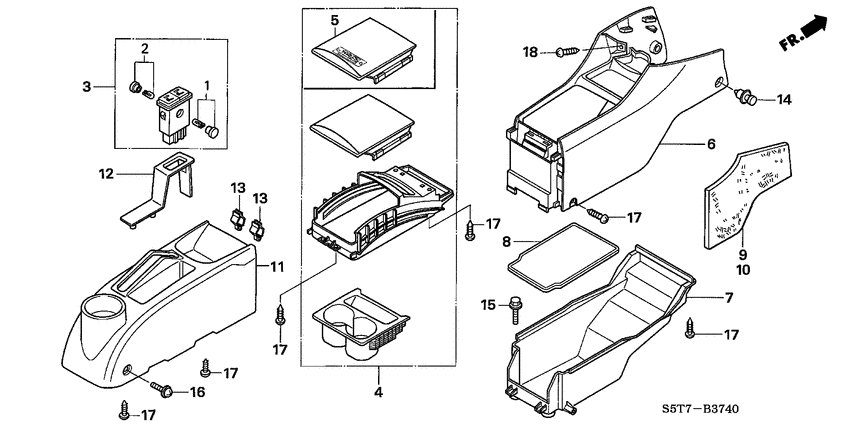

Console 4

#	OEM	部品名
1	35850-S5A-C01	Bulb comp. - 14V 60MA
2	35852-SS8-A11	Bulb comp. - 14V 60MA
8	77293-S5S-E01	Mat - CONSOLE BOX
13	90666-S84-A01	Clip - SNAP FITTING

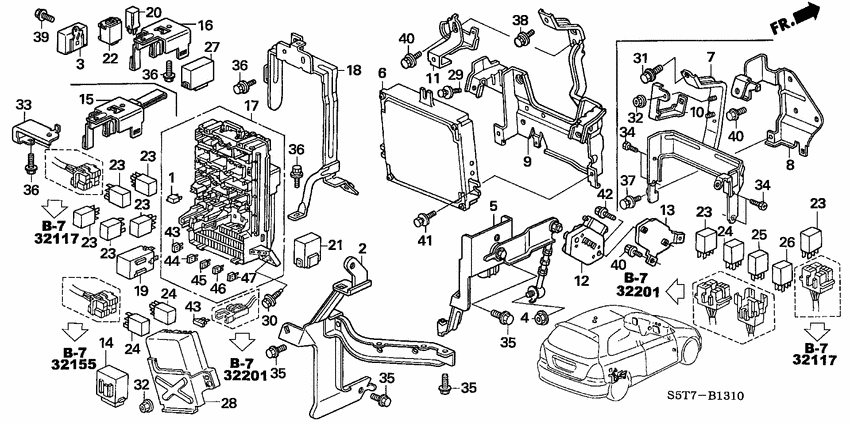

Control unit (CABIN; LH) 22

#	OEM	部品名
1	32146-SH3-003	Connector - DIODE(2P)
6	37820-PMA-G12	Control module - ENGINE
9	37827-PMA-G00	Bracket comp. - ELECTRONIC CONTROL UNIT (A)
11	37828-PMA-G00	Bracket comp. - ENGINE CONTROL MODULE (B)
16	38141-S6D-S00	Bracket - UNIT
17	38200-S6A-S03	Box assy - FUSE
18	38201-S5A-A01	Bracket - FUSE BOX
19	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
19	38300-S5P-A01	Relay assy - TURN SIGNAL & HAZARD (OMRON)
19	38300-S5T-004	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
20	38310-S6A-S02	Relay - CLEANER CONTROL
23	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
23	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
23	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
23	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
23	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
25	39794-S5A-003	Relay assy - FUEL PUMP(5P) (MITSUBA)
26	39794-S5A-901	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
28	39980-S5T-A03	Eps unit
29	90133-SM4-003	Bolt-washer - 5X16
30	90137-SF1-000	Bolt-washer - 6X25
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM

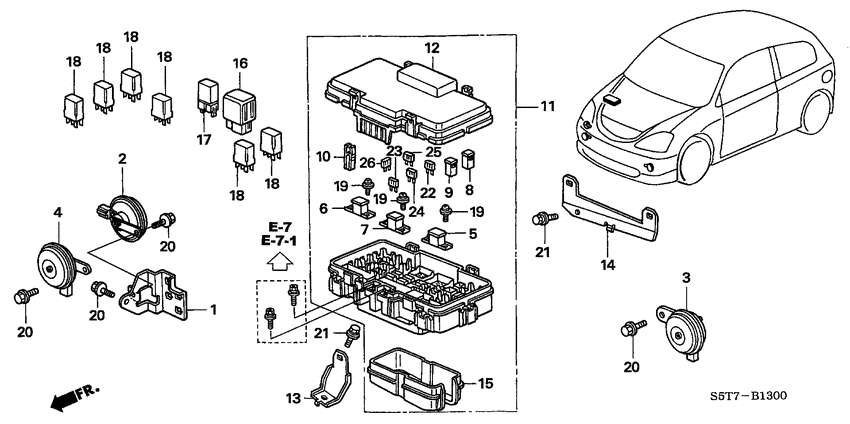

Control unit (ENGINE ROOM; 1.4L/1.6L) 23

#	OEM	部品名
3	38150-ST7-G01	Horn assy - HIGH (MITSUBA)
4	38100-S04-A01	Horn assy - LOW (MITSUBA)
5	38213-SM4-003	Fuse - BLOCK (50A)
6	38214-SS1-003	Fuse - BLOCK (60A)
7	38216-SM4-003	Fuse - BLOCK (80A)
8	38231-S04-003	Fuse - BLOCK (30A)
9	38231-S04-961	Fuse - BLOCK (40A)
10	38235-S04-003	Puller - MINI FUSE (SUMITOMO)
11	38250-S5A-G13	Box assy - RELAY
12	38251-S5A-G12	Cover - UPPER
13	38251-S5A-000	Bracket a - RELAY BOX
14	38252-S5A-000	Bracket b - RELAY BOX
15	38252-S5A-003	Cover - LOWER
16	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
17	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
17	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
18	39794-S0K-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
18	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
18	39794-S84-A01	Relay assy - POWER (4P) (MICRO ISO) (TYCO)
18	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
18	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
19	90129-SP0-000	Screw-washer - 5X12
20	90150-S84-003	Bolt - EARTH, 8X16

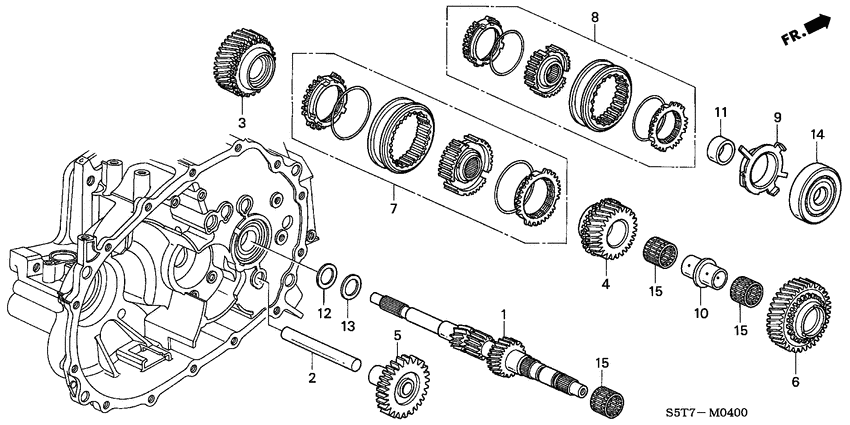

Countershaft (1.4L/1.6L) 18

#	OEM	部品名
1	23221-PLW-B50	Countershaft
2	23421-PMW-B00	Gear - COUNTERSHAFT LOW
3	23431-PMW-B00	Gear - COUNTERSHAFT SECOND
4	23461-PLW-A00	Gear - COUNTERSHAFT FIFTH
5	23471-PLW-A00	Gear - COUNTERSHAFT THIRD
6	23481-PLW-A00	Gear - COUNTERSHAFT FOURTH
7	23521-PLW-315	Sleeve set - SYNCHRONIZER (1-2)
9	23912-PHR-000	Collar - DISTANCE, 34X40X27.5
10	23926-PB6-010	Washer - SPRING, 22MM
11	90202-PB6-010	Nut - FLANGE, 22MM
12	90603-PL3-000	Ring - SNAP, 52MM
13	91003-P21-003	Bearing - BALL, 25X52X14/15 (NTN)
14	91006-PHR-003	Bearing - SPECIAL BALL, 6205
15	91103-PHR-003	Bearing - NEEDLE, 38X43X22
16	91104-PHR-003	Bearing - NEEDLE, 40X45X22.5
17	91211-PHR-003	Damper - FRICTION (LOW)
18	91212-PHR-003	Damper - FRICTION (SECOND)
18	91212-PHR-013	Damper

Cylinder block/oil pan (1.4L/1.6L) 19

#	OEM	部品名
1	11000-PLA-E00	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM
3	11126-PK1-003	Bolt - SEALING, 22MM
4	11200-PLC-000	Pan comp - OIL
7	11251-P1J-E00	Packing comp. - OIL PAN
8	11300-PLC-020	Cover assy. - R. SIDE
9	11311-PLC-000	Cover - BREATHING PORT
10	30530-PLE-004	Sensor - KNOCK
11	32745-PLC-000	Stay e - ENGINE HARNESS
12	37240-P2F-A01	Switch - OIL PRESSURE (FASCO CONTROLS)
13	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
14	90008-PM0-003	Bolt-washer - 10X112
16	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
18	90042-PR3-000	Bolt - STUD, 6X28
19	90401-PR4-000	Washer - SEALING, 28MM
20	90702-PE0-000	Dowel pin - 12X18
21	90703-PE0-000	Dowel pin - 18X22
22	91214-PLE-003	Oil seal
22	91214-PH1-004	Oil seal - 80X100X10 (ARAI)

Cylinder head (1.4L) 16

#	OEM	部品名
1	12100-PMA-E00	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12210-P45-G01	Seal a - VALVE STEM (CORCOS)
4	12211-P45-G01	Seal b - VALVE STEM (CORCOS)
5	12251-PLC-004	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)
6	12513-P72-003	Plug - CYLINDER HEAD
7	14631-P2A-000	Shaft - IN. ROCKER ARM
8	14633-P2A-000	Shaft - EX. ROCKER ARM
9	17233-PLC-000	Stay comp - RESONATOR
10	37840-RJH-006	TDC CYLINDER SENSOR ASSY
11	90004-PT0-000	Bolt - FLANGE, 6X50
12	90004-PT2-000	Bolt - FLANGE, 6X35
12	90003-PT2-000	Bolt - FLANGE, 6X35
13	90005-PM3-003	Bolt-washer - 10X140 (SAGA)
14	90007-P08-000	Bolt - FLANGE, 8X80
15	90026-PT0-000	Bolt - STUD, 8X38

Cylinder head cover (1.4L/1.6L) 15

#	OEM	部品名
1	12030-PLC-010	Packing set - HEAD COVER
2	12310-PLC-000	Cover comp. - CYLINDER HEAD
3	12315-PLC-000	Bolt - STUD
4	12316-PLC-000	Washer
5	12341-PLC-000	Packing - CYLINDER HEAD COVER
6	12342-P08-004	Seal
6	12342-RYE-004	Seal,spark plug t
7	15610-PLC-000	Cap assy. - OIL FILLER
8	15613-PLC-000	Packing - OIL FILLER
9	15650-PLC-004	Gauge comp. - OIL LEVEL
10	90011-PLC-000	Bolt comp. a - HEAD COVER
11	90012-PLC-000	Bolt comp. b - HEAD COVER
12	90013-PLC-000	Bolt a - HEAD COVER
13	90014-PLC-000	Bolt b - HEAD COVER
14	90442-PLC-000	Washer - HEAD COVER

Differential (1.4L) 22

#	OEM	部品名
1	41100-PLW-A00	Differential comp.
2	41233-PLW-B50	Gear - FINAL DRIVEN
3	41312-PL3-A00	Gear - SPEEDOMETER DRIVE
4	41453-PL3-A00	Shim n - 72MM(1.35)
4	41448-PL3-A00	Shim h - 72MM(1.7)
4	41443-PL3-A00	Shim c - 72MM(1.2)
4	41455-PL3-A00	Shim q - 72MM(1.55)
4	41450-PL3-A00	Shim k - 72MM(1.05)
4	41445-PL3-A00	Shim e - 72MM(1.4)
4	41457-PL3-A00	Shim s - 72MM(1.75)
4	41452-PL3-A00	Shim m - 72MM(1.25)
4	41447-PL3-A00	Shim g - 72MM(1.6)
4	41442-PL3-A00	Shim b - 72MM(1.1)
4	41454-PL3-A00	Shim p - 72MM(1.45)
4	41449-PL3-A00	Shim j - 72MM(1.8)
4	41444-PL3-A00	Shim d - 72MM(1.3)
4	41456-PL3-A00	Shim r - 72MM(1.65)
4	41451-PL3-A00	Shim l - 72MM(1.15)
4	41446-PL3-A00	Shim f - 72MM(1.5)
4	41441-PL3-A00	Shim a - 72MM(1.0)
5	90015-634-010	Bolt - FLANGE, 10MM
6	91005-PHR-003	Bearing - SEALED BALL, 6207 (NTN)

Door lining (LH) 4

#	OEM	部品名
6	72335-S5S-E01	Weatherstrip - R. FR. DOOR INNER
7	72375-S5S-E01	Weatherstrip - L. FR. DOOR INNER
18	90662-SB2-003	Grommet - SCREW, 5MM
19	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

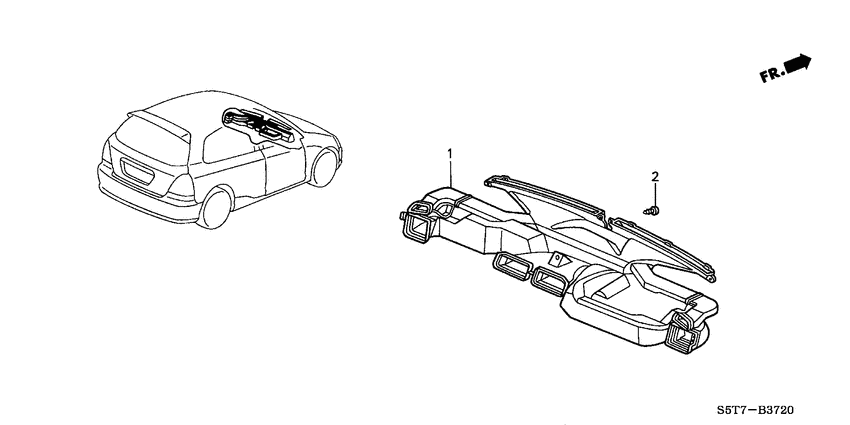

Duct (LH) 1

#	OEM	部品名
1	77400-S6A-G01	Duct assy - INSTRUMENT

Emblems/caution labels 10

#	OEM	部品名
1	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
2	19043-PLA-E00	Label - COOLANT INFORMATION
3	42760-S6A-G10	Plate - TIRE PRESSURE CAUTION (14 INCH)
5	75700-S9A-G00	Front Honda Emblem - (H)
6	75701-S5S-E00	Emblem - RR. CENTER (H)
9	75722-S5S-E00	Emblem, RR. (CIVIC)
18	77875-S84-G80	Label - SRS CAUTION
19	78031-S1A-E80	Label - SIDE AIRBAG CAUTION
20	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
21	90301-ST0-003	push nut, 3mm

Engine assy./transmission assy. (1.4L/1.6L) 3

#	OEM	部品名
1	10002-PMA-E01	General assy. - CYLINDER BLOCK
2	10003-PMA-E01	General assy. - CYLINDER HEAD
3	20011-PMW-M50	Transmission assy - MT

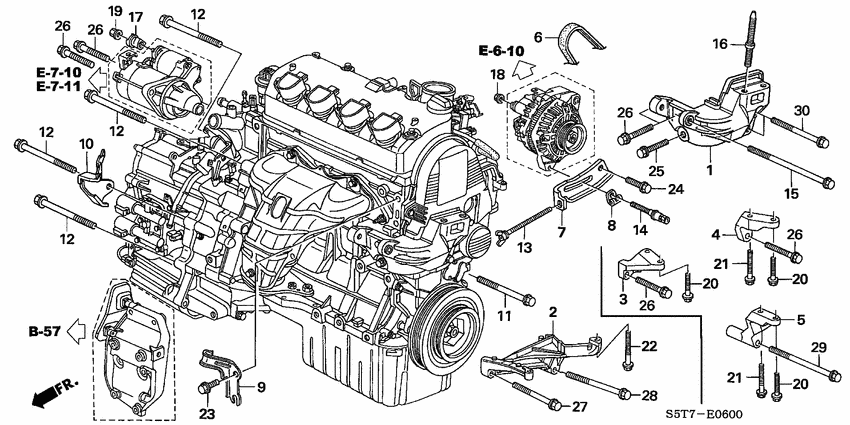

Engine mounting bracket (1.4L/1.6L) 13

#	OEM	部品名
1	11910-PLC-010	Bracket - ENGINE MOUNTING
2	11950-P2C-000	Stiffener - ENGINE
6	31110-PLA-E02	Belt - ALTERNATOR (MITSUBOSHI)
6	31110-PLA-E01	Belt - ALTERNATOR (BANDO)
7	31113-PLC-000	Stay - ALTERNATOR
8	31118-PLC-000	Stay - ALTERNATOR ADJUSTER
9	32746-PLC-000	Clamp f - ENGINE HARNESS
11	90050-PG7-000	Bolt - FLANGE, 12X65
12	90051-PE0-000	Bolt - FLANGE, 12X70
13	90311-PLC-000	Bolt - ADJUSTER
14	90312-PLC-000	Bolt - ALTERNATOR
15	90313-PLC-010	Bolt - SPECIAL, 10X98
16	90380-S10-000	Bolt - STUD, 12X83.8

Engine mounts (MT; 1.4L/1.6L) 16

#	OEM	部品名
1	50805-S5A-033	Rubber assy. - TRANSMISSION MOUNTING
2	50810-S6A-013	Rubber - RR. ENGINE MOUNTING
3	50815-S6D-000	Damper - RR. ENGINE MOUNTING BRACKET
4	50820-S5A-A08	Rubber assy. - ENGINE SIDE MOUNTING (YAMASHITA)
5	50821-S5A-A07	Rubber comp, ENGINE SIDE MOUNTING (YAMASHITA)
6	50825-S5A-000	Bracket - TRANSMISSION MOUNTING
7	50827-S5A-000	Bracket - ENGINE RR. MOUNTING
8	50840-S5A-010	Stopper, FR. ENGINE
9	90161-S5A-000	Bolt - FLANGE, 10X110
10	90162-S5A-000	Bolt - FLANGE, 10X80
11	90163-S5A-000	Bolt - FLANGE, 10X20
12	90164-S5A-000	Bolt - FLANGE, 12X40
13	90165-S5A-000	Bolt - FLANGE, 10X70
14	90167-S5A-010	Bolt - FLANGE, 12X88
15	90170-S5A-000	Bolt - FLANGE, 12X60
16	90371-S5A-000	Nut - YOKE, 12MM

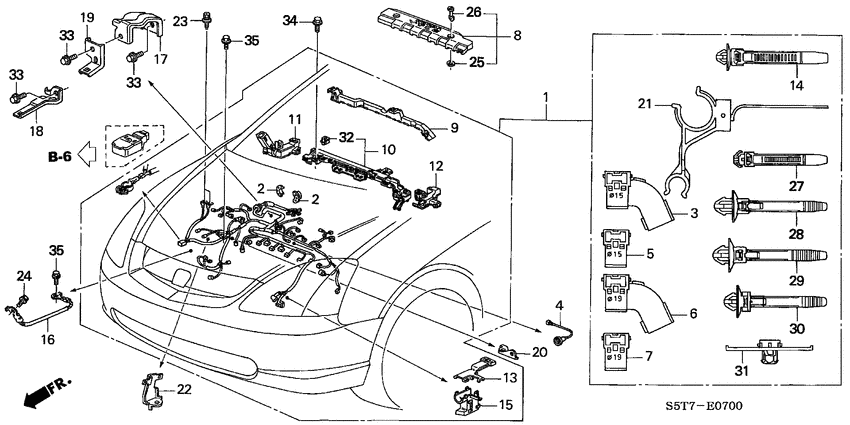

Engine wire harness (1.4L/1.6L; LH) 30

#	OEM	部品名
1	32110-PLA-G20	Harness - ENGINE WIRE
2	32113-PLD-003	Collar - HARNESS GROMMET
3	32116-PLM-A01	Holder - CORRUGATED TUBE (DARK BLUE) (15MM)
4	32117-PLC-000	Harness - SUB SENSOR WIRE
5	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
8	32120-PLC-000	Cover assy. - ENGINE WIRE HARNESS
9	32127-PLC-000	Holder comp. a - HARNESS
10	32128-PLC-000	Holder assy. b - ENGINE HARNESS
11	32129-PLC-000	Holder c - HARNESS
12	32131-PLC-000	Holder d - HARNESS
13	32132-PLC-000	Holder - UPPER HARNESS
14	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
15	32133-PLC-000	Holder - LOWER HARNESS
16	32610-S5A-000	Cable - SUB EARTH
17	32740-PLA-G00	Bracket - ENGINE WIRE HARNESS
18	32741-PLM-A00	Stay a - ENGINE WIRE HARNESS
19	32742-PLA-G00	Stay b - ENGINE WIRE HARNESS
20	32748-PLC-000	Stay h - ENGINE HARNESS
21	32750-PLC-003	Clamp k - ENGINE WIRE HARNESS
22	32755-PLC-000	Stay - OXYGEN SENSOR COUPLER
23	90114-SM4-900	Bolt - 6X15
24	90153-SE0-003	Bolt - EARTH, 6X12
25	90501-SS8-A01	Retainer
26	91501-P8A-A01	Stud
27	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
28	91507-PLC-003	Clip - WIRE HARNESS(DARK BLUE) (132.3MM)
29	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
30	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
31	91571-SP0-003	Clip - WIRE HARNESS (BLACK) (64MM)
32	91601-P8A-A01	Receptacle

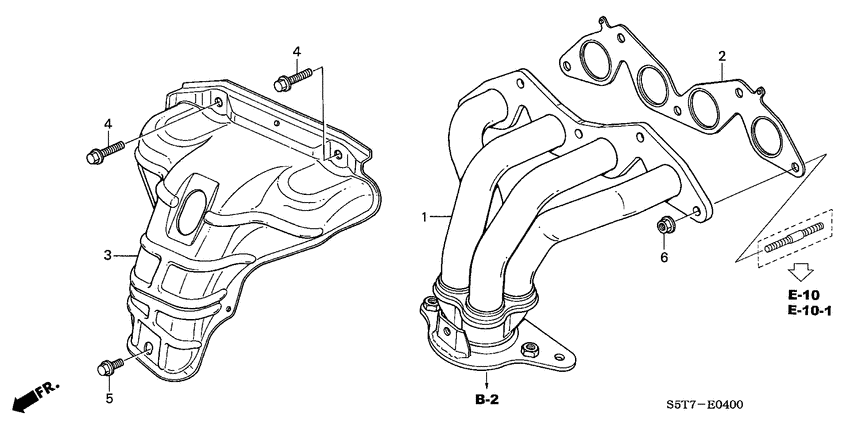

Exhaust manifold (1.4L/1.6L) 5

#	OEM	部品名
1	18100-PLA-G00	Manifold comp - EX.
2	18115-PLC-J02	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
3	18120-PLD-000	Cover - EX. MANIFOLD
4	90003-PLC-000	Bolt - FLANGE, 8X22
5	90015-PAA-L20	Bolt - FLANGE, 8X12

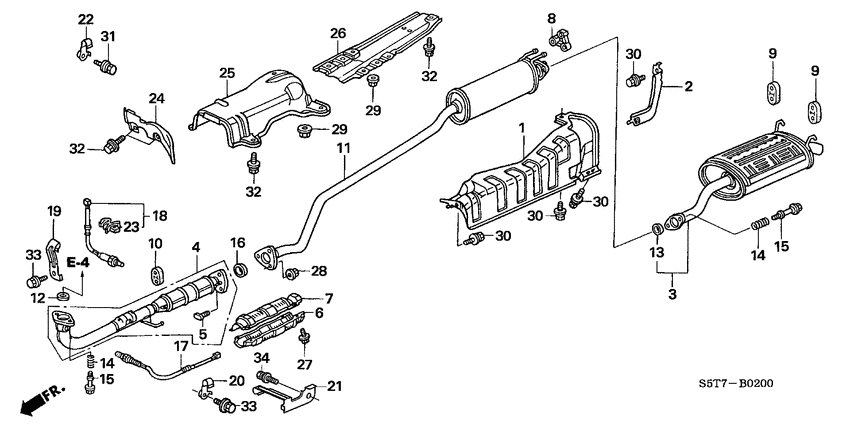

Exhaust pipe/silencer (1.4L/1.6L) 29

#	OEM	部品名
1	17519-S5A-931	Protector, FUEL TANK
2	17520-S5A-931	Stay - FUEL TANK PROTECTOR
3	18030-S5S-E00	Silencer set - EX.
4	18160-PLA-E00	Converter comp.
5	18176-P08-003	Bolt - CONVERTER
6	18181-PLD-000	Cover - LOWER
7	18182-PLD-000	Cover - UPPER
8	18215-S5A-A11	Rubber - EX. MOUNTING
9	18215-S5D-A01	Rubber - EX. MOUNTING
10	18215-S84-A20	Rubber - EX. MOUNTING
11	18220-S5S-E02	Pipe b - EX.
12	18229-S6D-003	Gasket - EX. FLEXIBLE
13	18229-S6D-901	Gasket - EX. FLEXIBLE
14	18230-SV4-000	Spring - FLEXIBLE JOINT
15	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
16	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
17	36531-PLR-A01	Sensor - OXYGEN
18	36532-PLA-G01	Sensor - RR. OXYGEN
19	36533-PLD-000	Clamp - OXYGEN SENSOR
21	36534-PMA-G00	Clamp - OXYGEN SENSOR
22	36535-PLD-000	Clamp - OXYGEN SENSOR
23	36538-PLD-003	Clip - WIRE HARNESS
24	74252-S5A-000	Plate - DASHBOARD LOWER BAFFLE
25	74601-S6D-E00	Plate - FLOOR HEAT BAFFLE (A)
26	74605-S5S-G00	Plate - FLOOR HEAT BAFFLE (B)
27	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
27	90023-PK1-000	Bolt - FLANGE, 6X10
28	90212-SA5-003	Nut - SELF-LOCK, 10MM
29	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Floor mat 6

#	OEM	部品名
2	74260-S6F-G00	Insulator - DASHBOARD
10	90676-SB2-003	Clip - DASHBOARD INSULATOR
11	90676-S5A-003	Clip - DASHBOARD INSULATOR
13	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)
14	91547-SM4-003	Cap - INSULATOR
15	91560-S04-003	Clip - SIDE GARNISH (NATURAL)

Fog light kit 3

#	OEM	部品名
8	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
11	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY
11	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO

Front brake (1) 17

#	OEM	部品名
1	01463-ST3-E01	Caliper set - FR.
3	44300-S6D-E01	Bearing assy - FR. HUB
4	44600-S6D-E00	Hub assy - FR. (14")
5	45012-S6D-E02	Body comp - R. CALIPER
6	45013-S6D-E02	Body comp - L. CALIPER
7	45014-S6D-E11	Bracket comp.
9	45022-S6D-E51	Pad set - FR.
11	45240-SK3-E00	Bolt
12	45251-S6D-E10	Disk - FR. BRAKE (14",21T)
13	45255-S6D-E00	Guard - FR. BRAKE SPLASH (14")
14	45352-SN7-G41	Screw - BLEEDER
15	45353-SN7-G41	Cap - BLEEDER
16	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
17	90113-SA0-006	Bolt - WHEEL (SAGA)
17	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
17	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
18	90681-ST3-E00	Circlip - INTERNAL, 79MM

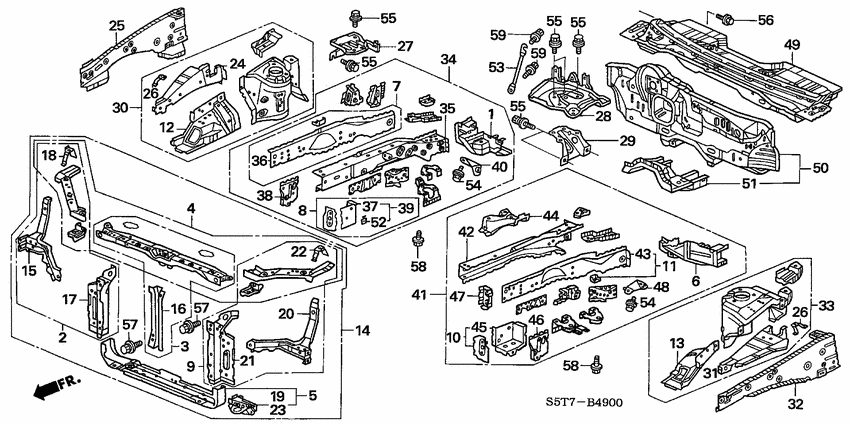

Front bulkhead 4

#	OEM	部品名
53	74232-S5A-000	Rod - BRAKE PEDAL SUPPORT
54	90101-S6A-000	Bolt-washer - 8MM
55	90105-634-000	Bolt-washer (8x20)
56	90108-S0A-003	Bolt - FLANGE, 6X15

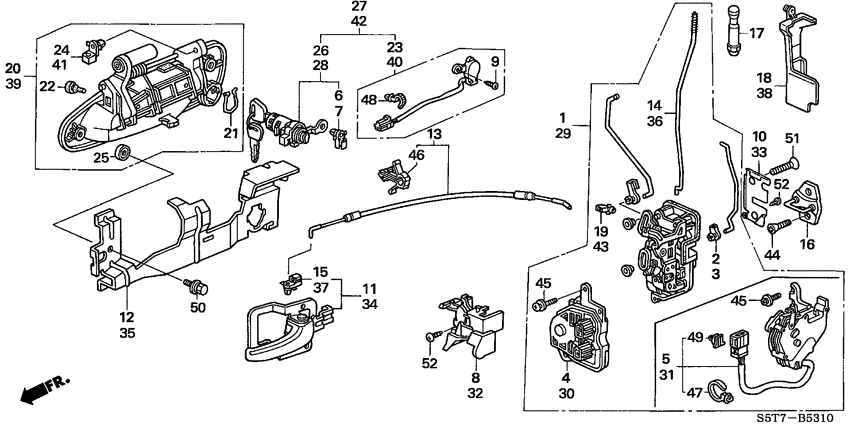

Front door locks 28

#	OEM	部品名
1	72110-S5S-G01	Lock assy - R. FR. DOOR POWER
2	72112-SR4-004	Snap - BROWN
3	72113-SR4-004	Snap - BLACK
4	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
6	72116-S04-003	Holder - ROD(SKY BLUE)
7	72117-S04-003	Holder - ROD (YELLOW)
10	72119-S5S-E01	Patch - R. DOOR LOCK
13	72131-S5S-E01	Cable - INSIDE HANDLE
15	72134-S2X-003	Snap - R. (NATURAL)
16	72135-S5A-003	Striker assy - DOOR LOCK
19	72139-SR0-A01	Snap - VIOLET
20	72140-S7A-003	Handle assy - R. FR. DOOR OUTSIDE
21	72123-SR0-003	Ring - OUTSIDE HANDLE
22	72119-S04-003	Stopper a - OUTSIDE HANDLE
24	72141-SD4-004	Bush - R. JOINT
25	72143-S04-003	Packing
26	72145-S0X-A51	Cylinder - R. DOOR
28	72146-S0X-A51	Cylinder - L. DOOR
29	72150-S5S-G01	Lock assy - L. FR. DOOR POWER
30	72155-S5A-A01	Actuator assy - DOOR LOCK
33	72159-S5S-E01	Patch - L. DOOR LOCK
37	72174-S2X-003	Snap - L. (BLACK)
39	72180-S7A-003	Handle assy - L. FR. DOOR OUTSIDE
41	72181-SD4-004	Bush - L. JOINT
43	72616-SM4-003	Snap - NATURAL
44	90120-SV4-000	Bolt - LOCK STRIKER
45	90141-S84-003	Screw - 3X10
46	90623-SB5-000	Clip - HARNESS

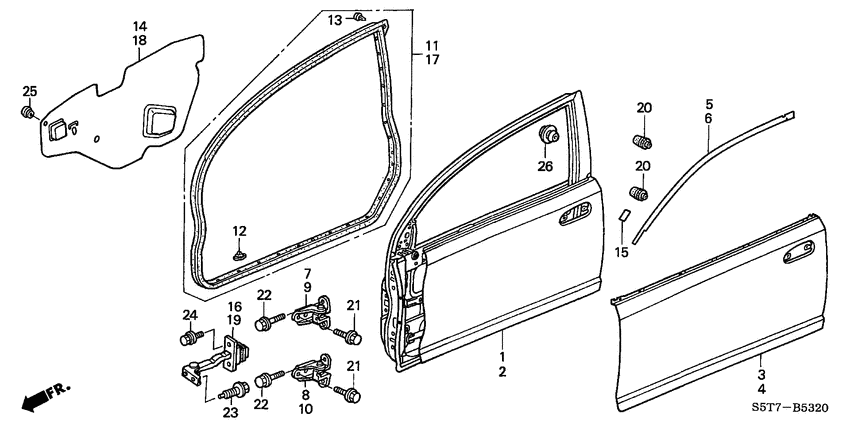

Front door panels 14

#	OEM	部品名
11	72310-S5S-E01	Weatherstrip - R. FR. DOOR
12	72311-S5S-003	Clip A - DOOR WEATHERSTRIP
13	72312-S5S-003	Clip - DOOR WEATHERSTRIP
14	72321-S5S-G00	Seal - R. FR. DOOR HOLE
15	72336-S6A-E00	Tape - REFLECTOR
16	72340-S5S-E01	Checker comp. - R. FR. DOOR
17	72350-S5S-E01	Weatherstrip - L. FR. DOOR
18	72361-S5S-G00	Seal - L. FR. DOOR HOLE
19	72380-S5S-E01	Checker comp. - L. FR. DOOR
20	75891-SA7-000	Stopper - DOOR
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
23	90141-S04-000	Bolt - FLANGE, 8X22

Front door windows 15

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72210-S5S-G02	Regulator assy - R. FR. DOOR POWER
3	72230-S5S-E01	Sash - R. FR. DOOR FR. LOWER
4	72231-S5S-G01	Sash - R. FR. DOOR CENTER LOWER
5	72235-S5S-E11	Runchannel - R. FR. DOOR
5	72235-S5S-E12	Runchannel - R. FR. DOOR
7	72250-S5S-G11	Regulator assy - L. FR. DOOR POWER
8	72270-S5S-E01	Sash - L. FR. DOOR FR. LOWER
9	72271-S5S-G01	Sash - L. FR. DOOR CENTER LOWER
10	72275-S5S-E11	Runchannel - L. FR. DOOR
10	72275-S5S-E12	Runchannel - L. FR. DOOR
11	73300-S5S-E00	Glass assy - R. FR. DOOR (GREEN)(SAINT-GOBAIN)
12	73350-S5S-E00	Glass assy - L. FR. DOOR (GREEN)(SAINT-GOBAIN)
13	91533-S04-003	Clip - COUPLER (NATURAL)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

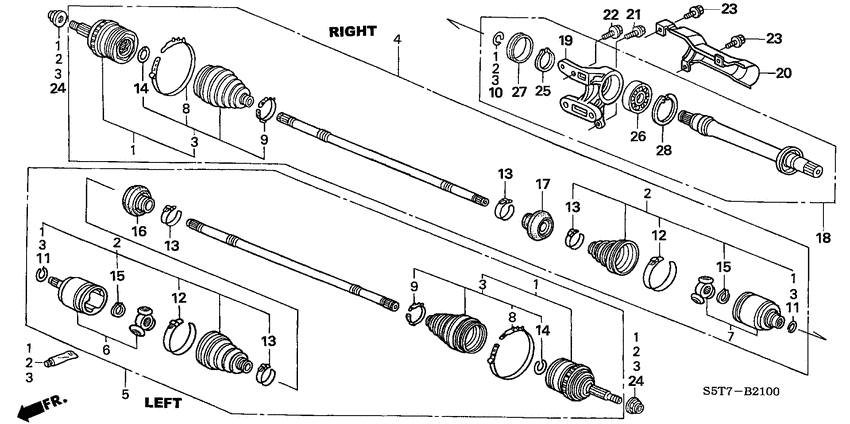

Front driveshaft/half sha ft 17

#	OEM	部品名
1	44014-S6D-E01	Joint set - OUTBOARD (GKN HSP)
2	44017-S6D-E11	Boot set - INBOARD (GKN HSP)
2	44017-S6D-E01	Boot set - INBOARD (GKN HSP)
3	44018-S6D-E01	Boot set - OUTBOARD (GKN HSP)
4	44305-S6D-E51	Driveshaft assy. - R.
5	44306-S6D-E51	Driveshaft assy. - L.
6	44310-S6D-E01	Joint comp - INBOARD
7	44310-S5D-A01	Joint comp - INBOARD
8	44317-S6D-E01	Band - OUTBOARD BOOT
9	44318-S6D-E21	Band - OUTBOARD BOOT (GKN)
11	44319-S1A-E61	Set ring - 26X1.8
12	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-S6D-E01	Ring b - STOPPER
15	44338-S6D-E01	Circlip
16	44351-S6D-E01	Damper - DYNAMIC
24	90305-S1A-000	Nut - SPINDLE

Front fenders 16

#	OEM	部品名
3	74101-S6D-E10	Fender - R. FR. INNER
4	74105-S6D-E00	Fairing - R. FR. FENDER
5	74108-S6A-000	Tape - STIFFENER(225X110)
7	74111-S5S-G10	Shield - FR. SPLASH
9	74151-S6D-E10	Fender - L. FR. INNER
10	74155-S6D-E00	Fairing - L. FR. FENDER
13	90108-S0A-003	Bolt - FLANGE, 6X15
14	90114-SE0-000	Screw - TAPPING, 5X20
15	90126-SR4-000	Screw-washer - 5X16
16	90308-SB2-013	Nut - SUSPENSION, 5MM
17	90682-SB0-003	Grommet - SCREW, 5MM
18	91501-S04-003	Clip - INNER FENDER
19	91503-SZ3-003	Clip A
22	91533-SG0-000	Clip b - FAIRING
24	91545-SE0-003	Clip assy. - 8MM
25	91609-S6D-E00	Protector - FR. FENDER

Front grille 3

#	OEM	部品名
1	71121-S5S-E10	Base - FR. GRILLE
2	71122-S6A-000	Cover - FR. GRILLE
3	91503-SZ3-003	Clip A

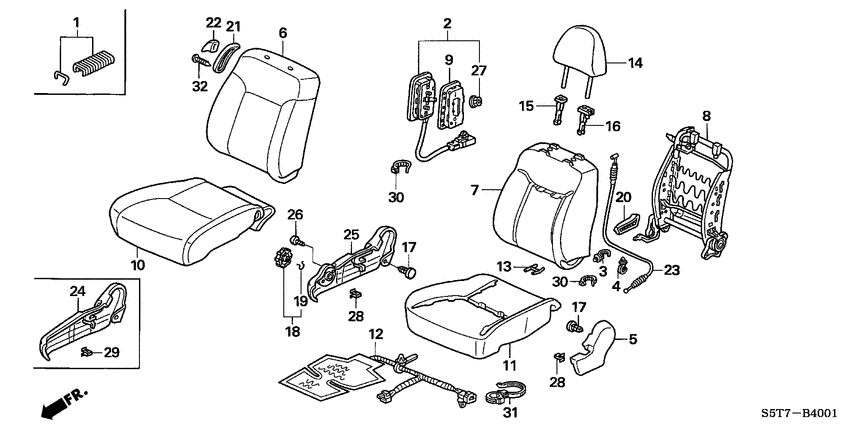

Front seat (L.) 13

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	81134-S5S-S01	Heater comp. - FR. SEAT CUSHION
6	81138-S5A-G21	Clip - H
12	81223-S04-000	Clip - SHAFT, 8MM
17	81522-S5S-E01	Pad assy - L. FR. SEATBACK
18	81526-S5S-G02	Frame comp - L. FR. SEATBACK
19	81528-S5A-J01	Holder - L. MODULE
21	81532-S5S-G01	Pad assy - L. FR. SEAT CUSHION
26	90134-SE3-003	Screw - TAPPING, 5X10
27	90321-SP0-A80	Nut-washer - 6MM
28	90610-SR3-003	Clip - GARNISH (KATO)
30	90656-PB1-003	Band - OIL HOSE

Front seat (R.) 16

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	81108-S5S-003	Clip A - HARNESS BAND
4	81109-S5S-003	Clip b - HARNESS BAND
7	81122-S5S-G01	Pad assy - R. FR. SEATBACK
8	81126-S5S-G12	Frame comp - R. FR. SEATBACK
9	81128-S5A-J01	Holder - R. MODULE
11	81132-S5S-G01	Pad assy - R. FR. SEAT CUSHION
12	81134-S5S-S01	Heater comp. - FR. SEAT CUSHION
13	81138-S5A-G21	Clip - H
23	81237-S5T-A01	Cable assy
27	90321-SP0-A80	Nut-washer - 6MM
28	90610-SR3-003	Clip - GARNISH (KATO)
29	90610-S10-003	Clip - GARNISH
30	90656-PB1-003	Band - OIL HOSE
31	91559-SM4-003	Clip - POWER STEERING TUBE (135MM)

Front seat components (L.; MANUAL HEIGHT) 13

#	OEM	部品名
1	38536-SF1-S01	Seat unit - HEATED
2	81139-S3N-003	Link - FR.
4	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
5	81271-S5A-J01	Lever
6	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
7	81536-S5A-J12	Frame comp - L. FR. SEAT CUSHION
9	90134-SE3-003	Screw - TAPPING, 5X10
10	90135-S5A-003	Bolt-washer - 10X27
11	90143-SR3-000	Bolt-washer - 10X22
12	90303-S3N-003	Nut - FLANGE
13	90501-S3N-003	Washer a
14	90502-S3N-013	Bush a
15	90503-S3N-003	Spacer

Front seat components (R.) 8

#	OEM	部品名
1	38536-SF1-S01	Seat unit - HEATED
2	81136-S5S-G01	Frame comp - R. FR. SEAT CUSHION (WALK-IN)
5	81262-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
6	81271-S5A-J01	Lever
7	81272-S5A-J01	Cap - SLIDE ADJUSTER UPPER END
8	90134-SE3-003	Screw - TAPPING, 5X10
9	90135-S5A-003	Bolt-washer - 10X27
10	90143-SR3-000	Bolt-washer - 10X22

Front shock absorber 15

#	OEM	部品名
1	51401-S5S-G02	Spring - FR. (SHOWA)
2	51402-S6A-N01	Rubber - SPRING UPPER SEAT
4	51601-S5S-G06	Absorber assy - R. FR. SHOCK
5	51602-S5S-G06	Absorber assy - L. FR. SHOCK
6	51605-S5S-G05	Absorber unit - R. FR. SHOCK
7	51606-S5S-G05	Absorber unit - L. FR. SHOCK
8	51688-S6M-014	Seat - FR. SPRING UPPER
10	51722-S6A-004	Rubber - FR. BUMP STOPPER
11	51726-S5A-004	BEARING, FR. SHOCK ABSORBER MOUNT
12	51920-S6A-014	Mount comp - R. FR. SHOCK ABSORBER
13	51925-S6A-014	Mount comp - L. FR. SHOCK ABSORBER
14	90002-S10-000	Nut - FLANGE, 10MM
15	90188-SR3-010	Bolt - FLANGE, 14X67
16	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
17	90213-S5A-003	Nut - FLANGE, 14MM

Front skirt 7

#	OEM	部品名
2	90126-SA7-000	Screw-washer - 5X20
2	90114-SZ3-000	Screw-washer - 5X20
3	90345-S04-000	Nut - SUSPENSION, 5MM
4	90111-SM4-003	Bolt - BUMPER
5	90149-SA0-003	Bolt - BUMPER
6	90323-SE0-000	Nut - CLIP, 6MM
6	90305-SH3-000	Nut - AIR SPOILER CLIP

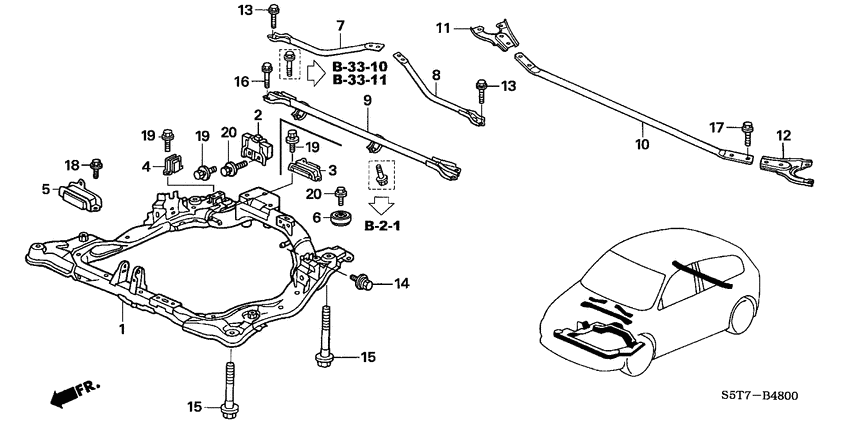

Front sub frame 4

#	OEM	部品名
1	50200-S6D-E00	Sub frame comp. - FR.
2	50205-S6A-E00	Damper - RR.
14	90174-S5A-003	Bolt-washer - 10X32
15	90175-S5A-000	Bolt - FLANGE, 14X115

Front windshield 13

#	OEM	部品名
1	04731-S5S-E00	Rubber set - FR. WINDSHIELD DAM
2	73111-S5S-E10	Glass set - FR. WINDSHIELD (GREEN) (SPLINTEX)
3	73150-S5S-E01	Molding - FR. WINDSHIELD
4	73152-S5S-E01	Garnish Assy., R. FR. Windshield Side
5	73162-S5S-E01	Garnish Assy., L. FR. Windshield Side
6	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
7	91519-S6A-003	Clip A - BLACK
8	91520-S6A-003	Clip b - ORANGE
9	91521-S6A-003	Clip A - FR. WINDSHIELD SIDE GARNISH (GRAY)
10	91522-S6A-003	Clip b - FR. WINDSHIELD SIDE GARNISH (LIGHT BLUE)
11	91525-S6A-003	Clip d - FR. WINDSHIELD SIDE GARNISH
12	91568-SX0-003	Fastener a - WINDSHIELD
13	91577-S84-A01	Fastener - WINDSHIELD

Front wiper (LH) 23

#	OEM	部品名
1	76505-S6D-G01	Motor comp - FR. WIPER
2	76510-SN7-E05	Rubber - MOUNTING
3	76516-S6D-G01	Rubber - MOUNTING
4	76517-S6D-G01	Collar
5	76518-S6D-G01	Rubber - MOUNTING
6	76519-S6D-G01	Collar
7	76520-S6D-G01	Link assy
8	76524-SN7-E05	Dust seal
9	76525-S6D-G01	Screw - 6X14
10	76530-S6D-G01	Link comp - WIPER
11	76540-S6D-G01	Rod unit a
12	76550-S6D-G01	Rod unit b
13	76561-S6D-G01	Cap - LEAF
14	76600-S5S-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76601-S5S-G01	Cover - ARM
16	76610-S5S-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-S5S-G01	Blade - WINDSHIELD WIPER (600MM)
18	76622-S5S-G01	Rubber - BLADE (600MM)
19	76630-S5S-G01	Blade - WINDSHIELD WIPER (380MM)
20	76632-S5S-G01	Rubber - BLADE (380MM)
21	90126-SR3-000	Bolt-washer - 6X32
22	90317-SN7-E05	Nut - HEX., 8MM
23	91611-S5A-000	Cap - FR. WIPER

Fuel pipe 37

#	OEM	部品名
1	16040-S5S-E00	Pipe comp - FUEL FEED
2	16722-PLD-003	Hose comp. - FUEL FEED
5	16725-PLC-003	Clamp a - FUEL HOSE (BLACK)
7	17300-S6A-931	Canister assy
8	17315-S5A-932	Filter - CANISTER
9	17358-S6A-930	Bracket - CANISTER
10	17371-SR3-003	Valve - TWO WAY
11	17556-SL4-023	Clip - FUEL PIPE (BLACK)
12	17701-S5A-930	Rubber - FUEL PIPE INSULATOR
13	17711-S0X-A31	Retainer - GREEN)(TOKAI
15	17711-S84-004	Retainer - WHITE)(SANOH
16	17717-S6A-930	Tube a - FUEL PURGE
17	17720-S5S-E00	Pipe - FUEL PURGE
18	17724-S6A-930	Tube c - FUEL VENT
20	17726-S6A-930	Hose assy - PURGE
21	17741-S6A-930	Tube a - CANISTER DRAIN
22	17742-S6A-930	Tube - CANISTER DRAIN
23	17743-S6A-930	Tube - CANISTER FILTER
24	17745-S5A-932	Tube b - CANISTER DRAIN
25	17758-S5A-931	Clip - FUEL PIPE
26	17759-S5A-931	Clip b - FUEL PIPE
28	17762-S6D-G30	Stay b - FUEL PIPE
29	17763-S6D-G30	Stay c - FUEL PIPE
30	17764-S6D-G30	Stay d - FUEL PIPE
31	17765-S6D-G30	Stay e - FUEL PIPE
32	90361-SV4-003	Nut - PAINT CUTTING, 6MM
33	90671-S5A-003	Bolt - FR. FENDER
34	91401-SDC-000	Clip - TUBE(B10)
35	91402-SDC-000	Clip - TUBE(B12)
36	91405-SDA-000	Clamp - TUBE(D10.5)
37	91592-S5A-931	Clip - FUEL PIPE
38	91594-S5A-931	Clip - DRAIN TUBE (B)
39	91595-SV4-003	Clip b - FUEL PIPE
40	91595-S5A-931	Clamp a - FUEL PIPE
41	91596-S5A-931	Joint - DRAIN TUBE
42	91598-S5A-930	Rubber - FUEL PIPE INSULATOR
43	91599-S5A-931	Clamp b - FUEL PIPE

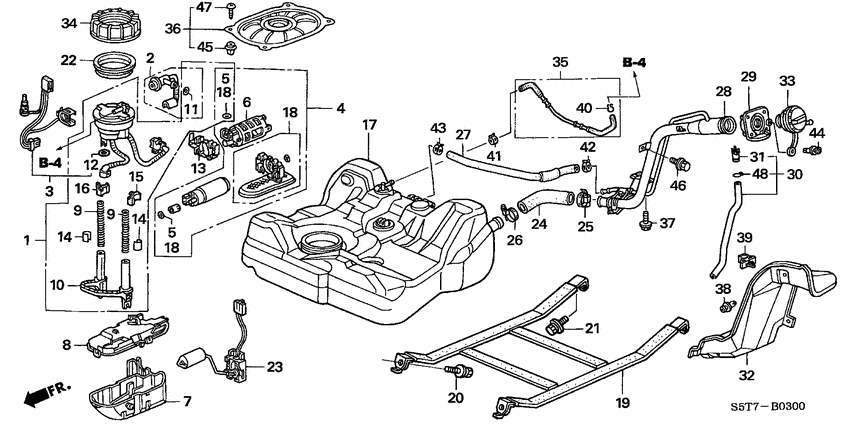

Fuel tank 44

#	OEM	部品名
1	16010-S5A-932	Strainer set - FUEL
2	16015-S5A-930	Regulator assy
3	16016-S5A-930	Wire comp - LEAD
4	17040-S5A-930	Fuel Pump set
5	17041-S5A-930	O-ring
6	17042-S5A-930	Housing - FUEL PUMP
7	17043-S5A-941	Reservoir - DENSO
7	17043-S5A-931	Reservoir - AFCO
8	17044-S5A-930	Cap - RESERVOIR
9	17045-S5A-931	Spring
10	17046-S5A-931	Linkage
11	17047-S5A-930	O-ring
12	17048-S5A-930	O-ring
13	17049-S5A-930	Holder - FUEL PUMP
14	17051-S5A-930	Collar
15	17052-S5A-930	Stopper a
16	17053-S5A-930	Stopper b
17	17500-S6D-E32	Tank comp. - FUEL
18	17516-S5A-930	Filter set - FUEL PUMP
19	17521-S5A-931	Band - FUEL TANK MOUNTING
20	17525-SM4-000	Bolt-washer - 10X35
21	17525-S0X-A00	Bolt-washer - 10X25
22	17574-S1A-E01	Packing - BASE
22	17574-S0X-A01	Packing - BASE
23	17630-S5B-931	Meter comp
24	17651-S5A-930	Tube - FILLER NECK
25	17652-S6M-J01	Clip - FILLER TUBE
26	17652-S6M-J51	Clip - FILLER TUBE
27	17653-S5A-930	Tube - BREATHER
28	17660-S5A-E31	Pipe comp - FUEL FILLER
29	17662-SDA-A01	Packing - FUEL FILLER
32	17668-S5A-940	COVER, FUEL FILLER PIPE
33	17670-S5A-E33	Cap comp. - FUEL FILLER (TOYODA)
34	17719-S1A-E01	Nut - FUEL PUMP MODULE LOCK
35	17722-S6A-930	Tube b - FUEL VENT
36	74660-S5A-000	Cap assy. - FLOOR MAINTENANCE HOLE
37	90150-S04-003	Bolt - EARTH, 6X16
38	90657-SA5-003	Clip - SIDE APRON MOLDING
40	91401-SDC-000	Clip - TUBE(B10)
41	91404-SDC-000	Clamp - TUBE (D10)
42	91413-S5A-003	Clamp - FUEL TUBE (D17)
43	91462-SDA-003	Clamp - FUEL TUBE (D18)
44	91594-S1A-E01	Clip - FUEL FILLER CAP
45	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

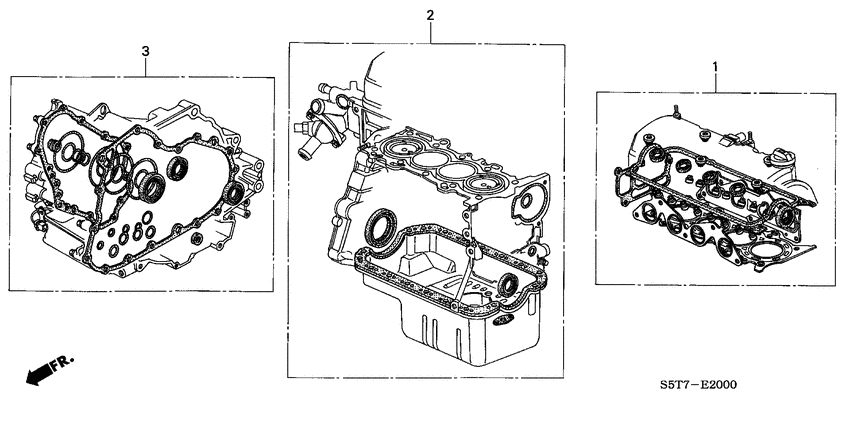

Gasket kit (1.4L/1.6L) 2

#	OEM	部品名
1	06110-PSM-E00	Gasket kit - CYLINDER HEAD
2	06111-PMM-A31	Gasket kit - CYLINDER BLOCK

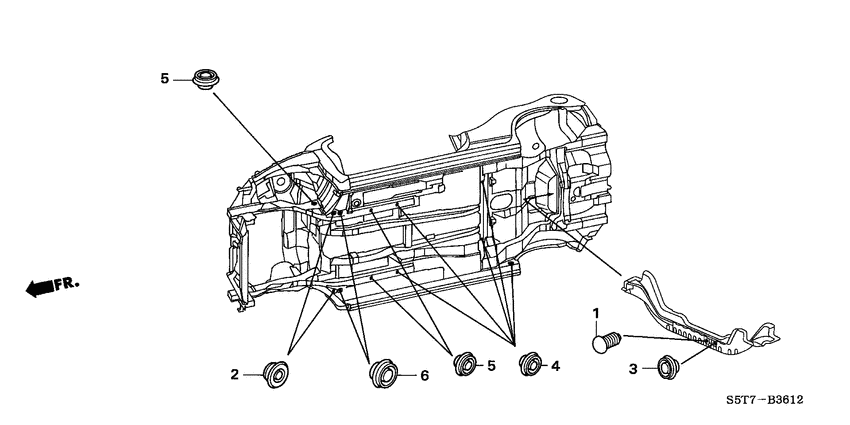

Grommet (FRONT) 13

#	OEM	部品名
1	72207-SB2-000	Cap - FLOOR HOLE, 24MM
2	74177-SD4-000	Cushion a - HOOD
3	74827-SP0-000	Stopper - TRUNK LID
4	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM
5	90615-SR3-000	Cap - WELD HOLE, 51X77
6	90615-S5A-003	Plug - HOLE, 27X56
7	90672-S5A-003	Holder - ROD
10	91602-S10-000	Stopper a - HOOD
11	91604-S5A-003	Grommet - HOOD STAY
13	91608-S5A-003	Boot - FLOOR
14	91615-SH3-000	Cap - FLOOR HOLE, 49MM
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
16	91630-SD5-003	Plug - NUT, 8MM

Grommet (REAR) 8

#	OEM	部品名
1	82871-S6D-E01	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
3	90857-SD4-000	Cap - WELD HOLE
4	91603-S04-003	Plug - HOLE, 20MM
5	91611-SS0-003	Plug - HOLE, 25MM
6	91615-S6E-E00	Block a - DASHBOARD UPPER
7	91627-S50-G01	Grommet - 7X7
8	91631-S5A-000	Plug - AIR CONDITIONER HOLE (36X74)

Grommet (SIDE) 6

#	OEM	部品名
1	91603-S04-003	Plug - HOLE, 20MM
2	91616-S5T-A00	Block - FR. PILLAR INNER LOWER
3	91616-S50-000	Block - FR. PILLAR INNER LOWER
4	91617-S5S-E00	Block - RR. PILLAR INNER
5	91618-S5A-000	Seal - HOLE, 30X90
6	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (UNDER) 1

#	OEM	部品名
2	91606-SK7-003	Plug - BLIND, 25MM

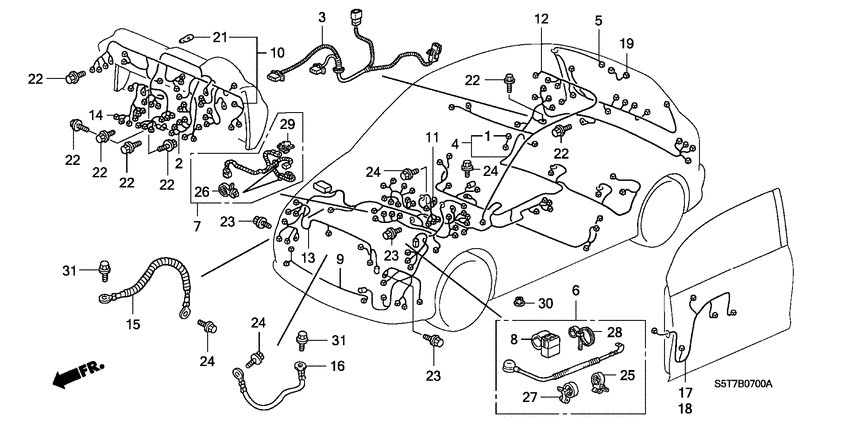

Harness band/bracket (LH) 36

#	OEM	部品名
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)
2	32112-S2K-003	Band - CABLE (90MM)
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
5	32131-SV4-003	Cap - COUPLER (CP 2P, 3P)
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
10	32134-S04-000	Cap - WPC 4P
13	32203-S5A-000	Bracket - WIRE HARNESS
14	32203-S6D-G00	Bracket - WIRE HARNESS
17	32741-PLM-A00	Stay a - ENGINE WIRE HARNESS
22	38204-S6D-G00	Bracket - COUPLER
23	38617-S5A-J01	Filter comp - NOISE
25	90126-SR4-000	Screw-washer - 5X16
26	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
29	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
30	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
32	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
33	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
36	91540-S6A-003	Clip - HARNESS BAND(NATURAL) (150MM)
37	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
39	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
40	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
41	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
45	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
46	91555-SM4-003	Clip - COUPLER (RED)
47	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
48	91565-S0X-003	Clip - COUPLER (DARK GREEN)
49	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
50	91577-SM4-003	Holder - BRACKET(NATURAL)
52	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
53	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)
54	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

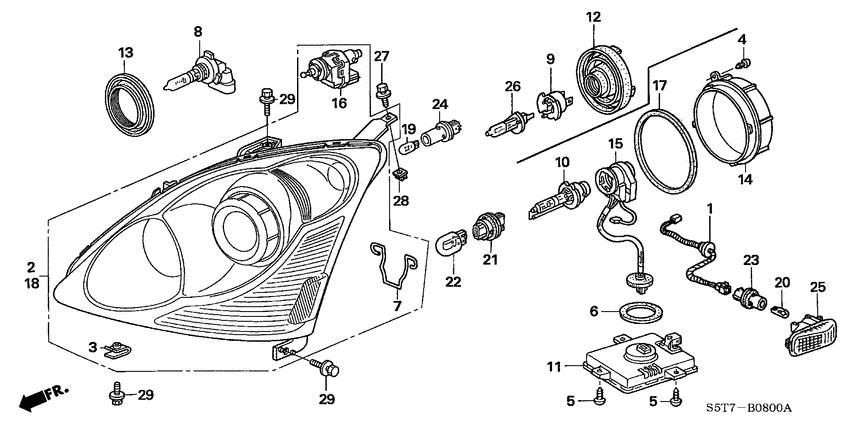

Headlight (1) 20

#	OEM	部品名
1	32118-S6A-900	Cord - SIDE TURN
2	33101-S5T-G62	Headlight unit - R.
3	33105-S5N-C01	Nut - SPECIAL
8	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
8	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
9	33116-SD4-961	Socket - BULB (OSRAM) (HALOGEN)
12	33126-S0A-003	Cover - RUBBER
13	33126-S6A-J61	Cover - RUBBER
16	33130-S5A-G01	Adjuster unit - HEADLIGHT
18	33151-S5T-G62	Headlight unit - L.
19	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
20	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)
21	33303-SAA-003	Socket comp - T20 S) (AMBER
22	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
23	33304-S5A-003	Socket comp - T10
24	33305-S5A-003	Socket comp - T10
25	34301-S5H-T02	Lamp unit
26	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)
27	90101-S5A-003	Tapping - SPECIAL, 5X18
28	90682-SB0-003	Grommet - SCREW, 5MM

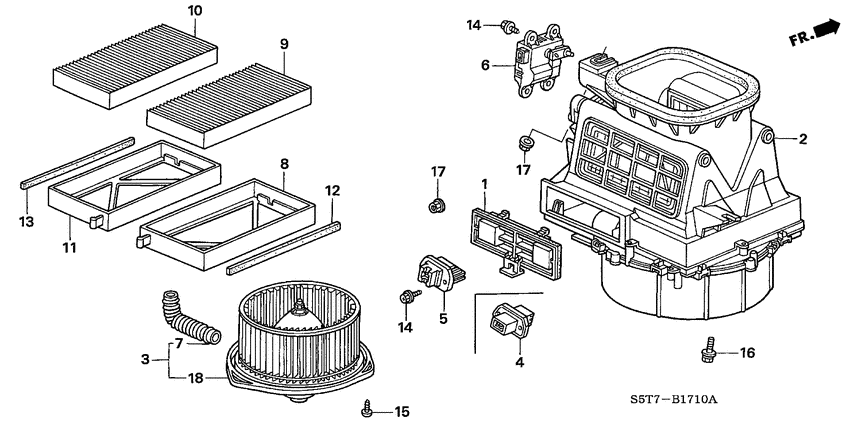

Heater blower (LH) 19

#	OEM	部品名
1	79303-S6A-013	Lid - FILTER
2	79305-S6D-G01	Blower sub assy.
3	79307-S6D-G03	Motor sub assy. - BLOWER
5	79330-S6A-941	Transistor - POWER
6	79350-S6D-G41	Motor assy. - FRESH & RECIRCULAR
7	79370-S2H-003	Hose - MOTOR COOLING
8	80291-SCA-E01	Plate assy. - BLOWER (A)
8	80291-SCA-E11	Frame, Filter (A)
9	80292-SCA-E11	Element - FILTER
10	80292-SCA-G01	Element - FILTER
11	80296-SCA-E01	Plate assy. - BLOWER (B)
11	80296-SCA-G01	Frame, Filter (B)
12	80297-SCA-E11	Seal - BLOWER PLATE
13	80297-SCA-G01	Seal - BLOWER PLATE
14	90122-S30-003	Screw - TAPPING, 5X12
15	90123-S30-003	Screw - TAPPING, 5X12
16	90156-SH3-000	Bolt-washer - 6X24
17	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
18	79310-S6D-G12	Motor assy. - FAN

Heater control (LH; 2) 3

#	OEM	部品名
1	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)
2	79600-S6D-S02	Control assy. - HEATER
11	79609-S5A-003	Bulb - NEO WEDGE (14V 100MA)

Heater unit (LH) 38

#	OEM	部品名
1	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
2	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
3	53747-SA5-003	Clip - POWER STEERING HOSE
4	79009-S6D-G01	Dummy - EXPANSION VALVE
5	79100-S5S-S12	Heater unit
5	79100-S5S-S02	Heater unit
6	79106-S5S-G41	Heater sub assy.
6	79106-S5S-S11	Heater sub assy.
7	79107-S6D-G01	Duct sub assy. - CASE
8	79110-S6D-G02	Core comp - HEATER
9	79140-S6D-G41	Motor assy. - MODE
10	79161-S6D-G41	Motor assy. - AIR MIX
13	79193-S6A-003	Bolt - FLANGE, 6X20
14	79194-S6A-003	Nut - 6MM
15	79544-S6D-G00	Cable, WATER VALVE CONTROL
16	79770-SE0-000	Grommet - WATER VALVE CABLE
17	80211-S5S-G21	Dummy - EVAPORATOR
18	80211-S6D-G12	Evaporator assy.
19	80215-S6A-003	Plate
20	80216-S6A-003	Insulator - EXPANSION VALVE
21	80220-S6A-013	Valve - EXPANSION
22	80271-S5A-000	Hose - DRAIN
24	80431-S6D-G01	Dummy - THERMOSTAT
25	80560-S6A-941	Thermistor - AIR CONDITIONER
26	80650-S6D-G40	Sub harness - AIR CONDITIONER
27	80871-ST7-000	O-ring - 5/8"
28	80872-ST7-000	O-ring - 1/2"
29	90122-S30-003	Screw - TAPPING, 5X12
30	90123-S30-003	Screw - TAPPING, 5X12
31	90124-S30-003	Screw-washer - 5X12
32	90125-S6A-003	Bolt - 5X35
33	90156-SH3-000	Bolt-washer - 6X24
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
36	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
37	91580-SM4-003	Clip - COUPLER(ORANGE)
38	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
42	79192-S6A-003	Packing - STUD BOLT

Hood (LH) 18

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
6	74120-S6A-E01	Lock assy - HOOD
9	74144-S6A-000	Rubber - RR. HOOD SEAL
10	74145-S6A-000	Stay - HOOD OPENER
11	74146-S6A-E01	Rubber - HOOD SEAL
12	74210-S5S-G01	Cowl top assy. - FR. DRIVER SIDE
13	74212-S5S-G00	Cover - HOOD HINGE DRIVER SIDE
14	74220-S5S-G01	Cowl top assy. - FR. PASSENGER SIDE
15	74222-S5S-G00	Cover - HOOD HINGE PASSENGER SIDE
16	74231-S6A-000	Valve - DRAIN
17	90108-S0A-003	Bolt - FLANGE, 6X15
18	90601-S30-003	Grommet - COWL TOP
19	90602-SJK-003	Clip - COWL TOP
20	90602-SX0-003	Clip - COWL TOP
21	90602-S2A-003	Clip - COWL TOP
22	90603-S2A-003	Grommet - COWL TOP
23	91501-SL4-003	Clip - FR. COWL
25	91518-SM4-003	Clip - TRUNK MOLDING

Ignition coil (1.4L/1.6L) 4

#	OEM	部品名
1	30520-PGK-A01	Coil comp - PLUG HOLE
1	30520-PVJ-A01	Coil comp - PLUG HOLE
2	30522-PFB-007	SEAL, PLUG HOLE
3	90207-RAA-A10	Nut - HEX. CAP, 6MM

Inner panels 1

#	OEM	部品名
40	90108-S0A-003	Bolt - FLANGE, 6X15

Instrument panel (LH) 14

#	OEM	部品名
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
6	77107-S5S-E00	Insulator - INSTRUMENT PANEL DRIVER
12	77150-S2X-003	Holder - INSTRUMENT UPPER
13	77170-S6A-000	Bracket - INSTRUMENT CENTER
18	77466-S2G-000	Seal - FR. INSTRUMENT
19	77550-S6A-G00	Frame comp - GLOVE BOX
21	77982-S04-N81	Holder - COUPLER (2P)
22	90101-S6A-000	Bolt-washer - 8MM
23	90106-S5H-000	Bolt-washer - 8X40
24	90140-SH3-003	Bolt-washer - 5X18
25	90157-SA0-000	Bolt-washer - 8X25
26	90321-SP0-A80	Nut-washer - 6MM
27	91640-SM4-003	Grommet - SCREW, 4MM
28	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH; DRIVER SIDE) 8

#	OEM	部品名
1	38205-S6A-S00	Label - FUSE
5	77235-S6A-003	Holder assy.
11	77628-S6A-G00	Label - OUTLET OPEN
12	77629-S6A-G00	Label - OUTLET SHUT
16	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18	90302-SA4-003	Nut - SPRING, 4MM
19	90665-S04-003	Clip - SNAP FITTING
20	90666-S84-A01	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 20

#	OEM	部品名
4	39610-S6A-003	Knob assy
5	39620-S6A-003	Housing assy.
6	39625-S6A-003	Ring - MOUNTING
7	66405-S04-010	Stay - GLOVE BOX HINGE
8	66417-SB3-670	Rubber - GLOVE BOX STOPPER
9	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
16	77255-S6A-G00	Bracket comp. - CENTER PANEL
17	77255-S6D-E01	Cap - CENTER
24	77506-S6A-000	Stopper - GLOVE BOX LID
27	77541-S6A-G10	Striker comp. - GLOVE BOX
28	77628-S6A-G00	Label - OUTLET OPEN
29	77629-S6A-G00	Label - OUTLET SHUT
33	77730-S5S-E01	Holder comp - FR.
34	88315-S6A-003	Spring - FIRE PROTECTOR
35	90101-S03-000	Screw - TAPPING, 4X16
36	90133-SM4-003	Bolt-washer - 5X16
37	90140-SH3-003	Bolt-washer - 5X18
38	90144-SM4-003	Screw - 4X12
40	90665-S04-003	Clip - SNAP FITTING
41	90666-S84-A01	Clip - SNAP FITTING

Intake manifold (1.4L/1.6L) 21

#	OEM	部品名
1	16176-PLA-G01	Packing - THROTTLE BODY
2	16450-PLC-003	Injector assy - FUEL (KEIHIN)
3	16451-PLC-000	Clip - INJECTOR
4	16610-PMA-G01	Damper assy. - PULSATION
5	16625-PLC-000	Stiffener - INJECTOR BASE
6	16638-PH3-S00	Insulator - FUEL PIPE
7	17050-PLC-000	Base, FR. INJECTOR
8	17055-PLD-004	Gasket - FR. INJECTOR BASE (NIPPON LEAKLESS)
9	17100-PLA-G01	Manifold comp - INTAKE
10	17105-PLA-G01	Packing - INTAKE MANIFOLD
11	17132-PLC-000	Stay comp - R. INTAKE MANIFOLD
12	17133-PLC-000	Stay comp - L. INTAKE MANIFOLD
13	17134-PLC-000	Plate - INTAKE MANIFOLD STAY
14	17201-PLC-000	Stay a - AIR CLEANER
15	17202-PLC-000	Stay b - AIR CLEANER
16	37830-PGK-A01	Sensor assy, MAP
17	37835-PGK-A01	O-ring
18	90201-PLC-003	Nut - SPECIAL, 8MM
19	90634-PLC-000	Cap - SEALING
20	91301-PLC-000	O-ring - 7.47X3.6
21	91302-PLC-000	O-ring - 7.85X3.53

Interior light 7

#	OEM	部品名
3	34251-S5A-003	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W
7	34261-S6D-E01	Lens comp
8	34262-S6D-E01	Cover
9	34295-S6D-E01	Bulb - 12V 5W
13	90131-S47-003	Screw - ET, 5X16

Knuckle 19

#	OEM	部品名
1	51210-S6D-G10	Knuckle comp - R. FR.
2	51215-S6D-G10	Knuckle comp - L. FR.
3	51225-S5A-003	Boot - LOWER BALL DUST
4	51300-S5S-G01	Spring - FR. STABILIZER
5	51306-S6D-005	Bush - STABILIZER HOLDER
6	51308-S5A-000	Holder - FR. STABILIZER
7	51320-S5A-003	RH FR. STABILIZER LINK
8	51321-S5A-003	LH FR. STABILIZER LINK
9	51350-S6D-G00	Arm comp - R. FR. LOWER
10	51360-S6D-G00	Arm comp - L. FR. LOWER
11	51391-S5A-024	Bush - FR. COMPLIANCE (YAMASHITA)
12	51392-S5A-004	Bush - FR. LOWER ARM (YAMASHITA)
13	57450-S6D-E01	Sensor assy - R. FR.
14	57455-S6D-E01	Sensor assy - L. FR.
15	90002-S10-000	Nut - FLANGE, 10MM
16	90118-S5A-000	Bolt - FLANGE, 14X91
17	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
18	90363-S47-000	Nut - LOWER ARM, 12MM
19	90701-SX0-003	Clip - UPPER ARM

Mainshaft (1.4L/1.6L) 16

#	OEM	部品名
1	23211-PLW-D00	Mainshaft
2	23261-PL3-000	Shaft - REVERSE GEAR
3	23440-PMW-A00	Gear comp - MAINSHAFT THIRD
4	23450-PMW-A00	Gear comp - MAINSHAFT FOURTH
5	23540-PLW-000	Gear - REVERSE IDLE
6	23581-PMW-A00	Gear - MAINSHAFT FIFTH
7	23623-PLW-305	Sleeve set - SYNCHRONIZER (3-4)
7	23623-PLW-315	Sleeve set
8	23626-PLW-305	Sleeve set - SYNCHRONIZER (5)
9	23647-PLW-000	Ring - TAPER CONE
10	23915-PHR-010	Collar - DISTANCE, 29X35X52
11	23916-PLW-000	Collar - DISTANCE, 26X35X12
12	23927-PL3-000	Washer - SPRING, 36MM
13	23928-PL3-000	Washer - 26MM
14	91004-PLW-A01	Bearing - BALL, 26X72X15.5
15	91105-PHR-003	Bearing - NEEDLE, 35X39X24

Meter components (NS; 1) 5

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37115-SA0-601	Packing - NS
5	78155-S6A-N01	Visor
6	78156-S6A-N01	Lens - METER
7	90302-SA4-003	Nut - SPRING, 4MM

Mirror (2) 15

#	OEM	部品名
1	76200-S5S-S51	Mirror assy - R. DOOR (R.C.)(HEATED)
2	76203-S6D-G21	Mirror sub assy. R. (SR1400) (HEATED)
3	76210-S6D-G21	Actuator comp. - R. (HEATED)
4	76215-S6D-G21	Actuator comp. - L. (HEATED)
6	76240-S6D-E11	Sealing - R. FOAM
7	76250-S5S-S51	Mirror assy - L. DOOR (R.C.) (HEATED)
8	76253-S6D-G21	Mirror sub assy. L. (SR1400) (HEATED)
10	76290-S6D-E11	Sealing - L. FOAM
11	76400-SEA-014	Mirror assy - RR. VIEW (DAY/NIGHT)
11	76400-SEA-004	Mirror assy - RR. VIEW (DAY/NIGHT)
12	90106-S5S-003	Screw - TAPPING, 3.5X12
13	90107-S5S-003	Screw - TAPPING, 5X12
14	90108-S5S-003	Washer
15	90615-SK7-003	Clip - MIRROR GARNISH
16	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Molding/side sill garnish 14

#	OEM	部品名
6	72410-S5S-E01	Molding assy. - R. FR. DOOR
7	72430-S5S-E01	Garnish - R. FR. DOOR SASH
8	72431-S2X-003	Clip - CENTER PILLAR GARNISH
9	72450-S5S-E01	Molding assy. - L. FR. DOOR
10	72470-S5S-E01	Garnish - L. FR. DOOR SASH
11	74306-S5S-E01	Molding assy. R. ROOF
12	74308-ST0-003	Bracket - ROOF MOLDING
13	74316-S5S-E01	Molding assy. L. ROOF
21	76222-SP1-003	Clip - DOOR MIRROR COVER
26	90142-S04-000	Screw - TAPPING, 4X10
32	91501-S5A-003	Clip - DOOR MOLDING
33	91503-SZ3-003	Clip A
35	91504-SP1-003	Clip - FR. FENDER LOWER
37	91513-S5S-E01	Clip - SIDE SILL GARNISH UPPER

Oil pump/oil strainer (1.4L/1.6L) 24

#	OEM	部品名
1	15100-PLC-003	Pump assy. - OIL (YAMADA)
1	15100-PLE-005	Pump assy. - OIL (AISIN)
2	15220-PLC-000	Strainer comp. - OIL
3	15221-PZ1-000	Packing - OIL STRAINER
4	15231-PM3-000	Valve - RELIEF
5	15232-PM3-000	Spring - RELIEF VALVE
6	15233-P2A-003	Bolt - SEALING, 14MM (YAMADA)
7	15302-PE0-300	Washer - SEALING, 14MM
8	15400-PLC-003	Cartridge - OIL FILTER (TENNEX)
8	15400-PLM-A01	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
8	15400-PLC-004	Cartridge, OIL FILTER (TOYO ROKI)
8	15400-PLM-A02	OIL FILTER (HONEYWELL)
9	15400-PR3-014	OIL FILTER (TOYO ROKI)
9	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
10	15400-PR3-315	Cartridge set - OIL FILTER (TOYO ROKI)
11	37500-PLC-015	CRANK SENSOR ASSY
12	37509-PLC-015	Grommet - CRANK SENSOR
13	90015-PH1-013	Holder - OIL FILTER
14	90042-PR3-000	Bolt - STUD, 6X28
15	91212-PLC-004	Oil seal - 38X50X7 (ARAI)
15	91212-PLC-003	Oil seal - 38X50X7 (NOK)
15	91212-PLM-A01	Oil seal - 38X50X7 (ARAI)
16	91308-PK1-003	O-ring - 26.2X2.4 (NOK)
16	91308-P3R-T01	O-ring - 26.2X2.4 (YAMADA SOMBOON)

Outer panels 11

#	OEM	部品名
18	73219-693-951	Seal - FUEL LID OPENER (GREEN)
19	74411-S5S-G00	Cable - FUEL LID OPENER
20	74421-SS1-010	Spring - FUEL LID OPENER
21	74422-ST5-000	Cushion - FUEL FILLER LID
22	74423-S1A-E01	Holder - FUEL CAP
25	75450-S2K-000	Outlet assy - RR. AIR
26	90103-SM4-010	Bolt - FLANGE, 6X18
27	90103-SS1-000	Bolt - FUEL FILLER LID
28	90684-SD4-003	Clip - FUEL LID OPENER
29	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
30	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

P.s. gear box (EPS; LH) 18

#	OEM	部品名
1	53010-S5S-000	Bush set - STEERING GEAR BOX MOUNTING
2	53434-S5D-A01	Bracket b - STEERING GEAR BOX
4	53438-S5A-G01	Bracket - R. STEERING GEAR BOX
7	53501-S5A-000	Grommet - STEERING
8	53521-S5A-003	Rod sub assy. - TIE (###)
9	53536-S5A-900	Washer - TIE ROD LOCK
10	53541-S5A-000	Rod assy - TIE
11	53541-S5A-003	End comp - TIE ROD
12	53546-S84-003	Boot - TIE ROD END (NOK)
13	53606-S5A-G52	Box assy - POWER STEERING GEAR
14	53685-S6M-000	Bush - STEERING GEAR BOX MOUNTING
15	53686-S5A-010	Collar - STEERING GEAR BOX MOUNTING (A)
16	90108-S5A-000	Bolt - GEAR BOX MOUNTING
17	90301-S5A-003	Nut - HEX.
18	90450-S5A-020	Nut - FLANGE, 10MM
19	90505-S5A-000	Washer - PLAIN, 10MM
20	90506-S5A-010	Washer - PLAIN, 10MM
21	90801-S5A-000	BOLT, FLANGE, 8X25

P.s. gear box components (EPS; LH) 19

#	OEM	部品名
1	53413-SCC-003	Spring - RACK GUIDE PRESSURE
2	53414-S5A-003	Screw - RACK GUIDE
3	53416-S5A-J02	Guide - STEERING RACK
4	53418-S5A-003	Washer - DISK
5	53448-S5A-J01	Band b - BELLOWS
6	53449-S5A-J01	Band a - BELLOWS
7	53455-S5A-003	Ring b - STOPPER
8	53457-S5A-003	Lock - SCREW
9	53458-SM4-J60	Nut - RACK SCREW LOCK
10	53535-S5A-003	Washer - LOCK
11	53602-S5A-G51	Motor comp
12	53603-S5A-J01	Boot set
13	53604-S5A-003	Bracket
14	53605-S5A-003	Slider
15	53611-S5A-G01	Housing comp - SLIDER
16	53662-S5A-003	O-ring - 11.5X1.5
17	90105-S0A-003	Bolt - FLANGE, 8X25
18	90455-S5A-003	Bolt - FLANGE, 12X40
19	91351-S5A-003	O-ring - MOTOR

Parking brake 10

#	OEM	部品名
2	47342-S6A-E11	Switch - PARKING BRAKE
3	47360-S1A-E01	Equalizer
4	47365-SN7-003	Pin - EQUALIZER
5	47510-S5S-E04	Wire b - R. PARKING BRAKE
7	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING
8	47537-SN7-003	Spring - PARKING BRAKE ROD
9	47560-S5S-E04	Wire b - L. PARKING BRAKE
11	47571-S5S-E02	Stay - WIRE BASE GUIDE
12	47572-ST0-000	Base - WIRE GUIDE
13	47577-S5S-E00	Guard - BRAKE WIRE

Pedal (LH) 26

#	OEM	部品名
2	17800-S6M-A03	Pedal assy - ACCELERATOR
3	17818-S5A-A01	Stopper - ACCELERATOR STROKE
4	17910-S6A-G01	Wire - THROTTLE
5	17921-SA4-730	Seal - THROTTLE CABLE
6	17930-S5A-A00	Clamp - THROTTLE WIRE
8	17931-S6A-G00	Clamp - THROTTLE WIRE
9	17931-S6A-020	Clamp - THROTTLE WIRE
11	17932-S6A-000	Clamp - THROTTLE WIRE
12	35350-S5A-J03	Switch assy - STOP (TOYO)
12	35350-S5A-J01	Switch assy - STOP (MATSUSHITA)
19	46505-SA5-000	Pad - PEDAL STOPPER
20	46505-SA7-000	Pad - PEDAL STOPPER
21	46530-S5A-003	Spring assy - PEDAL RETURN
22	46545-SA5-000	Cover, Pedal
24	46600-S5A-G01	Pedal assy - BRAKE
25	46900-S6A-G01	Pedal assy - CLUTCH
26	46905-SK7-000	Stopper - CLUTCH PEDAL
27	46907-S5A-A01	Spring - CLUTCH RETURN
28	46911-SD4-930	Bush - PEDAL PIN
29	46981-S2A-003	Bush a - CLUTCH ASSISTANT
30	46982-S2A-003	Bush b - ASSISTANT
31	46991-S5A-A01	Bracket comp. - FOOTREST
32	46992-SV4-003	Clip - FOOTREST
33	90207-PG6-010	Nut - CAP, 6MM (BLACK)
34	90301-SP0-003	Nut - PAINT CUTTING, 6MM
35	90301-S5A-000	Nut - PAINT CUTTING, 6MM

Pillar garnish (LH) 5

#	OEM	部品名
1	72315-S5S-E01	Seal - R. FR. DOOR OPENING
2	72355-S5S-E01	Seal - L. FR. DOOR OPENING
11	91560-S6A-003	Clip - DOOR LINING(ORANGE)
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
13	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Piston/crankshaft (1.4L/1.6L) 31

#	OEM	部品名
1	13010-PLA-G00	Piston set - STD.
1	13020-PLA-G00	Piston set - OS 0.25
1	13030-PLA-G00	Piston set - OS 0.50
2	13031-PLD-004	Ring set - PISTON (OS 0.50)
2	13011-PLD-004	Ring set - PISTON (STD.)
2	13021-PLD-004	Ring set - PISTON (OS 0.25)
3	13112-PE0-000	Pin - PISTON
4	13204-PE1-003	Bolt
5	13205-634-010	Nut
6	13210-PLA-G00	Rod comp - CONNECTING
7	13216-PLA-G02	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13211-PLA-G02	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13217-PLA-G02	Bearing g - CONNECTING ROD (RED) (TAIHO)
7	13212-PLA-G02	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
7	13213-PLA-G02	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13214-PLA-G02	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
7	13215-PLA-G02	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
8	13310-PLA-G00	Crankshaft
9	13323-PLC-004	Bearing c - MAIN (BROWN) (TAIHO)
9	13324-PLC-004	Bearing d - MAIN (GREEN) (TAIHO)
9	13325-PLC-004	Bearing e - MAIN (YELLOW) (TAIHO)
9	13326-PLC-004	Bearing f - MAIN (PINK) (TAIHO)
9	13321-PLC-004	BEARING A - MAIN (BLUE) (TAIHO)
9	13327-PLC-004	Bearing g - MAIN (RED) (TAIHO)
9	13322-PLC-004	Bearing b - MAIN (BLACK) (TAIHO)
10	13331-PLC-004	Washer - THRUST (TAIHO)
11	13621-PLD-013	Pulley - TIMING BELT DRIVE
12	13622-PLC-000	Plate - TIMING BELT GUIDE
13	13810-PLC-003	Pulley comp - CRANKSHAFT
14	90017-PLC-003	Bolt-washer - 14X36
15	90704-634-000	Key - 4.5X11.0

Radiator (CALSONIC; 1.4L /1.6L) 12

#	OEM	部品名
1	19010-PMA-E01	Radiator comp - CALSONIC
2	19011-P1K-E01	Plug - DRAIN (CALSONIC)
3	19012-P1K-E01	O-ring - CALSONIC
4	19015-PMA-E01	Shroud comp.
5	19020-PMA-E01	Fan comp - COOLING
6	19030-PMA-E01	Motor - COOLING FAN
7	19045-PMA-E01	Cap comp.
8	19046-PMA-E01	Label - CAUTION
10	90041-PMA-E01	Nut - 5MM
11	90042-P1K-E01	Bolt - FLANGE
12	90050-PMA-E01	Screw-washer - 4X12
13	90403-PMA-E01	Spacer - FAN

Radiator hose (1.4L/1.6L) 13

#	OEM	部品名
1	17163-PH7-300	Collar - MANIFOLD COVER MOUNTING
2	19101-PLC-000	Tank - RESERVE
3	19103-PLC-000	Hose a - RESERVE TANK
4	19104-PLC-000	Hose comp. - RESERVE TANK
5	19105-PLC-000	Joint
6	19109-PH1-620	Cap - FILLER
7	19501-PLC-E00	Hose - WATER UPPER
8	19502-PLD-E00	Hose - WATER LOWER
9	19511-P08-004	Clip - WATER HOSE (KATO HATSUJO)
9	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
15	74171-S5A-000	Bracket - RADIATOR MOUNT UPPER
16	74172-SR3-000	Cushion - RADIATOR MOUNTING LOWER
17	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER

Rear brake (DRUM) 24

#	OEM	部品名
1	04431-S5S-E50	Shoe kit - RR. BRAKE
2	04432-S5S-E01	Adjuster assy - R. AUTOMATIC
3	04433-S5S-E01	Adjuster assy - L. AUTOMATIC
4	04434-S5S-E01	Repair kit - WHEEL CYLINDER
5	04435-S5S-E01	Shoe kit - RETAINING
6	42200-S5A-008	Bearing assy - RR. HUB UNIT
7	42326-S5A-000	Cap - HUB UNIT
7	42326-SLA-000	Cap - HUB UNIT
8	42610-S5A-000	Drum - RR. BRAKE
9	43110-S5S-E01	Plate comp - R. RR. BRAKE BACK
10	43120-S5S-E01	Plate comp - L. RR. BRAKE BACK
11	43171-S5S-E01	Spring - EXTENSION
12	43172-S5S-E01	Spring - EXTENSION
13	43300-S5S-E01	Cylinder assy. - R. RR. WHEEL
14	43301-S5S-E01	Cylinder assy. - L. RR. WHEEL
15	43305-S1A-E61	Bolt
16	43345-ST3-E01	Plug - INSPECTION
17	43353-ST3-E01	Cap - BLEEDER SCREW
18	45352-S5S-E01	Screw - BLEEDER
19	90001-SH3-000	Bolt - FLANGE, 10X13
20	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
20	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
20	90113-SA0-006	Bolt - WHEEL (SAGA)
21	90305-S30-003	Nut - SPINDLE

Rear lower arm 23

#	OEM	部品名
1	52210-S5A-020	Knuckle comp - R. RR.
3	52215-S5A-020	Knuckle comp - L. RR.
11	52352-S5A-A01	Protector - RR. LOWER ARM
12	52364-S5A-004	BUSH, REAR LOWER ARM INNER
12	52364-S6M-004	BUSH, REAR LOWER ARM INNER
13	52365-S5A-024	Bush - RR. LOWER ARM OUTER
14	52366-S5A-024	Bush b - RR. LOWER ARM
15	52370-S6D-G00	Arm comp - R. RR. TRAILING
16	52371-S6D-G00	Arm comp - L. RR. TRAILING
17	52387-S7A-000	Bolt - TRAILING ARM ADJUST
18	52388-S7A-013	Plate - CAM
19	52390-S5A-981	Arm comp - RR. UPPER
20	52395-S5A-004	Bush - RR. UPPER ARM
21	57470-S5D-013	Sensor assy - R. RR.
22	57475-S6D-E01	Sensor assy - L. RR.
23	90002-S10-000	Nut - FLANGE, 10MM
24	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
25	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)
26	90396-S5A-000	Bolt - FLANGE, 12X75
27	90397-S5A-000	Bolt - FLANGE, 12X48
27	90186-SR3-000	Bolt - FLANGE, 12X48
28	90398-S5A-000	Bolt - FLANGE, 12X81.5
29	90399-S5A-000	Bolt - FLANGE, 12X73

Rear seat 18

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
7	82122-S5S-S11	Pad assy - R. RR. SEATBACK
8	82126-S5S-G11	Frame comp - R. RR. SEATBACK
10	82129-S5T-003	Bolt - SEATBELT, 6MM
11	82129-S6A-000	Collar - RR. SEAT PIVOT
13	82132-S5S-G01	Pad & frame comp. - RR. SEAT CUSHION
14	82137-S5A-003	Clip - RR. SEAT CUSHION
20	82225-S5S-003	Striker comp. - RR. SEAT
21	82228-S6A-E01	Collar - RR. SEATBACK SETTING
22	82291-S04-000	Cover - RR. CENTER PIVOT
23	82292-S04-000	Collar - RR. CENTER SEAT PIVOT
26	82295-S5S-003	Bracket assy - CENTER SEAT PIVOT
28	82522-S5S-G11	Pad assy - L. RR. SEATBACK
29	82526-S5S-G01	Frame comp - L. RR. SEATBACK
32	90128-SA7-000	Bolt-washer - 6X25
33	90139-S5S-000	Bolt - FLANGE, 8X30
34	90610-SR3-003	Clip - GARNISH (KATO)

Rear shock absorber 18

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	52690-S5A-004	Plate - BUMP STOP
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
4	52441-S5A-A22	Spring - RR. (SHOWA)
5	52610-S5S-G35	Absorber assy - R. RR. SHOCK
6	52611-S5S-G25	Absorber unit - RR. SHOCK
7	52620-S5S-G35	Absorber assy - L. RR. SHOCK
8	52622-S5A-004	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING
10	52675-S5A-004	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING
12	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT
13	52686-S5A-004	Rubber - RR. SPRING MOUNTING
14	52687-S5A-014	Cover - RR. DUST
15	52689-S5A-004	Cover - RR. BUMP STOP
16	52722-S5A-004	Rubber - BUMP STOPPER
18	90181-S84-A00	Bolt - TRAILING ARM, 12X68
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear under spoiler 7

#	OEM	部品名
2	90126-SR4-000	Screw-washer - 5X16
3	90141-S5T-G01	Bolt - BUMPER SPOILER
4	90303-S5T-G00	Nut - GARNISH, 6MM
5	90305-SH3-000	Nut - AIR SPOILER CLIP
6	90345-S04-000	Nut - SUSPENSION, 5MM
7	90126-SA7-000	Screw-washer - 5X20
7	90114-SZ3-000	Screw-washer - 5X20

Rear windshield/ quarter glass 16

#	OEM	部品名
1	04733-S5S-E00	Rubber set - RR. WINDSHIELD DAM
1	04733-S5S-305	RUBBER SETRR WSH
2	73211-S5S-E00	Glass set - RR. WINDSHIELD (GREEN)(SPLINTEX)
3	73511-S5S-E00	Glass - R. QUARTER (GREEN) (SPLINTEX)
4	73525-S5S-E00	Rubber - QUARTER WINDSHIELD DAM
5	73561-S5S-E00	Glass - L. QUARTER (GREEN) (SPLINTEX)
6	73810-S5S-E01	Seal - R. FR. QUARTER GLASS
7	73850-S5S-E01	Seal - L. FR. QUARTER GLASS
8	76707-S6D-E00	Seal a
9	91501-S2R-003	Clip - QUARTER WINDSHIELD
10	91501-S70-003	Fastener b - WINDSHIELD
11	91502-S5S-E00	Clip b - QUARTER GLASS
12	91502-S70-003	Fastener b - RR. WINDSHIELD
13	91506-S47-003	Clip c - QUARTER WINDOW
14	91536-SS0-J01	Fastener a - WINDSHIELD
15	91536-S5S-E01	Fastener a - SPOILER

Rear wiper 11

#	OEM	部品名
1	76700-S5S-E01	Motor assy. - RR. WINDSHIELD WIPER
2	76701-S6D-E01	Rubber - MOUNTING
3	76702-S6D-E01	Collar
4	76706-S1C-E01	Washer a - SPECIAL
5	76708-S1C-E01	Washer b - SPECIAL
6	76709-S6D-E01	Nut - 16MM
7	76711-S1C-E01	Cap - PIVOT
8	76720-S6D-E01	Arm - RR. WIPER
9	76721-S6D-E01	Cap
10	76730-S6D-E01	Blade - RR. WIPER (300MM)
11	90001-S6D-E00	Nut - HEX., 8MM

Resonator chamber (1.4L/1.6L) 18

#	OEM	部品名
1	17212-PLC-000	Rubber - AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
3	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING
5	17230-PLD-000	Chamber assy - RESONATOR
6	17231-PLC-010	Stay assy. a - AIR INTAKE
7	17232-PLC-000	Stay b - AIR INTAKE TUBE
8	17234-PLC-300	Cover comp. - RESONATOR STAY
9	17235-PLC-000	Stay a - AIR INTAKE PIPE
10	17243-PLC-000	Tube assy. b - AIR INTAKE
11	17244-PLC-000	Tube - AIR INTAKE CONNECTING
12	17255-PLC-000	Collar - AIR INTAKE
13	17256-PD6-000	Rubber - RESONATOR MOUNTING
14	17263-P0A-000	Rubber - AIR CLEANER STAY
16	32744-PLM-A00	Stay d - ENGINE HARNESS
17	75353-671-000	Lock - SCREW
18	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
19	90006-PN4-000	Bolt-washer - SPECIAL, 6X25

Roof lining 2

#	OEM	部品名
12	90131-SH3-A12	Screw - PAN, 5X16
13	91562-S0X-A01	Clip - ROOF LINING (BLACK)

Seatbelts 8

#	OEM	部品名
6	81491-S5S-000	Protector - R. FR. SEATBELT
10	81891-S5S-000	Protector - L. FR. SEATBELT
11	82127-S6A-E01	Cover - RR. SEATBACK ELR
19	90101-S84-A00	Screw - ET, 6X16
19	90133-SZ4-003	Screw - ET, 7X16
20	90134-SE3-003	Screw - TAPPING, 5X10
21	90135-S1F-003	Bolt - FLANGE, 7/16"
22	90142-S6A-J01	Bolt-washer - 7/16"X28

Shift arm/shift lever (1.4L/1.6L) 16

#	OEM	部品名
1	21396-P20-000	Cap - BREATHER
2	21500-PLW-010	Cover comp. - SHIFT ARM
3	24411-PLW-000	Arm - SHIFT
4	24430-PLW-000	Interlock comp.
5	24460-PLW-010	Lever comp - SELECT
6	24464-PLW-000	Spring - SELECT
7	24466-PHR-000	Collar - SELECT SPRING
8	24467-PLW-000	Plate - SELECT SPRING
9	24470-PLW-010	Lever comp - SHIFT
10	24475-PWL-000	Cover - DUST
11	24479-PWL-000	Cover - SHIFT LEVER
12	90029-611-010	Bolt - HEX., 8X24
13	90412-679-000	Washer - CONICAL SPRING, 8MM
14	91209-PE9-005	Dust seal - 16X23X5(NOK)
14	91209-PE9-003	Dust seal - 16X23X5(ARAI)
15	91215-PHR-003	Oil seal - 18X30X7(NOK)

Shift fork/shift holder (1.4L/1.6L) 9

#	OEM	部品名
1	24201-PLW-000	Fork comp - FIFTH SHIFT
2	24210-PLW-000	Fork comp - GEARSHIFT (3-4)
3	24220-PLW-000	Fork comp - GEARSHIFT (1-2)
4	24230-PLW-010	Holder comp - REVERSE SHIFT
5	24243-PLW-000	Piece - FIFTH & REVERSE SHIFT
6	24440-PLW-000	Cam comp - REVERSE LOCK
7	90028-PB6-010	Bolt - SPECIAL, 6X22.5
8	90029-611-010	Bolt - HEX., 8X24
9	90412-679-000	Washer - CONICAL SPRING, 8MM

Shift lever 10

#	OEM	部品名
1	54100-S5S-003	Lever sub assy. - CHANGE
4	54117-S6A-003	Rubber - FLOATING
5	54119-S30-003	Collar - FLOATING
6	54310-S6A-E02	Wire comp - CHANGE
7	54357-SN7-000	Plate - CHANGE WIRE
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM
10	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
11	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
12	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
13	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Side lining 13

#	OEM	部品名
1	74514-S5S-E00	Seal - R. QUARTER HOLE
2	74554-S5S-E00	Seal - L. QUARTER HOLE
7	83738-S5S-E01	Rivet
8	83739-S5S-E01	Buckle assy - SEATBELT
15	84433-S5S-E00	Strap comp
17	84521-S5S-G00	Lid comp - SPARE TIRE
21	90137-S1A-E01	Screw - ET, 6X18
21	90134-S30-003	Screw - EARTH, 5X18
22	90302-SN7-E00	Nut - SPRING, 4MM
25	90668-ST3-E01	Clip - SIDE LINING
26	90670-SG0-003	Grommet - SCREW, 4MM
28	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
29	91560-S9A-A01	Clip - DOOR LINING (LIGHT BLUE)

Side skirts primer coated 3

#	OEM	部品名
8	71804-S5A-R00	Stay assy - SIDE SILL GARNISH
9	91503-SZ3-003	Clip A
10	90104-SR2-003	Bolt c - BUMPER

Srs unit (LH) 7

#	OEM	部品名
1	77900-S6A-G01	Reel assy - CABLE (SUMITOMO)
1	77900-S6A-G02	Reel assy - CABLE (FURUKAWA)
2	77930-S6A-N91	Sensor assy - R. FR. SIDE
3	77940-S6A-N91	Sensor assy - L. FR. SIDE
4	77960-S5S-G92	Srs unit - SIEMENS
5	77970-S5S-G92	Sensor assy - SIDE IMPACT
6	90137-S84-A01	Bolt - TORX EARTH, 6X20

Starter motor (DENSO; 2) 19

#	OEM	部品名
1	30201-PH9-004	Ring - SNAP (DENSO)
2	30202-PZ1-003	Collar set - CLUTCH STOP
3	31200-PLC-T01	Motor assy. - STARTER (DDVDH) (DENSO)
4	31203-PN4-003	Lever - PINION DRIVE
5	31204-PLR-A01	Switch comp - MAGNETIC
6	31206-PH9-004	Armature comp.
7	31207-ZG4-611	Clutch comp. - OVERRUNNING
8	31210-PH9-004	Bearing b
9	31211-PH9-004	Brush
10	31212-PH9-004	Spring - BRUSH
11	31213-P64-N01	Cover
12	31214-PH9-004	Bolt - THROUGH
13	31218-P64-N01	Yoke comp.
14	31220-PH9-004	Nut - HEX., 8MM
15	31223-PA0-006	Nut - HEX.
16	31231-PH9-004	Holder - BRUSH
17	31233-PH9-004	Insulator - BRUSH HOLDER
18	31291-PLC-T01	Stay - COUPLER
20	91002-ZG4-801	BEARING A

Steering column 5

#	OEM	部品名
1	53200-S5S-G01	Column assy - STEERING
2	53323-S5A-003	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS; 1) 3

#	OEM	部品名
5	78525-S5S-N61	Guide - CORD
6	90134-S6A-A80	Bolt - HEX., 6X23
7	90163-S04-000	Nut - STEERING WHEEL

Switch (LH) 4

#	OEM	部品名
3	35510-S6A-J01	Switch assy - HAZARD
6	35850-S7A-G01	Bulb comp. - 14V 60MA
7	35850-S6A-J01	Bulb comp. - 14V 60MA
8	35910-S04-G01	Switch assy - INERTIA

Tailgate 28

#	OEM	部品名
11	72113-SR4-004	Snap - BLACK
12	72117-S04-003	Holder - ROD (YELLOW)
13	74440-S5S-E11	Weatherstrip - TAILGATE
14	74801-S5S-E11	Lock - TAILGATE
16	74810-S6A-003	Handle assy - TAILGATE
17	74813-S6D-E01	Striker assy - TAILGATE
18	74815-S5S-E11	Rod - TAILGATE CYLINDER
19	74816-S2G-003	Band
20	74820-S5S-E01	Stay assy - R. TAILGATE OPEN
21	74829-S1C-E00	Stopper - TAILGATE
22	74830-S5S-E01	Cable - TAILGATE OPENER
23	74861-S5T-A51	Cylinder - TRUNK
26	74870-S5S-E01	Stay assy - L. TAILGATE OPEN
28	74896-S1C-E11	Actuator assy - TAILGATE
29	90101-S50-003	Screw-washer - 3X22
30	90102-SV4-003	Bolt-washer - 6X12
32	90105-S5S-E01	Bolt - SPOILER, 6X10
33	90105-634-000	Bolt-washer (8x20)
34	90107-S2G-003	Bolt - TAILGATE LOCK
35	90108-S6D-E01	Stud - BALL
36	90111-SK3-E00	Stud-ball - TAILGATE
37	90120-SV4-000	Bolt - LOCK STRIKER
38	90303-S5S-E00	Nut - 6MM
39	90501-SAA-003	Washer
40	90501-SL9-003	Clip - LICENSE GARNISH
41	90661-SC7-003	Grommet - SCREW, 5MM
42	91501-S5S-E01	Fastener b - SPOILER
43	91580-SM4-003	Clip - COUPLER(ORANGE)

Tailgate lining 7

#	OEM	部品名
3	84432-SH3-000	Stopper - CENTER SHELF
5	84436-S1C-E00	Pin - SHELF STRAP
10	90662-SB2-003	Grommet - SCREW, 5MM
11	90666-S84-A01	Clip - SNAP FITTING
13	91560-SP0-003	Clip - DOOR LINING (GRAY)
13	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
15	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Taillight/license light 22

#	OEM	部品名
1	33302-ST7-A01	Plug - SOCKET
2	33302-ST7-003	Socket comp.
3	33501-S5S-G31	Lamp unit - R. TAIL
4	33502-S5S-G01	Gasket - BASE
5	33506-SJ6-004	Bulb - 12V 18W) (KOITO
6	33511-S5P-A01	Socket comp. - T16
7	33514-S2A-003	Socket comp - PY21W
8	33551-S5S-G31	Lamp unit - L. TAIL
9	34101-S5T-003	Lens comp
10	34102-S60-003	Housing comp
11	34103-S60-003	Gasket
12	34270-S6A-003	Light assy - HIGH MOUNT STOP
13	34351-SN7-G00	Bulb - POSITION (12V 5W)
14	34901-SB0-671	Bulb - 12V 5W 3CP) (STANLEY
15	34903-ST3-E00	Bulb - 12V 21W) (AMBER
16	34908-ST3-E01	Bulb - 12V 21W
17	34911-ST3-E01	Bulb - 12V 21-5W
18	74890-S5S-E01	Garnish assy - RR. LICENSE
19	90303-S2G-003	Nut - 6MM
20	90501-SL9-003	Clip - LICENSE GARNISH
21	90650-S5A-003	Grommet - RR. COMBINATION LIGHT
22	91512-S50-003	Clip - LICENSE GARNISH

Throttle body (1.4L/1.6L) 12

#	OEM	部品名
1	16022-PLC-003	Valve set - ROTARY AIR CONTROL
2	16400-PLC-J01	Throttle Body Assy - GY72A
2	16400-PLC-J03	Throttle Body Assy - GY72A
2	16400-PLC-J02	Throttle Body Assy - GY72A
3	16411-PLC-000	Stay - THROTTLE WIRE
4	16412-PLC-000	Stay comp - PURGE CONTROL SOLENOID
5	16456-PLE-J01	Seal - ROTARY AIR CONTROL RING
6	36162-PLC-003	Valve - PURGE CONTROL SOLENOID
7	36166-PLA-G01	Joint - PURGE
8	36167-PLC-010	Tube a - PURGE
9	36168-PLA-G00	Tube b - PURGE
10	36169-PLA-G00	Tube c - PURGE

Tire/wheel disks 38

#	OEM	部品名
1	42700-S6D-E91	Disk - WHEEL (15X4T) (DUNLOP)
3	42700-S6D-E01	Disk - WHEEL (14X5 1/2J) (DUNLOP) (BLACK)
6	42751-SV4-905	Tire - T125/70D15 95M) (BRIDGESTONE
6	42751-SV4-906	Tire - T125/70D15 95M) (DUNLOP
6	42751-S6D-901	Tire - T125/70D15 95M) (MICHELIN
7	42751-S6D-G23	Tire - 185/70R14 88H) (BRIDGESTONE
7	42751-S6D-G24	Tire - 185/70R14 88H) (DUNLOP
8	42753-SK3-000	Valve - RIM(A.R.G.)
8	42753-SG9-000	Valve - RIM(A.R.G.)
8	42753-SN8-E00	Valve - RIM
9	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
9	42767-SS0-G20	Plate - SPARE TIRE CAUTION (T-TYPE) (GERMANY)
10	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
12	44727-SEA-004	Weight - BALANCE (15G) (TOHO)
12	44721-SEA-004	Weight - BALANCE (10G) (TOHO)
12	44726-SEA-004	Weight - BALANCE (5G) (TOHO)
12	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)
12	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)
12	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)
12	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)
12	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)
12	44729-S5A-A00	Weight - BALANCE (35G) (SP)
12	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)
12	44723-S5A-A00	Weight - BALANCE (30G) (SP)
12	44728-S5A-A00	Weight - BALANCE (25G) (SP)
12	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)
12	44722-S5A-A00	Weight - BALANCE (20G) (SP)
12	44727-S5A-A00	Weight - BALANCE (15G) (SP)
12	44721-S5A-A00	Weight - BALANCE (10G) (SP)
12	44726-S5A-A00	Weight - BALANCE (5G) (SP)
12	44729-SEA-004	Weight - BALANCE (35G) (TOHO)
12	44723-SEA-004	Weight - BALANCE (30G) (TOHO)
12	44728-SEA-004	Weight - BALANCE (25G) (TOHO)
12	44722-SEA-004	Weight - BALANCE (20G) (TOHO)
16	44733-S5S-G00	Trim - WHEEL (14")
18	83850-SH3-000	Plate - ANCHOR BOLT
19	83853-SX0-000	Bolt - ANCHOR
20	90381-SV1-981	Nut comp. - WHEEL (SATO RASHI)

Tools/jack 6

#	OEM	部品名
2	89000-S5S-E01	Tool set
6	89101-S6D-E01	Bag - TOOL
7	89211-SCA-E00	Wrench - WHEEL
8	89310-SDA-A01	Jack assy - PANTOGRAPH
9	89311-SDA-A01	Label - JACK CAUTION
10	89320-SCA-E00	Bar - JACK

Trailer harness 7pin 1

#	OEM	部品名
10	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)

Transmission case (1.4L/1.6L) 53

#	OEM	部品名
1	21104-PHR-000	Plate m - OIL GUIDE
2	21210-PLW-A00	Case - TRANSMISSION
3	21211-PLW-000	Plate - OIL GUTTER
4	21222-PLW-000	Stay - RESONATOR
5	23946-P21-000	Shim p - 72MM(1.05)
5	23941-P21-000	Shim k - 72MM(0.90)
5	23968-P21-000	Shim al - 72MM(1.71)
5	23936-P21-000	Shim f - 72MM(0.75)
5	23931-P21-000	Shim a - 72MM(0.60)
5	23963-P21-000	Shim ag - 72MM(1.56)
5	23958-P21-000	Shim ab - 72MM(1.41)
5	23953-P21-000	Shim w - 72MM(1.26)
5	23948-P21-000	Shim r - 72MM(1.11)
5	23943-P21-000	Shim m - 72MM(0.96)
5	23970-P21-000	Shim an - 72MM(1.77)
5	23938-P21-000	Shim h - 72MM(0.81)
5	23933-P21-000	Shim c - 72MM(0.66)
5	23965-P21-000	Shim ai - 72MM(1.62)
5	23960-P21-000	Shim ad - 72MM(1.47)
5	23955-P21-000	Shim y - 72MM(1.32)
5	23950-P21-000	Shim t - 72MM(1.17)
5	23945-P21-000	Shim o - 72MM(1.02)
5	23940-P21-000	Shim j - 72MM(0.87)
5	23967-P21-000	Shim ak - 72MM(1.68)
5	23935-P21-000	Shim e - 72MM(0.72)
5	23962-P21-000	Shim af - 72MM(1.53)
5	23957-P21-000	Shim aa - 72MM(1.38)
5	23952-P21-000	Shim v - 72MM(1.23)
5	23947-P21-000	Shim q - 72MM(1.08)
5	23942-P21-000	Shim l - 72MM(0.93)
5	23969-P21-000	Shim am - 72MM(1.74)
5	23937-P21-000	Shim g - 72MM(0.78)
5	23932-P21-000	Shim b - 72MM(0.63)
5	23964-P21-000	Shim ah - 72MM(1.59)
5	23959-P21-000	Shim ac - 72MM(1.44)
5	23954-P21-000	Shim x - 72MM(1.29)
5	23949-P21-000	Shim s - 72MM(1.14)
5	23944-P21-000	Shim n - 72MM(0.99)
5	23971-P21-000	Shim ao - 72MM(1.80)
5	23939-P21-000	Shim i - 72MM(0.84)
5	23934-P21-000	Shim d - 72MM(0.69)
5	23966-P21-000	Shim aj - 72MM(1.65)
5	23961-P21-000	Shim ae - 72MM(1.50)
5	23956-P21-000	Shim z - 72MM(1.35)
5	23951-P21-000	Shim u - 72MM(1.20)
6	24455-PHR-000	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
8	28700-PWL-003	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
9	90081-PB6-000	Bolt - PLUG, 14MM
10	90081-PX5-000	Screw - SEALING, 32MM
11	90380-S04-000	Bolt - STUD, 12X73
12	90401-P8A-A00	Washer - DRAIN, 18MM
13	91206-PHR-003	Oil seal - 35X58X8 (NOK)

Valve/rocker arm (1.4L) 16

#	OEM	部品名
1	14621-P2A-000	Arm comp. a - INTAKE ROCKER
2	14622-P2A-000	Arm comp. b - INTAKE ROCKER
3	14623-P2A-000	Arm comp. a - EX. ROCKER
4	14624-P2A-000	Arm comp. b - EX. ROCKER
5	14632-P2A-000	Collar a - INTAKE ROCKER
6	14645-P08-000	Spring - ROCKER ARM
7	14646-P2A-000	Spring - ROCKER ARM
8	14711-P1J-E00	Valve - IN.
9	14721-P1J-E00	Valve - EX.
10	14744-PM3-000	Screw - TAPPET ADJUSTING
11	14761-P2A-003	Spring - VALVE (SKY BLUE) (NIPPON HATSUJO)
12	14765-P08-000	Retainer - VALVE SPRING
13	14775-P08-000	Seat - VALVE SPRING
14	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
15	15140-P2A-000	Orifice assy - OIL PATH
16	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose (1.4L/1.6L) 2

#	OEM	部品名
1	19506-PLC-010	Hose - ROTARY AIR CONTROL VALVE IN.
2	19507-PLC-010	Hose - ROTARY AIR CONTROL VALVE OUTLET

Water pump/sensor (1.4L/1.6L) 26

#	OEM	部品名
1	18011-PLM-A01	Valve set - EGR
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-PLM-A01	Pump comp - WATER
4	19222-P08-004	O-ring - WATER PUMP (YAMADA)
4	19222-PDF-E00	O-ring - WATER PUMP
5	19301-PLC-315	Thermostat assy - FUJI THOMSON
5	19301-REA-305	Thermostat assy - NIPPON THERMOSTAT
6	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
7	19311-PLC-000	Cover - THERMOSTAT
8	19410-PLC-000	Passage comp. - WATER
9	19411-PLC-004	Gasket - FR. WATER PASSAGE (NIPPON LEAKLESS)
10	19503-PLC-000	Hose - CONNECTING PIPE
11	19504-PLC-000	Pipe b - CONNECTING
12	19505-PLC-000	Pipe a - CONNECTING
13	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)
13	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
14	32747-PLC-000	Stay g - ENGINE HARNESS
15	32749-PLC-000	Stay j - ENGINE WIRE HARNESS
16	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
16	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
17	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)
18	90204-PH7-000	Nut - SPECIAL
19	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)
20	91307-PN4-000	O-ring - 17.5X1.4
20	91307-PN3-000	O-ring,17.8x1.4
21	91314-634-000	O-ring

Water valve (LH) 10

#	OEM	部品名
1	79710-S5D-A02	Valve assy, Water
2	79721-S5D-A00	Hose a - WATER IN.
4	79722-S6D-G00	Hose b - WATER IN.
5	79725-S6D-G00	Hose - WATER OUTLET
6	79731-S5A-000	Grommet - HEATER PIPE
7	79746-SL4-003	Clamp - HEATER HOSE
8	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)
9	91405-PK1-003	Clip, WATER HOSE, 24MM
9	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
11	91551-SZ3-003	Clamp - HEATER HOSE

Wheel disk al 14x 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Wheel disk al 15x 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Wheel disk al 16x 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Windshield washer (2) 42

#	OEM	部品名
1	76806-S6D-E01	Motor - FR. WASHER
2	76806-S6D-E11	Motor - RR. WASHER
3	76806-S6D-S01	Motor - HEADLIGHT WASHER
4	76810-S5S-E01	Nozzle assy. - R. WINDSHIELD WASHER
4	76810-S2G-003	Nozzle assy. - R. WINDSHIELD WASHER
5	76812-S6D-E11	Cap assy. - MOUTH
6	76815-S5S-E01	Nozzle assy. - L. WINDSHIELD WASHER
7	76819-S5S-E01	Cushion
8	76820-S5S-E01	Cushion
9	76826-S6D-E11	Valve - ONE WAY (L TYPE)
10	76828-ST3-E01	Joint l - WASHER
11	76828-S1E-E01	Joint l - WASHER
12	76828-S6D-S01	Joint l - HEADLIGHT WASHER HOSE
13	76829-SN7-G05	Joint i - WASHER
14	76830-S6D-E01	Y-joint - ONE WAY VALVE
15	76832-S6D-E02	Tube - 4X7X550
16	76834-S6D-S01	Tube - 4X7X1010
17	76835-S6D-E01	Tube - 4X7X440
18	76837-S6D-E01	Tube - 4X7X190
19	76838-S5S-E01	Tube - 4X7X3250
20	76840-S6D-S01	Tank set - WASHER
21	76842-S6D-E01	Bush - WASHER TANK
22	76845-S6D-E01	Bracket - WASHER MOTOR
23	76851-S1C-E01	Grommet - WASHER TUBE
24	76851-S6D-E01	Grommet - WASHER TUBE
25	76852-S6D-E01	Grommet - WASHER TUBE (RR.)
26	76875-S6D-E01	Bellows - RR. WASHER
31	76891-S6D-S01	Joint t - HEADLIGHT WASHER HOSE
32	76892-S6D-S01	Clip - HEADLIGHT WASHER HOSE
33	76893-S6D-S01	Connector - HEADLIGHT WASHER HOSE
34	76894-S6D-S11	Hose a
35	76895-S6D-S11	Hose b
36	76896-S6D-S11	Hose c
37	76897-S6D-S11	Cushion
38	80383-S5A-003	Clip A - RECEIVER PIPE
39	90001-S6D-S01	Screw - SPECIAL, 5X16
40	90652-SB2-023	Clip - TUBE, 7MM
41	91501-SJ6-003	Clip - WASHER TUBE
42	91561-SR3-003	Clip - HEADLIGHT WASHER HOSE
43	91561-S6D-S01	Clip - HEADLIGHT WASHER HOSE
44	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
45	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Wire harness (LH) 18

#	OEM	部品名
1	30510-SCC-013	Condenser comp.
2	32103-S6D-S02	Sub cord - COMBINATION
4	32107-S5S-G42	Harness - FLOOR WIRE
5	32109-S5S-G10	Cord - TAILGATE
10	32117-S6D-S02	Harness - INSTRUMENT WIRE
11	32125-S6D-G10	Sub cord - EPS
12	32155-S5S-G00	Cord - INTERIOR & SUNROOF
13	32200-S6D-S30	Harness - ENGINE ROOM WIRE
13	32200-S6D-S13	Harness - ENGINE ROOM WIRE
13	32200-S6D-S31	Harness - ENGINE ROOM WIRE
13	32200-S6D-S12	Harness - ENGINE ROOM WIRE
14	32201-S6D-G50	Sub cord - ENGINE CONTROL MODULE
17	32751-S5S-G31	Harness - DRIVER DOOR WIRE
18	32752-S5S-R00	Harness - PASSENGER DOOR WIRE
21	35505-692-003	Bulb - 14V 1.4W
22	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
23	90149-SE0-003	Bolt - EARTH, 6X16
24	90153-SE0-003	Bolt - EARTH, 6X12
