| 04474-16020 |
Cylinder Kit, Rear Wheel |

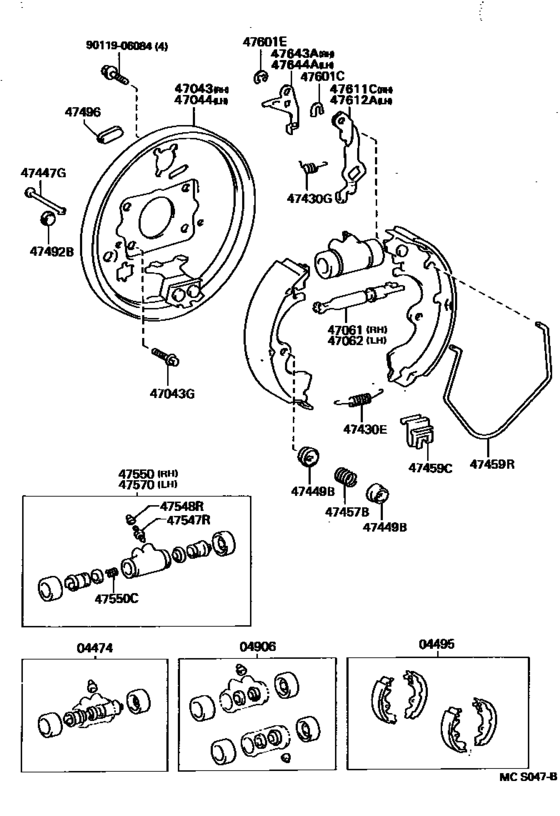

Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 04495-10110 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 04495-10120 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 04906-16020 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47043-10050 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47043-10060 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47043-10070 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47044-10050 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47044-10060 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47044-10070 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47061-10020 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47062-10020 |
Strut Set, Parking Brake Shoe, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47447-30020 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47449-30030 |
Cup, Brake Shoe Hold Down |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47459-16020 |
Spring, Shoe Return(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47491-20011 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47492-32010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47547-20010 |
Plug, Bleeder(For Release Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47550-16060 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47570-16040 |
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47611-10030 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47612-10030 |
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47643-10020 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 47644-10020 |
Lever, Rear Brake Automatic Adjust, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90029-60014 |
Spring, Compression(For Rear Wheel Brake Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90119-06084 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90119-10455 |
Bolt (For Backing Plate To Rear Axle Beam Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90213-06013 |
Washer, Type C(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90468-05063 |
Clamp(For Shoe Return Spring) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90501-07006 |
Spring, Compression(For Rear Wheel Brake Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90501-14086 |
Spring, Compression(For Rear Shoe Hold Down Spring Pin) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90506-18014 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 90507-12020 |
Spring, Tension(For Rear Brake Automatic Adjust Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
| 96160-00600 |
Ring, E(For Clutch Pedal Pawl) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1994 - ] (9409- )EL51,53,NL50) |
