EE98

Toyota COROLLA · 1987 · 4,337 parts · 189 categories
EE98 ×

← Back to categories

4,337 items

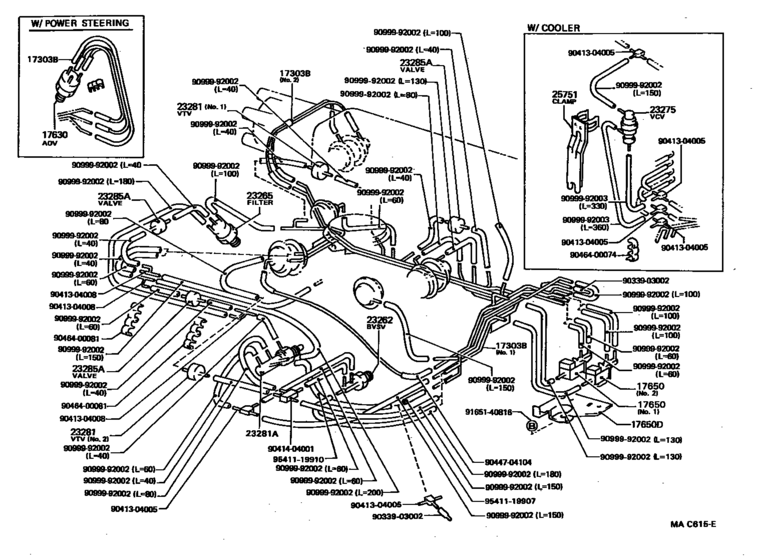

Vacuum Piping ([08.1989 - ] (8908- )2E,3E..EE96,98) 34
#OEMPart name
17303 17303-11310 Pipe Sub-Assy, Air, No.1
17303 17303-11330 Pipe Sub-Assy, Air, No.1
17303 17303-11350 Pipe Sub-Assy, Air, No.1
17303 17303-11510 Pipe Sub-Assy, Air, No.1
17630 17630-28020 Valve Assy, Air Control
17650 90910-12008 Valve Assy, Vacuum Switching
17650 90910-12009 Valve Assy, Vacuum Switching
17650 21999-11011 Bracket, Vacuum Switching Valve
23262 25820-11010 Valve, Bimetal Vacuum Switching, No.1
23262 25820-11040 Valve, Bimetal Vacuum Switching, No.1
23262 90925-05076 Valve, Bimetal Vacuum Switching, No.1
23265 90917-11027 Filter, Gas, No.1
23275 90925-03156 Valve, Vacuum Control, No.1
23275 90925-03164 Valve, Vacuum Control, No.1
23281 90925-01021 Valve, Vacuum Transmitting, No.1
23281 90925-01029 Valve, Vacuum Transmitting, No.1
23281 90925-01079 Valve, Vacuum Transmitting, No.1
23281 90925-01041 Valve, Bimetal Vacuum Switching, No.1
23281 90925-01099 Valve, Vacuum Transmitting, No.1
23281 90925-02084 Valve, Vacuum Transmitting, No.1
23285 90917-10049 Valve, Check, No.1
25751 25751-11020 Clamp, Vacuum Control Valve, No.1
9033903002 90339-03002 PLUG
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9041304008 90413-04008 Way, 3(For Transfer Breather Hose)
9041404001 90414-04001 Joint, No.1 (For Idle Up Divice)
9044704104 90447-04104 New Genuine Part
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9046400081 90464-00081 Clamp (For Idle Up Divice), No.1
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9165140816 91651-40816 BOLT
9541119907 95411-19907 Hose, Fuel, No.1(For Charcoal Canister)
9541119910 95411-19910 Hose, Fuel, No.1(For Charcoal Canister)
