EE98

Toyota COROLLA · 1987 · 4,337 parts · 189 categories
EE98 ×

← Back to categories

4,337 items

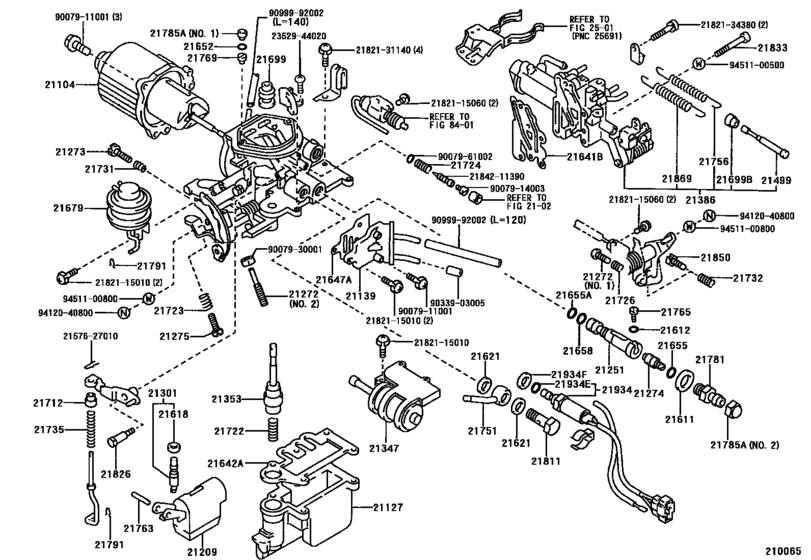

Carburetor ([08.1987 - 08.1989] (8705-8905)2E..EE90 ; (8708-8908)2E,3E..EE96,97, 98) 109
#OEMPart name
21104 21014-11510 Chamber Sub-Assy, Suction
21104 21014-11571 Chamber Sub-Assy, Suction
21127 21127-11230 Bowl, Float
21139 21139-11090 Adapter(For Carburetor Connecting Pipe)
21209 21209-11090 Float Sub-Assy
21209 21209-13310 Float Sub-Assy
21251 21251-11340 Jet, 1St Main
21251 21251-11540 Jet, 1St Main
21251 90999-41103 Jet, 1St Main
21272 21276-11090 Screw, 1St Idle Adjusting
21273 21273-11090 Screw, Throttle Adjusting
21273 21273-24231 Screw, Throttle Adjusting
21274 21275-15460 Screw, 1St Throttle Adjusting
21275 21275-11630 Screw, Adjusting
21275 21844-33010 Screw, 1St Idle Adjusting
21301 21301-11620 Valve Sub-Assy, Needle
21301 21301-15250 Valve Sub-Assy, Needle
21301 21301-11140 Valve Sub-Assy, Needle
21353 21353-11231 Plunger, Pump
21353 21353-11300 Plunger, Pump
21353 21353-11610 Plunger, Pump
21386 21386-11510 Compensator
21386 21386-11570 Compensator
21499 21499-11231 Rod, Push(For Carburetor)
21499 21499-11340 Rod, Push(For Carburetor)
21611 21611-15250 Gasket, Main Jet
21611 21611-22010 Gasket, Main Jet
21612 21612-15250 Gasket, Power Valve
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21641 21641-11340 Gasket, Compensator
21641 21641-11540 Gasket, Compensator
21641 21641-11590 Gasket, Compensator
21642 21642-15390 Gasket, Float Bowl
21642 21642-11590 Gasket, Float Bowl
21647 21647-11090 Gasket, Adapter
21647 21647-11590 Gasket, Adapter
21652 21652-15250 Ring, O(For Suction Chanber Adjusting)
21655 21655-60010 Ring, O(For Lifter Rod)
21655 21655-60200 Gasket, Level Gage
21655 21655-15250 Ring, O(For Main Jet Adjusting Screw)
21658 21658-15250 Ring, O(For Main Guide Upper)
21679 21679-11230 Positioner
21679 21679-11650 Positioner
21699 21699-28150 Boot(For Pump Plunger)
21699 21699-11090 Boot(For Compensator)
21699 21699-41010 Boot(For Dash Pot)
21712 21712-38010 Bush, Sliding Rod
21712 21712-61020 Bush, Sliding Rod
21722 21722-22010 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21723 21723-38010 Spring, Idle Adjusting
21724 21724-11340 Spring, Idle Adjusting
21726 21723-60010 Spring, Idle Adjusting
21732 21726-15251 Spring, 1St Idle Adjusting
21732 21726-38310 Spring, 1St Idle Adjusting
21735 21735-11150 Spring, Pump Arm
21735 21735-22010 Spring, Pump Arm
21751 21751-10050 Union, Nipple
21751 21894-11230 Union, Nipple
21751 21894-11590 Union, Nipple
21756 21756-15250 Spring, Back(For Throttle Shaft)
21756 21756-15251 Spring, Back(For Throttle Shaft)
21763 21763-38010 Pin, Float Lever
21765 21765-15250 Pin(For Pump Plunger)
21769 21769-15250 Pin(For Suction Chanber Adjusting)
21781 21781-15230 Plug, Main Passage(For Carburetor Jet)
21781 21781-15461 Plug, Main Passage(For Carburetor Jet)
21785 21672-15250 Plug, Plate(For Suction Chanber Adjusting)
21785 21785-11090 Plug, Plate(For Suction Chanber Adjusting)
21785 21785-13210 Plug, Plate(For Suction Chanber Adjusting)
21791 21791-13011 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21811 21811-11060 Bolt, Union Nipple
21826 21826-24470 Screw, Pump Arm Set
21833 21833-31012 Screw, Set, No.1(For Carburetor Body Set)
21833 21835-40010 Screw, Set, No.1(For Carburetor Body Set)
21850 21272-11090 Screw, Throttle Switch Adjusting
21850 21272-11230 Screw, Throttle Switch Adjusting
21850 21272-71010 Screw, 1St Idle Adjusting
21869 21869-11540 Spring(For Main Jet)
21869 21869-11610 Spring(For Main Jet)
21934 21062-11380 Solenoid, Throttle Valve
21934 21062-11243 Solenoid, Throttle Valve
21934 21062-11421 Solenoid, Throttle Valve
21934 21062-11424 Solenoid, Throttle Valve
21934 21062-11422 Solenoid, Throttle Valve
21934 21062-11660 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21656-15250 Ring, O(For Solenoid Valve)
21934 21633-15250 Gasket
21934 21649-38010 Gasket
2157627010 21576-27010 Clip, Pump Strainer
2182115010 21821-15010 Screw(For Choke Lever Adapter Set)
2182115060 21821-15060 Screw, 2Nd Throttle Valve Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2182134380 21821-34380 Screw, 2nd Throttle Valve Set
2184211390 21842-11390 Screw
2352944020 23529-44020 New Genuine Part
9007911001 90079-11001 SCREW
9007914003 90079-14003 New Genuine Part
9007930001 90079-30001 Nut
9007961002 90079-61002 New Genuine Part
9033903005 90339-03005 Plug, No.1
9099992002 90999-92002 Air Hose (300 mm)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9451100500 94511-00500 Washer, Cover Set, No.2
9451100800 94511-00800 WASHERSPRING
