検索 › 型式 › EE90

EE90

Toyota カローラ · 1987 · 4,044 部品 · 178 カテゴリ

4,044 件

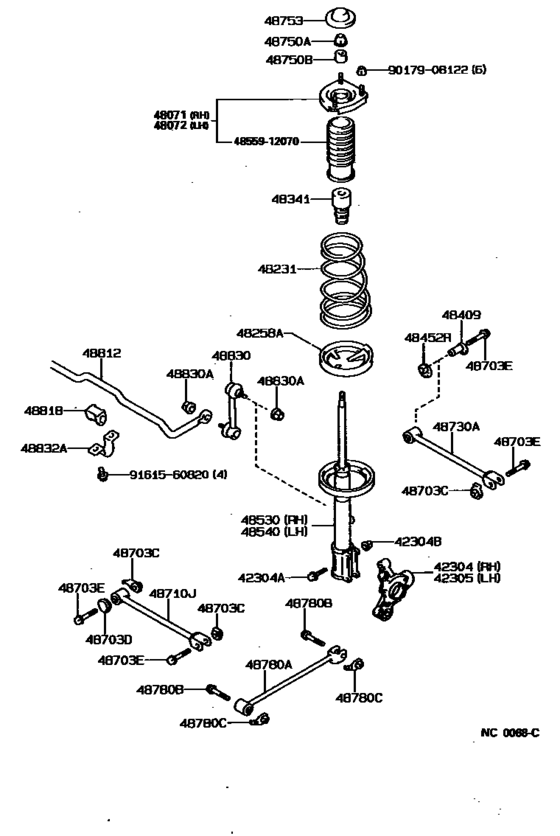

Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90) 47

#	OEM	部品名
42304	42304-12020	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-12102	Bolt (For Rear Axle Carrier)
42304	90105-12236	Bolt (For Rear Axle Carrier)
42304	90179-12025	Nut (For Rear Axle Carrier)
42305	42305-12020	Carrier Sub-Assy, Rear Axle, Lh
48071	48071-12030	Support Sub-Assy, Rear Suspension, Rh
48071	48072-12140	Support Sub-Assy, Rear Suspension, Lh
48071	48072-02020	Support Sub-Assy, Rear Suspension, Lh
48071	48071-12100	Support Sub-Assy, Rear Suspension, Rh
48072	48072-12030	Support Sub-Assy, Rear Suspension, Lh
48072	48071-12140	Support Sub-Assy, Rear Suspension, Rh
48072	48071-02020	Support Sub-Assy, Rear Suspension, Rh
48072	48072-12100	Support Sub-Assy, Rear Suspension, Lh
48231	48231-1A700	Spring, Coil, Rear
48231	48231-1A060	Spring, Coil, Rear
48258	48258-12020	Insulator, Rear Coil Spring, Lower
48341	48341-12130	Bumper, Rear Spring
48409	48409-12040	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-32020	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-12410	Absorber Assy, Shock, Rear Rh
48530	48530-12201	Absorber Assy, Shock, Rear Rh
48540	48540-12350	Absorber Assy, Shock, Rear Lh
48540	48540-12141	Absorber Assy, Shock, Rear Lh
48703	90179-12063	Nut(For Rear Suspension Arm)
48703	90179-12064	Nut(For Rear Suspension Arm)
48703	90209-13005	Washer(For Rear Suspension Arm)
48703	90119-12150	Bolt(For Rear Suspension Arm)
48703	90119-12152	Bolt(For Rear Suspension Arm)
48710	48710-12040	Arm Assy, Rear Suspension, No.1
48730	48730-12010	Arm Assy, Rear Suspension, No.2
48750	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48750	90387-15012	Collar(For Rear Support To Rear Shock Absorber)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48753	48753-12010	Cover, Rear Suspension Support
48780	48780-12010	Rod Assy, Strut, Rear
48780	48780-32060	Rod Assy, Strut, Rear
48780	90179-12062	Nut(For Rear Suspension Arm)
48812	48812-12070	Bar, Stabilizer, Rear
48818	48818-12070	Bush, Stabilizer, Rear
48830	48830-20010	Link Assy, Rear Stabilizer
48830	90179-10183	Nut(For Front Stabilizer Link)
48832	48832-20020	Bracket, Stabilizer(For Rear)
4855912070	48559-12070	Cover, Rear Shock Absober Dust, Rh No.1
4855912070	48559-12080	Cover, Rear Shock Absober Dust, Rh No.1
9017908122	90179-08122	Nut(For Rear Suspension Support)
9161560820	91615-60820	Bolt (For Transmission Control Cable Bracket)
9161560820	91611-B0816	Bolt

OEM	部品名	カテゴリ
42304-12020	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
42305-12020	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48071-02020	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48071-12030	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48071-12100	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48071-12140	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48072-02020	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48072-12030	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48072-12100	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48072-12140	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48231-1A060	Spring, Coil, Rear	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48231-1A700	Spring, Coil, Rear	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48258-12020	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48341-12130	Bumper, Rear Spring	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48409-12040	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48452-32020	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48530-12201	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48530-12410	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48540-12141	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48540-12350	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48559-12070	Cover, Rear Shock Absober Dust, Rh No.1	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48559-12080	Cover, Rear Shock Absober Dust, Rh No.1	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48710-12040	Arm Assy, Rear Suspension, No.1	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48730-12010	Arm Assy, Rear Suspension, No.2	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48753-12010	Cover, Rear Suspension Support	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48780-12010	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48780-32060	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48812-12070	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48818-12070	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48830-20010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
48832-20020	Bracket, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90105-12102	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90105-12236	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90119-12150	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90119-12152	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90179-12025	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90179-12062	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90179-12063	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90179-12064	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90209-13005	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90387-15012	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
91615-60820	Bolt (For Transmission Control Cable Bracket)	Rear Spring & Shock Absorber ([05.1987 - ] (8705- )AE92,CE90,EE90)
