EE90

Toyota COROLLA · 1987 · 4,044 parts · 178 categories

4,044 items

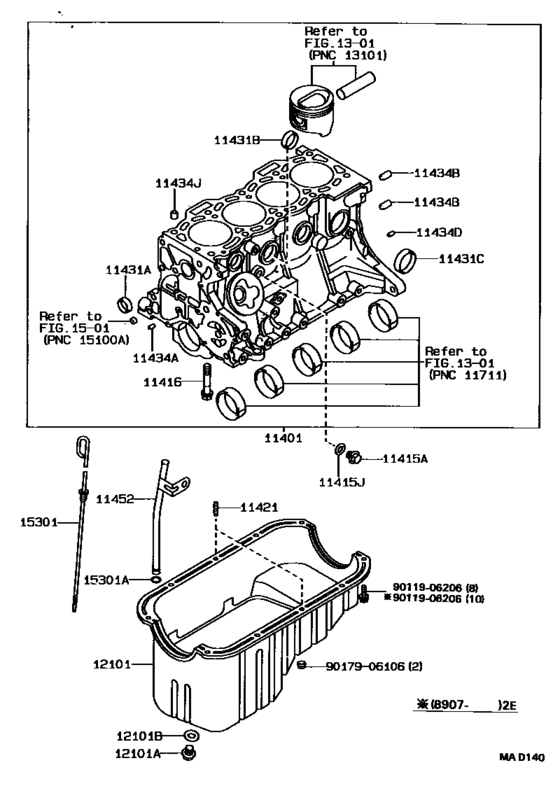

Cylinder Block ([05.1987 - ] (8705- )2E#) 24

#	OEM	Part name
11401	11401-19525	Block Sub-Assy, Cylinder
11401	11401-80690	Block Sub-Assy, Cylinder
11401	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90341-12026	Plug, Drain
11415	90341-12012	Plug(For Oil Pan Drain)
11415	90430-13002	Gasket(For Drain Cock)
11416	90910-02019	Bolt(For Crankshaft Bearing Cap Set)
11431	96411-42500	Plug, Tight, No.1
11431	96411-43000	Plug, Tight, No.1
11431	96411-43500	Plug, Tight, No.1
11434	90250-06068	Pin, Straight
11434	90250-10017	Pin, Straight(For Clutch Housing Set)
11434	90253-15003	Pin, Straight(For Clutch Housing Set)
11434	90253-12001	Pin, Ring W/head
11452	11452-11040	Guide, Oil Level Gage
11452	11452-11050	Guide, Oil Level Gage
12101	12101-11010	Pan Sub-Assy, Oil
12101	12101-11012	Pan Sub-Assy, Oil
12101	90430-12027	Gasket(For Oil Pan Drain Plug)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
15301	15301-11040	Gage Sub-Assy, Oil Level
15301	96711-19010	Ring, O(For Oil Level Gage Guide)
9011906206	90119-06206	New Genuine Part
9017906106	90179-06106	NUT

OEM	Part name	Category
11401-19525	Block Sub-Assy, Cylinder	Cylinder Block ([05.1987 - ] (8705- )2E#)
11401-80690	Block Sub-Assy, Cylinder	Cylinder Block ([05.1987 - ] (8705- )2E#)
11452-11040	Guide, Oil Level Gage	Cylinder Block ([05.1987 - ] (8705- )2E#)
11452-11050	Guide, Oil Level Gage	Cylinder Block ([05.1987 - ] (8705- )2E#)
12101-11010	Pan Sub-Assy, Oil	Cylinder Block ([05.1987 - ] (8705- )2E#)
12101-11012	Pan Sub-Assy, Oil	Cylinder Block ([05.1987 - ] (8705- )2E#)
15301-11040	Gage Sub-Assy, Oil Level	Cylinder Block ([05.1987 - ] (8705- )2E#)
90119-06206	New Genuine Part	Cylinder Block ([05.1987 - ] (8705- )2E#)
90179-06106	NUT	Cylinder Block ([05.1987 - ] (8705- )2E#)
90250-06068	Pin, Straight	Cylinder Block ([05.1987 - ] (8705- )2E#)
90250-10017	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([05.1987 - ] (8705- )2E#)
90253-12001	Pin, Ring W/head	Cylinder Block ([05.1987 - ] (8705- )2E#)
90253-15003	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([05.1987 - ] (8705- )2E#)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([05.1987 - ] (8705- )2E#)
90341-12026	Plug, Drain	Cylinder Block ([05.1987 - ] (8705- )2E#)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([05.1987 - ] (8705- )2E#)
90430-12027	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([05.1987 - ] (8705- )2E#)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([05.1987 - ] (8705- )2E#)
90430-13002	Gasket(For Drain Cock)	Cylinder Block ([05.1987 - ] (8705- )2E#)
90910-02019	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([05.1987 - ] (8705- )2E#)
96411-42500	Plug, Tight, No.1	Cylinder Block ([05.1987 - ] (8705- )2E#)
96411-43000	Plug, Tight, No.1	Cylinder Block ([05.1987 - ] (8705- )2E#)
96411-43500	Plug, Tight, No.1	Cylinder Block ([05.1987 - ] (8705- )2E#)
96711-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([05.1987 - ] (8705- )2E#)
