Accelerator pedal (2) 17

#	OEM	部品名
1	17800-SH5-010	Pedal comp - ACCELERATOR
3	17812-SA7-010	Washer - ACCELERATOR PEDAL
4	17814-SH3-010	Spring - ACCELERATOR PEDAL
5	17816-692-000	Cover - ACCELERATOR PEDAL
8	17910-SJ4-E11	Wire - THROTTLE
8	17910-SH3-E11	Wire - THROTTLE
10	17920-SH3-003	Clip - THROTTLE WIRE
11	17921-SA4-730	Seal - THROTTLE CABLE
12	17925-SH3-010	Clamp - THROTTLE WIRE
14	17927-SH3-000	Clamp - THROTTLE WIRE
15	35350-SE0-A01	Switch assy - STOP (TEC)
15	35350-SE0-003	Switch assy - STOP (TEC)
16	46505-SA7-000	Pad - PEDAL STOPPER
16	46505-SH3-000	Pad - PEDAL STOPPER
17	46590-SH5-020	Bracket - PEDAL
17	46590-SH5-010	Bracket - PEDAL
18	90503-SA0-000	Washer - PLAIN, 9MM

Air cleaner (2) 40

#	OEM	部品名
1	16237-PM3-003	Clamp b - FUEL HOSE
2	17137-PM4-000	Tube - BREATHER
3	17150-PE9-004	Valve - CHECK
4	17210-PM4-000	Cover assy. - AIR CLEANER
5	17212-PC0-000	Washer - AIR CLEANER
6	17216-PM4-300	Clip A - WIRE
7	17217-PM4-300	Clip b - WIRE
8	17220-PM4-003	Element - AIR CLEANER
9	17221-PM4-300	Packing b - ELEMENT
10	17222-PE0-300	Seal - VALVE
11	17222-PM4-300	Packing b - ELEMENT
12	17229-PM4-000	Tube - AIR VENT
13	17231-PM4-Q00	Cover - AIR INTAKE TUBE
14	17240-PM4-000	Case assy. - AIR CLEANER
15	17242-PM4-Q01	Pipe - AIR INTAKE
16	17245-PM4-003	Diaphragm - CONTROL VALVE
17	17246-PM4-Q00	Chamber assy - RESONATOR
17	17246-PM4-000	Chamber assy - RESONATOR
18	17247-PA0-000	Insulator - SENSOR
19	17250-PJ7-004	Sensor comp - AIR IN.
20	17251-PM4-300	Valve - AIR CONTROL
21	17253-689-300	Plug - CONTROL VALVE
22	17255-PD6-000	Collar - RESONATOR
23	17256-PD6-000	Rubber - RESONATOR MOUNTING
24	17257-689-310	Pin - PLUG LOCK
25	17258-PM4-300	Packing - AIR CLEANER COVER
26	17266-PM4-000	Packing - AIR CLEANER CASE
27	17271-PM3-000	Case - BREATHER ELEMENT
28	17272-PM3-000	Packing - BREATHER
29	17273-PH1-640	Plate - CAUTION (GREEN)
30	17274-PM3-000	Element - BREATHER
31	17278-PM4-000	Emblem - CV DUAL CARB
32	17307-PM4-000	Seal rubber - RESONATOR
33	17415-PM4-300	Plate - RECTIFY
34	17510-PM4-000	Tube - ELECTRONIC AIR CONTROL VALVE INLET
35	90070-PA5-660	Screw - TAPPING, 6X16
36	90203-PB2-000	Nut - AIR CLEANER COVER (DACRO COATING)
37	90691-PM4-013	Clip - WIRE HARNESS
38	90775-PG7-000	Bolt-washer - 6X20
39	91405-PH7-003	Clamp - TUBE (D15)

Air conditioner (CARBURETOR COMPONENTS) 9

#	OEM	部品名
1	16181-PC3-781	Pin - SPLIT, 1.2
2	16203-657-300	Washer - PLAIN, 4MM
3	17363-PM3-000	Clamp - TUBE, 7.5X2
5	36138-PM1-G01	Filter assy - SOLENOID VALVE
6	38771-PM3-004	Valve assy. - AIR CONDITIONER SOLENOID
7	38775-PM3-000	Stay - AIR CONDITIONER SOLENOID VALVE
8	38778-PM4-000	Clamp b - AIR CONDITIONER SOLENOID TUBE
10	38780-PM4-003	Control set - CARBURETOR IDLE
11	90092-657-000	Screw-washer - 5X8

Air conditioner (COMPRESSOR) 28

#	OEM	部品名
1	38810-PM3-016	Compressor
2	38810-PM3-036	Compressor
3	38811-PM3-006	Clutch set - COIL
4	38885-PM3-000	Insulator - HEAT
5	38886-PK1-004	Bolt - FLANGE, 6X10
5	38900-PM3-006	Clutch set - ROTOR ARMATURE
6	38900-PM3-026	Clutch set - ROTOR ARMATURE
6	38900-PM3-R33	Set clutch rotor
7	38912-PC7-671	Shim set
8	38908-PM3-006	Protector set - THERMAL
9	38912-PM3-006	Shim set
9	38918-PK1-014	Seal set - SHAFT
10	38914-PK1-004	Circlip - INTERNAL, 24MM
11	38918-PK1-024	Seal set - SHAFT
12	38920-PM3-003	Belt - COMPRESSOR (BANDO)
12	38920-PM3-023	Belt
12	38920-PM3-014	Belt - COMPRESSOR (MITSUBOSHI)
13	38926-PM3-000	Stay - IDLE PULLEY
14	38930-PM3-000	Bracket - COMPRESSOR
15	38942-PM3-000	Pulley comp - IDLE
16	38944-PM3-000	Collar - IDLE PULLEY (10X17X15.5)
17	38945-PM3-000	Cover - BEARING
18	38946-PM3-000	Bolt - IDLE PULLEY (10X39)
19	90017-PE0-000	Washer - 10MM
20	90021-PM3-000	Bolt - FLANGE, 8X85
21	90022-PM3-000	Bolt - FLANGE, 8X120
22	90023-PM3-000	Bolt - FLANGE, 8X105
23	90058-PG6-000	Nut-washer - 10MM

Air conditioner (CONDENSER) 29

#	OEM	部品名
1	90659-PG6-000	Clip - WIRE HARNESS
1	32175-647-920	Clip - WIRE HARNESS
1	30701-883-000	Clip, high tension cord (8mm)
2	38611-PM3-004	Fan comp - COOLING
3	38615-PM3-020	Shroud comp.
4	38615-PM3-901	Shroud comp. - AIR CONDITIONER
4	38616-PM5-A02	Motor - COOLING FAN
5	38616-PM5-A03	Motor - COOLING FAN
6	38618-PM3-000	Mount - SHROUD
6	38619-PM3-000	Protector - FAN MOTOR
7	38619-PM3-900	Protector - FAN MOTOR
8	38626-PM5-A00	Rubber b
9	39139-SB3-003	Suppressor - NOISE (MITSUBA) (RZ-0062)
10	80100-SH3-013	Condenser assy - SAK
10	38624-PM1-000	Spacer - SHROUD
11	80107-SH3-000	Mount - CONDENSER UPPER
12	80108-SH3-A00	Stay - CONDENSER
13	80109-SH3-010	Seal - CONDENSER
16	80175-SE0-000	Mount - CONDENSER
16	39110-SH3-A00	Sub cord - NOISE SUPPRESSOR
17	80316-SH3-003	Pipe - DISCHARGE
17	39111-SH3-000	Bracket - NOISE SUPPRESSOR
19	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)
19	80100-SH3-003	Condenser assy - SAK
20	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)
20	90311-MB6-003	Nut toothed 5mm
21	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
22	90403-PM3-004	Washer - PLAIN, 7MM
23	91315-SE0-000	O-ring - 1/2"

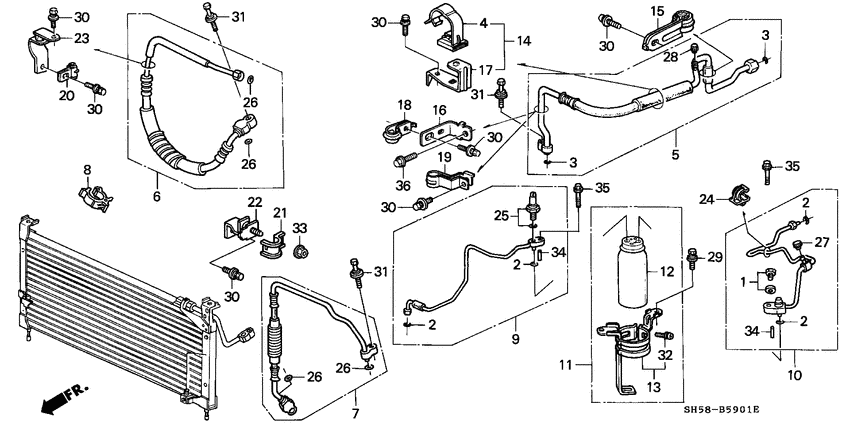

Air conditioner (HOSES/PIPES; 2) 32

#	OEM	部品名
1	38642-692-013	Plug - FUSIBLE (SAK)
2	38646-692-660	O-ring - 3/8"
2	80874-SL0-900	O-ring - 3/8"
3	38648-692-660	O-ring - 5/8"
4	38677-SB2-003	Clamp - SUCTION HOSE
5	80311-SH3-013	Hose comp. - SUCTION
5	80311-SH3-003	Hose comp. - SUCTION
6	80315-SH3-023	Hose comp. - DISCHARGE (NICHIRIN)
6	80315-SH3-003	Hose comp. - DISCHARGE
7	80331-SH3-013	Pipe - CONDENSER
8	80341-SH3-003	Pipe - RECEIVER
9	80331-SH3-023	Pipe - CONDENSER
9	80350-SH3-000	Receiver assy
10	80341-SH3-902	Pipe - RECEIVER
11	80350-SJ4-000	Receiver assy
12	80361-SH3-000	Bracket - SUCTION HOSE
13	80352-SH3-000	Bracket - LIQUID TANK
14	80360-SJ4-000	Stay comp - SUCTION HOSE
15	80361-SH3-010	Bracket - SUCTION HOSE
16	80362-SH3-000	Stay - SUCTION HOSE
17	80363-SH3-000	Stay b - SUCTION HOSE
17	80365-SH3-000	Clamp - SUCTION HOSE
18	80364-SH3-000	Clamp b - SUCTION HOSE
19	80364-SH3-900	Clamp b - SUCTION HOSE
19	80375-SH3-000	Rubber - MOUNTING
20	80371-SH3-000	Clamp - DISCHARGE HOSE
23	80375-SH3-010	Rubber - MOUNTING
24	80382-SH3-003	Clip - RECEIVER PIPE (NIFCO)
25	80440-SE0-003	Switch - DUAL PRESSURE
26	91315-SE0-000	O-ring - 1/2"
27	91638-SF1-003	Cap - VALVE (SAK)
28	91639-SF1-003	Cap - VALVE (SAK)

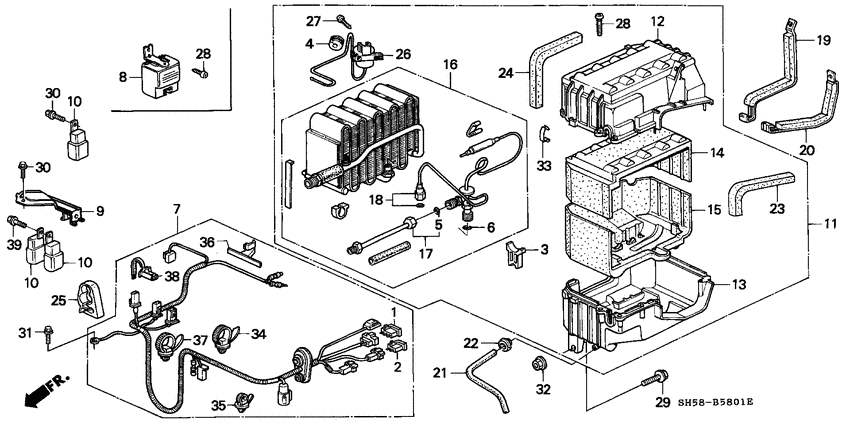

Air conditioner (UNIT; 2) 43

#	OEM	部品名
1	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
2	32146-SH3-003	Connector - DIODE(2P)
3	38625-SB2-000	Holder - EVAPORATOR PIPE
4	38625-692-000	Grommet - TUBE
5	38646-692-660	O-ring - 3/8"
5	80874-SL0-900	O-ring - 3/8"
6	38647-692-660	O-ring - 1/2"
6	38710-SH3-Q00	Harness - AIR CONDITIONER WIRE
7	38710-SH3-Q02	Harness - AIR CONDITIONER WIRE
8	39402-SH3-000	Bracket - AIR CONDITIONER RELAY
9	39792-SH7-000	Bracket b - RELAY
10	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
11	80200-SH3-000	Cooling unit
12	80201-SH3-000	Case - EVAPORATOR UPPER
13	80202-SH3-000	Case - EVAPORATOR LOWER
14	80205-SH3-000	Insulator - EVAPORATOR UPPER
15	80206-SH3-000	Insulator - EVAPORATOR LOWER
16	80210-SH3-003	Evaporator sub assy.
17	80216-SH3-003	Pipe - LIQUID (SAK)
18	80220-SH3-003	Valve assy. - EXPANSION (FUJI KOKI)
19	80261-SH3-000	Band a - AIR CONDITIONER
20	80265-SH3-000	Band b - AIR CONDITIONER
21	80271-SH3-000	Hose - DRAIN
22	80272-SF4-000	Grommet - DRAIN HOSE
23	80286-SH3-000	Seal - EVAPORATOR INNER
24	80287-SH3-000	Seal - EVAPORATOR OUTER
25	80388-SH3-003	Clamp - AIR CONDITIONER HARNESS (NIFCO)
25	80410-SH3-013	Switch assy - AIR CONDITIONER (DENSO)
26	80430-SF1-003	Thermostat - AIR CONDITIONER
26	80411-SH3-003	Panel - AIR CONDITIONER SWITCH
27	90101-SA4-000	Screw - TAPPING, 4X12
28	90102-SA4-000	Screw - TAPPING, 4X16
28	80680-SH3-003	Diode assy - STANLEY
29	90128-SA7-000	Bolt-washer - 6X25
30	90136-SH3-000	Bolt-washer - 6X10
31	90153-SE0-003	Bolt - EARTH, 6X12
32	90222-SB4-000	Nut-washer - 6MM
33	90659-692-000	Clamp - CASE
34	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
35	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
36	91557-SH3-003	Clip - WIRE HARNESS (BLACK) (54MM)
37	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
38	91570-SH3-003	Band - WIRE HARNESS (NATURAL)

Alternator (ND) 35

#	OEM	部品名
1	31100-PM4-Q02	Alternator assy - CHA48) (DENSO
1	31100-PM4-Q01	Alternator assy - CHA48) (DENSO
2	31101-PM4-013	Rotor assy.
2	31101-PM4-003	Rotor assy.
3	31105-PD1-034	Holder assy. - ALTERNATOR BRUSH
3	31105-PZ1-003	Holder assy. - BRUSH
3	31105-PD1-024	Holder assy. - ALTERNATOR BRUSH
3	31105-PE9-942	Holder assy. - ALTERNATOR BRUSH
3	31105-PT0-B91	Holder assy. - BRUSH (###)
4	31109-PM4-003	Frame assy - DRIVE END (###)
5	31111-PD1-014	Bearing - RR. GENERATOR
6	31114-PD1-034	Bearing - FR. GENERATOR
7	31116-PE0-023	Plate - RETAINER (###)
7	31116-PE0-013	Plate - RETAINER
8	31118-PD1-004	Bush - INSULATION
9	31119-PH1-004	Bush - INSULATION
10	31121-PM4-013	Frame - RR. END (###)
10	31121-PM4-003	Frame - RR. END
11	31127-PD1-004	Rectifier assy.
11	31127-PD1-014	Rectifier Assy - ###
12	31129-PD1-014	Spring - BRUSH (###)
13	31135-PM4-003	Cover - RR. END (###)
14	31138-PD1-004	Cover - BEARING
15	31141-PE0-013	Pulley - ###
16	31142-PD1-004	Nut - PULLEY LOCK
17	31144-PD1-004	Brush
17	31144-P01-003	Brush
18	31145-PD1-004	Bolt - STUD, 6X68
19	31146-PD1-004	Screw-washer - 4X19
20	31148-PD1-004	Screw-washer - 4X25
21	31149-PD1-004	Screw-washer - 4X8 (###)
22	31150-PE0-003	Regulator assy
23	90231-PD1-014	Nut-washer - 5MM
23	90231-PD1-004	Nut-washer - 5MM
24	91415-PM4-003	Clip - CORD

Antenna 12

#	OEM	部品名
1	39112-SH3-000	Bracket - FR. SPEAKER SEAL (12CM)
2	39120-SB2-003	Speaker assy. (120mm - MAX.6.3W) (PANASONIC)
3	39120-SE3-A13	Speaker assy - 160MM DUAL) (PANASONIC
3	39120-SE3-952	Speaker assy. (160mm - DUAL) (PIONEER)
4	39150-SH5-004	Antenna assy - AUTO RADIO (ALPINE)
4	39150-SH5-003	Antenna assy - AUTO RADIO (PANASONIC)
5	39154-SH5-004	Packing - ANTENNA BASE (ALPINE)
5	39154-SH5-003	Packing - ANTENNA BASE (PANASONIC)
6	90105-SB2-013	Screw - PAN, 4X12
6	90105-SB2-003	Screw - PAN, 4X12
7	90502-SA0-003	Washer - WATER PROOF
8	90662-693-003	Grommet - SCREW, 4MM (BLUE)

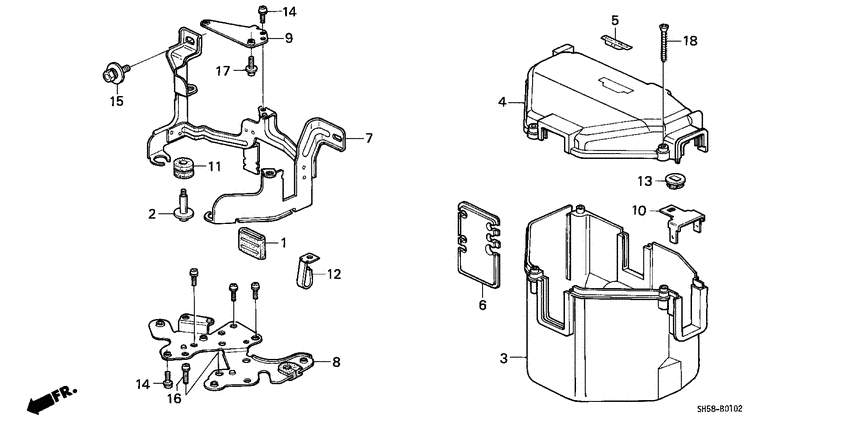

Battery 21

#	OEM	部品名
1	31500-SH2-Q06	Battery assy - 46B24R<S>-MF) (PANASONIC
1	31500-SH2-Q07	Battery assy - 46B24R<S>-MF) (FURUKAWA
1	31500-SH2-Q04	Battery assy - 46B24R<S>-MF) (YUASA
1	31500-SH4-P02	Battery assy - 32C24R-MF) (YUASA
1	31500-SH4-P01	Battery assy - 32C24R-MF) (YUASA
3	31512-SH3-010	Plate - BATTERY SETTING
4	31513-SA5-670	Bolt - BATTERY SETTING, 225MM
5	31513-SH3-000	Bolt - BATTERY SETTING, 227MM
6	31521-SH3-010	Box assy - BATTERY
6	31521-SH3-Q01	Box assy - BATTERY
7	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)
7	31542-SA5-664	Plug - VENT (MF) (YUASA)
8	32410-SH3-A01	Cable assy - STARTER
9	32600-SH3-A11	Cable assy - EARTH
9	32600-SH3-A01	Cable assy - EARTH
10	32601-SA5-003	Bolt - BATTERY TERMINAL (SUMITOMO)
12	32602-SA5-003	Nut - BATTERY TERMINAL (SUMITOMO)
13	90150-SB2-003	Bolt - EARTH, 8X20 (SN)
14	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
15	91568-SH3-003	Strap - WIRE HARNESS (BLACK) (101MM)

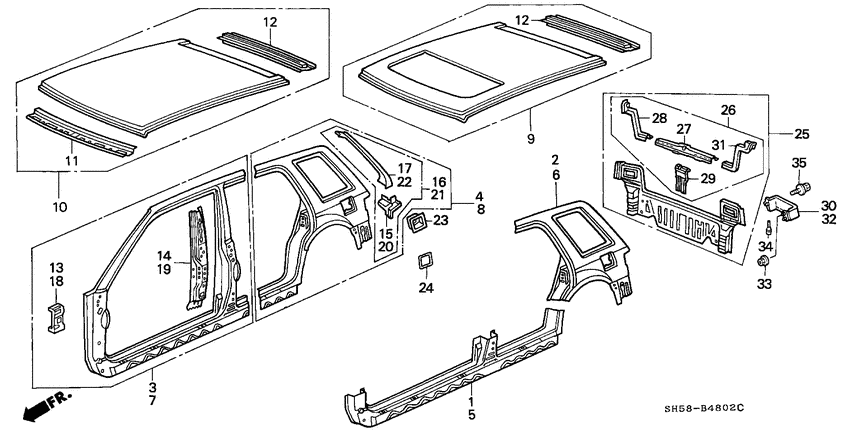

Body structure components (1) 3

#	OEM	部品名
23	60821-SH3-000	Hook - TIE DOWN
29	90105-634-000	Bolt-washer (8x20)
31	90127-SB2-000	Bolt-washer - 6X12

Body structure components (3) 3

#	OEM	部品名
24	63917-SH4-000	Seal - FUEL CAP
33	90222-SB4-000	Nut-washer - 6MM
34	91504-SH3-000	Cushion - BUMPER

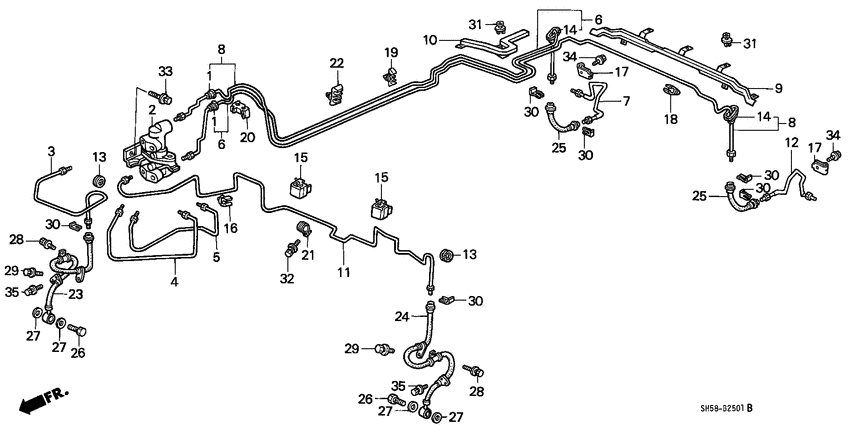

Brake lines (2) 44

#	OEM	部品名
1	17712-SA0-000	Grommet - FUEL PIPE
2	46210-SH3-013	Valve assy. - DUAL PROPORTIONING
2	46210-SH3-003	Valve assy. - DUAL PROPORTIONING
3	46310-SH3-000	Pipe comp. a - BRAKE
4	46320-SH3-000	Pipe comp. b - BRAKE
5	46321-SH3-000	Pipe comp. h - BRAKE
6	46330-SH5-040	Pipe comp. c - BRAKE
6	46330-SH5-010	Pipe comp. c - BRAKE
7	46331-SH5-010	Pipe comp. e - R. BRAKE
8	46340-SH5-040	Pipe comp. d - BRAKE
8	46340-SH5-010	Pipe comp. d - BRAKE
9	46341-SH5-010	Protector a - BRAKE PIPE
10	46342-SH5-010	Protector b - BRAKE PIPE
11	46360-SH3-030	Pipe comp. f - BRAKE
11	46360-SH3-020	Pipe comp. f - BRAKE
12	46361-SH5-010	Pipe comp. e - L. BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE
14	46382-SH3-300	Grommet a - BRAKE PIPE
14	46382-SA0-300	Grommet a - BRAKE PIPE
15	46391-SB2-034	Clip - BRAKE PIPE
16	46391-SH3-003	Clip - BRAKE PIPE
17	46391-SH5-000	Clip - BRAKE PIPE
18	46391-692-003	Clip s - BRAKE PIPE
19	46392-SB0-010	Clip d - BRAKE PIPE (BLACK)
20	46392-SB2-014	Clip b - BRAKE PIPE
21	46392-SE0-000	Clip - BRAKE PIPE
22	46392-692-003	Clip d - BRAKE PIPE (WHITE)
23	46410-SH3-043	Hose - R. FR. BRAKE (NICHIRIN)
23	46410-SH3-044	Hose - R. FR. BRAKE (MEIJI)
23	46410-SH3-034	Hose - R. FR. BRAKE (MEIJI)
23	46410-SH3-033	Hose - R. FR. BRAKE (NICHIRIN)
24	46411-SH3-043	Hose - L. FR. BRAKE (NICHIRIN)
24	46411-SH3-044	Hose - L. FR. BRAKE (MEIJI)
24	46411-SH3-034	Hose - L. FR. BRAKE (MEIJI)
24	46411-SH3-033	Hose - L. FR. BRAKE (NICHIRIN)
25	46430-SD5-023	Hose - RR. BRAKE (NICHIRIN)
25	46430-SH3-004	Hose - RR. BRAKE (MEIJI)
26	46462-SE0-000	Bolt - OIL
26	46462-663-670	Bolt - OIL
27	46472-568-000	Packing - OIL BOLT
28	90105-SB0-003	Bolt-washer - 8X16
29	90105-SD9-003	Bolt-washer - 8X20
30	90651-538-000	Clip - BRAKE HOSE
31	90677-SH3-003	Clip - PIPE PROTECTOR

Brake master cylinder 17

#	OEM	部品名
1	46100-SD2-003	Cylinder assy. - MASTER
1	46100-SE0-903	Cylinder assy. - MASTER
2	46120-SD2-003	Piston assy. - PRIMARY
2	46120-SE0-003	Piston assy. - PRIMARY
3	46122-SD2-003	Piston assy. - SECONDARY
3	46122-SE0-003	Piston assy. - SECONDARY
4	46135-SE0-013	Guide assy - PISTON
5	46138-568-671	Packing
6	46139-632-000	Bolt - STOPPER
7	46182-SE0-003	Circlip
8	46185-SE0-003	Seal - ROD
9	46660-SE0-003	Tank - RESERVE
10	46662-SD2-A01	Cap comp. - RESERVE TANK
11	46665-671-651	Band - RESERVE TANK
12	46666-SE0-003	Filter - MASTER CYLINDER
13	46669-692-003	Seal - RESERVE TANK
14	57173-SB0-801	O-ring - CONNECTOR

Brake pedal/clutch pedal (2) 15

#	OEM	部品名
1	17927-SH3-A01	Clamp - CLUTCH WIRE
2	22910-SH5-602	Wire comp - CLUTCH
3	46500-SH3-000	Pedal assy - BRAKE
5	46504-679-300	Bush - PEDAL
6	46505-SA5-000	Pad - PEDAL STOPPER
7	46530-SH3-000	Spring - PEDAL RETURN
8	46535-692-000	Collar - PEDAL
9	46540-SH5-010	Spring assy - PEDAL RETURN
10	46545-SA5-000	Cover, Pedal
12	46591-SH3-000	Washer - PLAIN (10MM)
13	46900-SH5-010	Pedal assy - CLUTCH
14	46935-SB2-000	Collar - PEDAL
15	46991-SH5-003	Bracket - FOOTREST
16	46992-SH3-013	Plate - FOOTREST BRACKET
17	90212-SA5-003	Nut - SELF-LOCK, 10MM

Bumpers (1) 36

#	OEM	部品名
1	62521-SB2-000	Nut - LICENSE PLATE
3	71107-SE0-Q00	Bracket
4	71140-SH5-000	Beam comp - FR. BUMPER UPPER
5	71190-SH3-000	Slide assy. - R. FR. BUMPER
6	71193-SH3-000	Clip - BUMPER CORNER
7	71195-SH3-000	Slide assy. - L. FR. BUMPER
8	71200-SH5-000	Apron - FR. BUMPER
9	71203-SH5-010	Bracket - R. CORNER APRON
10	71204-SH5-010	Bracket - L. CORNER APRON
11	71205-SH5-000	Stiffener - R. FR. APRON
12	71206-SH5-000	Stiffener - L. FR. APRON
14	71540-SH5-000	Beam comp - RR. BUMPER UPPER
15	71591-SH3-000	Slide - R. RR. BUMPER CORNER
16	71592-SH3-000	Slide - L. RR. BUMPER CORNER
17	75820-SH9-J01	Mudguard - R. RR.
18	75830-SH9-J01	Mudguard - L. RR.
19	90101-SE0-000	Bolt assy. b - BUMPER
21	90104-SH5-000	Bolt assy - APRON BUMPER
22	90107-SA0-000	Screw-washer - 5X20
22	90114-SZ3-000	Screw-washer - 5X20
23	90108-SB2-000	Screw - TAPPING, 5X12
24	90109-SE0-000	Bolt b - BUMPER
26	90105-SF1-000	Screw - CORNER SLIDE TAPPING
26	90113-SE0-000	Screw - CORNER SLIDE TAPPING
27	90126-SA7-000	Screw-washer - 5X20
28	90130-SB0-000	Bolt assy - BUMPER
29	90140-SB0-000	Bolt - BUMPER
30	90142-SH3-000	Seal - RR. BUMPER BEAM
30	71544-SR2-000	Seal - RR. UPPER BEAM
31	90301-SF1-000	Nut - WASHER CAP, 8MM
32	90303-SA5-003	Nut - FR. COMBINATION LIGHT
33	90308-SB2-013	Nut - SUSPENSION, 5MM
34	90540-SA7-000	Washer - BUMPER
35	90651-SH5-000	Clip - APRON BUMPER
36	90682-SB0-003	Grommet - SCREW, 5MM
37	91635-SE0-003	Grommet - SCREW, 5MM

Camshaft/timing belt 24

#	OEM	部品名
1	11810-PM3-000	Cover comp. - TIMING BELT LOWER
2	11812-PE0-300	Grommet - TIMING BELT COVER HOLE
3	11820-PM3-000	Cover comp. - TIMING BELT UPPER
4	11831-PM3-000	Rubber - LOWER SEAL
5	11832-PM3-000	Rubber - R. BACK SEAL
6	11833-PM3-000	Rubber - L. BACK SEAL
7	11840-PM3-000	Cover comp. - TIMING BELT BACK
7	11840-PM3-010	Cover comp. TIMING BELT BACK
8	11925-PM3-000	Rubber a - ENGINE MOUNTING BRACKET SEAL
9	11926-PM3-000	Rubber b - ENGINE MOUNTING BRACKET SEAL
10	14111-PM4-J00	Camshaft comp.
11	14210-PM3-000	Pulley comp - TIMING BELT DRIVEN
12	14400-PM3-004	Belt - TIMING (106RU24 A-555) (UNITTA)
13	14510-PM7-004	Tensioner comp - TIMING BELT (NIPPON SEIKO)
13	14510-PM7-003	Tensioner comp - TIMING BELT (KOYO SEIKO)
14	14513-PE0-005	Bolt - TENSIONER (M8)
15	14516-PM3-010	Spring comp - TIMING BELT ADJUSTER
15	14516-PM3-000	Spring - TIMING BELT ADJUSTER
16	14517-PG6-000	Bolt a - TENSIONER
17	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING
18	90031-PC6-000	Bolt - FLANGE, 8X22
19	90435-611-000	Washer - SPECIAL, 28X8.5X4.0
20	91213-PE1-721	Oil seal - 29X45X8 (NOK)
20	91213-P2F-A01	Oil seal - 29X45X8 (ARAI)

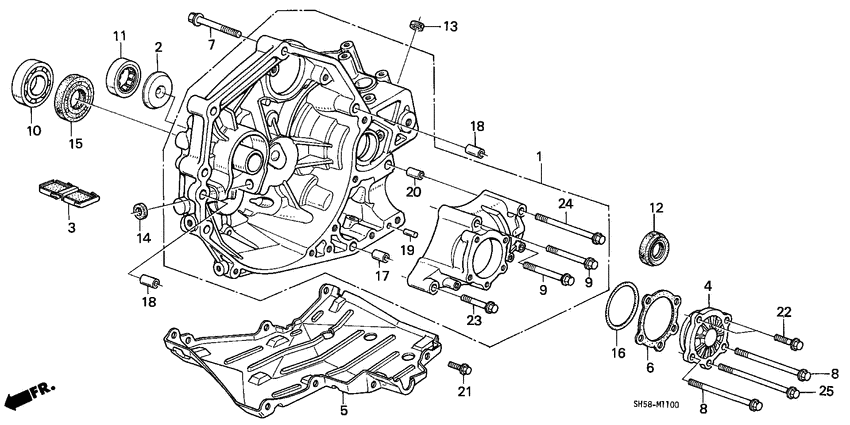

Clutch housing/ transfer cover (4WD) 38

#	OEM	部品名
1	21010-PH8-903	Case set - CLUTCH
1	21010-PH8-904	Case set - CLUTCH
1	21010-PH8-902	Case set - CLUTCH
2	21103-PH8-010	Plate c - OIL GUIDE
3	21120-PG2-003	Magnet - TRANSMISSION
4	21411-PH8-900	Cover - TRANSFER (L. SIDE)
4	21411-PH8-910	Cover - TRANSFER (L. SIDE)
5	21611-PH8-900	Guard - TRANSMISSION UNDER
6	29472-PH8-900	Shim - L. TRANSFER SIDE (1.27)
6	29466-PH8-900	Shim - L. TRANSFER SIDE (1.12)
6	29461-PH8-900	Shim - L. TRANSFER SIDE (0.30)
6	29474-PH8-900	Shim - L. TRANSFER SIDE (1.33)
6	29468-PH8-900	Shim - L. TRANSFER SIDE (1.18)
6	29463-PH8-900	Shim - L. TRANSFER SIDE (1.03)
6	29471-PH8-900	Shim - L. TRANSFER SIDE (1.24)
6	29465-PH8-900	Shim - L. TRANSFER SIDE (1.09)
6	29473-PH8-900	Shim - L. TRANSFER SIDE (1.30)
6	29467-PH8-900	Shim - L. TRANSFER SIDE (1.15)
6	29462-PH8-900	Shim - L. TRANSFER SIDE (1.00)
6	29469-PH8-900	Shim - L. TRANSFER SIDE (1.21)
6	29464-PH8-900	Shim - L. TRANSFER SIDE (1.06)
7	90051-PE0-000	Bolt - FLANGE, 12X70
7	90021-PH8-000	Bolt - FLANGE, 12X70
8	90023-PH8-000	Bolt - FLANGE, 10X115
9	90025-PH8-000	Bolt - FLANGE, 10X85
10	91002-PG1-018	Bearing - BALL, 63/28C (TOYO)
10	91002-PG1-008	Bearing - BALL, 63/28C (TOYO)
11	91104-PH8-008	Bearing - NEEDLE, 29X55X22
12	91205-PC8-934	Oil seal - 38X54X8 (ARAI)
12	91205-PC8-935	Oil seal - 38X54X8 (NOK)
13	91205-PH8-005	Oil seal - 12X18X4 (NOK)
13	91205-PH8-003	Oil seal - 12X18X4 (ARAI)
14	91208-PG1-005	Dust seal - 18X23X4 (NOK)
14	91208-PG1-003	Dust seal - 18X23X4 (ARAI)
15	91216-PH8-005	Oil seal - 28X41X7 (NOK)
15	91216-PH8-003	Oil seal - 28X41X7 (ARAI)
16	91309-PH8-000	O-ring - 79.7X2.2
20	90705-PH8-000	Dowel pin - 12X16

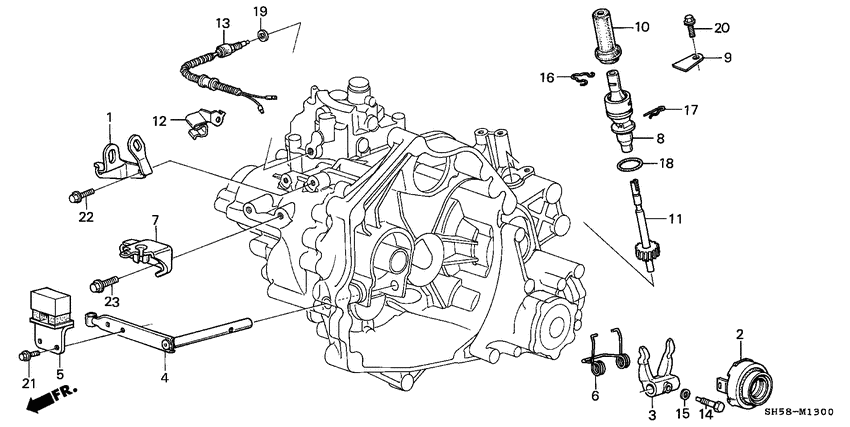

Clutch release/ speedometer gear (4WD) 22

#	OEM	部品名
1	21221-PH8-900	Hanger - TRANSMISSION
2	22810-PH8-008	Bearing - CLUTCH RELEASE (NTN)
3	22821-PH8-010	Fork - CLUTCH RELEASE
3	22821-PH8-000	Fork - CLUTCH RELEASE
4	22830-PH8-901	Shaft comp. - CLUTCH RELEASE
4	22830-PH8-900	Shaft comp. - CLUTCH RELEASE
5	22840-PL3-000	Damper - RELEASE ARM
6	22851-PH8-000	Spring - RELEASE FORK
7	22870-PH8-020	Stay comp - CLUTCH WIRE
7	22870-PH8-010	Stay comp - CLUTCH WIRE
8	23811-PM6-000	Holder comp - SPEEDOMETER GEAR
9	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER
10	23814-PM0-000	Seal - GEAR HOLDER
11	23820-PG6-000	Gear - SPEEDOMETER DRIVEN
12	32745-PH8-000	Clamp - BACK LIGHT HARNESS
13	35600-PE0-013	Switch assy - BACK UP LIGHT (TEC)
14	90029-PG1-010	Bolt - SPECIAL, 8X28
14	90029-PG1-000	Bolt - SPECIAL, 8X28
15	90412-679-000	Washer - CONICAL SPRING, 8MM
16	90637-689-000	Clip - SPEEDOMETER CABLE
17	90638-689-000	Clip - SPEEDOMETER GEAR
18	91313-611-010	O-ring - 23.5X2

Clutch/torque converter 13

#	OEM	部品名
1	21350-PP4-000	Cover comp. - CLUTCH CASE
1	21350-PM4-000	Cover comp. - CLUTCH CASE
3	22100-PM0-010	Flywheel comp.
4	22200-PM5-030	Disk comp - FRICTION
4	22200-PM7-J01	Disk comp - FRICTION
4	22200-PM5-000	Disk comp - FRICTION
4	22200-PM5-010	Disk comp - FRICTION
5	22300-PM5-000	Disk comp - PRESSURE
5	22300-PM7-A10	Disk comp - PRESSURE
8	90011-PM0-000	Bolt - 12MM
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
12	91006-634-008	Bearing - CLUTCH PILOT (NTN)
12	91006-634-004	Bearing - CLUTCH PILOT (KOYO)

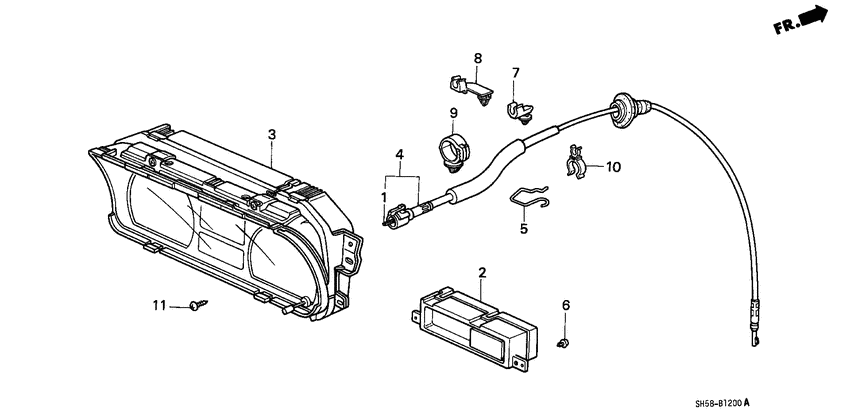

Combination meter 11

#	OEM	部品名
1	78411-SH5-003	Cable - INNER
1	37233-SH3-013	Cable - INNER
2	39700-SH3-023	Clock assy - DIGITAL (NS)
2	39700-SH3-024	Clock assy - DIGITAL (JECO)
2	39700-SH3-014	Clock assy - DIGITAL (JECO)
2	39700-SH3-013	Clock assy - DIGITAL (NS)
4	78410-SH5-003	Cable assy - SPEEDOMETER
4	78410-SH3-023	Cable assy - SPEEDOMETER
6	90101-SA4-000	Screw - TAPPING, 4X12
8	90683-SH7-013	Clip - METER CABLE
9	90684-SH3-023	Clip - CABLE

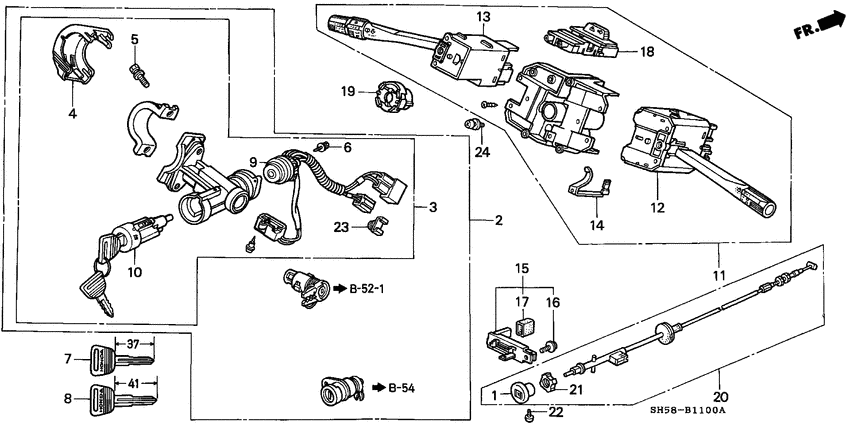

Combination switch 23

#	OEM	部品名
2	35010-SH5-Q00	Cylinder set - KEY
3	35100-SH5-Q03	Lock assy - STEERING
3	35100-SH5-Q01	Lock assy - STEERING
4	35101-SF4-003	Cover - HOLDER
5	35102-SA5-003	Bolt - BREAK HEAD
5	35102-SV4-003	Bolt - BREAK HEAD
6	35103-SE3-003	Screw - RECESSED, 3X8
6	35103-SA5-003	Screw - RECESSED, 3X8
7	35113-SH3-003	Key - BLANK
8	35113-SH3-013	Key - BLANK
9	35130-SH5-003	Switch comp - STEERING
10	35131-SH3-A01	Cylinder comp - STEERING
11	35250-SH3-961	Switch assy - COMBINATION (TEC) (INTERMITTENT/RR.WIPER)
12	35255-SH3-013	Switch assy - LIGHTING (A) (TEC)
12	35255-SH3-003	Switch assy - LIGHTING (A) (TEC)
13	35256-SH3-961	Switch assy - WIPER (B) (INTERMITTENT/RR.WIPER)
14	35259-SD5-013	Shoe - HORN (TEC)
14	35259-SH3-003	Shoe - HORN (TEC)
15	35400-692-033	Switch assy - DOOR
16	35409-692-013	Screw - FLANGE, 4X12
17	35410-692-003	Cover - DOOR SWITCH
18	35510-SH3-003	Switch assy - HAZARD (A) (TEC)
19	53271-SF1-003	Cam - TURN SIGNAL SWITCH CANCEL

Console 14

#	OEM	部品名
7	77730-SH5-902	Holder comp - FR. ASHTRAY
10	83413-SH5-000	Plate - BOOT SET
11	83414-SH5-A00	Boot - CHANGE LEVER
14	83454-SH5-000	Bracket - FR. CONSOLE
16	88324-SB3-950	Cover - RR. ASHTRAY
17	90102-SA4-000	Screw - TAPPING, 4X16
18	90130-693-000	Screw - TAPPING, 4X10
19	90138-SH3-960	Screw - TAPPING, 4X38
19	90138-SH3-010	Screw - TAPPING, 4X40
20	91641-SH5-000	Grommet - SCREW, 4MM
20	90681-693-000	Grommet - SCREW, 4MM
23	39600-SW3-305	Lighter unit - CIGARETTE
23	39600-SW3-505	LIGHTER ASSYCIGA
24	39628-SF4-305	Cord assy

Control box cover 14

#	OEM	部品名
1	18804-PB2-300	Rubber - CUSHION
2	36017-PM3-004	Bolt - MOUNTING
3	36019-PM4-004	Cover - LOWER
4	36020-PM4-004	Cover - UPPER
5	36022-PM4-004	Label - CONTROL BOX
6	36024-PM4-004	Holder - TUBE
7	36033-PM3-004	Stay
8	36035-PM4-004	Base
9	36037-PM4-004	Bracket - MAP SENSOR
10	36039-PM3-004	Bracket - COUPLER
11	36053-PM3-004	Rubber - MOUNTING (20MM)
12	36059-PD1-004	Clamp b - WIRE HARNESS
13	36093-PG6-004	Cap - DRAIN
14	90041-PH2-004	Screw-washer - 5X8

Control box tubing 16

#	OEM	部品名
1	17205-PC6-000	Clamp - TUBE, 7.5X2
2	17321-PM4-004	Joint - FOUR WAY
3	36010-PM3-004	Joint - THREE WAY (#100)
4	36018-PM4-004	Tube - PB
5	36034-PM6-901	Plug - SEALING
5	36034-PD1-000	Plug - SEALING
6	36041-PM4-004	Cord assy
7	36138-PE0-004	Filter assy - SOLENOID VALVE
8	36145-PA6-661	Valve - CHECK
8	36145-PM4-004	Valve - CHECK
9	36161-PH2-004	Valve assy. - IGNITION SOLENOID (#150-B)
10	36161-PM3-004	Valve assy. - IDLE UP SOLENOID
11	36163-PM4-004	Valve assy. - POWER JET CONTROL SOLENOID
12	36184-PM4-004	Switch assy - VACUUM (B-50)
13	37830-PM3-003	Sensor assy - MAP
14	36013-PE0-004	Holder - SOLENOID, 3.5MM

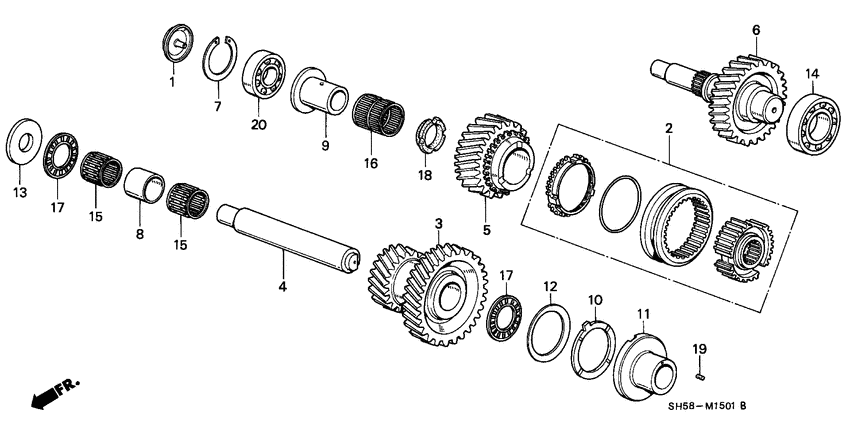

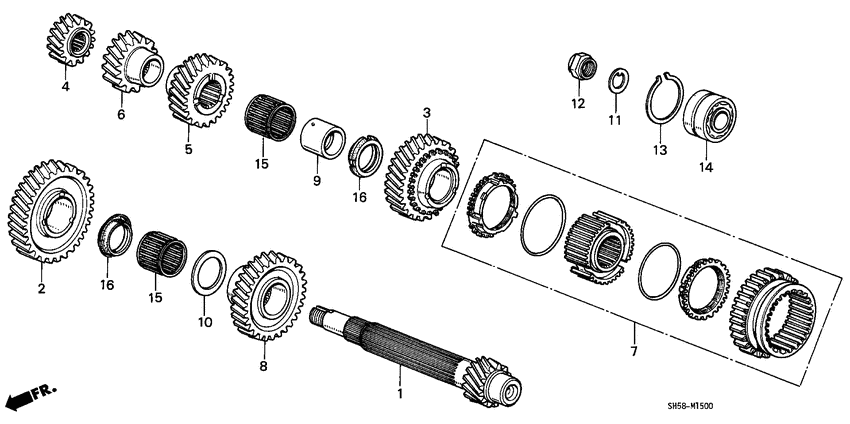

Countershaft/gear (4WD) 42

#	OEM	部品名
1	23220-PH8-900	Countershaft comp.
2	23421-PH8-901	Gear - COUNTERSHAFT LOW
3	23431-PH8-901	Gear - COUNTERSHAFT SECOND
4	23461-PH8-900	Gear - COUNTERSHAFT FIFTH
5	23471-PH8-900	Gear - COUNTERSHAFT THIRD
6	23481-PH8-900	Gear - COUNTERSHAFT FOURTH
7	23521-PH8-315	Sleeve set - SYNCHRONIZER (1-2)
7	23521-PH8-305	Sleeve set - SYNCHRONIZER (1-2)
8	23741-PH8-000	Gear - SUPER LOW (3)
9	23917-PH8-000	Collar a - DISTANCE, 36X44X29 (+0.05/+0.03)
9	23914-PK5-000	Collar d - DISTANCE, 36X44X29 (-0.01/-0.03)
9	23918-PH8-000	Collar b - DISTANCE, 36X44X29 (0.00/-0.02)
9	23915-PK5-000	Collar e - DISTANCE, 36X44X29 (-0.03/-0.05)
9	23911-PK5-000	Collar a - DISTANCE, 36X44X29 (+0.05/+0.03)
9	23912-PK5-000	Collar b - DISTANCE, 36X44X29 (+0.03/+0.01)
9	23913-PK5-000	Collar c - DISTANCE, 36X44X29 (+0.01/-0.01)
10	23933-PH8-900	Washer m - 44X58X2.07
10	23928-PH8-900	Washer h - 44X58X2.02
10	23922-PH8-900	Washer b - 44X58X1.96
10	23934-PH8-900	Washer n - 44X58X2.08
10	23929-PH8-900	Washer i - 44X58X2.03
10	23935-PH8-900	Washer o - 44X58X2.09
10	23921-PH8-900	Washer a - 44X58X1.95
10	23930-PH8-900	Washer j - 44X58X2.04
10	23936-PH8-900	Washer p - 44X58X2.10
10	23931-PH8-900	Washer k - 44X58X2.05
10	23926-PH8-900	Washer f - 44X58X2.00
10	23924-PH8-900	Washer d - 44X58X1.98
10	23932-PH8-900	Washer l - 44X58X2.06
10	23927-PH8-900	Washer g - 44X58X2.01
10	23925-PH8-900	Washer e - 44X58X1.99
10	23923-PH8-900	Washer c - 44X58X1.97
10	23924-PH8-000	Shim d - 44X58X2.04
10	23923-PH8-000	Shim c - 44X58X2.02
10	23922-PH8-000	Shim b - 44X58X2.00
10	23921-PH8-000	Shim a - 44X58X1.98
11	23926-PG1-010	Washer - SPRING, 23MM
12	90202-PH8-000	Nut - HEX., 23MM
13	90602-PB6-000	Ring - SNAP, 60MM
14	91003-PG1-018	Bearing - BALL, 5205
15	91107-PK5-008	Bearing - NEEDLE, 44X50X24 (TOYO)
16	91211-PH8-008	Damper - FRICTION

Cylinder block/oil pan 35

#	OEM	部品名
1	11000-PM4-000	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM
3	11111-PM3-300	Pipe - OIL LEVEL
4	11126-PK1-003	Bolt - SEALING, 22MM
5	11200-PM1-010	Pan comp - OIL
5	11200-PM1-000	Pan comp - OIL
6	11251-PE2-004	Gasket - OIL PAN (OTSUKA)
6	11251-PE2-003	Gasket - OIL PAN (KOKOKU)
6	11251-P01-004	Packing - OIL PAN (OTSUKA)
6	11251-PE0-003	Gasket - OIL PAN (KOKOKU)
6	11251-PE0-004	Gasket - OIL PAN (OTSUKA)
7	11301-PE0-040	Cover - R. SIDE
7	11301-PE0-030	Cover - R. SIDE
7	11301-P00-T00	Cover - R. SIDE
8	11910-PM3-700	Bracket - ENGINE MOUNTING
9	11911-PM4-000	Stay - ENGINE MOUNTING BRACKET
10	15140-PM3-000	Orifice assy - OIL PATH
11	15650-PM3-004	Gauge comp. - OIL LEVEL (OTSUKA)
11	15650-PM4-003	Gauge comp. - OIL LEVEL (ARAI)
11	15650-PM4-004	Gauge comp. - OIL LEVEL (OTSUKA)
12	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
13	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5
14	90008-PM0-003	Bolt-washer - 10X112
14	90008-PE0-003	Bolt-washer - 10X112
15	90009-PM3-000	Bolt - PLUG, 14MM
15	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
16	90041-PA5-000	Bolt - STUD, 6X28
17	90041-PM3-000	Bolt - STUD, 12X44
18	90401-PM3-000	Washer - DRAIN PLUG, 28MM
19	90702-PE0-000	Dowel pin - 12X18
20	90703-PE0-000	Dowel pin - 18X22
21	91214-PE1-721	Oil seal - 80X100X10 (NOK)
21	91214-PLE-003	Oil seal
22	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)
22	91312-107-000	O-ring (7x1.7)

Cylinder head 29

#	OEM	部品名
1	12100-PM3-010	Head assy - CYLINDER
2	12100-PM3-J01	Head assy - CYLINDER
3	12204-PJ7-305	Guide - IN. VALVE (OS)
4	12205-PJ7-305	Guide - EX. VALVE (OS)
5	12210-PJ7-004	Seal a - VALVE STEM (NOK)
5	12210-PJ7-003	Seal a - VALVE STEM (ARAI)
6	12211-PJ7-004	Seal b - VALVE STEM (NOK)
6	12211-PJ7-013	Seal b - VALVE STEM (ARAI)
6	12211-PJ7-003	Seal b - VALVE STEM (ARAI)
7	12251-PM5-S02	Gasket comp - CYLINDER HEAD (ISHINO GASKET)
8	14631-PJ7-J00	Shaft a - VALVE ROCKER ARM
8	14631-PJ7-000	Shaft a - VALVE ROCKER ARM
9	14632-PJ7-J00	Shaft b - VALVE ROCKER ARM
9	14632-PJ7-000	Shaft b - VALVE ROCKER ARM
10	14633-PJ7-000	Shaft - EX. VALVE ROCKER ARM
11	90002-PM3-000	Bolt - FLANGE, 8X72
11	90010-PY3-000	Bolt - FLANGE, 8X72
12	90003-PM0-B00	Bolt - FLANGE, 6X65
13	90003-PM3-000	Bolt - FLANGE, 8X62
13	90002-PZ1-000	Bolt,flange,8x62
14	90005-PM3-004	Bolt-washer - 10X140(TOKAI TRW)
14	90005-PM3-003	Bolt-washer - 10X140 (SAGA)
15	90014-PM3-000	Bolt a - CYLINDER HEAD COVER
16	90026-PE0-000	Bolt - STUD, 8X37
16	90026-PT0-000	Bolt - STUD, 8X38
17	91301-PJ7-000	O-ring - 31X2.5
18	91302-PJ7-003	O-ring - (NO.4 CAM HOLDER) (ARAI)
18	91302-PJ7-004	O-ring - (NO.4 CAM HOLDER) (NOK)
20	90025-PM3-000	Bolt - STUD, 8X32

Cylinder head cover 18

#	OEM	部品名
1	12310-PM4-000	Cover comp. - CYLINDER HEAD
2	12341-PM6-000	Packing - CYLINDER HEAD COVER
2	12341-PM6-010	Packing - CYLINDER HEAD COVER
2	12341-PM3-000	Packing - CYLINDER HEAD COVER
3	12342-PJ7-000	Packing b - HEAD COVER
4	15610-PC6-000	Cap assy. - OIL FILLER
5	15613-PC6-000	Packing, Oil Filler
6	17261-PM4-000	Clamp a - THROTTLE WIRE
9	17262-PM4-000	Clamp b - THROTTLE WIRE
10	32761-PM3-000	Stay a - HIGH TENSION CORD CLAMP
11	32762-PM3-000	Stay b - HIGH TENSION CORD CLAMP
12	90013-PM3-000	Bolt b - CYLINDER HEAD COVER
13	90023-PE0-000	Bolt - FLANGE, 6X10
14	90213-PH3-000	Nut - CAP, 6MM
15	90441-PN4-000	Washer - HEAD COVER
15	90441-PG6-010	Washer - HEAD COVER (BLACK)
16	90441-PK2-000	Washer - HEAD COVER
16	90442-PJ7-000	Washer - HEAD COVER

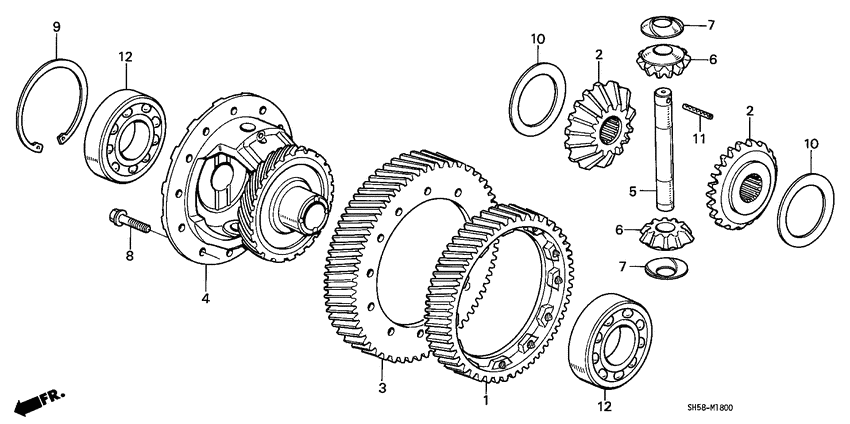

Differential gear (4WD) 22

#	OEM	部品名
1	29011-PH8-900	Gear - TRANSFER DRIVE
2	41221-PC8-030	Gear - DRIVE PINION
3	41233-PH8-900	Gear - FINAL DRIVEN
4	41310-PH8-900	Case comp. - DIFFERENTIAL
5	41321-PE6-030	Shaft - PINION
6	41341-PC9-000	Gear - DIFFERENTIAL PINION
6	41341-PC9-010	Gear - DIFFERENTIAL PINION
7	41355-PC8-000	Washer e - DIFFERENTIAL PINION (0.75MM)
7	41357-PC8-000	Washer g - DIFFERENTIAL PINION (0.95MM)
7	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)
7	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)
7	41356-PC8-000	Washer f - DIFFERENTIAL PINION (0.85MM)
7	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)
7	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)
8	90017-PH8-000	Bolt - SPECIAL, 10MM (A)
9	90415-689-000	Ring 2 - SNAP, 80X2.6
9	90417-689-000	Ring 4 - SNAP, 80X2.8
9	90419-PH8-000	Ring 6 - SNAP, 80X3.0
9	90414-689-000	Ring 1 - SNAP, 80X2.5
9	90416-689-000	Ring 3 - SNAP, 80X2.7
9	90418-689-000	Ring 5 - SNAP, 80X2.9
10	90425-680-900	Washer - THRUST, 28X50X1.5

Distributor 32

#	OEM	部品名
1	30100-PM4-953	Distributor assy - D4W86-12) (HITACHI
1	30100-PM4-952	Distributor assy - D4W86-12) (HITACHI
2	30101-PM3-005	Plate assy.
3	30102-PM3-045	Cap assy.
3	30102-PM3-025	Cap assy.
4	30103-PM3-005	Head - ROTOR
5	30103-PM3-025	Head - ROTOR
7	30110-PC6-005	O-ring
8	30113-PD2-005	Coupling set
8	30113-P01-005	Coupling set
9	30115-634-005	Point assy - CARBON
10	30120-PM3-005	Igniter unit
11	30121-PM3-005	Stator
12	30123-PC1-005	Magnet set - PICK UP
13	30126-PM3-005	Reluctor set
14	30128-PM3-015	Wire - LEAD
14	30128-PM3-005	Wire - LEAD
15	30131-PM3-015	Harness assy
15	30131-PM3-005	Harness assy
16	30132-PM3-035	Packing - 1
16	30132-PT0-005	Packing - 1
16	30132-PM3-025	Packing - 1
17	30135-PT0-005	Screw - PAN, 4X10
17	30135-PM3-005	Screw - PAN, 4X10
18	30138-PM3-005	Packing - 2
18	91308-MA6-005	O-ring (14.6x3.6)
19	30139-PM3-015	Plug
20	30500-PM3-015	Coil - IGNITION
20	30500-P01-005	Coil - IGNITION
20	30500-PM3-005	Coil - IGNITION
22	30117-PM4-951	Control set - VACUUM
23	91301-PK1-005	O-ring

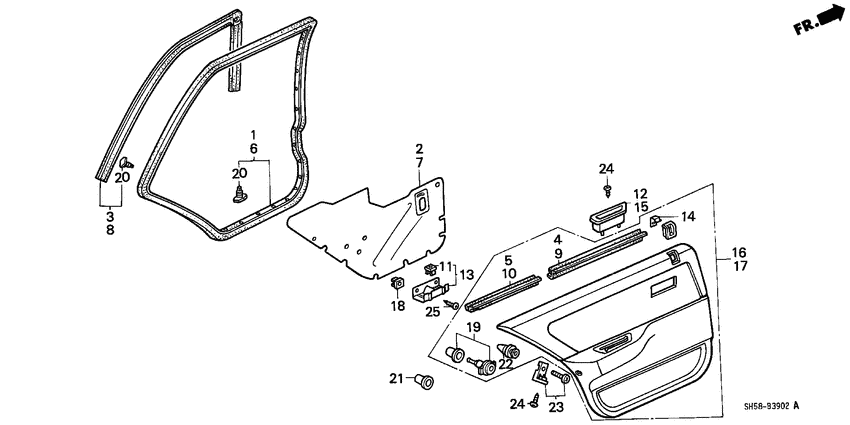

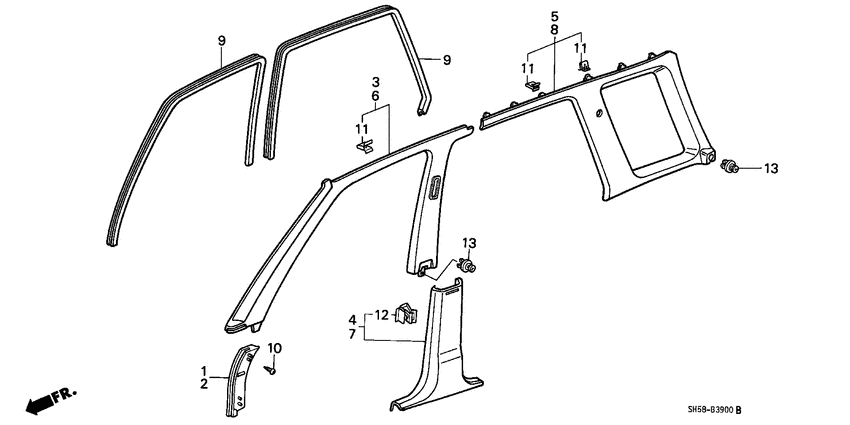

Door trim 3

#	OEM	部品名
10	90162-SA6-000	Screw - TAPPING, 4X12
11	90609-SB6-003	Clip - PILLAR GARNISH
12	90669-SH4-003	Clip - CENTER PILLAR LINING

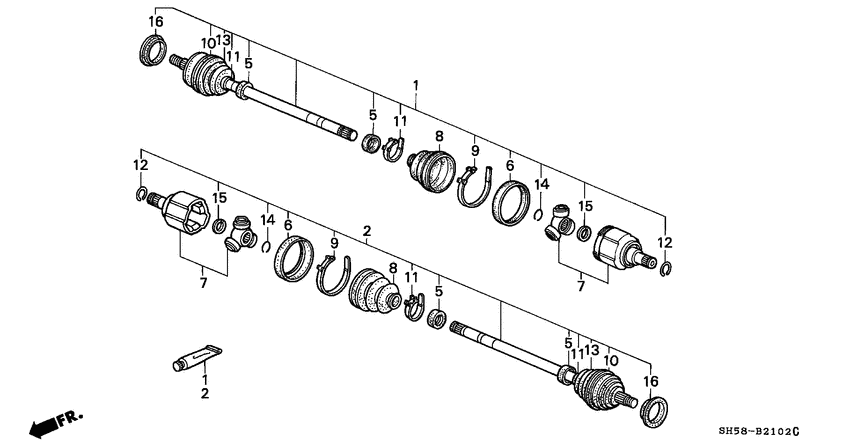

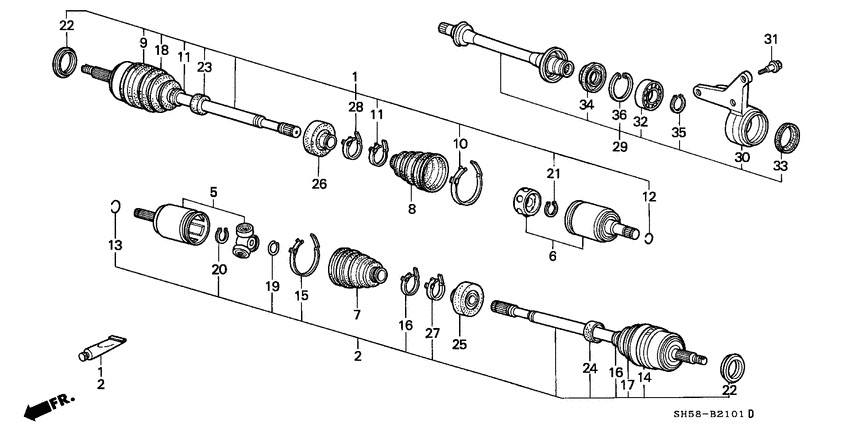

Driveshaft/half shaft 42

#	OEM	部品名
1	44010-SH9-000	Driveshaft set - R.
2	44011-SH9-J01	Driveshaft set - L.
2	44011-SH9-J00	Driveshaft set - L.
5	44310-SH3-J10	Joint comp - INBOARD
6	44310-SH9-003	Joint comp - INBOARD
7	44315-SB2-981	Boot - INBOARD (NOK)
7	44315-SM4-003	Boot - INBOARD (NOK)
8	44315-SD9-003	Boot - INBOARD
9	44316-SD9-013	Band - OUTBOARD BOOT
10	44317-SD9-013	Band - INBOARD BOOT
11	44318-SD9-013	Band - SHAFT BOOT
12	44319-SD9-003	Set ring - 28X2.0
12	44319-SE0-000	Set ring - 28X2.0
12	44319-S84-300	Set ring - 28X2.0
14	44327-SF1-300	Band - OUTBOARD BOOT (GKN)
14	44327-SB0-300	Band - OUTBOARD BOOT
15	44328-SB0-300	Band - INBOARD BOOT
16	44329-SB0-300	Band - DRIVESHAFT BOOT
16	44352-SA2-300	Band - DAMPER WEIGHT
17	44333-SB2-981	Boot - R. OUTBOARD (NOK)
18	44333-SD9-003	Boot - OUTBOARD
19	44336-SB0-300	Ring a - STOPPER
20	44338-SB0-300	Circlip - 26MM
21	44338-SD9-003	Circlip
22	44347-SB2-003	Ring - OUTBOARD
23	44348-SD9-003	Cover - BOOT BAND
24	44349-SH9-300	Cover - BOOT BAND
25	44351-SH3-J00	Weight - DYNAMIC DAMPER (###)
26	44351-SH9-300	Weight - DYNAMIC DAMPER
28	44352-SD9-013	Band - DYNAMIC DAMPER
29	44500-SH9-010	Shaft assy - HALF
29	44500-SH9-000	Shaft assy - HALF
30	44511-SH9-000	Support - HALF SHAFT BEARING
31	90102-SF1-000	Bolt - HEX., 10X1.25
32	91057-SD9-008	Bearing - HALF SHAFT (TOYO SEIKO)
32	91057-SD2-004	Bearing - HALF SHAFT (KOYO SEIKO)
33	91260-SD9-014	Seal - HALF SHAFT OUTER (ARAI)
33	91260-SD9-023	Seal - HALF SHAFT OUTER (NOK)
33	91260-SD9-013	Seal - HALF SHAFT OUTER (NOK)
33	91260-SD9-004	Seal - HALF SHAFT OUTER (ARAI)
34	91262-SE0-004	Seal - HALF SHAFT INNER (ARAI)
34	91262-SE0-003	Seal - HALF SHAFT INNER (NOK)

Dual carburetor assy. 22

#	OEM	部品名
1	16010-PM4-005	Gasket set
2	16024-PM4-005	Solenoid - SLOW CUT
3	16026-PC7-661	Joint set - FUEL
4	16032-PC6-005	Rod set
5	16036-PM4-005	Solenoid - SLOW CUT
6	16038-PC6-005	Screw set
7	16039-PH5-005	Packing set
8	16043-PM4-005	Opener set - DASHPOT
9	16045-PM4-Q01	Diaphragm set
10	16047-PC6-005	Joint set - FUEL
11	16080-PC7-661	Screw - CAP
12	16100-PM4-Q02	Carburetor assy - VF32A C
12	16100-PM4-Q01	Carburetor assy - VF32A A
13	16101-PM4-Q03	Carburetor assy. - R. (VF32A C)
13	16101-PM4-Q02	Carburetor assy. - R. (VF32A B)
14	16102-PM4-Q03	Carburetor assy. - L. (VF32A C)
14	16102-PM4-Q02	Carburetor assy. - L. (VF32A B)
15	16120-PM4-005	Valve assy. - VENT SOLENOID
16	16178-463-004	Pin - KNOCK
17	16410-PM4-000	Flange comp - CARBURETOR
18	17265-PC6-000	Flange - MAIN
19	17267-PK1-000	Funnel comp. - MAIN

Dual carburetor comp. 27

#	OEM	部品名
1	16010-PM4-005	Gasket set
2	16011-PK1-005	Valve set - FLOAT
3	16012-PM4-005	Needle Set - JET
4	16013-PB9-005	Float set
5	16015-PH5-005	Chamber set a - FLOAT
5	16015-PM4-005	Chamber set a - FLOAT
6	16016-PC7-781	Screw set
7	16018-PK1-005	Plate set
8	16019-PM4-005	Rod set - PUMP
9	16021-PM4-005	Diaphragm set - PUMP
10	16022-PM4-005	Piston set - VACUUM
11	16023-PK1-661	Chamber set - FLOAT
11	16023-PM4-005	Chamber set - FLOAT
12	16028-PK1-005	Screw set
13	16029-PK1-005	Screw set
14	16031-PR6-000	Solenoid - AIR VENT CUT
14	16031-PK1-005	Screw set
15	16041-PC6-005	Economizer set a
16	16042-PC6-005	Economizer set b
17	16050-PC6-661	Spring - VACUUM PISTON
18	16165-PM4-005	Holder - NEEDLE JET
19	16166-PM4-005	Nozzle - MAIN
20	16185-PK1-005	Plate
20	16185-PM4-005	Plate
26	99101-393-1600	Jet - MAIN, #160
27	99104-PC7-0420	Jet - SLOW, #42
28	99112-PB9-0450	Jet - ECONOMIZER, #45

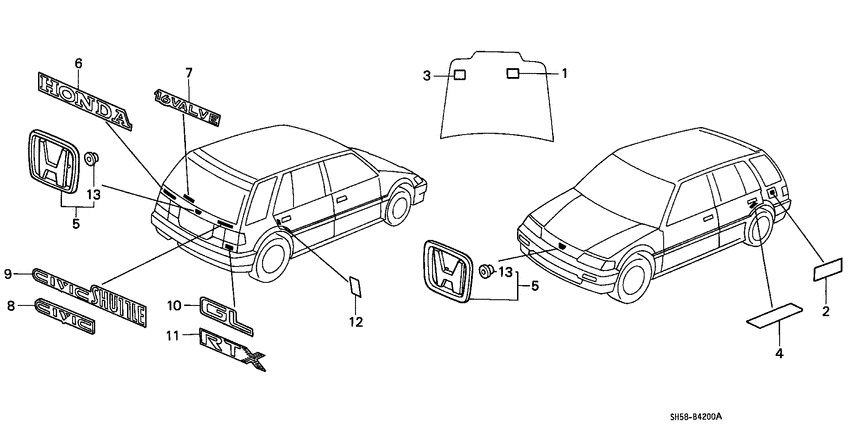

Emblems 12

#	OEM	部品名
1	17277-PM4-Q00	Label - SERVICE INFORMATION
2	17669-SA0-670	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
3	24528-PH8-C11	Label - SELECTOR CAUTION
3	24528-PH8-A10	Label - SELECTOR CAUTION (C)
4	42760-SH9-Q21	Placard - TIRE PRESSURE SPECIFICATION
5	75700-SH3-000	Emblem - FR. CENTER (H)
5	75700-SG0-000	Emblem - FR. CENTER (H)
6	75711-SH3-A00	Emblem - RR. (HONDA)
8	75722-SH5-A00	Emblem - RR. (CIVIC)
12	76501-SA1-600	Plate, RR. DOOR LOCK CAUTION
13	87351-SA0-003	Clip - TUBULAR
13	91512-SR3-004	Clip - TUBULAR

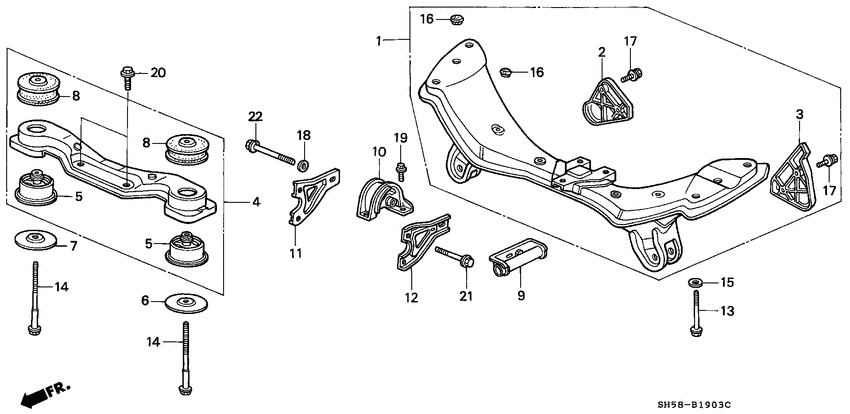

Engine mounts 37

#	OEM	部品名
1	50200-SH9-010	Beam - RR.
1	50200-SH9-951	Beam - RR. (P.S.)
1	50200-SH9-000	Beam - RR.
1	50200-SH9-950	Beam - RR. (P.S.)
2	50250-SH9-010	Beam - FR.
5	50805-SH9-010	Rubber - TRANSMISSION MOUNTING (MT)
6	50810-SH3-020	Rubber assy. - ENGINE RR. MOUNTING (MT)
6	50810-SH3-010	Rubber assy. - ENGINE RR. MOUNTING (MT)
7	50821-SH3-040	Rubber - ENGINE SIDE MOUNTING
7	50821-SH3-030	Rubber - ENGINE SIDE MOUNTING
10	50825-SH9-010	Bracket - TRANSMISSION MOUNTING (MT)
13	50827-SH9-030	Bracket - ENGINE RR. MOUNTING (MT)
13	50827-SH9-020	Bracket - RR. ENGINE MOUNTING (MT)
14	50829-SH3-000	Mass - RR. ENGINE MOUNTING
15	50839-SH3-000	Nut - YOKE, 12MM
16	50840-SH3-000	Mounting assy. - FR. STOPPER (MT)
17	50841-SH3-010	Rubber - FR. STOPPER INSULATOR (MT)
19	90161-SH3-030	Bolt - HEX., 12X108
19	90161-SH3-020	Bolt - HEX., 12X110
20	90163-SH3-000	Bolt - HEX., 12X90
21	90164-SH3-010	Bolt - FLANGE, 12X90
22	90169-SH3-000	Bolt - FLANGE, 12X32
24	90170-SH3-010	Bolt - FLANGE, 12X60
24	90170-SH3-000	Bolt - FLANGE, 12X55
25	90180-SH3-000	Bolt-washer - SPECIAL, 10X22
26	90181-SH3-000	Bolt - SPECIAL FLANGE, 12X25
27	90182-SK7-000	Bolt - FLANGE, 12X100
27	90121-SB2-000	Bolt - HEX., 12X95
28	90183-SH3-000	Bolt - FLANGE, 12X115
29	90371-SH3-020	Nut - FLANGE, 12MM
30	90372-SH9-000	Bolt - STUD, 12X45
31	90504-SB0-000	Washer - PLAIN, 12MM
32	90504-SH3-000	Washer - PLAIN, 12MM
33	90509-SH3-000	Washer - FR. BEAM
34	91613-SE0-003	Grommet - SUB FRAME, 15MM
35	91770-SH3-000	Bolt - FLANGE, 10X23
36	91771-SH3-000	Washer - PLAIN, 10MM

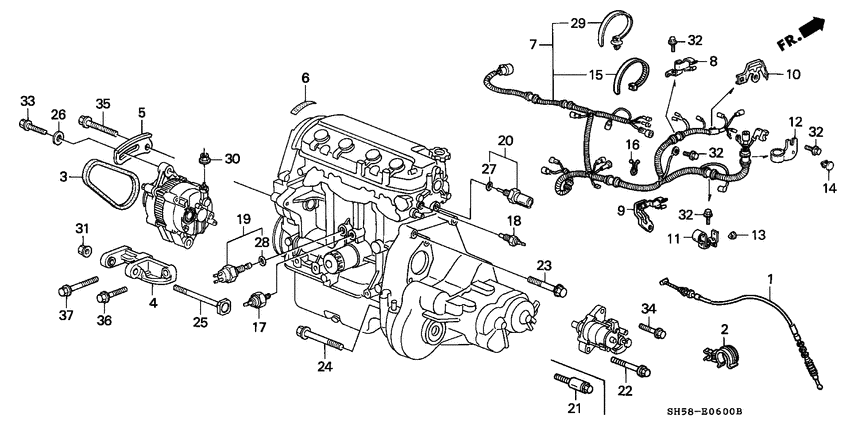

Engine wire harness/clamp 30

#	OEM	部品名
3	31110-PM3-003	Belt - ALTERNATOR (BANDO)
3	31110-PM3-506	Belt
3	31110-PM3-014	Belt - ALTERNATOR (MITSUBOSHI)
3	31110-PM3-004	Belt - ALTERNATOR (MITSUBOSHI)
4	31112-PM3-000	Bracket comp. - ALTERNATOR
5	31113-PM3-000	Stay - ALTERNATOR
6	31117-PM5-A00	Plate - CAUTION
7	32110-PM4-Q10	Harness - ENGINE WIRE
7	32110-PM4-Q01	Harness - ENGINE WIRE
9	32741-PM4-Q00	Clamp a - ENGINE WIRE HARNESS
10	32743-PM3-010	Clamp b - ENGINE WIRE HARNESS
11	32745-PM0-000	Clamp e - ENGINE WIRE HARNESS
12	32748-PM0-000	Clamp - R. ENGINE WIRE HARNESS
16	36143-PM4-003	Clip - PURSE LOCK
17	37240-PD2-003	Switch - OIL PRESSURE (DENSO)
17	37240-PD2-004	Switch - OIL PRESSURE (TEC)
18	37750-PH2-014	Thermo unit - DENSO
19	37760-PM3-003	Switch assy - THERMOSTAT (A-93) (NIPPON THERMOSTAT)
19	37760-PB2-003	Switch assy - THERMOSTAT (A-90) (NIPPON THERMOSTAT)
20	37870-PJ7-003	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)
21	90027-PJ7-000	Bolt - STARTER MOTOR
24	90050-PG7-000	Bolt - FLANGE, 12X65
24	90051-PE0-000	Bolt - FLANGE, 12X70
25	90057-PG7-003	Bolt - ALTERNATOR
26	90430-657-000	Washer - 23X8.3X3.2
27	91307-PJ7-003	O-ring - 9.5X1.5 (MATSUSHITA)
27	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
28	91307-611-000	O-ring (13.5X1.4)
28	91307-PH7-660	O-ring (13.5X1.4)
29	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)

Exhaust manifold (2) 19

#	OEM	部品名
1	11942-PM6-H00	Stay - EX. MANIFOLD
2	17302-PM4-003	Pipe - HOT AIR
3	17303-PM3-000	Clamp - HOT AIR PIPE
4	18100-PM6-H00	Manifold - EX.
5	18115-PM3-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
6	18120-PM4-Q10	Cover a - EX. MANIFOLD
7	18121-PM6-H00	Cover b - EX. MANIFOLD
8	18782-PB1-000	Clip - AIR SUCTION TUBE
9	36531-PM4-952	Sensor - OXYGEN
10	36533-PM7-000	Clamp - OXYGEN SENSOR
11	36536-PJ7-004	Gasket - EXTERNAL
12	90010-PE2-900	Bolt - SPECIAL, 10X22
13	90015-PH7-000	Bolt-washer - 8X14
13	90015-PT0-J00	Bolt-washer - 8X14
14	90022-PE0-000	Bolt - FLANGE, 8X10
15	90065-PG6-000	Bolt, STUD, 10X24
16	90212-PD2-003	Nut - SELF-LOCK, 8MM
16	90212-RCA-A01	Nut - SELF-LOCK, 8MM
17	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe 33

#	OEM	部品名
1	18160-PM4-951	Converter comp. - 5NE330
1	18160-PM4-952	Converter comp. - CA30
2	18176-PA6-000	Bolt - CONVERTER
3	18181-PM4-000	Cover - LOWER
4	18182-PM4-000	Cover - UPPER
6	18210-SH5-J12	Pipe a - EX.
8	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
9	18213-SH3-A00	Stay - EX. PIPE A
12	18213-SH5-J00	Stay - EX. PIPE A
14	18214-SH9-010	Bracket - EX. MOUNTING
14	18214-SH9-000	Bracket - EX. MOUNTING
15	18215-SA7-000	Rubber - SILENCER MOUNTING (70X45X25)
16	18215-SB2-920	Rubber - EX. MOUNTING (60X50X20)
17	18215-SH3-J01	Rubber - EX. MOUNTING (70X55X30)
19	18220-SH9-Q23	Pipe b - EX.
19	18220-SH9-Q22	Pipe b - EX.
20	18222-SH5-J01	Bracket - EX. MOUNTING
22	18229-SH3-J10	Gasket - EX. FLEXIBLE (50.8MM-64MM)
23	18230-SA0-930	Spring - FLEXIBLE JOINT
24	18231-SB2-000	Bolt - FLEXIBLE JOINT
25	18231-SH3-J31	Bolt - FLEXIBLE JOINT
25	18231-SH3-J30	Bolt - FLEXIBLE JOINT
26	18285-SH5-J00	Bracket - EX. MOUNTING
27	18303-689-000	Gasket - SILENCER
28	18307-SH5-J23	Silencer comp - EX.
28	18307-SH5-J22	Silencer comp - EX.
29	18310-SH3-010	Finisher - EX. PIPE
30	18393-SA0-000	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
31	90115-SB2-003	Nut - SELF-LOCK, 8MM
32	90115-SH3-J30	Nut - SELF-LOCK, 8MM
33	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
34	90117-SB2-000	Nut - SELF-LOCK, 8MM
35	90212-SA5-003	Nut - SELF-LOCK, 10MM

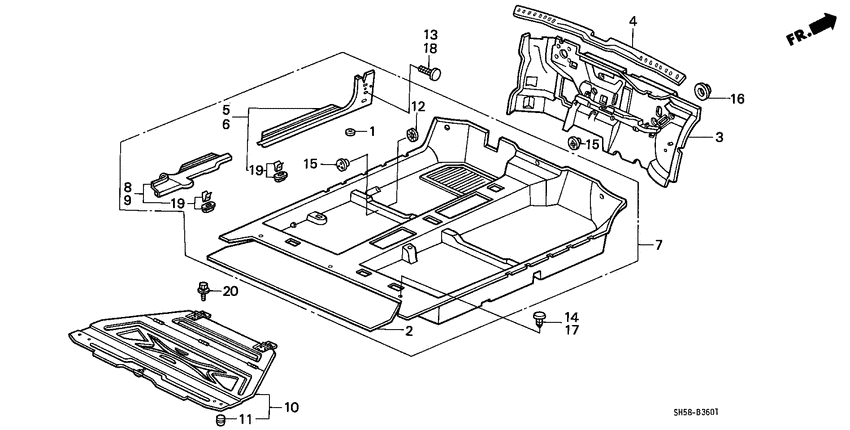

Floor mat 12

#	OEM	部品名
1	64436-692-000	Clip - GUIDE
3	83101-SH5-971	Insulator - DASHBOARD LOWER
3	83101-SH5-951	Insulator - DASHBOARD LOWER
4	83103-SH5-000	Insulator - DASHBOARD UPPER
10	84521-SH5-020	Lid comp - SPARE TIRE
10	84521-SH5-030	Lid comp - SPARE TIRE
10	84521-SH5-010	Lid comp - SPARE TIRE
11	85268-SA7-003	Stopper - TAILGATE
12	90332-SH3-003	Nut - SPEED, 9MM
15	90676-SB2-003	Clip - DASHBOARD INSULATOR
16	90678-SB3-000	Clip - GUIDE INSULATOR
19	91641-SH3-013	Grommet assy, GARNISH

Front brake caliper (3) 17

#	OEM	部品名
1	43352-692-003	Screw - BLEEDER
2	43353-SA0-003	Cap - BLEEDER SCREW
2	43353-SD5-003	Cap - BLEEDER SCREW
3	45022-SH3-932	Pad set - FR.
4	45210-SH3-932	Caliper assy - R. (NISSIN) (16CL-13VN)
5	45214-SE0-003	Boot - PISTON
6	45216-SF1-003	Piston
7	45217-SE0-003	Seal - PISTON
8	45226-SF1-003	Retainer
9	45228-SE0-003	Shim - BRAKE PAD
10	45230-SH3-932	Caliper assy - L. (16CL-13VN) (NISSIN)
11	45232-SE0-003	Boot - SLEEVE
12	45234-SE0-003	Boot - PIN
13	45235-SE0-003	Pin
14	45236-SE0-003	Bolt
15	45240-SE0-003	Sleeve
16	90107-663-670	Bolt - CALIPER MOUNTING

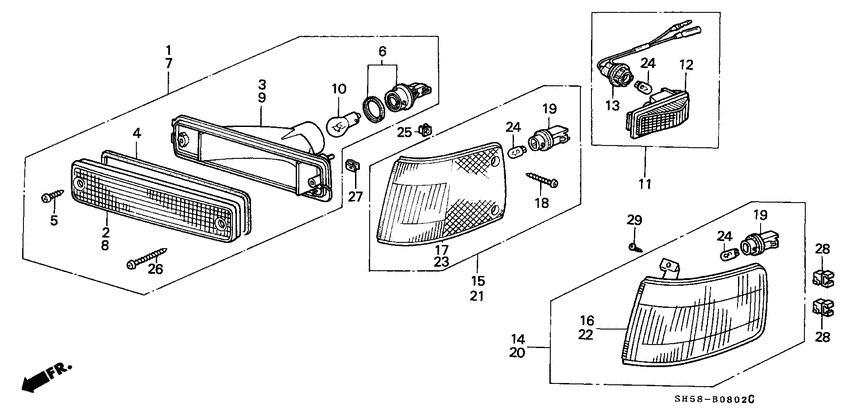

Front combination light 28

#	OEM	部品名
1	33300-SH3-W01	Light assy - R. FR. TURN SIGNAL
2	33301-SH3-A01	Lens - R.
3	33302-SH3-A01	Housing - R.
4	33303-SH3-A01	Packing
5	33304-SH3-A01	Screw - TAPPING, 4X16
6	33305-SH3-A01	Socket comp - GRAY
7	33350-SH3-W01	Light assy - L. FR. TURN SIGNAL
8	33351-SH3-A01	Lens - L.
9	33352-SH3-A01	Housing - L.
10	33503-506-600	Bulb - 12V 21W) (STANLEY
10	34905-KV7-671	Bulb,winker (12v
10	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
11	33800-SH3-W01	Light assy - SIDE TURN SIGNAL
12	33801-SH3-G01	Lens
12	33801-SH3-003	Lens
13	33802-SH3-W01	Cord comp
15	34300-SH5-023	Light assy - R. FR. POSITION
15	34300-SH5-013	Light assy - R. FR. POSITION
17	34301-SH5-003	Lens comp - R.
18	34302-693-003	Screw - TAPPING, 4X30
19	34304-SH3-A01	Socket comp.
21	34350-SH5-023	Light assy - L. FR. POSITION
21	34350-SH5-013	Light assy - L. FR. POSITION
23	34351-SH5-003	Lens comp - L.
24	34351-657-921	Bulb - 12V/5W) (STANLEY
25	75522-611-000	Grommet - SCREW, 4MM
26	90141-SH3-003	Screw - TAPPING, 4X35
27	90303-SA5-003	Nut - FR. COMBINATION LIGHT

Front door lining 29

#	OEM	部品名
2	35755-SH4-000	Bracket - R. POWER WINDOW MASTER SWITCH
3	39121-SB2-013	Seal - SPEAKER HOLE
4	72310-SH5-003	Weatherstrip - R. FR. DOOR
5	72321-SH4-G10	Seal - R. FR. DOOR HOLE (R.C.MIRROR)
5	72321-SH4-J10	Seal - R. FR. DOOR HOLE (P.W./R.C.MIRROR)
6	72325-SH5-013	Sub seal - R. FR. DOOR
6	72325-SH5-003	Sub seal - R. FR. DOOR
7	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)
8	72335-SH5-010	Weatherstrip - R. FR. DOOR INNER
9	72350-SH5-003	Weatherstrip - L. FR. DOOR
10	72361-SH4-J10	Seal - L. FR. DOOR HOLE (P.W./R.C.MIRROR)
10	72361-SH4-G10	Seal - L. FR. DOOR HOLE (R.C.MIRROR)
11	72365-SH5-013	Sub seal - L. FR. DOOR
11	72365-SH5-003	Sub seal - L. FR. DOOR
12	72375-SH5-010	Weatherstrip - L. FR. DOOR INNER
13	72380-SH5-013	Clip - DOOR WEATHERSTRIP
14	75522-634-000	Grommet - SCREW, 4MM
14	90866-SA0-000	Grommet - SCREW, 4MM
18	83502-SH5-010	Bracket - PULL POCKET
22	83509-SE3-000	Clip - LOCK KNOB COVER
28	90101-SA4-000	Screw - TAPPING, 4X12
29	90662-SB2-003	Grommet - SCREW, 5MM
30	90662-693-003	Grommet - SCREW, 4MM (BLUE)
31	90663-671-003	Clip - LINING
32	90666-SH4-003	Clip - SPEAKER
33	91530-SE0-003	Clip A - DOOR WEATHERSTRIP
33	90664-671-003	Clip - CANOE
34	91558-SH3-003	Cap - LINING MOUNTING
36	91642-SH3-013	Grommet - DOOR LINING

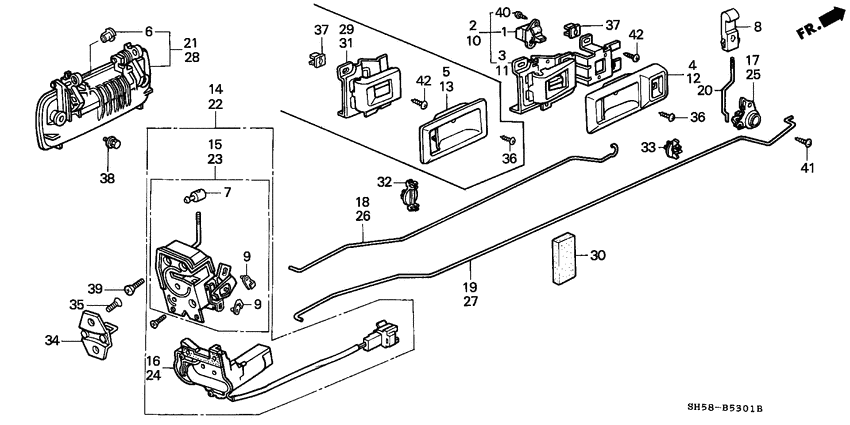

Front door locks 26

#	OEM	部品名
1	35765-SH3-013	Sub switch comp. - POWER WINDOW
1	35765-SH3-003	Sub switch comp. - POWER WINDOW
3	72110-SH5-J04	Lock assy - R. FR. POWER DOOR
3	72110-SH5-J02	Lock assy - R. FR. POWER DOOR
4	72116-SH4-J02	Switch assy - R. DOOR LOCK (P.D.L.)
6	72131-SH4-004	Rod - R. FR. INSIDE HANDLE (HONDA LOCK)
11	72140-SH3-004	Handle assy - R. OUTSIDE (HONDA LOCK)
12	72145-SH3-023	Cylinder - R. DOOR (HONDA LOCK)
12	72145-SH3-003	Cylinder - R. DOOR (HONDA LOCK)
13	72146-SH3-023	Cylinder - L. DOOR (HONDA LOCK)
13	72146-SH3-003	Cylinder - L. DOOR (HONDA LOCK)
15	72150-SH5-J14	Lock assy - L. FR. POWER DOOR
15	72150-SH5-J12	Lock assy - L. FR. POWER DOOR
16	72155-SH4-J02	Actuator - L. FR. DOOR LOCK
21	72171-SH4-004	Rod - L. FR. INSIDE HANDLE (HONDA LOCK)
22	72180-SH3-004	Handle assy - L. OUTSIDE (HONDA LOCK)
24	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)
25	75513-SB4-000	Cushion - LOCK ROD (15MMX40MM)
27	75551-692-003	Holder - DOOR LOCK ROD
27	72175-SH3-003	Holder - DOOR LOCK ROD
28	72105-SF1-003	Striker - DOOR LOCK
28	75555-SB2-003	Striker - DOOR LOCK
29	75556-605-010	Bolt - LOCK STRIKER
30	90111-SA0-000	Screw - TAPPING, 4X8
31	90662-SB2-003	Grommet - SCREW, 5MM
32	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)

Front door panels 6

#	OEM	部品名
12	75750-SE7-003	Checker comp. - FR. DOOR
13	75760-SB2-003	Pin - DOOR CHECKER
14	75891-SA7-000	Stopper - DOOR
15	90001-SD2-000	Bolt - FLANGE, 8X22
16	90157-SA0-000	Bolt-washer - 8X25
17	90755-SB2-000	E-ring - 6MM

Front door windows 23

#	OEM	部品名
2	72210-SH5-004	Regulator - R. FR. DOOR
3	72211-SH5-J02	Regulator - R. FR. DOOR POWER
4	72212-SH5-J02	Spring - SPIRAL (P.W.)
5	72212-SH5-004	Spring - SPIRAL
6	72215-SH4-J02	Motor assy. - R. WINDOW
6	72215-SH4-J01	Motor assy. - R. WINDOW
8	72230-SH5-000	Sash - R. FR. DOOR LOWER
9	72231-SH5-000	Sash - R. FR. DOOR CENTER LOWER
10	72235-SH5-023	Runchannel - R. FR. DOOR
10	72235-SH5-003	Runchannel - R. FR. DOOR
11	72246-SH3-003	Stopper - DOOR GLASS
13	72250-SH5-004	Regulator - L. FR. DOOR
14	72251-SH5-J02	Regulator - L. FR. DOOR POWER
15	72255-SH4-J02	Motor assy. - L. WINDOW
15	72255-SH4-J01	Motor assy. - L. WINDOW
16	72270-SH5-000	Sash - L. FR. DOOR LOWER
17	72271-SH5-000	Sash - L. FR. DOOR CENTER LOWER
18	72275-SH5-023	Runchannel - L. FR. DOOR
18	72275-SH5-003	Runchannel - L. FR. DOOR
19	73300-SH5-000	Glass assy - R. FR. DOOR (BLUE)
20	73350-SH5-000	Glass assy - L. FR. DOOR (BLUE)
21	75342-679-000	Pin - WINDOW REGULATOR HANDLE
23	90011-896-000	Bolt - FLANGE, 6X8

Front fenders 23

#	OEM	部品名
5	74101-SH5-000	Fender - R. FR. INNER
6	74111-SH3-010	Shield - R. FR. SPLASH
6	74111-SH3-000	Shield - R. FR. SPLASH
7	74115-SH3-010	Guard
7	74115-SH3-000	Guard - R. FR. SPLASH
8	74151-SH5-000	Fender - L. FR. INNER
9	74161-SH3-010	Shield - L. FR. SPLASH
9	74161-SH3-000	Shield - L. FR. SPLASH
10	74165-SH3-000	Guard
11	75800-SH5-A01	Mudguard - R. FR.
12	75810-SH5-A01	Mudguard - L. FR.
13	90126-SA7-000	Screw-washer - 5X20
13	90114-SZ3-000	Screw-washer - 5X20
13	90107-SA0-000	Screw-washer - 5X20
14	90127-SA0-010	Bolt-washer - 6X16
15	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
16	90308-SB2-013	Nut - SUSPENSION, 5MM
17	90682-SB0-003	Grommet - SCREW, 5MM
18	90850-SA7-000	Plug - FUSE LID
19	91504-SF4-003	Clip - FR. COWL
19	91501-S04-003	Clip - INNER FENDER
20	91516-SH3-003	Clip - UNDER COVER
20	91516-SK7-013	Clip - UNDER COVER

Front seat (1) 3

#	OEM	部品名
9	81250-SH5-J31	Tray - SEAT UNDER
15	81655-SH5-A01	Cover - R. RECLINING SPRING
16	81755-SH5-A01	Cover - L. RECLINING SPRING

Front seat components (1) 5

#	OEM	部品名
1	77512-SB2-014	Cap - SLIDE RAIL END
5	81260-SH5-G01	Adjuster - R. OUTER SLIDE
6	81270-SH5-G01	Adjuster - R. INNER SLIDE
7	81280-SH5-G01	Adjuster - L. INNER SLIDE
8	81290-SH5-G01	Adjuster - L. OUTER SLIDE

Front shock absorber 30

#	OEM	部品名
1	51401-SH9-014	Spring - FR. (SHOWA)
1	51401-SH9-013	Spring - FR. (MITSUBISHI SEIKO)
1	51401-SH9-004	Spring - FR. (SHOWA)
1	51401-SH9-003	Spring - FR. (MITSUBISHI SEIKO)
2	51601-SH9-023	Absorber assy - R. FR. SHOCK
2	51601-SH9-014	Absorber assy - R. FR. SHOCK
3	51602-SH9-023	Absorber assy - L. FR. SHOCK
3	51602-SH9-014	Absorber assy - L. FR. SHOCK
4	51605-SH9-972	Absorber unit - R. FR. SHOCK (SHOWA)
4	51605-SH9-014	Absorber unit - R. FR. SHOCK (SHOWA)
5	51606-SH9-972	Absorber unit - L. FR. SHOCK (SHOWA)
5	51606-SH9-014	Absorber unit - L. FR. SHOCK
6	51621-SB0-004	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)
6	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
7	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
7	51631-S7S-J01	RUBBER DAMPER M
7	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
8	51675-SH3-014	Base - SHOCK ABSORBER MOUNTING (SHOWA)
9	51685-SH3-014	Plate - DUST COVER(SHOWA)
9	51685-SH3-004	Plate - DUST COVER (SHOWA)
10	51686-SH3-014	Rubber - FR. SPRING MOUNTING (SHOWA)
11	51687-SH3-014	Cover - FR. SLEEVE DUST
11	51687-SH3-004	Cover - FR. SLEEVE DUST
12	51689-SH3-004	Plate - BUMP STOP (SHOWA)
13	51722-SE0-003	Rubber - BUMP STOPPER (NIPPON MEKTRON)
13	51722-SE0-004	Rubber - BUMP STOPPER (POLYURETHAN KASEI)
14	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
15	90304-SH3-004	Nut-washer - 10MM
15	90304-SH3-505	New Genuine Part
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/front lower arm 30

#	OEM	部品名
1	51300-SH3-J13	Spring - FR. STABILIZER
2	51308-SH3-000	Holder - FR. STABILIZER
2	51308-SA5-000	Holder - FR. STABILIZER ARM
3	52313-692-000	Washer a
3	51313-SF1-000	Washer a
4	51316-SH3-J00	Bush - FR. STABILIZER, 19MM
5	51352-SH3-000	Rod - FR. RADIUS
6	51355-SH3-010	Arm comp - R. FR. LOWER
7	51365-SH3-010	Arm comp - L. FR. LOWER
8	51393-SH3-003	Bush - FR. LOWER ARM (HOKUSHIN)
9	51395-SH3-003	Bush - FR. RADIUS ROD (HOKUSHIN)
9	51395-SH3-004	Bush - FR. RADIUS ROD (YAMASHITA)
10	51398-SA5-000	Collar - RADIUS ROD
11	51810-SH3-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)
11	51810-SK7-004	Bush - SHOCK ABSORBER FORK
11	51810-SH3-003	Bush - SHOCK ABSORBER FORK (HOKUSHIN)
12	51811-SH3-010	Fork - R. FR. SHOCK ABSORBER
13	51821-SH3-010	Fork - L. FR. SHOCK ABSORBER
14	52316-692-010	Rubber a - STABILIZER
14	52316-692-000	Rubber a - STABILIZER
15	90112-SE0-000	Bolt - FR. STABILIZER
16	90118-SB0-003	Bolt - LOWER ARM, (10X79) (JYUJI)
17	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42
18	90175-SH3-005	Bolt - SHOCK ABSORBER FORK
19	90178-SH3-004	Bolt - FR. RADIUS ROD (12X35)
20	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21	90303-SF1-003	Nut - SELF-LOCK, 12MM
22	90362-SF1-003	Nut - SELF-LOCK, 8MM
22	90312-SB2-000	Nut - SELF-LOCK, 8MM
23	90501-692-000	Washer - FR. RADIUS ROD

Front windshield wiper (2) 31

#	OEM	部品名
1	38472-SB3-003	Rubber - BLADE (475MM)
1	38472-SB2-003	Rubber - BLADE (450MM)
1	76632-S5H-T01	Rubber - BLADE (450MM)
2	76505-SH3-Q02	Motor comp - FR. WIPER (RH)
2	76505-SH3-Q01	Motor comp - FR. WIPER (RH)
3	76515-SH3-003	Seal a
4	76516-SE0-003	Rubber - BRACKETLESS MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS
6	76520-SH3-003	Link unit a
7	76524-SD4-003	Dust seal
8	76524-SE0-013	Dust seal
9	76530-SH5-023	Link comp - FR. WIPER
9	76530-SH5-003	Link comp - FR. WIPER
9	76530-SH5-013	Link comp - FR. WIPER
10	76540-SH5-003	Rod unit a
11	76550-SH5-003	Rod unit b
12	76560-SH5-003	Pivot assy. c
12	76560-SH3-003	Pivot assy. c
12	76560-SH3-013	Pivot assy. c
13	76561-SH3-003	Cap - PIVOT
14	76570-SH5-013	Pivot assy. b
14	76570-SH5-003	Pivot assy. b
15	76600-SH5-Q01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76610-SH3-E01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-SH2-003	Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE)
18	76622-SF4-003	Rubber - BLADE (500MM)
18	76632-S6M-003	Rubber - BLADE (500MM)
19	76630-SH2-E01	Blade - WINDSHIELD WIPER (475MM) (PASSENGER SIDE)
19	76630-SH3-E01	Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE)
20	90308-SE0-000	Nut - CAP, 8MM
24	90108-SH5-000	Bolt - 6X16

Front windshield/ rear windshield 39

#	OEM	部品名
1	73100-SH5-Q01	Glass assy - FR. WINDSHIELD
1	73100-SH5-Q00	Glass assy - FR. WINDSHIELD
2	73125-SH5-000	Rubber - FR. WINDSHIELD DAM
3	73126-SH3-000	Rubber - FR. WINDSHIELD DAM
4	73127-SH3-003	Holder - FR. WINDSHIELD GLASS
5	73128-SH3-000	Rubber - FR. WINDSHIELD DAM
5	73125-SD5-000	Rubber - FR. WINDSHIELD DAM
6	73150-SH5-024	Molding comp. - FR. WINDSHIELD (WITH GLASS REMOVER)
6	73150-SH5-305	Molding comp. - FR. WINDSHIELD (REPLACE MOLDING ONLY)
6	73150-SH5-004	Molding comp. - FR. WINDSHIELD (WITH GLASS REMOVER)
8	73211-SH5-000	Glass - RR. WINDSHIELD (BLUE)
9	73212-SH5-010	Rubber - RR. WINDSHIELD DAM
10	73240-SH5-000	Trim - RR. WINDSHIELD
11	73253-SH5-003	Molding sub assy. - RR. LOWER
12	73264-SH5-003	Molding - R. RR. WINDSHIELD LOWER END
13	73269-SH5-003	Molding - L. RR. WINDSHIELD LOWER END
14	73271-SH5-003	Molding - R. RR. WINDSHIELD SIDE
15	73278-SH5-003	Molding - L. RR. WINDSHIELD SIDE
16	73500-SH5-000	Glass assy - R. QUARTER WINDSHIELD (BLUE)
17	73501-SH5-003	Garnish - R. FR. QUARTER
18	73502-SH5-003	Garnish - R. QUARTER LOWER
19	73503-SH5-003	Molding - R. QUARTER WINDSHIELD UPPER
20	73504-SH5-010	Spacer - RR. QUARTER WINDSHIELD
21	73550-SH5-000	Glass assy - L. QUARTER WINDSHIELD (BLUE)
22	73551-SH5-003	Garnish - L. FR. QUARTER
23	73552-SH5-003	Garnish - L. QUARTER LOWER
24	73553-SH5-003	Molding - L. QUARTER WINDSHIELD UPPER
25	90101-SH3-000	Screw - TAPPING, 4X14
26	90102-SH3-003	Bolt - SOCKET, 4X6
27	90675-SA6-003	Grommet - RR. WINDSHIELD MOLDING
28	91503-SH2-003	Clip - RR. WINDSHIELD LOWER MOLDING
29	91504-SH2-003	Holder - RR. WINDSHIELD LOWER MOLDING
30	91505-SH5-003	Clip A - QUARTER WINDSHIELD UPPER MOLDING
31	91506-SH5-003	Clip b - QUARTER WINDSHIELD UPPER MOLDING
32	91509-SH5-003	Clip A - QUARTER WINDSHIELD GARNISH
33	91511-SH5-003	Clip b - QUARTER WINDSHIELD GARNISH
34	91514-SH2-000	Cap - RR. WINDSHIELD LOWER MOLDING
35	91601-SH5-000	Plate - QUARTER GARNISH
36	91602-SH5-000	Spacer - QUARTER WINDSHIELD

Fuel pipe 22

#	OEM	部品名
1	17300-SH3-Q11	Canister assy - HITACHI
2	17357-SH3-Q00	Tube - CANISTER
3	17358-SH3-Q01	Bracket - CANISTER
3	17358-SH3-Q00	Bracket - CANISTER
4	17700-SH5-040	Pipe comp - FUEL FEED
5	17710-SA0-000	Grommet - FUEL PIPE
6	17710-SH3-000	Grommet - FUEL PIPE
7	17711-SH3-000	Grommet - FUEL PIPE
10	17715-SH5-000	Protector - FUEL PIPE
12	17720-SH5-J00	Pipe comp - VENT
13	17725-SH3-Q10	Hose assy - PURGE
14	17736-SH3-Q12	Hose - CANISTER VENT
15	17740-SH5-040	Pipe comp - FUEL RETURN
16	17742-SB2-671	Joint - DRAIN TUBE (CANISTER)
17	90664-SB3-003	Grommet - SCREW, 5MM
18	90675-SA7-003	Clip - FR. COWL
19	90682-SB0-671	Clamp - CANISTER HOSE
20	91591-SH3-003	Clip - FUEL PIPE (BLACK)
23	91594-SH3-J01	Clamp - FUEL PIPE
24	91594-SH3-003	Clamp - FUEL PIPE (WHITE)
25	91596-SH3-013	Clamp - FUEL
26	91597-SH3-Q21	Clamp - FUEL HOSE

Fuel pump/two way valve 24

#	OEM	部品名
1	16900-SA5-003	Strainer comp. - FUEL (TOKYO ROKI)
1	16900-SA5-004	Strainer comp. - FUEL (TOYO ROKI)
2	16902-SF4-000	Bracket - FUEL STRAINER
4	17371-SF1-A01	Valve - TWO WAY
6	17372-SH5-020	Cover - TWO WAY VALVE
7	17701-SH5-000	Tube - FUEL FEED
8	17703-SH5-000	Tube - FUEL FEED
10	17721-SH5-040	Tube - FUEL VENT
10	17721-SH5-030	Tube - FUEL VENT
12	17722-SH5-000	Tube assy - FUEL
14	17726-SH5-010	Bracket - TWO WAY VALVE
17	17741-SH5-010	Tube - FUEL RETURN
18	74660-SH5-023	Cap assy. - FLOOR MAINTENANCE HOLE
18	74660-SH5-013	Cap assy. - FLOOR MAINTENANCE HOLE
19	74665-SH5-003	Cap assy. - FLOOR MAINTENANCE HOLE
20	90347-SF4-000	Nut - SPRING, 5MM
21	90657-SH3-003	Clip - TWO WAY VALVE COVER
22	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
23	91592-SH5-003	Clip - FUEL TUBE
25	91593-SH5-003	Clip - FUEL TUBE
26	91593-SH5-010	Clip - FUEL TUBE
27	91594-SH5-003	Clip - FUEL TUBE
28	91599-SH5-010	Clip - FUEL TUBE
29	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Fuel tank 42

#	OEM	部品名
1	17500-SH5-G08	Tank comp. - FUEL
1	17500-SH5-G04	Tank comp. - FUEL
2	17519-SH5-040	Protector - FUEL TANK
2	17519-SH5-010	Protector - FUEL TANK
3	17521-SH5-010	Band - R. FUEL TANK MOUNTING
4	17522-SH5-010	Band - L. FUEL TANK MOUNTING
5	17525-SH5-010	Bolt - R. FUEL TANK MOUNTING
5	17525-SH5-000	Bolt - R. FUEL TANK MOUNTING
6	17526-SH5-010	Bolt - L. FUEL TANK MOUNTING
6	17526-SH5-000	Bolt - L. FUEL TANK MOUNTING
7	17651-SH5-010	Tube - FILLER NECK CONNECTING
8	17652-SA5-000	Clip - FILLER TUBE
9	17653-SH5-030	Tube - BREATHER
9	17653-SH5-010	Tube - BREATHER
10	17660-SH5-A05	Pipe comp - FUEL FILLER
10	17660-SH5-A03	Pipe comp - FUEL FILLER
11	17662-SB2-010	Packing - FUEL FILLER
12	17664-SH4-000	Bush - FILLER PIPE MOUNT
13	17665-SH4-020	Collar - FILLER PIPE MOUNT
13	17665-SH4-000	Collar - FILLER PIPE MOUNT
14	17670-SA5-013	Cap comp. - FUEL FILLER
15	17682-679-013	Packing - FUEL FILLER CAP
16	37800-SH5-004	Meter unit - FUEL (DENSO)
16	37800-SH5-003	Meter unit - FUEL (NS)
17	37801-689-000	Packing - BASE
18	37802-SD2-000	Retainer - FUEL UNIT
18	37802-689-000	Retainer - FUEL UNIT
20	63916-SH3-000	Seal - FUEL LID HINGE
21	70494-SE0-000	Spring - FUEL LID OPENER
22	74422-SH3-000	Cushion - FUEL FILLER LID
22	74422-SE0-000	Cushion - FUEL FILLER LID
23	74559-SH5-000	Cover - FUEL PIPE
24	90011-SH4-020	Bolt - FILLER PIPE MOUNTING
24	90011-SH4-000	Bolt - FILLER PIPE MOUNTING
25	90103-SB0-010	Nut - FLANGE, 5MM
25	90103-SB0-000	Nut - FLANGE, 5MM
26	90107-SA0-000	Screw-washer - 5X20
26	90114-SZ3-000	Screw-washer - 5X20
27	90147-634-003	Bolt - FENDER, 6X18
28	90602-SA7-931	Clamp - FUEL HOSE, 18.5MM
29	90657-SA5-003	Clip - SIDE APRON MOLDING
30	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)

Gasket kit/engine assy./ transmission assy. 7

#	OEM	部品名
4	10002-PM4-Q12	Engine assy - BLOCK (D15B4)
4	10002-PM4-Q10	Engine assy - BLOCK (D15B4)
4	10002-PM4-Q11	Engine assy - BLOCK (D15B4)
5	10003-PM4-Q01	General assy. - CYLINDER HEAD
5	10003-PM4-Q00	General assy. - CYLINDER HEAD
6	20011-PH8-J30	Transmission assy - L3-090
6	20011-PH8-900	Transmission assy.

Glove box 10

#	OEM	部品名
1	66405-SD4-000	Stay - GLOVE BOX HINGE
2	66417-SB3-670	Rubber - GLOVE BOX STOPPER
3	66418-SB2-000	Stopper - GLOVE BOX LID
4	66430-SB2-000	Striker assy - GLOVE BOX
5	75522-611-000	Grommet - SCREW, 4MM
9	77551-SH3-000	Frame - GLOVE BOX
10	77551-SH5-000	Frame - GLOVE BOX
11	90133-SH3-000	Bolt-washer - 5X16
12	90140-SH3-003	Bolt-washer - 5X18
13	90305-SA0-000	Nut - FLOATING, 4MM

Grommet 21

#	OEM	部品名
1	38565-671-000	Grommet - WASHER HOSE
1	91617-SB6-000	Grommet - WASHER HOSE, 32MM
3	70225-SB2-000	Seal - HOLE
4	70566-SE7-000	Seal - CENTER PILLAR INNER
5	72206-SH3-000	Cap - FLOOR HOLE
6	72207-SB2-000	Cap - FLOOR HOLE, 24MM
7	74661-SH5-013	Cap - FLOOR MAINTENANCE HOLE
8	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
10	82871-671-000	Grommet - DRAIN HOLE, 25MM
12	90851-SB2-000	Plug - AIR CONDITIONER HOLE
13	90852-SA5-000	Plug - HOLE, 10MM
14	90852-671-003	Plug - HOLE
15	90855-SA0-000	Plug - VENTILATION HOLE, 20MM
16	90856-SA0-000	Plug - COATING HOLE, 25MM
17	91518-SH3-003	Plug - HOLE, 7MM
18	91610-SB2-003	Plug - HOLE, 16.7MM (BLACK)
19	91614-SA5-000	Grommet - HEATER LEVER HOLE (20MM)
21	91615-SH3-000	Cap - FLOOR HOLE, 49MM
22	91616-SH3-000	Seal - FR. PILLAR INNER LOWER (110X110)
24	91617-SH3-000	Seal - HOLE
25	91629-SE0-003	Plug - BLIND, 14MM

Headlight (1) 46

#	OEM	部品名
1	33100-SH3-E03	Headlight assy - R.
1	33100-SH3-E02	Headlight assy - R.
2	33101-SH3-E02	Headlight unit - R.
2	33101-SH3-E01	Headlight unit - R.
3	33102-SH3-G02	Housing comp - R.
3	33102-SH3-G01	Housing comp - R.
4	33103-SH3-003	Pivot - 1
5	33105-SH3-A01	Pivot - 2
6	33105-SH3-003	Cover - RUBBER
7	33106-SH3-A01	Grommet - 5
8	33107-SH3-A01	Grommet - 2
9	33109-SH3-A01	Grommet - R. (2)
10	33111-SH3-A01	Grommet - 4
11	33112-SH3-A01	Grommet - 5
12	33113-SH3-A01	Grommet - 6
13	33114-SH3-A01	Bracket - 3
14	33115-692-741	Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN)
15	33116-SD4-961	Socket - BULB (OSRAM) (HALOGEN)
16	33117-SH3-A02	Holder - ADJUSTING (1)
16	33117-SH3-A01	Holder - ADJUSTING (1)
17	33118-SH3-A01	Holder - ADJUSTING (2)
18	33119-SH3-A01	Nut - SPECIAL
19	33121-SH3-A01	Gear - ADJUSTING
20	33122-SH3-A01	Screw - ADJUSTING
21	33123-SH3-A02	Screw - ADJUSTING
21	33123-SH3-A01	Screw - ADJUSTING
22	33125-SH3-A01	Screw - SPECIAL TAPPING, 5X10
23	33126-SH3-A01	Screw - SPECIAL TAPPING, 5X18
24	33129-SH3-A01	Screw - SPECIAL TAPPING, 4X10
25	33131-SH3-003	Plate
26	33132-SH3-G01	Cord comp - R.
27	33134-SH3-G01	Relay assy - POWER
28	33135-SH3-G01	Stay - RELAY (R)
29	33140-SH5-A00	Bracket - R. HEADLIGHT ADJUSTER
30	33150-SH3-E03	Headlight assy - L.
30	33150-SH3-E02	Headlight assy - L.
31	33151-SH3-E02	Headlight unit - L.
31	33151-SH3-E01	Headlight unit - L.
32	33152-SH3-G02	Housing comp - L.
32	33152-SH3-G01	Housing comp - L.
33	33159-SH3-A01	Grommet - L. (2)
34	33182-SH3-G01	Cord comp - L.
35	33185-SH3-G01	Stay - RELAY (L)
36	33190-SH5-A00	Bracket - L. HEADLIGHT ADJUSTER
37	34901-671-631	Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS)
38	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Heater blower 7

#	OEM	部品名
1	39242-671-670	Fan - HEATER
2	39246-671-003	Clamp - CASE HOLD
3	79300-SH3-003	Blower assy - LEVER TYPE
4	79310-SH3-003	Motor assy.
5	79330-SH3-003	Resistor - BLOWER
6	90307-SA0-003	Nut - FLANGE, 5MM
7	90501-671-003	Washer - SPECIAL

Heater control 36

#	OEM	部品名
1	35505-692-003	Bulb - 14V 1.4W
2	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
3	39274-SB2-000	Grommet - WATER VALVE CABLE
4	39356-SA7-010	Spring - HEATER CONTROL
5	77671-SE3-003	Washer - LINK
6	79510-SH5-010	Control assy. - HEATER
6	79510-SH5-000	Control assy. - HEATER
7	79511-SH3-000	Base - HEATER CONTROL
8	79514-SH3-000	Plate - HEATER CONTROL SETTING
9	79516-SH3-000	Plate - TEMPERATURE CLICK
10	79517-SD4-000	Mount - CONTROL SHAFT
11	79519-SH3-010	Gear - CONTROL SHAFT
11	79519-SH3-000	Gear - CONTROL SHAFT
11	79519-SD4-000	Gear - CONTROL SHAFT
12	79521-SH3-000	Lever - MODE CONTROL
13	79522-SD4-000	Roller - LEVER
14	79522-SH3-000	Lever - TEMPERATURE CONTROL
15	79523-SH3-000	Lever - FRESH & RECIRCULAR CONTROL
16	79524-SD4-000	Collar - CONTROL SHAFT
17	79525-SH3-010	Link - TEMP CONTROL
17	79525-SH3-000	Link - TEMP CONTROL
18	79526-SD4-000	Shaft comp. - CONTROL
19	79529-SH3-000	Stopper - CONTROL LEVER
20	79541-SH5-000	Cable - MODE CONTROL
21	79542-SH5-000	Cable - TEMPERATURE CONTROL
22	79543-SH5-000	Cable - FRESH & RECIRCULAR CONTROL
23	79544-SH5-000	Cable - WATER VALVE CONTROL
24	79550-SH3-A02	Illumination assy. - HEATER
25	79552-SH3-013	Lid - AIR CONDITIONER SWITCH
26	79570-SH3-003	Switch assy - HEATER FAN (ALPS)
27	79581-SH3-G00	Knob - HEATER CONTROL
28	79582-SH3-000	Knob - TEMPERATURE CONTROL
29	80410-SH3-013	Switch assy - AIR CONDITIONER (DENSO)
30	80411-SH3-003	Panel - AIR CONDITIONER SWITCH
31	90102-SA4-000	Screw - TAPPING, 4X16
32	90107-SA5-000	Screw - TAPPING, 4X12

Heater unit 11

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79100-SH5-003	Heater unit
3	79105-SH4-013	Case - HEATER
3	79105-SH4-003	Case - HEATER
4	79110-SH3-003	Core, Heater
6	79181-SH3-003	Lever a - MODE
8	79182-SH3-003	Lever b - MODE
9	79183-SH3-003	Lever c - MODE
11	79188-SH3-003	Lever b - AIR MODE
12	79189-SH2-003	Bush
13	80789-SH3-003	Holder - ROD

High tension cord/plug 14

#	OEM	部品名
1	30140-PE2-000	Cap - DISTRIBUTOR BOLT
2	32701-PM3-000	Cord comp - RESISTANCE (NO.1) (###)
3	32702-PM3-000	Cord comp - RESISTANCE (NO.2) (###)
4	32703-PM3-000	Cord comp - RESISTANCE (NO.3) (###)
5	32704-PM3-000	Cord comp - RESISTANCE (NO.4) (###)
6	32722-PM3-010	Cord comp - HIGH TENSION (###)
6	32722-PM1-B00	Cord comp - HIGH TENSION
7	32763-PM3-000	Clamp c - HIGH TENSION CORD
8	32764-PM3-000	Clamp d - HIGH TENSION CORD
9	32765-PM3-000	Clamp a - HIGH TENSION CORD
10	32766-PM3-000	Clamp b - HIGH TENSION CORD
11	32777-695-000	Clamp - HIGH TENSION CORD
12	90003-PJ7-000	Bolt-washer - 8X28
14	32722-PM5-405	HIGH TENSION Cord comp

Hood 34

#	OEM	部品名
3	60127-SH5-000	Stopper - R. HOOD HINGE
4	60128-SH5-000	Stopper - L. HOOD HINGE
6	60658-SB3-000	Cap - AIRSCOOP
6	60658-SD2-000	Cap - AIRSCOOP GARNISH
7	61210-SH5-000	Cowl top assy.
8	61213-SH5-300	Cover - R. HOOD HINGE
9	61214-SH5-300	Cover - L. HOOD HINGE
10	61215-SH5-300	Seal a
12	63511-SF0-003	Cushion - HOOD
12	74144-SE0-000	Cushion - HOOD
13	74120-SH3-A01	Lock assy - HOOD
14	74130-SH3-003	Wire comp - HOOD
15	74131-SH3-003	Cover - HOOD WIRE
16	74132-SH3-003	Lever assy. - HOOD WIRE
17	74134-SH3-003	Grommet - HOOD WIRE
18	74142-SH3-010	Rubber - FR. HOOD SEAL
18	74142-SH3-000	Rubber - FR. HOOD SEAL
19	74143-SH5-000	Rubber - RR. HOOD SEAL
20	74145-SH5-A01	Stay - HOOD OPENER
20	74145-SH5-A00	Stay - HOOD OPENER
21	74177-SD4-000	Cushion a - HOOD
22	74180-SH3-A02	Striker assy - HOOD
23	90102-SB3-000	Bolt - HINGE STOPPER
24	90127-SA0-010	Bolt-washer - 6X16
25	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
26	90307-SD2-A00	Nut - CAP, 6MM
27	90505-SH5-000	Shim - HOOD HINGE
28	90664-671-003	Clip - CANOE
29	90671-SH3-003	Holder - HOOD OPENER STAY
30	91501-SD5-003	Clip - SEAL RUBBER
31	91513-SD2-003	Clip - HOOD WIRE
32	91513-SH3-003	Clip c - HOOD
33	91517-SH3-003	Grommet - SCREW, 4MM
34	91604-SD2-013	Grommet - HOOD STAY

Install pipe/tubing (2) 13

#	OEM	部品名
1	16235-PM4-003	Filter b - FUEL
2	17350-PM4-Q02	Valve assy. - THERMO WAX SWITCHING (15-55)
3	17361-PM4-Q00	Clamp - TUBE, 7X13
4	17363-PM3-000	Clamp - TUBE, 7.5X2
5	17400-PM4-Q00	Pipe a - INSTALL
6	17405-PM4-Q00	Pipe b - INSTALL
7	17416-PM4-010	Tube - SPECIAL, 3.5X85
7	17416-PM4-000	Tube - SPECIAL, 3.5X85
8	17417-PM4-000	Tube comp
9	36010-PE0-004	Joint - THREE WAY
10	36135-PA6-661	Valve - DASHPOT CHECK
11	90092-657-000	Screw-washer - 5X8
12	90634-PA0-000	Cap - SEALING

Instrument panel (2) 35

#	OEM	部品名
3	66161-SB2-000	Label - COIN
6	66418-579-000	Stopper - GLOVE BOX LID
7	75522-611-000	Grommet - SCREW, 4MM
9	77105-SH3-000	Blind - INSTRUMENT
10	77105-SH3-010	Blind - INSTRUMENT
11	77106-SH3-000	Clip - INSTRUMENT BLIND
16	77140-SH3-020	Frame assy - INSTRUMENT
17	77140-SH3-040	Frame assy - INSTRUMENT
18	77142-SH3-000	Pipe - INSTRUMENT SIDE
19	77143-SH5-020	Bracket - INSTRUMENT PASSENGER SIDE
20	77145-SH5-020	Bracket - INSTRUMENT DRIVER SIDE
21	77151-SH5-000	Frame - FR. CONSOLE INSTRUMENT CENTER
24	77176-SH5-000	Frame assy - R. METER
25	77177-SH5-000	Frame assy - L. METER
26	77180-SH5-000	Bracket - INSTRUMENT CENTER LOWER
31	77230-SE3-A01	Lid assy - AUDIO HOLE
32	77233-SH3-A01	Panel - RADIO
34	77253-SH3-000	Lid - SWITCH HOLE
37	77355-SH5-000	Blind - COLUMN
42	77762-SD4-000	Label - FUSE
43	90102-SA4-000	Screw - TAPPING, 4X16
44	90105-634-000	Bolt-washer (8x20)
45	90128-SA7-000	Bolt-washer - 6X25
46	90137-SH3-000	Screw - TAPPING, 4X16
47	90139-SH3-003	Bolt-washer - 6X20
48	90157-SA0-000	Bolt-washer - 8X25
49	90302-SA4-003	Nut - SPRING, 4MM
50	90310-SB2-003	Nut - SPEED
51	90334-SH3-000	Nut - SPRING, 4MM
52	90650-SE3-000	Clip - RADIO PANEL
53	90651-692-731	Nut - NYLON, 3MM
55	90659-SA5-003	Grommet - SCREW, 4MM
57	90666-SD4-003	Clip - FITTING
58	90669-SH3-000	Clip - LOWER COVER
59	90681-693-000	Grommet - SCREW, 4MM

Intake manifold (2) 41

#	OEM	部品名
1	11850-PM3-000	Chamber comp - BREATHER
1	11851-P01-000	Chamber set - BREATHER
2	11854-PM3-000	Joint - BREATHER CHAMBER
3	11855-PC6-000	Grommet - PCV VALVE
4	11856-PM4-000	Tube - PCV
5	11857-PM4-003	Clamp - PCV TUBE
6	16211-PM4-000	Insulator comp. - CARBURETOR
7	16236-PM4-000	Clamp b - FUEL FILTER
8	16240-PC6-010	Band - CARBURETOR INSULATOR
9	16700-PM3-003	Pump assy. - FUEL
10	16701-PM3-000	Insulator comp. - FUEL PUMP
10	16701-PM3-010	Insulator comp. - FUEL PUMP
11	17000-PM4-000	Manifold assy - INTAKE
12	17105-PM2-004	Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS)
12	17105-P00-T03	Gasket - INTAKE MANIFOLD (ISHINO GASKET)
12	17105-PM2-003	Gasket - INTAKE MANIFOLD (ISHINO GASKET)
13	17130-PM3-003	Valve assy. - PCV
13	17130-PM3-G01	Valve assy. - PCV
14	17132-PM4-000	Stay comp - CARBURETOR
15	17207-PM4-000	Mounting - CARBURETOR
16	17208-PC6-000	Washer - PLAIN
17	17209-PC6-000	Collar - MOUNTING
18	17365-PM3-000	Stay - VACUUM CONTROL TUBE CLAMP
19	17511-PM4-000	Tube - ELECTRONIC AIR CONTROL VALVE OUTER
20	17731-PM4-000	Tube - SLOW AIR JET CONTROL
21	17732-PM4-000	Tube - R. VACUUM PISTON CONTROL
22	17733-PM4-000	Tube - L. VACUUM PISTON CONTROL
23	17734-PM4-000	Tube - L. INNER VENT
24	17736-PM4-000	Tube - SLOW AIR JET CONTROL
25	19508-PM4-000	Hose - BYPASS OUTLET
26	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
27	36140-PM4-Q01	Valve assy. - INNER VENT SOLENOID
28	36141-PM4-000	Packing - AIR JET CONTROL INNER VENT SOLENOID VALVE
29	36157-PM4-000	Tube - VACUUM PISTON CONTROL VALVE
30	36450-PJ7-003	Valve assy. - ELECTRONIC AIR CONTROL (DENSO)
31	90063-PC6-000	Bolt - STUD, 6X25
32	90100-PC6-000	Screw - PAN, 6X28
33	91301-PB9-000	O-ring - 51.6X2.4
34	91324-PC6-000	O-ring - 20.6X2.6
35	91405-679-004	Clamp - TUBE (D17)
35	91405-PM5-004	Clamp - TUBE (D17)

Interior light/switch 14

#	OEM	部品名
4	34252-692-003	Lens - DAIICHI) (SUNROOF
5	34253-671-003	Bulb - 12V 8W)(DAIICHI
5	04110-SWA-305	BULB T10X318W
6	34260-SA0-013	Light assy - TRUNK ROOM
7	34262-SA0-003	Lens
8	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
13	35150-SH3-A01	Controller - ILLUMINATION
14	35152-SH3-A01	Knob
15	35190-SH3-003	Switch assy - REMOTE CONTROL MIRROR
17	35500-SH3-A01	Switch assy - RR. DEFOGGER (TEC)
17	35500-SH3-A02	Switch assy - RR. DEFOGGER
19	35505-692-003	Bulb - 14V 1.4W
22	35830-SH3-003	Switch assy - ROOF
24	90152-SE0-003	Nut - EARTH, 5MM (ZN)

Knuckle 41

#	OEM	部品名
1	44300-SB2-962	Bearing assy - FR. HUB (FUJIKOSHI)
1	44300-SB2-965	Bearing assy - FR. HUB (TOYO SEIKO)
1	44300-SB2-966	Bearing assy - FR. HUB (TOYO SEIKO)
1	44300-SB2-963	Bearing assy - FR. HUB (KOYO SEIKO)
1	44300-SX8-004	Bearing assy - HUB
2	44348-SH3-000	Ring - FR. KNUCKLE
3	44610-SH3-981	Hub - FR.
3	44610-SH3-980	Hub - FR.
4	45251-SB2-782	Disk - FR. BRAKE
4	45251-SB2-990	Disk - FR. BRAKE
4	45251-SB2-780	Disk - FR. BRAKE
5	45255-SH3-020	Guard - FR. BRAKE SPLASH
5	45255-SH3-010	Guard - FR. BRAKE SPLASH
6	51210-SH3-020	Knuckle comp - R. FR.
6	51210-SH3-010	Knuckle comp - R. FR.
7	51213-SE0-000	Protector - KNUCKLE
8	51215-SH3-020	Knuckle comp - L. FR.
8	51215-SH3-010	Knuckle comp - L. FR.
9	51220-SH3-003	Joint comp - LOWER BALL (MUSASHI)
10	51225-SB0-003	Boot - LOWER BALL DUST (MUSASHI)
11	51450-SH3-030	Arm assy. - R. FR. UPPER
11	51450-SH3-020	Arm assy. - R. FR. UPPER
12	51455-SH3-005	Bush - FR. UPPER ARM
13	51460-SH3-030	Arm assy. - L. FR. UPPER
13	51460-SH3-020	Arm assy. - L. FR. UPPER
14	51464-SH3-013	Boot - UPPER BALL JOINT
14	51464-SH3-003	Boot - UPPER BALL JOINT
15	51467-SH3-003	Circlip - UPPER BALL JOINT
16	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
16	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
16	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
16	90113-SA0-015	Bolt - WHEEL (NAGOYA RASHI)
17	90114-SB0-000	Bolt-washer - 6X12
18	90185-SH3-000	Bolt - UPPER ARM
19	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
20	90305-692-010	Nut
21	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
22	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
23	90363-SF1-000	Nut - CASTLE, 12MM
24	90653-SB0-000	Circlip - EXTERNAL, 40MM
25	91055-SB2-960	Circlip - INTERNAL, 72MM

Mainshaft/gear (4WD) 18

#	OEM	部品名
1	23210-PH8-770	Mainshaft comp.
1	23210-PH8-903	Mainshaft comp.
1	23210-PH8-902	Mainshaft comp.
2	23261-PH8-010	Shaft - REVERSE GEAR
3	23262-PH8-000	Washer - REVERSE THRUST
4	23441-PH8-900	Gear - MAINSHAFT THIRD
5	23451-PH8-900	Gear - MAINSHAFT FOURTH
6	23540-PH8-020	Gear - REVERSE IDLE
6	23540-PH8-010	Gear - REVERSE IDLE
7	23581-PH8-900	Gear - MAINSHAFT FIFTH
8	23623-PG1-305	Sleeve set - SYNCHRONIZER (3-4)
9	23626-PG1-315	Sleeve set - SYNCHRONIZER (5)
10	23915-PG1-010	Collar - DISTANCE, 28X35X56
11	23927-PH8-000	Washer - SPRING, 28MM
11	23927-PG2-A00	Washer - SPRING, 28MM
12	90012-PH8-000	Bolt - SPECIAL, 10X1.25
13	90401-PG1-000	Washer - DRAIN PLUG, 10MM
14	91104-PG1-008	Bearing - NEEDLE, 35X40X26

Master power 18

#	OEM	部品名
1	06464-SE0-000	Power set - MASTER (8")
2	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
3	46191-634-000	Gasket - MASTER CYLINDER BRACKET
4	46400-SH3-932	Power assy. - MASTER (8")
4	46400-SH3-931	Power assy. - MASTER (8")
5	46401-SE0-003	Valve assy. - CHECK (NISSIN)
6	46403-SE0-003	Valve comp. - CHECK (NISSIN)
9	46404-SH3-912	Tube a - MASTER POWER
9	46404-SH3-911	Tube a - MASTER POWER
11	46405-SH3-010	Tube b - MASTER POWER
12	46406-SH3-J02	Stay - MASTER POWER TUBE
14	46408-SH3-912	Clip - MASTER POWER TUBE
15	46431-692-003	Spring - VALVE
16	46432-SA0-003	Spring - POPPET
17	46433-SB2-003	Rod comp - PUSH
18	46443-692-003	Adjuster - PUSH ROD
19	46512-SB2-000	Pin - PEDAL
20	53729-671-003	Clamp d - 15.5MM

Mirror/sunvisor 42

#	OEM	部品名
5	71835-SA5-933	Cover - GRAB RAIL
6	75353-671-000	Lock - SCREW
7	76200-SH5-Q02	Mirror assy - R. DOOR (FLAT)
8	76200-SH5-Q13	Mirror assy - R. DOOR (R.C.)
8	76200-SH5-Q12	Mirror assy - R. DOOR (R.C.)
9	76203-SH2-Q02	Mirror - R. (FLAT)
10	76210-SH2-A14	Actuator assy - R.
11	76215-SH2-A14	Actuator assy - L.
12	76220-SH5-010	Garnish - R. DOOR MIRROR
12	76220-SH5-000	Garnish - R. DOOR MIRROR
13	76220-SH5-901	Garnish - R. DOOR MIRROR
13	76220-SH5-900	Garnish - R. DOOR MIRROR
14	76250-SH5-Q02	Mirror assy - L. DOOR (FLAT)
15	76250-SH5-Q13	Mirror assy - L. DOOR (R.C.)
15	76250-SH5-Q12	Mirror assy - L. DOOR (R.C.)
16	76253-SH2-A03	Mirror - L. (FLAT)
16	76253-SH2-A02	Mirror - L. (FLAT)
17	76270-SH5-010	Garnish - L. DOOR MIRROR
17	76270-SH5-000	Garnish - L. DOOR MIRROR
18	76270-SH5-901	Garnish - L. DOOR MIRROR
18	76270-SH5-900	Garnish - L. DOOR MIRROR
20	76401-SH2-004	Base - STAY
21	76403-SH4-000	Holder - RR. VIEW MIRROR
26	83242-SH5-950	Bracket - R. RR. GRAB RAIL (SUNROOF)
27	83246-SH5-950	Bracket - FR. GRAB RAIL (SUNROOF)
28	83247-SH5-950	Bracket - L. RR. GRAB RAIL (SUNROOF)
29	83248-SG0-003	Spacer - GRAB RAIL
32	88147-SB2-952	Plate - SPRING (MURAKAMI)
33	88148-SB2-952	Bolt - LOCK, 6X7 (MURAKAMI)
34	88154-SA7-004	Knob - DOOR MIRROR (MURAKAMI)
35	88159-SA7-004	Cap - DOOR MIRROR KNOB (MURAKAMI)
38	90101-SH3-000	Screw - TAPPING, 4X14
39	90110-SA7-004	Screw-washer - 3X16 (MURAKAMI)
40	90131-SH3-A12	Screw - PAN, 5X16
41	90131-SH3-G12	Screw - FLAT, 5X20
42	90133-SE3-003	Bolt-washer - 5X25
42	90133-SE0-003	Bolt-washer - 8X35
43	90195-SA0-000	Screw-washer - 6X20
44	90652-SH3-003	Clip - R. MIRROR GARNISH
45	90653-SH3-003	Clip - L. MIRROR GARNISH
46	91610-SH3-003	Grommet - MIRROR GARNISH
49	90145-SH3-003	Screw-washer - 5X12

Oil pump 27

#	OEM	部品名
2	11311-PM3-000	Cover - BREATHING PORT
3	15100-PM3-010	Pump assy. - OIL
3	15100-PM3-000	Pump assy. - OIL
4	15110-PM3-010	Body - OIL PUMP
4	15110-PM3-000	Body - OIL PUMP
5	15112-PM3-000	Cover - OIL PUMP
6	15131-PM3-010	Rotor - PUMP INNER
6	15131-PM3-000	Rotor - PUMP INNER
7	15132-PE0-003	Rotor - PUMP OUTER (SUMITOMO)
8	15220-PM1-000	Strainer comp. - OIL
9	15221-PM3-000	Gasket - OIL STRAINER
10	15231-PM3-000	Valve - RELIEF
11	15232-PM3-000	Spring - RELIEF VALVE
12	15233-PM7-000	Bolt - SEALING, 14MM
12	15233-PM3-000	Bolt - SEALING, 14MM
13	15301-PE0-300	Bolt - SEALING, 14MM
14	15302-PE0-300	Washer - SEALING, 14MM
15	15400-PK1-003	Cartridge - OIL FILTER (TOKYO ROKI)
15	15400-PH1-014	Cartridge - OIL FILTER (TOYO ROKI)
15	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
15	15400-PH1-003	Cartridge - OIL FILTER (TOKYO ROKI)
15	15400-PH1-004	Cartridge - OIL FILTER (TOYO ROKI)
17	90015-PH1-003	Holder - OIL FILTER
18	90020-PE0-000	Bolt - STUD, 8X28
19	90041-PA5-000	Bolt - STUD, 6X28
20	91212-PE1-721	Oil seal - 31X46X8
21	91307-PE0-010	O-ring - 25X2.4

Parking brake 14

#	OEM	部品名
2	47142-659-310	Knob - PARKING BRAKE PUSH ROD
3	47143-671-310	Spring - PUSH ROD
4	47342-SA5-013	Switch - PARKING BRAKE
5	47360-SB2-000	Equalizer
6	47365-538-000	Pin - EQUALIZER
7	47510-SH5-013	Wire a - R. PARKING BRAKE
8	47511-SH3-300	Bracket - BOOT BASE
9	47513-SH3-300	Boot - BRACKET WIRE
10	47522-594-000	Nut - PARKING BRAKE ADJUSTING
11	47530-SH9-000	Stay - BRAKE WIRE
12	47537-671-670	Spring - PARKING BRAKE ROD
13	47560-SH5-013	Wire a - L. PARKING BRAKE
14	47572-SH3-000	Base - WIRE GUIDE
16	90105-634-000	Bolt-washer (8x20)

Piston/crankshaft 64

#	OEM	部品名
1	13031-PM3-004	Ring set - PISTON (OS 0.50) (RIKEN)
1	13021-PM3-004	Ring set - PISTON (OS 0.25) (RIKEN)
1	13011-PM3-004	Ring set - PISTON (STD.) (RIKEN)
1	13011-P04-G02	Ring set - PISTON (STD.) (RIKEN)
1	13031-PM3-003	Ring set - PISTON (OS 0.50) (TEIKOKU)
1	13021-PM3-003	Ring set - PISTON (OS 0.25) (TEIKOKU)
1	13011-PM3-003	Ring set - PISTON (STD.) (TEIKOKU)
2	13102-PM3-010	Piston - OS 0.25
2	13103-PM3-010	Piston - OS 0.50
2	13101-PM3-010	Piston - STD.
2	13101-PM3-000	Piston - STD.
2	13102-PM3-000	Piston - OS 0.25
2	13103-PM3-000	Piston - OS 0.50
3	13112-PE0-000	Pin - PISTON
4	13204-PE1-003	Bolt
5	13205-634-010	Nut
5	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)
6	13210-PM3-000	Rod comp - CONNECTING
7	13216-PE1-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13213-PE1-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13211-PE1-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13217-PE1-003	Bearing g - CONNECTING ROD (RED) (DAIDO)
7	13214-PE1-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
7	13214-PE1-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
7	13212-PE1-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13215-PE1-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
7	13213-PE1-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
7	13216-PE1-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13211-PE1-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13217-PE1-004	Bearing g - CONNECTING ROD (RED) (TAIHO)
7	13215-PE1-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13212-PE1-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
8	13310-PM3-010	Crankshaft comp - 24MM
9	13321-PC0-004	BEARING A - MAIN (BLUE) (TAIHO)
9	13326-PE0-661	Bearing f - MAIN (PINK) (DAIDO)
9	13324-PC0-004	Bearing d - MAIN (GREEN) (TAIHO)
9	13321-PE0-661	BEARING A - MAIN (BLUE) (DAIDO)
9	13327-PC0-004	Bearing g - MAIN (RED) (TAIHO)
9	13324-PE0-661	Bearing d - MAIN (GREEN) (DAIDO)
9	13322-PC0-004	Bearing b - MAIN (BLACK) (TAIHO)
9	13327-PE0-661	Bearing g - MAIN (RED) (DAIDO)
9	13325-PC0-004	Bearing e - MAIN (YELLOW) (TAIHO)
9	13322-PE0-661	Bearing b - MAIN (BLACK) (DAIDO)
9	13325-PE0-661	Bearing e - MAIN (YELLOW) (DAIDO)
9	13323-PC0-004	Bearing c - MAIN (BROWN) (TAIHO)
9	13326-PC0-004	Bearing f - MAIN (PINK) (TAIHO)
9	13323-PE0-661	Bearing c - MAIN (BROWN) (DAIDO)
10	13331-PD1-004	Washer - THRUST (TAIHO)
10	13331-PD1-003	Washer - THRUST (DAIDO)
11	13621-PM3-013	Pulley - TIMING BELT DRIVE (HITACHI)
11	13621-PM3-003	Pulley - TIMING BELT DRIVE (HITACHI)
12	13622-PM3-010	Plate - TIMING BELT GUIDE
12	13622-PM3-000	Plate - TIMING BELT GUIDE
13	13810-PM4-901	Pulley - CRANKSHAFT (24MM)
13	56990-PM4-901	Pulley - CRANKSHAFT (POWER STEERING) (24MM)
13	13810-PM4-900	Pulley - CRANKSHAFT
13	56990-PM4-900	Pulley - CRANKSHAFT (POWER STEERING) (22MM)
15	90017-PM3-003	Bolt - SPECIAL, 14MM (TOKAI TRW)
15	90017-PM3-004	Bolt - SPECIAL, 14MM (SAGA)
15	90017-PB2-003	Bolt - SPECIAL, 12MM (SATO)
15	90017-PB2-004	Bolt - SPECIAL, 12MM (SAGA)
17	90402-PM3-000	Washer - 14.5X32X4.5
17	90402-PB2-000	Washer - 12X30X4.5
18	90704-634-000	Key - 4.5X11.0

Power steering gear box (2) 33

#	OEM	部品名
1	53411-SH3-950	Tube - AIR TRANSFER
2	53434-SD9-000	Clip - TIE ROD
2	53434-S04-J51	CLIP, TIE ROD
3	53436-SH3-950	Cushion b - POWER STEERING GEAR BOX
4	53438-SH3-950	Bracket - POWER STEERING GEAR BOX
5	53446-SH3-950	Rubber - BAND (T)
6	53447-SH3-950	Band - TRANSFER TUBE
7	53448-SB0-950	Clip - TRANSFER TUBE
8	53448-SH3-950	Clip - TRANSFER TUBE
9	53449-SE0-000	Band - BELLOWS
10	53459-SH3-951	Stay - TRANSFER TUBE
11	53501-SH3-000	Grommet a - STEERING
12	53502-SH3-000	Grommet b - STEERING
13	53503-SH3-000	Spacer - STEERING GROMMET
14	53521-SH3-003	End comp - RACK
15	53534-SA5-951	Dust seal comp. - TIE ROD
16	53535-SB3-000	Washer - TIE ROD STOPPER
17	53536-SB2-000	Washer - TIE ROD LOCK
18	53540-SH3-013	End comp - R. TIE ROD
18	53540-SH3-003	End comp - R. TIE ROD
19	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
20	53560-SH3-013	End comp - L. TIE ROD
20	53560-SH3-003	End comp - L. TIE ROD
21	53601-SH3-E51	Box assy - POWER STEERING GEAR
22	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
23	53686-SH3-000	Collar - STEERING GEAR BOX MOUNTING
24	53692-SH3-953	Guard - POWER STEERING GEAR BOX SPLASH
24	53692-SH3-954	Guard - POWER STEERING GEAR BOX SPLASH
25	53760-SA5-950	Rubber - GEAR BOX SEAL
26	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)
27	90320-SF4-000	Nut - CASTLE, 10MM
27	90320-SF1-000	Nut - CASTLE, 10MM
28	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)

Power steering gear box components (2) 68

#	OEM	部品名
1	53412-634-000	O-ring - RACK GUIDE (YAMADA)
2	53413-SH3-950	Spring - RACK GUIDE PRESSURE
3	53414-634-010	Screw - RACK GUIDE
3	53414-634-020	Screw
4	53416-SD4-953	Guide - STEERING RACK
5	53426-SE0-951	Dust seal - STEERING PINION
6	53458-SE0-003	Nut - RACK SCREW LOCK
6	53458-S01-A51	Nut - LOCK
8	53608-SH3-950	Housing sub assy. - STEERING GEAR BOX (HF)
9	53611-SH3-951	Cylinder comp
10	53612-SH3-950	Barrel - CYLINDER
11	53613-SH3-950	Retainer - PACKING
14	53614-SH3-950	Cap - CYLINDER (HF)
15	53615-SD4-950	Washer - RETAINER
16	53617-SF1-950	Port - ORIFICE
17	53622-SH3-E51	Pinion - STEERING
18	53625-SE0-950	Cap - GEAR BOX HOUSING
19	53626-SH3-E51	Rack comp - STEERING
20	53629-SB3-950	Orifice - SENSOR
21	53629-SD4-952	Ring - PISTON SEAL
22	53630-SD4-950	Spring - CYLINDER
23	53631-SD4-951	Bush a - STEERING RACK
24	53632-SF1-950	Bush b - STEERING RACK
25	53633-SD4-953	Packing - CYLINDER END (NOK)
25	53633-SK7-951	Packing - CYLINDER END (NOK)
26	53634-SF1-951	Clip - BUSH STOPPER
27	53640-SH3-E50	Body unit - VALVE
28	53643-SH3-950	Port comp. - VALVE
29	53645-SH3-950	Cap - VALVE BODY
30	53646-SH3-950	Spool comp. - FOUR WAY (X) (+0.003 / -0.002)
30	53647-SH3-950	Spool comp. - FOUR WAY (Y) (-0.002 / -0.007)
30	53648-SH3-950	Spool comp. - FOUR WAY (Z) (-0.007 / -0.012)
31	53651-SB4-950	Spool comp. b - CUT-OFF (-0.005 / 0)
31	53650-SB4-950	Spool comp. a - CUT-OFF (0 / +0.005)
31	53652-SB4-950	Spool comp. c - CUT-OFF (-0.010 / -0.005)
32	53653-SH3-950	Spring - CUT-OFF
33	53659-SA5-951	Orifice - DAMPING
34	53660-SA5-952	Seal - PORT
35	53661-SB4-951	Seal - CAP
36	53666-SA5-671	Plunger - DIAMETER=8MM
37	53667-SA5-670	Spring - RETURN
38	90103-SB4-950	Bolt - POWER STEERING
39	90684-SD4-950	Ring - SNAP, 31MM
40	90693-SE0-951	Circlip - INTERNAL, 28MM
41	90697-SE0-951	Circlip - EXTERNAL, 30MM
42	91052-SE0-951	Bearing - RADIAL BALL, 6906Z
43	91053-SE0-951	Bearing - RADIAL BALL, 6001Z
44	91103-429-000	Dowel pin - 8X10
45	91154-SA5-952	Roller - 3.5X29.8
46	91202-SD4-951	Ring - BACK UP
47	91350-671-003	O-ring - 3.4MM (ARAI)
47	91305-MCJ-751	O-ring (3.2x1.1)
47	91350-671-004	O-ring - 3.4MM (NOK)
48	91352-SF4-951	O-ring - 9.8X1.9 (NOK)
48	91318-PT0-003	O-ring - 9.8X1.9 (NOK)
48	91352-SF1-950	O-ring - 9.8X1.9
49	91353-SA5-951	O-ring - 11X1.9 (ARAI)
50	91354-SD4-951	O-ring - 27.5X2 (NOK)
50	91354-SD4-952	O-ring - 27.5X2 (ARAI)
51	91355-SD4-953	O-ring - 37X1.5 (NOK)
51	91355-SD4-954	O-ring - 37X1.5 (ARAI)
52	91356-SD4-953	O-ring - 31.5X2.4 (NOK)
53	91360-SD4-951	O-ring - 50X2.4 (NOK)
53	91360-SD4-952	O-ring - 50X2.4 (ARAI)
54	91361-SA5-952	O-ring - 46X1.5 (NOK)
54	91361-SA5-951	O-ring - 46X1.5 (ARAI)
55	91362-SE0-952	O-ring - 45.5X2 (NOK)
55	91362-SE0-951	O-ring - 45.5X2 (ARAI)

Power steering lines (2) 40

#	OEM	部品名
1	46217-579-000	Clip - TUBE
2	53697-SB3-952	Cap - OIL TANK
2	53697-SB3-951	Cap - OIL TANK
3	53701-SH3-952	Tank comp. - POWER STEERING OIL
3	53701-SH3-951	Tank comp. - POWER STEERING OIL
4	53710-SH3-950	Cushion - TANK BRACKET
5	53711-SH3-951	Bracket assy - OIL TANK
6	53713-SH3-J53	Hose comp. - FEED (SUMITOMO)
6	53713-SH3-J52	Hose comp. - FEED (NICHIRIN)
7	53720-SH3-952	Pipe comp - RETURN, 10MM
7	53720-SH3-951	Pipe comp - RETURN, 10MM
8	53724-SH3-952	Pipe comp - RETURN, 6MM
8	53724-SH3-951	Pipe comp - RETURN, 6MM
9	53727-SH3-951	Clip - SUCTION TUBE
10	53728-SF1-951	Clip - RETURN PIPE
11	53728-SH3-951	Clip - POWER STEERING PIPE
12	53729-671-003	Clamp d - 15.5MM
13	53730-SH3-951	Pipe comp - POWER STEERING COMBINATION RETURN
13	53730-SH3-950	Pipe comp - POWER STEERING COMBINATION RETURN
14	53731-SH3-952	Tube - SUCTION
14	53731-SH3-951	Tube - SUCTION
15	53732-SH3-J50	Hose - COMBINATION RETURN
15	53732-SH3-951	Tube - RETURN, 10MM
16	53733-SH3-950	Tube - POWER STEERING OIL TANK
17	53734-SH3-950	Tube - OIL COOLER
18	53735-SH3-950	Hose - OIL COOLER
18	53735-SH3-505
19	53736-SH3-950	Holder b - POWER STEERING PIPE
20	53738-SH3-950	Rubber b - GUIDE
21	53739-SH3-971	Clamp - RETURN HOSE
21	53739-SH3-952	Clamp - RETURN HOSE
22	53748-671-000	Rubber - MOUNTING
23	53750-SH3-J50	Stay - RETURN HOSE
23	53750-SH3-951	Stay - RETURN HOSE
24	53765-SH3-A61	Cooler comp - POWER STEERING OIL
24	53765-SH5-A60	Cooler comp - POWER STEERING OIL
25	53775-SH3-952	Clamp - FEED HOSE
26	90854-671-000	Collar - OIL PUMP
27	91370-SB3-950	O-ring - 8.8X1.9
28	91462-SA5-950	Clamp d - 19MM

Power steering pump 31

#	OEM	部品名
1	56110-PM3-030	Pump sub assy - POWER STEERING
1	56110-PM3-020	Pump sub assy - POWER STEERING
2	56250-PM3-010	Cover comp. - FR. PUMP (###)
3	56305-PM7-000	Fitting - OUTLET (###)
4	56360-PC1-010	Spool assy. - B) (0 / +0.006) (###
4	56350-PC1-010	Spool assy. - A) (-0.005 / 0) (###
5	56385-PC1-000	Spring - SPOOL (###)
6	56470-PM3-000	Fitting comp. - INLET
7	56480-PC1-040	Pulley assy - POWER STEERING PUMP
8	56992-PM3-004	Belt - POWER STEERING PUMP (MITSUBOSHI)
8	56992-PM3-003	Belt - POWER STEERING PUMP (BANDO)
9	56997-PM3-010	Bracket - POWER STEERING PUMP
9	56997-PM3-000	Bracket - POWER STEERING PUMP
10	90001-PE0-000	Bolt - FLANGE, 6X72
11	90004-PC6-000	Bolt - SPECIAL, 8MM
12	90004-PR3-000	Bolt - SPECIAL, 8MM
12	90004-PM3-000	Bolt - SPECIAL, 8MM
13	90701-679-000	Dowel pin - 8X10
14	91201-PC1-003	Oil seal - 16X30X7 (NOK)
14	91201-PC1-004	Oil seal - 16X30X7 (ARAI)
15	91303-PH1-003	Seal - HOUSING (NOK)
15	91303-PH1-004	Seal - HOUSING (ARAI)
16	91307-PH1-004	Seal - PLUNGER
17	91312-PM7-004	O-ring - 12.3X1.9 (ARAI)
17	91312-PM7-003	O-ring - 12.3X1.9 (NOK)
18	91316-PB2-003	O-ring - 14.5X1.5 (NOK)
18	91312-PC9-004	O-ring - 14.5X1.5
18	91316-PB2-004	O-ring - 14.5X1.5 (ARAI)
19	91316-PJ7-003	O-ring - 19.8X1.9 (NOK)
19	91353-KM1-004	O-ring a (19.8x1.9)
19	91316-PJ7-004	O-ring - 19.8X1.9 (ARAI)

Propeller shaft 20

#	OEM	部品名
1	40200-SH9-000	Shaft assy - NO.1 PROPELLER
2	40228-SH9-003	Boot comp. - PROPELLER
3	40231-SH9-300	Ring - BOOT
4	40241-SD9-300	Guard - PROPELLER BOOT
5	40300-SH9-000	Shaft assy - NO.2 PROPELLER
6	40332-SH9-300	Ring - NO.2 PROPELLER
7	40400-SH9-000	Shaft assy - NO.3 PROPELLER
8	40520-SH9-003	Support assy. A CENTER BEARING
9	40540-SH9-000	Protector - NO.1 PROPELLER SHAFT
10	40541-SH9-000	Protector - NO.3 PROPELLER SHAFT
11	44329-SB0-300	Band - DRIVESHAFT BOOT
11	44352-SA2-300	Band - DAMPER WEIGHT
12	90113-SD9-000	Bolt - 12POINT 8X23.5
13	90116-SD9-000	Bolt - SPECIAL FLANGE, 8X16
14	90118-SD9-008	Bolt - 12POINT 8X18
15	90162-SH9-000	Bolt - BOOT
16	90310-SD9-000	Nut - YOKE, 8MM
17	90361-SH9-000	Nut - PROPELLER HUB, 22X1.5
18	90382-SH9-000	Bolt - FLANGE, 10X29
18	90382-SH9-003	Bolt - FLANGE, 10X29

Radiator (ND) 18

#	OEM	部品名
1	19010-PM4-003	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19014-PK1-003	Clip - HARNESS
5	19014-PM3-003	Nut - PLATE (DENSO)
6	19015-PM3-003	Shroud comp - DENSO
7	19018-PR1-000	Mark - FAN CAUTION
7	19018-PK1-003	Mark - FAN COVER CAUTION
8	19020-PE0-003	Fan - COOLING (DENSO)
9	19030-PM5-A01	Motor - COOLING FAN (DENSO)
10	19032-PM3-003	Grommet - SHROUD MOUNTING (DENSO)
11	19033-PM3-003	Stay - COUPLER (DENSO)
12	19045-PM3-003	Cap comp - DENSO
12	19045-PR3-004	Cap comp - TOYO
13	90041-PH2-003	Screw-washer - 4X10 (DENSO)
14	90042-PM3-003	Bolt-washer - 6X20 (DENSO)
15	90043-PD2-003	Nut - HEX., 5MM (DENSO)
16	90201-PM3-003	Nut - SQUARE (DENSO)

Radiator (TOYO) 19

#	OEM	部品名
1	19010-PM4-004	Radiator comp - TOYO
2	19011-PH2-004	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)
4	19014-PM3-004	Nut - SET (M6)
5	19015-PM3-014	Shroud comp - TOYO
6	19017-PK1-004	Clip - HARNESS(T.RAD)
7	19018-PR1-000	Mark - FAN CAUTION
7	19018-657-000	Label - FAN CAUTION
8	19020-PM3-004	Fan comp - COOLING (MITSUBA)
9	19030-PM5-A02	Motor - COOLING FAN (MITSUBA)
10	19032-PM3-004	Grommet - TOYO
11	19033-PM3-004	Stay - COUPLER (TOYO)
12	19045-PM3-004	Cap comp - TOYO
13	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)
14	90041-PM3-004	Screw-washer - 4X12
15	90042-PM3-004	Bolt-washer - 6X20 (TOYO)
15	90042-PZ1-004	Bolt-washer - 6X20
16	90050-PK1-004	Screw-washer - 4X12(T.RAD)
17	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)

Radiator hose 24

#	OEM	部品名
1	19101-PM5-A01	Tank - RESERVE
1	19101-PM5-A00	Tank - RESERVE
2	19102-PM3-000	Cap - RESERVE TANK
3	19103-PM3-000	Hose - RESERVE TANK
4	19104-PM5-A02	Tube - RESERVE TANK
4	19104-PM5-A00	Tube - RESERVE TANK
5	19105-PM3-000	Mark - RESERVE TANK
6	19106-PA0-020	Joint - RESERVE TANK
7	19107-PA0-000	Clip - RESERVE TANK JOINT
8	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)
10	19110-PM3-003	Clamp - RESERVE TANK TUBE
11	19501-PM3-000	Hose - WATER UPPER
12	19502-PM4-J01	Hose - WATER LOWER
12	19502-PM4-J00	Hose - WATER LOWER
13	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
14	19519-PM3-013	Clamp - WATER HOSE
22	74171-SH3-010	Bracket - R. RADIATOR MOUNTING UPPER
22	74171-SH3-000	Bracket - R. RADIATOR MOUNTING UPPER
23	74172-SH3-000	Cushion - RADIATOR MOUNTING LOWER
24	74172-SH3-010	Cushion - RADIATOR MOUNTING LOWER
25	74175-SH3-000	Cushion - RADIATOR MOUNTING UPPER
26	74176-SH3-010	Bracket - L. RADIATOR MOUNT UPPER
26	74176-SH3-000	Bracket - L. RADIATOR MOUNT UPPER
29	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Radio 6

#	OEM	部品名
1	39100-SB3-Q01	Tuner assy - RADIO (AM/FM+CASSETTE) (PIONEER)
1	39100-SD4-Q01	Tuner assy - AUTO RADIO (AM/FM+CASSETTE) (PIONEER)
7	39102-SA6-681	Knob - PIONEER
23	39110-SA5-931	Fuse - 4A
27	39111-SD2-Q01	Bracket - AUTO RADIO
28	39114-SB3-Q01	Knob (sw - VOL)

Rear brake drum 43

#	OEM	部品名
2	42210-SH9-000	Hub assy - RR.
5	42610-SH9-000	Drum - RR. BRAKE
6	43110-SH9-013	Plate comp - R. RR. BRAKE BACKING
6	43110-SH9-003	Plate comp - R. RR. BRAKE BACKING
7	43120-SH9-013	Plate comp - L. RR. BRAKE BACKING
7	43120-SH9-003	Plate comp - L. RR. BRAKE BACKING
8	43153-SH5-A02	Shoe comp - RR. BRAKE
8	43153-SH5-A01	Shoe comp - RR. BRAKE
9	43171-SA5-003	Spring a - BRAKE SHOE RETURN
10	43172-SA5-003	Spring b - BRAKE SHOE RETURN
11	43300-SH5-003	Cylinder assy. - RR. WHEEL
13	43315-671-631	Cover - DUST
13	43315-SN4-003	Cover - DUST
14	43321-SA3-681	Piston - WHEEL CYLINDER
15	43322-663-003	Cup - PISTON
16	43323-663-003	Spring - RR. WHEEL CYLINDER
17	43345-SA5-013	Plug - ADJUSTER
18	43352-568-003	SCREW, BLEEDER (NISSIN)
19	43353-548-003	Cap - BLEEDER SCREW
20	43361-SH5-003	Lever - R. PARKING BRAKE
21	43362-SA5-003	Rod a - R. CONNECTING
22	43363-SA5-003	Bolt - R. ADJUSTER
23	43364-SA5-003	Rod b - CONNECTING
23	43364-S5A-003	Rod b - CONNECTING
24	43365-SA5-003	Pin - PARKING BRAKE LEVER
25	43366-SH5-003	Lever comp - R. ADJUSTER
26	43367-SH5-003	Spring - R. ADJUSTER
27	43371-SH5-003	Lever - L. PARKING BRAKE
28	43372-SA5-003	Rod a - L. CONNECTING
29	43373-SA5-003	Bolt - L. ADJUSTER
30	43375-SA0-003	U-clip
31	43376-SH5-003	Lever comp - L. ADJUSTER
32	43377-SH5-003	Spring - L. ADJUSTER
33	43379-SA5-003	Washer - WAVE
34	45172-SA0-003	Spring - SHOE CLAMP
34	45172-S04-003	Spring - SHOE CLAMP
35	45175-SA0-003	Pin - TENSIONER
36	90001-SH3-000	Bolt - FLANGE, 10X13
37	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
37	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
37	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
37	90113-SA0-015	Bolt - WHEEL (NAGOYA RASHI)
38	90305-692-010	Nut

Rear cross beam 23

#	OEM	部品名
1	50300-SH9-A01	Beam - CROSS
1	50300-SH9-A00	Beam - CROSS
2	50310-SH5-A01	Protector - R. SUB FRAME
2	50310-SH5-A00	Protector - R. SUB FRAME
3	50320-SH5-A00	Protector - L. SUB FRAME
4	50710-SH9-050	Mounting comp. a - RR. DIFFERENTIAL
4	50710-SH9-030	Mounting comp. a - RR. DIFFERENTIAL
5	50711-SH9-020	Rubber a - RR. DIFFERENTIAL INSULATOR
5	50711-SH9-010	Rubber a - RR. DIFFERENTIAL INSULATOR
6	50712-SH9-A00	Plate comp - L.
7	50712-SH9-010	Plate
8	50713-SH9-010	Stopper a - RR. DIFFERENTIAL MOUNTING
9	50716-SH9-010	Damper - RR. DIFFERENTIAL
9	50716-SH9-000	Damper - RR. DIFFERENTIAL
10	50721-SH9-010	Rubber b - RR. DIFFERENTIAL INSULATOR
11	50725-SH9-020	Bracket b - R. RR. DIFFERENTIAL MOUNTING
11	50725-SH9-010	Bracket b - R. RR. DIFFERENTIAL MOUNTING
12	50726-SH9-020	Bracket b - L. RR. DIFFERENTIAL MOUNTING
12	50726-SH9-010	Bracket b - L. RR. DIFFERENTIAL MOUNTING
13	90161-SH5-000	Bolt - FLANGE, 12X75
14	90163-SH9-010	Bolt - FLANGE, 10X120
15	90504-SH3-000	Washer - PLAIN, 12MM
16	91613-SE0-003	Grommet - SUB FRAME, 15MM

Rear differential 79

#	OEM	部品名
1	29361-PH8-000	Washer - SPRING, 22MM
2	40440-PH8-000	Flange comp. b - COMPANION (SDP)
3	41030-PC9-960	Gear set - PINION
4	41120-PH8-900	Carrier set - DIFFERENTIAL
5	41160-PH8-020	Housing comp - RR. DIFFERENTIAL
6	41220-PH8-010	Gear set - HYPOID
7	41221-PC8-912	Gear - DRIVE PINION
8	41271-PH8-000	Spacer - PINION
9	41321-PE6-030	Shaft - PINION
10	41321-PH8-900	Case - RR. DIFFERENTIAL
10	41321-PH8-010	Case - RR. DIFFERENTIAL
11	41341-PC9-000	Gear - DIFFERENTIAL PINION
11	41341-PC9-010	Gear - DIFFERENTIAL PINION
12	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)
12	41356-PC8-000	Washer f - DIFFERENTIAL PINION (0.85MM)
12	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)
12	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)
12	41355-PC8-000	Washer e - DIFFERENTIAL PINION (0.75MM)
12	41357-PC8-000	Washer g - DIFFERENTIAL PINION (0.95MM)
12	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)
13	41362-PH8-000	Shim b - 30MM (0.78)
13	41374-PH8-000	Shim n - 30MM (1.14)
13	41369-PH8-000	Shim i - 30MM (0.99)
13	41364-PH8-000	Shim d - 30MM (0.84)
13	41376-PH8-000	Shim p - 30MM (1.20)
13	41371-PH8-000	Shim k - 30MM (1.05)
13	41366-PH8-000	Shim f - 30MM (0.90)
13	41361-PH8-000	Shim a - 30MM (0.75)
13	41373-PH8-000	Shim m - 30MM (1.11)
13	41368-PH8-000	Shim h - 30MM (0.96)
13	41363-PH8-000	Shim c - 30MM (0.81)
13	41375-PH8-000	Shim o - 30MM (1.17)
13	41370-PH8-000	Shim j - 30MM (1.02)
13	41365-PH8-000	Shim e - 30MM (0.87)
13	41372-PH8-000	Shim l - 30MM (1.08)
13	41367-PH8-000	Shim g - 30MM (0.93)
14	41400-PH8-000	Label - DIFFERENTIAL OIL CAUTION
15	41427-PH8-000	Shim q - 67MM (2.68)
15	41422-PH8-000	Shim l - 67MM (2.53)
15	41417-PH8-000	Shim g - 67MM (2.38)
15	41412-PH8-000	Shim b - 67MM (2.23)
15	41434-PH8-000	Shim x - 67MM (0.50)
15	41429-PH8-000	Shim s - 67MM (2.74)
15	41424-PH8-000	Shim n - 67MM (2.59)
15	41419-PH8-000	Shim i - 67MM (2.44)
15	41414-PH8-000	Shim d - 67MM (2.29)
15	41431-PH8-000	Shim u - 67MM (2.80)
15	41426-PH8-000	Shim p - 67MM (2.65)
15	41421-PH8-000	Shim k - 67MM (2.50)
15	41416-PH8-000	Shim f - 67MM (2.35)
15	41411-PH8-000	Shim a - 67MM (2.20)
15	41433-PH8-000	Shim w - 67MM (2.86)
15	41428-PH8-000	Shim r - 67MM (2.71)
15	41423-PH8-000	Shim m - 67MM (2.56)
15	41418-PH8-000	Shim h - 67MM (2.41)
15	41413-PH8-000	Shim c - 67MM (2.26)
15	41430-PH8-000	Shim t - 67MM (2.77)
15	41425-PH8-000	Shim o - 67MM (2.62)
15	41420-PH8-000	Shim j - 67MM (2.47)
15	41415-PH8-000	Shim e - 67MM (2.32)
15	41432-PH8-000	Shim v - 67MM (2.83)
16	41461-PH8-000	Washer - THRUST, 28.1X34X0.6
17	41935-PH8-000	Joint - BREATHER TUBE
18	41936-PH8-000	Clamp - BREATHER
19	90013-PH8-000	Bolt - HEX., 10X60
20	90017-PE9-000	Bolt-washer - 8X28
21	90018-PH8-000	Bolt - SPECIAL, 10MM (B)
22	90081-PE9-000	Bolt - PLUG, 20MM
23	90201-PH8-000	Nut - HEX., 22MM
24	90401-PH8-000	Washer - WAVE, 10MM
25	90425-PF0-000	Washer - THRUST, 26.3X50X1.5
26	90701-679-000	Dowel pin - 8X10
27	91124-PH8-008	Bearing - TAPER, 32306
28	91125-PH8-008	Bearing - TAPER, 332/28
29	91126-PH8-008	Bearing - TAPER, 32008X
30	91204-PH8-003	Oil seal - 38X60X9 (ARAI)
30	91204-PH8-005	Oil seal - 38X60X9 (NOK)
31	91207-PH8-005	Oil seal - 35X54X8 (NOK)
31	91207-PH8-000	Oil seal - 35X54X8

Rear door lining 21

#	OEM	部品名
1	72810-SH5-003	Weatherstrip - R. RR. DOOR
2	72821-SH4-000	Seal - RR. DOOR HOLE
2	72821-SH4-J00	Seal - R. RR. DOOR HOLE (P.W.)
3	72825-SH5-003	Sub seal - R. RR. DOOR
4	72835-SH5-010	Weatherstrip - R. RR. DOOR INNER
5	72836-SH5-010	Weatherstrip - R. RR. DOOR QUARTER INNER
6	72850-SH5-003	Weatherstrip - L. RR. DOOR
7	72861-SH4-J00	Seal - L. RR. DOOR HOLE (P.W.)
8	72865-SH5-003	Sub seal - L. RR. DOOR
9	72875-SH5-010	Weatherstrip - L. RR. DOOR INNER
10	72876-SH5-010	Weatherstrip - L. RR. DOOR QUARTER INNER
11	75522-634-000	Grommet - SCREW, 4MM
11	90866-SA0-000	Grommet - SCREW, 4MM
13	83502-SH5-010	Bracket - PULL POCKET
14	83509-SE3-000	Clip - LOCK KNOB COVER
18	90662-SB2-003	Grommet - SCREW, 5MM
19	90663-671-003	Clip - LINING
20	91530-SE0-003	Clip A - DOOR WEATHERSTRIP
20	90664-671-003	Clip - CANOE
21	91558-SH3-003	Cap - LINING MOUNTING
23	91642-SH3-013	Grommet - DOOR LINING

Rear door locks 29

#	OEM	部品名
1	35765-SH3-013	Sub switch comp. - POWER WINDOW
1	35765-SH3-003	Sub switch comp. - POWER WINDOW
7	72136-SR3-003	Joint
9	72139-SR3-003	Fastener - NATURAL
14	72610-SH4-J04	Lock assy - R. RR. POWER DOOR (HONDA LOCK)
14	72610-SH4-J02	Lock assy - R. RR. POWER DOOR (HONDA LOCK)
16	72615-SH4-J02	Actuator - R. RR. DOOR LOCK
17	72630-SE3-003	Crank assy - R. RR. DOOR LOCK
18	72631-SH4-004	Rod - R. RR. INSIDE HANDLE (HONDA LOCK)
19	72632-SH4-004	Rod - R. RR. DOOR LOCK (HONDA LOCK)
20	72633-SH5-004	Rod - RR. DOOR LOCK KNOB (HONDA LOCK)
21	72640-SH4-004	Handle assy - R. RR. OUTSIDE (HONDA LOCK)
22	72650-SH4-J04	Lock assy - L. RR. POWER DOOR (HONDA LOCK)
22	72650-SH4-J02	Lock assy - L. RR. POWER DOOR (HONDA LOCK)
24	72655-SH4-J02	Actuator - L. RR. DOOR LOCK
25	72670-SE3-003	Crank assy, L. RR. DOOR LOCK
26	72671-SH4-004	Rod - L. RR. INSIDE HANDLE (HONDA LOCK)
27	72672-SH4-004	Rod - L. RR. DOOR LOCK (HONDA LOCK)
28	72680-SH4-004	Handle assy - L. RR. OUTSIDE (HONDA LOCK)
30	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)
32	72175-SH3-901	Holder - DOOR LOCK ROD
32	75551-SB2-013	Holder - DOOR LOCK ROD
33	75551-692-003	Holder - DOOR LOCK ROD
33	72175-SH3-003	Holder - DOOR LOCK ROD
34	72105-SF1-003	Striker - DOOR LOCK
34	75555-SB2-003	Striker - DOOR LOCK
35	75556-605-010	Bolt - LOCK STRIKER
36	90111-SA0-000	Screw - TAPPING, 4X8
37	90662-SB2-003	Grommet - SCREW, 5MM

Rear door panels 6

#	OEM	部品名
14	72840-SH4-003	Checker comp. - RR. DOOR
15	75760-SB2-003	Pin - DOOR CHECKER
16	75891-SA7-000	Stopper - DOOR
17	90001-SD2-000	Bolt - FLANGE, 8X22
18	90110-SB6-000	Bolt-washer - 8X21
19	90755-SB2-000	E-ring - 6MM

Rear door windows 22

#	OEM	部品名
2	72710-SH5-J01	Regulator - R. RR. DOOR POWER
3	72710-SH5-003	Regulator - R. RR. DOOR
4	72714-SH4-J01	Absorber - SHOCK
8	72731-SH5-000	Sash - R. RR. DOOR CENTER
9	72735-SH5-003	Runchannel - R. RR. DOOR
10	72736-SH4-000	Cap - R. CENTER SASH
11	72737-SH4-000	Collar a - RR. DOOR PANEL UPPER
12	72750-SH5-J01	Regulator - L. RR. DOOR POWER
13	72750-SH5-003	Regulator - L. RR. DOOR
16	72771-SH5-000	Sash - L. RR. DOOR CENTER
17	72775-SH5-003	Runchannel - L. RR. DOOR
18	72776-SH4-000	Cap - L. CENTER SASH
19	73400-SH5-000	Glass assy - R. RR. DOOR (BLUE)
20	73405-SH5-000	Glass assy - R. RR. DOOR QUARTER (BLUE)
21	73450-SH5-000	Glass assy - L. RR. DOOR (BLUE)
22	73455-SH5-000	Glass assy - L. RR. DOOR QUARTER(BLUE)
23	75342-679-000	Pin - WINDOW REGULATOR HANDLE
25	76218-SB4-000	Collar b - RR. DOOR PANEL LOWER
26	76311-SE7-961	Joint - R.
27	76321-SE7-961	Joint - L.
28	90104-SB4-000	Bolt-washer - 6X48
29	90112-SB4-000	Bolt - FLANGE, 6X14

Rear driveshaft 16

#	OEM	部品名
1	42010-SH9-010	Driveshaft set - R. RR.
1	42010-SH9-000	Driveshaft set - R. RR.
2	42011-SH9-010	Driveshaft set - L. RR.
2	42011-SH9-000	Driveshaft set - L. RR.
5	42342-SH9-300	Cover - BOOT BAND
6	42343-SH9-300	Cover - INBOARD BOOT BAND
7	44310-SH3-900	Joint comp - INBOARD
8	44315-SA7-003	Boot - INBOARD
9	44316-SA7-320	Band - INBOARD BOOT
10	44317-SA7-300	Band - OUTBOARD BOOT
11	44318-SA7-300	Band - DRIVESHAFT BOOT
12	44319-SA2-000	Set ring - 26X1.8
13	44333-SA7-013	Boot - OUTBOARD (NOK)
14	44336-SA7-300	Ring - INBOARD STOPPER
15	44338-SA7-300	Circlip - 22MM
16	44347-SB2-003	Ring - OUTBOARD

Rear seat 7

#	OEM	部品名
2	78185-SB3-003	Striker - RR. SEAT
3	78186-SH5-000	Cover - RR. SEAT STRIKER
8	82122-SH5-A00	Cover - HINGE BRACKET
9	82129-SH3-000	Collar - RR. SEAT PIVOT
15	82220-SH5-A01	Lock assy - R. RR. SEAT
24	82620-SH5-A01	Lock assy - L. RR. SEAT
27	90668-SH5-003	Clip - MAT, 5MM

Rear shock absorber 31

#	OEM	部品名
1	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
2	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
2	51631-S7S-J01	RUBBER DAMPER M
2	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
3	51685-SH3-014	Plate - DUST COVER(SHOWA)
3	51685-SH3-004	Plate - DUST COVER (SHOWA)
4	51689-SH3-004	Plate - BUMP STOP (SHOWA)
5	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
6	52441-SH9-802	Spring - RR.
6	52441-SH9-005	Spring - RR. (NHK SPRING)
6	52441-SH9-003	Spring - RR. (MITSUBISHI SEIKO)
7	52441-SH9-902	Spring - RR.
8	52442-SH3-000	Tube
9	52610-SH9-L82	Absorber assy - R. RR. SHOCK
9	52610-SH9-014	Absorber assy - RR. SHOCK
10	52611-SH9-A03	Absorber unit - RR. SHOCK
11	52611-SH9-004	Absorber unit - RR. SHOCK
12	52620-SH9-L82	Absorber assy - L. RR. SHOCK
13	52622-SH3-003	Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN)
14	52675-SH3-014	Base - RR. SHOCK ABSORBER MOUNTING
14	52675-SH3-004	Base - RR. SHOCK ABSORBER MOUNTING
15	52686-SH3-004	Rubber - RR. SPRING MOUNTING (SHOWA)
16	52687-SH9-014	Cover comp. - RR. SLEEVE DUST
16	52687-SH9-004	Cover comp. - RR. SLEEVE DUST
17	52722-SB3-006	Rubber - RR. BUMP STOPPER (POLYURETHAN KASEI)
17	52722-SB3-005	Rubber - RR. BUMP STOPPER (NOK)
19	74671-SH3-010	Cap - RR. SHOCK ABSORBER
20	90172-SH3-003	Bolt - UPPER ARM, 10X68
21	90304-SH3-004	Nut-washer - 10MM
21	90304-SH3-505	New Genuine Part
22	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear side lining 20

#	OEM	部品名
1	66418-688-000	Stopper - GLOVE BOX LID
2	84679-SH5-000	Plate - RR. SIDE BOX
2	83420-SD4-003	Plate
3	83739-SH5-003	Holder - RR. SIDE LINING
5	84402-SH5-000	Bar a - SUPPORT
6	84402-SH5-950	Bar b - SUPPORT
9	84432-SH3-000	Stopper - CENTER SHELF
31	84623-SH5-E20	Bracket - R. RR. SIDE LINING
32	84625-SH5-000	Bracket - R. RR. SIDE LINING
35	84627-SH5-000	Shaft - LID
37	84629-SH5-000	Knob - SPACER
38	84631-SH5-000	Holder - R. RR. SIDE LINING
47	84673-SH5-E20	Bracket - L. RR. SIDE LINING
48	84675-SH5-000	Bracket - L. RR. SIDE LINING
51	84681-SH5-000	Holder - L. RR. SIDE LINING
52	90101-SA4-000	Screw - TAPPING, 4X12
53	90130-693-000	Screw - TAPPING, 4X10
54	90302-SA4-003	Nut - SPRING, 4MM
55	90609-SB6-003	Clip - PILLAR GARNISH
57	90668-SH3-003	Clip - SIDE LINING

Rear stabilizer/rear lower arm 43

#	OEM	部品名
1	44300-SB2-004	Bearing assy - FR. HUB (KOYO SEIKO)
1	44300-SB2-018	Bearing assy - FR. HUB (TOYO SEIKO)
2	46438-SH9-A01	Bracket - R. RR. BRAKE HOSE
2	46438-SH9-A00	Bracket - R. RR. BRAKE HOSE
3	46439-SH9-A01	Bracket - L. RR. BRAKE HOSE
3	46439-SH9-A00	Bracket - L. RR. BRAKE HOSE
7	52341-SH3-020	Arm comp, RR. COMPENSATOR
7	52341-SH3-010	Arm comp, RR. COMPENSATOR
8	52343-SH3-004	Bush - COMPENSATOR
8	52343-SR3-004	Bush - COMPENSATOR (YAMASHITA)
9	52350-SH3-A03	Arm comp - R. RR. LOWER
10	52350-SH3-A11	Arm comp - R. RR. LOWER
11	52354-SH3-A01	Cover - R. RR. LOWER ARM
12	52360-SH3-A03	Arm comp - L. RR. LOWER
13	52360-SH3-A11	Arm comp - L. RR. LOWER
14	52364-SH3-A01	Cover - L. RR. LOWER ARM
15	52365-SH3-000	Bush - RR. LOWER ARM (YAMASHITA)
16	52365-SH3-014	Bush - RR. LOWER ARM (YAMASHITA)
18	52370-SH9-A14	Arm comp - R. RR. TRAILING
18	52370-SH9-A12	Arm comp - R. RR. TRAILING
20	52371-SH9-A14	Arm comp - L. RR. TRAILING
20	52371-SH9-A12	Arm comp - L. RR. TRAILING
21	52390-SH3-020	Arm comp - R. RR. UPPER
21	52390-SH3-010	Arm comp - R. RR. UPPER
22	52393-SH3-004	Bush - UPPER ARM INNER (YAMASHITA)
22	52393-SH3-005	Bush - UPPER ARM INNER (SUMITOMO)
23	52395-SH3-005	Bush - RR. UPPER ARM (SUMITOMO)
23	52395-SH3-004	Bush - RR. UPPER ARM (YAMASHITA)
24	52400-SH3-020	Arm comp - L. RR. UPPER
24	52400-SH3-010	Arm comp - L. RR. UPPER
25	52622-SH3-010	Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA)
26	90110-679-003	Nut - SELF-LOCK, 8MM
27	90117-SH3-004	Bolt - UPPER ARM, 10X30
29	90171-SH3-003	Bolt - COMPENSATOR, 10X59
30	90172-SH3-003	Bolt - UPPER ARM, 10X68
31	90173-SH3-003	Bolt - LOWER ARM, 10X80
32	90174-SJ4-000	Bolt - TRAILING ARM BUSH, 12X60
32	90174-SH3-003	Bolt - TRAILING ARM, 12X40
33	90180-SH3-A01	Bolt comp - LOWER ARM PROTECTOR
35	90551-SH3-000	Washer - 24X10X2.3
36	91055-SB2-000	Circlip - INTERNAL, 64MM
37	91351-SH9-A12	O-ring - 77.6X2.4
37	91351-SH9-A10	O-ring - 77.6X2.4

Rear wiper 9

#	OEM	部品名
1	38431-SB6-003	Cover - ARM
2	38448-SD2-003	Rubber - WIPER MOUNTING
3	38450-693-023	Blade - RR. WINDSHIELD WIPER
3	38450-693-305	Blade wshld wiper
4	38452-693-013	Rubber
5	76700-SH5-A02	Motor - RR. WIPER
5	76700-SH5-A01	Motor - RR. WIPER
6	76711-SH5-003	Cap
7	76720-SH5-003	Arm - RR. WIPER

Relay/horn/fuse box 22

#	OEM	部品名
1	37700-PM4-Q01	Control unit - DEVICE
2	37821-PM3-010	Cover - ENGINE CONTROL MODULE
2	37821-PM3-000	Cover - ENGINE CONTROL MODULE
3	38100-SH3-G02	Horn assy - LOW (MITSUBA)
4	38200-SH3-Q11	Box assy - FUSE (DOOR LOCK)
5	38203-SH5-000	Bracket - R. FUSE BOX
6	38205-SH4-Q00	Label - FUSE
7	38212-SE0-000	Fuse - BLOCK (40A)
8	38213-SD4-000	Fuse - BLOCK (50A)
9	38214-SH3-000	Fuse - BLOCK (60A)
10	38235-SA5-003	Puller - FUSE (SUMITOMO)
11	38250-SH3-Q01	Box assy - MAIN FUSE
11	38250-SH3-003	Box assy - MAIN FUSE
12	38300-SE3-003	Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA)
12	38300-SE3-004	Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO)
13	38380-SH4-003	Control unit - AUTO DOOR LOCK
14	38600-SH3-Q11	Control unit - INTEGRATED
15	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
15	39794-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2203)
16	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)
16	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
18	90153-SB2-003	Screw-washer - 5X10

Roof lining 5

#	OEM	部品名
1	74306-SH5-010	Molding assy. - R. ROOF
2	74308-SH3-003	Clip A - ROOF MOLDING (BLACK)
3	74316-SH5-010	Molding assy. - L. ROOF
4	74318-SH3-003	Clip b - ROOF MOLDING (BLUE)
10	91561-SH3-003	Clip - LINING

Seatbelts 1

#	OEM	部品名
5	81491-SH3-A02	Bag - PROTECTOR (TAKATA)

Shift fork/selector fork (4WD) 32

#	OEM	部品名
1	24200-PH8-000	Fork comp - FIFTH GEARSHIFT
2	24210-PH8-901	Fork comp - GEARSHIFT (3-4)
2	24210-PH8-900	Fork comp - GEARSHIFT (3-4)
3	24220-PH8-900	Fork comp - GEARSHIFT (1-2)
4	24230-PH8-900	Holder assy. - REVERSE SHIFT
5	24231-PH8-000	Fork comp - REVERSE SHIFT
6	24232-PH8-300	Holder - REVERSE SHIFT
7	24243-PH8-900	Piece - FIFTH & REVERSE SHIFT
8	24250-PH8-010	Piece comp. a - SUPER LOW SHIFT
9	24251-PH8-000	Fork - SUPER LOW GEARSHIFT
10	24261-PH8-000	Lever - SUPER LOW GEARSHIFT
11	24262-PH8-000	Piece b - SUPER LOW GEARSHIFT
12	24311-PH8-901	Shaft - SHIFT FORK (1-2)
12	24311-PH8-900	Shaft - SHIFT FORK (1-2)
13	24321-PH8-901	Shaft - SHIFT FORK (5-R)
13	24321-PH8-900	Shaft - SHIFT FORK (5-R)
14	24331-PH8-010	Shaft - SUPER LOW SHIFT FORK
15	24453-PH8-300	Spring set - BALL REVERSE
16	24456-PH8-000	Spring a - BALL SETTING
17	24457-PH8-960	Spring - SELECTOR STOP
18	24510-PH8-900	Fork comp - SELECTOR
19	24519-PB6-000	Screw - BALL SPRING SETTING
20	24520-PH8-900	Rod comp - SELECTOR
21	24524-PH8-960	Bolt - STOPPER
22	24611-PH8-000	Collar - SPRING (8)
23	24621-PH8-000	Bolt - SUPER LOW LEVER CENTER
24	24631-PH8-000	Bar - SUPER LOW SHIFT PIECE
25	90028-634-000	Bolt - SPECIAL, 6X21
26	90029-PH8-000	Bolt - SPECIAL, 6X16
27	90403-689-000	Collar - LOCK
28	90432-634-020	Plate - LOCK, 6MM
29	90439-PH8-000	Washer - LOCK, 6MM

Shift lever (2) 28

#	OEM	部品名
1	24600-PH8-770	Stay - CHANGE WIRE
1	24600-PH8-900	Stay comp - CHANGE WIRE
2	54101-SH9-010	Lever - CHANGE
4	54105-SH9-010	Bracket - CHANGE LEVER
4	54105-SH9-000	Bracket - CHANGE LEVER
5	54109-SC2-003	Bush b - CHANGE LEVER
6	54110-SF1-003	Seat - CHANGE LEVER BALL
7	54111-SF1-010	Holder - CHANGE BALL
8	54112-SF1-010	Pivot - CHANGE LEVER
9	54113-SF1-013	Bush - CHANGE LEVER PIVOT
10	54114-SF1-000	Guide - CHANGE LEVER PIVOT
11	54115-SH9-010	Linkage - CHANGE LEVER
12	54116-SD9-000	Washer - FLOATING
13	54117-SH9-000	Rubber a - FLOATING
14	54118-SC2-000	Washer assy. - WIRE
15	54118-SH9-000	Rubber b - FLOATING
16	54119-SD9-000	Collar - FLOATING
17	54210-SD9-013	Bush c - CHANGE LEVER
18	54211-SD9-010	Ball - CUSHION
19	54310-SH9-003	Wire assy. - CHANGE
20	54340-SC2-000	Washer - WAVE
21	54341-SC2-003	Bolt - CHANGE LEVER (8X16)
22	54357-SF1-003	Plate - CHANGE WIRE
23	90101-SD9-000	Bolt-washer - 8X32
24	90114-SA0-000	Nut - SELF-LOCK, 6MM
25	90502-SD9-020	Washer - WIRE END
26	90551-SF1-000	Washer - SHIFT WIRE
27	91301-SD9-000	O-ring - 2.3X24.5

Shift rod/shift arm (4WD) 28

#	OEM	部品名
1	24410-PH8-900	Arm comp. a - SHIFT
2	24412-PH8-000	Shaft - SHIFT ARM
3	24413-PH8-000	Retainer - SUPER LOW SELECT
4	24431-PH8-000	Interlocker
5	24433-PH8-000	Bolt - INTERLOCK
6	24440-PH8-000	Cam comp - REVERSE LOCK
7	24450-PH8-901	Lever comp - SHIFT
7	24450-PH8-902	Lever comp - SHIFT
7	24450-PH8-900	Lever comp - SHIFT
8	24451-PH8-010	Spring - BALL SETTING
9	24452-PH8-901	Spring - BALL SETTING
9	24452-PH8-900	Spring - BALL SETTING
10	24459-PH8-000	Spring - SUPER LOW RETURN
11	24460-PH8-900	Arm comp - SELECT
12	24463-PH8-000	Pin - SELECT RETURN
13	24465-PH8-901	Spring - SELECT RETURN
13	24465-PH8-900	Spring - SELECT RETURN
14	24470-PH8-901	Arm comp - SHIFT
14	24470-PH8-900	Arm comp - SHIFT
15	24480-PH8-900	Lever comp - SELECT
15	24480-PH8-901	Lever comp - SELECT
16	24519-PB6-000	Screw - BALL SPRING SETTING
17	24622-PH8-000	Bolt - PLUG, 18MM
18	24625-PH8-010	Bolt - STOPPER, 6X15
19	90028-PB6-010	Bolt - SPECIAL, 6X22.5
20	90031-PH8-000	Bolt - SPECIAL, 6X22
21	90472-580-000	Washer - 6MM
22	90701-PH8-000	Roller - 2.5X19.8

Side protectors 45

#	OEM	部品名
1	71801-SH5-000	Garnish - R. SIDE SILL
2	71851-SH5-000	Garnish - L. SIDE SILL
3	72410-SH5-003	Molding assy. - R. FR. DOOR
4	72450-SH5-003	Molding assy. - L. FR. DOOR
5	72910-SH5-003	Molding assy. - R. RR. DOOR
6	72950-SH5-003	Molding assy. - L. RR. DOOR
7	74508-SH5-A02	Protector - R. RR. PANEL
8	74553-SH5-A00	Protector - R. RR. WHEELHOUSE
9	74908-SH5-A02	Protector - L. RR. PANEL
10	75250-SH5-003	Rail assy - R. ROOF
11	75251-SH5-003	Bar - R.
12	75252-SH5-003	Stay comp - R. FR.
13	75253-SH5-003	Stay comp - R. CENTER
14	75254-SH5-003	Stay comp - R. RR.
15	75256-SH5-003	Cap
16	75257-SH5-003	Cap - R. FR.
17	75258-SH5-003	Cap - R. RR.
18	75260-SH5-003	Rail assy - L. ROOF
19	75261-SH5-003	Bar - L.
20	75262-SH5-003	Stay comp - L. FR.
21	75263-SH5-003	Stay comp - L. CENTER
22	75264-SH5-003	Stay comp - L. RR.
23	75267-SH5-003	Cap - L. FR.
24	75268-SH5-003	Cap - L. RR.
26	75301-SH5-003	Protector comp - R. FR. FENDER
27	75302-SH5-003	Protector comp - R. FR. DOOR
29	75304-SH5-003	Protector comp - R. RR. FENDER
30	75308-SH5-003	Clip b - MOLDING
31	75309-SH5-003	Clip c - R. MOLDING
33	75321-SH5-003	Protector comp - L. FR. FENDER
34	75322-SH5-003	Protector comp - L. FR. DOOR
36	75324-SH5-003	Protector comp - L. RR. FENDER
37	75328-SH3-A01	Clip A - MOLDING
38	75328-SH5-003	Clip A - MOLDING
39	75329-SH4-013	Clip b - MOLDING
40	75329-SH5-003	Clip c - L. MOLDING
41	75807-671-000	Nut - SIDE PROTECTOR (BLACK)
42	85862-SD2-A00	Protector - RR. WHEEL ARCH
43	90107-SH5-003	Bolt - TORX, 6X14.5
44	90601-SH5-003	Clip - DOOR MOLDING
45	90657-SA6-003	Clip - FR. INNER COWL
46	90687-SB0-013	Clip - AIRSCOOP GRILLE (BLACK)
47	91507-SH3-003	PIN, CLIP, 8MM
48	91508-SH5-003	Clip - CAP END
49	91510-SH5-003	Clip - RR. CAP END

Sliding roof (1) 17

#	OEM	部品名
1	15707-634-000	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM
3	70050-SH3-000	Tube - FR. DRAIN (SUNROOF)
4	70052-SH3-000	Valve - FR. DRAIN (SUNROOF)
5	70060-SH3-000	Tube - RR. DRAIN (SUNROOF)
6	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)
7	70080-SH3-003	Seal - SUNROOF FRAME
8	70090-SG0-000	Stopper - SUNSHADE
9	70091-SH3-000	Stopper - DEFLECTOR
10	70100-SH3-000	Frame comp - SUNROOF
11	70176-693-920	Valve - SLIDE ROOF INNER DRAIN
12	70200-SH5-000	Glass assy - ROOF (SUNROOF)
13	70620-SH3-000	Cover - R. STAY
14	70625-SH3-000	Cover - L. STAY
15	71986-692-920	Cap - STAY COVER
19	90102-SA4-000	Screw - TAPPING, 4X16
20	90110-SH3-000	Screw - PAN, 5X8 (STAY COVER)

Sliding roof (2) 35

#	OEM	部品名
1	39271-636-000	E-clip
2	70310-SH3-000	Rail - R. GUIDE (SUNROOF)
3	70315-SH3-000	Rail - L. GUIDE (SUNROOF)
4	71940-SB0-920	Stay assy - R. RR.
4	70350-SH3-000	Stay assy - R. RR.
5	71945-SB0-920	Stay assy - L. RR.
5	70355-SH3-000	Stay assy - L. RR.
6	70400-SH3-003	Cable assy - SUNROOF
7	70450-SG0-013	Motor assy. - SUNROOF
8	70500-SH3-003	Deflector assy - SUNROOF
9	70514-SE3-003	Spring - R. DEFLECTOR
10	70519-SE3-003	Spring - L. DEFLECTOR
11	70530-SH3-003	Arm comp - DEFLECTOR
12	70534-SH3-003	Cover - DEFLECTOR ARM
13	70540-SH3-003	Spring - DEFLECTOR ARM
14	70630-SH3-000	Cover - RAIL
15	71924-SB0-920	Guide - R. LIFTER UPPER
15	71924-SH3-000	Guide - R. LIFTER UPPER
16	71929-SB0-920	Guide - L. LIFTER UPPER
16	71929-SH3-000	Guide - L. LIFTER UPPER
17	71938-692-920	Adjuster - LIFT UP
18	71941-SB0-920	Stay - R. FR. SLIDE
19	71946-SB0-920	Stay - L. FR. SLIDE
20	71947-SB0-920	Washer - 5.2X9
21	71951-SB0-920	Stay - R. RR. SLIDE
22	71953-SB0-920	Link - R. LIFT UP
23	71954-SB0-920	Link - L. LIFT UP
24	71956-SB0-920	Stay - L. RR. SLIDE
25	71958-SB0-920	Shaft - RR. STAY
26	71974-692-920	Pin - DEFLECTOR ARM
27	71982-SA5-920	Washer - NYLON
28	71997-SB0-920	Shim - STAY (1.0MM)
28	71998-SB0-920	Shim - STAY (2.0MM)
29	71997-692-920	Shim - STAY (1.0MM)
29	71998-692-920	Shim - STAY (2.0MM)

Speedometer components (ND) 21

#	OEM	部品名
1	35505-SA5-004	Bulb & socket - 14V 1.4W) (DENSO) (BASE:BLACK
2	35506-SA5-004	Bulb - 14V 1.4W) (DENSO
2	35506-SA5-003	Bulb - 14V 1.4W
3	37106-SB2-004	Knob - TRIP (DENSO)
4	78106-SH3-004	Switch assy - REED
5	78108-SH3-Q22	Panel - COMBINATION PRINT
6	78110-SH3-014	Case - METER (DENSO)
7	78115-SH3-Q14	Speedometer assy
8	78125-SH3-J14	Tachometer assy - DENSO
9	78130-SH3-014	Meter assy - FUEL & TEMPERATURE (DENSO)
9	78130-SH3-004	Meter assy - FUEL & TEMPERATURE (DENSO)
11	78155-SH3-004	Visor - METER (DENSO)
12	78156-SH3-004	Lens - METER (DENSO)
13	78166-SH3-004	Case - ILLUMINATION (DENSO)
14	78167-SH3-004	Lens - ILLUMINATION (DENSO)
15	78168-SH3-004	Panel - ILLUMINATION PRINT (DENSO)
16	78171-SH3-Q22	Lens - UNDER
17	78172-SH3-004	Lens - UNDER (DENSO)
18	78175-SE3-004	Grommet - DENSO
19	78175-SH3-004	Grommet - KNOB (DENSO)
20	78180-SH3-004	Socket assy - BULB (DENSO)

Speedometer components (NS) 24

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37106-SB2-003	Knob - TRIP (NS)
4	37114-671-005	Grommet - TRIP KNOB (NS)
5	37115-SA0-601	Packing - NS
6	37116-SB3-003	Rubber - SPEEDOMETER (NS)
7	37237-SD2-003	Bulb - 14V 3.4W) (NS
8	37238-SD2-A00	Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN
9	37238-SD2-003	Bulb & socket - 12V 3.4W CAP) (NS
10	37238-SD2-961	Bulb & socket - 14V 1.4W) (NS) (BASE:GRAY
11	78108-SH3-A03	Panel - PRINT (NS)
12	78110-SH3-023	Case assy - NS
13	78115-SH3-Q13	Speedometer assy - NS
15	78125-SH3-J11	Tachometer assy - NS
16	78130-SH3-J03	Meter assy - FUEL & TEMPERATURE (NS)
16	78130-SH3-J02	Meter assy - FUEL & TEMPERATURE (NS)
16	78130-SH3-J01	Meter assy - FUEL & TEMPERATURE (NS)
17	78151-SH3-003	Socket assy - BULB (NS)
18	78155-SH3-Q01	Visor assy - METER (NS)
19	78166-SH3-003	Illumination assy. - NS
22	90131-SD2-003	Screw-washer - 4X12 (NS)
23	90131-SF4-003	Screw-washer - 3X16 (NS)
24	90132-SD2-003	Screw-washer - 3X13 (NS)
26	90134-SH3-003	Screw-washer - 3X10 (NS)

Starter motor (MITSUBA) 18

#	OEM	部品名
1	31200-PM3-005	Motor assy. - STARTER (SM-302-24) (MITSUBA)
2	31202-PC2-681	Bolt - THROUGH (###)
3	31203-PM1-005	Cover - GEAR
4	31204-PD1-013	Gear assy. - PINION
6	31207-PH3-953	Armature comp.
8	31209-PG6-913	Cover - RR. (###)
9	31210-PM1-015	Switch assy - ###
9	31210-PM1-005	Switch assy
10	31211-PC2-006	Ring - SQUARE (MITSUBA)
13	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
14	31229-PC2-026	Case comp. - FR.
14	31229-PC2-016	Case comp. - FR.
15	31235-PJ7-903	Cover - TERMINAL (MITSUBA) (###)
16	31251-PJ7-904	Tube - LABYRINTH (###)
16	31251-PJ7-903	Tube - LABYRINTH
17	31252-PD2-006	Rubber - BUSH (MITSUBA)
18	31291-PM1-005	Stay assy - ENGINE WIRE HARNESS (###)
20	31260-PM3-006	Stator set - ###

Steering column (4; TILT) 39

#	OEM	部品名
1	53210-SH5-000	Column - STEERING
1	53210-SH3-000	Column - STEERING
2	53211-SH3-010	Holder - COLUMN UPPER
3	53212-SH3-010	Plate comp - BENDING
4	53216-SH3-000	Holder b - STEERING COLUMN
5	53217-SD2-000	Collar - STEERING RETAINER
5	53217-SH3-000	Collar - STEERING RETAINER
6	53218-SH3-010	Spring - BENDING PLATE
7	53231-SB2-000	Label - IGNITION SWITCH
8	53235-SA5-010	Ring - COLUMN COVER
9	53239-SB2-000	Clip - COLUMN COVER
10	53244-SA5-010	Label - TURN SIGNAL
11	53310-SH3-E01	Shaft comp. - STEERING
12	53311-692-000	Washer - STEERING SHAFT
13	53320-SH3-033	Cover - STEERING JOINT
14	53323-SF4-003	Joint comp. b - STEERING
15	53325-SH3-000	Clip A - JOINT COVER
16	53326-SB0-000	Clip b - JOINT COVER
17	53350-SH3-010	Base - BENDING PLATE
18	53360-SH5-000	Lever comp - TILT
19	53361-SH3-000	Spring - TILT LEVER
20	53362-SB3-000	Tube - RUBBER
21	53363-SH5-010	Pivot - COLUMN
22	53364-SA0-960	Collar - PIVOT
23	53364-SH3-000	Bolt - TILT LOCK
24	53365-SA0-961	Bush - PIVOT
25	53368-SH3-020	Guide - BENDING PLATE
26	53369-SH3-010	Guide - RAIL
27	53371-SB3-000	Spring - COLUMN HANGER
28	53373-SH3-000	Spindle - STOPPER
29	53375-SH3-000	Washer - 10MM
32	90130-SB3-003	Bolt - PIVOT
33	90132-SH3-000	Bolt - STEERING HANGER
34	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
35	90511-671-003	Washer - TOOTHED LOCK
36	90551-SE0-000	Washer - SPRING, 24X18
37	90654-SA5-003	Clip - JOINT COVER
38	90661-SE0-003	Circlip - EXTERNAL, 18MM
39	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR

Steering gear box (2) 37

#	OEM	部品名
1	53040-SH3-013	Box comp - STEERING GEAR
2	53413-SH3-003	Spring - RACK GUIDE PRESSURE
3	53414-679-013	Screw - RACK GUIDE
4	53416-SH3-003	Guide - STEERING RACK
5	53418-SC2-003	Washer - DISK
8	53426-671-004	Dust seal - STEERING PINION (NOK)
8	53426-671-003	Dust seal - STEERING PINION (ARAI)
9	53427-SH3-013	Rack - STEERING
10	53430-SH3-000	Bush - RACK END
11	53434-SD9-000	Clip - TIE ROD
11	53434-S04-J51	CLIP, TIE ROD
12	53436-SH3-000	Cushion b - STEERING GEAR BOX
13	53438-SH3-000	Bracket - STEERING GEAR BOX
14	53449-SH3-J00	Band b - BELLOWS
15	53449-SH3-000	Band - BELLOWS
16	53458-SE0-003	Nut - RACK SCREW LOCK
16	53458-S01-A51	Nut - LOCK
17	53501-SH3-000	Grommet a - STEERING
18	53502-SH3-000	Grommet b - STEERING
19	53503-SH3-000	Spacer - STEERING GROMMET
20	53521-SH3-003	End comp - RACK
21	53535-SH3-000	Washer - TIE ROD STOPPER
22	53536-SB2-000	Washer - TIE ROD LOCK
23	53537-SH3-J00	Dust seal b - TIE ROD
24	53537-SH3-000	Dust seal a - TIE ROD
25	53540-SH3-013	End comp - R. TIE ROD
25	53540-SH3-003	End comp - R. TIE ROD
26	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
27	53560-SH3-013	End comp - L. TIE ROD
27	53560-SH3-003	End comp - L. TIE ROD
28	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
29	53686-SH3-000	Collar - STEERING GEAR BOX MOUNTING
30	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)
31	90320-SF4-000	Nut - CASTLE, 10MM
31	90320-SF1-000	Nut - CASTLE, 10MM
32	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)
39	53421-SH3-013	Pinion comp. - STEERING (RH)

Steering wheel 5

#	OEM	部品名
1	78507-SH3-901	Plate - CONTACT (TS TECH)
5	78517-SH3-901	Plate - HORN (TS TECH)
7	78519-SH3-901	Spring - COIL (TS TECH)
9	90134-SH3-901	Screw - TAPPING, 4X18 (PO)
10	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Super low gear (4WD) 30

#	OEM	部品名
1	21105-PH8-000	Plate - OIL GUIDE (S)
2	23627-PH8-305	Sleeve set - SYNCHRONIZER (SUPER LOW)
3	23701-PH8-961	Gear - SUPER LOW (1)
4	23711-PH8-000	Shaft - SUPER LOW GEAR (1)
5	23721-PH8-020	Gear - SUPER LOW (2)
5	23721-PH8-010	Gear - SUPER LOW (2)
6	23731-PH8-900	Shaft - SUPER LOW GEAR (2)
6	23731-PH8-960	Shaft - SUPER LOW GEAR (2)
7	23754-PH8-900	Shim e - 47MM (1.4)
7	23756-PH8-900	Shim g - 47MM (1.6)
7	23751-PH8-900	Shim b - 47MM (1.1)
7	23753-PH8-900	Shim d - 47MM (1.3)
7	23755-PH8-900	Shim f - 47MM (1.5)
7	23750-PH8-900	Shim a - 47MM (1.0)
7	23757-PH8-900	Shim h - 47MM (1.7)
7	23752-PH8-900	Shim c - 47MM (1.2)
8	23911-PH8-000	Collar - DISTANCE, 24X30X22
9	23912-PH8-900	Collar - DISTANCE, 23X32X35
9	23912-PH8-010	Collar - DISTANCE, 25X32X31
10	23915-PH8-010	Washer - THRUST, 46X62X2
11	23916-PH8-020	Collar - DISTANCE, 24X66X24
12	23925-PH8-020	Washer - SPRING, 62MM
13	23926-PH8-010	Washer - THRUST, 20X44X5
14	91001-PH8-004	Bearing - BALL, 62/28 (KOYO)
14	91001-PH8-008	Bearing - BALL, 62/28 (NTN)
15	91103-PH8-008	Bearing - NEEDLE, 24X30X20
16	91105-PH8-901	Bearing - NEEDLE, 32X37X26
16	91105-PH8-008	Bearing - NEEDLE, 32X37X31
17	91131-PH8-018	Bearing - THRUST NEEDLE, 24X44X2
18	91212-PL0-008	Damper - FRICTION (LOW) (KOYO SEIKO)

Tailgate 33

#	OEM	部品名
1	63511-SA5-003	Cushion - HOOD
4	68214-SH3-010	Shim - TAILGATE HINGE
5	68217-SH3-010	Seal - TAILGATE HINGE
6	73219-693-951	Seal - FUEL LID OPENER (GREEN)
7	74411-SH4-003	Cable - FUEL LID OPENER
8	74800-SH5-003	Lock assy - TAILGATE
9	74811-SH5-003	Rod - TAILGATE LOCK
10	74812-SH3-305	Cylinder - TAILGATE
10	74812-SH3-003	Cylinder - TAILGATE
10	74812-SH3-013	Cylinder - TAILGATE
11	74813-SH5-003	Striker - TAILGATE
12	74815-SH5-000	Grommet - KEY CYLINDER
13	74820-SH5-003	Stay assy - TAILGATE OPENER (RR. WIPER)
14	74827-SH5-010	Stopper - TAILGATE
14	74827-SH5-000	Stopper - TAILGATE
15	74828-SH5-000	Cover - OPEN STAY BRACKET
16	74829-SH2-000	Cover - OPEN STAY END
17	74830-SH5-003	Cable - TAILGATE OPENER
19	74882-SH3-003	Opener assy - TAILGATE
21	74900-SH5-010	Spoiler - TAILGATE
22	75556-605-010	Bolt - LOCK STRIKER
23	83307-SD2-900	Shim - TAILGATE STRIKER (1.0)
23	83307-SD2-000	Shim - TAILGATE STRIKER (2.0)
23	83307-SH5-900	Shim - TAILGATE STRIKER (1.0)
23	83307-SH5-000	Shim - TAILGATE STRIKER (2.0)
26	90102-SH5-000	Bolt - SPECIAL, 6MM
28	90106-SD5-000	Bolt-washer - 6X16
29	90501-SH3-000	Packing - SEAT
31	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)
32	90691-SC5-003	Clip A - OPENER CABLE
33	91506-SH3-003	Clip - OPENER CABLE SIDE
34	91549-SD2-003	Clip - WIRE HARNESS (BLACK)
42	74820-SH5-305	Stay set - TAILGATE OPEN (RR. WIPER)

Tailgate lining/ rear panel lining 3

#	OEM	部品名
1	74440-SH5-003	Weatherstrip - TAILGATE
2	83862-SH5-000	Cover - RR. PANEL
11	90609-SB6-003	Clip - PILLAR GARNISH

Taillight 36

#	OEM	部品名
1	33500-SH5-W02	Taillight assy. - R.
2	33501-SH5-G01	Housing - R.
3	33502-SH5-003	Gasket - BASE
4	33503-SH5-003	Socket comp.
5	33503-506-600	Bulb - 12V 21W) (STANLEY
5	34905-KV7-671	Bulb,winker (12v
5	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
6	33550-SH5-W02	Taillight assy. - L.
7	33551-SH5-G01	Housing - L.
8	33707-SH5-A01	Socket & cord comp.
9	34100-SH5-A01	Garnish - LICENSE LIGHT (###)
10	34102-SH5-A01	Lens comp - R.
11	34103-SH5-A01	Housing - R.
12	34105-SH5-A01	Packing
13	34112-SH5-A01	Lens comp - L.
14	34113-SH5-A01	Housing - L.
15	34150-SH5-W03	Light assy - R. BACK & STOP
15	34150-SH5-W02	Light assy - R. BACK & STOP
16	34151-SH5-013	Housing - R.
16	34151-SH5-003	Housing - R.
17	34152-SH5-003	Socket comp.
18	34154-SH5-003	Gasket - BASE
19	34155-SH5-W03	Light assy - L. BACK & STOP
19	34155-SH5-W02	Light assy - L. BACK & STOP
20	34156-SH5-013	Housing - L.
20	34156-SH5-003	Housing - L.
23	34274-SH5-A01	Socket comp.
24	34901-SB3-671	Bulb - 12V 18W 21CP) (STANLEY
24	33506-SNB-J51	Bulb - 12V 16W
25	34901-SE3-003	Bulb - 12V 8W
26	34906-594-622	Bulb - 12V 21/5W
27	75523-SD4-003	Packing - SEAL
28	75525-SD4-013	Clip - RR. PANEL GARNISH
29	75526-SD4-003	Packing - SEAL (E)
30	90301-SB4-901	Nut - SPECIAL, 5MM
30	90301-SB4-000	Nut - SPECIAL, 5MM (CAP)

Tire/wheel disk 28

#	OEM	部品名
2	42700-SH4-921	Disk - WHEEL (13X5J) (KANAI) (NEBULAR SILVER METALLIC)
2	42700-SH4-922	Disk - WHEEL (13X5J) (TOPY) (NEBULAR SILVER METALLIC)
3	42750-SH9-G91	Tire assy - 165SR13) (BRIGDESTONE
3	42750-SA5-601	Tire assy - 165SR13) (BRIDGESTONE
3	42750-SA5-625	Tire assy - 165SR13) (DUNLOP) (TUBELESS
3	42750-SH9-G92	Tire assy - 165SR13) (DUNLOP
4	42751-SA5-628	Tire - 165SR13) (DUNLOP
4	42751-SH9-G93	Tire - 165SR13) (BRIDGESTONE
4	42751-SH9-G94	Tire - 165SR13) (DUNLOP
4	42751-SA5-602	Tire - 165SR13) (BRIDGESTONE
5	42753-671-003	Valve - RIM (TAIHEIYO)
5	42753-SB8-661	Valve - RIM (SCHRADER)
5	42753-SE0-A02	Valve - RIM (SCHRADER)
5	42753-671-962	Valve - RIM (DUNLOP)
5	42753-634-003	Valve - RIM (BRIDGESTONE)
6	44727-SB2-003	Weight - BALANCE (15G) (YAMATE)
6	44722-SB2-003	Weight - BALANCE (20G) (YAMATE)
6	44729-SB2-003	Weight - BALANCE (35G) (YAMATE)
6	44724-SB2-003	Weight - BALANCE (40G) (YAMATE)
6	44726-SB2-003	Weight - BALANCE (5G) (YAMATE)
6	44721-SB2-003	Weight - BALANCE (10G) (YAMATE)
6	44728-SB2-003	Weight - BALANCE (25G) (YAMATE)
6	44723-SB2-003	Weight - BALANCE (30G) (YAMATE)
6	44730-SB2-013	Weight - BALANCE (45G) (YAMATE)
6	44725-SB2-003	Weight - BALANCE (50G) (YAMATE)
7	44731-SH9-010	Semi-cap comp.
9	74654-SE0-000	Bolt - ANCHOR (64MM)
12	90304-SE0-901	Nut - WHEEL (FUSE RASHI)

Tools/jack 9

#	OEM	部品名
1	71969-SA7-890	Wrench - SUNROOF
2	89000-SH3-900	Tool set - SUNROOF
3	89101-SW5-003	Bag - TOOL
4	89211-SE3-003	Wrench - WHEEL
5	89216-SF4-000	Wrench - PLUG
6	89310-SH3-Q04	Jack assy - PANTOGRAPH
6	89310-SH3-Q03	Jack assy - PANTOGRAPH
7	89320-SE3-003	Bar - JACK
7	89320-S50-003	Bar - JACK

Transfer bevel gear (4WD) 50

#	OEM	部品名
1	21421-PH8-910	Cover - TRANSFER (RR.)
1	21421-PH8-900	Cover - TRANSFER (RR.)
2	21432-PH8-900	Cover - TRANSFER DUST
2	21432-PH8-000	Cover - TRANSFER DUST
3	29101-PH8-010	Gear - TRANSFER DRIVEN
3	29101-PH8-900	Gear - TRANSFER DRIVEN
4	29201-PH8-900	Shaft - TRANSFER
5	29210-PH8-910	Gear set - TRANSFER BEVEL
5	29210-PH8-900	Gear set - TRANSFER BEVEL
6	29311-PH8-000	Collar - TRANSFER DISTANCE
7	29321-PH8-000	Sleeve - SELECTOR
8	29351-PH8-901	Spacer - TRANSFER
8	29351-PH8-910	Spacer - TRANSFER
8	29351-PH8-900	Spacer - TRANSFER
9	29352-PH8-910	Washer - RR. TRANSFER
9	29352-PH8-960	Washer - RR. TRANSFER
10	29361-PH8-000	Washer - SPRING, 22MM
11	29417-PH8-000	Shim - 25X36X1.87
11	29412-PH8-000	Shim - 25X36X1.57
11	29419-PH8-000	Shim - 25X36X1.99
11	29414-PH8-000	Shim - 25X36X1.69
11	29416-PH8-000	Shim - 25X36X1.81
11	29411-PH8-000	Shim - 25X36X0.48
11	29418-PH8-000	Shim - 25X36X1.93
11	29413-PH8-000	Shim - 25X36X1.63
11	29415-PH8-000	Shim - 25X36X1.75
12	29488-PH8-000	Shim - 80X1.15
12	29483-PH8-000	Shim - 80X0.90
12	29491-PH8-000	Shim - 80X1.25
12	29485-PH8-000	Shim - 80X1.00
12	29487-PH8-000	Shim - 80X1.10
12	29482-PH8-000	Shim - 80X0.85
12	29489-PH8-000	Shim - 80X1.20
12	29484-PH8-000	Shim - 80X0.95
12	29492-PH8-000	Shim - 80X1.30
12	29486-PH8-000	Shim - 80X1.05
12	29481-PH8-000	Shim - 80X0.50
13	40430-PH8-900	Flange comp. a - COMPANION
14	90201-PH8-000	Nut - HEX., 22MM
15	91102-PH8-008	Bearing - NEEDLE, 54X75X16
16	91107-PH8-008	Bearing - NEEDLE, 28X34X35
17	91121-PH8-961	Bearing - TAPER, 30203
18	91122-PS5-003	Bearing - TAPER, 35X62X21
18	91122-PH8-008	Bearing - TAPER, 32007
19	91123-PS5-013	Bearing - TAPER, 28X58X20
19	91123-PH8-961	Bearing - TAPER, 320/28
20	91124-PS5-003	Bearing - TAPER, 35X68X21
21	91201-PH8-005	Oil seal - 38X60X11
22	91303-PH8-010	O-ring - 79.4X3.1
24	41461-PH8-000	Washer - THRUST, 28.1X34X0.6

Transmission housing (4WD) 80

#	OEM	部品名
1	21104-PH8-000	Plate m - OIL GUIDE
2	21200-PH8-903	Case comp. - TRANSMISSION
2	21200-PH8-902	Case comp. - TRANSMISSION
2	21200-PH8-901	Case comp. - TRANSMISSION
3	21212-PH8-010	Plate - OIL COLLECT
3	21212-PH8-000	Plate - OIL COLLECT
4	21321-689-000	Plug - BREATHER TUBE
5	21399-PH8-010	Clamp - BREATHER TUBE
6	21521-PH8-901	Cover - SHIFT ARM
6	21521-PH8-900	Cover - SHIFT ARM
7	23962-PH8-900	Shim v - 75MM (1.83)
7	23978-PH8-900	Shim al - 75MM (2.31)
7	23947-PH8-900	Shim g - 75MM (1.38)
7	23973-PH8-900	Shim ag - 75MM (2.16)
7	23958-PH8-900	Shim r - 75MM (1.71)
7	23968-PH8-900	Shim ab - 75MM (2.01)
7	23953-PH8-900	Shim m - 75MM (1.56)
7	23942-PH8-900	Shim b - 75MM (1.23)
7	23951-PH8-900	Shim k - 75MM (1.50)
7	23963-PH8-900	Shim w - 75MM (1.86)
7	23979-PH8-900	Shim am - 75MM (2.34)
7	23974-PH8-900	Shim ah - 75MM (2.19)
7	23959-PH8-900	Shim s - 75MM (1.74)
7	23946-PH8-900	Shim f - 75MM (1.35)
7	23969-PH8-900	Shim ac - 75MM (2.04)
7	23954-PH8-900	Shim n - 75MM (1.59)
7	23941-PH8-900	Shim a - 75MM (1.20)
7	23980-PH8-900	Shim an - 75MM (2.37)
7	23964-PH8-900	Shim x - 75MM (1.89)
7	23950-PH8-900	Shim j - 75MM (1.47)
7	23975-PH8-900	Shim ai - 75MM (2.22)
7	23960-PH8-900	Shim t - 75MM (1.77)
7	23945-PH8-900	Shim e - 75MM (1.32)
7	23970-PH8-900	Shim ad - 75MM (2.07)
7	23955-PH8-900	Shim o - 75MM (1.62)
7	23965-PH8-900	Shim y - 75MM (1.92)
7	23949-PH8-900	Shim i - 75MM (1.44)
7	23976-PH8-900	Shim aj - 75MM (2.25)
7	23961-PH8-900	Shim u - 75MM (1.80)
7	23971-PH8-900	Shim ae - 75MM (2.10)
7	23956-PH8-900	Shim p - 75MM (1.65)
7	23944-PH8-900	Shim d - 75MM (1.29)
7	23966-PH8-900	Shim z - 75MM (1.95)
7	23948-PH8-900	Shim h - 75MM (1.41)
7	23977-PH8-900	Shim ak - 75MM (2.28)
7	23972-PH8-900	Shim af - 75MM (2.13)
7	23957-PH8-900	Shim q - 75MM (1.68)
7	23943-PH8-900	Shim c - 75MM (1.26)
7	23967-PH8-900	Shim aa - 75MM (1.98)
7	23952-PH8-900	Shim l - 75MM (1.53)
7	23938-PH8-010	Shim - 75MM (1.45)
7	23949-PH8-010	Shim - 75MM (2.00)
7	23933-PH8-010	Shim - 75MM (1.20)
7	23944-PH8-010	Shim - 75MM (1.75)
7	23940-PH8-010	Shim - 75MM (1.55)
7	23935-PH8-010	Shim - 75MM (1.30)
7	23948-PH8-010	Shim - 75MM (1.95)
7	23943-PH8-010	Shim - 75MM (1.70)
7	23952-PH8-010	Shim - 75MM (2.15)
7	23937-PH8-010	Shim - 75MM (1.40)
7	23932-PH8-010	Shim - 75MM (1.15)
7	23947-PH8-010	Shim - 75MM (1.90)
7	23942-PH8-010	Shim - 75MM (1.65)
7	23951-PH8-010	Shim - 75MM (2.10)
7	23939-PH8-010	Shim - 75MM (1.50)
7	23934-PH8-010	Shim - 75MM (1.25)
7	23946-PH8-010	Shim - 75MM (1.85)
7	23941-PH8-010	Shim - 75MM (1.60)
7	23950-PH8-010	Shim - 75MM (2.05)
7	23936-PH8-010	Shim - 75MM (1.35)
7	23931-PH8-010	Shim - 75MM (1.10)
7	23945-PH8-010	Shim - 75MM (1.80)
8	90081-PB6-000	Bolt - PLUG, 14MM
9	90081-PH8-000	Bolt - SEALING, 32MM
10	90083-PH8-000	Bolt - SEALING, 18MM
11	91004-PG1-008	Bearing - BALL, 6306/25
12	91206-PC8-005	Oil seal - 40X76X9 (NOK)
12	91206-PC8-003	Oil seal - 40X76X9 (ARAI)
13	91209-PE9-003	Dust seal - 16X23X5(ARAI)
13	91209-PE9-005	Dust seal - 16X23X5(NOK)

Valve/rocker arm 25

#	OEM	部品名
1	14621-PM3-010	Arm a - IN. ROCKER
1	14621-PM3-000	Arm a - IN. ROCKER
2	14622-PM3-010	Arm b - IN. ROCKER
2	14622-PM3-000	Arm b - IN. ROCKER
3	14623-PM3-010	Arm a - EX. ROCKER
3	14623-PM3-000	Arm a - EX. ROCKER
4	14624-PM3-010	Arm b - EX. ROCKER
4	14624-PM3-000	Arm b - EX. ROCKER
5	14645-PN4-003	Spring a - VALVE ROCKER ARM (SANKO)
5	14645-PJ7-003	Spring a - VALVE ROCKER ARM (SANKO)
6	14646-PN4-003	Spring b - VALVE ROCKER ARM (SANKO)
6	14646-PJ7-003	Spring b - VALVE ROCKER ARM (SANKO)
7	14647-PJ7-000	Washer - WAVE
8	14711-PM3-000	Valve - IN.
9	14721-PM3-000	Valve - EX.
10	14744-PM3-000	Screw - TAPPET ADJUSTING
11	14761-PM3-003	Spring - IN. VALVE (WHITE) (NIPPON HATSUJO)
11	14761-PM3-004	Spring - IN. VALVE (WHITE) (CHUO SPRING)
12	14762-PM4-003	Spring - EX. VALVE (RED) (NIPPON HATSUJO)
12	14762-PM4-004	Spring - EX. VALVE (RED) (CHUO SPRING)
13	14765-PJ7-000	Retainer - VALVE SPRING
14	14775-PM3-000	Seat - VALVE SPRING
15	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
16	90206-PM3-003	Nut - TAPPET ADJUSTING (SATO RASHI)
16	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)

Washer tank 25

#	OEM	部品名
1	36062-671-000	Clamp b - TUBE
2	38511-SD2-003	Adapter - NOZZLE (MITSUBA)
3	38513-SB0-961	Cap - WASHER MOUTH(MITSUBA)
3	76802-SS0-003	Cap - MOUTH
4	38516-SA5-671	Packing - T-TYPE) (MITSUBA
5	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
7	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
8	38564-SA7-013	Grommet - WASHER TUBE (MITSUBA)
9	76830-SH3-003	Joint y - TUBE (MITSUBA)
9	76830-SE0-003	Joint y - TUBE (MITSUBA)
10	76801-SH3-003	Washer comp - WINDSHIELD (FR./RR.) (MITSUBA)
11	38512-SB0-922	Motor - WASHER (MITSUBA)
12	76806-SH2-003	Motor - RR. WASHER (MITSUBA)
12	76806-SH3-003	Motor - RR. WASHER (MITSUBA)
13	76807-SE3-G01	Packing - S-TYPE
14	76815-SH3-003	Nozzle assy. - WASHER (SINGLE)
14	76810-S50-003	Nozzle assy wshld
15	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)
16	76810-SH3-003	Nozzle assy. - WASHER (DUAL)
16	76810-SR3-003	Nozzle assy. - R. FR. WASHER
17	76821-SE1-003	Grommet - RR. WASHER TUBE
18	76825-SF4-003	Tube - RR. WASHER
19	76850-SH5-003	Nozzle - RR. WINDSHIELD WASHER
20	76851-SH5-003	Tube a - RR. WASHER
21	90652-SB2-023	Clip - TUBE, 7MM

Water pump 22

#	OEM	部品名
1	19200-PM3-004	Pump comp - WATER (YAMADA)
1	19200-PM3-013	Pump comp - WATER (KEIHIN)
1	19200-P01-003	Pump comp - WATER (KEIHIN)
1	19200-PM3-003	Pump comp - WATER (KEIHIN)
2	19222-PG6-000	Packing - WATER PUMP
3	19300-PM3-004	Thermostat - NIPPON THERMOSTAT
3	19300-PM3-003	Thermostat - FUJI SEIKO
4	19305-PJ7-000	Rubber - THERMOSTAT MOUNTING
5	19311-PM3-000	Cover - THERMOSTAT
6	19315-PM3-000	Cover - WATER OUTLET
7	19320-PM3-010	Case comp. - THERMOSTAT
7	19320-PM3-000	Case comp. - THERMOSTAT
8	19330-PM3-003	Valve - THERMO
9	19500-PE0-000	Joint, Tube
10	19504-PM4-000	Hose b - BYPASS
11	19505-PM4-Q00	Pipe - CONNECTING
12	19506-PM4-000	Hose - CARBURETOR OUTLET
13	19516-PC1-000	Bolt - BREATHING WATER
14	19521-PM4-000	Hose - WATER IN.
15	19522-PM4-000	Hose - WATER OUTLET
16	90007-PA9-000	Bolt - FLANGE, 6X30
17	91314-634-000	O-ring

Water valve/duct 39

#	OEM	部品名
1	39223-SB2-003	Clamp - WATER HOSE, 24MM
2	39356-SA7-010	Spring - HEATER CONTROL
3	39383-SA5-000	Clamp - CONTROL CABLE
4	39384-SB0-000	Shaft - CONTROL LEVER
5	39385-SA5-000	Stopper - CONTROL LEVER
7	74501-SH5-000	Duct - R. RR. OUTLET
8	74502-SH5-000	Seal - RR. OUTLET
9	74901-SH5-000	Duct - L. RR. OUTLET
10	77421-SH5-003	Duct - DRIVER SIDE AIR CONDITIONER
11	77471-SH5-003	Duct - DRIVER SIDE DEFROSTER
12	77472-SH5-003	Duct - DRIVER SIDE JOINT HEATER
13	77476-SH3-003	Duct - PASSENGER SIDE DEFROSTER
14	77660-SH5-010	Valve assy. - DRIVER VENTILATION
15	77663-SH3-000	Lever - VENT
16	77666-SH3-000	Link b - VENT
17	77668-SH5-000	Cable - VENT CONTROL
18	77669-SH3-000	Base - VENT
19	77671-SE3-003	Washer - LINK
21	77673-SE3-000	Rubber - VENT CASE
23	77678-SH3-000	Collar - VENTILATION
24	79710-SH3-A01	Valve assy. - WATER
25	79721-SH3-000	Hose a - WATER IN.
26	79722-SH3-000	Hose b - WATER IN.
27	79725-SH3-010	Hose - WATER OUTLET
28	79731-SH3-000	Grommet - HEATER PIPE
29	79755-SH3-003	Clamp - WATER HOSE
30	79810-SH3-003	Duct - HEATER
31	79821-SH5-000	Duct - DEFROSTER
32	90102-SA4-000	Screw - TAPPING, 4X16
33	90144-SH3-003	Screw-washer - 4X16
34	90155-SE0-003	Screw - TAPPING, 6X20
35	90657-SA6-003	Clip - FR. INNER COWL
36	90699-SA5-000	Clip - DUCT
37	91405-PK1-003	Clip, WATER HOSE, 24MM
37	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
38	91504-SF4-003	Clip - FR. COWL
38	91501-S04-003	Clip - INNER FENDER
39	91567-SH3-003	Clip - WIRE HARNESS
40	91573-SH3-000	Clamp - CONTROL CABLE

Wire harness 43

#	OEM	部品名
1	32100-SH5-Q01	Harness - CABIN WIRE
1	32100-SH5-Q11	Harness - CABIN WIRE (P.W./P.D.L./R.C.MIRROR)
1	32100-SH5-Q10	Harness - CABIN WIRE (P.W./P.D.L./R.C.MIRROR)
1	32100-SH5-Q00	Harness - CABIN WIRE
2	32108-SH5-971	Harness - RR. WIRE (P.W./P.D.L.)
2	32108-SH5-Q01	Harness - RR. WIRE
2	32108-SH5-Q00	Harness - RR. WIRE
2	32108-SH5-970	Harness - RR. WIRE (P.W./P.D.L.)
3	32109-SH5-A00	Cord - TAILGATE
3	32109-SH5-960	Cord - TAILGATE
4	32112-PM3-000	Stay - ENGINE WIRE HARNESS
5	32117-SH5-Q00	Harness - INSTRUMENT WIRE
7	32155-SH5-970	Cord assy - INTERIOR (SUNROOF)
8	32610-SH3-000	Cable - SUB EARTH
8	32610-659-000	Cable - SUB EARTH
9	32751-SH4-Q00	Harness - DRIVER DOOR WIRE (P.W./R.C.MIRROR)
9	32751-SH4-Q20	Harness - DRIVER DOOR WIRE (P.D.L.)
10	32752-SH4-Q20	Harness - PASSENGER DOOR WIRE (P.D.L.)
10	32752-SH4-Q00	Harness - PASSENGER DOOR WIRE (P.W./P.D.L./R.C.MIRROR)
11	32755-SH4-G00	Harness - R. RR. DOOR WIRE (P.D.L.)
11	32755-SH4-A00	Harness - R. RR. DOOR WIRE
12	32756-SH4-G00	Harness - L. RR. DOOR WIRE (P.D.L.)
12	32756-SH4-A00	Harness - L. RR. DOOR WIRE
14	90153-SB6-003	Bolt - EARTH, 6X12(ZN)
15	90153-SE0-003	Bolt - EARTH, 6X12
16	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
17	90650-SB2-003	Clip - WIRE HARNESS, 10MM
18	90660-SB2-000	Clip - CORD
19	90666-SH3-000	Clip - INTERIOR & ROOF (SUNROOF)
22	91476-SB6-003	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
23	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
24	91509-SA5-003	Clip - OFFSET (45)(GRAY)(57MM)
25	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
26	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
28	91549-SH3-003	Clamp - WIRE HARNESS (BLACK)
29	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
30	91552-SD2-003	Clip - WIRE HARNESS
31	91553-SH3-003	Clip - WIRE HARNESS
32	91554-SH3-003	Band - WIRE HARNESS (NATURAL) (100.5MM)
33	91555-SH3-000	Clip - DOOR WIRE HARNESS
34	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
35	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
36	91567-SH3-003	Clip - WIRE HARNESS
