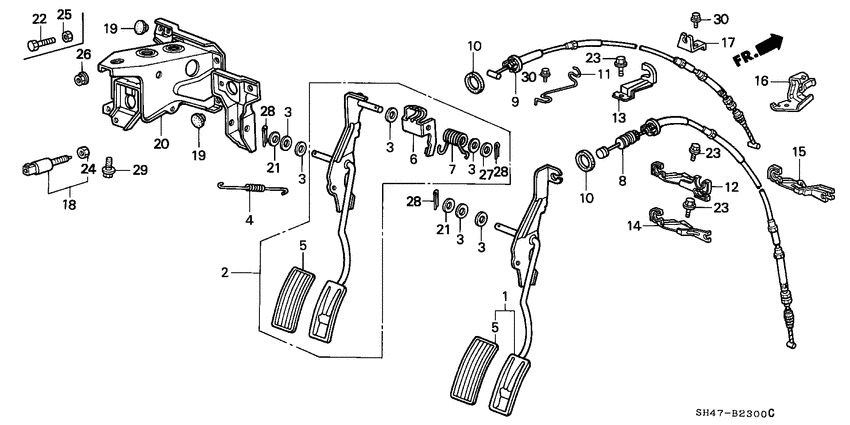

Accelerator pedal (LH) 17

#	OEM	部品名
1	17800-SH3-A02	Pedal comp - ACCELERATOR
2	17800-SH3-A52	Pedal comp - ACCELERATOR
3	17812-SA7-010	Washer - ACCELERATOR PEDAL
4	17814-SH3-010	Spring - ACCELERATOR PEDAL
5	17816-SK7-000	Cover - ACCELERATOR PEDAL
6	17826-SB2-950	Hook - THROTTLE WIRE
7	17827-SH3-981	Spring - ACCELERATOR PLATE
8	17910-SH3-G13	Wire - THROTTLE
9	17910-SH3-G74	Wire - THROTTLE
10	17921-SA4-730	Seal - THROTTLE CABLE
11	17924-SH3-A00	Clamp - THROTTLE WIRE
12	17931-SH3-A01	Stay - THROTTLE WIRE
18	35350-SE0-A03	Switch assy - STOP (TEC)
19	46505-SA7-000	Pad - PEDAL STOPPER
20	46590-SH3-A11	Bracket - PEDAL
20	46590-SH3-A83	Bracket - PEDAL
21	90503-SA0-000	Washer - PLAIN, 9MM

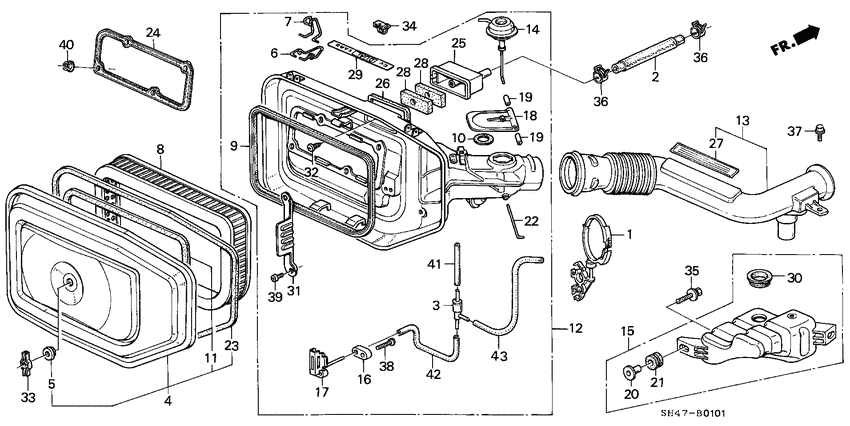

Air cleaner (2) 36

#	OEM	部品名
1	16237-PM3-003	Clamp b - FUEL HOSE
2	17137-PM2-B00	Tube comp - BREATHER
3	17150-PE9-004	Valve - CHECK
4	17210-PM4-000	Cover assy. - AIR CLEANER
5	17212-PC0-000	Washer - AIR CLEANER
6	17216-PM4-300	Clip A - WIRE
7	17217-PM4-300	Clip b - WIRE
8	17220-PM2-305	Element comp - CLEANER
9	17221-PM4-300	Packing b - ELEMENT
10	17222-PE0-300	Seal - VALVE
11	17222-PM4-300	Packing b - ELEMENT
12	17240-PM2-B01	Case assy. - AIR CLEANER
12	17240-PM2-B51	Case assy. - AIR CLEANER
13	17242-PM4-B00	Pipe - AIR INTAKE
14	17245-PM4-003	Diaphragm - CONTROL VALVE
15	17246-PM4-000	Chamber assy - RESONATOR
16	17247-PA0-000	Insulator - SENSOR
17	17250-PJ7-004	Sensor comp - AIR IN.
18	17251-PM4-300	Valve - AIR CONTROL
19	17253-689-300	Plug - CONTROL VALVE
20	17255-PD6-000	Collar - RESONATOR
21	17256-PD6-000	Rubber - RESONATOR MOUNTING
22	17257-689-310	Pin - PLUG LOCK
23	17258-PM4-300	Packing - AIR CLEANER COVER
24	17266-PM4-000	Packing - AIR CLEANER CASE
25	17271-PM3-000	Case - BREATHER ELEMENT
26	17272-PM3-000	Packing - BREATHER
27	17273-PM1-B01	Plate - CAUTION
28	17274-PM3-000	Element - BREATHER
29	17278-PM4-000	Emblem - CV DUAL CARB
30	17307-PM4-000	Seal rubber - RESONATOR
31	17415-PM4-300	Plate - RECTIFY
32	90070-PA5-660	Screw - TAPPING, 6X16
33	90203-PB2-000	Nut - AIR CLEANER COVER (DACRO COATING)
35	90006-PN4-000	Bolt-washer - SPECIAL, 6X25
36	91405-PH7-003	Clamp - TUBE (D15)

Air conditioner (CARBURETOR COMPONENTS) 12

#	OEM	部品名
1	16181-PC3-781	Pin - SPLIT, 1.2
2	16203-657-300	Washer - PLAIN, 4MM
3	17363-PM3-000	Clamp - TUBE, 7.5X2
4	36024-PM1-G01	Clamp - TUBE, 7.5X2
5	36138-PM1-G01	Filter assy - SOLENOID VALVE
6	38771-PM1-J01	Valve assy. - AIR CONDITIONER SOLENOID
7	38775-PM3-000	Stay - AIR CONDITIONER SOLENOID VALVE
8	38777-PM2-G01	Clamp a - AIR CONDITIONER SOLENOID TUBE
9	38778-PM4-000	Clamp b - AIR CONDITIONER SOLENOID TUBE
11	38780-PM2-B02	Control set - CARBURETOR IDLE
12	90092-657-000	Screw-washer - 5X8
13	90153-SE0-003	Bolt - EARTH, 6X12

Air conditioner (COMPRESSOR) 33

#	OEM	部品名
1	38773-PR3-003	Clip - WIRE HARNESS
3	38810-PM3-056	Compressor - MATSUSHITA
4	38811-PM3-016	Clutch set - COIL
5	38885-PM3-000	Insulator - HEAT
6	38886-PK1-004	Bolt - FLANGE, 6X10
7	38900-PM3-036	Clutch set - ROTOR ARMATURE
8	38905-PK1-004	O-ring
9	38908-PR5-004	Protector set - THERMAL
10	38912-PM3-006	Shim set
11	38914-PK1-004	Circlip - INTERNAL, 24MM
12	38918-PM3-006	Seal set - SHAFT
13	38920-PM3-003	Belt - COMPRESSOR (BANDO)
13	38920-PM3-023	Belt
13	38920-PM3-014	Belt - COMPRESSOR (MITSUBOSHI)
14	38921-PM3-Y01	Pulley - CRANKSHAFT
15	38926-PM3-000	Stay - IDLE PULLEY
16	38930-PM3-000	Bracket - COMPRESSOR
17	38942-PM3-000	Pulley comp - IDLE
18	38944-PM3-000	Collar - IDLE PULLEY (10X17X15.5)
18	38944-P01-000	Collar - IDLE PULLEY (10X17X12.5)
19	38945-PR3-000	Cover - BEARING
19	38945-P30-000	Cover - BEARING
19	38945-PM3-000	Cover - BEARING
20	38946-PM3-000	Bolt - IDLE PULLEY (10X39)
20	38946-P01-000	Bolt - IDLE PULLEY
21	90017-PE0-000	Washer - 10MM
21	80000-SH3-B40	General assy. - AIR CONDITIONER
21	80000-SH3-B13	General assy. - AIR CONDITIONER
22	90021-PM3-000	Bolt - FLANGE, 8X85
23	90022-PM3-000	Bolt - FLANGE, 8X120
24	90023-PM3-000	Bolt - FLANGE, 8X105
25	90058-PG6-000	Nut-washer - 10MM
25	38947-P01-000	Nut - SPECIAL, 10MM

Air conditioner (CONDENSER) 23

#	OEM	部品名
1	38611-PM3-004	Fan comp - COOLING
2	38615-PM3-040	Shroud comp. - AIR CONDITIONER
4	38616-PM5-A04	Motor - COOLING FAN
5	38618-PM3-000	Mount - SHROUD
6	38619-PM3-010	Protector - FAN MOTOR
8	39139-SB3-003	Suppressor - NOISE (MITSUBA) (RZ-0062)
9	80100-SH3-023	Condenser assy - SAK
10	80107-SH3-000	Mount - CONDENSER UPPER
11	80108-SH3-A00	Stay - CONDENSER
12	80109-SH3-010	Seal - CONDENSER
13	80110-SH3-000	Seal a - CONDENSER
14	80111-SH3-000	Seal b - CONDENSER
15	80175-SE0-000	Mount - CONDENSER
17	80326-SH3-000	Inlet pipe - DISCHARGE
18	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)
19	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)
19	90311-MB6-003	Nut toothed 5mm
20	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
21	90403-PM3-004	Washer - PLAIN, 7MM
22	90659-PG6-000	Clip - WIRE HARNESS
23	91315-SE0-000	O-ring - 1/2"
25	90078-PR3-000	Screw - PAN, 4X8
25	90078-PM3-000	Screw - PAN, 4X8

Air conditioner (HOSES/PIPES; LH) 28

#	OEM	部品名
1	38642-692-013	Plug - FUSIBLE (SAK)
2	38646-692-660	O-ring - 3/8"
2	80874-SL0-900	O-ring - 3/8"
3	38648-692-660	O-ring - 5/8"
4	80311-SH3-A51	Hose comp. - SUCTION
5	80315-SH3-033	Hose comp. - DISCHARGE (NICHIRIN)
7	80318-SH3-003	Clamp b - DISCHARGE HOSE
8	80321-SH3-A04	Pipe comp - SUCTION (SAK)
9	80331-SH3-A03	Pipe - CONDENSER
10	80341-SH3-A04	Pipe a - RECEIVER (SAK)
11	80342-SH3-A02	Pipe b - RECEIVER (SAK)
12	80343-SH3-A03	Pipe c - RECEIVER (SAK)
13	80350-SH3-A01	Receiver assy
14	80351-SJ4-003	Receiver comp
15	80352-SH3-010	Bracket - LIQUID TANK
17	80361-SH3-A50	Stay - SUCTION PIPE
18	80362-SH3-A00	Stay - AIR CONDITIONER PIPE
19	80363-SH3-A00	Clamp - AIR CONDITIONER PIPE
20	80365-SH3-A00	Clamp - SUCTION PIPE
21	80366-SH3-A00	Protector - SUCTION PIPE
22	80371-SH3-J00	Clamp - DISCHARGE HOSE
24	80375-SH3-J00	Rubber - MOUNTING
26	80381-SH3-000	Clamp - RECEIVER PIPE
27	80381-SK7-003	Clip - RECEIVER PIPE
28	80386-SH3-A01	Clip b - RECEIVER PIPE
29	80440-SE0-003	Switch - DUAL PRESSURE
30	91315-SE0-000	O-ring - 1/2"
31	91638-SF1-003	Cap - VALVE (SAK)

Air conditioner (HOSES/PIPES; LH; '89-) 29

#	OEM	部品名
1	38642-692-013	Plug - FUSIBLE (SAK)
2	38646-692-660	O-ring - 3/8"
2	80874-SL0-900	O-ring - 3/8"
3	38648-692-660	O-ring - 5/8"
4	80311-SH3-A51	Hose comp. - SUCTION
5	80315-SH3-033	Hose comp. - DISCHARGE (NICHIRIN)
7	80318-SH3-003	Clamp b - DISCHARGE HOSE
8	80321-SH3-A04	Pipe comp - SUCTION (SAK)
9	80331-SH3-A03	Pipe - CONDENSER
10	80341-SH3-A04	Pipe a - RECEIVER (SAK)
11	80342-SH3-A02	Pipe b - RECEIVER (SAK)
12	80343-SH3-A03	Pipe c - RECEIVER (SAK)
13	80350-SH3-A01	Receiver assy
14	80351-SJ4-003	Receiver comp
15	80352-SH3-010	Bracket - LIQUID TANK
17	80361-SH3-A50	Stay - SUCTION PIPE
18	80362-SH3-A00	Stay - AIR CONDITIONER PIPE
19	80363-SH3-A00	Clamp - AIR CONDITIONER PIPE
20	80365-SH3-A00	Clamp - SUCTION PIPE
21	80366-SH3-A00	Protector - SUCTION PIPE
22	80371-SH3-J00	Clamp - DISCHARGE HOSE
24	80375-SH3-J00	Rubber - MOUNTING
26	80381-SH3-000	Clamp - RECEIVER PIPE
27	80382-SH3-A01	Clip - RECEIVER PIPE (NIFCO)
28	80386-SH3-A01	Clip b - RECEIVER PIPE
29	80440-SE0-003	Switch - DUAL PRESSURE
30	91315-SE0-000	O-ring - 1/2"
31	91638-SF1-003	Cap - VALVE (SAK)
32	91639-SF1-003	Cap - VALVE (SAK)

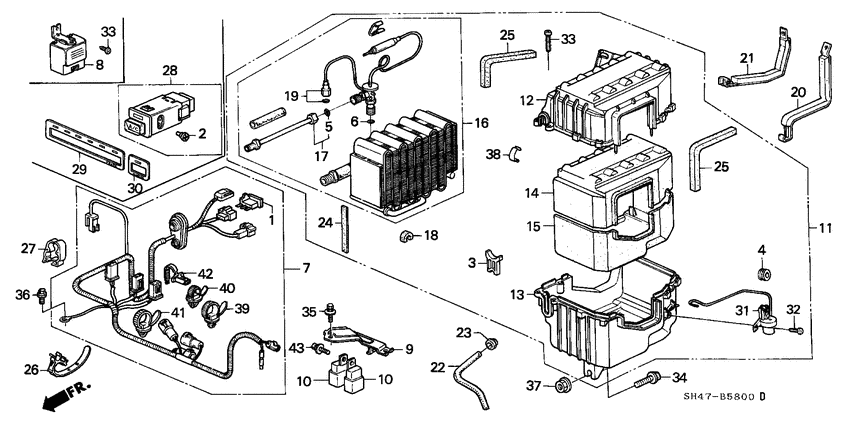

Air conditioner (UNIT; LH) 41

#	OEM	部品名
1	32146-SD2-013	Diode - 3P
2	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
3	38625-SB2-000	Holder - EVAPORATOR PIPE
4	38625-692-000	Grommet - TUBE
5	38646-692-660	O-ring - 3/8"
5	80874-SL0-900	O-ring - 3/8"
6	38647-692-660	O-ring - 1/2"
7	38710-SH3-B10	Harness - AIR CONDITIONER WIRE
8	39400-SB2-013	Control assy. - DELAY (MITSUBA)
9	39792-SH7-000	Bracket b - RELAY
10	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
11	80200-SH3-A01	Cooling unit - SAK
12	80201-SH3-A11	Case - EVAPORATOR UPPER
13	80202-SH3-A11	Case - EVAPORATOR LOWER
14	80205-SH3-A11	Insulator - EVAPORATOR UPPER
15	80206-SH3-A11	Insulator - EVAPORATOR LOWER
16	80210-SH3-A02	Evaporator sub assy. - SAK
17	80216-SH3-A01	Pipe - LIQUID (SAK)
19	80220-SH3-A01	Valve assy. - EXPANSION (FUJIKOKI SEISAKU)
20	80261-SH3-A00	Band a - AIR CONDITIONER
21	80265-SH3-000	Band b - AIR CONDITIONER
22	80271-SH3-000	Hose - DRAIN
23	80272-SF4-000	Grommet - DRAIN HOSE
25	80286-SH3-000	Seal - EVAPORATOR INNER
26	80388-SH3-A01	Clamp - AIR CONDITIONER HARNESS (NIFCO)
27	80388-SH3-003	Clamp - AIR CONDITIONER HARNESS (NIFCO)
28	80410-SH3-013	Switch assy - AIR CONDITIONER (DENSO)
29	80411-SH2-003	Panel - AIR CONDITIONER SWITCH
30	80411-SH3-003	Panel - AIR CONDITIONER SWITCH
31	80430-SF1-003	Thermostat - AIR CONDITIONER
32	90101-SA4-000	Screw - TAPPING, 4X12
33	90102-SA4-000	Screw - TAPPING, 4X16
34	90156-SH3-000	Bolt-washer - 6X24
35	90136-SH3-000	Bolt-washer - 6X10
36	90153-SE0-003	Bolt - EARTH, 6X12
37	90222-SB4-000	Nut-washer - 6MM
38	90659-692-000	Clamp - CASE
39	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
40	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
41	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
42	91570-SH3-003	Band - WIRE HARNESS (NATURAL)

Alternator (MITSUBISHI) 25

#	OEM	部品名
1	31100-PP2-E02	Alternator assy - AHGA01) (MITSUBISHI
2	31101-PM3-004	Rotor assy.
3	31102-PM3-004	Stator
4	31109-PM3-004	Bracket - FR.(###)
5	31111-PM3-004	Bearing - RR. (###)
6	31114-PJ7-004	Bearing - FR. (###)
7	31116-PE0-024	Retainer
8	31117-PE0-004	Cover - TERMINAL (###)
9	31119-PE0-014	Terminal b
10	31121-PM3-004	Bracket - RR.(###)
11	31123-PM3-004	Terminal set
12	31125-PE0-014	Bolt-washer
13	31125-PM3-004	Bolt-washer - ###
14	31126-PE0-004	Washer - SPECIAL
15	31127-PM3-004	Rectifier assy.
16	31129-PE0-014	Spring - BRUSH
17	31141-PE0-024	Pulley - ###
18	31142-PE0-004	Nut - ###
19	31144-PM3-004	Brush - ###
20	31146-PE0-004	Screw
21	31150-PM2-014	Regulator assy
22	31151-PJ7-004	Plug - ###
23	90094-PE0-004	Washer
24	90231-PE0-004	Nut-washer - ###
26	91415-PP2-E02	Clamp

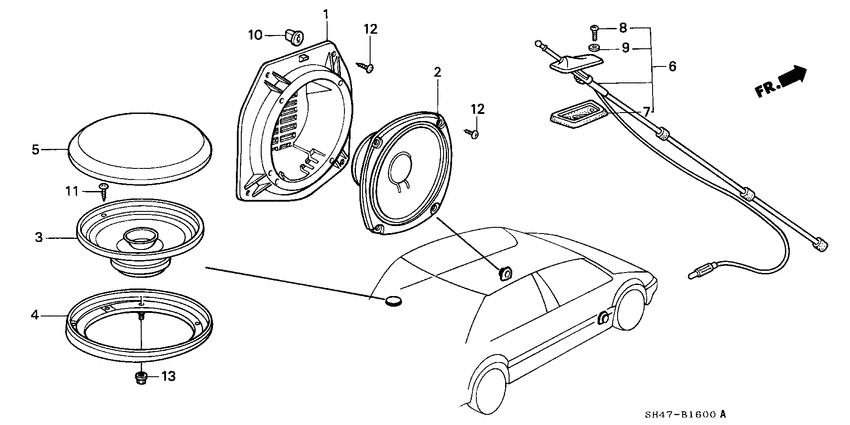

Antenna 8

#	OEM	部品名
1	39112-SH3-000	Bracket - FR. SPEAKER SEAL (12CM)
2	39120-SB2-003	Speaker assy. (120mm - MAX.6.3W) (PANASONIC)
3	39120-SE3-A13	Speaker assy - 160MM DUAL) (PANASONIC
6	39150-SH3-G01	Antenna assy - AUTO RADIO (PANASONIC)
7	39154-SH4-A01	Packing - ANTENNA BASE (PANASONIC)
8	90105-SB2-013	Screw - PAN, 4X12
9	90502-SA0-003	Washer - WATER PROOF
10	90662-693-003	Grommet - SCREW, 4MM (BLUE)

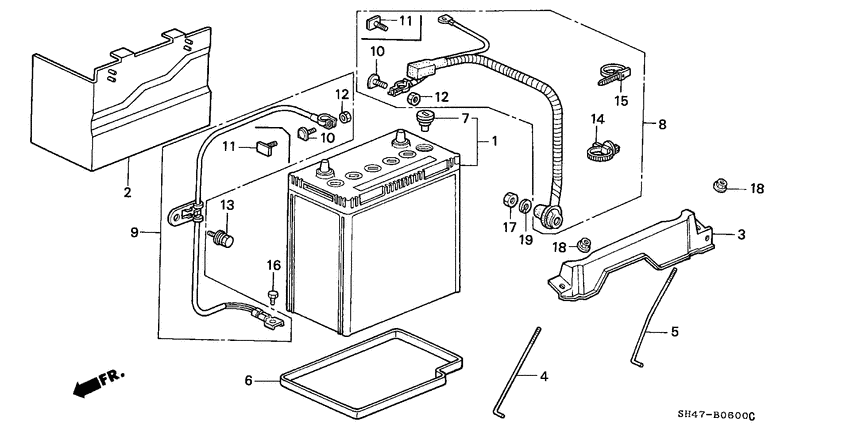

Battery 19

#	OEM	部品名
1	31500-SH3-G11	Battery assy - 55B24R<S>-MF) (FURUKAWA
1	31500-SH3-G09	Battery assy - 55B24R<S>-MF) (PANASONIC
1	31500-SH3-G08	Battery assy - 55B24R<S>-MF) (YUASA
3	31512-SH3-010	Plate - BATTERY SETTING
4	31513-SA5-670	Bolt - BATTERY SETTING, 225MM
5	31513-SH3-000	Bolt - BATTERY SETTING, 227MM
6	31521-SH3-N00	Box assy - BATTERY
7	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)
7	31542-SA5-664	Plug - VENT (MF) (YUASA)
8	32410-SH3-A01	Cable assy - STARTER
8	32410-SH3-A11	Cable assy - STARTER
9	32600-SH3-A11	Cable assy - EARTH
9	32600-SH3-A01	Cable assy - EARTH
11	32601-SK7-900	Bolt - BATTERY TERMINAL
12	32602-SK7-900	Nut - BATTERY TERMINAL
13	90150-SB2-003	Bolt - EARTH, 8X20 (SN)
14	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
15	91568-SH3-003	Strap - WIRE HARNESS (BLACK) (101MM)

Body structure components (1) 3

#	OEM	部品名
22	60821-SH3-000	Hook - TIE DOWN
28	90105-634-000	Bolt-washer (8x20)
31	91504-SH3-000	Cushion - BUMPER

Body structure components (3) 5

#	OEM	部品名
20	63917-SH4-000	Seal - FUEL CAP
30	90304-SB0-000	Nut - FIXED TORQUE
31	90661-SC7-003	Grommet - SCREW, 5MM
32	91504-SH3-000	Cushion - BUMPER
34	90222-SB4-000	Nut-washer - 6MM

Brake line (LH) 36

#	OEM	部品名
1	17712-SA0-000	Grommet - FUEL PIPE
2	46210-SH4-G01	Valve assy. - DUAL PROPORTIONING
3	46310-SH3-000	Pipe comp. a - BRAKE
4	46320-SH3-A03	Pipe comp. b - BRAKE
5	46321-SH3-A02	Pipe comp. h - BRAKE
6	46330-SH3-050	Pipe comp. c - BRAKE
7	46331-SH3-020	Pipe comp. e - R. BRAKE
8	46340-SH3-040	Pipe comp. d - BRAKE
9	46341-SH3-010	Protector - BRAKE PIPE
10	46360-SH3-A02	Pipe comp. f - BRAKE
11	46361-SH3-020	Pipe comp. e - L. BRAKE
12	46380-SH3-000	Grommet a - BRAKE PIPE
13	46382-SH3-300	Grommet a - BRAKE PIPE
14	46391-SH3-A01	Clip - BRAKE PIPE
16	46391-SK7-013	Clip s - BRAKE PIPE
17	46392-SB0-010	Clip d - BRAKE PIPE (BLACK)
18	46392-SB2-014	Clip b - BRAKE PIPE
19	46392-SE0-A01	Clip - BRAKE PIPE
20	46392-SH3-A01	Clip d - BRAKE PIPE
21	46392-692-003	Clip d - BRAKE PIPE (WHITE)
22	46393-SB2-673	Clip c - BRAKE PIPE
24	46394-SB0-682	Clip b
25	46394-SH3-A01	Clip - BRAKE PIPE
26	46394-SH3-A11	Protector - BRAKE PIPE
27	46410-SH3-043	Hose - R. FR. BRAKE (NICHIRIN)
27	46410-SH3-J02	Hose - R. FR. BRAKE (MEIJI)
28	46411-SH3-043	Hose - L. FR. BRAKE (NICHIRIN)
28	46411-SH3-J02	Hose - L. FR. BRAKE (MEIJI)
29	46430-SK7-004	Hose - RR. BRAKE (MEIJI)
29	46430-SK7-003	Hose - RR. BRAKE (NICHIRIN)
31	46462-SE0-000	Bolt - OIL
32	46472-568-000	Packing - OIL BOLT
33	90105-SB0-003	Bolt-washer - 8X16
34	90105-SD9-003	Bolt-washer - 8X20
35	90651-538-000	Clip - BRAKE HOSE
36	90677-SH3-003	Clip - PIPE PROTECTOR

Brake master cylinder 14

#	OEM	部品名
1	46100-SH3-A05	Cylinder assy. - MASTER
2	46120-SH3-003	Piston assy. - PRIMARY
3	46122-SH3-003	Piston assy. - SECONDARY
4	46135-SF4-003	Guide assy - PISTON
5	46138-568-671	Packing
6	46139-632-000	Bolt - STOPPER
7	57562-SF1-003	Circlip
8	46185-SE0-003	Seal - ROD
9	46660-SC2-003	Tank - RESERVE
10	46662-SH3-003	Cap comp. - RESERVE TANK
11	46665-671-651	Band - RESERVE TANK
12	46666-692-013	Filter - MASTER CYLINDER
13	46669-692-003	Seal - RESERVE TANK
14	57173-SB0-801	O-ring - CONNECTOR

Brake pedal/clutch pedal (LH) 19

#	OEM	部品名
2	17927-SH3-A01	Clamp - CLUTCH WIRE
4	17936-SH3-G21	Clamp - CLUTCH WIRE
8	17939-SH3-G21	Stay - CLUTCH WIRE
12	22910-SH3-A14	Wire comp - CLUTCH
13	46500-SH3-A00	Pedal assy - BRAKE
14	46500-SH3-A80	Pedal assy - BRAKE
15	46504-679-300	Bush - PEDAL
16	46505-SA5-000	Pad - PEDAL STOPPER
17	46530-SH3-000	Spring - PEDAL RETURN
18	46535-692-000	Collar - PEDAL
19	46545-SH3-000	Cover - PEDAL
20	46545-SA5-980	Cover - BRAKE PEDAL
21	46900-SH3-G00	Pedal assy - CLUTCH
22	46902-SE0-930	Bush a - ASSISTANT
23	46907-SH3-010	Spring - CLUTCH ASSISTANT
24	46930-SH3-000	Spring assy - PEDAL RETURN
25	46935-SB2-000	Collar - PEDAL
28	75891-611-000	Cover - DOOR SWITCH
29	90212-SA5-003	Nut - SELF-LOCK, 10MM

Breather chamber 5

#	OEM	部品名
1	11850-PM3-000	Chamber comp - BREATHER
1	11851-P01-000	Chamber set - BREATHER
2	11854-PM3-000	Joint - BREATHER CHAMBER
3	11855-PC6-000	Grommet - PCV VALVE
11	91324-PC6-000	O-ring - 20.6X2.6

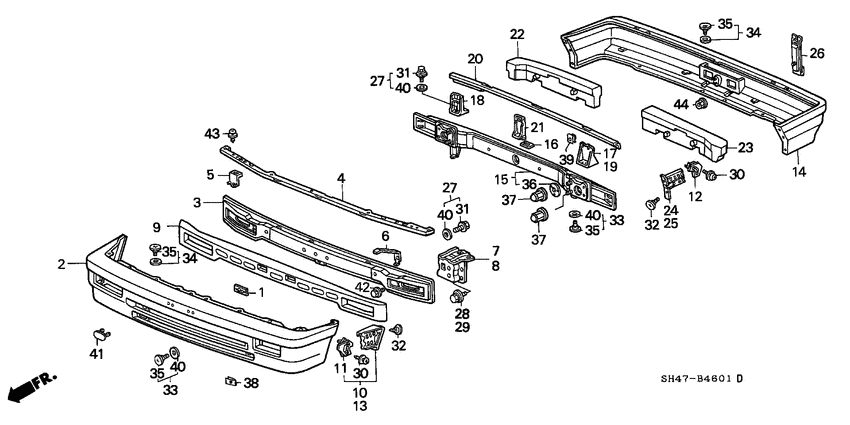

Bumper (1) 40

#	OEM	部品名
1	71148-SG9-600	Nut
4	71101-SH4-S02	Face - FR. BUMPER
4	71101-SH4-G01	Face - FR. BUMPER
6	71123-SH4-G00	Molding - FR. BUMPER
7	71140-SH4-G00	Beam comp - FR. BUMPER UPPER
8	71145-SH4-G00	Base - FR. LICENSE PLATE
9	71147-SM4-S00	Guard - FR. LICENSE BASE
11	74148-SH4-A00	Rubber - UPPER SKIRT SEAL
13	71190-SH3-000	Slide assy. - R. FR. BUMPER
14	71193-SH3-000	Clip - BUMPER CORNER
15	71193-SH4-000	Clip - BUMPER CORNER
16	71195-SH3-000	Slide assy. - L. FR. BUMPER
17	71501-SH4-G02	Face - RR. BUMPER
18	71503-SH4-G01	Garnish - RR. BUMPER
20	71540-SH4-010	Beam comp - RR. BUMPER UPPER
22	71591-SH3-010	Slide - R. RR. BUMPER CORNER
23	71592-SH3-000	Slide - L. RR. BUMPER CORNER
24	71598-SH4-000	Spacer - RR. BUMPER SIDE
25	71599-SH4-000	Spacer - R. RR. BUMPER
26	75820-SH4-000	Mudguard - R. RR. (KW)
27	75830-SH4-000	Mudguard - L. RR. (KW)
28	90101-SE0-010	Bolt assy. b - BUMPER
29	90102-SA7-003	Screw - TAPPING, 5X16
30	90105-634-000	Bolt-washer (8x20)
31	90107-SA0-000	Screw-washer - 5X20
31	90114-SZ3-000	Screw-washer - 5X20
32	90109-SE0-000	Bolt b - BUMPER
33	90109-SH3-000	Bolt-washer - 8X25
34	90105-SF1-000	Screw - CORNER SLIDE TAPPING
36	90130-SB0-010	Bolt assy - BUMPER
37	90130-SH3-010	Bolt assy - BUMPER
38	90112-SM4-003	Bolt - BUMPER
39	90142-SH3-000	Seal - RR. BUMPER BEAM
39	71544-SR2-000	Seal - RR. UPPER BEAM
40	90301-SF1-000	Nut - WASHER CAP, 8MM
41	90303-SA5-003	Nut - FR. COMBINATION LIGHT
42	90540-SA7-000	Washer - BUMPER
43	90540-SE0-000	Washer - BUMPER
44	90682-SB0-003	Grommet - SCREW, 5MM
45	91504-SM4-000	Clip - BUMPER FACE (SP)

Bumper (2; ST.MARTIN) 39

#	OEM	部品名
1	71113-SH2-000	Nut - LICENSE PLATE
2	71101-SH4-C01	Face - FR. BUMPER
3	71130-SH4-A00	Beam comp - FR. BUMPER
4	71141-SH3-A00	Beam - FR. BUMPER UPPER
5	71142-SH4-A00	Stay - FR. UPPER BEAM
6	71143-SH3-A01	Stay - FR. UPPER BEAM CENTER
9	71170-SH4-C00	Absorber - FR. BUMPER
10	71190-SH3-000	Slide assy. - R. FR. BUMPER
11	71193-SH3-000	Clip - BUMPER CORNER
12	71193-SH4-000	Clip - BUMPER CORNER
13	71195-SH3-000	Slide assy. - L. FR. BUMPER
14	71501-SH4-020	Face - RR. BUMPER
15	71530-SH4-C00	Beam comp - RR. BUMPER
16	71533-SH4-C00	Spacer - STAY LOWER
17	71538-SH4-A00	Stay - R. UPPER BEAM CORNER
19	71539-SH4-A01	Stay - L. UPPER BEAM CORNER
21	71549-SH4-A01	Stay - UPPER BEAM CENTER
22	71570-SH4-A01	Absorber - R. RR. BUMPER
23	71575-SH4-A01	Absorber - L. RR. BUMPER
24	71591-SH3-010	Slide - R. RR. BUMPER CORNER
25	71592-SH3-010	Slide - L. RR. BUMPER CORNER
26	84134-SB6-660	Support - LICENSE PLATE
27	90101-SE0-010	Bolt assy. b - BUMPER
28	90105-634-000	Bolt-washer (8x20)
29	90106-SK7-000	Bolt-washer - 8X25
30	90107-SA0-000	Screw-washer - 5X20
30	90114-SZ3-000	Screw-washer - 5X20
31	90109-SE0-003	Bolt b - BUMPER
32	90105-SF1-000	Screw - CORNER SLIDE TAPPING
33	90130-SB0-010	Bolt assy - BUMPER
34	90130-SH3-010	Bolt assy - BUMPER
35	90140-SB0-000	Bolt - BUMPER
36	90142-SH3-000	Seal - RR. BUMPER BEAM
36	71544-SR2-000	Seal - RR. UPPER BEAM
37	90301-SF1-000	Nut - WASHER CAP, 8MM
38	90303-SA5-003	Nut - FR. COMBINATION LIGHT
39	90323-SE0-000	Nut - CLIP, 6MM
39	90305-SH3-000	Nut - AIR SPOILER CLIP
40	90540-SA7-000	Washer - BUMPER

Camshaft/timing belt 24

#	OEM	部品名
1	11810-PM3-000	Cover comp. - TIMING BELT LOWER
2	11812-PE0-300	Grommet - TIMING BELT COVER HOLE
3	11820-PM3-000	Cover comp. - TIMING BELT UPPER
4	11831-PM3-000	Rubber - LOWER SEAL
5	11832-PM3-000	Rubber - R. BACK SEAL
6	11833-PM3-000	Rubber - L. BACK SEAL
7	11840-PM3-000	Cover comp. - TIMING BELT BACK
7	11840-PM3-010	Cover comp. TIMING BELT BACK
8	11925-PM3-000	Rubber a - ENGINE MOUNTING BRACKET SEAL
9	11926-PM3-000	Rubber b - ENGINE MOUNTING BRACKET SEAL
10	14111-PM4-J00	Camshaft comp.
10	14111-PM2-G50	Camshaft
11	14210-PM3-000	Pulley comp - TIMING BELT DRIVEN
12	14400-PM3-004	Belt - TIMING (106RU24 A-555) (UNITTA)
13	14510-PM7-004	Tensioner comp - TIMING BELT (NIPPON SEIKO)
13	14510-PM7-003	Tensioner comp - TIMING BELT (KOYO SEIKO)
14	14513-PE0-015	Bolt - TENSIONER (M6)
15	14516-PM3-010	Spring comp - TIMING BELT ADJUSTER
16	14517-PG6-000	Bolt a - TENSIONER
17	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING
18	90031-PC6-000	Bolt - FLANGE, 8X22
19	90435-611-000	Washer - SPECIAL, 28X8.5X4.0
20	91213-PE1-721	Oil seal - 29X45X8 (NOK)
20	91213-P2F-A01	Oil seal - 29X45X8 (ARAI)

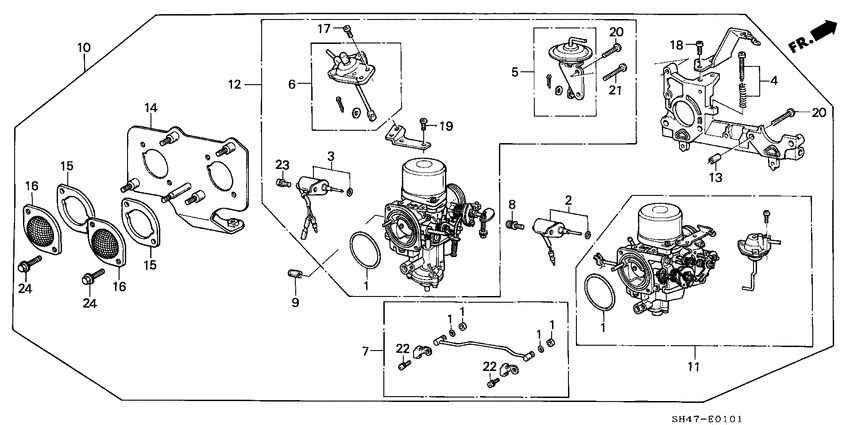

Carburetor (2) 25

#	OEM	部品名
1	16010-PM2-B01	Gasket set
2	16024-PM2-B01	Solenoid - SLOW CUT
3	16036-PC6-902	Solenoid - MAIN CUT
4	16038-PC6-005	Screw set
5	16045-PR2-T51	Diaphragm assy. - DASHPOT
7	16047-PC6-005	Joint set - FUEL
8	16080-PC7-661	Screw - CAP
9	16097-PM2-B01	Cap
10	16100-PM2-B02	Carburetor assy - VF33A D
10	16100-PM2-B03	Carburetor assy - VF33A F
10	16100-PM2-B53	Carburetor assy - VF33B F
10	16100-PM2-B52	Carburetor assy - VF33B D
11	16101-PM2-B04	Carburetor assy. - R. (VF33A E)
11	16101-PM2-B05	Carburetor assy. - R. (VF33A F)
11	16101-PM2-B55	Carburetor assy. - R. (VF33B F)
11	16101-PM2-B54	Carburetor assy. - R. (VF33B E)
12	16102-PM2-B05	Carburetor assy. - L. (VF33A E)
12	16102-PM2-B06	Carburetor assy. - L. (VF33A F)
12	16102-PM2-B56	Carburetor assy. - L. (VF33B F)
12	16102-PM2-B55	Carburetor assy. - L. (VF33B E)
13	16178-463-004	Pin - KNOCK
14	16410-PM2-B00	Flange comp - CARBURETOR
14	16410-PM2-B50	Flange comp - CARBURETOR
15	17265-PC6-000	Flange - MAIN
16	17267-PK1-010	Funnel comp. - MAIN

Carburetor (3) 23

#	OEM	部品名
1	16010-PM2-B01	Gasket set
2	16011-PK1-901	Valve set - FLOAT
3	16027-PM2-B00	Needle Set - JET
3	16012-PR2-E00	Needle Set - JET
4	16013-PB9-005	Float set
5	16015-PM2-B51	Chamber set a - FLOAT
6	16016-PM2-B01	Screw set
7	16018-PK1-005	Plate set
8	16019-PR6-000	Rod set - PUMP
9	16021-PR6-000	Diaphragm set - PUMP
10	16022-PH5-015	Piston set - VACUUM
11	16023-PK1-L00	Chamber set - FLOAT
12	16028-PK1-005	Screw set
13	16029-PK1-005	Screw set
14	16041-PC6-005	Economizer set a
15	16042-PC6-005	Economizer set b
16	16050-PC6-661	Spring - VACUUM PISTON
17	16165-PC7-661	Holder - NEEDLE JET
18	16166-PM4-005	Nozzle - MAIN
19	16185-PR6-000	Plate
25	99101-393-1800	Jet - MAIN, #180
26	99104-PC7-0400	Jet - SLOW, #40
27	99112-PC6-0500	Jet - ECONOMIZER, #50

Clutch 34

#	OEM	部品名
1	22500-PL1-020	Clutch assy. - LOW
2	22510-PL1-000	Guide comp - LOW CLUTCH
3	22530-PA9-030	Piston comp - CLUTCH
4	22530-PL1-010	Piston comp - LOW CLUTCH
5	22530-PL4-000	Piston comp - SECOND CLUTCH
6	22537-PL4-003	Spring - CLUTCH DISK
7	22541-PC9-000	Spring - CLUTCH RETURN
8	22542-PA9-000	Seat - CLUTCH SPRING
9	22542-PF4-013	Spring - CLUTCH RETURN (SANKO)
9	22542-PF4-004	Spring - CLUTCH RETURN (NHK SPRING)
11	22543-PA9-000	Plate - CLUTCH (106MM)
12	22543-PJ4-000	Plate - CLUTCH (106MM)
13	22544-PN0-000	Disk - CLUTCH
14	22566-PA9-010	Plate - CLUTCH END (16) (3.65MM)
14	22555-PA9-010	Plate - CLUTCH END (5) (3.5MM)
14	22561-PA9-010	Plate - CLUTCH END (11) (2.15MM)
14	22551-PA9-010	Plate - CLUTCH END (1) (2.3MM)
14	22565-PA9-010	Plate - CLUTCH END (15) (3.35MM)
14	22562-PA9-010	Plate - CLUTCH END (12) (2.45MM)
14	22552-PA9-010	Plate - CLUTCH END (2) (2.6MM)
14	22563-PA9-010	Plate - CLUTCH END (13) (2.75MM)
14	22553-PA9-010	Plate - CLUTCH END (3) (2.9MM)
14	22564-PA9-010	Plate - CLUTCH END (14) (3.05MM)
14	22554-PA9-010	Plate - CLUTCH END (4) (3.2MM)
15	22600-PL4-010	Clutch assy. - SECOND
16	22610-PC9-813	Guide comp - CLUTCH (2-4)
17	22611-PA9-000	Guide - SECOND CLUTCH
18	22650-PL4-010	Clutch assy. - THIRD
19	90603-PA9-000	Circlip - EXTERNAL, 40MM
21	90605-PA9-000	Ring - SNAP, 114X1.8
22	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
22	91302-PA9-004	O-ring - 39.8X2.2 (NOK)
24	91303-PA9-004	O-ring - 100X2.2 (NOK)
24	91303-PA9-003	O-ring - 100X2.2(ARAI)

Clutch housing 49

#	OEM	部品名
1	21000-PL3-A06	Case comp. - CLUTCH
2	21103-PL3-A00	Plate c - OIL GUIDE
3	21120-PG2-003	Magnet - TRANSMISSION
4	41221-PL3-A02	Gear - DRIVE PINION
5	41233-PL3-A00	Gear - FINAL DRIVEN
6	41311-PL3-A02	Case - DIFFERENTIAL
7	41312-PL3-A00	Gear - SPEEDOMETER DRIVE
8	41313-PL3-000	Roller - 4X28
9	41321-PE6-030	Shaft - PINION
10	41341-PC9-000	Gear - DIFFERENTIAL PINION
10	41341-PC9-010	Gear - DIFFERENTIAL PINION
11	41356-PC8-000	Washer f - DIFFERENTIAL PINION (0.85MM)
11	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)
11	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)
11	41355-PC8-000	Washer e - DIFFERENTIAL PINION (0.75MM)
11	41357-PC8-000	Washer g - DIFFERENTIAL PINION (0.95MM)
11	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)
11	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)
12	41450-PL3-A00	Shim k - 72MM(1.05)
12	41445-PL3-A00	Shim e - 72MM(1.4)
12	41456-PL3-A00	Shim r - 72MM(1.65)
12	41451-PL3-A00	Shim l - 72MM(1.15)
12	41446-PL3-A00	Shim f - 72MM(1.5)
12	41457-PL3-A00	Shim s - 72MM(1.75)
12	41441-PL3-A00	Shim a - 72MM(1.0)
12	41452-PL3-A00	Shim m - 72MM(1.25)
12	41447-PL3-A00	Shim g - 72MM(1.6)
12	41442-PL3-A00	Shim b - 72MM(1.1)
12	41453-PL3-A00	Shim n - 72MM(1.35)
12	41448-PL3-A00	Shim h - 72MM(1.7)
12	41443-PL3-A00	Shim c - 72MM(1.2)
12	41454-PL3-A00	Shim p - 72MM(1.45)
12	41449-PL3-A00	Shim j - 72MM(1.8)
12	41444-PL3-A00	Shim d - 72MM(1.3)
12	41455-PL3-A00	Shim q - 72MM(1.55)
13	90015-634-010	Bolt - FLANGE, 10MM
14	90425-PL3-010	Washer - THRUST, 34X48X1.5
15	91002-PL3-A04	Bearing - BALL, 6205UC/26 (NTN)
16	91005-PL3-A03	Bearing - RADIAL BALL, 6207C (KOYO)
16	91005-PL3-A06	Bearing - BALL, 6207C (NTN)
17	91101-PL3-A02	Bearing - NEEDLE, 30X47X21 (NTN)
18	91205-PL3-A02	Oil seal - 35X56X8(NOK)
18	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
19	91208-PB6-005	Dust seal - 16X21X4 (NOK)
19	91208-PB6-003	Dust seal - 16X21X4 (ARAI)
20	91215-PL3-005	Oil seal - 14X25X15 (NOK)
20	91215-PL3-003	Oil seal - 14X25X15 (ARAI)
21	91216-PL3-003	Oil seal - 26X42X7 (ARAI)
21	91216-PL3-005	Oil seal - 26X42X7 (NOK)

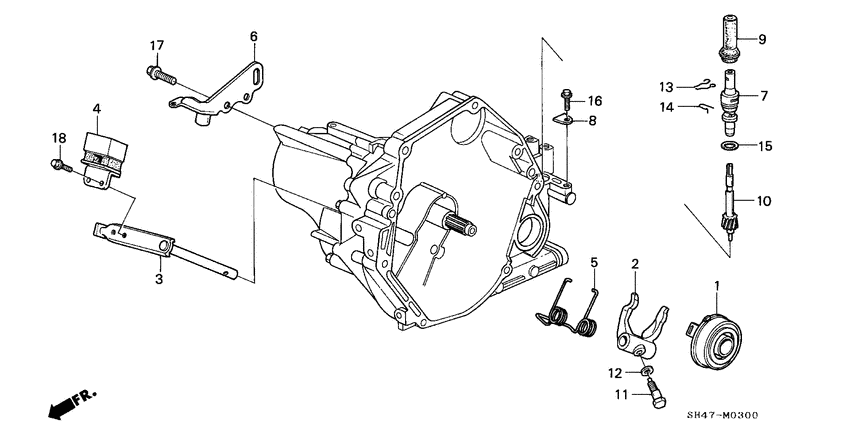

Clutch release 17

#	OEM	部品名
1	22810-PL3-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
1	22810-PL3-005	Bearing - CLUTCH RELEASE (KOYO SEIKO)
2	22821-PL3-000	Fork - CLUTCH RELEASE
3	22830-PL3-C00	Shaft comp. - RELEASE
4	22840-PL3-000	Damper - RELEASE ARM
5	22851-PB6-910	Spring - RELEASE ARM
6	22871-PL3-050	Stay comp - CLUTCH WIRE
7	23811-PC1-000	Holder comp - SPEEDOMETER GEAR
8	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER
9	23814-PM0-000	Seal - GEAR HOLDER
10	23820-PM1-000	Gear comp - SPEEDOMETER
11	90029-PB6-911	Bolt - SPECIAL, 8X24
12	90412-679-000	Washer - CONICAL SPRING, 8MM
13	90637-689-000	Clip - SPEEDOMETER CABLE
14	90638-689-000	Clip - SPEEDOMETER GEAR
15	91313-611-010	O-ring - 23.5X2
18	90018-PF5-000	Bolt - FLANGE, 6X12

Clutch/torque converter 12

#	OEM	部品名
1	21350-PR1-030	Cover - CLUTCH CASE
2	21351-PM0-900	Cover - TORQUE CONVERTER CASE
3	22100-PM0-010	Flywheel comp.
4	22200-PM2-L00	Disk comp - FRICTION
5	22300-PM7-000	Disk comp - PRESSURE
6	26000-PL4-602	Converter assy - TORQUE
7	26251-PE1-913	Plate - DRIVE
8	90011-PM0-000	Bolt - 12MM
9	90023-PA9-000	Bolt - SPECIAL
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
11	90429-PJ7-900	Washer - 40X85X2
13	91302-639-000	O-ring - 32X1.9

Combination meter 7

#	OEM	部品名
1	32174-KT7-751	Clip - CABLE, 15MM
1	90690-GHB-651	Clip, cable, 15mm
2	37233-SH3-G01	Cable - INNER
5	78410-SH3-G02	Cable assy - SPEEDOMETER
7	78420-SH4-A00	Bracket - SPEEDOMETER CABLE
9	90683-SH3-023	Clip - CABLE
12	90686-SH3-013	Clip - CABLE

Combination switch 22

#	OEM	部品名
1	17951-SB1-010	Knob - CHOKE WIRE
2	35010-SH4-G02	Cylinder set - KEY
3	35100-SH3-G04	Lock assy - STEERING
4	35101-SH3-003	Cover - HOLDER
5	35102-SA5-003	Bolt - BREAK HEAD
5	35102-SV4-003	Bolt - BREAK HEAD
6	35103-SE3-003	Screw - RECESSED, 3X8
7	35113-SH3-G02	Key - BLANK (MAIN) (MOLD=BLACK)
8	35130-SH3-A01	Switch comp - STEERING
9	35131-SH3-G02	Cylinder comp - STEERING
10	35250-SH3-G23	Switch assy - COMBINATION
11	35255-SH3-G04	Switch assy - LIGHTING (B)
12	35256-SH3-G22	SWITCH ASSY., WIPER (G)
13	35259-SH3-A02	Shoe - HORN (TEC)
14	35400-692-033	Switch assy - DOOR
15	35409-692-013	Screw - FLANGE, 4X12
16	35410-692-003	Cover - DOOR SWITCH
18	53271-SF1-003	Cam - TURN SIGNAL SWITCH CANCEL
19	78450-SH3-B23	Wire comp - CHOKE
20	78457-SE3-000	Nut - 14MM (BLACK)
22	90130-SA0-003	Screw - PAN, 2.6X6
23	91565-SH3-003	Clip - COUPLER HOLDER (BROWN)

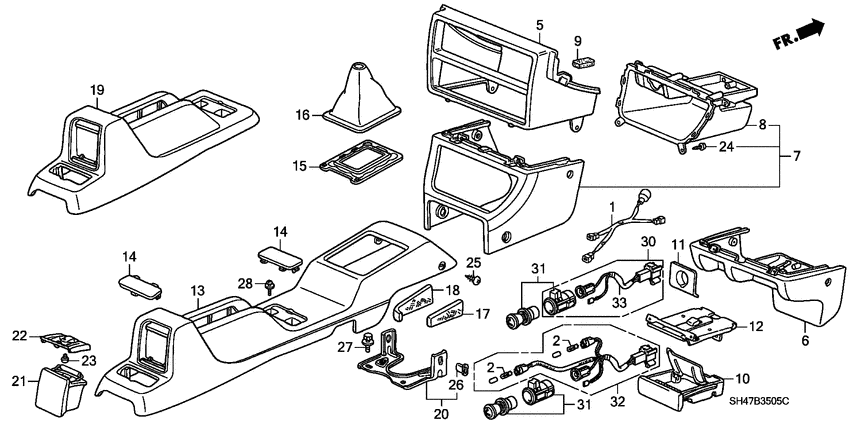

Console 14

#	OEM	部品名
9	77299-SH3-A00	Pad
12	77730-SH3-901	Holder comp - FR. ASHTRAY
15	83413-SH3-010	Plate - BOOT SET
17	83418-SH3-000	Insulator - R. CONSOLE
18	83419-SH3-000	Insulator - L. CONSOLE
20	83454-SH3-010	Bracket - FR. CONSOLE
22	88324-SB3-950	Cover - RR. ASHTRAY
23	90101-SA4-000	Screw - TAPPING, 4X12
24	90102-SA4-000	Screw - TAPPING, 4X16
25	90138-SH3-960	Screw - TAPPING, 4X38
26	91647-SH3-003	Grommet - SCREW, 4MM
31	39600-S84-G01	Lighter assy - CIGARETTE
31	39600-SW3-505	LIGHTER ASSYCIGA
33	39628-SH3-306	Cord assy

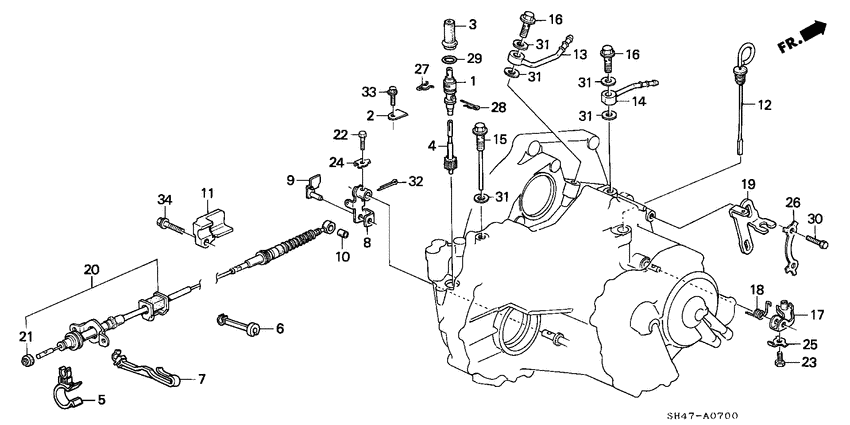

Control wire 28

#	OEM	部品名
1	23811-PL4-000	Holder comp - SPEEDOMETER GEAR
2	23813-PL4-000	Plate - HOLDER
3	23814-689-000	Seal - GEAR HOLDER
4	23820-PC9-000	Gear - SPEEDOMETER DRIVEN
5	24365-PM0-901	Clamp - THROTTLE WIRE
6	24365-PM4-900	Clamp - THROTTLE WIRE
8	24412-PL4-000	Lever - CONTROL
9	24414-PL4-000	Pin - CONTROL
10	24415-PA9-000	Roller - CONTROL LEVER
11	24901-PL4-000	Holder - CONTROL WIRE
12	25610-PL4-003	Gauge comp. - OIL LEVEL (ATF)
13	25910-PL4-000	Pipe comp. a - OIL HOSE
14	25920-PL4-000	Pipe comp. b - OIL HOSE
15	25950-PL4-000	Bolt comp - JOINT
16	25951-639-000	Bolt - JOINT
17	27494-PL4-000	Lever - THROTTLE CONTROL
18	27495-PF4-000	Spring - THROTTLE LEVER
19	27496-PL4-000	Stay - THROTTLE CABLE
20	54315-SH3-983	Wire - CONTROL
21	54341-SA0-980	Boot - CONTROL WIRE
22	90001-PA9-000	Bolt - HEX., 6MM
23	90010-PA9-000	Bolt - SPECIAL, 5X12
24	90433-639-000	Washer - LOCK, 6MM
25	90436-PA9-000	Washer - LOCK, 5MM
26	90437-PG4-000	Washer - TONGUED, 6MM
27	90637-689-000	Clip - SPEEDOMETER CABLE
28	90638-689-000	Clip - SPEEDOMETER GEAR
29	91313-611-010	O-ring - 23.5X2

Countershaft 46

#	OEM	部品名
1	23220-PL4-000	Countershaft comp.
2	23421-PL4-000	Gear - COUNTERSHAFT LOW
3	23423-PA9-003	Clutch assy. - ONE WAY
4	23427-PL4-010	Gear - PARKING
5	23441-PL4-850	Gear - COUNTERSHAFT SECOND
6	23451-PL4-850	Gear - COUNTERSHAFT THIRD
7	23471-PP6-850	Gear - COUNTERSHAFT FOURTH
8	23531-PH0-000	Gear - COUNTERSHAFT REVERSE
9	23541-PA9-010	Gear - REVERSE IDLE
10	23542-PH0-020	Shaft - REVERSE IDLE GEAR
11	23543-PH0-000	Spring a - IDLE GEAR SHAFT
12	23565-PP6-010	Selector - REVERSE GEAR
13	23566-PH0-000	Hub - SELECTOR
14	90202-PF4-010	Nut - FLANGE, 23MM
15	90411-PA9-010	Washer - SPLINE, 35X50X3.00
15	90420-PA9-000	Washer - SPLINE, 35X50X3.35
15	90413-PA9-010	Washer - SPLINE, 35X50X3.10
15	90423-PA9-000	Washer - SPLINE, 35X50X2.90
15	90415-PA9-010	Washer - SPLINE, 35X50X3.20
15	90419-PA9-000	Washer - SPLINE, 35X50X3.30
15	90412-PA9-010	Washer - SPLINE, 35X50X3.05
15	90421-PA9-000	Washer - SPLINE, 35X50X3.40
15	90414-PA9-010	Washer - SPLINE, 35X50X3.15
15	90424-PA9-000	Washer - SPLINE, 35X50X2.95
15	90418-PA9-000	Washer - SPLINE, 35X50X3.25
16	90431-PC9-000	Cotter - 28MM
17	90501-PL4-000	Collar - REVERSE GEAR
18	90508-PC9-000	Collar - DISTANCE, 28X38X39.05
18	90510-PC9-000	Collar - DISTANCE, 28X38X39.25
18	90504-PC9-000	Collar - DISTANCE, 28X38X39.10
18	90512-PC9-000	Collar - DISTANCE, 28X38X38.95
18	90507-PC9-000	Collar - DISTANCE, 28X38X39.30
18	90509-PC9-000	Collar - DISTANCE, 28X38X39.15
18	90503-PC9-000	Collar - DISTANCE, 28X38X39.00
18	90511-PC9-000	Collar - DISTANCE, 28X38X38.90
18	90505-PC9-000	Collar - DISTANCE, 28X38X39.20
19	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)
20	91014-PA9-003	Bearing - THRUST NEEDLE, 35X52X2 (NTN)
20	91014-PTD-901	Bearing - THRUST NEEDLE, 35X52X2
21	91016-PA9-003	Bearing - NEEDLE, 28X33X20 (NTN)
22	91024-PL4-003	Bearing - NEEDLE, 31X36X14
23	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)
24	91031-PC9-003	Bearing - THRUST NEEDLE, 39X54X2 (NTN)
24	91031-PC9-005	Bearing - THRUST NEEDLE, 39X54X2 (KOYO)
25	91307-PA9-003	O-ring 31.2X1.9 (ARAI)
25	91307-PA9-004	O-ring - 31.2X1.9 (NOK)

Countershaft/gear 18

#	OEM	部品名
1	23221-PL3-A20	Countershaft
2	23421-PL3-010	Gear - COUNTERSHAFT LOW
3	23431-PL3-901	Gear - COUNTERSHAFT SECOND
4	23461-PL3-901	Gear - COUNTERSHAFT FIFTH
5	23471-PL3-900	Gear - COUNTERSHAFT THIRD
6	23481-PL3-900	Gear - COUNTERSHAFT FOURTH
7	23521-PL3-325	Sleeve set - SYNCHRONIZER (1-2)
7	23521-PL3-335	Sleeve set - SYNCHRONIZER (1-2)
8	23912-PL3-000	Collar - DISTANCE, 33X39X30
9	23926-PB6-010	Washer - SPRING, 22MM
10	90202-PB6-010	Nut - FLANGE, 22MM
11	90603-PL3-000	Ring - SNAP, 52MM
12	91003-PL3-B04	Bearing - BALL, 25X52X14/15 (TOYO)
13	91006-PL3-A03	Bearing - BALL, 25X52X15 (6205UC/25) (NTN)
14	91104-PL3-018	Bearing - NEEDLE, 36X41X24
15	91105-PL3-018	Bearing - NEEDLE, 39X44X25
16	91211-PL3-T01	Damper - FRICTION (LOW)
17	91212-PL3-T01	Damper - FRICTION (SECOND)

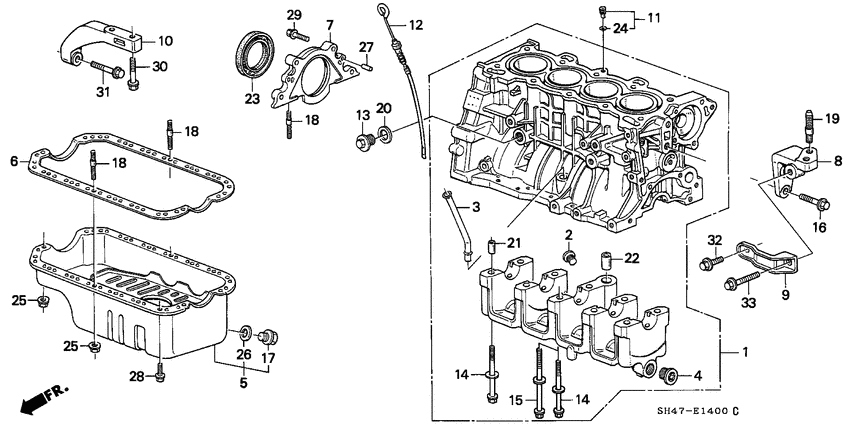

Cylinder block/oil pan 26

#	OEM	部品名
1	11000-PM3-000	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM
3	11111-PM3-300	Pipe - OIL LEVEL
4	11126-PK1-003	Bolt - SEALING, 22MM
5	11200-PM3-010	Pan comp - OIL
6	11251-PE2-004	Gasket - OIL PAN (OTSUKA)
6	11251-PE2-003	Gasket - OIL PAN (KOKOKU)
6	11251-P01-004	Packing - OIL PAN (OTSUKA)
7	11301-PE0-040	Cover - R. SIDE
8	11910-PM3-700	Bracket - ENGINE MOUNTING
9	11911-PM4-000	Stay - ENGINE MOUNTING BRACKET
11	15140-PM3-000	Orifice assy - OIL PATH
12	15650-PM6-000	Gauge comp. - OIL LEVEL
13	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
14	90008-PM0-003	Bolt-washer - 10X112
16	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5
17	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
18	90041-PA5-000	Bolt - STUD, 6X28
19	90041-PM3-000	Bolt - STUD, 12X44
20	90401-PM3-000	Washer - DRAIN PLUG, 28MM
21	90702-PE0-000	Dowel pin - 12X18
22	90703-PE0-000	Dowel pin - 18X22
23	91214-PE1-721	Oil seal - 80X100X10 (NOK)
23	91214-PLE-003	Oil seal
24	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)
24	91312-107-000	O-ring (7x1.7)

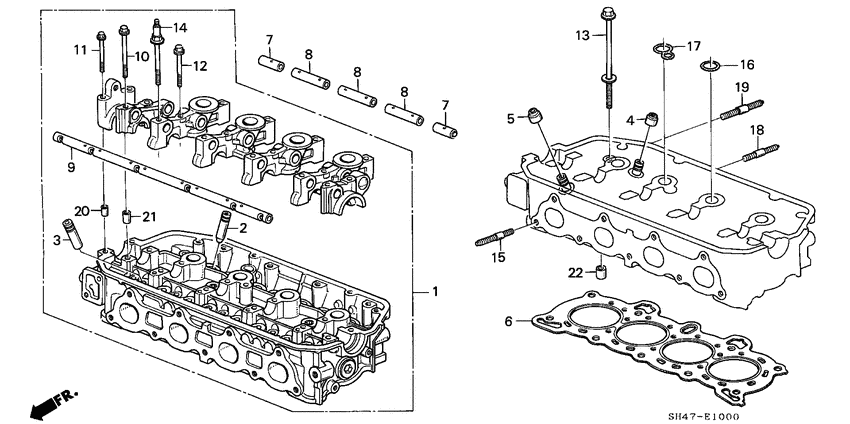

Cylinder head 26

#	OEM	部品名
1	12100-PM0-B11	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)
4	12210-PJ7-004	Seal a - VALVE STEM (NOK)
4	12210-PJ7-003	Seal a - VALVE STEM (ARAI)
5	12211-PJ7-013	Seal b - VALVE STEM (ARAI)
5	12211-PJ7-004	Seal b - VALVE STEM (NOK)
6	12251-PM5-S02	Gasket comp - CYLINDER HEAD (ISHINO GASKET)
6	12251-P01-004	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
7	14631-PJ7-J00	Shaft a - VALVE ROCKER ARM
8	14632-PJ7-J00	Shaft b - VALVE ROCKER ARM
9	14633-PJ7-000	Shaft - EX. VALVE ROCKER ARM
10	90002-PM3-000	Bolt - FLANGE, 8X72
10	90010-PY3-000	Bolt - FLANGE, 8X72
11	90003-PM0-B00	Bolt - FLANGE, 6X65
12	90003-PM3-000	Bolt - FLANGE, 8X62
12	90002-PZ1-000	Bolt,flange,8x62
13	90005-PM3-004	Bolt-washer - 10X140(TOKAI TRW)
13	90005-PM3-003	Bolt-washer - 10X140 (SAGA)
14	90014-PM3-000	Bolt a - CYLINDER HEAD COVER
15	90026-PE0-000	Bolt - STUD, 8X37
15	90026-PT0-000	Bolt - STUD, 8X38
16	91301-PJ7-000	O-ring - 31X2.5
17	91302-PJ7-004	O-ring - (NO.4 CAM HOLDER) (NOK)
17	91302-PJ7-003	O-ring - (NO.4 CAM HOLDER) (ARAI)
19	90025-PM3-000	Bolt - STUD, 8X32

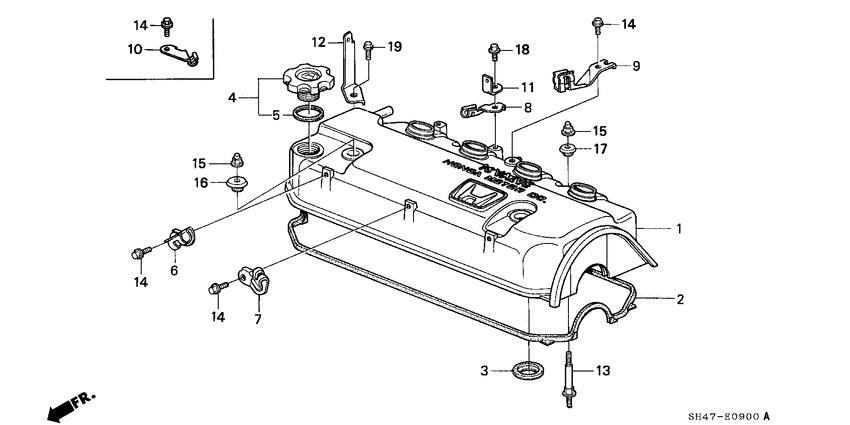

Cylinder head cover 16

#	OEM	部品名
1	12310-PM3-010	Cover comp. - CYLINDER HEAD
2	12341-PM6-000	Packing - CYLINDER HEAD COVER
2	12341-PM6-010	Packing - CYLINDER HEAD COVER
3	12342-PJ7-000	Packing b - HEAD COVER
4	15610-PC6-000	Cap assy. - OIL FILLER
5	15613-PC6-000	Packing, Oil Filler
7	17261-PM2-G00	Clamp a - THROTTLE WIRE
9	17262-PM4-000	Clamp b - THROTTLE WIRE
10	17264-PM2-G00	Clamp - CHOKE WIRE
11	32761-PM3-000	Stay a - HIGH TENSION CORD CLAMP
12	32762-PM3-000	Stay b - HIGH TENSION CORD CLAMP
13	90013-PM3-000	Bolt b - CYLINDER HEAD COVER
14	90023-PE0-000	Bolt - FLANGE, 6X10
15	90213-PH3-000	Nut - CAP, 6MM
16	90441-PN4-000	Washer - HEAD COVER
17	90441-PK2-000	Washer - HEAD COVER

Distributor (HITACHI) 24

#	OEM	部品名
1	30100-PM2-E03	Distributor assy - D4W86-05) (HITACHI
2	30101-PM3-005	Plate assy.
3	30102-PM3-045	Cap assy.
6	30110-PC6-005	O-ring
7	30113-PD2-005	Coupling set
7	30113-P01-005	Coupling set
8	30115-634-005	Point assy - CARBON
9	30120-PM3-005	Igniter unit
10	30121-PM3-005	Stator
11	30123-PC1-005	Magnet set - PICK UP
12	30126-PM3-005	Reluctor set
13	30128-PM3-015	Wire - LEAD
14	30131-PM3-015	Harness assy
15	30132-PM3-035	Packing - 1
15	30132-PT0-005	Packing - 1
16	30135-PT0-005	Screw - PAN, 4X10
17	30138-PM3-005	Packing - 2
17	91308-MA6-005	O-ring (14.6x3.6)
18	30139-PM3-015	Plug
19	30500-PM3-015	Coil - IGNITION
19	30500-P01-005	Coil - IGNITION
20	30117-PM2-E01	Control set - VACUUM
21	91301-PK1-005	O-ring
22	30103-PM3-025	Head - ROTOR

Door trim 2

#	OEM	部品名
11	90609-SB6-003	Clip - PILLAR GARNISH
12	90669-SH4-003	Clip - CENTER PILLAR LINING

Driveshaft (1) 18

#	OEM	部品名
1	44010-SH3-G02	Driveshaft set - R.
1	44010-SH3-A02	Driveshaft set - R.
2	44011-SH3-A02	Driveshaft set - L.
2	44011-SH3-G02	Driveshaft set - L.
5	44310-SH3-960	Joint comp - INBOARD
6	44310-SH3-970	Joint comp - INBOARD
7	44315-SA2-300	Boot b
8	44316-SA2-310	Band a - BOOT
9	44317-SA2-300	Band b - BOOT
10	44318-SA2-300	Band c - BOOT
11	44319-SA2-000	Set ring - 26X1.8
12	44333-SA2-310	Boot a - OTSUKA
13	44336-SA2-300	Ring a - STOPPER
14	44338-SA2-300	Circlip - 24MM
15	44347-SB2-003	Ring - OUTBOARD
16	44351-SH3-970	Weight a - DYNAMIC DAMPER (###)
17	44351-SH3-960	Weight a - DYNAMIC DAMPER (###)
18	44352-SA2-300	Band - DAMPER WEIGHT

Emblem 10

#	OEM	部品名
1	17277-PM3-Y00	Label - SERVICE INFORMATION
2	17669-SD4-P00	Label - FUEL FILLER CAUTION (REGULAR GASOLINE)
6	42760-SH3-B13	Placard - TIRE PRESSURE SPECIFICATION
6	42760-SH3-W20	Placard - TIRE PRESSURE SPECIFICATION
6	42760-SH3-T02	Placard - TIRE PRESSURE SPECIFICATION
7	75700-SH4-A00	Emblem - FR. CENTER
8	75701-SH4-000	Mark - RR. EMBLEM (H)
17	76501-SA1-600	Plate, RR. DOOR LOCK CAUTION
18	87351-SA0-003	Clip - TUBULAR
18	91512-SR3-004	Clip - TUBULAR

Engine mounts 34

#	OEM	部品名
1	50200-SH3-A55	Beam - RR. (P.S.)
1	50200-SH3-A05	Beam - RR.
2	50250-SH3-060	Beam - FR.
2	50250-SH9-030	Beam - FR.
3	50805-SH3-040	Rubber - TRANSMISSION MOUNTING (MT)
4	50805-SH3-983	Rubber - TRANSMISSION MOUNTING (AT)
6	50810-SH3-040	Rubber assy. - ENGINE RR. MOUNTING (MT)
6	50810-SH3-985	Rubber assy. - ENGINE RR. MOUNTING (AT)
7	50821-SH3-040	Rubber - ENGINE SIDE MOUNTING
8	50825-SH3-050	Bracket - TRANSMISSION MOUNTING (MT)
9	50825-SH3-984	Bracket - TRANSMISSION MOUNTING (AT)
11	50827-SH3-030	Bracket - RR. ENGINE MOUNTING (MT)
12	50827-SH3-983	Bracket - RR. ENGINE MOUNTING (AT)
13	50829-SK7-J00	Mass - RR. ENGINE MOUNTING
14	50839-SK7-000	Nut - YOKE, 12MM
14	50839-SH3-000	Nut - YOKE, 12MM
15	50840-SH3-000	Mounting assy. - FR. STOPPER (MT)
15	50840-SH3-981	Mounting assy. - FR. STOPPER (AT)
16	50841-SH3-040	Rubber - FR. STOPPER INSULATOR (MT)
16	50841-SH3-984	Rubber - FR. STOPPER INSULATOR (AT)
17	90182-SK7-000	Bolt - FLANGE, 12X100
18	90161-SH3-040	Bolt - HEX., 12X113
20	90164-SH3-010	Bolt - FLANGE, 12X90
22	90170-SH3-010	Bolt - FLANGE, 12X60
23	90180-SH3-000	Bolt-washer - SPECIAL, 10X22
24	90181-SH3-000	Bolt - SPECIAL FLANGE, 12X25
25	90371-SH3-020	Nut - FLANGE, 12MM
27	90504-SB0-000	Washer - PLAIN, 12MM
28	90504-SH3-000	Washer - PLAIN, 12MM
29	91771-SH3-000	Washer - PLAIN, 10MM
30	90509-SH3-000	Washer - FR. BEAM
31	91613-SE0-003	Grommet - SUB FRAME, 15MM
32	91770-SH3-000	Bolt - FLANGE, 10X23
37	90183-SH3-000	Bolt - FLANGE, 12X115

Engine sub cord/clamp 28

#	OEM	部品名
1	24360-PM4-902	Cable comp - THROTTLE (AT)
2	31110-PM3-014	Belt - ALTERNATOR (MITSUBOSHI)
2	31110-PM3-003	Belt - ALTERNATOR (BANDO)
2	31110-PM3-506	Belt
3	31112-PM3-000	Bracket comp. - ALTERNATOR
4	31113-PM3-000	Stay - ALTERNATOR
5	31117-PM5-A00	Plate - CAUTION
6	32110-PM2-E02	Harness - ENGINE WIRE
7	32110-PM2-G53	Harness - ENGINE WIRE
9	32741-PM3-000	Clamp a - ENGINE WIRE HARNESS
11	32743-PM3-010	Clamp b - ENGINE WIRE HARNESS
13	32745-PM0-010	Clamp e - ENGINE WIRE HARNESS
16	32748-PM0-000	Clamp - R. ENGINE WIRE HARNESS
19	32750-PM3-003	Clip - WIRE HARNESS
20	32751-PM3-003	Band - HARNESS CLAMP
21	36143-PM4-003	Clip - PURSE LOCK
22	37240-PD2-003	Switch - OIL PRESSURE (DENSO)
22	37240-PD2-004	Switch - OIL PRESSURE (TEC)
23	37750-PH2-014	Thermo unit - DENSO
24	37760-PM3-003	Switch assy - THERMOSTAT (A-93) (NIPPON THERMOSTAT)
26	90050-PG7-000	Bolt - FLANGE, 12X65
28	90057-PG7-003	Bolt - ALTERNATOR
29	90430-657-000	Washer - 23X8.3X3.2
31	91307-611-000	O-ring (13.5X1.4)
31	91307-PH7-660	O-ring (13.5X1.4)
32	91506-PM3-003	Clip - WIRE HARNESS
34	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
42	90016-PE0-000	Bolt - FLANGE, 10X45

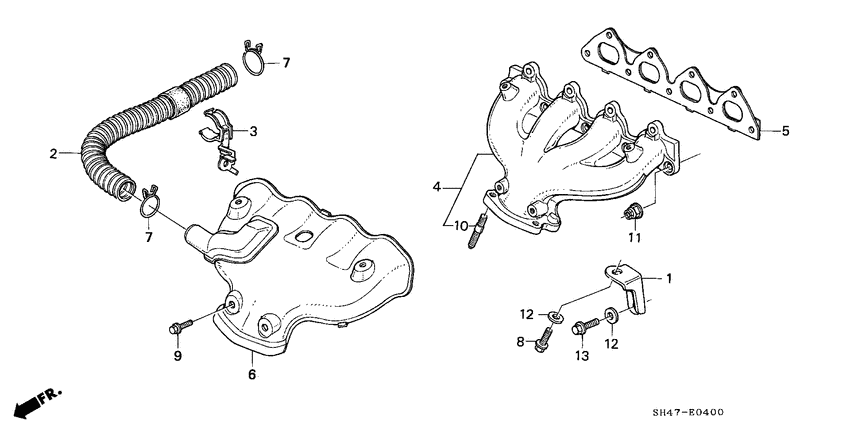

Exhaust manifold (1) 15

#	OEM	部品名
1	11942-PM1-B00	Stay - EX. MANIFOLD
2	17302-PM4-003	Pipe - HOT AIR
2	17302-PM4-901	Pipe - HOT AIR
3	17303-PM3-000	Clamp - HOT AIR PIPE
4	18100-PM1-B00	Manifold - EX.
5	18115-PM3-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
6	18120-PM1-B00	Cover - EX. MANIFOLD
7	18782-PB1-000	Clip - AIR SUCTION TUBE
8	90010-PE2-900	Bolt - SPECIAL, 10X22
9	90015-PH7-000	Bolt-washer - 8X14
9	90015-PT0-J00	Bolt-washer - 8X14
10	90065-PG6-000	Bolt, STUD, 10X24
11	90212-PD2-003	Nut - SELF-LOCK, 8MM
11	90212-RCA-A01	Nut - SELF-LOCK, 8MM
12	90451-PE2-000	Washer - SPECIAL, 11X28

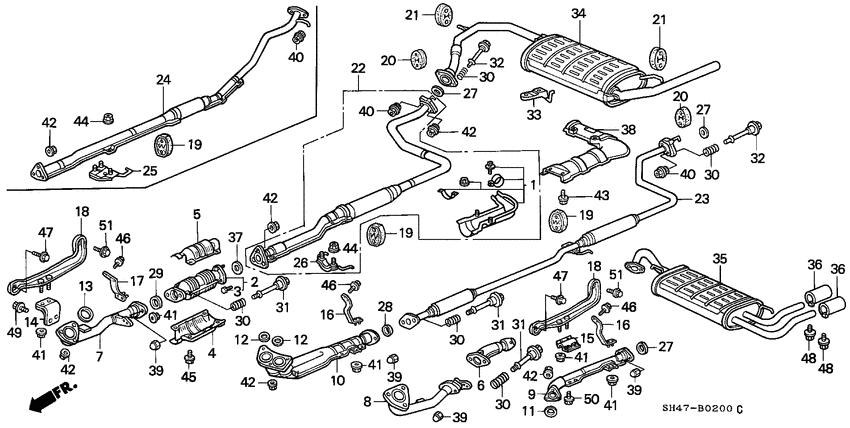

Exhaust pipe 20

#	OEM	部品名
9	18210-SH3-G02	Pipe a - EX.
11	18212-SA7-003	Gasket - EX. PIPE (ISHINO)
15	18213-SH3-J00	Stay - EX. PIPE A
16	18213-SH3-J80	Stay - EX. PIPE MOUNTING
18	18214-SH3-J01	Bracket - EX. MOUNTING
19	18215-SH3-J01	Rubber - EX. MOUNTING (70X55X30)
20	18215-SH3-J80	Rubber - EX. MOUNTING (60X50X20)
20	18215-SR3-000	Rubber - EX. MOUNTING
21	18215-671-000	Rubber - SILENCER MOUNTING (74X53X22)
23	18220-SH3-G04	Pipe b - EX.
27	18229-SB2-003	Gasket - EX. FLEXIBLE (45MM-59MM)
30	18230-SA0-930	Spring - FLEXIBLE JOINT
31	18231-SB2-000	Bolt - FLEXIBLE JOINT
32	18231-SH3-J31	Bolt - FLEXIBLE JOINT
34	18307-SH4-E10	Silencer comp - EX.
36	18310-692-013	Finisher - EX. PIPE (SANKEI)
38	74651-SH3-000	Plate - FUEL TANK BAFFLE
39	90115-SB2-003	Nut - SELF-LOCK, 8MM
41	90117-SB2-000	Nut - SELF-LOCK, 8MM
42	90212-SA5-003	Nut - SELF-LOCK, 10MM

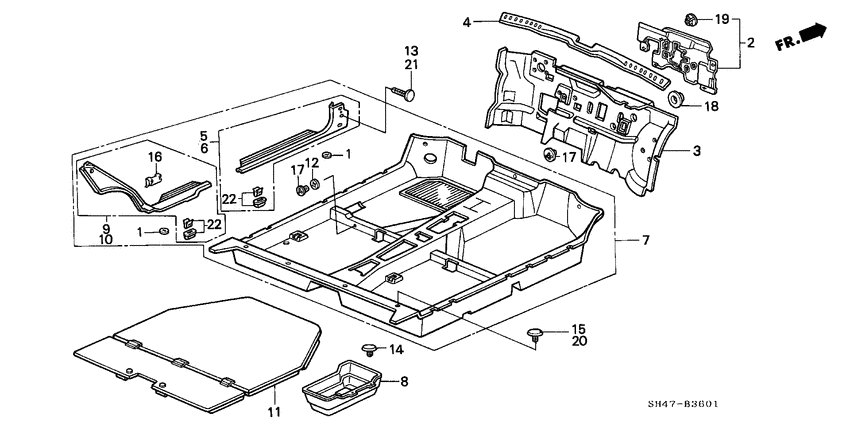

Floor mat 7

#	OEM	部品名
1	64436-692-000	Clip - GUIDE
3	83101-SH3-A05	Insulator - DASHBOARD LOWER
11	84521-SH4-Q00	Lid comp - SPARE TIRE
11	84521-SH4-000	Lid comp - SPARE TIRE
16	90673-SE3-003	Clip - SEAT SIDE GARNISH
17	90676-SB2-003	Clip - DASHBOARD INSULATOR
22	91641-SH3-013	Grommet assy, GARNISH

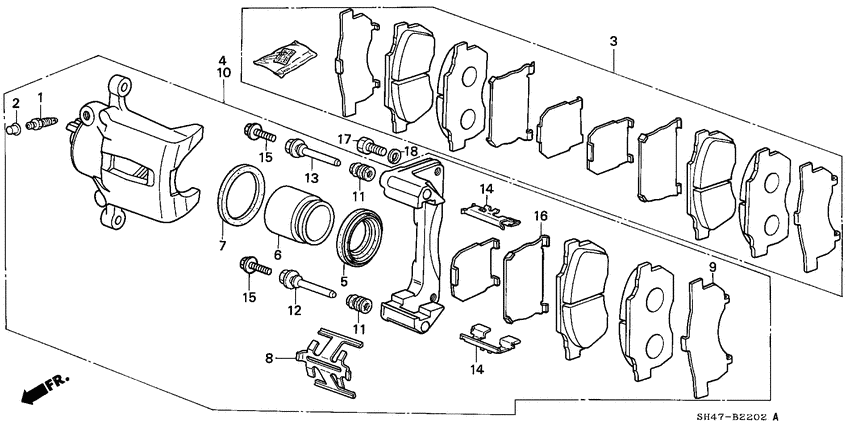

Front brake caliper (3) 17

#	OEM	部品名
1	43352-692-003	Screw - BLEEDER
2	43353-SA0-003	Cap - BLEEDER SCREW
2	43353-SD5-003	Cap - BLEEDER SCREW
3	45022-SH3-306	Pad set - FR.
4	45210-SH3-E11	Caliper assy - R. (NISSIN)
5	45214-SC2-003	Cover - DUST
6	45216-SC2-003	Piston - 51MM
7	45217-SC2-003	Seal - PISTON
8	45227-692-931	Spring - PAD
9	45228-SA5-013	Shim - BRAKE PAD
10	45230-SH3-E11	Caliper assy - L. (NISSIN)
11	45234-692-013	Cover - DUST
12	45235-SA0-003	Pin a
13	45236-SH3-003	Pin b
14	45237-692-931	Retainer - PAD
15	45240-SC2-003	Bolt - FLANGE, 8X22
17	90107-663-670	Bolt - CALIPER MOUNTING

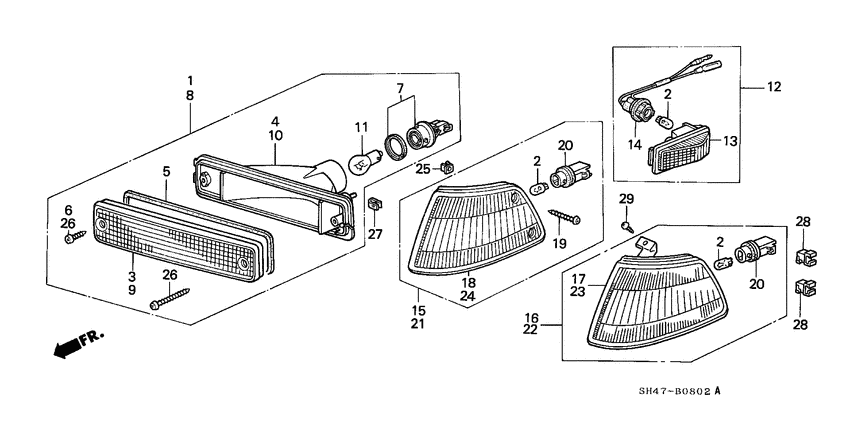

Front combination light 23

#	OEM	部品名
1	33300-SH4-023	Light assy - R. FR. TURN SIGNAL
1	33300-SH4-013	Light assy - R. FR. TURN SIGNAL
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33301-SH4-003	Lens - R.
4	33302-SH4-003	Housing - R.
5	33303-SH4-003	Packing
7	33305-SH3-A01	Socket comp - GRAY
8	33350-SH4-023	Light assy - L. FR. TURN SIGNAL
8	33350-SH4-013	Light assy - L. FR. TURN SIGNAL
9	33351-SH4-003	Lens - L.
10	33352-SH4-003	Housing - L.
11	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
12	33800-SH3-G01	Light assy - SIDE TURN SIGNAL (###)
13	33801-SH3-G01	Lens
14	33802-SH3-G01	Cord comp
16	34300-SH4-G05	Light assy - R. FR. POSITION
17	34301-SH4-G01	Lens comp - R.
20	34304-SH3-A01	Socket comp.
22	34350-SH4-G05	Light assy - L. FR. POSITION (###)
23	34351-SH4-G01	Lens comp - L.
26	90140-SD4-013	Screw - TAPPING, 4X40
27	90303-SA5-003	Nut - FR. COMBINATION LIGHT
28	91580-SH3-003	Holder - FR. POSITION (BLACK)

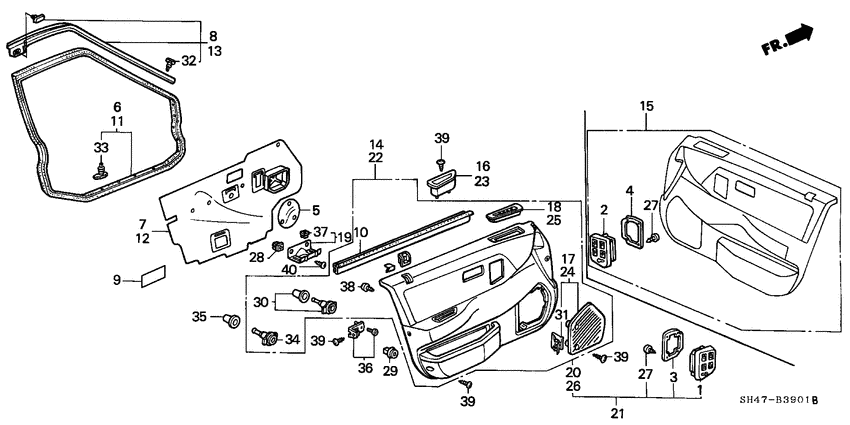

Front door lining 26

#	OEM	部品名
3	35755-SH4-A00	Bracket - L. POWER WINDOW MASTER SWITCH
5	39121-SB2-013	Seal - SPEAKER HOLE
6	72310-SH4-014	Weatherstrip - R. FR. DOOR (NISHIKAWA)
7	72321-SH4-G00	Seal - R. FR. DOOR HOLE (P.W./R.C.MIRROR)
7	72321-SH4-G10	Seal - R. FR. DOOR HOLE (R.C.MIRROR)
8	72325-SH4-013	Sub seal - R. FR. DOOR (TOKAI)
9	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)
10	72335-SH4-000	Weatherstrip - R. FR. DOOR INNER
11	72350-SH4-014	Weatherstrip - L. FR. DOOR (NISHIKAWA)
12	72361-SH4-G00	Seal - L. FR. DOOR HOLE (P.W./R.C.MIRROR)
12	72361-SH4-G10	Seal - L. FR. DOOR HOLE (R.C.MIRROR)
13	72365-SH4-013	Sub seal - L. FR. DOOR (TOKAI)
19	83508-SH4-000	Bracket - DOOR PULL POCKET
27	90101-SA4-000	Screw - TAPPING, 4X12
28	90662-SB2-003	Grommet - SCREW, 5MM
29	90662-693-003	Grommet - SCREW, 4MM (BLUE)
30	91560-SD5-003	Clip - LINING
31	90666-SH4-003	Clip - SPEAKER
32	91530-SE0-003	Clip A - DOOR WEATHERSTRIP
32	90664-671-003	Clip - CANOE
33	91530-SH4-003	Clip - DOOR WEATHERSTRIP
34	91556-SH3-003	Clip - DRIVE PIN
35	91558-SH3-003	Cap - LINING MOUNTING
36	91642-SH3-013	Grommet - DOOR LINING
37	91660-SH4-000	Grommet - SCREW, 4MM
38	90130-693-000	Screw - TAPPING, 4X10

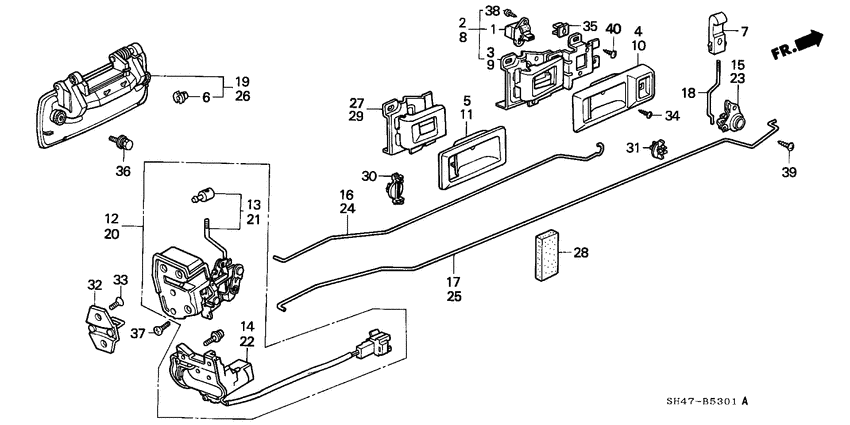

Front door locks 19

#	OEM	部品名
1	35765-SH3-013	Sub switch comp. - POWER WINDOW
3	72110-SH4-J14	Lock assy - R. FR. DOOR POWER SWITCH (HONDA LOCK)
4	72115-SH4-J02	Actuator - R. FR. DOOR LOCK
10	72131-SH4-004	Rod - R. FR. INSIDE HANDLE (HONDA LOCK)
11	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT
13	72140-SH3-004	Handle assy - R. OUTSIDE (HONDA LOCK)
14	72145-SH3-023	Cylinder - R. DOOR (HONDA LOCK)
15	72146-SH3-023	Cylinder - L. DOOR (HONDA LOCK)
17	72150-SH4-J04	Lock assy - L. FR. POWER DOOR
19	72156-SH4-J02	Switch assy - L. DOOR LOCK
24	72171-SH4-004	Rod - L. FR. INSIDE HANDLE (HONDA LOCK)
25	72180-SH3-004	Handle assy - L. OUTSIDE (HONDA LOCK)
27	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)
28	75513-SB4-000	Cushion - LOCK ROD (15MMX40MM)
30	72175-SH3-003	Holder - DOOR LOCK ROD
31	72105-SF1-003	Striker - DOOR LOCK
32	75556-605-010	Bolt - LOCK STRIKER
33	90111-SA0-000	Screw - TAPPING, 4X8
34	90662-SB2-003	Grommet - SCREW, 5MM

Front door panels 6

#	OEM	部品名
10	75750-SE7-003	Checker comp. - FR. DOOR
11	75760-SB2-003	Pin - DOOR CHECKER
12	75891-SA7-000	Stopper - DOOR
13	90001-SD2-000	Bolt - FLANGE, 8X22
14	90157-SA0-000	Bolt-washer - 8X25
15	90755-SB2-000	E-ring - 6MM

Front door windows 47

#	OEM	部品名
1	72210-SH4-S02	Regulator assy - R. FR. DOOR POWER
1	72710-SH4-S01	Regulator - R. RR. DOOR POWER
2	72210-SH4-003	Regulator - R. FR. DOOR (MANUAL)
2	72710-SH4-003	Regulator - R. RR. DOOR
3	72211-SH4-J02	Regulator - R. FR. DOOR POWER
3	72714-SH4-J01	Absorber - SHOCK
4	72212-SH3-003	Spring - SPIRAL
4	72716-SH4-J01	Wheel - WORM
5	72215-SH4-S02	Motor assy. - R. WINDOW
5	72717-SH4-003	Guide - R. CABLE
6	72230-SH4-000	Sash - R. FR. DOOR LOWER
7	72231-SH4-000	Sash - R. FR. DOOR CENTER LOWER
7	72750-SH4-S01	Regulator - L. RR. DOOR POWER
7	72731-SH4-000	Sash - R. RR. DOOR CENTER
8	72235-SH4-014	Runchannel - R. FR. DOOR (NISHIKAWA)
8	72735-SH4-004	Channel - R. RR. DOOR RUN (NISHIKAWA)
9	72246-SH3-003	Stopper - DOOR GLASS
9	72736-SH4-000	Cap - R. CENTER SASH
10	72250-SH4-S02	Regulator assy - L. FR. DOOR POWER
10	72737-SH4-000	Collar a - RR. DOOR PANEL UPPER
11	72250-SH4-003	Regulator - L. FR. DOOR (MANUAL)
12	72251-SH4-J02	Regulator - L. FR. DOOR POWER
12	72750-SH4-003	Regulator - L. RR. DOOR
13	72255-SH4-S02	Motor assy. - L. WINDOW
13	72757-SH4-003	Guide - L. CABLE
14	72270-SH4-000	Sash - L. FR. DOOR LOWER
15	72271-SH4-000	Sash - L. FR. DOOR CENTER LOWER
15	72771-SH4-000	Sash - L. RR. DOOR CENTER
16	72275-SH4-014	Runchannel - L. FR. DOOR (NISHIKAWA)
16	72775-SH4-004	Channel - L. RR. DOOR RUN (NISHIKAWA)
17	73300-SH4-000	Glass assy - R. FR. DOOR
17	72776-SH4-000	Cap - L. CENTER SASH
18	73350-SH4-000	Glass assy - L. FR. DOOR
18	73400-SH4-000	Glass assy - R. RR. DOOR
19	75330-671-601	Handle assy - REGULATOR
19	73405-SH4-J30	Glass assy - R. RR. QUARTER (BLUE)
20	75342-679-000	Pin - WINDOW REGULATOR HANDLE
21	73450-SH4-000	Glass assy - L. RR. DOOR
22	90011-896-000	Bolt - FLANGE, 6X8
22	73455-SH4-J30	Glass assy - L. RR. QUARTER (BLUE)
23	90120-SE3-003	Bolt - FLANGE, 6X12
27	90115-SG0-003	Bolt - FLANGE, 6MM
27	76218-SB4-000	Collar b - RR. DOOR PANEL LOWER
28	76311-SE7-961	Joint - R.
29	76321-SE7-961	Joint - L.
30	90104-SB4-000	Bolt-washer - 6X48
31	90112-SB4-000	Bolt - FLANGE, 6X14

Front fenders 19

#	OEM	部品名
5	61815-SA5-013	Clip - FR. MUDGUARD
6	74101-SH3-010	Fender - R. FR. INNER
7	74111-SH3-010	Shield - R. FR. SPLASH
8	74115-SH3-010	Guard
9	74151-SH3-010	Fender - L. FR. INNER
10	74161-SH3-010	Shield - L. FR. SPLASH
11	74165-SH3-000	Guard
12	75800-SH4-A01	Mudguard - R. FR.
13	75810-SH4-A01	Mudguard - L. FR.
14	90126-SA7-000	Screw-washer - 5X20
14	90114-SZ3-000	Screw-washer - 5X20
16	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
17	90308-SB2-013	Nut - SUSPENSION, 5MM
18	90682-SB0-003	Grommet - SCREW, 5MM
19	90850-SA7-000	Plug - FUSE LID
20	91504-SF4-003	Clip - FR. COWL
20	91501-S04-003	Clip - INNER FENDER
21	91516-SH3-003	Clip - UNDER COVER
21	91516-SK7-013	Clip - UNDER COVER

Front seat 5

#	OEM	部品名
5	81115-SH3-003	Cover - R. CENTER
14	81515-SH3-003	Cover - L. CENTER
21	90111-SH4-003	Bush - NYLON
22	90113-SH4-013	Washer
23	90131-SH3-003	Bolt - TORX, 8X17

Front seat components 8

#	OEM	部品名
1	81230-SH4-J01	Adjuster - R. RECLINING
4	81260-SH4-G02	Adjuster - R. OUTER SLIDE
8	81270-SH4-G02	Adjuster - R. INNER SLIDE
9	81280-SH4-G02	Adjuster - L. INNER SLIDE
10	81290-SH4-G02	Adjuster - L. OUTER SLIDE
11	81630-SH4-J01	Adjuster - L. RECLINING
14	90147-SH3-000	Bolt-washer - LOCK, 10X20
15	90155-SH3-000	Bolt-washer - 8X25

Front shock absorber 35

#	OEM	部品名
1	51401-SH3-J04	Spring - FR. (SHOWA)
1	51401-SH3-J05	Spring - FR. (MITSUBISHI SEIKO)
1	51401-SH3-C05	Spring - FR. (MITSUBISHI SEIKO)
1	51401-SH3-C04	Spring - FR. (SHOWA)
1	51401-SH3-N05	Spring - FR. (MITSUBISHI SEIKO)
1	51401-SH3-N04	Spring - FR. (SHOWA)
1	51401-SH3-013	Spring - FR. (MITSUBISHI SEIKO)
1	51401-SH3-014	Spring - FR. (SHOWA)
2	51601-SH3-J29	Absorber assy - R. FR. SHOCK
2	51601-SH3-C19	Absorber assy - R. FR. SHOCK
2	51601-SH3-J39	Absorber assy - R. FR. SHOCK
2	51601-SH3-033	Absorber assy - R. FR. SHOCK
3	51602-SH3-J29	Absorber assy - L. FR. SHOCK
3	51602-SH3-C19	Absorber assy - L. FR. SHOCK
3	51602-SH3-J39	Absorber assy - L. FR. SHOCK
3	51602-SH3-033	Absorber assy - L. FR. SHOCK
4	51605-SH3-024	Absorber unit - R. FR. SHOCK
5	51606-SH3-024	Absorber unit - L. FR. SHOCK
6	51621-SB0-004	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)
6	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
7	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
7	51631-S7S-J01	RUBBER DAMPER M
7	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
8	51675-SH3-024	Base - SHOCK ABSORBER MOUNTING (SHOWA)
9	51685-SH3-014	Plate - DUST COVER(SHOWA)
10	51686-SH3-014	Rubber - FR. SPRING MOUNTING (SHOWA)
11	51687-SH3-014	Cover - FR. SLEEVE DUST
12	51689-SH9-003	Plate - BUMP STOP(SHOWA)
12	51689-SH3-004	Plate - BUMP STOP (SHOWA)
13	51722-SE0-004	Rubber - BUMP STOPPER (POLYURETHAN KASEI)
13	51722-SE0-003	Rubber - BUMP STOPPER (NIPPON MEKTRON)
14	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
15	90304-SH3-004	Nut-washer - 10MM
15	90304-SH3-505	New Genuine Part
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 26

#	OEM	部品名
1	51300-SH3-J13	Spring - FR. STABILIZER
2	51308-SH3-010	Holder - FR. STABILIZER
3	51313-SF1-000	Washer a
4	51316-SH3-J00	Bush - FR. STABILIZER, 19MM
5	51352-SH3-000	Rod - FR. RADIUS
6	51355-SH3-020	Arm comp - R. FR. LOWER
7	51365-SH3-020	Arm comp - L. FR. LOWER
8	51393-SH3-003	Bush - FR. LOWER ARM (HOKUSHIN)
9	51395-SH3-003	Bush - FR. RADIUS ROD (HOKUSHIN)
9	51395-SH3-004	Bush - FR. RADIUS ROD (YAMASHITA)
10	51398-SA5-000	Collar - RADIUS ROD
11	51810-SH3-003	Bush - SHOCK ABSORBER FORK (HOKUSHIN)
11	51810-SH3-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)
11	51810-SK7-004	Bush - SHOCK ABSORBER FORK
12	51811-SH3-010	Fork - R. FR. SHOCK ABSORBER
13	51821-SH3-010	Fork - L. FR. SHOCK ABSORBER
14	52316-692-010	Rubber a - STABILIZER
15	90112-SK7-000	Bolt - FR. STABILIZER
16	90118-SK7-003	Bolt - LOWER ARM, 10X80 (JYUJI)
17	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42
18	90175-SH3-005	Bolt - SHOCK ABSORBER FORK
19	90178-SK7-013	Bolt - FR. RADIUS ROD (12X30)
20	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21	90303-SF1-003	Nut - SELF-LOCK, 12MM
22	90362-SF1-003	Nut - SELF-LOCK, 8MM
23	90501-692-000	Washer - FR. RADIUS ROD

Front windshield wiper (1) 21

#	OEM	部品名
1	38472-SB2-003	Rubber - BLADE (450MM)
1	76632-S5H-T01	Rubber - BLADE (450MM)
2	76505-SH3-S02	Motor comp - FR. WIPER (LH)
3	76515-SH3-003	Seal a
4	76516-SE0-003	Rubber - BRACKETLESS MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS
6	76520-SH3-003	Link unit a
7	76524-SD4-003	Dust seal
8	76524-SE0-013	Dust seal
9	76530-SH3-A02	Link comp - FR. WIPER
10	76540-SH3-A01	Rod unit a
11	76550-SH3-A01	Rod unit b
12	76560-SH3-A02	Pivot assy. c
13	76561-SH3-003	Cap - PIVOT
14	76570-SH3-A02	Pivot assy. b
15	76600-SH3-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE) (WING)
16	76610-SH3-A01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-SH2-G11	Blade - WINDSHIELD WIPER (DRIVER SIDE)
18	76630-SH3-G11	Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE)
18	76630-SH3-305	Blade,windshield
19	90308-SE0-000	Nut - CAP, 8MM

Front windshield/ rear windshield 27

#	OEM	部品名
1	73100-SH4-020	Glass assy - FR. WINDSHIELD (BLUE)
2	73125-SH4-010	Rubber - FR. WINDSHIELD DAM
3	73126-SH3-000	Rubber - FR. WINDSHIELD DAM
4	73127-SH3-013	Holder - FR. WINDSHIELD GLASS
5	73150-SH4-024	Molding comp. - FR. WINDSHIELD (WITH GLASS REMOVAL)
5	73150-SH4-305	Molding comp. - FR. WINDSHIELD (REPLACE MOLDING ONLY)
7	73211-SH4-G00	Glass - RR. WINDSHIELD (BLUE)
7	73211-SH4-508	GLASS RR WSHLD
8	73225-SH4-000	Rubber - WINDSHIELD DAM
9	73226-SH4-000	Spacer - RR. WINDSHIELD
10	73227-SH4-000	Spacer - RR. WINDSHIELD LOWER
11	73251-SH4-013	Molding - RR. WINDSHIELD
12	73252-SH4-003	Molding - R. RR. SIDE
13	73253-SH4-003	Molding - R. RR. WINDSHIELD CORNER
14	73257-SH4-003	Molding - L. RR. SIDE
15	73258-SH4-003	Molding - L. RR. WINDSHIELD CORNER
16	73259-SH4-003	Molding - RR. LOWER
17	90675-SA6-003	Grommet - RR. WINDSHIELD MOLDING
18	90694-SB0-003	Clip - WINDSHIELD MOLDING (BLACK)
19	91504-SH4-003	Clip - RR. WINDSHIELD SIDE
20	91507-SH4-003	Clip - R. CORNER
21	91508-SH4-003	Clip - L. CORNER
22	91511-SH4-003	Clip - R. WINDSHIELD MOLDING CORNER (RED)
23	91512-SH4-003	Clip - L. WINDSHIELD MOLDING CORNER (YELLOW)
25	73128-SH3-000	Rubber - FR. WINDSHIELD DAM
25	73125-SD5-000	Rubber - FR. WINDSHIELD DAM
26	91601-SH4-013	Grommet b - RR. WINDSHIELD MOLDING

Fuel pipe (CARBURETOR) 14

#	OEM	部品名
1	17700-SH3-E00	Pipe comp - FUEL FEED
2	17710-SH4-E00	Grommet - FUEL PIPE
3	17711-SH3-000	Grommet - FUEL PIPE
4	17712-SA0-000	Grommet - FUEL PIPE
6	17714-SH3-A00	Bracket - PIPE CLIP
7	17715-SH3-020	Protector - PIPE
8	17740-SH3-040	Pipe comp - FUEL RETURN
9	90664-SH3-003	Grommet - SCREW, 5MM
10	90675-SA7-003	Clip - FR. COWL
11	91590-SH3-003	Clip - FUEL PIPE
12	91591-SH3-003	Clip - FUEL PIPE (BLACK)
13	91594-SH2-000	Clamp - FUEL PIPE (BLACK)
14	91594-SH3-A01	Clamp - FUEL PIPE
16	91594-SH3-003	Clamp - FUEL PIPE (WHITE)

Fuel pump/two way valve 18

#	OEM	部品名
1	16900-SE0-003	Strainer comp. - FUEL (TOKYO ROKI)
1	16900-SE0-004	Strainer comp. - FUEL (TOYO ROKI)
2	16902-SH3-020	Cover - FUEL STRAINER
4	17371-SF1-003	Valve - TWO WAY
5	17372-SH4-010	Cover - TWO WAY VALVE
10	17721-SH4-E00	Tube - FUEL VENT (TO AIR CHAMBER)
11	17721-SH4-020	Tube - FUEL VENT
13	17728-SG0-E01	Chamber - FUEL VENT AIR
14	17729-SD4-E00	Stay - FUEL VENT AIR CHAMBER
16	17741-SH4-010	Tube - FUEL RETURN
17	74660-SH3-003	Cap assy. - FLOOR MAINTENANCE HOLE
19	90347-SF4-000	Nut - SPRING, 5MM
21	90657-SH3-013	Clip - TWO WAY VALVE COVER
23	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
29	91593-SH3-J00	Clip - FUEL TUBE
30	91593-SH3-003	Clip - FUEL TUBE (WHITE)
31	91594-SH5-003	Clip - FUEL TUBE
32	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Fuel tank 32

#	OEM	部品名
1	17500-SH4-E02	Tank comp. - FUEL
2	17521-SH3-030	Band - R. FUEL TANK MOUNTING
3	17522-SH3-020	Band - L. FUEL TANK MOUNTING
4	17525-SH3-010	Bolt - FUEL TANK MOUNTING
5	17526-SB3-023	Valve - FILLER NECK
6	17651-SH4-000	Tube - FILLER NECK CONNECTING
7	17652-SA5-000	Clip - FILLER TUBE
8	17653-SH4-010	Tube - BREATHER
9	17660-SH4-E05	Pipe comp - FUEL FILLER
10	17662-SB2-010	Packing - FUEL FILLER
11	17664-SH4-010	Bush - FILLER PIPE MOUNT
12	17665-SH4-020	Collar - FILLER PIPE MOUNT
13	17670-SA5-013	Cap comp. - FUEL FILLER
14	17682-679-013	Packing - FUEL FILLER CAP
15	37800-SH3-004	Meter unit - FUEL (DENSO)
15	37800-SH3-003	Meter unit - FUEL (NS)
16	37801-689-000	Packing - BASE
17	37802-SD2-000	Retainer - FUEL UNIT
19	63916-SH3-000	Seal - FUEL LID HINGE
20	70494-SE0-000	Spring - FUEL LID OPENER
21	74422-SH3-000	Cushion - FUEL FILLER LID
22	74559-SH4-000	Cover - FUEL PIPE
23	90011-SH4-020	Bolt - FILLER PIPE MOUNTING
24	90103-SB0-010	Nut - FLANGE, 5MM
25	90126-SA7-000	Screw-washer - 5X20
25	90114-SZ3-000	Screw-washer - 5X20
26	90147-634-003	Bolt - FENDER, 6X18
27	90602-SA7-931	Clamp - FUEL HOSE, 18.5MM
28	90657-SA5-003	Clip - SIDE APRON MOLDING
29	90682-SB0-003	Grommet - SCREW, 5MM
30	91594-SH4-003	Clamp - FEED TUBE
32	90161-SH4-000	Bolt-washer - 6X12

Gasket kit/ transmission assy. 8

#	OEM	部品名
1	06110-PM4-000	Gasket kit - CYLINDER HEAD
2	06111-PM3-000	Gasket kit - CYLINDER BLOCK
3	06112-PL4-305	Gasket kit - AT TRANSMISSION
4	10002-PM2-G03	Engine assy - BLOCK (D14A1)
5	10003-PM2-G03	General assy. - CYLINDER HEAD
5	10003-PM2-G53	General assy. - CYLINDER HEAD
6	20011-PL3-C41	Transmission assy - L3-020
6	20021-PL4-S80	Transmission assy - L4-050

Glove box 8

#	OEM	部品名
1	66405-SD4-000	Stay - GLOVE BOX HINGE
2	66417-SB3-670	Rubber - GLOVE BOX STOPPER
3	66418-SB2-000	Stopper - GLOVE BOX LID
4	66430-SB2-000	Striker assy - GLOVE BOX
7	77551-SH3-A00	Frame - GLOVE BOX
8	90133-SH3-000	Bolt-washer - 5X16
9	90140-SH3-003	Bolt-washer - 5X18
10	90305-SA0-000	Nut - FLOATING, 4MM

Grommet 22

#	OEM	部品名
1	38565-671-000	Grommet - WASHER HOSE
1	91617-SB6-000	Grommet - WASHER HOSE, 32MM
5	70566-SE7-000	Seal - CENTER PILLAR INNER
6	72206-SH3-000	Cap - FLOOR HOLE
7	72207-SB2-000	Cap - FLOOR HOLE, 24MM
8	72207-SH3-000	Cap - FLOOR HOLE
9	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
10	75826-634-300	Seal - INSIDE PANEL, 15MM
11	82871-671-000	Grommet - DRAIN HOLE, 25MM
13	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
14	90851-SB2-000	Plug - AIR CONDITIONER HOLE
15	90852-SA5-000	Plug - HOLE, 10MM
16	90852-671-003	Plug - HOLE
18	91518-SH3-003	Plug - HOLE, 7MM
19	91604-SD2-013	Grommet - HOOD STAY
20	91604-SH3-003	Grommet - CLUTCH HOLDER
21	91610-SB2-003	Plug - HOLE, 16.7MM (BLACK)
22	91614-SA5-000	Grommet - HEATER LEVER HOLE (20MM)
24	91615-SH3-000	Cap - FLOOR HOLE, 49MM
25	91616-SH3-000	Seal - FR. PILLAR INNER LOWER (110X110)
27	91617-SH3-000	Seal - HOLE
28	91629-SE0-003	Plug - BLIND, 14MM

Headlight (2) 11

#	OEM	部品名
2	33100-SH3-B03	Headlight assy - R.
3	33101-SH3-B01	Headlight unit - R.
4	33115-692-741	Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN)
5	33126-SH3-003	Cover - RUBBER
6	33140-SH3-A00	Bracket - R. HEADLIGHT ADJUSTER
7	33143-SH3-003	Plate - R.
8	33150-SH3-B03	Headlight assy - L. (###)
9	33151-SH3-B01	Headlight unit - L.
10	33190-SH3-A00	Bracket - L. HEADLIGHT ADJUSTER
11	33193-SH3-003	Plate - L.
12	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Headliner trim 5

#	OEM	部品名
2	74306-SH4-010	Molding assy. - R. ROOF
4	74308-SH3-003	Clip A - ROOF MOLDING (BLACK)
5	74316-SH4-010	Molding assy. - L. ROOF
6	74318-SH3-003	Clip b - ROOF MOLDING (BLUE)
12	91561-SH3-003	Clip - LINING

Heater blower 9

#	OEM	部品名
1	39242-671-000	Fan - HEATER
2	39246-671-003	Clamp - CASE HOLD
3	79300-SH3-G02	Blower assy
4	79310-SH3-G02	Motor assy.
5	79316-SF1-G01	Cover - MOTOR
6	79330-SH3-003	Resistor - BLOWER
7	90307-SA0-003	Nut - FLANGE, 5MM
8	90501-671-003	Washer - SPECIAL
9	90156-SH3-000	Bolt-washer - 6X24

Heater control 31

#	OEM	部品名
1	35505-692-003	Bulb - 14V 1.4W
2	90689-SD2-000	Grommet - WATER VALVE CABLE
3	77671-SE3-003	Washer - LINK
4	79510-SH3-A01	Control comp. - HEATER
5	79511-SH3-000	Base - HEATER CONTROL
6	79514-SH3-000	Plate - HEATER CONTROL SETTING
7	79516-SH3-000	Plate - TEMPERATURE CLICK
8	79517-SD4-000	Mount - CONTROL SHAFT
9	79519-SH3-010	Gear - CONTROL SHAFT
10	79521-SH3-A00	Lever - MODE CONTROL
11	79522-SD4-000	Roller - LEVER
12	79522-SH3-000	Lever - TEMPERATURE CONTROL
13	79523-SH3-A00	Lever - FRESH & RECIRCULAR CONTROL
14	79524-SD4-000	Collar - CONTROL SHAFT
15	79525-SH3-010	Link - TEMP CONTROL
16	79526-SD4-000	Shaft comp. - CONTROL
17	79529-SH3-000	Stopper - CONTROL LEVER
18	79535-SF4-000	Spring - HEATER CONTROL
19	79541-SH3-A00	Cable - MODE CONTROL
20	79542-SH3-A00	Cable - TEMPERATURE CONTROL
21	79543-SH3-A00	Cable - FRESH & RECIRCULAR CONTROL
22	79544-SH3-A00	Cable - WATER VALVE CONTROL
23	79550-SH3-A52	Illumination assy. - HEATER (AIR CONDITIONER)
23	79550-SH3-A02	Illumination assy. - HEATER
24	79552-SH3-013	Lid - AIR CONDITIONER SWITCH
25	79570-SH3-004	Switch assy - HEATER FAN (TEC)
25	79570-SH3-003	Switch assy - HEATER FAN (ALPS)
26	79581-SH3-G00	Knob - HEATER CONTROL
27	79582-SH3-000	Knob - TEMPERATURE CONTROL
28	90102-SA4-000	Screw - TAPPING, 4X16
29	90107-SA5-000	Screw - TAPPING, 4X12

Heater unit 11

#	OEM	部品名
2	79100-SH4-A03	Heater unit
3	79105-SH4-A02	Cover - HEATER
4	79110-SH3-A01	Core comp - HEATER
5	39246-671-003	Clamp - CASE HOLD
6	79181-SH3-A01	Lever a - MODE
8	79182-SH3-A01	Lever b - MODE
10	79183-SH3-003	Lever c - MODE
11	79186-SH3-A01	Lever - DEFROSTER
12	79188-SH3-003	Lever b - AIR MODE
14	80789-SH3-003	Holder - ROD
15	90156-SH3-000	Bolt-washer - 6X24

High tension cord/ spark plug 11

#	OEM	部品名
2	32701-PM1-B00	Cord comp - RESISTANCE (NO.1)
3	32702-PM1-B00	Cord comp - RESISTANCE (NO.2)
4	32703-PM1-B00	Cord comp - RESISTANCE (NO.3)
5	32704-PM1-B00	Cord comp - RESISTANCE (NO.4)
6	32722-PM1-B01	Cord comp - HIGH TENSION
7	32763-PM3-000	Clamp c - HIGH TENSION CORD
8	32764-PM3-000	Clamp d - HIGH TENSION CORD
9	32765-PM3-000	Clamp a - HIGH TENSION CORD
10	32766-PM3-000	Clamp b - HIGH TENSION CORD
11	32777-695-000	Clamp - HIGH TENSION CORD
12	90003-PJ7-000	Bolt-washer - 8X28

Hood 42

#	OEM	部品名
3	60127-SH4-000	Stopper - R. HOOD HINGE
4	60128-SH4-000	Stopper - L. HOOD HINGE
6	60658-SB3-000	Cap - AIRSCOOP
6	60658-SD2-000	Cap - AIRSCOOP GARNISH
7	61210-SH4-G00	Cowl top assy.
8	61213-SH4-300	Cover - R. HOOD HINGE
9	61214-SH4-300	Cover - L. HOOD HINGE
10	61215-SH4-300	Seal a
11	61218-SH3-A01	Valve - DRAIN
12	61220-SH3-A01	Cap - WINDSHIELD LOWER
13	61230-SH3-A00	Guide - FRESH AIR
14	74134-SH3-003	Grommet - HOOD WIRE
15	74120-SH3-A01	Lock assy - HOOD
16	74130-SH3-A01	Wire comp - HOOD
17	74131-SH3-A01	Cover - HOOD WIRE
18	74132-SH3-A01	Lever assy. - HOOD WIRE
20	74142-SH4-000	Rubber - FR. HOOD SEAL
21	74143-SH3-000	Rubber - RR. HOOD SEAL
22	74144-SE0-000	Cushion - HOOD
23	74145-SH3-A00	Stay - HOOD OPENER
24	74177-SD4-000	Cushion a - HOOD
25	74180-SH4-A02	Striker assy - HOOD
26	75125-SH4-A03	Molding - HOOD PROTECTOR
27	74230-SH4-A00	Guide - WINDSHIELD LOWER WATER
28	74232-SH3-003	Cap - WATER GUIDE
29	75101-SH4-A00	Grille - FR.
30	90102-SB3-000	Bolt - HINGE STOPPER
31	90127-SA0-000	Bolt-washer - 6X16
32	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
33	90307-SD2-A00	Nut - CAP, 6MM
34	90502-SH4-000	Shim - HOOD HINGE
35	90651-689-003	Clip - FR. GRILLE
36	90107-SM4-003	Clip - HOOD SEAL
37	90671-SH3-003	Holder - HOOD OPENER STAY
39	91513-SD2-003	Clip - HOOD WIRE
40	91513-SH3-000	Clip c - HOOD
40	91513-SH3-003	Clip c - HOOD
41	91514-SH3-013	Clip - FRESH AIR GUIDE
42	91515-SH3-003	Clip - WATER GUIDE
43	91517-SH3-003	Grommet - SCREW, 4MM
44	91604-SD2-013	Grommet - HOOD STAY
45	91635-SE0-003	Grommet - SCREW, 5MM

Install pipe/tubing (2) 11

#	OEM	部品名
1	17363-PM3-000	Clamp - TUBE, 7.5X2
3	17370-PM2-G51	Thermovalve - 45C
4	17400-PM2-E00	Pipe a - INSTALL
5	17405-PM2-G00	Pipe b - INSTALL
6	36010-PE0-004	Joint - THREE WAY
7	36135-PB1-004	Valve - DASHPOT CHECK
8	36145-PA6-661	Valve - CHECK
8	36145-PM4-004	Valve - CHECK
9	90092-657-000	Screw-washer - 5X8
10	90634-PA0-000	Cap - SEALING
11	17417-PM4-000	Tube comp

Instrument panel (LH) 37

#	OEM	部品名
1	39700-SH3-G06	Clock assy - DIGITAL (JECO)
1	39700-SH3-G05	Clock assy - DIGITAL (NS)
1	39700-SH3-G08	Clock assy - DIGITAL (JECO)
1	39700-SH3-G07	Clock assy - DIGITAL (NS)
4	66161-SB2-000	Label - COIN
7	66418-579-000	Stopper - GLOVE BOX LID
9	75522-611-000	Grommet - SCREW, 4MM
12	77105-SH3-010	Blind - INSTRUMENT
19	77140-SH3-A02	Frame assy - INSTRUMENT
20	77142-SH3-000	Pipe - INSTRUMENT SIDE
21	77143-SH3-A01	Bracket - INSTRUMENT PASSENGER SIDE
22	77145-SH3-A01	Bracket - INSTRUMENT DRIVER SIDE
23	77151-SH3-A03	Frame - FR. CONSOLE INSTRUMENT CENTER
26	77174-SH4-A01	Stay - VISOR
27	77176-SH4-010	Frame - R. METER
28	77177-SH4-010	Frame - L. METER
29	77180-SH4-010	Bracket - INSTRUMENT CENTER LOWER
30	77186-SH3-000	Cushion - INSTRUMENT PANEL
36	77230-SE3-A02	Lid assy - AUDIO HOLE
37	77233-SH3-A01	Panel - RADIO
41	77355-SH4-000	Blind - COLUMN
49	77762-SD4-000	Label - FUSE
50	90102-SA4-000	Screw - TAPPING, 4X16
51	90105-SA7-000	Screw-washer - 4X16
52	90105-634-000	Bolt-washer (8x20)
53	90128-SA7-000	Bolt-washer - 6X25
54	90139-SH3-003	Bolt-washer - 6X20
55	90157-SA0-000	Bolt-washer - 8X25
56	90302-SA4-003	Nut - SPRING, 4MM
57	90310-SB2-003	Nut - SPEED
58	90334-SH3-000	Nut - SPRING, 4MM
59	90650-SE3-000	Clip - RADIO PANEL
61	90659-SA5-003	Grommet - SCREW, 4MM
63	90666-SD4-000	Clip - PILLAR LINING
64	90666-SD4-003	Clip - FITTING
66	90669-SH3-000	Clip - LOWER COVER
67	90681-693-000	Grommet - SCREW, 4MM

Intake manifold (2) 28

#	OEM	部品名
1	11856-PM4-000	Tube - PCV
2	11857-PM4-003	Clamp - PCV TUBE
3	16211-PR6-000	Insulator comp.
3	16211-PM4-000	Insulator comp. - CARBURETOR
4	16240-PC6-020	Band - CARBURETOR INSULATOR
4	16240-PR6-000	Band - CARBURETOR INSULATOR
5	16700-PM3-000	Pump assy. - FUEL
6	16701-PM3-010	Insulator comp. - FUEL PUMP
7	17000-PM2-G01	Manifold assy - INTAKE
8	17102-PM2-G00	Bolt - SEALING (PT 3/8)
9	17105-PM2-004	Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS)
9	17105-P00-T03	Gasket - INTAKE MANIFOLD (ISHINO GASKET)
9	17105-P00-T02	Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS)
9	17105-P00-T01	Gasket - INTAKE MANIFOLD (ISHINO GASKET)
9	17105-PM2-003	Gasket - INTAKE MANIFOLD (ISHINO GASKET)
10	17130-PM3-G01	Valve assy. - PCV
11	17132-PM4-000	Stay comp - CARBURETOR
12	17207-PM4-000	Mounting - CARBURETOR
13	17208-PC6-000	Washer - PLAIN
14	17209-PC6-000	Collar - MOUNTING
15	17365-PM3-000	Stay - VACUUM CONTROL TUBE CLAMP
16	19508-PM4-000	Hose - BYPASS OUTLET
18	90063-PC6-000	Bolt - STUD, 6X25
19	90100-PR6-000	Screw - PAN, 6X32
19	90100-PC6-000	Screw - PAN, 6X28
20	91301-PB9-000	O-ring - 51.6X2.4
21	91405-679-004	Clamp - TUBE (D17)
21	91405-PM5-004	Clamp - TUBE (D17)

Interior light/switchs 20

#	OEM	部品名
3	34252-SB2-003	Lens - DAIICHI
4	34252-692-003	Lens - DAIICHI) (SUNROOF
5	34253-671-003	Bulb - 12V 8W)(DAIICHI
5	04110-SWA-305	BULB T10X318W
6	34260-SA0-013	Light assy - TRUNK ROOM
7	34262-SA0-003	Lens
8	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
9	34295-538-003	Bulb - 12V 5W) (DAIICHI
9	34295-SD4-003	Bulb - 12V 5W.K
11	35145-SH4-A01	Frame - THREE KEY
12	35146-SH3-003	Lid
14	35171-SH3-G01	Switch assy - RR. FOG
15	35190-SH3-003	Switch assy - REMOTE CONTROL MIRROR
16	35409-SD2-003	Screw - EARTH, 4X12 (ZN)
17	35460-SB2-731	Switch assy - HEADLIGHT WIPER
19	35500-SH3-013	Switch assy - RR. DEFOGGER
21	35510-SH3-A02	Switch assy - HAZARD (A) (TEC)
24	35830-SH3-003	Switch assy - ROOF
25	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
28	90152-SE0-003	Nut - EARTH, 5MM (ZN)

Knuckle 33

#	OEM	部品名
1	44300-SB2-966	Bearing assy - FR. HUB (TOYO SEIKO)
1	44300-SB2-962	Bearing assy - FR. HUB (FUJIKOSHI)
1	44300-SB2-963	Bearing assy - FR. HUB (KOYO SEIKO)
1	44300-SX8-004	Bearing assy - HUB
2	44348-SH3-000	Ring - FR. KNUCKLE
3	44610-SH3-981	Hub - FR.
4	45251-SB2-752	Disk - FR. BRAKE
5	45255-SH3-030	Guard - FR. BRAKE SPLASH
5	45255-SH3-040	Guard - FR. BRAKE SPLASH
6	51210-SH3-030	Knuckle comp - R. FR.
7	51213-SE0-000	Protector - KNUCKLE
8	51215-SH3-030	Knuckle comp - L. FR.
9	51220-SH0-A01	Joint comp - LOWER BALL (TECHNICAL AUTO PARTS)
9	51220-SK7-003	Joint comp - LOWER BALL (MUSASHI)
10	51225-SH0-A01	Boot - LOWER BALL DUST (TECHNICAL AUTO PARTS)
10	51225-SB0-003	Boot - LOWER BALL DUST (MUSASHI)
11	51450-SH3-A02	Arm assy. - R. FR. UPPER
12	51455-SH3-005	Bush - FR. UPPER ARM
13	51460-SH3-A02	Arm assy. - L. FR. UPPER
14	51464-SK7-003	Boot - UPPER BALL JOINT
15	51467-SH3-003	Circlip - UPPER BALL JOINT
16	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
16	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
16	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
17	90114-SB0-000	Bolt-washer - 6X12
18	90185-SH3-000	Bolt - UPPER ARM
19	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
20	90305-692-010	Nut
21	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
22	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
23	90363-SF1-000	Nut - CASTLE, 12MM
24	90653-SB0-000	Circlip - EXTERNAL, 40MM
25	91055-SB2-960	Circlip - INTERNAL, 72MM

Main valve body 35

#	OEM	部品名
1	24461-PA9-010	Spring - ROLLER
2	24471-PN6-000	Roller - 6X16
3	25145-PA9-010	Shaft - OIL PUMP GEAR
4	27105-PP6-842	Body sub assy. - MAIN VALVE
5	27112-PP6-903	Plate - MAIN SEPARATING
6	27122-PA9-000	Cover - SHIFT VALVE
7	27122-PC9-000	Cover - SHIFT VALVE
8	27255-PC9-710	Spring - TORQUE CONVERTER CHECK VALVE
9	27256-PA9-000	Valve - RELIEF
10	27256-639-000	Valve - TORQUE CONVERTER CHECK
11	27257-PG4-000	Spring - RELIEF VALVE
12	27258-680-900	Seat - RELIEF VALVE SPRING
13	27300-PL4-901	Governor assy.
14	27310-PL4-000	Holder comp - GOVERNOR
15	27312-PA9-000	Pipe - 5X65
16	27312-PL4-000	Plate - GOVERNOR HOLDER SEPARATOR
17	27313-PF4-000	Filter - GOVERNOR
18	27314-PC9-000	Plate - GOVERNOR
19	27315-PH0-030	Body assy - GOVERNOR
20	27341-PF0-020	Shaft - GOVERNOR
21	27342-PL4-000	Gear - GOVERNOR
22	27350-PL4-000	Body - BYPASS
23	27352-PL4-000	Cover - BYPASS BODY
24	27370-PF4-000	Filter assy - EX.
25	27415-PF4-000	Valve - SECOND ORIFICE CONTROL
26	27417-PL4-000	Spring - SECOND ORIFICE CONTROL VALVE
27	27419-PF4-000	Cap - SECOND ORIFICE CONTROL VALVE
28	27421-PP6-000	Valve - MANUAL
29	27511-PC9-000	Sleeve - SHIFT VALVE
30	27750-PF4-000	Filter - SECONDARY BODY
31	90433-PF4-000	Washer - LOCK, 6MM
32	90433-639-000	Washer - LOCK, 6MM
33	90451-PC9-000	Washer - THRUST, 14MM
34	90741-PA9-000	Key - WOODRUFF, 3MM
35	91704-PF4-000	Dowel pin - 8X40

Mainshaft 40

#	OEM	部品名
1	22814-PA9-023	Ring - SEALING, 32MM
2	23210-PL4-850	Mainshaft comp.
3	23411-PL4-000	Gear - MAINSHAFT LOW
4	23431-PH0-670	Gear - MAINSHAFT SECOND
5	23461-PL4-850	Gear - MAINSHAFT FOURTH
6	90201-PL4-000	Nut - FLANGE, 19MM
7	90406-PH0-000	Washer - THRUST, 28X40X1.5
8	90407-PL4-000	Washer - THRUST, 26X53X4.5
9	90417-PC9-000	Washer - 26X45X3
10	90422-PL4-000	Washer - THRUST, 23X48.5X2.5
11	90446-PC9-010	Washer - THRUST, 36.5X51X3.75
11	90441-PC9-010	Washer - THRUST, 36.5X51X3.50
11	90448-PC9-010	Washer - THRUST, 36.5X51X3.85
11	90443-PC9-010	Washer - THRUST, 36.5X51X3.60
11	90445-PC9-010	Washer - THRUST, 36.5X51X3.70
11	90447-PC9-010	Washer - THRUST, 36.5X51X3.80
11	90442-PC9-010	Washer - THRUST, 36.5X51X3.55
11	90449-PC9-010	Washer - THRUST, 36.5X51X3.90
11	90444-PC9-010	Washer - THRUST, 36.5X51X3.65
12	90502-PH0-000	Collar - MAINSHAFT FOURTH GEAR
13	90506-PL4-000	Collar - DISTANCE, 20MM
14	90508-PH0-000	Collar - 23MM
15	90603-689-900	Circlip - EXTERNAL, 20MM
16	90613-PA9-000	Ring - SNAP, 26MM
17	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)
18	91011-428-008	Bearing - NEEDLE, 20X26X20
18	91011-P48-008	Bearing - NEEDLE, 20X26X20
19	91012-PH0-003	Bearing - NEEDLE, 28X33X16.8 (NTN)
20	91018-PA9-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
20	91018-P56-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
21	91019-PL4-003	Bearing - THRUST NEEDLE, 35X49X2
22	91023-PS5-003	Bearing - THRUST NEEDLE, 36X52X2 (NTN)
23	91024-PF4-003	Bearing - NEEDLE, 32X38X14 (NTN)
24	91026-PS5-003	Bearing - THRUST NEEDLE, 42X58X2 (TOYO)
25	91028-PL4-003	Bearing - NEEDLE, 36X41X14.8
26	91031-PC9-003	Bearing - THRUST NEEDLE, 39X54X2 (NTN)
26	91031-PC9-006	Bearing - THRUST NEEDLE, 39X54X2 (NIPPON SEIKO)
26	91031-PC9-005	Bearing - THRUST NEEDLE, 39X54X2 (KOYO)
27	91307-PA9-003	O-ring 31.2X1.9 (ARAI)
28	91308-PH0-013	O-ring - 17.8X1.9 (NOK)

Mainshaft/gears 15

#	OEM	部品名
1	23210-PL3-C00	Mainshaft comp.
2	23261-PL3-000	Shaft - REVERSE GEAR
3	23441-PL3-900	Gear - MAINSHAFT THIRD
4	23451-PL3-901	Gear - MAINSHAFT FOURTH
5	23540-PL3-000	Gear comp - REVERSE IDLE
6	23581-PL3-901	Gear - MAINSHAFT FIFTH
7	23623-PL3-305	Sleeve set - SYNCHRONIZER (3-4)
8	23626-PL3-315	Sleeve set - SYNCHRONIZER (5)
9	23915-PL3-A00	Collar - DISTANCE, 27X34X32X55
10	23927-PL3-000	Washer - SPRING, 36MM
11	23928-PL3-000	Washer - 26MM
12	91004-PL3-A03	Bearing - RADIAL BALL, 22X65X17/18 (NTN)
13	91106-PL3-008	Bearing - NEEDLE, 34X39X23
14	91107-PL3-018	Bearing - NEEDLE, 34X39X27.5
15	91108-PL3-008	Bearing - NEEDLE, 32X37X23.5 (NTN)

Master power 14

#	OEM	部品名
1	06464-SH3-000	Power set - MASTER (8")
2	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
3	46191-634-000	Gasket - MASTER CYLINDER BRACKET
4	46400-SH3-A02	Power assy. - MASTER (8")
6	46403-SE0-003	Valve comp. - CHECK (NISSIN)
7	46404-SH3-G10	Tube a - MASTER POWER
9	46405-SH3-G11	Tube b - MASTER POWER
12	46406-SH3-020	Stay - MASTER POWER TUBE
14	46431-692-003	Spring - VALVE
15	46432-SA0-003	Spring - POPPET
16	46433-SB2-003	Rod comp - PUSH
17	46443-692-003	Adjuster - PUSH ROD
18	46512-SB2-000	Pin - PEDAL
19	53729-671-003	Clamp d - 15.5MM

Mirror/sunvisor 33

#	OEM	部品名
5	71835-SA5-933	Cover - GRAB RAIL
6	75353-671-000	Lock - SCREW
7	76200-SH4-G11	Mirror assy - R. DOOR (R.C.)
7	76200-SH4-G31	Mirror assy - R. (R.C.)
8	76200-SH4-G21	Mirror assy - R. DOOR
9	76203-SH3-G01	Mirror - R. (1800C)
10	76203-SH3-G11	Mirror - R. (1800C)
11	76220-SH4-000	Garnish - R. DOOR MIRROR
12	76220-SH4-900	Garnish - R. DOOR MIRROR (R.C.)
13	76250-SH4-G31	Mirror assy - L. (R.C.)
13	76250-SH4-G11	Mirror assy - L. DOOR (R.C.)
14	76250-SH4-G21	Mirror assy - L. DOOR
15	76253-SH3-G01	Mirror - L. (1800C)
16	76253-SH3-G11	Mirror - L. (1800C)
17	76270-SH4-000	Garnish - L. DOOR MIRROR
18	76270-SH4-900	Garnish - L. DOOR MIRROR (R.C.)
20	76401-SH3-901	Base - STAY (MATSUYAMA)
21	76403-SH4-000	Holder - RR. VIEW MIRROR
26	83241-SH4-960	Bracket - R. FR. GRAB RAIL (SUNROOF)
27	83242-SH3-000	Bracket - R. RR. GRAB RAIL (SUNROOF)
29	83248-SG0-003	Spacer - GRAB RAIL
31	83292-SH3-000	Bracket - L. RR. GRAB RAIL (SUNROOF)
34	88147-SA5-003	Washer - TOOTHED (MATSUYAMA)
35	88148-SE0-003	Bolt - LOCK, 6X7 (MATSUYAMA)
36	88154-SA7-003	Knob - DOOR MIRROR (MATSUYAMA)
37	88159-SA7-003	Cap - DOOR MIRROR KNOB (MATSUYAMA)
39	90110-SA7-003	Screw-washer - 3X16 (MATSUYAMA)
40	90131-SH3-A12	Screw - PAN, 5X16
41	90131-SH3-G12	Screw - FLAT, 5X20
42	90133-SE3-003	Bolt-washer - 5X25
43	90195-SA0-000	Screw-washer - 6X20
44	91610-SH3-003	Grommet - MIRROR GARNISH
47	90145-SH3-003	Screw-washer - 5X12

Oil pump 24

#	OEM	部品名
2	11311-PM3-000	Cover - BREATHING PORT
3	15100-PM3-010	Pump assy. - OIL
4	15110-PM3-010	Body - OIL PUMP
5	15112-PM3-000	Cover - OIL PUMP
6	15131-PM3-004	Rotor - PUMP INNER (YAMADA)
6	15131-PM3-010	Rotor - PUMP INNER
7	15132-PE0-003	Rotor - PUMP OUTER (SUMITOMO)
7	15132-PE0-004	Rotor - PUMP OUTER (YAMADA)
8	15220-PM3-000	Strainer comp. - OIL
9	15221-PM3-000	Gasket - OIL STRAINER
10	15231-PM3-000	Valve - RELIEF
11	15232-PM3-000	Spring - RELIEF VALVE
12	15233-PM7-000	Bolt - SEALING, 14MM
13	15301-PE0-300	Bolt - SEALING, 14MM
14	15302-PE0-300	Washer - SEALING, 14MM
15	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)
15	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
15	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)
16	15400-PR3-305	Cartridge set - OIL FILTER (TOYO ROKI)
19	90015-PH1-013	Holder - OIL FILTER
20	90020-PE0-000	Bolt - STUD, 8X28
21	90041-PA5-000	Bolt - STUD, 6X28
22	91212-PE1-721	Oil seal - 31X46X8
23	91307-PE0-010	O-ring - 25X2.4

P.s. gear box (LH) 31

#	OEM	部品名
1	53411-SH3-950	Tube - AIR TRANSFER
2	53434-SD9-000	Clip - TIE ROD
2	53434-S04-J51	CLIP, TIE ROD
3	53436-SH3-950	Cushion b - POWER STEERING GEAR BOX
4	53438-SH3-950	Bracket - POWER STEERING GEAR BOX
5	53446-SK7-950	Rubber - BAND (T)
6	53447-SH3-950	Band - TRANSFER TUBE
8	53448-SH3-950	Clip - TRANSFER TUBE
9	53449-SE0-000	Band - BELLOWS
10	53459-SH3-A50	Stay - TRANSFER TUBE
11	53501-SH3-000	Grommet a - STEERING
12	53502-SH3-010	Grommet b - STEERING
13	53503-SH3-000	Spacer - STEERING GROMMET
14	53521-SH3-003	End comp - RACK
15	53534-SA5-951	Dust seal comp. - TIE ROD
16	53535-SB3-000	Washer - TIE ROD STOPPER
17	53536-SB2-000	Washer - TIE ROD LOCK
18	53540-SH3-013	End comp - R. TIE ROD
19	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
20	53560-SH3-013	End comp - L. TIE ROD
21	53601-SH3-G02	Box assy - POWER STEERING GEAR
21	53601-SH3-G01	Box assy - POWER STEERING GEAR
21	53601-SH3-G00	Box assy - POWER STEERING GEAR
22	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
23	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
24	53692-SH3-A54	Guard - POWER STEERING GEAR BOX SPLASH
25	53760-SA5-950	Rubber - GEAR BOX SEAL
26	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)
27	90320-SF4-000	Nut - CASTLE, 10MM
27	90320-SF1-000	Nut - CASTLE, 10MM
28	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)

P.s. gear box components (LH) 62

#	OEM	部品名
2	53412-634-000	O-ring - RACK GUIDE (YAMADA)
3	53413-SH3-950	Spring - RACK GUIDE PRESSURE
4	53414-634-010	Screw - RACK GUIDE
5	53416-SD4-953	Guide - STEERING RACK
6	53426-SE0-951	Dust seal - STEERING PINION
7	53458-SE0-003	Nut - RACK SCREW LOCK
7	53458-S01-A51	Nut - LOCK
8	53608-SH3-A53	Housing sub assy. - STEERING GEAR BOX (###)
9	53611-SH3-951	Cylinder comp
10	53612-SH3-950	Barrel - CYLINDER
11	53613-SK7-950	Retainer - PACKING
12	53614-SH3-950	Cap - CYLINDER (HF)
12	53614-SH3-N51	Cap - CYLINDER (SGN)
13	53615-SD4-950	Washer - RETAINER
14	53617-SF1-950	Port - ORIFICE
15	53622-SH3-A51	Pinion - STEERING
16	53625-SE0-950	Cap - GEAR BOX HOUSING
17	53626-SH3-A52	Rack comp - STEERING
19	53629-SD4-952	Ring - PISTON SEAL
20	53630-SD4-950	Spring - CYLINDER
21	53631-SD4-951	Bush a - STEERING RACK
22	53632-SF1-950	Bush b - STEERING RACK
23	53633-SK7-951	Packing - CYLINDER END (NOK)
23	53633-SD4-953	Packing - CYLINDER END (NOK)
24	53634-SF1-951	Clip - BUSH STOPPER
25	53640-SH3-G00	Body unit - VALVE
25	53640-SH3-G01	Body unit - VALVE
26	53643-SH3-A51	Port comp. - VALVE
27	53645-SH3-A51	Cap - VALVE BODY
28	53646-SK7-950	Spool comp. - FOUR WAY
29	53651-SB4-950	Spool comp. b - CUT-OFF (-0.005 / 0)
30	53653-SK7-950	Spring - CUT-OFF
31	53659-SA5-951	Orifice - DAMPING
32	53660-SA5-952	Seal - PORT
33	53661-SB4-951	Seal - CAP
34	53666-SA5-671	Plunger - DIAMETER=8MM
35	53667-SA5-670	Spring - RETURN
36	90103-SB4-950	Bolt - POWER STEERING
37	90684-SD4-950	Ring - SNAP, 31MM
38	90693-SE0-951	Circlip - INTERNAL, 28MM
39	90697-SE0-951	Circlip - EXTERNAL, 30MM
40	91052-SD4-J62	Bearing - 6906Z
41	91053-SD4-J61	Bearing - 6001Z
42	91103-429-000	Dowel pin - 8X10
43	91154-SA5-952	Roller - 3.5X29.8
44	91202-SD4-951	Ring - BACK UP
45	91350-671-003	O-ring - 3.4MM (ARAI)
45	91305-MCJ-751	O-ring (3.2x1.1)
45	91350-671-004	O-ring - 3.4MM (NOK)
46	91352-SF4-951	O-ring - 9.8X1.9 (NOK)
46	91318-PT0-003	O-ring - 9.8X1.9 (NOK)
47	91353-SA5-951	O-ring - 11X1.9 (ARAI)
48	91354-SD4-952	O-ring - 27.5X2 (ARAI)
48	91354-SD4-951	O-ring - 27.5X2 (NOK)
49	91355-SD4-954	O-ring - 37X1.5 (ARAI)
49	91355-SD4-953	O-ring - 37X1.5 (NOK)
50	91356-SD4-953	O-ring - 31.5X2.4 (NOK)
51	91360-SD4-952	O-ring - 50X2.4 (ARAI)
51	91360-SD4-951	O-ring - 50X2.4 (NOK)
52	91361-SA5-951	O-ring - 46X1.5 (ARAI)
52	91361-SA5-952	O-ring - 46X1.5 (NOK)
53	91362-SE0-951	O-ring - 45.5X2 (ARAI)

P.s. line (LH) 29

#	OEM	部品名
1	46217-579-000	Clip - TUBE
2	53697-SB3-952	Cap - OIL TANK
3	53701-SH3-953	Tank comp. - POWER STEERING OIL
4	53710-SH3-950	Cushion - TANK BRACKET
5	53711-SH3-951	Bracket assy - OIL TANK
6	53713-SH3-A54	Hose comp. - FEED
7	53720-SH3-A53	Pipe comp - RETURN, 10MM
8	53724-SH3-A52	Pipe comp - RETURN, 6MM
9	53727-SH3-951	Clip - SUCTION TUBE
10	53728-SF1-951	Clip - RETURN PIPE
11	53728-SH3-951	Clip - POWER STEERING PIPE
12	53729-671-003	Clamp d - 15.5MM
13	53730-SH3-952	Pipe comp - POWER STEERING COMBINATION RETURN
14	53731-SH3-952	Tube - SUCTION
15	53732-SH3-J50	Hose - COMBINATION RETURN
16	53733-SH3-950	Tube - POWER STEERING OIL TANK
17	53734-SH3-950	Tube - OIL COOLER
18	53735-SH3-950	Hose - OIL COOLER
18	53735-SH3-505
19	53736-SH3-950	Holder b - POWER STEERING PIPE
20	53738-SH3-950	Rubber b - GUIDE
21	53739-SH3-971	Clamp - RETURN HOSE
22	53748-671-000	Rubber - MOUNTING
23	53750-SH3-J50	Stay - RETURN HOSE
24	53765-SH3-A61	Cooler comp - POWER STEERING OIL
25	53775-SH3-952	Clamp - FEED HOSE
26	90854-671-000	Collar - OIL PUMP
27	91370-SB3-950	O-ring - 8.8X1.9
28	91462-SA5-950	Clamp d - 19MM

P.s. pump 28

#	OEM	部品名
2	56110-PM3-030	Pump sub assy - POWER STEERING
3	56250-PM3-010	Cover comp. - FR. PUMP (###)
4	56305-PM7-000	Fitting - OUTLET (###)
5	56350-PC1-010	Spool assy. - A) (-0.005 / 0) (###
5	56360-PC1-010	Spool assy. - B) (0 / +0.006) (###
6	56385-PC1-000	Spring - SPOOL (###)
7	56470-PM3-000	Fitting comp. - INLET
8	56480-PC1-040	Pulley assy - POWER STEERING PUMP
9	56992-PM3-004	Belt - POWER STEERING PUMP (MITSUBOSHI)
9	56992-PM3-003	Belt - POWER STEERING PUMP (BANDO)
10	56997-PM3-010	Bracket - POWER STEERING PUMP
11	90001-PE0-000	Bolt - FLANGE, 6X72
12	90004-PC6-000	Bolt - SPECIAL, 8MM
13	90004-PR3-000	Bolt - SPECIAL, 8MM
14	90701-679-000	Dowel pin - 8X10
15	91201-PC1-004	Oil seal - 16X30X7 (ARAI)
15	91201-PC1-003	Oil seal - 16X30X7 (NOK)
16	91303-PH1-003	Seal - HOUSING (NOK)
16	91303-PH1-004	Seal - HOUSING (ARAI)
17	91307-PH1-004	Seal - PLUNGER
18	91312-PM7-003	O-ring - 12.3X1.9 (NOK)
18	91312-PM7-004	O-ring - 12.3X1.9 (ARAI)
19	91316-PB2-003	O-ring - 14.5X1.5 (NOK)
19	91312-PC9-004	O-ring - 14.5X1.5
19	91316-PB2-004	O-ring - 14.5X1.5 (ARAI)
20	91316-PJ7-004	O-ring - 19.8X1.9 (ARAI)
20	91316-PJ7-003	O-ring - 19.8X1.9 (NOK)
20	91353-KM1-004	O-ring a (19.8x1.9)

Parking brake 13

#	OEM	部品名
3	47142-659-310	Knob - PARKING BRAKE PUSH ROD
4	47143-671-310	Spring - PUSH ROD
5	47342-SA5-013	Switch - PARKING BRAKE
6	47360-SB2-000	Equalizer
7	47365-538-000	Pin - EQUALIZER
8	47510-SH3-013	Wire a - R. PARKING BRAKE (NIPPON CABLE)
10	47511-SH3-300	Bracket - BOOT BASE
11	47513-SH3-300	Boot - BRACKET WIRE
12	47522-594-000	Nut - PARKING BRAKE ADJUSTING
14	47537-671-670	Spring - PARKING BRAKE ROD
15	47560-SH3-013	Wire a - L. PARKING BRAKE (NIPPON CABLE)
17	47572-SH3-000	Base - WIRE GUIDE
19	90105-634-000	Bolt-washer (8x20)

Piston/crankshaft 51

#	OEM	部品名
1	13021-PM0-B02	Ring set - PISTON (OS 0.25) (RIKEN)
1	13011-PM0-B03	Ring set - PISTON (STD.) (TEIKOKU)
1	13031-PM0-B03	Ring set - PISTON (OS 0.50) (TEIKOKU)
1	13011-PM0-B02	Ring set - PISTON (STD.)(RIKEN)
1	13031-PM0-B02	Ring set - PISTON (OS 0.50) (RIKEN)
1	13021-PM0-B03	Ring set - PISTON (OS 0.25) (TEIKOKU)
2	13102-PM2-G01	Piston - OS 0.25
2	13101-PM2-G01	Piston - STD.
2	13103-PM2-G01	Piston - OS 0.50
3	13112-PE0-000	Pin - PISTON
4	13204-PE1-003	Bolt
5	13205-634-010	Nut
5	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)
6	13210-PM1-000	Rod comp - CONNECTING
7	13215-PE0-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13217-PE0-004	Bearing g - CONNECTING ROD (RED) (TAIHO)
7	13213-PE0-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13214-PE0-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
7	13212-PE0-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
7	13216-PE0-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13211-PE0-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13217-PE0-003	Bearing g - CONNECTING ROD (RED) (DAIDO)
7	13213-PE0-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
7	13212-PE0-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13215-PE0-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
7	13216-PE0-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13211-PE0-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13214-PE0-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
9	13321-PC0-014	BEARING A - MAIN (BLUE) (TAIHO)
9	13326-PE0-662	Bearing f - MAIN (PINK) (DAIDO)
9	13324-PE0-662	Bearing d - MAIN (GREEN) (DAIDO)
9	13322-PE0-662	Bearing b - MAIN (BLACK) (DAIDO)
9	13327-PC0-014	Bearing g - MAIN (RED) (TAIHO)
9	13321-PE0-662	BEARING A - MAIN (BLUE) (DAIDO)
9	13325-PC0-014	Bearing e - MAIN (YELLOW) (TAIHO)
9	13323-PC0-014	Bearing c - MAIN (BROWN) (TAIHO)
9	13327-PE0-662	Bearing g - MAIN (RED) (DAIDO)
9	13325-PE0-662	Bearing e - MAIN (YELLOW) (DAIDO)
9	13323-PE0-662	Bearing c - MAIN (BROWN) (DAIDO)
9	13326-PC0-014	Bearing f - MAIN (PINK) (TAIHO)
9	13324-PC0-014	Bearing d - MAIN (GREEN) (TAIHO)
9	13322-PC0-014	Bearing b - MAIN (BLACK) (TAIHO)
10	13331-PD1-003	Washer - THRUST (DAIDO)
10	13331-PD1-004	Washer - THRUST (TAIHO)
11	13621-PM3-013	Pulley - TIMING BELT DRIVE (HITACHI)
12	13622-PM3-020	Plate - TIMING BELT GUIDE
13	56990-PM3-Y01	Pulley - CRANKSHAFT (POWER STEERING)
13	13810-PM3-Y01	Pulley - CRANKSHAFT
15	90017-PJ7-003	Bolt-washer - 14X29
17	90704-634-000	Key - 4.5X11.0
18	13300-PM2-305	Crankshaft set

Radiator (DENSO) 21

#	OEM	部品名
1	19010-PM8-A01	Radiator comp - DENSO
1	19010-PM3-003	Radiator comp - DENSO
1	19010-PM2-G51	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19014-PK1-003	Clip - HARNESS
5	19014-PM3-003	Nut - PLATE (DENSO)
6	19015-PM3-003	Shroud comp - DENSO
6	19015-PM1-G01	Shroud comp - DENSO
8	19020-PM1-G01	Fan comp - COOLING
8	19020-PE0-003	Fan - COOLING (DENSO)
9	19030-PM1-G01	Motor - COOLING FAN (DENSO)
9	19030-PM5-A05	Motor - COOLING FAN
10	19032-PM3-003	Grommet - SHROUD MOUNTING (DENSO)
11	19033-PM3-003	Stay - COUPLER (DENSO)
12	19045-PM3-003	Cap comp - DENSO
12	19045-PR3-004	Cap comp - TOYO
13	90041-PH2-003	Screw-washer - 4X10 (DENSO)
14	90042-PM3-003	Bolt-washer - 6X20 (DENSO)
15	90043-PD2-003	Nut - HEX., 5MM (DENSO)
16	90201-PM3-003	Nut - SQUARE (DENSO)

Radiator (TOYO) 18

#	OEM	部品名
1	19010-PM8-A02	Radiator comp - TOYO
1	19010-PM2-G52	Radiator comp - TOYO
2	19011-PH2-004	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)
4	19014-PM3-004	Nut - SET (M6)
5	19015-PM3-014	Shroud comp - TOYO
6	19017-PK1-004	Clip - HARNESS(T.RAD)
8	19020-PM3-004	Fan comp - COOLING (MITSUBA)
9	19030-PM5-A04	Motor - COOLING FAN (MITSUBA)
10	19032-PM3-004	Grommet - TOYO
11	19033-PM3-004	Stay - COUPLER (TOYO)
12	19045-PM3-004	Cap comp - TOYO
13	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)
14	90041-PM3-004	Screw-washer - 4X12
15	90042-PM3-004	Bolt-washer - 6X20 (TOYO)
15	90042-PZ1-004	Bolt-washer - 6X20
16	90050-PK1-004	Screw-washer - 4X12(T.RAD)
17	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)

Radiator hose 27

#	OEM	部品名
1	19101-PM3-010	Tank - RESERVE
2	19102-PM3-000	Cap - RESERVE TANK
3	19103-PM3-000	Hose - RESERVE TANK
4	19104-PM3-020	Tube - RESERVE TANK
6	19106-PA0-020	Joint - RESERVE TANK
7	19107-PA0-000	Clip - RESERVE TANK JOINT
8	19108-PM0-003	Clamp - RESERVE TANK TUBE (BLACK)
9	19109-PM3-000	Stay - TUBE CLAMP
10	19110-PM3-003	Clamp - RESERVE TANK TUBE
11	19501-PM3-000	Hose - WATER UPPER
12	19502-PM3-000	Hose - WATER LOWER
13	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
14	19519-PM1-003	Clamp - WATER HOSE
14	19519-PM3-013	Clamp - WATER HOSE
15	19519-PM3-901	Clamp - WATER HOSE
16	25212-PJ2-000	Hose - OIL COOLER, 350MM
17	25213-PM0-900	Hose - OIL COOLER, 130MM
18	25214-PM0-900	Hose - OIL COOLER, 230MM
19	25530-PM0-900	Pipe comp - ATF COOLER
20	25962-PM0-901	Clamp - OIL HOSE
22	74171-SH3-010	Bracket - R. RADIATOR MOUNTING UPPER
24	74172-SH3-030	Cushion - RADIATOR MOUNTING LOWER
25	74172-SH3-020	Cushion - RADIATOR MOUNTING LOWER
28	74176-SH3-901	Bracket - L. RADIATOR MOUNT UPPER
29	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
30	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
31	90635-671-000	Clip - OIL HOSE

Radio (2) 9

#	OEM	部品名
2	39100-SE3-Q82	Tuner assy - AUTO RADIO (AM/FM+CASSETTE) (PIONEER)
6	39100-SH4-C01	Tuner assy - AUTO RADIO (AM/FM+CASSETTE) (ALPINE)
10	39103-SE3-Q81	Knob a
12	39103-SM4-C01	Knob - VOLUME
14	39104-SE3-Q81	Knob - SWITCH
15	39104-SM4-C01	Knob - FADER BASS
17	39105-SE3-Q81	Knob - FADER
18	39105-SM4-C01	Knob - BALANCE TREBLE
20	39110-SE3-Q81	Fuse - 4A

Rear brake drum 47

#	OEM	部品名
1	42200-SB2-015	Bearing assy - HUB UNIT (FUJIKOSHI)
1	42200-SB2-018	Bearing assy - HUB UNIT (TOYO SEIKO)
3	42324-SB2-020	Washer - HUB UNIT
4	42326-SB2-000	Cap - HUB UNIT
4	42326-SFA-000	Cap - HUB UNIT
5	42412-SB2-020	Ring - SPINDLE
6	42610-SB2-010	Drum - RR. BRAKE
7	43110-SH3-023	Plate comp - R. RR. BRAKE BACKING
8	43120-SH3-023	Plate comp - L. RR. BRAKE BACKING
9	43153-SH3-G02	Shoe comp - RR. BRAKE
10	43171-SC2-003	Spring a - R. BRAKE
11	43172-SA5-003	Spring b - BRAKE SHOE RETURN
12	43172-SC2-003	Spring a - L. BRAKE
13	43300-SH3-J01	Cylinder assy. - R. RR. WHEEL
14	43301-SH3-J01	Cylinder assy. - L. RR. WHEEL
15	43305-SE1-003	Bolt-washer - 6X12
16	43315-671-631	Cover - DUST
16	43315-SN4-003	Cover - DUST
17	43321-SM4-A01	Piston - WHEEL CYLINDER
18	43322-663-003	Cup - PISTON
19	43323-663-003	Spring - RR. WHEEL CYLINDER
20	43345-SA5-013	Plug - ADJUSTER
21	43352-568-003	SCREW, BLEEDER (NISSIN)
22	43353-548-003	Cap - BLEEDER SCREW
23	43361-SH3-003	Lever - R. PARKING BRAKE
24	43362-SC2-003	Rod a - R. CONNECTING
25	43363-SA5-003	Bolt - R. ADJUSTER
26	43364-SA5-003	Rod b - CONNECTING
26	43364-S5A-003	Rod b - CONNECTING
27	43365-SA5-003	Pin - PARKING BRAKE LEVER
28	43366-SC2-013	Lever comp - R. ADJUSTER
29	43367-SC2-003	Spring - R. ADJUSTER
30	43371-SH3-003	Lever - L. PARKING BRAKE
31	43372-SC2-003	Rod a - L. CONNECTING
32	43373-SA5-003	Bolt - L. ADJUSTER
33	43375-SA0-003	U-clip
34	43376-SC2-013	Lever comp - L. ADJUSTER
35	43377-SC2-003	Spring - L. ADJUSTER
36	43379-SC2-013	Washer - WAVE
37	45172-SB2-661	Spring - SHOE CLAMP
38	45175-SA0-013	Pin - TENSIONER
39	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
39	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
39	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
40	90305-692-010	Nut
41	91252-SB2-013	Seal - HUB UNIT (NOK)
42	90001-SH3-000	Bolt - FLANGE, 10X13

Rear door lining 22

#	OEM	部品名
1	72810-SH4-014	Weatherstrip - R. RR. DOOR (NISHIKAWA)
2	72821-SH4-000	Seal - RR. DOOR HOLE
2	72821-SH4-J00	Seal - R. RR. DOOR HOLE (P.W.)
3	72825-SH4-003	Sub seal - R. RR. DOOR (TOKAI)
4	72827-SH4-003	Clip - SUB SEAL
5	72835-SH4-000	Weatherstrip - R. RR. DOOR INNER
6	72837-SH4-000	Weatherstrip - R. RR. DOOR QUARTER INNER
7	72850-SH4-014	Weatherstrip - L. RR. DOOR (NISHIKAWA)
8	72861-SH4-J00	Seal - L. RR. DOOR HOLE (P.W.)
9	72865-SH4-003	Sub seal - L. RR. DOOR (TOKAI)
10	72875-SH4-000	Weatherstrip - L. RR. DOOR INNER
11	72877-SH4-000	Weatherstrip - L. RR. DOOR QUARTER INNER
13	83508-SH4-000	Bracket - DOOR PULL POCKET
17	90662-SB2-003	Grommet - SCREW, 5MM
18	91560-SD5-003	Clip - LINING
19	91530-SE0-003	Clip A - DOOR WEATHERSTRIP
19	90664-671-003	Clip - CANOE
20	91530-SH4-003	Clip - DOOR WEATHERSTRIP
21	91556-SH3-003	Clip - DRIVE PIN
22	91558-SH3-003	Cap - LINING MOUNTING
23	91642-SH3-013	Grommet - DOOR LINING
24	91660-SH4-000	Grommet - SCREW, 4MM

Rear door locks 22

#	OEM	部品名
1	35765-SH3-013	Sub switch comp. - POWER WINDOW
6	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT
12	72610-SH4-J04	Lock assy - R. RR. POWER DOOR (HONDA LOCK)
14	72615-SH4-J02	Actuator - R. RR. DOOR LOCK
15	72630-SE3-003	Crank assy - R. RR. DOOR LOCK
16	72631-SH4-004	Rod - R. RR. INSIDE HANDLE (HONDA LOCK)
17	72632-SH4-004	Rod - R. RR. DOOR LOCK (HONDA LOCK)
18	72633-SH4-004	Rod - RR. DOOR LOCK KNOB (HONDA LOCK)
19	72640-SH4-004	Handle assy - R. RR. OUTSIDE (HONDA LOCK)
20	72650-SH4-J04	Lock assy - L. RR. POWER DOOR (HONDA LOCK)
22	72655-SH4-J02	Actuator - L. RR. DOOR LOCK
23	72670-SE3-003	Crank assy, L. RR. DOOR LOCK
24	72671-SH4-004	Rod - L. RR. INSIDE HANDLE (HONDA LOCK)
25	72672-SH4-004	Rod - L. RR. DOOR LOCK (HONDA LOCK)
26	72680-SH4-004	Handle assy - L. RR. OUTSIDE (HONDA LOCK)
28	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)
30	72175-SH3-901	Holder - DOOR LOCK ROD
31	72175-SH3-003	Holder - DOOR LOCK ROD
32	72105-SF1-003	Striker - DOOR LOCK
33	75556-605-010	Bolt - LOCK STRIKER
34	90111-SA0-000	Screw - TAPPING, 4X8
35	90662-SB2-003	Grommet - SCREW, 5MM

Rear door panels 6

#	OEM	部品名
12	72840-SH4-003	Checker comp. - RR. DOOR
13	75760-SB2-003	Pin - DOOR CHECKER
14	75891-SA7-000	Stopper - DOOR
15	90001-SD2-000	Bolt - FLANGE, 8X22
16	90157-SA0-000	Bolt-washer - 8X25
17	90755-SB2-000	E-ring - 6MM

Rear seat (2) 5

#	OEM	部品名
5	78178-SH3-000	Collar - RR. SEATBACK
8	82127-SH4-003	Collar - RR. SEATBACK SETTING
14	82220-SH4-J31	Lock assy - RR. SEAT
16	82290-SH4-013	Bracket comp. - SEAT PIVOT
24	90128-SA7-000	Bolt-washer - 6X25

Rear shock absorber 27

#	OEM	部品名
1	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
2	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
2	51631-S7S-J01	RUBBER DAMPER M
2	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
3	52675-SH3-024	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)
4	51685-SH3-014	Plate - DUST COVER(SHOWA)
5	51689-SH3-004	Plate - BUMP STOP (SHOWA)
6	51722-SE0-004	Rubber - BUMP STOPPER (POLYURETHAN KASEI)
6	51722-SE0-003	Rubber - BUMP STOPPER (NIPPON MEKTRON)
7	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
8	52441-SH4-A05	Spring - RR. (MITSUBISHI SEIKO)
8	52441-SH4-A11	Spring - RR. (MITSUBISHI SEIKO)
9	52442-SH3-000	Tube
10	52610-SH3-L46	Absorber assy - RR. SHOCK
10	52610-SH3-Q11	Absorber assy - RR. SHOCK
12	52611-SH3-A04	Absorber unit - RR. SHOCK
14	52686-SH3-004	Rubber - RR. SPRING MOUNTING (SHOWA)
16	52687-SH3-014	Cover - RR. SLEEVE DUST (SHOWA)
17	52688-SH3-004	End - RR. DUST COVER (SHOWA)
18	52722-SB3-006	Rubber - RR. BUMP STOPPER (POLYURETHAN KASEI)
18	52722-SB3-005	Rubber - RR. BUMP STOPPER (NOK)
19	52748-SH3-004	Rubber - RR. SPRING SEAT LOWER
20	74671-SH3-010	Cap - RR. SHOCK ABSORBER
21	90172-SK7-A01	Bolt - SHOCK ABSORBER LOWER (10X84)
22	90304-SH3-004	Nut-washer - 10MM
22	90304-SH3-505	New Genuine Part
23	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear stabilizer/ rear lower arm 29

#	OEM	部品名
4	46438-SH3-A03	Bracket - R. RR. BRAKE HOSE (DRUM)
6	46439-SH3-A03	Bracket - L. RR. BRAKE HOSE (DRUM)
16	52341-SH3-A00	Arm comp - RR. COMPENSATOR
17	52343-SH3-004	Bush - COMPENSATOR
17	52343-SR3-004	Bush - COMPENSATOR (YAMASHITA)
19	52350-SH3-A12	Arm comp - R. RR. LOWER
20	52354-SH3-A01	Cover - R. RR. LOWER ARM
22	52360-SH3-A12	Arm comp - L. RR. LOWER
23	52364-SH3-A01	Cover - L. RR. LOWER ARM
24	52365-SH3-000	Bush - RR. LOWER ARM (YAMASHITA)
24	52365-SH0-A01	Bush - RR. LOWER ARM (YUSA)
26	52370-SH3-A18	Arm comp - R. RR. TRAILING (DRUM)
28	52371-SH3-A18	Arm comp - L. RR. TRAILING (DRUM)
30	52390-SH3-A00	Arm comp - R. RR. UPPER
31	52393-SH3-004	Bush - UPPER ARM INNER (YAMASHITA)
31	52393-SH3-005	Bush - UPPER ARM INNER (SUMITOMO)
32	52395-SH3-004	Bush - RR. UPPER ARM (YAMASHITA)
32	52395-SH3-005	Bush - RR. UPPER ARM (SUMITOMO)
33	52400-SH3-A00	Arm comp - L. RR. UPPER
34	52622-SH3-010	Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA)
36	90110-679-003	Nut - SELF-LOCK, 8MM
37	90117-SH3-004	Bolt - UPPER ARM, 10X30
39	90171-SH3-003	Bolt - COMPENSATOR, 10X59
40	90172-SK7-003	Bolt - UPPER ARM, 10X68
40	90172-S04-003	Bolt - FLANGE, 10X68
41	90174-SK7-003	Bolt - LOWER ARM, 10X80
42	90174-SJ4-003	Bolt - TRAILING ARM BUSH, 12X60
44	90180-SH3-A01	Bolt comp - LOWER ARM PROTECTOR
45	90551-SH3-000	Washer - 24X10X2.3

Rear tray/ trunk side garnish 2

#	OEM	部品名
2	74865-SH4-000	Weatherstrip - TRUNK LID
9	90667-SH4-003	Clip - RR. TRAY

Regulator/lock up valve 25

#	OEM	部品名
1	25155-PL4-000	Shaft assy - STATOR
2	27200-PL4-780	Regulator assy
3	27221-PL4-000	Valve - REGULATOR
4	27231-PC9-912	Spring a - REGULATOR VALVE (NHK SPRING)
5	27232-PF4-000	Spring b - REGULATOR VALVE
6	27233-PA9-000	Spring - REACTION STATOR
7	27246-PN6-800	Cap - REGULATOR SPRING
8	27255-PC9-710	Spring - TORQUE CONVERTER CHECK VALVE
9	27256-639-000	Valve - TORQUE CONVERTER CHECK
10	27600-PL4-781	Body assy - LOCK UP VALVE
11	27610-PL4-781	Body comp - LOCK UP VALVE
12	27612-PL4-780	Plate - LOCK UP SEPARATING
13	27621-PL4-781	Valve - LOCK UP SHIFT
14	27623-PL4-781	Spring - LOCK UP SHIFT VALVE
15	27626-PH0-900	Valve b - LOCK UP TIMING
16	27627-PL4-900	Spring b - LOCK UP TIMING
17	27628-PL4-000	Cap - LOCK UP SHIFT VALVE
18	27645-PL1-000	Cap - LOCK UP CONTROL
19	27728-PF4-000	Cap - REVERSE CONTROL VALVE
20	90004-PC9-000	Bolt - FLANGE, 6X90
21	90016-PF4-000	Bolt - FLANGE, 6X85
22	90089-PC9-000	Bolt - STOPPER, 6MM
23	90703-PL4-000	Dowel pin - 8X68
24	91101-PF4-003	Roller - 3.5X21.8
25	91316-612-000	O-ring - 27.5X1.7

Relay/horn/fuse box 27

#	OEM	部品名
13	38150-SH3-003	Horn assy - HIGH (MITSUBA)
14	38200-SH3-S03	Box assy - FUSE (HEADLIGHT WASHER)
14	38200-SH3-W13	Box assy - FUSE (P.D.L.)
15	38253-SH3-010	Bracket - L. FUSE BOX
16	38205-SH4-G01	Label - FUSE
16	38205-SH4-S11	Label - FUSE (P.W.)
17	38212-SE0-000	Fuse - BLOCK (40A)
18	38213-SD4-000	Fuse - BLOCK (50A)
19	38214-SH3-000	Fuse - BLOCK (60A)
20	38235-SA5-003	Puller - FUSE (SUMITOMO)
21	38250-SH3-Q02	Box assy - MAIN FUSE
25	38300-SE3-004	Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO)
25	38300-SE3-003	Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA)
26	38310-SH3-S02	Relay - CLEANER CONTROL (KOITO)
27	38380-SH4-003	Control unit - AUTO DOOR LOCK
29	38600-SH3-G11	Control unit - INTEGRATED (LIGHTING ALARM)
29	38600-SH3-S11	Control unit - INTEGRATED (RUNNING LIGHT)
32	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
32	39794-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2203)
33	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
34	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
34	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)
35	39797-SH2-003	Relay assy - POWER (4P) (DENSO)
36	39797-SH3-G01	Relay assy - POWER (4P)
37	39798-SH3-G01	Holder - RELAY
38	90102-SA4-000	Screw - TAPPING, 4X16
39	90153-SH3-003	Bolt - 5X11

Right side cover 41

#	OEM	部品名
1	21240-PL4-000	Cover comp. - R. SIDE
2	21244-PF4-010	Spring - LOW ACCUMULATOR ONE WAY BALL
3	21812-PL4-S01	Gasket - R. SIDE COVER
4	22710-PH0-010	Pipe a - FEED
5	22713-PC9-010	Guide a - FEED PIPE
6	22721-PA9-003	Flange - FEED PIPE
7	22722-PL4-000	Pipe c - FEED
8	24282-634-000	Bolt - SHAFT FORK SETTING
9	24532-PN6-003	Lever - PARKING BRAKE
10	24535-PG4-000	Spring - PARKING BRAKE
11	24538-PA9-003	Stopper - PARKING BRAKE (2)
11	24537-PA9-003	Stopper - PARKING BRAKE (1)
11	24539-PA9-003	Stopper - PARKING BRAKE (3)
12	24552-PL4-000	Spring - PARKING BRAKE PAWL
13	24553-PN6-000	Roller - PARKING BRAKE
14	24555-PN6-000	Pin - ROLLER, 6MM
15	24561-PL4-020	Pawl - PARKING BRAKE
16	24562-PA9-000	Shaft - PARKING BRAKE
17	27561-PG4-000	Piston - LOW ACCUMULATOR
18	27562-PG4-010	Spring a - LOW ACCUMULATOR
19	27563-PG4-000	Cover - LOW ACCUMULATOR
20	27564-PL4-000	Spring b - LOW ACCUMULATOR
21	90024-PH0-000	Bolt - LOW ACCUMULATOR SEALING
22	90024-612-000	Bolt - SEALING, 8MM
23	90433-639-000	Washer - LOCK, 6MM
24	90471-580-000	Packing - 8MM
25	90507-PA9-000	Collar - 8X11
26	90601-PC9-860	Circlip - INTERNAL, 38MM
27	90702-PL4-000	Dowel pin - 8X44
28	90703-PA9-003	Roller - 2X19.8
29	91301-PC9-004	O-ring - 7.7X2.3 (NOK)
29	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
30	91305-PC9-004	O-ring - 34X1.9 (NOK)
30	91305-PC9-003	O-ring - 34X1.9 (ARAI)
31	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)
31	91308-PA9-004	O-ring - 19.8X1.9 (NOK)
32	91311-PA9-003	O-ring - 7.7X1.9 (ARAI)
32	91311-PA9-004	O-ring - 7.7X1.9 (NOK)
33	91314-PC9-004	O-ring - 8.5X1.9 (NOK)
33	91314-PC9-003	O-ring - 8.5X1.9 (ARAI)
34	91344-PN1-003	O-ring - 30.7X2.4 (NOK)

Seatbelt 4

#	OEM	部品名
3	81460-SH4-J03	Adjuster - SHOULDER SLIDE
5	81491-SH3-A02	Bag - PROTECTOR (TAKATA)
13	90344-692-003	Nut - CLIP, 6MM
14	90680-SH3-003	Plug - SEATBELT ANCHOR

Secondary body/servo body 70

#	OEM	部品名
1	22743-PF0-000	Pipe - THIRD CLUTCH
2	24278-PP6-000	Base - SERVO DETENT
3	24530-PN1-000	Sleeve comp. - SERVO DETENT
4	25422-PC9-000	Magnet - TRANSMISSION
5	25423-PC9-010	Spring - MAGNET HOLDER
6	25424-PP6-010	Holder - MAGNET
7	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
8	27405-PL4-605	Body sub assy. - SERVO
9	27412-PP6-703	Plate - SERVO SEPARATING
10	27413-PL1-000	Stay - STOPPER
11	27414-PL1-000	Plate - THROTTLE SEPARATING
12	27415-PC9-010	Valve - ORIFICE CONTROL
13	27418-PF4-000	Spring - ORIFICE CONTROL VALVE
14	27419-PC9-010	SEAT, VALVE SPRING
15	27441-PP6-020	Cover - SERVO
16	27442-PP6-030	Plate - SERVO COVER SEPARATING
18	27572-PP6-800	Piston - SECOND ACCUMULATOR
19	27574-PL4-000	Piston - THIRD ACCUMULATOR
20	27576-PC9-751	Piston - TOP ACCUMULATOR
21	27577-PL4-000	Spring - TOP ACCUMULATOR
23	27580-PP6-000	Cover - ACCUMULATOR
24	27581-PL4-701	Spring - SECOND ACCUMULATOR
25	27583-PL4-000	Spring - THIRD ACCUMULATOR
26	27646-PL4-000	Sleeve - KICK DOWN VALVE (###)
27	27653-PP6-000	Cap - CLUTCH PRESSURE CONTROL VALVE (###)
28	27700-PP6-842	Body assy - SECONDARY
29	27712-PP6-702	Plate - SECONDARY SEPARATING
30	27715-PF4-000	Valve - SHIFT TIMING (###)
31	27716-PL4-000	Spring - SHIFT TIMING VALVE (###)
32	27721-PL4-000	Valve - KICK DOWN (###)
33	27722-PL4-000	Spring - KICK DOWN VALVE
34	27724-PG4-000	Cap - KICK DOWN VALVE
35	27725-PF4-010	Valve - REVERSE CONTROL
36	27726-PL4-000	Spring - REVERSE CONTROL VALVE
37	27728-PF4-000	Cap - REVERSE CONTROL VALVE
38	27728-PN0-000	Cap - REVERSE CONTROL VALVE
39	27728-PP6-000	Cap - REVERSE CONTROL VALVE (###)
40	27731-PF4-000	Valve - LOCK UP CUT
41	27732-PF4-010	Spring - LOCK UP CUT VALVE (###)
42	27735-PF4-000	Valve - ACCUMULATOR CONTROL
43	27736-PL4-000	Spring - TIMING VALVE (3-2) (###)
44	27471-PP6-000	Valve - FOURTH EX.
45	27478-PP6-000	Spring - FOURTH EX.
46	27756-PP6-020	Valve - SERVO CONTROL
47	27758-PP6-020	Spring - SERVO CONTROL VALVE
48	27757-PP6-000	Valve - SERVO CONTROL SHORT
49	27761-PP6-020	Valve - TIMING (2-1)
50	27762-PP6-010	Spring - TIMING (2-1)
51	27800-PL4-000	Body assy - MODULATOR
53	90001-PP6-000	Bolt - FLANGE, 6X133
54	90003-PP6-000	Bolt - FLANGE, 6X150
55	90004-PC9-000	Bolt - FLANGE, 6X90
56	90004-PP6-000	Bolt - HEX., 6X157
57	90005-PP6-000	Bolt - SPECIAL, 6X16
59	90016-PF4-000	Bolt - FLANGE, 6X85
60	90017-PF4-000	Bolt - FLANGE, 6X127
61	90018-PF4-000	Bolt - FLANGE, 6X140
62	90433-PF4-000	Washer - LOCK, 6MM
63	91101-PF4-003	Roller - 3.5X21.8
64	91102-PF4-000	Roller - 3.5X19.8
65	91317-PA9-003	O-ring - 33.2X2.4 (NOK)
65	91317-PA9-004	O-ring - 33.2X2.4 (ARAI)
66	91321-PF4-004	O-ring - 18.3X2.4(NOK)
67	91324-PF4-004	O-ring - 28.3X2.4 (NOK)
68	91344-PC9-003	O-ring - 29X2.4 (ARAI)
68	91344-PC9-004	O-ring - 29X2.4 (NOK)
69	91331-PC9-003	O-ring
69	91331-PC9-004	O-ring - 21.2X2.4 (NOK)
71	91344-580-000	O-ring - 31X2.7 (ARAI)
72	91704-PF4-000	Dowel pin - 8X40

Select lever (LH) 36

#	OEM	部品名
1	30158-700-010	E-clip - 3MM
2	35505-692-003	Bulb - 14V 1.4W
3	35700-SH3-983	Switch assy - INHIBITOR
4	37700-SH3-981	Lamp assy. - INDICATOR (AT)
5	54110-SH3-980	Stopper comp - SELECT LEVER
6	54113-692-980	Collar - LOCK PIN
7	54115-SA5-981	Bolt - SELECTOR STOPPER
8	54116-SA5-980	Collar - STOPPER
9	54117-692-980	Spring - LOCK PIN
10	54119-689-981	Pin - LOCK
11	54120-SH3-980	Spring assy - SELECT STOPPER
12	54123-SE0-980	Collar - SELECT LEVER
13	54131-SH3-A81	Knob - SELECT LEVER
14	54132-SH3-983	Knob - PUSH
15	54133-SA5-981	Spring - PUSH KNOB
16	54135-SH3-981	Lever - SELECT
17	54136-SH3-981	Rod comp - LOCK PIN
19	54201-SK3-E81	Bracket - SELECT LEVER
20	54202-SH5-980	Bracket - CONTROL
20	54202-SH5-981	Bracket - CONTROL
21	54204-SH3-980	Guide - WIRE HARNESS
22	54205-SH3-980	Clamp - WIRE HARNESS
23	54211-SH3-A82	Indicator
24	54222-SH3-980	Cover - SELECT LEVER
25	54225-SH3-972	Clip - SELECT LEVER BRACKET
26	54317-SH3-982	Holder - CONTROL WIRE
28	54318-SK3-E81	Seal - CONTROL
29	54319-SH3-981	Seal - CONTROL WIRE BRACKET
30	54351-SH3-981	Bracket - CONTROL WIRE
31	54361-SE0-980	Pipe - CONTROL WIRE ADJUSTING
32	54363-SE0-980	Pin - CONTROL WIRE ADJUSTER
33	54710-SH3-A81	Escutcheon comp. - CONSOLE
34	83454-SH3-961	Bracket - FR. CONSOLE
35	90114-SA0-000	Nut - SELF-LOCK, 6MM
36	90308-SA0-981	Nut - SELF-LOCK, 6MM
37	91647-SH3-003	Grommet - SCREW, 4MM

Shift fork/fork shaft 12

#	OEM	部品名
1	24200-PL3-010	Fork - FIFTH GEARSHIFT
2	24210-PL3-601	Fork comp - GEARSHIFT (3-4)
2	24210-PL3-040	Fork comp - GEARSHIFT (3-4)
3	24220-PL3-601	Fork comp - GEARSHIFT (1-2)
4	24230-PL3-000	Holder comp - REVERSE SHIFT
5	24243-PL3-010	Piece - FIFTH & REVERSE SHIFT
6	24261-PL3-600	Shaft - SHIFT FORK (1-2)
7	24271-PL3-010	Shaft - SHIFT FORK (5-R)
8	24455-PG1-300	Spring - SHIFT FORK SETTING
9	24455-PL3-300	Spring - SHIFT FORK SETTING
9	24455-PG2-A10	Spring - FORK SET BALL
11	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 26

#	OEM	部品名
1	54101-SH3-010	Lever - CHANGE
3	54105-SH3-010	Washer a - THRUST
4	54106-SH3-003	Washer b - THRUST
5	54107-SH3-003	Bush - RR. JOINT
7	54108-SB2-000	Boot - CHANGE LEVER
8	54109-SA7-000	Seal A, CHANGE LEVER DUST
9	54110-SH3-003	Seat - CHANGE LEVER BALL
10	54111-SH3-000	Holder - CHANGE BALL
11	24313-PF5-000	Clip - CHANGE JOINT PIN
11	54113-611-505	CLIP, SHIFT JOINT
12	54114-SB2-000	Collar - PIPE MOUNTING
13	54115-SH3-000	Dust seal B, Change
14	54117-SH3-000	Collar - RR. JOINT
15	54201-SH3-A04	Rod comp - CHANGE
16	54301-SH3-A02	Extension - CHANGE
17	54303-SF4-000	Rubber - EXTENSION END
18	54304-SH3-020	Bracket - EXTENSION
19	54306-SH3-000	Rubber, EXTENSION MOUNTING
20	54307-SH3-010	Stopper - EXTENSION MOUNTING
21	54308-SH3-000	Bolt - EXTENSION
22	54309-SH3-000	Collar - EXTENSION END
23	90114-SA0-000	Nut - SELF-LOCK, 6MM
24	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
25	90117-HA7-670	Bolt - FLANGE, 8X18
26	91301-671-671	O-ring - 1.9X11
26	91303-HA0-004	O-ring, 11x1.9 (nok)

Shift rod/shift holder 20

#	OEM	部品名
1	24311-PL3-020	Rod - SHIFT
2	24316-PL3-030	Boot - SHIFT ROD
3	24351-PL3-010	Shaft - SHIFT ARM B
4	24411-PL3-000	Arm a - SHIFT
5	24421-PL3-000	Arm b - SHIFT
6	24422-PL3-000	Arm c - SHIFT
7	24430-PL3-010	Interlock comp.
8	24432-PL3-010	Retainer - REVERSE SELECT
9	24433-PL3-000	Bolt - INTERLOCK
10	24440-PL3-000	Cam comp - REVERSE LOCK
11	24452-PA0-000	Spring - BALL SETTING
12	24456-PL3-010	Spring - SELECT SET BALL
13	24461-PB6-000	Collar - SPRING
14	24464-PL3-010	Spring - FIRST-SECOND SELECT
15	24465-PL3-020	Spring - REVERSE SELECT
16	24519-PB6-000	Screw - BALL SPRING SETTING
17	90028-PB6-010	Bolt - SPECIAL, 6X22.5
18	90029-PL3-010	Bolt - SPECIAL, 8MM
19	90082-PL3-000	Plug - 28MM
20	90412-679-000	Washer - CONICAL SPRING, 8MM

Side protectors 30

#	OEM	部品名
1	72410-SH4-003	Molding assy. - R. FR. DOOR
3	72450-SH4-003	Molding assy. - L. FR. DOOR
5	72910-SH4-003	Molding assy. - R. RR. DOOR
7	72950-SH4-003	Molding assy. - L. RR. DOOR
9	74430-SH3-A00	Protector - RR. WHEEL ARCH
10	74553-SH4-A00	Protector - R. RR. WHEELHOUSE
12	75301-SH4-G01	Protector comp - R. FR. FENDER
13	75302-SH4-G01	Protector comp - R. FR. DOOR
14	75303-SH4-G01	Protector comp - R. RR. DOOR
15	75304-SH4-A01	Protector comp - R. RR. FENDER
16	75305-SH2-003	Clip - SIDE PROTECTOR
18	75321-SH4-G01	Protector comp - L. FR. FENDER
19	75322-SH4-G01	Protector comp - L. FR. DOOR
20	75323-SH4-G01	Protector comp - L. RR. DOOR
21	75324-SH4-A01	Protector comp - L. RR. FENDER
22	75328-SH3-A01	Clip A - MOLDING
23	75329-SH4-013	Clip b - MOLDING
24	75807-671-010	Nut - SIDE PROTECTOR (BLACK)
25	80351-SH3-A01	Protector - R. RR. PANEL
26	80751-SH3-A01	Protector - L. RR. PANEL
27	90126-SA7-000	Screw-washer - 5X20
27	90114-SZ3-000	Screw-washer - 5X20
28	90116-SE0-000	Screw - TAPPING, 4X12
29	90601-SH3-014	Clip - DOOR MOLDING
30	90657-SA5-003	Clip - SIDE APRON MOLDING
31	90682-SB0-003	Grommet - SCREW, 5MM
32	91502-SH4-003	Clip - CAP END
33	91507-SH3-003	PIN, CLIP, 8MM
34	91510-SH4-003	Clip - RR. CAP END
35	91611-SH2-003	Grommet - SCREW ADJUSTER

Speedometer component (NS) 25

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37106-SB2-003	Knob - TRIP (NS)
4	37114-671-005	Grommet - TRIP KNOB (NS)
5	37115-SA0-601	Packing - NS
6	37116-SB3-003	Rubber - SPEEDOMETER (NS)
7	37237-SJ4-J00	Bulb - 3W T6.5 CAP) (NS
8	37238-SD2-A00	Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN
11	78106-SH3-003	Switch assy - REED
12	78108-SH3-B04	Panel - PRINT (NS)
12	78108-SH3-B11	Panel - PRINT (NS)
13	78110-SH3-901	Case assy - NS
14	78115-SH3-F02	Speedometer assy - NS
14	78115-SH3-X02	Speedometer assy - NS
16	78125-SH3-932	Tachometer assy - NS
17	78130-SH3-901	Meter assy - FUEL & TEMPERATURE (NS)
17	78130-SH3-911	Meter assy - FUEL & TEMPERATURE (NS)
19	78140-SH3-B41	Amplifier assy
21	78155-SH3-B41	Visor assy - METER (NS)
22	78166-SH3-J01	Illumination assy. - NS
23	78230-SH3-911	Circuit assy. - AT-INDICATOR (NS)
24	90131-SD2-003	Screw-washer - 4X12 (NS)
25	90131-SF4-003	Screw-washer - 3X16 (NS)
26	90136-SK7-003	Screw-washer - 3X20
28	90134-SH3-003	Screw-washer - 3X10 (NS)

Starter motor (DENSO; 1) 16

#	OEM	部品名
1	31200-PE0-661	Motor assy. - STARTER (DRDFE) (DENSO)
2	31201-657-671	Screw - DENSO) (###
3	31202-657-671	Bolt - THROUGH (###)
4	31203-PE0-661	Housing - DRIVE SIDE (###)
5	31204-657-671	Clutch comp. - OVERRUNNING(###)
6	31205-657-671	Ball - STEEL (DENSO)
7	31206-PE0-662	Yoke comp - DENSO) (###
8	31207-657-672	Armature comp - DENSO)(###
9	31208-657-671	Plate comp - BRUSH HOLDER (DENSO)(###)
10	31209-PD1-004	Frame - STARTER END (DENSO) (###)
11	31210-PE0-662	Switch assy - MAGNETIC (DENSO) (###)
12	31222-657-671	Gear - IDLE (DENSO)(###)
13	31225-PB2-006	Roller - BEARING (DENSO)
14	31226-PB2-006	Retainer - BEARING (DENSO)(###)
15	31235-PE0-661	Cover - TERMINAL
16	31291-PE0-661	Stay - ENGINE WIRE HARNESS

Starter motor (MITSUBA) 17

#	OEM	部品名
1	31200-PM1-005	Motor assy. - STARTER (SM-302-25) (MITSUBA)
2	31202-PC2-006	Bolt - THROUGH (MITSUBA)
3	31203-PM1-005	Cover - GEAR
4	31204-PD1-003	Gear assy. - PINION
6	31207-PC2-016	Armature comp - MITSUBA
8	31209-PG6-006	Cover - RR. (MITSUBA)(###)
9	31210-PM1-015	Switch assy - ###
10	31211-PC2-006	Ring - SQUARE (MITSUBA)
11	31215-PC2-006	Washer - THRUST, 1.2 (MITSUBA)
12	31216-PC2-006	Washer - THRUST, 0.2 (MITSUBA)
13	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
14	31229-PC2-036	Case comp. - FR.
15	31235-PJ7-903	Cover - TERMINAL (MITSUBA) (###)
16	31251-PJ7-904	Tube - LABYRINTH (###)
17	31252-PD2-006	Rubber - BUSH (MITSUBA)
18	31291-PM1-005	Stay assy - ENGINE WIRE HARNESS (###)
20	31260-PJ7-006	Stator set - ###

Steering column (TILT; LH) 36

#	OEM	部品名
1	53210-SH5-000	Column - STEERING
2	53211-SH3-010	Holder - COLUMN UPPER
3	53212-SH3-010	Plate comp - BENDING
4	53216-SH3-020	Holder b - STEERING COLUMN
5	53217-SD2-000	Collar - STEERING RETAINER
6	53218-SH3-010	Spring - BENDING PLATE
7	53231-SB2-000	Label - IGNITION SWITCH
8	53235-SA5-010	Ring - COLUMN COVER
9	53239-SB2-000	Clip - COLUMN COVER
10	53310-SH3-G01	Shaft comp. - STEERING
11	53311-692-000	Washer - STEERING SHAFT
12	53320-SH3-G04	Cover - STEERING JOINT
13	53323-SF4-003	Joint comp. b - STEERING
14	53325-SH3-000	Clip A - JOINT COVER
15	53326-SB0-000	Clip b - JOINT COVER
16	53350-SH3-020	Base - BENDING PLATE
17	53360-SH3-000	Lever comp - TILT
18	53361-SH3-000	Spring - TILT LEVER
19	53362-SB3-000	Tube - RUBBER
20	53363-SH3-A02	Pivot - COLUMN
21	53364-SA0-960	Collar - PIVOT
22	53364-SH3-000	Bolt - TILT LOCK
23	53365-SA0-961	Bush - PIVOT
24	53368-SH3-020	Guide - BENDING PLATE
25	53369-SH3-010	Guide - RAIL
26	53371-SB3-000	Spring - COLUMN HANGER
27	53373-SH3-000	Spindle - STOPPER
28	53375-SH3-000	Washer - 10MM
32	90130-SB3-003	Bolt - PIVOT
33	90132-SH3-000	Bolt - STEERING HANGER
34	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
35	90511-671-003	Washer - TOOTHED LOCK
36	90551-SE0-000	Washer - SPRING, 24X18
37	90654-SA5-003	Clip - JOINT COVER
38	90661-SE0-003	Circlip - EXTERNAL, 18MM
39	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR

Steering gear box (LH) 35

#	OEM	部品名
1	53040-SH3-A02	Box comp - STEERING GEAR
2	53413-SH3-003	Spring - RACK GUIDE PRESSURE
3	53414-679-013	Screw - RACK GUIDE
4	53416-SH3-003	Guide - STEERING RACK
5	53418-SC2-003	Washer - DISK
8	53426-671-004	Dust seal - STEERING PINION (NOK)
8	53426-671-003	Dust seal - STEERING PINION (ARAI)
9	53427-SH3-A02	Rack - STEERING
10	53430-SH3-000	Bush - RACK END
11	53434-SD9-000	Clip - TIE ROD
11	53434-S04-J51	CLIP, TIE ROD
12	53436-SH3-000	Cushion b - STEERING GEAR BOX
13	53438-SH3-000	Bracket - STEERING GEAR BOX
14	53449-SH3-J00	Band b - BELLOWS
15	53449-SH3-000	Band - BELLOWS
16	53458-SE0-003	Nut - RACK SCREW LOCK
16	53458-S01-A51	Nut - LOCK
17	53501-SH3-000	Grommet a - STEERING
18	53502-SH3-010	Grommet b - STEERING
19	53503-SH3-000	Spacer - STEERING GROMMET
20	53521-SH3-003	End comp - RACK
21	53535-SH3-000	Washer - TIE ROD STOPPER
22	53536-SB2-000	Washer - TIE ROD LOCK
23	53537-SH3-J00	Dust seal b - TIE ROD
24	53537-SH3-000	Dust seal a - TIE ROD
25	53540-SH3-013	End comp - R. TIE ROD
26	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
27	53560-SH3-013	End comp - L. TIE ROD
28	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
29	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
30	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)
31	90320-SF4-000	Nut - CASTLE, 10MM
31	90320-SF1-000	Nut - CASTLE, 10MM
32	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)
39	53421-SH3-A02	Pinion comp. - STEERING (LH)

Steering wheel (2) 5

#	OEM	部品名
1	78507-SH3-901	Plate - CONTACT (TS TECH)
5	78517-SH3-901	Plate - HORN (TS TECH)
7	78519-SH3-901	Spring - COIL (TS TECH)
9	90134-SH3-901	Screw - TAPPING, 4X18 (PO)
10	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Sunroof (1) 17

#	OEM	部品名
1	15707-634-000	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM
3	70050-SH3-000	Tube - FR. DRAIN (SUNROOF)
4	70052-SH3-000	Valve - FR. DRAIN (SUNROOF)
5	70060-SH3-010	Tube - RR. DRAIN (SUNROOF)
6	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)
7	70080-SH3-003	Seal - SUNROOF FRAME
8	70090-SG0-000	Stopper - SUNSHADE
9	70091-SH3-000	Stopper - DEFLECTOR
10	70100-SH3-000	Frame comp - SUNROOF
12	70200-SH4-000	Glass assy - ROOF (SUNROOF)
13	70620-SH4-000	Cover - R. STAY
14	70625-SH4-000	Cover - L. STAY
15	71986-692-920	Cap - STAY COVER
17	83213-SH3-000	Washer comp - PLATE
20	90102-SA4-000	Screw - TAPPING, 4X16
21	90110-SH3-000	Screw - PAN, 5X8 (STAY COVER)

Sunroof (2) 31

#	OEM	部品名
1	39271-636-000	E-clip
2	70310-SH3-000	Rail - R. GUIDE (SUNROOF)
3	70315-SH3-000	Rail - L. GUIDE (SUNROOF)
4	70350-SH3-010	Stay assy - R. RR.
5	70355-SH3-010	Stay assy - L. RR.
6	70400-SH3-003	Cable assy - SUNROOF
7	70450-SG0-S01	Motor assy. - SUNROOF
8	70500-SH3-003	Deflector assy - SUNROOF
9	70514-SE3-003	Spring - R. DEFLECTOR
10	70519-SE3-003	Spring - L. DEFLECTOR
11	70530-SH3-003	Arm comp - DEFLECTOR
12	70534-SH3-003	Cover - DEFLECTOR ARM
13	70540-SH3-003	Spring - DEFLECTOR ARM
14	70630-SH3-000	Cover - RAIL
15	70324-SH3-000	Guide - R. LIFTER UPPER
16	70329-SH3-000	Guide - L. LIFTER UPPER
17	71938-692-920	Adjuster - LIFT UP
18	71941-SB0-920	Stay - R. FR. SLIDE
19	71946-SB0-920	Stay - L. FR. SLIDE
20	71947-SB0-920	Washer - 5.2X9
21	71951-SH3-920	Stay - R. RR. SLIDE
22	71953-SB0-920	Link - R. LIFT UP
23	71954-SB0-920	Link - L. LIFT UP
24	71956-SH3-920	Stay - L. RR. SLIDE
25	71958-SB0-920	Shaft - RR. STAY
26	71974-692-920	Pin - DEFLECTOR ARM
27	71982-SA5-920	Washer - NYLON
28	71997-SB0-920	Shim - STAY (1.0MM)
28	71998-SB0-920	Shim - STAY (2.0MM)
29	71997-692-920	Shim - STAY (1.0MM)
29	71998-692-920	Shim - STAY (2.0MM)

Taillight (2) 38

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-692-003	Packing - STANLEY
2	33303-958-003	Gasket
3	33304-SF4-003	Screw - TAPPING, 4X45
4	33500-SH4-G04	Taillight assy. - R. (###)
5	33501-SH4-G04	Lamp unit - R.
6	33502-SH4-G02	Cord comp
7	33503-SH4-A02	Gasket - BASE
8	33505-SH4-010	Cover - R. TAILLIGHT
9	33550-SH4-G04	Taillight assy. - L. (###)
10	33551-SH4-G04	Lamp unit - L.
11	33555-SH4-010	Cover - L. TAILLIGHT
12	33700-SH4-G01	Garnish - RR. PANEL
13	33701-SH4-G02	Lamp unit
14	33702-SH4-A01	Cover & cord comp. - R.
15	33703-SH4-A01	Gasket - BASE
16	33752-SH4-A01	Cover & cord comp. - L.
17	34100-SH3-G01	Light assy - LICENSE
18	34101-SH3-G01	Lens
19	34102-SH3-A01	Housing
20	34103-SH3-A01	Packing
21	34104-SH3-A01	Socket & cord comp.
22	34400-SH3-G02	Light assy - R. RR. FOG
23	34401-SH3-G01	Lens
24	34402-SH3-G01	Screw - TAPPING, 4X35
25	34450-SH3-G02	Light assy - L. RR. FOG
26	34903-634-671	Bulb - 12V27W
27	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
28	34911-634-611	Bulb - 12V 21/5W) (ECE) (STANLEY
29	71511-SH4-G50	Garnish - R. RR. FOG LIGHT
30	71512-SH4-G50	Garnish - L. RR. FOG LIGHT
31	71521-SH4-G00	Bracket - RR. FOG LIGHT GARNISH
32	75522-611-000	Grommet - SCREW, 4MM
33	75525-SD4-013	Clip - RR. PANEL GARNISH
34	75528-SD4-003	Packing - SEAL (G)
35	90102-SA7-003	Screw - TAPPING, 5X16
36	90137-SD5-003	Screw - TAPPING, 4X12
37	90301-SE0-902	Nut - SPECIAL, 5MM

Tire/wheel disk 45

#	OEM	部品名
1	42700-SH3-A67	Disk - WHEEL (13X4T) (KANAI)
1	42700-SH3-A64	Disk - WHEEL (13X4T) (KANAI)
1	42700-SH3-A68	Disk - WHEEL (13X4T) (TOPY)
1	42700-SH3-A65	Disk - WHEEL (13X4T) (TOPY)
3	42700-SH4-941	Disk - WHEEL (13X5J) (KANAI) (NEBULAR SILVER METALLIC)
3	42700-SH4-939	Disk - WHEEL (13X5J) (TOPY) (BLACK)
3	42700-SH4-938	Disk - WHEEL (13X5J) (KANAI) (BLACK)
3	42700-SH4-942	Disk - WHEEL (13X5J) (TOPY) (NEBULAR SILVER METALLIC)
6	42751-SB2-655	Tire - T105/80D13) (BRIDGESTONE
6	42751-SB2-617	Tire - T105/80D13) (YOKOHAMA
6	42751-SH3-602	Tire - T105/80D13) (YOKOHAMA INDONESIA
6	42751-SH3-604	Tire - T105/80D13) (GOODYEAR U.S.A.
6	42751-SB2-656	Tire - T105/80D13) (DUNLOP
7	42751-SH3-G27	Tire - 165/70R13 79S) (BRIDGESTONE
7	42751-SH4-G49	Tire - 175/70R13 82H) (SEMPERIT
7	42751-SH3-G28	Tire - 165/70R13 79S) (DUNLOP
7	42751-SA5-626	Tire - 165SR13) (BRIDGESTONE
7	42751-SH4-G48	Tire - 175/70R13 82H) (DUNLOP
7	42751-SA5-628	Tire - 165SR13) (DUNLOP
7	42751-SA5-988	Tire - 165SR13) (YOKOHAMA
7	42751-SH4-G47	Tire - 175/70R13 82H) (BRIDGESTONE
7	42751-SH3-G44	Tire - 175/70R13 82H) (SEMPERIT
8	42753-SH3-003	Valve - RIM (US PACIFIC)
8	42753-SB8-661	Valve - RIM (SCHRADER)
8	42753-671-003	Valve - RIM (TAIHEIYO)
9	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
10	44729-SB2-003	Weight - BALANCE (35G) (YAMATE)
10	44724-SB2-003	Weight - BALANCE (40G) (YAMATE)
10	44726-SB2-003	Weight - BALANCE (5G) (YAMATE)
10	44721-SB2-003	Weight - BALANCE (10G) (YAMATE)
10	44728-SB2-003	Weight - BALANCE (25G) (YAMATE)
10	44723-SB2-003	Weight - BALANCE (30G) (YAMATE)
10	44730-SB2-013	Weight - BALANCE (45G) (YAMATE)
10	44725-SB2-003	Weight - BALANCE (50G) (YAMATE)
10	44727-SB2-003	Weight - BALANCE (15G) (YAMATE)
10	44722-SB2-003	Weight - BALANCE (20G) (YAMATE)
11	44732-SB2-000	Cap - WHEEL CENTER (56MM) (BLACK)
12	44733-SH3-004	Trim - WHEEL (13") (MORIROKU) (BLADE SILVER METALLIC)
13	44736-SA0-981	Nut - WHEEL (FUSE RASHI)
14	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
15	83850-SH3-000	Plate - ANCHOR BOLT
16	83853-SA0-700	Bolt - ANCHOR (67MM)
16	83853-SA7-000	Bolt - ANCHOR (72MM)
17	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)
18	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 9

#	OEM	部品名
1	71969-SA7-890	Wrench - SUNROOF
4	89000-SH3-900	Tool set - SUNROOF
4	89000-SH3-000	Tool set
5	89101-SW5-003	Bag - TOOL
6	89211-SE3-003	Wrench - WHEEL
7	89216-SF4-000	Wrench - PLUG
8	89310-SE3-013	Jack assy - PANTOGRAPH
9	89320-SE3-003	Bar - JACK
9	89320-S50-003	Bar - JACK

Torque converter housing 37

#	OEM	部品名
1	21110-PL4-781	Case comp. - TORQUE CONVERTER
3	23225-PH0-000	Plate - OIL GUIDE
4	25420-PL4-010	Strainer - TRANSMISSION (ATF)
7	25425-PL4-300	Pipe - SUCTION
11	41221-PC8-912	Gear - DRIVE PINION
12	41233-PL4-000	Gear - FINAL DRIVEN
13	41311-PL4-010	Case - DIFFERENTIAL
14	41312-PA9-010	Gear - SPEEDOMETER DRIVE
15	41321-PC9-010	Shaft - PINION
16	41341-PC9-000	Gear - DIFFERENTIAL PINION
16	41341-PC9-010	Gear - DIFFERENTIAL PINION
17	41356-PC8-000	Washer f - DIFFERENTIAL PINION (0.85MM)
17	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)
17	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)
17	41355-PC8-000	Washer e - DIFFERENTIAL PINION (0.75MM)
17	41357-PC8-000	Washer g - DIFFERENTIAL PINION (0.95MM)
17	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)
17	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)
18	90003-PA9-003	Bolt - FLANGE, 10MM
19	90024-612-000	Bolt - SEALING, 8MM
20	90415-689-000	Ring 2 - SNAP, 80X2.6
20	90417-689-000	Ring 4 - SNAP, 80X2.8
20	90419-PH8-000	Ring 6 - SNAP, 80X3.0
20	90414-689-000	Ring 1 - SNAP, 80X2.5
20	90416-689-000	Ring 3 - SNAP, 80X2.7
20	90418-689-000	Ring 5 - SNAP, 80X2.9
21	90425-PF0-000	Washer - THRUST, 26.3X50X1.5
22	90471-580-000	Packing - 8MM
23	90608-PA9-000	Circlip - EXTERNAL, 90MM
24	91001-591-004	Bearing - BALL, 16008 (KOYO)
24	91001-PX4-004	Bearing - BALL, 40X68X9 (KOYO)
25	91101-PL4-003	Bearing - NEEDLE, 36X62X18 (NTN)
26	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
26	91205-PL3-A02	Oil seal - 35X56X8(NOK)
27	91207-639-015	Oil seal - 44X68X8 (NOK)
28	91209-612-000	Oil seal - 12X22X7
28	91209-612-003	Oil seal - 12X22X7 (ARAI)

Transmission housing 82

#	OEM	部品名
1	21104-PL3-A10	Plate m - OIL GUIDE
1	21210-PL4-040	Case comp. - TRANSMISSION
2	21200-PL3-A10	Case comp. - TRANSMISSION
2	21215-PL4-000	Holder - REVERSE IDLE SHAFT
3	21321-689-000	Plug - BREATHER TUBE
3	21232-PL4-010	Hanger - TRANSMISSION
4	21390-PL3-000	Clamp comp - BREATHER
5	23936-PL3-A10	Shim f - 65MM (0.75)
5	23932-PL3-A10	Shim b - 65MM (0.63)
5	23969-PL3-A10	Shim am - 65MM (1.74)
5	23961-PL3-A10	Shim ae - 65MM (1.50)
5	23954-PL3-A10	Shim x - 65MM (1.29)
5	23950-PL3-A10	Shim t - 65MM (1.17)
5	23958-PL3-A10	Shim ab - 65MM (1.41)
5	23944-PL3-A10	Shim n - 65MM (0.99)
5	23940-PL3-A10	Shim j - 65MM (0.87)
5	23964-PL3-A10	Shim ah - 65MM (1.59)
5	23948-PL3-A10	Shim r - 65MM (1.11)
5	23935-PL3-A10	Shim e - 65MM (0.72)
5	23931-PL3-A10	Shim a - 65MM (0.60)
5	23967-PL3-A10	Shim ak - 65MM (1.68)
5	23953-PL3-A10	Shim w - 65MM (1.26)
5	23949-PL3-A10	Shim s - 65MM (1.14)
5	23956-PL3-A10	Shim z - 65MM (1.35)
5	23939-PL3-A10	Shim i - 65MM (0.84)
5	23970-PL3-A10	Shim an - 65MM (1.77)
5	23962-PL3-A10	Shim af - 65MM (1.53)
5	23947-PL3-A10	Shim q - 65MM (1.08)
5	23943-PL3-A10	Shim m - 65MM (0.96)
5	23959-PL3-A10	Shim ac - 65MM (1.44)
5	23938-PL3-A10	Shim h - 65MM (0.81)
5	23934-PL3-A10	Shim d - 65MM (0.69)
5	23952-PL3-A10	Shim v - 65MM (1.23)
5	23965-PL3-A10	Shim ai - 65MM (1.62)
5	23968-PL3-A10	Shim al - 65MM (1.71)
5	23946-PL3-A10	Shim p - 65MM (1.05)
5	23942-PL3-A10	Shim l - 65MM (0.93)
5	23957-PL3-A10	Shim aa - 65MM (1.38)
5	23937-PL3-A10	Shim g - 65MM (0.78)
5	23933-PL3-A10	Shim c - 65MM (0.66)
5	23951-PL3-A10	Shim u - 65MM (1.20)
5	23971-PL3-A10	Shim ao - 65MM (1.80)
5	23963-PL3-A10	Shim ag - 65MM (1.56)
5	23955-PL3-A10	Shim y - 65MM (1.32)
5	23960-PL3-A10	Shim ad - 65MM (1.47)
5	23945-PL3-A10	Shim o - 65MM (1.02)
5	23941-PL3-A10	Shim k - 65MM (0.90)
5	23966-PL3-A10	Shim aj - 65MM (1.65)
6	35600-PL3-013	Switch assy - BACK UP LIGHT
7	90081-PB6-000	Bolt - PLUG, 14MM
7	21811-PL4-S00	Gasket - TORQUE CONVERTER CASE
8	90081-PL3-000	Screw - SEALING, 32MM
8	23544-PC9-810	Spring b - IDLE GEAR SHAFT
9	90083-PL3-000	Bolt - SEALING, 10MM
9	24111-PP6-010	Fork - REVERSE SHIFT
10	91206-PL3-A02	Oil seal - 35X62X8 (NOK)
10	91206-PL3-A01	Oil seal - 35X62X8 (ARAI)
10	24282-634-000	Bolt - SHAFT FORK SETTING
11	24411-PL4-300	Shaft - CONTROL
12	24421-PP6-000	Lever - MANUAL VALVE
13	24423-PA9-000	Pin - MANUAL VALVE
14	24425-639-000	Roller - MANUAL VALVE
15	27490-PF4-701	Shaft comp. - THROTTLE VALVE
16	90007-PC9-811	Bolt - REVERSE HOLDER
17	90015-PF0-000	Bolt - FLANGE, 8X53
18	90016-PF0-000	Bolt - FLANGE, 8X70
19	90016-PL4-000	Bolt - FLANGE, 8X90
20	90017-PL4-000	Bolt - FLANGE, 8X125
21	90017-PP6-000	Bolt - FLANGE, 8X176
22	90018-PL4-000	Bolt - FLANGE, 8X115
23	90081-PF4-000	Bolt - PLUG, 14MM
24	90433-639-000	Washer - LOCK, 6MM
25	90603-PH0-000	Ring - SNAP, 64MM
26	90607-081-000	Circlip - 7MM
27	90609-PH0-000	Ring - SNAP, 70MM
28	90705-PA9-000	Dowel pin - 14X25
29	91002-PL4-003	Bearing - RADIAL BALL, 26X70X17 (NTN)
30	91004-PL4-003	Bearing - RADIAL BALL, 26X64X16
31	91201-PA9-004	Oil seal - 9X18X7 (ARAI)
31	91201-PA9-003	Oil seal - 9X18X7 (NOK)
32	91206-689-005	Oil seal - 35X76X9 (NOK)
32	91206-689-003	Oil seal - 35X76X9 (ARAI)

Trunk lid 25

#	OEM	部品名
1	63511-SA5-003	Cushion - HOOD
5	73219-693-951	Seal - FUEL LID OPENER (GREEN)
6	74411-SH4-A01	Cable - FUEL LID OPENER
7	74826-SH4-000	Stopper - RR. COMBINATION
8	74850-SH4-003	Lock assy - TRUNK
9	74855-SH4-000	Cover - TRUNK LID
10	74861-SH4-043	Cylinder - TRUNK
11	74862-SE3-003	Striker - TRUNK
12	74863-SH4-003	Rod - TRUNK LOCK
13	74871-SH4-010	Spring
14	74872-SH4-010	Spring
15	74873-SG7-003	Clip - TRUNK OPENER SPRING
16	74880-SH4-A01	Cable - TRUNK OPENER
26	83301-SG3-003	Lock - TRUNK
27	83418-SG3-003	Cushion - TRUNK HINGE
28	83431-SA4-000	Cushion - FR. TRUNK
31	90103-SE3-000	Bolt - SPECIAL, 6MM
32	90106-SH4-000	Bolt-washer - 6X15
33	90501-SH3-000	Packing - SEAT
35	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)
36	90684-SD4-003	Clip - FUEL LID OPENER
37	90692-SC5-003	Clip b - OPENER CABLE
38	91501-SH4-003	Clip - CABLE STUD
39	91506-SH3-003	Clip - OPENER CABLE SIDE
40	91516-SM4-013	Clip - RR. COMBINATION PROTECTOR

Valve/rocker arm 18

#	OEM	部品名
1	14621-PM3-010	Arm a - IN. ROCKER
2	14622-PM3-010	Arm b - IN. ROCKER
3	14623-PM3-010	Arm a - EX. ROCKER
4	14624-PM3-010	Arm b - EX. ROCKER
5	14645-PN4-003	Spring a - VALVE ROCKER ARM (SANKO)
6	14646-PN4-003	Spring b - VALVE ROCKER ARM (SANKO)
7	14647-PJ7-000	Washer - WAVE
8	14711-PM3-000	Valve - IN.
9	14721-PM3-000	Valve - EX.
10	14744-PM3-000	Screw - TAPPET ADJUSTING
11	14761-PM3-014	Spring - IN. VALVE (WHITE) (CHUO SPRING)
11	14761-PM3-013	Spring - IN. VALVE (WHITE) (NIPPON HATSUJO)
12	14762-PM4-014	Spring - EX. VALVE (RED) (CHUO SPRING)
12	14762-PM4-013	Spring - EX. VALVE (RED) (NIPPON HATSUJO)
13	14765-PJ7-000	Retainer - VALVE SPRING
14	14775-PM3-000	Seat - VALVE SPRING
15	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
16	90206-PM3-003	Nut - TAPPET ADJUSTING (SATO RASHI)

Washer tank 21

#	OEM	部品名
1	38513-SB0-961	Cap - WASHER MOUTH(MITSUBA)
1	76802-SS0-003	Cap - MOUTH
2	38514-692-731	Bush
3	38516-SA5-671	Packing - T-TYPE) (MITSUBA
4	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
4	76809-SH3-005	Grommet - WASHER TANK
5	76830-SH3-003	Joint y - TUBE (MITSUBA)
6	76801-SH3-E03	Washer comp - WINDSHIELD (FR. 4.5L) (MITSUBA)
7	76802-SH3-S03	Cap - MOUTH
8	76803-SE1-S03	Clip - WASHER HOSE
9	76804-SH3-S03	Float - WASHER
10	76805-SH3-S03	Hose - WASHER
11	38512-SB0-922	Motor - WASHER (MITSUBA)
11	76806-SE0-S01	Motor - WASHER (MITSUBA)
12	76806-SE1-S03	Pump - HEADLIGHT WASHER
13	76808-SD5-003	Holder - MOTOR
14	76809-SE0-003	Grommet - WASHER TANK
15	76812-SH3-S03	Mouth assy. - WASHER
16	76828-SH3-S03	Joint l
17	76871-SH4-S07	Tank assy. - HEADLIGHT WASHER
18	76895-SH3-S00	Hose

Washer tube 17

#	OEM	部品名
1	38511-SD2-003	Adapter - NOZZLE (MITSUBA)
2	38523-SA7-781	Hose c - HEADLIGHT WASHER
3	38581-671-631	Joint - TUBE
4	76803-SE1-S03	Clip - WASHER HOSE
5	76810-SH3-003	Nozzle assy. - WASHER (DUAL)
5	76810-SR3-003	Nozzle assy. - R. FR. WASHER
6	76815-SH3-003	Nozzle assy. - WASHER (SINGLE)
6	76810-S50-003	Nozzle assy wshld
7	76826-SH3-S00	Valve - ONE WAY
8	76880-SH3-S04	Nozzle assy. - R. HEADLIGHT WASHER
9	76881-SH3-S03	Clip - HEADLIGHT WASHER NOZZLE
10	76885-SH3-S04	Nozzle assy. - L. HEADLIGHT WASHER
11	76891-SH3-S00	Hose a
12	76892-SH3-S00	Hose b
13	76893-SH3-S00	Hose c
14	90652-SB2-023	Clip - TUBE, 7MM
15	90676-692-000	Band - 100MM (BLACK)

Water pump 19

#	OEM	部品名
1	19200-PM3-014	Pump comp, WATER (YAMADA)
1	19200-P01-004	Pump comp, WATER (YAMADA)
1	19200-PM3-013	Pump comp - WATER (KEIHIN)
1	19200-P01-003	Pump comp - WATER (KEIHIN)
2	19222-PG6-000	Packing - WATER PUMP
3	19300-PM0-004	Thermostat - 95) (NIPPON THERMOSTAT
3	19300-PM3-004	Thermostat - NIPPON THERMOSTAT
3	19300-PM0-003	Thermostat - 95) (FUJI SEIKO
3	19300-PM3-003	Thermostat - FUJI SEIKO
4	19305-PJ7-000	Rubber - THERMOSTAT MOUNTING
5	19311-PM3-000	Cover - THERMOSTAT
6	19315-PM3-000	Cover - WATER OUTLET
7	19320-PM3-010	Case comp. - THERMOSTAT
8	19500-PE0-000	Joint, Tube
10	19505-PM2-G00	Pipe - CONNECTING
11	19515-PH4-600	Cap - SEALING, 7.3MM
12	19516-PC1-000	Bolt - BREATHING WATER
13	90007-PA9-000	Bolt - FLANGE, 6X30
14	91314-634-000	O-ring

Water valve/duct 37

#	OEM	部品名
2	39356-SA7-010	Spring - HEATER CONTROL
3	39383-SA5-000	Clamp - CONTROL CABLE
4	39384-SB0-000	Shaft - CONTROL LEVER
5	39385-SA5-000	Stopper - CONTROL LEVER
6	75450-SH4-030	Outlet assy - RR. AIR
7	77421-SH3-A02	Duct - DRIVER SIDE AIR CONDITIONER
8	77471-SH3-A02	Duct - DRIVER SIDE DEFROSTER
9	77472-SH3-A10	Duct - DRIVER JOINT HEATER
10	77476-SH3-A01	Duct - PASSENGER SIDE DEFROSTER
11	77660-SH4-A01	Valve assy. - DRIVER VENTILATION
12	77663-SH3-A00	Lever - VENT
13	77666-SH3-000	Link b - VENT
14	77668-SH3-000	Cable - VENT CONTROL
15	77669-SH3-A00	Base - VENT
16	77671-SE3-003	Washer - LINK
18	77673-SE3-000	Rubber - VENT CASE
20	77678-SH3-000	Collar - VENTILATION
21	79710-SH3-A01	Valve assy. - WATER
22	79721-SH3-000	Hose a - WATER IN.
23	79722-SH3-000	Hose b - WATER IN.
24	79725-SH3-000	Hose - WATER OUTLET
25	79731-SH3-000	Grommet - HEATER PIPE
26	79755-SH3-003	Clamp - WATER HOSE
27	79810-SH3-A01	Duct - HEATER
28	79821-SH3-000	Duct - DEFROSTER
29	83331-SH4-A00	Duct - RR. HEATER
30	90102-SA4-000	Screw - TAPPING, 4X16
31	90144-SH3-003	Screw-washer - 4X16
32	90155-SE0-003	Screw - TAPPING, 6X20
35	90670-SB2-671	Screw - FILLER NECK RIVET
36	90699-SA5-000	Clip - DUCT
37	91405-PK1-003	Clip, WATER HOSE, 24MM
37	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
38	91504-SF4-003	Clip - FR. COWL
38	91501-S04-003	Clip - INNER FENDER
39	91567-SH3-003	Clip - WIRE HARNESS
40	91573-SH3-000	Clamp - CONTROL CABLE

Wire harness 50

#	OEM	部品名
1	32100-SH3-G01	Harness - CABIN WIRE (P.W./P.D.L./R.C.MIRROR)
1	32100-SH3-W21	Harness - CABIN WIRE (P.W./P.D.L./R.C.MIRROR)
2	32108-SH4-W01	Harness - RR. WIRE (RUNNING LIGHT)
2	32108-SH4-F01	Harness - RR. WIRE (P.W./P.D.L.)
2	32108-SH4-W11	Harness - RR. WIRE (P.W.)
2	32108-SH4-F11	Harness - RR. WIRE (P.W./P.D.L.)
3	32112-PM3-000	Stay - ENGINE WIRE HARNESS
4	32112-SH4-A01	Sub cord - LICENSE
4	32112-SH4-G01	Sub cord - LICENSE
5	32117-SH3-G01	Harness - INSTRUMENT WIRE
5	32117-SH3-G50	Harness - INSTRUMENT WIRE
8	32155-SH4-A00	Cord assy - INTERIOR (SUNROOF)
8	32155-SH4-010	Cord assy - INTERIOR
10	32174-KT7-751	Clip - CABLE, 15MM
10	90690-GHB-651	Clip, cable, 15mm
11	32202-SH4-000	Cord - DEFROSTER EARTH
12	32610-SH3-000	Cable - SUB EARTH
13	32751-SH4-G11	Harness - DRIVER DOOR WIRE (P.W./P.D.L./R.C.MIRROR)
13	32751-SH4-G21	Harness - DRIVER DOOR WIRE (P.D.L.)
14	32752-SH4-G21	Harness - PASSENGER DOOR WIRE (P.D.L.)
14	32752-SH4-C00	Harness - PASSENGER DOOR WIRE (P.W./P.D.L./R.C.MIRROR)
15	32755-SH4-A00	Harness - R. RR. DOOR WIRE
15	32755-SH4-G00	Harness - R. RR. DOOR WIRE (P.D.L.)
16	32756-SH4-A00	Harness - L. RR. DOOR WIRE
16	32756-SH4-G00	Harness - L. RR. DOOR WIRE (P.D.L.)
17	32758-SE7-300	Grommet - FR. DOOR (A)
20	90153-SB6-003	Bolt - EARTH, 6X12(ZN)
21	90153-SE0-003	Bolt - EARTH, 6X12
22	90155-SD5-003	Bolt - EARTH, 6X12 (NI)
23	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
24	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)
25	90660-SB2-000	Clip - CORD
26	90666-SH3-010	Clip - INTERIOR & ROOF (SUNROOF)
27	90672-SB2-003	Strap - CABLE, 105MM (BLACK)
28	90673-GJ5-003	Clip - CORD
29	91476-SB6-003	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
30	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
31	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
32	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
33	91548-SH2-003	Band - WIRE HARNESS(GRAY)
34	91549-SD2-003	Clip - WIRE HARNESS (BLACK)
35	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
36	91553-SF4-003	Clip - WIRE HARNESS (BLACK)
37	91553-SH3-003	Clip - WIRE HARNESS
40	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
41	91565-SH3-003	Clip - COUPLER HOLDER (BROWN)
42	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
43	91581-SH3-013	Clip - WIRE HARNESS
45	91763-SH3-003	Bar - JOINT (6P)
46	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
