CT140

Toyota CORONA · 1982 · 5,704 parts · 211 categories

5,704 items

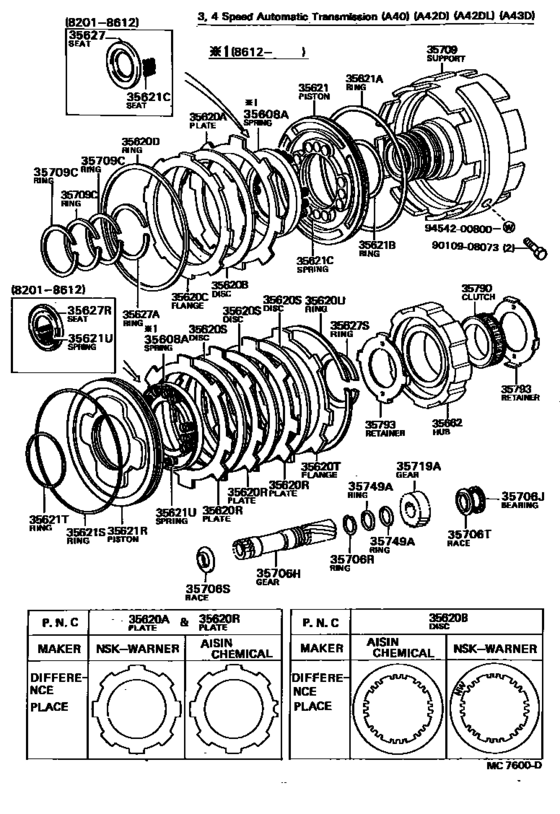

Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT) 36

#	OEM	Part name
35620	35634-22060	Plate, Clutch (For Overdrive)
35620	35634-22090	Plate, Clutch (For Brake)
35620	35677-22020	Disc, Clutch (For Overdrive)
35620	35677-30160	Disc, Clutch (For Overdrive)
35620	35677-22030	Disc, Clutch (For Brake)
35620	35677-22050	Disc, Clutch (For Brake)
35620	35675-22010	Flange, Overdrive Clutch
35620	35675-22140	Flange, Overdrive Clutch
35620	90521-99139	Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
35620	35677-22040	Disc, Clutch (For Rear Brake)
35620	35677-30020	Disc, Clutch (For Rear Brake)
35621	35624-22010	Piston, Brake, No.1
35621	90301-99192	Ring, O (For Overdrive Direct Clutch Piston)
35621	90301-57188	Ring, O (For Underdrive Clutch Piston)
35621	90301-56007	Ring, O (For Underdrive Clutch Piston)
35621	90501-10671	Spring, Compression (For Overdrive Direct Clutch)
35621	35621-30010	Piston, Brake, No.1
35621	90301-99007	Ring, O (For Brake Piston Outer)
35621	90301-99107	Ring (For Rear Brake Piston Outer)
35627	35627-22010	Seat, Brake Return Spring
35627	90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)
35662	35662-22011	Hub, Brake
35662	35662-30010	Hub, Brake
35706	35706-22011	Gear Sub-Assy, Planetary Sun
35706	90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
35706	90520-34260	Ring, Shaft Snap (For Sun Gear Front)
35706	35789-22030	Race, Thrust Bearing(For Overdrive)
35706	35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)
35709	35709-12011	Support Sub-Assy, Center
35709	35709-30021	Support Sub-Assy, Center
35709	35617-16010	Ring, Oil Seal (For Overdrive Case)
35749	35749-22010	Ring, Sun Gear Shaft Oil Seal
35790	35791-30020	Clutch, 1Way, No.1(For Overdrive)
35793	35793-22011	Retainer, 1 Way Clutch
9010908073	90109-08073	Bolt (For Front Oil Pump Setting)
9454200800	94542-00800	New Genuine Part

OEM	Part name	Category
35617-16010	Ring, Oil Seal (For Overdrive Case)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35621-30010	Piston, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35624-22010	Piston, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35627-22010	Seat, Brake Return Spring	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35634-22060	Plate, Clutch (For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35634-22090	Plate, Clutch (For Brake)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35662-22011	Hub, Brake	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35662-30010	Hub, Brake	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35675-22010	Flange, Overdrive Clutch	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35675-22140	Flange, Overdrive Clutch	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35677-22020	Disc, Clutch (For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35677-22030	Disc, Clutch (For Brake)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35677-22040	Disc, Clutch (For Rear Brake)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35677-22050	Disc, Clutch (For Brake)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35677-30020	Disc, Clutch (For Rear Brake)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35677-30160	Disc, Clutch (For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35706-22011	Gear Sub-Assy, Planetary Sun	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35709-12011	Support Sub-Assy, Center	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35709-30021	Support Sub-Assy, Center	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35749-22010	Ring, Sun Gear Shaft Oil Seal	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35789-22030	Race, Thrust Bearing(For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35791-30020	Clutch, 1Way, No.1(For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
35793-22011	Retainer, 1 Way Clutch	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90109-08073	Bolt (For Front Oil Pump Setting)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90301-56007	Ring, O (For Underdrive Clutch Piston)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90301-57188	Ring, O (For Underdrive Clutch Piston)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90301-99007	Ring, O (For Brake Piston Outer)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90301-99107	Ring (For Rear Brake Piston Outer)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90301-99192	Ring, O (For Overdrive Direct Clutch Piston)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90501-10671	Spring, Compression (For Overdrive Direct Clutch)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90520-34260	Ring, Shaft Snap (For Sun Gear Front)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
90521-99139	Ring, Hole Snap (For Overdrive Brake Return Spring Seat)	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
94542-00800	New Genuine Part	Center Support & Planetary Sun Gear (Atm) ([01.1982 - ] (8201- )AT140,CT140,KT147,TT147,YT140..ATM ; (8210-8508)4FC..GTT)
