Search › Model › CR52

CR52

Toyota LITE-TOWNACE-NOAH · 1998 · 3,856 parts · 240 categories

3,856 items

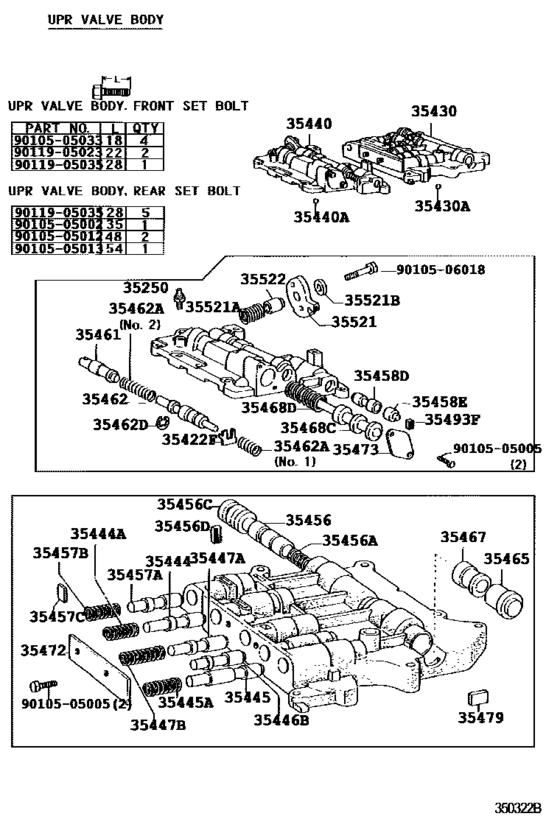

Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM) 51

#	OEM	Part name
35250	35250-30010	Body Assy, Check Ball
35422	35422-22010	Stopper, Valve Vibrating
35430	35430-30110	Body Assy, Rear Upper Valve
35430	35495-22020	Ball (For Transfer Upper Valve Body)
35430	90360-06023	Ball (For Rear Upper Valve Body)
35440	35440-20021	Body Assy, Front Upper Valve
35444	35444-22010	Valve, Intermediate Modulator
35444	90501-11009	Spring, Compression (For Intermediate Modulator Valve)
35445	35445-22010	Valve, Low Modulator
35445	90501-08725	Spring, Compression (For Intermediate Modulator Valve)
35446	35446-20010	Valve, Governor Modulator
35447	35447-22010	Valve, Reverse Clutch Sequence
35447	90501-12726	Spring, Compression (For Reverse Clutch Sequence Valve)
35456	35456-22010	Valve, 2-3 Shift
35456	35456-26010	Valve, 2-3 Shift
35456	90501-08184	Spring, Compression (For 2-3 Shift Valve)
35456	90501-08724	Spring, Compression (For 2-3 Shift Valve)
35456	35452-22010	Plug (For 2-3 Shift Valve)
35456	35493-22020	Seat, Plug (For Lock Up Relay Valve)
35457	35457-22010	Valve, Detent Regulator
35457	90501-09025	Spring, Compression (For Detent Regulator Valve)
35457	35438-22020	Seat (For Direct Clutch Modulator Valve Plug)
35458	35458-22010	Valve, Cut Back
35458	35459-22010	Plug (For Cut Back Valve)
35461	35408-30030	Plug, Down Shift
35462	35462-22011	Valve, Throttle
35462	90501-07680	Spring, Compression (For Throttle Valve)
35462	90501-12029	Spring, Compression (For Throttle Valve)
35462	90523-06023	Ring, E (For Throttle Valve)
35465	35465-22010	Plug, Intermediate Shift Valve
35465	35465-26010	Plug, Intermediate Shift Valve
35467	35467-22010	Valve, Intermediate Shift
35467	35467-26010	Valve, Intermediate Shift
35468	35468-22010	Valve, Secondary Regulator
35468	90501-19001	Spring, Compression (For Secondary Regulator Valve)
35472	35472-22010	Cover, Valve Body, No.2
35473	35473-22010	Cover, Transmission Valve Body
35479	35479-22010	Seat, Intermediate Shift Valve
35493	35493-22010	Seat (For Cut Back Valve)
35521	35521-22030	Cam, Throttle Valve
35521	90508-12331	Spring (For Throttle Valve Cam Return)
35521	90201-06472	Washer (For Throttle Valve Cam Set)
35522	35522-22010	Pin, Throttle Valve Cam
9010505002	90105-05002	New Genuine Part
9010505005	90105-05005	Bolt (For Transfer Relief Valve Plate)
9010505012	90105-05012	New Genuine Part
9010505013	90105-05013	New Genuine Part
9010505033	90105-05033	New Genuine Part
9010506018	90105-06018	Bolt (For Throttle Valve Cam Set)
9011905023	90119-05023	New Genuine Part
9011905035	90119-05035	Bolt (For Pressure Regulator Valve No.2)

OEM	Part name	Category
35250-30010	Body Assy, Check Ball	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35408-30030	Plug, Down Shift	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35422-22010	Stopper, Valve Vibrating	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35430-30110	Body Assy, Rear Upper Valve	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35438-22020	Seat (For Direct Clutch Modulator Valve Plug)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35440-20021	Body Assy, Front Upper Valve	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35444-22010	Valve, Intermediate Modulator	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35445-22010	Valve, Low Modulator	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35446-20010	Valve, Governor Modulator	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35447-22010	Valve, Reverse Clutch Sequence	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35452-22010	Plug (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35456-22010	Valve, 2-3 Shift	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35456-26010	Valve, 2-3 Shift	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35457-22010	Valve, Detent Regulator	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35458-22010	Valve, Cut Back	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35459-22010	Plug (For Cut Back Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35462-22011	Valve, Throttle	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35465-22010	Plug, Intermediate Shift Valve	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35465-26010	Plug, Intermediate Shift Valve	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35467-22010	Valve, Intermediate Shift	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35467-26010	Valve, Intermediate Shift	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35468-22010	Valve, Secondary Regulator	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35472-22010	Cover, Valve Body, No.2	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35473-22010	Cover, Transmission Valve Body	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35479-22010	Seat, Intermediate Shift Valve	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35493-22010	Seat (For Cut Back Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35493-22020	Seat, Plug (For Lock Up Relay Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35495-22020	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35521-22030	Cam, Throttle Valve	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
35522-22010	Pin, Throttle Valve Cam	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90105-05002	New Genuine Part	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90105-05005	Bolt (For Transfer Relief Valve Plate)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90105-05012	New Genuine Part	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90105-05013	New Genuine Part	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90105-05033	New Genuine Part	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90105-06018	Bolt (For Throttle Valve Cam Set)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90119-05023	New Genuine Part	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90119-05035	Bolt (For Pressure Regulator Valve No.2)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90201-06472	Washer (For Throttle Valve Cam Set)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90360-06023	Ball (For Rear Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-07680	Spring, Compression (For Throttle Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-08184	Spring, Compression (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-08724	Spring, Compression (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-08725	Spring, Compression (For Intermediate Modulator Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-09025	Spring, Compression (For Detent Regulator Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-11009	Spring, Compression (For Intermediate Modulator Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-12029	Spring, Compression (For Throttle Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-12726	Spring, Compression (For Reverse Clutch Sequence Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90501-19001	Spring, Compression (For Secondary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90508-12331	Spring (For Throttle Valve Cam Return)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
90523-06023	Ring, E (For Throttle Valve)	Valve Body & Oil Strainer (Atm) ([12.1998 - 08.2002] A42D,A44D,A44DF,A44DL,A45DF,A45DL (9610-9812)ATM ; (9812-0208)CR42,52,KR42..ATM)
