| 33146-30020 |
Deflector, Extension Housing Dust(Mtm) |

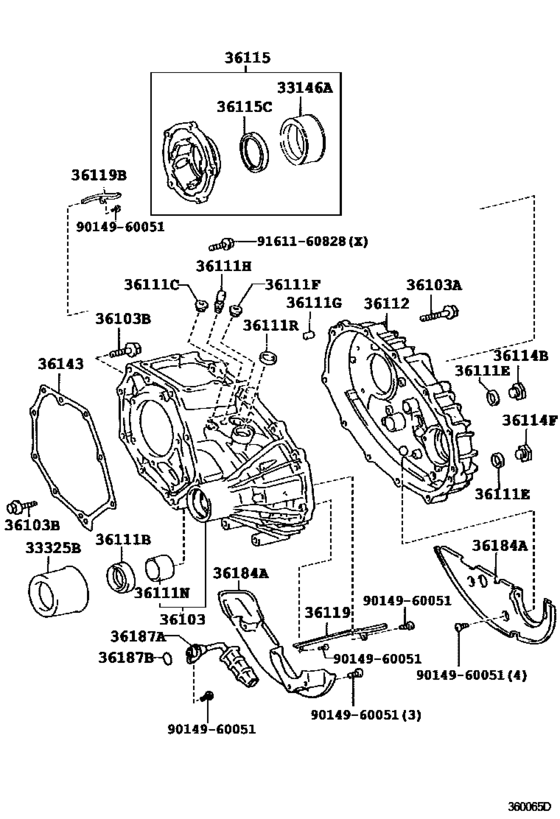

Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 33325-28020 |
Deflector, Dust (For Transfer Extension Front Housing) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36103-26020 |
Case Sub-Assy, Transfer |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36105-28030 |
Housing, Transfer Extension |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36105-28040 |
Housing Sub-Assy, Transfer Extension, Front |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36112-26020 |
Case, Transfer, Rear |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36119-25010 |
Receiver, Transfer Oil, No.1 |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36119-28020 |
Receiver, Transfer Oil, No.2 |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36143-28020 |
Gasket, Transfer Case, Front |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36184-26010 |
Separator, Transfer Oil |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36184-28040 |
Separator, Transfer Oil |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 36187-25010 |
Strainr, Transfer Oil, No.1 |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90119-10610 |
Bolt (For Transfer Case) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90119-10615 |
Bolt (For Transfer Case & Adapter Setting) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90149-60051 |
New Genuine Part |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90250-10214 |
Pin, Straight(For End Plate) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90311-37003 |
Seal, Type T, Oil (For Transfer Output Shaft) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90311-38062 |
Seal, Type T Oil (For Transfer Extension Housing) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90311-38090 |
Seal, Type T Oil (For Transfer Extension Housing) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90341-12014 |
Plug, W/head Straight Screw, No.1(For Cylinder Block) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90341-14008 |
Plug, W/head Taper Screw, No.1 |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90341-18006 |
Plug (No magnet) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90341-18057 |
Drain Plug (with Magnet) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90430-18008 |
Gasket |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90430-T0021 |
Gasket(For Manual Transmission Filler Plug) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90930-03085 |
Plug, Breather |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90999-73139 |
Bush (For Transfer Case) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 91611-60828 |
Bolt(For Clutch Release Cylinder Setting) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 91612-61055 |
Bolt (For Transfer Case) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 96411-42800 |
Plug, Tight, No.1 |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 96721-24017 |
Ring, O (For Transfer Oil Strainer) |
Transfer Case & Extension Housing ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
