Search › Model › CR52

CR52

Toyota LITE-TOWNACE-NOAH · 1998 · 3,856 parts · 240 categories

3,856 items

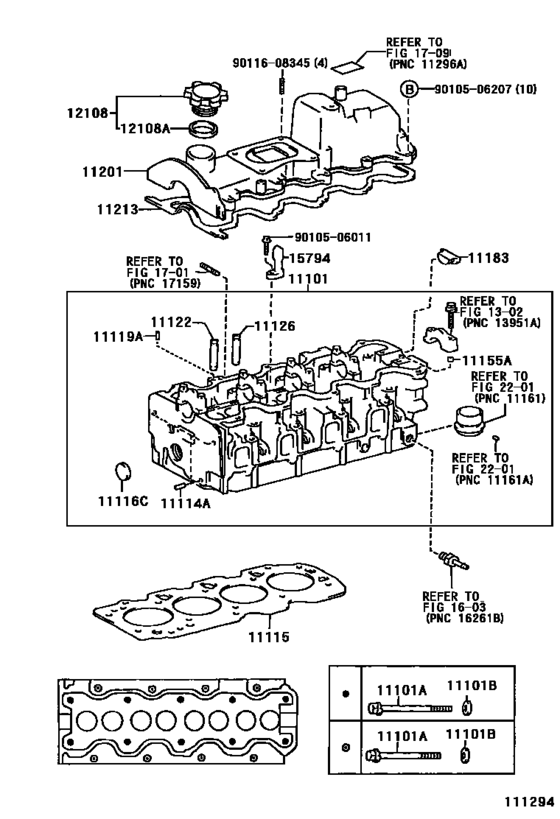

Cylinder Head ([12.1998 - ] (9812- )3CE) 25

#	OEM	Part name
11101	11101-64370	Head Sub-Assy, Cylinder
11101	11101-64371	Head Sub-Assy, Cylinder
11101	90910-02130	Bolt(For Cylinder Head Set)
11101	90910-02131	Bolt(For Cylinder Head Set)
11101	90201-12222	Washer, Plate(For Cylinder Head Set)
11114	90250-06068	Pin, Straight
11115	11115-64190-01	Gasket, Cylinder Head
11115	11115-64190-03	Gasket, Cylinder Head
11115	11115-64190-05	Gasket, Cylinder Head
11116	96411-63000	Plug, Tight
11119	90250-06013	Pin, Straight, No.1
11122	11122-64010	Bush, Intake Valve Guide
11122	11123-64010	Bush, Intake Valve Guide
11126	11126-64030	Bush, Exhaust Valve Guide
11126	11127-64030	Bush, Exhaust Valve Guide
11155	90253-11021	Pin, Ring
11183	11183-64010	Plug, Semicircular
11201	11201-64180	Cover Sub-Assy, Cylinder Head
11213	11213-64061	Gasket, Cylinder Head Cover
12108	12180-50040	Cap Sub-Assy, Oil Filler
12108	12195-50010	Gasket(For Oil Filler Cap)
15794	15794-64011	Nozzle, Cylinder Head Oil
9010506011	90105-06011	BOLT
9010506207	90105-06207	New Genuine Part
9011608345	90116-08345	New Genuine Part

OEM	Part name	Category
11101-64370	Head Sub-Assy, Cylinder	Cylinder Head ([12.1998 - ] (9812- )3CE)
11101-64371	Head Sub-Assy, Cylinder	Cylinder Head ([12.1998 - ] (9812- )3CE)
11115-64190-01	Gasket, Cylinder Head	Cylinder Head ([12.1998 - ] (9812- )3CE)
11115-64190-03	Gasket, Cylinder Head	Cylinder Head ([12.1998 - ] (9812- )3CE)
11115-64190-05	Gasket, Cylinder Head	Cylinder Head ([12.1998 - ] (9812- )3CE)
11122-64010	Bush, Intake Valve Guide	Cylinder Head ([12.1998 - ] (9812- )3CE)
11123-64010	Bush, Intake Valve Guide	Cylinder Head ([12.1998 - ] (9812- )3CE)
11126-64030	Bush, Exhaust Valve Guide	Cylinder Head ([12.1998 - ] (9812- )3CE)
11127-64030	Bush, Exhaust Valve Guide	Cylinder Head ([12.1998 - ] (9812- )3CE)
11183-64010	Plug, Semicircular	Cylinder Head ([12.1998 - ] (9812- )3CE)
11201-64180	Cover Sub-Assy, Cylinder Head	Cylinder Head ([12.1998 - ] (9812- )3CE)
11213-64061	Gasket, Cylinder Head Cover	Cylinder Head ([12.1998 - ] (9812- )3CE)
12180-50040	Cap Sub-Assy, Oil Filler	Cylinder Head ([12.1998 - ] (9812- )3CE)
12195-50010	Gasket(For Oil Filler Cap)	Cylinder Head ([12.1998 - ] (9812- )3CE)
15794-64011	Nozzle, Cylinder Head Oil	Cylinder Head ([12.1998 - ] (9812- )3CE)
90105-06011	BOLT	Cylinder Head ([12.1998 - ] (9812- )3CE)
90105-06207	New Genuine Part	Cylinder Head ([12.1998 - ] (9812- )3CE)
90116-08345	New Genuine Part	Cylinder Head ([12.1998 - ] (9812- )3CE)
90201-12222	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([12.1998 - ] (9812- )3CE)
90250-06013	Pin, Straight, No.1	Cylinder Head ([12.1998 - ] (9812- )3CE)
90250-06068	Pin, Straight	Cylinder Head ([12.1998 - ] (9812- )3CE)
90253-11021	Pin, Ring	Cylinder Head ([12.1998 - ] (9812- )3CE)
90910-02130	Bolt(For Cylinder Head Set)	Cylinder Head ([12.1998 - ] (9812- )3CE)
90910-02131	Bolt(For Cylinder Head Set)	Cylinder Head ([12.1998 - ] (9812- )3CE)
96411-63000	Plug, Tight	Cylinder Head ([12.1998 - ] (9812- )3CE)

Source: Public OEM parts-catalog data
Variants: 2 / 17
Category: 240
Collected: 2026-08-04
