Search › Model › CR42

CR42

Toyota LITE-TOWNACE-NOAH · 1998 · 3,674 parts · 232 categories
CR42 ×

← Back to categories

3,674 items

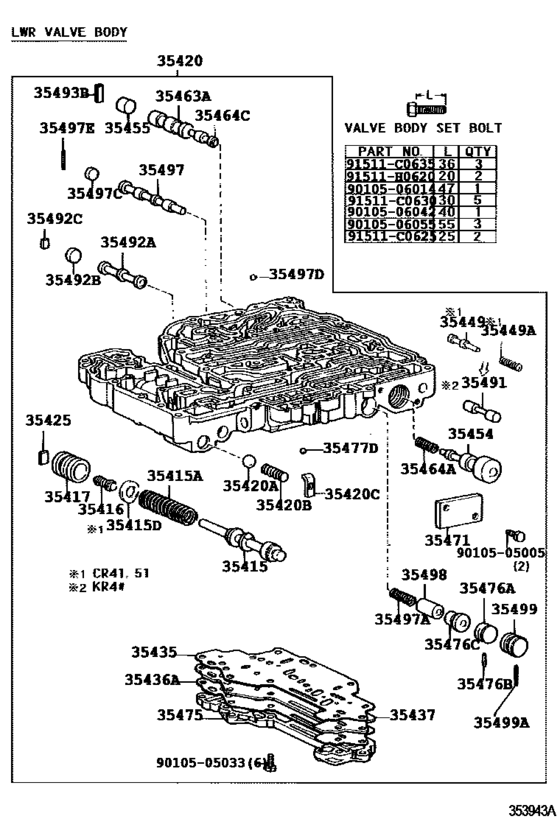

Valve Body & Oil Strainer (Atm) ([10.1996 - 08.2002] A42D,A44D,A44DF (9610-0208)CR41,42,51,52,KR4#..ATM) 52
#OEMPart name
35415 35415-22021 Valve, Pressure Regulator
35415 90501-15017 Spring, Compression (For Pressure Regulator Valve)
35415 90564-12004 Shim (For Pressure Regulator Valve)
35416 35416-30030 Plunger, Primary Regulator Valve, No.1
35417 35417-30050 Sleeve, Pressure Regulator Valve
35420 35420-28090 Body Assy, Lower Valve
35420 90360-13024 Ball (For Pressure Relief)
35420 90501-18677 Spring (For Pressure Relief)
35420 35427-22011 Seat (For Pressure Relief)
35425 35425-14010 Seat, Pressure Regulator Valve Sleeve
35435 35435-30030 Gasket, Valve Body Plate, No.3
35435 35435-35010 Gasket, Valve Body Plate, No.3
35436 35436-30040 Gasket, Valve Body Plate, No.4
35436 35436-35010 Gasket, Valve Body Plate, No.4
35437 35437-43010 Plate, 3-4 Shift Valve Separator
35449 35449-22010 Valve, Sequence
35449 90501-12726 Spring, Compression (For Reverse Clutch Sequence Valve)
35454 35454-30010 Valve, Low Coast Shift
35455 35455-22010 Plug, 1-2 Shift Valve Low
35463 35463-22010 Valve, 1-2 Shift, Lower
35464 90501-06684 Spring, Compression (For 1-2 Shift Valve)
35464 35464-22020 Valve, 1-2 Shift, Upper
35471 35471-22010 Cover, Valve Body, No.1
35475 35472-35020 Cover, Valve Body, No.5
35475 35475-28040 Cover, Valve Body, No.5
35475 35475-30020 Cover, Valve Body, No.5
35476 90334-12001 Plug, Straight (For 3Rd Coast Shift)
35476 90250-02012 Pin, Locating (For 3Rd Coast Shift)
35476 35476-30010 Valve, 3Rd Coast Shift
35477 35495-22020 Ball (For Transfer Upper Valve Body)
35491 35491-22010 Plug, Reverse Brake
35491 35491-26010 Plug, Reverse Brake
35492 35492-30010 Valve, Manual Down Timing
35492 35494-30010 Plug (For Manual Down Timing Valve)
35492 35493-30040 Seat(For Low-High Shift Timing Valve Plug)
35493 35493-22010 Seat (For Cut Back Valve)
35497 35497-30020 Valve, 3-4 Shift
35497 90501-11005 Spring, Compression (For 3-4 Shift Valve)
35497 90334-13001 Plug (For 3-4 Shift Valve)
35497 90361-02051 Seat, Shift Valve Plug
35498 35498-30010 Valve, 3-4 Coast Shift
35499 35499-30030 Plug, 3-4 Shift Valve
91511 91511-C0625 Bolt(For Cylinder Head Cover)
91511 91551-A0625 Bolt(For Cylinder Head Cover)
91511 91511-C0630 New Genuine Part
91511 91511-C0635 BOLT, FLANGE
91511 91511-H0620 Bolt (For Transaxle Case Upper Cover)
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505033 90105-05033 New Genuine Part
9010506014 90105-06014 New Genuine Part
9010506042 90105-06042 New Genuine Part
9010506055 90105-06055 New Genuine Part
