Search › Model › CR42

CR42

Toyota LITE-TOWNACE-NOAH · 1998 · 3,674 parts · 232 categories

3,674 items

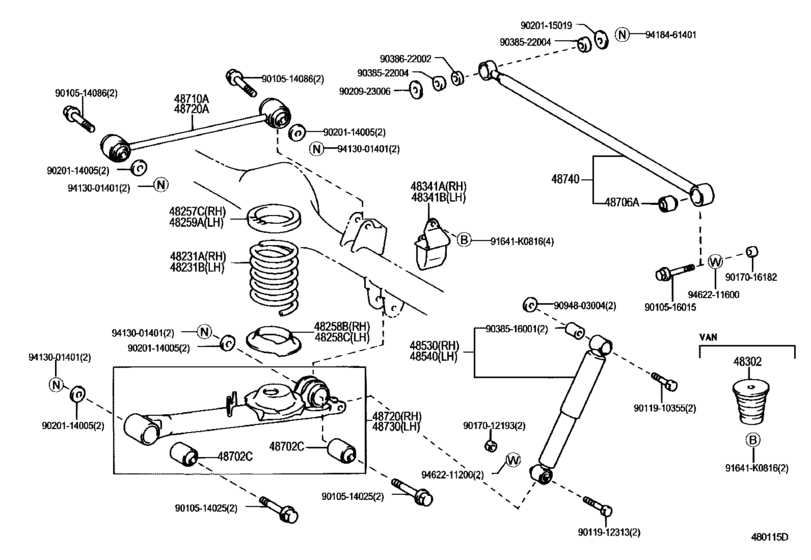

Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S) 31

#	OEM	Part name
48231	48231-28760	Spring, Coil, Rear
48257	48257-28050	Insulator, Rear Coil Spring, Upper Rh
48258	48258-28020	Insulator, Rear Coil Spring, Lower
48302	48302-28010	Spring Sub-Assy, Hollow
48530	48531-80561	Absorber Assy, Shock, Rear Rh
48702	48704-28040	Bush Sub-Assy, Lower Control Arm
48706	48706-28020	Bush Sub-Assy, Rear Lateral Control Rod
48710	48710-28140	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-28150	Arm Assy, Rear Suspension, No.1 Rh
48720	48720-28110	Arm Assy, Lower Control, Rh
48730	48730-28110	Arm Assy, Lower Control, Lh
48740	48740-28120	Rod Assy, Rear Lateral Control
91641	91641-K0816	BOLT WWASHER
9010514025	90105-14025	BOLT
9010514086	90105-14086	New Genuine Part
9010516015	90105-16015	Bolt, Upper Arm Set
9011910355	90119-10355	Washer, Rear Shock Absorber Cushion, No.2
9011912313	90119-12313	BOLT WWASHER
9017012193	90170-12193	New Genuine Part
9017016182	90170-16182	New Genuine Part
9020114005	90201-14005	Washer, Plate
9020115019	90201-15019	Washer, Plate, No.1(For Rear Lateral Control Rod)
9020923006	90209-23006	New Genuine Part
9038516001	90385-16001	Bush(For Shock Absorber)
9038522004	90385-22004	BUSH
9038622002	90386-22002	BUSH
9094803004	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
9413001401	94130-01401	New Genuine Part
9418461401	94184-61401	Nut(For Idler Arm Support)
9462211200	94622-11200	WASHER
9462211600	94622-11600	WASHER

OEM	Part name	Category
48231-28760	Spring, Coil, Rear	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48257-28050	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48258-28020	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48302-28010	Spring Sub-Assy, Hollow	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48531-80561	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48704-28040	Bush Sub-Assy, Lower Control Arm	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48706-28020	Bush Sub-Assy, Rear Lateral Control Rod	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48710-28140	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48710-28150	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48720-28110	Arm Assy, Lower Control, Rh	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48730-28110	Arm Assy, Lower Control, Lh	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
48740-28120	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90105-14025	BOLT	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90105-14086	New Genuine Part	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90105-16015	Bolt, Upper Arm Set	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90119-10355	Washer, Rear Shock Absorber Cushion, No.2	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90119-12313	BOLT WWASHER	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90170-12193	New Genuine Part	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90170-16182	New Genuine Part	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90201-14005	Washer, Plate	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90201-15019	Washer, Plate, No.1(For Rear Lateral Control Rod)	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90209-23006	New Genuine Part	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90385-16001	Bush(For Shock Absorber)	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90385-22004	BUSH	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90386-22002	BUSH	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
91641-K0816	BOLT WWASHER	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
94130-01401	New Genuine Part	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
94184-61401	Nut(For Idler Arm Support)	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
94622-11200	WASHER	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
94622-11600	WASHER	Rear Spring & Shock Absorber ([12.1998 - ] (9610-9812)CR40,5#,SR40,50 ; (9611-9812)CR41,KR4 #..V1 ; (9812- )CR42,KR42..V1 ; (9812- )CR52,K R52,SR40,50..03S,05S,06S)
