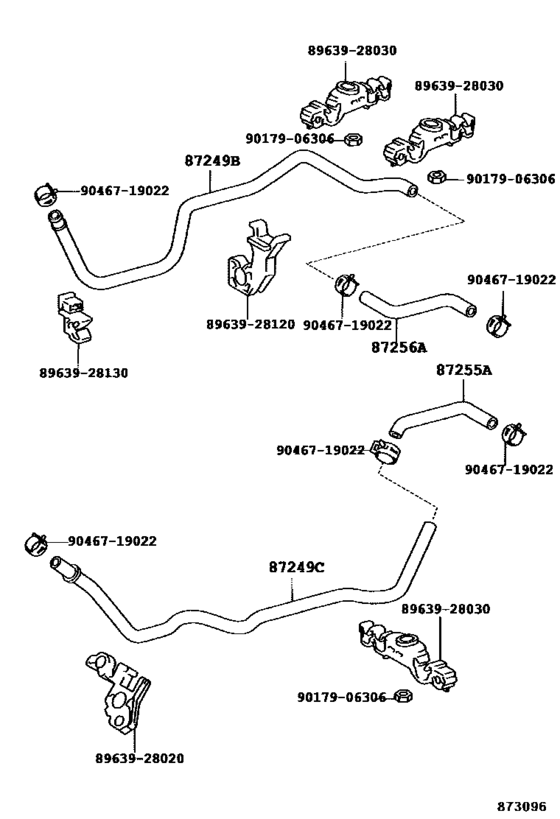

| 87245-28760 |
Hose, Rear Heater Water Outlet, A (From Heater Unit) |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 87245-28770 |
Hose, Rear Heater Water Inlet, A(From Engine) |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 87248-28100 |
Pipe, Heater Water Outlet, B |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 87248-28110 |
Pipe, Heater Water Outlet, C |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 89639-28020 |
Wire, Brake Control |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 89639-28030 |
Wire, Brake Control |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 89639-28120 |
Wire, Brake Control |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 89639-28130 |
Clamp, Fuel Hose |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 90179-06306 |
NUT |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
| 90467-19022 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Water Piping ([12.1998 - ] ﾘﾔ (9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ; (0208- )KR42..HRF..5D..ATM..V1) |
