CR42

Toyota LITE-TOWNACE-NOAH · 1998 · 3,674 parts · 232 categories

3,674 items

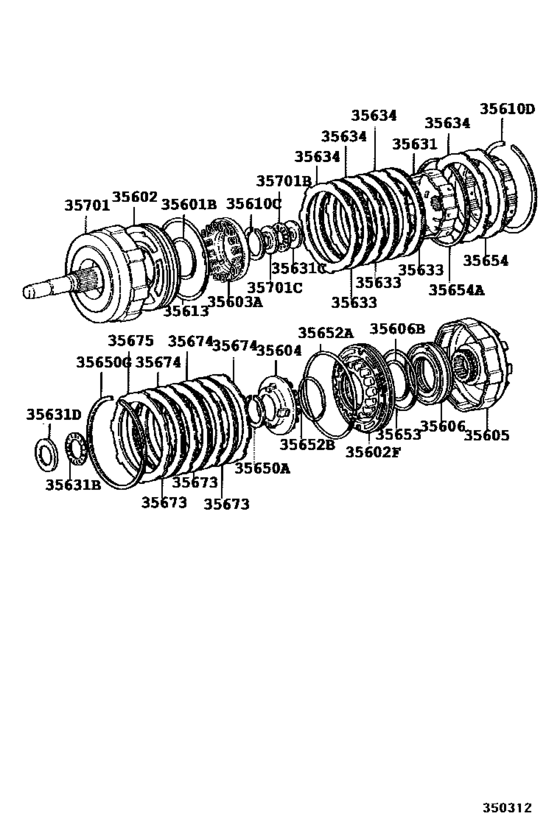

Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM) 31

#	OEM	Part name
35601	90301-56007	Ring, O (For Underdrive Clutch Piston)
35602	35602-30042	Piston Sub-Assy, Front Clutch
35602	35602-30041	Piston Sub-Assy, Front Clutch
35603	35603-22030	Spring Sub-Assy, Forward Clutch Return
35604	35603-22010	Spring Sub-Assy, Forward Clutch Return
35604	35603-22020	Spring Sub-Assy, Forward Clutch Return
35605	35605-22011	Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear
35605	35605-30021	Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear
35606	35606-22010	Piston Sub-Assy, Rear Clutch
35606	35606-30021	Piston Sub-Assy, Rear Clutch
35610	90520-39261	Ring, Shaft Snap (For Front Clutch Piston Return Spring)
35610	90520-99012	Ring, Hole Snap (For Front Multiple Disc Clutch)
35613	90301-99058	Ring, O (For Overdrive Direct Clutch Piston)
35631	35631-43010	Hub, Clutch(For Multiple Disc Clutch)
35631	90374-28014	Bearing, Thrust Needle Roller(For Overdrive)
35631	35789-22050	Race, Thrust Bearing (For Rear Planetary Ring Gear Front)
35631	35789-22020	Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)
35631	35789-43010	Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)
35633	35677-22080	Disc, Clutch (For Front Clutch)
35634	35634-22040	Plate, Clutch (For Overdrive)
35634	35634-30070	Plate, Clutch (For Overdrive)
35650	90521-99139	Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
35653	90301-83001	Ring, O (For Rear Clutch Piston)
35654	35654-30010	Hub, Rear Clutch
35654	90521-99146	Ring, Hole Snap, No.1 (For Overdrive)
35675	35675-22120	Flange, Rear Clutch
35675	35675-22130	Flange, Rear Clutch
35675	35675-22140	Flange, Overdrive Clutch
35701	35701-30043	Shaft Sub-Assy, Input
35701	90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
35701	35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)

OEM	Part name	Category
35602-30041	Piston Sub-Assy, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35602-30042	Piston Sub-Assy, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35603-22010	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35603-22020	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35603-22030	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35605-22011	Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35605-30021	Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35606-22010	Piston Sub-Assy, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35606-30021	Piston Sub-Assy, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35631-43010	Hub, Clutch(For Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35634-22040	Plate, Clutch (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35634-30070	Plate, Clutch (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35654-30010	Hub, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35675-22120	Flange, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35675-22130	Flange, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35675-22140	Flange, Overdrive Clutch	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35677-22080	Disc, Clutch (For Front Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35701-30043	Shaft Sub-Assy, Input	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35789-22020	Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35789-22050	Race, Thrust Bearing (For Rear Planetary Ring Gear Front)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
35789-43010	Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90301-56007	Ring, O (For Underdrive Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90301-83001	Ring, O (For Rear Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90301-99058	Ring, O (For Overdrive Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90374-28014	Bearing, Thrust Needle Roller(For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90520-39261	Ring, Shaft Snap (For Front Clutch Piston Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90520-99012	Ring, Hole Snap (For Front Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90521-99139	Ring, Hole Snap (For Overdrive Brake Return Spring Seat)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
90521-99146	Ring, Hole Snap, No.1 (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([10.1996 - ] A42D,A44D,A44DF,A45DF,A45DL (9610- )ATM)
