Abs modulator (DIESEL) 6

#	OEM	部品名
1	57101-S37-000	Rubber - ABS MOUNTING
2	57102-S37-000	Washer - BELL SUPPORT
3	57110-SN7-003	Modulator assy
4	57115-S37-000	Bracket - MODULATOR
5	57366-S37-000	Harness - ABS EARTH
6	90153-SE0-003	Bolt - EARTH, 6X12

Acoustic cover 7

#	OEM	部品名
1	17112-P5T-G00	Cover assy. - ACOUSTIC
2	17115-P5T-G00	Grommet - ACOUSTIC COVER
3	17117-P5T-G00	Seal - ACOUSTIC COVER
5	11911-P5T-G00	Hanger a - ENGINE
6	11912-P5T-G00	Hanger b - ENGINE
7	11915-P5T-G00	Stay - ENGINE COVER
10	90501-P5T-G00	Insert - ACOUSTIC COVER

Adaptor 10

#	OEM	部品名
1	21340-P5T-000	Plate - ADAPTOR
2	21341-P5T-000	Pad - BACKPLATE
3	90001-P5T-000	Bolt - 8X20
4	90002-P5T-000	Bolt - 12X55
5	90003-P5T-000	Bolt - 12X120
6	90004-P5T-000	Bolt - 12X45
7	90005-P5T-000	Bolt - 12X50
8	90006-P5T-000	Bolt - 12X80
9	90701-P5T-000	Dowel pin
10	90703-P5T-000	Dowel pin

Air cleaner (DIESEL) 8

#	OEM	部品名
1	17200-P5T-G00	Cleaner assy - AIR
2	17220-P5T-G00	Element assy. - AIR CLEANER
3	17227-P5T-G00	Hose - AIR FLOW METER
4	17242-P5T-G00	Duct - AIR CLEANER
5	17261-P5T-G00	Stay comp - AIR CLEANER
6	90502-P5T-G00	Collar - MOUNTING
11	17213-P5T-G00	Grommet
12	17262-P5T-G00	Insert - AIR CLEANER STAY

Air flow sensor (DIESEL) 3

#	OEM	部品名
1	16176-P5T-G00	O-ring - AIR FLOW SENSOR
2	16400-P5T-G00	Sensor assy - AIR FLOW
3	91308-P5T-G00	O-ring

Alternator (AIR CONDITIONER) 4

#	OEM	部品名
1	31100-P5T-G20	Alternator assy.
2	31160-P5T-G20	Pump assy. - VACUUM
3	31161-P5T-G00	Bolt set - VACUUM PUMP
4	31165-P5T-G20	Bracket - ALTERNATOR SUPPORT

Auto cruise (LH) 2

#	OEM	部品名
17	90852-SB5-003	Plug - HOLE
20	91618-SA5-000	Grommet b - CONTROL WIRE, 16MM

Auto radio ('96) 2

#	OEM	部品名
6	39111-SN7-G00	Bracket - AUTO RADIO
9	91551-SE0-003	Bolt - FLANGE, 5X7

Battery (DIESEL) 8

#	OEM	部品名
1	31500-S37-D00	Battery assy
2	31510-S37-D00	Cover - BATTERY TERMINAL
3	31512-S37-D00	Clamp - BATTERY
4	32101-S37-D10	Harness - BATTERY FEED LINK
5	32138-S37-D00	Bracket - BATTERY LINK CONNECTOR
6	32410-S37-D00	Cable assy - STARTER
7	32600-S37-D00	Cable assy - EARTH
11	90153-SE0-003	Bolt - EARTH, 6X12

Brake lines (ABS; DIESEL) 38

#	OEM	部品名
1	46210-S37-000	Valve assy.
2	46331-SN7-000	Pipe comp. e - R. BRAKE
3	46361-SN7-000	Pipe comp. e - L. BRAKE
4	46374-S37-G51	Pipe comp. u - BRAKE
5	46375-S37-G53	Pipe comp. v - BRAKE
6	46376-S37-G50	Pipe comp. w - BRAKE
7	46377-S37-000	Pipe comp. x - BRAKE
8	46378-S37-000	Pipe comp. y - BRAKE
9	46379-S37-000	Pipe comp. z - BRAKE
10	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
11	46391-SE0-931	Clamp - BRAKE PIPE
12	46391-SM4-A00	Clip A - BRAKE PIPE
13	46391-SM4-J01	Clamp - BRAKE PIPE
16	46391-S37-000	Clip - TRIPLE
17	46392-SE0-000	Clip - BRAKE PIPE
18	46392-SM4-A01	Clip b - BRAKE PIPE
19	46392-SM4-A50	Clip b - BRAKE PIPE
20	46392-SR3-921	Clip - BRAKE PIPE
22	46393-S37-010	Bracket - BRAKE PIPE CLIP
23	46394-S37-000	Bracket - BRAKE PIPE CLIP
24	46395-S37-000	Bracket assy - BRAKE PIPE
25	46410-SN7-003	Hose - R. FR. BRAKE
26	46411-SN7-003	Hose - L. FR. BRAKE
27	46430-SN7-003	Hose a - RR. BRAKE
28	46431-SN7-003	Hose b - RR. BRAKE
29	46435-SM4-000	Bracket - R. RR. BRAKE HOSE
30	46436-SM4-000	Bracket - L. RR. BRAKE HOSE
31	46438-SM4-000	Bracket - R. RR. BRAKE HOSE
32	46439-SM4-000	Bracket - L. RR. BRAKE HOSE
33	46462-SE0-000	Bolt - OIL
34	46472-568-000	Packing - OIL BOLT
35	90361-SV4-003	Nut - PAINT CUTTING, 6MM
36	90651-SN7-003	Clip - BRAKE HOSE
37	91552-S37-000	Clip - CLUTCH PIPE
43	46330-SN7-G01	Pipe comp. c - BRAKE
44	46340-SN7-G01	Pipe comp. d - BRAKE
45	46392-S37-000	Clip - DOUBLE
46	46396-S37-000	Clip - BRAKE PIPE

Brake master cylinder (DIESEL) 15

#	OEM	部品名
1	46012-SN7-010	Power set - MASTER
2	46016-ST3-E00	Tank set - RESERVE
3	46100-SN8-G01	Cylinder assy. - MASTER (23.8MM CV)
4	46110-SN8-G01	Cylinder comp - 23.8MM
5	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
6	46185-ST3-003	Seal - ROD
7	46191-SN7-000	Packing - MASTER CYLINDER STAY
9	46402-S37-G01	Tube assy - MASTER POWER
10	46407-S37-000	Cover - RETAINER
11	46409-S37-010	Cover
12	46512-SB2-000	Pin - PEDAL
13	46662-ST3-003	Cap assy. - RESERVOIR
14	46666-ST3-003	Filter
15	90651-S37-E00	Clip - HOSE
16	90751-ST3-003	Pin - SPRING

Bumpers ('96) 17

#	OEM	部品名
2	71120-SN7-003	Molding - FR. BUMPER
3	71140-SN7-010	Beam assy - FR. BUMPER
5	71520-SN7-003	Molding - RR. BUMPER
6	71540-SN7-000	Beam comp - RR. BUMPER UPPER
7	71598-SL4-013	Spacer - BUMPER SIDE
8	74827-SL9-000	Stopper - TRUNK LID
9	90103-SD4-000	Screw - TAPPING, 5X16
10	90109-SL9-000	Screw - TAPPING, 5X16
11	90109-SS0-000	Screw - TAPPING, 5X20
12	90110-SE7-000	Bolt-washer - 8X21
13	90302-SD2-003	Nut-washer - 8MM
14	90312-SM4-000	Nut-washer - 8MM
15	90651-SL9-013	Grommet - SCREW, 5MM
16	90652-SL9-003	Clip - BUMPER
17	90682-SN7-G00	Grommet - SCREW, 5MM
18	91502-SM4-000	Clip - BUMPER FACE (PO)
19	91505-SL9-003	Spacer - FR. BUMPER CLIP

Camshaft cover 6

#	OEM	部品名
1	12310-P5T-G00	Cover - CAMSHAFT
2	12341-P5T-G00	Gasket - CAMSHAFT COVER
3	15610-P5T-G00	Cap assy. - OIL FILLER
4	15611-P5T-G00	Seal - OIL FILLER CAP
5	17137-P5T-G00	Valve - BREATHER
6	17138-P5T-G00	Hose - BREATHER

Clutch 6

#	OEM	部品名
1	22100-P5T-000	Flywheel comp.
2	22200-P5T-000	Disk comp - FRICTION
3	22300-P5T-000	Disk comp - PRESSURE
4	22810-P6A-000	Bearing - CLUTCH RELEASE
5	90011-P5T-000	Bolt - 12MM
6	90702-P5T-000	Dowel pin

Clutch case 13

#	OEM	部品名
1	20011-P6A-020	Transmission assy.
2	21000-P6A-010	Case comp. - CLUTCH
3	21101-P6A-000	Plate - NEEDLE SETTING
4	21103-PG1-L60	Plate c - OIL GUIDE
5	21120-PG1-L60	Magnet - TRANSMISSION
6	90701-P6A-000	Dowel pin - 14X20
7	91002-P6A-000	Bearing - BALL, 63/28C
8	91101-P6A-000	Bearing - NEEDLE, 33X60X22
9	91205-P6A-010	Oil seal - 40X62X9
10	91208-P6A-000	Dust seal - 18X23X4
11	91215-P6A-000	Oil seal - 14X25X16
12	91216-P6A-000	Oil seal - 28X43X7
14	21106-P6A-000	Bush kit - CLUTCH

Clutch master cylinder (DIESEL) 29

#	OEM	部品名
1	46151-SA5-003	Yoke comp. - NISSIN
2	46182-500-013	Circlip
3	46184-611-000	Dust seal - MASTER CYLINDER
4	46912-SD4-000	Pin - CLUTCH PEDAL
5	46918-SM4-020	Clip a13 - TUBE
6	46920-SM4-A03	Cylinder assy. - CLUTCH MASTER
7	46926-SF1-003	Piston assy.
8	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
9	46930-S37-000	Cylinder assy. - SLAVE
10	46950-SM4-950	Rod assy - PUSH
11	46952-SD4-003	Joint - TUBE
12	46953-SD4-003	Packing
13	46960-S37-G00	Pipe assy. - CLUTCH
14	46960-S37-000	Pipe assy. - CLUTCH
15	46961-S37-000	Hose - CLUTCH
16	46966-S37-G00	Holder - TANK
18	46970-S37-000	Pipe assy. - CLUTCH
19	46971-SM4-A01	Tube - CLUTCH FLUID
20	46972-SD4-003	Tank - CLUTCH FLUID
21	46973-SD4-003	Cap comp. - RESERVE TANK
22	46985-S37-000	Damper - CLUTCH
23	46995-S37-000	Bracket - CLUTCH DAMPER
24	46998-SM4-000	Clamp - CLUTCH PIPE
25	90651-SN7-003	Clip - BRAKE HOSE
35	46392-SR3-921	Clip - BRAKE PIPE
36	46991-S37-G00	Bracket - SLAVE CYLINDER MOUNTING
37	90100-S37-000	Clip - SPRING
38	90652-S37-G00	Clip - SUSPENSION PIPE (LH)
40	46175-671-651	Screw - SOCKET

Clutch release 4

#	OEM	部品名
1	22821-P6A-000	Fork - CLUTCH RELEASE
2	22830-P6A-000	Shaft comp. - RELEASE
3	90029-PG1-L60	Bolt - SPECIAL, 8X28
4	90412-PG1-L60	Washer - CONICAL SPRING, 8MM

Combination meter components 21

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37103-SL0-003	Socket assy - BULB (BASE:GREEN)
4	37106-SJ4-J00	Knob - TRIP
5	37115-SA0-601	Packing - NS
6	37237-SL9-003	Bulb
7	78110-SN7-D51	Case assy.
8	78115-SN7-D11	Visor assy - METER
9	78120-SN7-D51	Speedometer assy
10	78125-SN7-D01	Tachometer assy.
11	78130-SN7-G02	Meter assy - FUEL
12	78135-SN7-D01	Meter assy - TEMPERATURE
13	78140-SN7-D01	Panel - PRINT
14	78141-SN7-G01	Cover
15	78142-SN7-D01	Panel - MAIN PRINT
16	78166-SN7-G01	Illumination assy.
18	78182-SM4-003	Socket assy - BULB (14V-100MA) (BASE:BROWN)
19	78230-SN7-E01	Display assy - WARNING
20	90130-SE3-003	Screw-washer - 3X30.5
21	90133-SL9-003	Screw-washer - 3X18
22	90133-SS1-003	Screw-washer - 3X18

Combination switch 28

#	OEM	部品名
1	04808-SN7-G00	Transmitter - PLIP REMOTE
2	04809-SN7-G00	Transmitter set - PLIP REMOTE UNIT &
3	04809-S37-D00	Key & unit assy. - IMMOBILIZER (SERVICE)
4	35010-SN7-D50	Cylinder set - KEY
5	35100-SN7-G42	Lock assy - STEERING
6	35102-SN7-G01	Bolt - BREAK HEAD
7	35103-SE3-003	Screw - RECESSED, 3X8
8	35103-SN7-G01	Screw - FIXING
10	35105-SN7-G01	Ring - IGNITION KEY ILLUMINATION
11	35106-SN7-G01	Cap - ILLUMINATION
12	35107-SN7-G01	Holder - BULB
13	35108-SN7-G01	Holder - COLUMN
14	35109-SN7-G01	Bar - BULB KEEPER
15	35110-SN7-G01	Receiver comp - IMMOBILISER
17	35113-SN7-G00	Key - BLANK (IMMOBILIZER) (MAIN)
18	35130-SN7-G01	Switch comp - STEERING
19	35132-SN7-G01	Clip
20	35135-SN7-G41	Cord assy - SWITCH
21	35251-SN7-G11	Body - SWITCH
22	35254-SN7-G11	Cord assy - COMBINATION SWITCH
23	35255-SN7-E12	Switch assy - LIGHTING
24	35256-SN7-E01	Switch assy - WIPER
26	35400-SK4-E00	Switch assy - DOOR
27	35505-SN7-G11	Bulb - 14V 1.4W
28	39955-SN7-G00	Battery
29	53271-SN7-G01	Cam - TURN SIGNAL SWITCH
31	90344-692-003	Nut - CLIP, 6MM
32	90674-WA8-003	Band - CABLE, 120MM (BLACK)

Console 23

#	OEM	部品名
1	35505-ST3-E01	Bulb - T5 1.2W
4	39600-SN7-E01	Lighter assy - CIGARETTE
6	39610-ST3-E01	Knob comp. - CIGARETTE LIGHTER
7	66418-688-000	Stopper - GLOVE BOX LID
8	74633-SN7-010	Insulator a - FR. CONSOLE
10	77297-SN7-E00	Bracket - FR. CONSOLE (B)
13	77712-SN7-E00	Spring - FR. ASHTRAY (A)
19	83404-SN7-E00	Plate - SET COVER
21	83406-SN7-E00	Bracket - BOX UNDER
22	83407-SN7-E00	Hinge assy - RR. CONSOLE
23	83408-SN7-E00	Lock
25	83413-S37-D00	Plate - BOOT SET
26	83416-S37-D00	Boot - CHANGE LEVER
29	83425-SN7-E00	Bracket - RR. CONSOLE
30	83426-SN7-E00	Bracket - RR. CONSOLE (C)
31	83427-SN7-E00	Bracket - RR. CONSOLE (D)
34	90606-SN7-E00	Spring - FR. ASHTRAY
35	90609-SN7-G00	Clip - INSTRUMENT LOWER
36	90609-SN7-E01	Clip - PILLAR GARNISH
37	90659-SA5-003	Grommet - SCREW, 4MM
38	91555-SM4-003	Clip - COUPLER (RED)
39	91640-SM4-003	Grommet - SCREW, 4MM
40	91641-SM4-003	Grommet - SCREW, 4MM

Control unit (CABIN) 23

#	OEM	部品名
2	32121-SM4-003	Bracket a - FUSE BOX
3	32122-SM4-003	Bracket b - FUSE BOX
4	32123-SM4-003	Bracket c - FUSE BOX
6	32502-SM4-003	Fuse - F7.5) (LITTEL
7	32503-SM4-003	Fuse - F10) (LITTEL
8	32504-SM4-003	Fuse - F15)(LITTEL
9	32505-SM4-003	Fuse - F20) (LITTEL
10	32507-SM4-003	Fuse - F30) (LITTEL
14	37820-P5T-G00	Control module - ENGINE
15	37821-S37-G00	Cover comp. - L. ELECTRONIC CONTROL UNIT
16	38200-SN7-G12	Box assy - FUSE
18	38235-SA5-003	Puller - FUSE (SUMITOMO)
20	38300-SK3-G01	Relay assy - TURN SIGNAL & HAZARD
26	38600-SN7-G02	Control unit - INTEGRATED
28	39420-S37-D00	Control unit - RADIATOR FAN
29	39762-SN7-000	Relay assy - POWER, 5P
30	39792-SM4-013	Relay assy - POWER (4P NO.305) (DENSO)
31	39792-S37-D00	Relay - NORMAL OPEN
32	39793-SN7-010	Bracket - POWER RELAY
33	39794-SG0-003	Relay assy - POWER (4P) (DENSO) (056700-8250)
34	39797-SK4-E00	Relay assy - POWER (YWB 10027)
35	39870-SN7-G01	Control unit - RR. FOG LAMP
37	90137-SF1-000	Bolt-washer - 6X25

Control unit (ENGINE ROOM; DIESEL) 28

#	OEM	部品名
1	32139-S37-D00	Bracket - FUSE LINK
2	32502-SM4-003	Fuse - F7.5) (LITTEL
3	32503-SM4-003	Fuse - F10) (LITTEL
4	32504-SM4-003	Fuse - F15)(LITTEL
5	32505-SM4-003	Fuse - F20) (LITTEL
6	32507-SM4-003	Fuse - F30) (LITTEL
7	38100-SN7-G11	Horn assy - LOW
8	38135-S37-D00	Horn assy - ALARM
9	38150-SN7-G11	Horn assy - HIGH
10	38202-S37-D00	Cover - FUSE
11	38211-SM4-003	Fuse - BLOCK (30A)
12	38212-SM4-003	Fuse - BLOCK (40A)
13	38213-SM4-003	Fuse - BLOCK (50A)
14	38216-SM4-003	Fuse - BLOCK (80A)
15	38250-SN7-D02	Box assy - RELAY
16	38251-SN7-G10	Bracket - RELAY BOX
17	38255-SN7-D02	Cover assy. - UPPER
18	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
19	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
20	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
21	39797-SK4-E00	Relay assy - POWER (YWB 10027)
22	90114-SM4-900	Bolt - 6X15
23	90138-SM4-003	Bolt-washer - 8X14
24	90153-SA5-900	Screw-washer - 5X9
25	90182-SB6-000	Bolt-washer - 6X16
26	90301-SM4-003	Nut - SPRING, 6MM
32	38214-S37-003	Fuse - 60A
33	38216-S37-003	Fuse - 80A

Countershaft 21

#	OEM	部品名
1	23220-P6A-000	Countershaft comp.
2	23421-PG1-G60	Gear - COUNTERSHAFT LOW
3	23431-P6A-000	Gear - COUNTERSHAFT SECOND
4	23461-P6A-000	Gear - COUNTERSHAFT FIFTH
5	23471-PG1-K60	Gear - COUNTERSHAFT THIRD
6	23481-PG1-L60	Gear - COUNTERSHAFT FOURTH
7	23521-P6A-315	Sleeve set - SYNCHRONIZER (1-2)
8	23912-P6A-000	Collar a - DISTANCE, 36X44X29
8	23913-P6A-000	Collar b - DISTANCE, 36X44X29
9	23922-PG1-L60	Washer b - 40X54X1.99
9	23924-PG1-L60	Washer d - 40X54X2.05
9	23921-PG1-L60	Washer a - 40X54X1.96
9	23923-PG1-L60	Washer c - 40X54X2.02
9	23925-PG1-L60	Washer e - 40X54X2.08
10	23926-PG1-L60	Washer - SPRING, 23MM
11	90201-PG1-L60	Nut - HEX., 23MM (L)
12	90602-PG1-K30	Ring - SNAP, 56MM
13	91003-P6A-000	Bearing - SPECIAL BALL
14	91102-P6A-000	Bearing - NEEDLE, 25X56.4X19
15	91105-PG1-L60	Bearing - NEEDLE, 40X46X29
16	91106-PG1-L60	Bearing - NEEDLE, 44X50X29

Cross beam (DIESEL) 11

#	OEM	部品名
1	50100-S37-000	Beam - CENTER
2	50200-SN7-000	Beam - RR.
4	50220-SN7-A00	Stiffener - STEERING GEAR BOX
6	50250-S37-000	Beam - FR.
7	50300-SN7-G00	Beam - RR. SUSPENSION CROSS
8	90166-SF1-010	Bolt-washer - 10X21
9	90190-SM4-003	Bolt - FLANGE, 12X108
10	90191-SM4-003	Bolt - FLANGE, 12X95
11	90192-SM4-003	Bolt - FLANGE, 12X139
12	90506-SE0-000	Washer - PLAIN, 12MM
13	91613-SE0-003	Grommet - SUB FRAME, 15MM

Cylinder block/piston/ crankshaft 26

#	OEM	部品名
1	06133-P5T-G00	Crankshaft kit
2	11000-P5T-G00	Block assy - CYLINDER
3	11300-P5T-G00	Cover assy. - R. SIDE
4	11301-P5T-G01	Plug - OIL PRESSURE
5	13000-P5T-G00	Piston assy.
6	13011-P5T-G00	Ring set - PISTON
7	13205-P5T-G00	Nut - CONNECTING ROD
8	13210-P5T-G00	Rod comp - CONNECTING
9	13213-P5T-G00	Bolt - CONNECTING ROD
10	13220-P5T-G00	Bearing set - CONNECTING ROD
11	13312-P5T-G00	Circlip - PISTON
12	13320-P5T-G00	Bearing set - MAIN
13	13330-P5T-G00	Bearing set - THRUST
14	15140-P5T-G00	Orifice assy - OIL CONTROL
15	15141-P5T-G00	Orifice assy - OIL CONTROL
16	90001-P5T-G00	Bolt
17	90004-P5T-G00	Bolt
18	90704-P5T-G00	Dowel pin
19	90707-P5T-G00	Ring - DOWEL
21	19517-P5T-G00	Joint - TUBE
22	15280-P5T-G00	Jet assy - OIL
23	90701-P5T-G00	Dowel pin
24	90702-P5T-G00	Dowel pin
25	90703-P5T-G00	Dowel pin
26	90705-P5T-G00	Dowel pin
27	90801-P5T-G00	Plug - CORE WATER

Cylinder head 24

#	OEM	部品名
1	12100-P5T-G00	Head assy - CYLINDER
2	12202-P5T-G00	Seat - IN. VALVE
3	12203-P5T-G00	Seat - EX. VALVE
4	12204-P5T-G00	Guide - VALVE
5	12251-P5T-G00	Gasket - CYLINDER HEAD (1.05MM)
5	12251-P5T-G20	Gasket - CYLINDER HEAD (1.35MM)
5	12251-P5T-G10	Gasket - CYLINDER HEAD (1.25MM)
6	14410-P5T-G00	Camshaft
7	14711-P5T-G01	Valve - IN.
8	14721-P5T-G01	Valve - EX.
9	14751-P5T-G00	Tappet - VALVE
10	14761-P5T-G00	Spring - IN. VALVE
11	14765-P5T-G00	Retainer - VALVE SPRING
12	14775-P5T-G00	Seat - VALVE SPRING
13	14781-P5T-G00	Cotter - VALVE
14	90016-P5T-G00	Bolt - PLUG, 14MM
15	90003-P5T-G00	Bolt - CYLINDER HEAD
16	90005-P5T-G00	Bolt - STUD
17	90402-P5T-G00	Washer - OIL DRAIN PLUG
18	90706-P5T-G00	Dowel pin
19	90803-P5T-G00	Plug - CORE
20	91201-P5T-G00	Oil seal - CAMSHAFT
22	10003-P5T-G00	General assy. - CYLINDER HEAD
23	14411-PDD-X00	Pin - SPIRAL

Differential 24

#	OEM	部品名
1	41221-P6A-000	Gear - DIFFERENTIAL SIDE
2	41233-P6A-000	Gear - FINAL DRIVEN
3	41311-P6A-020	Case - DIFFERENTIAL
4	41312-P6A-000	Gear - SPEEDOMETER DRIVE
5	41321-P6A-000	Shaft - PINION
6	41341-P6A-000	Pinion - DIFFERENTIAL
7	41355-PG1-L60	Washer e - DIFFERENTIAL PINION THRUST (0.9MM)
7	41357-PG1-L60	Washer g - DIFFERENTIAL PINION THRUST (1.0MM)
7	41352-PG1-L60	Washer b - DIFFERENTIAL PINION THRUST (0.75MM)
7	41354-PG1-L60	Washer d - DIFFERENTIAL PINION THRUST (0.85MM)
7	41356-PG1-L60	Washer f - DIFFERENTIAL PINION THRUST (0.95MM)
7	41351-PG1-L60	Washer a - DIFFERENTIAL PINION THRUST (0.7MM)
7	41358-PG1-L60	Washer h - DIFFERENTIAL PINION THRUST (1.05MM)
7	41353-PG1-L60	Washer c - DIFFERENTIAL PINION THRUST (0.8MM)
8	41371-PG1-L60	Washer - THRUST, 30.5X53X1.5
9	90017-PG1-K30	Bolt - SPECIAL, 11MM
10	90418-PG1-L60	Ring - SET, 80X2.9
10	90415-PG1-L60	Ring - SET, 80X2.6
10	90417-PG1-L60	Ring - SET, 80X2.8
10	90419-PG1-L60	Ring - SET, 80X3.0
10	90414-PG1-L60	Ring - SET, 80X2.5
10	90416-PG1-L60	Ring - SET, 80X2.7
11	90703-P6A-F00	Pin - SPRING, 4X32
12	91005-P6A-000	Bearing - BALL, 6208C

Driveshaft 10

#	OEM	部品名
3	44017-S37-G00	Boot set - INBOARD
4	44018-SN7-010	Boot set - OUTBOARD
7	44310-S37-G00	Joint comp - INBOARD
8	44320-S37-G00	Joint comp - INBOARD
9	44319-S37-300	Set ring - 30X2.0
10	44338-SK3-E10	Circlip - 26MM
11	44340-SN7-315	Joint comp - OUTBOARD
16	90305-SD4-003	Nut - SPINDLE (24MM)
21	44305-S37-951	Driveshaft assy. - R.
22	44306-S37-951	Driveshaft assy. - L.

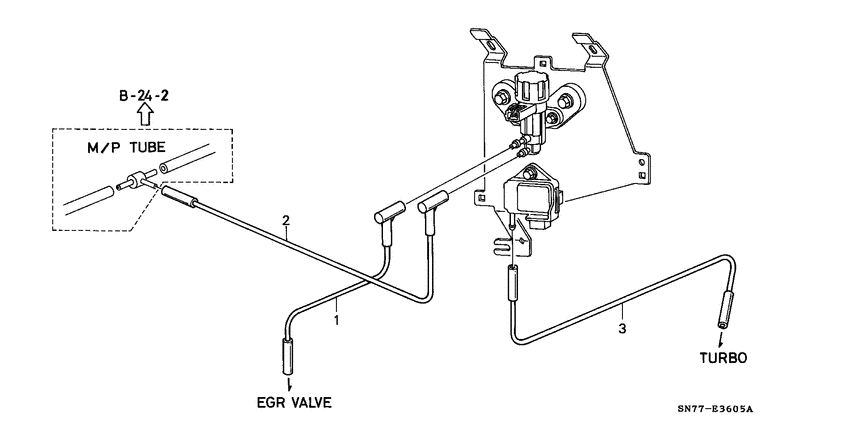

Egr valve pipe 3

#	OEM	部品名
1	17343-P5T-G00	Pipe - EGR VALVE
2	17349-P5T-G00	Pipe - VACUUM SOLENOID
3	17417-P5T-G00	Pipe - BOOST SENSOR

Emblems 12

#	OEM	部品名
1	17275-P5T-G00	Label - SMOKE
3	17669-S37-E30	Label - FUEL FILLER CAUTION
5	42760-SN7-G11	Plate - TIRE PRESSURE CAUTION
7	72638-SN7-G00	Plate - RR. DOOR LOCK CAUTION
9	75701-SN7-E00	Emblem - RR. CENTER (H MARK)
12	75711-SN7-G01	Emblem - RR. (HONDA)
14	75722-SN7-G01	Emblem - RR. (ACCORD)
25	75731-S74-G00	Emblem - RR. (2.0ITD)
26	77875-SN7-G80	Label - SRS CAUTION
28	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
29	91512-SR3-004	Clip - TUBULAR
32	75700-SN7-E00	Emblem - FR. (H)

Engine mounts (DIESEL) 14

#	OEM	部品名
1	50805-S37-000	Rubber - TRANSMISSION MOUNTING
2	50820-S37-000	Rubber assy. - ENGINE SIDE MOUNTING
3	50821-S37-000	Bracket assy - ENGINE SIDE MOUNTING
4	50822-S37-000	Bracket - SIDE ENGINE MOUNTING
5	50823-S37-000	Rod - ENGINE SIDE STOPPER
6	50825-S37-000	Bracket - TRANSMISSION MOUNTING
7	50830-S37-000	Rod assy - TORQUE
8	50831-S37-000	Bracket - TORQUE ROD
9	50833-S37-000	Insulator a - TORQUE ROD
10	50834-S37-000	Insulator b - TORQUE ROD
11	50850-S37-000	Rod assy - ENGINE SIDE TORQUE
12	90160-S37-000	Washer - 12MM
13	90161-S37-000	Bolt - FLANGE, 10X27
22	50827-S37-G00	Bracket - ENGINE MOUNTING (LH)

Engine wire harness 16

#	OEM	部品名
1	12291-P5T-G00	Plug - HEATER
2	12296-P5T-G00	Cable - HEATER PLUG
3	32110-P5T-G00	Harness - ENGINE WIRE
4	32741-P5T-G00	Stay - HARNESS
5	36033-P5T-G00	Stay - DEVICE
6	36166-P5T-G00	Valve assy. - EGR SOLENOID
7	37240-P5T-G00	Switch - OIL PRESSURE
8	37820-P5T-G00	Control module - ENGINE
9	37830-P5T-G00	Sensor assy - BOOST
10	37776-P5T-G00	Sensor - THERMO
11	37880-P5T-G00	Sensor - TA
12	78420-P5T-G00	Sensor assy - SPEED
13	90203-P5T-G00	Nut
14	90410-P5T-G00	Spacer - SPEED SENSOR
15	90361-SV4-003	Nut - PAINT CUTTING, 6MM
20	37870-P5T-G00	Sensor - TW

Exhaust pipe (DIESEL) 17

#	OEM	部品名
1	18030-S37-G00	Silencer set - EX.
2	18160-P5T-G00	Converter comp.
3	18210-S37-315	Pipe a - EX.
4	18212-S37-G00	Gasket - PRE-CHAMBER
5	18220-S37-G00	Pipe b - EX.
6	18282-S37-G00	Bracket b - FLEXIBLE MOUNTING
7	18393-S37-G00	Gasket - EX. PIPE
8	74610-S37-000	Reinforcement - FR. CROSSMEMBER
9	74651-SM4-000	Plate - TANK BAFFLE
10	74655-SN7-000	Plate - SILENCER BAFFLE
16	90212-S37-G00	Nut - SELF-LOCK
17	18215-SN7-A50	Rubber - EX. MOUNTING
18	18215-SN7-A60	Rubber - EX. MOUNTING
19	74601-S37-000	Plate - FLOOR HEAT BAFFLE
20	74602-S37-000	Plate - RR. FLOOR HEAT BAFFLE
21	90325-ST3-E00	Washer - PLAIN, 10MM
22	18215-SA0-000	Rubber - SILENCER MOUNTING (74X45X22)

Floor mat 11

#	OEM	部品名
1	74251-S37-G00	Insulator - DASHBOARD LOWER OUTER
2	83101-S37-G00	Insulator - DASHBOARD
3	83106-SM4-A00	Bracket - DASHBOARD INSULATOR
5	83302-SN7-D00	Insulator - CENTER TUNNEL
6	83303-S37-D00	Insulator - CENTER TUNNEL (B)
13	84525-SN7-E00	Spacer - R. TRUNK
17	90676-SB2-003	Clip - DASHBOARD INSULATOR
18	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
19	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)
20	91547-SM4-003	Cap - INSULATOR
21	91641-SH3-013	Grommet assy, GARNISH

Front brake 20

#	OEM	部品名
1	01463-SN7-000	Caliper set - FR.
2	44200-SN7-008	Bearing assy - FR. HUB UNIT
3	44600-SN7-G00	Hub assy - FR.
4	45010-SN7-G41	Pin set - FR.
5	45012-SN7-G41	Body set - R. FR. CALIPER
6	45013-SN7-G41	Body set - L. FR. CALIPER
7	45014-SN7-G42	Bracket set - R. FR. CALIPER
8	45015-SN7-G42	Bracket set - L. FR. CALIPER
9	45017-SN7-G00	Boot set - FR. PIN
10	45022-SN7-G42	Pad set - FR.
12	45216-SN7-G41	Piston
13	45240-SM4-003	Bolt - FLANGE, 10X24
14	45251-SN7-E40	Disk - FR. BRAKE (14")
15	45255-SN7-000	Guard - FR. SPLASH (14")
16	45352-SN7-G41	Screw - BLEEDER
17	45353-SN7-G41	Cap - BLEEDER
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
19	90114-SM4-000	Bolt - FLANGE, 10X20
20	90163-SM4-005	Bolt - WHEEL (NAGOYA RASHI)
21	90164-SM4-013	Bolt - FR. HUB UNIT, 10X40

Front bulkhead 1

#	OEM	部品名
22	60821-SM4-000	Hook - TIE DOWN

Front door lining 14

#	OEM	部品名
1	32198-SN7-000	Sub cord - REMOTE CONTROL MIRROR
3	34258-SN7-G01	Lens
4	34296-SN7-G01	Bulb - 12V 5W
7	35190-SN7-G01	Switch assy - REMOTE CONTROL MIRROR
8	72335-SN7-G01	Weatherstrip - R. FR. DOOR INNER
9	72375-SN7-G01	Weatherstrip - L. FR. DOOR INNER
16	83529-SN7-G00	Bracket - COVER LOCK
27	90131-SE3-003	Screw - TAPPING, 4X16
29	90662-693-003	Grommet - SCREW, 4MM (BLUE)
30	91555-SM4-003	Clip - COUPLER (RED)
31	91560-SP0-003	Clip - DOOR LINING (GRAY)
31	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
33	91562-SM4-013	Grommet - DOOR LINING
34	91626-SP0-003	Grommet - SCREW, 5MM

Front door locks 36

#	OEM	部品名
1	72110-SN7-G04	Lock assy - R. FR. DOOR
2	72112-SN7-G01	Snap - R.
3	72115-SN7-G01	Actuator assy - R. FR. DOOR LOCK
5	72117-SN7-G00	Protector - R. DOOR LOCK
6	72118-SN7-G00	Tube - PROTECTOR
8	72121-SN7-G01	Base - R. INSIDE HANDLE
9	72123-SN7-G01	Ring
11	72131-SN7-G01	Rod - R. FR. DOOR INSIDE HANDLE
12	72134-SN7-G01	Bush - JOINT
13	72135-SN7-G00	Striker - DOOR LOCK
14	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
16	72138-SN7-G00	Cushion - LOCK ROD
17	72140-SN7-G02	Handle assy - R. FR. DOOR OUTSIDE
18	72142-SN7-E00	Cylinder - DUMMY DOOR
19	72143-SN7-G00	Hook
21	72146-SN7-G03	Cylinder - L. DOOR
22	72147-SN7-G01	Clip - RETAINER
23	72148-SN7-G01	Screw - PAN, 3X6
24	72149-SN7-G11	Harness - MICROSWITCH
25	72150-SN7-G04	Lock assy - L. FR. DOOR
26	72155-SN7-G01	Actuator assy - L. FR. DOOR LOCK
28	72157-SN7-G00	Protector - L. DOOR LOCK
30	72161-SN7-G01	Base - L. INSIDE HANDLE
31	72162-SN7-G01	Snap - L.
32	72171-SN7-G01	Rod - L. FR. DOOR INSIDE HANDLE
33	72175-SH3-003	Holder - DOOR LOCK ROD
34	72180-SN7-G02	Handle assy - L. FR. OUTSIDE
35	72634-SM4-003	Snap - R. (BLUE)
36	72674-SM4-003	Snap - L. (BROWN)
37	75411-634-000	Joint
38	90120-SM4-000	Screw - TAPPING
39	90662-SB2-003	Grommet - SCREW, 5MM
40	91555-SM4-003	Clip - COUPLER (RED)
41	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
42	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
43	91582-SM4-003	Clip - WIRE HARNESS

Front door panels 13

#	OEM	部品名
11	72142-SM4-000	Stopper - DOOR
12	72310-SN7-G02	Weatherstrip - R. FR. DOOR
13	72321-SN7-G00	Seal - R. FR. DOOR HOLE
14	72327-SM4-010	Seal - DOOR UPPER HOLE
15	72340-SN7-G02	Checker comp. - FR. DOOR
16	72350-SN7-G02	Weatherstrip - L. FR. DOOR
17	72361-SN7-G00	Seal - L. FR. DOOR HOLE
18	75760-SK3-E00	Pin - DOOR CHECKER
19	75891-SA7-000	Stopper - DOOR
20	90101-SE3-003	Bolt-washer - 8X23.5
21	90686-692-003	Cap - LINING MOUNT
22	90852-SA5-000	Plug - HOLE, 10MM
23	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Front door windows 19

#	OEM	部品名
2	72211-SN7-G01	Regulator - R. FR. DOOR POWER
3	72213-SN7-G01	Screw - COUNTERSUNK
4	72215-SN7-G11	Motor assy. - R. FR. DOOR POWER WINDOW
5	72230-SN7-G00	Sash - R. FR. DOOR LOWER
6	72231-SN7-G00	Sash - R. FR. DOOR CENTER LOWER
7	72235-SN7-G01	Runchannel - R. FR. DOOR
8	72237-SM4-003	Clip - FR. DOOR GLASS GUIDE
9	72251-SN7-G01	Regulator - L. FR. DOOR POWER
10	72255-SN7-G01	Motor assy. - L. FR. DOOR POWER WINDOW
11	72270-SN7-G00	Sash - L. FR. DOOR LOWER
12	72271-SN7-G00	Sash - L. FR. DOOR CENTER LOWER
13	72275-SN7-G01	Runchannel - L. FR. DOOR
14	72332-SM4-003	Stopper - DOOR GLASS
15	73300-SN7-G00	Glass assy - R. FR. DOOR (GREEN)
16	73350-SN7-G00	Glass assy - L. FR. DOOR (GREEN)
17	90011-896-000	Bolt - FLANGE, 6X8
18	90104-SN7-G00	Bolt-washer - 6X16
19	91555-SM4-003	Clip - COUPLER (RED)
20	90116-ST3-E00	Bolt - FLANGE, 6X12

Front fenders (DIESEL) 21

#	OEM	部品名
4	74101-SL9-000	Fender - R. FR. INNER
5	74111-S37-000	Shield - FR. SPLASH
6	74112-S37-000	Tray assy - R. UNDER
7	74113-S37-000	Bracket - RR. UNDER TRAY (RR. BEAM)
8	74114-S37-000	Bracket - FR. UNDER TRAY (CENTER BEAM)
9	74115-S37-000	Bracket - R. UNDER TRAY (RR. BEAM)
10	74151-SL9-000	Fender - L. FR. INNER
11	74162-S37-000	Tray assy - L. UNDER
12	74165-S37-000	Bracket - L. UPPER TRAY (RR. BEAM)
13	90101-S37-000	Bolt-washer - 6X24
14	90106-SE1-000	Bolt-washer - 6X15
15	90107-SG9-600	Bolt
16	90108-SF1-000	Bolt-washer - 6X15
17	90114-SE0-000	Screw - TAPPING, 5X20
18	90119-SE0-000	Bolt - FLANGE, 6MM
19	90305-SM4-003	Nut - CLIP, 6MM
20	90501-SM4-003	Bolt - FENDER
21	90682-SN7-G00	Grommet - SCREW, 5MM
22	91512-SM4-003	Clip - INNER FENDER
24	90304-S37-G00	Nut - LUG
25	90113-S37-000	Nut - FLANGE, 6MM

Front grille ('96) 5

#	OEM	部品名
2	75120-SN7-G00	Molding - FR. GRILLE
3	75307-SN7-000	Nut - SIDE PROTECTOR
4	90157-SP0-901	Clip - FR. GRILLE
6	75114-SN7-E00	Grille & lip set
7	75105-ST3-000	Bolt - SPECIAL

Front seat (L.) 22

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
6	81123-SN7-003	Silencer - FR. BACK
9	81133-SN7-003	Silencer - FR. CUSHION
10	81136-SN7-E01	Shaft - RECLINER
12	81144-SN7-E02	Guide - HEADREST
13	81146-SN7-E01	Lock - SPRING
18	81234-SN7-E11	Tensioner Assy - R. FR. SEATBELT
20	81522-SN7-G21	Pad & frame comp. - L. FR. SEATBACK
27	90184-SN7-003	Screw - 4.2X9.5
29	90187-SN7-003	Screw - TAPPING, 5X16
30	90381-SN7-013	Screw - SELF TAPPING, 5X16
32	90582-SN7-003	Self-locking
33	90583-SN7-003	Washer - D5
37	81321-SN7-E01	Lumber - HAND WHEEL
38	81322-SN7-E01	Lumber - ACTUATOR
39	81323-SN7-E01	Bracket - LUMBER
40	81325-SN7-E01	Support - LUMBER
41	81326-SN7-E01	Spring - LUMBER
42	81327-SN7-E01	Screw - TAPPING, 4.8X16
43	81328-SN7-E01	Screw - TAPPING, 3.2X9.5
44	81329-SN7-E01	Tie - CABLE

Front seat (R.) 14

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
7	81122-SN7-G12	Pad & frame comp. - R. FR. SEATBACK
8	81123-SN7-003	Silencer - FR. BACK
12	81133-SN7-003	Silencer - FR. CUSHION
14	81136-SN7-E01	Shaft - RECLINER
16	81144-SN7-E02	Guide - HEADREST
17	81146-SN7-E01	Lock - SPRING
22	81234-SN7-E11	Tensioner Assy - R. FR. SEATBELT
27	90184-SN7-003	Screw - 4.2X9.5
29	90187-SN7-003	Screw - TAPPING, 5X16
30	90381-SN7-013	Screw - SELF TAPPING, 5X16
32	90582-SN7-003	Self-locking
33	90583-SN7-003	Washer - D5

Front seat components (L.; 2) 5

#	OEM	部品名
1	81227-ST3-E31	Spring - HELPER
2	81550-ST3-E32	Device comp. - L. FR. SEAT
3	90182-SN7-003	Bolt - TORX, 8X16
4	90183-SN7-003	Bolt - TORX, 8X10
5	90538-SN7-003	Washer - PLAIN, 8MM

Front seat components (R.; 1) 3

#	OEM	部品名
1	81150-SN7-E11	Slide comp. - R. RECLINING OUTER
2	90182-SN7-003	Bolt - TORX, 8X16
3	90538-SN7-003	Washer - PLAIN, 8MM

Front shock absorber 14

#	OEM	部品名
1	51401-S37-G00	Spring - FR.
2	51601-S37-000	Absorber assy - R. FR. SHOCK
3	51602-S37-000	Absorber assy - L. FR. SHOCK
4	51605-S37-G00	Absorber unit - R. FR. SHOCK
5	51606-S37-G00	Absorber unit - L. FR. SHOCK
6	51631-SN7-E01	Rubber - SHOCK ABSORBER MOUNTING
7	51675-SN7-E01	Base - SHOCK ABSORBER MOUNTING
8	51685-SN7-E01	Plate - DUST COVER
9	51686-SN7-E01	Rubber - FR. SPRING MOUNTING
10	51687-SN7-E01	Cover - FR. SLEEVE DUST
11	51722-S37-G00	Rubber - FR. BUMP STOPPER
12	52621-SK3-000	Washer - RR. SHOCK ABSORBER MOUNTING
15	90304-SN7-E00	Nut - FR. SHOCK ABSORBER FLANGE
16	90364-SN7-E01	Nut - SELF-LOCK, 10MM

Front stabilizer/ front lower arm 28

#	OEM	部品名
1	51300-SN7-E01	Spring - FR. STABILIZER
2	51306-SN7-E01	Bush - STABILIZER HOLDER
3	51308-SG0-020	Bracket - FR. STABILIZER
4	51311-SM4-010	Collar a - STABILIZER END (7.6MM)
5	51312-SM4-000	Collar b - STABILIZER END (27.2MM)
6	51313-SM4-010	Washer - STABILIZER END
7	51314-SN7-E00	Rubber - STABILIZER END
8	51352-S37-000	Rod - R. FR. RADIUS
10	51355-SN7-010	Arm comp - R. FR. LOWER
11	51362-S37-000	Rod - L. FR. RADIUS
12	51365-SN7-010	Arm comp - L. FR. LOWER
13	51381-S37-000	Bush - FR. RADIUS ROD
15	51393-SN7-003	Bush - FR. LOWER ARM
16	51394-SM4-010	Washer - CASTER ADJUSTER
17	51398-S37-000	Collar - FR. RADIUS ARM
18	51399-S37-000	Washer - FR. RADIUS ARM
19	51399-S37-960	Washer - FR. RADIUS ARM
20	51810-SN7-003	Bush - SHOCK ABSORBER FORK
21	51811-SM4-030	Fork - R. FR. SHOCK ABSORBER
22	51821-SM4-030	Fork - L. FR. SHOCK ABSORBER
23	90112-SM4-020	Bolt - STABILIZER LINK (8X95)
24	90117-SM4-003	Bolt - FR. SHOCK ABSORBER LOCK (10X44)
25	90118-SM4-013	Bolt - SELF-LOCK, 12X80
26	90121-SM4-010	Bolt - SHOCK ABSORBER FORK (12X98)
27	90178-SM4-013	Bolt - FR. RADIUS ROD (12X31)
28	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
29	90303-SF1-003	Nut - SELF-LOCK, 12MM
30	90362-SF1-003	Nut - SELF-LOCK, 8MM

Front windshield 18

#	OEM	部品名
2	73125-SN7-G01	Rubber - FR. WINDSHIELD DAM
3	73126-SM4-000	Spacer - FR. WINDSHIELD
4	73151-SN7-G00	Molding - FR. WINDSHIELD UPPER
5	73152-SN7-G00	Molding assy. - R. FR. WINDSHIELD SIDE
6	73155-SN7-G00	Joint - R. FR. WINDSHIELD SIDE & CORNER (###)
7	73162-SN7-G00	Molding assy. - L. FR. WINDSHIELD SIDE
8	73165-SN7-G00	Joint - L. FR. WINDSHIELD SIDE & CORNER (###)
9	77116-SN7-G00	Seal - FR. WINDSHIELD
10	91524-SN7-G01	Clip - FR. WINDSHIELD SIDE (A)
11	91525-SN7-G01	Clip - FR. WINDSHIELD SIDE (B)
12	91526-SN7-G01	Clip - FR. WINDSHIELD SIDE (C)
13	91527-SN7-G01	Clip - FR. WINDSHIELD SIDE (D)
14	91531-SM4-003	Clip - FR. WINDSHIELD UPPER (YELLOW)
15	91532-SN7-G00	Clip - FR. WINDSHIELD SIDE (B)
16	91533-SN7-G00	Clip - FR. WINDSHIELD SIDE (D)
17	91534-SM4-003	Clip - FR. WINDSHIELD UPPER MOLDING (GREEN)
18	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
19	73111-SN7-G30	Glass - FR. WINDSHIELD (GREEN)

Front windshield wiper (LH) 24

#	OEM	部品名
1	76505-SN7-G05	Motor comp - FR. WIPER (LH)
2	76506-SN7-G05	Cover - MOTOR
3	76510-SN7-E05	Rubber - MOUNTING
4	76515-SN7-E05	Seal a
5	76516-SN7-E05	Rubber - MOUNTING
6	76517-SN7-E05	Collar
7	76520-SN7-E05	Link unit a
8	76524-SN7-E05	Dust seal
9	76530-SN7-G05	Link comp - FR. WIPER
10	76540-SN7-G05	Rod unit a - LH
11	76550-SN7-E05	Rod unit b
12	76558-SN7-E05	Cap - PIVOT
13	76561-SN7-E05	Cap - PIVOT
14	76600-SN7-G05	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-SN7-G05	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
16	76620-SN7-G05	Blade - WINDSHIELD WIPER (550MM) (DRIVER SIDE)
17	76630-SN7-E05	Blade - WINDSHIELD WIPER (500MM) (PASSENGER SIDE)
18	90116-SN7-E05	Bolt - 6X15
19	90126-SN7-G00	Bolt-washer - 6X32
20	90166-SN7-E05	Screw - SELF-TAPPING, 3X10
21	90201-SK7-000	Nut - HEX. CAP, 10MM
22	90317-SN7-E05	Nut - HEX., 8MM
23	90545-SN7-G05	Washer - SPRING, 8MM
24	91620-SN7-E05	Grommet - WIPER MOTOR

Fuel injector 13

#	OEM	部品名
1	16450-P5T-G00	Injector - FUEL MAIN
2	16450-P5T-G10	Sub injector - FUEL
3	16474-P5T-G00	Clamp - INJECTOR
4	16611-P5T-G00	Clip A - FUEL PIPE
5	16750-P5T-G00	Pipe assy. - FUEL RETURN
6	16751-P5T-G00	Hose a - FUEL RETURN
7	16752-P5T-G00	Hose b - FUEL RETURN
8	16756-P5T-G00	Hose c - FUEL RETURN
9	90405-P5T-G00	Washer
10	90602-P5T-G00	Clip - FUEL RETURN HOSE
12	16472-P5T-G00	Washer - INJECTOR SEAL
13	16610-P5T-G00	Pipe comp - FUEL
14	90404-P5T-G00	Washer

Fuel injector pump 15

#	OEM	部品名
1	16300-P5T-G00	Pump assy. - FUEL INJECTOR
2	16340-P5T-G00	Solenoid - SHUT OFF
3	16361-P5T-G00	Plate - INTERMEDIATE
4	16390-P5T-G00	Bracket a - FUEL INJECTOR MOUNT
5	16391-P5T-G00	Bracket b - FUEL INJECTOR MOUNT
6	16392-P5T-G01	Stay - FUEL INJECTOR PUMP HARNESS
7	16721-P5T-G00	Hose b - FUEL FEED
8	16724-P5T-G00	Joint - FLANGE
9	16725-P5T-G00	Clip - FUEL FEED
10	90010-P5T-G00	Bolt
11	90011-P5T-G00	Bolt
12	90205-P5T-G00	Nut - PULLEY
13	90404-P5T-G00	Washer
14	90412-P5T-G00	Washer - SPRING
15	91303-P5T-G00	O-ring

Fuel injector pump drive cover 13

#	OEM	部品名
1	14310-P5T-G00	Pulley assy - CAMSHAFT RR.
2	14311-P5T-G00	Pulley - CAMSHAFT RR. DRIVE
3	14312-P5T-G00	Hub - CAMSHAFT RR. PULLEY
4	14315-P5T-G00	Pulley - FUEL INJECTOR PUMP DRIVE
5	14320-P5T-G00	Belt - FUEL INJECTOR PUMP DRIVE
6	14325-P5T-G00	Tensioner - FUEL INJECTOR PUMP DRIVE
7	14330-P5T-G00	Cover assy. - FUEL INJECTOR PUMP DRIVE
8	14332-P5T-G00	Seal - FUEL INJECTOR PUMP DRIVE COVER
9	14335-P5T-G00	Plate - FUEL INJECTOR PUMP DRIVE COVER BACK
10	90206-P5T-G00	Nut - PULLEY
11	90413-P5T-G00	Washer - PULLEY
12	90503-P5T-G00	Collar - TIMING BELT BACK COVER
13	90601-P5T-G00	Grommet - TIMING BELT BACK COVER

Fuel pipe (DIESEL) 24

#	OEM	部品名
1	16901-S37-E30	Filter - FUEL (BOSCH)
2	16902-S37-E30	Primer - HAND
3	16903-S37-E30	Hose a - FUEL OUTLET
4	16904-S37-E30	Hose - FUEL IN.
5	16906-S37-E30	Clip - HOSE
6	16918-S37-E30	Bracket - FUEL STRAINER
7	17769-SN7-000	Bracket - PIPE CLAMP
8	91406-S37-E30	Clamp - FUEL HOSE
9	91597-SN7-003	Clip A - FUEL PIPE
12	16907-S37-E30	Hose - FUEL
13	17700-S37-G00	Pipe comp - FUEL FEED
14	17740-S37-G00	Pipe comp - FUEL RETURN
15	17752-SN7-G00	Cover - FR. FUEL PIPE
16	17753-SN7-G00	Cover - RR. FUEL PIPE
17	17763-SN7-000	Stay c - FUEL PIPE
18	17764-SN7-000	Stay d - FUEL PIPE
19	17765-SN7-000	Stay e - FUEL PIPE
20	17766-SN7-000	Clamp f - FUEL PIPE
21	17767-SM4-000	Stay g - FUEL PIPE
22	91596-SN7-932	Clamp c - FUEL PIPE
23	91598-SN7-932	Clamp b - FUEL PIPE
24	91599-SN7-932	Clamp a - FUEL PIPE
25	91591-SM4-000	Bracket - CLIP (B)
26	91595-SN7-931	Clip b - FUEL PIPE

Fuel tank 36

#	OEM	部品名
2	17371-SM4-A02	Valve - TWO WAY (TEC)
3	17500-SN7-A31	Tank comp. - FUEL
4	17511-SM4-000	Bracket - FUEL TANK BAND
6	17521-SN7-000	Band assy. - R. FUEL TANK MOUNTING
7	17522-SN7-000	Band assy. - L. FUEL TANK MOUNTING
8	17525-SM4-000	Bolt-washer - 10X35
9	17570-SM4-000	Valve - FUEL CUT
10	17574-SE0-000	Packing - BASE
11	17575-SM4-000	Packing - FUEL CUT VALVE
12	17651-SN7-000	Tube - FILLER NECK
14	17652-SN7-000	Clip - FILLER TUBE
15	17656-SM4-000	Bolt - FILLER PIPE MOUNTING
16	17658-SM4-000	Tube assy - BREATHER (260MM)
17	17659-SL5-000	Holder - FILLER PACKING
18	17660-S37-E30	Pipe comp - FUEL FILLER
21	17670-SM1-A03	Cap comp. - FUEL FILLER (STANT)
21	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)
22	17704-SE0-930	Hose - FUEL TANK RETURN
23	17704-SN7-E30	Hose - FUEL PIPE RETURN
24	17706-SM4-931	Clamp - FUEL HOSE
28	17731-SN7-930	Pipe comp - FUEL
29	17733-SM4-930	Protector - FUEL HOSE JOINT
30	37800-SM4-A03	Meter unit - FUEL (NS)
31	37801-SE3-000	Packing - BASE
32	37802-SE0-000	Retainer - FUEL UNIT
33	74660-SM4-000	Cap assy. - FLOOR MAINTENANCE HOLE
39	90657-SH3-013	Clip - TWO WAY VALVE COVER
40	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
41	90700-SB0-003	Clip - AIR BLEED TUBE
42	91406-SN7-930	Clamp - FUEL HOSE, 10.5MM
43	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM
43	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM
44	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)
45	91691-SE0-003	Clip - WIRE HARNESS
56	17707-S37-E30	Hose assy - FUEL FEED
57	17708-S37-E30	Mounting assy. - PLATE

Gasket kit 2

#	OEM	部品名
1	06125-P5T-G00	Gasket set - CYLINDER HEAD
2	06129-P5T-G01	Gasket kit - CYLINDER BLOCK

Grommet 26

#	OEM	部品名
1	72205-SK3-E00	Cap - FLOOR HOLE
2	72849-SN7-000	Insulator b - SIDE SILL
3	74231-SM4-E00	Valve - R. FR. WHEELHOUSE UPPER MEMBER
4	75826-SB3-300	Seal - DASHBOARD UPPER HOLE, 30MM
5	75826-634-300	Seal - INSIDE PANEL, 15MM
6	82871-671-000	Grommet - DRAIN HOLE, 25MM
7	85268-SN7-000	Protection - TAILGATE
8	90102-S37-000	Clip - ANCHOR
9	90615-SM4-000	Cap - WELD HOLE, 46X72
10	90852-671-003	Plug - HOLE
11	90855-SA0-000	Plug - VENTILATION HOLE, 20MM
12	90861-SA5-003	Plug - HOLE, 20MM
13	91606-SD2-003	Plug - HOLE, 15MM
14	91606-SN7-000	Insulator b - SIDE SILL
15	91606-SK7-003	Plug - BLIND, 25MM
16	91610-SD4-000	Plug - HOLE, 28MM
17	91611-SM4-003	Plug - FLOOR HOLE, 25MM
19	91613-SA5-000	Grommet b - CONTROL WIRE
20	91614-SA5-000	Grommet - HEATER LEVER HOLE (20MM)
21	91615-SA5-000	Grommet - HOLE, 25MM
22	91615-SM4-000	Plug - BLIND, 20X30
23	91616-SN7-000	Seal - FR. PILLAR INNER LOWER
24	91618-SN7-000	Seal - RR. PILLAR UPPER
25	91618-SM4-003	Plug - HOLE, 7MM
26	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
27	91623-SE0-003	Plug - BLIND, 12MM

Headlight ('96) 20

#	OEM	部品名
1	33103-SN7-G02	Housing comp - R.
2	33121-SN7-G01	Cover - L.
3	33122-SN7-G01	Sealing
4	33124-SN7-G01	Screw - TAPPING
5	33130-SN7-G01	Adjuster unit - HEADLIGHT
6	33131-SN7-G01	Sealing
7	33153-SN7-G02	Housing comp - L.
8	33171-SN7-G01	Cover - R.
9	33302-SN7-G02	Housing - R.
10	33305-SN7-G00	Socket comp.
11	33352-SN7-G02	Housing - L.
12	33800-SN7-E02	Light assy - R. SIDE TURN (###)
13	33802-SN7-E01	Housing comp - R.
14	33850-SN7-E01	Light assy - L. SIDE TURN (###)
15	33852-SN7-E01	Housing comp - L.
16	34304-SH3-A01	Socket comp.
17	34351-SN7-G00	Bulb - POSITION (12V 5W)
18	34901-SN7-G00	Bulb - HEADLIGHT (HI) (12V 55W)
19	34903-SN7-G10	Bulb - 12V 21W) (AMBER
20	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Heater blower 18

#	OEM	部品名
1	06793-SN7-G01	Motor set - BLOWER
2	79300-SN7-G02	Blower assy - LH
3	79307-SN7-E01	Clamp - CASE
4	79309-SN7-G01	Bracket
5	79317-SN7-E01	Grommet
6	79319-SN7-E01	Plug - EXPANSION
7	79330-SN7-E01	Resistor assy.
8	79350-SN7-G01	Motor assy. - FRESH & RECIRCULAR (LH)
9	79381-SN7-E01	Bush
10	79390-SN7-E01	Clamp - HARNESS
11	79391-SN7-E01	Screw - TAPPING
12	79392-SN7-E01	Screw - TAPPING
13	79393-SN7-E01	Screw - TAPPING
14	79396-SN7-E01	Washer - PLAIN
15	79397-SN7-E01	Screw - TAPPING
16	79398-SN7-E01	Holder a
17	79399-SN7-E01	Holder b
21	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Heater control 24

#	OEM	部品名
1	39383-SA5-000	Clamp - CONTROL CABLE
2	79510-SN7-Y01	Control comp. - TEMPERATURE
3	79512-SN7-E02	Base - TEMPERATURE CONTROL LOWER
4	79513-SN7-E11	Cover - DUST
5	79520-SN7-Y01	Control comp. - MODE
6	79521-SN7-E11	Lever - MODE CONTROL
7	79522-SN7-E01	Lever - TEMPERATURE CONTROL
8	79537-SN7-E02	Pin - CLICK
9	79541-SN7-Y01	Cable - MODE CONTROL
10	79542-SN7-Y01	Cable - TEMPERATURE CONTROL
11	79550-SN7-R40	Illumination assy. - HEATER
12	79555-SN7-E01	Bulb - NEO WEDGE
13	79556-SN7-E01	Bulb
14	79570-SN7-E01	Switch assy - FAN
15	79581-ST3-E01	Knob - HEATER CONTROL
17	79591-SN7-E01	Spring - HEATER CONTROL
18	79595-SN7-E12	Shaft - TEMPERATURE CONTROL
19	79596-SN7-E12	Shaft - MODE CONTROL
20	79691-SN7-E01	Screw - TAPPING, 4X12
21	80411-SN7-E11	Knob - AIR CONDITIONER
25	32165-SA5-003	Clip - HARNESS, 9MM(WHITE)
25	90674-769-000	Clamp, p.t.o. cable (b)
26	79582-SN7-E01	Knob - FRESH AIR
27	79583-SN7-E01	Knob - RECIRCULAR

Heater duct 4

#	OEM	部品名
2	77421-SN7-G00	Duct - DRIVER SIDE AIR CONDITIONER
4	77422-SN7-G00	Duct - DRIVER SIDE DEFROSTER
6	77432-SN7-G00	Duct - PASSENGER SIDE DEFROSTER
7	83331-SN7-Y01	Duct - RR. HEATER

Heater unit (2) 14

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79100-SM5-A52	Heater unit - DENSO
3	79110-SM4-A01	Core comp - HEATER
4	79192-SD4-003	Bush - 6.7MM
5	79192-SM4-003	Holder a - HEATER
6	79193-SD4-003	Bush - 5MM
7	79193-SM4-003	Holder b - HEATER
8	79196-SF1-003	Adjuster - ROD
9	79544-SM4-A00	Cable - WATER VALVE CONTROL
10	79770-SE0-000	Grommet - WATER VALVE CABLE
11	80789-SH3-003	Holder - ROD
12	90301-SP0-003	Nut - PAINT CUTTING, 6MM
13	79105-SM4-A01	Case - HEATER OUTLET
14	90657-671-631	Clip - TRIM (BLACK)

Hood ('96) 32

#	OEM	部品名
4	74120-SN7-E02	Lock assy - HOOD
5	74130-SN7-G00	Wire assy. - HOOD
6	74134-SM4-000	Grommet - HOOD WIRE
8	74141-SN7-010	Insulator - HOOD
9	74143-SL9-000	Rubber - HOOD RR. SEAL
10	74144-SE0-000	Cushion - HOOD
11	74145-SN7-000	Stay - HOOD OPENER
12	74148-SN7-010	Protector - R. HEADLIGHT
13	74149-SN7-000	Protector - L. HEADLIGHT
14	74177-SD4-000	Cushion a - HOOD
15	74200-SN7-G00	Cowl top assy.
16	74211-SL9-300	Cover - R. HOOD HINGE
17	74221-SM4-A00	Screen - WATER
18	74234-SM4-G00	Valve - R. DRAIN DASHBOARD UPPER
19	74261-SL9-300	Cover - L. HOOD HINGE
20	74284-SM4-G00	Valve - L. DRAIN DASHBOARD UPPER
21	74825-SM4-G01	Plug - WIPER LINK HOLE
22	90106-SE1-000	Bolt-washer - 6X15
23	90107-SM4-003	Clip - HOOD SEAL
24	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
25	90677-SE0-003	Holder - ROD
26	91501-SF1-003	Clip - HOOD INSULATOR
26	90700-SB2-003	Clip - HOOD INSULATOR
27	91501-SM4-003	Clip - ANCHOR
28	91502-SL9-003	Clamp - HOOD WIRE
29	91508-SM4-003	Clip - COWL TOP
30	91515-SM4-003	Clip - ANCHOR
31	91522-SM4-003	Clip - TUBE & INSULATOR
32	91558-SE3-003	Clip - HOOD WIRE
33	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
34	91604-SD2-013	Grommet - HOOD STAY
37	91565-SD5-003	Clip - COUPLER(NATURAL)

Inner panels 1

#	OEM	部品名
40	90127-SE0-000	Bolt-washer - 6X15

Instrument panel (LH) 21

#	OEM	部品名
2	06781-SN7-G80	Bracket kit - PASSENGER INFLATOR MODULE
5	77106-SL9-000	Bracket - VISOR
6	77109-SL9-000	Cap - INSTRUMENT STAY
7	77114-SN7-E00	Seal - INSTRUMENT PANEL SIDE (200MM)
9	77140-SN7-G01	Bracket comp. - INSTRUMENT DRIVER SIDE
10	77145-SN7-G00	Bracket - INSTRUMENT ASSISTANT SIDE
12	77311-SN7-G50	Frame - DRIVER SIDE LOWER
13	77542-SL9-000	Striker - GLOVE BOX
14	77551-SN7-G01	Frame - GLOVE BOX
16	77857-SN7-G80	Bracket - PASSENGER MODULE PAD
17	77858-SN7-G80	Plate - STIFFENER PAD
18	77867-SN7-G80	Bracket - PASSENGER SIDE MODULE PAD
20	77907-SW5-003	Holder - CONNECTOR (2P)
21	77982-S04-N81	Holder - COUPLER (2P)
22	90128-SA7-000	Bolt-washer - 6X25
23	90302-SA4-003	Nut - SPRING, 4MM
24	90321-SP0-A80	Nut-washer - 6MM
25	90659-SA5-003	Grommet - SCREW, 4MM
26	91640-SM4-003	Grommet - SCREW, 4MM
27	91641-SM4-003	Grommet - SCREW, 4MM
34	77870-SN7-G80	Joint - PASSENGER MODULE BRACKET

Instrument panel garnish (LH) 23

#	OEM	部品名
1	34254-SK3-E02	Lamp assy. - GLOVE BOX
2	34295-SK3-E00	Bulb
3	66406-SD2-A00	Plate - GLOVE BOX STOPPER
4	66407-SA5-000	Arm - GLOVE BOX STOPPER
5	66417-SA0-000	Rubber - GLOVE BOX STOPPER
6	66418-SB2-000	Stopper - GLOVE BOX LID
7	66456-SA5-000	Spring - GLOVE BOX ARM
15	77353-SL9-010	Blind - COLUMN (###)
17	77371-SJ5-000	Ring - COLUMN COVER
20	77477-SN7-E00	Clip - SIDE DEFROSTER
23	77506-SM4-900	Stopper - GLOVE BOX LID
24	77510-SL4-000	Hinge - GLOVE BOX
25	77520-SN7-E02	Cylinder - GLOVE BOX
27	77605-SE3-A10	Label a - TEMPERATURE
28	77606-SE3-A10	Label b - TEMPERATURE
33	77755-SN7-E00	Spring - COIN POCKET
35	90151-SM4-003	Bolt-washer - 5X12
36	90302-SN7-E00	Nut - SPRING, 4MM
37	90310-SL9-000	Nut - SPEED
38	90609-SG0-003	Clip - PILLAR GARNISH
39	90609-SN7-G00	Clip - INSTRUMENT LOWER
40	90609-SN7-E01	Clip - PILLAR GARNISH
41	90650-SE3-000	Clip - RADIO PANEL

Interior light 6

#	OEM	部品名
2	34251-SN7-G01	Lens
3	34252-SN7-G00	Lid - INTERIOR LIGHT
4	34260-SN7-G01	Light assy - TRUNK ROOM
6	34295-SN7-G01	Bulb - 12V 5W
7	34296-SN7-G01	Bulb - 12V 5W
11	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Knuckle 19

#	OEM	部品名
1	51210-SN7-E51	Knuckle comp - R. FR.
1	51210-SN7-E53	Knuckle comp - R. FR.
3	51215-SN7-E51	Knuckle comp - L. FR.
3	51215-SN7-E53	Knuckle comp - L. FR.
4	51220-SM4-013	Joint comp - FR. LOWER BALL (MUSASHI)
4	51220-SM1-A02	Joint comp - FR. LOWER BALL (MUSASHI)
5	51450-SN7-003	Arm assy. - R. FR. UPPER
6	51460-SN7-003	Arm assy. - L. FR. UPPER
7	52225-SF1-013	Boot - LOWER BALL DUST
8	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)
9	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
10	53548-SL0-A01	Circlip - TIE ROD
11	57450-SN7-950	Sensor assy - R. FR.
12	57455-SN7-950	Sensor assy - L. FR.
14	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
15	90230-SB0-950	Bolt-washer - 6X12 (GREEN)
16	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
17	90363-SF1-000	Nut - CASTLE, 12MM
20	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)

Mainshaft 12

#	OEM	部品名
1	23210-P6A-010	Shaft comp. - MAIN
2	23261-PG1-L60	Shaft - REVERSE IDLE GEAR
3	23441-PG1-K30	Gear - MAINSHAFT THIRD
4	23451-PG1-L60	Gear - MAINSHAFT FOURTH
5	23540-P6A-010	Gear comp - REVERSE IDLE
6	23543-PG1-L60	Washer - 20X30X4
7	23581-PG1-L60	Gear - MAINSHAFT FIFTH
8	23623-P6A-315	Sleeve set - SYNCHRONIZER (3-4)
9	23626-P6A-315	Sleeve set - SYNCHRONIZER (5)
10	23915-P6A-000	Collar - DISTANCE, 31X38X56
11	90702-P6A-000	Pin - SPRING, 4X8
12	91104-P6A-000	Bearing - NEEDLE, 38X43X26

Manifold 12

#	OEM	部品名
1	17000-P5T-G00	Manifold a - INTAKE
2	17010-P5T-G00	Manifold b - INTAKE
3	17120-P5T-G00	Gasket - IN. MANIFOLD
4	17125-P5T-G00	Stay - IN. MANIFOLD
5	18000-P5T-G00	Manifold - EX.
6	18110-P5T-G00	Valve assy. - EGR
7	18115-P5T-G00	Gasket - MANIFOLD
8	18715-P5T-G00	Gasket a - EGR VALVE
9	18717-P5T-G00	Pipe comp - EGR
10	18721-P5T-G00	Gasket b - EGR VALVE
11	90012-P5T-G00	Bolt - STUD
12	90406-P5T-G00	Washer

Mirror 11

#	OEM	部品名
1	04769-SM4-J01	Holder set - ACTUATOR
6	76203-SN7-G11	Mirror - R. (1800C)
7	76213-SM4-003	Pin - STOPPER
8	76220-SN7-G00	Garnish - R. DOOR MIRROR (R.C.)
14	76253-SN7-G11	Mirror - L. (1800C)
15	76270-SN7-G00	Garnish - L. DOOR MIRROR (R.C.)
17	76400-SN7-G10	Mirror assy - RR. VIEW
21	90410-SN7-G01	Screw - TAPPING, 4X10 (P0)
22	90416-SN7-G01	Screw - TAPPING, 4X16 (P0)
23	90615-SN7-G00	Clip - MIRROR GARNISH
24	91559-SN7-000	Clip - WIRE HARNESS (WHITE) (55MM)

Molding 25

#	OEM	部品名
1	72410-SN7-G00	Molding assy. - R. FR. DOOR
2	72411-SM2-003	Collar - FR. DOOR
3	72420-SN7-G00	Molding - R. DRIP ROOF
4	72430-SN7-G00	Garnish - R. FR. DOOR CENTER
5	72450-SN7-G00	Molding assy. - L. FR. DOOR
6	72460-SN7-G00	Molding - L. DRIP ROOF
7	72470-SN7-G00	Garnish - L. FR. DOOR CENTER
8	72910-SN7-G00	Molding assy. - R. RR. DOOR
9	72930-SN7-G00	Garnish - R. RR. DOOR CENTER
10	72950-SN7-G00	Molding assy. - L. RR. DOOR
11	72970-SN7-G00	Garnish - L. RR. DOOR CENTER
12	74306-SN7-000	Molding - R. ROOF
13	74308-SL9-000	Bracket - ROOF MOLDING
14	74316-SN7-000	Molding - L. ROOF
15	90121-SM4-003	Screw - TAPPING, 4X10
16	90122-SM3-013	Screw-washer
17	90130-SM2-003	Screw - TAPPING, 4X11
18	90668-SG0-003	Grommet - SCREW, 4MM(OVAL)
19	91528-SN7-000	Clip - DRIP MOLDING
20	91531-SN7-G00	Clip - DOOR MOLDING
21	91537-SN7-G00	Clip - DOOR MOLDING END
22	91539-SN7-G00	Holder - R. FR. DOOR MOLDING
23	91540-SN7-G00	Holder - L. FR. DOOR MOLDING
24	91619-SM4-003	Grommet - CENTER PILLAR GARNISH (OVAL)
25	91625-SM4-004	Grommet - CENTER PILLAR GARNISH UPPER

Oil cooler 8

#	OEM	部品名
1	15500-P5T-G00	Cooler comp - ENGINE OIL
2	91305-P5T-G00	O-ring
5	15544-P5T-G00	Bracket - OIL COOLER PIPE
6	15545-P5T-G00	Clip
7	15512-P5T-G00	Pipe comp - OIL COOLER (D)
8	15511-P5T-G00	Pipe comp - OIL COOLER (C)
9	15542-P5T-G00	Stay - CLAMP
10	15546-P5T-G00	Bracket - OIL COOLER PIPE

Oil pan 13

#	OEM	部品名
1	11200-P5T-G00	Pan comp - OIL
2	11251-P5T-G00	Packing - OIL PAN
3	15200-P5T-G00	Pipe comp - OIL LEVEL
4	15220-P5T-G00	Strainer comp. - OIL
5	15650-P5T-G00	Gauge comp. - OIL LEVEL
6	90402-P5T-G00	Washer - OIL DRAIN PLUG
7	91302-P5T-G00	O-ring
13	90002-P5T-G00	Bolt - SEALING
14	11222-P5T-G00	Pipe - VACUUM PUMP JOINT
16	15702-P5T-G01	Pipe assy. - OIL DRAIN
17	15703-P5T-G00	Hose - VACUUM PUMP
18	15704-P5T-G00	Hose - OIL DRAIN
19	90608-P5T-G00	Clip - HOSE

Oil pump 16

#	OEM	部品名
1	15100-P5T-G00	Pump assy. - OIL
2	15115-P5T-G00	Gasket - OIL PUMP
3	15231-P5T-G00	Valve - RELIEF
4	15400-P5T-G00	Cartridge - OIL FILTER
5	15560-P5T-G00	Bolt - OIL FILER SETTING
6	90008-P5T-G00	Bolt - PATCH
7	90707-P5T-G00	Ring - DOWEL
8	90741-P5T-G00	Key - OIL PUMP
9	91202-P5T-G00	Oil seal
10	91301-P5T-G00	O-ring
13	37860-P5T-G00	Sensor - OIL TEMPERATURE
14	90605-P5T-G00	Clip
16	90401-P5T-G00	Washer
17	15235-P5T-G00	Case - OIL PRESSURE
18	90802-P5T-G00	Cap - SEALING
19	15236-P5T-G30	Pipe - OIL FEED

Outer panels 7

#	OEM	部品名
33	70494-SE0-000	Spring - FUEL LID OPENER
34	74422-SS0-000	Cushion - FUEL FILLER LID
35	75450-SN7-000	Outlet assy - RR. AIR
36	90103-SM4-010	Bolt - FLANGE, 6X18
37	90664-SB3-003	Grommet - SCREW, 5MM
38	91602-SL4-000	Stopper - FR. BUMPER FACE
39	91602-SM4-000	Spacer - RR. BUMPER

P.s. gear box (LH; '96) 11

#	OEM	部品名
1	53434-SN7-010	Bracket d - GEAR BOX
2	53436-SV4-010	Cushion b - GEAR BOX
3	53438-SN7-010	Bracket b - STEERING GEAR BOX
4	53501-SM4-000	Grommet a - STEERING
5	53502-SN7-010	Grommet b - STEERING
6	53600-SN7-G02	Box assy - POWER STEERING GEAR (LH)
7	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
8	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
9	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)
12	53535-S1A-E01	Tube - BELLOW
13	53536-S1A-E01	Housing - BELLOW

P.s. line (DIESEL) 19

#	OEM	部品名
1	53697-SK3-E01	Cap - OIL TANK
2	53701-SN7-000	Tank comp. - POWER STEERING OIL
3	53711-S37-E00	Bracket - POWER STEERING RESERVOIR
4	53713-S37-E00	Pipe assy. - FEED
5	53714-S37-E00	Pipe - INTERMEDIATE FEED
7	53715-S37-G00	Rack - FEED PIPE (LH)
8	53720-S37-E00	Pipe assy. - RETURN
9	53724-S37-E00	Rail assy - RETURN
10	53729-SN7-000	Clamp - D15.5
11	53731-S37-E00	Hose - SUCTION
13	53734-S37-G00	Hose - RETURN
14	53736-S37-E00	P clip - INTERMEDIATE
15	53744-S37-E00	Bracket - POWER STEERING OIL COOLER
16	53746-S37-E00	Bracket a - OIL COOLER RESERVOIR CLAMP
17	53765-S37-E00	Cooler comp - POWER STEERING OIL
18	90006-PN3-000	Bolt-washer - SPECIAL, 6X32
19	90188-SM4-000	Bolt - FLANGE, 6X12 (BLACK)
20	91405-SS0-003	Clamp - TUBE (D21)
25	53729-SS0-003	Clip - RETURN HOSE

P.s. pump (AIR CONDITIONER) 8

#	OEM	部品名
1	06569-P5T-G20	Bracket kit - POWER STEERING SUPPORT
2	56100-P5T-G20	Pump assy. - POWER STEERING
3	56483-P5T-G20	Pulley - POWER STEERING PUMP
4	56910-P5T-G00	Tensioner comp
5	56992-P5T-G20	Belt - DRIVE
6	90015-P5T-G01	Bolt - POWER STEERING FEED HOSE
7	90409-P5T-G01	Washer - SEALING
11	90020-P5T-G00	Bolt

Parking brake 13

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
4	47143-SN7-003	Spring - PUSH ROD
5	47342-SN7-003	Switch assy - BRAKE LEVER
6	47360-SN7-003	Equalizer
7	47365-SN7-003	Pin - EQUALIZER
8	47510-SN7-953	Wire a - R. PARKING BRAKE
9	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING
10	47537-SN7-003	Spring - PARKING BRAKE ROD
11	47560-SN7-953	Wire a - L. PARKING BRAKE
12	47572-SN7-000	Base - WIRE GUIDE
13	74656-SN7-000	Bracket - TANK BAFFLE PLATE
15	90651-SN7-003	Clip - BRAKE HOSE
16	90705-SD2-931	Pin - SNAP, 6MM

Pedal (DIESEL) 25

#	OEM	部品名
1	46504-SK3-300	Bush - PEDAL
2	46505-SK3-000	Pad - PEDAL STOPPER
3	46545-SN7-000	Cover - PEDAL
4	46910-SN7-G00	Pedal comp - CLUTCH
5	46911-SN7-000	Bush - PEDAL PIN
6	46936-SN7-000	Collar - CLUTCH PEDAL
7	46980-SD4-931	Spring - CLUTCH ASSISTANT
8	46981-SN7-930	Bush a - CLUTCH ASSISTANT
9	46982-SN7-930	Bush b - CLUTCH ASSISTANT
10	46990-SN7-940	Bracket - CLUTCH PEDAL
11	46991-SN7-G00	Bracket - FOOTREST
18	17800-S37-D50	Pedal comp - ACCELERATOR
19	17812-SA7-010	Washer - ACCELERATOR PEDAL
20	17813-S37-G00	Pin - LINK
21	17816-S37-D00	Cover - ACCELERATOR PEDAL
22	17858-SM4-000	Bush - CENTER
23	36750-SE0-013	Switch assy - STOP & CRUISE (TEC)
24	46500-SN7-A00	Pedal comp - BRAKE
25	46530-SM4-000	Spring assy - PEDAL RETURN
26	46530-S37-G00	Spring - RETURN
27	46535-SM4-000	Collar - PEDAL
28	46590-S37-D50	Bracket - PEDAL
29	90133-S37-G00	Screw set - 6MM
30	90303-S37-G00	Nut - SELF-LOCK, 6MM
34	17815-S37-G00	Pot - THROTTLE

Pillar garnish 6

#	OEM	部品名
2	38205-SN7-G11	Label - FUSE
28	90609-SE1-960	Clip - PILLAR GARNISH
29	90609-SG0-003	Clip - PILLAR GARNISH
30	90609-SN7-E01	Clip - PILLAR GARNISH
31	90666-SD4-000	Clip - PILLAR LINING
33	91580-SF9-003	Clip - COWL SIDE

Protector 18

#	OEM	部品名
1	71800-SN7-000	Garnish assy - R. SIDE SILL
2	71850-SN7-000	Garnish assy - L. SIDE SILL
3	74430-SN7-000	Protector - RR. WHEEL ARCH
3	74430-SN7-010	Protector - RR. WHEEL ARCH
4	74559-SN7-000	Cover - FUEL PIPE
7	75301-SN7-G12	Protector comp - R. FR. FENDER
8	75302-SN7-G12	Protector comp - R. FR. DOOR
9	75303-SN7-G12	Protector comp - R. RR. DOOR
10	75307-SN7-000	Nut - SIDE PROTECTOR
11	75321-SN7-G12	Protector comp - L. FR. FENDER
12	75322-SN7-G12	Protector comp - L. FR. DOOR
13	75323-SN7-G12	Protector comp - L. RR. DOOR
15	90114-SE0-000	Screw - TAPPING, 5X20
17	90331-SD5-003	Nut - SPRING, 5MM
18	90505-SM4-003	Clip - GARNISH
18	90505-SX0-003	Clip - GARNISH
21	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH
22	91545-SE0-003	Clip assy. - 8MM

Radiator (DIESEL) 11

#	OEM	部品名
1	19005-P5T-G00	Shroud assy. - MAIN
2	19010-P5T-G00	Radiator comp.
3	19018-P42-G00	Mark - FAN CAUTION
4	19700-P5T-G00	Intercooler comp.
5	32175-P5T-G00	Clip - HARNESS
6	37773-P5T-G00	Switch - THERMO (105)
7	37773-P5T-G10	Switch - THERMO (122)
8	37774-P5T-G00	Clip - RETAINER
9	37775-P5T-G00	Bush - SEALING
10	38605-P5T-G00	Shroud sub assy.
11	80110-P5T-G00	Condenser comp.

Radiator hose (DIESEL) 23

#	OEM	部品名
1	17225-P5T-G01	Hose a - INTERCOOLER
2	17226-P5T-G00	Hose b - INTERCOOLER
3	19101-P5T-G00	Tank comp. - EXPANSION
4	19102-P5T-G00	Cap - EXPANSION TANK
5	19103-P5T-G00	Hose - EXPANSION TANK
6	19104-P5T-G00	Pipe comp - EXPANSION TANK
7	19110-SK4-E00	Label - EXPANSION TANK
8	19115-P5T-G00	Bracket - EXPANSION TANK
9	19506-P5T-G00	Hose - WATER OUTLET
10	19502-P5T-G00	Hose - WATER LOWER
11	74144-SN8-000	Seal - BULKHEAD UPPER
12	74171-SN8-000	Bracket - RADIATOR MOUNT
13	74172-SM4-000	Cushion - RADIATOR MOUNTING LOWER
14	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
15	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
16	90361-SV4-003	Nut - PAINT CUTTING, 6MM
17	90685-SF1-003	Clip - BULKHEAD UPPER SEAL
24	19302-P5T-G00	Thermostat
25	19504-P5T-G00	Hose - THERMOSTAT
26	19505-P5T-G20	Hose - THERMOSTAT BODY OUTLET
27	90609-P5T-G00	Clip - HOUE
28	19500-P5T-G00	Pipe comp - COOLANT & FUEL
29	90607-P5T-G00	Clip - HOSE

Radio antenna/speaker 17

#	OEM	部品名
1	39112-SM4-000	Bracket - FR. SPEAKER SEAL
3	39120-SN7-E21	Speaker assy - 6 1/2" SINGLE CON
4	39120-SN7-E31	Speaker assy - 6"X9" SINGLE) (LOW
5	39124-SL9-000	Box - RR. SPEAKER
6	39150-SN7-E01	Antenna assy - MOTOR
7	39151-SN7-003	Bracket
8	39152-SN7-003	Mast assy.
9	39154-SN7-003	Nut - MOUNTING
10	39155-SN7-003	Motor assy.
11	39156-SN7-003	Insulator
12	39159-SN7-E01	Sub feeder - MOTOR ANTENNA
13	39170-SJ4-000	Valve - RR. MOTOR ANTENNA DRAIN
16	90662-693-003	Grommet - SCREW, 4MM (BLUE)
17	90666-SD4-003	Clip - FITTING
18	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
19	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
20	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Rear brake 31

#	OEM	部品名
1	01473-SN7-010	Caliper set - RR.
2	42200-SN7-E51	Bearing assy - RR. HUB UNIT
3	42324-SK3-E00	Washer - HUB UNIT
4	42326-SG0-000	Cap - HUB UNIT
5	42510-SN7-000	Disk - RR. BRAKE
6	43010-SN7-000	Pin set - RR.
7	43012-SN7-G00	Body set - R. RR. CALIPER
8	43013-SN7-G00	Body set - L. RR. CALIPER
9	43014-SN7-G00	Bracket set - R. RR. CALIPER
10	43015-SN7-G00	Bracket set - L. RR. CALIPER
11	43017-SN7-G00	Boot set - RR. PIN
12	43022-SN7-000	Pad set - RR.
13	43215-SM4-951	Piston assy.
14	43243-SD2-931	Nut - PARKING
15	43245-SM4-950	Lever
16	43246-SN7-G01	Spring - R. RETURN
17	43247-SN7-G01	Arm - R.
18	43253-SN7-950	Guard - R. RR. SPLASH (15") (ABS)
19	43254-SN7-950	Guard - L. RR. SPLASH (15") (ABS)
20	43255-SN7-000	Protector - R. RR. CALIPER
21	43256-SN7-000	Protector - L. RR. CALIPER
22	43266-SN7-G01	Spring - L. RETURN
23	43267-SN7-G01	Arm - L.
24	45240-SA7-003	Bolt - FLANGE, 8X22
25	45352-SN7-G41	Screw - BLEEDER
26	45353-SN7-G41	Cap - BLEEDER
27	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
27	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
27	90113-SA0-006	Bolt - WHEEL (SAGA)
28	90305-692-010	Nut
29	90103-SN7-003	Bolt - FLANGE, 10X25

Rear door lining 16

#	OEM	部品名
2	34257-SN7-G00	Plate - COURTESY LIGHT
3	34258-SN7-G01	Lens
4	34296-SN7-G01	Bulb - 12V 5W
5	35761-SN7-G02	Panel - R. RR.
6	35762-SN7-G01	Body
7	35766-SN7-G02	Panel - L. RR.
8	72835-SN7-G01	Weatherstrip - R. RR. DOOR INNER
9	72875-SN7-G01	Weatherstrip - L. RR. DOOR INNER
10	72940-SN7-G00	Garnish - R. RR. DOOR INNER
11	72980-SN7-G00	Garnish - L. RR. DOOR INNER
12	83529-SN7-G00	Bracket - COVER LOCK
21	90131-SE3-003	Screw - TAPPING, 4X16
22	90615-SN7-G00	Clip - MIRROR GARNISH
23	91560-SP0-003	Clip - DOOR LINING (GRAY)
23	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
24	91626-SP0-003	Grommet - SCREW, 5MM

Rear door locks 33

#	OEM	部品名
1	72112-SN7-G01	Snap - R.
2	72117-SN7-G00	Protector - R. DOOR LOCK
4	72121-SN7-G01	Base - R. INSIDE HANDLE
6	72134-SN7-G01	Bush - JOINT
7	72135-SN7-G00	Striker - DOOR LOCK
8	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
10	72138-SN7-G00	Cushion - LOCK ROD
11	72138-SN7-G10	Cushion - LOCK ROD
12	72157-SN7-G00	Protector - L. DOOR LOCK
14	72161-SN7-G01	Base - L. INSIDE HANDLE
15	72162-SN7-G01	Snap - L.
16	72175-SH3-003	Holder - DOOR LOCK ROD
17	72175-SH3-901	Holder - DOOR LOCK ROD
18	72610-SN7-G03	Lock assy - R. RR. DOOR
19	72615-SN7-G02	Actuator assy - R. RR. DOOR LOCK
20	72630-SM4-003	Crank assy - RR. DOOR LOCK
21	72631-SN7-G01	Rod - R. RR. INSIDE HANDLE
22	72632-SN7-G02	Rod - R. RR. DOOR LOCK
23	72633-SN7-G01	Rod - RR. DOOR LOCK KNOB
24	72634-SM4-003	Snap - R. (BLUE)
25	72639-SN7-G00	Protector - R. RR. DOOR ROD
26	72640-SN7-G01	Handle assy - RR. OUTSIDE
27	72650-SN7-G03	Lock assy - L. RR. DOOR
28	72655-SN7-G02	Actuator assy - L. RR. DOOR LOCK
29	72671-SN7-G01	Rod - L. RR. INSIDE HANDLE
30	72672-SN7-G02	Rod - L. RR. DOOR LOCK
31	72674-SM4-003	Snap - L. (BROWN)
32	72679-SN7-G00	Protector - L. RR. DOOR ROD
33	72680-SN7-G01	Handle assy - L. RR. OUTSIDE
34	75411-634-000	Joint
35	90120-SM4-000	Screw - TAPPING
36	90662-SB2-003	Grommet - SCREW, 5MM
37	91555-SM4-003	Clip - COUPLER (RED)

Rear door panels 15

#	OEM	部品名
13	72326-SN7-G00	Seal - RR. DOOR LOWER
14	72810-SN7-G01	Weatherstrip - R. RR. DOOR
15	72821-SN7-G00	Seal - R. RR. DOOR HOLE
16	72840-SN7-G02	Checker comp. - RR. DOOR
17	72850-SN7-G01	Weatherstrip - L. RR. DOOR
18	72861-SN7-G00	Seal - L. RR. DOOR HOLE
19	75760-SK3-E00	Pin - DOOR CHECKER
20	75891-SA7-000	Stopper - DOOR
21	90101-SE3-003	Bolt-washer - 8X23.5
22	90686-692-003	Cap - LINING MOUNT
23	90852-SA5-000	Plug - HOLE, 10MM
24	91530-SE0-003	Clip A - DOOR WEATHERSTRIP
24	90664-671-003	Clip - CANOE
25	91530-SH4-003	Clip - DOOR WEATHERSTRIP
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Rear door windows 13

#	OEM	部品名
4	72237-SM4-003	Clip - FR. DOOR GLASS GUIDE
5	72710-SN7-G12	Regulator - R. RR. DOOR POWER
7	72730-SN7-G00	Garnish - R. RR. DOOR
8	72731-SN7-G00	Sash - R. RR. DOOR FR. LOWER
9	72735-SN7-G01	Runchannel - R. RR. DOOR
10	72750-SN7-G12	Regulator - L. RR. DOOR POWER
12	72770-SN7-G00	Garnish - L. RR. DOOR
13	72771-SN7-G00	Sash - L. RR. DOOR FR. LOWER
14	72775-SN7-G01	Runchannel - L. RR. DOOR
15	73400-SN7-G00	Glass assy - R. RR. DOOR (GREEN)
16	73450-SN7-G00	Glass assy - L. RR. DOOR (GREEN)
17	90307-SH3-000	Nut - SPOILER CAP, 6MM
18	91555-SM4-003	Clip - COUPLER (RED)

Rear seat (2) 16

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	82122-SN7-E11	Pad & frame comp. - R. RR. SEATBACK
6	82127-SE3-004	Collar - SEATBACK SETTING (TACHI-S)
7	82128-SN7-E21	Collar b - RR. SEATBACK SIDE SETTING
9	82132-SN7-E11	Pad & frame comp. - RR. SEAT CUSHION
10	82137-SE3-004	Rubber - RR. CUSHION SETTING
15	82220-SN7-E21	Lock assy - R. RR. SEAT
16	82290-SN7-E21	Bracket comp. - SEAT PIVOT
17	82291-SN7-E21	Bush - CENTER PIVOT
18	82295-SN7-E21	Bracket - CENTER SEAT PIVOT
20	82522-SN7-E11	Pad & frame comp. - L. RR. SEATBACK
23	82620-SN7-E22	Lock assy - L. RR. SEAT
24	90003-692-000	Bolt - FLANGE, 6X16
25	90139-SH3-003	Bolt-washer - 6X20
26	90186-SN7-003	Bolt - ARMREST

Rear shock absorber 16

#	OEM	部品名
1	51685-SN7-E01	Plate - DUST COVER
2	52441-SN7-E02	Spring - RR.
3	52610-S37-000	Absorber assy - R. RR. SHOCK
4	52611-S37-G00	Absorber unit - RR. SHOCK
5	52620-S37-000	Absorber assy - L. RR. SHOCK
6	52621-SN7-E01	Washer - RR. SHOCK ABSORBER MOUNTING
7	52675-SN7-E01	Base - RR. SHOCK ABSORBER MOUNTING
8	52676-SN7-E02	Seal - RR. SHOCK ABSORBER MOUNTING
9	52685-SN7-E01	Tube - EXTENSION DUST
10	52686-SN7-E01	Rubber - RR. SPRING MOUNTING
11	52687-SN7-E01	Cover - RR. DUST
13	52722-SN7-E03	Rubber - RR. BUMP STOPPER
14	52725-SN7-E01	Rubber - RR. SHOCK ABSORBER MOUNTING
16	52748-SN7-E01	Rubber - RR. SPRING SEAT
17	90021-SM4-003	Bolt - SHOCK ABSORBER, 10X68
18	90364-SN7-E01	Nut - SELF-LOCK, 10MM

Rear stabilizer/ rear lower arm 50

#	OEM	部品名
1	51464-S04-013	Boot, UPPER BALL JOINT
2	52111-SN7-910	Knuckle comp - R. RR. (DISK)
3	52116-SN7-910	Knuckle comp - L. RR. (DISK)
4	52212-SM4-910	Bracket a - R. RR. KNUCKLE (DISK)
5	52213-SM4-010	Protector - RR. KNUCKLE
6	52214-SM4-000	Bracket b - RR. KNUCKLE
7	52217-SM4-910	Bracket a - L. RR. KNUCKLE (DISK)
8	52300-SN7-E00	Spring - RR. STABILIZER
10	52306-SN7-E01	Link - RR. STABILIZER
11	52308-SN7-E00	Bracket - RR. STABILIZER BUSH
12	52309-SE0-000	Washer - RR. STABILIZER END
13	52310-SE0-003	Shaft - STABILIZER LINK
14	52312-SK3-000	Collar - STABILIZER INNER BUSH END
15	52315-SN7-E00	Bush - RR. STABILIZER
16	52316-SK3-000	Bush - STABILIZER END
17	52317-SM4-A00	Bracket - R. RR. STABILIZER
18	52318-SM4-A00	Bracket - L. RR. STABILIZER
19	52338-SL0-003	Circlip - CONTROL ARM
20	52345-SN7-000	Arm comp - R. RR. LOWER (A)
21	52350-SN7-000	Arm comp - L. RR. LOWER (A)
22	52355-SN7-910	Arm comp - R. RR. LOWER (B) (ABS)
23	52360-SN7-910	Arm comp - L. RR. LOWER (B) (ABS)
24	52364-634-020	Washer - LOWER ARM
25	52366-SM4-003	Bolt - KNUCKLE (12X221)
26	52371-SN7-E00	Arm assy. - R. RR. TRAILING
27	52372-SN7-E00	Arm assy. - L. RR. TRAILING
28	52387-SE0-023	Bolt - LOWER ARM ADJUSTING
29	52388-SE0-030	Plate - CAM
30	52390-SM1-A04	Arm comp - R. RR. UPPER
31	52400-SM1-A04	Arm comp - L. RR. UPPER
32	52622-SN7-003	Bush - RR. SHOCK ABSORBER LOWER
33	52677-SN7-E00	Bracket - R. RR. TRAILING ARM
34	52678-SN7-E00	Bracket - L. RR. TRAILING ARM
35	57470-SN7-950	Sensor assy - R. RR.
36	57475-SN7-950	Sensor assy - L. RR.
37	90118-SL4-003	Bolt - SELF-LOCK, 12X84
38	90022-SM4-003	Bolt - TRAILING ARM BRACKET, 12X69
39	90023-SM4-003	Bolt - TRAILING ARM BRACKET, 12X55.5
40	90024-SM4-000	Bolt a - TRAILING ARM (10X57)
42	90026-SM4-000	Bolt b - TRAILING ARM (10X45)
45	90119-SM4-003	Bolt - RR. LOWER ARM, 12X66
47	90168-SN7-000	Bolt - FLANGE, 8X35
48	90212-SA7-010	Nut - SELF-LOCK, 10MM
49	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
50	90216-SE0-010	Nut
50	90216-SE0-305	NUT, LWR ARM
51	90217-SM4-003	Nut - TRAILING ARM, 10MM
52	90230-SB0-950	Bolt-washer - 6X12 (GREEN)
53	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
54	90438-SE0-000	Washer - TRAILING, 12MM

Rear windshield 20

#	OEM	部品名
1	39885-SN7-G00	Label - SECURITY CAUTION
2	73211-SN7-G02	Glass - RR. WINDSHIELD (GREEN)
3	73225-SN7-G00	Rubber - RR. WINDSHIELD DAM
4	73226-SM4-000	Spacer - RR. WINDSHIELD
5	73251-SN7-G00	Molding - RR. WINDSHIELD UPPER
6	73253-SN7-G00	Molding - R. RR. SIDE
7	73254-SN7-G00	Molding - R. RR. CORNER
8	73255-SN7-G00	Cover - R. LOWER
9	73256-SN7-G00	Joint - R. RR. WINDSHIELD SIDE
10	73257-SN7-G00	Joint - CENTER
11	73263-SN7-G00	Molding - L. RR. SIDE
12	73264-SN7-G00	Molding - L. RR. CORNER
13	73265-SN7-G00	Cover - L. LOWER
14	73266-SN7-G00	Joint - L. RR. WINDSHIELD SIDE
15	73500-SN7-E01	Glass assy - R. OPERA (GREEN)
17	73550-SN7-E01	Glass assy - L. OPERA (GREEN)
19	91529-SN7-G00	Holder - RR. WINDSHIELD LOWER MOLDING
20	91530-SN7-G00	Clip - RR. WINDSHIELD UPPER & SIDE MOLDING
21	91536-SS0-000	Fastener a - WINDSHIELD
22	91541-SM4-003	Clip assy. - RR. WINDSHIELD SIDE MOLDING (BLUE)

Roof lining 4

#	OEM	部品名
17	90132-SL9-901	Bolt-washer - 5X35
18	90132-SP0-003	Screw - PAN, 5X15
19	90133-SG0-003	Bolt-washer - 5X30
22	90673-SE0-003	Clip - ROOF LINING

Seatbelts 2

#	OEM	部品名
5	81491-SN7-E00	Bag - PROTECTOR
11	90668-SH5-003	Clip - MAT, 5MM

Shift fork 6

#	OEM	部品名
1	24200-P6A-000	Fork comp - FIFTH GEARSHIFT
2	24210-P6A-000	Fork comp - GEARSHIFT (3-4)
3	24220-P6A-000	Fork comp - GEARSHIFT (1-2)
5	24261-P6A-000	Shaft - GEARSHIFT FORK (1-2)
7	90702-P6A-000	Pin - SPRING, 4X8
8	24243-P6A-010	Piece - FIFTH-REVERSE SHIFT

Shift lever (DIESEL) 27

#	OEM	部品名
1	54090-S37-000	Holder comp - CHANGE BOOT
2	54101-S37-000	Lever - CHANGE
4	54105-S37-000	Washer - THRUST
5	54106-S37-000	Holder - CHANGE BOOT
6	54107-S37-000	Bush - RR. JOINT
7	54108-S37-000	Boot - CHANGE LEVER
8	54109-S37-000	Seal a - CHANGE DUST
9	54110-S37-000	Seat - CHANGE LEVER BALL
10	54112-S37-000	Clip - CHANGE JOINT PIN
11	54114-S37-000	Collar - PIPE MOUNTING
12	54115-S37-000	Seal b - CHANGE DUST
13	54117-S37-000	Collar - RR. JOINT
14	54119-S37-000	Stopper - CHANGE BALL
15	54202-S37-000	Rod comp - CHANGE
16	54301-S37-000	Extension - CHANGE
17	54303-S37-000	Rubber - EXTENSION END
18	54304-SG4-U00	Washer a - EXTENSION END
19	54305-S37-000	Washer b - EXTENSION ROD
20	54306-S37-000	Rubber - EXTENSION MOUNTING
21	54307-S37-000	Stopper - EXTENSION MOUNTING
22	54318-S37-000	Seal - CHANGE BOOT
23	90105-S37-000	Bolt-washer - 6X20
24	90106-S37-000	Bolt - HEX., 8X45
25	90115-S37-000	Nut - SELF-LOCK, 8MM
26	90601-S37-000	Circlip
27	91301-S37-000	O-ring - 1.9X11
28	91351-S37-000	O-ring - 40X3

Shift rod/shift holder 15

#	OEM	部品名
1	24230-P6A-000	Holder comp - REVERSE CHANGE
2	24311-PG1-L60	Rod - GEARSHIFT
3	24316-PG1-L60	Boot - SHIFT ROD
4	24351-P6A-000	Shaft - SHIFT PIECE
5	24400-P6A-000	Holder assy. - CHANGE
6	24411-P6A-000	Piece - CHANGE
7	24432-P6A-030	Interlock assy.
8	24440-P6A-020	Piece comp. - GEARSHIFT
9	24451-PG1-L60	Spring - BALL SETTING
10	24519-PG1-L60	Screw - BALL SPRING SETTING
11	90027-PG1-L60	Bolt - SPECIAL, 6X22.5
12	90028-PG1-L60	Bolt - SPECIAL, 8X61.5
13	90030-PG1-L60	Bolt - SPECIAL, 8X24
14	90412-PG1-L60	Washer - CONICAL SPRING, 8MM
16	90011-P6A-000	Bolt - FLANGE, 6X18MM

Speed sensor 4

#	OEM	部品名
2	78410-S37-D00	Sensor assy - SPEED
6	23810-P6A-306	Gear assy. - SPEEDOMETER
7	23817-P6A-305	O-ring
8	23818-P6A-305	Bolt

Srs unit (LH) 15

#	OEM	部品名
2	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
3	77900-SN7-G82	Reel assy - CABLE
5	77960-SN7-H91	Srs unit
6	77961-SN7-G70	Harness - SRS MAIN WIRE
7	77963-SV4-A01	Clip - SRS HARNESS (BLUE) (153MM)
8	77964-SN7-G01	Cover - SRS UNIT
9	77965-SN7-G00	Bracket - SRS UNIT
10	90101-SA4-000	Screw - TAPPING, 4X12
11	90137-SR3-003	Bolt - TORX EARTH, 6X25
13	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
14	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
15	91546-SM4-A01	Clip - HARNESS BAND (120MM)
16	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
17	91533-S04-003	Clip - COUPLER (NATURAL)
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Starter motor 2

#	OEM	部品名
1	31200-P9M-E00	Motor assy. - STARTER
2	90014-P5T-G00	Bolt - SPECIAL STARTER

Steering column 17

#	OEM	部品名
1	46597-SM4-A02	Stay - PEDAL BRACKET
2	53200-SN7-G02	Column assy - STEERING
3	53216-SN7-000	Holder b - STEERING COLUMN
4	53217-SN7-000	Collar - STEERING RETAINER
6	53320-SN7-G80	Cover - STEERING JOINT (LH)
7	53323-ST3-E01	Joint comp. b - STEERING
8	53325-SN7-000	Clip A - JOINT COVER
9	53326-SN7-000	Clip b - JOINT COVER
10	53363-SN7-G00	Pivot comp - COLUMN
11	53371-SN7-000	Spring - COLUMN HANGER
12	77873-SN7-E80	Label - STEERING COLUMN CAUTION
13	77873-SN7-G80	Label - STEERING COLUMN CAUTION
14	90135-SF1-000	Bolt - CENTER SHAFT YOKE
15	90361-SM4-003	Nut - FLANGE, 8MM
15	90361-SR3-000	Nut - FLANGE, 8MM
16	90511-671-003	Washer - TOOTHED LOCK
17	90676-SB2-003	Clip - DASHBOARD INSULATOR

Steering wheel (SRS; 2) 6

#	OEM	部品名
15	78509-SN7-E81	Cover - BOSS PLATE
18	78521-ST3-E81	Button a - HORN
19	78522-ST3-E81	Button b - HORN
20	78526-ST3-E81	Cord comp - HORN
22	90134-S04-A81	Bolt - HEX., 6X12
23	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Switch (LH) 14

#	OEM	部品名
2	35150-SN7-G11	Controller - ILLUMINATION
3	35170-SN7-E11	Switch assy - RR. FOG
4	35500-SN7-G01	Switch assy - HAZARD
6	35505-SN7-G01	Bulb comp. - NEO-WEDGE (12V 1.2W)
7	35510-SN7-E01	Switch assy - RR. DEFOGGER
10	35750-SN7-G12	Switch assy - POWER WINDOW MASTER
11	35820-SN7-G01	Switch assy - HEADLIGHT ADJUST
13	35850-SN7-003	Bulb comp.
16	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)
17	35851-SS0-003	Bulb - NEO WEDGE (14V 60MA)
18	35852-SN7-G01	Bulb - NEO WEDGE (14V 40MA)
22	39700-SN7-G11	Clock assy - DIGITAL
23	39952-SN7-G01	Receiver assy - PLIP REMOTE
26	90666-SD4-003	Clip - FITTING

Taillight 29

#	OEM	部品名
1	33301-SN7-E01	Bulb - 12V 5W
3	33501-SN7-G02	Housing comp - R.
4	33502-SN7-G02	Cover comp. - R.
5	33503-SN7-G01	Seal - GASKET
7	33551-SN7-G02	Housing comp - L.
8	33552-SN7-G02	Cover comp. - L.
9	34100-SN7-E01	Light assy - LICENSE
10	34101-SN7-E01	Lens
11	34103-SN7-E01	Seal - PACKING
12	34104-SN7-E01	Screw - TAPPING, 4X16
13	34150-SN7-G01	Light assy - R. LID (###)
14	34151-SN7-G01	Housing comp - R.
15	34152-SN7-G01	Cover comp. - R.
16	34153-SN7-G01	Seal - GASKET
17	34155-SN7-G01	Light assy - L. LID (###)
18	34156-SN7-G01	Housing comp - L.
19	34157-SN7-G01	Cover comp. - L.
21	34903-SN7-E01	Bulb - 12V 21W) (CLEAR
22	34903-SN7-G00	Bulb - 12V 21W
23	34903-SN7-G10	Bulb - 12V 21W) (AMBER
24	34906-SN7-G00	Bulb - 12V 21W/5W
26	75525-SD4-013	Clip - RR. PANEL GARNISH
27	90102-SN7-010	Bolt assy - LICENSE GARNISH
28	90301-SE0-902	Nut - SPECIAL, 5MM
29	90501-SL9-003	Clip - LICENSE GARNISH
30	90521-SS0-003	Grommet - SPECIAL SCREW (M4) (YELLOW)
31	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)
32	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)
33	91524-SE0-003	Clip - COWL TOP

Tie rod 6

#	OEM	部品名
11	53540-SN7-003	End comp - R. TIE ROD
13	53546-SH0-A01	Boot - TIE ROD END (TECHNICAL AUTO PARTS)
13	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
14	53560-SN7-003	End comp - L. TIE ROD
16	90320-SF1-000	Nut - CASTLE, 10MM
17	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)

Timing belt 13

#	OEM	部品名
1	13621-P5T-G00	Pulley - TIMING BELT DRIVE
2	13622-P5T-G00	Plate - TIMING BELT
3	14210-P5T-G00	Pulley - TIMING BELT DRIVEN
4	14400-P5T-G00	Belt - TIMING
5	14510-P5T-G00	Adjuster comp - TIMING BELT (A)
6	14520-P5T-G00	Adjuster comp - TIMING BELT (B)
7	14525-P5T-G00	Spring - TIMING BELT ADJUSTER
8	14526-P5T-G00	Sleeve - TIMING BELT ADJUSTER
9	90202-P5T-G00	Nut - TIMING BELT IDLER SPECIAL
12	11910-P5T-G00	Bracket - ENGINE MOUNTING
13	90018-P5T-G00	Bolt - STUD
15	90006-P5T-G00	Bolt - STUD
17	90201-P5T-G00	Nut - SPECIAL

Timing belt cover 20

#	OEM	部品名
1	11810-P5T-G00	Cover - TIMING BELT LOWER
2	11811-P5T-G00	Rubber a - TIMING BELT LOWER SEAL
3	11812-P5T-G00	Rubber b - TIMING BELT LOWER SEAL
4	11813-P5T-G00	Rubber c - TIMING BELT LOWER SEAL
5	11814-P5T-G00	Rubber d - TIMING BELT LOWER SEAL
6	11815-P5T-G00	Rubber e - TIMING BELT LOWER SEAL
7	11816-P5T-G00	Rubber f - TIMING BELT LOWER SEAL
8	11820-P5T-G00	Cover assy. - TIMING BELT
9	11821-P5T-G00	Rubber assy. - TIMING BELT UPPER SEAL
10	11830-P5T-G00	Cover assy. - TIMING BELT BACK UPPER
11	11831-P5T-G00	Rubber a - TIMING BELT BACK SEAL
12	11832-P5T-G00	Rubber b - TIMING BELT BACK SEAL
13	11833-P5T-G00	Rubber c - TIMING BELT BACK SEAL
14	11840-P5T-G00	Cover assy. - TIMING BELT BACK
15	13810-P5T-G00	Pulley comp - CRANKSHAFT
16	90007-P5T-G00	Bolt-washer
17	90503-P5T-G00	Collar - TIMING BELT BACK COVER
18	90601-P5T-G00	Grommet - TIMING BELT BACK COVER
19	90804-P5T-G00	Cap - CORE PLUG
23	90805-P5T-G00	Plug - BLANKING

Tire/wheel disk 39

#	OEM	部品名
2	42700-SN7-G21	Disk - WHEEL (15X5 1/2JJ)
4	42700-SN7-G91	Disk - ALUMINIUM WHEEL (15X5 1/2JJ)
5	42751-SN7-F26	Tire - 195/60R15 87V) (FIRESTONE
5	42751-SN7-F11	Tire - 185/65R15 88H) (PIRELLI
5	42751-SN7-F21	Tire - 195/60R15 88V) (PIRELLI
5	42751-SM4-F62	Tire - 185/65R15 88H) (DUNLOP U.K.
7	42753-SK3-000	Valve - RIM(A.R.G.)
8	44721-SN7-G02	Weight - BALANCE (10G)
8	44730-SN7-G02	Weight - BALANCE (45G)
8	44729-SN7-G01	Weight - BALANCE (35G)
8	44724-SN7-G02	Weight - BALANCE (40G)
8	44728-SN7-G01	Weight - BALANCE (25G)
8	44729-SN7-G02	Weight - BALANCE (35G)
8	44722-SN7-G02	Weight - BALANCE (20G)
8	44728-SN7-G02	Weight - BALANCE (25G)
8	44727-SN7-G01	Weight - BALANCE (15G)
8	44727-SN7-G02	Weight - BALANCE (15G)
8	44726-SN7-G01	Weight - BALANCE (5G)
8	44723-SN7-G02	Weight - BALANCE (30G)
8	44730-SN7-G01	Weight - BALANCE (45G)
8	44726-SN7-G02	Weight - BALANCE (5G)
9	44725-SN7-004	Weight - BALANCE (50G)
9	44726-SN7-003	Weight - BALANCE (5G)
9	44729-SN7-004	Weight - BALANCE (35G)
9	44730-SN7-003	Weight - BALANCE (45G)
9	44728-SN7-004	Weight - BALANCE (25G)
9	44727-SN7-004	Weight - BALANCE (15G)
9	44729-SN7-003	Weight - BALANCE (35G)
9	44728-SN7-003	Weight - BALANCE (25G)
9	44726-SN7-004	Weight - BALANCE (5G)
9	44727-SN7-003	Weight - BALANCE (15G)
9	44730-SN7-004	Weight - BALANCE (45G)
12	44732-SP1-E80	Cap - ALUMINIUM WHEEL CENTER
17	44733-SN7-G90	Trim - WHEEL (15")
19	44736-SA0-981	Nut - WHEEL (FUSE RASHI)
20	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
21	74654-SN7-000	Bolt - ANCHOR
22	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)
23	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 3

#	OEM	部品名
2	89101-SN7-E00	Box - TOOL
3	89104-SG9-000	Wrench - WHEEL NUT
4	89310-SN7-E01	Jack assy

Transmission case 32

#	OEM	部品名
1	21104-PG1-K30	Plate m - OIL GUIDE
2	21200-P6A-010	Case comp. - TRANSMISSION
3	21321-PG1-L60	Plug - BREATHER TUBE
4	21399-PG1-L60	Clamp - BREATHER
5	23927-PG1-K30	Washer - SPRING, 78MM
6	23940-PG1-K30	Shim j - 78MM (0.95)
6	23935-PG1-K30	Shim e - 78MM (0.7)
6	23942-PG1-K30	Shim l - 78MM (1.05)
6	23937-PG1-K30	Shim g - 78MM (0.8)
6	23932-PG1-K30	Shim b - 78MM (0.55)
6	23944-PG1-K30	Shim n - 78MM (1.15)
6	23939-PG1-K30	Shim i - 78MM (0.9)
6	23934-PG1-K30	Shim d - 78MM (0.65)
6	23941-PG1-K30	Shim k - 78MM (1.0)
6	23936-PG1-K30	Shim f - 78MM (0.75)
6	23931-PG1-K30	Shim a - 78MM (0.5)
6	23943-PG1-K30	Shim m - 78MM (1.1)
6	23938-PG1-K30	Shim h - 78MM (0.85)
6	23933-PG1-K30	Shim c - 78MM (0.6)
7	35600-PG1-L60	Switch assy - BACK UP LIGHT (TEC)
8	90012-PG1-L60	Bolt - SPECIAL, 10X1.25
9	90013-PG1-L60	Bolt - SPECIAL, 10X42
10	90014-PG1-L60	Bolt - SPECIAL, 10X92
11	90080-PG1-L60	Bolt - PLUG, 14MM
12	90401-PG1-L60	Washer - DRAIN PLUG, 10MM
13	91004-P6A-000	Bearing - BALL, 28X78
14	91206-P6A-010	Oil seal - 40X76X9
16	90402-P5T-G00	Washer - OIL DRAIN PLUG
20	21216-P6A-000	Strut
21	90010-P6A-000	Bolt - STUD
22	90081-PG1-305	Bolt - SEALING, 32MM
23	90083-PG1-305	Bolt - SEALING, 16MM

Trunk lid 21

#	OEM	部品名
7	74411-SN7-G00	Cable - FUEL LID OPENER (LH)
8	74827-SH2-003	Stopper - TAILGATE
9	74827-SL9-000	Stopper - TRUNK LID
10	74851-SL5-A01	Lock - TRUNK
11	74861-SN7-G21	Cylinder - TRUNK
13	74862-SE3-003	Striker - TRUNK
14	74863-SN7-000	Rod - TRUNK LOCK
15	74864-SM4-003	Cover - TRUNK LOCK
16	74865-SL9-000	Weatherstrip - TRUNK LID
17	74866-SM3-003	Holder - ROD
18	74868-SN7-003	Switch assy
19	74871-SN7-003	Spring - R. TRUNK OPENER
20	74872-SN7-003	Spring - L. TRUNK OPENER
21	74873-SM4-003	Clip - TRUNK OPENER SPRING
22	74880-SN7-G00	Cable - TRUNK OPENER
27	74886-SN7-003	Cylinder - TRUNK RELEASE
29	83418-SG3-003	Cushion - TRUNK HINGE
30	85268-SN7-000	Protection - TAILGATE
31	90106-SE3-000	Bolt-washer - 6X12
33	90109-SM4-000	Bolt - SPECIAL, 6X35
35	91555-SM4-003	Clip - COUPLER (RED)

Trunk lining 6

#	OEM	部品名
14	90399-SB3-003	Nut - PUSH, 2.8MM
15	90609-SE1-960	Clip - PILLAR GARNISH
16	90609-SN7-G00	Clip - INSTRUMENT LOWER
17	90609-SN7-E01	Clip - PILLAR GARNISH
20	90668-SJ4-003	Clip - RR. TRAY
21	90669-SM4-003	Clip - GARNISH

Turbocharger 13

#	OEM	部品名
1	15580-P5T-G00	Hose assy - TURBOCHARGER BRACKET
3	15585-P5T-G00	Bolt - TURBOCHARGER OIL HOSE
4	15590-P5T-G00	Pipe comp - TURBOCHARGER OIL OUTLET
5	15596-P5T-G00	Gasket - TURBOCHARGER OIL PIPE
6	17228-P5T-G00	Hose - TURBOCHARGER OUTLET
7	17229-P5T-G00	Pipe - TURBOCHARGER OUTLET
8	90607-P5T-G00	Clip - HOSE
9	18131-P5T-G00	Pipe - EX. JOINT
10	18135-P5T-G00	Bracket - TURBOCHARGER
11	18900-P5T-G00	Turbocharger assy
12	90204-P5T-G00	Nut - TURBOCHARGER
13	90408-P5T-G00	Washer - SEALING
14	91304-P5T-G00	O-ring

Washer nozzle/washer tube 10

#	OEM	部品名
1	36062-671-000	Clamp b - TUBE
4	76810-SN7-G05	Nozzle - R. WINDSHIELD WASHER
5	76815-SN7-G05	Nozzle - L. WINDSHIELD WASHER
6	76816-SK4-E00	Adapter - NOZZLE
7	76820-SN7-G05	Grommet - TUBE WASHER
9	76828-SN7-G05	Joint l - WASHER
10	76829-SN7-G05	Joint i - WASHER
11	76830-SN7-G05	Joint y - WASHER
19	90652-SN7-G00	Clip - TUBE, 7MM
20	91512-SN7-G00	Clip - TUBE WASHER

Washer tank 10

#	OEM	部品名
1	76802-SN7-G05	Cap - WASHER MOUTH
3	76804-SN7-G05	Float - WASHER HOSE
4	76805-SN7-G05	Hose - WASHER
5	76806-SN7-G05	Motor - FR. WASHER
7	76812-SN7-G05	Mouth assy. - WASHER
8	76838-SN7-G05	Grommet - WASHER TANK
9	76841-SN7-G06	Tank
10	76842-SN7-G05	Bush - WASHER TANK
14	90130-SE0-000	Screw - TAPPING, 6X16 (DACRO COATING)
15	91619-SA5-000	Grommet - SCREW, 6MM

Water pump (AIR CONDITIONER) 7

#	OEM	部品名
1	19200-P5T-G00	Pump comp - WATER
2	19210-P5T-G00	Cover - WATER PUMP
3	19222-P5T-G00	Packing set - WATER PUMP
4	19230-P5T-G20	Bracket - WATER PUMP
5	19231-P5T-G00	Bush - WATER PIPE BRACKET
7	19350-P5T-G02	Cover assy. - WATER OUTLET
8	19351-P5T-G00	Packing - WATER OUTLET COVER

Water valve 8

#	OEM	部品名
1	39223-SB2-003	Clamp - WATER HOSE, 24MM
3	79721-S37-D00	Hose a - WATER IN.
4	79722-SM4-010	Hose b - WATER IN.
5	79725-S37-D00	Hose - WATER OUTLET
6	79731-SH3-000	Grommet - HEATER PIPE
7	91405-PK1-003	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
10	79710-SM4-A03	Valve assy. - WATER (DENSO)

Wire harness (LH) 42

#	OEM	部品名
1	32100-S37-D62	Harness - CABIN WIRE
3	32107-SN7-D50	Harness - FLOOR WIRE
4	32108-SN7-G22	Harness - RR. WIRE
5	32112-P5T-G00	Stay a - COUPLER
6	32113-P5T-G00	Stay b - COUPLER
7	32117-SN7-G02	Harness - INSTRUMENT WIRE
8	32128-SN7-G00	Holder - COUPLER (LH)
9	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
10	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
11	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	32134-SN7-000	Band - WIRE HARNESS OFFSET (10)
13	32135-SN7-G00	Stay - DASHBOARD HARNESS (LH)
15	32155-SN7-G40	Cord - INTERIOR
16	32158-SN7-D50	Harness - SIDE WIRE
17	32170-S37-D00	Cord - FUEL UNIT
18	32202-SN7-000	Cord - DEFROSTER EARTH
19	32311-SN7-G00	Holder - COUPLER (LH)
20	32312-SM4-013	Holder - COUPLER
22	32751-SN7-G41	Harness - DOOR WIRE (DRIVER SIDE)
23	32752-SN7-G41	Harness - DOOR WIRE (PASSENGER SIDE)
24	32753-SN7-G42	Harness - R. RR. DOOR WIRE
25	32754-SN7-G42	Harness - L. RR. DOOR WIRE
28	90153-SE0-003	Bolt - EARTH, 6X12
31	90676-SA8-003	Band - WIRE HARNESS, 150MM (BLUE)
32	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
33	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
34	91533-S04-003	Clip - COUPLER (NATURAL)
35	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
36	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
37	91550-SN7-000	Clip - WIRE HARNESS
38	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
39	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
41	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
42	91555-SN7-000	Clip - COUPLER
43	91556-SM4-003	Clip - BAND (BLACK) (100MM)
44	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
46	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
47	91570-SG0-003	Band - HARNESS (123.5MM) (BLUE) (WITH SEAL)
48	91572-SM4-003	Clip - WIRE HARNESS
49	91582-SM4-003	Clip - WIRE HARNESS
50	91763-SH3-003	Bar - JOINT (6P)
57	91562-ST3-E01	Protector - CORD
