Search › Model › CDE110

CDE110

Toyota COROLLA · 2000 · 4,019 parts · 194 categories

4,019 items

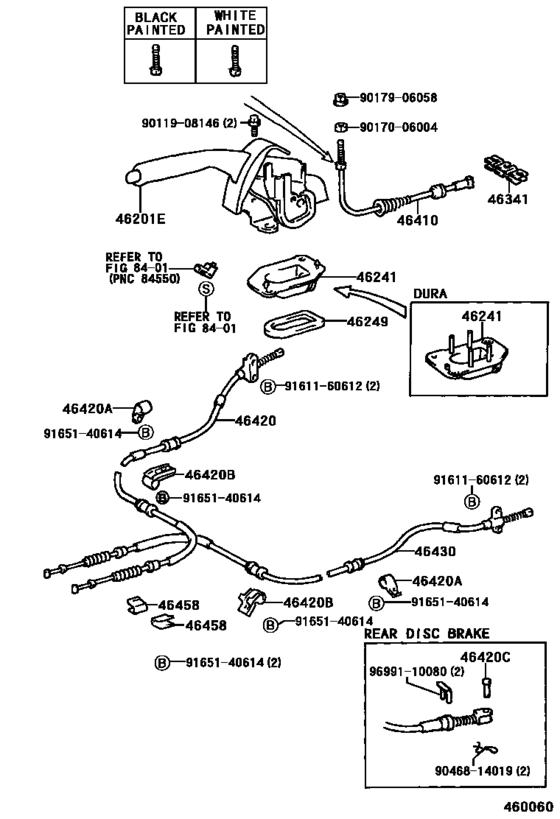

Parking Brake & Cable ([04.1997 - ] (9704- )) 23

#	OEM	Part name
46201	46201-12200-B0	Lever Sub-Assy, Parking Brake
46201	46201-12200-C0	Lever Sub-Assy, Parking Brake
46201	46201-12200-B1	Lever Sub-Assy, Parking Brake
46241	46241-12110	Boot, Parking Brake Lever
46249	46249-12010	Shield, Parking Brake Hole
46341	46341-12020	Equalizer, Parking Brake
46410	46410-12250	Cable Assy, Parking Brake, No.1
46420	46420-12390	Cable Assy, Parking Brake, No.2
46420	90949-01746	Clamp, No.1(For Parking Brake Cable)
46420	90949-01744	Clamp, No.2(For Parking Brake Cable)
46420	90949-01747	Clamp, No.2(For Parking Brake Cable)
46420	90240-08040	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
46430	46430-12290	Cable Assy, Parking Brake, No.3
46458	46458-50010	Retainer, Cable
9011908146	90119-08146	Bolt(For Parking Brake Setting)
9017006004	90170-06004	Nut, Wire Adjusting, No.1
9017906058	90179-06058	Nut, Wire Adjusting, No.1
9017906058	90179-06299	Nut, Wire Adjusting, No.1
9046814019	90468-14019	New Genuine Part
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9165140614	91651-40614	Bolt
9699110080	96991-10080	CLIP

OEM	Part name	Category
46201-12200-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([04.1997 - ] (9704- ))
46201-12200-B1	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([04.1997 - ] (9704- ))
46201-12200-C0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([04.1997 - ] (9704- ))
46241-12110	Boot, Parking Brake Lever	Parking Brake & Cable ([04.1997 - ] (9704- ))
46249-12010	Shield, Parking Brake Hole	Parking Brake & Cable ([04.1997 - ] (9704- ))
46341-12020	Equalizer, Parking Brake	Parking Brake & Cable ([04.1997 - ] (9704- ))
46410-12250	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([04.1997 - ] (9704- ))
46420-12390	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([04.1997 - ] (9704- ))
46430-12290	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([04.1997 - ] (9704- ))
46458-50010	Retainer, Cable	Parking Brake & Cable ([04.1997 - ] (9704- ))
90119-08146	Bolt(For Parking Brake Setting)	Parking Brake & Cable ([04.1997 - ] (9704- ))
90170-06004	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([04.1997 - ] (9704- ))
90179-06058	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([04.1997 - ] (9704- ))
90179-06299	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([04.1997 - ] (9704- ))
90240-08040	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)	Parking Brake & Cable ([04.1997 - ] (9704- ))
90468-14019	New Genuine Part	Parking Brake & Cable ([04.1997 - ] (9704- ))
90949-01744	Clamp, No.2(For Parking Brake Cable)	Parking Brake & Cable ([04.1997 - ] (9704- ))
90949-01746	Clamp, No.1(For Parking Brake Cable)	Parking Brake & Cable ([04.1997 - ] (9704- ))
90949-01747	Clamp, No.2(For Parking Brake Cable)	Parking Brake & Cable ([04.1997 - ] (9704- ))
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Parking Brake & Cable ([04.1997 - ] (9704- ))
91611-G0612	Bolt	Parking Brake & Cable ([04.1997 - ] (9704- ))
91651-40614	Bolt	Parking Brake & Cable ([04.1997 - ] (9704- ))
96991-10080	CLIP	Parking Brake & Cable ([04.1997 - ] (9704- ))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 194
Collected: 2026-08-02
