CDE110

Toyota COROLLA · 2000 · 4,019 parts · 194 categories
CDE110 ×

← Back to categories

4,019 items

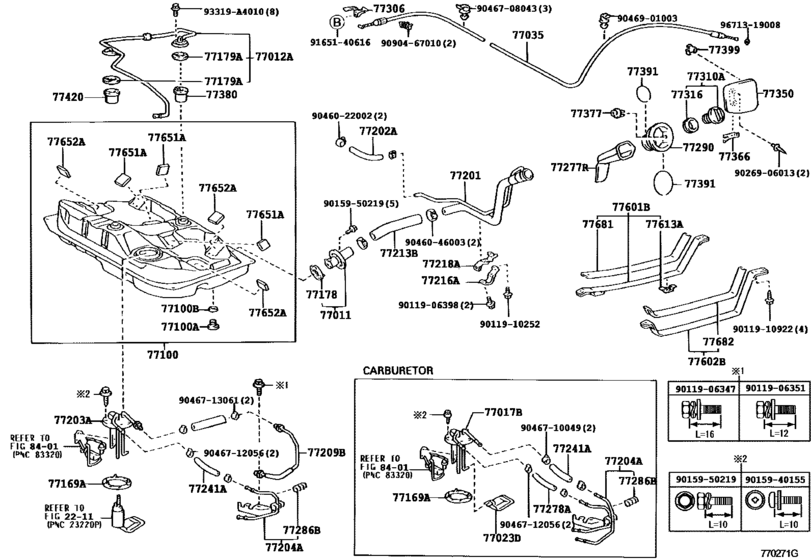

Fuel Tank & Tube ([04.1997 - ] (9704- )AE111,CDE110,CE110,EE11#,WZE110,ZZE11 #) 70
#OEMPart name
77011 77011-12090 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-12180 Tube Sub-Assy, Fuel Tank Breather, No.1
77017 77017-12660 Tube Sub-Assy, Fuel Tank Vent
77023 77023-32040 Filter Sub-Assy, Fuel Suction Tube
77035 77035-12220 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-12810 Tank Assy, Fuel
77100 77001-12850 Tank Assy, Fuel
77169 77169-12030 Gasket, Fuel Pump Bracket
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-12430 Pipe Sub-Assy, Fuel Tank Inlet
77202 95311-13022 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77204 77204-12010 Tube, Fuel Tank Return
77213 77213-12170 Hose, Fuel Tank To Filler Pipe
77213 77213-12220 Hose, Fuel Tank To Filler Pipe
77216 77216-12070 Support, Fuel Tank Filler Pipe, No.1
77218 77218-12030 Support, Fuel Tank Filler Pipe, No.3
77241 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77277 77277-12160 Protector, Fuel Tank Filler Pipe
77278 95333-08020 Hose, Lpg Injector
77278 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77286 77285-12040 Clamp, Fuel Tube, No.1
77290 77291-12110 Shield Assy, Fuel Tank Filler Pipe
77306 77306-13060 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-12010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-12360 Lid Assy, Fuel Filler Opening
77350 77350-12410 Lid Assy, Fuel Filler Opening
77366 77360-12080 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77380 77380-12020 Valve Assy, Fuel Cut Off
77391 77391-12010 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77399 77399-12020 Hanger, Fuel Tank Cap
77420 77420-12010 Valve Assy, Fuel Cut Off, No.2
77601 77601-12210 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-12130 Band Sub-Assy, Fuel Tank, No.1 Lh
77613 77613-16030 Bracket, Fuel Tank Band, No.1
77651 77651-20090 Cushion, Fuel Tank, No.1
77652 77652-12100 Cushion, Fuel Tank, No.1
77681 77681-32060 Seat, Fuel Tank Band, Rh
93319 93319-A4010 SCREW WWASHER
9011906347 90119-06347 New Genuine Part
9011906351 90119-06351 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011910252 90119-10252 BOLT
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015940155 90159-40155 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9026906013 90269-06013 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046708043 90467-08043 Clamp, Hood Lock Control Cable
9046710049 90467-10049 Clamp Or Clip(For Fuel Hose Set)
9046710049 90467-10149 Clip, No.2(For Idle-Up Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
9046901003 90469-01003 Clamp(For Hood Lock Control Cable)
9090467010 90904-67010 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9671319008 96713-19008 New Genuine Part
