Search › Model › CDE110

CDE110

Toyota COROLLA · 2000 · 4,019 parts · 194 categories

4,019 items

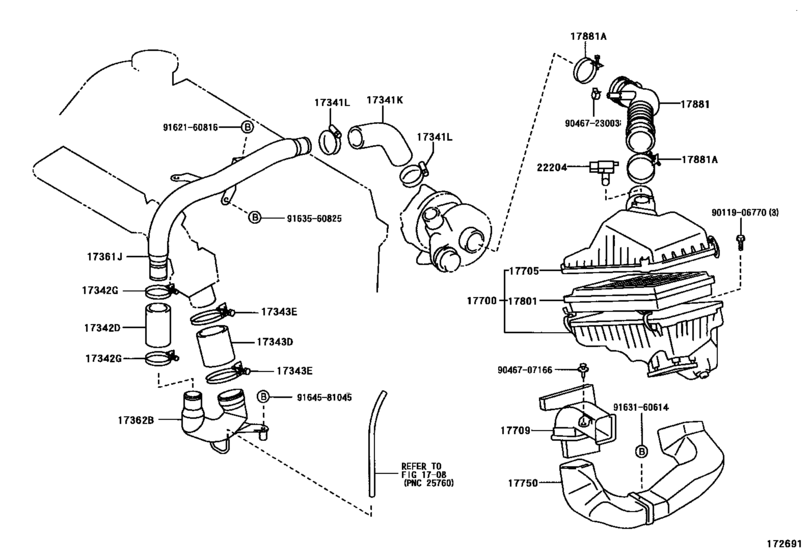

Air Cleaner ([08.2000 - ] (0008- )1CDFTV) 29

#	OEM	Part name
17341	17341-27020	Hose, Air, No.1(For Intercooler)
17341	90460-50006	Clamp, Hose
17342	17342-27020	Hose, Air, No.2
17343	17343-27020	Hose, Air, No.3
17343	90460-73011	Clamp Or Clip(For Air Hose, No.1)
17361	17361-27040	Tube, Air, No.1
17362	17362-27020	Tube, Air, No.2
17700	17700-27150	Cleaner Assy, Air
17705	17705-27020	Cap Sub-Assy, Air Cleaner
17709	17709-64020	Inlet Sub-Assy, Air Cleaner
17750	17750-27010	Cover Assy, Air Cleaner Inlet, Seal
17801	17801-64060	Element Sub-Assy, Air Cleaner Filter
17801	17801-64070	Element Sub-Assy, Air Cleaner Filter
17881	17880-27020	Hose, Air Cleaner, No.1
17881	90460-58003	Clamp, Intake Pipe, No.1
17881	90460-73001	Clamp Or Clip(For Air Hose, No.1)
22204	22204-27010	Meter Sub-Assy, Intake Air Flow
9011906770	90119-06770	New Genuine Part
9011906770	90119-06859	BOLT WWASHER
9046707166	90467-07166	Clip(For Front Fender Apron Seal)
9046723003	90467-23003	Clip(For Ventilation Hose)
9046723003	96134-42300	Clip Or Clamp(For Ventilation Hose)
9162160816	91621-60816	New Genuine Part
9162160816	91621-B0816	BOLT WWASHER
9163160614	91631-60614	BOLT
9163160614	91661-60616	BOLT
9163560825	91635-60825	New Genuine Part
9164581045	91645-81045	New Genuine Part
9164581045	91642-81040	New Genuine Part

OEM	Part name	Category
17341-27020	Hose, Air, No.1(For Intercooler)	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17342-27020	Hose, Air, No.2	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17343-27020	Hose, Air, No.3	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17361-27040	Tube, Air, No.1	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17362-27020	Tube, Air, No.2	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17700-27150	Cleaner Assy, Air	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17705-27020	Cap Sub-Assy, Air Cleaner	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17709-64020	Inlet Sub-Assy, Air Cleaner	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17750-27010	Cover Assy, Air Cleaner Inlet, Seal	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17801-64060	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17801-64070	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
17880-27020	Hose, Air Cleaner, No.1	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
22204-27010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
90119-06770	New Genuine Part	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
90119-06859	BOLT WWASHER	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
90460-50006	Clamp, Hose	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
90460-58003	Clamp, Intake Pipe, No.1	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
90460-73001	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
90460-73011	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
90467-07166	Clip(For Front Fender Apron Seal)	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
90467-23003	Clip(For Ventilation Hose)	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
91621-60816	New Genuine Part	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
91621-B0816	BOLT WWASHER	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
91631-60614	BOLT	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
91635-60825	New Genuine Part	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
91642-81040	New Genuine Part	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
91645-81045	New Genuine Part	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
91661-60616	BOLT	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
96134-42300	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([08.2000 - ] (0008- )1CDFTV)
