Abs accumulator (LH) 19

#	OEM	部品名
1	46396-SM4-A52	Clip c - BRAKE PIPE
2	46397-SM4-A52	Clip - BRAKE PIPE
3	46462-SE0-000	Bolt - OIL
4	46472-568-000	Packing - OIL BOLT
5	53729-671-003	Clamp d - 15.5MM
6	57090-SM4-A53	Pipe comp - ACCUMULATOR
7	57092-SM4-A51	Pipe comp - PUMP
8	57175-SM4-A50	Bracket - COUPLER
9	57310-SM4-A52	Pump assy. - ABS
10	57355-SM4-A52	Bracket - PUMP
11	57357-SB0-800	Pipe - MOUNTING
12	57358-SB0-800	Mount a - PUMP BRACKET
13	57370-SM4-A50	Hose - PUMP
14	57371-SM4-A50	Hose comp. b - PUMP
15	57375-SM4-A51	Bracket - POWER UNIT
16	57376-SF1-800	Bolt-washer - 6X28
17	57380-SM4-A51	Hose - PRESSURE
18	57390-SP0-013	Switch assy - PRESSURE
24	57016-SL5-A50	Pump set - SUCTION

Abs modulator (LH) 23

#	OEM	部品名
1	46175-671-651	Screw - SOCKET
2	46462-SE0-000	Bolt - OIL
3	46472-568-000	Packing - OIL BOLT
4	57110-SM4-A52	Modulator assy
5	57113-SE0-802	Joint - IN.
6	57115-SM4-G53	Bracket - MODULATOR
7	57117-SP0-305	Head set b - MODULATOR
8	57118-SG0-801	O-ring - HEAD
9	57119-SP0-013	Mark - RESERVE TANK (ABS)
10	57120-SG0-805	Piston comp - FR.
11	57121-SG0-801	Spring - FR. MODULATOR
12	57140-SG0-805	Piston comp - RR.
13	57141-SF1-801	Spring - RR. MODULATOR
14	57174-SM4-A00	Bracket - COUPLER
15	57175-SM4-G51	Bracket - HARNESS
16	57191-SM4-A52	Tank comp. - RESERVE
17	57193-SP0-013	Filter - TANK
18	57196-SP0-003	Cap comp. - RESERVE TANK
19	57198-SP0-003	Seal - RESERVE TANK
20	57204-SP0-003	O-ring c - SOLENOID
21	57348-SB0-801	Bleed - AIR
22	57349-SB0-801	Cap - AIR BLEED
23	90105-SG0-003	Bolt-washer - 8X16

Air cleaner 39

#	OEM	部品名
1	17211-PT2-010	Cover comp. - AIR CLEANER
2	17213-PT2-000	Rubber - AIR CLEANER CASE MOUNTING
3	17214-PT2-000	Collar - AIR CLEANER MOUNTING
4	17214-PT3-A01	Collar - AIR CLEANER MOUNTING (SIEMENS)
5	17220-PT2-000	Element assy. - AIR CLEANER (TOYO)
6	17228-PT5-J00	Tube - AIR FLOW
7	17230-PT2-010	Chamber assy - RESONATOR
8	17232-PT2-000	Tube a - RESONATOR CONNECTING
9	17233-PT2-000	Seal - RESONATOR RUBBER
10	17241-PT2-000	Case comp. - AIR CLEANER
11	17242-PT2-010	Tube a - AIR INTAKE
12	17243-PT2-000	Seal - AIR INTAKE RUBBER
13	17245-PT2-003	Diaphragm - CONTROL VALVE
14	17252-PT2-010	Tube a - SECOND INTAKE
15	17253-PT2-010	Valve comp. - AIR INTAKE CONTROL
16	17256-PT0-000	Rubber - IN.
17	17256-PT2-000	Ring - SEAL
18	17257-PT0-000	Grommet - INTAKE
19	17258-PT2-010	Tube c - SECOND INTAKE
20	17259-PE0-661	Collar - MOUNTING
21	17261-PT2-J00	Stay a - AIR CLEANER
22	17262-PT2-000	Stay b - AIR CLEANER
23	17273-PT0-B00	Plate - CAUTION
24	17274-PT4-G00	Label - PLUG CAUTION
25	17281-PT4-G01	Tube - SIDE BRANCH
26	17282-PT2-000	Clamp - TUBE
27	17284-PT2-003	Clamp - TUBE, 44MM
28	17312-PH3-003	Clamp - AIR FLOW TUBE (82) (TOYO ROKI)
29	17316-PH3-003	Clamp - AIR FLOW TUBE (70)
30	17414-PC6-660	Joint - TWO WAY (3.5)
31	18736-PA6-004	Joint - TWO WAY (3.5)
33	36138-PM1-G01	Filter assy - SOLENOID VALVE
34	36145-PA6-661	Valve - CHECK
34	36145-PM4-004	Valve - CHECK
35	36351-PT2-003	Tank comp. - VACUUM
36	36352-PT2-003	Valve assy. - IN. CONTROL SOLENOID
37	90010-PT2-000	Bolt-washer - SPECIAL, 6X25
38	90091-P36-000	Bolt-washer - 5X28
38	90091-P07-A01	Bolt-washer - 5X28

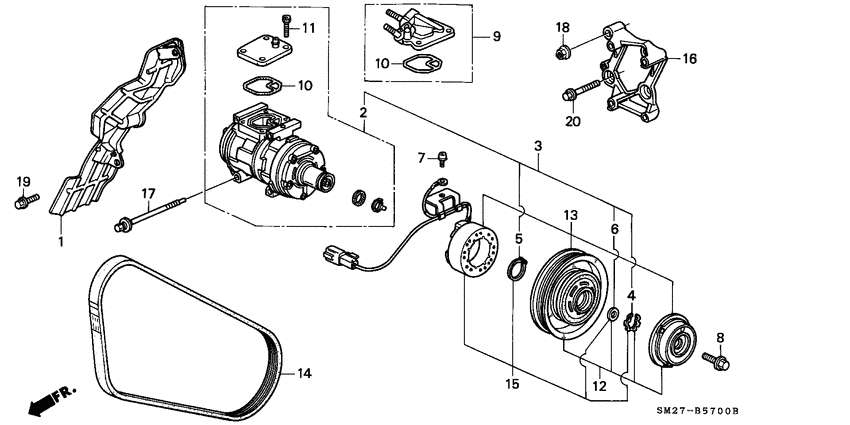

Air conditioner (COMPRESSOR) 15

#	OEM	部品名
1	18127-PT0-010	Insulator - EX. MANIFOLD HEAT
3	38810-PT0-013	Compressor comp. - DENSO) (ONLY
4	38812-PH1-003	Ring b - SNAP
5	38812-671-003	Ring a - SNAP
6	38912-PH1-N01	Plate set - WASHER
7	38827-PH7-003	Screw-washer - 5X8
8	38829-PR3-003	Bolt - WASHER HEAD
9	38838-PT0-003	Valve - SUCTION SERVICE
10	38839-PH1-003	O-ring
11	38840-PC1-003	Bolt b
13	38900-PT0-013	Clutch set - MAGNETIC
14	38920-PT0-003	Belt - COMPRESSOR (MITSUBOSHI)
15	38924-PT0-003	Stator set
16	38930-PT0-000	Bracket - COMPRESSOR
17	90380-PT0-000	Bolt-washer - SPECIAL, 8X94

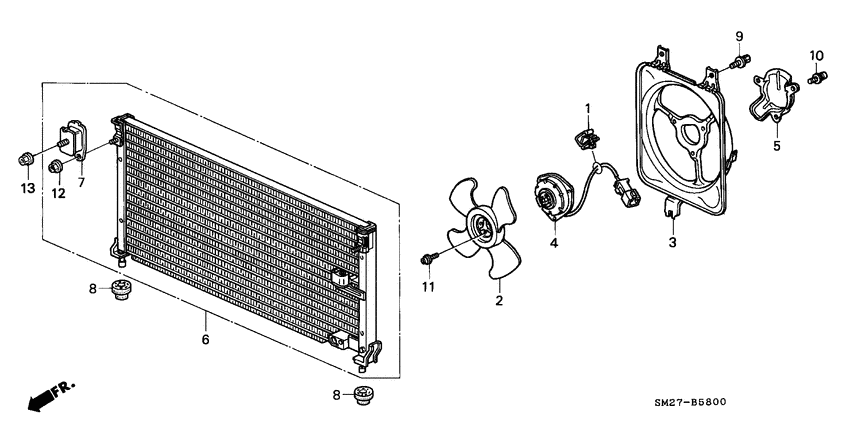

Air conditioner (CONDENSER) 11

#	OEM	部品名
1	32175-PT0-003	Clip - COOLING FAN HARNESS
2	38611-PT0-003	Fan - COOLING (DENSO)
3	38615-PT0-003	Shroud comp. - AIR CONDITIONER (DENSO)
4	38616-PT0-003	Motor - COOLING FAN (DENSO)
5	38619-PT0-003	Protector - FAN MOTOR (DENSO)
6	80100-SM1-A23	Condenser assy - SAM
7	80107-SM4-A00	Mount - CONDENSER UPPER
8	80175-SE0-000	Mount - CONDENSER
9	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
10	90020-PT0-003	Screw-washer - 5X10
11	90021-PT0-003	Screw-washer - 4X6

Air conditioner (HOSES/PIPES; LH) 41

#	OEM	部品名
1	17304-PT0-004	Clamp a - HOT AIR PIPE
2	32147-SF1-003	Connector - DIODE(3P)
3	32148-SF1-003	Rubber - SEAL
4	38642-692-661	Plug - FUSIBLE
5	38648-692-660	O-ring - 5/8"
6	39798-SE0-003	Relay assy - POWER (4P) (058700-1170) (DENSO)
6	80490-SM4-A01	Relay assy - POWER (DENSO)
7	80310-SM1-A23	Hose comp. - SUCTION (NICHIRIN INC.)
8	80315-SM1-A23	Hose comp. - DISCHARGE (NICHIRIN INC.)
9	80321-SM1-A21	Pipe comp - SUCTION
10	80331-SM1-A18	Pipe - CONDENSER
11	80341-SM1-A18	Pipe comp - RECEIVER (A)
12	80342-SM1-A19	Pipe b - RECEIVER (FAYETTE)
13	80343-SM4-G02	Pipe c - RECEIVER
14	80351-SM1-A13	Receiver comp - PARKER
15	80352-SM4-A02	Bracket - LIQUID TANK
16	80361-SM4-A00	Clamp - SUCTION PIPE (A)
17	80362-SM4-A00	Clamp - SUCTION HOSE
18	80363-SM4-A00	Stay - SUCTION HOSE
19	80364-SM4-A00	Stay - SUCTION PIPE (A)
20	80365-SM4-A00	Clamp - SUCTION PIPE
21	80381-SM4-A00	Clamp - RECEIVER PIPE
22	80382-SM4-A00	Stay - RECEIVER PIPE
23	80383-SM4-003	Clip c - RECEIVER PIPE
24	80385-SM4-A00	Clamp - RECEIVER PIPE (C)
25	80386-SM4-A00	Stay - RECEIVER PIPE
26	80387-SM4-A01	Clip - RECEIVER PIPE
27	80440-SM4-003	Switch - DUAL PRESSURE (FUJI)
28	80460-SM4-A05	Harness - AIR CONDITIONER WIRE
29	80491-SM4-A00	Bracket - AIR CONDITIONER RELAY
30	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)
31	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
32	90128-SM4-000	Bolt - FLANGE, 8X45
33	90153-SE0-003	Bolt - EARTH, 6X12
34	90199-SM4-000	Screw-washer - 5X25
35	90308-SD2-A00	Nut - FLANGE, 6MM (DACRO COATING)
36	91301-SM4-A00	O-ring - 8MM
37	91315-SE0-000	O-ring - 1/2"
38	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
39	91638-SF1-A11	Cap - VALVE (FAYETTE)
40	91639-SF1-A11	Cap - VALVE (FAYETTE)

Air conditioner (UNIT; LH) 27

#	OEM	部品名
1	38647-692-660	O-ring - 1/2"
2	80200-SM1-A31	Cooling unit - SAM
3	80201-SM4-A01	Case - EVAPORATOR UPPER
4	80202-SM4-A02	Case - EVAPORATOR LOWER
5	80203-SF1-010	Clamp - EVAPORATOR CASE
6	80205-SM4-A01	Insulator - EVAPORATOR UPPER
7	80206-SM4-A01	Insulator - EVAPORATOR LOWER
8	80210-SM1-A31	Evaporator sub assy. - SAM
9	80212-SM1-A23	Pipe - LIQUID (SAK)
10	80214-SL5-A01	Insulator - EXPANSION
11	80220-SM1-A13	Valve assy. - EXPANSION (FUJI)
12	80225-SR3-000	Clamp
13	80261-SM4-000	Band - AIR CONDITIONER (A)
14	80265-SM4-000	Band b - AIR CONDITIONER
15	80271-SM1-A12	Hose - DRAIN
16	80272-SF4-000	Grommet - DRAIN HOSE
17	80282-SM4-A00	Grommet - THERMOSTAT
18	80286-SM4-A00	Seal - EVAPORATOR INNER
19	80287-SM4-A00	Seal - EVAPORATOR OUTER
20	80293-SM4-A00	Plate - MOUNT (A)
21	80294-SM4-A00	Plate - MOUNT (B)
22	80380-SM4-G00	Grommet - AIR CONDITIONER PIPE
22	80380-SF4-000	Grommet - AIR CONDITIONER PIPE
23	80430-SM1-A12	Thermostat - AIR CONDITIONER (SAM)
24	90130-693-000	Screw - TAPPING, 4X10
25	91301-SM4-A00	O-ring - 8MM
26	91549-SE0-003	Holder - DRAIN HOSE

Alternator (DENSO) 29

#	OEM	部品名
1	31100-PT3-Q02	Alternator assy - CJP18) (DENSO
2	31101-PV1-A01	Rotor assy.
3	31103-PT0-003	Seal - RING
4	31104-PT0-003	Seal - RING
5	31105-PR7-A01	Holder assy. - BRUSH
6	31109-PT0-003	Frame assy - DRIVE END
7	31111-PT0-003	Bearing - RR. GENERATOR
8	31114-PT0-003	Bearing - FR. GENERATOR
9	31116-PT0-003	Plate - RETAINER
10	31116-P13-003	Plate - TERMINAL
11	31118-PT0-003	Bush - INSULATION
12	31119-PT0-003	Bush - INSULATION
13	31121-PT0-003	Frame - RR. END (###)
14	31127-PT0-013	Rectifier assy.
15	31135-PT0-013	Cover - RR. END
16	31138-PD1-004	Cover - BEARING
17	31141-PT0-003	Pulley - ###
18	31142-PD1-004	Nut - PULLEY LOCK
19	31145-PD1-004	Bolt - STUD, 6X68
20	31146-PT0-003	Screw
21	31147-PT0-003	Screw-washer
22	31147-P13-003	Screw
23	31148-PT0-003	Screw - WAVE WASHER
24	31148-P13-003	Screw - WAVE WASHER
25	31150-PD6-024	Regulator assy
26	90231-PD1-014	Nut-washer - 5MM
27	90232-PT0-003	Nut - HEX., 6MM
28	90424-PR7-A01	Washer
29	91415-PT0-013	Clip - CORD

Auto cruise 2

#	OEM	部品名
21	90852-SB5-003	Plug - HOLE
26	91618-SA5-000	Grommet b - CONTROL WIRE, 16MM

Auto radio 12

#	OEM	部品名
1	39100-SM4-F11	Tuner assy - AUTO RADIO (FM/MW/LW+CASSETTE)(BLAUPUNKT)
1	39100-SM5-G01	Tuner assy - BLAUPUNKT
3	39102-SG0-G71	Cable assy
4	39103-SM4-G11	Knob - VOLUME (ON-OFF)
5	39104-SM4-G11	Knob - VOLUME (TREBLE/BASS)
6	39111-SM4-010	Bracket - AUTO RADIO
7	39114-SE0-G51	Cap - BOLT
8	39116-SM4-G00	Pocket - AUTO RADIO
9	66848-SB2-601	Bracket - RADIO
10	90151-SM4-003	Bolt-washer - 5X12
11	91551-SE0-003	Bolt - FLANGE, 5X7
12	90101-SA4-000	Screw - TAPPING, 4X12

Battery 20

#	OEM	部品名
1	30505-PV0-003	Condenser comp. - C-146A) (SHOWA
2	31500-SM5-G03	Battery assy - 70D23R-MF) (DELCO
4	31512-SM4-010	Plate - BATTERY SETTING (70D/80D)
5	31513-SM4-000	Bolt - BATTERY SETTING(195MM)
6	32410-SM4-901	Cable assy - STARTER
7	32411-SM4-A00	Bracket - CABLE
8	32412-SM4-A00	Bracket - CABLE (A)
9	32414-SM4-A00	Bracket - CABLE (B)
10	32600-SM4-A01	Cable assy - EARTH
11	32601-SK7-900	Bolt - BATTERY TERMINAL
12	32602-SK7-900	Nut - BATTERY TERMINAL
13	32746-SM4-000	Clamp - STARTER CABLE
14	74190-SM4-000	Base - BATTERY SETTING
15	90115-SM4-000	Bolt-washer - 8X30
16	90149-SE0-003	Bolt - EARTH, 6X16
17	90301-SM4-003	Nut - SPRING, 6MM
18	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
19	91563-SF4-003	Band - WIRE HARNESS (WHITE) (100.5MM)
20	91568-SH3-003	Strap - WIRE HARNESS (BLACK) (101MM)
21	91584-SM4-003	Clip - CABLE BAND (BLACK)

Body structure components (FRONT BULKHEAD) 1

#	OEM	部品名
21	60821-SM4-A00	Hook - TIE DOWN

Body structure components (INNER PANEL) 3

#	OEM	部品名
38	74657-SM4-A00	Hook - L. TIE DOWN
39	74658-SM4-A01	Hook - R. TIE DOWN
40	90101-SM2-000	Bolt-washer - 6X15

Body structure components (OUTER PANEL) 5

#	OEM	部品名
24	74422-SM4-000	Cushion - FUEL FILLER LID
25	74494-SM4-010	Spring - FUEL LID OPENER
26	75450-SM2-000	Outlet assy - RR. AIR
27	90103-SM4-010	Bolt - FLANGE, 6X18
28	90664-SB3-003	Grommet - SCREW, 5MM

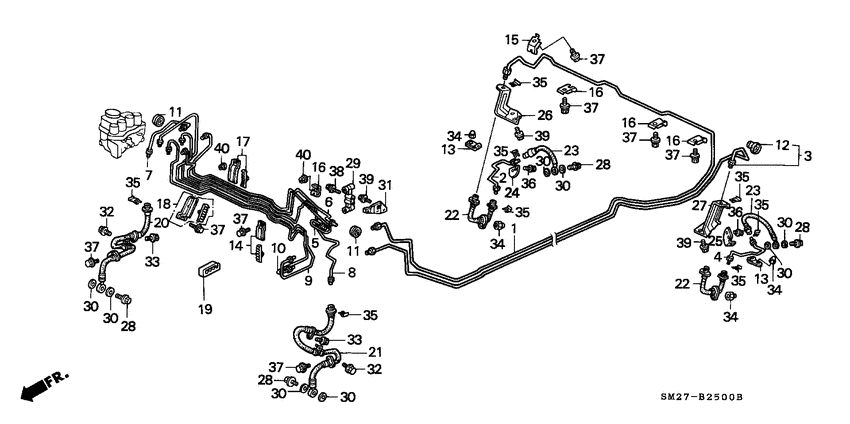

Brake line (LH) 35

#	OEM	部品名
1	46330-SM4-A03	Pipe comp. c - BRAKE
2	46331-SM4-951	Pipe comp. e - R. BRAKE
3	46340-SM4-A02	Pipe comp. d - BRAKE
4	46361-SM4-951	Pipe comp. e - L. BRAKE
5	46374-SM4-G54	Pipe comp. u - BRAKE
6	46375-SM4-G55	Pipe comp. v - BRAKE
7	46376-SM4-G53	Pipe comp. w - BRAKE
8	46377-SM4-G55	Pipe comp. x - BRAKE
9	46378-SM4-G56	Pipe comp. y - BRAKE
10	46379-SM4-G55	Pipe comp. z - BRAKE
11	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
12	46382-SM4-300	Grommet - BRAKE PIPE
13	46391-SE0-931	Clamp - BRAKE PIPE
14	46391-SM4-G00	Clip A - BRAKE PIPE
15	46391-SM4-J01	Clamp - BRAKE PIPE
16	46392-SE0-000	Clip - BRAKE PIPE
17	46392-SM4-G01	Clip b - BRAKE PIPE
18	46392-SM4-G50	Clip b - BRAKE PIPE
19	46394-SH3-A01	Clip - BRAKE PIPE
20	46410-SM1-003	Hose - R. FR. BRAKE (NICHIRIN INC.)
21	46411-SM1-003	Hose - L. FR. BRAKE (NICHIRIN INC.)
22	46430-SM1-003	Hose a - RR. BRAKE (NICHIRIN INC.)
23	46431-SM4-951	Hose b - RR. BRAKE (NICHIRIN)
24	46435-SM4-000	Bracket - R. RR. BRAKE HOSE
25	46436-SM4-000	Bracket - L. RR. BRAKE HOSE
26	46438-SM4-000	Bracket - R. RR. BRAKE HOSE
27	46439-SM4-000	Bracket - L. RR. BRAKE HOSE
28	46462-SE0-000	Bolt - OIL
29	46470-SH9-802	Joint - FOUR WAY
30	46472-568-000	Packing - OIL BOLT
31	46475-SM4-G04	Bracket - FOUR WAY JOINT
32	90105-SB0-003	Bolt-washer - 8X16
33	90105-SD9-003	Bolt-washer - 8X20
34	90115-SB2-003	Nut - SELF-LOCK, 8MM
35	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/ master power 24

#	OEM	部品名
1	46100-SM4-G53	Cylinder assy. - MASTER
2	46138-SM4-003	Packing
3	46151-SE0-003	Yoke - PUSH ROD(NISSIN)
4	46185-SE0-003	Seal - ROD
5	46191-634-000	Gasket - MASTER CYLINDER BRACKET
8	46400-SM4-951	Power assy. - MASTER (8"+9")
10	46403-SE0-003	Valve comp. - CHECK (NISSIN)
11	46404-SM1-A01	Tube a - MASTER POWER
13	46405-SM1-A01	Tube b - MASTER POWER
15	46407-SM4-A80	Clamp - CHECK VALVE
18	46512-SB2-000	Pin - PEDAL
19	46660-SM4-013	Tank - RESERVE
20	46662-SM4-003	Cap comp. - RESERVE TANK
21	46665-671-651	Band - RESERVE TANK
22	46666-SE3-013	Filter - MASTER CYLINDER
23	46669-SE3-003	Seal - RESERVE TANK
24	53729-671-003	Clamp d - 15.5MM
25	57173-SB0-801	O-ring - CONNECTOR
27	57515-SM4-013	Bolt comp - STOPPER
28	57520-SD4-013	Piston assy. - PRIMARY
29	57540-SD4-013	Piston assy. - SECONDARY
30	57560-SD4-003	Guide assy - PISTON
31	57562-SF1-003	Circlip
32	90201-SM4-950	Nut - FLANGE, 8MM

Breather tube 7

#	OEM	部品名
2	17130-PK1-003	Valve assy. - PCV
3	17137-PT3-A02	Pipe comp - BREATHER
4	17138-PT3-A00	Tube - BREATHER
5	17139-PK1-000	Grommet - PCV VALVE
6	91405-PH7-003	Clamp - TUBE (D15)
7	91405-679-004	Clamp - TUBE (D17)
7	91405-PM5-004	Clamp - TUBE (D17)

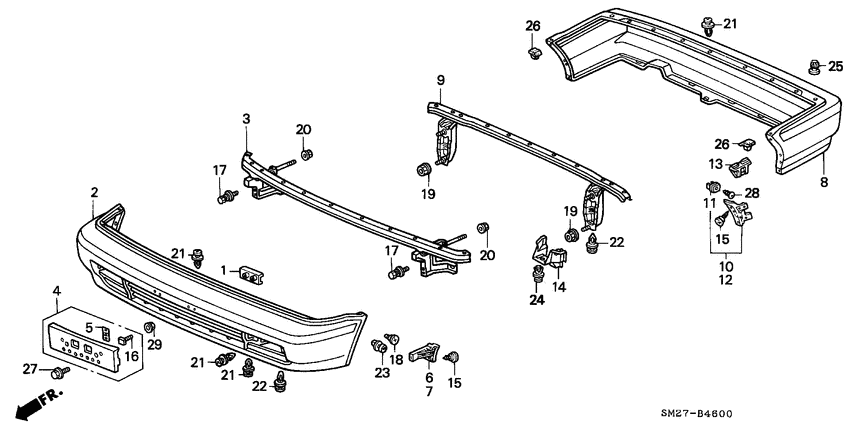

Bumper 24

#	OEM	部品名
1	62521-SB2-000	Nut - LICENSE PLATE
3	71140-SM4-010	Beam comp - FR. BUMPER UPPER
4	71145-SM2-G00	Base - FR. LICENSE PLATE
5	71148-SG9-600	Nut
6	71190-SM4-000	Slide - R. FR. BUMPER CORNER
7	71195-SM4-000	Slide - L. FR. BUMPER CORNER
9	71540-SM4-010	Beam comp - RR. BUMPER UPPER
10	71590-SM4-000	Slide - R. RR. BUMPER CORNER
11	71593-SM4-003	Clip - BUMPER CORNER SLIDE
12	71595-SM4-000	Slide - L. RR. BUMPER CORNER
13	71598-SL4-013	Spacer - BUMPER SIDE
14	74710-SM4-A00	Protector - RR. FRAME END
15	90103-SD4-000	Screw - TAPPING, 5X16
16	90104-SD4-000	Bolt - CORNER SLIDE
17	90110-SE7-000	Bolt-washer - 8X21
18	90112-SM4-003	Bolt - BUMPER
19	90302-SD2-003	Nut-washer - 8MM
20	90312-SM4-000	Nut-washer - 8MM
21	91502-SM4-000	Clip - BUMPER FACE (PO)
22	91504-SM4-000	Clip - BUMPER FACE (SP)
23	91509-SM4-000	Clip - BUMPER CORNER SLIDE
24	91512-SM4-003	Clip - INNER FENDER
25	91602-SM4-000	Spacer - RR. BUMPER
26	91603-SM4-000	Spacer - RR. BUMPER END

Camshaft/timing belt 33

#	OEM	部品名
1	11810-PT0-010	Cover - TIMING BELT LOWER
2	11811-PT0-000	Rubber - TIMING BELT LOWER SEAL
3	11820-PT0-000	Cover - TIMING BELT UPPER
4	11830-PT0-000	Cover - TIMING BELT BACK
5	11831-PT0-000	Rubber a - TIMING BELT BACK SEAL
6	11832-PT0-000	Rubber b - TIMING BELT BACK SEAL
7	11833-PT0-000	Rubber c - TIMING BELT BACK SEAL
8	11925-PT0-000	Rubber a - ENGINE MOUNTING BRACKET SEAL
9	11926-PT0-000	Rubber b - ENGINE MOUNTING BRACKET SEAL
10	13404-PT0-003	Adjuster comp - BALANCER BELT (KOYO)
11	13405-PT0-004	Belt - BALANCER TIMING (UNITTA)
12	13407-PT0-000	Spring b comp. - BELT ADJUSTER
13	13415-PT0-000	Bracket - BALANCER BELT ADJUSTER
13	13415-P0A-000	Bracket - BALANCER BELT ADJUSTER
14	14111-PT4-F50	Camshaft
15	14210-PT0-003	Pulley - TIMING BELT DRIVEN
16	14400-PT0-004	Belt - TIMING (UNITTA) (113RU24 A-555)
17	14510-PT0-003	Adjuster comp - TIMING BELT (KOYO)
18	14516-PT0-000	Spring comp - TIMING BELT ADJUSTER
19	90002-PT0-000	Bolt b - TIMING BELT COVER
20	90007-679-000	Bolt a - TIMING BELT COVER
21	90015-PT0-000	Bolt - TIMING BELT ADJUSTER SPRING
22	90016-PT0-000	Bolt - TIMING BELT ADJUSTER
23	90018-PT0-010	Bolt - BALANCER BELT ADJUSTER
24	90031-PT0-003	Bolt-washer - 8X22
24	90032-ZW5-003	Bolt-washer, 8x22
25	90051-PT0-000	Bolt - SUB BELT ADJUSTER SPRING
26	90216-PT0-000	Nut - 10MM
27	90401-PT0-000	Rubber - TIMING BELT ADJUSTER
28	90501-MB7-610	Washer - 10.3X25
29	90741-657-000	Key - 25.4X13
30	91213-PT0-004	Oil seal - 28X42X8 (NOK)
30	91213-PT0-003	Oil seal - 28X42X8 (ARAI)

Clutch housing 23

#	OEM	部品名
1	21000-PX5-020	Case comp. - CLUTCH
2	21101-PG2-000	Plate - NEEDLE BEARING SETTING
3	21103-PX5-010	Plate c - OIL GUIDE
4	21120-PG2-003	Magnet - TRANSMISSION
5	22810-PX5-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
5	22810-PX5-J02	Bearing - CLUTCH RELEASE (KOYO SEIKO)
6	22821-PX5-000	Fork - CLUTCH RELEASE
6	22821-P0S-000	Fork - CLUTCH RELEASE
7	22825-PX5-A00	Bolt - RELEASE FORK
7	22825-P0S-000	Bolt - RELEASE FORK
8	22835-P0S-000	Spring - RELEASE FORK SETTING
8	22835-PX5-A00	Spring - RELEASE FORK SETTING
9	22841-PX5-000	Boot - RELEASE FORK
10	24600-PX5-000	Stay - CHANGE WIRE
11	90030-PG2-000	Bolt - SPECIAL, 6MM
12	90705-PG2-000	Dowel pin - 14X20
13	91002-PX5-008	Bearing - SPECIAL BALL, 63/28C
13	91002-PG1-018	Bearing - BALL, 63/28C (TOYO)
14	91103-PX5-004	Bearing - NEEDLE, 38X65X22 (KOYO)
15	91205-PX5-005	Oil seal - 35X56X8 (NOK)
15	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
16	91216-PH8-003	Oil seal - 28X41X7 (ARAI)
16	91216-PH8-005	Oil seal - 28X41X7 (NOK)

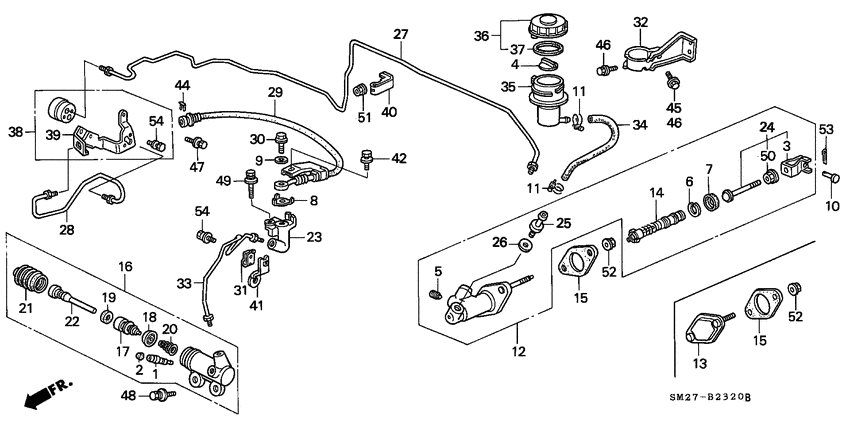

Clutch master cylinder (LH) 42

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-548-003	Cap - BLEEDER SCREW
3	46151-SA5-003	Yoke comp. - NISSIN
4	46164-632-000	Float
5	46175-671-651	Screw - SOCKET
6	46182-500-013	Circlip
7	46184-611-000	Dust seal - MASTER CYLINDER
8	46472-SM4-000	Packing - OIL BOLT
9	46472-568-000	Packing - OIL BOLT
10	46912-SD4-000	Pin - CLUTCH PEDAL
11	46918-SM4-020	Clip a13 - TUBE
12	46920-SM4-A03	Cylinder assy. - CLUTCH MASTER
14	46926-SF1-003	Piston assy.
15	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
16	46930-SM4-003	Cylinder assy. - SLAVE
17	46932-SD4-003	Piston - SLAVE CYLINDER
18	46933-SD4-013	Cup a - PISTON
19	46934-SD4-003	Cup b - PISTON
20	46935-SD4-003	Spring - SLAVE CYLINDER
21	46937-SD4-003	Boot - SLAVE CYLINDER
22	46938-SD4-003	Rod - PUSH
23	46939-SM4-010	Joint - CLUTCH HOSE
24	46950-SM4-950	Rod assy - PUSH
25	46952-SD4-003	Joint - TUBE
26	46953-SD4-003	Packing
27	46960-SM1-A00	Pipe assy. a - CLUTCH
28	46960-SM4-913	Pipe assy. b - CLUTCH
29	46961-SM4-910	Hose - CLUTCH
30	46963-SD4-020	Bolt - CLUTCH OIL
31	46964-SM4-020	Clamp - CLUTCH PIPE
32	46966-SM4-A01	Holder - TANK
33	46970-SM4-020	Pipe comp - CLUTCH
34	46971-SM4-A01	Tube - CLUTCH FLUID
35	46972-SD4-003	Tank - CLUTCH FLUID
36	46973-SD4-003	Cap comp. - RESERVE TANK
37	46975-SD4-003	Seal - RESERVE TANK
38	46993-SM4-G52	Damper assy. - CLUTCH
39	46995-SM4-G52	Bracket - CLUTCH PIPE
40	46997-SM4-A00	Clamp - CLUTCH PIPE
41	46999-SM4-010	Bracket - CLUTCH PIPE
42	90180-SM4-003	Bolt - FLANGE, 6X30
44	90651-538-000	Clip - BRAKE HOSE

Clutch/torque converter 9

#	OEM	部品名
1	21350-PT0-000	Cover - CLUTCH CASE
3	22100-PT7-003	Flywheel comp.
4	22200-PT7-305	Disk comp - FRICTION (VALEO)
4	22200-PT7-003	Disk comp - FRICTION (ASK)
4	22200-PT7-013	Disk comp - FRICTION
5	22300-PT7-003	Disk comp - PRESSURE
5	22300-PT7-023	Disk comp - PRESSURE
8	90011-PH3-000	Bolt - FLANGE, 12MM
10	90034-P10-A01	Bolt - TWELVE POINT, 8MM (ROCKNEL FASTENER)

Combination meter 3

#	OEM	部品名
1	78410-SR3-003	Sensor assy - SPEED (MATSUSHITA DENSHI)
2	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)
3	90102-SA4-000	Screw - TAPPING, 4X16

Combination switch 28

#	OEM	部品名
2	35100-SM5-G81	Lock assy - STEERING
3	35102-SG0-003	Bolt - BREAK HEAD
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-SE3-003	Screw - RECESSED, 3X8
5	35105-SM5-A01	Ring - IGNITION KEY ILLUMINATION
6	35106-SM5-A01	Cover - ILLUMINATION RING
7	35107-SM5-A01	Cap - ILLUMINATION RING
8	35113-SH3-G02	Key - BLANK (MAIN) (MOLD=BLACK)
9	35114-SH4-K01	Key - BLANK (SUB) (MOLD=GRAY)
10	35130-SM5-003	Switch comp - STEERING
11	35250-SM4-G81	Switch assy - COMBINATION (###)
12	35251-SM5-A81	Body - SWITCH
13	35254-SM4-G81	Cord assy - COMBINATION SWITCH
14	35255-SM4-G81	Switch assy - LIGHTING
15	35256-SM4-G81	Switch assy - WIPER
16	35400-SG0-023	Switch assy - DOOR
17	35409-SG0-901	Screw - FLANGE, 6X12
18	35417-SE3-003	Cover - DOOR SWITCH
18	35410-692-003	Cover - DOOR SWITCH
19	35505-692-003	Bulb - 14V 1.4W
20	53271-SM5-A02	Cam
21	72145-SM4-003	Cylinder - R. DOOR
22	72146-SM4-003	Cylinder - L. DOOR
23	74861-SM4-003	Cylinder - TRUNK
24	74886-SH4-A03	Cylinder - TRUNK REMOTE CONTROL
26	82226-SM4-A02	Cylinder - RR. SEAT LOCK
27	90107-SE3-000	Screw-washer - 4X12
30	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)

Console 8

#	OEM	部品名
2	77296-SM4-000	Bracket - FR. CONSOLE (A)
3	77297-SM4-000	Bracket - FR. CONSOLE (B)
6	83415-SM4-J01	Plate - BOOT SETTING
7	83425-SM4-A10	Bracket - RR. CONSOLE
10	83484-SM4-003	Cover - RR. ASHTRAY
11	90302-SA4-003	Nut - SPRING, 4MM
12	90666-SD4-003	Clip - FITTING
13	91641-SM4-003	Grommet - SCREW, 4MM

Control box 28

#	OEM	部品名
1	17205-PM5-L51	Clamp - TUBE, 7.5X2
2	17290-PR7-A01	Valve assy. - CONTROL
3	17361-PC6-000	Clamp - TUBE, 7.5X3
4	17361-PK2-661	Clamp - TUBE, 7.5X5
5	36010-PA6-004	Joint - THREE WAY
6	36013-PG7-661	Holder - SOLENOID, 3.5MM
7	36017-PM3-004	Bolt - MOUNTING
8	36019-PT3-A01	Cover - LOWER
9	36020-PT3-A01	Cover - UPPER
10	36022-PT3-A01	Label - CONTROL BOX
11	36024-PT3-A01	Holder a - TUBE
12	36025-PK2-661	Grommet b
13	36025-PT3-A01	Holder b - TUBE
14	36033-PT3-A02	Stay comp
15	36034-PM6-901	Plug - SEALING
16	36034-PT3-A02	Base
17	36035-PT3-A01	Stay - COUPLER
18	36041-PT3-A01	Cord assy
19	36053-PM6-A01	Rubber - MOUNTING, 20MM
20	36057-PH7-004	Screw - TAPPING, 4X25
21	36058-PA0-004	Rubber - CUSHION
22	36138-PE0-004	Filter assy - SOLENOID VALVE
23	36166-PE7-662	Valve assy. - PURGE CUT SOLENOID
24	36190-PT3-A01	Valve assy. - FREQUENCY SOLENOID
25	36194-PD2-661	Filter assy - AIR
26	37830-PT0-003	Sensor assy - MAP
27	90041-PH2-004	Screw-washer - 5X8
28	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

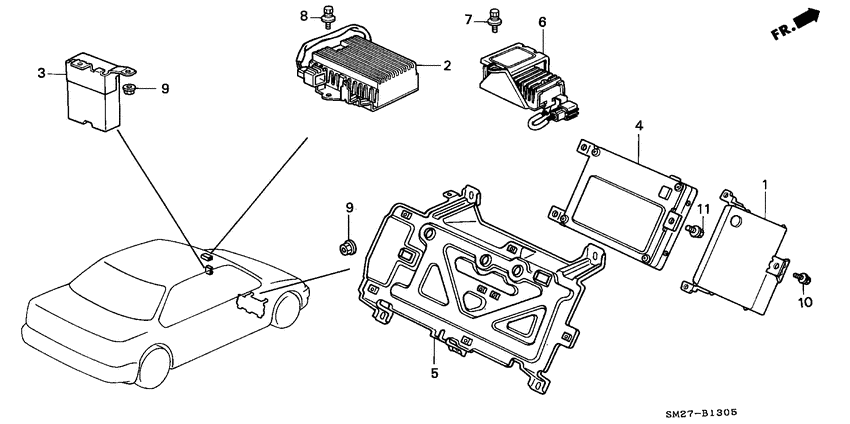

Control unit (ABS) 11

#	OEM	部品名
1	38213-SM4-003	Fuse - BLOCK (50A)
2	38230-SM4-921	Box assy - ABS FUSE
3	39790-SM4-A11	Abs control unit
4	39794-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2203)
4	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
5	39795-SM4-A00	Bracket - ABS UNIT
6	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
6	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)
7	90114-SG0-003	Bolt - 5X13
8	90153-SA5-900	Screw-washer - 5X9
9	90344-692-003	Nut - CLIP, 6MM

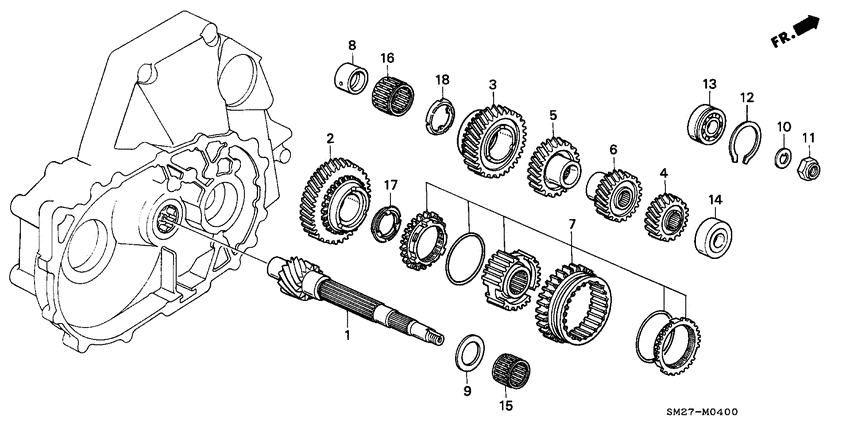

Countershaft 25

#	OEM	部品名
1	23220-PX5-J41	Countershaft comp.
2	23421-PX5-J41	Gear - COUNTERSHAFT LOW
3	23431-PX5-J41	Gear - COUNTERSHAFT SECOND
4	23461-PX5-C01	Gear - COUNTERSHAFT FIFTH
5	23471-PX5-E01	Gear - COUNTERSHAFT THIRD
6	23481-PX5-E01	Gear - COUNTERSHAFT FOURTH
7	23521-PX5-315	Sleeve set - SYNCHRONIZER (1-2)
7	23521-PX5-325	Sleeve set - SYNCHRONIZER (1-2)
8	23918-P21-010	Collar - DISTANCE, 36.5X42X29 (0.07-0.09)
8	23917-P21-010	Collar - DISTANCE, 36.5X42X29 (0.02-0.04)
9	23925-PG1-000	Washer e - 40X54X2.08
9	23922-PG1-000	Washer b - 40X54X1.99
9	23924-PG1-000	Washer d - 40X54X2.05
9	23921-PG1-000	Washer a - 40X54X1.96
9	23923-PG1-000	Washer c - 40X54X2.02
10	23926-PG1-010	Washer - SPRING, 23MM
11	90202-PH8-000	Nut - HEX., 23MM
12	90602-PG1-770	Ring - SNAP, 56MM
13	91003-PG2-008	Bearing - SPECIAL BALL (NTN)
14	91102-PG2-008	Bearing - NEEDLE, 25X56.4X19
15	91105-PX5-008	Bearing - NEEDLE, 40X46X26.8 (NTN)
15	91105-P16-008	Bearing - NEEDLE, 40X46X26.8 (NTN)
16	91105-P21-003	Bearing - NEEDLE, 42X47X24
17	91211-PX5-008	Damper - FRICTION (LOW)
18	91212-PX5-018	Damper - FRICTION (SECOND)

Cross beam 10

#	OEM	部品名
1	50100-SM4-000	Beam - CENTER
2	50200-SM4-A03	Beam - RR.
3	50250-SM4-A03	Beam - FR.
4	50300-SM4-G01	Beam - RR. SUSPENSION CROSS
5	90166-SF1-010	Bolt-washer - 10X21
6	90190-SM4-003	Bolt - FLANGE, 12X108
7	90191-SM4-003	Bolt - FLANGE, 12X95
8	90192-SM4-003	Bolt - FLANGE, 12X139
9	90506-SE0-000	Washer - PLAIN, 12MM
10	91613-SE0-003	Grommet - SUB FRAME, 15MM

Cylinder block/oil pan 31

#	OEM	部品名
1	11000-PT7-020	Block assy - CYLINDER
2	11108-PT0-003	Bolt - SEALING, 18MM
3	11109-PK2-010	Seal - TIMING RUBBER
4	11126-PK1-003	Bolt - SEALING, 22MM
5	11130-PT0-000	Bridge comp - BEARING CAP
6	11200-PT0-000	Pan comp - OIL
7	11251-PT0-000	Gasket - OIL PAN
8	11300-PT0-B00	Cover assy. - R. SIDE
9	11910-PT0-020	Bracket - ENGINE MOUNTING
10	11912-PT0-000	Stay a - ENGINE MOUNTING BRACKET
11	12207-634-300	Washer - SEALING BOLT
12	13421-PT0-003	Metal - BALANCER SHAFT (NO.1) (DAIDO)
13	13422-PT0-013	Metal - BALANCER SHAFT (NO.2) (DAIDO)
14	13423-PT0-003	Metal - BALANCER SHAFT (NO.3) (DAIDO)
15	15140-PH3-000	Orifice assy - OIL CONTROL
16	15142-PH3-003	O-ring - 10.8X2.4 (ARAI)
17	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
18	90007-PK1-003	Bolt-washer - 11X121
19	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5
20	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
21	90030-PT0-000	Bolt - STUD, 10X35
22	90041-PA5-000	Bolt - STUD, 6X28
23	90041-PT0-000	Bolt - STUD, 12X60
24	90042-PR3-000	Bolt - STUD, 6X28
25	90051-PH7-000	Bolt - FLANGE, 6X18
26	90061-PT0-000	Bolt - DRAIN PLUG, 12MM
27	90705-PT0-000	Dowel pin - 16X22
28	90715-PC6-000	Dowel pin - 13X20
29	91214-PR4-A01	Oil seal - 80X100X10 (NOK)
29	91214-PH3-751	Oil seal - 80X100X10 (ARAI)
30	91323-PH7-003	Packing - BEARING CAP BRIDGE (ARAI)

Cylinder head 24

#	OEM	部品名
1	12100-PT3-A01	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
4	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
5	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)
6	12251-PT0-J02	Gasket, CYLINDER HEAD (ISHINO GASKET)
6	12251-PT0-014	Gasket, CYLINDER HEAD (NIPPON LEAKLESS)
7	14631-PT0-010	Shaft a - VALVE ROCKER ARM
8	14632-PT0-010	Shaft b - VALVE ROCKER ARM
9	14633-PT0-000	Shaft - EX. VALVE ROCKER ARM
9	14633-P0B-A00	Shaft - EX. VALVE ROCKER ARM
10	90003-PT0-000	Bolt - FLANGE, 6X50
11	90004-PT0-000	Bolt - FLANGE, 6X50
12	90005-PT0-003	Bolt-washer - 12X163
13	90006-PT0-003	Bolt-washer - 12X199
14	90007-PT0-000	Bolt - FLANGE, 8X55
15	90008-PT0-000	Bolt - FLANGE, 8X77
16	90012-PT0-000	Bolt a - HEAD COVER
17	90013-PT0-000	Bolt b - HEAD COVER
18	90026-PT0-000	Bolt - STUD, 8X38
19	91301-PT0-004	O-ring - 29.7X2.5 (NOK)
19	91301-PT0-003	O-ring - 29.7X2.5 (ARAI)

Cylinder head cover 9

#	OEM	部品名
1	12030-PT0-000	Packing set - HEAD COVER
2	12310-PT7-020	Cover comp. - CYLINDER HEAD
3	12341-PT0-000	Packing - CYLINDER HEAD COVER
4	12342-PT0-000	Packing b - HEAD COVER
5	15610-PC6-000	Cap assy. - OIL FILLER
6	15613-PC6-000	Packing, Oil Filler
7	32762-PT0-010	Stay b - HIGH TENSION CORD CLAMP
8	90213-PH3-000	Nut - CAP, 6MM
9	90441-PT0-000	Washer - HEAD COVER

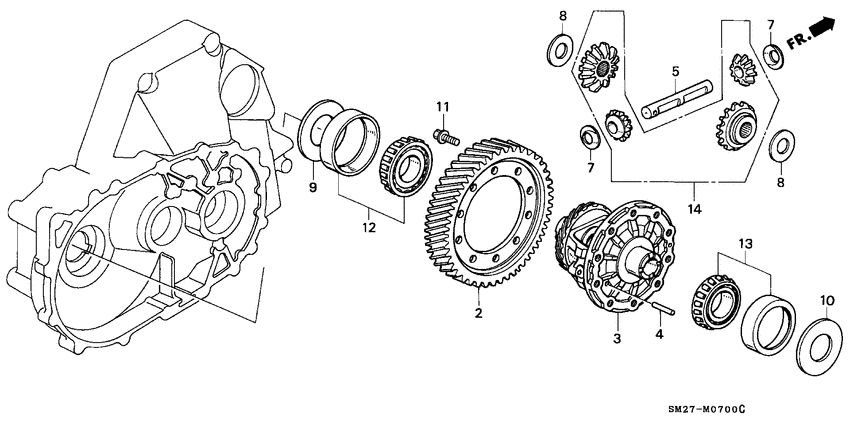

Differential 38

#	OEM	部品名
2	41233-PX5-J41	Gear - FINAL DRIVEN
3	41310-PX5-E41	Case comp. - DIFFERENTIAL
4	41313-PX5-000	Roller - 5X37
5	41321-PX5-020	Shaft - PINION
7	41356-PG1-000	Washer f - DIFFERENTIAL PINION THRUST(0.95MM)
7	41351-PG1-000	Washer a - DIFFERENTIAL PINION THRUST(0.7MM)
7	41358-PG1-000	Washer h - DIFFERENTIAL PINION THRUST(1.05MM)
7	41353-PG1-000	Washer c - DIFFERENTIAL PINION THRUST(0.8MM)
7	41355-PG1-000	Washer e - DIFFERENTIAL PINION THRUST(0.9MM)
7	41357-PG1-000	Washer g - DIFFERENTIAL PINION THRUST(1.0MM)
7	41352-PG1-000	Washer b - DIFFERENTIAL PINION THRUST(0.75MM)
7	41354-PG1-000	Washer d - DIFFERENTIAL PINION THRUST(0.85MM)
8	41371-PG2-000	Washer - THRUST, 37X55X1.5
9	41380-PG2-A10	Shim - 75MM
10	41386-PX5-000	Shim f - 68MM (2.05)
10	41381-PX5-000	Shim a - 68MM (1.90)
10	41398-PX5-000	Shim r - 68MM (2.41)
10	41393-PX5-000	Shim m - 68MM (2.26)
10	41388-PX5-000	Shim h - 68MM (2.11)
10	41383-PX5-000	Shim c - 68MM (1.96)
10	41400-PX5-000	Shim t - 68MM (2.47)
10	41395-PX5-000	Shim o - 68MM (2.32)
10	41390-PX5-000	Shim j - 68MM (2.17)
10	41385-PX5-000	Shim e - 68MM (2.02)
10	41397-PX5-000	Shim q - 68MM (2.38)
10	41392-PX5-000	Shim l - 68MM (2.23)
10	41387-PX5-000	Shim g - 68MM (2.08)
10	41382-PX5-000	Shim b - 68MM (1.93)
10	41399-PX5-000	Shim s - 68MM (2.44)
10	41394-PX5-000	Shim n - 68MM (2.29)
10	41389-PX5-000	Shim i - 68MM (2.14)
10	41384-PX5-000	Shim d - 68MM (1.99)
10	41396-PX5-000	Shim p - 68MM (2.35)
10	41391-PX5-000	Shim k - 68MM (2.20)
11	90017-689-000	Bolt - SPECIAL, 10MM
12	91005-PG2-004	Bearing - TAPER, 40X75X21 (KOYO)
13	91006-PX5-008	Bearing - TAPER, 40X68X22 (NTN)
14	41030-PX5-000	Gear set - PINION

Distributor (TEC) 11

#	OEM	部品名
1	30100-PT3-A03	Distributor assy - TD-31U) (TEC
2	30102-PT2-026	Distributor Cap
3	30103-PT2-016	Head comp - ROTOR
4	30105-PT3-A03	Housing comp - DISTRIBUTOR
5	30107-P08-006	Cover - LEAK
6	30110-PA1-732	O-ring - 26.4X3.1 (TEC)
7	30120-PT2-004	Igniter unit - NEC/ELESYS
7	30120-PR3-003	Igniter unit - OKI
8	30121-PT2-006	Sink - HEAT
9	30132-PT2-006	Packing - CAP
10	30510-PT2-006	Ignition Coil

Driveshaft/half shaft 28

#	OEM	部品名
1	44010-SM1-952	Driveshaft set - R.
2	44011-SM1-951	Driveshaft set - L.
2	44010-SM4-A12	SETSHAFT COMP R
3	44310-SM1-300	Joint comp - INBOARD
4	44310-SM1-900	Joint comp - INBOARD
5	44315-SM1-A01	Boot - INBOARD (NOK INC.)
5	44315-SM4-003	Boot - INBOARD (NOK)
6	44319-SM1-300	Set ring - 28X2.0
7	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
8	44328-SB0-300	Band - INBOARD BOOT
9	44329-SB0-300	Band - DRIVESHAFT BOOT
9	44352-SA2-300	Band - DAMPER WEIGHT
11	44336-SM1-300	Ring a - STOPPER
12	44338-SM1-300	Circlip - 26MM
14	44500-SM4-020	Shaft assy - HALF
15	44510-SM4-020	Shaft comp. - HALF
16	44511-SM4-010	Support - HALF SHAFT BEARING
17	90102-SF1-000	Bolt - HEX., 10X1.25
18	90165-SE0-000	Bolt - FLANGE, 10X37
19	90305-SD4-003	Nut - SPINDLE (24MM)
19	44014-SV4-950	Joint set - OUTBOARD
20	91057-SH3-008	Bearing - HALF SHAFT (NTN)
21	91260-SK7-014	Seal - HALF SHAFT OUTER (ARAI)
21	91260-SK7-013	Seal - HALF SHAFT OUTER (NOK)
22	91262-SH3-003	Seal - HALF SHAFT INNER
26	44018-S30-C00	Boot set - OUTBOARD
27	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
28	44337-SB0-300	Ring b - STOPPER

Emblem 14

#	OEM	部品名
1	17669-SM4-G31	Label - FUEL FILLER CAUTION
3	19043-PV1-G00	Label - COOLANT INFORMATION
4	31511-SB2-671	Mark - BATTERY CAUTION (MAINTENANCE FREE)
5	33406-SM4-G00	Label - HEADLIGHT ADJUSTER CAUTION
6	42760-SM2-G00	Plate - TIRE PRESSURE CAUTION
7	57079-SM4-G01	Plate - CAUTION (ABS)
8	75701-SM5-A00	Emblem - RR. CENTER (H)
9	75711-SM4-000	Emblem - RR. (HONDA)
10	75722-SM2-000	Emblem - RR. (ACCORD COUPE)
11	75731-SM4-G10	Emblem - RR. (2.0I)
12	77871-SD4-G80	Label - SRS CAUTION
13	77876-SM5-A80	Label - AIR BAG
14	87351-SA0-003	Clip - TUBULAR
14	91512-SR3-004	Clip - TUBULAR

Engine mounts 17

#	OEM	部品名
3	50805-SM4-020	Rubber - MISSION MOUNTING INSULATOR
4	50810-SM4-J03	Rubber - ENGINE RR. INSULATOR (MT)
6	50820-SM4-020	Rubber - ENGINE SIDE INSULATOR (MT)
7	50825-SM4-000	Bracket - TRANSMISSION MOUNTING (MT)
9	50826-SM4-000	Bracket - FR. ENGINE MOUNTING
10	50827-SM4-J00	Bracket - ENGINE RR. MOUNTING (MT)
12	50828-SM4-J01	Stay - RR. MOUNT BRACKET (MT)
15	50830-SM4-020	Rod assy - TORQUE (MT)
17	50839-SM4-010	Nut - YOKE, 12MM
22	90165-SM4-020	Bolt - FLANGE, 12X101
23	90167-SM4-000	Bolt - FLANGE, 12X120
24	90169-SM4-000	Bolt - FLANGE, 12X30
25	90170-SM4-000	Bolt - FLANGE, 12X40
26	90173-SM4-000	Bolt - FLANGE, 12X60
27	90174-SM4-000	Bolt - FLANGE, 10X22
28	90371-SM4-000	Nut - FLANGE, 10MM
29	90504-SB0-000	Washer - PLAIN, 12MM

Engine wire harness/clamp 33

#	OEM	部品名
1	28291-PR0-003	Band - SOLENOID HARNESS (BLACK)
2	31110-PT0-003	Belt - ALTERNATOR (MITSUBOSHI)
3	31112-PT0-000	Bracket - ALTERNATOR
4	31117-PT0-000	Plate - ALTERNATOR ADJUSTER
5	31118-PT0-000	Stay - ALTERNATOR ADJUSTER
6	32110-PT5-X00	Harness - ENGINE WIRE
7	32112-PT3-A01	Stay comp - COUPLER
8	32127-PT2-000	Holder comp - HARNESS
9	32610-SM4-000	Cable - SUB EARTH
10	32741-PT2-000	Clamp a - ENGINE WIRE HARNESS
11	32742-PT2-000	Clamp b - ENGINE WIRE HARNESS
12	32744-PT0-000	Clamp d - ENGINE WIRE HARNESS (BLACK)
13	32745-PT2-010	Clamp e - ENGINE WIRE HARNESS
14	32746-PT2-000	Clamp f - ENGINE WIRE HARNESS
15	32748-PT0-000	Stay - ENGINE WIRE HARNESS CLAMP
16	32749-PT0-000	Stay a - ENGINE WIRE HARNESS
17	32750-PT0-000	Stay b - ENGINE WIRE HARNESS
19	32751-PT2-000	Stay c - ENGINE WIRE HARNESS
20	37240-PT0-013	Switch - OIL PRESSURE (DENSO)
21	37750-PH2-014	Thermo unit - DENSO
22	37870-PK2-005	Sensor assy - WATER TEMP (HADSYS)
23	90004-PA0-000	Bolt - HEX., 6X14
24	90006-PT2-003	Bolt - FLANGE, 6X16
25	90052-PT0-000	Bolt - FLANGE, 10X60
26	90053-PT0-000	Bolt - FLANGE, 10X50
27	90149-SE0-003	Bolt - EARTH, 6X16
28	90204-PH7-000	Nut - SPECIAL
29	90310-PT0-003	Bolt - SPECIAL
30	90312-PT0-000	Bolt - ADJUSTER SPECIAL
31	90313-PT0-000	Bolt - SPECIAL, 10X90
32	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
34	91507-PT3-A01	Band - WIRE HARNESS (BLACK) (90.4MM)
35	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)

Exhaust manifold 14

#	OEM	部品名
1	11942-PT2-000	Stay - L. EX. MANIFOLD
2	18100-PT6-A00	Manifold - EX.
3	18115-PT0-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
3	18115-PT0-004	Gasket - EX. MANIFOLD (ISHINO GASKET)
4	18120-PT6-A00	Cover comp. a - EX. MANIFOLD
5	18121-PT2-J00	Cover comp. b - EX. MANIFOLD
6	32747-PT0-010	Clamp g - ENGINE WIRE HARNESS
7	90010-PE2-900	Bolt - SPECIAL, 10X22
8	90015-PT0-B00	Bolt-washer - 8X14
8	90015-PT0-J00	Bolt-washer - 8X14
10	90065-PC1-300	Bolt - STUD, 10X34.5
11	90212-PD2-003	Nut - SELF-LOCK, 8MM
11	90212-RCA-A01	Nut - SELF-LOCK, 8MM
12	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe 29

#	OEM	部品名
1	18160-PT4-X10	Converter comp. - MCH340
2	18176-P08-003	Bolt - CONVERTER
3	18176-PT0-003	Bolt - CONVERTER
4	18181-PT4-X00	Cover - LOWER
5	18182-PT4-X00	Cover - UPPER
6	18210-SM4-A70	Pipe a - EX.
7	18212-SB2-961	Gasket - EX. PIPE (ISHINO)
8	18213-SM4-000	Stay - EX. PIPE
9	18215-SM1-A50	Rubber - EX. MOUNTING (70X45X25)
10	18215-SM1-A60	Rubber - EX. MOUNTING (60X50X20)
11	18220-SM5-A13	Pipe b - EX.
12	18222-SM1-003	Bracket - EX. PIPE MOUNTING
13	18282-SM4-020	Bracket b - FLEXIBLE MOUNTING
14	18303-SM4-020	Gasket - SILENCER
15	18307-SM1-935	Silencer comp - EX.
16	18310-SB0-023	Finisher - EX. PIPE
17	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
18	36531-PT6-A02	Sensor - OXYGEN
18	36531-PK3-A05	Sensor,oxygen
19	36536-PJ7-004	Gasket - EXTERNAL
20	74601-SM4-A20	Plate - FLOOR HEAT BAFFLE
21	74610-SM4-000	Reinforcement - FR. CROSSMEMBER
22	74651-SM4-000	Plate - TANK BAFFLE
23	74655-SM4-000	Plate - SILENCER BAFFLE
24	90023-PK1-000	Bolt - FLANGE, 6X10
24	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
25	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
26	90212-SA5-003	Nut - SELF-LOCK, 10MM
27	90212-671-005	Nut - SELF-LOCK, 10MM

Floor mat 11

#	OEM	部品名
1	74251-SM4-A10	Insulator - DASHBOARD LOWER OUTER
2	83101-SM5-A01	Insulator - DASHBOARD
3	83106-SM4-A00	Bracket - DASHBOARD INSULATOR
7	84521-SM4-Y01	Lid - SPARE TIRE
8	84525-SM4-E03	Spacer - R. TRUNK
9	84575-SM4-E02	Spacer - L. TRUNK
12	90676-SB2-003	Clip - DASHBOARD INSULATOR
13	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
14	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)
15	91547-SM4-003	Cap - INSULATOR
16	91641-SH3-013	Grommet assy, GARNISH

Front brake 25

#	OEM	部品名
1	44200-SM4-018	Bearing assy - FR. HUB UNIT (NTN)
2	44600-SM4-020	Hub assy - FR.
3	45022-SM4-A00	Pad set - FR.
3	45022-SM4-A01	Set,pad fr (adr 5
4	45210-SM4-A02	Caliper assy - R. (AKEBONO)
5	45214-SM4-A01	Boot - PISTON
6	45215-671-672	Screw - BLEEDER
7	45216-SM4-A01	Piston
8	45217-SM4-A01	Seal - PISTON
9	45219-671-672	Cap - BLEEDER SCREW
10	45225-SM4-A01	Shim a - INNER
11	45226-SM4-A01	Shim b - INNER
12	45228-SM4-A01	Shim - OUTER
13	45230-SM4-A02	Caliper assy - L. (AKEBONO)
14	45233-SM4-A01	Bush
15	45234-SM4-A02	Boot - PIN
16	45235-SM4-A01	Pin a
17	45236-SM4-A01	Pin b
18	45237-SM4-A01	Clip - PAD
19	45251-SM4-020	Disk - FR. BRAKE (14")
20	45255-SM4-010	Guard - FR. SPLASH (14")
21	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
22	90114-SM4-000	Bolt - FLANGE, 10X20
23	90163-SM4-003	Bolt - WHEEL (TOUKAI)
24	90164-SM4-003	Bolt - FR. HUB UNIT, 10X40

Front combination light 14

#	OEM	部品名
1	33300-SM4-G03	Light assy - R. FR. TURN SIGNAL
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33302-SM4-A03	Lens - R.
4	33305-SH3-A01	Socket comp - GRAY
5	33306-SM4-A01	Screw - TAPPING (M4X16)
6	33350-SM4-G03	Light assy - L. FR. TURN SIGNAL
7	33352-SM4-A03	Lens - L.
8	33800-SM4-013	Light assy - R. SIDE TURN (###)
9	33802-SM4-013	Housing comp - R.
10	33850-SM4-013	Light assy - L. SIDE TURN (###)
11	33852-SM4-013	Housing comp - L.
12	34304-SH3-A01	Socket comp.
13	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
14	90303-SA5-003	Nut - FR. COMBINATION LIGHT

Front door lining 18

#	OEM	部品名
2	34261-SM4-G01	Lens - DAIICHI
3	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
5	35760-SM4-003	Sub switch assy. - POWER WINDOW (TOYO)
6	35761-SM1-A01	Bezel - TRW
6	35761-SM4-003	Panel - TEC
7	72335-SM2-003	Weatherstrip - R. DOOR INNER
8	72375-SM2-003	Weatherstrip - L. DOOR INNER
11	83532-SM2-000	Bracket - R. DOOR LINING
17	83582-SM2-000	Bracket - L. DOOR LINING
21	90101-SA4-000	Screw - TAPPING, 4X12
22	90137-SL4-003	Screw - TAPPING, 6X20
23	90662-693-003	Grommet - SCREW, 4MM (BLUE)
24	90665-SM4-003	Grommet - SCREW, 4MM (YELLOW)
25	90668-SM4-003	Lock - PUSH
26	91560-SM4-003	Clip - DOOR LINING
26	91560-SL4-003	Clip - DOOR LINING
27	91561-SE3-003	Grommet - SCREW, 6MM
29	91562-SM4-013	Grommet - DOOR LINING

Front door locks 25

#	OEM	部品名
1	72110-SM2-C12	Lock assy - R. FR. POWER
2	72116-SM4-003	Snap d - VIOLET
3	72119-SM1-003	Stopper a - OUTSIDE HANDLE
5	72123-SR0-003	Ring - OUTSIDE HANDLE
8	72131-SM2-003	Rod - R. INSIDE
9	72132-SM2-A01	Rod - R. LOCK KNOB
10	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT
11	72134-SM4-003	Snap - R. (VIOLET)
12	72135-SM4-003	Striker assy - DOOR
13	72136-SM4-003	Holder - ROD, 4MM
14	72140-SM4-J01	Handle assy - R. FR. DOOR OUTSIDE
15	72150-SM2-G01	Lock assy - L. FR. SWITCH
18	72171-SM2-003	Rod - L. INSIDE
19	72172-SM2-A01	Rod - L. LOCK KNOB
20	72174-SM4-003	Snap - L. (YELLOW)
21	72180-SM4-J01	Handle assy - L. FR. OUTSIDE
22	75411-634-000	Joint
23	75513-SB2-000	Cushion - LOCK ROD (35MMX58MM)
24	75551-SF1-003	Holder - DOOR LOCK ROD
25	90111-SA0-000	Screw - TAPPING, 4X8
26	90130-SM4-000	Bolt - LOCK STRIKER
27	90662-SB2-003	Grommet - SCREW, 5MM
28	91554-SM4-003	Holder - BRACKET (RED)
29	91555-SM4-003	Clip - COUPLER (RED)
30	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)

Front door panels 15

#	OEM	部品名
10	72310-SM2-003	Weatherstrip - R. DOOR
11	72321-SM2-003	Weatherstrip - FR. LOWER
12	72326-SM2-A10	Seal - R. FR. DOOR HOLE
13	72327-SM4-000	Seal - DOOR UPPER HOLE
14	72340-SM2-013	Checker comp. - DOOR
15	72350-SM2-003	Weatherstrip - L. DOOR
16	72366-SM2-A10	Seal - L. FR. DOOR HOLE
17	75760-SB2-003	Pin - DOOR CHECKER
18	75826-634-300	Seal - INSIDE PANEL, 15MM
19	75891-SA7-000	Stopper - DOOR
20	90101-SE3-003	Bolt-washer - 8X23.5
21	90686-692-003	Cap - LINING MOUNT
22	90755-SB2-000	E-ring - 6MM
23	90852-SA5-000	Plug - HOLE, 10MM
24	91530-SH4-003	Clip - DOOR WEATHERSTRIP

Front door windows 26

#	OEM	部品名
1	04730-SM2-A00	Bracket set - PIN GUIDE
2	72211-SM2-A01	Regulator - R. FR. DOOR POWER
3	72212-SM2-003	Spring - SPIRAL
4	72215-SM4-A11	Motor assy. - R. WINDOW
5	72226-SM2-A00	Sash assy - R. DOOR CENTER LOWER
6	72230-SM2-A00	Sash - R. FR. DOOR LOWER
7	72232-SM2-023	Guide - R. DOOR CENTER SASH
8	72233-SM2-023	Cover - R. SASH GUIDE
9	72235-SM2-003	Runchannel - R. DOOR
10	72237-SM4-003	Clip - FR. DOOR GLASS GUIDE
11	72251-SM2-A01	Regulator - L. FR. DOOR POWER
12	72255-SM4-A11	Motor assy. - L. WINDOW
13	72266-SM2-A00	Sash assy - L. DOOR CENTER LOWER
14	72270-SM2-A00	Sash - L. FR. DOOR LOWER
15	72272-SM2-023	Guide - L. DOOR CENTER SASH
16	72273-SM2-023	Cover - L. SASH GUIDE
17	72275-SM2-003	Runchannel - L. DOOR
18	72332-SM4-003	Stopper - DOOR GLASS
19	73300-SM2-A01	Glass assy - R. DOOR
20	73350-SM2-A01	Glass assy - L. DOOR
21	90011-896-000	Bolt - FLANGE, 6X8
22	90115-SG0-003	Bolt - FLANGE, 6MM
23	90120-SE3-003	Bolt - FLANGE, 6X12
24	91530-SH4-003	Clip - DOOR WEATHERSTRIP
25	91555-SM4-003	Clip - COUPLER (RED)
26	91623-SM2-003	Grommet - GLASS GUIDE

Front fenders 9

#	OEM	部品名
4	74101-SM4-010	Fender - R. FR. INNER
5	74111-SM4-A00	Shield - FR. SPLASH
6	74151-SM4-010	Fender - L. FR. INNER
7	90108-SF1-000	Bolt-washer - 6X15
8	90119-SE0-000	Bolt - FLANGE, 6MM
9	90114-SE0-000	Screw - TAPPING, 5X20
10	90657-SB0-003	Clip, SPLASH SHIELD
11	90682-SB0-003	Grommet - SCREW, 5MM
12	91512-SM4-003	Clip - INNER FENDER

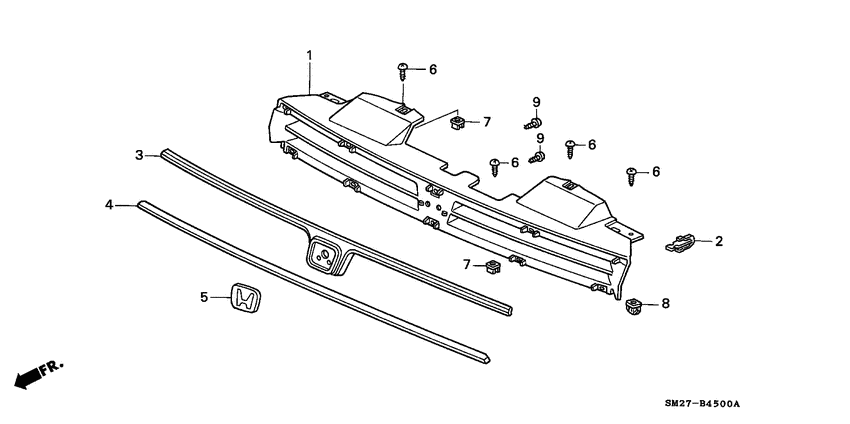

Front grille 8

#	OEM	部品名
1	75101-SM4-901	Grille - FR.
2	75103-SJ4-003	Clip - FR. GRILLE
3	75120-SM4-901	Molding - FR. GRILLE UPPER
4	75130-SM4-901	Molding - FR. GRILLE LOWER
5	75700-SM4-901	Emblem - FR. GRILLE CENTER
6	90125-SM4-003	Screw - TAPPING, 5X16
7	90682-SB0-003	Grommet - SCREW, 5MM
8	91635-SM4-003	Grommet - SCREW, 5MM (BLACK)

Front seat 7

#	OEM	部品名
3	81125-SM2-G01	Seatback - R. FR.
6	81135-SM2-A11	Cushion - R. FR. SEAT
12	81163-SG0-A01	Seal - R. WALK-IN
16	81235-SM2-J01	Wire - FR. SEATBACK WALK-IN INNER
20	81525-SM2-G01	Seatback - L. FR.
22	81535-SM2-A11	Cushion - L. FR. SEAT
24	81563-SG0-J01	Seal - L. WALK-IN

Front seat components (L.) 6

#	OEM	部品名
1	81104-SE3-J02	Washer - PIVOT (BLACK)
2	81108-SE3-J02	Bush - NYLON (TACHI-S) (BLACK)
4	81261-SK7-013	Cap - SLIDE RAIL END
5	81262-SM4-J01	Cap - RAIL END UPPER
6	81550-SM2-E01	Slide comp. - L. RECLINING OUTER
9	81670-SM4-C01	Adjuster - L. INNER SLIDE

Front seat components (R.) 7

#	OEM	部品名
1	81104-SE3-J02	Washer - PIVOT (BLACK)
2	81108-SE3-J02	Bush - NYLON (TACHI-S) (BLACK)
3	81150-SM2-C01	Slide comp. - R. RECLINING OUTER
4	81165-SM2-J01	Cable - WALK-IN
6	81261-SK7-013	Cap - SLIDE RAIL END
7	81262-SM4-J01	Cap - RAIL END UPPER
8	81270-SM2-C02	Adjuster - R. INNER SLIDE

Front shock absorber 28

#	OEM	部品名
1	51401-SM4-921	Spring - FR. (SHOWA)
1	51401-SM4-942	Spring - FR. (SHOWA)
2	51601-SM2-E52	Absorber assy - R. FR. SHOCK
2	51601-SM2-E62	Absorber assy - R. FR. SHOCK
3	51602-SM2-E52	Absorber assy - L. FR. SHOCK
3	51602-SM2-E62	Absorber assy - L. FR. SHOCK
4	51605-SM4-E02	Absorber unit - R. FR. SHOCK (SHOWA)
4	51605-SM2-E52	Absorber unit - R. FR. SHOCK (SHOWA)
5	51606-SM4-E02	Absorber unit - L. FR. SHOCK (SHOWA)
5	51606-SM2-E52	Absorber unit - L. FR. SHOCK (SHOWA)
6	51621-SR0-003	Washer - SHOCK ABSORBER MOUNTING (S&Z.ATLANTIC)
6	51621-SB0-004	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)
6	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
7	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
7	51631-S7S-J01	RUBBER DAMPER M
7	51631-SH0-003	Rubber - SHOCK ABSORBER MOUNTING (YUSA)
8	51675-SM4-004	Base - SHOCK ABSORBER MOUNTING (SHOWA)
9	51685-SH3-014	Plate - DUST COVER(SHOWA)
10	51686-SM4-004	Rubber - FR. SPRING SEAT (SHOWA)
10	51686-SM1-A02	Rubber - FR. SPRING MOUNTING (YUSA)
11	51687-SM4-014	Cover - FR. SLEEVE DUST (SHOWA)
12	51722-SM1-A03	Rubber - FR. BUMP STOPPER (NOK)
12	51722-SM4-003	Rubber - FR. BUMP STOPPER (NOK)
13	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
13	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
14	52690-SG0-000	Plate - BUMP STOP
15	90304-SM4-000	Nut - FR. SHOCK ABSORBER FLANGE (10MM)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 29

#	OEM	部品名
1	51300-SM1-A03	Spring - FR. STABILIZER
2	51306-SM4-010	Bush - STABILIZER HOLDER
3	51308-SG0-020	Bracket - FR. STABILIZER
4	51311-SM4-010	Collar a - STABILIZER END (7.6MM)
5	51312-SM4-000	Collar b - STABILIZER END (27.2MM)
6	51313-SM4-010	Washer - STABILIZER END
7	51314-SM4-020	Rubber - STABILIZER END
8	51352-SM1-A01	Rod - R. FR. RADIUS (MT)
10	51355-SM4-040	Arm comp - R. FR. LOWER
11	51362-SM1-A01	Rod - L. FR. RADIUS
12	51365-SM4-040	Arm comp - L. FR. LOWER
13	51381-SM4-013	Bush - FR. RADIUS ROD (RR.)
14	51391-SM4-013	Bush - FR. RADIUS ROD (FR.)
15	51393-SM4-013	Bush - FR. LOWER ARM (HOKUSHIN)
16	51394-SM4-010	Washer - CASTER ADJUSTER
17	51398-SM4-000	Collar - RADIUS ROD
18	51399-SM4-000	Washer - FR. RADIUS ROD
19	51810-SM4-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)
19	51810-SM4-003	Bush - SHOCK ABSORBER FORK (HOKUSHIN)
20	51811-SM4-030	Fork - R. FR. SHOCK ABSORBER
21	51821-SM4-030	Fork - L. FR. SHOCK ABSORBER
22	90112-SM4-020	Bolt - STABILIZER LINK (8X95)
23	90117-SM4-003	Bolt - FR. SHOCK ABSORBER LOCK (10X44)
24	90118-SM4-013	Bolt - SELF-LOCK, 12X80
25	90121-SM4-010	Bolt - SHOCK ABSORBER FORK (12X98)
26	90178-SM4-013	Bolt - FR. RADIUS ROD (12X31)
27	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
28	90303-SF1-003	Nut - SELF-LOCK, 12MM
29	90362-SF1-003	Nut - SELF-LOCK, 8MM

Front windshield 14

#	OEM	部品名
1	73111-SM2-A10	Glass - FR. WINDSHIELD (GREEN)
2	73125-SM4-000	Rubber - FR. WINDSHIELD DAM
2	73125-SL4-000	Rubber - FR. WINDSHIELD DAM
3	73126-SM4-000	Spacer - FR. WINDSHIELD
4	73151-SM2-A02	Molding - FR. WINDSHIELD UPPER
5	73152-SM2-A03	Molding assy. - R. FR. WINDSHIELD SIDE & CORNER
6	73159-SM2-003	Clip - FR. WINDSHIELD SIDE (BLUE)
7	73162-SM2-A03	Molding assy. - L. FR. WINDSHIELD SIDE & CORNER
8	77466-SM4-000	Seal - FR. INSTRUMENT
9	91524-SM4-003	Clip A - FR. WINDSHIELD SIDE MOLDING (WHITE)
10	91525-SM4-003	Clip b - FR. WINDSHIELD SIDE MOLDING (PINK)
11	91531-SM2-003	Clip - FR. WINDSHIELD UPPER
12	91532-SM4-003	Clip - FR. WINDSHIELD SIDE (C) (GRAY)
13	91534-SM4-003	Clip - FR. WINDSHIELD UPPER MOLDING (GREEN)

Front windshield wiper (LH) 25

#	OEM	部品名
1	38472-SB0-671	Rubber - BLADE (475MM)
2	76505-SM4-G01	Motor comp - FR. WIPER
3	76510-SM4-003	Rubber - MOUNTING
4	76515-SM4-013	Seal a
5	76516-SM4-003	Rubber - MOUNTING
6	76517-SM4-003	Collar
7	76520-SM4-003	Link unit a
8	76524-SD4-003	Dust seal
9	76524-SE0-013	Dust seal
10	76530-SM4-G02	Link comp - FR. WIPER
11	76540-SM4-003	Rod unit a
12	76550-SM4-003	Rod unit b
13	76558-SM4-003	Cap - PIVOT
14	76561-SD4-003	Cap - PIVOT
15	76600-SM4-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76610-SM4-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-SM4-G01	Blade - WINDSHIELD WIPER (550MM)
18	76622-SM4-G01	Rubber - BLADE (550MM)
18	76622-SZ3-003	Blade Rubber (550MM)
19	76630-SM4-A01	Blade - WINDSHIELD WIPER (475MM) (PASSENGER SIDE)
20	90116-SM4-000	Bolt-washer - 6X16
21	90126-SM4-000	Bolt-washer - 6X32
22	90201-SK7-000	Nut - HEX. CAP, 10MM
23	90317-SM4-003	Nut - HEX., 10MM
24	91620-SM4-003	Grommet - WIPER MOTOR (BLACK)

Fuel pipe (LH) 46

#	OEM	部品名
1	16010-SM4-931	Strainer set - FUEL
2	16712-SF4-J30	Cushion - FUEL STRAINER
3	16720-PT3-A01	Hose comp. b - FUEL FEED
4	16918-SM4-931	Stay - FUEL STRAINER
5	16919-SM4-A30	Band - FUEL STRAINER
6	16922-SH3-930	Rubber - MOUNTING
7	17300-SE5-A31	Canister assy
8	17372-SM5-A00	Tube - CANISTER
9	17700-SM1-A30	Pipe comp - FUEL FEED
10	17720-SM1-A00	Pipe comp - VENT
11	17722-SM4-A31	Clamp - VENT TUBE
12	17723-SM4-930	Hose - PRESSURE REGULATOR RETURN
13	17725-SM4-000	Hose assy - PURGE
14	17740-SM1-A30	Pipe comp - FUEL RETURN
15	17742-SM4-013	Joint - CANISTER DRAIN TUBE
16	17743-SM4-003	Cap - DRAIN TUBE
17	17744-SM4-000	Tube assy - DRAIN
18	17749-SM4-933	Clamp - RETURN HOSE
19	17752-SM4-003	Protector - FUEL PIPE
20	17758-SM4-000	Stopper - RETURN PIPE (BLACK)
21	17759-SM4-000	Stopper - VENT PIPE
22	17761-SM4-000	Stay a - FUEL PIPE
23	17763-SM4-000	Stay c - FUEL PIPE
24	17764-SM4-000	Stay d - FUEL PIPE
25	17765-SM4-000	Stay e - FUEL PIPE
26	17766-SM4-000	Stay f - FUEL PIPE
27	17767-SM4-000	Stay g - FUEL PIPE
28	17769-SM4-000	Bracket - PIPE CLAMP
29	38609-692-000	Collar - DISTANCE
30	90009-PE2-010	Bolt - SEALING, 6MM
30	90009-RMX-010	Bolt,sealing 6mm
31	90020-PD6-000	Bolt - SEALING, 12MM
32	90146-SM4-000	Bolt-washer - 6X16
33	90201-PD1-000	Nut a - SEALING, 12MM
34	90428-PD6-003	Washer - SEALING, 12MM
35	90430-PD6-003	Washer - SEALING, 6MM
36	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM
36	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM
37	91549-SE0-003	Holder - DRAIN HOSE
38	91591-SM4-000	Bracket - CLIP (B)
39	91592-SM4-000	Bracket c - CLIP
40	91595-SM4-003	Clip b - FUEL PIPE
41	91596-SM4-931	Clamp c - FUEL PIPE
42	91597-SM4-013	Clip - FUEL PIPE (A)
43	91598-SM4-931	Clamp b - FUEL PIPE
44	91599-SM4-931	Clamp a - FUEL PIPE

Fuel tank 47

#	OEM	部品名
1	17371-SM4-A02	Valve - TWO WAY (TEC)
2	17500-SM4-A32	Tank comp. - FUEL
3	17511-SM4-000	Bracket - FUEL TANK BAND
4	17519-SM4-000	Protector - FUEL TANK
5	17521-SM1-030	Band assy. - R. FUEL TANK MOUNTING
6	17522-SM1-030	Band assy. - L. FUEL TANK MOUNTING
7	17525-SM4-000	Bolt-washer - 10X35
8	17570-SM4-000	Valve - FUEL CUT
9	17574-SE0-000	Packing - BASE
10	17575-SM4-000	Packing - FUEL CUT VALVE
11	17651-SM4-000	Tube - FILLER NECK
12	17652-SA5-000	Clip - FILLER TUBE
13	17656-SM4-000	Bolt - FILLER PIPE MOUNTING
14	17658-SM4-000	Tube assy - BREATHER (260MM)
15	17659-SL5-000	Holder - FILLER PACKING
16	17660-SM4-A02	Pipe comp - FUEL FILLER
17	17662-SL5-000	Packing - FUEL FILLER PIPE
18	17663-SL5-A00	Band - FILLER PACKING
19	17670-SM1-A02	Cap comp. - FUEL FILLER (STANT)
20	17704-SE0-930	Hose - FUEL TANK RETURN
21	17704-SM4-930	Hose - FUEL PIPE RETURN
22	17706-SM4-931	Clamp - FUEL HOSE
23	17707-SM4-A31	Hose comp. - FUEL JOINT
25	17731-SM4-A30	Pipe comp - FUEL
26	17732-SM4-010	Tube - FUEL VENT
27	17733-SM4-930	Protector - FUEL HOSE JOINT
28	37800-SM4-A04	Meter unit - FUEL (DENSO)
28	37800-SM4-A03	Meter unit - FUEL (NS)
29	37801-SE3-000	Packing - BASE
30	37802-SE0-000	Retainer - FUEL UNIT
31	74660-SM4-000	Cap assy. - FLOOR MAINTENANCE HOLE
32	90020-PD6-000	Bolt - SEALING, 12MM
33	90091-PC1-000	Bolt-washer - 6X16
34	90146-SM4-000	Bolt-washer - 6X16
35	90164-SD4-000	Bolt-washer - 6X16
36	90167-SD4-000	Screw - TAPPING, 5X12
37	90428-PD6-003	Washer - SEALING, 12MM
38	90552-SD4-000	Washer - PLAIN, 5MM
39	90657-SH3-013	Clip - TWO WAY VALVE COVER
40	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
41	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)
42	90700-SB0-003	Clip - AIR BLEED TUBE
43	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM
43	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM
44	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)
45	91691-SE0-003	Clip - WIRE HARNESS
57	17040-SM4-A30	Pump set - FUEL

Gasket kit/ transmission assy. 5

#	OEM	部品名
1	06110-PT3-A01	Gasket kit - CYLINDER HEAD
2	06111-PT1-000	Gasket kit - CYLINDER BLOCK
4	10002-PV8-G02	General assy. - CYLINDER BLOCK
5	10003-PT4-X71	General assy. - CYLINDER HEAD
6	20011-PX5-C42	Transmission assy - H2C4

Grommet 24

#	OEM	部品名
1	72206-SA5-000	Cap - FLOOR HOLE, 53MM
2	72849-SA5-000	Insulator b - SIDE SILL HOLD
3	74514-SM2-A01	Seal - R. QUARTER HOLE
4	74554-SM2-A01	Seal - L. QUARTER HOLE
5	75826-SB3-300	Seal - DASHBOARD UPPER HOLE, 30MM
6	82871-671-000	Grommet - DRAIN HOLE, 25MM
7	84136-SM4-A00	Seal - SEATBELT HOLE
8	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
9	90615-SM4-000	Cap - WELD HOLE, 46X72
10	90801-SB0-000	Plug - CHANGE REINFORCEMENT
11	90852-SA5-000	Plug - HOLE, 10MM
12	90852-671-003	Plug - HOLE
13	91606-SE0-000	Seal - 20X20
14	91606-SK7-003	Plug - BLIND, 25MM
15	91610-SD4-000	Plug - HOLE, 28MM
16	91610-SF4-003	Plug - HOLE, 36X65
17	91611-SM4-003	Plug - FLOOR HOLE, 25MM
18	91612-SM1-000	Plug - HOLE, 12X30
19	91613-SA5-000	Grommet b - CONTROL WIRE
20	91616-SM4-000	Seal - FR. PILLAR INNER LOWER
21	91618-SF1-000	Seal - RR. PILLAR UPPER (50X70)
22	91618-SM4-003	Plug - HOLE, 7MM
23	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
24	91623-SE0-003	Plug - BLIND, 12MM

Headlight 24

#	OEM	部品名
1	33100-SM4-G17	Headlight assy - R. (HEADLIGHT ADJUSTER)(###)
1	33100-SM4-F04	Headlight assy - R. (STANLEY)
2	33103-SM4-F04	Housing comp - R.
2	33103-SM4-G14	Housing comp - R. (HEADLIGHT ADJUSTER)
3	33105-SM4-A01	Nut b - SPECIAL
4	33115-692-741	Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN)
5	33116-SD4-961	Socket - BULB (OSRAM) (HALOGEN)
6	33117-SM4-003	Clip - LENS HOLDER
7	33122-SM4-003	Screw - TAPPING, 4X12
8	33126-SM4-003	Cover - RUBBER
9	33150-SM4-F04	Headlight assy - L. (STANLEY)
9	33150-SM4-G17	Headlight assy - L. (HEADLIGHT ADJUSTER)
10	33153-SM4-F04	Housing comp - L.
10	33153-SM4-G14	Housing comp - L. (HEADLIGHT ADJUSTER)
11	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	34300-SM4-G03	Light assy - R. FR. POSITION (###)
13	34301-SM4-G03	Lens comp - R.
14	34304-SH3-A01	Socket comp.
15	34350-SM4-G03	Light assy - L. FR. POSITION
16	34351-SM4-G03	Lens comp - L.
17	34901-371-621	Bulb - HEADLIGHT (PHILIPS) (H4 JA12V 60/55W) (YELLOW)
18	34901-671-631	Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS)
19	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
20	90302-SM4-003	Nut a - SPECIAL

Heater blower 14

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79192-SM4-003	Holder a - HEATER
3	79300-SM4-A02	Blower assy - DENSO
4	79305-SM4-A02	Cover - BLOWER UNDER
5	79310-SM4-A01	Motor assy. - BLOWER
6	79321-SM4-A01	Fan a
7	79322-SM4-A01	Fan b
8	79330-SM4-003	Resistor - BLOWER
9	79350-SM4-A02	Motor assy. - FRESH & RECIRCULAR
10	79391-SM4-003	Holder - BLOWER
11	79810-SM4-A01	Duct - HEATER
12	80789-SH3-003	Holder - ROD
13	90134-SM4-000	Bolt-washer - 6X20
14	90155-SE0-003	Screw - TAPPING, 6X20

Heater control 17

#	OEM	部品名
1	39356-SB6-000	Spring - HEATER CONTROL
2	39383-SA5-000	Clamp - CONTROL CABLE
3	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)
4	79510-SM1-A10	Control comp. - TEMPERATURE
5	79512-SM4-A00	Base - TEMPERATURE CONTROL LOWER
6	79513-SM4-A00	Cover - DUST
7	79522-SM4-A00	Lever - TEMPERATURE CONTROL
8	79537-SM4-A00	Pin - CLICK
9	79542-SM1-A11	Cable - TEMPERATURE CONTROL (ACCO)
10	79570-SM1-A11	Switch assy - FAN
11	79581-SM4-003	Knob - HEATER CONTROL
12	79595-SM4-A00	Shaft - TEMPERATURE CONTROL
13	79612-SM4-A01	Lid - AIR CONDITIONER SWITCH (BUTTON TYPE)
14	79620-SM4-A21	Switch assy - MODE CONTROL (ALPS)
14	79620-SM4-A01	Switch assy - MODE CONTROL (AIR CONDITIONER) (ALPS)
15	80411-SM4-A02	Knob - AIR CONDITIONER (BUTTON TYPE)
16	90107-SA5-000	Screw - TAPPING, 4X12

Heater duct 4

#	OEM	部品名
1	77411-SM4-A00	Duct - CENTER AIR CONDITIONER
2	77420-SM4-A00	Duct assy - DRIVER AIR CONDITIONER JOINT
4	83331-SM2-A81	Duct - RR. HEATER
5	90101-SA4-000	Screw - TAPPING, 4X12

Heater unit 13

#	OEM	部品名
1	39246-671-003	Clamp - CASE HOLD
2	79100-SM5-G02	Heater unit - DENSO
3	79105-SM4-A01	Case - HEATER OUTLET
4	79110-SM4-A01	Core comp - HEATER
5	79140-SM4-G02	Motor assy. - MODE
6	79192-SD4-003	Bush - 6.7MM
7	79192-SM4-003	Holder a - HEATER
8	79193-SD4-003	Bush - 5MM
9	79193-SM4-003	Holder b - HEATER
10	79196-SF1-003	Adjuster - ROD
11	79544-SM1-A11	Cable - WATER VALVE CONTROL (ACCO)
12	79770-SE0-000	Grommet - WATER VALVE CABLE
14	90657-671-631	Clip - TRIM (BLACK)

High tension cord/ spark plug 9

#	OEM	部品名
1	32701-PT0-000	Cord comp - RESISTANCE (NO.1) (SUMITOMO)
2	32702-PT0-000	Cord comp - RESISTANCE (NO.2) (SUMITOMO)
3	32703-PT0-000	Cord comp - RESISTANCE (NO.3) (SUMITOMO)
3	32703-P0B-A00	Cord comp - RESISTANCE (NO.3) (SUMITOMO)
4	32704-PT0-000	Cord comp - RESISTANCE (NO.4) (SUMITOMO)
5	32765-PT0-000	Clamp a - HIGH TENSION CORD
6	32766-PM3-000	Clamp b - HIGH TENSION CORD
7	32767-PT0-000	Grommet - HIGH TENSION CORD
8	90003-P01-000	Bolt-washer - 8X28

Hood 32

#	OEM	部品名
4	63511-SF0-003	Cushion - HOOD
4	74144-SE0-000	Cushion - HOOD
5	74120-SM4-003	Lock assy - HOOD
6	74130-SM1-A00	Wire assy. - HOOD
7	74134-SH0-A01	Grommet - HOOD WIRE
9	74141-SM4-901	Insulator - HOOD
10	74143-SM4-000	Rubber - RR. HOOD SEAL
11	74145-SM4-000	Stay - HOOD OPENER
12	74146-SM4-000	Cushion - HOOD SIDE
13	74148-SM4-000	Rubber - FR. HOOD SEAL
14	74177-SD4-000	Cushion a - HOOD
15	74200-SM4-A00	Cowl top assy.
16	74211-SM4-000	Cover - R. HOOD HINGE
17	74221-SM4-A00	Screen - WATER
18	74231-SM4-E00	Valve - R. FR. WHEELHOUSE UPPER MEMBER
19	74234-SM4-G00	Valve - R. DRAIN DASHBOARD UPPER
20	74261-SM4-000	Cover - L. HOOD HINGE
21	74284-SM4-G00	Valve - L. DRAIN DASHBOARD UPPER
22	74825-SM4-G01	Plug - WIPER LINK HOLE
23	90106-SE1-000	Bolt-washer - 6X15
24	90106-SE4-000	Bolt-washer - 6X18
25	90107-SM4-003	Clip - HOOD SEAL
26	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
27	90677-SE0-003	Holder - ROD
28	91501-SF1-003	Clip - HOOD INSULATOR
28	90700-SB2-003	Clip - HOOD INSULATOR
29	91501-SM4-003	Clip - ANCHOR
30	91508-SM4-003	Clip - COWL TOP
31	91515-SM4-003	Clip - ANCHOR
32	91522-SM4-003	Clip - TUBE & INSULATOR
33	91558-SE3-003	Clip - HOOD WIRE
34	91604-SD2-013	Grommet - HOOD STAY

Instrument panel (LH) 23

#	OEM	部品名
2	77116-SM4-000	Bracket - INSTRUMENT CENTER
4	77131-SE3-A02	Base - IDENTIFICATION NUMBER PLATE
5	77140-SM4-000	Bracket - R. INSTRUMENT SIDE
6	77145-SM4-000	Bracket - L. INSTRUMENT SIDE
7	77146-SM4-A01	Beam - INSTRUMENT CENTER
9	77460-SM4-013	Duct - R. DEFROSTER
10	77465-SM4-013	Duct - L. DEFROSTER
11	77466-SM4-000	Seal - FR. INSTRUMENT
12	77467-SM4-000	Seal - R. INSTRUMENT SIDE
13	77468-SM4-000	Seal - L. INSTRUMENT SIDE
16	77542-SM4-000	Striker - GLOVE BOX
17	77551-SM4-A00	Frame - GLOVE BOX
19	77893-SM2-A81	Bolster - DRIVER KNEE
20	87520-SM1-000	Rivet - SEALED
21	90101-SA4-000	Screw - TAPPING, 4X12
22	90128-SA7-000	Bolt-washer - 6X25
23	90128-SA7-900	Bolt-washer - 6X25
24	90144-SM4-003	Screw - 4X12
25	90609-SG0-003	Clip - PILLAR GARNISH
26	90651-SM4-003	Grommet - SCREW, 4MM
27	90666-SD4-003	Clip - FITTING
28	91640-SM4-003	Grommet - SCREW, 4MM
29	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH) 40

#	OEM	部品名
1	06777-SM4-000	Ashtray comp. - FR.
2	06778-SM4-000	Holder comp - FR. ASHTRAY
3	34254-SM4-013	Lamp assy. - GLOVE BOX
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
5	35505-692-003	Bulb - 14V 1.4W
6	39383-SA5-000	Clamp - CONTROL CABLE
9	66161-SB2-000	Label - COIN
9	66161-SB2-740	Label - PIECES
10	66417-SA0-000	Rubber - GLOVE BOX STOPPER
12	77201-SM4-003	Seal - CENTER OUTLET
13	77203-SM4-003	Seal - DRIVER OUTLET
14	77209-SM4-010	Cable - PANEL CENTER
15	77220-SM4-003	Outlet assy - CENTER
16	77225-SM4-003	Outlet assy - DRIVER
18	77355-SF1-F00	Label - IGNITION INFORMATION
18	77355-SG0-A00	Label - IGNITION INFORMATION
20	77371-SM4-000	Ring - COLUMN COVER
22	77502-SM4-A02	Box - GLOVE
23	77506-SM4-900	Stopper - GLOVE BOX LID
24	77510-SM4-003	Hinge - GLOVE BOX
25	77530-SM4-G01	Damper assy. - GLOVE BOX
26	77710-SM4-003	Ashtray - FR.
27	77712-SM4-003	Plate - FIRE PROTECTOR
29	77721-SM4-003	Protector - CIGARETTE LIGHTER
30	77750-SM4-F01	Pocket assy - COIN
30	77750-SM4-003	Pocket assy - COIN
31	77754-SM4-A00	Holder - COIN POCKET
32	90101-SA4-000	Screw - TAPPING, 4X12
33	90102-SA4-000	Screw - TAPPING, 4X16
34	90123-SM4-000	Screw - TAPPING, 4X12 (PO)
35	90124-SM4-000	Screw - TAPPING, 4X12 (PO)
36	90144-SM4-003	Screw - 4X12
37	90157-SA0-000	Bolt-washer - 8X25
38	90302-SA4-003	Nut - SPRING, 4MM
39	90670-SM4-003	Clip - GLOVE BOX
40	91640-SM4-003	Grommet - SCREW, 4MM
54	39620-SM4-407	Socket assy - CIGARETTE LIGHTER
55	39600-SW3-305	Lighter unit - CIGARETTE
55	39600-SW3-505	LIGHTER ASSYCIGA
56	39628-SM4-307	Cord assy

Intake manifold 34

#	OEM	部品名
1	06164-P0A-000	INJECTOR, FUEL
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)
4	16474-PT2-000	Insulator - INJECTOR
6	16610-PT3-A00	Pipe comp - FUEL
7	16623-PT2-000	Cover - FUEL LINE
8	16638-PT2-000	Insulator - FUEL PIPE
9	16740-PT6-A00	Regulator assy - PRESSURE
10	16741-PG7-005	O-ring - PRESSURE REGULATOR
11	17010-PT3-A01	Manifold comp. b - INTAKE
12	17100-PT3-A00	Manifold comp. a - INTAKE
13	17105-PT2-004	Packing - INTAKE MANIFOLD (NIPPON LEAKLESS)
13	17105-PT2-003	Packing - INTAKE MANIFOLD (ISHINO GASKET)
14	17113-PH3-300	Emblem - INTAKE MANIFOLD (PGM-FI)
15	17121-PT3-A01	Packing - INTAKE MANIFOLD (B) (ISHINO GASKET)
16	17125-PT3-J00	Stay comp - INTAKE MANIFOLD
17	18011-PT3-A00	Valve set - EGR
18	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
19	32752-PT2-000	Stay d - ENGINE WIRE HARNESS
20	37880-PK2-005	Sensor assy - AIR TEMP
20	37880-P05-A00	Sensor assy - AIR TEMP
21	90009-PE2-010	Bolt - SEALING, 6MM
21	90009-RMX-010	Bolt,sealing 6mm
22	90009-PT2-010	Bolt - SEALING, 12MM
23	90027-PT2-000	Bolt - STUD, 6X63
24	90428-PD6-003	Washer - SEALING, 12MM
25	90430-PD6-003	Washer - SEALING, 6MM
26	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)
26	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)
26	16074-ZY3-000	O-ring
27	91301-PR3-003	O-ring - 23.8X1.9
28	91303-PK2-005	O-ring (7.5X1.5)

Interior light 7

#	OEM	部品名
2	34251-SM4-961	Lens - DAIICHI
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
4	34260-SM4-003	Light assy - TRUNK ROOM
5	34262-SM4-003	Lens
6	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
7	90152-SE0-003	Nut - EARTH, 5MM (ZN)

Knuckle 19

#	OEM	部品名
1	51210-SM4-J53	Knuckle comp - R. FR.
2	51213-SE0-000	Protector - KNUCKLE
3	51215-SM4-J53	Knuckle comp - L. FR.
4	51220-SM4-013	Joint comp - FR. LOWER BALL (MUSASHI)
4	51220-SM1-A02	Joint comp - FR. LOWER BALL (MUSASHI)
5	51450-SM1-A03	Arm assy. - R. FR. UPPER
6	51460-SM1-A03	Arm assy. - L. FR. UPPER
7	52225-SF1-003	Boot - LOWER BALL DUST
8	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)
9	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
10	53548-SL0-A01	Circlip - TIE ROD
11	57450-SM4-954	Sensor assy - R. FR.
12	57455-SM4-954	Sensor assy - L. FR.
13	90230-SB0-950	Bolt-washer - 6X12 (GREEN)
14	90127-SM4-951	Bolt - SENSOR LOCK(8X14)
15	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
17	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
18	90363-SF1-000	Nut - CASTLE, 12MM
19	90682-SF1-000	Circlip - EXTERNAL, 42MM

Mainshaft 23

#	OEM	部品名
1	23210-PX5-J41	Mainshaft comp.
2	23261-PX5-000	Shaft - REVERSE IDLE GEAR
3	23441-PX5-E01	Gear - MAINSHAFT THIRD
4	23451-PX5-E01	Gear - MAINSHAFT FOURTH
5	23540-P16-000	Gear comp - REVERSE IDLE
6	23581-PX5-C01	Gear - MAINSHAFT FIFTH
7	23623-PX5-306	Sleeve set - SYNCHRONIZER (3-4)
7	23623-PX5-316	Sleeve set - SYNCHRONIZER (3-4)
8	23626-PX5-316	Sleeve set - SYNCHRONIZER (5)
8	23626-PX5-326	Sleeve set - SYNCHRONIZER (5)
9	23645-PX5-000	Ring - BLOCKING (50S)
10	23646-PX5-000	Ring - BRAKE STOPPER
11	23647-PX5-010	Ring - TAPER CONE
12	23652-PB6-000	Spring - SYNCHRONIZER (50MM)
13	23915-P21-000	Collar - DISTANCE, 31X38X56.5
14	23916-PX5-010	Collar - DISTANCE, 28X37X15
15	23927-PG2-A00	Washer - SPRING, 28MM
16	23928-PS1-000	Washer - 28MM
17	90012-PG1-000	Bolt - SPECIAL, 10X31.5
18	90401-PG1-000	Washer - DRAIN PLUG, 10MM
19	91004-PX5-008	Bearing - BALL, 28X78X20
20	91104-PK5-008	Bearing - NEEDLE, 38X43X26 (NTN)
21	91108-PX5-018	Bearing - NEEDLE, 37X42X16.8 (NTN)

Mirror 15

#	OEM	部品名
1	04762-SM2-G15	Mirror sub assy. - R. REMOTE CONTROL
2	04764-SM2-G15	Mirror sub assy. - L. REMOTE CONTROL
4	76200-SM2-G16	Mirror assy - R. DOOR (R.C.)
6	76201-SM2-G15	Housing - R. (###) *B59P*
7	76213-SM4-003	Pin - STOPPER
8	76220-SM2-010	Garnish - R. REMOTE CONTROL DOOR MIRROR
10	76250-SM2-G16	Mirror assy - L. DOOR (R.C.)
12	76251-SM2-G15	Housing - L. (###)
13	76270-SM2-010	Garnish - L. REMOTE CONTROL DOOR MIRROR
14	76401-SH3-901	Base - STAY (MATSUYAMA)
15	76403-SM4-000	Holder - RR. VIEW MIRROR
18	88147-SA5-003	Washer - TOOTHED (MATSUYAMA)
19	88148-SE0-003	Bolt - LOCK, 6X7 (MATSUYAMA)
20	90410-SM4-003	Screw - TAPPING, 4X10 (PO)
21	90615-SK7-003	Clip - MIRROR GARNISH

Molding 24

#	OEM	部品名
1	72410-SM2-003	Molding assy. - R. FR. DOOR
2	72411-SM2-003	Collar - FR. DOOR
3	72420-SM2-003	Molding - R. DRIP ROOF
4	72450-SM2-003	Molding assy. - L. FR. DOOR
5	72460-SM2-003	Molding - L. DRIP ROOF
6	72915-SM2-023	Garnish - R. RR. PILLAR
7	72955-SM2-023	Garnish - L. RR. PILLAR
8	73830-SM2-013	Molding - R. QUARTER LOWER
9	73880-SM2-013	Molding - L. QUARTER LOWER
10	74306-SM2-000	Molding - R. ROOF
11	74316-SM2-000	Molding - L. ROOF
12	90121-SM4-003	Screw - TAPPING, 4X10
13	90130-SM2-003	Screw - TAPPING, 4X11
14	90668-SG0-003	Grommet - SCREW, 4MM(OVAL)
15	91505-SM4-003	Clip - R. RR. ROOF MOLDING END (ORANGE)
16	91506-SM4-003	Clip - L. RR. ROOF MOLDING END (GREEN)
17	91527-SM4-003	Clip - DOOR MOLDING
18	91528-SM4-023	Clip - DRIP MOLDING
19	91536-SM4-003	Grommet - SCREW, 4MM
20	91543-SM2-003	Clip - QUARTER MOLDING LOWER
21	91544-SM2-003	Clip - R. DOOR MOLDING END
22	91545-SM2-003	Clip - L. DOOR MOLDING END
23	91622-SM2-003	Grommet - RR. PILLAR MOLDING
24	91625-SM2-003	Grommet - RR. PILLAR MOLDING CORNER

Oil pump 33

#	OEM	部品名
1	04151-PR3-305	Tool - CAP
2	13500-PT0-J00	Case set - GEAR
3	13519-PT0-000	Plate - PULLEY SIDE
4	15100-PT0-020	Oil Pump assy
7	15113-PT0-003	Packing a - OIL PUMP (ARAI)
8	15114-PT0-003	Packing b - OIL PUMP (ARAI)
11	15200-PT0-000	Pipe comp - OIL LEVEL
12	15220-PT0-000	Strainer comp. - OIL
13	15221-PT0-000	Packing - OIL STRAINER
13	15221-P5K-004	Packing - OIL STRAINER
14	15231-PE0-000	Valve - RELIEF
15	15232-PG6-000	Spring - RELIEF VALVE
16	15233-PC6-000	Bolt - SEALING, 18MM
17	15233-PK1-000	Bolt - SEALING, 20MM
18	15400-PT7-005	Cartridge - OIL FILTER (ALLIED SIGNAL USA)
18	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
18	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)
18	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)
19	15400-PR3-305	Cartridge set - OIL FILTER (TOYO ROKI)
20	15650-PT0-003	Gauge comp. - OIL LEVEL
21	90015-PH1-013	Holder - OIL FILTER
22	90018-PT0-010	Bolt - BALANCER BELT ADJUSTER
23	90023-PT0-003	Bolt-washer - 8X33
24	90041-PA5-000	Bolt - STUD, 6X28
25	90052-PK1-000	Bolt - FLANGE, 6X25
26	90063-PC6-000	Bolt - STUD, 6X25
27	90703-PT0-000	Dowel pin - 49X10
28	91212-PT0-003	Oil seal - 40X52X7 (NOK)
28	91212-P0A-004	Oil seal - 40X52X7 (ARAI)
29	91233-PT0-003	Oil seal - 27X40X8 (NOK)
30	91309-PJ7-010	O-ring - 11.5X3.5
31	91313-PC9-003	O-ring - 9X2.3(NOK)
31	91313-PC9-004	O-ring - 9X2.3 (ARAI)

P.s. gear box (LH) 11

#	OEM	部品名
1	53436-SM4-000	Cushion b - POWER STEERING GEAR BOX
2	53438-SM4-000	Bracket b - STEERING GEAR BOX
3	53459-SH3-A50	Stay - TRANSFER TUBE
4	53501-SM4-000	Grommet a - STEERING
5	53502-SM4-010	Grommet b - STEERING
6	53601-SM4-A05	Box assy - POWER STEERING GEAR
7	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
8	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
9	53692-SM4-A02	Guard - SPLASH
10	53760-SM4-000	Rubber - GEAR BOX
11	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)

P.s. gear box components (LH) 65

#	OEM	部品名
1	53412-634-000	O-ring - RACK GUIDE (YAMADA)
2	53413-SD4-951	Spring - RACK GUIDE PRESSURE
3	53414-634-010	Screw - RACK GUIDE
4	53416-SF1-951	Guide - STEERING RACK
5	53426-SE0-951	Dust seal - STEERING PINION
6	53458-SE0-003	Nut - RACK SCREW LOCK
6	53458-S01-A51	Nut - LOCK
7	53608-SM4-A03	Housing sub assy. - STEERING GEAR BOX (###)
8	53611-SM4-003	Cylinder comp
9	53612-SM4-000	Barrel - CYLINDER
10	53613-SK7-950	Retainer - PACKING
11	53614-SM4-000	Cap - CYLINDER
12	53615-SD4-950	Washer - RETAINER
13	53617-SF1-950	Port - ORIFICE
14	53622-SM4-A01	Pinion - STEERING
15	53625-SM4-950	Cap - GEAR BOX HOUSING
16	53626-SM4-A01	Rack comp - STEERING
17	53629-SF1-J61	Ring - PISTON SEAL (NOK)
18	53630-SM4-000	Spring - CYLINDER
19	53631-SM4-003	Bush a - STEERING RACK
20	53632-SF1-951	Bushing b - STEERING RACK
21	53633-SK7-951	Packing - CYLINDER END (NOK)
22	53634-SF1-951	Clip - BUSH STOPPER
23	53640-SM4-A03	Body unit - VALVE
24	53643-SM4-A00	Port comp. - VALVE
25	53645-SK7-A50	Cap - VALVE BODY
26	53647-SM4-010	Spool - FOUR WAY
27	53650-SK7-J51	Valve - GAIN CONTROL
28	53658-SM4-000	Orifice - SENSOR
29	53660-SK7-J52	Seal - PORT (ARAI)
29	53660-SK7-J51	Seal - PORT (NOK)
30	53661-SK7-J52	Seal - CAP (ARAI)
30	53661-SK7-J51	Seal - CAP (NOK)
31	53666-SK7-A51	Plunger - DIAMETER=8MM
32	53667-SM4-020	Spring - RETURN
33	53687-SK7-J50	Spring - GAIN CONTROL VALVE
34	53790-SK7-J51	Valve - PRESSURE CONTROL
35	90102-SK7-J50	Bolt - POWER STEERING VALVE
36	90655-SH3-000	Circlip - EXTERNAL, 12MM (TOPY PRECISION)
37	90684-SD4-950	Ring - SNAP, 31MM
38	90693-SE0-951	Circlip - INTERNAL, 28MM
39	90697-SA5-003	Circlip - EXTERNAL, 31MM
40	91052-SL5-A01	Bearing - RADIAL BALL, 6906/31ZZ
41	91053-SM4-951	Bearing - RADIAL BALL, 6001ZZ
42	91103-429-000	Dowel pin - 8X10
43	91154-SK7-J51	Roller - 3.5X31.8 (NTN)
44	91202-SM4-003	Ring - BACK UP
45	91350-671-004	O-ring - 3.4MM (NOK)
45	91350-671-003	O-ring - 3.4MM (ARAI)
45	91305-MCJ-751	O-ring (3.2x1.1)
46	91352-SF4-951	O-ring - 9.8X1.9 (NOK)
46	91318-PT0-003	O-ring - 9.8X1.9 (NOK)
47	91353-SA5-951	O-ring - 11X1.9 (ARAI)
48	91354-SD4-952	O-ring - 27.5X2 (ARAI)
48	91354-SD4-951	O-ring - 27.5X2 (NOK)
49	91360-SM4-003	O-ring - 54.5X2.4 (NOK)
49	91360-SM4-004	O-ring - 54.5X2.4 (ARAI)
50	91361-SA5-951	O-ring - 46X1.5 (ARAI)
50	91361-SA5-952	O-ring - 46X1.5 (NOK)
51	91362-SE0-951	O-ring - 45.5X2 (ARAI)
51	91362-SE0-952	O-ring - 45.5X2 (NOK)
52	91364-SF1-J62	O-ring - 33.5X2.4 (ARAI)
52	91364-SF1-J61	O-ring - 33.5X2.4 (NOK)
53	91385-SF1-J62	O-ring - 39X1.5 (ARAI)
53	91385-SF1-J61	O-ring - 39X1.5 (NOK)

P.s. line 42

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-SM4-023	Tank comp. - POWER STEERING OIL
3	53703-SM4-050	Pipe comp. a - SENSOR RETURN (10MM)
4	53711-SM4-010	Bracket assy - OIL TANK
5	53713-SM4-A11	Hose comp. - FEED
7	53720-SM4-A07	Pipe - RETURN, 10MM
9	53723-SM4-013	Clip - RETURN, 6MM
10	53724-SM4-A00	Pipe comp - RETURN, 6MM
12	53725-SM4-030	Hose - SPEED SENSOR INLET
13	53726-SM4-A01	Pipe comp - SENSOR
15	53727-SM4-030	Tube a - SPEED SENSOR RETURN
17	53729-SE0-951	Clip - RETURN PIPE, 10MM
18	53729-671-003	Clamp d - 15.5MM
19	53730-SM4-900	Clamp - FEED HOSE
20	53731-SM4-030	Tube - SUCTION
21	53732-SM4-050	Hose - OIL COOLER IN.
22	53733-SM4-000	Tube - OIL COOLER RETURN
23	53734-SM4-A02	Hose - COMBINATION PIPE IN.
25	53735-SM4-050	Tube - OIL COOLER RETURN (B)
26	53736-SM4-010	Holder b - POWER STEERING PIPE
27	53737-SM4-010	Tube - COMBINATION PIPE RETURN
29	53740-SE0-953	Clip - SENSOR HOSE
30	53740-SM4-000	Clamp - RETURN HOSE (A)
31	53741-SM4-010	Holder c - POWER STEERING PIPE
32	53742-SM4-A01	Rubber - POWER STEERING PIPE
34	53745-SM4-000	Tube b - SPEED SENSOR RETURN
35	53746-SM4-A01	Clamp - RETURN PIPE, 10MM
36	53748-SM4-000	Rubber - MOUNTING
37	53753-SM4-013	Clip - RETURN HOSE
39	53765-SM4-070	Cooler comp - POWER STEERING OIL
40	53775-SM4-A01	Tube c - DRAIN
41	53779-SM4-080	Pipe comp - POWER STEERING COMBINATION
42	56490-PT0-023	Switch assy - POWER STEERING PRESSURE
43	90188-SM4-000	Bolt - FLANGE, 6X12 (BLACK)
44	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
44	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
45	90854-SM4-000	Collar - OIL TANK
46	91304-PA6-003	O-ring - 7.8X1.9
47	91370-SM4-004	O-ring - 11X1.9 (ARAI)
47	91370-SM4-003	O-ring - 11X1.9 (NOK)
48	91410-SA1-950	Clip - SENSOR HOSE
49	91462-SA5-950	Clamp d - 19MM

P.s. pump 28

#	OEM	部品名
1	31114-PL2-000	Bolt - TENSIONER
2	56110-PT0-050	Pump sub assy - POWER STEERING
3	56250-PT0-310	Cover comp. - FR. PUMP (###)
4	56360-PC1-010	Spool assy. - B) (0 / +0.006) (###
4	56350-PC1-010	Spool assy. - A) (-0.005 / 0) (###
5	56385-PT0-000	Spring - SPOOL (###)
6	56471-PT0-000	Cover - PORT HOUSING (###)
7	56472-PT0-300	Cover - PORT HOUSING (B) (###)
8	56483-PV0-000	Pulley - POWER STEERING PUMP
9	56500-PT3-010	Sensor assy - POWER STEERING
10	56992-PT0-J02	Belt - POWER STEERING PUMP (BANDO)
11	56994-PT9-000	Bracket - POWER STEERING PUMP
12	56998-PT0-000	Stay - POWER STEERING PUMP ADJUSTER
13	90001-PC1-000	Bolt - FLANGE, 6X78
14	90011-PT0-000	Bolt-washer - 8X26
15	90305-PT0-000	Nut - POWER STEERING PULLEY
16	90306-PT0-000	Key - POWER STEERING PULLEY
17	90311-PT0-000	Bolt - ADJUSTER SPECIAL
18	90701-679-000	Dowel pin - 8X10
19	91201-PT0-003	Oil seal - 20X34X7 (NOK)
20	91303-PT0-004	Seal - HOUSING (ARAI)
21	91304-PT0-000	O-ring - 14.8X1.9
22	91305-PT0-003	Seal - PLUNGER (NOK)
23	91306-PT0-004	Seal - FR. COVER (ARAI)
24	91313-611-010	O-ring - 23.5X2
25	91317-PT0-003	O-ring - 3.8X1.9 (NOK)
26	91318-PT0-003	O-ring - 9.8X1.9 (NOK)
27	91322-PT0-003	O-ring - 17.8X1.9 (NOK)

Parking brake 15

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
3	47142-671-010	Knob - PARKING BRAKE PUSH ROD
4	47143-SD4-300	Spring - PUSH ROD
5	47342-SM4-000	Switch - PARKING BRAKE
6	47360-SB2-000	Equalizer
7	47365-538-000	Pin - EQUALIZER
8	47510-SM1-A53	Wire a - R. PARKING BRAKE
9	47522-594-000	Nut - PARKING BRAKE ADJUSTING
10	47537-671-670	Spring - PARKING BRAKE ROD
11	47560-SM1-A52	Wire a - L. PARKING BRAKE
12	47572-SE0-300	Base - WIRE GUIDE
13	74656-SM4-010	Bracket - TANK BAFFLE PLATE
14	90115-SB2-003	Nut - SELF-LOCK, 8MM
15	90651-538-000	Clip - BRAKE HOSE
16	90705-SD2-931	Pin - SNAP, 6MM

Pedal (LH) 32

#	OEM	部品名
1	17800-SM4-A00	Pedal comp - ACCELERATOR
3	17812-SA7-010	Washer - ACCELERATOR PEDAL
4	17814-SM4-000	Spring - ACCELERATOR PEDAL
5	17816-SF1-000	Cover - ACCELERATOR PEDAL
6	17910-SM4-A31	Wire - THROTTLE
7	17921-SA4-730	Seal - THROTTLE CABLE
8	17931-SM4-A00	Stay - THROTTLE WIRE
9	17934-SM4-A01	Clamp - THROTTLE
13	35350-SE0-A03	Switch assy - STOP (TEC)
14	46500-SM4-A00	Pedal assy - BRAKE
16	46504-SL5-A01	Bush - PEDAL
17	46504-679-300	Bush - PEDAL
18	46505-SA5-000	Pad - PEDAL STOPPER
19	46530-SM4-000	Spring assy - PEDAL RETURN
20	46535-SM4-000	Collar - PEDAL
21	46545-SA5-000	Cover, Pedal
23	46590-SM4-A01	Bracket - PEDAL
24	46904-SM4-300	Pad - ACCELERATOR STOPPER
25	46905-SM4-300	Bolt - ACCELERATOR STOPPER
26	46910-SM4-G02	Pedal comp - CLUTCH
27	46911-SD4-930	Bush - PEDAL PIN
28	46914-SM4-300	Cap - ACCELERATOR
29	46936-SM4-000	Collar - CLUTCH PEDAL
30	46980-SD4-930	Spring - CLUTCH ASSISTANT
31	46981-SD4-930	Bush a - CLUTCH ASSISTANT
32	46982-SD4-930	Bush b - CLUTCH ASSISTANT
33	46990-SM4-940	Bracket - CLUTCH PEDAL
34	46991-SM4-A02	Bracket - FOOTREST
35	75891-611-000	Cover - DOOR SWITCH
36	90212-671-005	Nut - SELF-LOCK, 10MM
37	90382-SM4-000	Nut - HEX. CAP, 6MM
38	90855-SA0-000	Plug - VENTILATION HOLE, 20MM

Pillar garnish 9

#	OEM	部品名
1	38205-SM5-G01	Label - FUSE
1	38205-SM5-F01	Label - FUSE
3	66856-SA0-660	Lock - FUSE PANEL
4	66857-SA0-660	Spring - FUSE PANEL
15	90601-836-000	E-ring - 4MM
16	90609-SG0-003	Clip - PILLAR GARNISH
17	90611-SM4-013	Clip - PILLAR GARNISH
18	90666-SM2-003	Clip - PILLAR GARNISH
19	91580-SF9-003	Clip - COWL SIDE

Piston/crankshaft 48

#	OEM	部品名
1	13031-PT0-B04	Ring set - PISTON (OS 0.50) (RIKEN)
1	13021-PT0-B03	Ring set - PISTON (OS 0.25) (TEIKOKU)
1	13031-PT0-B03	Ring set - PISTON (OS 0.50) (TEIKOKU)
1	13011-PT4-X04	Ring set - PISTON (STD.)(RIKEN)
1	13021-PT0-B04	Ring set - PISTON (OS 0.25) (RIKEN)
2	13102-PT5-G01	Piston b
2	13105-PT5-G01	Piston - OS 0.50
2	13101-PT5-G01	Piston a
2	13103-PT5-G01	Piston - OS 0.25
3	13112-PT0-000	Pin - PISTON
4	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)
4	13205-634-010	Nut
5	13210-PT1-000	Rod comp - CONNECTING
6	13214-PC6-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
6	13212-PC6-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
6	13217-PD2-004	Bearing g - CONNECTING ROD (RED) (TAIHO)
6	13215-PC6-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
6	13213-PC6-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
6	13216-PC6-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
6	13211-PD2-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
6	13217-PC6-003	Bearing g - CONNECTING ROD (RED) (DAIDO)
6	13214-PD2-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
6	13212-PD2-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
6	13215-PD2-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
6	13213-PD2-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
6	13211-PC6-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
6	13216-PD2-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13213-463-003	Bolt - CONNECTING ROD (NAGOYA RASHI)
8	13310-PT1-000	Crankshaft comp.
9	13325-PT0-003	Bearing e - MAIN (PINK) (DAIDO)
9	13321-PT0-003	BEARING A - MAIN (BLACK) (DAIDO)
9	13322-PT0-003	Bearing b - MAIN (BROWN) (DAIDO)
9	13323-PT0-003	Bearing c - MAIN (GREEN) (DAIDO)
9	13324-PT0-003	Bearing d - MAIN (YELLOW) (DAIDO)
10	13331-PT0-003	Washer - THRUST (DAIDO)
11	13400-PT1-010	Shaft comp. - RR. BALANCER
12	13401-PT1-010	Shaft - FR. BALANCER
13	13402-PT7-A01	Pulley b - FR. TIMING BELT DRIVEN
14	13406-PT0-003	Metal f - THRUST BALANCER SHAFT
15	13408-PT0-003	Pulley - BALANCER BELT DRIVE
16	13621-PT0-003	Pulley - TIMING BELT DRIVE
17	13622-PT0-000	Plate - TIMING BELT GUIDE
18	13810-PT1-003	Pulley comp - CRANKSHAFT (NOK)
19	90017-PT0-003	Bolt-washer - 14X33
20	90019-PT0-000	Bolt - FLANGE, 6X18
21	90031-PT0-003	Bolt-washer - 8X22
21	90032-ZW5-003	Bolt-washer, 8x22
22	90704-PT0-000	Key - 4.5X38.5

Protector 26

#	OEM	部品名
1	71800-SM2-000	Garnish assy - R. SIDE SILL
2	71850-SM2-000	Garnish assy - L. SIDE SILL
3	74430-SM4-A00	Protector - RR. WHEEL ARCH
4	74553-SM4-A00	Protector - R. RR. WHEELHOUSE
5	74559-SM1-A00	Cover - FUEL PIPE
6	75301-SM4-901	Protector comp - R. FR. FENDER
7	75302-SM2-902	Protector comp - R. FR. DOOR
8	75304-SM2-901	Protector comp - R. RR. FENDER
9	75305-SM4-A01	Clip assy. - FENDER
10	75321-SM4-901	Protector comp - L. FR. FENDER
11	75322-SM2-902	Protector comp - L. FR. DOOR
12	75324-SM2-901	Protector comp - L. RR. FENDER
13	75328-SM4-901	Clip b - MOLDING
14	75329-SH4-013	Clip b - MOLDING
15	75800-SM4-013	Mudguard - R. FR.
16	75807-671-010	Nut - SIDE PROTECTOR (BLACK)
17	75810-SM4-013	Mudguard - L. FR.
20	90114-SE0-000	Screw - TAPPING, 5X20
23	90308-SB2-013	Nut - SUSPENSION, 5MM
25	90330-SM4-000	Nut - SUSPENSION, 5MM
26	90331-SD5-003	Nut - SPRING, 5MM
27	90505-SM4-003	Clip - GARNISH
27	90505-SX0-003	Clip - GARNISH
28	90682-SB0-003	Grommet - SCREW, 5MM
29	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH
30	91545-SE0-003	Clip assy. - 8MM

Radiator (DENSO) 16

#	OEM	部品名
1	19010-PT0-013	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19014-PK1-003	Clip - HARNESS
5	19015-PT0-003	Shroud comp - DENSO
7	19020-PT0-003	Fan - COOLING (DENSO)
8	19030-PT0-003	Motor - COOLING FAN (DENSO)
9	19033-PT0-013	Stay - COUPLER (DENSO)
10	19045-PT0-003	Cap comp - DENSO
10	19045-PT0-004	Cap comp - TOYO
11	19046-PV1-000	Seal - CAP
12	90041-PH2-003	Screw-washer - 4X10 (DENSO)
13	90042-PH2-003	Bolt-washer - 6X16 (DENSO)
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)
15	90201-PT0-003	Nut - SQUARE

Radiator hose 14

#	OEM	部品名
1	19101-PT0-000	Tank - RESERVE
2	19103-PT0-000	Hose - RESERVE TANK
3	19104-PT0-000	Tube - RESERVE TANK
4	19110-PT0-000	Cap set - RESERVE TANK
5	19115-PT0-000	Bracket - RESERVE TANK
6	19501-PT0-000	Hose - WATER UPPER
7	19502-PT0-000	Hose - WATER LOWER
8	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
9	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
10	19519-PT0-000	Clamp - LOWER HOSE
16	74171-SM4-000	Bracket - RADIATOR MOUNT
17	74172-SM4-000	Cushion - RADIATOR MOUNTING LOWER
18	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
20	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Radio antenna/speaker 15

#	OEM	部品名
1	39112-SM4-000	Bracket - FR. SPEAKER SEAL
2	39120-SM4-A22	Speaker assy - 16CM SINGLE) (JENSEN
3	39120-SM5-A41	Speaker assy - 160MM DUAL CONE)(ALPINE
8	39150-SM4-F02	Antenna assy - MOTOR (MATSUSHITA)
9	39151-SM4-003	Bracket - MOTOR ANTENNA
10	39152-SM4-003	Mast assy.
11	39154-SG0-003	Nut
12	39155-SF1-003	Pad
13	39155-SM4-F02	Motor assy.
14	39156-SM4-A01	Insulator
15	39159-SM4-A01	Sub feeder - ANTENNA
16	90662-693-003	Grommet - SCREW, 4MM (BLUE)
17	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
18	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
19	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Rear brake 52

#	OEM	部品名
1	42200-SM4-J51	Bearing assy - RR. HUB UNIT (NTN) (ABS)
2	42324-SB2-020	Washer - HUB UNIT
3	42326-SG0-000	Cap - HUB UNIT
4	42510-SM4-950	Disk - RR. BRAKE
5	43022-SM4-G00	Pad set - RR.
6	43210-SM4-G04	Caliper assy - R. RR. (NISSIN) (9CLP-14S)
7	43214-SM4-951	Boot - PISTON
8	43215-SM4-951	Piston assy.
9	43218-SD2-931	Cup
10	43223-SD2-932	BEARING A
11	43224-SD2-931	Spring b - ADJUSTING
12	43224-SM4-951	Shim - BRAKE PAD OUTER
13	43225-SG0-003	Shim - BRAKE PAD INNER
14	43227-SG0-013	Spring - PAD
15	43228-SD2-933	Shaft a
16	43229-SD2-931	Rod
17	43230-SM4-G04	Caliper assy - L. RR. (NISSIN) (9CLP-14S)
18	43232-SD2-931	O-ring
19	43233-SD2-931	Piston comp - SLEEVE
20	43234-SD2-931	Cover - DUST
20	43234-S04-003	Cover - DUST
21	43235-SD2-931	Pin a
22	43236-SD2-931	Spacer
22	43236-S04-003	Spacer
23	43238-SF1-003	Ring - RETAINING
24	43241-SF1-003	Guide - SPRING
25	43242-SD2-933	Cover - SHAFT
26	43243-SD2-931	Nut - PARKING
27	43244-SG0-003	Retainer
28	43245-SM4-950	Lever
29	43246-SE0-931	Spring - R. RETURN
30	43247-SE0-931	Arm - R.
31	43248-SD2-933	Shaft b
32	43249-SM4-951	Bolt - ADJUSTER
33	43253-SM4-952	Guard - R. RR. SPLASH (ABS)
33	43253-SM4-953	Splash guard r rr
34	43254-SM4-952	Guard - L. RR. SPLASH (ABS)
35	43255-SM4-954	Protector - R. RR. CALIPER
36	43256-SM4-954	Protector - L. RR. CALIPER
37	43262-SD2-931	Pin b
37	43262-S84-A51	Pin b
38	43266-SE0-931	Spring - L. RETURN
39	43267-SE0-931	Arm - L.
40	43352-SM4-951	Screw - BLEEDER
41	43353-SA0-003	Cap - BLEEDER SCREW
41	43353-SD5-003	Cap - BLEEDER SCREW
42	45209-961-006	Seal - PISTON
43	45240-SC2-003	Bolt - FLANGE, 8X22
44	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
44	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
44	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
45	90305-692-010	Nut

Rear seat 7

#	OEM	部品名
2	82125-SM2-J02	Seatback - RR.
4	82135-SM2-J01	Cushion - RR. SEAT
5	82137-SE3-004	Rubber - RR. CUSHION SETTING
6	82220-SM4-A01	Lock assy - RR. SEAT
7	82225-SM4-A02	Bracket - RR. SEAT CYLINDER
9	82290-SM2-J02	Bracket comp. - SEAT PIVOT
11	90003-692-000	Bolt - FLANGE, 6X16

Rear shock absorber 22

#	OEM	部品名
1	52441-SM2-E51	Spring - RR.
2	52610-SM2-E52	Absorber assy - R. RR. SHOCK
3	52611-SM2-E52	Absorber unit - RR. SHOCK
3	52611-SM4-913	Absorber unit - RR. SHOCK
4	52620-SM2-E52	Absorber assy - L. RR. SHOCK
5	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
6	52675-SM4-004	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)
6	52675-SM1-A02	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA U.S.A)
7	52686-SM4-004	Rubber - RR. SPRING SEAT (SHOWA)
7	52686-SM1-A02	Rubber - RR. SPRING SEAT (SHOWA U.S.A.)
8	52687-SM1-A02	Cover comp. - RR. SLEEVE DUST (SHOWA U.S.A.)
8	52687-SM4-004	Cover comp. - RR. SLEEVE DUST (SHOWA)
9	52688-SE0-003	Plate - RR. BUMP STOP
10	52690-SG0-000	Plate - BUMP STOP
11	52722-SM4-013	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
12	52725-SM1-A02	Rubber - RR. SHOCK ABSORBER MOUNTING (YUSA)
12	52725-SB2-013	Rubber - RR. SHOCK ABSORBER MOUNTING (YAMASHITA)
13	52728-SM1-A02	Collar - RR. SHOCK ABSORBER MOUNTING (SHOWA)
13	52728-SB2-004	Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA)
14	52748-SM4-014	Rubber - SPRING SEAT (SHOWA)
15	90021-SM4-003	Bolt - SHOCK ABSORBER, 10X68
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear stabilizer/ rear lower arm 64

#	OEM	部品名
1	51464-SK7-003	Boot - UPPER BALL JOINT
2	52111-SM4-911	Knuckle comp - R. RR. (DISK)
3	52116-SM4-911	Knuckle comp - L. RR. (DISK)
4	52212-SM4-910	Bracket a - R. RR. KNUCKLE (DISK)
5	52213-SM4-010	Protector - RR. KNUCKLE
6	52214-SM4-000	Bracket b - RR. KNUCKLE
7	52217-SM4-910	Bracket a - L. RR. KNUCKLE (DISK)
8	52300-SM1-A01	Spring - RR. STABILIZER
9	52306-SE0-A00	Link - RR. STABILIZER
10	52308-SE0-020	Bracket - RR. STABILIZER BUSH
11	52309-SE0-000	Washer - RR. STABILIZER END
12	52310-SE0-003	Shaft - STABILIZER LINK
13	52312-SE0-000	Collar - STABILIZER INNER BUSH END
14	52315-SJ4-000	Bush - RR. STABILIZER
15	52316-SA5-000	Bush - STABILIZER END
16	52317-SM4-A00	Bracket - R. RR. STABILIZER
17	52318-SM4-A00	Bracket - L. RR. STABILIZER
18	52338-SL0-003	Circlip - CONTROL ARM
19	52345-SM4-A00	Arm comp - R. RR. LOWER (A)
20	52350-SM4-A00	Arm comp - L. RR. LOWER (A)
21	52355-SM4-A10	Arm comp - R. RR. LOWER (B) (ABS)
22	52360-SM4-A10	Arm comp - L. RR. LOWER (B) (ABS)
23	52364-634-020	Washer - LOWER ARM
24	52365-SM4-004	Bush a - RR. LOWER ARM (YAMASHITA)
24	52365-SM1-A01	Bush a - RR. LOWER ARM (YUSA)
25	52366-SM4-004	Bush ad - RR. LOWER ARM (YAMASHITA)
25	52366-SM1-A01	Bush ad - RR. LOWER ARM (YUSA)
26	52366-SM4-003	Bolt - KNUCKLE (12X221)
27	52367-SM4-004	Bush b - RR. LOWER ARM (YAMASHITA)
27	52367-SM1-A01	Bush b - RR. LOWER ARM (YUSA)
28	52368-SM4-004	Bush bd - RR. LOWER ARM (YAMASHITA)
28	52368-SM1-A01	Bush b - RR. LOWER ARM (YUSA)
29	52371-SM4-A00	Arm assy. - R. RR. TRAILING
30	52372-SM4-A00	Arm assy. - L. RR. TRAILING
31	52387-SE0-023	Bolt - LOWER ARM ADJUSTING
32	52388-SE0-030	Plate - CAM
33	52390-SM1-A03	Arm comp - R. RR. UPPER
33	52390-SM4-043	Arm comp - R. RR. UPPER
34	52400-SM1-A03	Arm comp - L. RR. UPPER
34	52400-SM4-043	Arm comp - L. RR. UPPER
35	52622-SM4-014	Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA)
35	52622-SM4-003	Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN)
36	52677-SM4-A00	Bracket - R. RR. TRAILING ARM
37	52678-SM4-A00	Bracket - L. RR. TRAILING ARM
38	57470-SM4-952	Sensor assy - R. RR.
39	57475-SM4-952	Sensor assy - L. RR.
40	90020-SM4-003	Bolt - TRAILING ARM, 12X83.5
41	90022-SM4-003	Bolt - TRAILING ARM BRACKET, 12X69
42	90023-SM4-003	Bolt - TRAILING ARM BRACKET, 12X55.5
43	90024-SM4-000	Bolt a - TRAILING ARM (10X57)
44	90025-SG0-000	Bolt - FLANGE, 10X45
45	90026-SM4-000	Bolt b - TRAILING ARM (10X45)
46	90028-SM4-000	Bolt - TRAILING, 8X19
47	90230-SB0-950	Bolt-washer - 6X12 (GREEN)
48	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
49	90119-SM4-003	Bolt - RR. LOWER ARM, 12X66
50	90128-SM4-952	Bolt - SENSOR LOCK, 8X20
51	90212-SA7-010	Nut - SELF-LOCK, 10MM
52	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
53	90216-SE0-010	Nut
53	90216-SE0-305	NUT, LWR ARM
54	90217-SM4-003	Nut - TRAILING ARM, 10MM
56	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
57	90438-SE0-000	Washer - TRAILING, 12MM

Rear windshield 25

#	OEM	部品名
1	73211-SM2-N00	Glass - RR. WINDSHIELD (GREEN)
2	73225-SM2-A00	Rubber - RR. WINDSHIELD DAM
3	73226-SM4-000	Spacer - RR. WINDSHIELD
4	73251-SM2-A01	Molding - RR. WINDSHIELD UPPER
5	73252-SM2-A01	Molding assy. - R. RR. WINDSHIELD SIDE & CORNER
6	73256-SM2-003	Clip - RR. WINDSHIELD CORNER
7	73262-SM2-A01	Molding assy. - L. RR. WINDSHIELD SIDE & CORNER
8	73266-SM4-A01	Joint - CENTER
9	73511-SM2-A01	Glass - R. QUARTER
11	73525-SM2-A00	Washer - QUARTER PIN
12	73526-SM2-A00	Cover - QUARTER PIN INSIDE
13	73527-SM2-A00	Seal - QUARTER PIN (A)
14	73528-SM2-A00	Seal - QUARTER PIN (B)
15	73529-SM2-A00	Pin - QUARTER LOCK
16	73532-SM2-A01	Hinge - QUARTER WINDOW UPPER
17	73533-SM2-A01	Hinge - QUARTER WINDOW LOWER
19	73561-SM2-A01	Glass - L. QUARTER
20	90116-SM2-000	Screw - SPECIAL, 5X18
21	90801-SM2-A01	Plug - QUARTER HINGE
22	91526-SM2-004	Holder - RR. WINDSHIELD LOWER
23	91529-SM2-003	Clip - RR. UPPER (WHITE)
24	91530-SM4-003	Clip - RR. WINDSHIELD SIDE MOLDING
25	91535-SM4-003	Clip - RR. WINDSHIELD UPPER MOLDING (BLACK)
26	91541-SM4-003	Clip assy. - RR. WINDSHIELD SIDE MOLDING (BLUE)
27	91621-SM2-004	Base - QUARTER HINGE

Relay/control unit 5

#	OEM	部品名
2	30700-SM4-A01	Resistor assy.
3	37740-PT3-A01	Timer - RADIATOR FAN (SHINDENGEN)
3	37740-PT7-A02	Timer - RADIATOR FAN (MOTOROLA)
4	37820-PT5-X01	Control module - ENGINE
5	37821-PT6-A00	Cover comp. - L. CONTROL MODULE, ENGINE

Relay/horn/fuse box 53

#	OEM	部品名
1	32121-SM4-003	Bracket a - FUSE BOX
2	32122-SM4-003	Bracket b - FUSE BOX
3	32123-SM4-003	Bracket c - FUSE BOX
4	32502-SM4-003	Fuse - F7.5) (LITTEL
5	32503-SM4-003	Fuse - F10) (LITTEL
6	32504-SM4-003	Fuse - F15)(LITTEL
7	32505-SM4-003	Fuse - F20) (LITTEL
8	32507-SM4-003	Fuse - F30) (LITTEL
11	38100-SR3-013	Horn assy - LOW (MITSUBA)
12	38101-SM4-E00	Bracket - R. HORN
13	38150-SR3-003	Horn assy - HIGH (MITSUBA)
14	38151-SM4-A10	Bracket - L. HORN
15	38200-SM5-G81	Box assy - FUSE
16	38207-SG0-A81	Cover - FUSE (YELLOW)
17	38211-SM4-000	Fuse - BLOCK (30A)
18	38212-SM4-000	Fuse - BLOCK (40A)
19	38213-SM4-000	Fuse - BLOCK (50A)
20	38216-SM4-000	Fuse - BLOCK (80A)
21	38235-SA5-003	Puller - FUSE (SUMITOMO)
22	38250-SM4-G50	Box assy - RELAY
22	38250-SM4-F50	Box assy - RELAY
23	38251-SM4-003	Cover - UPPER
24	38251-SM4-010	Bracket - RELAY BOX
25	38252-SM4-003	Cover - LOWER
26	38253-SM4-G01	Label
26	38253-SM4-F01	Label
27	38255-SE0-003	Band - LOWER COVER
28	38300-SE3-003	Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA)
28	38300-SE3-004	Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO)
30	38380-SM4-G02	Control unit - AUTO DOOR LOCK
31	38600-SM4-G01	Control unit - INTEGRATED
31	38600-SM4-X01	Control unit - INTEGRATED (SUMITOMO)
32	39400-SM4-003	Relay assy - MAIN (MITSUBA) (RZ-0088)
33	39700-SM1-A01	Clock assy - DIGITAL (BORG)
33	39700-SM4-A01	Clock assy - DIGITAL (NS)
34	39762-SB0-004	Relay assy - POWER (5P) (056700-6710) (DENSO)
35	39762-SG0-003	Relay assy - POWER (5P) (DENSO) (056700-8160)
36	39792-SM1-A01	Relay assy - POWER (4P) (UNITED TECHNOLOGIES)
37	39792-SM4-003	Relay assy - POWER (4P NO.305) (DENSO) (056700-9340)
37	39792-SM4-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H)
38	39792-SP0-004	Relay assy - POWER (4P) (MITSUBA) (12V NO)
39	39793-SE3-004	Relay assy - POWER (5P) (058700-1081) (DENSO)
39	39793-SE3-003	Relay assy - POWER (5P) (MITSUBA)
40	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
40	39794-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2203)
41	39797-SM4-003	Relay assy - POWER (4P) (MITSUBA) (RC-2223)
42	90114-SM4-900	Bolt - 6X15
43	90137-SF1-000	Bolt-washer - 6X25
44	90138-SM4-003	Bolt-washer - 8X14
45	90153-SA5-900	Screw-washer - 5X9
46	90182-SB6-000	Bolt-washer - 6X16
47	90301-SM4-901	Nut - SPRING, 6MM
48	90662-693-003	Grommet - SCREW, 4MM (BLUE)

Roof lining 5

#	OEM	部品名
1	32155-SM4-J00	Cord - INTERIOR
5	90609-SM4-003	Clip - ROOF LINING
6	90667-SD4-003	Clip - ROOF LINING
7	90673-SE0-003	Clip - ROOF LINING
8	91550-SM4-003	Clip - WIRE HARNESS

Seatbelt 6

#	OEM	部品名
3	81491-SM2-A00	Protector - FR. SEATBELT
4	81491-SM4-A00	Protector - R. SEATBELT
5	81495-SM2-J00	Guide - WEBBING SHOULDER
7	81891-SM4-A00	Protector - L. SEATBELT
12	84136-SM4-A00	Seal - SEATBELT HOLE
13	90344-692-003	Nut - CLIP, 6MM

Shift arm 18

#	OEM	部品名
1	24411-PX5-010	Arm - SHIFT
1	24411-PX5-000	Arm - SHIFT
2	24431-PX5-000	Interlock comp.
3	24433-PX5-000	Bolt - INTERLOCK
4	24440-PK5-000	Cam comp - REVERSE LOCK
5	24460-PX5-010	Lever comp - SELECT
6	24463-PK5-000	Pin - SELECT RETURN
7	24464-PX5-000	Spring - SELECT RETURN
8	24465-PX5-000	Spring - FIFTH & REVERSE SELECT
9	24470-PX5-000	Lever comp - SHIFT
10	24474-PK5-000	Boot - SHIFT LEVER
11	24480-PK5-000	Arm comp - SELECT
12	90028-PB6-010	Bolt - SPECIAL, 6X22.5
13	90029-PX5-010	Bolt - SPECIAL, 8X24
14	90406-PX5-010	Washer - LOCK
15	91209-PE9-005	Dust seal - 16X23X5(NOK)
15	91209-PE9-003	Dust seal - 16X23X5(ARAI)
16	91215-PK5-000	Oil seal - 16X27X14

Shift fork 10

#	OEM	部品名
1	24200-PX5-J01	Fork comp - FIFTH GEARSHIFT
2	24210-PX5-J00	Fork comp - GEARSHIFT (3-4)
2	24210-PX5-J01	Fork comp - GEARSHIFT (3-4)
3	24220-PX5-J00	Fork comp - GEARSHIFT (1-2)
3	24220-PX5-J01	Fork comp - GEARSHIFT (1-2)
4	24230-PX5-J00	Holder comp - REVERSE SHIFT
5	24243-PX5-J00	Piece - FIFTH & REVERSE SHIFT
6	24452-PX5-000	Spring a - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 33

#	OEM	部品名
1	54101-SM4-020	Lever - CHANGE
3	54105-SM4-020	Bracket - CHANGE LEVER
4	54109-SC2-003	Bush b - CHANGE LEVER
5	54110-SF1-003	Seat - CHANGE LEVER BALL
6	54111-SM4-000	Holder - CHANGE BALL
7	54112-SM4-010	Pivot - CHANGE LEVER
7	54112-SV4-000	Pivot - CHANGE LEVER
8	54113-SM4-000	Bush - CHANGE PIVOT
9	54114-SM4-003	Guide - CHANGE LEVER PIVOT
10	54115-SM4-020	Linkage - CHANGE LEVER
11	54117-SM4-003	Rubber a - FLOATING
12	54118-SH9-000	Rubber b - FLOATING
13	54118-SM4-020	Washer assy. - WIRE
14	54119-SM4-000	Collar - FLOATING
15	54140-SM4-000	Housing - CHANGE LEVER
16	54141-SM4-000	Collar - SELECT LINK
17	54210-SM4-000	Bush c - CHANGE LEVER
18	54211-SD9-010	Ball - CUSHION
19	54310-SM4-003	Wire comp - CHANGE
20	54340-SC2-000	Washer - WAVE
21	54357-SF1-003	Plate - CHANGE WIRE
22	90101-SM4-900	Bolt-washer - 8X45
23	90114-SA0-000	Nut - SELF-LOCK, 6MM
24	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
25	90136-SM4-901	Nut - SELF-LOCK, 5MM
26	90156-SM4-000	Bolt-washer - 6X20
27	90365-SM4-980	Nut - JOINT
28	90551-SM4-000	Washer - SHIFT WIRE
29	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
30	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
31	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
32	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)
33	91301-SD9-000	O-ring - 2.3X24.5

Slide lining 11

#	OEM	部品名
1	66418-579-000	Stopper - GLOVE BOX LID
2	74514-SM2-A01	Seal - R. QUARTER HOLE
3	74554-SM2-A01	Seal - L. QUARTER HOLE
9	83735-SM2-A00	Bracket - SIDE LINING (A)
18	87376-SM2-A00	Bracket - SIDE LINING (B)
19	90137-SL4-003	Screw - TAPPING, 6X20
20	90609-SG0-003	Clip - PILLAR GARNISH
21	90662-671-003	Grommet - SCREW, 5MM (WHITE)
22	90667-SM2-003	Clip - QUARTER LOCK LID
23	90668-SA5-003	Grommet - SCREW, 6MM
24	90674-SK7-000	Clip - SNAP FITTING

Slide roof (FRAME) 20

#	OEM	部品名
1	17348-673-000	Clip - AIR HOSE, 20.5MM
2	70044-SM4-003	Shim - SIDE (2.0)
3	70050-SM4-J00	Tube - FR. DRAIN (SUNROOF)
4	70050-SM4-000	Tube - FR. DRAIN (SUNROOF)
5	70052-SH3-000	Valve - FR. DRAIN (SUNROOF)
6	70060-SM4-010	Tube - RR. DRAIN (SUNROOF)
7	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)
8	70062-SJ4-000	Valve - RR. DRAIN (SUNROOF)
9	70080-SM4-003	Seal - FRAME DRAIN (SUNROOF)
10	70100-SM4-003	Frame comp - SUNROOF
11	70200-SM2-010	Glass assy - ROOF (SUNROOF)
12	70332-SM4-003	Slider - FR. SLIDE STAY
13	70620-SM2-003	Cover - R. STAY
14	70623-SM4-003	Cap - STAY COVER
15	70625-SM2-003	Cover - L. STAY
18	83213-SM4-000	Plate comp
19	90110-SM4-003	Screw - PAN, 5X6 (STAY COVER)
20	90130-693-000	Screw - TAPPING, 4X10
21	90646-657-000	Clip - AIR HOSE, 16MM
22	91504-SE3-920	Clip - SLIDE ROOF DRAIN TUBE

Slide roof (MOTOR) 30

#	OEM	部品名
1	70040-SM4-003	Shim - FR. SUNROOF (10)
1	70041-SM4-003	Shim - FR. SUNROOF (20)
2	70042-SM4-003	Shim - RR. SUNROOF (10)
2	70043-SM4-003	Shim - RR. SUNROOF (20)
3	70090-SM4-003	Stopper - SUNSHADE
4	70310-SM4-003	Rail - R. GUIDE (SUNROOF)
5	70315-SM4-003	Rail - L. GUIDE (SUNROOF)
6	70320-SM4-013	Rail - R. SUNSHADE (SUNROOF)
7	70322-SM4-003	Holder - R. SUNSHADE RAIL
8	70325-SM4-013	Rail - L. SUNSHADE (SUNROOF)
9	70327-SM4-003	Holder - L. SUNSHADE RAIL
10	70361-SM4-003	Link - LIFT UP (SUNROOF)
11	70363-SM4-003	Slider - R. LINK
12	70368-SM4-003	Slider - L. LINK
13	70370-SM4-003	Guide - R. LIFT UP (SUNROOF)
14	70372-SM4-003	Lifter - R. LINK
15	70373-SM4-003	Stopper - SLIDE
16	70375-SM4-003	Guide - L. LIFT UP (SUNROOF)
17	70377-SM4-003	Lifter - L. LINK
18	70380-SM4-003	Collar - LIFT UP LINK (SUNROOF)
19	70384-SM4-003	Shaft - LIFT UP LINK (SUNROOF)
20	70400-SM4-003	Cable assy - SUNROOF
21	70450-SM4-003	Motor assy. - SUNROOF
21	70450-SV4-J01	Motor assy. - SUNROOF
22	70500-SM4-003	Deflector comp.
23	70630-SM4-003	Cover - R. RAIL
24	70631-SM4-003	Cover - R. RAIL HOLDER
25	70632-SM4-003	Cover - L. RAIL HOLDER
26	70635-SM4-003	Cover - L. RAIL
27	90316-SM4-003	Nut-washer - 6MM

Speedometer component (NS) 27

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37102-SE3-003	Socket assy - BULB (T-10) (NS)
4	37105-SE3-003	Socket assy - BULB (T-5) (BASE:BROWN)
5	37106-SB2-003	Knob - TRIP (NS)
6	37115-SA0-601	Packing - NS
7	37237-SE3-003	Bulb - T-10) (BASE:BROWN
8	78110-SM2-A03	Case assy.
9	78116-SM4-J71	Cover
10	78120-SM2-G01	Panel - SPEEDOMETER ASSY. & TACHOMETER ASSY. & PRINT
10	78120-SM2-F02	Panel - SPEEDOMETER ASSY. & TACHOMETER ASSY. & PRINT
11	78130-SM4-F03	Meter assy - FUEL & TEMPERATURE
11	78130-SM4-A03	Meter assy - FUEL & TEMPERATURE
12	78145-SM4-F81	Panel - WARNING PRINT
13	78155-SM4-003	Visor assy - METER
14	78162-SM4-003	Prism - OT
15	78163-SM4-003	Packing
16	78166-SM4-003	Illumination assy.
17	78171-SM4-F81	Visor assy - METER UNDER
18	78181-SG0-A01	Socket assy - BULB (T5) (BASE:GREEN)
20	78182-SM4-003	Socket assy - BULB (14V-100MA) (BASE:BROWN)
21	78183-SM4-003	Socket assy - BULB (14V-100MA) (BASE:BROWN)
22	78184-SM4-003	Socket assy - BULB (14V-60MA) (BASE:GRAY)
23	90131-SM4-003	Screw-washer - 3X8
24	90132-SM4-003	Screw-washer - 3X16
25	90134-SM4-003	Screw-washer - 3X27
26	90135-SM4-003	Screw-washer - 3X22

Srs unit (LH) 19

#	OEM	部品名
1	06771-SM5-A82	Sensor kit - SRS DASHBOARD
2	06772-SM4-A80	Srs unit kit
3	77900-SL5-C81	Reel assy - CABLE (SUMITOMO)
3	77900-SM4-C01	Reel assy - CABLE (ALPS)
4	77907-SL4-N81	Holder - CONNECTOR (5P) (SKY BLUE)
5	77922-SM5-A01	Protector - DASHBOARD SENSOR
6	77923-SM5-A00	Protector - SRS UNIT
7	77961-SM5-A01	Harness - SRS MAIN WIRE
8	77964-SM4-A81	Holder - CONNECTOR (2P)
9	78963-SM5-A01	Protector d - DASHBOARD
10	78965-SM5-A01	Protector f - DASHBOARD
11	78965-SR3-A81	Joint - CONNECTOR (YELLOW)
12	78967-SM4-J81	Clip - SRS PROTECTOR
13	90101-SA4-000	Screw - TAPPING, 4X12
14	90134-SL4-N81	Bolt - FLANGE, 8X16
15	90137-SG0-A81	Bolt - TORX EARTH, 6X16
16	90602-SB2-003	Clip - PROTECTOR
17	91543-SM4-003	Clip - HARNESS BAND
18	91546-SM4-A01	Clip - HARNESS BAND (120MM)

Starter motor (MITSUBA) 16

#	OEM	部品名
1	31200-PT1-T03	Motor assy. - STARTER (SM-402-04) (MITSUBA)
2	31202-PR3-004	Bolt - THROUGH (###)
3	31203-PT0-005	Cover - GEAR (###)
4	31204-PJ7-903	Gear assy. - PINION (MITSUBA)
5	31206-PR3-004	Yoke assy.
6	31207-PR3-014	Armature assy - ###
7	31208-PT0-005	Plate comp - BRUSH HOLDER
8	31209-PT0-005	Bracket - RR. UNIT
9	31210-PT0-015	Switch assy
10	31211-PC2-006	Ring - SQUARE (MITSUBA)
11	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
12	31229-PT0-005	Fr. assy.
13	31235-PT0-005	Cover - TERMINAL (###)
14	31251-PD2-026	Tube - LABYRINTH
15	31252-PD2-006	Rubber - BUSH (MITSUBA)
16	31291-PT0-015	Stay assy - ENGINE WIRE HARNESS

Steering column 17

#	OEM	部品名
1	46597-SM4-A02	Stay - PEDAL BRACKET
2	53200-SM4-A84	Column assy - STEERING
3	53216-SM4-010	Holder b - STEERING COLUMN
4	53217-SL4-N50	Collar - STEERING RETAINER
5	53320-SM4-G01	Cover - STEERING JOINT
6	53323-SM4-013	Joint comp. b - STEERING
7	53325-SM4-010	Clip A - JOINT COVER
8	53326-SM4-000	Clip b - JOINT COVER
9	53362-SB3-000	Tube - RUBBER
10	53363-SM4-A02	Pivot comp - COLUMN
11	53371-SM4-013	Spring - COLUMN HANGER
12	77873-SG0-A81	Label - STEERING COLUMN CAUTION (ENGLISH)(FRENCH)
13	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
14	90361-SM4-003	Nut - FLANGE, 8MM
14	90361-SR3-000	Nut - FLANGE, 8MM
15	90511-671-003	Washer - TOOTHED LOCK
16	90676-SB2-003	Clip - DASHBOARD INSULATOR

Steering wheel (SRS) 11

#	OEM	部品名
2	36770-SM4-A21	Lid - CASE
4	36771-SM4-A21	Cover - LID (TEC)
4	36771-SM1-A21	Cover - LID (CMI)
6	77804-SL0-G80	Label a - MODULE CAUTION
7	77894-SL0-G80	Label - INFLATOR
8	77967-SL4-N81	Bracket - AUTO CRUISE SWITCH
13	78516-SM5-A81	Cover - BOSS PLATE (A)
14	78517-SM5-A81	Plate - CRUISE SWITCH SET
18	78527-SD4-G80	Label a - STEERING WHEEL CAUTION
19	90134-SG0-A81	Bolt - TORX, 6X16
20	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Sunvisor/grab rail 9

#	OEM	部品名
1	75353-671-000	Lock - SCREW
5	83242-SM2-981	Bracket - R. RR. GRAB RAIL
7	83246-SM2-981	Bracket - R. FR. GRAB RAIL
8	83247-SM4-980	Bracket - FR. GRAB RAIL UPPER
9	83248-SG0-003	Spacer - GRAB RAIL
12	83292-SM2-981	Bracket - L. RR. GRAB RAIL
17	90131-SH3-A12	Screw - PAN, 5X16
18	90133-SG0-003	Bolt-washer - 5X30
19	90133-SM4-003	Bolt-washer - 5X16

Switch (LH) 13

#	OEM	部品名
1	35150-SM4-951	Controller - ILLUMINATION (ALPS)
2	35170-SM4-G51	Switch assy - RR. FOG LIGHT (TEC)
3	35190-SM4-A11	Switch assy - REMOTE CONTROL MIRROR (ALPS)
4	35500-SM4-003	Switch assy - HAZARD (TEC)
4	35500-SM1-A01	Switch assy - HAZARD (TRW)
5	35505-SM4-901	Bulb - 14V 60MA
6	35510-SM4-951	Switch assy - RR. DEFOGGER (TEC)
7	35511-SM4-000	Bulb - T3) (TEC
8	35820-SM4-G04	Switch assy - HEADLIGHT ADJUST
9	35830-SM4-J51	Switch assy - ROOF & LID
10	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
11	35851-SM1-A01	Bulb - NEO WEDGE (TRW)
12	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)

Taillight 34

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33500-SM4-E03	Taillight assy. - R. (###)
2	33500-SM4-G03	Taillight assy. - R. (###)
3	33501-SM4-G01	Lamp unit - R.
4	33502-SM4-E02	Cord comp - R.
4	33502-SM4-G02	Cord comp - R.
5	33503-SM4-013	Gasket - BASE
6	33550-SM4-E03	Taillight assy. - L. (###)
6	33550-SM4-G03	Taillight assy. - L. (###)
7	33551-SM4-G01	Lamp unit - L.
8	33552-SM4-G02	Cord comp - L.
8	33552-SM4-E02	Cord comp - L.
9	34100-SM4-G02	Light assy - LICENSE
10	34101-SM4-013	Lens
11	34103-SM4-003	Seal - PACKING
12	34104-SE3-A01	Screw - TAPPING, 4X20
13	34150-SM4-G03	Light assy - R. LID (WITH ONE BULB)
14	34151-SM4-G03	Housing comp - R.
15	34152-SM4-G02	Cover & cord comp. - R.
16	34153-SM4-013	Gasket - BASE
17	34155-SM4-G03	Light assy - L. LID (WITH TWO BULBS) (###)
18	34156-SM4-G03	Housing comp - L.
19	34157-SM4-G02	Cover & cord comp. - L.
20	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
21	34911-634-611	Bulb - 12V 21/5W) (ECE) (STANLEY
22	37540-SM4-E01	Sensor - STOP LAMP FAILURE
23	37540-SM4-G02	Sensor, Stop lamp failure
25	75525-SD4-013	Clip - RR. PANEL GARNISH
26	90102-SM4-000	Bolt - LICENSE GARNISH
27	90141-SA7-003	Bolt - BUMPER
28	90301-SE0-902	Nut - SPECIAL, 5MM
29	90521-SE3-003	Grommet - SCREW, 4MM
30	90540-SA7-000	Washer - BUMPER
36	90521-SS0-003	Grommet - SPECIAL SCREW (M4) (YELLOW)

Throttle body 15

#	OEM	部品名
1	16016-PM6-005	Screw set
2	16075-PE2-005	O-ring - 31.2X1.9
3	16077-PR3-005	O-ring
4	16176-PT2-003	Gasket - THROTTLE BODY (ISHINO GASKET)
5	16216-676-690	Cap - SEALING, 4.5MM
6	16400-PT3-A00	Throttle Body Assy - GF72A
7	16411-PT2-000	Stay - THROTTLE WIRE
8	16500-PT2-000	Valve assy. - FAST IDLE (AF15C)
9	17341-PT2-000	Packing - AIR BOOST VALVE
10	17345-PT2-000	Cover assy. - AIR BOOST VALVE PORT
11	36450-PT5-X01	Valve assy. - ELECTRONIC AIR CONTROL (DENSO)
12	36454-PS4-003	Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)
13	36455-PT3-A01	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)
14	90634-PA0-000	Cap - SEALING
15	91304-PE2-005	O-ring - 15.8X1.9

Tie rod 19

#	OEM	部品名
1	53411-SM4-010	Tube - AIR TRANSFER
2	53434-SD9-000	Clip - TIE ROD
2	53434-S04-J51	CLIP, TIE ROD
3	53446-SM4-010	Rubber - BAND (T)
4	53447-SM4-000	Band - TRANSFER TUBE
5	53448-SM4-000	Clip - TRANSFER TUBE
6	53449-SM4-000	Band - BELLOWS
7	53521-SM4-013	End comp - FR. RACK
8	53534-SD4-000	Dust seal comp. - TIE ROD
9	53535-SB3-000	Washer - TIE ROD STOPPER
10	53536-SB2-000	Washer - TIE ROD LOCK
11	53540-SM4-003	End comp - R. TIE ROD (MUSASHI)
13	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
14	53560-SM4-003	End comp - L. TIE ROD (MUSASHI)
16	90320-SF1-000	Nut - CASTLE, 10MM
17	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)
21	53540-SM4-004	End comp - R. TIE ROD (TOKAI)
22	53546-SM4-004	Boot - TIE ROD END (TOKAI)
23	53560-SM4-004	End comp - L. TIE ROD (TOKAI)

Tire/wheel disk 33

#	OEM	部品名
1	42700-SM1-A22	Disk - WHEEL (15X5 1/2JJ) (TOPY) (BLACK)
3	42751-SN7-F24	Tire - 195/60R15 87V) (MICHELIN
3	42751-SM4-F52	Tire - 195/60R15 87V) (DUNLOP U.K.
4	42753-SB8-662	Valve - RIM (EATON)
4	42753-SB8-661	Valve - RIM (SCHRADER)
5	44725-SB8-672	Weight - BALANCE (25G) (PERFECT EQUIPMENT CORP.)
5	44728-SB8-672	Weight - BALANCE (40G) (PERFECT EQUIPMENT CORP.)
5	44724-SB8-672	Weight - BALANCE (20G) (PERFECT EQUIPMENT CORP.)
5	44727-SB8-672	Weight - BALANCE (35G) (PERFECT EQUIPMENT CORP.)
5	44723-SB8-672	Weight - BALANCE (15G) (PERFECT EQUIPMENT CORP.)
5	44726-SB8-672	Weight - BALANCE (30G) (PERFECT EQUIPMENT CORP.)
5	44722-SB8-672	Weight - BALANCE (10G) (PERFECT EQUIPMENT CORP.)
5	44730-SB8-672	Weight - BALANCE (50G) (PERFECT EQUIPMENT CORP.)
5	44721-SB8-672	Weight - BALANCE (5G) (PERFECT EQUIPMENT CORP.)
5	44729-SB8-672	Weight - BALANCE (45G) (PERFECT EQUIPMENT CORP.)
6	44721-SF1-A01	Weight - BALANCE (10G) (YAMATE)
6	44729-SF1-A01	Weight - BALANCE (35G) (YAMATE)
6	44728-SF1-A01	Weight - BALANCE (25G) (YAMATE)
6	44724-SF1-A01	Weight - BALANCE (40G) (YAMATE)
6	44727-SF1-A01	Weight - BALANCE (15G) (YAMATE)
6	44723-SF1-A01	Weight - BALANCE (30G) (YAMATE)
6	44726-SF1-A01	Weight - BALANCE (5G) (YAMATE)
6	44722-SF1-A01	Weight - BALANCE (20G) (YAMATE)
6	44730-SF1-A01	Weight - BALANCE (45G) (YAMATE)
7	44732-SM4-A11	Cap assy. - WHEEL TRIM CENTER (BLADE SILVER METALLIC-Z)
8	44732-SM4-E21	Cap assy. - ALUMINIUM WHEEL CENTER (BLADE SILVER ME.)
9	44733-SM4-A11	Trim - WHEEL (15") (MORIROKU) (BLADE SILVER METALLIC-Z)
10	44734-SM4-000	Plate - H MARK
11	74654-SM4-A00	Bolt - ANCHOR (58MM)
12	74665-SM4-A00	Adapter - ANCHOR BOLT
13	90304-SE0-901	Nut - WHEEL (FUSE RASHI)
13	90304-SE0-902	Nut - WHEEL (SATO RASHI)
14	90381-SL5-003	Nut comp. - WHEEL (FUSE RASHI)

Tools/jack 6

#	OEM	部品名
1	71969-SA7-890	Wrench - SUNROOF
4	89211-SE3-003	Wrench - WHEEL
5	89216-SF4-000	Wrench - PLUG
6	89310-SM1-A01	Jack assy - PANTOGRAPH
7	89320-SE3-003	Bar - JACK
7	89320-S50-003	Bar - JACK

Transmission housing 54

#	OEM	部品名
1	21104-PX5-010	Plate m - OIL GUIDE
2	21200-PX5-010	Case comp. - TRANSMISSION
3	21222-PX5-000	Hanger b - TRANSMISSION
4	21223-PX5-000	Hanger a - TRANSMISSION
5	21396-PX5-000	Cap - BREATHER
6	21520-PX5-000	Cover comp. - SHIFT ARM
7	23955-PK5-000	Shim o - 78MM (1.62)
7	23950-PK5-000	Shim j - 78MM (1.47)
7	23977-PK5-000	Shim ak - 78MM (2.28)
7	23945-PK5-000	Shim e - 78MM (1.32)
7	23972-PK5-000	Shim af - 78MM (2.13)
7	23967-PK5-000	Shim aa - 78MM (1.98)
7	23962-PK5-000	Shim v - 78MM (1.83)
7	23957-PK5-000	Shim q - 78MM (1.68)
7	23952-PK5-000	Shim l - 78MM (1.53)
7	23979-PK5-000	Shim am - 78MM (2.34)
7	23947-PK5-000	Shim g - 78MM (1.38)
7	23942-PK5-000	Shim b - 78MM (1.23)
7	23974-PK5-000	Shim ah - 78MM (2.19)
7	23969-PK5-000	Shim ac - 78MM (2.04)
7	23964-PK5-000	Shim x - 78MM (1.89)
7	23959-PK5-000	Shim s - 78MM (1.74)
7	23954-PK5-000	Shim n - 78MM (1.59)
7	23949-PK5-000	Shim i - 78MM (1.44)
7	23976-PK5-000	Shim aj - 78MM (2.25)
7	23944-PK5-000	Shim d - 78MM (1.29)
7	23971-PK5-000	Shim ae - 78MM (2.10)
7	23966-PK5-000	Shim z - 78MM (1.95)
7	23961-PK5-000	Shim u - 78MM (1.80)
7	23956-PK5-000	Shim p - 78MM (1.65)
7	23951-PK5-000	Shim k - 78MM (1.50)
7	23978-PK5-000	Shim al - 78MM (2.31)
7	23946-PK5-000	Shim f - 78MM (1.35)
7	23941-PK5-000	Shim a - 78MM (1.20)
7	23973-PK5-000	Shim ag - 78MM (2.16)
7	23968-PK5-000	Shim ab - 78MM (2.01)
7	23963-PK5-000	Shim w - 78MM (1.86)
7	23958-PK5-000	Shim r - 78MM (1.71)
7	23953-PK5-000	Shim m - 78MM (1.56)
7	23980-PK5-000	Shim an - 78MM (2.37)
7	23948-PK5-000	Shim h - 78MM (1.41)
7	23948-P16-000	Shim h - 78MM (1.41)
7	23943-PK5-000	Shim c - 78MM (1.26)
7	23975-PK5-000	Shim ai - 78MM (2.22)
7	23970-PK5-000	Shim ad - 78MM (2.07)
7	23965-PK5-000	Shim y - 78MM (1.92)
7	23960-PK5-000	Shim t - 78MM (1.77)
8	35600-PK5-003	Switch assy - BACK UP LIGHT (TEC)
9	90041-PX5-000	Bolt - STUD, 10X55
10	90042-PX5-010	Bolt - STUD, 10X50
11	90081-PB6-000	Bolt - PLUG, 14MM
12	90081-PX5-000	Screw - SEALING, 32MM
13	90083-PK5-000	Bolt - SEALING, 28MM
14	91206-PX5-005	Oil seal - 40X58X8(NOK)

Trunk lid 23

#	OEM	部品名
4	74411-SM1-A01	Cable - FUEL LID OPENER
5	74826-SM4-J00	Stopper - RR. COMBINATION
6	74827-SM4-003	Stopper - TRUNK LID
7	74850-SM4-G01	Lock assy - TRUNK
8	74851-SM4-003	Lock - TRUNK
9	74862-SE3-003	Striker - TRUNK
10	74863-SM4-G00	Rod - TRUNK LOCK
11	74864-SM4-003	Cover - TRUNK LOCK
12	74865-SM4-000	Weatherstrip - TRUNK LID
13	74871-SM4-V50	Spring - R. TRUNK OPENER
14	74872-SM4-V50	Spring - L. TRUNK OPENER
15	74873-SM4-003	Clip - TRUNK OPENER SPRING
16	74880-SM1-A01	Cable - TRUNK OPENER
21	74895-SM4-G01	Molding - TRUNK LID
22	83418-SG3-003	Cushion - TRUNK HINGE
23	85267-671-000	Cushion - TAILGATE
24	90101-SM3-003	Screw-washer - 6X14
25	90106-SE4-000	Bolt-washer - 6X18
26	90109-SM4-000	Bolt - SPECIAL, 6X35
27	90661-SC7-003	Grommet - SCREW, 5MM
28	90691-SC5-003	Clip A - OPENER CABLE
29	90691-SF1-003	Clip c - OPENER CABLE
30	90851-SK7-003	Plug - HOLE, 20X40

Trunk side garnish 8

#	OEM	部品名
1	38689-680-960	E-ring - 4MM
3	66856-SF1-000	Lock - JACK COVER
4	66857-SA0-660	Spring - FUSE PANEL
6	84503-SM4-000	Panel - RR. TRAY
15	84656-SE3-000	Stopper - TRUNK SIDE GARNISH
18	90609-SG0-003	Clip - PILLAR GARNISH
22	90669-SM4-003	Clip - GARNISH
24	90667-693-920	Clip - ROOF SIDE

Valve/rocker arm 15

#	OEM	部品名
1	14621-PT0-000	Arm comp - IN. ROCKER (A)
2	14622-PT0-000	Arm comp - IN. ROCKER (B)
3	14623-PT0-000	Arm comp - EX. ROCKER
4	14645-PT0-003	Spring a - VALVE ROCKER ARM (SANKO)
5	14646-PN4-003	Spring b - VALVE ROCKER ARM (SANKO)
6	14647-PT0-000	Washer - WAVE
7	14711-PT3-A00	Valve - IN.
8	14721-PT6-A00	Valve - EX.
9	14744-PT0-004	Screw - TAPPET ADJUSTING
10	14761-PT5-003	Spring - IN. VALVE (BLUE) (NIPPON HATSUJO)
11	14762-PT5-004	Spring - EX. VALVE (GREEN) (CHUO SPRING)
12	14765-PT0-000	Retainer - VALVE SPRING
13	14775-PT0-000	Seat - VALVE SPRING
14	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
15	90206-PT0-004	Nut - TAPPET ADJUSTING

Washer nozzle/washer tube 12

#	OEM	部品名
1	36062-671-000	Clamp b - TUBE
6	76816-SE4-A02	Adapter - NOZZLE (DENSO)
6	38511-SD2-003	Adapter - NOZZLE (MITSUBA)
7	76820-SM1-004	Grommet - TUBE WASHER
9	76828-SH0-A02	Joint l, WASHER TUBE (DENSO)
10	76829-SM1-004	Joint i - WASHER
11	76830-SM1-004	Joint y - WASHER (DENSO)
11	76830-SM4-003	Joint y - WASHER
12	76875-SM1-004	Bellows - FR. WASHER
19	90652-SB2-023	Clip - TUBE, 7MM
20	91512-SE0-003	Clip - WASHER TUBE
21	91523-SM4-003	Clip - WASHER TUBE

Washer tank 11

#	OEM	部品名
1	38512-SC4-673	Motor - WASHER (DENSO)
2	38513-SC4-672	Cap - WASHER MOUTH (DENSO)
3	76801-SM1-C02	Washer comp - FR. WINDSHIELD
7	76804-SE4-A02	Float - WASHER
8	76805-SM1-004	Hose - WASHER
10	76807-SE4-A02	Packing - T-TYPE) (DENSO
12	76809-SM1-004	Grommet - WASHER TANK
13	76812-SM1-004	Mouth assy. - WASHER (DENSO)
16	76842-SE0-003	Bush - WASHER TANK (MITSUBA)
23	90130-SE0-000	Screw - TAPPING, 6X16 (DACRO COATING)
25	90668-SA5-003	Grommet - SCREW, 6MM

Water hose 14

#	OEM	部品名
1	19504-PT2-000	Hose - BYPASS IN.
2	19507-PT2-000	Hose a - FAST IDLE CONTROL
3	19508-PT2-000	Hose b - FAST IDLE CONTROL
4	19510-PT2-000	Hose - THROTTLE BODY
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
6	19513-PT2-000	Hose - ELECTRONIC AIR CONTROL VALVE
7	19514-PT2-000	Hose a - BREATHER HEATER
8	19515-PT2-010	Hose b - BREATHER HEATER
9	19527-PT3-A00	Clamp comp - HEATER HOSE
10	53740-SE0-953	Clip - SENSOR HOSE
11	79721-SM1-010	Hose a - WATER IN.
12	79725-SM1-040	Hose - WATER OUTLET
13	91405-PD1-004	Clamp - TUBE(D12)
14	91405-PK1-003	Clip, WATER HOSE, 24MM

Water pump 23

#	OEM	部品名
1	19200-PT0-013	Pump comp - WATER (YAMADA)
2	19222-PT0-300	Packing - WATER PUMP
3	19223-PT0-000	Rubber - WATER PUMP SEAL
4	19301-P08-306	Thermostat assy - NIPPON THERMOSTAT
4	19301-P08-305	Thermostat assy - FUJI THOMSON
4	19301-PAA-306	Thermostat assy - NIPPON THERMOSTAT
5	19305-PT0-000	Rubber - THERMOSTAT MOUNTING
5	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
6	19311-PT0-000	Cover - THERMOSTAT
7	19313-PT0-000	Packing - THERMOSTAT CASE
8	19320-PT2-000	Case comp. - THERMOSTAT
9	19360-PT3-A00	Cover - WATER OUTLET
10	19500-PT0-000	Joint - TUBE
11	19505-PT3-A00	Pipe comp - CONNECTING
12	19516-PC1-000	Bolt - BREATHING WATER
13	37773-PT0-004	Sensor - THERMO (A-93) (TEC)
14	37773-PT3-A01	Switch - THERMO (A-106) (UCHIYA)
15	90002-PD2-000	Bolt - FLANGE, 8X16
16	91307-PN4-000	O-ring - 17.5X1.4
16	91307-PN3-000	O-ring,17.8x1.4
17	91307-611-000	O-ring (13.5X1.4)
17	91307-PH7-660	O-ring (13.5X1.4)
18	91314-PH7-003	O-ring 31.2X4.1 (NOK)

Water valve 6

#	OEM	部品名
1	79710-SM4-A03	Valve assy. - WATER (DENSO)
2	79722-SM1-010	Hose b - WATER IN.
3	79731-SH3-000	Grommet - HEATER PIPE
4	91405-PK1-003	Clip, WATER HOSE, 24MM
4	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
5	91553-SM4-003	Clamp - HEATER HOSE (24MM & 39MM)

Wire harness 44

#	OEM	部品名
1	32100-SM4-G02	Harness - CABIN WIRE
2	32102-SM4-970	Cap - HEADLIGHT ADJUSTER (NON HEADLIGHT ADJUSTER)
3	32107-SM2-G01	Harness - FLOOR WIRE
4	32108-SM4-G12	Harness - RR. WIRE
5	32109-SM4-003	Ring - WHEELHOUSE HOLE, 40MM (WHITE)
6	32109-SM4-901	Ring - WHEELHOUSE HOLE, 30MM
7	32117-SM4-X80	Harness - INSTRUMENT WIRE
8	32128-SM4-A01	Holder - COUPLER
9	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
11	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	32135-SM4-A00	Stay - DASHBOARD HARNESS (LH)
13	32143-SM4-000	Bracket - FLOOR HARNESS
14	32156-SM2-A00	Cord - SUNROOF
16	32158-SM2-G01	Harness - SIDE WIRE
17	32170-SM4-010	Cord - FUEL UNIT
18	32202-SH4-000	Cord - DEFROSTER EARTH
19	32311-SM4-A01	Holder - COUPLER
20	32312-SM4-013	Holder - COUPLER
21	32751-SM2-G00	Harness - FR. DOOR WIRE (DRIVER SIDE)
22	32752-SM2-G00	Harness - FR. PASSENGER DOOR WIRE
23	32760-SM2-000	Protector - R. DOOR WIRE HARNESS
24	32765-SM2-000	Protector - L. DOOR WIRE HARNESS
25	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
26	90149-SE0-003	Bolt - EARTH, 6X16
27	90153-SE0-003	Bolt - EARTH, 6X12
28	90602-SB2-003	Clip - PROTECTOR
30	90667-SB2-003	Clip - WIRE HARNESS (GRAY) (HARNESS TAPING) (50MM)
31	90676-SA8-003	Band - WIRE HARNESS, 150MM (BLUE)
32	90681-SD4-003	Clip - WIRE HARNESS
33	90691-SA0-003	Clip - WIRE HARNESS (WHITE)
34	91504-SM4-003	Clip - DOOR PROTECTOR
35	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
36	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
37	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
38	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
40	91555-SM4-003	Clip - COUPLER (RED)
41	91556-SM4-003	Clip - BAND (BLACK) (100MM)
43	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
44	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
45	91570-SG0-003	Band - HARNESS (123.5MM) (BLUE) (WITH SEAL)
46	91582-SM4-003	Clip - WIRE HARNESS
47	91642-SM4-003	Grommet - WIRE HARNESS (20MM) (WHITE)
48	91644-SM4-003	Grommet - WIRE HARNESS (32MM)
49	91763-SH3-003	Bar - JOINT (6P)
