BU93

Toyota DYNA-TOYOACE · 1986 · 4,061 parts · 177 categories

4,061 items

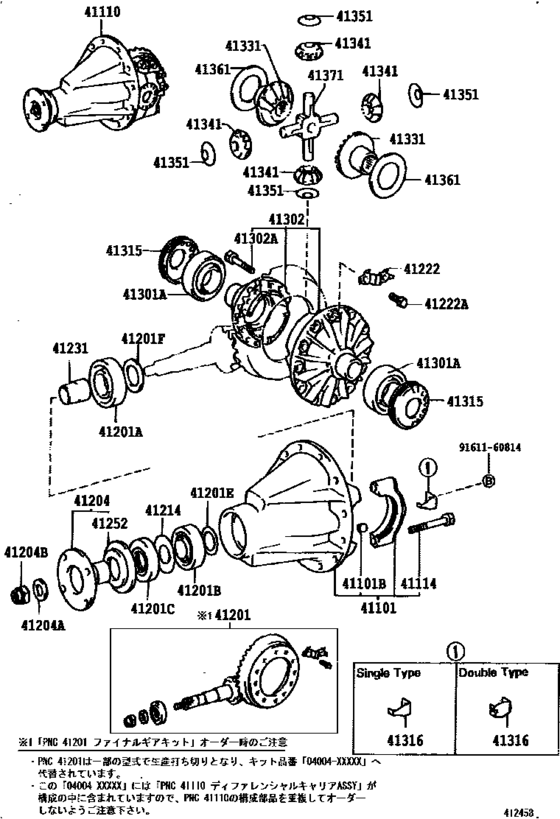

Rear Axle Housing & Differential ([08.1987 - ] (8708- )) 112

#	OEM	Part name
4412	04412-36070	Gasket Kit, Rear Differential Carrier
41101	41101-36030	Carrier Sub-Assy, Differential, Rear
41101	41101-37010	Carrier Sub-Assy, Differential, Rear
41101	90253-21001	Pin, Ring (For Rear Differential Carrier)
41110	41110-36520	Carrier Assy, Differential, Rear
41110	41110-37620	Carrier Assy, Differential, Rear
41110	41110-36530	Carrier Assy, Differential, Rear
41110	41110-37630	Carrier Assy, Differential, Front
41110	90116-10082	Bolt,stud(For Timing Gear Case)
41110	90119-10283	Bolt, No.1 (For Rear Differential Carrier Set)
41110	90119-10069	Bolt, No.1 (For Rear Differential Carrier Set)
41114	90105-16022	Bolt, Rear Differential Bearing Cap
41201	41201-39198	Final Gear Kit, Differential, Rear
41201	41201-39615	Final Gear Kit, Differential, Rear
41201	41201-80641	Final Gear Kit, Differential, Rear
41201	41204-36090	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41201	41204-37100	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41201	90366-40001	Bearing (For Rear Drive Pinion Rear)
41201	90366-40100	Bearing (For Rear Drive Pinion Rear)
41201	90366-35023	Bearing (For Rear Drive Pinion Rear)
41201	90311-48135	Seal, Oil (For Front Differential Carrier)
41201	90311-48024	Seal, Oil (For Front Differential Carrier)
41201	90564-35019	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35020	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35021	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35022	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35023	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35024	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35025	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35026	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35027	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35028	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35029	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35030	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35031	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35032	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35033	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35034	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35035	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35036	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35037	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35038	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35039	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90564-35040	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201	90201-40551	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40004	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40552	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40007	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40553	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40009	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40554	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40011	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40555	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40013	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40556	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40015	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40557	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40017	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40558	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40019	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40559	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40021	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40560	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40023	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-40561	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-40025	Washer, Plate (For Rear Differential Drive Pinion)
41204	41204-36050	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204	90201-23002	Washer, Plate (For Rear Drive Pinion)
41204	90179-22003	Nut (For Manual Transmission Output Shaft Rear Set)
41214	41214-36030	Slinger, Rear Differential Drive Pinion Oil
41214	41214-37010	Slinger, Rear Differential Drive Pinion Oil
41222	41222-36020	Plate, Rear Differential Ring Gear Set Bolt Lock
41222	90101-14315	Bolt (For Rear Differential Ring Gear Set)
41231	41231-36040	Spacer, Rear Differential Drive Pinion Bearing
41252	41252-36010	Deflector, Dust (For Rear Differential)
41252	41252-37020	Deflector, Dust (For Rear Differential)
41301	90368-52043	Bearing(For Rear Differential Case)
41302	41301-36030	Case Sub-Assy, Rear Differential
41302	90105-12087	Bolt(For Rear Differential Case)
41315	41315-36011	Nut, Rear Differential Bearing Adjusting
41316	41316-36011	Lock, Rear Differential Bearing Adjusting Nut
41316	41317-36011	Lock, Rear Differential Bearing Adjusting Nut
41331	41331-36020	Gear, Rear Differential Side
41341	41341-55012	Pinion, Rear Differential
41341	41341-55013	Pinion, Rear Differential
41351	41351-35011	Washer, Rear Differential Pinion Thrust
41361	41361-60010	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60011	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60021	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60031	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60041	Washer, Rear Differential Side Gear Thrust, No.1
41371	41371-36011	Spider, Rear Differential
42110	42110-36720	Housing Assy, Rear Axle
42110	42110-36920	Housing Assy, Rear Axle
42110	90341-18006	Plug (No magnet)
42110	12157-10010	Gasket (For Drain Plug)
42110	90930-03031	Plug, Breather(For Parking Cover)
42110	90341-18057	Drain Plug (with Magnet)
42181	42181-36030	Gasket, Rear Differential Carrier
42181	42181-36060	Gasket, Rear Differential Carrier
9111271440	91112-71440	New Genuine Part
9111271440	91112-81440	New Genuine Part
9161140635	91611-40635	New Genuine Part
9161140635	91611-60635	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161160814	91611-60814	Bolt
9411051000	94110-51000	Nut(For Steering Center Arm)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9453101400	94531-01400	New Genuine Part

OEM	Part name	Category
04412-36070	Gasket Kit, Rear Differential Carrier	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
12157-10010	Gasket (For Drain Plug)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41101-36030	Carrier Sub-Assy, Differential, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41101-37010	Carrier Sub-Assy, Differential, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41110-36520	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41110-36530	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41110-37620	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41110-37630	Carrier Assy, Differential, Front	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41201-39198	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41201-39615	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41201-80641	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41204-36050	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41204-36090	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41204-37100	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41214-36030	Slinger, Rear Differential Drive Pinion Oil	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41214-37010	Slinger, Rear Differential Drive Pinion Oil	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41222-36020	Plate, Rear Differential Ring Gear Set Bolt Lock	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41231-36040	Spacer, Rear Differential Drive Pinion Bearing	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41252-36010	Deflector, Dust (For Rear Differential)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41252-37020	Deflector, Dust (For Rear Differential)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41301-36030	Case Sub-Assy, Rear Differential	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41315-36011	Nut, Rear Differential Bearing Adjusting	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41316-36011	Lock, Rear Differential Bearing Adjusting Nut	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41317-36011	Lock, Rear Differential Bearing Adjusting Nut	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41331-36020	Gear, Rear Differential Side	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41341-55012	Pinion, Rear Differential	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41341-55013	Pinion, Rear Differential	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41351-35011	Washer, Rear Differential Pinion Thrust	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41361-60010	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41361-60011	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41361-60020	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41361-60021	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41361-60030	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41361-60031	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41361-60040	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41361-60041	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
41371-36011	Spider, Rear Differential	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
42110-36720	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
42110-36920	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
42181-36030	Gasket, Rear Differential Carrier	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
42181-36060	Gasket, Rear Differential Carrier	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90101-14315	Bolt (For Rear Differential Ring Gear Set)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90105-12087	Bolt(For Rear Differential Case)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90105-16022	Bolt, Rear Differential Bearing Cap	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90116-10082	Bolt,stud(For Timing Gear Case)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90119-10069	Bolt, No.1 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90119-10283	Bolt, No.1 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90179-22003	Nut (For Manual Transmission Output Shaft Rear Set)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-23002	Washer, Plate (For Rear Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40551	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40552	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40553	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40554	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40555	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40556	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40557	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40558	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40559	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40560	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90201-40561	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90253-21001	Pin, Ring (For Rear Differential Carrier)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90311-48024	Seal, Oil (For Front Differential Carrier)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90311-48135	Seal, Oil (For Front Differential Carrier)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90341-18006	Plug (No magnet)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90341-18057	Drain Plug (with Magnet)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90366-35023	Bearing (For Rear Drive Pinion Rear)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90366-40001	Bearing (For Rear Drive Pinion Rear)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90366-40100	Bearing (For Rear Drive Pinion Rear)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90368-52043	Bearing(For Rear Differential Case)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35019	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35020	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35021	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35022	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35023	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35024	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35025	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35026	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35027	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35028	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35029	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35030	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35031	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35032	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35033	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35034	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35035	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35036	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35037	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35038	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35039	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-35040	Shim (For Rear Diff Drive Pinion Spacer Front Adjust)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40004	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40007	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40009	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40011	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40013	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40015	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40017	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40019	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40021	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40023	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90564-40025	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
90930-03031	Plug, Breather(For Parking Cover)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
91112-71440	New Genuine Part	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
91112-81440	New Genuine Part	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
91611-40635	New Genuine Part	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
91611-60635	New Genuine Part	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
91611-60814	Bolt	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
94110-51000	Nut(For Steering Center Arm)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))
94531-01400	New Genuine Part	Rear Axle Housing & Differential ([08.1987 - ] (8708- ))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 177
Collected: 2026-08-03
