BU93

Toyota DYNA-TOYOACE · 1986 · 4,061 parts · 177 categories
BU93 ×

← Back to categories

4,061 items

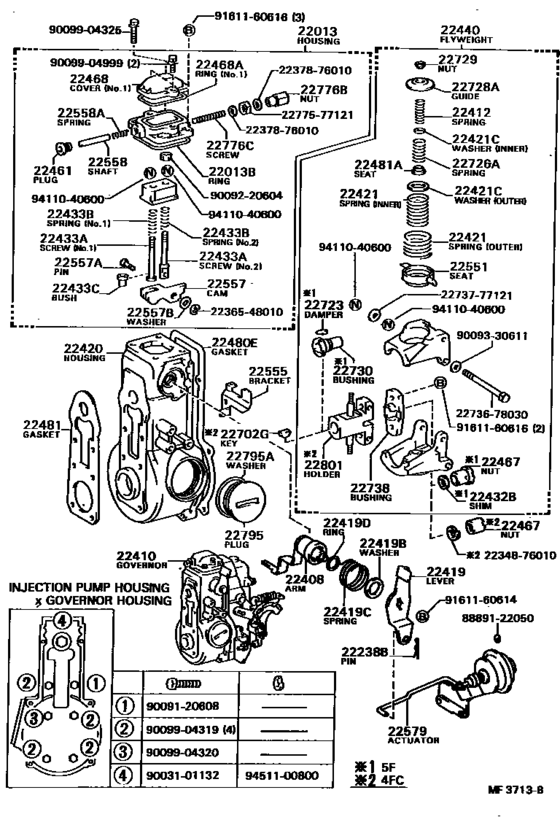

Mechanical Governor ([08.1987 - ] (8708- )11B,13B) 151
#OEMPart name
22013 22013-58230 Housing Sub-Assy, Fullroad Stopper
22013 22013-58440 Housing Sub-Assy, Fullroad Stopper
22013 90099-14039 Ring, O(For Fullroad Stopper Housing)
22013 22442-5C360 Ring, O(For Fullroad Stopper Housing)
22408 22408-78030 Arm, Stopper
22408 22408-78031 Arm Sub-Assy(For Control Lack)
22408 22432-78030 Spring, Return(For Arm)
22408 22428-78030 Nut, Arm
22410 22410-58231 Governor Assy, Injection Pump Mechanical
22410 22410-58440 Governor Assy, Injection Pump Mechanical
22412 22412-78030 Spring, Mechanical Governor
22419 22707-58231 Lever, Stop
22419 90099-01381 Washer, Plate(For Stopper Lever)
22419 90099-02315 Washer, Plate(For Stopper Lever)
22419 90099-02316 Washer, Plate(For Stopper Lever)
22419 90099-01369 Washer, Plate(For Stopper Lever)
22419 22432-78050 Spring, Return(For Stopper Lever)
22419 90099-14005 Ring, O(For Stopper Lever)
22420 22017-58230 Housing Sub-Assy, Mechanical Governor
22421 22768-58230 Spring, Idling
22421 22768-78031 Spring, Idling
22421 22737-78030 Washer, Idling Spring
22421 22737-78031 Washer, Idling Spring
22421 22737-78032 Washer, Idling Spring
22421 22737-78033 Washer, Idling Spring
22421 22737-78034 Washer, Idling Spring
22421 22737-78035 Washer, Idling Spring
22421 22737-78036 Washer, Idling Spring
22424 22424-58230 Arm, Spring
22424 22440-58230 Spring, Return(For Spring Arm)
22432 22713-58230 Shim
22432 22713-58231 Shim
22432 22713-58232 Shim
22432 22713-58233 Shim
22432 22713-58234 Shim
22432 22713-58235 Shim
22432 22713-58236 Shim
22432 22713-58237 Shim
22432 22713-58238 Shim
22432 22713-58239 Shim
22432 22714-58230 Shim
22432 22714-58231 Shim
22433 22433-78031 Screw, Adapter(For Sliding Block)
22433 22433-78032 Screw, Adapter(For Sliding Block)
22433 22411-78030 Spring(For Adapter Screw)
22433 22411-78032 Spring(For Adapter Screw)
22433 22554-78030 Screw, Adapter(For Sliding Block)
22434 22016-78030 Shackle
22440 22720-58230 Flyweight Sub-Assy
22456 22776-78032 Screw, Stop
22460 22011-78030 Lever Sub-Assy, Support
22460 22416-78030 Washer, Lock(For Steering Lever)
22460 22416-78031 Washer, Idling Spring
22460 22737-78037 Washer, Lock(For Steering Lever)
22460 22737-78038 Washer, Lock(For Steering Lever)
22460 22737-78039 Washer, Lock(For Steering Lever)
22460 22460-78030 Arm Assy, Guide
22461 22129-78030 Plug, Screw
22461 22446-78030 Plug, Screw
22465 22701-58230 Lever Sub-Assy, Adjusting
22465 22701-58231 Lever Sub-Assy, Adjusting
22465 90099-13013 Key, Woodruff(For Adjusting Lever)
22465 90099-15022 Seal, Oil(For Adjusting Lever)
22467 22722-58230 Nut, Round
22468 22458-78030 Cover, Plate
22468 22458-78031 Cover, Plate
22468 90099-14068 O, Ring
22468 90099-14069 O, Ring
22480 22774-78030 Gasket, Governor Cover
22480 22774-78140 Gasket, Governor Cover
22481 22442-78030 Gasket(For Governor Housing)
22481 22481-58230 Seat, Spring, Inner
22551 22551-78030 Seat, Spring(For Flyweight)
22552 22432-78031 Spring, Return(For Cam Plate)
22552 22416-78032 Washer, Idling Spring
22552 22416-78033 Washer, Idling Spring
22552 22416-78034 Washer, Idling Spring
22552 22416-78035 Washer, Idling Spring
22555 22555-78030 Bracket, Stopper
22557 22557-56230 Cam, Full Stop
22557 22557-58440 Cam, Full Stop
22557 22423-78030 Pin, Connecting(For Full Stop Cam)
22557 90093-30610 Washer, Plate(For Connecting Pin)
22557 90093-30611 Washer, Plate(For Connecting Pin)
22557 90099-01334 Washer, Plate(For Connecting Pin)
22557 90099-01505 Washer, Plate(For Connecting Pin)
22558 22558-78030 Shaft, Sliding Block
22558 22558-78031 Shaft, Lever Supporting
22558 22411-78031 Spring(For Sliding Block Shaft)
22579 22579-58231 Actuator, Fuel Cut
22699 22562-58230 Bracket, Adjusting
22702 22702-78030 Lever Assy, Floating
22702 22432-78032 Spring, Floating Arm
22702 90099-01519 Washer, Plate(For Connecting Pin)
22702 90099-30610 Washer, Plate(For Connecting Pin)
22702 22014-78030 Arm, Floating
22702 22490-78030 Lever Sub-Assy, Control
22702 22432-78033 Spring, Floating Arm
22723 22723-68150 Damper, Flyweight Holder
22726 22726-58230 Spring, Speed Control
22728 22728-78030 Guide, Return Spring
22728 22728-78031 Guide, Spring
22729 22729-78030 Nut, Adjusting(For Flyweight)
22730 22730-58230 Bushing Assy, Camshaft
22738 22738-78030 Bushing, Guide(For Flyweight)
22761 22761-78030 Slider(For Speed Control)
22761 22761-78031 Slider(For Speed Control)
22761 22752-78030 Shaft, Sliding Weight
22761 22752-78031 Shaft, Sliding Weight
22761 22752-78032 Shaft, Sliding Weight
22761 22752-78033 Shaft, Sliding Weight
22761 22752-78034 Shaft, Sliding Weight
22761 22752-78035 Shaft, Sliding Weight
22761 22752-78036 Shaft, Sliding Weight
22776 22437-58230 Nut, Cap(For Screw Stopper)
22776 22776-78034 Screw, Stop
22795 22795-77121 Plug, Screw
22795 22561-78030 Washer, Screw Plug
22801 22801-58230 Holder Sub-Assy, Flyweight
2232978030 22329-78030 Bolt, Diaphragm Connecting
2234876010 22348-76010 Bushing, Guide
2236548010 22365-48010 Ring, E(For Injection Pump Lever)
2236548010 22421-47030 Washer, Plate(For Connecting Pin)
2237876010 22378-76010 Washer, Drain Screw
2237876010 22113-77090 Washer, Drain Screw
2241658270 22416-58270 Bush, Cam Plate
2273678030 22736-78030 Bolt, Bellcrank
2273777121 22737-77121 Washer, Idling Spring
2277577121 22775-77121 Nut, Rock
8889122050 88891-22050 Packing (for Cooler)
9003101132 90031-01132 New Genuine Part
9009120608 90091-20608 BOLT
9009120615 90091-20615 Bolt
9009220604 90092-20604 Nut, Wire Adjusting, No.1
9009220604 94120-40600 Nut, Wire Adjusting, No.1
9009502007 90095-02007 New Genuine Part
9009901511 90099-01511 New Genuine Part
9009904319 90099-04319 New Genuine Part
9009904320 90099-04320 New Genuine Part
9009904325 90099-04325 New Genuine Part
9009904328 90099-04328 New Genuine Part
9009904996 90099-04996 New Genuine Part
9009904999 90099-04999 New Genuine Part
9009905175 90099-05175 New Genuine Part
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160616 91611-60616 Bolt(For Transaxle Case Receiver)
9161160616 91611-B0616 Bolt(For Transaxle Case Receiver)
9411040600 94110-40600 Nut, Rock
9451100500 94511-00500 Washer, Cover Set, No.2
9451100800 94511-00800 WASHERSPRING
