BU343

Toyota DYNA-TOYOACE · 2002 · 3,464 parts · 180 categories
BU343 ×
3,464 items
Accelerator Link ([12.2002 - ] (0212- )BU303,343..RHD..GEN) 27
#OEMPart name
78010 90386-08065 Bush (For Accelerator Link)
78100 78100-37600 Link Assy, Accelerator
78110 90959-03243 Spring (For Accelerator Pedal Rod)
78111 78110-95410 Pedal, Accelerator
78116 78116-37010 Cover, Accelerator Pedal Rod
78117 90541-06038 Cushion(For Parking Brake Pedal)
78119 78119-95J00 Stopper, Accelerator Pedal Rod
78119 78119-37010 Stopper, Accelerator Pedal Rod
78150 78150-37600 Wire Assy, Accelerator Flexible
78183 78183-37260 Clamp, Accelerator Control Cable
78183 78183-37300 Clamp, Accelerator Control Cable
78183 78183-37330 Clamp, Accelerator Control Cable
78183 78183-37380 Clamp, Accelerator Control Cable
78189 78208-37060 Bolt, Accelerator Pedal Stopper
78190 78190-37010 Cable Assy, Accel Control W/throttle
78410 78314-95010 Nut, Choke
78411 78411-95J01 Knob, Throttle Cable
78481 78481-37010 Clamp, Throttle Wire
91631 91631-J0612 BRACKET
91651 91651-B0616 BOLT WWASHER
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011906899 90119-06899 New Genuine Part
9017010054 90170-10054 Nut, Hexagon
9046400731 90464-00731 Clamp Or Clip(For Water Hose)
9046806063 90468-06063 CLIP
9165160616 91651-60616 BOLT
Air Cleaner ([12.2002 - ] (0212- )14B..GEN) 37
#OEMPart name
17341 17030-78220 Hose, Air, No.1
17341 17030-78280 Hose, Air, No.1
17700 17700-78150 Cleaner Assy, Air
17700 17700-78151 Cleaner Assy, Air
17701 17701-78111 Case Sub-Assy, Air Cleaner
17705 17705-78011 Cap Sub-Assy, Air Cleaner
17765 17765-78030 Stay, Air Cleaner, No.1
17765 17765-78031 Stay, Air Cleaner, No.1
17766 17766-78031 Stay, Air Cleaner, No.2
17801 17801-67060 Element Sub-Assy, Air Cleaner Filter
53094 53094-37080 Inlet, Air Cleaner Pipe, No.3
53097 53097-37220 Inlet Sub-Assy
53097 53097-37320 Inlet Sub-Assy
53774 53774-37050 Bracket, Air Cleaner Mounting, No.2
53774 53774-37090 Bracket, Air Cleaner Mounting, No.2
53955 53955-37010 Cushion, Air Cleaner Inlet No.1
53955 53955-37020 Cushion, Air Cleaner Inlet No.1
53955 53955-37030 Cushion, Air Cleaner Inlet No.1
53994 53994-37020 Retainer, Air Cleaner Inlet Pipe
53995 53995-37020 Plug, Air Cleaner Inlet
53996 53996-37040 Packing, Air Cleaner Inlet Pipe
53996 53996-37050 Packing, Air Cleaner Inlet Pipe
53996 53996-37051 Packing, Air Cleaner Inlet Pipe
91511 91511-J0840 Bolt(For Alternator)
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011908 90119-08B05 New Genuine Part
9003460042 90034-60042 New Genuine Part
9003461065 90034-61065 Clamp Or Clip(For Air Hose, No.1)
9003461065 90034-60049 Clamp, Intake Pipe
9017608044 90176-08044 NUT
9017908200 90179-08200 New Genuine Part
9017908227 90179-08227 New Genuine Part
9046088001 90460-88001 Clamp Or Clip(For Air Hose, No.1)
9046099006 90460-99006 Clamp(For Air Cleaner Hose, No.1)
9046099007 90460-99007 Clamp(For Air Cleaner Hose, No.1)
9164180825 91641-80825 BOLT WWASHER
Alternator ([09.2002 - ] 24V 30A (0209- )14B) 26
#OEMPart name
27020 27060-58460 Alternator Assy
27020 27060-58480 Alternator Assy
27020 90148-10001 Bolt(For Alternator)
27039 27039-70470 Cover, Alternator Rear End
27310 27310-58480 Frame Assy, Drive End, Alternator
27310 90099-10192 Bearing(For Alternator Drive End Frame)
27312 27312-42010 Plate, Bearing Retainer, Alternator
27330 27330-58480 Rotor Assy, Alternator
27330 90099-10140 Bearing(For Alternator Rotor)
27357 27357-55080 Holder, Alternator, W/rectifier
27359 27359-72280 Frame, Alternator Rectifier End
27370 27370-75060 Holder Assy, Alternator Brush
27371 27371-70300 Brush, Alternator
27372 27372-87501 Spring, Alternator Brush
27384 27384-50030 Holder, Alternator Brush, A
27387 27387-42021 Insulator, Terminal
27389 27389-42010 Insulator, Terminal
27411 27411-58360 Pulley, Alternator
27443 27443-63020 Cover, Alternator Bearing
27700 27700-58060 Regulator Assy, Generator
9009900197 90099-00197 Screw
9009904966 90099-04966 Bearing(for Alternator Rotor)
9009905119 90099-05119 New Genuine Part
9009905171 90099-05171 Nut(For Alternator Pulley)
9009905172 90099-05172 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
Antenna ([12.2002 - ] (0212- )BU30#,34#,WU300,340,XZU305,342,345..R HD) 3
#OEMPart name
86300 86300-37060 Antenna Assy, W/holder
827112 82711-2D080 Wire, Fuse To Fuse(for Combustion Heater)
9015040011 90150-40011 SCREW CROSSRECESS
Armrest & Visor ([09.2002 - ] (0209- )) 29
#OEMPart name
74231 74231-37020-B0 Panel, Front Armrest Base, Upper Rh
74257 74257-37010 Spring, Armrest, No.1
74310 74310-37040-B0 Visor Assy, Rh
74310 74310-37510-B0 Visor Assy, Rh
74310 74310-37380-B0 Visor Assy, Rh
74310 74310-37500-B0 Visor Assy, Rh
74320 74320-37020-B0 Visor Assy, Lh
74320 74320-37220-B0 Visor Assy, Lh
74320 74320-37140-B0 Visor Assy, Lh
74348 74348-22020-B9 Holder, Visor
74351 74351-35010-B2 Cover, Visor, No.1
74352 74352-35010-B2 Cover, Visor, No.2
74603 90467-05101-B2 Clip(For Front Body Pillar Garnish)
74610 74611-89101-B2 Grip Sub-Assy, Assist
74610 74610-95404-B1 Grip Assy, Assist, No.2 Rh
74610 74610-95405-B1 Grip Assy, Assist, No.2 Rh
74617 74617-95J00-B1 Plug, Assist Grip

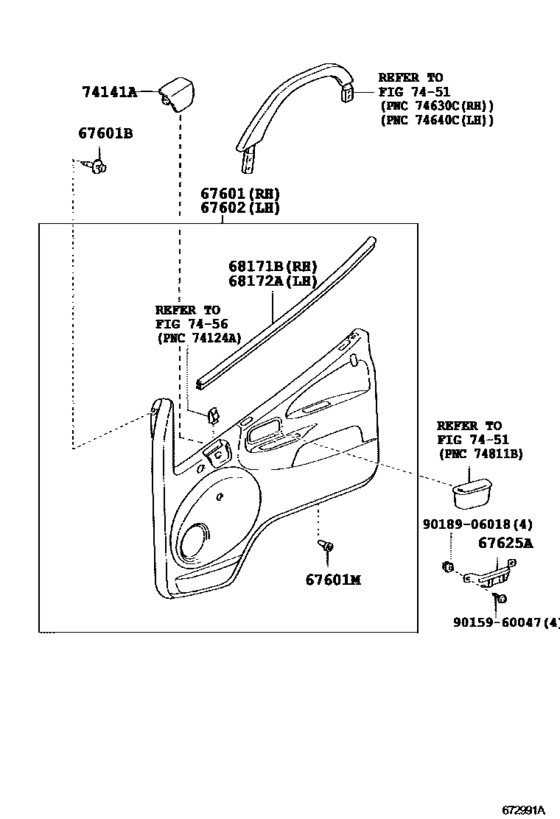

74630 74630-37020-B0 Grip Assy, Door Assist, Rh
74640 74640-37010-B0 Grip Assy, Door Assist, Lh
74645 74645-37010-B0 Cover, Door Assist Grip, Rh
74646 74646-37010-B0 Cover, Door Assist Grip, Lh
74811 74811-95J04-B2 Handle, Door Pull
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9015960243 90159-60243 New Genuine Part
9015960515 90159-60515 New Genuine Part
9353015020 93530-15020 Screw
9353045020 93530-45020 SCREW
9354054012 93540-54012 Screw, Headlamp

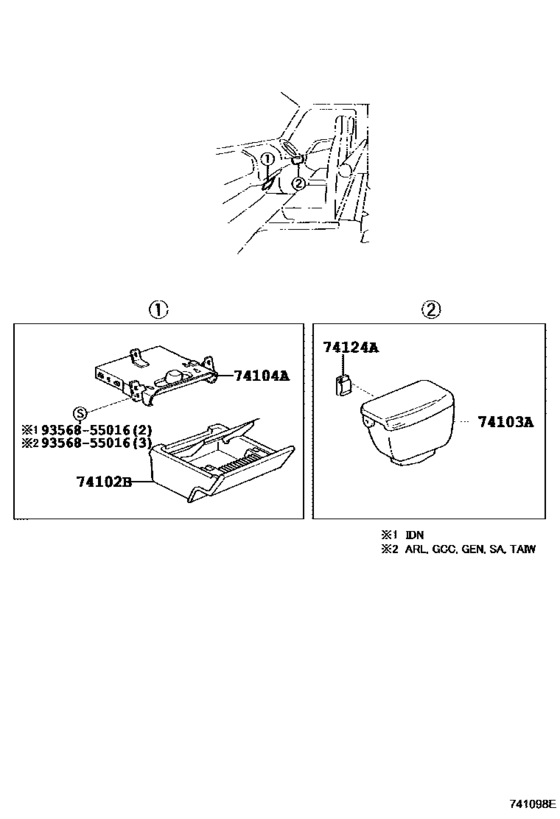

Ash Receptacle ([09.2002 - ] (0209- )) 5
#OEMPart name
74102 74102-37010-B0 Box Sub-Assy, Front Ash Receptacle
74103 74103-37010-B0 Door Sub-Assy, Front Ash Receptacle
74104 74104-37020 Retainer Sub-Assy, Front Ash Receptacle
74124 74124-37010 Spring, Ash Receptacle
9356855016 93568-55016 Screw
Battery & Battery Cable ([12.2002 - 10.2006] (0212-0610)ARL,GCC,GEN,TAIW ; (0304-0712)SA) 26
#OEMPart name
28800 28800-42041 Battery
28800 28800-56080 Battery
28800 28800-56082 Battery
28800 28800-64181 Battery
28800 28800-66013 Battery
28800 28800-64182 Battery
28800 90982-05042 Terminal, Battery Positive
28800 82122-37140 Cable, Battery To Starter(For Battery To Main Switch)
28800 82821-37071 Cover, Connector(For Battery Terminal)
28800 82123-37040 Cable, Battery To Battery
28800 90982-06028 Terminal, Battery Negative
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)

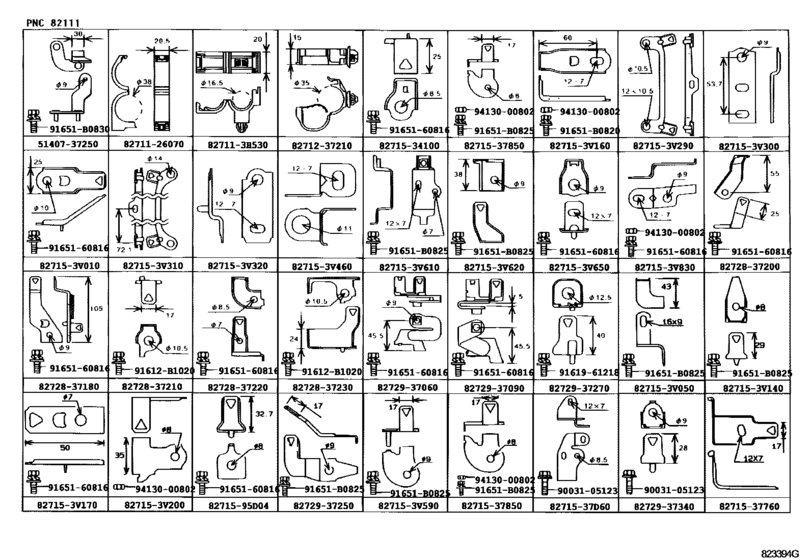

827153 82715-3V090 Bracket,wiring Harness Clamp
827153 82715-3V470 Bracket,wiring Harness Clamp
827153 82715-3V510 Bracket,wiring Harness Clamp
8271537 82715-37B00 Bracket,wiring Harness Clamp
8271110460 82711-10460 Wire, Fuse To Fuse(for Combustion Heater)
8272937630 82729-37630 New Genuine Part
9011908827 90119-08827 New Genuine Part
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9020110282 90201-10282 Gasket(For Vacuum Pump Union)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Battery Carrier ([12.2002 - ] (0212- )BU30#,34#,WU30#,34#,XZU30#,33#,340,34 5,347..ARL,GCC,GEN,SA,TAIW) 15
#OEMPart name
74042 74042-37040 Bracket Sub-Assy, Battery
74042 74042-37050 Bracket Sub-Assy, Battery
74451 74451-37011 Bolt, Battery Clamp
74451 74451-37021 Bolt, Battery Clamp
74451 74451-37022 Bolt, Battery Clamp
74452 74452-37031 Plate, Battery Set
74453 74453-36070 Bar, Battery Set Plate
74453 74453-37131 Bar, Battery Set Plate
74461 74461-37020 Cover, Battery
74461 74461-37030 Cover, Battery
74474 74475-36040 Pad, Battery
74481 74481-36030 Clamp Sub-Assy, Battery Cover
9017908038 90179-08038 Nut
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
9462241000 94622-41000 New Genuine Part
Body Stripe ([12.2002 - ] (0212- )CBU) 2
#OEMPart name
75995 75459-37010-A6 Stripe, Rear Body, Center
75995 75459-37010-A7 Stripe, Rear Body, Center

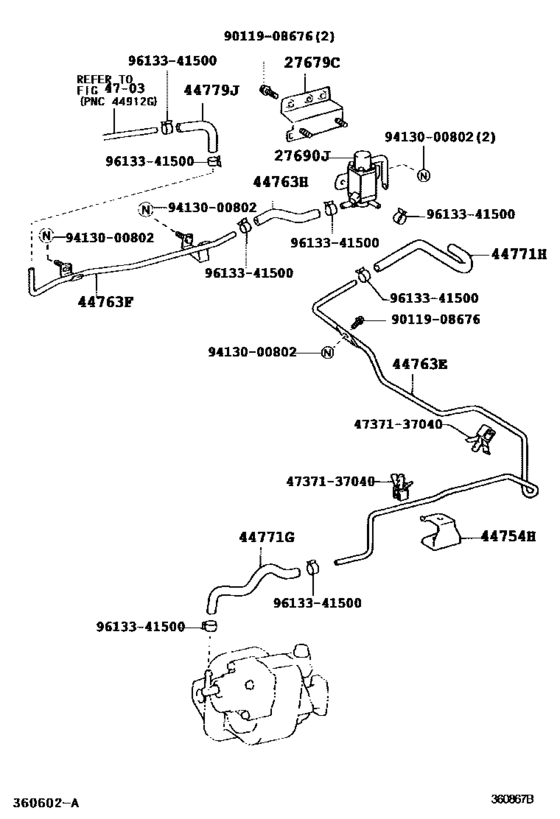

Brake Booster & Vacuum Tube ([12.2002 - 12.2006] W/O(ABS & CLUCH BOOSTER) (0212-0612)BU303,343..RHD) 44
#OEMPart name
27690 27690-78022 Solenoid Assy, W/bracket(For Exhaust Brake)
27690 27690-78130 Solenoid Assy, W/bracket(For Exhaust Brake)
27690 27690-78023 Solenoid Assy, W/bracket(For Exhaust Brake)
44610 44610-37171 Booster Assy, Brake
44621 44621-36050 Seal, Booster Body
44621 44621-36070 Seal, Booster Body
44704 44704-37070 Reservoir Sub-Assy, Vacuum
44704 44704-37162 Reservoir Sub-Assy, Vacuum
44704 44704-37071 Reservoir Sub-Assy, Vacuum
44730 44597-37020 Clamp, Vacuum Hose
44730 44597-37021 Clamp(For Clutch Booster Vacuum)
44730 90405-09178 Union, Vacuum Hose(For Manifold Side)
44730 44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)
44754 44754-37030 Bracket, Vacuum Tube, No.1
44761 44761-37260 Tube, Intake Manifold Or Vacuum Pump To Connector
44763 44764-37570 Tube, Tube Connector To Tube Connector
44764 44764-37312 Tube, Booster Vacuum
44764 44764-37382 Tube, Booster Vacuum
44764 44771-37440 Hose(For Connector To Vacuum Reservoir Tube)
44768 44768-37110 Tube, Booster Vacuum
44771 44771-37510 Hose, Vacuum Tube To Vacuum Pump
44771 44771-37380 Hose, Vacuum Tube Connector
44772 44772-37110 Hose, Check Valve To Connector Tube
44773 44773-37060 Hose, Solenoid To Exhaust Retarder
44774 44774-37110 Hose, Union To Connector Tube
44776 44776-37170 Hose, Vacuum Reservoir To Brake Booster
44778 44778-37060 Hose, Solenoid To Vacuum Tube
44781 44781-37020 Bracket, Hose
44912 44912-37890 Tube, 3 Way To Magnetic Valve
91611 91611-B0816 Bolt
91641 91641-C0814 BOLT W-WASHER
91642 91642-K1020 BOLT WWASHER
4737137040 47371-37040 Clamp(For Clutch Tube)
9011908676 90119-08676 BOLT WWASHER
9011908830 90119-08830 Bolt(For Oil Receiver Pipe)

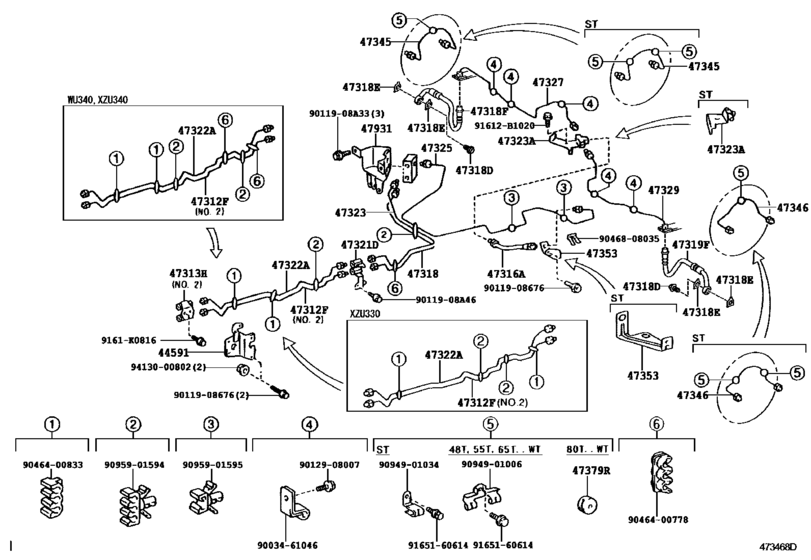

9011908830 47327-60232 Tube, Rear Brake, No.7
9017908038 90179-08038 Nut
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9046108385 90461-08385 Clamp
9048022022 90480-22022 GROMMET
9161160822 91611-60822 Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9613341500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
Brake Master Cylinder ([09.2002 - ] (0209- )RHD) 27
#OEMPart name
4493 04493-36210 Cylinder Kit, Brake Master
4493 04493-36230 Cylinder Kit, Brake Master
47202 47220-37051 Reservoir Sub-Assy, Brake Master Cylinder
47207 47207-37020 Cylinder Sub-Assy, Brake Master Less Reservoir Tank
47207 47207-37040 Cylinder Sub-Assy, Brake Master Less Reservoir Tank
47207 47207-37041 Cylinder Sub-Assy, Brake Master Less Reservoir Tank
47218 47218-36091 Plug, Master Cylinder Fluid Outlet
47218 90430-16013 Gasket(For Fluid Outlet Plug)
47230 47230-37020 Cap Assy, Brake Master Cylinder Reservoir Filler
47234 47234-37080 Tube, Reservoir, No.1
47235 47235-37070 Tube, Brake Master Cyrinder Reservoir, No.2
47237 47237-36020 Stopper, Breke Master Cylinder Reservoir Tank
47239 47239-37010 Connector, Brake Master Cylinder Reservoir
47255 47255-52010 Grommet, Master Cylinder Reservoir
47264 47264-50010 Clevis, Master Cylinder Push Rod
47281 47281-36010 Valve, Brake Master Cylinder Outlet Check
47281 90905-01054 Spring Compression(For Outlet Check Valve)
47282 47282-36010 Seat, Outlet Check Valve, No.1
47282 47282-36020 Seat, Outlet Check Valve, No.1
47299 47299-28010 Strainer, Brake Master Cylinder Reservoir
55109 55109-37010 Support Sub-Assy, Brake Master Cylinder
55109 55109-37011 Support Sub-Assy, Brake Master Cylinder
91511 91511-B0614 BOLT, FLANGE
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9056116009 90561-16009 Spacer(For Brake Booster Pump Oil Pressure Sensor)
9613341500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
Brake Pedal & Bracket ([09.2002 - ] (0209- )) 19
#OEMPart name
47101 47101-37090 Pedal Sub-Assy, Brake
47101 90508-35324 Spring(For Brake Pedal Return)
47101 90386-13007 Bush(For Clutch Pedal)
47121 31321-14020 Pad, Clutch Pedal
47124 91112-61070 Shaft, Clutch Pedal
47124 90387-10004 Collar, Clutch Pedal Shaft
47131 90541-06036 Cushion, No.1(For Clutch Pedal)
47264 90240-10037 Pin(For Push Rod)
55150 55150-37073 Bracket Assy, Pedal
55150 55150-37074 Bracket Assy, Pedal
9011908 90119-08B79 BOLT WWASHER
5842628020 58426-28020 Protector, Engine Sub Cover
9046814017 90468-14017 Clip, No.2(For Parking Brake)
9046816032 90468-16032 CLIP
9164180818 91641-80818 BOLT WWASHER
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9415080800 94150-80800 NUT, FLANGE
9415180800 94151-80800 Nut (For Transmission Control Cable)
9453101000 94531-01000 WASHER
Brake Tube & Clamp ([12.2002 - 10.2006] W(LSPV) & W/O(ABS) (0212-0610)BU30#,34#,WU300,340,XZU300,330,340..A RL,GCC,GEN,TAIW) 36
#OEMPart name
44591 44501-37010 Bracket, Brake Actuator, No.1
47312 47312-37110 Tube, Front Brake, Frame, No.2
47313 90904-12076 Way, No.3(For Front Brake Tube)
47316 90947-02B29 Hose, Flexible(For Rear Brake Tube)
47318 47318-37180 Tube, Front Brake, No.8
47318 47318-37181 Tube, Front Brake, No.8
47321 90412-10229 Way, No.1(For Rear Brake Tube)
47322 47322-37190 Tube, Rear Brake, Frame No.2
47323 47323-37200 Tube, Rear Brake, No.3
47323 47323-37201 Tube, Rear Brake, No.3
47323 47323-37440 Tube, Rear Brake, No.3
47323 90904-13052 Way, No.3(For Rear Brake Tube)
47325 47325-37210 Tube, Rear Brake, No.5
47325 47325-37211 Tube, Rear Brake, No.5
47327 47327-37350 Tube, Rear Brake, No.7
47329 47329-37210 Tube, Rear Brake, No.9
47345 47345-36050 Tube, Wheel Cylinder, Rear Rh
47353 47353-37240 Bracket, Flexible Hose, Front Rh No.2
47931 47931-37020 Bracket, Load Sensing Valve
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
9011908 90119-08A33 BOLT
9011908 90119-08A46 BOLT WWASHER
9003461046 90034-61046 New Genuine Part
9011908676 90119-08676 BOLT WWASHER
9012908007 90129-08007 New Genuine Part
9046400778 90464-00778 Clamp, Brake Tube, No.1
9046400833 90464-00833 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901006 90949-01006 CLAMP
9094901034 90949-01034 New Genuine Part
9095901594 90959-01594 Clamp, Brake Tube, No.9
9095901595 90959-01595 Clamp, Brake Tube, No.1
9165160614 91651-60614 Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Brake Tube & Clamp ([12.2002 - 10.2006] W(LSPV) & W/O(ABS) (0212-0610)BU30#,34#..RHD..ARL,GEN) 54
#OEMPart name
47311 47311-37160 Tube, Front Brake, No.1
47311 47311-37162 Tube, Front Brake, No.1
47311 47311-37161 Tube, Front Brake, No.1
47311 47391-37010 Way, No.1(For Front Brake Tube)
47311 47311-37380 Tube, Front Brake, Frame No.1
47311 90947-02A79 Hose, Flexible(For Brake Tube)
47312 47312-37060 Tube, Front Brake, No.2
47313 47313-37240 Tube, Front Brake, No.3
47313 90947-02A72 Hose, Flexible, No.1(For Front)
47313 90947-02B27 Hose, Flexible, No.1(For Front)
47313 90947-02B67 Hose, Flexible, No.1(For Front)
47313 90947-02B68 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47315 47315-37370 Tube, Front Brake, No.5
47315 47315-37480 Tube, Front Brake, No.5
47317 47317-37430 Tube, Front Brake, No.7
47317 47317-37460 Tube, Front Brake, No.7
47321 47321-37160 Tube, Rear Brake, No.1
47322 47322-37200 Tube, Rear Brake, No.2
47342 47342-37040 Tube, Wheel Cylinder, Front Rh No.2
47344 47344-37020 Tube, Wheel Cylinder, Front Lh No.2
47351 47351-37130 Bracket, Flexible Hose(For Front Rh)
47351 47351-37200 Bracket, Flexible Hose(For Front Rh)
47352 47352-37050 Bracket, Flexible Hose(For Front Lh)
47352 47352-37090 Bracket, Flexible Hose(For Front Lh)
47353 47353-37150 Bracket, Flexible Hose, No.3
47353 47353-37230 Bracket, Flexible Hose, No.3
47354 47354-37111 Bracket, Front Flexible Hose
47354 47354-37160 Bracket, Flexible Hose, No.4
47354 47354-37220 Bracket, Flexible Hose, No.4
47371 47371-37030 Clamp, Brake Tube, No.1
47391 47391-37060 Way, Brake Tube
47391 47391-37240 Way, Brake Tube
91611 91611-G0820 Bolt
9011908 90119-08A33 BOLT
9011908676 90119-08676 BOLT WWASHER
9012908007 90129-08007 New Genuine Part
9046400531 90464-00531 Clamp, Brake Tube, No.4
9046400726 90464-00726 Clamp, Brake Tube, No.4
9046714006 90467-14006 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001054 90480-01054 Grommet(For Brake Tube)
9048001275 90480-01275 Clamp, Brake Tube, No.7
9048001621 90480-01621 Grommet(For Front Brake Tube)
9095901593 90959-01593 Clamp, Brake Tube, No.6
9095901594 90959-01594 Clamp, Brake Tube, No.9
9095901595 90959-01595 Clamp, Brake Tube, No.1
9095901602 90959-01602 Clamp, Brake Tube, No.6
9095901604 90959-01604 Clamp, Brake Tube, No.7
9095901605 90959-01605 New Genuine Part
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Brake Tube & Clamp ([12.2002 - 10.2006] W/O(ABS & LSPV) (0212-0610)RHD..GEN) 53
#OEMPart name
47311 47311-37160 Tube, Front Brake, No.1
47311 47311-37162 Tube, Front Brake, No.1
47311 47311-37161 Tube, Front Brake, No.1
47311 47391-37010 Way, No.1(For Front Brake Tube)
47311 90947-02A79 Hose, Flexible(For Brake Tube)
47312 47312-37060 Tube, Front Brake, No.2
47313 47313-37240 Tube, Front Brake, No.3
47313 90947-02A72 Hose, Flexible, No.1(For Front)
47313 90947-02B27 Hose, Flexible, No.1(For Front)
47313 90947-02B67 Hose, Flexible, No.1(For Front)
47313 90947-02B68 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47315 47315-37370 Tube, Front Brake, No.5
47315 47315-37480 Tube, Front Brake, No.5
47317 47317-37430 Tube, Front Brake, No.7
47317 47317-37460 Tube, Front Brake, No.7
47321 47321-37160 Tube, Rear Brake, No.1
47322 47322-37200 Tube, Rear Brake, No.2
47342 47342-37040 Tube, Wheel Cylinder, Front Rh No.2
47344 47344-37020 Tube, Wheel Cylinder, Front Lh No.2
47351 47351-37130 Bracket, Flexible Hose(For Front Rh)
47351 47351-37200 Bracket, Flexible Hose(For Front Rh)
47352 47352-37050 Bracket, Flexible Hose(For Front Lh)
47352 47352-37090 Bracket, Flexible Hose(For Front Lh)
47353 47353-37150 Bracket, Flexible Hose, No.3
47353 47353-37230 Bracket, Flexible Hose, No.3
47354 47354-37111 Bracket, Front Flexible Hose
47354 47354-37160 Bracket, Flexible Hose, No.4
47354 47354-37220 Bracket, Flexible Hose, No.4
47371 47371-37030 Clamp, Brake Tube, No.1
47391 47391-37060 Way, Brake Tube
47391 47391-37240 Way, Brake Tube
91611 91611-G0820 Bolt
9011908 90119-08A33 BOLT
9011908676 90119-08676 BOLT WWASHER
9012908007 90129-08007 New Genuine Part
9046400531 90464-00531 Clamp, Brake Tube, No.4
9046400726 90464-00726 Clamp, Brake Tube, No.4
9046714006 90467-14006 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001054 90480-01054 Grommet(For Brake Tube)
9048001275 90480-01275 Clamp, Brake Tube, No.7
9048001621 90480-01621 Grommet(For Front Brake Tube)
9095901593 90959-01593 Clamp, Brake Tube, No.6
9095901594 90959-01594 Clamp, Brake Tube, No.9
9095901595 90959-01595 Clamp, Brake Tube, No.1
9095901602 90959-01602 Clamp, Brake Tube, No.6
9095901604 90959-01604 Clamp, Brake Tube, No.7
9095901605 90959-01605 New Genuine Part
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Brake Tube & Clamp ([12.2002 - ] W(LSPV) (0212- )BU30#,34#,WU30#,34#,XZU30#,33#,340,34 5,347..ARL,GCC,GEN,TAIW) 23
#OEMPart name
4477 04477-37010 Bush & Boot Kit, Load Sensing Spring
47910 47910-37090 Valve Assy, Load Sensing Proportioning
47920 47920-37070 Spring Assy, Load Sensing
47920 90387-08099 Collar(For Load Sensing Spring)
47920 90467-31110 Clip(For Load Sensing Valve Boot)
47920 90202-10103 Washer(For Load Sensing Spring)
47924 47924-35010 Bush, Load Sensing Valve
47931 47931-37020 Bracket, Load Sensing Valve
47933 47933-37060 Bracket, Load Sensing Shackle, No.1
47935 47935-35030 Shackle, Load Sensing Spring, No.1
47936 47936-26020 Shackle, Load Sensing Spring, No.2
47937 47937-60010 Plate, Load Sensing Valve Set
91611 91611-B0816 Bolt
9011908 90119-08A33 BOLT
9017008016 90170-08016 Nut
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9020108062 90201-08062 Retainer(For Load Sensing Spring Shackle)
9020123360 90201-23360 WASHER
9113150840 91131-50840 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
Brake Tube & Clamp ([12.2002 - ] W/O(ABS & LSPV) (0212- )GCC,GEN) 27
#OEMPart name
44591 44501-37010 Bracket, Brake Actuator, No.1
47313 90904-12076 Way, No.3(For Front Brake Tube)
47316 90947-02B29 Hose, Flexible(For Rear Brake Tube)
47321 90412-10229 Way, No.1(For Rear Brake Tube)
47322 47322-37190 Tube, Rear Brake, Frame No.2
47323 47323-37200 Tube, Rear Brake, No.3
47323 47323-37201 Tube, Rear Brake, No.3
47323 47323-37440 Tube, Rear Brake, No.3
47323 90904-13052 Way, No.3(For Rear Brake Tube)
47327 47327-37350 Tube, Rear Brake, No.7
47329 47329-37210 Tube, Rear Brake, No.9
47345 47345-36050 Tube, Wheel Cylinder, Rear Rh
47353 47353-37240 Bracket, Flexible Hose, Front Rh No.2
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
91641 91641-K0816 BOLT WWASHER
9011908 90119-08A46 BOLT WWASHER
9003461046 90034-61046 New Genuine Part
9011908676 90119-08676 BOLT WWASHER
9012908007 90129-08007 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901006 90949-01006 CLAMP
9094901034 90949-01034 New Genuine Part
9095901595 90959-01595 Clamp, Brake Tube, No.1
9165160614 91651-60614 Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Cab Mounting & Body Mounting ([12.2002 - ] (0209- )XZU342 ; (0212- )RHD..ARL,GEN,SA) 57
#OEMPart name
47358 47358-37010 Tube, Booster To Reservoir, No.2
51711 51701-37290 Bracket, Cab Front Mounting
51711 90101-14075 Bolt, Hexagon(For Cab Mounting Baracket)
51722 51702-37290 Bracket Sub-Assy, Cab Front Mounting, Lh
52203 52203-37060 Cushion Sub-Assy, Cab Mounting, No.2
52211 90109-14011 Bolt(For Body Mounting No.1 Cushion)
52211 52211-37010 Spacer(For Body Mounting No.1 Cushion)
52306 52306-37021 Bracket Sub-Assy, Cab Mounting Hook, No.1
52306 52306-37023 Bracket Sub-Assy, Cab Mounting Hook, No.1
52306 52306-37022 Bracket Sub-Assy, Cab Mounting Hook, No.1
52306 52306-37050 Bracket Sub-Assy, Cab Mounting Hook, No.1
52307 52307-37010 Bracket Sub-Assy, Cab Mounting Hook, No.2
52313 52313-37040 Stopper, Cab Rear Mounting Rebound
52367 52367-37040 Hook, Cab Rear Mounting
52367 52367-37060 Hook, Cab Rear Mounting
53116 53116-37030 Bracket, Radiator Grille, No.2
54801 54801-37032 Tube Sub-Assy, Tilt Cab, No.1
54801 54801-37033 Tube Sub-Assy, Tilt Cab, No.1
54801 91673-G1025 New Genuine Part
54907 54907-37010 Pipe Sub-Assy, Tilt Cab Lock Connecting
54907 54907-37050 Pipe Sub-Assy, Tilt Cab Lock Connecting
54911 54911-37030 Arm, Tilt Cab Spring Support, No.1
54915 54915-37090 Spring, Tilt Cab, No.1
54925 54925-37030 Retainer, Tilt Cab Spring
54940 54940-37051 Stay Assy, Tilt Cab
54970 54970-37013 Latch Assy, Tilt Cab Stopper
54980 54980-37011 Lock Assy, Tilt Cab Mounting, Rh
54980 54980-37021 Lock Assy, Tilt Cab Mounting, Rh
54990 54990-37022 Lock Assy, Tilt Cab Mounting, Lh
57223 57223-37011 Bracket, Front Mounting, Rh
57224 57224-37011 Bracket, Front Mounting, Lh
57325 57325-37010 Reinforcement, Front Mounting
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9010114071 90101-14071 BOLT HEXAGON
9010114072 90101-14072 Bolt, Body Mounting
9011910924 90119-10924 New Genuine Part
9017008016 90170-08016 Nut
9017014030 90170-14030 NUT HEXAGON
9017314012 90173-14012 NUT SQUARE
9017712004 90177-12004 NUT LOCK
9017908026 90179-08026 Nut (For Front Wiper Arm Setting)
9017914065 90179-14065 NUT
9020116172 90201-16172 Washer, Rocker Shaft
9046816032 90468-16032 CLIP
9161961230 91619-61230 BOLT
9164281025 91642-81025 BOLT WWASHER
9164281030 91642-81030 Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9415080600 94150-80600 NUT FLANGE
9415081000 94150-81000 NUT FLANGE
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
9461310800 94613-10800 Spacer (For Control Select Lever Support)
9462241400 94622-41400 WASHER PLATE
9615002000 96150-02000 Ring, Shaft Snap(For Tension Gear)
9616000800 96160-00800 Ring, E(For Counter Weight)

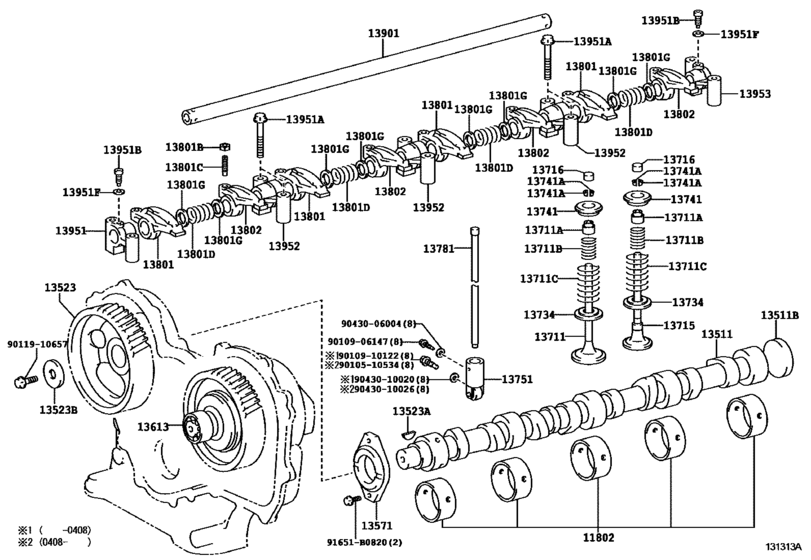

Camshaft & Valve ([09.2002 - ] (0209- )14B) 43
#OEMPart name
11802 11802-56031 Bearing Set, Camshaft
11802 11802-58010 Bearing Set, Camshaft
13511 13511-56070 Camshaft
13511 13511-56071 Camshaft
13511 90331-58001 Plug, Expansion(For Camshaft)
13523 13523-58010 Gear Or Sprocket, Camshaft Timing
13523 95161-30519 Key(For Crankshaft Timing Gear)
13523 90201-10227 Washer, Plate(For Timing Gear)
13571 13571-56030 Plate, Camshaft Thrust
13613 22407-58010 Gear, Injection Pump Drive
13711 13711-58021 Valve, Intake
13711 90913-02076 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-33012 Spring, Compression(For Inner)
13711 90501-45032 Spring, Compression(For Outer)
13715 13715-58041 Valve, Exhaust
13716 13716-56010 Cap, Valve Stem
13734 13734-56010 Seat, Valve Spring
13741 13741-56040 Retainer, Valve Spring
13741 90913-03024 Lock, Valve Spring Retainer
13751 13750-58011 Lifter, Valve
13781 13781-56020 Rod, Valve Push
13801 13811-58030 Arm Sub-Assy, Valve Rocker, No.1
13801 90179-08248 Nut, Hexagon(For Valve Adjusting)
13801 90913-05025 Screw, Valve Adjusting
13801 90501-16114 Spring, Compression(For Rocker Arm)
13801 90201-19009 Washer, Plate(For Valve Rocker Arm)
13901 13901-56030 Shaft Sub-Assy, Valve Rocker, No.1
13951 13951-56040 Support, Valve Rocker, No.1
13951 90105-08165 Bolt(For Rocker Support Set)
13951 90105-08177 Bolt(For Rocker Support Set)
13951 13958-56010 Screw Or Bolt(For Valve Rocker Shaft Lock)
13951 90201-06350 Washer, Seal(For Head Cover Set)
13952 13952-56040 Support, Valve Rocker, No.2
13953 13953-56040 Support, Valve Rocker, No.3
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9010510534 90105-10534 BOLT WASHER BASED
9010906147 90109-06147 New Genuine Part
9010910122 90109-10122 SPL BOLTCYL BLOCK
9011910657 90119-10657 Bolt(For Body Mount No.4 Cushion)
9043006004 90430-06004 New Genuine Part
9043010020 90430-10020 GASKETROUND TYPE
9043010026 90430-10026 New Genuine Part
Caution Plate & Name Plate (Engine) ([09.2002 - 12.2006] (0209-0612)14B ; (0212-0706)W04D..WU300,340..GCC ,SA ; (0901- )) 2
#OEMPart name
11293 11293-56080 Plate, Engine Caution & Engine Name
17700 90917-07109 Plate, Engine Caution - AIR CLEANER CAUTION (FOR ENGINE MODEL)

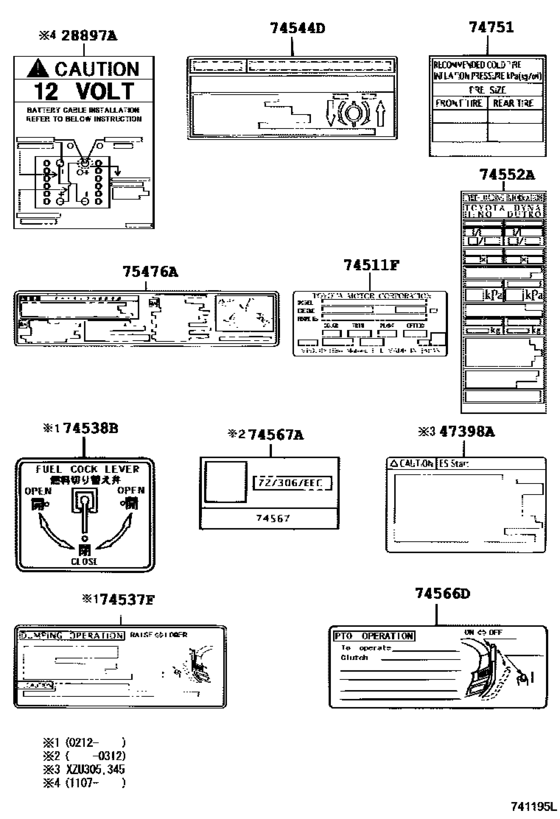

Caution Plate ([09.2002 - ] (0209- )) 5
#OEMPart name
74511 74511-37060 Label, Name (Identification Laser Label)
74538 74538-37030 Plate, Fuel Caution
74538 74572-37021 Label, Fuel Inlet Operational Information
74544 74544-37040 Plate, Tire Carrier Caution
75476 75476-37061 Plate, Tilt Operational Caution
Clutch & Release Fork ([09.2002 - ] (0209- )) 15
#OEMPart name
31126 31126-36080 Boot, Clutch Release Fork
31204 31204-35031 Fork Sub-Assy, Clutch Release
31210 31210-36170 Cover Assy, Clutch
31210 31210-36340 Cover Assy, Clutch
31230 31230-36150 Bearing Assy, Clutch Release
31230 31230-36151 Bearing Assy, Clutch Release
31232 31232-36010 Clip Or Spring, Release Bearing Hub
31236 31236-35030 Ball, Release Fork
31250 31250-37080 Disc Assy, Clutch
31250 31250-37210 Disc Assy, Clutch
31250 31250-37081 Disc Assy, Clutch
33311 90363-12018 Bearing (For Input Shaft)
9011908134 90119-08134 BOLT
9011908208 90119-08208 Bolt (For Roller Bearing Retainer)
9011910205 90119-10205 Bolt

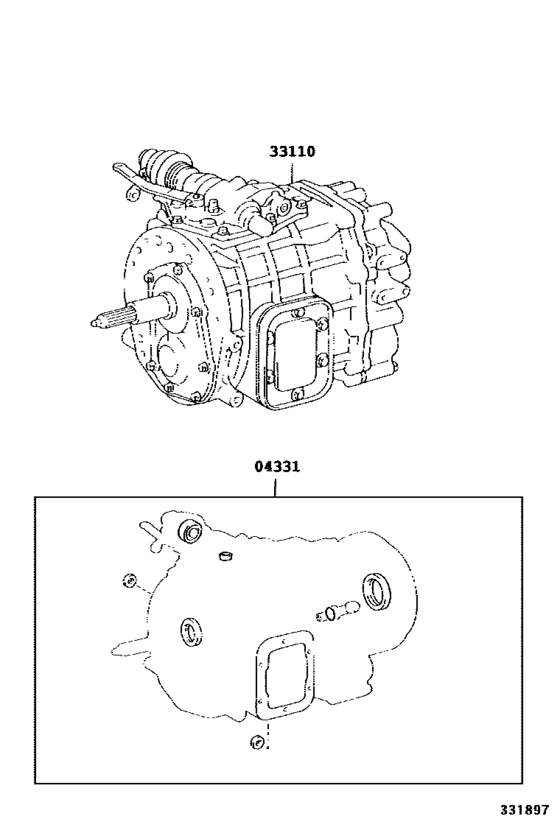

Clutch Housing & Transmission Case (Mtm) ([09.2002 - 12.2006] M150,M153 (0209-0612)BU303,343) 36
#OEMPart name
31111 31111-36310 Housing, Clutch
31121 31121-28041 Cover, Clutch Housing, No.1
31121 31121-28030 Cover, Clutch Housing, No.1
31123 31121-36040 Cover, Clutch Housing, No.1
31123 31121-36110 Cover, Clutch Housing, No.1
33101 33101-36084 Case Sub-Assy, Manual Transmission
33104 90341-18006 Plug (No magnet)
33104 90430-18008 Gasket
33104 90430-T0021 Gasket(For Manual Transmission Filler Plug)
33111 96411-11600 Plug
33111 90250-12002 Pin, Straight(For Manual Transmission Case)
33111 90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)
33111 90253-13017 Pin, Ring W/head
33118 33118-36021 Plate, Stiffener, Rh(Mtm)
33119 33119-36042 Plate, Stiffener, Lh(Mtm)
33124 33124-36030 Pipe, Oil Receiver, No.1(Mtm)
33125 33125-36020 Receiver, Manual Transmission Case
33131 33018-36060 Retainer, Bearing, Front(Mtm)
33131 90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)
33141 90311-48011 Seal, Oil(For Transmission Rear Bearing Retainer)
33151 33017-36031 Retainer, Output Shaft Rear Bearing(Mtm)
33161 33161-36010 Cover, Manual Transmission Power Take-Off
33162 33162-36020 Gasket, Transmission Power Take-Off Cover(Mtm)
33449 33449-36010 Magnet, Transmission
91611 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
91611 91611-B0812 Bolt
9011908332 90119-08332 Bolt(For Manual Transmission Oil Pump Cover)
9011908421 90119-08421 New Genuine Part
9011910121 90119-10121 BOLT
9011910186 90119-10186 BOLT
9161261030 91612-61030 Bolt (For Transmission Control Cable Bracket)
9161261040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9161961235 91619-61235 BOLT
9161961250 91619-61250 Bolt
9161961255 91619-61255 Bolt(For Transaxle & Engine Setting)

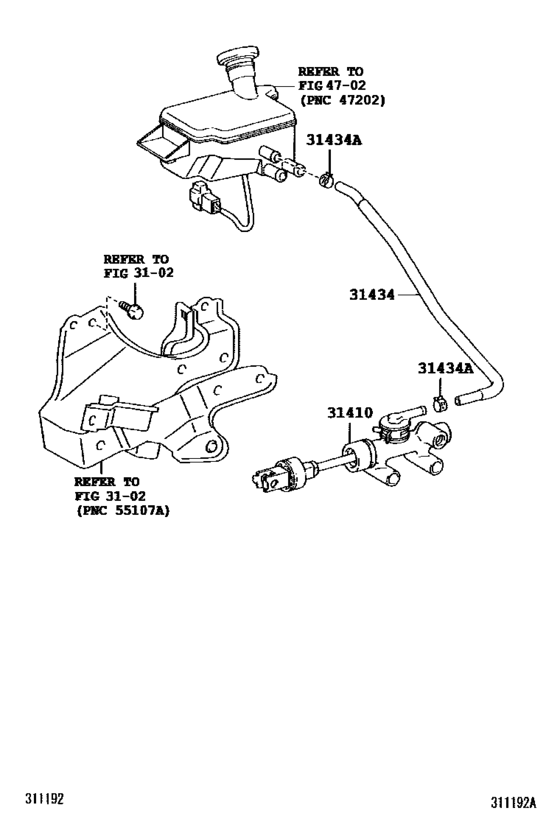

Clutch Master Cylinder ([12.2002 - ] (0212- )RHD..GEN,SA) 5
#OEMPart name
31410 31420-37140 Cylinder Assy, Clutch Master
31410 31420-37142 Cylinder Assy, Master W/o Reservoir
31410 31420-37141 Cylinder Assy, Clutch Master
31434 31434-37180 Tube, Clutch Reservoir
31434 96133-41300 Clip(For Air Hose No.6)
Clutch Pedal & Flexible Hose ([12.2002 - 10.2006] (0212-0610)BU30#,34#..RHD..ARL,GEN ; (0304-0712) SA) 18
#OEMPart name
31406 31406-37010 Bracket Sub-Assy, Flexible Hose
31481 31481-25220 Tube, Clutch Master Cylinder To 2 Way
31481 31481-37260 Tube, Clutch Master Cylinder To Flexible Hose
31481 90931-01143 Hose, Clutch, No.1
31481 31486-37110 Hose, Clutch, No.1
31482 31482-37090 Tube, Clutch Release Cylinder To Flexible Hose
31482 90931-01142 Hose, Clutch, No.1
31482 31486-37180 Hose, Clutch, No.1
31484 31484-37150 Bracket, Flexible Hose, No.1(For Clutch)
31488 31488-37410 Tube, Flexible Hose To Flexible Hose
31489 31481-37130 Tube, Tube Connector To Flexible Hose
31495 31495-37010 Way(For Clutch Tube)
9011908830 90119-08830 Bolt(For Oil Receiver Pipe)
9011908830 47327-60232 Tube, Rear Brake, No.7
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Clutch Pedal & Flexible Hose ([12.2002 - ] (0212- )GCC,GEN,SA) 28
#OEMPart name
31301 31301-37240 Pedal Sub-Assy, Clutch
31301 90507-18032 Spring(For Clutch Pedal)
31301 90541-06036 Cushion, No.1(For Clutch Pedal)
31301 90386-13007 Bush(For Clutch Pedal)
31301 90389-06055 Bush(For Clutch Pedal Turnover)
31301 90959-03331 Spring, Compression(For Turn Over Spring Seat)
31321 31321-14020 Pad, Clutch Pedal
31324 91112-61070 Shaft, Clutch Pedal
31324 90387-10004 Collar, Clutch Pedal Shaft
31353 31353-35010 Holder, Clutch Pedal Spring
31395 31395-33010 Hook, Pedal Spring
31395 31395-33020 Hook, Pedal Spring
31453 90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453 90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)
38979 38979-37110 Bracket, Power Take-Off Clutch Switch
38979 38979-37120 Bracket, Power Take-Off Clutch Switch
55107 55107-37051 Support, Clutch Master Cylinder
55107 55107-37052 Support, Clutch Master Cylinder
55159 55159-37060 Pin, Clutch Pedal Turn Over Spring
91611 91611-B0816 Bolt
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9046814017 90468-14017 Clip, No.2(For Parking Brake)
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9161160865 91611-60865 Bolt(For Rocker Support Set)
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9453101000 94531-01000 WASHER
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)

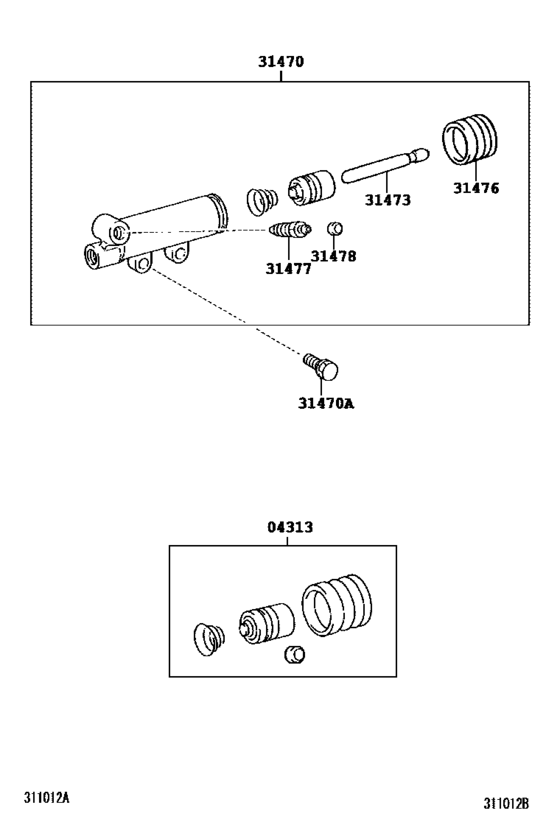

Clutch Release Cylinder ([09.2002 - ] (0209- )BU303,343) 7
#OEMPart name
4313 04313-36150 Cylinder Kit, Clutch Release
31470 31470-36213 Cylinder Assy, Clutch Release
31470 91611-G0820 Bolt
31473 31473-22010 Rod, Clutch Release Cylinder Push, No.1
31476 31476-22010 Boot, Clutch Release Cylinder
31477 47547-12010 Plug, Bleeder(For Release Cylinder)
31478 31478-30010 Bleeder Plug Cap
Console Box & Bracket ([09.2002 - ] (0209- )) 16
#OEMPart name
58255 58255-37020-B0 Cover, Shift Lever Boot
58255 58255-37021-B0 Cover, Shift Lever Boot
58808 58808-37020-B0 Cover Sub-Assy, Shifting Hole
58808 58808-37021-B0 Cover Sub-Assy, Shifting Hole
58811 90467-07191-B0 Clip, Cover Sub-Assy, Position Indicator Housing
58833 58839-95400-B0 Cover, Console, Upper
58833 58839-37010-B0 Cover, Console, Upper
58834 58834-25020-B0 Cover, Console, Lower
58834 58834-25021-B0 Cover, Console, Lower
58941 58941-37010-B0 Cover, Parking Brake Hole
58941 58941-37011-B0 Cover, Parking Brake Hole
9054103078 90541-03078 Cushion(For Cup Holder)
9331356014 93313-56014 New Genuine Part
9356054010 93560-54010 SCREW
9356055020 93560-55020 SCREW
9356055025 93560-55025 New Genuine Part
Crankshaft & Piston ([09.2002 - ] (0209- )14B,15BFTE..BU30#,34#) 59
#OEMPart name
11011 11011-56020 Washer Set, Crankshaft Thrust
11011 11011-58020 Washer Set, Crankshaft Thrust
11011 11012-56020 Washer Set, Crankshaft Thrust
11011 11012-58020 Washer Set, Crankshaft Thrust
11011 11013-56020 Washer Set, Crankshaft Thrust
11011 11013-58020 Washer Set, Crankshaft Thrust
11702 11704-56032 Bearing Set, Crankshaft
11702 11704-58010 Bearing Set, Crankshaft
11702 11705-56032 Bearing Set, Crankshaft
11702 11707-56032 Bearing Set, Crankshaft
11711 11701-56022-01 Bearing, Crankshaft
11711 11701-58010-01 Bearing, Crankshaft
11711 11701-56022-02 Bearing, Crankshaft
11711 11701-58010-02 Bearing, Crankshaft
13011 13011-58072 Ring Set, Piston (STD)
13011 13013-58072 Ring Set, Piston
13011 13014-58072 Ring Set, Piston
13011 13015-58072 Ring Set, Piston
13041 13041-58032-01 Bearing, Connecting Rod
13041 13041-58050-01 Bearing, Connecting Rod
13041 13041-58032-02 Bearing, Connecting Rod
13041 13041-58050-02 Bearing, Connecting Rod
13101 13101-58041-01 Piston Sub-Assy, W/pin
13101 13101-58041-02 Piston Sub-Assy, W/pin
13101 13101-58041-03 Piston Sub-Assy, W/pin
13101 13103-58041 Piston Sub-Assy, W/pin
13101 13104-58041 Piston Sub-Assy, W/pin
13101 13105-58041 Piston Sub-Assy, W/pin
13101 90521-34002 Ring, Hole Snap(For Piston Pin)
13201 13201-59146 Rod Sub-Assy, Connecting
13201 13201-59266 Rod Sub-Assy, Connecting
13201 13201-59265 Rod Sub-Assy, Connecting
13201 90999-73124 Bush(For Connecting Rod Small End)
13202 13204-58032 Bearing Set, Connecting Rod
13202 13204-58050 Bearing Set, Connecting Rod (0.25)
13202 13205-58032 Bearing Set, Connecting Rod
13202 13205-58050 Bearing Set, Connecting Rod (0.50)
13202 13207-58032 Bearing Set, Connecting Rod
13202 13207-58050 Bearing Set, Connecting Rod (1.00)
13265 13265-58020 Bolt, Connecting Rod
13265 13266-58010 Nut, Hexagon(For Connecting Rod Bolt)
13405 13405-56040 Flywheel Sub-Assy
13405 13405-56041 Flywheel Sub-Assy
13405 90250-10192 Pin, Straight(For Timing Gear Cover Set)
13405 90913-01015 Bolt, Flywheel Setting
13411 13401-58051 Crankshaft
13434 13519-56011 Spline, Oil Pump Drive
13453 13453-56020 Gear, Flywheel Ring
13453 13453-56021 Gear, Flywheel Ring
13471 13470-58060 Pulley, Crankshaft
13471 95161-30416 Pin, Straight(For Crankshaft)
13471 90901-19032 Bolt(For Crankshaft Pulley Set)
13503 13504-58010 Shaft Sub-Assy, Idle Gear
13521 13521-56030 Gear Or Sprocket, Crankshaft Timing
13521 95161-30519 Key(For Crankshaft Timing Gear)
13525 13508-56010 Gear, Idle, No.1
13572 13572-56020 Plate, Idle Gear Thrust
13577 90105-10194 Bolt, Hexagon(For Idle Gear Bolt Lock)
13707 90401-10026 Union(For Oil Pipe, No.1)
Cylinder Block ([09.2002 - ] (0209- )14B) 34
#OEMPart name
11401 11401-59397 Block Sub-Assy, Cylinder
11415 90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90910-09087 Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02082 Bolt(For Crankshaft Bearing Cap Set)
11416 90910-02083 Bolt(For Crankshaft Bearing Cap Set)
11431 96411-64500 Plug, Tight
11431 90331-50003 Plug, Tight, No.2(For Cylinder Block)
11431 96411-63000 Plug, Tight
11431 96411-63500 Plug, Tight
11431 90331-14006 Plug, Tight, No.1
11431 96411-65000 Plug, Tight, No.2(For Cylinder Block)
11432 90345-51007 Plug, W/head Taper Screw, No.1
11432 90345-53004 Plug, W/head Taper Screw, No.2
11432 90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)
11434 90250-08120 Pin, Straight, No.1
11434 90253-15008 Pin, Straight (For Cylinder Head Set)
11452 11452-56050 Guide, Oil Level Gage
11459 11459-56040 Support, Oil Level Gage Guide
12101 12101-58092 Pan Sub-Assy, Oil
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90341-T0004 Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
13613 90915-01015 Nozzle, Oil
15301 15301-58110 Gage Sub-Assy, Oil Level
15301 96741-19005 O-Ring (For Oil Level Gage)
15605 15605-56010 Valve Sub-Assy, Oil Check
15708 15708-56010 Nozzle Sub-Assy, Oil, No.1
9011608194 90116-08194 Bolt
9011908505 90119-08505 Bolt, Washer
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9043018012 90430-18012 Gasket(For Oil Pump Outlet Pipe)
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9672124010 96721-24010 Ring, O(For Timing Gear Case, Lower)

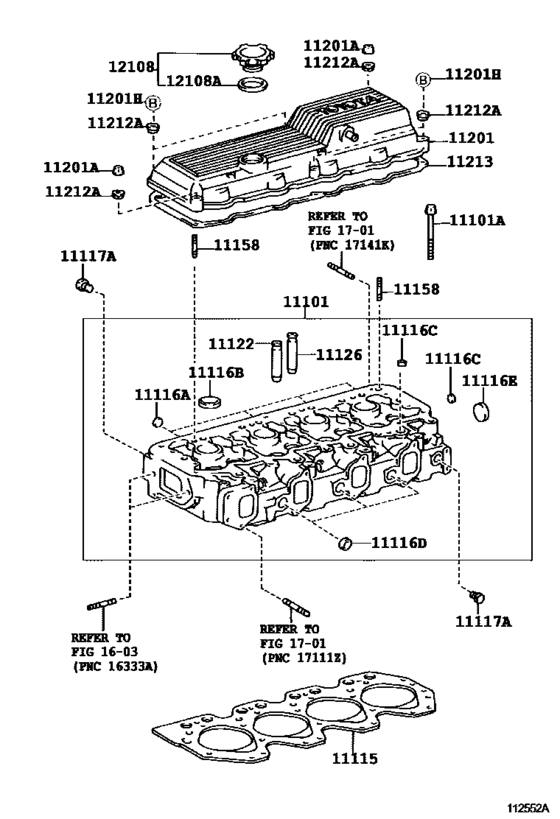

Cylinder Head ([09.2002 - ] (0209- )14B) 19
#OEMPart name
11101 11101-58041 Head Sub-Assy, Cylinder
11101 90910-02084 Bolt(For Cylinder Head Set)
11115 11115-58070 Gasket, Cylinder Head
11115 11115-58090 Gasket, Cylinder Head
11115 11115-58100 Gasket, Cylinder Head
11116 90331-12004 Plug, Tight, No.1
11116 96411-64000 Plug, Tight, No.2
11116 96411-62000 Plug, Tight
11116 96411-62800 Plug, Tight, No.1
11117 90345-54005 Plug, W/head Taper Screw, No.1
11122 11122-56030 Bush, Intake Valve Guide
11158 92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)
11201 11201-58050 Cover Sub-Assy, Cylinder Head
11201 90179-08040 Nut, Cap(For Cylinder Head Cover)
11201 91511-B0850 Bolt
11212 11228-56010 Cushion, Cylinder Head Cover
11213 11213-58030 Gasket, Cylinder Head Cover
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37140 Gasket(For Oil Filler Cap)
Disc Wheel & Wheel Cap ([09.2002 - ] BALANCE WEIGHT (0209- )) 54
#OEMPart name
9094203067 90942-03067 Weight, Balance (For Disc Wheel)
9094203068 90942-03068 Weight, Balance (For Disc Wheel)
9094203069 90942-03069 Weight, Balance (For Disc Wheel)
9094203079 90942-03079 Weight, Balance (For Disc Wheel)
9094203079 90942-03362 Weight, Balance (For Disc Wheel)
9094203080 90942-03080 Weight, Balance (For Disc Wheel)
9094203080 90942-03364 Weight, Balance (For Disc Wheel)
9094203081 90942-03081 Weight, Balance (For Disc Wheel)
9094203081 90942-03366 Weight, Balance (For Disc Wheel)
9094203082 90942-03082 Weight, Balance (For Disc Wheel)
9094203082 90942-03368 Weight, Balance (For Disc Wheel)
9094203083 90942-03083 Weight, Balance (For Disc Wheel)
9094203084 90942-03084 Weight, Balance (For Disc Wheel)
9094203085 90942-03085 Weight, Balance (For Disc Wheel)
9094203107 90942-03107 Weight, Balance (For Disc Wheel)
9094203107 90942-03360 Weight, Balance (For Disc Wheel)
9094203134 90942-03134 Weight, Balance (For Disc Wheel)
9094203135 90942-03135 Weight, Balance (For Disc Wheel)
9094203136 90942-03136 Weight, Balance (For Disc Wheel)
9094203137 90942-03137 Weight, Balance (For Disc Wheel)
9094203138 90942-03138 Weight, Balance (For Disc Wheel)
9094203139 90942-03139 Weight, Balance (For Disc Wheel)
9094203140 90942-03140 Weight, Balance (For Disc Wheel)
9094203141 90942-03141 Weight, Balance (For Disc Wheel)
9094203142 90942-03142 Weight, Balance (For Disc Wheel)
9094203143 90942-03143 Weight, Balance (For Disc Wheel)
9094203144 90942-03144 Weight, Balance (For Disc Wheel)
9094203173 90942-03173 Weight, Balance (For Disc Wheel)
9094203174 90942-03174 Weight, Balance (For Disc Wheel)
9094203175 90942-03175 Weight, Balance (For Disc Wheel)
9094203176 90942-03176 Weight, Balance (For Disc Wheel)
9094203177 90942-03177 Weight, Balance (For Disc Wheel)
9094203178 90942-03178 Weight, Balance (For Disc Wheel)
9094203179 90942-03179 Weight, Balance (For Disc Wheel)
9094203180 90942-03180 Weight, Balance (For Disc Wheel)
9094203181 90942-03181 Weight, Balance (For Disc Wheel)
9094203182 90942-03182 Weight, Balance (For Disc Wheel)
9094203183 90942-03183 Weight, Balance (For Disc Wheel)
9094203184 90942-03184 Weight, Balance (For Disc Wheel)
9094203185 90942-03185 Weight, Balance (For Disc Wheel)
9094203186 90942-03186 Weight, Balance (For Disc Wheel)
9094203218 90942-03218 Weight, Balance (For Disc Wheel)
9094203218 90942-03369 Weight, Balance (For Disc Wheel)
9094203219 90942-03219 Weight, Balance (For Disc Wheel)
9094203219 90942-03361 Weight, Balance (For Disc Wheel)
9094203220 90942-03220 Weight, Balance (For Disc Wheel)
9094203220 90942-03363 Weight, Balance (For Disc Wheel)
9094203221 90942-03221 Weight, Balance (For Disc Wheel)
9094203221 90942-03365 Weight, Balance (For Disc Wheel)
9094203222 90942-03222 Weight, Balance (For Disc Wheel)
9094203222 90942-03367 Weight, Balance (For Disc Wheel)
9094203223 90942-03223 Weight, Balance (For Disc Wheel)
9094203224 90942-03224 Weight, Balance (For Disc Wheel)
9094203225 90942-03225 Weight, Balance (For Disc Wheel)
Disc Wheel & Wheel Cap ([09.2002 - ] DISC WHEEL (0209- )) 11
#OEMPart name
42601 42610-37091 Wheel, Disc (For Spare)
42601 42633-55030 Nut, Hub (For Axle)
42601 42634-55030 Nut, Hub (For Axle)
42601 90942-01107 Nut, Hub (For Axle)
42601 90942-01108 Nut, Hub (For Axle)
42611 90468-10014 Clip (For Tube)
42613 42613-37030 Ring, Disc Wheel Side
42652 42605-36340 Tire
42652 42605-37320 Tire
42652 42605-37490 Tire
42652 98961-70166 Tire Tube Set Or Tubeless Tire

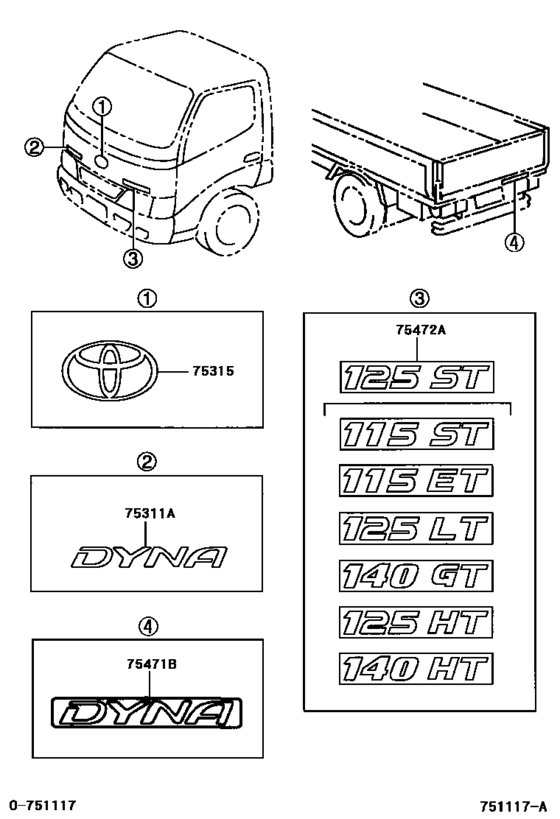

Emblem & Name Plate ([12.2002 - ] (0209-0612)IDN ; (0212- )ARL,GCC,GEN,SA,TAIW) 3
#OEMPart name
75311 75311-25051 Plate, Front Name, No.1
75315 75315-25010 Ornament, Radiator Grille
75471 75471-25030 Plate, Rear Body Name, No.1
Engine Oil Cooler ([09.2002 - ] (0209- )14B,15BFTE..BU30#,34#) 14
#OEMPart name
15529 90341-18006 Plug (No magnet)
15710 15710-58030 Cooler Assy, Oil
15710 15785-58010 Gasket(For Oil Cooler)
15722 15725-56020 Gasket, Oil Cooler
15791 15701-58050 Case, Oil Cooler
9011008004 90110-08004 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9034116012 90341-16012 Plug(For Transmission Case)
9034551007 90345-51007 Plug, W/head Taper Screw, No.1
9043016242 90430-16242 Gasket, W/head Straight Screw Plug
9043018019 90430-18019 New Genuine Part
9151180830 91511-80830 Bolt(For Alternator)
9212280828 92122-80828 Bolt, Stud(For Intake Manifold To Cylinder Head)
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Engine Oil Pump ([09.2002 - ] (0209- )14B,15BFTE..BU30#,34#) 17
#OEMPart name
15104 15104-56062 Strainer Sub-Assy, Oil
15104 15149-58010 Gasket(For Oil Strainer)
15104 92122-60832 Bolt, Stud(For Oil Strainer)
15115 15115-56040 Cover, Oil Pump
15121 15121-56040 Gear, Oil Pump Drive
15122 15122-56040 Gear, Oil Pump Driven
15131 15131-24010 Valve, Oil Pump Relief
15132 15132-56080 Spring, Oil Pump Relief Valve
15133 15133-20010 Plug, Oil Pump Relief Valve
15134 15134-20010 Gasket, Oil Pump Relief Valve
15403 15403-56050 Pipe Sub-Assy, Oil Pump Outlet
15403 90401-20009 Union(For Oil Pump Outlet Pipe)
15403 90430-20018 Gasket(For Oil Pump Outlet Pipe)
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9322016012 93220-16012 SCREW
Engine Overhaul Gasket Kit ([05.2004 - ] (0405- )14B) 5
#OEMPart name
4111 04111-58160 Gasket Kit, Engine Overhaul
4111 04111-58440 Gasket Kit, Engine Overhaul
4111 04111-58441 Gasket Kit, Engine Overhaul
4112 04112-58110 Gasket Kit, Engine Valve Grind
4112 04112-58360 Gasket Kit, Engine Valve Grind
Engine Overhaul Gasket Kit ([09.2002 - 05.2004] (0209-0405)14B) 5
#OEMPart name
4111 04111-58160 Gasket Kit, Engine Overhaul
4111 04111-58440 Gasket Kit, Engine Overhaul
4111 04111-58441 Gasket Kit, Engine Overhaul
4112 04112-58110 Gasket Kit, Engine Valve Grind
4112 04112-58360 Gasket Kit, Engine Valve Grind
Exhaust Brake Assembly & Vacuum Cylinder ([09.2002 - ] (0209- )BU30#,34#,WU30#,34#,XZU300,320,330,34 0..DCRTH,DCRTJ,DSL,TD) 13
#OEMPart name
46700 46700-37100 Retarder Assy, Exhaust
46712 46712-36060 Cover, Exhaust Valve Link
46744 46744-25010 Clevis, Exhaust Brake Rod Clevis
46760 46760-37050 Chamber Assy, Exhaust Brake
46765 46765-36010 Pin, Vacuum Cylinder Clevis
46766 46766-36010 Pin, Vacuum Cylinder Clevis Snap
46778 46778-36060 Bearing, Vacuum Cylinder
46781 46781-28010 Insulator, Exhaust Brake Chamber, No.1
46782 46782-36130 Insulator, Exhaust Brake Chamber, No.2
46793 46793-36010 Bolt, Exhaust Valve Link Cover
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
Exhaust Pipe ([12.2002 - 10.2006] (0212-0610)14B..GEN) 20
#OEMPart name
17410 17401-58320 Pipe Assy, Exhaust, Front
17410 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
17410 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
17410 90917-06067 Gasket, Exhaust Pipe
17420 17403-78450 Pipe Assy, Exhaust, Center
17430 17455-78080 Bracket, Exhaust Tail Pipe (For Rear)
17521 17521-78010 Protector, Exhaust Pipe, Upper No.1
17567 17567-78010 Cushion, Exhaust Pipe Support
17571 17571-58380 Bracket, Exhaust Pipe Support, No.1
17572 17572-78021 Bracket, Exhaust Pipe No.1 Support
17572 17572-78260 Bracket, Exhaust Pipe No.1 Support
17573 17573-78050 Bracket, Exhaust Pipe No.1 Support, Lower
17573 16721-78010 Plate, Holder
17578 17578-78010 Clamp, Pipe(For Front Exhaust Pipe)
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91642 91642-K1020 BOLT WWASHER
9011908 90119-08B95 BOLTWWASHER
9164180825 91641-80825 BOLT WWASHER
9164281035 91642-81035 BOLT WWASHER
9418560800 94185-60800 NUT
Floor Insulator ([12.2002 - ] (0212- )ARL,GCC,GEN,SA,TAIW) 7
#OEMPart name
58151 58151-37013 Insulator, Front Floor Heat, No.1
58151 58151-37132 Insulator, Front Floor Heat, No.1
58151 58151-37014 Insulator, Front Floor Heat, No.1
58151 58151-37015 Insulator, Front Floor Heat, No.1
58151 58151-37016 Insulator, Front Floor Heat, No.1
58151 58151-37017 Insulator, Front Floor Heat, No.1
9090467033 90904-67033 Clip(For Deck Board No.1)
Floor Mat & Silencer Pad ([12.2002 - ] (0212- )RHD..ARL,GEN,SA) 9
#OEMPart name
58510 58510-3V050-B0 Mat, Front Floor, Front
58540 58540-37040-B1 Mat Assy, Floor, Rear
58540 58540-37100-B1 Mat Assy, Floor, Rear
67913 67913-37010-B0 Plate, Front Door Scuff, Rh
67914 67914-37010-B0 Plate, Front Door Scuff, Lh
91631 91631-G0618 New Genuine Part
8271237070 82712-37070 Hose, Suction
9053006001 90530-06001 Fastener, Hook
9356055020 93560-55020 SCREW
Fog Lamp ([12.2002 - 06.2011] 24V 25W (0212-1106)BU303,343,WU30#,34#,XZU300,320,330,34 0..GCC,GEN,TAIW) 17
#OEMPart name
81210 99134-11250 Bulb, Fog Lamp
81211 81211-37040 Lamp Unit, Fog Lamp, Rh
81211 81211-37041 Lamp Unit, Fog Lamp, Rh
81211 81211-37050 Lamp Unit, Fog Lamp, Rh
81211 81211-37051 Lamp Unit, Fog Lamp, Rh
81215 90075-99092 Fog Lamp Socket Plug Assy
81221 81221-37010 Lamp Unit, Fog Lamp, Lh
81221 81221-37011 Lamp Unit, Fog Lamp, Lh
81221 81221-37020 Lamp Unit, Fog Lamp, Lh
81221 81221-37021 Lamp Unit, Fog Lamp, Lh
81481 81481-37010 Bracket, Fog Lamp
93383 93383-A6018 New Genuine Part
9010905100 90109-05100 New Genuine Part
9015950267 90159-50267 SCREW WWASHER
9016850077 90168-50077 New Genuine Part
9020506004 90205-06004 New Genuine Part
9046707082 90467-07082-C0 Clip(For Luggage Compartment Trim Front Cover)
Frame ([12.2002 - 10.2006] (0212-0610)BU34#,WU340,XZU345..ARL,GCC,GEN ; (03 04- )WU340..SA) 42
#OEMPart name
48411 48411-37070 Bracket, Spring, No.1 Rh
48412 48412-37060 Bracket, Spring, No.1 Lh
48413 48413-37060 Bracket, Spring, No.2
48414 48414-37100 Bracket, Spring, No.3 Rh
48415 48415-37020 Bracket, Spring, No.3 Lh
48416 48416-37100 Bracket, Spring, No.4 Rh
48418 48418-36090 Bracket, Helper Spring, Front
48512 48512-37050 Bracket, Front Shock Absorber, Upper Rh
48513 48512-37130 Bracket, Front Shock Absorber, Upper Lh
48516 48505-37010 Bracket Sub-Assy, Rear Shock Absorber, Upper Rh
51013 51013-37260 Channel Sub-Assy, Side Rail, Inner Front Rh
51014 51014-37260 Channel Sub-Assy, Side Rail, Inner Front Lh
51017 51017-37130 Reinforcement Sub-Assy, Side Rail, No.1 Rh
51018 51018-37020 Reinforcement Sub-Assy, Side Rail, No.1 Lh
51018 51018-37021 Reinforcement Sub-Assy, Side Rail, No.1 Lh
51100 51002-3V610 Frame Sub-Assy
51100 51002-3V611 Frame Sub-Assy
51100 51002-3V612 Frame Sub-Assy
51155 51155-37060 Stiffener, Frame Side Rail, Rear Rh
51155 51155-37080 Stiffener, Frame Side Rail, Rear Rh
51201 51211-37090 Crossmember Sub-Assy, Frame, Front
51203 51202-37170 Crossmember Sub-Assy, Frame, No.2
51203 51202-37120 Crossmember Sub-Assy, Frame, No.2
51204 51203-37100 Crossmember Sub-Assy, Frame, No.3
51204 51203-37061 Crossmember Sub-Assy, Frame, No.3
51205 51205-37060 Crossmember Sub-Assy, Frame, No.4
51206 51206-37010 Crossmember Sub-Assy, Frame, No.5
51209 51291-37040 Crossmember Sub-Assy, Frame, Rear
51401 51421-37060 Bracket Sub-Assy, Engine Front Mounting, Rh
51402 51422-37050 Bracket Sub-Assy, Engine Front Mounting, Lh
51705 51705-37080 Bracket Sub-Assy, Cab Mounting, No.3
51705 51705-37081 Bracket, Rear Body Mounting, No.5
51705 91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover)
51705 91551-80840 Bolt(For Head To Camshaft Bearing Cap)
9011912377 90119-12377 New Genuine Part
9017912070 90179-12070 Nut (For Front Lower Ball Joint Setting)
9164281245 91642-81245 New Genuine Part
9512101024 95121-01024 New Genuine Part
9512101028 95121-01028 RIVET
9512101032 95121-01032 RIVET
9512101036 95121-01036 RIVET
9512101038 95121-01038 New Genuine Part
Frame ([12.2003 - ] PNC 51203 (0312- )WU30#..TS ; (0312- )BU303,343,WU34 #,XZU305,307,337,345,347..WT..ARL,G CC,GEN,SA,TAIW) 4
#OEMPart name
51203 51202-37170 Crossmember Sub-Assy, Frame, No.2
51203 51202-37120 Crossmember Sub-Assy, Frame, No.2
8271537 82715-37C00 Bracket,wiring Harness Clamp
5387537010 53875-37010 Bracket, Air Duct Clamp
Front Axle Arm & Steering Knuckle ([09.2002 - 10.2006] (0209-0610)ARL,GCC,GEN,TAIW ; (0209-0612)WU340,X ZU342..IDN ; (0304-0712)SA) 30
#OEMPart name
4431 04431-36090 Pin Kit, Steering Knuckle King
43111 43111-37031 I Beam, Front Axle
43112 43112-36020 Pin, King Pin Lock
43132 90106-12008 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
43211 43201-37031 Knuckle, Steering, Rh
43211 43201-37110 Knuckle, Steering, Rh
43211 43201-37041 Knuckle, Steering, Rh
43211 43201-37120 Knuckle, Steering, Rh
43211 90345-33003 Plug (For Steering Knuckle)
43211 90345-33004 Plug (For Steering Knuckle)
43212 43202-37031 Knuckle, Steering, Lh
43212 43202-37110 Knuckle, Steering, Lh
43212 43202-37041 Knuckle, Steering, Lh
43212 43202-37120 Knuckle, Steering, Lh
43231 90999-73086 Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)
43231 90312-28003 Seal, Dust Or Ring, O (For Steering Knuckle King Pin)
43231 90367-28001 Bearing (For Steering Knuckle King Pin)
43231 90564-28001 Shim (For King Pin)
43231 90564-28002 Shim (For King Pin)
43231 90564-28003 Shim (For King Pin)
43231 90564-28004 Shim (For King Pin)
43231 90564-28005 Shim (For King Pin)
43231 90564-28006 Shim (For King Pin)
43231 90564-28007 Shim (For King Pin)
43231 90564-28008 Shim (For King Pin)
9003331020 90033-31020 Plug, Tight, No.3
9017910121 90179-10121 NUT
9413061200 94130-61200 Nut
9645100600 96451-00600 Fitting, Grease Small(For Tail Gate Lock Link)
9645601000 96456-01000 FITTING GREASE
Front Axle Hub ([09.2002 - 10.2006] (0209-0610)WU340,XZU342..55T,65T ; (0209-0610)BU 30#,34#,WU300,XZU30#,320,330,345..4 8T,55T,65T..ARL,G CC,GEN,SA,TAIW) 23
#OEMPart name
43501 90937-01117 Piece, Balance (For Rear Brake Drum)
43501 90937-01118 Piece, Balance (For Rear Brake Drum)
43501 90937-01119 Piece, Balance (For Rear Brake Drum)
43501 90937-01120 Piece, Balance (For Rear Brake Drum)
43501 90937-01121 Piece, Balance (For Rear Brake Drum)
43501 90937-01122 Piece, Balance (For Rear Brake Drum)
43501 43501-37060 Hub Sub-Assy, Front Axle, Rh
43501 90942-02071 Bolt, Hub (For Rear Axle Rh)
43501 90311-68002 Seal, Oil (For Front Axle Hub Rh)
43501 90311-68003 Seal, Oil (For Front Axle Hub Rh)
43501 90178-28001 Nut (For Front Axle Shaft Rh)
43501 90214-29001 Washer, Claw (For Front Axle Hub Rh)
43501 90366-50069 Bearing (For Front Axle Hub Inner Rh)
43501 90366-35105 Bearing (For Front Axle Hub Outer Rh)
43502 43502-37060 Hub Sub-Assy, Front Axle, Lh
43502 90942-02072 Bolt, Hub (For Rear Axle Lh)
43512 43512-37090 Disc, Front
43512 43512-37091 Disc, Front
43512 43512-37110 Drum, Brake
43514 43514-37030 Cap, Front Axle Hub Grease, Rh
43525 43525-37010 Cap, Front Wheel Adjusting Lock, Rh
9010514101 90105-14101 BOLT WASHER BASED
9538104035 95381-04035 PIN
Front Bumper & Bumper Stay ([12.2002 - ] RESIN TYPE (0212- )ARL,GCC,GEN,SA,TAIW) 16
#OEMPart name
52011 52011-37032 Arm Sub-Assy, Front Bumper, Rh
52011 52011-37033 Arm Sub-Assy, Front Bumper, Rh
52011 52011-37034 Stay, Front Bumper, Rh
52012 52012-37031 Arm Sub-Assy, Front Bumper, Lh
52012 52012-37032 Arm Sub-Assy, Front Bumper, Lh
52012 52012-37033 Stay, Front Bumper, Lh
52111 52101-37540 Bar, Front Bumper
52111 52101-37541 Bar, Front Bumper
52111 90163-50011 SCREW HEXAGON
52111 90467-07082-C0 Clip(For Luggage Compartment Trim Front Cover)
52111 52111-37300 Bar, Front Bumper
52111 52111-37301 Bar, Front Bumper
9011908521 90119-08521 Bolt(For Body Mounting No.1 Cushion)
9011908699 90119-08699 New Genuine Part
9017906127 90179-06127 Bracket, Front Licence Plate Mounting
9095003128 90950-03128 New Genuine Part
Front Bumper & Bumper Stay ([12.2002 - ] STEEL TYPE (0212- )ARL,GCC,GEN,SA,TAIW) 10
#OEMPart name
52111 52101-37540 Bar, Front Bumper
52111 52101-37541 Bar, Front Bumper
52111 90163-50011 SCREW HEXAGON
52111 90467-07082-C0 Clip(For Luggage Compartment Trim Front Cover)
52111 52111-37300 Bar, Front Bumper
52111 52111-37301 Bar, Front Bumper
52141 52141-37120 Stay, Front Bumper, Rh
52142 52142-37100 Stay, Front Bumper, Lh
9011908521 90119-08521 Bolt(For Body Mounting No.1 Cushion)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
Front Disc Brake Caliper & Dust Cover ([12.2002 - ] (0212- )BU30#,34#,WU30#,34#,XZU305,307,327,33 7,345..55T,65T..ARL,GCC,GEN,SA,TAIW ; (0410- )XZU 300,320,330..55T,65T ; (1002- )ST..TS) 27
#OEMPart name
4465 04465-37030 Pad Kit, Disc Brake, Front
4479 04479-37010 Cylinder Kit, Disc Brake, Front
4945 04945-37030 Shim Kit, Anti Squeal, Front
4947 04947-36020 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47703 47703-37030 Cover Sub-Assy, Disc Brake Dust, Front Rh
47704 47704-37030 Cover Sub-Assy, Disc Brake Dust, Front Lh
47716 47716-36020 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-36020 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-37030 Mounting, Front Disc Brake Cylinder, Rh
47721 90119-08B87 Bolt(For Front Disc Brake Cylinder Mounting)
47721 90119-12256 Bolt(For Front Disc Brake Cylinder Slide)
47722 47722-37020 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-37030 Cylinder Assy, Front Disc Brake, Rh
47731 47731-37010 Piston, Front Disc Brake
47731 47731-36020 Piston, Front Disc Brake
47731 90522-61001 Ring, Set(For Front Disc Brake Piston)
47741 47741-37010 Boot, Front Disc Brake Cylinder
47743 47743-36020 Spring, Anti-Squeal(For Front Disc Brake)
47750 47750-37030 Cylinder Assy, Disc Brake, Lh
47769 47769-36030 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-36040 Boot, Bush Dust, No.1
47775 47775-36050 Boot, Bush Dust, No.1
47779 47779-36010 Bush, Cylinder Slide, No.2(For Front Disc Brake)
91611 91611-B0812 Bolt
9010516071 90105-16071 Bolt, Hexagon(For Front Disc Brake Caliper)
Front Door Lock & Handle ([09.2002 - ] (0209- )) 27
#OEMPart name
69205 69205-37010-B0 Handle Sub-Assy, Front Door Inside, Rh
69206 69206-37010-B0 Handle Sub-Assy, Front Door Inside, Lh
69210 69210-37020 Handle Assy, Front Door, Outside Rh
69210 90541-04015 Cushion(For Front Door Outside Handle)
69220 69220-37020 Handle Assy, Front Door Outside, Lh
69293 69293-12050 Snap, Front Door Outside Handle
69293 69293-12060 Snap, Front Door Outside Handle
69310 69310-37070 Lock Assy, Front Door, Rh
69320 69320-37060 Lock Assy, Front Door, Lh
69410 69410-20110 Plate Assy, Front Door Lock Striker
69711 69711-37010 Link, Front Door Lock Remote Control, Rh
69712 69712-37010 Link, Front Door Lock Remote Control, Lh
69741 69741-12040-B3 Knob, Front Door Lock Control
69749 69749-12070 Clamp, Front Door Lock Link
69759 69759-20040 Snap, Auxiliary Catch Release Lever Control Link
69759 69759-20050 Snap(For Rear Door Lock)
69759 69759-24010 Snap(For Rear Door Inside Handle)
69759 69759-24020 Snap(For Rear Door Inside Handle)
69759 69759-22040 Snap, Door Inside Handle Rod(For Front Door)
69759 69759-22050 Snap, Door Inside Handle Rod(For Front Door)
9014860049 90148-60049 Screw Hex Lobular
9014880027 90148-80027 Screw Hex Lobular
9015940202 90159-40202 SCREW WWASHER
9016250008 90162-50008 SCREW
9018905003 90189-05003 CLIP
9155180612 91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector)
9165340612 91653-40612 BOLT WWASHER
Front Door Panel & Glass ([12.2002 - ] DOOR PANEL (0212- )ARL,GCC,GEN,SA,TAIW) 47
#OEMPart name
53866 53866-37040 Seal, Front Fender To Cowl Side, Rh
53866 53866-37042 Seal, Front Fender To Cowl Side, Rh
53867 53867-37030 Seal, Fr Fender To Cowl Side, Lh
53867 53867-37032 Seal, Fr Fender To Cowl Side, Lh
67001 67001-37061 Panel Sub-Assy, Front Door, Rh
67001 67001-37292 Panel Sub-Assy, Front Door, Rh
67001 90541-09031 Cushion, Front Door Panel
67002 67002-37071 Panel Sub-Assy, Front Door, Lh
67002 67002-37322 Panel Sub-Assy, Front Door, Lh
67111 67111-37061 Panel, Front Door, Outer Rh
67111 67111-37063 Panel, Front Door, Outer Rh
67112 67112-37071 Panel, Front Door, Outer Lh
67112 67112-37073 Panel, Front Door, Outer Lh
67403 67403-37020 Frame Sub-Assy, Front Door, Rear Lower Rh
67404 67404-37020 Frame Sub-Assy, Front Door, Rear Lower Lh
67495 67495-37010 Cover, Front Door Front Lower Frame, Upper Rh
67496 67496-37010 Cover, Front Door Front Lower Frame, Upper Lh
67831 67831-37010 Cover, Front Door Service Hole, Rh
67831 67831-37040 Cover, Front Door Service Hole, Rh
67832 67832-37010 Cover, Front Door Service Hole, Lh
67832 67832-37050 Cover, Front Door Service Hole, Lh
67861 67861-37020 Weatherstrip, Front Door, Rh
67861 67861-37021 Weatherstrip, Front Door, Rh
67862 67862-37020 Weatherstrip, Front Door, Lh
67862 67862-37021 Weatherstrip, Front Door, Lh
67863 67863-37010 Weatherstrip, Front Door, No.2 Rh
67863 67863-37011 Weatherstrip, Front Door, No.2 Rh
67864 67864-37010 Weatherstrip, Front Door, No.2 Lh
67864 67864-37011 Weatherstrip, Front Door, No.2 Lh - FRONT DOOR, NO.2, LH
67867 67867-12150 Clip(For Hood Air Intake Duct Seal)
67867 67867-89103 Retainer(For Front Door Weatherstrip)
68101 68101-37130 Glass Sub-Assy, Front Door, Rh
68102 68102-37140 Glass Sub-Assy, Front Door, Lh
68141 68141-37030 Run, Front Door Glass, Rh
68151 68151-37030 Run, Front Door Glass, Lh
68160 68161-37010 Weatherstrip Assy, Front Door Glass, Outer Rh
68160 68161-37011 Weatherstrip Assy, Front Door Glass, Outer Rh
68210 68162-37010 Weatherstrip Assy, Front Door Glass, Outer Lh
68210 68162-37011 Weatherstrip Assy, Front Door Glass, Outer Lh
68610 68610-37030 Check Assy, Front Door
68617 68617-90K00 Pin(For Front Door Check)
68618 68618-37020 Bracket, Front Door Check Arm, Rh
6749937010 67499-37010 Retainer, Front Door Lower Frame Bracket Garnish, No.2
6777112050 67771-12050 Clip, Radiator Grille
9046706084 90467-06084 Clip(For Headlamp Cover Seal)
9155180612 91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector)
9167180618 91671-80618 BOLT FLANGE WWSHER
Front Door Panel & Glass ([12.2002 - ] DOOR TRIM (0212- )ARL,GCC,GEN,SA,TAIW) 15
#OEMPart name
67601 67610-37080-B0 Board Sub-Assy, Front Door Trim, Rh
67601 67610-37120-B0 Board Sub-Assy, Front Door Trim, Rh
67601 90467-07071-B6 Clip (For Center Pillar Garnish Panel, Upper)
67601 67771-12050 Clip, Radiator Grille
67601 90467-10188 Clip(For Deck Boad)
67602 67620-37130-B0 Board Sub-Assy, Front Door Trim, Lh
67602 67620-37170-B0 Board Sub-Assy, Front Door Trim, Lh
67625 67625-26010 Bracket, Front Door Trim, No.1
68171 68171-37010 Weatherstrip, Front Door Glass, Inner Rh
68171 68171-37011 Weatherstrip, Front Door Glass, Inner Rh
68172 68172-37010 Weatherstrip, Front Door Glass, Inner Lh
68172 68172-37011 Weatherstrip, Front Door Glass, Inner Lh
74141 74141-25010-B0 Garnish, Front Ash Receptacle, No.1
9015960047 90159-60047 SCREWWWASHER
9018906018 90189-06018 GROMMET
Front Door Window Regulator & Hinge ([09.2002 - ] (0209- )) 14
#OEMPart name
68710 68710-37020 Hinge Assy, Front Door, Upper Rh
68720 68730-37010 Hinge Assy, Front Door, Upper Lh
69260 69260-89104-B3 Handle Assy, Door Window Regulator (GRAY)
69260 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
69272 69285-22010 Escutcheon, Door Regulator Handle(For Front Door)
69272 69285-22010-08 Escutcheon, Window Regulator Handle
69801 69801-37020 Regulator Sub-Assy, Front Door Window, Rh
69801 69801-37052 Regulator Sub-Assy, Front Door Window, Rh
69802 69802-37020 Regulator Sub-Assy, Front Door Window, Lh
69802 69802-37052 Regulator Sub-Assy, Front Door Window, Lh
9010508187 90105-08187 BOLTWATER BASED
9011908892 90119-08892 BOLT WWASHER
9016850040 90168-50040 SCREW TAPPING
9165340612 91653-40612 BOLT WWASHER
Front Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] (0209-0410)XZU300,320,330..55T,65T ; (0209- ) BU303,343,WU30#..GCC,GEN ; (0209- )WU34#,XZU342.. 55T,65T..DCRTJ,DSL..GCC,GEN,IDN) 28
#OEMPart name
4473 04473-36030 Cylinder Kit, Front Wheel
4473 04473-36040 Cylinder Kit, Front Wheel
4494 04494-36290 Shoe Kit, Front Brake
4905 04905-36160 Cup Kit, Front Wheel Cylinder
47041 47041-37101 Plate Sub-Assy, Brake Backing, Front Rh
47041 90101-14001 Bolt(For Backing Plate To Steering Knuckle Setting)
47041 94130-01441 Nut(For Backing Plate To Steering Knuckle Setting)
47042 47042-37101 Plate Sub-Assy, Brake Backing, Front Lh
47410 90501-20012 Spring(For Front Brake Shoe Hold Down)
47410 90507-29006 Spring, Tension(For Front Brake Shoe Return)
47447 47447-36020 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47491 47491-36020 Plug, Hole(For Rear Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47510 47510-36170 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510 90101-10127 Bolt(For Front Wheel Cylinder)
47510 90201-10287 Washer(For Front Wheel Cylinder)
47520 47520-36180 Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530 47530-36170 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47540 47540-36180 Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547 47547-27020 Plug, Bleeder(For Front Drum Brake)
47548 31478-30010 Bleeder Plug Cap
47553 47553-36060 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47554 47554-36060 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47555 47555-36040 Spring, Adjuster Lock(For Front Brake)
9015950146 90159-50146 SCREW
9462111400 94621-11400 WASHER
Front Floor Panel & Front Floor Member ([12.2002 - 10.2006] (0212-0610)RHD..ARL,GEN ; (0212-0812)SA) 79
#OEMPart name
51771 51771-37190 Plate, Step, Rh
51772 51772-37080 Plate, Step, Lh
53701 53701-37030 Apron Sub-Assy, Front Fender, Rh
53701 53701-37032 Apron Sub-Assy, Front Fender, Rh
53701 53701-37031 Apron Sub-Assy, Front Fender, Rh
53717 53717-37130 Apron, Frpnt Fender, No.2 Rh
53718 53718-37110 Apron, Front Fender, No.2 Lh
53722 53722-37031 Apron Sub-Assy, Fender Side, Lh
53722 53722-37032 Apron Sub-Assy, Fender Side, Lh
54908 54908-37010 Bracket Sub-Assy, Tilt Cab Grip
57013 57013-37150 Member Sub-Assy, Floor, Front Rh
57013 57013-37240 Member Sub-Assy, Floor, Front Rh
57014 57014-37070 Member Sub-Assy, Floor, Front Lh
57125 57125-37010 Bracket, Front Side Member, Rh
57126 57126-37020 Bracket, Front Side Member, Lh
57157 57157-37030 Reinforcement, Front Side Member, No.8 Rh
57158 57158-37030 Reinforcement, Front Side Member, No.8 Lh
57408 57408-37261 Member Sub-Assy, Front Floor Cross
57408 57408-25461 Member Sub-Assy, Front Floor Cross
57408 87128-37050 Grommet, Heater
57408 87128-37070 Member Sub-Assy, Front Floor Cross
57408 57408-37262 Member Sub-Assy, Front Floor Cross
57467 57467-37010 Bracket, Front Seat Outside Mounting, Front Lh
57467 57467-37011 Bracket, Front Seat Outside Mounting, Front Lh
57517 57517-37010 Retainer, Front Floor Reinforcement, Rear
57517 57517-37011 Retainer, Front Floor Reinforcement, Rear
58025 58043-37060 Panel Sub-Assy, Floor Side Rail, Fr Rh
58026 58044-37070 Panel Sub-Assy, Floor Side Rail, Fr Lh
58026 58044-37090 Panel Sub-Assy, Floor Side Rail, Fr Lh
58111 58111-37301 Pan, Front Floor
58111 58111-37308 Pan, Front Floor
58111 58111-37302 Pan, Front Floor
58111 58111-37303 Pan, Front Floor
58111 58111-37304 Pan, Front Floor
58115 58115-37012 Panel, Front Floor, Rear
58115 58115-37014 Panel, Front Floor, Rear
58115 58115-37013 Panel, Front Floor, Rear
58123 58123-37010 Support, Shift & Select Lever
58171 58107-37010 Reinforcement, Parking Brake Base
58181 58181-37030 Retainer, Seat Rail, Front
58182 58182-37010 Retainer, Seat Rail, Front Lh
58183 58183-37061 Reinforcement, Rear Mounting, Rh
58183 58183-37063 Reinforcement, Rear Mounting, Rh
58184 58184-37073 Reinforcement, Rear Mounting, Lh
58184 58184-37074 Reinforcement, Rear Mounting, Lh
58192 58192-37020 Plate, Front Floor, Rear
58251 58251-37031 Brace, Floor Panel, Front
58251 58251-37032 Brace, Floor Panel, Front
58252 58252-37080 Brace, Floor Panel, Front Lh
58252 58252-37081 Brace, Floor Panel, Front Lh
58295 58295-37060 Bracket, Floor Shift Lever, No.1
58298 58298-37010 Reinforcement, Seat Belt Anchor Floor, Rh
58335 58335-37040 Plate, Floor Side, Front Rh
58335 58335-37041 Plate, Floor Side, Front Rh
58336 58336-37031 Plate, Floor Side, Front Lh
58412 58412-37030 Reinforcement, Engine Sub Cover
58412 58412-37032 Reinforcement, Engine Sub Cover
58848 58840-37010 Cover, Shift Lever Hole
58853 58853-37020 Packing, Shift Lever Hole
61335 61335-37010 Retainer, Seat Belt Anchor
61825 61825-34010 Plate, Noise Control, No.2
64018 64018-37070 Bar Sub-Assy, Body
64018 64018-37071 Bar Sub-Assy, Body
64025 64171-37011 Bracket Sub-Assy, Rear Mounting, Rh
64025 64171-37013 Bracket Sub-Assy, Rear Mounting, Rh
64026 64026-37090 Bracket Sub-Assy, Rear Mounting, Lh
64151 64151-37181 Frame, Back
64153 52123-32040 Reinforcement, Back Frame
64177 64177-37030 Stopper, Rear Mounting Bracket, Rh
64177 64177-37031 Stopper, Rear Mounting Bracket, Rh
64178 64178-37030 Stopper, Rear Mounting Bracket, Lh
64178 64178-37031 Stopper, Rear Mounting Bracket, Lh
91551 91551-A0814 BOLT FLANGE
5813737020 58137-37020 Bracket, Center Floor Heat Insulator, No.4
9010508347 90105-08347 New Genuine Part
9011906801 90119-06801 New Genuine Part
9015960366 90159-60366 New Genuine Part
9029703007 90297-03007 Retainer, Rear Heater Mounting
9164281030 91642-81030 Bolt
Front Floor Panel & Front Floor Member ([12.2002 - ] (0212- )ARL,GCC,GEN,SA,TAIW) 28
#OEMPart name
53089 53089-25010 Mudguard Sub-Assy, Front
53089 53089-25011 Mudguard Sub-Assy, Front
53089 67868-95401 Clip, Front Mudguard
53706 53706-37010 Brace Sub-Assy, Fender Apron, Lh
53707 53715-37110 Apron Sub-Assy, Fender Side, Rh
53707 53715-37241 Apron Sub-Assy, Fender Side, Rh
53708 53716-37130 Apron Sub-Assy, Fender Side, Lh
53708 53716-37240 Apron Sub-Assy, Fender Side, Lh
53719 53719-37110 Brace, Fender Apron
53881 53881-37050 Mudguard, Front Rh
53887 53887-37030 Plate, Front Mudguard
53891 53891-37030 Seal, Front Fender Splash Sheild, Front
53891 53891-37031 Seal, Front Fender Splash Sheild, Front
53892 53892-37030 Seal, Front Fender Splash Shield, Front Lh
58142 58142-37010 Apron, Front Floor Side, No.1 Lh
58142 58142-37011 Apron, Front Floor Side, No.1 Lh
91551 91551-A0814 BOLT FLANGE
91651 91651-B0616 BOLT WWASHER
9017908233 90179-08233 NUT
9046706046 90467-06046 Clip(For Room Partition Garnish)
9046706046 90467-06046-01 Clip, Rear Floor Mat Set
9046706046 90467-06046-C0 Clip(For Front Fender Mudguard)
9046709087 90467-09087 Clip(For Floor Carpet, Rear)
9046709087 90467-09087-22 Clip
9155180820 91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover)
9155180825 91551-80825 Bolt(For Cylinder Head Set Sub)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Front Panel & Windshield Glass ([12.2002 - ] (0212- )ARL,GCC,GEN,SA,TAIW) 39
#OEMPart name
53145 90467-08208 Clip, Radiator Grille Garnish
53801 53801-37061 Panel Sub-Assy, Front Side, Rh
53802 53802-37061 Panel Sub-Assy, Front Side, Lh
53821 53821-37070 Protector, Front Side Panel, No.1 Rh
53921 53921-25010 Panel, Front Valance, Rh
53921 53921-25011 Panel, Front Valance, Rh
53922 53922-25010 Panel, Front Valance, Lh
53922 53922-25011 Panel, Front Valance, Lh
53923 53923-25010 Support, Front Side Garnish, Rh
53924 53924-25010 Plate, Noise Shutter Support, No.2
53928 53928-37010 Garnish, Front Panel, Center
53928 53928-37011 Garnish, Front Panel, Center
55078 55078-37070 Cover Sub-Assy, Front Panel
55145 53145-27010 Clip, Radiator Grille Garnish
55700 55700-37110 Panel Assy, Front
55700 55700-37310 Panel Assy, Front
55700 55700-37111 Panel Assy, Front
55711 55711-37050 Panel, Front, Lower
55711 55711-37051 Panel, Front, Lower
55717 55717-37020 Extension, Front Panel Reinforcement, Rh
55718 55718-37010 Extension, Front Panel Reinforcement, Lh
55738 55738-37050 Protector, Front Panel Cover, No.1
55738 55738-37051 Protector, Front Panel Cover, No.1
55739 55739-37070 Protector, Front Panel Cover, No.2
55785 55785-37020 Pad, Front Panel Cover
56111 56111-37120 Glass, Windshield
56121 56121-37030 Weatherstrip, Windshield
56121 56121-25040 Weatherstrip, Windshield
56121 56121-37031 Weatherstrip, Windshield
9015960076 90159-60076 SCREW, W/WASHER TAPP
9016350011 90163-50011 SCREW HEXAGON
9018905046 90189-05046 GROMMET
9018906006 90189-06006 Grommet
9018906028 90189-06028 CLIP
9018906029 90189-06029 GROMMET
9018906111 90189-06111 CLIP
9046708223 90467-08223 New Genuine Part
9046712079 90467-12079 Clip, Back Door Moulding
9155180614 91551-80614 Bolt(For Vacuum Transmitting Pipe)
Front Spring & Shock Absorber ([12.2002 - ] (0212- )ARL,GCC,GEN,SA,TAIW) 28
#OEMPart name
48042 48042-37020 Shackle Sub-Assy, Rear Spring, No.2
48042 90389-16026 Bush, Front Spring No.2 Shackle
48191 48191-37110 Wedge, Caster(For Front Leaf Spring)
48304 48304-37040 Bumper Sub-Assy, Front Spring, No.1
48422 48422-37010 Support, Front Spring Pin
48475 48475-36070 Plate, Distance(For Front)
48505 90117-16064 Bolt, U(For Front Spring)
48505 90117-16065 Bolt, U(For Front Spring)
48505 90117-16066 Bolt, U(For Front Spring)
48505 90117-16071 Bolt, U(For Front Shock Absorber Bracket)
48505 90117-16073 Bolt, U(For Front Spring)
48505 90117-16075 Bolt, U(For Front Spring)
48510 48511-80079 Absorber Assy, Shock, Front Rh
48510 48511-80119 Absorber Assy, Shock, Front Rh
48510 90948-01071 Cushion, Front Shock Absorber
48510 90948-02054 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-02009 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-03011 Washer, Front Shock Absorber Cushion, No.1
48510 90385-19011 Bush(For Front Shock Absorber Rh)
48522 48522-37030 Pin, Front Shock Absorber Lower Pivot
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9010516067 90105-16067 BOLT FLANGE
9011912088 90119-12088 BOLT
9017016016 90170-16016 NUT HEXAGON
9017816004 90178-16004 NUT FLANGE
9017912016 90179-12016 NUT
9020116035 90201-16035 New Genuine Part
Front Spring & Shock Absorber ([12.2002 - ] 6-LEAF,TYPE A (0212- )55T,65T..GCC,GEN,SA,TAIW) 50
#OEMPart name
48110 48110-37462 Spring Assy, Front, Lh
48110 48110-37463 Spring Assy, Front, Lh
48110 48110-37482 Spring Assy, Front, Lh
48110 90389-16025 Bush, Front Spring No.2 Shackle
48110 90389-16026 Bush, Front Spring No.2 Shackle
48111 48101-37452 Leaf, Front Spring, No.1
48111 48101-37453 Leaf, Front Spring, No.1
48111 48101-37462 Leaf, Front Spring, No.1
48111 48101-37463 Leaf, Front Spring, No.1
48111 48101-37472 Leaf, Front Spring, No.1
48111 48101-37482 Leaf, Front Spring, No.1
48112 48102-37451 Leaf, Front Spring, No.2
48112 48102-37452 Leaf, Front Spring, No.2
48112 48102-37461 Leaf, Front Spring, No.2
48112 48102-37462 Leaf, Front Spring, No.2
48112 48103-37470 Leaf, Front Spring, No.2
48112 48103-37480 Leaf, Front Spring, No.2
48113 48103-37451 Leaf, Front Spring, No.3
48113 48103-37452 Leaf, Front Spring, No.3
48113 48103-37461 Leaf, Front Spring, No.3
48113 48103-37462 Leaf, Front Spring, No.3
48113 48104-37470 Leaf, Front Spring, No.3
48113 48104-37480 Leaf, Front Spring, No.3
48114 48114-37451 Leaf, Front Spring, No.4
48114 48114-37452 Leaf, Front Spring, No.4
48114 48114-37461 Leaf, Front Spring, No.4
48114 48114-37462 Leaf, Front Spring, No.4
48114 48114-37470 Leaf, Front Spring, No.4
48114 48114-37480 Leaf, Front Spring, No.4
48115 48115-37451 Leaf, Front Spring, No.5
48115 48115-37452 Leaf, Front Spring, No.5
48115 48115-37461 Leaf, Front Spring, No.5
48115 48115-37462 Leaf, Front Spring, No.5
48115 48115-37470 Leaf, Front Spring, No.5
48115 48115-37480 Leaf, Front Spring, No.5
48116 48116-37451 Leaf, Front Spring, No.6
48116 48116-37452 Leaf, Front Spring, No.6
48116 48116-37461 Leaf, Front Spring, No.6
48116 48116-37462 Leaf, Front Spring, No.6
48116 48116-37470 Leaf, Front Spring, No.6
48116 48116-37480 Leaf, Front Spring, No.6
48120 48110-37452 Spring Assy, Front, Rh
48120 48110-37453 Spring Assy, Front, Rh
48120 48110-37472 Spring Assy, Front, Rh
48147 48147-37270 Bolt, Front Spring, Center
48147 48147-3B230 Bolt, Front Spring, Center
48147 48147-37463 Bolt, Front Spring, Center
48147 48155-3B470 Nut, Front Spring Center Bolt
48147 48299-27620 Nut, Front Spring Center Bolt
48147 48284-0W060 Nut, Front Spring Center Bolt
Front Spring & Shock Absorber ([12.2002 - ] 6-LEAF,TYPE B (0212- )XZU33#..80T ; (0212- )BU303,343,WU 30#,34#,XZU340,347..WT..GCC,GEN,TAI W) 54
#OEMPart name
48110 48110-37462 Spring Assy, Front, Lh
48110 48110-37463 Spring Assy, Front, Lh
48110 48110-37482 Spring Assy, Front, Lh
48110 90389-16025 Bush, Front Spring No.2 Shackle
48110 90389-16026 Bush, Front Spring No.2 Shackle
48111 48101-37452 Leaf, Front Spring, No.1
48111 48101-37453 Leaf, Front Spring, No.1
48111 48101-37462 Leaf, Front Spring, No.1
48111 48101-37463 Leaf, Front Spring, No.1
48111 48101-37472 Leaf, Front Spring, No.1
48111 48101-37482 Leaf, Front Spring, No.1
48112 48102-37451 Leaf, Front Spring, No.2
48112 48102-37452 Leaf, Front Spring, No.2
48112 48102-37461 Leaf, Front Spring, No.2
48112 48102-37462 Leaf, Front Spring, No.2
48112 48103-37470 Leaf, Front Spring, No.2
48112 48103-37480 Leaf, Front Spring, No.2
48113 48103-37451 Leaf, Front Spring, No.3
48113 48103-37452 Leaf, Front Spring, No.3
48113 48103-37461 Leaf, Front Spring, No.3
48113 48103-37462 Leaf, Front Spring, No.3
48113 48104-37470 Leaf, Front Spring, No.3
48113 48104-37480 Leaf, Front Spring, No.3
48114 48114-37451 Leaf, Front Spring, No.4
48114 48114-37452 Leaf, Front Spring, No.4
48114 48114-37461 Leaf, Front Spring, No.4
48114 48114-37462 Leaf, Front Spring, No.4
48114 48114-37470 Leaf, Front Spring, No.4
48114 48114-37480 Leaf, Front Spring, No.4
48115 48115-37451 Leaf, Front Spring, No.5
48115 48115-37452 Leaf, Front Spring, No.5
48115 48115-37461 Leaf, Front Spring, No.5
48115 48115-37462 Leaf, Front Spring, No.5
48115 48115-37470 Leaf, Front Spring, No.5
48115 48115-37480 Leaf, Front Spring, No.5
48116 48116-37451 Leaf, Front Spring, No.6
48116 48116-37452 Leaf, Front Spring, No.6
48116 48116-37461 Leaf, Front Spring, No.6
48116 48116-37462 Leaf, Front Spring, No.6
48116 48116-37470 Leaf, Front Spring, No.6
48116 48116-37480 Leaf, Front Spring, No.6
48120 48110-37452 Spring Assy, Front, Rh
48120 48110-37453 Spring Assy, Front, Rh
48120 48110-37472 Spring Assy, Front, Rh
48147 48147-37270 Bolt, Front Spring, Center
48147 48147-3B230 Bolt, Front Spring, Center
48147 48147-37463 Bolt, Front Spring, Center
48147 48155-3B470 Nut, Front Spring Center Bolt
48147 48299-27620 Nut, Front Spring Center Bolt
48147 48284-0W060 Nut, Front Spring Center Bolt
48251 48117-37270 Spacer(For Front Spring)
48251 48117-37470 Spacer(For Front Spring)
48253 48115-37510 Spacer, Front Leaf Spring, No.2
48253 48116-37270 Spacer, Front Spring, No.3
Front Spring & Shock Absorber ([12.2002 - ] W(STABILIZER) (0212- )ARL,GCC,GEN,SA) 53
#OEMPart name
48042 48042-37020 Shackle Sub-Assy, Rear Spring, No.2
48042 90389-16026 Bush, Front Spring No.2 Shackle
48191 48191-37110 Wedge, Caster(For Front Leaf Spring)
48304 48304-37040 Bumper Sub-Assy, Front Spring, No.1
48422 48422-37010 Support, Front Spring Pin
48475 48475-36070 Plate, Distance(For Front)
48505 90117-16064 Bolt, U(For Front Spring)
48505 90117-16065 Bolt, U(For Front Spring)
48505 90117-16066 Bolt, U(For Front Spring)
48505 90117-16071 Bolt, U(For Front Shock Absorber Bracket)
48505 90117-16073 Bolt, U(For Front Spring)
48505 90117-16075 Bolt, U(For Front Spring)
48510 48511-80079 Absorber Assy, Shock, Front Rh
48510 48511-80119 Absorber Assy, Shock, Front Rh
48510 90948-01071 Cushion, Front Shock Absorber
48510 90948-02054 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-02009 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-03011 Washer, Front Shock Absorber Cushion, No.1
48510 90385-19011 Bush(For Front Shock Absorber Rh)
48522 48522-37030 Pin, Front Shock Absorber Lower Pivot
48802 48802-37030 Link Sub-Assy, Front Stabilizer
48802 48802-37070 Link Sub-Assy, Front Stabilizer
48811 48804-37030 Bar, Stabilizer, Front
48811 90385-13009 Bush, Stabilizer Link
48815 48815-37040 Bush, Front Stabilizer Bar, No.1
48815 48815-37080 Bush, Front Stabilizer Bar, No.1
48817 48817-36011 Cushion, Stabilizer Link
48817 90948-02015 Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817 90948-02167 Retainer, Cushion, No.2(For Front Stabilizer Bar)
48817 90560-10044 Collar(For Front Suspension Torque Arm)
48824 48824-37130 Bracket, Stabilizer, Front
48824 38962-37560 Bracket, Cable Clamp, No.2
48824 48809-37050 Bracket Sub-assy, Stabilizer
48824 48824-37190 Bracket, Stabilizer, Front
48824 94150-80800 NUT, FLANGE
48824 48824-37160 Bracket, Stabilizer, Front
48824 48824-37161 Bracket, Stabilizer, Front
48824 48824-37060 Bracket, Stabilizer, Front
48824 48824-37061 Bracket, Front Stabilizer, No.1
48825 48825-37011 Bracket, Stabilizer, No.2
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9010516067 90105-16067 BOLT FLANGE
9011912088 90119-12088 BOLT
9017016016 90170-16016 NUT HEXAGON
9017816004 90178-16004 NUT FLANGE
9017912016 90179-12016 NUT
9020116035 90201-16035 New Genuine Part
9111281045 91112-81045 Bolt(For Rear Stabilizer)
9164281235 91642-81235 BOLT WWASHER
9413001202 94130-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting)
9418360801 94183-60801 NUT LOCK
9418401001 94184-01001 Nut
Front Steering Gear & Link ([09.2002 - 12.2006] (0209-0612)WU340..RHD..IV3 ; (0209-0612)BU30#,34 #,WU300,XZU305,342,345..RHD ; (0612 -0712)SA) 13
#OEMPart name
45046 45046-39416 End Sub-Assy, Tie Rod, Rh
45046 90171-18003 Nut, Castle(For Relay Rod)
45047 45047-39256 End Sub-Assy, Tie Rod, Lh
45440 45440-39206 Link Assy, Steering Drag
45460 45460-39516 Rod Assy, Tie
45461 45461-37050 Rod, Steering Tie
45611 45611-39125 Arm, Steering Knuckle, Rh
45611 90178-26002 Nut(For Steering Knuckle Arm)
45611 90280-07004 Key, Woodruff(For Steering Idler Arm)
45612 45612-39245 Arm, Steering Knuckle, Lh
9017022005 90170-22005 Nut(For Steering Tie Rod Lock)
9017022006 90170-22006 Nut(For Steering Tie Rod Lock)
9025204005 90252-04005 PIN COTTER
Front Steering Gear & Link ([09.2002 - 12.2006] MANUAL STEERING (0209-0612)WU340..IDN ; (0209-0612)BU303,343,WU3 00..RHD..GEN,IDN) 27
#OEMPart name
45222 45222-26010 Cover, Steering Gear Dust
45240 45240-0W010 Worm Assy, Steering
45240 45240-37050 Worm Assy, Steering
45240 90311-18010 Seal, Oil(For Steering Worm)
45242 45242-25010 Screw, Worm Bearing Adjusting
45243 45243-60020 Nut, Worm Bearing Adjusting Screw Lock
45301 45301-0W010 Housing Sub-Assy, Steering Gear
45301 90311-38033 Seal, Oil(For Sector Shaft)
45310 45310-0W010 Housing Assy, Steering Gear
45331 45304-36060 Cover, Sector Shaft End
45332 45332-36040 Gasket, Sector Shaft End Cover
45351 45351-36051 Shaft, Steering Sector
45351 90170-27033 Nut, Castle(For Pitman Arm)
45352 45352-37010 Washer, Sector Shaft Thrust
45352 45353-37010 Washer, Sector Shaft Thrust
45352 45354-37010 Washer, Sector Shaft Thrust
45357 45357-36010 Screw, Sector Shaft Adjusting
45357 45357-37020 Screw, Sector Shaft Adjusting
45357 90029-02302 Screw, Sector Shaft Adjusting
45372 90930-03058 Plug, Breather (For Winch Gear Case)
45411 45411-37130 Arm, Pitman
45411 45411-37200 Arm, Pitman
9010514100 90105-14100 Bolt(For Front Suspension Lower Arm)
9017012011 90170-12011 Nut(For Vane Pump Pulley)
9017814008 90178-14008 Nut(For Suspension Lower Arm Shaft)
9020427020 90204-27020 Washer(For Pitman Arm)
9462211400 94622-11400 New Genuine Part
Front Steering Gear & Link ([09.2002 - 12.2006] POWER STEERING (0209-0612)BU30#,34#,XZU305,342,345..RHD ; (0304 -0712)SA) 27
#OEMPart name
44011 44011-37110 Piston Sub-Assy, Power
44015 44015-37110 Shaft Sub-Assy, Sector
44101 90029-20006 Ring, O(For Steering Worm)
44101 90029-20047 Ring, O(For Steering Worm)
44101 90029-20708 Seal, Dust(For Steering Worm)
44107 44107-37090 Housing Sub-Assy, Power Steering Gear
44107 90029-20061 Ring, O(For Power Steering Gear Housing)
44107 90029-21023 Seal, Oil(For Power Steering Gear Housing)
44107 90029-01502 Bolt, Stud(For Power Steering Gear Housing)
44108 44108-37110 Cover Sub-Assy, Side
44110 44110-37110 Gear Assy, Power Steering
44142 44142-37010 Nut, Lock
44167 44167-37010 Cover, Sector Shaft Dust
44168 44168-25010 Cover, Worm Shaft Dust
45357 45357-36010 Screw, Sector Shaft Adjusting
45357 45357-37020 Screw, Sector Shaft Adjusting
45357 90029-02302 Screw, Sector Shaft Adjusting
45411 45411-37130 Arm, Pitman
45411 45411-37200 Arm, Pitman
91554 91554-L1475 BOLT FLANGE
8911099002 89110-99002 Relay Assy, Conlight, A
9002934002 90029-34002 New Genuine Part
9017030001 90170-30001 Nut, Castle(For Pitman Arm)
9017814008 90178-14008 Nut(For Suspension Lower Arm Shaft)
9020430040 90204-30040 Washer(For Pitman Arm)
9462211400 94622-11400 New Genuine Part
9671135042 96711-35042 Ring, O(For Power Steering Gear Housing)
Fuel Filter ([12.2002 - ] (0212- )14B..GEN) 16
#OEMPart name
23301 23380-78090 Cap Assy, Fuel Filter
23301 23380-78091 Cap Assy, Fuel Filter
23303 23390-64480 Element Sub-Assy, Fuel Filter
23304 23304-78180 Element Set, Fuel Filter
23322 23388-64470 Plug, Drain(For Fuel Filter)
23322 23344-54010 O-Ring (For Drain Plug)
23330 23330-78010 Prefilter Assy, Fuel
23338 23344-64010 O-Ring (For Level Warning Switch)
23921 23921-78170 Support, Fuel Filter
23925 23925-78070 Stay, Fuel Filter Support
84461 84461-28040 Switch, Level Warning
84461 84461-28041 Switch, Level Warning
91511 91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front)
9010510253 90105-10253 BOLT
9017910015 90179-10015 NUT
9415181001 94151-81001 NUT FLANGE
Fuel Tank & Tube ([12.2002 - 10.2006] FUEL TANK W(FUEL SUB TANK) (0212-0610)BU343,WU340,XZU340..GCC,GEN,TAIW) 50
#OEMPart name
77017 77017-37010 Tube Sub-Assy, Fuel Tank Vent
77018 77018-37050 Valve Sub-Assy, Fuel Vapour Separate
77018 77018-37061 Valve Sub-Assy, Fuel Vapour Separate
77022 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 77001-37220 Tank Sub-Assy, Fuel
77100 77001-37222 Tank Sub-Assy, Fuel
77100 77001-37221 Tank Sub-Assy, Fuel
77100 95332-10014 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100 95332-10016 Hose, Fuel
77100 95338-10016 Hose, Fuel, No.1(For Fuel Main Tube)
77100 77001-37230 Tank Sub-Assy, Fuel
77100 77001-37232 Tank Sub-Assy, Fuel
77100 77001-37231 Tank Sub-Assy, Fuel
77168 77168-36050 Plate, Fuel Tank Vent Tube Set
77169 83361-20030 Gasket, Fuel Tank Vent
77197 90977-02001 Orifice, Fuel Vapour
77244 77244-37010 Joint, Fuel Tube, No.2
77310 77310-60100 Cap Assy, Fuel Tank
77601 77601-36140 Band Sub-Assy, Fuel Tank, No.1
77601 77601-37030 Band Sub-Assy, Fuel Tank, No.1
77611 77629-36010 Pin (For Fuel Tank Band)
77616 77616-36030 Band, Fuel Tank
77633 77633-37100 Stay, Fuel Tank
77701 95333-06040 Hose
77701 95333-06060 Hose, Fuel
77710 77710-36030 Cock Assy, Fuel Change
77712 77712-36011 Valve, Fuel Change Cock
77713 77713-36010 Lever, Fuel Change Cock
77714 77714-36010 Cap, Fuel Change Cock
91645 91645-C1032 Bolt, Fuel Tank
93319 93319-A4010 SCREW WWASHER
9017910015 90179-10015 NUT
9020209047 90202-09047 New Genuine Part
9025003031 90250-03031 Pin (For Down Shift Plug Sleeve)
9038608164 90386-08164 Bush (For Accelerator Pedal Rod)
9040112007 90401-12007 Bolt, Union, No.1
9040510008 90405-10008 Union(For Fuel Sub-Tank)
9046107033 90461-07033 New Genuine Part
9046715012 90467-15012 Clip Or Clamp(For Ventilation Hose)
9048014006 90480-14006 New Genuine Part
9162640616 91626-40616 New Genuine Part
9331915010 93319-15010 SCREW
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9671319017 96713-19017 New Genuine Part
9671324011 96713-24011 New Genuine Part
Fuel Tank & Tube ([12.2002 - 10.2006] FUEL TUBE (0212-0610)GEN) 27
#OEMPart name
77205 77205-37460 Tube Sub-Assy, Fuel Main
77206 77206-37831 Tube Sub-Assy, Fuel Main, No.2
77242 95332-12028 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77242 95332-12100 Hose, Fuel, No.1 (For Main Tube, No.2)
77242 95337-12100 Hose, Fuel, No.2 (For Main Tube, No.2)
77243 95332-12020 Hose, Fuel, No.1 (For Main Tube, No.1)
77252 77252-37740 Tube, Fuel Main, No.2
77278 95333-08100 Hose, Fuel, No.2 (For Main Tube, No.1)
77278 95333-08020 Hose, Lpg Injector
77278 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77284 77281-37160 Clamp, Fuel Tube
77284 77281-37430 Clamp, Fuel Tube
77284 77281-37161 Clamp, Fuel Tube
77284 77281-37300 Clamp, Fuel Tube
77284 77281-37530 Clamp, Fuel Hose
77284 90034-61051 Clamp, Fuel Hose
9003401010 90034-01010 Bolt, Union(For Turbo Oil Inlet Pipe)
9011908676 90119-08676 BOLT WWASHER
9011908830 90119-08830 Bolt(For Oil Receiver Pipe)
9011908830 47327-60232 Tube, Rear Brake, No.7
9020214004 90202-14004 Gasket(For Turbo Oil Inlet Pipe)
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9048010009 90480-10009 New Genuine Part
9048014017 90480-14017 New Genuine Part
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
Gear Shift Fork & Lever Shaft (Mtm) ([09.2002 - 10.2006] M150,M153 (0209-0610)BU303,343,WU300,340 ; (0610-0612)BU30 3,343,WU300,340..RHD..IV3 ; (0612-0 712)SA) 43
#OEMPart name
33111 90930-03090 Plug, Breather(For Manual Transmission)
33203 90311-22009 Seal, Oil(For Shift Lever Shaft)
33205 33262-36050 Shaft Sub-Assy, Select Lever
33205 90311-13001 Seal, Oil(For Transmission Case)
33205 90201-13029 Washer(For Outer Lever Oil Setting)
33205 33205-37030 Shaft Sub-Assy, Gear Shift Fork, No.1
33208 33207-36031 Housing Sub-Assy, Shift Lever Shaft
33212 33212-36031 Fork, 1St & Reverse Shift
33213 90105-07001 Bolt(For Shift Fork Set)
33213 33213-36050 Fork, Gear Shift, No.2
33214 33214-36060 Fork, Gear Shift, No.3
33232 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33234 33234-36011 Head, Gear Shift, No.3
33243 33243-37020 Shaft, Gear Shift Fork, No.2
33244 33244-37020 Shaft, Gear Shift Fork, No.3
33251 33251-36090 Lever, Shift & Select
33251 90501-16090 Spring (For Shift & Select Lever)
33251 90501-18121 Spring (For Shift & Select Lever)
33252 33252-36010 Lever, Shift, Inner No.2
33252 90523-12001 Ring(For Reverse Shift Head)
33253 33253-37070 Lever, Shift Outer, No.1
33253 33282-36030 Pin, Lever Lock (For Shift Outer Lever)
33257 33257-37060 Lever, Select Outer
33257 33282-35010 Pin, Lever Lock (For Shift Outer Lever)
33261 33261-36070 Shaft Sub-Assy, Shift Lever, No.1
33263 33263-36010 Shaft, Shift Lever, No.2
33263 90250-04060 Pin (For Shift Lever Shaft)
33263 90331-14004 Plug, Manual Transmission Case
33264 90250-10011 Pin, Or Ball, Shift Inter Lock, No.1
33264 90361-05001 Roller, No.1 (For Shift Inter Lock )
33265 90250-10015 Plug, Inter Lock Hole
33266 90250-10014 Pin, Shift Inter Lock, No.2
33275 90501-16145 Spring, Compression (For Shift Detent Ball Low Side)
33275 90360-10003 Ball(For Transmission Oil Pump Cover)
33276 33276-36011 Seat, Select Spring
33531 33531-36060 Boot, Dust (For Shift & Select Lever Shaft)
9011908332 90119-08332 Bolt(For Manual Transmission Oil Pump Cover)
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9453100600 94531-00600 Washer(For Outer Lever Oil Setting)
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Headlamp ([12.2002 - 06.2011] (0212-1106)RHD..ARL,GEN,SA) 21
#OEMPart name
81110 90981-17019 Bulb(For Headlamp, No.1)
81135 81130-37210 Unit Assy, Headlamp, Rh
81135 81130-37214 Unit Assy, Headlamp, Rh
81135 81130-37211 Unit Assy, Headlamp, Rh
81144 90075-65002 Cover, Headlamp Back, No.1
81175 81170-37210 Unit Assy, Headlamp, Lh
81175 81170-37214 Unit Assy, Headlamp Daytime Running Light, Lh
81175 81170-37211 Unit Assy, Headlamp, Lh
81193 81193-37040 Protector, Headlamp, Rh
81193 81193-37060 Protector, Headlamp, Rh
81510 90981-16014 Bulb (For Front Turn Signal Lamp)
81515 81138-37200 Socket, Front Turn Signal Lamp
81515 81138-37351 Socket & Wire, Headlamp
81610 90981-16015 Bulb (For Front Turn Signal Lamp)
81615 90075-99106 Socket And Wire, Clearance Lamp
8197337010 81973-37010 RETAINER SIDE TURN
9015960008 90159-60008 SCREW
9015960425 90159-60425 New Genuine Part
9018906018 90189-06018 GROMMET
9018906111 90189-06111 CLIP
9046710005 90467-10005-C0 Clip
Heating & Air Conditioning - Control & Air Duct ([12.2002 - 10.2006] CONTROL PANEL (0212-0610)RHD..ARL,GEN,SA ; (0610- )BU303,34 3,WU300,340,XZU342..RHD) 9
#OEMPart name
55519 55519-37080 Plate, Heater Control Name
55519 55519-37150 Plate, Heater Control Name
55906 55906-37050 Cable Sub-Assy, Heater Control
55908 55908-37030 Cable Sub-Assy, Air Inlet Damper Control
55909 55909-37040 Cable Sub-Assy, Airmix Damper Control
55910 55910-37061 Control Assy, Heater Or Boost Ventilator
55910 55910-37110 Control Assy, Heater Or Boost Ventilator
55937 55905-89115 Knob, Heater Control
9356855016 93568-55016 Screw
Heating & Air Conditioning - Control & Air Duct ([12.2002 - ] AIR DUCT (0212- )RHD..DCR,DCRTH,DCRTJ,DSL,TD) 14
#OEMPart name
55835 55835-37010 Duct, Heater To Register, Center
55835 55835-37020 Duct, Heater To Register, Center
55835 55835-37090 Duct, Heater To Register, Center
55843 55843-25020 Duct, Heater To Register, No.1
55844 55844-37030 Duct, Heater To Register, No.2
55844 55844-37031 Duct, Heater To Register, No.2
55846 55846-37050 Duct, Heater To Register, No.4
87201 87211-37120 Duct Sub-Assy, Air, No.1
87212 87212-37010 Duct, Air, No.1
9015960096 90159-60096 New Genuine Part
9046708150 90467-08150 Clip(For Luggage Compartment Trim Cover)
9046710005 90467-10005-C0 Clip
9155480614 91554-80614 New Genuine Part
9356855016 93568-55016 Screw
Heating & Air Conditioning - Cooler Piping ([12.2002 - ] O-RING (0212- )) 5
#OEMPart name
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
Heating & Air Conditioning - Heater Unit & Blower ([12.2002 - ] (0212- )BU30#,34#,WU300,340,XZU305,342,345..R HD) 17
#OEMPart name
87104 87104-37140 Motor Sub-Assy, Heater Blower
87105 87105-37030 Fan Sub-Assy, Heater Blower
87107 87107-37040 Unit Sub-Assy, Heater Radiator
87130 87130-37100 Blower Assy, Heater, Front
87130 87130-37101 Blower Assy, Heater, Front
87150 87150-25010 Radiator Assy, Heater
87150 87150-37300 Radiator Assy, Heater
87150 87150-37190 Radiator Assy, Heater
87441 87441-37010 Filter, Clean Air
87441 87441-37031 Filter, Heater Air, No.2
88910 88910-37050 Ventilator Assy, Boost
8712420020 87124-20020 Clamp, Heater Control
8712837050 87128-37050 Grommet, Heater
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9017908057 90179-08057 NUT
9048001529 90480-01529 New Genuine Part
9155480614 91554-80614 New Genuine Part
Heating & Air Conditioning - Water Piping ([12.2002 - 10.2006] (0212-0610)BU30#,34#..RHD..ARL,GEN) 25
#OEMPart name
87245 87246-37310 Hose, Heater Water, Inlet A
87245 87245-3V510 Hose, Heater Water, Inlet B
87246 87245-3V500 Hose, Heater Water, Outlet A
87246 87245-3V361 Hose, Heater Water, Outlet B
87248 87248-37480 Pipe, Heater Water Inlet, A
87248 87248-37481 Pipe, Heater Water Inlet, A
87248 87248-37490 Pipe, Heater Water Inlet, A
87248 87248-37491 Pipe, Heater Water Inlet, A
87251 87251-30200 Union(For Water By-Pass Hose)
87263 87263-37090 Bracket, Heater Water Pipe, No.1
87263 87263-37150 Bracket, Heater Water Pipe, No.1
91511 91511-G0814 New Genuine Part
91642 91642-H1020 New Genuine Part
5576137070 55761-37070 Hose, Cowl Ventilator Drain, Rh
5576237070 55762-37070 Hose, Cowl Ventilator Drain, Lh
8712425110 87124-25110 Clamp, Heater
8712437090 87124-37090 Clamp, No.1 (For Transmission Control Cable)
8712437220 87124-37220 Clamp, Heater
8712437290 87124-37290 Clamp, Heater
9011908802 90119-08802 BOLT WWASHER
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9415080800 94150-80800 NUT, FLANGE
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
Hole Plug ([09.2002 - ] (0209- )) 21
#OEMPart name
57177 57177-YX010 Crossmember, Front Side Member To Dash Panel
9033320001 90333-20001 PLUG
9033325001 90333-25001 Plug, Hole(For Hood)
9033335002 90333-35002 Plug, Hole(For Rear Door Panel)
9033335004 90333-35004 Plate, Noise Control, No.1
9033348001 90333-48001 Plate, Quarter Panel, Upper No.1
9095001006 90950-01006 Plug, Hole(For Front Fender)
9095001112 90950-01112 Plug, Hole(For Heater Control Cable Hole)
9095001181 90950-01181 Plug, Hole(For Front Fender Apron)
9095001249 90950-01249 New Genuine Part
9095001398 90950-01398 CUSHION
9095001430 90950-01430 Plug, Hole(For Tail Gate)
9095001753 90950-01753 Plug, Hole(For Rear Body Side Panel)
9095001759 90950-01759 PLUG
9095001796 90950-01796 PLUG
9095001808 90950-01808 PLUG HOLE
9095001824 90950-01824 PLUG HOLE
9095001865 90950-01865 PLUG HOLE
9095001890 90950-01890 PLUG, HOLE
9095001945 90950-01945 New Genuine Part
9095006060 90950-06060 New Genuine Part
Horn ([12.2002 - 10.2006] (0209- )DCRTH,DCRTJ,DSL..IDN ; (0212-0610)ARL ,GCC,GEN,TAIW ; (0304-0712)SA) 3
#OEMPart name
86520 86520-37030 Horn Assy, Low Pitched
9011908103 90119-08103 New Genuine Part
9011908827 90119-08827 New Genuine Part
Injection Nozzle ([09.2002 - ] (0209- )14B) 54
#OEMPart name
11176 11176-56030 Seat, Injection Nozzle
11176 11176-56031 Seat, Injection Nozzle
11177 90430-17003 Gasket, Injection Nozzle Seat
11195 90116-08271 Bolt, Nozzle Set, Stud
23600 23600-58030 Holder & Nozzle Set, Nozzle
23600 23600-59415 Holder & Nozzle Set, Nozzle
23618 23618-58030 Spring, Nozzle Holder Pressure
23619 23619-58030 Pin, Nozzle Holder Pressure
23620 23620-58030 Nozzle Assy
23624 23624-58010 Nut, Nozzle Retaining
23627 23625-58230 Screw, Follow(For Nozzle)
23627 90201-08106 Washer(For Cap Nut)
23631 23631-58010 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58011 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58012 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58013 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58014 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58015 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58016 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58017 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58018 Washer(For Nozzle Holder Pressure Spring)
23631 23631-58019 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58010 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58011 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58012 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58013 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58014 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58015 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58016 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58017 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58018 Washer(For Nozzle Holder Pressure Spring)
23631 23632-58019 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58010 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58011 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58012 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58013 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58014 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58015 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58016 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58017 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58018 Washer(For Nozzle Holder Pressure Spring)
23631 23633-58019 Washer(For Nozzle Holder Pressure Spring)
23631 23634-58010 Washer(For Nozzle Holder Pressure Spring)
23631 23634-58011 Washer(For Nozzle Holder Pressure Spring)
23631 23634-58012 Washer(For Nozzle Holder Pressure Spring)
23631 23634-58013 Washer(For Nozzle Holder Pressure Spring)
23659 23659-58030 Packing, Tip(For Nozzle)
23760 23760-56060 Pipe Assy, Nozzle Leakage
23770 23770-56090 Pipe Assy, Nozzle Leakage, No.2
23770 23770-56100 Pipe Assy, Nozzle Leakage, No.2
23770 90447-11027 Hose, Fuel
23770 96132-41000 Clip, No.1(For Idle-Up Hose)
9009908096 90099-08096 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
Injection Pump Assembly ([09.2002 - ] (0209- )14B) 27
#OEMPart name
22100 22100-56480 Pump Assy, Injection Or Supply
22100 22100-56490 Pump Assy, Injection Or Supply
22100 22100-5C690 Pump Assy, Injection Or Supply
22295 22295-58020 Bracket, Injection Pump Connector
22811 22811-58031 Stay, Injection Pump, No.1
22821 90301-49003 Gasket, Injection Pump
23701 23701-56080 Pipe Sub-Assy, Injection, No.1
23702 23702-56080 Pipe Sub-Assy, Injection, No.2
23703 23703-56080 Pipe Sub-Assy, Injection, No.3
23704 23704-56080 Pipe Sub-Assy, Injection, No.4
23741 23741-58010 Clamp, Injection Pipe, No.1
23742 23742-58010 Clamp, Injection Pipe, No.2
23811 23811-58010 Pipe, Fuel(For Fuel Filter To Injection Pump)
91622 91622-B1020 Bolt(For Transaxle & Engine Setting)
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
2327158160 23271-58160 Valve, Thermostatic Vacuum Switching, No.1
2327358110 23273-58110 Valve, Thermostatic Vacuum Switching, No.3
2327378220 23273-78220 Valve, Thermostatic Vacuum Switching, No.3
7728137400 77281-37400 Bracket, Fuel Main Tube, No.1
9011906775 90119-06775 BOLT WWASHER
9011908735 90119-08735 New Genuine Part
9017906274 90179-06274 Nut
9017908022 90179-08022 NUT
9212260625 92122-60625 New Genuine Part
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251100 96132-51100 Clip (For Hose)
Injection Pump Body ([09.2002 - ] (0209- )14B) 157
#OEMPart name
22101 22101-54200 Housing Sub-Assy, Injection Pump
22101 22101-54770 Housing Sub-Assy, Injection Pump
22101 22101-64250 Housing Sub-Assy, Injection Pump
22101 90099-14053 Ring, O(For Injection Pump Housing)
22104 22104-56330 Valve Sub-Assy, Injection Pump Delivery
22104 22104-56350 Valve Sub-Assy, Injection Pump Delivery
22108 22108-96300 Ring Sub-Assy, Roller
22119 22119-58770 Washer, Air Bleeder Nipple
22119 22119-6A210 Washer, Air Bleeder Nipple
22119 90099-01533 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22128 22128-56330 Bolt, Distributive Head
22130 22130-56350 Camplate Sub-Assy, Face
22131 22131-54010 Holder, Delivery Valve
22140 22140-56350 Head Sub-Assy, Distributive Pump
22141 22565-56350 Seat, Delivery Valve Spring
22143 22143-56350 Seat, Spring Upper
22144 22144-56350 Spring, Pump Plunger
22145 22145-56350 Seat, Spring, Lower
22146 90099-13018 Key(For Drive Gear)
22146 22544-64740 Seal, Oil, Injection Pump Camshaft
22147 22161-54010 Washer, Drive Shaft
22147 22147-54290 Ring, Governor Sleeve
22148 22148-56350 Spring, Delivery Valve
22149 22149-56351 Gasket, Delivery Valve
22160 22160-56350 Screw Sub-Assy, Overflow
22162 22162-54010 Plate, Plunger Upper
22163 22163-54010 Plate, Plunger Lower
22169 22169-54180 Joint, Rubber
22170 22170-56350 Shaft Sub-Assy, Drive
22170 90099-13017 Key(For Drive Gear)
22172 22172-5C090 Clip, Connector Support, Solenoid
22174 22174-58270 Shaft, Spline
22176 22176-54020 Plug, Distributive Head
22176 22193-54772 Ring, O(For Distributive Head Plug)
22179 22179-54010 Shim, Plunger Adjusting
22179 22179-54011 Shim, Plunger Adjusting
22179 22179-54012 Shim, Plunger Adjusting
22179 22179-54013 Shim, Plunger Adjusting
22179 22179-54014 Shim, Plunger Adjusting
22179 22179-54015 Shim, Plunger Adjusting
22179 22179-54016 Shim, Plunger Adjusting
22179 22179-54017 Shim, Plunger Adjusting
22179 22179-54018 Shim, Plunger Adjusting
22179 22179-54019 Shim, Plunger Adjusting
22179 22179-54020 Shim, Plunger Adjusting
22180 22180-56351 Valve Sub-Assy, Regulator
22180 22180-58650 Valve Sub-Assy, Regulator
22182 22182-54010 Plate, Tappet Adjusting Shim
22182 22183-54010 Plate, Tappet Adjusting Shim
22182 22184-54010 Plate, Tappet Adjusting Shim
22182 22185-54010 Plate, Tappet Adjusting Shim
22182 22186-54010 Plate, Tappet Adjusting Shim
22182 22187-54010 Plate, Tappet Adjusting Shim
22182 22188-54010 Plate, Tappet Adjusting Shim
22192 22192-56350 Guide Sub-Assy, Plunger Spring
22193 22193-64750 Ring, O(For Lever Connecting Pin)
22193 22193-5B320 Ring, O(For Fuel Injection Pump Filter)
22314 22314-54010 Spring, Lever Support
22316 22316-55030 Sleeve, Governor
22316 90099-10148 Bearing, Ball(For Governor Sleeve)
22317 22317-56350 Spring, Governor Domper
22322 22322-54020 Spring, Return
22341 22341-54010 Gear, Governor Drive
22350 22350-58541 Governor Assy, Torque Control
22369 22369-54010 Seat, Governor Spring
22378 22149-6D450 Gasket, Delivery Valve
22378 22378-64010 Washer, Governor Thrust
22384 22384-54010 Shaft, Governor
22384 90099-14049 Ring, O(For Governor Main Shaft)
22390 22390-56291 Solenoid Assy, Fuel Cut
22505 22505-54010 Pump Sub-Assy, Fuel Feed
22505 90099-00723 Screw(For Fuel Feed Pump)
22511 22511-58650 Cover, Feed Pump
22602 22602-56350 Filter Sub-Assy, Fuel Injection Pump
22602 22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2
22611 22611-58200 Nut, Timer Round
22612 22612-56350 Cover, Timer
22612 22612-5C300 Cover, Timer
22612 22193-17840 Ring, O(For Timer Cover)
22615 22615-58541 Spring, Timer Outer
22615 22615-58542 Spring, Timer Outer
22615 22615-5C301 Spring, Timer Outer
22615 22615-5C302 Spring, Timer Outer
22621 22621-54010 Washer, Timer Adjusting
22621 22622-54010 Washer, Timer Adjusting
22621 22624-54010 Washer, Timer Adjusting
22621 22624-54800 Washer, Timer Adjusting
22621 22624-54803 Washer, Timer Adjusting
22621 22624-54804 Washer, Timer Adjusting
22621 22624-54805 Washer, Timer Adjusting
22621 22624-54806 Washer, Timer Adjusting
22621 22625-54277 Washer, Timer Adjusting
22632 22632-56350 Coupling, Injection Pump
22654 22654-56340 Piston, Timer
22655 22655-54010 Pin, Timer Slide
22656 22656-17840 Clip, Timer
22657 22657-54010 Clip, Timer
22658 22658-17840 Stopper, Timer
22658 22658-54450 Stopper, Timer
22659 22659-58650 Spring, Coupling
22689 22689-56350 Washer(For Swivel Nipple)
22701 22701-17010 Lever Sub-Assy, Adjusting
22701 22701-17011 Lever Sub-Assy, Adjusting
22701 22701-56350 Lever Sub-Assy, Adjusting
22703 22703-58540 Cover Sub-Assy, Governor
22703 22703-6A210 Cover Sub-Assy, Governor
22713 22713-54010 Washer, Governor Gear Adjusting
22713 22714-54010 Washer, Governor Gear Adjusting
22713 22715-54010 Washer, Governor Gear Adjusting
22713 22716-54010 Washer, Governor Gear Adjusting
22713 22717-54010 Washer, Governor Gear Adjusting
22726 22726-58470 Spring, Speed Control
22728 22728-54010 Guide, Return Spring
22739 22739-54020 Bolt, Governor Link Support
22740 22740-21910 Shaft Sub-Assy, Governor Adjusting
22740 22740-58480 Shaft Sub-Assy, Governor Adjusting
22740 22193-54770 Ring, O(For Governor Adjusting Shaft)
22741 22741-54020 Holder Sub-Assy, Flyweight
22745 22745-5C090 Flyweight, Distributive Pump
22749 22749-5C390 Collar, Smoke Set Adjusting
22751 22751-56450 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-5C680 Wire Sub-Assy, Fuel Cut Solenoid
22753 22753-54010 Washer, Flyweight, No.1
22753 22753-54020 Washer, Flyweight, No.2
22774 22774-54270 Gasket, Governor Cover
22775 22775-77121 Nut, Rock
22776 22776-55030 Screw, Smoke Set Adjusting
22776 22193-54771 Ring, O(For Smoke Set Screw)
22787 22787-17145 Plug, Governor Sleeve
22787 22787-54031 Plug, Governor Sleeve
22787 22787-54035 Plug, Governor Sleeve
22787 22787-56350 Plug, Governor Sleeve
22787 22787-56352 Plug, Governor Sleeve
22787 22787-64641 Plug, Governor Sleeve
22790 22790-56351 Cover, Timer
221725 22172-5C680 Clip, Connector Support, Solenoid
223785 22378-5C430 Washer, Governor Thrust
2214954771 22149-54771 Gasket, Delivery Valve
2214956350 22149-56350 Gasket, Delivery Valve
2217254264 22172-54264 Clip, Connector Support, Solenoid
2239554010 22395-54010 Bolt, Socket(For Injection Pump Governor Cover)
2239556290 22395-56290 Bolt, Socket(for Injection Pump Governor Cover)
2239556351 22395-56351 Bolt, Socket(for Injection Pump Governor Cover)
2239558200 22395-58200 Bolt, Socket(For Injection Pump Governor Cover)
2272254470 22722-54470 Nut, Governor Shaft Rock
2274955050 22749-55050 Collar, Smoke Set Adjusting
9009210608 90092-10608 New Genuine Part
9009301003 90093-01003 New Genuine Part
9009690024 90096-90024 Ring, O(For Stopper Lever)
9009904576 90099-04576 BOLT
9009904946 90099-04946 Ring, O(For Bellows Cover)
9009905161 90099-05161 Nut, Timer Round
9009905225 90099-05225 NUT
9009905252 90099-05252 NUT HEXAGON
9009918022 90099-18022 SCREW
9017906156 90179-06156 Nut (For Transmission Control Cable)
Injection Pump Body ([12.2002 - ] W(HIGH ALTITUDE COMPENSATOR) (0212- )14B..GEN) 177
#OEMPart name
22101 22101-54200 Housing Sub-Assy, Injection Pump
22101 22101-54770 Housing Sub-Assy, Injection Pump
22101 22101-64250 Housing Sub-Assy, Injection Pump
22101 90099-14053 Ring, O(For Injection Pump Housing)
22104 22104-56330 Valve Sub-Assy, Injection Pump Delivery
22104 22104-56350 Valve Sub-Assy, Injection Pump Delivery
22108 22108-96300 Ring Sub-Assy, Roller
22119 22119-58770 Washer, Air Bleeder Nipple
22119 22119-6A210 Washer, Air Bleeder Nipple
22119 90099-01533 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22128 22128-56330 Bolt, Distributive Head
22129 22129-55110 Plug, Screw
22129 22149-54800 Washer, Air Bleeder Nipple
22130 22130-56350 Camplate Sub-Assy, Face
22131 22131-54010 Holder, Delivery Valve
22140 22140-56350 Head Sub-Assy, Distributive Pump
22141 22565-56350 Seat, Delivery Valve Spring
22143 22143-56350 Seat, Spring Upper
22144 22144-56350 Spring, Pump Plunger
22145 22145-56350 Seat, Spring, Lower
22146 90099-13018 Key(For Drive Gear)
22146 22544-64740 Seal, Oil, Injection Pump Camshaft
22147 22161-54010 Washer, Drive Shaft
22147 22147-54290 Ring, Governor Sleeve
22148 22148-56350 Spring, Delivery Valve
22149 22149-56351 Gasket, Delivery Valve
22160 22160-56350 Screw Sub-Assy, Overflow
22162 22162-54010 Plate, Plunger Upper
22163 22163-54010 Plate, Plunger Lower
22169 22169-54180 Joint, Rubber
22170 22170-56350 Shaft Sub-Assy, Drive
22170 90099-13017 Key(For Drive Gear)
22172 22172-5C090 Clip, Connector Support, Solenoid
22174 22174-58270 Shaft, Spline
22176 22176-54020 Plug, Distributive Head
22176 22193-54772 Ring, O(For Distributive Head Plug)
22179 22179-54010 Shim, Plunger Adjusting
22179 22179-54011 Shim, Plunger Adjusting
22179 22179-54012 Shim, Plunger Adjusting
22179 22179-54013 Shim, Plunger Adjusting
22179 22179-54014 Shim, Plunger Adjusting
22179 22179-54015 Shim, Plunger Adjusting
22179 22179-54016 Shim, Plunger Adjusting
22179 22179-54017 Shim, Plunger Adjusting
22179 22179-54018 Shim, Plunger Adjusting
22179 22179-54019 Shim, Plunger Adjusting
22179 22179-54020 Shim, Plunger Adjusting
22180 22180-56351 Valve Sub-Assy, Regulator
22180 22180-58650 Valve Sub-Assy, Regulator
22182 22182-54010 Plate, Tappet Adjusting Shim
22182 22183-54010 Plate, Tappet Adjusting Shim
22182 22184-54010 Plate, Tappet Adjusting Shim
22182 22185-54010 Plate, Tappet Adjusting Shim
22182 22186-54010 Plate, Tappet Adjusting Shim
22182 22187-54010 Plate, Tappet Adjusting Shim
22182 22188-54010 Plate, Tappet Adjusting Shim
22192 22192-56350 Guide Sub-Assy, Plunger Spring
22193 22193-64750 Ring, O(For Lever Connecting Pin)
22193 22193-5B320 Ring, O(For Fuel Injection Pump Filter)
22193 22193-55031 Ring, O(For Lever Connecting Pin)
22301 22301-56310 Rod Sub-Assy, Push
22308 22308-17570 Lever Sub-Assy, Control
22314 22314-54010 Spring, Lever Support
22316 22316-55030 Sleeve, Governor
22316 90099-10148 Bearing, Ball(For Governor Sleeve)
22317 22317-56350 Spring, Governor Domper
22322 22322-54020 Spring, Return
22327 22327-54120 Spring(For Bellows)
22327 22327-64400 Spring(For Bellows)
22338 22338-54120 Pin, Lever Connecting
22341 22341-54010 Gear, Governor Drive
22348 22348-64400 Bushing, Guide
22348 22348-54121 Bushing, Guide
22350 22350-58541 Governor Assy, Torque Control
22369 22369-54010 Seat, Governor Spring
22378 22149-6D450 Gasket, Delivery Valve
22378 22378-64010 Washer, Governor Thrust
22384 22384-54010 Shaft, Governor
22384 90099-14049 Ring, O(For Governor Main Shaft)
22390 22390-56291 Solenoid Assy, Fuel Cut
22505 22505-54010 Pump Sub-Assy, Fuel Feed
22505 90099-00723 Screw(For Fuel Feed Pump)
22511 22511-58650 Cover, Feed Pump
22526 22526-54120 Pin, Lever Support
22602 22602-56350 Filter Sub-Assy, Fuel Injection Pump
22602 22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2
22611 22611-58200 Nut, Timer Round
22612 22612-56350 Cover, Timer
22612 22612-5C300 Cover, Timer
22612 22193-17840 Ring, O(For Timer Cover)
22615 22615-58541 Spring, Timer Outer
22615 22615-58542 Spring, Timer Outer
22615 22615-5C301 Spring, Timer Outer
22615 22615-5C302 Spring, Timer Outer
22621 22621-54010 Washer, Timer Adjusting
22621 22622-54010 Washer, Timer Adjusting
22621 22624-54010 Washer, Timer Adjusting
22621 22624-54800 Washer, Timer Adjusting
22621 22624-54803 Washer, Timer Adjusting
22621 22624-54804 Washer, Timer Adjusting
22621 22624-54805 Washer, Timer Adjusting
22621 22624-54806 Washer, Timer Adjusting
22621 22625-54277 Washer, Timer Adjusting
22632 22632-56350 Coupling, Injection Pump
22654 22654-56340 Piston, Timer
22655 22655-54010 Pin, Timer Slide
22656 22656-17840 Clip, Timer
22657 22657-54010 Clip, Timer
22658 22658-17840 Stopper, Timer
22658 22658-54450 Stopper, Timer
22659 22659-58650 Spring, Coupling
22680 22680-56320 Bellows Assy, Pneumatic
22680 90099-01473 Washer(For Guide Bushing)
22681 22681-54460 Bellows Sub-Assy, Pneumatic
22686 22682-54351 Cover, Pneumatic Bellows
22686 90099-14057 Ring, O(For Bellows Cover)
22689 22689-56350 Washer(For Swivel Nipple)
22701 22701-17010 Lever Sub-Assy, Adjusting
22701 22701-17011 Lever Sub-Assy, Adjusting
22701 22701-56350 Lever Sub-Assy, Adjusting
22703 22703-58540 Cover Sub-Assy, Governor
22703 22703-6A210 Cover Sub-Assy, Governor
22713 22713-54010 Washer, Governor Gear Adjusting
22713 22714-54010 Washer, Governor Gear Adjusting
22713 22715-54010 Washer, Governor Gear Adjusting
22713 22716-54010 Washer, Governor Gear Adjusting
22713 22717-54010 Washer, Governor Gear Adjusting
22722 22722-54120 Nut, Governor Shaft Rock
22726 22726-58470 Spring, Speed Control
22728 22728-54010 Guide, Return Spring
22739 22739-54020 Bolt, Governor Link Support
22739 22739-54120 Bolt, Governor Link Support
22740 22740-21910 Shaft Sub-Assy, Governor Adjusting
22740 22740-58480 Shaft Sub-Assy, Governor Adjusting
22740 22193-54770 Ring, O(For Governor Adjusting Shaft)
22741 22741-54020 Holder Sub-Assy, Flyweight
22745 22745-5C090 Flyweight, Distributive Pump
22749 22749-5C390 Collar, Smoke Set Adjusting
22751 22751-56450 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-5C680 Wire Sub-Assy, Fuel Cut Solenoid
22753 22753-54010 Washer, Flyweight, No.1
22753 22753-54020 Washer, Flyweight, No.2
22774 22774-54270 Gasket, Governor Cover
22775 22775-77121 Nut, Rock
22776 22776-55030 Screw, Smoke Set Adjusting
22776 22193-54771 Ring, O(For Smoke Set Screw)
22777 22777-54120 Cap, Rubber(For Bellows)
22777 22777-64410 Cap, Rubber(For Bellows)
22787 22787-17145 Plug, Governor Sleeve
22787 22787-54031 Plug, Governor Sleeve
22787 22787-54035 Plug, Governor Sleeve
22787 22787-56350 Plug, Governor Sleeve
22787 22787-56352 Plug, Governor Sleeve
22787 22787-64641 Plug, Governor Sleeve
22790 22790-56351 Cover, Timer
221725 22172-5C680 Clip, Connector Support, Solenoid
223785 22378-5C430 Washer, Governor Thrust
2214954771 22149-54771 Gasket, Delivery Valve
2214956350 22149-56350 Gasket, Delivery Valve
2239554010 22395-54010 Bolt, Socket(For Injection Pump Governor Cover)
2239554263 22395-54263 Bolt, Socket(for Injection Pump Governor Cover)
2239556290 22395-56290 Bolt, Socket(for Injection Pump Governor Cover)
2239556351 22395-56351 Bolt, Socket(for Injection Pump Governor Cover)
2239558200 22395-58200 Bolt, Socket(For Injection Pump Governor Cover)
2272254470 22722-54470 Nut, Governor Shaft Rock
2274955050 22749-55050 Collar, Smoke Set Adjusting
9009210608 90092-10608 New Genuine Part
9009301003 90093-01003 New Genuine Part
9009690024 90096-90024 Ring, O(For Stopper Lever)
9009904954 90099-04954 BOLT
9009905156 90099-05156 New Genuine Part
9009905161 90099-05161 Nut, Timer Round
9009905225 90099-05225 NUT
9009905252 90099-05252 NUT HEXAGON
9009918022 90099-18022 SCREW
9017906156 90179-06156 Nut (For Transmission Control Cable)
Inside Trim Board ([12.2002 - ] (0212- )ARL,GCC,GEN,SA,TAIW) 27
#OEMPart name
62211 62211-37010-B0 Garnish, Front Pillar, Rh
62211 62211-37012-B0 Garnish, Front Pillar, Rh
62211 62211-37011-B0 Garnish, Front Pillar, Rh
62212 62212-37010-B0 Garnish, Front Pillar, Lh
62212 62212-37012-B0 Garnish, Front Pillar, Lh
62212 62212-37011-B0 Garnish, Front Pillar, Lh
62313 62313-37040-B0 Trim, Front Door Opening, Rh
62313 62313-37041-B0 Trim, Front Door Opening, Rh
62313 62313-37060-B0 Trim, Front Door Opening, Rh
62314 62314-37020-B0 Trim, Front Door Opening, Lh
62513 62513-37010-B0 Panel, Quarter Trim, Lower Rh
62513 62530-37020-B1 Panel, Quarter Trim, Lower Rh
62514 62514-37010-B0 Panel, Quarter Trim, Lower Lh
62514 62540-37020-B1 Panel, Quarter Trim, Lower Lh
62631 67771-12050 Clip, Radiator Grille
62631 90467-10161 Clip
64271 64271-37012-B0 Trim, Back Panel
64271 64271-37101-B0 Trim, Back Panel
64271 64271-37140-B0 Trim, Back Panel
64271 64271-37150-B0 Trim, Back Panel
64271 64271-37440-B0 Trim, Back Panel
64271 64271-37460-B0 Trim, Back Panel
64271 64271-37450-B0 Trim, Back Panel
64271 64271-37470-B0 Trim, Back Panel
64726 64726-37010-B0 Clip, Deck Rear Trim
9046710162 90467-10162 Clip, Front Wheel Opening Extensoion
9046710188 90467-10188 Clip(For Deck Boad)
Inside Trim Board ([12.2002 - ] W(NON-RETROCTOR TYPE SEAT BELT) (0212- )GEN,SA) 31
#OEMPart name
62211 62211-37010-B0 Garnish, Front Pillar, Rh
62211 62211-37012-B0 Garnish, Front Pillar, Rh
62211 62211-37011-B0 Garnish, Front Pillar, Rh
62212 62212-37010-B0 Garnish, Front Pillar, Lh
62212 62212-37012-B0 Garnish, Front Pillar, Lh
62212 62212-37011-B0 Garnish, Front Pillar, Lh
62313 62313-37040-B0 Trim, Front Door Opening, Rh
62313 62313-37041-B0 Trim, Front Door Opening, Rh
62313 62313-37060-B0 Trim, Front Door Opening, Rh
62314 62314-37020-B0 Trim, Front Door Opening, Lh
62510 62510-25010-B0 Panel Assy, Quarter Trim, Front Rh
62510 62530-25010-B0 Panel, Quarter Trim, Lower Rh
62513 62513-37010-B0 Panel, Quarter Trim, Lower Rh
62513 62530-37020-B1 Panel, Quarter Trim, Lower Rh
62514 62514-37010-B0 Panel, Quarter Trim, Lower Lh
62514 62540-37020-B1 Panel, Quarter Trim, Lower Lh
62520 62520-25010-B0 Panel, Quarter Trim, Lower Lh - QUARTER TRIM, FRONT LH
62520 62540-25010-B0 Panel, Quarter Trim, Lower Lh
62631 67771-12050 Clip, Radiator Grille
62631 90467-10161 Clip
64271 64271-37012-B0 Trim, Back Panel
64271 64271-37101-B0 Trim, Back Panel
64271 64271-37140-B0 Trim, Back Panel
64271 64271-37150-B0 Trim, Back Panel
64271 64271-37440-B0 Trim, Back Panel
64271 64271-37460-B0 Trim, Back Panel
64271 64271-37450-B0 Trim, Back Panel
64271 64271-37470-B0 Trim, Back Panel
64726 64726-37010-B0 Clip, Deck Rear Trim
9046710162 90467-10162 Clip, Front Wheel Opening Extensoion
9046710188 90467-10188 Clip(For Deck Boad)
Instrument Panel & Glove Compartment ([12.2002 - ] (0212- )RHD..ARL,GEN,SA) 65
#OEMPart name
45288 45288-37010 Plate, Steering Column Cover
55301 55301-25020-B0 Panel Sub-Assy, Instrument
55301 55301-37012-B0 Panel Sub-Assy, Instrument
55306 55306-37011 Brace Sub-Assy, Instrument Panel, No.1
55312 90467-07041-B8 Clip(For Steering Column Cover)
55317 55317-37010 Panel, Instrument Side, Rh
55331 55330-37024 Reinforcement, Instrument Panel
55331 55330-37025 Reinforcement, Instrument Panel
55394 55394-37010 Bolt, Instrument Panel
55405 55405-37140 Panel Sub-Assy, Instrument Cluster Finish, Center
55405 55405-37141 Panel Sub-Assy, Instrument Cluster Finish, Center
55411 55411-25020-B0 Panel, Instrument Cluster Finish, No.1
55411 55411-25021-B0 Panel, Instrument Cluster Finish, No.1
55414 55477-37020 Bezel, Cigar Lighter Hole
55448 55448-37020-B0 Cover, Oil Reservoir Tank, Rh
55458 55458-37010-B0 Cover, Instrument, Lwr
55458 55458-37011-B0 Cover, Instrument, Lwr
55479 55320-37010-B0 Cover Sub-Assy, Instrument, Lower
55479 55320-37011-B0 Cover Sub-Assy, Instrument, Lower
55510 55550-37010-B0 Door Assy, Glove Compartment
55510 55550-37011-B0 Door Assy, Glove Compartment
55511 55511-37020-B0 Door, Glove Compartment
55511 55511-37021-B0 Door, Glove Compartment
55521 55521-89102 Cover, Stereo Opening
55521 55521-37030 Cover, Stereo Opening
55531 55531-37020-B0 Cover, Choke Knob Hole
55532 55532-37030 Stopper, Glove Door
55539 55539-37020-B0 Cover, Spare Switch Hole
55539 55539-37010-C0 Cover, Spare Switch Hole
55539 55539-32010-C0 Cover, Cooler Switch Hole (BLACK)
55545 55545-37010-B0 Cover, Fuse Box Opening
55545 55545-37011-B0 Cover, Fuse Box Opening
55547 55547-37010-B0 Cover, Remote Control Mirror Hole
55565 55565-37030-B0 Handle, Glove Compartment Door Lock
55574 55574-38010 Shaft, Glove Compartment Door Hinge
55619 55619-25010 Cover, Cup Holder Hole
55620 55620-37021 Holder Assy, Instrument Panel Cup
55650 55650-37030-B0 Register Assy, Instrument Panel, No.1
55660 55660-37010-B0 Register Assy, Instrument Panel, No.1
55961 55961-37030-B0 Nozzle, Side Defroster, No.1
55970 55971-37050 Duct Assy, Side Defroster, Rh
55980 55972-37050 Duct, Side Defroster Nozzle, No.2
55990 55990-37041 Nozzle Assy, Defroster, Lower
61181 55707-37010 Bracket, Instrument Panel Side
61182 61181-37040 Bracket, Instrument Panel Side
61184 61184-37010 Bracket, Instrument Panel Side, No.2 Lh
91631 91631-B0614 BOLT WWASHER
5596350010 55963-50010 Retainer, Side Defroster
9015960382 90159-60382 SCREW WWASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906278 90179-06278 NUT
9017908102 90179-08102 NUT
9018305103 90183-05103 NUT
9024904002 90249-04002 New Genuine Part
9046705101 90467-05101-B2 Clip(For Front Body Pillar Garnish)
9046710203 90467-10203 Direct
9046712080 90467-12080 Clip(For Panel, Instrument Cluster Finish)
9046714013 90467-14013 New Genuine Part
9054105080 90541-05080 Cushion(For Glove Compartment)
9155180614 91551-80614 Bolt(For Vacuum Transmitting Pipe)
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9155480614 91554-80614 New Genuine Part
9356053008 93560-53008 New Genuine Part
9356855012 93568-55012 SCREW
9356855016 93568-55016 Screw
Lock Cylinder Set ([09.2002 - ] (0209- )) 17
#OEMPart name
69051 69051-37060 Cylinder & Key Set, Door Lock, Rh
69052 69052-37100 Cylinder & Key Set, Door Lock, Lh
69057 69057-37050 Cylinder Set, Lock - IGNITION SWITCH LOCK
69057 69057-37140 Cylinder & Key Set, Ignition Switch Lock
69058 69058-37050 Cylinder & Key Set, Fuel Tank Filler
69503 69005-37010 Cylinder Set, Lock
69503 69005-37011 Cylinder Set, Lock
69503 69005-37110 Cylinder Set, Lock
69503 69005-37111 Cylinder Set, Lock
69503 69005-37280 Cylinder Set, Lock
69503 69005-37690 Cylinder Set, Lock
69503 69005-37700 Cylinder Set, Lock
69503 69005-37710 Cylinder Set, Lock
69503 69005-37720 Cylinder Set, Lock
69503 69005-37751 Cylinder Set, Lock
69503 90999-00185 Key, Blank
69503 90999-00186 Key, Blank
Manifold ([09.2002 - ] (0209- )14B) 18
#OEMPart name
17111 17111-58060 Manifold, Intake
17111 90116-08352 Bolt, Stud(For Intake Manifold To Cylinder Head)
17114 17114-58020 Flange, Intake
17141 17141-56060 Manifold, Exhaust
17141 90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17152 90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)
17167 17167-58080 Insulator, Exhaust Manifold Heat, No.1
17168 17168-58060 Insulator, Exhaust Manifold Heat, No.2
17172 17171-58020 Gasket, Manifold To Cylinder Head
17173 17173-56040 Gasket, Exhaust Manifold To Head
19829 19829-17010 Gasket, Intake Heater
21928 21928-58070 Support, Throttle Wire
91621 91621-B0816 BOLT WWASHER
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9010510057 90105-10057 Bolt (For Front Lower Ball Joint)
9011008018 90110-08018 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017910214 90179-10214 NUT
Meter ([12.2002 - 06.2011] COMBINATION METER (0212-1106)ARL,GCC,GEN,SA,TAIW) 7
#OEMPart name
83100 83800-37810 Meter Assy, Combination
83100 83800-37820 Meter Assy, Combination
83100 83800-3V060 Meter Assy, Combination
83100 83800-3V070 Meter Assy, Combination
83134 83821-37610 Cover, Combination Meter, No.1
83138 83852-37250 Glass, Combination Meter
9356855016 93568-55016 Screw
Meter ([12.2002 - 06.2011] TACHOGRAPH (0212-1106)GCC,GEN,SA) 7
#OEMPart name
83205 86211-37070 Bracket, Sub-Assy, Tachograph
83205 86212-37050 Bracket, Sub-Assy, Tachograph
83205 86212-37051 Bracket, Sub-Assy, Tachograph
83210 83210-37310 Tachograph Assy
83210 83210-37311 Tachograph Assy
9015950343 90159-50343 SCREW, W-WASHER
9155480614 91554-80614 New Genuine Part
Meter ([12.2002 - 10.2006] REVOLUTION DETECTOR (0212-0610)GEN) 2
#OEMPart name
83180 83180-60080 Detector Assy, Revolution
83180 83180-37010 Detector Assy, Revolution
Mirror ([09.2002 - ] INNER MIRROR (0209- )) 5
#OEMPart name
87810 87810-37060-B0 Mirror Assy, Inner Rear View
87810 87810-37061-B0 Mirror Assy, Inner Rear View
87810 90981-16019 Bulb, Room Lamp, No.1
87819 87819-25010 Lens, Inner Rr View Mirror Room Lamp
9015260015 90152-60015 SCREW CROSSRECESS
Mirror ([12.2002 - 06.2011] OUTER MIRROR COVER (0212-1106)ARL,GCC,GEN,SA,TAIW) 17
#OEMPart name
87912 87912-37080 Protector, Outer Mirror
87915 87915-37010-A0 Cover, Outer Mirror, Rh
87915 87915-37010-B0 Cover, Outer Mirror, Rh
87915 87915-37010-H0 Cover, Outer Mirror, Rh
87915 87915-37010-J1 Cover, Outer Mirror, Rh
87916 87916-37010 Bezel, Outer Mirror
87916 87916-37040 Bezel, Outer Mirror
87945 87945-37020-A0 Cover, Outer Mirror, Lh
87945 87945-37020-B0 Cover, Outer Mirror, Lh
87945 87945-37020-H0 Cover, Outer Mirror, Lh
87945 87945-37020-J1 Cover, Outer Mirror, Lh
87965 87965-37010 Grommet, Outer Mirror
87967 87967-37020 Holder, Mirror, Outer Rh
87968 87968-37020 Holder, Mirror, Outer Lh
9011908 90119-08C00 New Genuine Part
6777112050 67771-12050 Clip, Radiator Grille
9024906132 90249-06132 CLIP
Mirror ([12.2002 - 10.2006] OUTER MIRROR (0212-0610)RHD..GEN ; (0610-1106)RHD..CBU ; (061 2-1005)DCRTH,DCRTJ..IDN) 12
#OEMPart name
87901 87901-37130 Mirror Sub-Assy, Outer Rear View
87901 87901-37140 Mirror Sub-Assy, Outer Rear View, Rh
87907 87907-37070 Mirror Sub-Assy, Outer Under View
87910 87910-37400 Mirror Assy, Outer Rear View, Rh
87910 82821-37080 Cover, Connector
87910 87910-37402 Mirror Assy, Outer Rear View, Rh
87910 87910-37580 Mirror Assy, Outer Rear View, Rh
87910 87910-37581 Mirror Assy, Outer Rear View, Rh
87910 87910-37590 Mirror Assy, Outer Rear View, Rh
87940 87940-37710 Mirror Assy, Outer Rear View, Lh
87940 87940-3V080 Mirror Assy, Outer Rear View, Lh
9011908 90119-08C00 New Genuine Part
Mounting ([09.2002 - ] (0209- )14B) 23
#OEMPart name
12303 12303-78010 Bracket Sub-Assy, Engine Mounting, Rear
12303 12303-78011 Bracket Sub-Assy, Engine Mounting, Rear
12311 12311-58110 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-58070 Bracket, Engine Mounting, Front No.1 Lh
12321 12321-58230 Bracket, Engine Mounting, Rear, No.1
12325 12325-58190 Bracket, Engine Mounting, No.3
12361 12361-78110 Insulator, Engine Mounting, Front
12361 12361-78111 Insulator, Engine Mounting, Front
12371 12371-78010 Insulator, Engine Mounting, Rear No.1
12371 12371-78060 INSULATOR ENGINE
12381 12381-58011 Stabilizer, Engine Mounting
12382 12382-58040 Stabilizer, Engine Mounting, Lh
12501 12501-56010 Bracket Sub-Assy, Alternator
91512 91512-B1020 Bolt(For Front Transaxle Case Cover)
91512 90105-A0050 Bolt(For Front Transaxle Case Cover)
91512 91512-G1025 BOLTFLANGE
1228178020 12281-78020 Hanger, Engine, No.1
9010512091 90105-12091 New Genuine Part
9011910571 90119-10571 New Genuine Part
9011912344 90119-12344 New Genuine Part
9017912024 90179-12024 NUT
9020112023 90201-12023 New Genuine Part
9415081000 94150-81000 NUT FLANGE
Oil Filter ([09.2002 - ] (0209- )14B,15BFTE..BU30#,34#) 8
#OEMPart name
15601 15600-41010 Filter Assy, Oil
15601 90915-40002 Filter Assy, Oil
15609 15609-56070 Bracket Sub-Assy, Oil Filter
15691 15691-56041 Gasket, Oil Filter
9151261035 91512-61035 Bolt(For Transaxle Case & Engine Setting)
9151261035 90080-10204 New Genuine Part
9151261055 91512-61055 BOLT, FLANGE
9151261070 91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front)
Parking Brake & Cable ([09.2002 - 10.2006] (0209-0610)GCC ; (0209-0610)BU30#,34# ; (0209-07 12)WU300,340..RHD..IV3) 18
#OEMPart name
46210 46210-37091-B0 Lever Assy, Parking Brake
46420 46420-37161 Cable Assy, Parking Brake, No.2
46420 46420-37162 Cable Assy, Parking Brake, No.2
46420 90303-10001 Seal, Dust(For Parking Brake Cable)
46420 90501-14003 Spring(For Parking Cable Inner Wire Set)
46420 90560-08002 Spacer(For Parking Brake Handle)
46420 96160-00700 Ring, E(For Chain Tensioner Slipper)
46430 46430-37250 Cable Assy, Parking Brake, No.3
46452 46452-37020 Bracket, Parking Brake Cable Support, No.2
46453 46453-37070 Bracket, Cable Support, No.3
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9046108225 90461-08225 Clamp, No.3(For Parking Brake Cable)
9094901167 90949-01167 Clamp, No.1(For Parking Brake Cable)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9415080800 94150-80800 NUT, FLANGE
Parking Brake & Cable ([12.2002 - 10.2006] (0209-0612)BU303,343,WU300,340..IDN ; (0212-0610 )65T..GEN) 22
#OEMPart name
46501 46501-36180 Drum Sub-Assy, Parking Brake
46501 90114-11124 Bolt (For Transfer Output Shaft Companion Flange)
46503 46503-37070 Plate Sub-Assy, Parking Brake
46503 46503-37071 Plate Sub-Assy, Parking Brake
46506 46506-36010 Screw Set, Shoe Adjusting, Rh
46540 46530-25020 Shoe Assy, Parking Brake, Rh Or Center No.1
46540 46530-37030 Shoe Assy, Parking Brake, Rh Or Center No.1
46550 90506-18001 Spring, Tension
46550 90213-06003 Washer, Type C(For Parking Brake Shoe)
46550 90213-06013 Washer, Type C(For Parking Brake Shoe)
46550 90506-14012 Spring, Tension, No.2(For Parking Brake Shoe Return)
46550 90506-14013 Spring, Tension, No.3(For Parking Brake Shoe Return)
46555 90501-16025 Spring, Brake Shoe Hold Down
46556 47447-22010 Pin, Shoe Hold Down Spring
46557 47449-20011 Cup, Brake Shoe Hold Down
46577 46577-36010 Cover, Adjusting Cam Hole
46601 46601-36010 Lever Sub-Assy, Parking Brake Shoe
46601 46601-37680 Lever Sub-Assy, Parking Brake Shoe
46612 46612-36010 Strut, Parking Brake Shoe Lever
46612 90504-10001 Spring, Compression(For Parking Brake Shoe Strut)
9011910339 90119-10339 Bolt, Hexagon(For Front Disc Brake Caliper)
9461311200 94613-11200 WASHER
Partial Engine Assembly ([09.2002 - ] (0209- )S05C,W04D,14B,15BFTE) 2
#OEMPart name
11000 19000-58B30 Engine Assy, Partial
11000 19000-5C060 Engine Assy, Partial
Power Steering Tube ([12.2002 - 10.2006] (0212-0610)RHD..GEN) 31
#OEMPart name
44327 44327-30030 Gasket(For Pressure Hose)
44348 44348-37300 Hose, Oil Reservoir To Pump, No.2
44369 44369-37040 Bracket, Oil Reservoir, No.1
44369 44369-37100 Bracket, Oil Reservoir, No.1
44406 90401-14003 Bolt, Union(For Oil Cooler)
44406 90430-14235 Gasket, W/head Taper Screw Plug
44411 44411-37141 Hose, Pressure Feed
44411 44411-37142 Hose, Pressure Feed
44411 90401-16027 Bolt, Union(For Pressure Feed Tube)
44413 44413-37160 Tube, Pressure Feed, No.1
44416 44416-37420 Tube, Return(For Steering Gear Outlet)
44417 44412-37120 Hose, Return Tube (For Return Tube To Return Tube No.2)
44423 44423-37060 Tube, Oil Pump To Gear Box
44447 44447-37020 Bracket, Hose Support, No.1
44447 44447-37060 Bracket, Hose Support No.2
44447 44447-37061 Bracket, Hose Support No.2
44457 44457-37090 Bracket, Power Steering Tube Support, No.1
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91651 91651-B0822 BOLT WWASHER
9011908 90119-08A46 BOLT WWASHER
9011908873 90119-08873 New Genuine Part
9046110750 90461-10750 Clamp, No.2(For Parking Brake Cable)
9046716019 90467-16019 Clip(For Return No.1)
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9095901597 90959-01597 New Genuine Part
9095901598 90959-01598 New Genuine Part
9165160616 91651-60616 BOLT
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9699114080 96991-14080 CLIP
Power Take-Off Case & Gear ([12.2002 - 12.2007] VACUUM TYPE 15KG, 25KG (0212-0712)BU300,34#,WU300,340,XZU300,330,340..W T..ARL,GCC,GEN,SA,TAIW) 16
#OEMPart name
27679 27679-78041 Bracket, Power Take-Off Solenoid
27690 27690-78031 Solenoid Assy, Power Take-Off
27690 27690-78032 Solenoid Assy, Power Take-Off
27690 27690-78080 Solenoid Assy, Power Take-Off
44754 44754-37110 Bracket, Vacuum Tube
44763 44763-37170 Tube, Hose To Hose, No.1
44763 44763-37370 Tube, Hose To Hose, No.2
44763 44771-37450 Hose, Vacuum Brake
44771 44771-37290 Hose, Vacuum Tube Connector, No.1
44771 95446-09300 Hose, Solenoid To Vacuum Tube
44779 44778-37060 Hose, Solenoid To Vacuum Tube
4737137040 47371-37040 Clamp(For Clutch Tube)
9011908676 90119-08676 BOLT WWASHER
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9613341500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
Power Take-Off Case & Gear ([12.2002 - ] VACUUM TYPE 15KG (0212- )ST..GCC..IV3 ; (0212- )BU303..IV3. .TS ; (0212- )BU303..LHD..WT..CB U ; (0212- )BU 343,WU300,340..WT..GCC,GEN,SA) 53
#OEMPart name
33162 33162-37030 Gasket, Manual Transmission Power Take-Off Cover
35775 35775-37010 Sleeve, Output Shaft
35775 35775-93100 Sleeve, Output Shaft
36421 36421-93100 Diaphragm (For Power Take-Off)
36421 36421-37010 Diaphragm (For Power Take-Off)
36422 36422-93100 Plate, Diaphragm (For Power Take-Off)
36422 36422-93101 Plate, Diaphragm (For Power Take-Off)
36610 36610-37270 Power Take-Off Assy
36621 36621-93200 Retainer, Power Take-Off Bearing
36621 90311-25110 Seal, Oil (For Power Take-Off Bearing Retainer)
36631 36632-37030 Gasket, Power Take-Off Bearing Retainer
36631 36632-93101 Gasket, Power Take-Off Bearing Retainer
36641 36641-93100 Cap, Power Take-Off Shift Shaft
36714 36714-93108 Gear, Power Take-Off Output
36718 36718-93112 Gear, Power Take-Off Idler
36723 36723-93107 Shaft, Power Take-Off Output, No.1
36723 97100-06205 Bearing (For Power Take-0Ff Clutch Sub-Assy)
36723 90366-22001 Bearing(For Power Take-Off Idler Gear Front)
36723 90280-07011 Key, Woodruff (For Power Take-Off Output Shaft)
36723 90364-28020 Bearing (For Power Take-Off Output Shaft)
36723 90387-25009 Collar (For Power Take-Off Output Shaft)
36728 36728-93107 Shaft, Power Take-Off Idler
36728 90521-56108 Ring, Hole Snap(For Power Take-Off Idler Gear)
36728 90254-04002 Plate Or Pin, Lock (For Power Take-Off)
36728 90564-25001 Shim (For Power Take-Off Idler Shaft)
36728 90564-25002 Shim (For Power Take-Off Idler Shaft)
36728 90564-25003 Shim (For Power Take-Off Idler Shaft)
36728 90564-25004 Shim (For Power Take-Off Idler Shaft)
36737 90564-42001 Shim (For Power Take-Off Idler Shaft)
36737 90564-42002 Shim (For Power Take-Off Idler Shaft)
36737 90564-42003 Shim (For Power Take-Off Idler Shaft)
36737 90564-42004 Shim (For Power Take-Off Idler Shaft)
36811 36811-93104 Fork, Powr Take-Off Shift, No.1
36814 36814-93104 Shaft, Powr Take-Off Fork, No.1
36851 36851-37010 Retainer, Power Take-Off Joint
8271637480 82716-37480 Bracket, Wiring Harness Clamp, Lh
9003170107 90031-70107 New Genuine Part
9003201147 90032-01147 New Genuine Part
9010108156 90101-08156 New Genuine Part
9011610103 90116-10103 Bolt, Stud (For Power Take-Off Case)
9011908124 90119-08124 New Genuine Part
9011910029 90119-10029 Bolt (For Control Shaft Cover)
9011910029 90119-10288 Bolt (For Control Shaft Cover)
9017914066 90179-14066 New Genuine Part
9020108091 90201-08091 New Genuine Part
9020115011 90201-15011 New Genuine Part
9021414001 90214-14001 Washer, Lock (For Center Bearing Shaft)
9038925003 90389-25003 New Genuine Part
9040751002 90407-51002 Union, Vacuum Hose(For Manifold Side)
9050129040 90501-29040 New Genuine Part
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9453101400 94531-01400 New Genuine Part
Power Take-Off Control ([12.2002 - ] (0212- )WU300,340..RHD..GEN,SA ; (0212- )B U303,343,XZU305,345..RHD) 5
#OEMPart name
84240 84240-93100 Switch Assy, Power Take-Off Indicator
84280 88280-37020 Switch Assy, Power Take-Off Clutch
84690 84690-37010 Switch Assy, Power Take-Off Indicator
9338115012 93381-15012 New Genuine Part
9413060500 94130-60500 NUT
Power Take-Off Lever & Link ([09.2002 - 10.2006] (0209-0610) ; (0610- )WU30#,XZU327..LHD..WT.. IV3) 12
#OEMPart name
91511 91511-B0855 BOLT FLANGE
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
8271537 82715-37B40 Bracket,wiring Harness Clamp
9094901 90949-01B95 New Genuine Part
4737137040 47371-37040 Clamp(For Clutch Tube)
9011908103 90119-08103 New Genuine Part
9017908241 90179-08241 NUT
9046400840 90464-00840 New Genuine Part
9046812029 90468-12029 New Genuine Part
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9165160616 91651-60616 BOLT
9415010801 94150-10801 New Genuine Part
Propeller Shaft & Universal Joint ([09.2002 - 12.2006] (0209-0612)BU343 ; (0209- )WU340..55T,65T..GC C,IDN,SA) 74
#OEMPart name
4371 04371-60030 Spider Kit, Front Propeller Shaft Universal Joint
37100 37100-37180 Shaft Assy, Propeller W/center Bearing
37100 90105-11013 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90179-11005 Nut, No.1 (For Propeller Shaft & Differential Setting)
37100 90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting)
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01140 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01184 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01191 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01192 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01193 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01194 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01198 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01199 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01200 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01268 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01269 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01270 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01271 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01272 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01273 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01274 Piece, Balance, No.1 (For Propeller Shaft)
37120 90201-20005 Washer, Plate (For Flange Yoke)
37120 90179-20006 Nut (For Propeller Intermediate Shaft Setting)
37207 37207-35011 Cushion Sub-Assy, Center Support Bearing, No.1
37230 37230-36063 Bearing Assy, Center Support, No.1
37230 90363-30029 Bearing, No.1 (For Center Support)
37230 90521-66077 Ring, Snap, No.1 (For Center Support Bearing)
37230 90522-97001 Ring, Set, No.1 (For Center Support Bearing Cushion)
37231 37231-36021 Housing, Center Support Bearing, No.1
37233 37233-36050 Retainer, Center Support Bearing
37302 37302-36020 Yoke Sub-Assy, Universal Joint Sleeve
37304 37304-36030 Flange Sub-Assy, Universal Joint
37315 37315-36020 Yoke, Universal Joint Flange
37315 37315-60090 YOKE
37331 37305-36050 Cover, Sliding Shaft Dust
37341 37341-36010 Deflector, Propeller Shaft Dust, No.1
37342 37342-36010 Deflector, Propeller Shaft Dust, No.2
37344 37344-36010 Deflector, Propeller Shaft Dust, No.3
37345 37345-36010 Deflector, Propeller Shaft Dust, No.4
37401 90520-29039 Ring, Hole Snap (For Spider Bearing)
37401 90520-29040 Ring, Hole Snap (For Spider Bearing)
37401 90520-29041 Ring, Hole Snap (For Spider Bearing)
37401 90520-29042 Ring, Hole Snap (For Spider Bearing)
37401 90520-29043 Ring, Hole Snap (For Spider Bearing)
37401 90520-29044 Ring, Hole Snap (For Spider Bearing)
37401 90520-29045 Ring, Hole Snap (For Spider Bearing)
37401 90520-29046 Ring, Hole Snap (For Spider Bearing)
37401 90520-29047 Ring, Hole Snap (For Spider Bearing)
37401 90520-29048 Ring, Hole Snap (For Spider Bearing)
37402 37402-60060 Bearing, Front Propeller Shaft Universal Joint Spider
9010108157 90101-08157 Bolt, No.1 (For Center Support Bearing)
9017910213 90179-10213 NUT W/WASHER
9038710141 90387-10141 Bolt, No.1 (For Center Support Bearing)
9038710150 90387-10150 New Genuine Part
9164281045 91642-81045 BOLT WWASHER
9164281065 91642-81065 Bolt(For Alternator)
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9645100600 96451-00600 Fitting, Grease Small(For Tail Gate Lock Link)
Radiator & Water Outlet ([09.2002 - ] (0209- )14B) 23
#OEMPart name
16261 16261-56012 Hose, Water By-Pass
16261 90467-28005 Clamp Or Clip, Hose(For Water By-Pass Hose)
16331 16331-58080 Outlet, Water
16331 90916-03102 Thermostat
16331 90341-12006 Plug(For Water Outlet)
16331 16401-67150 Cap Sub-Assy(For Water Outlet)
16331 90345-54005 Plug, W/head Taper Screw, No.1
16333 16333-58080 Housing, Water Outlet
16333 92112-60832 Bolt, Stud(For Water Outlet Housing)
16341 16341-56030 Gasket, Water Outlet
16343 16343-56023 Gasket, Water Outlet Housing
16381 16381-58120 Bar, Fan Belt Adjusting
16572 16572-56091 Hose, Radiator, Outlet
16572 16572-58170 Hose, Radiator, Outlet
16572 16572-58171 Hose, Radiator, Outlet
16572 90466-41003 Clip, Radiator Hose, No.1
16572 90467-48003 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16577 16577-58040 Pipe, Radiator, No.7
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9011908 90119-08B05 New Genuine Part
9011910409 90119-10409 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9043012221 90430-12221 Gasket
Radiator & Water Outlet ([12.2002 - ] (0212- )14B..GEN) 7
#OEMPart name
16400 16400-58780 Radiator Assy
16400 16417-15210 Plug, Radiator Drain Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16453 16453-58770 Plate, Radiator Side
16454 16454-58770 Plate, Radiator Side
16455 16455-67020 Bolt, Radiator Side Support Plate
16465 16465-78080 Packing, Radiator
Radiator & Water Outlet ([12.2002 - ] (0212- )14B..RHD..GEN) 42
#OEMPart name
16361 16361-58020 Fan
16365 16365-56022 Spacer, Fan
16400 16400-58780 Radiator Assy
16470 16470-78010 Tank Assy, Radiator Reserve
16470 16567-58080 Hose Or Pipe(For Radiator Reserve Tank)
16470 16567-78570 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-78010 Cap Sub-Assy, Reserve Tank
16533 16533-78010 Support, Radiator, No.1
16534 16534-78020 Support, Radiator, No.2
16546 16546-78020 Protector, Radiator
16571 16571-58160 Hose, Radiator, Inlet
16571 16571-58161 Hose, Radiator, Inlet
16571 16581-58010 Clamp, Sub Radiator Inlet Hose
16571 16581-78140 Clamp, Sub Radiator Inlet Hose
16571 16581-78191 Clamp, Sub Radiator Inlet Hose
16571 90460-52003 Clamp, Sub Radiator Inlet Hose
16571 90460-55014 Clamp, Sub Radiator Inlet Hose
16572 16572-56091 Hose, Radiator, Outlet
16572 16572-58170 Hose, Radiator, Outlet
16572 16572-58171 Hose, Radiator, Outlet
16572 16581-78050 Clamp, Sub Radiator Inlet Hose
16582 16582-78020 Bracket, Radiator, No.1
16583 16583-78010 Bracket, Radiator, No.2
16583 16583-78012 Bracket, Radiator, No.2
16583 16583-78011 Bracket, Radiator, No.2
16584 16584-78010 Insulator, Radiator Mounting
16585 16585-78020 Bracket, Radiator, No.3
16711 16711-58290 Shroud, Fan
16721 16721-78010 Plate, Holder
91651 91651-B0822 BOLT WWASHER
9011906182 90119-06182 Bolt, W/washer (For Floor Shift)
9017908233 90179-08233 NUT
9017908249 90179-08249 New Genuine Part
9046400840 90464-00840 New Genuine Part
9046713020 90467-13020 Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9151160612 91511-60612 BOLT
9162160840 91621-60840 Bolt(For Rocker Support Set)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9415010801 94150-10801 New Genuine Part
Radiator Grille ([12.2002 - 10.2006] (0212-0610)ARL,GCC,GEN,TAIW ; (0212-0802)SA) 10
#OEMPart name
53111 53111-37440 Grille, Radiator
53112 53112-37050 Grille, Radiator Side, Rh
53113 53113-37050 Grille, Radiator Side, Lh
53115 53115-37050 Bracket, Radiator Grille
53119 53119-37030 Protector, Radiator Grille
7119626040 71196-26040 Clip(for Rear Spoiler)
9015960425 90159-60425 New Genuine Part
9016350011 90163-50011 SCREW HEXAGON
9018905046 90189-05046 GROMMET
9046710161 90467-10161 Clip
Radio Receiver & Amplifier & Condenser ([12.2002 - ] (0212- )WU302,342..GEN ; (0212- )BU30#,34# ,WU300,340,XZU30#,32#,33#,34#) 9
#OEMPart name
86120 86120-37150 Receiver Assy, Radio
86120 86120-37160 Receiver Assy, Radio
86211 86211-37050 Bracket, Radio, No.1
86212 86212-37030 Bracket, Radio, No.2
86212 86212-37031 Bracket, Radio, No.2
8612835010 86128-35010 Knob, Radio Receiver
8612835050 86128-35050 Knob, Radio Receiver
9015950343 90159-50343 SCREW, W-WASHER
9155480614 91554-80614 New Genuine Part
Rear Axle Housing & Differential ([09.2002 - 10.2006] 12 INCHES DIFFERENTIAL (0209-0610)BU303,WU300..T3 ; (0209-0610)55T,65T, 80T..ARL,GCC,GEN,IDN,TAIW ; (0610-0 612)48T,65T..IDN) 19
#OEMPart name
4412 04412-37100 Gasket Kit, Rear Differential Carrier
41110 90116-10059 Bolt, Stud (For Power Take-Off Case)
41110 90116-10060 Bolt, No.1 (For Rear Differential Carrier Set)
42110 42110-37280 Housing Assy, Rear Axle
42110 42110-37281 Housing Assy, Rear Axle
42110 90341-18006 Plug (No magnet)
42110 12157-10010 Gasket (For Drain Plug)
42110 90930-03138 Plug, Breather (For Rear Axle Housing)
42110 90341-18057 Drain Plug (with Magnet)
42139 42108-37020 Deflector, Rear Axle Housing Oil
42181 42181-36070 Gasket, Rear Differential Carrier
42181 42181-37030 Gasket, Rear Differential Carrier
91651 91651-B0616 BOLT WWASHER
4789137010 47891-37010 Cover, Disc Brake Caliper Dust, Rear Rh
9003331020 90033-31020 Plug, Tight, No.3
9011910283 90119-10283 Bolt, No.1 (For Rear Differential Carrier Set)
9011910283 90119-10069 Bolt, No.1 (For Rear Differential Carrier Set)
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
9453101000 94531-01000 WASHER
Rear Axle Housing & Differential ([09.2002 - 12.2003] 12 INCHES DIFFERENTIAL (0209-0312)BU303,WU300..T3 ; (0209-0312)55T,65T, 80T..ARL,GCC,GEN,IDN,TAIW) 95
#OEMPart name
41101 41101-36040 Carrier Sub-Assy, Differential, Rear
41101 41101-37060 Carrier Sub-Assy, Differential, Rear
41101 41101-37061 Carrier Sub-Assy, Differential, Rear
41101 90253-22002 Pin, Ring (For Rear Differential Carrier)
41110 41110-36501 Carrier Assy, Differential, Rear
41110 41110-37560 Carrier Assy, Differential, Rear
41114 90031-05043 Bolt, Rear Differential Bearing Cap
41114 90105-16009 Bolt, Rear Differential Bearing Cap
41151 41151-36010 Cage, Differential Drive Pinion Bearing
41151 41151-37030 Cage, Differential Drive Pinion Bearing
41151 41151-37031 Cage, Differential Drive Pinion Bearing
41153 41153-36010 Shim, Differential Drive Pinion Cage
41153 41153-36020 Shim, Differential Drive Pinion Cage
41153 41153-36030 Shim, Differential Drive Pinion Cage
41153 41153-36040 Shim, Differential Drive Pinion Cage
41153 41153-37090 Shim, Differential Drive Pinion Cage
41153 41153-37100 Shim, Differential Drive Pinion Cage
41153 41153-37110 Shim, Differential Drive Pinion Cage
41153 41153-37120 Shim, Differential Drive Pinion Cage
41162 41162-36010 Gasket, Differential Drive Pinion Cover
41201 41201-80351 Final Gear Kit, Differential, Rear
41201 41201-80613 Final Gear Kit, Differential, Rear
41201 90366-49001 Bearing (For Rear Drive Pinion Rear)
41201 90033-65002 Bearing (For Rear Drive Pinion Rear)
41201 90033-66038 Bearing (For Rear Drive Pinion Front)
41201 90033-66040 Bearing (For Rear Drive Pinion Rear)
41201 90366-45001 Bearing (For Rear Drive Pinion Front)
41201 90033-11039 Oil Seal, Type T
41201 90311-58010 Seal, Oil (For Rear Differential Carrier)
41201 90365-25030 Bearing, Differential Drive Pinion Cylindlical Roller
41201 90035-20024 Ring, Drive Pinion Cylindrical Roller Bearing Locking
41201 90520-23034 Ring, Drive Pinion Cylindrical Roller Bearing Locking
41204 41204-37020 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-37090 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90179-24001 Nut (For Rear Drive Pinion)
41214 41214-36020 Slinger, Rear Differential Drive Pinion Oil
41222 41222-36030 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90031-01193 Bolt (For Rear Differential Ring Gear Set)
41222 90031-01203 Bolt (For Rear Differential Ring Gear Set)
41222 90101-16015 Bolt (For Rear Differential Ring Gear Set)
41231 41231-36050 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37420 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37430 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37440 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37450 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37460 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37470 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37480 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37490 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37500 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37510 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37520 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37530 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37540 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37550 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37560 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37570 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37580 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37590 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37600 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37610 Spacer, Rear Differential Drive Pinion Bearing
41252 37341-89203 Deflector, Dust (For Rear Differential)
41252 41252-37030 Deflector, Dust (For Rear Differential)
41301 90366-55054 Bearing(For Rear Differential Case)
41301 90366-60001 Bearing(For Rear Differential Case)
41302 41301-36040 Case Sub-Assy, Rear Differential
41302 41301-37040 Case Sub-Assy, Rear Differential
41302 90031-05098 Bolt(For Rear Differential Case)
41302 90105-12047 Bolt(For Rear Differential Case)
41314 41304-36010 Retainer, Drive Pinion Bearing
41314 41314-36010 Retainer, Drive Pinion Bearing
41315 41315-36020 Nut, Rear Differential Bearing Adjusting
41315 41315-37020 Nut, Rear Differential Bearing Adjusting
41316 41316-36020 Lock, Rear Differential Bearing Adjusting Nut
41316 41316-37010 Lock, Rear Differential Bearing Adjusting Nut
41316 41317-36020 Lock, Rear Differential Bearing Adjusting Nut
41331 41331-36031 Gear, Rear Differential Side
41331 41331-37040 Gear, Rear Differential Side
41341 41341-36011 Pinion, Rear Differential
41341 41341-37030 Pinion, Rear Differential
41351 41351-36010 Washer, Rear Differential Pinion Thrust
41351 41351-37020 Washer, Rear Differential Pinion Thrust
41361 41361-36010 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-36020 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-36030 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-36040 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-37030 Washer, Rear Differential Side Gear Thrust, No.1
41371 41371-36020 Spider, Rear Differential
41371 41371-37020 Spider, Rear Differential
41371 41371-37030 Spider, Rear Differential
9111281440 91112-81440 New Genuine Part
9151261240 91512-61240 New Genuine Part
9161160635 91611-60635 New Genuine Part
9161160814 91611-60814 Bolt
9453101400 94531-01400 New Genuine Part
Rear Axle Housing & Differential ([12.2003 - 10.2006] 12 INCHES DIFFERENTIAL (0312-0610)WT..GCC,GEN ; (0312-0612)BU303,343,WU 300,340..48T,65T..IDN) 91
#OEMPart name
41101 41101-36040 Carrier Sub-Assy, Differential, Rear
41101 41101-37060 Carrier Sub-Assy, Differential, Rear
41101 41101-37061 Carrier Sub-Assy, Differential, Rear
41110 41110-36501 Carrier Assy, Differential, Rear
41110 41110-37560 Carrier Assy, Differential, Rear
41114 90031-05043 Bolt, Rear Differential Bearing Cap
41114 90105-16009 Bolt, Rear Differential Bearing Cap
41151 41151-36010 Cage, Differential Drive Pinion Bearing
41151 41151-37030 Cage, Differential Drive Pinion Bearing
41151 41151-37031 Cage, Differential Drive Pinion Bearing
41153 41153-36010 Shim, Differential Drive Pinion Cage
41153 41153-36020 Shim, Differential Drive Pinion Cage
41153 41153-36030 Shim, Differential Drive Pinion Cage
41153 41153-36040 Shim, Differential Drive Pinion Cage
41153 41153-37090 Shim, Differential Drive Pinion Cage
41153 41153-37100 Shim, Differential Drive Pinion Cage
41153 41153-37110 Shim, Differential Drive Pinion Cage
41153 41153-37120 Shim, Differential Drive Pinion Cage
41201 41201-80351 Final Gear Kit, Differential, Rear
41201 41201-80613 Final Gear Kit, Differential, Rear
41201 90033-65002 Bearing (For Rear Drive Pinion Rear)
41201 90033-66038 Bearing (For Rear Drive Pinion Front)
41201 90033-66040 Bearing (For Rear Drive Pinion Rear)
41201 90366-45001 Bearing (For Rear Drive Pinion Front)
41201 90033-11039 Oil Seal, Type T
41201 90311-58010 Seal, Oil (For Rear Differential Carrier)
41201 90035-20024 Ring, Drive Pinion Cylindrical Roller Bearing Locking
41201 90520-23034 Ring, Drive Pinion Cylindrical Roller Bearing Locking
41204 41204-37020 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-37090 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41222 90031-01193 Bolt (For Rear Differential Ring Gear Set)
41222 90031-01203 Bolt (For Rear Differential Ring Gear Set)
41222 90101-16015 Bolt (For Rear Differential Ring Gear Set)
41231 41231-36050 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37420 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37430 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37440 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37450 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37460 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37470 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37480 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37490 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37500 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37510 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37520 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37530 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37540 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37550 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37560 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37570 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37580 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37590 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37600 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37610 Spacer, Rear Differential Drive Pinion Bearing
41231 41231-37620 Spacer, Drive Pinion Bearing
41252 37341-89203 Deflector, Dust (For Rear Differential)
41252 41252-37030 Deflector, Dust (For Rear Differential)
41301 90366-55054 Bearing(For Rear Differential Case)
41301 90366-60001 Bearing(For Rear Differential Case)
41302 41301-36040 Case Sub-Assy, Rear Differential
41302 41301-37040 Case Sub-Assy, Rear Differential
41302 90031-05098 Bolt(For Rear Differential Case)
41302 90105-12047 Bolt(For Rear Differential Case)
41315 41315-36020 Nut, Rear Differential Bearing Adjusting
41315 41315-37020 Nut, Rear Differential Bearing Adjusting
41316 41316-36020 Lock, Rear Differential Bearing Adjusting Nut
41316 41316-37010 Lock, Rear Differential Bearing Adjusting Nut
41316 41317-36020 Lock, Rear Differential Bearing Adjusting Nut
41331 41331-36031 Gear, Rear Differential Side
41331 41331-37040 Gear, Rear Differential Side
41341 41341-36011 Pinion, Rear Differential
41341 41341-37030 Pinion, Rear Differential
41351 41351-36010 Washer, Rear Differential Pinion Thrust
41351 41351-37020 Washer, Rear Differential Pinion Thrust
41361 41361-36010 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-36020 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-36030 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-36040 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-37030 Washer, Rear Differential Side Gear Thrust, No.1
41371 41371-36020 Spider, Rear Differential
41371 41371-37020 Spider, Rear Differential
41371 41371-37030 Spider, Rear Differential
41991 41991-37120 Caution Plate, Rear Differential
9003101192 90031-01192 New Genuine Part
9003101195 90031-01195 New Genuine Part
9003119101 90031-19101 New Genuine Part
9003119102 90031-19102 New Genuine Part
9003170110 90031-70110 New Genuine Part
9003201155 90032-01155 New Genuine Part
9003301069 90033-01069 Seal, Oil (For Rear Differential Carrier)
9017930003 90179-30003 Nut (For Rear Drive Pinion)
Rear Axle Shaft & Hub ([12.2002 - 10.2006] W/O(ABS) (0212-0610)BU30#,34#,WU300,340,XZU300,330..55T,6 5T..ARL,GCC,GEN,TAIW) 27
#OEMPart name
42311 90310-40001 Seal, Oil (For Rear Axle Shaft)
42311 90179-10067 Nut (For Rear Axle Shaft)
42311 42311-37110 Shaft, Rear Axle
42311 90942-02071 Bolt, Hub (For Rear Axle Rh)
42311 90311-78001 Seal, Oil (For Rear Axle Shaft Rh)
42312 90942-02072 Bolt, Hub (For Rear Axle Lh)
42321 42321-37020 Gasket, Rear Axle Shaft
42323 42323-36010 Washer, Cone (For Rear Axle Shaft)
42401 90116-10191 Bolt, Stud (For Rear Axle Hub Rh)
42401 90250-10055 Pin, Straight (For Rear Axle Hub Rh)
42401 90366-60012 Bearing (For Rear Axle Hub Inner Rh)
42403 42431-37080 Drum Sub-Assy, Rear Brake
42403 90937-01117 Piece, Balance (For Rear Brake Drum)
42403 90937-01118 Piece, Balance (For Rear Brake Drum)
42403 90937-01119 Piece, Balance (For Rear Brake Drum)
42403 90937-01120 Piece, Balance (For Rear Brake Drum)
42403 90937-01121 Piece, Balance (For Rear Brake Drum)
42403 90937-01122 Piece, Balance (For Rear Brake Drum)
42411 90366-55054 Bearing(For Rear Differential Case)
42419 93311-16012 Screw, Rear Axle Bearing Lock Nut
42420 42420-39106 Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42427 42427-37020 Nut, Rear Axle Bearing Lock
42428 42428-36020 Plate, Rear Axle Lock Nut
42430 42430-39106 Hub (Or Shaft) & Brake Drum Rear Axle, Lh
42631 42631-55031 Bolt, Double Wheel Stop, Rh
42632 42632-55031 Bolt, Double Wheel Stop, Lh
9010514101 90105-14101 BOLT WASHER BASED
Rear Body Assembly ([12.2002 - ] (0212- )WU300..GCC..CBU ; (0212- )BU303,34 3,WU34#..CBU) 1
#OEMPart name
65000 60570-37060 Body Assy, Rear
Rear Body Floor & Fender ([12.2002 - ] (0212- )BU343,WU34#..CBU) 41
#OEMPart name
60531 65303-3V180 Frame Sub-Assy, Floor Side, Rh
60532 65304-3V180 Frame Sub-Assy, Floor Side, Lh
65026 65026-37020 Bracket Sub-Assy, Gate Rubber Bumper, Rh
65027 65027-37020 Bracket Sub-Assy, Gate Rubber Bumper, Lh
65100 60560-37120 Floor Assy, Rear Body
65110 65110-3V570 Sill Assy, Main, Rh
65120 65120-3V600 Sill Assy, Main, Lh
65125 65125-37540 Shim, Main Sill, Lower No.1
65125 65127-37370 Shim, Main Sill, Lower No.1
65125 65127-37520 Shim, Main Sill, Lower No.1
65125 65127-37610 Shim, Main Sill, Lower No.1
65137 65137-37030 Cover, Main Sill End
65180 65180-37510 Sill Assy, Cross, No.4
65190 65190-37040 Sill Assy, Cross, No.5
65220 65180-37570 Sill Assy, Cross, No.4
65250 65250-37370 Sill Assy, Cross, No.2
65307 65307-37450 Frame Sub-Assy, Floor, Rear
65320 65320-37010 Plate, Rear Floor End
65322 90290-05001 Nail
65349 65349-37010 Fender, Floor Side
65349 65349-37041 Fender, Floor Side
65413 65413-37030 Bracket Sub-Assy, Guard Frame, Rh
65415 65415-37010 Bracket Sub-Assy, Guard Frame, Lh
66225 66242-37230 Support, Baffle Rubber
66241 66241-3V250 Baffle, Rubber
66259 66259-37010 Cover, Rear Body Floor, Rear
66312 66311-37020 Hook, Rope
66312 66312-37020 Hook, Rope, No.2
66315 66315-37010 Hook, Rope, No.1
66321 66321-92803 Bumper, Gate Rubber
66321 66321-92805 Bumper, Gate Rubber
9011908 90119-08B66 BOLT WWASHER
9014950065 90149-50065 Screw(For Floor Board)
9017910036 90179-10036 NUT
9024109004 90241-09004 New Genuine Part
9164281025 91642-81025 BOLT WWASHER
9165140820 91651-40820 Bolt
9321016016 93210-16016 SCREW
9354015016 93540-15016 New Genuine Part
9415080600 94150-80600 NUT FLANGE
9418401001 94184-01001 Nut
Rear Body Guard Frame & Tail Gate ([12.2002 - ] (0212- )BU343,WU34#..CBU) 30
#OEMPart name
65080 65080-92701 Handle Assy, Side Gate Latch
65080 65080-92702 Handle Assy, Side Gate Latch
65325 65325-37040 Plate, Floor Board, Front
65400 65400-3V560 Guard Assy, Rear Body
65507 65507-37040 Support Sub-Assy, Corner, Rh
65508 65508-37040 Support Sub-Assy, Corner, Lh
65700 65700-37050 Gate Assy, Rear Body Tail
65700 90950-01430 Plug, Hole(For Tail Gate)
65700 90119-08464 Bolt, W/washer(For Side Gate, Rh)
66109 66193-37010 Handle Sub-Assy, Side Gate Support Corner
66110 66110-37010 Hinge Assy, Tail Gate
66110 66110-37012 Hinge Assy, Tail Gate
66164 66264-37010 Handle, Tail Gate Latch, Rh
66165 66265-37010 Handle, Tail Gate Latch, Lh
66165 66165-92701 Cap, Gate Latch Handle
66280 66280-37020 Chain Assy, Tail Gate
66311 66312-37030 Hook, Rope
91511 91511-B0814 BOLT
9014880008 90148-80008 Bolt
9017908024 90179-08024 NUT
9017908245 90179-08245 New Genuine Part
9020110159 90201-10159 New Genuine Part
9050107041 90501-07041 SPRING
9050145042 90501-45042 SPRING COMPRESSION
9054106028 90541-06028 New Genuine Part
9054107018 90541-07018 Cushion, Tail Gate Side
9418561000 94185-61000 NUTLOCK
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
9461310800 94613-10800 Spacer (For Control Select Lever Support)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
Rear Body Mounting ([12.2002 - ] (0212- )BU343,WU34#..CBU) 8
#OEMPart name
66418 90117-12039 Bolt, Mounting
66418 90117-12041 Bolt, Mounting
66446 66447-92803 Brace, Frame Floor
66451 66451-37030 Plate, U Bolt
9011910087 90119-10087 New Genuine Part
9020110102 90201-10102 New Genuine Part
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
9413061200 94130-61200 Nut
Rear Body Side Panel ([12.2002 - ] (0212- )WU342..GEN ; (0212- )BU34#,WU340) 18
#OEMPart name
65500 65500-3V880 Panel Assy, Rear Body Side, Rh
65500 90119-08464 Bolt, W/washer(For Side Gate, Rh)
65600 65600-3V880 Panel Assy, Rear Body Side, Lh
65679 65679-37010 Seal, Side Gate
65679 65679-37011 Seal, Side Gate
66110 65010-37040 Hinge Assy, Side Gate, No.1 Rh
66110 65050-37080 Hinge Assy, Side Gate, N0.2 Rh
66151 66151-92703 Latch, Side Gate Female, Rh
66152 66152-92703 Latch, Side Gate Female, Lh
66153 66153-37010 Latch, Tail Gate Female, Rh
66154 66154-37010 Latch, Tail Gate Female, Lh
66187 66187-37010 Handle, Side Gate Latch, Center No.2
66187 66187-37011 Handle, Side Gate Latch, Center No.2
9014880008 90148-80008 Bolt
9014880025 90148-80025 New Genuine Part
9017908245 90179-08245 New Genuine Part
9046708008 90467-08008 Clip, Step Plate Cover
9054106021 90541-06021 New Genuine Part
Rear Combination Lamp ([12.2002 - ] TYPE A (0212- )BU303,343,WU30#,34#,XZU307,327,337,34 7..GCC,GEN,SA,TAIW) 18
#OEMPart name
81550 81550-37050 Lamp Assy, Rear Combination, Rh
81550 81550-37120 Lamp Assy, Rear Combination, Rh
81550 81550-37220 Lamp Assy, Rear Combination, Rh
81550 81550-37230 Lamp Assy, Rear Combination, Rh
81550 90981-16027 Bulb(For Rear Combination Lamp)
81550 99134-11250 Bulb, Fog Lamp
81550 99134-12250 Bulb(For Rear Combination Lamp)
81551 81551-60451 Lens, Rear Combination Lamp, Rh
81552 81552-37120 Gasket, Rear Combination Lamp Lens, Rh
81552 81552-95400 Gasket, Rear Combination Lamp Lens, Rh
81560 81560-37070 Lamp Assy, Rear Combination, Lh
81560 81560-37130 Lamp Assy, Rear Combination, Lh
81560 81560-37220 Lamp Assy, Rear Combination, Lh
81560 81560-37230 Lamp Assy, Rear Combination, Lh
81561 81561-60381 Lens, Rear Combination Lamp, Lh
8155995400 81559-95400 Moulding, Rear Combination Lamp, Rh
9007502047 90075-02047 New Genuine Part
9007502047 93560-14012 SCREW
Rear Combination Lamp ([12.2002 - ] TYPE B (0212- )GCC..IV3 ; (0212- )BU30#,34#,XZU30 0,305,320,330,340,345..ARL,GEN,TAIW ..IV3) 27
#OEMPart name
81497 81497-37010 Cover, Rear Combination Lamp, Rh
81497 81497-37011 Cover, Rear Combination Lamp, Rh
81498 81498-37010 Cover, Rear Combination Lamp, Lh
81498 81498-37011 Cover, Rear Combination Lamp, Lh
81537 81537-37120 Lens, Rear Combination Lamp, No.3 Rh
81538 81538-37120 Gasket, Rear Combination Lamp, No.3 Rh
81547 81547-37130 Lens, Rear Combination Lamp, No.3 Lh
81550 81550-37050 Lamp Assy, Rear Combination, Rh
81550 81550-37120 Lamp Assy, Rear Combination, Rh
81550 81550-37220 Lamp Assy, Rear Combination, Rh
81550 81550-37230 Lamp Assy, Rear Combination, Rh
81550 90981-16027 Bulb(For Rear Combination Lamp)
81550 99134-11250 Bulb, Fog Lamp
81550 99134-12250 Bulb(For Rear Combination Lamp)
81551 81551-37120 Lens, Rear Combination Lamp, Rh
81552 81552-37120 Gasket, Rear Combination Lamp Lens, Rh
81552 81552-95400 Gasket, Rear Combination Lamp Lens, Rh
81554 81554-37120 Gasket, Rear Combination Lamp Body, No.2 Rh
81557 81557-37120 Lens, Rear Combination Lamp, Rh No.2
81560 81560-37070 Lamp Assy, Rear Combination, Lh
81560 81560-37130 Lamp Assy, Rear Combination, Lh
81560 81560-37220 Lamp Assy, Rear Combination, Lh
81560 81560-37230 Lamp Assy, Rear Combination, Lh
81561 81561-37130 Lens, Rear Combination Lamp, Lh
8127991 81279-91D01 Bracket,foglamp,rh No.2
8155937180 81559-37180 Moulding, Rear Combination Lamp, Rh
8162914070 81629-14070 New Genuine Part
Rear Drum Brake Wheel Cylinder & Backing Plate ([09.2002 - ] W(FRONT DRUM BRAKE) (0209-0410)XZU300,320,330..55T,65T ; (0209- ) 55T,65T..DCRTJ,DSL..GCC,GEN,IDN ; ( 0912- )75T..DC RTP,DCRTR) 46
#OEMPart name
4474 04474-36020 Cylinder Kit, Rear Wheel
4474 04474-36030 Cylinder Kit, Rear Wheel
4474 04474-36041 Cylinder Kit, Rear Wheel
4474 04474-36051 Cylinder Kit, Rear Wheel
4495 04494-36290 Shoe Kit, Front Brake
4495 04495-37040 Shoe Kit, Rear Brake
4906 04906-36181 Cup Kit, Rear Wheel Cylinder
4906 04906-36250 Cup Kit, Rear Wheel Cylinder
47043 47043-36160 Plate Sub-Assy, Brake Backing, Rear Rh
47043 47043-37060 Plate Sub-Assy, Brake Backing, Rear Rh
47043 94130-01002 Nut, Booster Sleeve Cylinder
47044 47044-36160 Plate Sub-Assy, Brake Backing, Rear Lh
47044 47044-37060 Plate Sub-Assy, Brake Backing, Rear Lh
47430 90501-20012 Spring(For Front Brake Shoe Hold Down)
47430 90507-29006 Spring, Tension(For Front Brake Shoe Return)
47447 47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47475 47553-36060 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47475 47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476 47554-36060 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47476 47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47496 47491-36020 Plug, Hole(For Rear Brake)
47547 47547-27020 Plug, Bleeder(For Front Drum Brake)
47548 31478-30010 Bleeder Plug Cap
47550 47550-37112 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37113 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37121 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90101-10127 Bolt(For Front Wheel Cylinder)
47550 90201-10287 Washer(For Front Wheel Cylinder)
47556 47555-36051 Spring, Adjuster Lock(For Front Brake)
47560 47560-36200 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-36201 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37082 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37083 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-37072 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37073 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37080 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37081 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-36200 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-36201 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37072 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37073 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
9015950146 90159-50146 SCREW
Rear Drum Brake Wheel Cylinder & Backing Plate ([12.2002 - ] (0212- )ARL,GCC,GEN,SA..T3,TS ; (0410- )XZ U337,347 ; (0410- )XZU300,307,32 #,330..55T,65T) 52
#OEMPart name
4474 04474-36020 Cylinder Kit, Rear Wheel
4474 04474-36030 Cylinder Kit, Rear Wheel
4474 04474-36041 Cylinder Kit, Rear Wheel
4474 04474-36051 Cylinder Kit, Rear Wheel
4495 04494-36290 Shoe Kit, Front Brake
4495 04495-37040 Shoe Kit, Rear Brake
4906 04906-36181 Cup Kit, Rear Wheel Cylinder
4906 04906-36250 Cup Kit, Rear Wheel Cylinder
47043 47043-36160 Plate Sub-Assy, Brake Backing, Rear Rh
47043 47043-37060 Plate Sub-Assy, Brake Backing, Rear Rh
47043 94130-01002 Nut, Booster Sleeve Cylinder
47044 47044-36160 Plate Sub-Assy, Brake Backing, Rear Lh
47044 47044-37060 Plate Sub-Assy, Brake Backing, Rear Lh
47430 90501-20012 Spring(For Front Brake Shoe Hold Down)
47430 90507-29006 Spring, Tension(For Front Brake Shoe Return)
47447 47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47475 47553-36060 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47475 47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476 47554-36060 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47476 47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47496 47491-36020 Plug, Hole(For Rear Brake)
47506 47506-36020 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47507 47507-36020 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47529 47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust
47547 47547-27020 Plug, Bleeder(For Front Drum Brake)
47548 31478-30010 Bleeder Plug Cap
47549 47549-37091 Seat, Rear Brake Automatic Adjust Nut, Rh
47550 47550-37112 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37113 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37121 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90101-10127 Bolt(For Front Wheel Cylinder)
47550 90201-10287 Washer(For Front Wheel Cylinder)
47556 47555-36051 Spring, Adjuster Lock(For Front Brake)
47559 47559-36010 Sping, Front Automatic Adjust Lever Support
47560 47560-36200 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-36201 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37082 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37083 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-37072 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37073 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37080 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37081 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-36200 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-36201 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37072 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37073 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
9014950037 90149-50037 SCREW
9015950146 90159-50146 SCREW
Rear License Plate Lamp ([12.2002 - ] (0212- )BU343,WU30#,34#..GCC,GEN,SA ; (0212- )BU30#,340,XZU30#,32#,33#,340,34 5,347) 10
#OEMPart name
81270 81270-37020 Lamp Assy, License Plate
81270 99134-11120 Bulb, Room Lamp, No.1
81270 81270-37010 Lamp Assy, License Plate
81271 81271-10010 Lens, License Plate Lamp
81272 81272-37020 Gasket, License Plate Lamp Lens
81276 81278-95425 Cover, License Plate Lamp
81276 81276-95016 Cover, License Plate Lamp
9007501259 90075-01259 New Genuine Part
9017904001 90179-04001 NUT
9324964005 93249-64005 New Genuine Part
Rear Spring & Shock Absorber ([12.2002 - 10.2006] (0212-0610)WT..ARL,GEN ; (0212- )WU30#,34#..W T..GCC,GEN,SA) 21
#OEMPart name
48042 48042-37020 Shackle Sub-Assy, Rear Spring, No.2
48046 48473-37180 Seat Sub-Assy, Spring U Bolt, Rh
48046 90117-16040 Bolt, U(For Rear Spring)
48210 90389-16026 Bush, Front Spring No.2 Shackle
48344 48344-37200 Stopper, Bumper, Rear
48422 48422-37010 Support, Front Spring Pin
48435 48435-36050 Attachment, Helper Spring Bracket, No.1
48481 48481-37081 Seat, Rear Spring, Upper
48530 48531-80673 Absorber Assy, Shock, Rear
48530 48531-80796 Absorber Assy, Shock, Rear
48530 90385-19011 Bush(For Front Shock Absorber Rh)
48530 90948-03011 Washer, Front Shock Absorber Cushion, No.1
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9010516021 90105-16021 BOLT
9010516070 90105-16070 BOLT FLANGE
9011912088 90119-12088 BOLT
9017016016 90170-16016 NUT HEXAGON
9017916030 90179-16030 NUT
9020116035 90201-16035 New Genuine Part
9418461001 94184-61001 Nut(For Front Stabilizer Bar)
Rear Spring & Shock Absorber ([12.2002 - 10.2006] MAIN 6+HELPER 5-LEAF (0212-0610)BU303,343,XZU330..55T,65T..GEN,TAIW ; (0212- )WU30#,34#..WT..GCC,GEN, SA ; (0610- )X ZU337..65T) 23
#OEMPart name
48191 48192-37030 Wedge, Caster(For Rear Leaf Spring)
48210 48210-37540 Spring Assy, Rear Rh
48210 48210-3V640 Spring Assy, Rear Rh
48210 90389-16026 Bush, Front Spring No.2 Shackle
48211 48201-37540 Leaf, Rear Spring, No.1
48212 48212-37540 Leaf, Rear Spring, No.2
48213 48204-37540 Leaf, Rear Spring, No.3
48214 48214-37540 Leaf, Rear Spring, No.4
48215 48215-37540 Leaf, Rear Spring, No.5
48216 48216-37540 Leaf, Rear Spring, No.6
48247 48247-37540 Bolt, Rear Spring, Center
48247 48247-37560 Bolt, Rear Spring, Center
48251 48268-37560 Spacer, Rear Spring Leaf
48261 48261-37540 Leaf, Rear Helper Spring, No.1
48261 48261-3V640 Leaf, Rear Helper Spring, No.1
48262 48262-37540 Leaf, Rear Helper Spring, No.2
48262 48262-3V640 Leaf, Rear Helper Spring, No.2
48263 48207-37540 Leaf, Rear Helper Spring, No.3
48264 48207-3V640 Leaf, Rear Helper Spring, No.4
48264 48264-37540 Leaf, Rear Helper Spring, No.4
48265 48265-37540 Leaf, Rear Helper Spring, No.5
48265 48265-3V640 Leaf, Rear Helper Spring, No.5
48284 48155-3B470 Nut, Front Spring Center Bolt
Rear Spring & Shock Absorber ([12.2002 - 10.2006] MAIN 6+HELPER 6-LEAF (0212-0610)WT..GEN ; (0212- )WU30#,34#..WT..G CC,GEN) 23
#OEMPart name
48191 48192-37030 Wedge, Caster(For Rear Leaf Spring)
48210 48210-37540 Spring Assy, Rear Rh
48210 48210-3V640 Spring Assy, Rear Rh
48210 90389-16026 Bush, Front Spring No.2 Shackle
48211 48201-37540 Leaf, Rear Spring, No.1
48212 48212-37540 Leaf, Rear Spring, No.2
48213 48204-37540 Leaf, Rear Spring, No.3
48214 48214-37540 Leaf, Rear Spring, No.4
48215 48215-37540 Leaf, Rear Spring, No.5
48216 48216-37540 Leaf, Rear Spring, No.6
48247 48247-37540 Bolt, Rear Spring, Center
48247 48247-37560 Bolt, Rear Spring, Center
48251 48268-37560 Spacer, Rear Spring Leaf
48261 48261-37540 Leaf, Rear Helper Spring, No.1
48261 48261-3V640 Leaf, Rear Helper Spring, No.1
48262 48262-37540 Leaf, Rear Helper Spring, No.2
48262 48262-3V640 Leaf, Rear Helper Spring, No.2
48264 48207-3V640 Leaf, Rear Helper Spring, No.4
48264 48264-37540 Leaf, Rear Helper Spring, No.4
48265 48265-37540 Leaf, Rear Helper Spring, No.5
48265 48265-3V640 Leaf, Rear Helper Spring, No.5
48266 48266-3V640 Leaf, Rear Helper Spring, No.6
48284 48155-3B470 Nut, Front Spring Center Bolt
Roof Headlining & Silencer Pad ([12.2002 - ] (0212- )BU30#,34#,WU30#,34#,XZU30#,33#,340,34 5,347..ARL,GCC,GEN,SA,TAIW) 7
#OEMPart name
63310 63310-37110-B0 Headlining Assy, Roof
63310 63310-37240-B0 Headlining Assy, Roof
63310 63310-37111-B0 Headlining Assy, Roof
63310 63311-37180-B0 Headlining Assy, Roof
63310 63310-37210-B0 Headlining Assy, Roof
63310 63311-37181-B0 Headlining Assy, Roof
63310 90467-05101-B2 Clip(For Front Body Pillar Garnish)
Roof Panel & Back Panel ([12.2002 - 06.2011] (0212-1106)BU30#,34#,WU30#,34#,XZU300,307,32#,33 #,340,347..ARL,GCC,GEN,SA,TAIW) 23
#OEMPart name
53764 53764-37050 Bracket, Air Cleaner Inlet, No.1
53765 53765-37040 Bracket, Air Cleaner Inlet, No.2
53773 53773-37070 Bracket, Air Cleaner Inlet, No.2
63111 63111-37130 Panel, Roof
63111 63111-37132 Panel, Roof
63132 63132-37081 Panel, Windshield Header, Inner
63132 63132-37082 Panel, Windshield Header, Inner
63141 63141-37070 Reinforcement, Roof Panel, No.1
64111 64111-37372 Panel, Back
64111 64111-37374 Panel, Back
64111 64111-37373 Panel, Back
64115 64115-37121 Reinforcement, Back Panel
64115 64115-25040 Reinforcement, Back Panel
64115 64115-37122 Reinforcement, Back Panel
64117 64117-37050 Reinforcement, Cab Back, Lower
64149 64149-37010 Retainer, Back Panel Headrest
64225 64209-37010 Hanger, Rear Seat Cushion Support
64225 64209-37030 Hanger, Rear Seat Cushion Support
64277 64277-37010 Bracket, Back Panel Trim, Lower
64811 64811-37120 Glass, Back Window
64831 64831-37040 Weatherstrip, Back Window Glass
64831 64831-37041 Weatherstrip, Back Window Glass
9015980049 90159-80049 New Genuine Part
Room Curtain & Room Rack ([12.2002 - ] (0212- )WU302,342..GEN ; (0212- )BU30#,34# ,WU300,340,XZU30#,32#,33#,34#) 5
#OEMPart name
63427 63401-37010 Bracket, Room Rack Frame
63428 63428-37010 Bracket, Roof Inner Rack, Front Lh
63471 63471-37010 Leg, Roof Rack, Front Rh
63472 63472-37010 Leg, Roof Rack, Front Lh
9155180612 91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector)
Seat & Seat Track ([09.2002 - ] CLIP (0209- )) 2
#OEMPart name
9046816019 90468-16019 Clip (For Rear Seat Back)
9046818008 90468-18008 Clip (For Rear Seat Back)
Seat & Seat Track ([12.2002 - ] DRIVER SIDE (0212- )RHD..ARL,GEN,SA) 25
#OEMPart name
71011 71610-37010 Frame Sub-Assy, Front Seat Cushion, Rh
71071 71071-37600-B1 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71027-37160-B0 Cover, Front Seat Back, Rh(For Separate Type)
71311 90386-12053 Bush (For Front Seat Hinge Pin)
71511 71511-37080 Pad, Front Seat Cushion, Rh(For Separate Type)
71551 71551-37150 Pad, Front Seat Back, Rh(For Separate Type)
71587 71587-37020 Protector, Front Seat Back Edge
71587 71587-37021 Protector, Front Seat Back Edge
71630 71630-37060 Spring Assy, Front Seat Back, Rh(For Separate Type)
71630 71630-37020 Spring Assy, Front Seat Back, Rh(For Separate Type)
71811 71811-37010-B0 Cover, Reclining Adjuster, Rh
71811 71811-37011-B0 Cover, Reclining Adjuster, Rh
72110 72110-37020 Track Assy, Front Seat, Outer Rh
72130 72130-37020 Track Assy, Front Seat, Inner Rh
72137 72137-37010-B0 Cap, Seat Adjuster Cover, Rh
72301 72301-37030 Wire Sub-Assy, Seat Track Equalizing, Rh
72510 72510-37020 Adjuster Assy, Reclining Seat Back, Rh
72525 72525-37010-B0 Handle, Reclining Adjuster Release, Rh
9011908134 90119-08134 BOLT
9011910111 90119-10111 New Genuine Part
9011910229 90119-10229 BOLT
9011910825 90119-10825 Bolt
9016740044 90167-40044 BOLT
9017908149 90179-08149 New Genuine Part
9017911010 90179-11010 NUT
Seat & Seat Track ([12.2002 - ] PASSENGER SIDE (0212- )RHD..ARL,GEN,SA) 16
#OEMPart name
71072 71072-3V070-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71074 70169-37050-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-37060-B0 Cover, Front Seat Back, Lh(For Separate Type)
71491 71491-89101 Spring, Rear Seat Back Lock Hook
71512 71502-37160 Pad, Front Seat Cushion, Lh (For Separate Type)
71552 71552-37090 Pad, Front Seat Back, Lh(For Separate Type)
71552 71552-37100 Pad, Front Seat Back, Lh(For Separate Type)
71640 71014-37070 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71014-37100 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71014-37050 Spring Assy, Front Seat Back, Lh(For Separate Type)
71739 71739-37010 Cushion, Seat Support
72138 72137-35050-B1 Cap, Seat Adjuster Cover, Rh
72641 72641-37010 Pin, Rear Seat Back Lock
9011908 90119-08C25 BOLT WWASHER
9356015030 93560-15030 New Genuine Part
9616000800 96160-00800 Ring, E(For Counter Weight)
Seat & Seat Track ([12.2002 - ] PASSENGER SIDE W(SEAT BACK CONSOLE) (0212- )RHD..ARL,GEN,SA) 25
#OEMPart name
71035 71095-37170-B1 Cover, Front Seat Back, Center
71072 71072-3V070-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71074 70169-37050-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-37060-B0 Cover, Front Seat Back, Lh(For Separate Type)
71305 71305-37090 Frame Sub-Assy, Center Seat Back
71305 71305-37020 Frame Sub-Assy, Center Seat Back
71365 71365-37060 Pad, Center Seat Back
71491 71491-89101 Spring, Rear Seat Back Lock Hook
71512 71502-37160 Pad, Front Seat Cushion, Lh (For Separate Type)
71552 71552-37090 Pad, Front Seat Back, Lh(For Separate Type)
71552 71552-37100 Pad, Front Seat Back, Lh(For Separate Type)
71640 71014-37070 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71014-37100 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71014-37050 Spring Assy, Front Seat Back, Lh(For Separate Type)
71739 71739-37010 Cushion, Seat Support
72138 72137-35050-B1 Cap, Seat Adjuster Cover, Rh
72593 72593-37020-B0 Knob, Reclining Remote Control Lever, Rh
72630 72630-37020 Lock Assy, Rear Seat Back, Rh
72641 72641-37010 Pin, Rear Seat Back Lock
9011908 90119-08C25 BOLT WWASHER
9010508298 90105-08298 New Genuine Part
9016740044 90167-40044 BOLT
9018304048 90183-04048 New Genuine Part
9356015030 93560-15030 New Genuine Part
9616000800 96160-00800 Ring, E(For Counter Weight)
Seat Belt ([12.2002 - ] (0212- )RHD..ARL,GEN,SA) 17
#OEMPart name
73150 73150-37070-B0 Belt Assy, Front Seat Lap Type, Center
73150 73150-37070-B1 Belt Assy, Front Seat Lap Type, Center
73150 73150-37100-B0 Belt Assy, Front Seat Lap Type, Center
73150 73150-37101-B1 Belt Assy, Front Seat Lap Type, Center
73210 73210-25060-B0 Belt Assy, Front Seat Outer, Rh
73210 73210-25061-B0 Belt Assy, Front Seat Outer, Rh
73210 73210-37170-B0 Belt Assy, Front Seat Outer, Rh - FRONT SEAT OUTER, LH
73210 73210-37252-B0 Belt Assy, Front Seat Outer, Rh
73210 73210-37250-B0 Belt Assy, Front Seat Outer, Rh
73230 73230-37110-B0 Belt Assy, Front Seat Inner, Rh - FRONT SEAT INNER, LH
73230 73230-0W120-B0 Belt Assy, Front Seat Inner, Rh
73240 73240-37160-B1 Belt Assy, Front Seat Inner, Lh
73240 73240-37180-B0 Belt Assy, Front Seat Inner, Lh
91511 91511-B0612 BOLT FLANGE
7321475010 73214-75010 Plate, Front Seat Belt Anchor
9010511036 90105-11036 New Genuine Part
9010911048 90109-11048 New Genuine Part
Seat Belt ([12.2002 - ] NON-RETRACTOR TYPE SEAT BELT (0212- )RHD..GEN) 10
#OEMPart name
73210 73210-25060-B0 Belt Assy, Front Seat Outer, Rh
73210 73210-25061-B0 Belt Assy, Front Seat Outer, Rh
73210 73210-37170-B0 Belt Assy, Front Seat Outer, Rh - FRONT SEAT OUTER, LH
73210 73210-37252-B0 Belt Assy, Front Seat Outer, Rh
73210 73210-37250-B0 Belt Assy, Front Seat Outer, Rh
73230 73230-37110-B0 Belt Assy, Front Seat Inner, Rh - FRONT SEAT INNER, LH
73230 73230-0W120-B0 Belt Assy, Front Seat Inner, Rh
73240 73240-37160-B1 Belt Assy, Front Seat Inner, Lh
73240 73240-37180-B0 Belt Assy, Front Seat Inner, Lh
9010511036 90105-11036 New Genuine Part
Shift Lever & Retainer ([09.2002 - 12.2004] (0209-0412)RHD) 22
#OEMPart name
33503 33055-37060 Lever Sub-Assy, Shift(For Floor Shift)
33504 33504-36051-B1 Knob Sub-Assy, Shift Lever
33506 33506-37031 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
33506 90386-12056 Bush(For Shift Lever)
33506 33577-37060 Grommet, No.1(For Control Shift Lever Retainer)
33534 33534-37060 Bellcrank, Selecting
33539 33539-12010 Cushion, Shift Lever Anti-Rattle
33548 33548-12040 Bush, No.1, Shift Lever (For Floor Shift)
33586 33586-37020 Stopper, Control Lever (For Floor Shift)
33602 90386-13007 Bush(For Clutch Pedal)
33602 90387-08063 Collar(For Shift Lever)
33602 90949-03034 Spring, Torsion (For Select Lever)
33602 33602-37020 Lever Sub-Assy, Select (For Floor Shift)
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
3352937030 33529-37030 Bolt, Shift Lever
9011908190 90119-08190 BOLT
9017908054 90179-08054 Nut (For Connecting Rod Swivel)
9038708159 90387-08159 COLLAR
9038911006 90389-11006 Bush(For Shift Lever)
9111150840 91111-50840 New Genuine Part
9461310601 94613-10601 Washer (For Primary Regulator Valve)
9615101700 96151-01700 Ring, Snap(For Flow Control Valve)
Shift Lever & Retainer ([12.2002 - 10.2006] (0212-0610)RHD..GEN ; (0212- )SA) 29
#OEMPart name
33821 33820-37892 Cable Transmission Control Shift (For Floor Shift)
33821 33820-37894 Cable Transmission Control Shift (For Floor Shift)
33821 33820-37893 Cable Transmission Control Shift (For Floor Shift)
33822 33820-3V012 Cable Transmission Control Select (For Floor Shift)
33822 33820-3V013 Cable Transmission Control Select (For Floor Shift)
33823 33823-37380 Bracket, Transmission Control Cable, No.1
33826 33826-37180 Bracket, Transmission Control Cable, No.2
33826 33826-37210 Bracket, Transmission Control Cable, No.3
33826 33826-37270 Bracket, Transmission Control Cable, No.5
33826 33826-37251 Bracket, Transmission Control Cable, No.6
33826 33826-37471 Bracket, Transmission Control Cable, No.2
33826 33826-37590 Bracket, Transmission Control Cable, No.6
33826 33826-37460 Bracket, Transmission Control Cable, No.7
33829 33829-37150 Clamp, Transmission Control Cable
91611 91611-B0816 Bolt
91611 91611-G0820 Bolt
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
9094901 90949-01B93 New Genuine Part
9094901 90949-01B94 New Genuine Part
9017908038 90179-08038 Nut
9020110042 90201-10042 Washer, Plate (For Transfer Control Cable)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9046814016 90468-14016 CLIP
9161961250 91619-61250 Bolt
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165161025 91651-61025 Bolt with washer
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
9415080800 94150-80800 NUT, FLANGE
Shift Lever & Retainer ([12.2004 - ] (0412- )RHD) 5
#OEMPart name
33504 33504-36051-B1 Knob Sub-Assy, Shift Lever
33550 33550-37150 Floor Shift Assy, Transmission
33550 33550-37151 Floor Shift Assy, Transmission
9011908190 90119-08190 BOLT
9163560825 91635-60825 New Genuine Part
Short Block Assembly ([09.2002 - ] (0209- )S05C,W04D,14B,15BFTE) 1
#OEMPart name
11400 11400-58170 Block Assy, Short
Side Member ([12.2002 - ] (0212- )ARL,GCC,GEN,SA,TAIW) 42
#OEMPart name
53827 53827-37010 Protector, Front Fender Side Panel, Rh
61023 61023-37050 Pillar Sub-Assy, Front Body, Inner Rh
61024 61024-37100 Pillar Sub-Assy, Front Body, Inner Lh
61027 61131-37071 Pillar Sub-Assy, Front Body, Outer Rh
61027 61131-37073 Pillar Sub-Assy, Front Body, Outer Rh
61027 61131-37072 Pillar Sub-Assy, Front Body, Outer Rh
61028 61132-37071 Pillar Sub-Assy, Front Body, Outer Lh
61028 61132-37073 Pillar Sub-Assy, Front Body, Outer Lh
61028 61132-37072 Pillar Sub-Assy, Front Body, Outer Lh
61108 61108-37031 Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61109 61109-37011 Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61231 61231-37060 Rail, Roof Side, Inner Rh
61232 61232-37060 Rail, Roof Side, Inner Lh
61245 61245-37020 Reinforcement, Roof Side Rail, Outer Rh
61246 61246-37010 Reinforcement, Roof Side Rail, Outer Lh
61395 61395-37010 Seal, Center Body Pillar, Rh
61451 61451-37010 Plate, Step, Lower Rh
61452 61452-37010 Plate, Step, Lower Lh
61455 61455-37010 Retainer, Front Step, Rh
61456 61456-37010 Retainer, Front Step, Lh
61503 61503-37040 Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
61504 61504-37020 Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
61515 61515-37010 Extension, Quarter Lock Pillar, Rh
61516 61516-37010 Extension, Quarter Lock Pillar, Lh
61575 61575-37010 Plate, Cab Rear Pillar, Upper Rh
61576 61576-37010 Plate, Cab Rear Pillar, Upper Lh
61661 61661-37010 Extension, Quarter Panel To Upper Back, Rh
61662 61662-37010 Extension, Quarter Panel To Upper Back, Lh
61667 61667-37010 Seal, Quarter Panel
64015 61531-37040 Panel Sub-Assy, Back Corner, Inner Rh
64015 61531-37042 Panel Sub-Assy, Back Corner, Inner Rh
64016 61532-37010 Panel Sub-Assy, Back Corner, Inner Lh
64016 61532-37012 Panel Sub-Assy, Back Corner, Inner Lh
64103 61611-37150 Panel Sub-Assy, Back Corner, Outer Rh
64103 61611-37152 Panel Sub-Assy, Back Corner, Outer Rh
64103 61611-37151 Panel Sub-Assy, Back Corner, Outer Rh
64104 61612-37120 Panel Sub-Assy, Back Corner, Outer Lh
64104 61612-37121 Panel Sub-Assy, Back Corner, Outer Lh
9014880044 90148-80044 New Genuine Part
9017904031 90179-04031 New Genuine Part
9164580816 91645-80816 New Genuine Part
9164580816 91551-80810 New Genuine Part
Spare Wheel Carrier ([12.2002 - 10.2006] (0212-0510)WU300..WT..CBU ; (0212-0610)BU303..LH D..WT..CBU ; (0212-0610)BU34#,WU340 ..ARL,GCC,GEN,SA ; (0308-0610)XZU330,340,345) 7
#OEMPart name
51208 51261-37020 Member Sub-Assy, Spare Wheel Set
51900 51900-37060 Carrier Assy, Spare Wheel
51900 51900-37120 Carrier Assy, Spare Wheel
51933 51933-37020 Stopper, Spare Wheel, No.1
91611 91611-G0820 Bolt
91645 91645-C1032 Bolt, Fuel Tank
9415081000 94150-81000 NUT FLANGE
Speaker ([12.2002 - ] (0212- )DCR,DCRTH,DCRTJ,DSL,TD) 5
#OEMPart name
86160 86160-37090 Speaker Assy, Front No.1
86160 86160-37120 Speaker Assy, Front No.1
86160 86160-37091 Speaker Assy, Front No.1
9015950322 90159-50322 SCREW WWASHER
9018905097 90189-05097 GROMMET SCREW
Speedometer Driven Gear (Mtm) ([09.2002 - 10.2006] M150,M153,H350 (0209-0610)BU30#,34#,WU300,340,XZU300,320,330,34 0 ; (0610-0612)BU303,343,WU300,340. .RHD..IV3 ; (0612 -0712)SA) 8
#OEMPart name
33403 33482-39255 Gear Sub-Assy, Speedometer Driven (Mtm)
33403 33482-39265 Gear Sub-Assy, Speedometer Driven (Mtm)
33404 33404-36020 Sleeve Sub-Assy, Speedometer Shaft (Mtm)
33404 90301-18018 Ring, O (For Atm Speedometer Driven Hole Cover)
33404 90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)
33404 90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)
33485 33485-30020 Plate, Speedometer Sleeve Lock (For Atm)
9161160814 91611-60814 Bolt
Standard Tool ([12.2002 - ] (0212- )ARL,GCC,GEN,SA,TAIW) 17
#OEMPart name
9110 09111-37200 Jack Assy
9110 09111-37230 Jack Assy
9110 09111-37283 Jack Assy
9113 09113-37070 Handle, Jack
9113 09113-0W030 Handle, Jack
9113 09113-37060 Handle, Jack
9120 09120-37030 Bag, Tool
9130 99913-11500 Pliers (China) - No Toyota stamp
9135 99915-10700 Driver, Screw - No Toyota stamp
9135 90089-99009 Driver, Screw (ATC) (Thailand) - Screw Driver (ATC)
9141 90037-12001 Spanner
9141 99914-10810 Spanner (China) - No Toyota stamp
9141 09141-0K030 Spanner (ATC) (Thailand) - 8x10
9141 99914-11214 Spanner (China) - No Toyota stamp
9141 09141-0K040 Spanner (Thailand)
9150 09150-37030 Wrench, Hub Nut Box
9187 09187-37010 Handle, Spare Wheel Carrier
Starter ([09.2002 - ] 24V 4.5KW (0209- )14B,15BFTE) 40
#OEMPart name
28011 28011-54010 Clutch Sub-Assy, Starter
28100 28100-56321 Starter Assy
28100 28100-56332 Starter Assy
28110 28110-56151 Housing Assy, Starter Drive
28118 28118-77090 Plate(For Starter Yoke)
28120 28120-56221 Yoke Assy, Starter
28130 28130-56260 Frame Assy, Starter Commutator End
28139 28139-56310 Wire, Lead, No.1(For Starter)
28140 28140-77090 Holder Assy, Starter Brush
28150 28150-56320 Switch Assy, Magnet Starter
28159 28159-56310 Cover, Magnet Switch
28160 28160-77090 Armature Assy, Starter
28160 90099-10107 Bearing, Starter Armature
28160 90099-10119 Bearing, Starter Armature
28165 28165-77090 Spring, Starter Magnet Switch Return
28175 28175-56310 Gasket, Magnet Switch Cover
28199 28199-46080 Cover, Starter End Frame
28199 28199-58020 Protector, Dust Starter
28222 28222-77090 Washer, Starter Idle Gear Clutch
28226 28226-17030 Starter Kit, Battery Terminal
28226 28226-54320 Starter Kit, Battery Terminal
28226 28226-54220 Starter Kit, Motor Terminal
28228 28228-56080 Roller, Starter Idle Gear Clutch
28229 28229-56080 Retainer, Starter Idle Gear
28235 28235-17030 Plunger, Magnet Switch
28254 28254-77090 Pinion, Starter Drive
9009221001 90092-21001 NUT
9009900158 90099-00158 SCREW
9009900254 90099-00254 New Genuine Part
9009902205 90099-02205 Washer, Felt, Starter
9009902325 90099-02325 WASHER
9009904207 90099-04207 New Genuine Part
9009904473 90099-04473 New Genuine Part
9009912009 90099-12009 Ball, Starter Clutch
9017910195 90179-10195 NUT WWASHER
9020110344 90201-10344 Washer, Plate(For Cylinder Head Set)
9111261465 91112-61465 Bolt
9413061400 94130-61400 Nut, Lock
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9462111400 94621-11400 WASHER
Steering Column & Shaft ([07.2004 - 10.2006] (0311-0612)BU303,343,WU300,340..IDN ; (0407-0610 )GCC,GEN) 40
#OEMPart name
45201 45274-37020 Bearing(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45204 45204-37130 Tube Assy, Steering Column, Lower
45205 45205-25130 Tube Sub-Assy, Steering Column, Upper
45205 45205-37050 Tube Sub-Assy, Steering Column, Upper
45205 45205-37090 Tube Sub-Assy, Steering Column, Upper
45205 45205-37100 Tube Sub-Assy, Steering Column, Upper
45210 45210-37110 Shaft Assy, Steering Main
45210 45210-37150 Shaft Assy, Steering Main
45210 45210-37240 Shaft Assy, Steering Main
45210 45210-37241 Shaft Assy, Steering Main
45210 45210-37250 Shaft Assy, Steering Main
45210 45210-37300 Shaft Assy, Steering Main
45252 45252-37030-B0 Tube, Steering Column, Lower
45252 45252-37031-B0 Tube, Steering Column, Lower
45275 45307-36230 Bracket, Steering Column, Upper
45286 45286-25160-B0 Cover, Steering Column, Upr
45286 45286-25161-B0 Cover, Steering Column, Upr
45286 45286-37080-B0 Cover, Steering Column, Upr
45286 45286-37081-B0 Cover, Steering Column, Upr
45287 45287-25050-B0 Cover, Steering Column, Lwr
45287 45287-25051-B0 Cover, Steering Column, Lwr
45287 45287-37080-B0 Cover, Steering Column, Lwr
45287 45287-37081-B0 Cover, Steering Column, Lwr
45292 45292-37030 Cover, Main Shaft Lower Dust
45857 45857-37020 Bracket, Tilt Steering Column Tube, No.1
45872 45872-37010 Cover, Steering Column Tube
45887 90467-07041-B8 Clip(For Steering Column Cover)
45897 45897-25010 Bolt, Steering Lock Set
91611 91611-G0612 Bolt
9011908 90119-08C25 BOLT WWASHER
9011906936 90119-06936 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9017806002 90178-06002 NUT FLANGE
9164180616 91641-80616 BOLT W-WASHER
9165160620 91651-60620 BOLTWWASHER
9326954012 93269-54012 SCREW
9356855014 93568-55014 Screw
9356855016 93568-55016 Screw
Steering Column & Shaft ([07.2004 - 10.2006] TILT & TELESCOPIC STEERING (0311-0612)XZU342 ; (0405-0712)SA ; (0407-0610)G CC,GEN,TAIW) 59
#OEMPart name
45201 45274-37020 Bearing(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45204 45204-37130 Tube Assy, Steering Column, Lower
45205 45205-25130 Tube Sub-Assy, Steering Column, Upper
45205 45205-37050 Tube Sub-Assy, Steering Column, Upper
45205 45205-37090 Tube Sub-Assy, Steering Column, Upper
45205 45205-37100 Tube Sub-Assy, Steering Column, Upper
45210 45210-37110 Shaft Assy, Steering Main
45210 45210-37150 Shaft Assy, Steering Main
45210 45210-37240 Shaft Assy, Steering Main
45210 45210-37241 Shaft Assy, Steering Main
45210 45210-37250 Shaft Assy, Steering Main
45210 45210-37300 Shaft Assy, Steering Main
45252 45252-37030-B0 Tube, Steering Column, Lower
45252 45252-37031-B0 Tube, Steering Column, Lower
45257 45257-37010 Plate, Steering Column Energy Absorbing
45259 45259-37010 Sheet, Column Hole Cover Silencer
45280 45280-37100 Bracket Assy, Steering Column, Upper
45286 45286-25160-B0 Cover, Steering Column, Upr
45286 45286-25161-B0 Cover, Steering Column, Upr
45286 45286-37080-B0 Cover, Steering Column, Upr
45286 45286-37081-B0 Cover, Steering Column, Upr
45287 45287-25050-B0 Cover, Steering Column, Lwr
45287 45287-25051-B0 Cover, Steering Column, Lwr
45287 45287-37080-B0 Cover, Steering Column, Lwr
45287 45287-37081-B0 Cover, Steering Column, Lwr
45291 45803-37010 Support, Steering Column Tube
45292 45292-37030 Cover, Main Shaft Lower Dust
45765 45765-37010 Guide, Telescopic Steering
45768 45768-37010 Bush, Telescopic Steering
45805 45805-37010 Support Sub-Assy, Tilt Steering
45813 45813-37010 Collar, Tilt Steering Support, No.1
45819 90387-06037 Collar(For Tilt Lever Retainer)
45821 45821-12010 Reinforce, Tilt Steering Support, No.1
45826 45826-37010 Lever, Steering Tilt
45831 45831-37010 Bolt, Tilt Lever Lock, No.1
45833 45833-37010 Nut, Tilt Steering Adjusting, No.1
45857 45857-37020 Bracket, Tilt Steering Column Tube, No.1
45872 45872-37010 Cover, Steering Column Tube
45887 90467-07041-B8 Clip(For Steering Column Cover)
45897 45897-25010 Bolt, Steering Lock Set
91611 91611-G0612 Bolt
9011908 90119-08C25 BOLT WWASHER
9011906936 90119-06936 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9017806002 90178-06002 NUT FLANGE
9050618082 90506-18082 New Genuine Part
9112140665 91121-40665 New Genuine Part
9162140608 91621-40608 New Genuine Part
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9164180616 91641-80616 BOLT W-WASHER
9165160620 91651-60620 BOLTWWASHER
9326954012 93269-54012 SCREW
9356855014 93568-55014 Screw
9356855016 93568-55016 Screw
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9453100600 94531-00600 Washer(For Outer Lever Oil Setting)
9461310601 94613-10601 Washer (For Primary Regulator Valve)
Steering Column & Shaft ([09.2002 - 07.2004] RIGID STEERING (0209-0311)BU303,343,WU300,340..IDN ; (0209-0407 )GCC,GEN) 42
#OEMPart name
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-28065 Ring(For Steering Main Shaft)
45204 45204-37130 Tube Assy, Steering Column, Lower
45205 45205-25130 Tube Sub-Assy, Steering Column, Upper
45205 45205-37050 Tube Sub-Assy, Steering Column, Upper
45205 45205-37090 Tube Sub-Assy, Steering Column, Upper
45205 45205-37100 Tube Sub-Assy, Steering Column, Upper
45210 45210-37110 Shaft Assy, Steering Main
45210 45210-37150 Shaft Assy, Steering Main
45210 45210-37240 Shaft Assy, Steering Main
45210 45210-37241 Shaft Assy, Steering Main
45210 45210-37250 Shaft Assy, Steering Main
45210 45210-37300 Shaft Assy, Steering Main
45225 45225-26010 Ring, Shaft Snap(For Steering Main Shaft)
45252 45252-37030-B0 Tube, Steering Column, Lower
45252 45252-37031-B0 Tube, Steering Column, Lower
45263 45263-37010 Ring, Steering Column, No.1
45275 45307-36230 Bracket, Steering Column, Upper
45286 45286-25160-B0 Cover, Steering Column, Upr
45286 45286-25161-B0 Cover, Steering Column, Upr
45286 45286-37080-B0 Cover, Steering Column, Upr
45286 45286-37081-B0 Cover, Steering Column, Upr
45287 45287-25050-B0 Cover, Steering Column, Lwr
45287 45287-25051-B0 Cover, Steering Column, Lwr
45287 45287-37080-B0 Cover, Steering Column, Lwr
45287 45287-37081-B0 Cover, Steering Column, Lwr
45292 45292-37030 Cover, Main Shaft Lower Dust
45857 45857-37020 Bracket, Tilt Steering Column Tube, No.1
45872 45872-37010 Cover, Steering Column Tube
45887 90467-07041-B8 Clip(For Steering Column Cover)
45897 45897-25010 Bolt, Steering Lock Set
91611 91611-G0612 Bolt
9011908 90119-08C25 BOLT WWASHER
9011906936 90119-06936 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9017806002 90178-06002 NUT FLANGE
9164180616 91641-80616 BOLT W-WASHER
9165160620 91651-60620 BOLTWWASHER
9326954012 93269-54012 SCREW
9356855014 93568-55014 Screw
9356855016 93568-55016 Screw
Steering Column & Shaft ([12.2002 - 07.2004] TILT & TELESCOPIC STEERING (0209-0311)XZU342 ; (0212-0312)BU300,340 ; (0212 -0405)SA ; (0212-0407)GCC,GEN,TAIW) 61
#OEMPart name
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-28065 Ring(For Steering Main Shaft)
45204 45204-37130 Tube Assy, Steering Column, Lower
45205 45205-25130 Tube Sub-Assy, Steering Column, Upper
45205 45205-37050 Tube Sub-Assy, Steering Column, Upper
45205 45205-37090 Tube Sub-Assy, Steering Column, Upper
45205 45205-37100 Tube Sub-Assy, Steering Column, Upper
45210 45210-37110 Shaft Assy, Steering Main
45210 45210-37150 Shaft Assy, Steering Main
45210 45210-37240 Shaft Assy, Steering Main
45210 45210-37241 Shaft Assy, Steering Main
45210 45210-37250 Shaft Assy, Steering Main
45210 45210-37300 Shaft Assy, Steering Main
45225 45225-26010 Ring, Shaft Snap(For Steering Main Shaft)
45252 45252-37030-B0 Tube, Steering Column, Lower
45252 45252-37031-B0 Tube, Steering Column, Lower
45257 45257-37010 Plate, Steering Column Energy Absorbing
45259 45259-37010 Sheet, Column Hole Cover Silencer
45263 45263-37010 Ring, Steering Column, No.1
45280 45280-37100 Bracket Assy, Steering Column, Upper
45286 45286-25160-B0 Cover, Steering Column, Upr
45286 45286-25161-B0 Cover, Steering Column, Upr
45286 45286-37080-B0 Cover, Steering Column, Upr
45286 45286-37081-B0 Cover, Steering Column, Upr
45287 45287-25050-B0 Cover, Steering Column, Lwr
45287 45287-25051-B0 Cover, Steering Column, Lwr
45287 45287-37080-B0 Cover, Steering Column, Lwr
45287 45287-37081-B0 Cover, Steering Column, Lwr
45291 45803-37010 Support, Steering Column Tube
45292 45292-37030 Cover, Main Shaft Lower Dust
45765 45765-37010 Guide, Telescopic Steering
45768 45768-37010 Bush, Telescopic Steering
45805 45805-37010 Support Sub-Assy, Tilt Steering
45813 45813-37010 Collar, Tilt Steering Support, No.1
45819 90387-06037 Collar(For Tilt Lever Retainer)
45821 45821-12010 Reinforce, Tilt Steering Support, No.1
45826 45826-37010 Lever, Steering Tilt
45831 45831-37010 Bolt, Tilt Lever Lock, No.1
45833 45833-37010 Nut, Tilt Steering Adjusting, No.1
45857 45857-37020 Bracket, Tilt Steering Column Tube, No.1
45872 45872-37010 Cover, Steering Column Tube
45887 90467-07041-B8 Clip(For Steering Column Cover)
45897 45897-25010 Bolt, Steering Lock Set
91611 91611-G0612 Bolt
9011908 90119-08C25 BOLT WWASHER
9011906936 90119-06936 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9017806002 90178-06002 NUT FLANGE
9050618082 90506-18082 New Genuine Part
9112140665 91121-40665 New Genuine Part
9162140608 91621-40608 New Genuine Part
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9164180616 91641-80616 BOLT W-WASHER
9165160620 91651-60620 BOLTWWASHER
9326954012 93269-54012 SCREW
9356855014 93568-55014 Screw
9356855016 93568-55016 Screw
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9453100600 94531-00600 Washer(For Outer Lever Oil Setting)
9461310601 94613-10601 Washer (For Primary Regulator Valve)
Steering Wheel ([09.2002 - 12.2006] 2-SPOKE POLYPROPYLEN (0209-0612)BU303,343 ; (0209-0612)WU300,340..GCC ,IDN) 11
#OEMPart name
45100 45100-36110-B2 Wheel Assy, Steering
45100 45100-36140-B0 Wheel Assy, Steering
45105 45105-36010 Plate Sub-Assy, Horn Button Contact, No.1
45105 45105-36030 Plate Sub-Assy, Horn Button Contact, No.1
45130 45130-36090-B2 Button Assy, Horn
45130 45130-36120-B0 Button Assy, Horn
45176 45176-36010 Ring, Horn Contact
45176 45176-36020 Ring, Horn Contact
45201 90179-12071 Nut, Steering Wheel Set
9331514010 93315-14010 SCREW
9351013010 93510-13010 Bolt Or Pin (For Shift Lever Knob Setting)
Steering Wheel ([12.2002 - 10.2006] 2-SPOKE URETHANE (0209-0612)XZU342 ; (0212-0610)ARL,GEN,TAIW ; (0 212-0612)GCC,SA ; (0612-0712)SA) 11
#OEMPart name
45100 45100-36110-B2 Wheel Assy, Steering
45100 45100-36140-B0 Wheel Assy, Steering
45105 45105-36010 Plate Sub-Assy, Horn Button Contact, No.1
45105 45105-36030 Plate Sub-Assy, Horn Button Contact, No.1
45130 45130-36090-B2 Button Assy, Horn
45130 45130-36120-B0 Button Assy, Horn
45176 45176-36010 Ring, Horn Contact
45176 45176-36020 Ring, Horn Contact
45180 45180-36030-B0 Cover Sub-Assy, Steering Wheel
45201 90179-12071 Nut, Steering Wheel Set
9014950032 90149-50032 Screw
Suspension Crossmember & Under Cover ([12.2002 - 10.2006] (0212-0506)XZU300,330,340 ; (0212-0610)BU30#,34# ,WU300,340..ARL,GCC,GEN,SA) 8
#OEMPart name
51436 51436-37080 Bracket, Engine Side Cover, No.1 Rh
51473 51473-37120 Cover Sub-Assy, Engine Side, Rh
51473 51473-37121 Cover Sub-Assy, Engine Side, Rh
51474 51474-37130 Cover Sub-Assy, Engine Side, Lh
51474 51474-37131 Cover Sub-Assy, Engine Side, Lh
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9165160830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9415010801 94150-10801 New Genuine Part
Suspension Crossmember & Under Cover ([12.2002 - ] (0212- )BU30#,34#,WU30#,34#,XZU30#,327,33#,34 0,345,347..ARL,GCC,GEN,SA,TAIW) 9
#OEMPart name
51961 51961-37050 Hook, Front
51961 51961-37110 Hook, Front
51962 51961-36040 Hook, No.1
51963 51963-37030 Hook, Transport, Front Rh
51964 51964-37040 Hook, Transport, Front Lh
9017814007 90178-14007 Nut(For Rear Suspension Arm)
9167201460 91672-01460 New Genuine Part
9413001402 94130-01402 Nut, Timer Round
9462241400 94622-41400 WASHER PLATE
Switch & Relay & Computer ([09.2002 - 12.2006] ENGINE (0209-0612)BU30#,34#,XZU300,320,330,340) 8
#OEMPart name
83420 83420-20020 Gage Assy, Water Temperature Sender
83530 83530-28030 Switch Assy, Oil Pressure (For Engine)
89422 89422-36010 Sensor, Water Temperature
89422 89422-37030 Sensor, Water Temperature
89491 89491-37020 Sensor, Engine Oil Level
89491 90430-27001 Gasket, Engine Oil Level Sensor
9043016010 90430-16010 Gasket, Neutral Start Switch
9165160614 91651-60614 Bolt
Switch & Relay & Computer ([09.2002 - 12.2006] TRANSMISSION (0209-0612)BU303,343 ; (0209- )WU302..T3 ; (0 209- )WU300,34#..DCRTH,DCRTP,DSL) 5
#OEMPart name
83181 83181-37010 Sensor, Speedometer
84210 84210-12040 Switch Assy, Back-Up Lamp
84210 84210-52050 Switch Assy, Back-Up Lamp
9043018008 90430-18008 Gasket
9043018008 90430-T0021 Gasket(For Manual Transmission Filler Plug)
Switch & Relay & Computer ([09.2002 - ] DOOR,ROOF & FLOOR (0209- )RHD) 8
#OEMPart name
83390 83390-12340 Switch Assy, Vacuum Warning
84233 84231-60070 Switch, Courtesy Lamp
84550 84550-37021 Switch Assy, Parking Brake
90159 90159-T0003 SCREW WWASHER
9010906296 90109-06296 BOLT
9016430009 90164-30009 New Genuine Part
9090148003 90901-48003 Screw Hex Lobular
9415080600 94150-80600 NUT FLANGE
Switch & Relay & Computer ([09.2002 - ] FRAME (0209- )) 9
#OEMPart name
83320 83320-80374 Gage Assy, Fuel Sender
83361 83361-20030 Gasket, Fuel Tank Vent
86650 86650-37050 Buzzer Assy, Reverse Warning
91611 91611-B0816 Bolt
93319 93319-A4010 SCREW WWASHER
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9415180800 94151-80800 Nut (For Transmission Control Cable)
Switch & Relay & Computer ([12.2002 - 10.2006] COWL (0212-0610)RHD..ARL,GEN ; (0304-0812)SA) 26
#OEMPart name
81980 81980-37140 Flasher Assy, Turn Signal
82600 90982-09008 Fusible Link
82600 90982-09009 Fusible Link
82600 90982-09010 Fusible Link
82600 90982-09011 Fusible Link
82600 82683-37300 Plate, Caution(For Fuse)
82600 82683-37301 Plate, Caution(For Fuse)
84340 84340-37020 Switch Assy, Stop Lamp
84640 84640-37050 Switch Assy, Exhaust Retarder
85910 90987-04007 Relay Assy (For Heater Blower Motor)
85916 90987-02018 Relay, Ignition, No.1
85916 90987-02019 Relay, Ignition, No.2
86530 90987-02017 Relay, Ignition, No.1
86650 86650-37060 Buzzer Assy, Vacuum Warning
86650 86650-37061 Buzzer Assy, Vacuum Warning
91611 91611-B0816 Bolt
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9015960413 90159-60413 SCREW WWASHER
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9356855016 93568-55016 Screw
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
Switch & Relay & Computer ([12.2002 - 10.2006] IGNITION & COMBINATION SWITCH (0209-0612)BU303,343,WU300,340..IDN ; (0212-0610 )RHD..ARL,GEN ; (0304-0812)SA ; (06 10-1005)DCRTH,DCR TJ..IDN ; (0610-1106)RHD..CBU) 32
#OEMPart name
84110 84112-80221 Switch Assy, Light Control, No.1
84110 84112-80222 Switch Assy, Light Control, No.1
84110 84112-80234 Switch Assy, Light Control, No.1
84110 84112-80235 Switch Assy, Light Control, No.1
84140 84140-37050 Switch Assy, Headlamp Dimmer
84310 84310-37170 Switch Assy, Turn Signal
84310 84310-37171 Switch Assy, Turn Signal
84310 84310-37190 Switch Assy, Turn Signal
84310 84310-37191 Switch Assy, Turn Signal
84310 84310-37230 Switch Assy, Turn Signal
84310 84310-37231 Switch Assy, Turn Signal
84310 84310-37240 Switch Assy, Turn Signal
84310 84310-37241 Switch Assy, Turn Signal
84312 84312-20011 Plate, Horn Contact
84329 84329-37070 Switch, Turn Signal
84329 84329-37100 Switch, Turn Signal
84450 84450-37120 Switch Assy, Ignition Or Starter
84450 84450-37160 Switch Assy, Ignition Or Starter
84450 84450-37161 Switch Assy, Ignition Or Starter
84650 84652-37010 Switch Assy, Windshield Wiper
84650 84652-37011 Switch Assy, Windshield Wiper
84650 84652-37250 Switch Assy, Windshield Wiper
84650 84652-37251 Switch Assy, Windshield Wiper
91611 91611-G0612 Bolt
8271116830 82711-16830 Clamp, Headlamp Cleaner, No.1
8271637241 82716-37241 Bracket, Wiring Harness Clamp, Lh
9008046104 90080-46104 New Genuine Part
9016840129 90168-40129 SCREW TAPPING
9046315003 90463-15003 New Genuine Part
9046400551 90464-00551 New Genuine Part
9331914012 93319-14012 New Genuine Part
9331915012 93319-15012 Screw
Switch & Relay & Computer ([12.2002 - 10.2006] INSTRUMENT PANEL SWITCH (0212-0610)BU30#,34#..RHD..ARL,GEN ; (0304-0812) SA ; (0610-1106)RHD..CBU) 9
#OEMPart name
84330 84332-37090 Switch Assy, Hazard Warning Signal
84330 84999-10570 Bulb, Mirror Heater Switch Assy
84730 84732-37050 Switch Assy, Heater Blower
84730 90981-16020 Bulb, Position Indicator Lamp
84730 90010-01153 Bulb, Heater Blower Switch
85500 85500-36020 Lighter Assy, Cigarette
85513 85513-12020 Cover, Cigarette Lighter
85520 85520-95400 Knob And Element Assy, Cigarette Lighter
85533 85533-26010 Lens, Cigarette Lighter Indicator
Switch & Relay & Computer ([12.2002 - 10.2006] R/B NO.2 (0212-0610)GCC,GEN) 10
#OEMPart name
28300 28300-58040 Relay Assy, Starter
82662 82662-37190 Cover, Relay Block, Upper, No.1
82662 82662-37191 Cover, Relay Block, Upper, No.1
82760 82760-37070 Bracket Assy, Relay Block
82760 82760-37161 Bracket Assy, Relay Block
8271737020 82717-37020 New Genuine Part
9017906171 90179-06171 Nut, Cap(For Cylinder Head Cover)
9017910015 90179-10015 NUT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Switch & Relay & Computer ([12.2002 - 10.2006] SPEEDOMETER SENSOR (0212-0610)GCC,GEN ; (0304-0812)SA ; (0610-1106) WU300,340..GCC,GEN) 1
#OEMPart name
83181 83181-37010 Sensor, Speedometer
Timing Gear Cover & Rear End Plate ([09.2002 - ] (0209- )14B) 23
#OEMPart name
11301 11301-58021 Case Sub-Assy, Timing Gear
11301 90250-08120 Pin, Straight, No.1
11301 90116-08169 Bolt,stud(For Timing Gear Case)
11302 11302-58011 Cover Sub-Assy, Timing Chain Or Belt
11302 11302-58021 Cover Sub-Assy, Timing Chain Or Belt
11302 90311-50013 Seal, Oil(For Timing Chain Or Belt Cover)
11312 11312-56040 Gasket, Front End Plate
11328 11328-58010 Gasket, Timing Gear Or Chain Cover
11345 11345-48010 Bearing, Injection Pump Gear Thrust
11355 11355-56061 Plate, Rear End
11381 11381-58011 Retainer, Engine Rear Oil Seal
11381 90311-95011 Seal, Engine Rear Oil
11383 11383-56040 Gasket, Engine Rear Oil Seal Retainer
91511 91511-B0835 Bolt(For Cylinder Head Set Sub)
91511 90105-08200 Bolt(For Cylinder Head Set Sub)
91511 91511-J0840 Bolt(For Alternator)
91611 91611-B0816 Bolt
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9010508267 90105-08267 BOLT WASHER BASED
9151261060 91512-61060 Bolt(For Transaxle Case & Engine Setting)
9151261080 91512-61080 Bolt
9151261085 91512-61085 New Genuine Part
9161261016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
Tool Box & License Plate Bracket ([09.2002 - 10.2006] JACK (0209-0610) ; (0610- )IDN) 9
#OEMPart name
58794 58794-37010 Support, Jack Handle
58797 58797-37020 Band, Jack Clamp
58797 58797-37030 Band, Tool Bag
75298 75298-37020 Plate, Jack Holder
75298 75298-37050 Plate, Jack Holder
75299 75299-37040 Base, Jack Holder
9056010111 90560-10111 New Genuine Part
9162140818 91621-40818 New Genuine Part
9427100800 94271-00800 Nut, Wing(For Air Cleaner)
Tool Box & License Plate Bracket ([12.2002 - ] LICENSE PLATE BRACKET (0212- )ARL,GCC,GEN,SA,TAIW..IV3) 6
#OEMPart name
75102 75102-92800 Bracket Sub-Assy, Rear License Plate
91611 91611-G0820 Bolt
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9017908233 90179-08233 NUT
9018905007 90189-05007 SCREW
9165160620 91651-60620 BOLTWWASHER
Tool Box & License Plate Bracket ([12.2002 - ] LICENSE PLATE BRACKET (0212- )CBU) 12
#OEMPart name
66490 66490-37040 Hanger Assy, License Plate Bracket
75102 75102-37030 Bracket Sub-Assy, Rear License Plate
75135 58378-37020 Bracket, Combination Rear Lamp, Rh
75135 75105-37071 Bracket, Combination Rear Lamp, Rh
75135 75105-37030 Bracket, Combination Rear Lamp, Rh
75135 75105-37070 Bracket, Combination Rear Lamp, Rh
91511 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9018905007 90189-05007 SCREW
9162140616 91621-40616 Step Cover Bolt
9164580816 91645-80816 New Genuine Part
9164580816 91551-80810 New Genuine Part
9165140820 91651-40820 Bolt
Tool Box & License Plate Bracket ([12.2002 - ] TOOL BOX (0212- )ARL,GCC,GEN,SA) 5
#OEMPart name
47379 47379-37080 Spacer, Brake Tube, No.1
75201 75210-37130 Box Sub-Assy, Tool W/stay
75201 75210-37230 Box Sub-Assy, Tool W/stay
9413001001 94130-01001 Nut(For Clutch Pedal Stopper)
9461311001 94613-11001 WASHER
Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([09.2002 - 10.2006] M150,M153 (0209-0610)BU303,343,WU300,340 ; (0610-0612)BU30 3,343,WU300,340..RHD..IV3 ; (0612-0 712)SA) 3
#OEMPart name
4331 04331-37030 Gasket Kit, Manual Transmission Overhaul
33110 33120-37610 Transmission Assy, Manual
33110 33120-37620 Transmission Assy, Manual
Transmission Gear (Mtm) ([09.2002 - 10.2006] M150,M153 (0209-0610)BU303,343,WU300,340 ; (0610-0612)BU30 3,343,WU300,340..RHD..IV3 ; (0612-0 712)SA) 84
#OEMPart name
33038 33038-36010 Ring Set, Synchronizer, No.2
33039 33039-36010 Ring Set, Synchronizer, No.3
33311 33301-37030 Shaft, Input
33311 90363-45010 Bearing (For Input Shaft Front)
33311 90520-42002 Ring, Shaft Snap (For Front Bearing)
33311 90520-42003 Ring, Shaft Snap (For Front Bearing)
33311 90520-42004 Ring, Shaft Snap (For Front Bearing)
33311 90520-42005 Ring, Shaft Snap (For Front Bearing)
33311 90520-42006 Ring, Shaft Snap (For Front Bearing)
33311 90520-42007 Ring, Shaft Snap (For Front Bearing)
33311 96151-04500 Ring, Hole Snap (For Needle Roller)
33311 90361-09002 Bearing, Input Shaft
33311 90560-38004 Spacer (For Input Shaft)
33311 90520-96001 Ring, Shaft Snap (For Front Bearing)
33321 33321-37030 Shaft, Output
33321 90363-40034 Bearing (For Input Shaft Front)
33321 90520-88001 Ring, Shaft Snap (For Front Bearing)
33321 90179-24008 Nut (For Manual Transmission Output Shaft Rear Set)
33321 90301-31003 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)
33323 33323-36010 Spacer, Synchronizer Ring
33331 33331-37030 Gear, Reverse
33331 90364-54004 Bearing (For Reverse Gear)
33332 33033-36070 Gear, 2Nd
33332 90364-54003 Bearing, Needle Roller (For 2Nd Gear)
33333 33034-36060 Gear, 3Rd
33333 90364-47007 Bearing, Needle Roller (For 3Rd Gear)
33335 33335-37040 Gear, 1St
33335 90364-58005 Bearing, Needle Roller(For 1St Gear)
33336 33036-37010 Gear, 5Th
33336 90364-37012 Bearing, Needle Roller (For 5Th Gear)
33336 90560-37003 Spacer (For 5Th Gear Bearing)
33338 90360-06004 Ball, Detent(For Gear Shift Head No.4)
33338 90080-36191 Ball, Check Valve
33342 90250-04056 Pin, Straight (For Gear Thrust Washer)
33342 90520-34010 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34011 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34012 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34015 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34016 Ring, Shaft Snap (For Gear Thrust Washer)
33342 33342-36021 Washer, Gear Thrust
33354 33354-36010 Race, Reverse Gear Bearing, Inner
33361 33361-36030 Hub, Transmission Clutch, No.1
33362 33362-36040 Hub, Transmission Clutch, No.2
33362 90520-43002 Ring, Shaft Snap (For Front Bearing)
33362 90520-43003 Ring, Shaft Snap (For Front Bearing)
33362 90520-43004 Ring, Shaft Snap (For Front Bearing)
33362 90520-43005 Ring, Shaft Snap (For Front Bearing)
33362 90520-43006 Ring, Shaft Snap (For Front Bearing)
33362 90520-43007 Ring, Shaft Snap (For Front Bearing)
33363 33363-37020 Sleeve, Transmission Hub, No.1
33364 33364-36080 Sleeve, Transmission Hub, No.2
33365 33365-36030 Key, Synchromesh Shifting, No.1
33366 33366-36040 Key, Synchromesh Shifting, No.2
33367 33367-36050 Ring, Synchronizer, No.1
33369 33369-36010 Ring, Synchronizer, No.3
33371 33371-36030 Spring, Synchromesh Shifting Key, No.1
33392 33392-36010 Spring, Synchromesh Shifting Key, No.3
33393 33393-36060 Hub, Transmission Clutch, No.3
33393 90520-28054 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28055 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28056 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28057 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28058 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28059 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33394 33394-36020 Key, Synchromesh Shifting, No.3
33395 33395-36030 Sleeve, Transmission Hub, No.3
33402 33461-36090 Gear Sub-Assy, Reverse Idler
33411 90365-37006 Bearing Or Roller(For Counter Gear Front)
33411 90363-30049 Bearing Or Roller(For Counter Gear Rear)
33411 90520-26030 Ring, Shaft Snap (For Front Bearing)
33411 90520-26031 Ring, Shaft Snap (For Front Bearing)
33411 90520-26032 Ring, Shaft Snap (For Front Bearing)
33411 90520-26033 Ring, Shaft Snap (For Front Bearing)
33411 90520-26034 Ring, Shaft Snap (For Front Bearing)
33411 90520-26035 Ring, Shaft Snap (For Front Bearing)
33421 33421-37030 Gear, Counter
33451 33451-36050 Shaft, Reverse Idler Gear
33451 90280-03002 Key, Woodruff (For Reverse Idler Gear Shaft)
33461 90364-28018 Bearing, Reverse Idler Gear
33462 33462-60020 Washer, Reverse Idler Thrust
33464 33464-60010 Washer, Reverse Idler Thrust, No.2
33481 33481-36160 Gear, Speedometer Drive (Mtm)
33481 33481-36170 Gear, Speedometer Drive (Mtm)
33481 33487-36070 Spacer (For Speedometer Drive Gear)
V-Belt ([09.2002 - ] (0209- )) 1
#OEMPart name
16361 90916-02239 Belt, V(For Fan & Alternator)
Vacuum Pump ([09.2002 - 12.2006] (0209-0612)14B,15BFTE) 19
#OEMPart name
29300 29300-58060 Pump Assy, Vacuum
29300 90099-10185 Bearing, Ball
29303 29337-27010 Rotor Sub-Assy, Vacuum Pump
29311 29311-76010 Pin, Vacuum Pump Dowel, No.1
29331 29331-27010 Blade, Vacuum Pump, A
29336 29336-58040 Shaft, Vacuum Pump
29342 29342-64010 Packing, Vacuum Pump
29342 29342-58010 Packing, Vacuum Pump
29351 29351-58050 Gear, Vacuum Pump
29364 29364-66010 Washer, Vacuum Pump
29369 29369-64030 Valve Sub-Assy, Check
9009690031 90096-90031 RING HOLE SNAP
9009904577 90099-04577 New Genuine Part
9009905185 90099-05185 NUT
9020114099 90201-14099 Gasket(For Vacuum Pump Union)
9040109001 90401-09001 Bolt, Union(For Vacuum Pump Union)
9040109001 90401-09003 Bolt, Union(For Vacuum Pump Union)
9161261032 91612-61032 New Genuine Part
9516110413 95161-10413 Key(For Alternator Pulley)
Vane Pump & Reservoir (Power Steering) ([12.2002 - 12.2006] (0212-0612)BU303,343) 37
#OEMPart name
4446 04446-37050 Gasket Kit, Power Steering Pump
44033 44033-36060 Rotor Sub-Assy, W/cam & Vane
44302 44302-36230 Housing Sub-Assy, Vane Pump, Front
44302 90029-20003 Ring, O, No.1(For Vane Pump Housing)
44302 90029-21018 Seal, Oil, No.2(For Vane Pump Housing)
44302 96151-04000 Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)
44304 44304-36230 Housing Sub-Assy, Vane Pump, Rear
44305 44305-12030 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-12040 Cap Sub-Assy, Vane Pump Oil Reservoir
44310 90301-60002 Ring, O(For Vane Pump)
44311 90029-18001 Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)
44312 44312-36110 Shaft, Vane Pump
44312 90029-36003 Bearing(For Vane Pump Shaft)
44312 90029-52402 Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)
44316 44316-36020 Gear, Vane Pump
44316 96150-01700 Ring
44320 44310-37140 Pump Assy, Vane
44326 44347-89101 Pin, Straight(For Vane Pump Cam Ring)
44328 44328-89101 End, Vane Pump Housing
44328 96711-19020 Ring, O(For Power Steering Actuator)
44330 44330-25010 Valve Assy, Flow Control
44330 44330-25020 Valve Assy, Flow Control
44330 44330-25030 Valve Assy, Flow Control
44330 90029-60002 Spring, Compression(For Flow Control Valve)
44337 44337-37070 Union, Power Steering Suction Port
44337 96711-19016 Ring, O (For 5Th Shift Arm Shaft)
44342 44342-36060 Plate, Vane Pump Side, Rear
44342 96711-24060 Ring, O(For Power Steering Control Valve)
44342 90029-60003 Spring, Compression(For Vane Pump Side Plate Rear)
44360 44360-37130 Reservoir Assy, Vane Pump Oil
44363 44363-37130 Strainer, Oil(For Vane Pump)
44457 44457-36040 Bracket, Tube Support, Vane Pump
91611 91611-G0612 Bolt
9011910070 90119-10070 New Genuine Part
9161261035 91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Ventilation Hose ([09.2002 - ] (0209- )14B) 4
#OEMPart name
12261 12261-56020 Hose, Ventilation
12261 90467-22010 Clip Or Clamp(For Ventilation Hose)
12261 90467-23002 Clip Or Clamp(For Ventilation Hose)
12262 90464-00521 Clip Or Clamp(For Ventilation Hose)
Venturi ([09.2002 - ] (0209- )14B) 6
#OEMPart name
21905 21905-58040 Rod, Accelerator Connecting(For Venturi)
26100 26100-58102 Venturi Assy
91511 91511-C0855 New Genuine Part
7819710010 78197-10010 Clip(For Throttle Link Connecting Rod)
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9211260855 92112-60855 New Genuine Part
Water Pump ([09.2002 - ] (0209- )14B) 10
#OEMPart name
16100 16100-59176 Pump Assy, Engine Water
16100 90345-54005 Plug, W/head Taper Screw, No.1
16117 16117-58010 Plate, Water Pump
16124 16124-58010 Gasket, Water Pump Cover
16271 16271-58010 Gasket, Water Pump
16371 16371-56070 Pulley, Fan
9034552001 90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)
9164380845 91643-80845 New Genuine Part
9164380865 91643-80865 New Genuine Part
9322016014 93220-16014 SCREW
Windshield Washer ([12.2002 - 12.2013] (0212-1312)ARL,GCC,GEN,SA,TAIW) 19
#OEMPart name
85033 85301-17010 Inlet Sub-Assy, Washer
85035 85381-37030 Nozzle Sub-Assy, Washer
85310 85310-90B00 Motor And Pump Assy, Windshield Washer
85330 85315-37090 Jar Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85342 85342-95J01 Holder, Washer Nozzle
85348 85349-89122 Valve Sub-Assy, Washer
85348 85376-46040 Valve Sub-Assy, Washer
85348 85355-14481 Joint, Windshield Washer Elbow, No.1
85348 85348-12250 Joint, Windshield Washer Hose, No.1
85361 85362-37050 Bracket, Windshield Washer, No.1
85371 90446-07001 Hose, Windshield Washer (From Motor To Joint)
85372 90099-33080 Hose, Windshield Washer (From Motor To Joint)
85372 90446-06013 Hose, Windshield Washer (From Motor To Joint)
85383 85383-37010 Holder, Front Washer Nozzle
827113 82711-3A540 Clamp, Sliding Roof Drain Hose
9017906110 90179-06110 New Genuine Part
9155180614 91551-80614 Bolt(For Vacuum Transmitting Pipe)
Windshield Wiper ([08.2002 - ] (0208- )RHD) 18
#OEMPart name
85070 85070-37140 Motor & Bracket Assy, Front Wiper
85150 85150-37090 Link Assy, Wiper
85154 85154-37020 Packing, Front Wiper Shaft
85154 85154-37030 Packing, Front Wiper Shaft
85211 85211-37070 Arm, Front Wiper, Rh
85212 85212-37080 Blade, Fr Wiper, Rh
85212 85212-37081 Blade, Fr Wiper, Rh
85214 85214-24051 Rubber, Wiper, Rh
85214 85214-53050 Rubber, Wiper, Rh
85221 85221-37150 Arm, Front Wiper, Lh
85222 85222-37140 Blade, Fr Wiper, Lh
85222 85222-37141 Blade, Fr Wiper, Lh
85292 85192-12800 Cover, Windshield Wiper Arm
85292 85292-12020 Cover, Windshield Wiper Arm
91621 91621-J0614 BOLT W-WASHER
9011906442 90119-06442 BOLT WWASHER
9011906490 90119-06490 BOLT W-WASHER
9017908113 90179-08113 Nut (For Front Wiper Arm Setting)
Wiring & Clamp ([12.2002 - 06.2011] CLAMPS & BRACKETS (0212-1106)ARL,GCC,GEN,SA,TAIW) 100
#OEMPart name
91511 91511-B0812 BOLT FLANGE
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
91621 91621-B0816 BOLT WWASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
91651 91651-B0830 New Genuine Part
827113 82711-3H530 Wire, Fuse To Fuse(for Combustion Heater)
827113 82711-3H350 Wire, Fuse To Fuse(for Combustion Heater)
827150 82715-0W080 Bracket,wiring Harness Clamp
827153 82715-3V010 Bracket,wiring Harness Clamp
827153 82715-3V050 Bracket,wiring Harness Clamp
827153 82715-3V140 Bracket,wiring Harness Clamp
827153 82715-3V160 Bracket,wiring Harness Clamp
827153 82715-3V170 Bracket,wiring Harness Clamp
827153 82715-3V200 Bracket,wiring Harness Clamp
827153 82715-3V290 Bracket,wiring Harness Clamp
827153 82715-3V300 Bracket,wiring Harness Clamp
827153 82715-3V310 Bracket,wiring Harness Clamp
827153 82715-3V320 Bracket,wiring Harness Clamp
827153 82715-3V460 Bracket,wiring Harness Clamp
827153 82715-3V590 Bracket,wiring Harness Clamp
827153 82715-3V610 Bracket,wiring Harness Clamp
827153 82715-3V620 Bracket,wiring Harness Clamp
827153 82715-3V650 Bracket,wiring Harness Clamp
827153 82715-3V830 Bracket,wiring Harness Clamp
827153 82715-3V520 Bracket,wiring Harness Clamp
827153 82715-3V690 Bracket, Speed Sensor
827153 82715-3V880 Bracket,wiring Harness Clamp
827153 82715-3V890 Bracket,wiring Harness Clamp
8271537 82715-37D60 Bracket,wiring Harness Clamp
8271537 82715-37A90 Bracket,wiring Harness Clamp
8271537 82715-37B10 Bracket,wiring Harness Clamp
8271537 82715-37B20 Bracket,wiring Harness Clamp
8271537 82715-37B30 Bracket,wiring Harness Clamp
8271537 82715-37B40 Bracket,wiring Harness Clamp
8271537 82715-37B51 Bracket,wiring Harness Clamp
8271537 82715-37D50 Bracket,wiring Harness Clamp
8271537 82715-37D80 Bracket,wiring Harness Clamp
8271537 82715-37P40 Bracket,wiring Harness Clamp
8271537 82715-E0050 Bracket,wiring Harness Clamp
8271537 82715-37P50 Bracket,wiring Harness Clamp
8271537 82715-E0060 Bracket,wiring Harness Clamp
8271537 82715-37P60 Bracket,wiring Harness Clamp
8271537 82715-37P73 Bracket,wiring Harness Clamp
8271537 82715-37D30 Bracket,wiring Harness Clamp
8271537 82715-37J90 Bracket,wiring Harness Clamp
8271537 82715-37K10 Bracket,wiring Harness Clamp
8271537 82715-37K20 Bracket,wiring Harness Clamp
8271537 82715-37M10 Bracket,wiring Harness Clamp
8271537 82715-37M70 Bracket,wiring Harness Clamp
8271537 82715-37P90 Bracket,wiring Harness Clamp
8271537 82715-37Q00 Bracket,wiring Harness Clamp
8271595 82715-95D04 Bracket,wiring Harness Clamp
3382937270 33829-37270 Clamp, Transmission Control Cable
4214137010 42141-37010 Attachment, Skid Control Wire, No.1
5140737250 51407-37250 Bracket Sub-Assy, Engine Under Cover
5140737250 51407-37251 Bracket Sub-Assy, Engine Under Cover
8270237291 82702-37291 Bracket Sub-assy, Wiring Harness
8270237340 82702-37340 Bracket Sub-assy, Wiring Harness
8271114110 82711-14110 Clamp(For Hood Lock Control Cable)
8271126070 82711-26070 Wire, Fuse To Fuse(for Combustion Heater)
8271237210 82712-37210 Hose, Suction
8271534100 82715-34100 Bracket,wiring Harness Clamp
8271537750 82715-37750 Bracket,wiring Harness Clamp
8271537760 82715-37760 Bracket,wiring Harness Clamp
8271537850 82715-37850 Bracket,wiring Harness Clamp
8271637210 82716-37210 Bracket, Wiring Harness Clamp, Lh
8271637220 82716-37220 Bracket, Wiring Harness Clamp, Lh
8271637230 82716-37230 Bracket, Wiring Harness Clamp, Lh
8271637510 82716-37510 Bracket, Wiring Harness Clamp, Lh
8271637520 82716-37520 Bracket, Wiring Harness Clamp, Lh
8271637530 82716-37530 Bracket, Wiring Harness Clamp, Lh
8271637540 82716-37540 Bracket, Wiring Harness Clamp, Lh
8271637550 82716-37550 Bracket, Wiring Harness Clamp, Lh
8272837180 82728-37180 New Genuine Part
8272837191 82728-37191 New Genuine Part
8272837200 82728-37200 New Genuine Part
8272837210 82728-37210 New Genuine Part
8272837220 82728-37220 New Genuine Part
8272837230 82728-37230 New Genuine Part
8272937060 82729-37060 New Genuine Part
8272937090 82729-37090 New Genuine Part
8272937250 82729-37250 New Genuine Part
8272937270 82729-37270 New Genuine Part
8272937340 82729-37340 New Genuine Part
9003105123 90031-05123 Bolt(For Cylinder Head Cover)
9003105124 90031-05124 New Genuine Part
9003560063 90035-60063 New Genuine Part
9010510407 90105-10407 New Genuine Part
9011908103 90119-08103 New Genuine Part
9012908007 90129-08007 New Genuine Part
9046312011 90463-12011 New Genuine Part
9161961218 91619-61218 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165160830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9167180816 91671-80816 Bolt (For Transmission Control Cable Bracket)
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Wiring & Clamp ([12.2002 - 06.2011] COWL & INSTRUMENT PANEL (0212-1106)RHD..ARL,GEN,SA) 6
#OEMPart name
82131 82147-37700 Wire, Cowl
82131 82147-37701 Wire, Cowl
82141 82141-37800 Wire, Instrument Panel
82210 90982-08280 Fusible Link
9011906915 90119-06915 BOLT W-WASHER
9155480614 91554-80614 New Genuine Part
Wiring & Clamp ([12.2002 - 06.2011] DOOR & FLOOR (0212-1106)ARL,GCC,GEN,SA,TAIW) 20
#OEMPart name
82151 82151-37320 Wire, Front Door, Rh
82152 82152-37390 Wire, Front Door, Lh
82161 82161-37350 Wire, Floor
82164 82137-37640 Wire, Frame
82165 82165-37130 Wire, Frame, No.2
82165 82165-37240 Wire, Frame, No.2
82165 82165-37110 Wire, Frame, No.2
82165 82165-37410 Wire, Frame, No.2
82171 82171-37550 Wire, Roof, No.1
82284 82284-37040 Wire, Earth
82284 82284-37140 Wire, Earth
82817 82817-37110 Protector, Wiring Harness, No.1
8271237081 82712-37081 Protector, Wiring Harness, No.2
8271237081 82712-37082 Protector, Wiring Harness, No.2
9011908103 90119-08103 New Genuine Part
9011908375 90119-08375 BOLT
9011908827 90119-08827 New Genuine Part
9012908007 90129-08007 New Genuine Part
9161160814 91611-60814 Bolt
9356015014 93560-15014 SCREW
Wiring & Clamp ([12.2002 - 10.2006] ENGINE ROOM & ENGINE (0212-0610)BU303,343,WU300,340 ; (0610-1106)GCC, GEN,SA) 14
#OEMPart name
82111 82115-3V520 Wire, Engine Room Main
82114 82114-37020 Wire, Engine Room, No.4
82114 82114-37140 Wire, Engine Room, No.4
82121 82139-37140 Wire, Engine
82169 82169-37030 Wire Frame, No.3
82210 90982-08202 Fusible Link
82210 90982-08203 Fusible Link
82210 90982-08246 Fusible Link
82210 90982-08281 Fusible Link
82210 90982-08282 Fusible Link
82210 90982-08280 Fusible Link
82823 82823-22050 Cap, Terminal, No.1
9011908375 90119-08375 BOLT
9011908827 90119-08827 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 9
Category
180
Collected
2026-08-03
