BU281

Toyota QUICK-DELIVERY-URBAN-SUPPORTER · 2000 · 3,199 parts · 166 categories
BU281 ×

← Back to categories

3,199 items

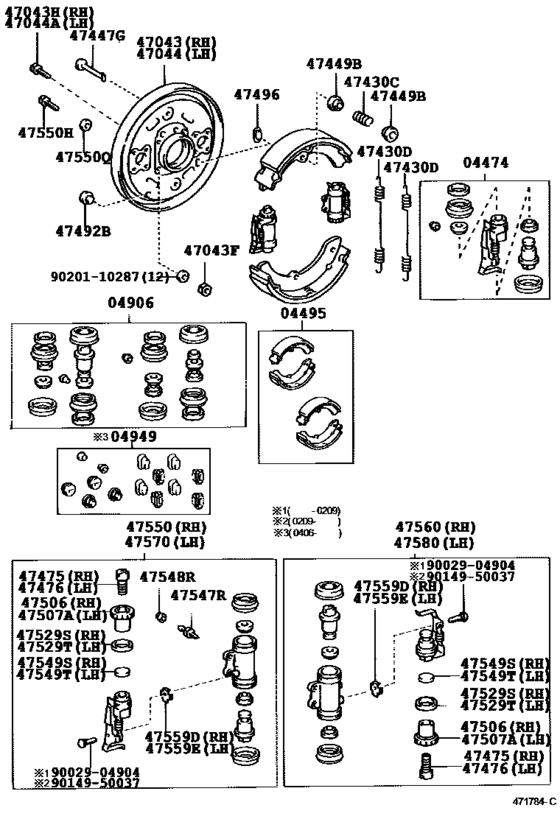

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1999 - 10.2006] (9908-0610)BU28#,RZU280,XZU28#) 42
#OEMPart name
4474 04474-37110 Cylinder Kit, Rear Wheel
4474 04474-37120 Cylinder Kit, Rear Wheel
4495 04494-36280 Shoe Kit, Brake
4906 04906-36211 Cup Kit, Rear Wheel Cylinder
47043 47043-37120 Plate Sub-Assy, Brake Backing, Rear Rh
47043 94130-01002 Nut, Booster Sleeve Cylinder
47043 90114-10063 Bolt, No.1(For Rear Brake Backing Plate Rh)
47044 47044-37120 Plate Sub-Assy, Brake Backing, Rear Lh
47430 90501-20012 Spring(For Front Brake Shoe Hold Down)
47430 90506-29006 Spring, Tension(For Front Brake Shoe Return)
47447 47447-35020 Pin, Shoe Hold Down Spring
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47475 47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476 47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47496 47491-36010 Plug, Hole(For Front Brake)
47496 47491-36020 Plug, Hole(For Rear Brake)
47506 47506-36020 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47507 47507-36020 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47529 47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust
47547 47547-27020 Plug, Bleeder(For Front Drum Brake)
47548 31478-30010 Bleeder Plug Cap
47549 47549-37091 Seat, Rear Brake Automatic Adjust Nut, Rh
47550 47550-37100 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37101 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37102 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90101-08081 Bolt(For Front Wheel Cylinder)
47550 90201-08002 Washer(For Front Wheel Cylinder)
47559 47559-36010 Sping, Front Automatic Adjust Lever Support
47560 47560-37071 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37072 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37073 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-37060 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37061 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37062 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-37061 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37062 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37063 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
9002904904 90029-04904 New Genuine Part
9002904904 90149-50037 SCREW
9020110287 90201-10287 Washer(For Front Wheel Cylinder)
