Accelerator sensor (2.0L) 9

#	OEM	部品名
5	36641-PY3-000	Collar - ACTUATOR MOUNT
6	37971-RDJ-A01	Sensor assy - ACCELERATOR PEDAL
7	37972-RCA-A01	Stay - THROTTLE WIRE
8	37976-RJJ-E00	Bracket comp. - ACCELERATOR PEDAL SENSOR
9	37976-RJJ-G00	Bracket comp. - ACCELERATOR PEDAL SENSOR
10	37977-RFF-000	Stay comp - ACCELERATOR PEDAL SENSOR
11	37978-RCA-A00	Rubber - MOUNT
12	37996-RCA-A00	Cover comp. - ACCELERATOR PEDAL SENSOR
13	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Air cleaner (2.0L) 34

#	OEM	部品名
1	11813-PN4-010	Grommet - TIMING BELT COVER HOLE
2	15772-551-000	Clip - BREATHER TUBE
3	17153-PNC-010	Tube comp - BREATHER
4	17201-PNA-000	Case set, AIR CLEANER
5	17202-PNB-010	Cover set - AIR CLEANER
6	17212-PNA-000	Rubber - AIR CLEANER MOUNTING
7	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
7	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
8	17213-PD1-000	Rubber - AIR CLEANER CASE MOUNTING
9	17213-PNA-000	Rubber a - AIR CLEANER SEAL
10	17214-PNA-000	Rubber b - AIR CLEANER SEAL
11	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
12	17216-PN3-000	Collar - AIR CLEANER MOUNTING
13	17220-PNB-Y01	Element comp - AIR CLEANER
13	17220-PNB-003	Element comp - AIR CLEANER
13	17220-PNB-505	ELEMENT COMP AIR
14	17228-PNB-J00	Air flow tube comp
15	17229-P8A-A00	Joint - AIR HOSE
16	17250-RJJ-000	Tube set b - INTAKE
17	17251-RJJ-000	Tube a - AIR INTAKE
18	17253-RJJ-000	Stay comp - AIR INTAKE
19	17255-RJJ-000	Plate - AIR GUIDE
20	17263-PND-000	Stay c - AIR CLEANER
21	17263-P0A-000	Rubber - AIR CLEANER STAY
22	17314-PNA-013	Clamp - AIR FLOW
23	17315-RFE-003	Clamp - AIR FLOW
24	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
25	75353-671-000	Lock - SCREW
26	90001-PNA-003	Bolt - SPECIAL FLANGE, 6X163
27	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
28	90005-P28-A00	Bolt-washer - SPECIAL, 6X28
29	90091-P36-000	Bolt-washer - 5X28
30	90602-PWA-003	Clamp, Tube (D25)
31	91405-PNA-003	Clamp - BREATHER TUBE

Air conditioner (COMPRESSOR; 2.0L) 16

#	OEM	部品名
1	38773-PR3-003	Clip - WIRE HARNESS
2	38801-P9K-E01	Valve sub assy. - SAFETY
3	38810-RJJ-003	Compressor comp.
4	38812-PH1-003	Ring b - SNAP
5	38812-671-003	Ring a - SNAP
6	38816-PNA-003	Stay - LEAD WIRE
7	38827-PH7-003	Screw-washer - 5X8
8	38829-PR3-003	Bolt - WASHER HEAD
9	38900-PNA-003	Clutch set
10	38912-PH1-N01	Plate set - WASHER
11	38920-PNA-023	Belt - COMPRESSOR (BANDO)
11	38920-PNC-004	Belt - COMPRESSOR (MITSUBOSHI)
12	38924-RJJ-003	Stator set
13	38930-PNA-000	Bracket - COMPRESSOR
14	90023-PNA-000	Bolt - FLANGE, 8X80
15	90024-PNA-000	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER; 2.0L) 16

#	OEM	部品名
1	19033-RJJ-004	Clamp
2	38611-RCA-A01	Fan comp - COOLING
3	38615-RJJ-004	Shroud comp.
4	38616-RJJ-004	Motor - COOLING FAN
5	80107-SJH-E01	Rubber - CONDENSER UPPER
6	80110-SJF-003	Condenser comp.
7	80111-SJD-000	Stay - R. CONDENSER UPPER
8	80112-SJD-000	Stay - L. CONDENSER UPPER
9	80175-S87-A01	Rubber - CONDENSER MOUNTING
10	80351-SJD-003	Receiver assy
11	80352-SJD-003	Band - RECEIVER
12	80873-ST7-000	O-ring - 8MM
13	90041-PAA-A01	Nut - TOOTHED, 5MM
14	90042-PZ1-004	Bolt-washer - 6X20
15	90050-PK1-004	Screw-washer - 4X12(T.RAD)
16	90430-PAA-A01	Washer - PLAIN, 8MM

Air conditioner (HOSES/PI PES; 2.0L; LH) 24

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-SJF-003	Hose comp. - SUCTION
3	80315-SJF-003	Hose comp. - DISCHARGE
4	80318-SH3-003	Clamp b - DISCHARGE HOSE
5	80320-SJF-G01	Pipe assy. - AIR CONDITIONER
6	80325-SDA-A00	Seal - FLANGE
7	80341-SJF-E01	Pipe comp - RECEIVER
8	80361-S2G-000	Stay - SUCTION HOSE
9	80362-SJD-000	Stay - SUCTION HOSE
10	80363-SJD-010	Clamp a - AIR CONDITIONER PIPE
11	80366-SJD-000	Clamp c - AIR CONDITIONER PIPE
12	80440-SS0-901	Switch - DUAL PRESSURE (FUJI)
13	80865-SL0-003	Cap - VALVE (H)
14	80866-SL0-003	Cap - VALVE(L)
15	80871-S50-000	O-ring - 5/8"
15	80871-S5A-003	O-ring - 5/8"
16	80872-S50-000	O-ring - 1/2"
16	80872-S5A-003	O-ring - 1/2"
17	80873-S50-000	O-ring - 8MM
18	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)
19	90361-SV4-003	Nut - PAINT CUTTING, 6MM
20	91536-SFE-003	Clip - AIR CONDITIONER PIPE
21	91548-S3N-003	Clip - RECEIVER PIPE
22	91553-SK7-003	Clamp - 24X39

Air conditioner (HOSES/PI PES; 2.0L; RH) 22

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-SJF-003	Hose comp. - SUCTION
3	80315-SJF-003	Hose comp. - DISCHARGE
4	80318-SH3-003	Clamp b - DISCHARGE HOSE
5	80320-SJF-003	Pipe assy. - AIR CONDITIONER
6	80325-SDA-A00	Seal - FLANGE
7	80341-SJF-E01	Pipe comp - RECEIVER
8	80361-S2G-000	Stay - SUCTION HOSE
9	80362-SJD-000	Stay - SUCTION HOSE
10	80366-SJD-000	Clamp c - AIR CONDITIONER PIPE
11	80440-SS0-901	Switch - DUAL PRESSURE (FUJI)
12	80865-SL0-003	Cap - VALVE (H)
13	80866-SL0-003	Cap - VALVE(L)
14	80871-S50-000	O-ring - 5/8"
14	80871-S5A-003	O-ring - 5/8"
15	80872-S50-000	O-ring - 1/2"
15	80872-S5A-003	O-ring - 1/2"
16	80873-S50-000	O-ring - 8MM
17	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)
18	91536-SFE-003	Clip - AIR CONDITIONER PIPE
19	91548-S3N-003	Clip - RECEIVER PIPE
20	91553-SK7-003	Clamp - 24X39

Air conditioner (SENSOR) 10

#	OEM	部品名
1	32116-SJD-000	Sub cord - SUN BEAM
2	80510-SDA-A41	Sensor assy - SUN BEAM
3	80525-S30-941	Sensor assy - AMBIENT
4	80530-S2R-941	Sensor assy - IN CAR
5	80541-SJD-G40	Hose a - ASPIRATOR
6	80541-SJD-940	Hose a - ASPIRATOR
7	80542-SJD-G40	Hose b - ASPIRATOR
8	80542-SJD-940	Hose b - ASPIRATOR
9	80545-SJD-940	Joint - ASPIRATOR HOSE
10	91592-S10-003	Clip - DRAIN TUBE (NATURAL)

Alloy wheel 15 x 6jj 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Alloy wheel 16x6.5jj 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Alloy wheel 17 inch 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Alternator (MITSUBISHI; 2.0L) 13

#	OEM	部品名
1	31100-RJJ-004	Alternator assy (MITSUBISHI AHGA65) - AHGA65) (MITSUBISHI
2	31101-PNA-004	Rotor assy.
3	31102-PNA-004	Stator
4	31111-P08-J02	Bearing - RR. GENERATOR
5	31114-P01-014	Bearing - FR. GENERATOR
6	31123-PNA-004	Terminal set
7	31125-P08-J02	Bolt - FLANGE
8	31127-RJJ-004	Rectifier assy.
9	31140-P64-902	Brush set
10	31141-PNA-004	Pulley
11	31142-P08-J02	Nut
12	31146-PE0-004	Screw
13	31150-PNC-004	Regulator set

Antenna 18

#	OEM	部品名
1	39151-SJD-E01	Element assy.
2	39152-SJD-J01	Base comp. - ANTENNA
3	39153-SFA-J01	Pad
4	39156-SJD-E01	Sub feeder
4	39156-SJD-G01	Sub feeder
5	39160-SJD-E02	Feeder assy. - ANTENNA (INCLUDE WASHER TUBE)
5	39160-SJD-G02	Feeder assy. - ANTENNA (INCLUDE WASHER TUBE)
6	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
7	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
8	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
9	91533-S04-003	Clip - COUPLER (NATURAL)
10	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
11	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
12	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)
13	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
14	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
15	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
16	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)

Audio unit 8

#	OEM	部品名
2	39103-SJD-G01	Knob - VOLUME & TUNING CONTROL
3	39103-SJD-901	Bracket - L.
4	39103-SJD-911	Bracket - R.
5	39103-SJD-921	Bracket
6	39819-SJD-E01	Bolt-washer - 5X8
7	39819-SJD-E51	Screw - TAPPING PAN, 3X6
8	90133-SM4-003	Bolt-washer - 5X16
9	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Auto air conditioner control (LH) 3

#	OEM	部品名
1	79601-SJD-941	Screw - TAPPING, 4X12
2	79610-SJD-G41	Computer assy - AUTO AIR CONDITIONER
10	79641-SJD-G51	Board assy - PRINTED CIRCUIT

Auto air conditioner control (RH) 3

#	OEM	部品名
1	79601-SJD-941	Screw - TAPPING, 4X12
2	79610-SJD-E41	Computer assy - AUTO AIR CONDITIONER
10	79641-SJD-942	Board assy - PRINTED CIRCUIT

Battery (2.0L) 13

#	OEM	部品名
1	31500-S7C-G01	Battery - 46B24L<S>-MF) (PANASONIC
2	31512-SJF-000	Plate - BATTERY SETTING
3	31513-SP0-010	Bolt - BATTERY SETTING (210MM)
4	31521-SJF-000	Box - BATTERY
5	31531-S5A-000	Cover - BATTERY
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
8	32600-SJF-G00	Cable assy - EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL
11	90149-SE0-003	Bolt - EARTH, 6X16
12	90182-SB6-000	Bolt-washer - 6X16
13	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)

Brake lines (VSA; 2.0L) 28

#	OEM	部品名
1	01464-SJF-000	Hose set - R. FR. BRAKE
2	01465-SJF-000	Hose set - L. FR. BRAKE
3	01466-SJF-010	Hose set - R. RR. BRAKE
4	01468-SJF-010	Hose set - L. RR. BRAKE
5	46330-SJF-E50	Pipe comp. c - BRAKE
5	46330-SJF-G50	Pipe comp. c - BRAKE
6	46340-SJF-E50	Pipe comp. d - BRAKE
6	46340-SJF-G50	Pipe comp. d - BRAKE
7	46374-SJF-E50	Pipe comp. u - BRAKE
8	46374-SJF-G50	Pipe comp. u - BRAKE
9	46375-SJF-E50	Pipe comp. v - BRAKE
10	46375-SJF-G50	Pipe comp. v - BRAKE
11	46376-SJF-E50	Pipe comp. w - BRAKE
11	46376-SJF-G50	Pipe comp. w - BRAKE
12	46377-SJF-E50	Pipe comp. x - BRAKE
12	46377-SJF-G50	Pipe comp. x - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE
14	46391-SDA-A01	Clip g - BRAKE PIPE
15	46392-SJF-E51	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE
17	46395-SAA-G01	Clip - BRAKE PIPE
18	46424-SJD-000	Bracket - R. FR. BRAKE HOSE
19	46425-SJD-000	Bracket - L. FR. BRAKE HOSE
20	46437-SJF-010	Bracket - R. BRAKE HOSE
21	46438-SJF-010	Bracket - L. BRAKE HOSE
22	46462-SE0-000	Bolt - OIL
23	46472-568-000	Packing - OIL BOLT
24	90651-538-000	Clip - BRAKE HOSE

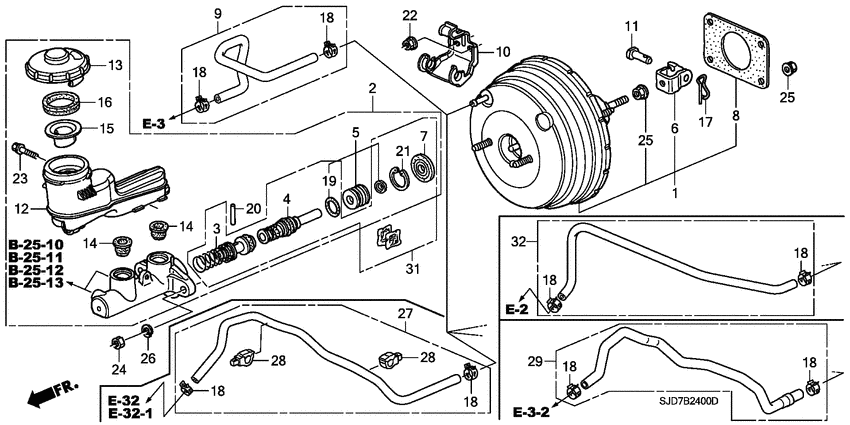

Brake master cylinder/mas ter power (LH) 23

#	OEM	部品名
1	01469-SJD-G00	Power set - MASTER (7"+8")
2	46100-SJF-G51	Cylinder assy. - MASTER
3	57520-S6E-E51	Piston assy. - PRIMARY
4	57540-S6E-E51	Piston assy. - SECONDARY
5	46135-SDA-A01	Guide assy - PISTON
6	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
7	46185-SE0-003	Seal - ROD
8	46191-S2K-000	Packing - MASTER POWER
10	46406-SJF-000	Stay - MASTER POWER TUBE
11	46512-S70-000	Pin - PEDAL
12	46661-SJD-000	Reservoir set
13	46662-S9A-003	Cap comp. - RESERVE TANK
14	46665-S04-J01	Grommet
15	46666-S2K-003	Filter - BRAKE RESERVOIR
16	46669-S5A-003	Diaphragm
17	46911-S70-003	Pin, LOCK(8MM)
18	53729-671-003	Clamp d - 15.5MM
19	57173-SB0-801	O-ring - CONNECTOR
20	57515-S30-003	Pin - STOP
21	57562-SF1-003	Circlip
22	90361-SV4-003	Nut - PAINT CUTTING, 6MM
31	01462-S6E-E50	Cylinder set - MASTER
32	46402-SJF-G01	Tube assy - MASTER POWER

Brake master cylinder/mas ter power (RH) 23

#	OEM	部品名
1	01469-SJD-J00	Power set - MASTER (7"+8")
2	46100-SJF-E51	Cylinder assy. - MASTER
3	57520-S6E-E51	Piston assy. - PRIMARY
4	57540-S6E-E51	Piston assy. - SECONDARY
5	46135-SDA-A01	Guide assy - PISTON
6	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
7	46185-SE0-003	Seal - ROD
8	46191-S2K-000	Packing - MASTER POWER
9	46402-SJF-003	Tube assy - MASTER POWER
11	46406-SJF-000	Stay - MASTER POWER TUBE
12	46512-S70-000	Pin - PEDAL
13	46661-SJD-000	Reservoir set
14	46662-S9A-003	Cap comp. - RESERVE TANK
15	46665-S04-J01	Grommet
16	46666-S2K-003	Filter - BRAKE RESERVOIR
17	46669-S5A-003	Diaphragm
18	46911-S70-003	Pin, LOCK(8MM)
19	53729-671-003	Clamp d - 15.5MM
20	57173-SB0-801	O-ring - CONNECTOR
21	57515-S30-003	Pin - STOP
22	57562-SF1-003	Circlip
23	90361-SV4-003	Nut - PAINT CUTTING, 6MM
29	01462-S6E-E50	Cylinder set - MASTER

Breather tube (2.0L) 4

#	OEM	部品名
1	17130-PNA-003	Valve assy. - PCV
2	17131-PNB-J00	Tube comp - PCV
3	17136-PNA-000	Joint - PCV VALVE
4	17139-PK1-000	Grommet - PCV VALVE

Bumpers 13

#	OEM	部品名
2	71102-SJD-000	Front bumper lower grille
5	71110-SJD-000	Spoiler - FR. BUMPER AIR
7	71141-SJD-010	Front bumper upper beam, RH - R. FR. BUMPER UPPER
8	71146-SJD-010	Front bumper upper beam, LH - L. FR. BUMPER UPPER
9	71193-SJD-013	Front Bumper Spacer, RH
10	71198-SJD-013	Front Bumper Spacer, LH
13	71593-SJD-003	Spacer - R. RR. BUMPER SIDE
14	71598-SJD-003	Spacer - L. RR. BUMPER SIDE
15	90103-SDA-A00	Screw - TAPPING, 5X20
16	90149-SAA-003	Bolt - BUMPER
17	90149-SA0-003	Bolt - BUMPER
18	91503-SZ3-003	Clip A
19	91503-SZ5-003	Clip - BUMPER FACE

Camshaft/cam chain (2.0L) 18

#	OEM	部品名
1	14110-PNE-010	Camshaft comp. - IN.
2	14113-PNA-003	Plate - CAM PULSE
3	14114-PNA-003	Plate - TDC PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM
5	14120-PNA-020	Camshaft comp. - EX.
6	14210-PNA-000	Sprocket - CAM CHAIN DRIVEN (46T)
7	14310-RBC-003	Actuator assy, VTC(46T)
8	14401-PNA-004	CHAIN (170L) (BORG WARNER)
9	14510-PNA-003	Tensioner Assy, CAM CHAIN
9	14510-PRB-A01	Tensioner Assy, Cam Chain
10	14511-PNA-003	Stopper - TOOL
11	14520-PNA-003	ARM, CAM CHAIN TENSIONER
12	14530-PNA-003	GUIDE, CAM CHAIN
13	14540-PRB-A01	GUIDE B, CAM CHAIN
14	90003-PNA-000	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3

Chain case (2.0L) 9

#	OEM	部品名
1	11410-RRA-A00	Case assy. - CHAIN
1	11410-PNC-000	Case assy. Chain
2	11412-PNA-000	Cover - CHAIN CASE
3	37500-PNB-003	Sensor assy - CRANK
4	90021-PNA-000	Bolt - SPECIAL, 6X31
5	91212-RTA-003	Oil seal - 43X58X7 (NOK)
5	91212-RNA-A01	Oil seal - 43X58X7(ARAI)
6	91302-PNA-004	O-ring - CHAIN CASE
7	91333-PNA-003	O-ring - 15X1.9

Clutch (2.0L) 7

#	OEM	部品名
1	21351-PNA-000	Cover - TORQUE CONVERTER CASE
2	22100-RBA-005	Flywheel comp.
3	22103-PNA-003	Bush - 21X24X8
4	22200-RBB-005	Disk comp - FRICTION
5	22300-RBA-005	Disk comp - PRESSURE
6	90011-PNA-B00	Bolt - 12MM
7	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Clutch case (2.0L) 13

#	OEM	部品名
1	21000-PPT-A00	Case comp. - CLUTCH
1	21000-PPT-405	Case comp. - CLUTCH (PARTS MARK)
2	21101-PPP-000	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION
5	21222-PPP-000	Hanger - TRANSMISSION
6	28700-PHR-003	Switch assy - BACK LIGHT (TOKAI)(GRAY)
7	91001-PPP-005	Bearing - BALL, 28X64X15
8	91003-PPT-004	Bearing - NEEDLE, 40X68X20
9	91206-PHR-003	Oil seal - 35X58X8 (NOK)
9	91206-RCT-003	Oil seal - 35X58X8 (NOK)
10	91216-PG1-005	Oil seal - 28X43X7 (NOK)
11	90705-PG2-000	Dowel pin - 14X20

Clutch master cylinder (1.8L/2.0L; LH) 39

#	OEM	部品名
1	17915-SL0-003	Clip - THROTTLE WIRE
2	43352-567-000	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW
4	46151-S5A-A01	Yoke
5	46182-500-013	Circlip
6	46393-SE0-003	Clip s - BRAKE PIPE
7	46911-S70-003	Pin, LOCK(8MM)
8	46912-S84-A00	Pin - CLUTCH PEDAL
9	46920-S7A-A03	Cylinder assy. - CLUTCH MASTER
9	46920-S7A-A05	MC ASSYCLUTCH
10	46921-S5A-003	Plate - STOPPER
11	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
12	46928-S5A-A01	Seal - MASTER CYLINDER
13	46930-S7C-E02	Cylinder assy. - CLUTCH SLAVE
14	46931-S5A-003	Pin - SPRING
15	46932-S5A-003	Piston - SLAVE CYLINDER
16	46937-SS1-003	Boot - SLAVE CYLINDER
17	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
18	46942-S5A-003	Pin - SNAP
19	46943-S5A-003	Seal - RING
20	46944-S5A-J01	Connector
21	46945-S5A-003	O-ring
22	46946-S5A-003	Screw-washer - 4X12
23	46947-S5A-003	Rod - PUSH
24	46948-S5A-003	Rod - PUSH
25	46949-S5A-003	Seal - RING
26	46960-SJF-G02	Pipe comp. a - CLUTCH
27	46961-SJF-G02	Hose - CLUTCH
28	46965-S6A-013	Tank assy. - CLUTCH FLUID
29	46966-SJD-E01	Bracket - TANK
30	46968-S7C-E01	Bracket b - CLUTCH PIPE
31	46970-SJF-E01	Pipe comp. b - CLUTCH
32	46971-SJF-G02	Tube - CLUTCH FLUID
33	46972-S6F-E01	Clamp - TUBE (D12)
34	46995-SJF-G01	Bracket a - CLUTCH PIPE
35	46996-S7C-E00	Stay - CLUTCH PIPE CLIP
36	90106-S7A-E00	Bolt - FLANGE, 8X30
37	90651-538-000	Clip - BRAKE HOSE
38	90684-693-013	Clip - FUEL HOSE

Clutch master cylinder (1.8L/2.0L; RH) 38

#	OEM	部品名
1	17915-SL0-003	Clip - THROTTLE WIRE
2	43352-567-000	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW
4	46151-S9A-003	Yoke
5	46182-500-013	Circlip
6	46911-S70-003	Pin, LOCK(8MM)
7	46912-S84-A00	Pin - CLUTCH PEDAL
8	46920-S9A-J05	Cylinder assy. - CLUTCH MASTER
9	46921-S5A-003	Plate - STOPPER
10	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
11	46928-S5A-003	Seal - MASTER CYLINDER
12	46930-S7C-E02	Cylinder assy. - CLUTCH SLAVE
13	46931-S5A-003	Pin - SPRING
14	46932-S5A-003	Piston - SLAVE CYLINDER
15	46937-SS1-003	Boot - SLAVE CYLINDER
16	46941-S5A-A01	Connector - CLUTCH MASTER CYLINDER
17	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
18	46942-S5A-003	Pin - SNAP
19	46943-S5A-003	Seal - RING
20	46944-S5A-J01	Connector
21	46945-S5A-003	O-ring
22	46946-S5A-003	Screw-washer - 4X12
23	46947-S5A-003	Rod - PUSH
24	46948-S5A-003	Rod - PUSH
25	46949-S5A-003	Seal - RING
26	46960-SJF-E02	Pipe comp. a - CLUTCH
27	46961-SJF-E02	Hose - CLUTCH
28	46965-S6A-013	Tank assy. - CLUTCH FLUID
29	46966-SJD-E01	Bracket - TANK
30	46968-S7C-E01	Bracket b - CLUTCH PIPE
31	46970-SJF-E01	Pipe comp. b - CLUTCH
32	46971-SJF-E01	Tube - CLUTCH FLUID
33	46972-S6F-E01	Clamp - TUBE (D12)
34	46995-SJF-E01	Bracket a - CLUTCH PIPE
35	46996-S7C-E00	Stay - CLUTCH PIPE CLIP
36	90106-S7A-E00	Bolt - FLANGE, 8X30
37	90651-538-000	Clip - BRAKE HOSE
38	91597-SV4-003	Clip A - FUEL PIPE

Clutch release (2.0L) 5

#	OEM	部品名
1	22810-PPT-003	Bearing - CLUTCH RELEASE
2	22821-PPP-000	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK

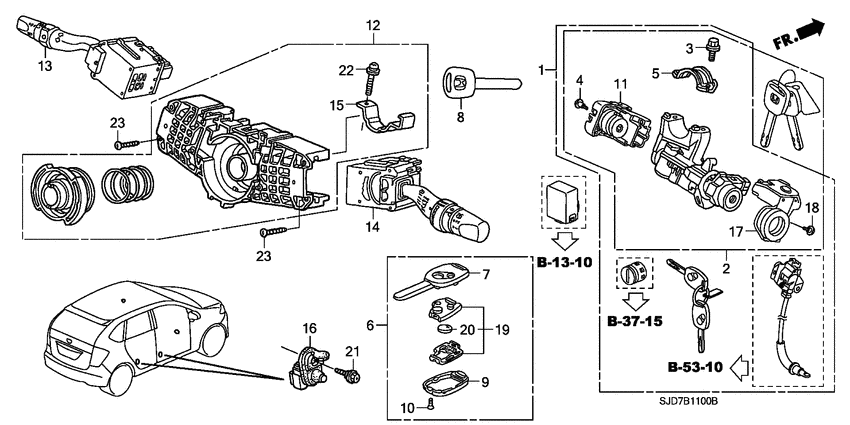

Combination switch (LH) 22

#	OEM	部品名
1	06350-SJD-G01	Cylinder set - KEY
1	06350-SJD-G00	Cylinder set - KEY
2	35100-SJD-G01	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35111-SAA-305	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
7	35113-SAA-305	TRANSMITTER TOP CASE (BLANK) KEY COMP.
8	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
9	35114-SEA-E11	Bottom comp. - TRANSMITTER KEY CASE
10	35116-SDA-A11	Screw - FLAT
11	35130-S7S-J01	Switch comp - STEERING
12	35251-SJD-G11	Sensor assy - STEERING & BODY SWITCH
13	35255-S5A-A22	Switch assy - LIGHTING & TURN SIGNAL
14	35256-SJD-G01	Switch assy - WIPER
15	35257-S5A-J01	Bracket
16	35400-S6A-003	Switch assy - DOOR (DAIICHI)
17	39730-SEA-E01	Immobilizer unit
18	72118-ST7-003	Screw - TAPPING, 3X5
19	72147-SAA-E01	KEYLESS MODULE ASSY
20	72148-S0A-000	Battery CR1616
21	90132-SFE-003	Screw - EARTH, 5X18

Combination switch (RH) 21

#	OEM	部品名
1	06350-SJD-E01	Cylinder set - KEY
1	06350-SJD-E00	Cylinder set - KEY
2	35100-SEA-E01	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35111-SAA-305	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
7	35113-SAA-305	TRANSMITTER TOP CASE (BLANK) KEY COMP.
8	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
9	35114-SEA-E11	Bottom comp. - TRANSMITTER KEY CASE
10	35116-SDA-A11	Screw - FLAT
11	35130-SAA-J51	Switch comp - STEERING
12	35251-SJD-E51	Sensor assy - STEERING & BODY SWITCH
13	35255-S5A-A22	Switch assy - LIGHTING & TURN SIGNAL
14	35256-SJD-E01	Switch assy - WIPER
15	35400-S6A-003	Switch assy - DOOR (DAIICHI)
16	39730-SEA-E01	Immobilizer unit
17	72118-ST7-003	Screw - TAPPING, 3X5
18	72147-SAA-E01	KEYLESS MODULE ASSY
19	72148-S0A-000	Battery CR1616
20	90132-SFE-003	Screw - EARTH, 5X18

Control unit (CABIN; LH; 1) 26

#	OEM	部品名
1	33136-SJF-J01	Sensor assy - HEADLIGHT ADJUSTER FR.
2	33137-SJD-G01	Control unit - AUTO LEVELING ELECTRONIC
3	33143-S1A-G01	Nut - SPECIAL, 6MM
4	33146-SJD-003	Sensor assy - HEADLIGHT ADJUSTER RR.
5	37820-RJJ-G01	Control module - ENGINE (REWRITABLE)
6	37821-RJH-G00	Bracket comp. - ENGINE CONTROL MODULE
7	37850-PPD-911	Driver unit - DRIVE BY WIRE
8	38140-S7A-G01	Wiper unit - INTERMITTENT
9	38200-SJD-G02	Box assy - FUSE
10	38201-SJD-G10	Bracket a - FUSE BOX
11	38310-SEA-G01	Relay - CLEANER CONTROL
12	38385-SAA-G01	Receiver unit - KEYLESS ENTRY
13	38650-SJD-G01	Control unit - INTEGRATED
13	38650-SJD-G02	Control unit - INTEGRATED
14	38970-SJD-003	Sensor assy - RAIN
15	38971-S3V-A01	Clip - SPRING
17	38981-SFY-000	Base - RAIN SENSOR COVER
18	39720-SEA-E01	Imoes unit
18	39720-SEA-E02	Imoes unit
19	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
23	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
24	39870-SEN-003	Control unit - RR. FOG LAMP
25	39880-S6A-E01	Security unit
26	39960-SJD-A01	Sensor assy - YAW & G
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM
29	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

Control unit (CABIN; LH; 2) 5

#	OEM	部品名
1	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
4	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)
4	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)
5	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
5	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)

Control unit (CABIN; RH; 1) 17

#	OEM	部品名
2	37820-RJJ-N01	Control module - ENGINE (REWRITABLE)
3	37821-RJH-000	Bracket comp. - ENGINE CONTROL MODULE
4	37850-PPD-911	Driver unit - DRIVE BY WIRE
5	38140-S7A-G01	Wiper unit - INTERMITTENT
6	38200-SJD-N01	Box assy - FUSE
7	38201-SJD-000	Bracket a - FUSE BOX
8	38385-SAA-G01	Receiver unit - KEYLESS ENTRY
9	38650-SJD-G01	Control unit - INTEGRATED
9	38650-SJD-G02	Control unit - INTEGRATED
10	39720-SEA-E01	Imoes unit
10	39720-SEA-E02	Imoes unit
11	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
15	39870-SEN-003	Control unit - RR. FOG LAMP
16	39880-S6A-E01	Security unit
17	39960-SJD-A01	Sensor assy - YAW & G
19	90301-SP0-003	Nut - PAINT CUTTING, 6MM
20	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

Control unit (CABIN; RH; 2) 5

#	OEM	部品名
1	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
3	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)
4	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
4	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)

Control unit (ENGINE ROOM; 2.0L; 1) 20

#	OEM	部品名
1	25218-PMP-000	Stay comp - ATF HOSE CLAMP
2	38100-SJD-013	Horn assy - LOW
2	38100-SJD-003	Horn assy - LOW
4	38100-S7S-013	Horn assy - LOW(MITSUBA)
4	38100-S7S-003	Horn assy - LOW (MITSUBA)
5	38101-SJD-000	Bracket - HORN
6	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)
7	38231-S04-003	Fuse - BLOCK (30A)
8	38231-S04-961	Fuse - BLOCK (40A)
9	38231-S10-003	Fuse - BLOCK (20A)
10	38232-SDA-A11	Fuse b - MULTI BLOCK (50A/50A)
11	38235-SX8-003	Puller - MINI FUSE (TAIHEIYO)
12	38251-SJF-G00	Bracket a - RELAY BOX
12	38251-SJF-000	Bracket a - RELAY BOX
13	38252-SJF-000	Bracket b - RELAY BOX
14	38253-SJD-E02	Cover - RELAY BOX (UPPER)
15	38254-SJD-003	Cover - RELAY BOX (LOWER)
16	90114-SM4-900	Bolt - 6X15
17	90129-SX8-003	Screw-washer - 5X12
18	90150-S84-003	Bolt - EARTH, 8X16

Control unit (ENGINE ROOM; 2.0L; 2) 5

#	OEM	部品名
1	39792-SDA-A01	Relay assy - MICRO ISO
3	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)
10	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
10	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)
12	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

Countershaft (2.0L) 44

#	OEM	部品名
1	23221-PNS-000	Countershaft
2	23421-RAS-000	Gear - COUNTERSHAFT LOW
3	23431-PPT-000	Gear - COUNTERSHAFT SECOND
4	23461-RAS-000	Gear - COUNTERSHAFT FIFTH
5	23471-RAS-000	Gear - COUNTERSHAFT THIRD
6	23481-RAS-000	Gear - COUNTERSHAFT FOURTH
7	23491-RAS-000	Gear - COUNTERSHAFT SIXTH
8	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)
9	23914-PPP-000	Collar - DISTANCE, 40X47X27.5
10	23917-PPP-000	Collar - DISTANCE, 40X47X28
11	23986-PPP-000	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)
11	23984-PPP-000	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)
12	90011-PPP-000	Bolt - SPECIAL, 20X25
13	90601-PPP-000	Ring - SNAP, 72MM
14	91004-PPP-004	Bearing - BALL, 30X72X17
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23
16	91212-PPP-004	Damper - FRICTION (SECOND)

Cylinder block/oil pan (2.0L) 24

#	OEM	部品名
1	11000-PND-000	Block assy - CYLINDER
1	11000-PNC-000	Block assy - CYLINDER
2	11106-PNA-300	Bolt - SEALING, 20MM
3	11106-PR4-013	Bolt - SEALING, 28MM
4	11108-PT0-003	Bolt - SEALING, 18MM
5	11135-PNA-000	Orifice - LOWER BLOCK
6	11200-PNA-000	Pan comp - OIL
7	11221-PNA-000	Plate a - BAFFLE
8	11222-RAA-A00	Plate b - BAFFLE
9	11223-PNA-000	Plate c - BAFFLE
10	30530-PNA-003	Knock Sensor - 30530-PNA-003
10	30530-PPL-A01	Knock Sensor
11	37240-PT0-023	Switch - OIL PRESSURE(DENSO)
11	37240-PT0-014	Switch - OIL PRESSURE (TEC)
12	90006-PNA-003	Bolt-washer - 11X95
13	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
14	90041-PA5-000	Bolt - STUD, 6X28
15	90401-PR4-000	Washer - SEALING, 28MM
16	90703-PE0-000	Dowel pin - 18X22
17	90715-PNA-000	Dowel pin - 13X14
18	91214-PWA-Y01	Oil seal - 80X98X10 (NOK)
18	91214-RTA-004	Oil seal - 80X98X10 (ARAI)
18	91214-RNB-A01	Oil seal (80x98x10)
18	91214-PWA-003	Oil seal - 80X98X10 (NOK)

Cylinder head (2.0L) 10

#	OEM	部品名
1	12100-PNC-010	Head assy - CYLINDER
2	12204-PNA-305	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)
4	14631-PNE-000	Shaft - IN. ROCKER
5	14633-PNA-000	Shaft - EX. ROCKER
6	37510-PNB-003	Sensor assy - TDC
7	90011-PNA-003	Bolt A, Head Cover
8	90012-PNA-003	Bolt b - HEAD COVER
9	90083-PNA-000	Bolt - SEALING, 10MM
10	91333-PNA-003	O-ring - 15X1.9

Cylinder head cover (2.0L) 15

#	OEM	部品名
1	12030-PNA-020	Packing set - HEAD COVER
2	12310-PND-030	Cover comp. - CYLINDER HEAD
3	12341-RTA-000	Packing, CYLINDER HEAD COVER
4	12342-PCX-004	Seal - SPARK PLUG TUBE (NOK)
5	12500-PNC-020	Cover comp. - PLUG HOLE COIL
6	15610-P5G-000	Cap assy. - OIL FILLER
6	15610-RGA-000	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler
8	15650-PNA-014	Gauge comp. - OIL LEVEL
9	90013-PNC-010	Bolt a - PLUG HOLE COIL COVER
10	90014-RAA-A00	Bolt b - PLUG HOLE COIL COVER
10	90014-R40-A00	Bolt b - PLUG HOLE COIL COVER
11	90207-RAA-A00	Nut - HEX. CAP, 6MM
12	90213-PH3-000	Nut - CAP, 6MM
13	90441-PNA-010	Washer - HEAD COVER

Differential (2.0L) 21

#	OEM	部品名
1	41100-RAR-000	Differential comp.
2	41233-PPT-000	Gear - FINAL DRIVEN
3	41454-PL3-B00	Shim p - 80MM(1.45)
3	41449-PL3-B00	Shim j - 80MM(1.8)
3	41444-PL3-B00	Shim d - 80MM(1.3)
3	41456-PL3-B00	Shim r - 80MM(1.65)
3	41451-PL3-B00	Shim l - 80MM(1.15)
3	41446-PL3-B00	Shim f - 80MM(1.5)
3	41441-PL3-B00	Shim a - 80MM(1.0)
3	41453-PL3-B00	Shim n - 80MM(1.35)
3	41448-PL3-B00	Shim h - 80MM(1.7)
3	41443-PL3-B00	Shim c - 80MM(1.2)
3	41455-PL3-B00	Shim q - 80MM(1.55)
3	41450-PL3-B00	Shim k - 80MM(1.05)
3	41445-PL3-B00	Shim e - 80MM(1.4)
3	41457-PL3-B00	Shim s - 80MM(1.75)
3	41452-PL3-B00	Shim m - 80MM(1.25)
3	41447-PL3-B00	Shim g - 80MM(1.6)
3	41442-PL3-B00	Shim b - 80MM(1.1)
4	90017-PPP-000	Bolt - SPECIAL, 11MM
5	91005-PPS-003	Bearing - BALL, 40X80X18(NTN)

Duct 2

#	OEM	部品名
2	83332-SJD-G01	Duct assy - RR. HEATER JOINT
3	83332-SJD-003	Duct assy - RR. HEATER JOINT

Emblems/caution labels 11

#	OEM	部品名
1	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
1	17669-SV5-P00	Label - FUEL FILLER CAUTION (PORTUGAL)
2	19043-PLA-E00	Label - COOLANT INFORMATION
2	19043-PLA-G00	Label - COOLANT INFORMATION
3	42760-SJF-E01	Plate - TIRE PRESSURE CAUTION
4	75701-SJD-003	Emblem - RR. (H)
5	75722-SJD-E01	Emblem - RR. (FR-V)
6	77875-SDA-G80	Label - SRS CAUTION
7	78031-SDA-G80	Label - SIDE AIRBAG CAUTION
8	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
9	91512-SR3-004	Clip - TUBULAR

Engine assy./transmission assy. (2.0L) 5

#	OEM	部品名
1	10002-RJJ-E10	General assy. - CYLINDER BLOCK
1	10002-RJJ-E11	General assy. - CYLINDER BLOCK
1	10002-RJJ-E00	General assy. - CYLINDER BLOCK
2	10003-RJJ-E01	General assy. - CYLINDER HEAD
3	20011-RJT-W50	Transmission assy - MT

Engine cover (2.0L) 4

#	OEM	部品名
1	17121-PNB-000	Cover assy. - ENGINE
2	17122-PNC-J00	Stay comp - ENGINE COVER
3	17127-PNB-000	Rubber a - ENGINE COVER
4	90102-PND-000	Bolt - SPECIAL FLANGE, 6X38

Engine hood (LH) 22

#	OEM	部品名
4	74120-SJD-E01	Lock assy - HOOD (SECURITY SWITCH)
6	74130-SJD-G01	Wire assy. - HOOD
7	74134-SM4-000	Grommet - HOOD WIRE
9	74141-SJD-003	Insulator - HOOD
9	74141-SJD-013	Insulator - HOOD
10	74143-SJD-010	Rubber - RR. HOOD SEAL
11	74145-SJD-000	Stay - HOOD OPENER
12	74146-SJD-003	Rubber - HOOD SEAL
13	74200-SJD-G01	Cowl top assy. - FR.
13	74200-SJD-G02	Cowl top assy. - FR.
14	74212-SJD-G00	Cover - R. HOOD HINGE
15	74222-SJD-G00	Cover - L. HOOD HINGE
16	90108-S0A-003	Bolt - FLANGE, 6X15
17	90602-SX0-003	Clip - COWL TOP
18	90602-S5A-003	Clip - COWL TOP
19	90603-SX0-003	Grommet - COWL TOP
20	91501-SL4-003	Clip - FR. COWL
21	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
22	91504-SDA-003	Clip - HOOD OPEN WIRE
23	91520-SCC-003	Clip - HOOD SEAL RUBBER
24	91522-SM4-003	Clip - TUBE & INSULATOR
25	91565-SD5-003	Clip - COUPLER(NATURAL)

Engine hood (RH) 21

#	OEM	部品名
4	74120-SJD-E01	Lock assy - HOOD (SECURITY SWITCH)
6	74130-SJD-003	Wire assy. - HOOD
7	74134-SM4-000	Grommet - HOOD WIRE
9	74141-SJD-013	Insulator - HOOD
10	74143-SJD-010	Rubber - RR. HOOD SEAL
11	74145-SJD-000	Stay - HOOD OPENER
12	74146-SJD-003	Rubber - HOOD SEAL
13	74200-SJD-020	Cowl top assy. - FR.
13	74200-SJD-010	Cowl top assy. - FR.
14	74212-SJD-000	Cover - R. HOOD HINGE
15	74222-SJD-000	Cover - L. HOOD HINGE
16	90108-S0A-003	Bolt - FLANGE, 6X15
17	90602-SX0-003	Clip - COWL TOP
18	90602-S5A-003	Clip - COWL TOP
19	90603-SX0-003	Grommet - COWL TOP
20	91501-SL4-003	Clip - FR. COWL
21	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
22	91504-SDA-003	Clip - HOOD OPEN WIRE
23	91520-SCC-003	Clip - HOOD SEAL RUBBER
24	91522-SM4-003	Clip - TUBE & INSULATOR
25	91565-SD5-003	Clip - COUPLER(NATURAL)

Engine mounting bracket (2.0L) 11

#	OEM	部品名
1	11910-PNA-000	Bracket - ENGINE SIDE MOUNTING
2	31170-PNA-023	Tensioner assy, Auto
3	31180-PNA-J01	Pulley comp., IDLER
4	31185-PNA-003	Cover - BEARING
5	90002-PNA-000	Bolt - SPECIAL, 10X28
6	90008-PNA-000	Bolt - 10X75
7	90025-PNA-000	Bolt - SPECIAL, 8X105
8	90027-PND-A00	Bolt - SPECIAL, 10X50
9	90041-PNC-000	Bolt - STUD, 12X42
10	90043-PNA-010	Bolt - STUD, 12X91
11	90202-PNA-003	Nut - 10MM

Engine mounts (2.0L) 18

#	OEM	部品名
1	50805-S9A-023	Rubber assy. - TRANSMISSION MOUNTING
2	50808-S7C-000	Mass - MISSION MOUNTING
3	50810-S7C-003	Rubber assy. - RR. ENGINE MOUNTING
4	50821-S9A-023	Rubber comp - ENGINE SIDE MOUNTING
5	50823-S9A-013	Bracket - SIDE MOUNTING
6	50825-SJF-000	Bracket - TRANSMISSION MOUNTING
7	50827-S7C-000	Bracket - RR. ENGINE MOUNTING
8	50840-S7C-000	Stopper - FR. ENGINE
9	90161-S7C-000	Bolt - SPECIAL FLANGE, 10X77
10	90163-S5A-000	Bolt - FLANGE, 10X20
11	90164-SH3-010	Bolt - FLANGE, 12X90
12	90165-S7C-000	Bolt - FLANGE, 12X54
13	90166-S7C-000	Bolt - FLANGE, 12X84
14	90167-S5A-010	Bolt - FLANGE, 12X88
15	90168-S5A-000	Bolt - FLANGE, 12X35
16	90371-SR3-000	Nut - FLANGE, 12MM
17	90371-S5A-000	Nut - YOKE, 12MM
18	90371-S7C-000	Nut - SIDE

Engine wire harness (2.0L; LH) 27

#	OEM	部品名
1	32110-RJJ-G00	Harness - ENGINE WIRE
2	32111-RJJ-G00	Sub cord - STARTER
3	32113-RJJ-003	Collar - HARNESS GROMMET
4	32116-P64-003	Holder - CORRUGATED (DARK GREEN) (13MM)
5	32117-PPD-003	Holder - CORRUGATED (15U)
6	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
7	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
8	32121-RAA-A00	Holder a - ENGINE HARNESS
9	32122-PNF-G10	Holder b - ENGINE HARNESS
10	32123-PNA-000	Holder c - ENGINE HARNESS
11	32124-PNA-010	Holder d - ENGINE HARNESS
12	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
13	32418-RBG-300	Cover - BATTERY TERMINAL
14	32601-SK7-900	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL
16	32610-SJF-000	Cable - SUB EARTH
17	90149-SE0-003	Bolt - EARTH, 6X16
18	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
19	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
20	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
21	91531-S5B-003	Band - HARNESS (BLACK) (120MM)
22	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)
23	91552-PNA-003	Clip - HARNESS BAND (BLACK) (110MM)
24	91552-RAA-003	Clip - HARNESS BAND (DARK BLUE) (135.4MM)
25	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)
26	91558-P8C-A01	Clip - HARNESS BAND (VIOLET) (150MM)
27	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Engine wire harness (2.0L; RH) 27

#	OEM	部品名
1	32110-RJJ-E00	Harness - ENGINE WIRE
2	32111-RJJ-G00	Sub cord - STARTER
3	32113-RJJ-003	Collar - HARNESS GROMMET
4	32116-P64-003	Holder - CORRUGATED (DARK GREEN) (13MM)
5	32117-PPD-003	Holder - CORRUGATED (15U)
6	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
7	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
8	32121-RAA-A00	Holder a - ENGINE HARNESS
9	32122-PNF-G10	Holder b - ENGINE HARNESS
10	32123-PNA-000	Holder c - ENGINE HARNESS
11	32124-PNA-010	Holder d - ENGINE HARNESS
12	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
13	32418-RBG-300	Cover - BATTERY TERMINAL
14	32601-SK7-900	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL
16	32610-SJF-000	Cable - SUB EARTH
17	90149-SE0-003	Bolt - EARTH, 6X16
18	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
19	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
20	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
21	91531-S5B-003	Band - HARNESS (BLACK) (120MM)
22	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)
23	91552-PNA-003	Clip - HARNESS BAND (BLACK) (110MM)
24	91552-RAA-003	Clip - HARNESS BAND (DARK BLUE) (135.4MM)
25	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)
26	91558-P8C-A01	Clip - HARNESS BAND (VIOLET) (150MM)
27	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Engine wire harness stay (2.0L; LH) 4

#	OEM	部品名
1	32742-PNA-000	Stay b - ENGINE WIRE HARNESS
2	32745-RJH-G00	Stay e - ENGINE WIRE HARNESS
3	32746-RJJ-G00	Stay f - ENGINE WIRE HARNESS
4	32747-RJJ-G00	Stay g - ENGINE WIRE HARNESS

Engine wire harness stay (2.0L; RH) 3

#	OEM	部品名
1	32742-PNA-000	Stay b - ENGINE WIRE HARNESS
2	32746-PNA-000	Stay f - ENGINE WIRE HARNESS
3	32746-RJJ-000	Stay f - ENGINE WIRE HARNESS

Exhaust manifold (2.0L) 10

#	OEM	部品名
1	11942-PNA-000	Stay - EX. MANIFOLD
2	18100-PND-010	Manifold comp - EX.
3	18115-PNB-003	Gasket - EX. MANIFOLD (ISHINO GASKET)
3	18115-PRB-A01	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)
4	18120-PND-A00	Cover comp. - EX. MANIFOLD
5	90005-P0A-000	Bolt-washer - 10X22
6	90010-PE2-900	Bolt - SPECIAL, 10X22
7	90015-PT0-J00	Bolt-washer - 8X14
8	90212-SA5-003	Nut - SELF-LOCK, 10MM
9	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe/silencer (2.0L) 29

#	OEM	部品名
1	17519-SJF-000	Protector - FUEL TANK
2	18160-RJJ-G00	Converter comp.
3	18176-P08-003	Bolt - CONVERTER
4	18181-RJJ-J00	Cover comp. - LOWER
5	18182-RJJ-J00	Cover comp. - UPPER
6	18215-SEA-J01	Rubber - EX. MOUNTING
7	18215-SL5-A00	Rubber - EX. MOUNTING
8	18215-S5A-J01	Rubber - EX. MOUNTING
9	18220-SJF-013	Pipe b - EX.
10	18229-S2K-003	Gasket - EX. FLEXIBLE
11	18229-S6M-003	Gasket - EX. FLEXIBLE
12	18230-SV4-000	Spring - FLEXIBLE JOINT
13	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
14	18307-SJF-023	Silencer comp - EX.
15	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
16	36531-RJJ-G01	Sensor - LAF
17	36532-RJJ-J01	Sensor - OXYGEN
18	36535-RJJ-J00	Clamp - OXYGEN SENSOR
19	36535-RJJ-000	Clamp - OXYGEN SENSOR
20	36536-RJJ-J00	Stay - SENSOR
21	36538-RKC-003	Clip - WIRE HARNESS
22	74270-SJF-000	Plate comp - DASHBOARD LOWER HEAT BAFFLE
23	74606-SJD-010	Plate c - FR. HEAT BAFFLE
24	74610-SJF-000	Plate comp - FR. FLOOR HEAT BAFFLE
25	74655-SJD-000	Plate - SILENCER BAFFLE
26	90023-PK1-000	Bolt - FLANGE, 6X10
26	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
27	90121-PZA-000	Bolt-washer - 8X16
28	90212-SA5-003	Nut - SELF-LOCK, 10MM

Floor mat 16

#	OEM	部品名
1	74251-SJD-010	Insulator - DASHBOARD OUTER
1	74251-SJD-G01	Insulator - DASHBOARD OUTER
1	74251-SJD-G00	Insulator - DASHBOARD OUTER
2	74260-SJD-010	Insulator - DASHBOARD
2	74260-SJD-000	Insulator - DASHBOARD
2	74260-SJD-G00	Insulator - DASHBOARD
2	74260-SJD-G01	Insulator - DASHBOARD
4	83302-SJD-G00	Spacer - FR. CARPET
6	83315-SJD-J01	Pad - PASSENGER FOOT
6	83315-SJD-G01	Pad - PASSENGER FOOT
7	83316-SJD-J01	Clip A
8	83317-SJD-J01	Clip b
18	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
19	91560-S5H-003	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
21	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Floor/inner panels 1

#	OEM	部品名
36	90167-SAA-010	Bolt - FLANGE, 10X25

Fog light 19

#	OEM	部品名
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO
2	33901-SJD-003	Light unit - R. FOG
2	33901-SJD-G01	Light unit - R. FOG
3	33905-SJD-003	Bracket - R.
3	33951-SJD-G01	Light unit - L. FOG
4	33906-SJD-013	Garnish - R.
5	33907-SJD-003	Cap - R. (A)
5	35255-S5A-A22	Switch assy - LIGHTING & TURN SIGNAL
6	33908-SJD-003	Cap - R. (B)
6	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)
6	39794-SDA-A01	Relay assy - POWER(MICRO ISO) (MITSUBA)
7	33909-SJD-003	Screw
8	33910-SJD-G01	Sub cord - FR. FOG
9	33910-SJD-003	Screw
10	33951-SJD-003	Light unit - L. FOG
11	33955-SJD-003	Bracket - L.
12	33956-SJD-013	Garnish - L.
13	33957-SJD-003	Cap - L. (A)
14	33958-SJD-003	Cap - L. (B)

Fr grille*nh623m* 2

#	OEM	部品名
2	91503-S7A-003	Clip - FR. GRILLE
3	75700-S3N-010	Emblem - FR CENTER

Fr under sp*prim* 3

#	OEM	部品名
2	90133-SL0-000	Bolt - INSULATOR, 6MM
3	90308-SB2-013	Nut - SUSPENSION, 5MM
4	90103-SDA-A00	Screw - TAPPING, 5X20

Front brake 26

#	OEM	部品名
1	01463-S7A-N00	Caliper set - FR.
1	01463-S7A-N01	SETCALIPER FR 1
2	06450-SJF-E00	Pad set - FR. (WITHOUT SHIM)
2	06450-SJF-305	Pad set - FR. (WITHOUT SHIM) (###)
3	06455-S7A-E00	Shim set - FR.
4	43352-SM4-951	Screw - BLEEDER
5	43353-SD5-003	Cap - BLEEDER SCREW
6	44300-S9A-003	Bearing assy - FR. HUB (NSK)
6	44300-TSA-K51	Bearing assy
7	44600-S87-A00	Hub assy - FR.
8	45018-SJF-J00	Caliper sub assy. - R.
9	45019-SJF-J00	Caliper sub assy. - L.
10	45022-SJF-305	Pad set - FR. (16CL-15VN, NF98)
10	45022-SJF-E00	Pad set - FR.
11	45216-S5A-J01	Piston
12	45235-S0K-A01	Pin a
13	45237-S7A-N02	Retainer
14	45240-SM4-003	Bolt - FLANGE, 10X24
15	45251-S7A-E10	Disk - FR. BRAKE (15")
16	45255-S7A-N00	Guard - FR. SPLASH
17	45262-S0K-A01	Pin b
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
19	90113-SD4-901	Bolt - WHEEL (MEIRA)
19	90113-SD4-902	Bolt - WHEEL (SAGA)
19	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)
20	90681-SG0-000	Circlip - INTERNAL, 84MM

Front bulkhead/dashboard 7

#	OEM	部品名
20	60620-SJD-003	Separator - R. FR. HOUSING EXTENSION
26	60720-SJD-003	Separator - L. FR. HOUSING EXTENSION
40	74185-SJD-000	Patch - R. FR. DUMPER BASE
41	74195-SJD-000	Patch - L. FR. DUMPER BASE
42	74255-SJD-G00	Bracket - ACCELERATOR PEDAL STOPPER
44	90105-634-000	Bolt-washer (8x20)
45	90108-S0A-003	Bolt - FLANGE, 6X15

Front door glass/ door regulator 17

#	OEM	部品名
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY
2	72210-SJD-J01	Regulator assy - R. FR. DOOR POWER
2	72210-SJD-J03	Regulator assy - R. FR. DOOR POWER
2	72210-SJD-G02	Regulator assy - R. FR. DOOR POWER
2	72210-SJD-G01	Regulator assy - R. FR. DOOR POWER
2	72210-SJD-G03	Regulator assy - R. FR. DOOR POWER
3	72235-SJD-003	Runchannel - R. FR. DOOR
4	72250-SJD-J03	Regulator assy - L. FR. DOOR POWER
4	72250-SJD-J01	Regulator assy - L. FR. DOOR POWER
4	72250-SJD-G02	Regulator assy - L. FR. DOOR POWER
4	72250-SJD-G01	Regulator assy - L. FR. DOOR POWER
4	72250-SJD-G03	Regulator assy - L. FR. DOOR POWER
5	72275-SJD-003	Runchannel - L. FR. DOOR
6	73300-SJD-E00	Glass assy - R. FR. DOOR (GREEN)(NIPPON SAFETY)
7	73350-SJD-E00	Glass assy - L. FR. DOOR (GREEN)(NIPPON SAFETY)
8	90021-SFA-000	Bolt - FLANGE, 6X10
9	90115-SFE-004	Bolt - FLANGE, 6X12

Front door lining 8

#	OEM	部品名
1	35190-SJD-003	Switch assy - REMOTE CONTROL MIRROR
3	72335-SJD-003	Weatherstrip - R. FR. DOOR INNER
4	72375-SJD-003	Weatherstrip - L. FR. DOOR INNER
11	83508-SFA-000	Bracket - PULL POCKET
18	90101-S03-000	Screw - TAPPING, 4X16
19	90662-SB2-003	Grommet - SCREW, 5MM
20	91560-S6A-003	Clip - DOOR LINING(ORANGE)
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Front door lock/ outer handle 45

#	OEM	部品名
1	72110-SJD-N01	Latch assy - R. FR. DOOR POWER
1	72110-SJD-N02	Latch assy - R. FR. DOOR POWER
1	72110-SJD-G01	Latch assy - R. FR. DOOR POWER
1	72110-SJD-G02	Latch assy - R. FR. DOOR POWER
2	72111-S5P-A00	Fastener - R.
3	72118-SJK-003	Screw - TAPPING
6	72130-SJD-003	Protector - R. FR. OUTER HANDLE
7	72131-SJD-003	Cable - R. FR. INSIDE HANDLE
8	72133-SJD-003	Cable - R. FR. DOOR LATCH
9	72134-SHJ-003	Clip s - CABLE END (NATURAL)
10	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT
11	72135-SDA-A01	Striker assy - DOOR LOCK
12	72140-SJD-013	Handle assy - R. FR. DOOR OUTSIDE
12	72140-SJD-003	Handle assy - R. FR. DOOR OUTSIDE
12	72140-SJD-G01	Handle assy - R. FR. DOOR OUTSIDE
12	72140-SJD-G02	Handle assy - R. FR. DOOR OUTSIDE
13	72143-S04-003	Packing
14	72144-SJD-003	Retainer
15	72145-SJD-E02	Cylinder - R. DOOR
15	72145-SJD-E01	Cylinder - R. DOOR
16	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE
17	72149-SAA-003	Snap - R.
18	72150-SJD-N01	Latch assy - L. FR. DOOR POWER
18	72150-SJD-N02	Latch assy - L. FR. DOOR POWER
18	72150-SJD-G01	Latch assy - L. FR. DOOR POWER
18	72150-SJD-G02	Latch assy - L. FR. DOOR POWER
19	72151-S5P-A00	Fastener - L.
22	72170-SJD-003	Protector - L. FR. OUTER HANDLE
23	72171-SJD-003	Cable - L. FR. INSIDE HANDLE
24	72173-SJD-003	Cable - L. FR. DOOR LATCH
25	72174-SHJ-003	Clip t - CABLE END (BLACK)
26	72180-SJD-003	Handle assy - L. FR. DOOR OUTSIDE
26	72180-SJD-013	Handle assy - L. FR. DOOR OUTSIDE
26	72180-SJD-G02	Handle assy - L. FR. DOOR OUTSIDE
26	72180-SJD-G01	Handle assy - L. FR. DOOR OUTSIDE
27	72185-SJD-003	Cylinder - L. DOOR
27	72185-SJD-013	Cylinder - L. DOOR
28	72189-SAA-003	Snap - L.
29	74387-S3C-003	Fastener
30	90101-SJK-003	Screw - TAPPING (ONE WAY)
31	90103-S7S-003	Screw - FLAT, 6X18.5
32	90120-SV4-000	Bolt - LOCK STRIKER
34	90141-SDA-000	Screw - TAPPING, 5X12
35	90662-SB2-003	Grommet - SCREW, 5MM
36	90691-SJD-003	Clip - LATCH CABLE

Front door panel 18

#	OEM	部品名
11	72310-SJD-003	Seal - R. FR. DOOR OUTER
12	72311-S5S-003	Clip A - DOOR WEATHERSTRIP
13	72321-SJD-000	Seal - R. FR. DOOR HOLE
14	72340-SAA-003	Checker comp. - R. FR. DOOR
14	72340-SAA-J01	Checker comp. - R. FR. DOOR
15	72350-SJD-003	Seal - L. FR. DOOR OUTER
16	72361-SJD-000	Seal - L. FR. DOOR HOLE
17	72380-SAA-003	Checker comp. - L. FR. DOOR
17	72380-SAA-J01	Checker comp. - L. FR. DOOR
18	75891-SA7-000	Stopper - DOOR
19	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
20	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
20	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
21	90108-S0A-003	Bolt - FLANGE, 6X15
22	90141-S04-000	Bolt - FLANGE, 8X22
23	91561-SZ3-003	Clip
24	91563-SP0-003	Clip - DOOR WEATHERSTRIP OFFSET
25	91563-S4N-003	Clip - DOOR WEATHERSTRIP OFFSET

Front driveshaft/half sha ft (1.8L/2.0L; MT) 27

#	OEM	部品名
1	44014-S9A-010	Joint set - OUTBOARD
2	44017-S3X-000	Boot set - INBOARD
2	44017-S3X-010	Boot set
3	44018-S9A-000	Boot set - OUTBOARD
3	44018-S9A-020	Boot set
4	44305-SJF-E01	Driveshaft assy. - R.
5	44306-SJF-E00	Driveshaft assy. - L.
6	44310-S9A-300	Joint comp - INBOARD
7	44310-S9A-900	Joint comp - INBOARD
7	44310-SDA-A61	JOINT COMPINBOAR
8	44319-SE0-000	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0
9	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
10	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
12	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)
13	44337-SB0-300	Ring b - STOPPER
14	44338-SB0-300	Circlip - 26MM
15	44351-SJF-E01	Damper - DYNAMIC
16	44500-S7C-000	Shaft assy - HALF (MT)
17	90102-SF1-000	Bolt - HEX., 10X1.25
18	90165-SE0-000	Bolt - FLANGE, 10X37
19	90305-SD4-003	Nut - SPINDLE (24MM)
20	90681-SR3-000	Circlip - EXTERNAL, 33MM
21	91057-SR3-008	Bearing - HALF SHAFT(NTN)
22	91260-SDB-A01	Seal - HALF SHAFT OUTER(NOK)
24	44319-S0A-300	Set ring - 28X2.0

Front fenders 13

#	OEM	部品名
5	74100-SJF-000	Fender assy - R. FR. INNER
6	74107-SJD-000	Enclosure comp. - R.
7	74111-SJF-000	Shield - FR. SPLASH
8	74150-SJF-000	Fender assy - L. FR. INNER
9	74157-SJD-000	Enclosure comp. - L.
10	90108-S0A-003	Bolt - FLANGE, 6X15
11	90114-SE0-000	Screw - TAPPING, 5X20
12	90114-SJD-000	Screw - TAPPING WASHER, 5X14
13	90308-SB2-013	Nut - SUSPENSION, 5MM
14	90682-SEA-003	Clip - TAPPING SCREW, 5MM
15	91501-S04-003	Clip - INNER FENDER
16	91503-SZ3-003	Clip A
17	91545-SE0-003	Clip assy. - 8MM

Front grille 13

#	OEM	部品名
1	71121-SJD-900	Base - FR. GRILLE
2	71123-SJD-000	Cover - FR. GRILLE
2	71123-SJD-010	Cover - FR. GRILLE
3	71125-SJD-000	Front emblem BASE
4	71126-SJD-000	Front grille upper molding
5	71127-SJD-000	Front grille center molding, RH
6	71128-SJD-000	Front grille center molding, LH
7	71129-SJD-000	Front grille lower molding
8	74175-SJD-000	Cushion - HOOD
9	75700-S9A-G00	Front Honda Emblem - (H)
10	90301-ST0-003	push nut, 3mm
11	91503-SZ3-003	Clip A
12	91503-SZ5-003	Clip - BUMPER FACE

Front seat (CENTER) 9

#	OEM	部品名
6	81926-SJD-E01	Frame comp - FR. CENTER SEATBACK
8	81929-SJD-J01	Board b - FR. CENTER SEATBACK TABLE
18	81985-SJD-003	Protector - WEBBING
21	81999-SJD-003	Screw - SPECIAL, 4MM
24	90610-SR3-003	Clip - GARNISH (KATO)
25	90610-S10-003	Clip - GARNISH
26	90651-SJD-003	Clip
27	90652-SJD-003	Clip
32	81959-SJD-E01	Pad - FR. CENTER SEATBACK RR. FACE

Front seat (CENTER; LEATHER) 12

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
7	81922-SJD-E11	Pad comp - FR. CENTER SEATBACK
8	81926-SJD-E01	Frame comp - FR. CENTER SEATBACK
10	81929-SJD-J01	Board b - FR. CENTER SEATBACK TABLE
12	81932-SJD-E11	Pad comp - FR. CENTER SEAT CUSHION
19	81972-SJD-E11	Pad comp - TURN OVER CUSHION
22	81985-SJD-003	Protector - WEBBING
25	81999-SJD-003	Screw - SPECIAL, 4MM
28	90610-SR3-003	Clip - GARNISH (KATO)
29	90610-S10-003	Clip - GARNISH
30	90651-SJD-003	Clip
31	90652-SJD-003	Clip

Front seat (L.) 10

#	OEM	部品名
2	06788-SJD-G80	Module kit - L. SIDE AIRBAG
3	81118-SJD-J01	Clip
7	81216-SEA-J11	Wire - R. AIRBAG (A)
8	81217-SEA-J11	Wire - AIRBAG (B)
13	90134-SE3-003	Screw - TAPPING, 5X10
14	90321-SP0-A80	Nut-washer - 6MM
15	90610-S10-003	Clip - GARNISH
16	90650-S7A-J01	Clip - RATCHET, 15MM
17	81142-SJD-003	Silencer - FR. SEATBACK
18	81143-SJD-003	Silencer - FR. SEAT CUSHION

Front seat (L.; LEATHER) 15

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	06788-SJD-G80	Module kit - L. SIDE AIRBAG
4	81118-SJD-J01	Clip
6	81142-SJD-003	Silencer - FR. SEATBACK
8	81143-SJD-003	Silencer - FR. SEAT CUSHION
10	81216-SEA-J11	Wire - R. AIRBAG (A)
11	81217-SEA-J11	Wire - AIRBAG (B)
13	81522-SJD-E61	Pad comp - L. FR. SEATBACK
15	81532-SJD-G61	Pad comp - L. FR. SEAT CUSHION
18	90134-SE3-003	Screw - TAPPING, 5X10
19	90321-SP0-A80	Nut-washer - 6MM
20	90610-S10-003	Clip - GARNISH
21	90650-S7A-J01	Clip - RATCHET, 15MM
22	81524-SJD-E61	Heater comp. - L. FR. SEATBACK
23	81534-SJD-E61	Heater comp. - L. FR. CUSHION

Front seat (R.) 10

#	OEM	部品名
2	06783-SJD-G80	Module kit - R. SIDE AIRBAG
4	81118-SJD-J01	Clip
9	81216-SEA-J11	Wire - R. AIRBAG (A)
10	81217-SEA-J11	Wire - AIRBAG (B)
13	90134-SE3-003	Screw - TAPPING, 5X10
14	90321-SP0-A80	Nut-washer - 6MM
15	90610-S10-003	Clip - GARNISH
16	90650-S7A-J01	Clip - RATCHET, 15MM
17	81142-SJD-003	Silencer - FR. SEATBACK
18	81143-SJD-003	Silencer - FR. SEAT CUSHION

Front seat (R.; LEATHER) 15

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	06783-SJD-G80	Module kit - R. SIDE AIRBAG
5	81118-SJD-J01	Clip
6	81122-SJD-E61	Pad comp - R. FR. SEATBACK
8	81132-SJD-G61	Pad comp - R. FR. SEAT CUSHION
10	81142-SJD-003	Silencer - FR. SEATBACK
12	81143-SJD-003	Silencer - FR. SEAT CUSHION
14	81216-SEA-J11	Wire - R. AIRBAG (A)
15	81217-SEA-J11	Wire - AIRBAG (B)
18	90134-SE3-003	Screw - TAPPING, 5X10
19	90321-SP0-A80	Nut-washer - 6MM
20	90610-S10-003	Clip - GARNISH
21	90650-S7A-J01	Clip - RATCHET, 15MM
22	81124-SJD-E61	Heater comp. - R. FR. SEATBACK
23	81134-SJD-E61	Heater comp. - R. FR. SEAT CUSHION

Front seat components (CENTER) 25

#	OEM	部品名
2	81911-SJD-J01	Cable - SLIDE
3	81914-SJD-J01	Nut - PUSH
4	81916-SJD-J01	Shaft - SLIDE LEVER
5	81917-SJD-J01	Spring - RR. SLIDE LEVER
6	81918-SJD-J01	Bush - SLIDE LEVER
7	81936-SJD-J01	Frame comp - FR. CENTER SEAT CUSHION
8	81951-SJD-J01	Rail - R. FR. CENTER SEAT BOX SLIDE
9	81952-SJD-J01	Rail - L. FR. CENTER SEAT BOX SLIDE
17	81969-SJD-J01	Strap - CABLE
20	81977-SJD-003	Hinge - R. GARNISH
21	81978-SJD-003	Hinge - L. GARNISH
22	81984-SJD-J01	Shaft - FR. CENTER SEAT WEBBING GUIDE
23	81986-SJD-003	Guide - WEBBING
24	81988-SJD-J01	Cover - ELR
25	81989-SJD-J01	Clip - TRIM
26	81991-SJD-003	Bolt - 12X48
27	81992-SJD-003	Bolt - 12X24
28	81993-SJD-003	Bolt - 10X25
29	81994-SJD-003	Bolt - HINGE, 8MM
30	81995-SJD-003	Bolt - 12X30
31	81997-SJD-J01	Bolt - 5MM
32	81998-SJD-J01	Bush
33	90135-S5A-003	Bolt-washer - 10X27
34	90173-SJK-000	Bolt - FLANGE, 12X27
35	90610-SR3-003	Clip - GARNISH (KATO)

Front seat components (L.) 6

#	OEM	部品名
1	81127-SJD-J01	Member - LOWER
3	81261-SJD-J01	Cap - RAIL END UPPER
4	81273-SJD-003	Handle assy - SLIDE ADJUSTER
5	81526-SJD-J01	Frame comp - L. FR. SEAT
12	90134-SE3-003	Screw - TAPPING, 5X10
13	90135-S5A-003	Bolt-washer - 10X27

Front seat components (L.; MANUAL HEIGHT) 7

#	OEM	部品名
1	81127-SJD-J01	Member - LOWER
4	81220-SEA-003	Ratchet assy. - FR. SEAT
6	81261-SJD-J01	Cap - RAIL END UPPER
7	81273-SJD-003	Handle assy - SLIDE ADJUSTER
8	81526-SJD-G01	Frame comp - L. FR. SEAT
17	90134-SE3-003	Screw - TAPPING, 5X10
18	90135-S5A-003	Bolt-washer - 10X27

Front seat components (R.) 6

#	OEM	部品名
1	81126-SJD-J01	Frame comp - R. FR. SEAT
2	81127-SJD-J01	Member - LOWER
9	81261-SJD-J01	Cap - RAIL END UPPER
10	81273-SJD-003	Handle assy - SLIDE ADJUSTER
12	90134-SE3-003	Screw - TAPPING, 5X10
13	90135-S5A-003	Bolt-washer - 10X27

Front seat components (R.; MANUAL HEIGHT) 7

#	OEM	部品名
1	81126-SJD-J21	Frame comp - R. FR. SEAT
2	81127-SJD-J01	Member - LOWER
9	81220-SEA-003	Ratchet assy. - FR. SEAT
13	81261-SJD-J01	Cap - RAIL END UPPER
14	81273-SJD-003	Handle assy - SLIDE ADJUSTER
17	90134-SE3-003	Screw - TAPPING, 5X10
18	90135-S5A-003	Bolt-washer - 10X27

Front shock absorber 19

#	OEM	部品名
1	51401-SJF-014	Spring - FR.
1	51401-SJF-024	Spring - FR.
2	51402-S6M-014	Rubber - SPRING UPPER SEAT
3	51601-SJF-G03	Absorber assy - R. FR. SHOCK
3	51601-SJF-G04	Absorber assy - R. FR. SHOCK
4	51602-SJF-G03	Absorber assy - L. FR. SHOCK
4	51602-SJF-G04	Absorber assy - L. FR. SHOCK
5	51605-SJF-G02	Absorber unit - R. FR. SHOCK
6	51606-SJF-G02	Absorber unit - L. FR. SHOCK
7	51688-S6M-014	Seat - FR. SPRING UPPER
8	51722-SJF-004	Rubber - FR. BUMP STOPPER
9	51726-SJF-004	Bearing - FR. SHOCK ABSORBER MOUNT
10	51920-S6M-014	MOUNT, RH. FR. SHOCK ABSORBER
11	51925-S6M-014	MOUNT, LH FR. SHOCK ABSORBER
12	90002-S10-000	Nut - FLANGE, 10MM
13	90188-S6M-Z01	Bolt - FLANGE, 16X62 (SERVICE)
13	90119-S6M-Z01	Bolt - FLANGE, 16X62
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
15	90382-S6M-Z01	Nut - FLANGE, 16MM

Front sub frame/ cross beam 5

#	OEM	部品名
1	50200-SJF-E00	Sub frame comp. - FR.
2	50205-S6E-E01	Damper - FR. SUB FRAME RR.
5	50300-SJF-E01	Beam - RR. CROSS
6	90161-S7A-000	Bolt - FLANGE, 12X100
8	90175-S5A-000	Bolt - FLANGE, 14X115

Front windshield 14

#	OEM	部品名
1	04731-SJD-010	Rubber set - FR. WINDSHIELD DAM
2	73111-SJD-E00	Glass set - FR. WINDSHIELD (GREEN)(ASAHI)
3	73111-SJD-G10	Glass set - FR. WINDSHIELD (GREEN)(ASAHI)
4	73125-SJD-000	Seal - FR. WINDSHIELD UPPER
5	73150-SJD-003	Molding - FR. WINDSHIELD
6	73331-SJD-000	Glass - R. FR. CORNER (GREEN)(AGC)
7	73332-SJD-000	Rubber a - WINDSHIELD DAM
8	73334-SFA-000	Clip set - FR. CORNER GLASS
9	73335-SJD-003	Garnish - R. FR. CORNER
10	73336-SJD-000	Glass - L. FR. CORNER (GREEN)(AGC)
11	73375-SJD-003	Garnish - L. FR. CORNER
12	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
13	91512-SJD-003	Clip - FR. CORNER GARNISH
14	91568-SJD-003	Clip - FR. WINDSHIELD UPPER

Front wiper (LH) 19

#	OEM	部品名
1	76505-SJD-G01	Motor comp - FR. WIPER (LH)
2	76516-SDA-A01	Rubber - MOUNTING
3	76516-SM4-003	Rubber - MOUNTING
4	76517-SE0-003	Collar - BRACKETLESS
5	76517-SM4-003	Collar
6	76520-SJD-G01	Link assy. a
7	76524-SL0-A01	Dust seal
8	76530-SJD-G01	Link comp - FR. WIPER
9	76540-SJD-G01	Rod unit a
10	76550-SJD-G01	Rod unit b
11	76561-SJD-003	Cap - PIVOT
12	76600-SJD-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
13	76610-SJD-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
14	76620-SJD-G01	Blade - WINDSHIELD WIPER (650MM)
15	76622-SDA-A01	Rubber - BLADE(650MM)
16	76630-SJD-G01	Blade - WINDSHIELD WIPER (475MM)
17	76632-S5A-003	Rubber, BLADE (475MM)
18	90126-SR3-000	Bolt-washer - 6X32
19	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)

Front wiper (RH) 19

#	OEM	部品名
1	76505-SJD-E01	Motor comp - FR. WIPER (RH)
2	76516-SDA-A01	Rubber - MOUNTING
3	76516-SM4-003	Rubber - MOUNTING
4	76517-SE0-003	Collar - BRACKETLESS
5	76517-SM4-003	Collar
6	76520-SJD-G01	Link assy. a
7	76524-SL0-A01	Dust seal
8	76530-SJD-E01	Link comp - FR. WIPER
9	76540-SJD-G01	Rod unit a
10	76550-SJD-G01	Rod unit b
11	76561-SJD-003	Cap - PIVOT
12	76600-SJD-E01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
13	76610-SJD-E01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
14	76620-SJD-E01	Blade - WINDSHIELD WIPER (650MM)
15	76622-SDA-A01	Rubber - BLADE(650MM)
16	76630-SJD-E01	Blade - WINDSHIELD WIPER (475MM)
17	76632-S5A-003	Rubber, BLADE (475MM)
18	90126-SR3-000	Bolt-washer - 6X32
19	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)

Fuel pipe 38

#	OEM	部品名
1	17700-SJF-E01	Pipe comp - FUEL FEED
2	16721-PND-003	Hose comp. a - FUEL FEED
4	16722-RJJ-J01	Hose comp. b - FUEL FEED
6	16723-RJJ-J00	Bracket - FUEL FEED HOSE
8	16725-PWA-004	Cover a - FUEL CONNECTOR (BLACK)
10	16726-PNA-003	Clamp b - FUEL HOSE (NATURAL)
11	16726-PWA-004	Cover b - FUEL CONNECTOR (BLACK)
12	16727-PND-004	Clamp - FUEL HOSE (BLACK)
13	17300-SJF-003	Canister assy
14	17358-SJF-000	Bracket - CANISTER
15	17371-S9A-003	Valve - TWO WAY
16	17701-S7S-000	Rubber - FUEL PIPE INSULATOR
17	17711-S0X-A31	Retainer - GREEN)(TOKAI
18	17711-S0X-003	Retainer - ORANGE) (TOKAI
19	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI
20	17717-SJF-003	Tube a - FUEL VENT
21	17720-SJF-013	Pipe - FUEL PURGE
22	17724-SJF-003	Tube b - FUEL VENT
24	17726-SJF-013	Hose assy - FUEL PURGE
24	17726-SJF-G01	Hose assy - FUEL PURGE
25	17742-S7A-932	Joint - DRAIN TUBE
26	17743-SJF-000	Tube - CANISTER DRAIN
27	17759-S7A-931	Clip b - FUEL PIPE
28	17761-SJF-000	Stay a - FUEL PIPE
30	17762-SJF-000	Stay b - FUEL PIPE
31	17763-SJF-000	Stay c - FUEL PIPE
32	17764-SJF-000	Stay d - FUEL PIPE
33	17765-SJF-000	Stay e - FUEL PIPE
34	17766-SJF-000	Clamp comp - PURGE HOSE
35	53723-SM4-013	Clip - RETURN, 6MM
36	90361-SV4-003	Nut - PAINT CUTTING, 6MM
37	91404-SDC-000	Clamp - TUBE (D10)
38	91405-SDA-000	Clamp - TUBE(D10.5)
39	91591-SJF-003	Clamp - VENT TUBE (NATURAL)
40	91593-ST7-931	Clip - FUEL HOSE
41	91595-S7A-931	Clamp a - FUEL PIPE
42	91598-S7A-930	Rubber - FUEL PIPE INSULATOR
43	91599-SJF-003	Clamp b - FUEL PIPE

Fuel tank 24

#	OEM	部品名
1	17044-SJF-010	Tank comp. - FUEL
2	17045-SJF-010	Module assy. - FUEL PUMP
2	17045-SJF-000	Module assy. - FUEL PUMP
3	17046-SJK-000	Nut & packing set - FUEL LOCK
4	17047-SJF-000	Meter comp
5	17048-SJF-000	Strainer set - FUEL
6	17052-SJF-000	Regulator assy - PRESSURE
7	17520-SJF-000	Band comp - FUEL TANK MOUNTING
8	17525-SM4-000	Bolt-washer - 10X35
9	17651-SJD-003	Tube - FILLER NECK
10	17652-SDA-A31	Clip - FILLER TUBE
11	17652-SEL-003	Clip - FILLER TUBE (39MM)
12	17653-SJF-003	Tube - BREATHER
13	17660-SJF-E01	Pipe comp - FUEL FILLER
14	17670-SJF-E02	Cap comp. - FUEL FILLER
14	17670-SJF-E01	Cap comp. - FUEL FILLER
15	17722-SJF-003	Tube comp - FUEL VENT
16	74660-SJD-000	Cap assy. - FLOOR MAINTENANCE HOLE
17	90150-S04-003	Bolt - EARTH, 6X16
18	91404-SDC-000	Clamp - TUBE (D10)
19	91413-S5A-003	Clamp - FUEL TUBE (D17)
20	91462-SDA-003	Clamp - FUEL TUBE (D18)
21	91594-S1A-E01	Clip - FUEL FILLER CAP
22	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Gasket kit (2.0L) 2

#	OEM	部品名
1	06110-RJJ-E01	Gasket kit - CYLINDER HEAD
2	06114-PNA-040	Gasket kit - CHAIN CASE

Grommet (FRONT) 11

#	OEM	部品名
1	90601-S84-A01	Grommet - HOOD OPEN STAY
2	90602-S10-003	Holder - ROD
3	90615-SR3-000	Cap - WELD HOLE, 51X77
4	90651-S0A-003	Cap - BOLT, 8MM
6	91603-SZ5-000	Cushion - HOOD (25MM)
7	91606-SE0-000	Seal - 20X20
8	91613-SN4-003	Plug - FLOOR HOLE, 25MM
9	91615-SH3-000	Cap - FLOOR HOLE, 49MM
10	91617-SJD-000	Seal - FR. FENDER PANEL
11	91617-S47-000	Seal
12	91619-S9A-003	Grommet - DRAIN HOLE

Grommet (LOWER) 4

#	OEM	部品名
1	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
2	90810-SB2-660	Grommet - TIE DOWN, 20X35
3	91603-SJD-013	Grommet - HOLE
4	91606-SK7-003	Plug - BLIND, 25MM

Grommet (REAR) 6

#	OEM	部品名
1	74401-SJD-000	Tape - R. SIDE SILL PROTECTION
2	74405-SJD-000	Tape - L. SIDE SILL PROTECTION
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
4	90857-SD4-000	Cap - WELD HOLE
5	91603-SK7-000	Grommet - WAX HOLE, 25MM
6	91616-ST5-000	Seal - FR. PILLAR INNER LOWER (95X110)

Grommet (SIDE) 7

#	OEM	部品名
1	91616-SAA-000	Block - FR. PILLAR INNER LOWER
2	91616-S50-000	Block - FR. PILLAR INNER LOWER
3	91618-SE3-010	Seal - RR. PILLAR UPPER
4	91618-SJD-000	Seal - HOLE, 50X50
5	91618-S5A-000	Seal - HOLE, 30X90
6	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
7	91625-SE0-000	Seal - 50MM(BLACK)

Harness band/bracket (LH) 33

#	OEM	部品名
2	32119-P2E-A01	Holder - CORRUGATED (DARK BLUE) (22MM)
4	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
5	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
6	32204-S5A-020	Bracket - ENGINE WIRE HARNESS (A)
7	38617-S5A-J01	Filter comp - NOISE
8	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
10	91476-SD4-003	Clip - OFFSET (21) (BROWN) (60MM)
11	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
12	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
13	91509-SA5-003	Clip - OFFSET (45)(GRAY)(57MM)
14	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
15	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
16	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
17	91533-S04-003	Clip - COUPLER (NATURAL)
18	91534-S03-003	Clip - COUPLER (NATURAL) (SEAL)
19	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
20	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
21	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)
22	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
23	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
24	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
25	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
26	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
27	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
28	91565-S0X-003	Clip - COUPLER (DARK GREEN)
29	91577-SM4-003	Holder - BRACKET(NATURAL)
30	91577-SS0-003	Clip - WIRE HARNESS (BLUE) (122.5MM)
31	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
33	91902-S3N-003	Plaster - WIRE HARNESS (50X50)
37	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)
39	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)
42	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
44	91563-SF4-003	Band - WIRE HARNESS (WHITE) (100.5MM)

Harness band/bracket (RH) 36

#	OEM	部品名
2	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
4	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
5	32204-S5A-020	Bracket - ENGINE WIRE HARNESS (A)
6	38617-S5A-J01	Filter comp - NOISE
7	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
8	90852-671-003	Plug - HOLE
10	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
11	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
12	91509-SA5-003	Clip - OFFSET (45)(GRAY)(57MM)
14	91531-SCC-901	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)
15	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
16	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
17	91532-S10-003	Clip - BAND(NATURAL)(149.8MM)
18	91533-S04-003	Clip - COUPLER (NATURAL)
19	91534-S03-003	Clip - COUPLER (NATURAL) (SEAL)
20	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
21	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
22	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)
23	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
24	91545-SCC-003	Clip - HARNESS BAND (WITH SEAL) (BROWN)(151MM)
25	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
26	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
27	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
28	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
29	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
30	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
31	91565-S0X-003	Clip - COUPLER (DARK GREEN)
32	91577-SM4-003	Holder - BRACKET(NATURAL)
33	91577-SS0-003	Clip - WIRE HARNESS (BLUE) (122.5MM)
34	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
35	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
36	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
37	91902-S3N-003	Plaster - WIRE HARNESS (50X50)
41	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)
42	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)
45	91563-SF4-003	Band - WIRE HARNESS (WHITE) (100.5MM)

Headlight 29

#	OEM	部品名
1	33101-SJD-E51	Headlight unit - R.
1	33101-SJD-G51	Headlight unit - R.
1	33101-SJD-G61	Headlight unit - R. (HID)
2	33105-S5N-C01	Nut - SPECIAL
3	33108-S0A-J01	Screw - SPECIAL TAPPING, 6X18
4	33109-S6A-J71	Gasket - SEAL
5	33115-SM4-003	Bulb
5	33115-SV4-G01	Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS)
5	33115-SV4-003	Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM)
6	33116-SL0-003	Bulb - HEADLIGHT (HID) (D2S) (STANLEY)
7	33119-SAA-013	Control unit
8	33124-SJD-J01	Seal - GASKET
9	33126-S05-003	Cover - RUBBER
10	33127-SJD-E11	Cover comp.
11	33129-SAA-003	Igniter - HID
12	33130-SJK-J01	Adjuster unit - HEADLIGHT
13	33151-SJD-E01	Headlight unit - L.
13	33151-SJD-G21	Headlight unit - L. (HID)
13	33151-SJD-G01	Headlight unit - L.
14	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
15	33303-SAA-003	Socket comp - T20 S) (AMBER
16	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
17	33304-S5A-003	Socket comp - T10
18	90149-SA0-003	Bolt - BUMPER
19	91512-SX0-003	Clip - INNER FENDER CLIP
22	06100-SJD-J01	Leg kit a - R. HEADLIGHT MOUNTING
23	06100-SJD-J11	Leg kit b - R. HEADLIGHT MOUNTING
24	06150-SJD-J01	Leg kit a - L. HEADLIGHT MOUNTING
25	06150-SJD-J11	Leg kit b - L. HEADLIGHT MOUNTING

Heater blower (LH) 18

#	OEM	部品名
1	79026-SJD-941	Packing - INLET
2	79301-SJD-G00	Stay - BLOWER
3	79303-S6A-013	Lid - FILTER
4	79305-SJD-G41	Blower sub assy.
5	79310-S6M-A42	Motor assy. - FAN
6	79330-S6M-941	Transistor - POWER
7	79350-S6D-G41	Motor assy. - FRESH & RECIRCULAR
8	79370-S2H-003	Hose - MOTOR COOLING
9	79810-SJD-941	Duct - INTAKE
10	80291-S5A-003	Frame - FILTER (A)
11	80292-S5A-003	Element - FILTER
12	80296-S5A-003	Frame - FILTER (B)
13	80297-S5A-003	Seal - BLOWER PLATE
14	90122-S30-003	Screw - TAPPING, 5X12
15	90123-S30-003	Screw - TAPPING, 5X12
16	90156-SH3-000	Bolt-washer - 6X24
17	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
18	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)

Heater blower (RH) 18

#	OEM	部品名
1	79026-SJD-941	Packing - INLET
2	79301-SJD-000	Stay - BLOWER
3	79303-S6A-013	Lid - FILTER
4	79305-SJD-941	Blower sub assy.
5	79310-S6M-013	Motor assy. - FAN
6	79330-S6M-941	Transistor - POWER
7	79350-S6A-941	Motor assy. - FRESH & RECIRCULAR
8	79370-S2H-003	Hose - MOTOR COOLING
9	79810-SJD-941	Duct - INTAKE
10	80291-S5A-003	Frame - FILTER (A)
11	80292-S5A-003	Element - FILTER
12	80296-S5A-003	Frame - FILTER (B)
13	80297-S5A-003	Seal - BLOWER PLATE
14	90122-S30-003	Screw - TAPPING, 5X12
15	90123-S30-003	Screw - TAPPING, 5X12
16	90156-SH3-000	Bolt-washer - 6X24
17	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
18	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)

Heater unit (LH) 34

#	OEM	部品名
1	46407-SAA-003	Clamp - TUBE
2	79021-SJD-G41	Protector - PIPE
3	79022-SJD-941	Packing b - SEAL
4	79024-SJD-941	Packing - DUCT
5	79025-SJD-941	Packing - DRAIN
6	79027-SJD-G41	Packing - CENTER
7	79106-SJD-G42	Heater sub assy.
8	79107-SJD-G42	Duct sub assy. - CASE
9	79108-SJD-G41	Packing assy.
10	79110-SJD-G41	Core comp - HEATER
11	79140-SJD-G41	Motor assy. - MODE
12	79160-SJD-G41	Motor assy. - AIR MIX
13	79170-S6A-941	Aspirator
14	79193-S6A-003	Bolt - FLANGE, 6X20
15	79194-S6A-003	Nut - 6MM
16	79544-SJD-000	Cable - WATER VALVE CONTROL
17	79770-SE0-000	Grommet - WATER VALVE CABLE
18	80215-SJD-G41	Evaporator comp.
19	80215-S6A-003	Plate
20	80216-SJD-G41	Insulator - EXPANSION VALVE
21	80220-S6A-013	Valve - EXPANSION
23	80271-SJF-000	Hose - DRAIN
24	80560-SJD-941	Thermistor - AIR CONDITIONER
25	80650-SJD-G40	Sub harness - AIR CONDITIONER
26	80871-ST7-000	O-ring - 5/8"
27	80872-ST7-000	O-ring - 1/2"
28	90122-S30-003	Screw - TAPPING, 5X12
29	90123-S30-003	Screw - TAPPING, 5X12
30	90125-S6A-003	Bolt - 5X35
31	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
32	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
33	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
34	91580-SM4-003	Clip - COUPLER(ORANGE)
36	79192-S6A-003	Packing - STUD BOLT

Heater unit (RH) 34

#	OEM	部品名
1	46407-SAA-003	Clamp - TUBE
2	79021-SJD-941	Protector - PIPE
3	79022-SJD-941	Packing b - SEAL
4	79024-SJD-941	Packing - DUCT
5	79025-SJD-941	Packing - DRAIN
6	79027-SJD-941	Packing - CENTER
7	79106-SJD-942	Heater sub assy.
8	79107-SJD-942	Duct sub assy. - CASE
9	79108-SJD-941	Packing assy.
10	79110-SJD-941	Core, Heater
11	79140-SJD-941	Motor assy. - MODE
12	79160-SJD-941	Motor assy. - AIR MIX
13	79170-S6A-941	Aspirator
14	79193-S6A-003	Bolt - FLANGE, 6X20
15	79194-S6A-003	Nut - 6MM
16	79544-SJD-000	Cable - WATER VALVE CONTROL
17	79770-SE0-000	Grommet - WATER VALVE CABLE
18	80215-SJD-941	Evaporator comp.
19	80215-S6A-003	Plate
20	80216-SJD-941	Insulator - EXPANSION VALVE
21	80220-S6A-013	Valve - EXPANSION
23	80271-SJF-000	Hose - DRAIN
24	80560-SJD-941	Thermistor - AIR CONDITIONER
25	80650-SJD-940	Sub harness - AIR CONDITIONER
26	80871-ST7-000	O-ring - 5/8"
27	80872-ST7-000	O-ring - 1/2"
28	90122-S30-003	Screw - TAPPING, 5X12
29	90123-S30-003	Screw - TAPPING, 5X12
30	90125-S6A-003	Bolt - 5X35
31	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
32	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
33	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)
34	91580-SM4-003	Clip - COUPLER(ORANGE)
36	79192-S6A-003	Packing - STUD BOLT

Install pipe/tubing (2.0L) 13

#	OEM	部品名
1	16725-PNA-003	Clamp a - FUEL HOSE
2	17400-RJJ-G00	Pipe - INSTALL
2	17400-RJJ-000	Pipe - INSTALL
3	36145-PG7-004	Valve - CHECK
4	36161-PFD-004	Valve assy. - REGULATOR LEAK CONTROL SOLENOID
5	36164-PNA-000	Stay - BYPASS CONTROL VALVE
6	36165-RJJ-G00	Tube - PURGE
7	36364-PNA-000	Tube - BYPASS SOLENOID
8	36365-PNA-000	Tube - VACUUM TANK
9	36366-PNA-000	Tube - CHECK VALVE
10	46408-SJF-J00	Tube a - MASTER POWER
11	53729-671-003	Clamp d - 15.5MM
12	90634-PA0-000	Cap - SEALING

Instrument panel (LH) 15

#	OEM	部品名
1	06780-SJD-G80	Module kit - PASSENGER
2	39881-SJD-G00	Bracket - SECURITY UNIT
5	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
7	77175-SJD-G00	Bracket comp. - FLOOR JOINT
11	77466-S0X-A00	Seal - FR. INSTRUMENT
15	90101-SAA-000	Bolt-washer - 8X22
16	90101-S03-000	Screw - TAPPING, 4X16
17	90101-S6A-000	Bolt-washer - 8MM
18	90112-SAA-003	Bolt-washer - 8X62
19	90112-SCC-003	Bolt-washer - 8X72.5
20	90134-SFA-N81	Bolt - FLANGE, 6X20 (ADHESIVE)
21	90140-SH3-003	Bolt-washer - 5X18
22	90666-SD4-003	Clip - FITTING
23	90666-S84-A01	Clip - SNAP FITTING
27	77109-SJD-000	Cushion - INSTRUMENT SIDE

Instrument panel (RH) 15

#	OEM	部品名
1	06780-SJD-E80	Module kit - PASSENGER
2	39881-SJD-E00	Bracket - SECURITY UNIT
5	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
7	77175-SJD-000	Bracket comp. - FLOOR JOINT
11	77466-S0X-A00	Seal - FR. INSTRUMENT
15	90101-SAA-000	Bolt-washer - 8X22
16	90101-S03-000	Screw - TAPPING, 4X16
17	90101-S6A-000	Bolt-washer - 8MM
18	90112-SAA-003	Bolt-washer - 8X62
19	90112-SCC-003	Bolt-washer - 8X72.5
20	90134-SFA-N81	Bolt - FLANGE, 6X20 (ADHESIVE)
21	90140-SH3-003	Bolt-washer - 5X18
22	90666-SD4-003	Clip - FITTING
23	90666-S84-A01	Clip - SNAP FITTING
27	77109-SJD-000	Cushion - INSTRUMENT SIDE

Instrument panel garnish (DRIVER SIDE; LH) 12

#	OEM	部品名
1	38205-SJD-E01	Label - FUSE
2	66418-SB2-000	Stopper - GLOVE BOX LID
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
4	77205-S0X-A01	Clip - SNAP FITTING
14	77752-SF4-000	Spring - COIN POCKET
16	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18	90101-S2K-000	Screw - TAPPING, 4X16(IT)
19	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
20	90666-SM4-003	Clip - SNAP FITTING
21	90666-S84-A01	Clip - SNAP FITTING
22	91640-SM4-003	Grommet - SCREW, 4MM
25	77305-SJD-309	Cover assy. - DRIVER UNDER

Instrument panel garnish (DRIVER SIDE; RH) 12

#	OEM	部品名
1	38205-SJD-E01	Label - FUSE
2	66418-SB2-000	Stopper - GLOVE BOX LID
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
4	77205-S0X-A01	Clip - SNAP FITTING
14	77752-SF4-000	Spring - COIN POCKET
16	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
18	90101-S2K-000	Screw - TAPPING, 4X16(IT)
19	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
20	90666-SM4-003	Clip - SNAP FITTING
21	90666-S84-A01	Clip - SNAP FITTING
22	91640-SM4-003	Grommet - SCREW, 4MM
24	77305-SJD-306	Cover assy. - DRIVER UNDER

Instrument panel garnish (PASSENGER SIDE; LH) 21

#	OEM	部品名
1	34254-SV4-003	Lamp assy. - GLOVE BOX
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
3	39610-SAA-003	Knob assy
4	39620-SAA-G01	Housing assy.
5	39625-SAA-G01	Ring - MOUNTING
6	66417-SB3-670	Rubber - GLOVE BOX STOPPER
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
8	90665-S04-003	Clip - SNAP FITTING
12	77268-SJD-003	Seal a - VENT MARK
13	77269-SJD-003	Seal b - VENT MARK
19	77506-S6A-000	Stopper - GLOVE BOX LID
20	77515-SZ3-A02	Hinge - GLOVE BOX
21	77520-SJD-E01	Cylinder - GLOVE BOX
22	77541-SJD-G00	Striker comp. - GLOVE BOX
27	77730-SJD-G02	Holder comp - FR. ASHTRAY
28	90101-S03-000	Screw - TAPPING, 4X16
29	90140-SH3-003	Bolt-washer - 5X18
30	90302-SA4-003	Nut - SPRING, 4MM
32	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
33	90666-S84-A01	Clip - SNAP FITTING
35	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; RH) 20

#	OEM	部品名
1	34254-SV4-003	Lamp assy. - GLOVE BOX
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
3	39610-SAA-003	Knob assy
4	39620-SAA-G01	Housing assy.
5	39625-SAA-G01	Ring - MOUNTING
6	66417-SB3-670	Rubber - GLOVE BOX STOPPER
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
11	77268-SJD-003	Seal a - VENT MARK
12	77269-SJD-003	Seal b - VENT MARK
17	77506-S6A-000	Stopper - GLOVE BOX LID
18	77515-SZ3-A02	Hinge - GLOVE BOX
19	77520-SJD-E01	Cylinder - GLOVE BOX
20	77541-SJD-E00	Striker comp. - GLOVE BOX
25	77730-SJD-013	Holder comp - FR. ASHTRAY
26	90101-S03-000	Screw - TAPPING, 4X16
27	90140-SH3-003	Bolt-washer - 5X18
28	90302-SA4-003	Nut - SPRING, 4MM
29	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
30	90666-S84-A01	Clip - SNAP FITTING
32	91641-SM4-003	Grommet - SCREW, 4MM

Intake manifold (2.0L) 19

#	OEM	部品名
1	16450-RAA-A01	Injector assy - AIR ASSIST FUEL
2	16451-PLC-000	Clip - INJECTOR
3	16620-PNE-J01	Pipe comp - FUEL
4	16638-PNA-000	Insulator - FUEL PIPE
5	16680-PZA-L01	Damper assy. - PULSATION
6	16681-PRB-A00	Cap - PULSATION DAMPER
7	16705-PD1-003	Gasket - SILENCER
8	17050-PNE-000	Base comp. - INJECTOR
9	17055-PNA-004	Gasket a - INJECTOR BASE
10	17100-PNB-J01	Manifold comp - INTAKE
11	17106-PNB-006	Packing - THROTTLE BODY
12	17106-PNC-J01	O-ring - 54X5.0
13	17107-PNB-006	Packing - INTAKE MANIFOLD
14	17108-PPA-A01	Bearing b - FRICTION
15	17109-PPA-A01	O-ring - 10X3.5
16	17120-PNC-J01	Valve assy. - ROTARY
17	91301-PLC-000	O-ring - 7.47X3.6
18	91302-PCA-000	O-ring - 6.95X1.7
19	91302-PNA-003	O-ring - 7.45X3.61(NOK)

Interior light 13

#	OEM	部品名
1	34251-S5A-003	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
4	34401-SDA-A01	Lens - R.
4	34401-SDA-A21	Lens - R.
6	34402-SDA-A01	Lens - L.
6	34402-SDA-A21	Lens - L.
9	34404-SJD-J01	Base comp.
9	34404-SJD-J11	Base comp.
11	35851-SEA-E01	Bulb comp. - 14V 40MA
15	90148-S6A-003	Bolt - EARTH, 5X14
18	90131-S30-003	Screw-washer - ET, 6X16
18	90131-S47-003	Screw - ET, 5X16

Knuckle 21

#	OEM	部品名
1	32206-S7C-000	Bracket - L. ABS SENSOR
2	51210-SJF-000	Knuckle comp - R. FR.
3	51215-SJF-000	Knuckle comp - L. FR.
4	51225-S5A-003	Boot - LOWER BALL DUST
5	51300-SJF-003	Spring - FR. STABILIZER
6	51306-S7B-014	STABILIZER HOLDER Bush - Front
7	51308-S5A-000	Holder - FR. STABILIZER
8	51320-S5A-003	RH FR. STABILIZER LINK
9	51321-S5A-003	LH FR. STABILIZER LINK
10	51350-SJF-000	Arm comp - R. FR. LOWER
11	51360-SJF-000	Arm comp - L. FR. LOWER
11	51360-SJF-900	Arm comp - L. FR. LOWER
12	51391-S7A-801	Bush - FR. COMPLIANCE
13	51392-S5A-004	Bush - FR. LOWER ARM (YAMASHITA)
14	57450-SJD-043	Sensor assy - R. FR.
15	57455-SJD-043	Sensor assy - L. FR.
16	90002-S10-000	Nut - FLANGE, 10MM
17	90118-S5A-000	Bolt - FLANGE, 14X91
18	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
19	90363-S47-000	Nut - LOWER ARM, 12MM
20	90701-SX0-003	Clip - UPPER ARM

Mainshaft (2.0L) 18

#	OEM	部品名
1	23210-RAS-000	Mainshaft comp.
2	23261-PPP-000	Shaft - REVERSE GEAR
3	23440-RAS-000	Gear comp - MAINSHAFT THIRD
4	23450-RAS-000	Gear comp - MAINSHAFT FOURTH
5	23540-PPS-000	Gear comp - REVERSE IDLE
6	23580-RAS-010	Gear comp - MAINSHAFT FIFTH
7	23590-RAS-010	Gear comp - MAINSHAFT SIXTH
8	23623-PPS-305	Sleeve set - SYNCHRONIZER (3-4)
9	23626-PNS-315	Sleeve set - SYNCHRONIZER (5-6)
10	23915-PPP-000	Collar - DISTANCE, 32X39X52
11	23916-PNS-000	Collar - DISTANCE, 28X35X24
12	23927-PG2-A00	Washer - SPRING, 28MM
13	23928-PS1-000	Washer - 28MM
14	90401-PG1-000	Washer - DRAIN PLUG, 10MM
15	91002-PPP-003	Bearing - BALL, 28X72X18
15	91002-RAS-003	Bearing - BALL, 28X72X18
16	91102-PPP-016	Bearing - NEEDLE, 39X44X24
17	91103-PNS-003	Bearing - NEEDLE, 35X40X24

Meter components (DENSO) 6

#	OEM	部品名
1	78113-SJF-J01	Knob - ILLUMI/ODO
2	78119-SJF-J01	Rubber
3	78120-SJF-C21	Meter assy - SPEED & TACHO & FUEL & TEMPERATURE
3	78120-SJF-G21	Meter assy - SPEED & TACHO & FUEL & TEMPERATURE
4	78156-SJF-J01	Lens
5	90302-SA4-003	Nut - SPRING, 4MM

Mirror 22

#	OEM	部品名
1	34300-SJD-003	Light assy - R. SIDE TURN
2	34350-SJD-003	Light assy - L. SIDE TURN
4	76202-SJD-J31	Tube e
5	76203-SJD-E41	Mirror sub assy. - R. (R1400)
6	76204-SJD-J33	Turn set - R. AUTO
6	76204-SJD-G43	Turn set - R. AUTO
6	76204-SJD-G42	Turn set - R. AUTO
8	76206-SJD-J31	Tube - CORRUGATE
9	76210-SJD-N31	Actuator set - R. (HEATED)
10	76215-SJD-N31	Actuator set - L. (HEATED)
12	76253-SJD-E41	Mirror sub assy. - L. (R1400)
13	76254-SJD-J33	Turn set - L. AUTO
13	76254-SJD-G43	Turn set - L. AUTO
13	76254-SJD-G42	Turn set - L. AUTO
15	76400-SEA-014	Mirror assy - RR. VIEW (DAY/NIGHT)
15	76400-SEA-004	Mirror assy - RR. VIEW (DAY/NIGHT)
16	90106-SDF-003	Screw - TAPPING, 4X14 (PAN)
17	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)
18	90107-SFA-003	Screw - TAPPING, 3X12
19	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)
20	90109-SFA-003	Screw-washer - 5X12
21	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)

Molding 35

#	OEM	部品名
1	72410-SJD-003	Molding assy. R. FR. DOOR
2	72450-SJD-003	Molding assy. L. FR. DOOR
3	72721-SJD-003	Garnish - R. RR. DOOR RR. PILLAR
4	72761-SJD-003	Garnish - L. RR. DOOR RR. PILLAR
5	72910-SJD-003	Molding assy. R. RR. DOOR
6	72950-SJD-003	Molding assy. L. RR. DOOR
7	73152-SJD-003	Molding assy. - R. DRIP SIDE
8	73153-SJD-E01	Spacer
9	73153-SJD-003	Clip A - WINDSHIELD(LIGHT RED)
10	73154-SJD-003	Clip b - WINDSHIELD
11	73156-SJD-003	Clip d - ROOF
12	73154-SJD-E01	Clip e - ROOF
13	73157-SJD-E01	Molding - R. DRIP SIDE FR.
14	73158-SJD-E01	Molding - R. DRIP SIDE CENTER
15	73159-SJD-E01	Molding - R. DRIP SIDE RR.
16	73162-SJD-003	Molding assy. - L. DRIP SIDE
17	73167-SJD-E01	Molding - L. DRIP SIDE FR.
18	73168-SJD-E01	Molding - L. DRIP SIDE CENTER
19	73169-SJD-E01	Molding - L. DRIP SIDE RR.
24	75271-SJD-003	Pad - R. FR.
25	75272-SJD-003	Pad - R. CENTER
26	75273-SJD-003	Pad - R. RR.
31	75281-SJD-003	Pad - L. FR.
32	75282-SJD-003	Pad - L. CENTER
33	75283-SJD-003	Pad - L. RR.
37	75291-SJD-003	Spacer - BAR
38	75451-SJD-000	Guard - R. RR. SPLASH
39	75461-SJD-000	Guard - L. RR. SPLASH
40	90116-SV5-A00	Screw - SPECIAL, 6MM
41	90142-S04-000	Screw - TAPPING, 4X10
42	90306-SJD-000	Nut - SPECIAL, 6MM
43	90501-SM4-003	Bolt - FENDER
45	91503-SZ3-003	Clip A
46	91570-SJD-003	Clip A - FR. WINDSHIELD SIDE
47	91572-SJD-003	Clip A - ROOF MOLDING

Oil pump/oil strainer (2.0L) 24

#	OEM	部品名
3	13432-PNA-000	Sprocket - DRIVEN(17T)
4	13441-PNA-004	Chain - 62L
5	13450-PNA-004	Tensioner comp - BALANCER SHAFT CHAIN
6	13460-PNA-004	Guide comp - BALANCER SHAFT CHAIN
8	15115-PNA-004	Metal - BALANCER SHAFT (TAIHO)
8	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)
9	15123-PCX-003	Dowel pin - 18X13
10	15231-PE0-000	Valve - RELIEF
11	15232-RAA-A01	Spring - RELIEF VALVE
12	15233-R40-000	Bolt - SEALING, 18MM
13	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)
13	15400-PLM-A02	OIL FILTER (HONEYWELL)
13	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
13	15400-PLC-003	Cartridge - OIL FILTER (TENNEX)
13	15400-PLM-A01	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
13	15400-PLC-004	Cartridge, OIL FILTER (TOYO ROKI)
13	15400-PH1-F03	Cartridge - OIL FILTER (LABINAL-PURFLUX)
14	15400-PR3-014	OIL FILTER (TOYO ROKI)
15	15400-PR3-315	Cartridge set - OIL FILTER (TOYO ROKI)
16	90004-PNA-000	Bolt - CHAIN GUIDE
17	90009-PNA-000	Bolt - FLANGE, 8X55
18	90015-PH1-013	Holder - OIL FILTER
19	90031-PNA-004	Bolt-washer - 10X30
30	15100-PNE-013	Pump assy. - OIL

Outer panels/rear panel 11

#	OEM	部品名
7	16877-SJD-000	Joint - FUEL TUBE
8	46391-SK7-013	Clip s - BRAKE PIPE
12	63134-SJD-003	Separator - FR. PILLAR
14	63213-SJD-003	Separator - CENTER PILLAR
27	74411-SJD-003	Cable assy - FUEL LID OPENER (RH)
27	74411-SJD-G01	Cable assy - FUEL LID OPENER (LH)
29	74490-SJD-003	Grommet - FUEL LID
31	75450-SEY-003	Outlet assy - RR. AIR
33	91504-SL0-003	Clip - HOOD OPEN WIRE
34	91592-S6F-E01	Clamp - FUEL TUBE
35	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

P.s. gear box (HPS; LH) 21

#	OEM	部品名
1	16922-SH3-930	Rubber - MOUNTING
2	16923-SP0-930	Collar - DISTANCE
3	52362-S30-003	Boot - TIE ROD END (MUSASHI)
4	53434-SJF-G01	Bracket a - GEAR BOX MOUNTING
5	53435-SJF-000	Stiffener a - STEERING GEAR BOX
6	53436-SJF-000	Cushion - GEAR BOX MOUNTING
7	53437-SJF-000	Bracket - GEAR BOX MOUNTING
8	53438-SJF-G02	Bracket b - GEAR BOX MOUNTING
9	53440-SJF-G00	Rod comp - POWER STEERING GEAR BOX
10	53501-SJF-010	Grommet - STEERING
11	53521-SCV-A01	Rod sub assy. - TIE
12	53536-S5A-900	Washer - TIE ROD LOCK
13	53541-SJF-000	Rod assy - TIE
14	53541-SJF-003	End comp - TIE ROD
15	53601-SJF-G05	Box sub assy. - POWER STEERING GEAR
15	53601-SJF-G04	Box sub assy. - POWER STEERING GEAR
16	53776-SJF-G00	Bracket assy - POWER STEERING
17	90108-SJF-000	Bolt - GEAR BOX MOUNTING
18	90188-SL4-010	Bolt - FLANGE, 10X35
19	90301-S5A-003	Nut - HEX.
20	90450-SJF-000	Nut - FLANGE, 12MM

P.s. gear box (HPS; RH) 18

#	OEM	部品名
2	52362-S30-003	Boot - TIE ROD END (MUSASHI)
3	53434-SJF-010	Bracket a - GEAR BOX MOUNTING
4	53435-SJF-000	Stiffener a - STEERING GEAR BOX
5	53436-SJF-000	Cushion - GEAR BOX MOUNTING
6	53437-SJF-000	Bracket - GEAR BOX MOUNTING
7	53438-SJF-020	Bracket b - GEAR BOX MOUNTING
8	53440-SJF-000	Rod comp - POWER STEERING GEAR BOX
9	53501-SJF-010	Grommet - STEERING
10	53521-SCV-A01	Rod sub assy. - TIE
11	53536-S5A-900	Washer - TIE ROD LOCK
12	53541-SJF-000	Rod assy - TIE
13	53541-SJF-003	End comp - TIE ROD
14	53601-SJF-E05	Box sub assy. - POWER STEERING GEAR
14	53601-SJF-E04	Box sub assy. - POWER STEERING GEAR
17	90108-SJF-000	Bolt - GEAR BOX MOUNTING
18	90188-SL4-010	Bolt - FLANGE, 10X35
19	90301-S5A-003	Nut - HEX.
20	90450-SJF-000	Nut - FLANGE, 12MM

P.s. gear box components (HPS; LH) 43

#	OEM	部品名
1	06531-SJF-J01	Seal kit a - POWER STEERING
2	06532-S50-003	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	06536-SJF-J01	Boot set
6	06537-SJF-J01	Boot set b
7	06538-S5A-H01	Slider
8	53413-ST7-J61	Spring - RACK GUIDE PRESSURE
9	53414-S04-003	Screw - RACK GUIDE
10	53416-S5A-003	Guide - STEERING RACK
11	53418-S04-G51	Washer - DISK
12	53434-S5A-003	Clip - STEERING TIE ROD
13	53446-S9A-003	Guard - BOOT
14	53447-SJF-J01	Band c - BELLOWS
15	53448-SJF-J01	Band b - BELLOWS
16	53449-S5A-003	Band - BELLOWS
17	53455-S5A-003	Ring b - STOPPER
18	53456-S5A-003	Plug - RACK END
19	53457-S5A-003	Lock - SCREW
20	53458-S50-003	Nut - LOCK
21	53534-SJF-J01	Boot
22	53535-S5A-003	Washer - LOCK
23	53536-SJF-J01	Boot b
24	53604-SJF-J01	Bracket
25	53608-SJF-G01	Housing sub assy. - STEERING GEAR BOX
26	53611-SJF-G01	Cylinder comp
27	53626-SJF-G01	Rack comp - STEERING
28	53641-SJF-G02	Valve sub assy.
29	53645-SJF-G04	Housing comp - VALVE
30	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)
31	53661-S50-003	Washer - WAVE (SHOWA)
32	53662-S5A-003	O-ring - 11.5X1.5
33	53663-S7A-003	Ring - BACK UP
34	53664-S7A-003	Circlip - INTERNAL, 47MM
35	53666-S50-003	O-ring - 41.5X2 (SHOWA)
36	53670-SJF-G01	Pipe comp. a - CYLINDER
37	53671-SJF-G01	Pipe comp. b - CYLINDER
38	53685-SJF-J01	Bush - GEAR BOX MOUNTING
39	53685-SJF-003	Bush - GEAR BOX MOUNTING
40	90105-S50-003	Bolt - FLANGE, 8X28
41	90455-S5A-003	Bolt - FLANGE, 12X40
42	90456-S5A-003	Bolt - FLANGE, 8X12
43	90601-S50-003	Circlip - EXTERNAL, 20MM

P.s. gear box components (HPS; RH) 43

#	OEM	部品名
1	06531-SJF-J01	Seal kit a - POWER STEERING
2	06532-S50-003	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	06536-SJF-J01	Boot set
6	06537-SJF-J01	Boot set b
7	06538-S5A-H01	Slider
8	53413-ST7-J61	Spring - RACK GUIDE PRESSURE
9	53414-S04-003	Screw - RACK GUIDE
10	53416-S5A-003	Guide - STEERING RACK
11	53418-S04-G51	Washer - DISK
12	53434-S5A-003	Clip - STEERING TIE ROD
13	53446-S9A-003	Guard - BOOT
14	53447-SJF-J01	Band c - BELLOWS
15	53448-SJF-J01	Band b - BELLOWS
16	53449-S5A-003	Band - BELLOWS
17	53455-S5A-003	Ring b - STOPPER
18	53456-S5A-003	Plug - RACK END
19	53457-S5A-003	Lock - SCREW
20	53458-S50-003	Nut - LOCK
21	53534-SJF-J01	Boot
22	53535-S5A-003	Washer - LOCK
23	53536-SJF-J01	Boot b
24	53604-SJF-J01	Bracket
25	53608-SJF-J01	Housing sub assy. - STEERING GEAR BOX
26	53611-SJF-J01	Cylinder comp
27	53626-SJF-J01	Rack comp - STEERING
28	53641-SJF-E02	Valve sub assy.
29	53645-SJF-J03	Housing comp - VALVE
30	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)
31	53661-S50-003	Washer - WAVE (SHOWA)
32	53662-S5A-003	O-ring - 11.5X1.5
33	53663-S7A-003	Ring - BACK UP
34	53664-S7A-003	Circlip - INTERNAL, 47MM
35	53666-S50-003	O-ring - 41.5X2 (SHOWA)
36	53670-SJF-J01	Pipe comp. a - CYLINDER
37	53671-SJF-J01	Pipe comp. b - CYLINDER
38	53685-SJF-J01	Bush - GEAR BOX MOUNTING
39	53685-SJF-003	Bush - GEAR BOX MOUNTING
40	90105-S50-003	Bolt - FLANGE, 8X28
41	90455-S5A-003	Bolt - FLANGE, 12X40
42	90456-S5A-003	Bolt - FLANGE, 8X12
43	90601-S50-003	Circlip - EXTERNAL, 20MM

P.s. lines (2.0L; LH) 23

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-SJF-013	Tank comp. - POWER STEERING OIL
2	53701-SJF-003	Tank comp. - POWER STEERING OIL
3	53711-SJF-G00	Bracket comp. - POWER STEERING OIL TANK
4	53713-SJF-G03	Hose comp. - POWER STEERING FEED
5	53720-SJF-G00	Pipe comp - RETURN
6	53729-671-003	Clamp d - 15.5MM
7	53730-SJF-G00	Pipe comp - POWER STEERING
8	53731-SJF-020	Tube - POWER STEERING SUCTION
9	53732-SJF-G01	Hose - POWER STEERING RETURN
10	53733-SJF-901	Hose - POWER STEERING OIL TANK
11	53745-SJF-G00	Stay a - POWER STEERING FEED HOSE
12	53745-S9A-A00	Stay - FEED HOSE
13	53775-SJF-G01	Clamp - FEED HOSE
14	53781-SE0-952	Clip - RETURN HOSE
15	56490-PNA-003	Switch assy - POWER STEERING PRESSURE
16	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
16	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
17	91304-PA6-003	O-ring - 7.8X1.9
18	91370-SV4-000	O-ring - 14.4X1.9
19	91405-SS0-003	Clamp - TUBE (D21)
23	16922-SH3-930	Rubber - MOUNTING
24	80364-SCC-000	Collar - DISTANCE

P.s. lines (2.0L; RH) 20

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-SJF-003	Tank comp. - POWER STEERING OIL
2	53701-SJF-013	Tank comp. - POWER STEERING OIL
3	53711-SJF-010	Bracket comp. - POWER STEERING OIL TANK
4	53713-SJF-013	Hose comp. - POWER STEERING FEED
5	53720-SJF-000	Pipe comp - RETURN
6	53729-671-003	Clamp d - 15.5MM
7	53730-SJF-E00	Pipe comp - POWER STEERING
8	53731-SJF-020	Tube - POWER STEERING SUCTION
9	53732-SJF-003	Hose - POWER STEERING RETURN
10	53733-SJF-901	Hose - POWER STEERING OIL TANK
11	53745-SJF-000	Stay a - POWER STEERING FEED HOSE
12	53775-S9A-Q00	Clamp - FEED HOSE
13	53781-SE0-952	Clip - RETURN HOSE
14	56490-PNA-003	Switch assy - POWER STEERING PRESSURE
15	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
15	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
16	91304-PA6-003	O-ring - 7.8X1.9
17	91370-SV4-000	O-ring - 14.4X1.9
18	91405-SS0-003	Clamp - TUBE (D21)

Parking brake (LH) 14

#	OEM	部品名
2	47210-SJD-G02	Wire a - PARKING BRAKE
3	47215-SJF-000	Cover - EQUALIZER
4	47216-SJD-010	Cover - MIDDLE LEVER
5	47342-SJD-G01	Switch assy
6	47370-SJD-E03	Lever comp - MIDDLE
7	47510-SJF-023	Wire b - R. PARKING BRAKE
8	47560-SJF-003	Wire b - L. PARKING BRAKE
9	47572-SJF-000	Base - WIRE GUIDE
10	47574-SJF-000	Spring - RETURN
11	90131-S6A-000	Screw - TAPPING, 5X12
12	90161-SJK-000	Bolt - FLANGE, 8X16
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM
14	90651-538-000	Clip - BRAKE HOSE
15	91602-S6A-N00	Grommet - SCREW, 5MM

Parking brake (RH) 14

#	OEM	部品名
2	47210-SJD-E02	Wire a - PARKING BRAKE
3	47215-SJF-000	Cover - EQUALIZER
4	47216-SJD-010	Cover - MIDDLE LEVER
5	47342-SJD-E02	Switch assy
6	47370-SJD-E03	Lever comp - MIDDLE
7	47510-SJF-023	Wire b - R. PARKING BRAKE
8	47560-SJF-003	Wire b - L. PARKING BRAKE
9	47572-SJF-000	Base - WIRE GUIDE
10	47574-SJF-000	Spring - RETURN
11	90131-S6A-000	Screw - TAPPING, 5X12
12	90161-SJK-000	Bolt - FLANGE, 8X16
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM
14	90651-538-000	Clip - BRAKE HOSE
15	91602-S6A-N00	Grommet - SCREW, 5MM

Parking brake shoe 18

#	OEM	部品名
1	43053-SJF-E00	Shoe set - RR. BRAKE
2	43110-SJF-003	Plate comp - R. PARKING BRAKE BACK
3	43120-SJF-003	Plate comp - L. PARKING BRAKE BACK
5	43171-SX0-J01	Spring - ROD
6	43172-SX0-N01	Spring a - BRAKE
7	43300-S7A-J51	Bolt comp - ANCHOR
8	43361-S7A-003	Lever - R. PARKING BRAKE
9	43362-SX0-N01	Rod - R. CONNECTING
10	43365-SX0-N01	Pin - PARKING LEVER
11	43366-SX0-J01	Adjuster assy
12	43367-SX0-J01	Spring b - BRAKE
13	43371-S7A-003	Lever - L. PARKING BRAKE
14	43372-SX0-N01	Rod - L. CONNECTING
15	43375-SA0-003	U-clip
16	43379-SA5-003	Washer - WAVE
17	45172-SP0-003	Spring - SHOE CLAMP
18	45175-SX0-N01	Pin - TENSIONER
19	90382-SP0-003	Nut - FLANGE, 16MM

Pedal (LH) 21

#	OEM	部品名
1	17800-SJF-G02	Pedal assy - ACCELERATOR
2	17910-SJF-G01	Wire - THROTTLE
3	17921-SA4-730	Seal - THROTTLE CABLE
8	36750-S5A-J02	Switch assy - STOP & CRUISE (MATSUSHITA)
8	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)
9	36760-SE0-003	Switch assy - CLUTCH(TEC)
10	46505-SA5-000	Pad - PEDAL STOPPER
11	46505-SA7-000	Pad - PEDAL STOPPER
12	46530-SJF-980	Spring assy - PEDAL RETURN
13	46545-SA5-000	Cover, Pedal
14	46600-SJF-G01	Pedal assy - BRAKE
15	46900-SJF-G51	Pedal assy - CLUTCH
16	46907-S7A-A01	Spring - CLUTCH ASSISTANT
17	46911-SD4-930	Bush - PEDAL PIN
18	46981-S2A-003	Bush a - CLUTCH ASSISTANT
19	46982-S2A-003	Bush b - ASSISTANT
20	46991-SJF-G00	Bracket - FOOTREST
21	46992-S5A-013	Plate - FOOTREST BRACKET
22	75891-611-000	Cover - DOOR SWITCH
31	17930-SJF-G01	Clamp - THROTTLE WIRE
35	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Pedal (RH) 19

#	OEM	部品名
1	17800-SJF-E01	Pedal assy - ACCELERATOR
2	17910-SJF-E01	Wire - THROTTLE
6	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)
6	36750-S5A-J02	Switch assy - STOP & CRUISE (MATSUSHITA)
7	36760-SE0-003	Switch assy - CLUTCH(TEC)
8	46505-SA5-000	Pad - PEDAL STOPPER
9	46505-SA7-000	Pad - PEDAL STOPPER
10	46530-SJF-980	Spring assy - PEDAL RETURN
11	46545-SA5-000	Cover, Pedal
12	46600-SJF-003	Pedal assy - BRAKE
13	46900-SJF-E51	Pedal assy - CLUTCH
14	46907-S7A-003	Spring - CLUTCH ASSISTANT
15	46911-SD4-930	Bush - PEDAL PIN
16	46981-S9A-930	Bush a - CLUTCH ASSISTANT
17	46982-SD4-930	Bush b - CLUTCH ASSISTANT
19	46991-SJF-020	Bracket - FOOTREST
20	46992-SJF-003	Plate - FOOTREST BRACKET
22	75891-611-000	Cover - DOOR SWITCH
31	17930-SJF-E01	Clamp - THROTTLE WIRE

Pillar garnish 8

#	OEM	部品名
1	72315-SJD-J01	Seal - R. FR. DOOR INNER (BLACK)
2	72355-SJD-J01	Seal - L. FR. DOOR INNER (BLACK)
3	72815-SJD-J01	Seal - R. RR. DOOR INNER (BLACK)
4	72855-SJD-J01	Seal - L. RR. DOOR INNER (BLACK)
24	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
25	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)
26	91561-SJD-003	Clip - PILLAR
29	91560-S6A-003	Clip - DOOR LINING(ORANGE)

Piston/crankshaft (2.0L) 47

#	OEM	部品名
1	13030-PNC-010	Piston set - OS 0.25
1	13020-PNC-010	Piston set b - STD.
1	13010-PNC-010	Piston set a - STD.
2	13021-PNF-G01	Ring set - PISTON(OS 0.25) (RIKEN)
2	13011-PNF-G01	Ring set - PISTON(STD.)(RIKEN)
3	13111-PNA-010	Pin - PISTON
4	13115-PRB-A00	Clip - PISTON PIN
4	13115-P5A-000	Clip - PISTON PIN
5	13204-P8A-A01	Bolt - CONNECTING ROD
6	13210-PNA-000	Rod comp - CONNECTING
7	13213-PAH-T01	Bearing c - CONNECTING ROD (BROWN)(DAIDO)
7	13216-PAH-T02	Bearing f - CONNECTING ROD (PINK)(TAIHO)
7	13216-PAA-A01	Bearing f - CONNECTING ROD (PINK) (GLACIER VANDERVELL)
7	13214-PAH-T01	Bearing d - CONNECTING ROD (GREEN)(DAIDO)
7	13211-PAH-T02	BEARING A - CONNECTING ROD (BLUE)(TAIHO)
7	13211-PAH-T01	BEARING A - CONNECTING ROD (BLUE)(DAIDO)
7	13215-PAH-T01	Bearing e - CONNECTING ROD (YELLOW)(DAIDO)
7	13215-PAA-A01	Bearing e - CONNECTING ROD (YELLOW) (GLACIER VANDERVELL)
7	13212-PAH-T02	Bearing b - CONNECTING ROD (BLACK)(TAIHO)
7	13212-PAA-A01	Bearing b - CONNECTING ROD (BLACK) (GLACIER VANDERVELL)
7	13216-PAH-T01	Bearing f - CONNECTING ROD (PINK)(DAIDO)
7	13213-PAH-T02	Bearing c - CONNECTING ROD (BROWN)(TAIHO)
7	13213-PAA-A01	Bearing c - CONNECTING ROD (BROWN) (GLACIER VANDERVELL)
7	13214-PAH-T02	Bearing d - CONNECTING ROD (GREEN)(TAIHO)
7	13212-PAH-T01	Bearing b - CONNECTING ROD (BLACK)(DAIDO)
7	13215-PAH-T02	Bearing e - CONNECTING ROD (YELLOW)(TAIHO)
8	13310-PNA-000	Crankshaft comp.
9	13324-PNA-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13326-PNA-003	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13321-PNA-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13323-PNA-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13325-PNA-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13322-PNA-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)
11	13342-PNA-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13344-PNA-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13346-PNA-003	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13341-PNA-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13343-PNA-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13345-PNA-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE
13	13622-PNA-003	Plate - CRANK PULSER
14	13810-PNC-018	Pulley comp - CRANKSHAFT
14	13810-PNC-008	Pulley comp - CRANKSHAFT
15	90017-PCX-013	Bolt-washer - 16X49
15	90017-PCX-003	Bolt-washer - 16X49
16	90704-PNA-000	Key - 4.5X21

Plug hole coil/plug (2.0L) 3

#	OEM	部品名
1	30520-PNA-007	Coil comp - PLUG HOLE
1	30520-RRA-007	IGNITION COIL
2	30522-PFB-007	SEAL, PLUG HOLE

Power steering pump (2.0L) 22

#	OEM	部品名
1	56110-RJJ-G01	Pump sub assy - POWER STEERING
2	56123-RJH-003	Joint - IN.
3	56141-PNC-003	Shaft - POWER STEERING PUMP DRIVE
4	56483-PNC-004	Pulley - POWER STEERING PUMP
5	90305-PAA-A01	Nut - POWER STEERING PULLEY
6	90693-PAA-A01	Circlip - INTERNAL, 40MM
6	90693-P2A-003	Circlip - INTERNAL, 40MM
7	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12
8	91249-PNC-003	Seal - POWER STEERING PUMP
9	91344-PNC-003	Seal - SLIPPER
10	91343-PNC-003	Seal - RUBBER
11	91345-PAA-A01	O-ring - 13.0X1.9
11	91345-PY3-000	O-ring - 13.0X1.9
12	91346-PLA-003	O-ring - 23.8X2.4
13	91347-PAA-A01	O-ring - 16.7X1.8
14	91347-PLA-003	O-ring - 12.7X1.8
15	91348-P2A-003	O-ring - 51.0X2.4
16	91349-PNC-J01	Seal - PUMP COVER
17	91349-PNC-003	Seal b - PUMP COVER
18	91350-PLA-003	Bolt - FLANGE, 8X35
19	91350-P8C-A01	Bolt - FLANGE, 6X20
21	91345-RJL-003	O-ring - 13.0X1.9

Protector 16

#	OEM	部品名
1	71704-SL3-000	Seal - GASKET
2	74475-SJD-G00	Strake - R. RR.
3	74476-SJD-G00	Strake - L. RR.
4	74551-SJD-E00	Fender - R. RR. INNER
5	74591-SJD-E00	Fender - L. RR. INNER
6	74607-SJD-E00	Cover - R. FLOOR UNDER
7	74608-SJD-E00	Cover - L. FLOOR UNDER
10	75305-SJD-003	Clip - SIDE PROTECTOR
13	90102-S50-000	Bolt-washer - 6X12
14	90114-SAA-G01	Screw - TAPPING, 5X17
15	90126-SR4-000	Screw-washer - 5X16
16	90149-SA0-003	Bolt - BUMPER
17	90664-SB3-003	Grommet - SCREW, 5MM
18	90682-SB0-003	Grommet - SCREW, 5MM
19	91501-S04-003	Clip - INNER FENDER
20	91503-SZ3-003	Clip A

Radiator (2.0L; T.RAD) 16

#	OEM	部品名
1	19010-RJJ-004	Radiator comp - T.RAD
2	19011-PH2-004	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)
4	19013-RJJ-000	Seal
5	19015-RJJ-004	Shroud comp - T.RAD
6	19020-PNC-004	Fan comp - COOLING (T.RAD)
7	19030-RJJ-004	Motor - COOLING FAN (T.RAD)
8	19045-PNC-004	Cap comp. - RADIATOR (T.RAD)
9	19046-PAA-A00	Label - RADIATOR CAP
10	19046-PT5-P00	Seal - CAP (PORTUGAL)
11	37870-RAA-A01	Sensor assy - WATER TEMP (PANASONIC)
12	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)
13	90042-PZ1-004	Bolt-washer - 6X20
14	90050-PK1-004	Screw-washer - 4X12(T.RAD)
15	90403-P5M-004	Spacer - FAN, 8MM (MITSUBA)
16	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)

Radiator hose/reserve tan k (2.0L) 10

#	OEM	部品名
1	19101-RJJ-000	Tank - RESERVE
2	19104-RJJ-000	Tube - RESERVE TANK
3	19115-RGA-000	Cap comp. - FILLER
4	19501-RJJ-000	Hose - WATER UPPER
5	19502-RJJ-000	Hose - WATER LOWER
6	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
6	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
7	74171-SJD-000	Bracket - RADIATOR MOUNT UPPER
8	74172-S10-970	Cushion - RADIATOR MOUNTING LOWER
9	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER

Rear brake (DISK) 26

#	OEM	部品名
1	01473-SZ3-A00	Caliper set - RR.
1	01473-SZ3-A01	SET, RR CALIPER
2	06430-S3N-E50	Pad set - RR. (WITHOUT SHIM)
3	06435-S0K-J00	Shim set - RR.
4	42200-SJF-951	Bearing assy - RR. HUB UNIT
5	42326-SLJ-000	Cap, Hub unit
5	42326-ST7-Z00	Cap - HUB UNIT
6	42510-S7A-J50	Disk - RR. BRAKE
7	42511-SP0-000	Cap - MAINTENANCE HOLE
8	43018-S7A-000	Caliper sub assy. - R.
9	43019-S7A-000	Caliper sub assy. - L.
10	43022-SJF-E00	Pad set - RR.
11	43215-S7A-003	Piston
12	43227-SG0-013	Spring - PAD
13	43235-S84-A51	Pin a
14	43244-SZ3-A01	Retainer
15	43262-S84-A51	Pin b
16	43352-SM4-951	Screw - BLEEDER
17	43353-SD5-003	Cap - BLEEDER SCREW
18	45240-SC2-003	Bolt - FLANGE, 8X22
19	90103-SV4-013	Bolt - FLANGE, 10X30
19	90103-SV4-003	Bolt - FLANGE, 10X30
20	90113-SA0-006	Bolt - WHEEL (SAGA)
20	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
20	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
21	90305-S30-003	Nut - SPINDLE

Rear door glass/ door regulator 17

#	OEM	部品名
1	72710-SJD-003	Regulator assy - R. RR. DOOR POWER
1	72710-SJD-013	Regulator assy - R. RR. DOOR POWER
2	72730-SJD-003	Sash - R. RR. DOOR CENTER LOWER
3	72731-SJD-003	Sash - R. RR. DOOR RR. LOWER
4	72735-SJD-003	Runchannel - R. RR. DOOR
5	72750-SJD-013	Regulator assy - L. RR. DOOR POWER
5	72750-SJD-003	Regulator assy - L. RR. DOOR POWER
6	72770-SJD-003	Sash - L. RR. DOOR CENTER LOWER
7	72771-SJD-003	Sash - L. RR. DOOR RR. LOWER
8	72775-SJD-003	Runchannel - L. RR. DOOR
9	73400-SJD-E00	Glass assy - R. RR. DOOR (GREEN)(NIPPON SAFETY)
9	73400-SJD-000	Glass assy - R. RR. DOOR (PRIVACY)(NIPPON SAFETY)
10	73450-SJD-E00	Glass assy - L. RR. DOOR (GREEN)(NIPPON SAFETY)
10	73450-SJD-000	Glass assy - L. RR. DOOR (PRIVACY)(NIPPON SAFETY)
11	90021-SFA-000	Bolt - FLANGE, 6X10
12	90108-S0A-003	Bolt - FLANGE, 6X15
13	90115-SFE-003	Bolt - FLANGE, 6X12

Rear door lining 8

#	OEM	部品名
2	72835-SJD-003	Weatherstrip - R. RR. DOOR INNER
3	72875-SJD-003	Weatherstrip - L. RR. DOOR INNER
6	83508-SFA-000	Bracket - PULL POCKET
17	90101-S03-000	Screw - TAPPING, 4X16
18	90662-SB2-003	Grommet - SCREW, 5MM
19	91560-S6A-003	Clip - DOOR LINING(ORANGE)
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
21	91610-SJ4-003	Grommet - MIRROR GARNISH

Rear door lock/ outer handle 30

#	OEM	部品名
1	72111-S5P-A00	Fastener - R.
4	72130-SJD-003	Protector - R. FR. OUTER HANDLE
5	72134-SHJ-003	Clip s - CABLE END (NATURAL)
6	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT
7	72135-SDA-A01	Striker assy - DOOR LOCK
8	72143-S04-003	Packing
9	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE
10	72149-SAA-003	Snap - R.
11	72151-S5P-A00	Fastener - L.
14	72170-SJD-003	Protector - L. FR. OUTER HANDLE
15	72174-SHJ-003	Clip t - CABLE END (BLACK)
16	72189-SAA-003	Snap - L.
17	72610-SJD-G01	Latch assy - R. RR. DOOR POWER
18	72612-SDA-A00	Cap - R. CHILD LOCK
19	72631-SJD-003	Cable - R. RR. INSIDE HANDLE
20	72633-SJD-003	Cable - R. RR. DOOR LATCH
21	72640-SJD-003	Handle assy - R. RR. DOOR OUTSIDE
21	72640-SJD-013	Handle assy - R. RR. DOOR OUTSIDE
22	72650-SJD-G01	Latch assy - L. RR. DOOR POWER
23	72652-SDA-A00	Cap - L. CHILD LOCK
24	72671-SJD-003	Cable - L. RR. INSIDE HANDLE
25	72673-SJD-003	Cable - L. RR. DOOR LATCH
26	72680-SJD-013	Handle assy - L. RR. DOOR OUTSIDE
26	72680-SJD-003	Handle assy - L. RR. DOOR OUTSIDE
27	74387-S3C-003	Fastener
28	90103-S7S-003	Screw - FLAT, 6X18.5
29	90120-SV4-000	Bolt - LOCK STRIKER
31	90141-SDA-000	Screw - TAPPING, 5X12
32	90662-SB2-003	Grommet - SCREW, 5MM
33	90691-SJD-003	Clip - LATCH CABLE

Rear door panel 19

#	OEM	部品名
11	72311-S5S-003	Clip A - DOOR WEATHERSTRIP
12	72810-SJD-003	Seal - R. RR. DOOR OUTER
13	72821-SJD-000	Seal - R. RR. DOOR HOLE
14	72840-SJD-023	Checker comp. - R. RR. DOOR
14	72840-SJD-013	Checker comp. - R. RR. DOOR
14	72840-SJD-003	Checker comp. - R. RR. DOOR
15	72850-SJD-003	Seal - L. RR. DOOR OUTER
16	72861-SJD-000	Seal - L. RR. DOOR HOLE
17	72880-SJD-023	Checker comp. - L. RR. DOOR
17	72880-SJD-013	Checker comp. - L. RR. DOOR
17	72880-SJD-003	Checker comp. - L. RR. DOOR
18	75891-SA7-000	Stopper - DOOR
19	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
19	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
20	90108-S0A-003	Bolt - FLANGE, 6X15
21	90141-S04-000	Bolt - FLANGE, 8X22
22	90361-SR3-000	Nut - FLANGE, 8MM
23	91561-SZ3-003	Clip
24	91563-S4N-003	Clip - DOOR WEATHERSTRIP OFFSET

Rear lower arm 29

#	OEM	部品名
1	52210-SJF-000	Knuckle, R. RR. (2WD)
2	52215-SJF-000	Knuckle, L. RR. (2WD)
3	52300-SJF-G01	Spring - RR. STABILIZER
4	52306-SJF-G01	Bush - STABILIZER HOLDER
5	52308-SJF-000	Holder - STABILIZER BUSH
6	52320-SJF-003	Link comp - R. RR. STABILIZER
7	52321-SJF-003	Link comp - L. RR. STABILIZER
8	52364-SJF-004	Bush - RR. LOWER ARM INNER
9	52365-SFE-901	Bush b - RR. LOWER OUTER
10	52366-SFE-004	Bush a - RR. LOWER STOPPER OUTER
10	52366-SFE-J01	BUSH AOUTER LWR
11	52370-SJF-020	Arm comp - R. RR. TRAILING
12	52371-SJF-020	Arm comp - L. RR. TRAILING
13	52387-SFE-000	Bolt - TRAILING ARM ADJUST
14	52388-S7A-013	Plate - CAM
15	52390-SJF-000	Arm comp - R. RR. UPPER
16	52395-S5A-004	Bush - RR. UPPER ARM
17	52400-SJF-000	Arm comp - L. RR. UPPER
18	57470-SJD-003	Sensor assy - R. RR.
19	57475-SJD-003	Sensor assy - L. RR.
20	90002-S10-000	Nut - FLANGE, 10MM
21	90181-SFE-020	Bolt - FLANGE, 14X88.5
21	90181-SFE-010	Bolt - FLANGE, 14X88.5
22	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
23	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)
24	90396-S7A-010	Bolt - FLANGE, 12X75
24	90396-S7A-000	Bolt - FLANGE, 12X75
25	90398-S5A-000	Bolt - FLANGE, 12X81.5
26	90399-S5A-000	Bolt - FLANGE, 12X73

Rear seat (CENTER; 1) 26

#	OEM	部品名
4	82198-SEY-J01	Clip c
7	82241-SJD-003	Pivot - RR. SEAT BUSH
8	82244-SJD-003	Rubber - RR. CENTER CUSHION DAMPER
9	82330-SJD-J01	Adjuster - R. RR. CENTER SEAT RECLINING
10	82340-SJD-J01	Adjuster - L. RR. CENTER SEAT RECLINING
11	82360-SJD-J01	Adjuster assy - R. RR. CENTER SEAT SLIDE
13	82370-SJD-J01	Adjuster assy - L. RR. CENTER SEAT SLIDE
21	82926-SJD-J01	Frame comp - RR. CENTER SEATBACK
23	82936-SJD-J01	Frame comp - RR. CENTER SEAT CUSHION
24	82939-SJD-J01	Bolt-washer - 10X40
25	82939-SJD-J11	Bolt-washer - 10X25
26	82939-SJD-J21	Bolt-washer - 6X12
27	82941-SJD-003	Pipe - RR. CENTER SEAT CONNECTING
28	82942-SJD-003	Silencer - RR. CENTER SEATBACK
29	82943-SJD-003	Silencer - RR. CENTER SEAT CUSHION
30	82944-SJD-003	Cable - RR. CENTER SEATBACK RECLINING CONTROL
31	82945-SJD-003	Cable unit - RR. CENTER SEAT CUSHION
32	82946-SJD-003	Screw - 5MM
33	82947-SJD-013	Holder comp - RR. CENTER SEATBELT BUCKLE (R.)
34	82948-SJD-003	Holder comp - RR. CENTER SEATBELT BUCKLE (L.)
35	82950-SJD-J01	Protector - ARM BRACKET
37	82980-SJD-J01	Band - WIRE
43	90134-SE3-003	Screw - TAPPING, 5X10
44	90135-S5A-003	Bolt-washer - 10X27
45	90151-S70-J01	Nut - FLANGE
47	90610-S10-003	Clip - GARNISH

Rear seat (CENTER; LEATHER) 29

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	82198-SEY-J01	Clip c
8	82241-SJD-003	Pivot - RR. SEAT BUSH
9	82244-SJD-003	Rubber - RR. CENTER CUSHION DAMPER
10	82330-SJD-J01	Adjuster - R. RR. CENTER SEAT RECLINING
11	82340-SJD-J01	Adjuster - L. RR. CENTER SEAT RECLINING
12	82360-SJD-J01	Adjuster assy - R. RR. CENTER SEAT SLIDE
13	82370-SJD-J01	Adjuster assy - L. RR. CENTER SEAT SLIDE
21	82922-SJD-E11	Pad comp - RR. CENTER SEATBACK
22	82926-SJD-J01	Frame comp - RR. CENTER SEATBACK
24	82932-SJD-E11	Pad comp - RR. CENTER SEAT CUSHION
25	82936-SJD-J01	Frame comp - RR. CENTER SEAT CUSHION
26	82939-SJD-J01	Bolt-washer - 10X40
27	82939-SJD-J11	Bolt-washer - 10X25
28	82939-SJD-J21	Bolt-washer - 6X12
29	82942-SJD-003	Silencer - RR. CENTER SEATBACK
30	82943-SJD-003	Silencer - RR. CENTER SEAT CUSHION
31	82944-SJD-003	Cable - RR. CENTER SEATBACK RECLINING CONTROL
32	82945-SJD-003	Cable unit - RR. CENTER SEAT CUSHION
33	82946-SJD-003	Screw - 5MM
34	82947-SJD-013	Holder comp - RR. CENTER SEATBELT BUCKLE (R.)
35	82948-SJD-003	Holder comp - RR. CENTER SEATBELT BUCKLE (L.)
36	82950-SJD-J01	Protector - ARM BRACKET
38	82980-SJD-J01	Band - WIRE
44	90134-SE3-003	Screw - TAPPING, 5X10
45	90135-S5A-003	Bolt-washer - 10X27
46	90151-S70-J01	Nut - FLANGE
47	90610-S10-003	Clip - GARNISH
53	82941-SJD-003	Pipe - RR. CENTER SEAT CONNECTING

Rear seat (R./L.) 35

#	OEM	部品名
3	81304-SCC-J01	Holder
8	82126-SJD-J01	Frame comp - R. RR. SEATBACK
9	82128-SJD-E01	Protector - R. COUNTER WEIGHT
11	82136-SJD-J01	Frame comp - R. RR. SEAT CUSHION
15	82196-SJD-003	Clip - SK
16	82198-SEY-J01	Clip c
17	82221-SJD-E01	Weight comp - R.
18	82222-SJD-E01	Lock assy - R.
22	82225-SAA-J01	Striker comp. - R. RR. SEAT
23	82226-SJD-J01	Snap - R.
24	82227-SAA-000	Insulator - STRIKER HOLE
25	82228-SJD-E01	Rod - R. UPPER
26	82229-SJD-E01	Rod - R. LOWER
27	82241-SJD-003	Pivot - RR. SEAT BUSH
28	82242-SJD-003	Silencer - R. RR. SEATBACK
29	82243-SJD-003	Silencer - R. RR. SEAT CUSHION
30	82244-SJD-003	Rubber - RR. CENTER CUSHION DAMPER
33	82526-SJD-J01	Frame comp - L. RR. SEATBACK
34	82528-SJD-E01	Protector - L. COUNTER WEIGHT
36	82536-SJD-J01	Frame comp - L. RR. SEAT CUSHION
39	82621-SJD-E01	Weight comp - L.
40	82622-SJD-E01	Lock assy - L.
44	82625-SAA-J01	Striker comp. - L. RR. SEAT
45	82626-SJD-J01	Snap - L.
46	82628-SJD-E01	Rod - L. UPPER
47	82629-SJD-E01	Rod - L. LOWER
48	82642-SJD-003	Silencer - L. RR. SEATBACK
49	82643-SJD-003	Silencer - L. RR. SEAT CUSHION
50	90134-SE3-003	Screw - TAPPING, 5X10
51	90135-S5A-003	Bolt-washer - 10X27
52	90610-S10-003	Clip - GARNISH
57	81335-SCC-J01	Screw - BAR, 5MM
58	82220-SJD-E01	Lock comp - R. RR. SEAT
59	82620-SJD-E01	Lock comp - L. RR. SEAT
60	90051-SJD-E01	Bush

Rear seat (R./L.; LEATHER) 40

#	OEM	部品名
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
4	81304-SCC-J01	Holder
5	81335-SCC-J01	Screw - BAR, 5MM
8	82122-SJD-E11	Pad comp - R. RR. SEATBACK
11	82126-SJD-J01	Frame comp - R. RR. SEATBACK
12	82128-SJD-E01	Protector - R. COUNTER WEIGHT
14	82132-SJD-E11	Pad comp - R. RR. SEAT CUSHION
15	82136-SJD-J01	Frame comp - R. RR. SEAT CUSHION
19	82196-SJD-003	Clip - SK
20	82198-SEY-J01	Clip c
21	82220-SJD-E01	Lock comp - R. RR. SEAT
22	82221-SJD-E01	Weight comp - R.
23	82222-SJD-E01	Lock assy - R.
27	82225-SAA-J01	Striker comp. - R. RR. SEAT
28	82226-SJD-J01	Snap - R.
29	82227-SAA-000	Insulator - STRIKER HOLE
30	82228-SJD-E01	Rod - R. UPPER
31	82229-SJD-E01	Rod - R. LOWER
32	82241-SJD-003	Pivot - RR. SEAT BUSH
33	82242-SJD-003	Silencer - R. RR. SEATBACK
34	82243-SJD-003	Silencer - R. RR. SEAT CUSHION
35	82244-SJD-003	Rubber - RR. CENTER CUSHION DAMPER
38	82522-SJD-E11	Pad comp - L. RR. SEATBACK
39	82526-SJD-J01	Frame comp - L. RR. SEATBACK
40	82528-SJD-E01	Protector - L. COUNTER WEIGHT
42	82532-SJD-E11	Pad comp - L. RR. SEAT CUSHION
43	82536-SJD-J01	Frame comp - L. RR. SEAT CUSHION
46	82620-SJD-E01	Lock comp - L. RR. SEAT
47	82621-SJD-E01	Weight comp - L.
48	82622-SJD-E01	Lock assy - L.
52	82625-SAA-J01	Striker comp. - L. RR. SEAT
53	82626-SJD-J01	Snap - L.
54	82628-SJD-E01	Rod - L. UPPER
55	82629-SJD-E01	Rod - L. LOWER
56	82642-SJD-003	Silencer - L. RR. SEATBACK
57	82643-SJD-003	Silencer - L. RR. SEAT CUSHION
58	90051-SJD-E01	Bush
59	90134-SE3-003	Screw - TAPPING, 5X10
60	90135-S5A-003	Bolt-washer - 10X27
61	90610-S10-003	Clip - GARNISH

Rear shock absorber 21

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51689-SH9-003	Plate - BUMP STOP(SHOWA)
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
4	52441-SJF-G02	Spring - RR.
5	52610-SJF-G03	Absorber assy - R. RR. SHOCK
6	52611-SJF-G02	Absorber unit - RR. SHOCK
7	52620-SJF-G03	Absorber assy - L. RR. SHOCK
7	52620-SJF-G13	Absorber assy - L. RR. SHOCK
8	52622-SJF-004	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING
10	52675-SJF-004	Base - R. RR. SHOCK ABSORBER MOUNTING
11	52676-SJF-004	Base - L. RR. SHOCK ABSORBER MOUNTING
12	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING
13	52686-S5A-004	Rubber - RR. SPRING MOUNTING
14	52687-S5A-014	Cover - RR. DUST
15	52722-SJF-014	Rubber - BUMP STOPPER (RR.)
16	90181-SJF-000	Bolt - FLANGE, 14X77
17	90304-S10-014	Nut - FLANGE, 10MM
17	90304-S10-024	Nut - FLANGE, 10MM
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
19	52621-SJF-903	Absorber unit - L. RR. SHOCK

Rear windshield/ quarter glass 18

#	OEM	部品名
1	04733-SJD-000	Rubber set - RR. WINDSHIELD DAM
2	73211-SJD-E01	Glass set - RR. WINDSHIELD (GREEN) (ASAHI)
2	73211-SJD-E11	Glass set - RR. WINDSHIELD (PRIVACY) (ASAHI)
3	73511-SJD-E01	Glass - R. QUARTER (GREEN) (AGC)
3	73511-SJD-003	Glass set - R. QUARTER (PRIVACY)(AGC)
4	73526-SJD-000	Rubber - R. WINDSHIELD DAM
5	73561-SJD-E01	Glass - L. QUARTER (GREEN) (AGC)
5	73561-SJD-003	Glass set - L. QUARTER (PRIVACY)(AGC)
6	73576-SJD-000	Rubber - L. WINDSHIELD DAM
7	73810-SJD-003	Seal - R. FR. QUARTER GLASS
8	73850-SJD-003	Seal - L. FR. QUARTER GLASS
11	91501-S2R-003	Clip - QUARTER WINDSHIELD
12	91501-S70-003	Fastener b - WINDSHIELD
13	91502-SR3-003	Clip b - QUARTER WINDOW (NATURAL)
14	91502-S70-003	Fastener b - RR. WINDSHIELD
15	91536-SS0-J01	Fastener a - WINDSHIELD
16	91536-S7A-003	Fastener a - QUARTER GLASS
17	91537-S7A-003	Fastener b - QUARTER GLASS

Rear wiper 9

#	OEM	部品名
1	38448-SD2-003	Rubber - WIPER MOUNTING
2	76702-S9A-003	Collar
3	76710-SJD-003	Motor comp - RR. WINDSHIELD WIPER
4	76711-SJD-003	Cap - PIVOT
5	76720-SJD-E01	Arm - RR. WIPER
6	76721-SJD-003	Cover - ARM
7	76730-SJD-E01	Blade - RR. WINDSHIELD WIPER (315MM)
8	76731-SJD-003	Cover b - BLADE
9	76732-SJD-003	Rubber - BLADE (315MM)

Roof lining 16

#	OEM	部品名
7	83241-SJD-000	Bracket - FR. GRAB RAIL
7	83241-SJD-J01	Bracket - FR. GRAB RAIL (SUNROOF)
7	83241-SJD-J00	Bracket - FR. GRAB RAIL (SUNROOF)
8	83242-SJD-000	Bracket - R. RR. GRAB RAIL
8	83242-SJD-J01	Bracket - R. RR. GRAB RAIL (SUNROOF)
8	83242-SJD-J00	Bracket - R. RR. GRAB RAIL (SUNROOF)
14	83292-SJD-000	Bracket - L. RR. GRAB RAIL
14	83292-SJD-J01	Bracket - L. RR. GRAB RAIL (SUNROOF)
14	83292-SJD-J00	Bracket - L. RR. GRAB RAIL (SUNROOF)
16	90101-SJD-J01	Screw - PAN, 4X8
17	90133-SDC-003	Bolt-washer - 5X16
18	90136-SDA-003	Screw - ET, 5X24
19	90136-S2H-003	Screw - ET, 6X25
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
21	78104-SS0-010	Label - FRENCH
22	81990-SJD-E00	Label - FRENCH TRANSLATION

Roof rail*nh666m* 6

#	OEM	部品名
2	73157-SJD-E01	Molding - R. DRIP SIDE FR.
3	73167-SJD-E01	Molding - L. DRIP SIDE FR.
4	73158-SJD-E01	Molding - R. DRIP SIDE CENTER
5	73168-SJD-E01	Molding - L. DRIP SIDE CENTER
6	73159-SJD-E01	Molding - R. DRIP SIDE RR.
7	73169-SJD-E01	Molding - L. DRIP SIDE RR.

Roof slide components 28

#	OEM	部品名
1	70229-SJD-J01	Screw - 5X7
2	70241-SJD-J01	Rail assy - DRIP
3	70242-SJD-J01	Link assy - R. DRIP
4	70247-SJD-J01	Link assy - L. DRIP
5	70250-SJD-J01	Blind assy. - R. INNER
6	70253-SJD-J01	Screw - TRUSS, 4X8
7	70255-SJD-J01	Blind assy. - L. INNER
8	70300-SJD-J01	Coulisse assy. - R.
9	70303-SJD-J02	Stopper assy - R. FR.
10	70305-SJD-J01	Coulisse assy. - L.
11	70306-SJD-J01	Screw - TRUSS, 5X10
12	70308-SJD-J02	Stopper assy - L. FR.
13	70380-SJD-J01	Plate set a - R.
14	70381-SJD-J01	Plate set b - R.
15	70382-SJD-J01	Screw - TRUSS, 4X6
16	70385-SJD-J01	Plate set a - L.
17	70386-SJD-J01	Plate set b - L.
18	70410-SJD-J01	Drive unit
19	70450-SJD-J01	Motor assy.
20	70451-SJD-J01	Screw - PAN, 5X29
21	70460-SJD-J01	Cable assy
22	70470-SJD-J01	Slider assy. - R.
23	70475-SJD-J01	Slider assy. - L.
24	70500-SJD-J01	Deflector assy
25	70611-SJD-J01	Stopper assy - R. SUNSHADE
26	70616-SJD-J01	Stopper assy - L. SUNSHADE
27	90145-S10-003	Screw - FLAT, 4X5.5
28	90148-SJD-J01	Screw - FLAT, (4X8)

Rr under sp*prim* 3

#	OEM	部品名
2	90501-SM4-003	Bolt - FENDER
4	90308-SB2-013	Nut - SUSPENSION, 5MM
5	90103-SDA-A00	Screw - TAPPING, 5X20

Seatbelts 12

#	OEM	部品名
7	81491-SJD-000	Protector - R. FR. SEATBELT
12	81891-SJD-000	Protector - L. FR. SEATBELT
16	82491-SJD-000	Protector - R. RR. SEATBELT
20	82891-SJD-000	Protector - L. RR. SEATBELT
21	90133-SZ4-003	Screw - ET, 7X16
21	90101-S84-A00	Screw - ET, 6X16
22	90135-S1F-003	Bolt - FLANGE, 7/16"
23	90650-SJD-000	Cable - TIE
24	91533-S04-003	Clip - COUPLER (NATURAL)
25	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
26	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)
27	81982-SJD-J01	Bolt - 8X20

Shift arm/shift lever (2.0L) 22

#	OEM	部品名
1	21396-P20-000	Cap - BREATHER
2	21399-PPP-000	Plate - BREATHER
3	21520-PNS-000	Cover comp. - SHIFT ARM
4	24411-PPP-010	Arm - SHIFT
5	24412-PNS-000	Arm - MAINSHAFT BRAKE SYSTEM
6	24413-PNS-000	Spring - MAINSHAFT BRAKE SYSTEM RETURN
7	24430-PNS-000	Interlock comp.
8	24433-PH8-000	Bolt - INTERLOCK
9	24460-PNS-000	Lever comp - SELECT
10	24464-PPP-000	Spring - FIRST-SECOND SELECT
11	24466-PPP-000	Spring - FIFTH-SIXTH SELECT
12	24467-PPP-000	Plate - SELECT STOPPER
13	24470-PPP-000	Lever comp - SHIFT
14	24479-PPP-000	Cover - SHIFT LEVER
15	24521-PNS-000	Cam a - SELECT LOCK
16	24522-PNS-000	Cam b - SELECT LOCK
17	24524-PNS-000	Spring - SELECT LOCK RETURN
18	28251-PNS-003	Solenoid comp.
19	90029-611-010	Bolt - HEX., 8X24
20	90412-679-000	Washer - CONICAL SPRING, 8MM
21	91207-PPP-003	Dust seal - 18X24X5
22	91208-PPP-003	Dust seal - 14X20X4

Shift fork/shift holder (2.0L) 8

#	OEM	部品名
1	24201-PNS-010	Fork comp - GEARSHIFT (5-6)
2	24210-PNS-010	Fork comp - GEARSHIFT (3-4)
3	24220-PPP-010	Fork comp - GEARSHIFT (1-2)
4	24230-PPP-000	Holder comp - REVERSE SHIFT
5	24240-PNS-000	Piece comp. - REVERSE SHIFT
6	24455-PHR-000	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 13

#	OEM	部品名
2	24601-PNS-000	Stay - CHANGE WIRE
4	54100-SJF-003	Lever sub assy. - CHANGE
5	54103-SJD-003	Ring
7	54117-SDA-A01	Rubber - FLOATING
8	54119-SDA-A01	Collar - FLOATING
10	54310-SJF-E03	Wire comp - CHANGE
10	54310-SJF-G03	Wire comp - CHANGE
12	54357-SF1-003	Plate - CHANGE WIRE
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM
14	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
15	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
16	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
17	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Side lining 13

#	OEM	部品名
1	39620-SFA-003	Cap assy.
2	39624-SZ3-003	Socket assy
11	84408-SJD-E01	Screw - TAPPING, 4X10
12	84409-SJD-E01	Screw - TAPPING, 4X6
14	84522-SJD-003	Spacer - R. TRUNK
16	84524-SJD-003	Strap
17	84526-S10-000	Hook
18	84572-SJD-003	Spacer - L. TRUNK
34	84675-SJD-J01	Buckle comp.
35	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
37	90685-SA5-003	Clip - UNDER COVER
38	91551-SFA-003	Clip - CARPET LOWER
39	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Sliding roof 17

#	OEM	部品名
1	18534-634-670	Clip - AIR HOSE, 16MM
2	70020-SJD-J01	Fastener - ROOF LINING
3	70050-SJD-J00	Tube - FR. DRAIN (SUNROOF)
4	70052-SJD-J00	Valve - DRAIN (SUNROOF)
5	70061-SJD-J00	Tube - 14X18X210
6	70062-SJD-J00	Valve - RR. DRAIN (SUNROOF)
7	70063-SJD-J00	Tube comp - R.
8	70064-SJD-J01	Joint - R. RR. SUNROOF DRAIN
9	70068-SJD-J00	Tube comp - L.
10	70069-SJD-J01	Joint - L. RR. SUNROOF DRAIN
11	70081-SJD-J01	Seal a - TAPE
12	70082-SJD-J01	Seal b - TAPE
13	70100-SJD-J01	Frame assy
14	70101-SJD-J01	Nut - CLIP
15	70200-SJD-J01	Glass assy - SUNROOF
18	70618-SJD-J01	Screw - TAPPING, 4X8
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Speaker 7

#	OEM	部品名
1	39120-SEL-902	Speaker assy - 17CM SINGLE) (FR.) (MATSUSHITA
1	39120-SJD-901	Speaker assy - 17CM SINGLE) (HYPER) (MATSUSHITA
2	39120-SEL-951	Speaker assy - 17CM SINGLE) (RR.) (MATSUSHITA
2	39120-SJD-911	Speaker assy - 17CM SINGLE) (HYPER) (MATSUSHITA
3	39120-SJD-921	Speaker assy - R. TWEETER
4	39125-SJD-921	Speaker assy - L. TWEETER
5	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)

Spool valve (2.0L) 24

#	OEM	部品名
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)
3	12251-PNC-003	Gasket comp - CYLINDER HEAD (ISHINO GASKET)
3	12251-PNA-004	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
4	15810-RAA-A03	Valve assy. - SPOOL
4	15810-RAA-A02	Valve assy. - SPOOL
4	15810-RAA-A01	Valve assy. - SPOOL
5	15815-RAA-A02	Filter assy, SPOOL VALVE
5	15815-RAA-A01	Filter assy - SPOOL VALVE
6	15816-PNA-013	Cover - VTEC SPOOL VALVE
6	15816-PNA-003	Cover - VTEC SPOOL VALVE
7	15830-RBB-003	VTC OIL CONTROL VALVE ASSY
8	15832-PNA-003	O-ring
8	15832-PNA-023	ORING
9	15835-PNA-003	Bolt - VTC SOLENOID
10	15840-RAA-A00	Strainer assy - VTC
11	15845-RAA-A01	Filter assy - VTC
12	17261-PNA-000	Stay comp. a - AIR CLEANER
13	37250-PNE-G01	Switch assy - VALVE TIMING OIL PRESSURE
14	90005-PNA-003	Bolt-washer - 11X155
15	90026-PNA-003	Bolt - STUD, 10X39.5
16	91319-PAA-A01	O-ring - 13X1.5

Srs unit (LH) 10

#	OEM	部品名
1	77900-SJD-E31	Reel assy - CABLE (FURUKAWA)
2	77930-SFE-J11	Sensor assy - FR. CRASH (DENSO)
3	77960-SJD-G21	Srs unit - DENSO
4	77970-SFE-B11	Sensor assy - SIDE IMPACT (DENSO)
7	90133-SDC-003	Bolt-washer - 5X16
8	90137-S84-A01	Bolt - TORX EARTH, 6X20
9	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
10	91533-SAA-003	Clip - COUPLER(NATURAL)
11	78870-SJD-G81	Module assy. - R. SIDE CURTAIN AIRBAG
12	78875-SJD-G81	Module assy. - L. SIDE CURTAIN AIRBAG

Srs unit (RH) 10

#	OEM	部品名
1	77900-SJD-E31	Reel assy - CABLE (FURUKAWA)
2	77930-SFE-J11	Sensor assy - FR. CRASH (DENSO)
3	77960-SJD-E21	Srs unit - DENSO
4	77970-SFE-B11	Sensor assy - SIDE IMPACT (DENSO)
7	90133-SDC-003	Bolt-washer - 5X16
8	90137-S84-A01	Bolt - TORX EARTH, 6X20
9	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
10	91533-SAA-003	Clip - COUPLER(NATURAL)
11	78870-SJD-G81	Module assy. - R. SIDE CURTAIN AIRBAG
12	78875-SJD-G81	Module assy. - L. SIDE CURTAIN AIRBAG

Starter motor (DENSO; 2.0L) 26

#	OEM	部品名
1	30201-PH9-004	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP
3	31200-PNE-G01	Motor assy. - STARTER (DSDH6) (DENSO)
4	31201-PNE-G01	Housing comp - DRIVE SIDE
5	31202-PNA-003	Endframe comp. - COMMUTATOR
6	31202-PR4-003	Bolt - THROUGH (DENSO)
7	31203-P3F-003	Lever - PINION DRIVE
8	31204-PNC-003	Switch assy - MAGNET
9	31205-PNE-G02	Yoke comp.
10	31206-P3F-A51	Armature comp.
11	31207-PNA-003	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM
13	31213-PNA-003	Shaft - DRIVE
14	31213-P64-N01	Cover
15	31214-P3F-003	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL
19	31218-P3F-003	Washer a
20	31219-P3F-003	Washer b
21	31220-PH9-004	Nut - HEX., 8MM
22	31220-P3F-003	Washer c
23	31223-PA0-006	Nut - HEX.
24	31231-P3F-003	Plate comp - BRUSH HOLDER
25	31291-PNA-003	Stay - ENGINE WIRE HARNESS
26	31292-PLR-A01	Bolt-washer

Steering column 7

#	OEM	部品名
1	53200-SJF-E04	Column assy - STEERING
1	53200-SJF-E03	Column assy - STEERING
1	53200-SJF-G03	Column assy - STEERING
1	53200-SJF-G05	Column assy - STEERING
2	90135-SF1-000	Bolt - CENTER SHAFT YOKE
3	90361-SR3-000	Nut - FLANGE, 8MM
4	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS) 7

#	OEM	部品名
6	77901-SJD-G00	Sub cord - CABLE REEL
10	78525-SJD-N61	Guide - CORD
10	78525-SJD-N62	Guide - CORD
11	90134-S6A-A80	Bolt - HEX., 6X23
12	90163-S04-000	Nut - STEERING WHEEL
13	90178-SJD-N61	Screw - TAPPING, 4X14
14	90178-SJD-N71	Screw - TAPPING, 4X14

Strg whee*nh167l* 1

#	OEM	部品名
2	90134-S6A-A80	Bolt - HEX., 6X23

Switch (LH) 10

#	OEM	部品名
1	35300-SJD-003	Switch assy - VSA OFF
2	35510-SJD-003	Switch assy - HAZARD
6	35820-SJD-003	Switch assy - HEADLIGHT ADJUST
7	35850-SJD-003	Bulb comp. - 14V 40MA
8	35851-SJD-003	Bulb comp. - 14V 40MA
9	35852-SJD-003	Bulb comp. - 14V 60MA
10	35853-SJD-003	Bulb comp. a - 14V 40MA
11	35854-SJD-003	Bulb comp. b - 14V 60MA
12	35910-S04-G01	Switch assy - INERTIA
14	90302-SA4-003	Nut - SPRING, 4MM

Switch (RH) 7

#	OEM	部品名
1	35300-SJD-003	Switch assy - VSA OFF
2	35510-SJD-003	Switch assy - HAZARD
4	35820-SJD-003	Switch assy - HEADLIGHT ADJUST
5	35850-SJD-003	Bulb comp. - 14V 40MA
6	35851-SJD-003	Bulb comp. - 14V 40MA
7	35852-SJD-003	Bulb comp. - 14V 60MA
10	90302-SA4-003	Nut - SPRING, 4MM

Tailgate 39

#	OEM	部品名
1	04741-SJD-000	Stay set - R. TAILGATE OPEN
2	04746-SJD-000	Stay set - L. TAILGATE OPEN
3	33506-SJ6-004	Bulb - 12V 18W) (KOITO
4	34271-SJD-003	Lamp unit
5	34272-SJD-003	Cord comp
6	34274-SJD-003	Cap
10	74440-SJD-003	Weatherstrip - TAILGATE
11	74801-SFE-003	Cord set - TAILGATE
12	74801-S7S-003	Lock - TAILGATE
13	74803-SED-E01	Cover - PROTECTOR
14	74807-S6M-003	Snap - 3.5MM) (NATURAL
15	74810-S6A-003	Handle assy - TAILGATE
16	74813-SED-003	Striker assy - TAILGATE
17	74816-S2G-003	Band
18	74829-S84-A00	Stopper - TRUNK LID
19	74830-SJD-003	Cable - TAILGATE OPENER
20	74835-SJD-003	Cover - R. TAILGATE HINGE
21	74885-SJD-003	Cover - L. TAILGATE HINGE
22	74896-SED-E01	Actuator assy - TAILGATE
23	74900-SJD-003	Garnish assy - TAILGATE SPOILER
24	76825-SH3-003	Tube a - RR. WASHER
25	76829-SM4-003	Joint i - WASHER
26	76850-SFE-003	Nozzle assy. - RR. WINDSHIELD
27	76872-SJD-003	Tube - 150MM
28	76873-SJD-003	Tube - 230MM
29	90101-S3N-003	Bolt - FLANGE, 8X22 (10.5MM)
30	90102-SX0-000	Bolt - SPECIAL, 6MM
31	90106-SAA-000	Bolt - FLANGE, 6X14
32	90106-SEY-003	Screw - 3X28
33	90107-SEY-003	Bolt - TAILGATE LOCK
34	90120-SV4-000	Bolt - LOCK STRIKER
35	90303-SA5-003	Nut - FR. COMBINATION LIGHT
36	90303-S2G-003	Nut - 6MM
37	90308-SB2-013	Nut - SUSPENSION, 5MM
38	90851-SFA-003	Plug - HOLE, 25X35
39	91512-SCC-003	Clip - TAILGATE SPOILER
40	91512-S50-003	Clip - LICENSE GARNISH
41	91558-SE3-003	Clip - HOOD WIRE
42	91580-SM4-003	Clip - COUPLER(ORANGE)

Tailgate lining 1

#	OEM	部品名
8	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Taillight/license light 22

#	OEM	部品名
1	33301-SAP-003	Bulb - AMBER) (12V 21W
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33303-S2R-901	Bulb - 12V 21W
5	33501-SJD-E01	Lamp unit - R.
5	33501-SJD-G01	Lamp unit - R.
6	33502-SJD-003	Gasket - BASE
7	33513-SAA-003	Socket - T20W W4
8	33514-SAA-003	Socket - T20W S3
9	33515-SAA-G01	Socket - T20W S2
10	33515-SJD-003	Socket - T20W S3
11	33551-SJD-E01	Lamp unit - L.
11	33551-SJD-G01	Lamp unit - L.
12	34100-S60-013	Light assy - LICENSE
13	34101-S60-013	Lens
14	34102-S60-003	Housing comp
15	34103-S60-003	Gasket
16	34906-S2K-003	Bulb - 12V 21/5W
17	74890-SJD-013	Garnish assy - RR. LICENSE
18	74895-S5A-000	Bolt - SPECIAL, 5MM
19	90650-SZ3-003	Grommet - R. RR. COMBINATION LIGHT
20	90655-SZ3-003	Grommet - L. RR. COMBINATION LIGHT
21	91512-S50-003	Clip - LICENSE GARNISH

Throttle body (2.0L) 11

#	OEM	部品名
1	16176-PPA-004	Gasket - THROTTLE BODY
2	16400-PNB-E03	Throttle Body Assy - GMA2A
3	16402-PNB-000	Spacer - THROTTLE BODY
4	16430-RBB-J01	Case comp. - LOWER
5	16431-RBB-J01	Gasket - LOWER CASE
6	32748-PPA-N10	Stay h - ENGINE HARNESS
7	32749-PPA-N10	Stay j - ENGINE HARNESS
8	36162-RFE-005	Valve assy. - PURGE CONTROL SOLENOID
9	36221-PNC-005	O-ring
10	37830-PNC-003	Map Sensor assy
11	37835-PGK-A01	O-ring

Tire/wheel disks 77

#	OEM	部品名
1	42700-SJD-J01	Disk - WHEEL (15X6JJ) (RING TECHS) (BLACK)
2	42700-SJF-J91	Disk - ALUMINIUM WHEEL (16X6 1/2JJ) (KOSEI)
3	42700-S7C-G01	Disk - WHEEL (15X4T) (RING TECHS)
4	42751-SEA-E14	Tire - 205/55R16 91V) (MICHELIN
5	42751-SV4-947	Tire - T135/90D15 100M) (DUNLOP
5	42751-SV4-945	Tire - T135/90D15 100M) (BRIDGESTONE
5	42751-SV4-946	Tire - T135/90D15 100M) (DUNLOP
6	42753-SH3-003	Valve - RIM (US PACIFIC)
6	42753-SB8-661	Valve - RIM (SCHRADER)
6	42753-671-003	Valve - RIM (TAIHEIYO)
6	42753-SE0-A02	Valve - RIM (SCHRADER)
7	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
7	42767-S04-P00	Plate - SPARE TIRE CAUTION (T-TYPE)(PORTUGAL)
7	42767-SB2-620	Plate - SPARE TIRE CAUTION (T-TYPE)(FRENCH)
8	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
9	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)
9	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)
9	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)
9	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)
9	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)
9	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)
9	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)
9	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)
9	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)
9	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)
9	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)
9	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)
9	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)
9	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)
10	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)
10	44721-S5A-A20	Weight - BALANCE (10G)
10	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)
10	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)
10	44724-TP6-A01	WEIGHT (20G)
10	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)
10	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)
10	44726-TP6-A01	WEIGHT (30G)
10	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)
10	44721-TP6-A01	WEIGHT, BALANCE (5G)
10	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)
10	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)
10	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)
10	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)
10	44723-TP6-A01	WEIGHT (15G)
10	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)
10	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)
10	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)
10	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)
10	44725-TP6-A01	WEIGHT (25G)
10	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)
10	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)
10	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)
10	44727-TP6-A01	WEIGHT (35G)
10	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)
10	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)
10	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)
11	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)
11	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)
11	44721-SEA-004	Weight - BALANCE (10G) (TOHO)
11	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)
11	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)
11	44722-SEA-004	Weight - BALANCE (20G) (TOHO)
11	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)
11	44723-SEA-004	Weight - BALANCE (30G) (TOHO)
11	44726-SEA-004	Weight - BALANCE (5G) (TOHO)
11	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)
11	44727-SEA-004	Weight - BALANCE (15G) (TOHO)
11	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)
11	44728-SEA-004	Weight - BALANCE (25G) (TOHO)
11	44729-SEA-004	Weight - BALANCE (35G) (TOHO)
12	44732-SHJ-A90	Cap assy. - ALUMINIUM WHEEL CENTER
13	44733-SJD-000	Trim - WHEEL (15")
14	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
15	74654-SJD-000	Bolt - ANCHOR
16	74665-SM4-A00	Adapter - ANCHOR BOLT
17	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)
18	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 6

#	OEM	部品名
1	89000-SJD-900	Tool set
2	89101-SFE-003	Bag - TOOL
3	89211-SFE-003	Wrench - WHEEL
4	89310-SFE-003	Jack assy - PANTOGRAPH
5	89311-SFE-003	Plate - JACK CAUTION
6	89320-S05-003	Bar - JACK

Transmission case (2.0L) 69

#	OEM	部品名
1	21104-PPP-000	Plate m - OIL GUIDE
2	21200-PZF-010	Case comp. - TRANSMISSION
3	21211-RAP-000	Plate - OIL GUTTER
4	21220-PZF-010	Hanger a - TRANSMISSION
5	21223-RAP-010	Hanger comp. b - TRANSMISSION
6	21224-PNS-000	Stay - HARNESS
7	23977-PPP-J00	Shim av - 72MM (1.98)
7	23945-P21-000	Shim o - 72MM(1.02)
7	23972-PPP-J00	Shim ap - 72MM (1.83)
7	23940-P21-000	Shim j - 72MM(0.87)
7	23967-P21-000	Shim ak - 72MM(1.68)
7	23935-P21-000	Shim e - 72MM(0.72)
7	23962-P21-000	Shim af - 72MM(1.53)
7	23957-P21-000	Shim aa - 72MM(1.38)
7	23984-PPP-J00	Shim bc - 72MM (2.19)
7	23952-P21-000	Shim v - 72MM(1.23)
7	23979-PPP-J00	Shim ax - 72MM (2.04)
7	23947-P21-000	Shim q - 72MM(1.08)
7	23974-PPP-J00	Shim ar - 72MM (1.89)
7	23942-P21-000	Shim l - 72MM(0.93)
7	23969-P21-000	Shim am - 72MM(1.74)
7	23937-P21-000	Shim g - 72MM(0.78)
7	23932-P21-000	Shim b - 72MM(0.63)
7	23964-P21-000	Shim ah - 72MM(1.59)
7	23959-P21-000	Shim ac - 72MM(1.44)
7	23986-PPP-J00	Shim be - 72MM (2.25)
7	23954-P21-000	Shim x - 72MM(1.29)
7	23981-PPP-J00	Shim az - 72MM (2.10)
7	23949-P21-000	Shim s - 72MM(1.14)
7	23976-PPP-J00	Shim at - 72MM (1.95)
7	23944-P21-000	Shim n - 72MM(0.99)
7	23971-P21-000	Shim ao - 72MM(1.80)
7	23939-P21-000	Shim i - 72MM(0.84)
7	23966-P21-000	Shim aj - 72MM(1.65)
7	23934-P21-000	Shim d - 72MM(0.69)
7	23961-P21-000	Shim ae - 72MM(1.50)
7	23956-P21-000	Shim z - 72MM(1.35)
7	23983-PPP-J00	Shim bb - 72MM (2.16)
7	23951-P21-000	Shim u - 72MM(1.20)
7	23978-PPP-J00	Shim aw - 72MM (2.01)
7	23946-P21-000	Shim p - 72MM(1.05)
7	23973-PPP-J00	Shim aq - 72MM (1.86)
7	23941-P21-000	Shim k - 72MM(0.90)
7	23968-P21-000	Shim al - 72MM(1.71)
7	23936-P21-000	Shim f - 72MM(0.75)
7	23931-P21-000	Shim a - 72MM(0.60)
7	23963-P21-000	Shim ag - 72MM(1.56)
7	23958-P21-000	Shim ab - 72MM(1.41)
7	23985-PPP-J00	Shim bd - 72MM (2.22)
7	23953-P21-000	Shim w - 72MM(1.26)
7	23980-PPP-J00	Shim ay - 72MM (2.07)
7	23948-P21-000	Shim r - 72MM(1.11)
7	23975-PPP-J00	Shim as - 72MM (1.92)
7	23943-P21-000	Shim m - 72MM(0.96)
7	23970-P21-000	Shim an - 72MM(1.77)
7	23938-P21-000	Shim h - 72MM(0.81)
7	23933-P21-000	Shim c - 72MM(0.66)
7	23965-P21-000	Shim ai - 72MM(1.62)
7	23960-P21-000	Shim ad - 72MM(1.47)
7	23955-P21-000	Shim y - 72MM(1.32)
7	23982-PPP-J00	Shim ba - 72MM (2.13)
7	23950-P21-000	Shim t - 72MM(1.17)
8	28820-PWR-013	Pick up assy. MATSUSHITA
9	90081-PB6-000	Bolt - PLUG, 14MM
10	90081-PPP-000	Bolt - SEALING, 32MM
11	90380-S10-000	Bolt - STUD, 12X83.8
12	90401-RAS-000	Washer - PLAIN
13	91205-PL3-B01	Oil seal - 40X56X8(ARAI)
14	91309-PX4-003	O-ring - 16X2.1 (NOK)

Valve/rocker arm (2.0L) 16

#	OEM	部品名
1	14620-RAA-A00	Arm assy. - ROCKER
2	14624-RAA-A00	Arm assy. - EX. ROCKER
3	14647-RAA-A00	Washer - THRUST
4	14711-PNA-000	Valve - IN.
5	14721-PNA-000	Valve - EX.
6	14744-PNA-004	Screw - TAPPET ADJUSTING
7	14744-PT0-004	Screw - TAPPET ADJUSTING
8	14761-PNE-003	Spring - IN. VALVE(GREEN) (NIPPON HATSUJO)
8	14761-PNE-004	Spring - IN. VALVE(GREEN) (CHUO SPRING)
9	14762-PNA-004	Spring - EX. VALVE (GRAY) (CHUO SPRING)
9	14762-PNA-003	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)
10	14765-RAA-A00	Retainer - VALVE SPRING
11	14775-PT0-000	Seat - VALVE SPRING
12	14781-PRB-A02	Cotter - VALVE (SERVICE)
13	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)
14	90206-PT0-004	Nut - TAPPET ADJUSTING

Vsa modulator (2.0L) 4

#	OEM	部品名
1	57101-SFB-951	Rubber - DAMPER
2	57110-SJF-020	Modulator assy
2	57110-SJF-030	Modulator assy
3	57115-SJF-E50	Bracket - MODULATOR

Water hose (2.0L) 3

#	OEM	部品名
1	19507-PNB-003	Clamp - THROTTLE BODY HOSE
2	19508-PNB-000	Hose - THROTTLE BODY IN.
3	19509-PNB-000	Hose - THROTTLE BODY OUTLET

Water pump (2.0L) 22

#	OEM	部品名
1	19200-PNA-003	Pump comp - WATER
2	19222-PNA-003	Packing - WATER PUMP
3	19301-PNA-003	Thermostat assy - NIPPON THERMOSTAT
4	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
5	19320-PNA-003	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)
6	19322-PCX-003	O-ring - 43.8X3.1
7	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
8	19350-PNE-G00	Outlet assy - WATER
9	19352-PNA-000	Seal - WATER OUTLET
10	19410-PNC-000	Passage - WATER
11	19500-PNA-000	Joint - TUBE
12	19504-PNA-000	Hose - BYPASS IN.
13	19506-PNA-013	Clamp - BYPASS HOSE
14	19510-PNA-000	Pipe comp - HEATER
15	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
16	36282-PNA-G00	Tube - AIR ASSIST IN.
17	36283-PNA-G00	Tube - AIR ASSIST OUTLET
18	37870-PNA-003	Sensor assy - WATER TEMP (KEIHIN)
19	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
20	90051-PNA-000	Bolt - SPECIAL, 6X28
21	91307-PNA-003	O-ring - 9.5X1.9
22	91315-PNA-003	O-ring - 19.3X3.8

Water valve (2.0L; LH) 10

#	OEM	部品名
1	79710-SJD-G01	Valve assy. - WATER
2	79721-SJF-G00	Hose a - WATER IN.
3	79722-SJD-G00	Hose b - WATER IN.
4	79725-SJF-G00	Hose - WATER OUTLET
5	79731-S5A-000	Grommet - HEATER PIPE
6	90361-SV4-003	Nut - PAINT CUTTING, 6MM
7	90661-SL5-003	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	91551-SD5-003	Clamp - HEATER

Water valve (2.0L; RH) 10

#	OEM	部品名
1	79710-SJD-003	Valve assy. - WATER
2	79721-SJF-000	Hose a - WATER IN.
3	79722-SJD-000	Hose b - WATER IN.
4	79725-SJF-000	Hose - WATER OUTLET
5	79731-S5A-000	Grommet - HEATER PIPE
6	90361-SV4-003	Nut - PAINT CUTTING, 6MM
7	90661-SL5-003	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	91551-SD5-003	Clamp - HEATER

Windshield washer (1) 34

#	OEM	部品名
1	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA
3	38516-SB3-003	Holder - MOTOR
4	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
5	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
6	76802-SJD-003	Cap unit - MOUTH
7	76805-SJD-J01	Hose
9	76806-SE0-921	Motor - RR. WASHER (MITSUBA)
10	76806-SJD-G01	Motor - WASHER
11	76809-SE0-003	Grommet - WASHER TANK
12	76810-SJD-G01	Nozzle assy. - WASHER
13	76812-SJD-J01	Mouth
14	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)
15	76815-SJD-G01	Nozzle assy. - WASHER
16	76820-SJ8-003	Grommet - RR. WASHER TUBE
17	76821-SJD-003	Tube - CORRUGATE
18	76827-SJD-003	Tube - 1100MM
19	76828-SJD-003	Tube - 550MM
20	76829-SM4-003	Joint i - WASHER
21	76830-SM4-003	Joint y - WASHER
22	76832-SJD-003	Tube - 660MM
23	76832-SJK-003	Tube - 170MM
24	76841-SJD-G01	Tank - WASHER (4.5L FR.-RR.)
25	76852-S9A-003	Tube - BELLOWS
26	76857-SE1-003	Grommet b - RR. WASHER TUBE
27	76867-SJD-003	Tube - 2350MM
28	76868-SJD-013	Tube - 4970MM
29	76869-SJD-003	Tube - 180MM
30	90652-SB2-023	Clip - TUBE, 7MM
31	91501-SJ6-003	Clip - WASHER TUBE
32	91512-SX0-003	Clip - INNER FENDER CLIP
33	91523-SM4-003	Clip - WASHER TUBE
34	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
35	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Windshield washer / headlight washer (2) 59

#	OEM	部品名
1	38512-SF0-013	Motor - WASHER (MITSUBA)
2	38514-692-731	Bush
3	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
4	38516-SA5-671	Packing - T-TYPE) (MITSUBA
5	38516-SB0-003	Holder - MOTOR
6	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
7	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
8	76802-SJD-003	Cap unit - MOUTH
9	76803-SE1-S03	Clip - WASHER HOSE
10	76803-SH2-S10	Clip - WASHER HOSE
11	76805-SJD-S11	Hose set - HEADLIGHT WASHER LAVEL
12	76806-SJD-E01	Motor - WASHER
13	76806-SJD-S01	Pump - WASHER
14	76809-SE0-003	Grommet - WASHER TANK
15	76810-SJD-G01	Nozzle assy. - WASHER
16	76812-SJD-J01	Mouth
17	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)
18	76815-SJD-G01	Nozzle assy. - WASHER
19	76820-SJ8-003	Grommet - RR. WASHER TUBE
20	76821-SJD-003	Tube - CORRUGATE
21	76825-SJD-S01	Joint assy.
22	76826-SJD-S01	Joint
23	76827-SJD-S11	Tube - 1300MM
24	76828-SH3-S03	Joint l
25	76828-SJD-S41	Joint
26	76828-SJD-003	Tube - 550MM
27	76829-SJD-S01	Joint
28	76829-SM4-003	Joint i - WASHER
29	76830-SM4-003	Joint y - WASHER
30	76832-SJD-003	Tube - 660MM
31	76832-SJK-003	Tube - 170MM
32	76841-SJD-S11	Tank - WASHER (5.8L)
33	76845-SJD-S01	Bracket - WASHER MOTOR
34	76852-S9A-003	Tube - BELLOWS
35	76857-SE1-003	Grommet b - RR. WASHER TUBE
36	76867-SJD-003	Tube - 2350MM
37	76868-SJD-013	Tube - 4970MM
38	76869-SJD-003	Tube - 180MM
39	76880-SJD-S01	Nozzle assy. - R. HEADLIGHT WASHER
41	76883-SJD-S01	Nozzle assy. - R. HEADLIGHT WASHER
42	76883-S7A-S01	Screw
43	76885-SJD-S01	Nozzle assy. - L. HEADLIGHT WASHER
45	76888-SJD-S01	Nozzle assy. - L. HEADLIGHT WASHER
46	76892-SJD-S01	Hose - 1600
47	76892-S10-S01	Hose b
48	76893-SJD-S01	Cushion
49	76893-SJD-S11	Cushion
50	76894-SJD-S01	Hose - 310-80
51	76894-SM4-E03	Hose d
52	76894-SR2-S03	Hose d
53	90118-SEA-S01	Bolt-washer - 6X20
54	90132-SEA-003	Screw - PAN, 5X12
55	90316-SM5-G03	Nut - HEX., 6MM
56	90652-SB2-023	Clip - TUBE, 7MM
57	91501-SJ6-003	Clip - WASHER TUBE
58	91512-SX0-003	Clip - INNER FENDER CLIP
59	91523-SM4-003	Clip - WASHER TUBE
60	91902-S2X-003	Plaster - WIRE HARNESS(50X100)
61	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Wire harness (1; LH) 7

#	OEM	部品名
2	32100-SJF-G11	Harness - R. CABIN WIRE
2	32100-SJF-G31	Harness - R. CABIN WIRE
4	32120-SJF-G61	Harness - L. CABIN WIRE (INCLUDE WASHER TUBE)
4	32120-SJF-G41	Harness - L. CABIN WIRE (INCLUDE WASHER TUBE)
5	90137-S84-A01	Bolt - TORX EARTH, 6X20
6	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
7	90149-SE0-003	Bolt - EARTH, 6X16

Wire harness (1; RH) 5

#	OEM	部品名
2	32100-SJF-N00	Harness - R. CABIN WIRE
4	32120-SJF-E11	Harness - L. CABIN WIRE (INCLUDE WASHER TUBE)
5	90137-S84-A01	Bolt - TORX EARTH, 6X20
6	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
7	90149-SE0-003	Bolt - EARTH, 6X16

Wire harness (2; LH) 6

#	OEM	部品名
1	32103-SJD-G20	Sub cord - COMBINATION
2	32117-SJD-G21	Harness - INSTRUMENT WIRE
2	32117-SJD-G11	Harness - INSTRUMENT WIRE
3	32118-SJD-G50	Harness - STEERING HANGER BEAM WIRE (INCLUDE SUN BEAM CORD)
5	35505-692-003	Bulb - 14V 1.4W
6	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (2; RH) 5

#	OEM	部品名
1	32103-SJD-E30	Sub cord - COMBINATION
2	32117-SJD-N20	Harness - INSTRUMENT WIRE
3	32118-SJD-E50	Harness - STEERING HANGER BEAM WIRE (INCLUDE SUN BEAM CORD)
5	35505-692-003	Bulb - 14V 1.4W
6	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (3; LH) 3

#	OEM	部品名
1	32107-SJD-G21	Harness - FLOOR WIRE
2	32155-SJD-G70	Cord - INTERIOR & SUNROOF
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (3; RH) 3

#	OEM	部品名
1	32107-SJD-E00	Harness - FLOOR WIRE
2	32155-SJD-N00	Cord - INTERIOR
3	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (4; LH) 10

#	OEM	部品名
1	32109-SJD-G00	Cord - TAILGATE
2	32140-SJD-G41	Harness - R. SIDE WIRE
2	32140-SJD-G21	Harness - R. SIDE WIRE
3	32150-SJD-G30	Harness - DASHBOARD WIRE
3	32150-SJD-G51	Harness - DASHBOARD WIRE
4	32751-SJD-G10	Harness - DRIVER DOOR WIRE
5	32752-SJD-G10	Harness - PASSENGER DOOR WIRE
6	32753-SJD-G00	Harness - R. RR. DOOR WIRE
7	32754-SJD-G00	Harness - L. RR. DOOR WIRE
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (4; RH) 8

#	OEM	部品名
1	32109-SJD-G00	Cord - TAILGATE
2	32140-SJD-E11	Harness - R. SIDE WIRE
3	32150-SJD-N20	Harness - DASHBOARD WIRE
4	32751-SJD-E00	Harness - DRIVER DOOR WIRE
5	32752-SJD-E00	Harness - PASSENGER DOOR WIRE
6	32753-SJD-G00	Harness - R. RR. DOOR WIRE
7	32754-SJD-G00	Harness - L. RR. DOOR WIRE
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
