Abs modulator 6

#	OEM	部品名
1	57101-S30-003	Rubber - ABS MOUNTING
2	57102-S30-003	Holder - ABS
3	57110-S30-003	Modulator assy - ABS
4	57115-S30-000	Bracket - MODULATOR
5	57201-S30-003	Cord - ABS
6	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)

Accumulator body 12

#	OEM	部品名
1	27524-P6H-000	Clip - CAP
2	27561-PAX-000	Piston - LOW ACCUMULATOR
3	27562-P6H-000	Spring - LOW ACCUMULATOR
4	27572-PAX-000	Piston - SECOND ACCUMULATOR
5	27581-P6H-000	Spring a - SECOND ACCUMULATOR
6	27584-P6H-000	Spring b - SECOND ACCUMULATOR
7	27850-P6H-J00	Body assy - ACCUMULATOR
8	90606-P6H-000	Ring - SNAP, 28MM
9	90607-P6H-000	Ring - SNAP, 26MM
10	91318-PA9-003	O-ring - 23.5X2.1 (ARAI)
11	91331-PC9-003	O-ring
15	27251-PCJ-000	Valve - LUBRICATION CHECK

Air cleaner 28

#	OEM	部品名
1	17210-P5M-G00	Cover assy. - AIR CLEANER
2	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
3	17213-P13-000	Rubber - AIR CLEANER CASE MOUNTING
4	17215-PR3-000	Clip set A, Wire
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING
6	17216-PR3-000	Clip set B, Wire
7	17220-P13-000	Element assy. - AIR CLEANER
7	17220-P13-505	ELEMENT ASSYAIR
8	17226-P5M-G00	Resonator comp. - AIR FLOW
9	17227-P5M-G00	Tube a - AIR FLOW
10	17228-P5K-000	Tube - AIR FLOW
11	17228-P5M-G00	Tube b - AIR FLOW
12	17240-P5K-000	Case comp. - AIR CLEANER
13	17244-P72-000	Spring - AIR FLOW TUBE
14	17257-P13-000	Tube comp - AIR INTAKE CONTROL
16	17281-P13-000	Tube - SIDE BRANCH
17	17314-P5M-G01	Clamp - AIR FLOW TUBE
18	17315-P5K-000	Clamp - AIR FLOW TUBE (74)
19	17316-P0G-A01	Clamp - AIR FLOW TUBE (55)
20	17358-P5K-000	Stay comp - VACUUM TANK
21	17397-PH4-661	Joint - TWO WAY (#70)
22	36010-PA6-004	Joint - THREE WAY
23	36145-PM4-004	Valve - CHECK
24	36351-P5K-003	Tank comp. - VACUUM
25	36352-P5M-003	Valve assy. - INTAKE CONTROL SOLENOID
26	36355-P5M-000	Tube comp - AIR INTAKE CONTROL
27	90001-P0A-000	Bolt-washer - SPECIAL, 6X35

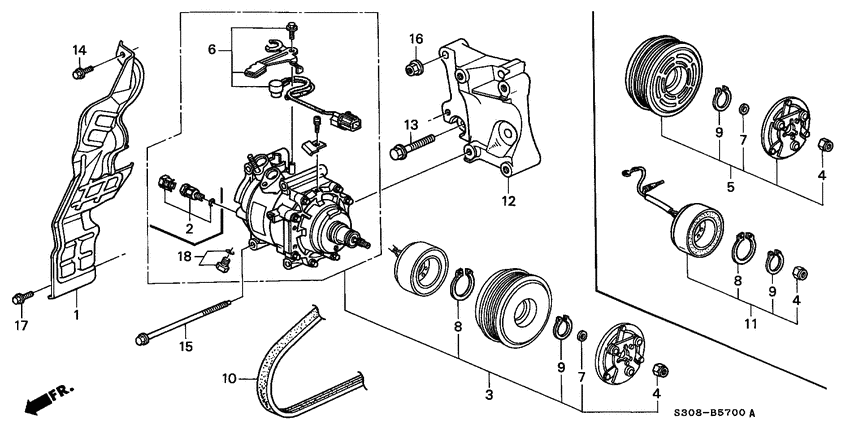

Air conditioner (COMPRESSOR; KEIHIN) 14

#	OEM	部品名
1	18127-P13-010	Insulator - EX. MANIFOLD HEAT
3	38810-P5M-016	Compressor comp. - KEIHIN
5	38900-P13-016	Clutch set - COMPRESSOR
6	38908-P5M-016	Protector set - THERMAL
7	38912-P06-006	Shim set
8	38913-P06-006	Circlip - EXTERNAL, 45MM
9	38914-P06-006	Circlip - EXTERNAL, 35MM
10	38920-P13-J01	Belt - COMPRESSOR (MITSUBOSHI)
11	38924-P13-016	Coil set - FIELD
12	38930-P5M-000	Bracket - COMPRESSOR
13	90001-P5M-000	Bolt - FLANGE, 10X35
14	90003-P13-000	Bolt-washer - 6X12
15	90023-P01-000	Bolt - FLANGE, 8X105
18	38801-PCA-006	Valve sub assy. - SAFETY

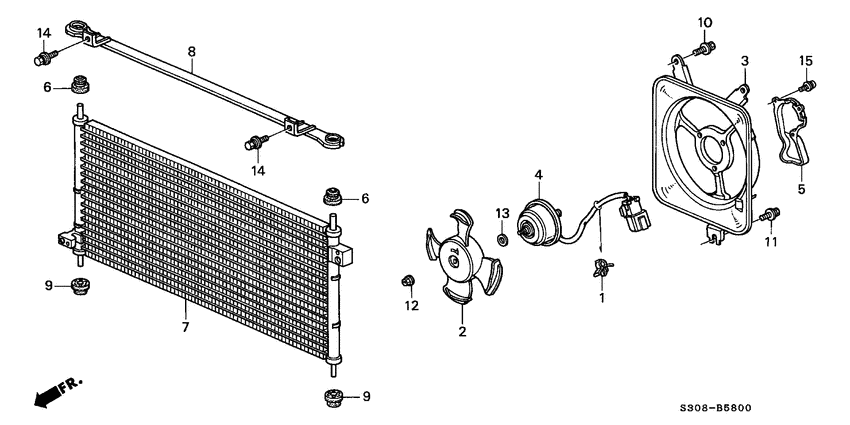

Air conditioner (CONDENSER) 13

#	OEM	部品名
1	32175-647-920	Clip - WIRE HARNESS
1	30701-883-000	Clip, high tension cord (8mm)
2	38611-PAA-A01	Fan comp - COOLING (MITSUBA)
3	38615-P5M-000	Shroud comp. - AIR CONDITIONER
4	38616-PAA-A01	Motor - COOLING FAN (MITSUBA)
5	38619-PT2-J00	Protector - FAN MOTOR
6	80107-SS0-000	Mount - CONDENSER UPPER
7	80110-S30-003	Condenser comp.
8	80111-SW5-003	Bracket - CONDENSER MOUNT UPPER
9	80175-SE0-000	Mount - CONDENSER
10	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
12	90041-PAA-A01	Nut - TOOTHED, 5MM
13	90430-PAA-A01	Washer - PLAIN, 8MM

Air conditioner (COOLING UNIT; LH) 29

#	OEM	部品名
2	38625-SB2-000	Holder - EVAPORATOR PIPE
3	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
4	80201-S30-A01	Case - EVAPORATOR UPPER
5	80202-S30-A01	Case - EVAPORATOR LOWER
6	80203-SF1-010	Clamp - EVAPORATOR CASE
7	80205-S30-A01	Insulator - EVAPORATOR UPPER
8	80206-S30-A01	Insulator - EVAPORATOR LOWER
9	80210-S30-A01	Evaporator sub assy.
10	80215-S30-A01	Evaporator comp.
11	80216-S30-A01	Pipe - LIQUID
12	80220-S30-003	Valve assy. - EXPANSION
13	80224-SW5-003	Insulator - EXPANSION
14	80225-SR3-010	Clamp
15	80275-SS0-000	Hose - DRAIN
16	80286-S30-003	Seal - EVAPORATOR INNER
17	80287-S30-003	Seal - EVAPORATOR OUTER
18	80380-SM4-G00	Grommet - AIR CONDITIONER PIPE
18	80380-SF4-000	Grommet - AIR CONDITIONER PIPE
19	80430-S30-003	Thermostat - AIR CONDITIONER
20	80491-S30-000	Bracket - AIR CONDITIONER RELAY
21	80566-S30-003	Clip - EVAPORATOR SENSOR
22	80872-ST7-000	O-ring - 1/2"
23	80873-ST7-000	O-ring - 8MM
24	80874-SW5-003	O-ring - 4.5MM
25	90126-SK7-003	Bolt-washer - 6X20
26	90155-SE0-003	Screw - TAPPING, 6X20
27	90308-SD2-A00	Nut - FLANGE, 6MM (DACRO COATING)
28	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
29	90659-692-000	Clamp - CASE

Air conditioner (HOSES/PIPES; LH) 20

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-S30-A01	Hose comp. - SUCTION
3	80315-S30-003	Hose comp. - DISCHARGE
4	80321-S30-A02	Pipe - SUCTION
5	80331-S30-003	Pipe - CONDENSER
6	80341-S30-A01	Pipe - RECEIVER
7	80351-S30-003	Receiver comp
8	80352-S30-003	Bracket - LIQUID TANK
9	80360-SL5-003	Clamp - SUCTION HOSE
10	80361-S30-A00	Stay a - SUCTION HOSE
11	80362-S30-A00	Stay b - SUCTION PIPE
12	80364-SF1-000	Clamp a - SUCTION PIPE
13	80382-SS0-000	Clamp b - RECEIVER PIPE
14	80384-SS0-003	Clamp - AIR CONDITIONER PIPE (8MM)
15	80440-SS0-901	Switch - DUAL PRESSURE (FUJI)
16	80865-SL0-003	Cap - VALVE (H)
17	80866-SL0-003	Cap - VALVE(L)
18	80871-ST7-000	O-ring - 5/8"
19	80872-ST7-000	O-ring - 1/2"
20	80873-ST7-000	O-ring - 8MM

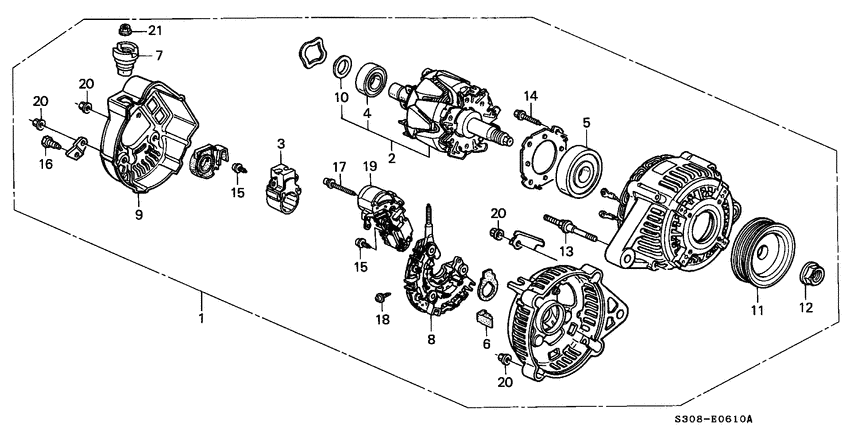

Alternator (DENSO) 22

#	OEM	部品名
1	31100-P5M-G02	Alternator assy - CJV72) (DENSO
2	31101-PCB-003	Rotor assy.
3	31105-PR7-A01	Holder assy. - BRUSH
4	31111-PT0-003	Bearing - RR. GENERATOR
5	31114-PT0-013	Bearing - FR. GENERATOR
6	31118-PT0-003	Bush - INSULATION
7	31119-PT0-003	Bush - INSULATION
8	31127-PT2-013	Rectifier assy.
9	31135-P2C-003	Cover - RR. END
9	31135-P3G-J01	Cover
10	31138-PD1-004	Cover - BEARING
11	31141-P13-003	Pulley
12	31142-PD1-004	Nut - PULLEY LOCK
13	31145-PD1-004	Bolt - STUD, 6X68
14	31146-PT0-003	Screw
15	31147-PT0-003	Screw-washer
16	31147-P13-003	Screw
17	31148-PT0-003	Screw - WAVE WASHER
18	31148-P13-003	Screw - WAVE WASHER
19	31150-P5A-J01	Regulator assy
20	90231-PD1-014	Nut-washer - 5MM
21	90232-PT0-003	Nut - HEX., 6MM

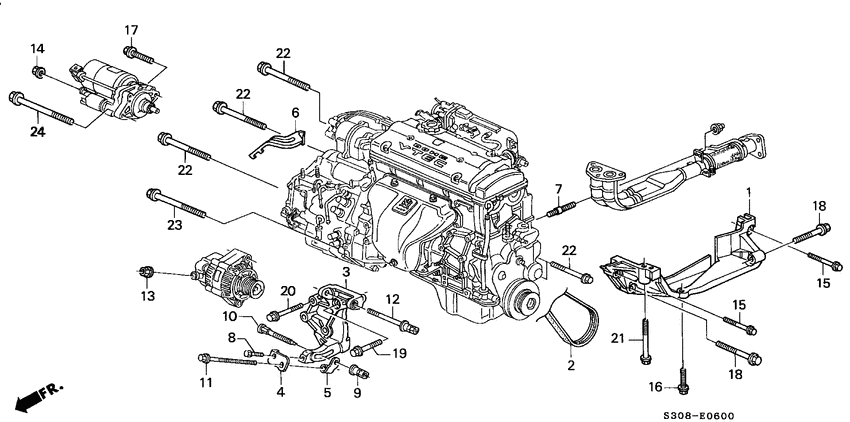

Alternator bracket 13

#	OEM	部品名
1	11950-P5K-000	Stiffener - ENGINE
3	31112-P13-000	Bracket - ALTERNATOR
4	31117-PT0-000	Plate - ALTERNATOR ADJUSTER
5	31118-PT0-000	Stay - ALTERNATOR ADJUSTER
6	32749-PT0-000	Stay a - ENGINE WIRE HARNESS
7	90001-P5K-000	Bolt - STUD, 10X20
8	90004-PA0-000	Bolt - HEX., 6X14
9	90204-PH7-000	Nut - SPECIAL
10	90310-PT0-003	Bolt - SPECIAL
11	90312-PT0-000	Bolt - ADJUSTER SPECIAL
12	90313-PT0-000	Bolt - SPECIAL, 10X90
22	90051-PE0-000	Bolt - FLANGE, 12X70
24	90075-PD3-000	Bolt - FLANGE, 10X43

Auto cruise (LH) 22

#	OEM	部品名
1	17880-S30-A01	Wire - ACTUATOR
2	17921-SA4-730	Seal - THROTTLE CABLE
3	32165-SA5-003	Clip - HARNESS, 9MM(WHITE)
3	90674-769-000	Clamp, p.t.o. cable (b)
4	36520-P5M-A01	Actuator assy
5	36521-P5M-A01	Valve comp - MITSUBA
6	36522-PH2-005	O-ring - MITSUBA
7	36523-PH2-005	Packing - MITSUBA
8	36524-PH2-005	Screw - TAPPING (MITSUBA)
9	36527-PH2-005	O-ring - P7) (MITSUBA
10	36612-PC6-000	Support comp - WIRE
11	36613-P5M-A00	Stay comp - ACTUATOR
12	36615-PJ5-003	Clamp - TUBE, 4.5(NATURAL)
13	36615-P5M-A02	Clamp - TUBE, 4.5
14	36619-PC6-004	Rubber - MOUNTING
15	36622-P5M-A00	Cover - ACTUATOR VENTILATION
16	36625-P5M-A01	Tank comp. - VACUUM
17	36627-PT0-004	Valve - CHECK
18	90308-SD2-A00	Nut - FLANGE, 6MM (DACRO COATING)
19	90526-PC1-000	Collar - DISTANCE
20	90528-PC1-000	Washer - 16X6.5X1.0
21	91442-P5M-A00	Tube comp - ACTUATOR

Auto radio 5

#	OEM	部品名
6	39116-S30-G01	Pocket - AUTO RADIO
9	91551-SE0-003	Bolt - FLANGE, 5X7
11	39100-S1A-Y02	Tuner assy - AUTO RADIO (ALPINE) (20WX4)
12	39100-S04-C11	Tuner assy - AUTO RADIO (SONY) (20WX4)
15	39103-S04-Y51	Knob

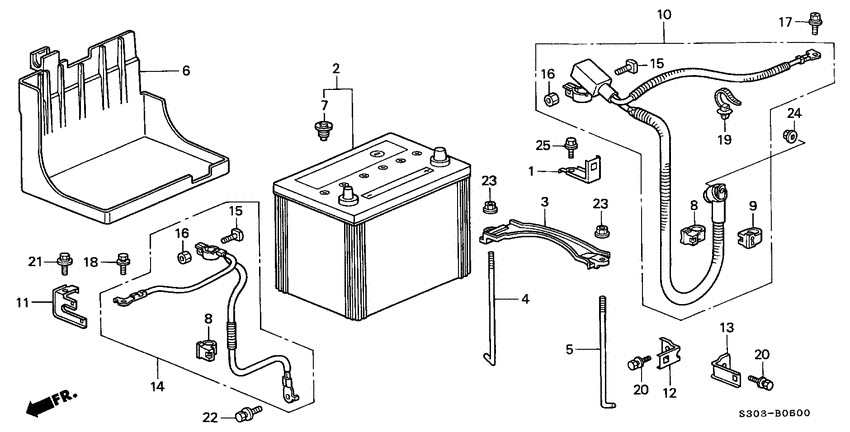

Battery 23

#	OEM	部品名
1	21238-P5K-000	Stay - CABLE HOLDER
2	31500-SS0-G81	Battery assy - 80D26L-MF) (PANASONIC
2	31500-SS0-G83	Battery assy - 80D26L-MF) (FURUKAWA
3	31512-SS0-000	Plate - BATTERY SETTING (70D/80D)
4	31513-SM4-000	Bolt - BATTERY SETTING(195MM)
5	31513-SP0-010	Bolt - BATTERY SETTING (210MM)
6	31521-S30-000	Box - BATTERY (80D/70D)
7	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)
8	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
9	32116-P64-003	Holder - CORRUGATED (DARK GREEN) (13MM)
10	32410-S30-000	Cable assy - STARTER
10	32410-S30-910	Cable assy - STARTER
11	32412-S30-000	Bracket a - STARTER CABLE
12	32413-S30-000	Bracket - STARTER CABLE
13	32414-S30-000	Bracket - STARTER CABLE (AT)
14	32600-S30-000	Cable assy - EARTH
14	32600-S30-910	Cable assy - EARTH
15	32601-SK7-900	Bolt - BATTERY TERMINAL
16	32602-SK7-900	Nut - BATTERY TERMINAL
17	90114-SM4-900	Bolt - 6X15
18	90149-SE0-003	Bolt - EARTH, 6X16
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Brake lines (ABS; LH) 28

#	OEM	部品名
1	01464-S30-000	Hose set - R. FR. BRAKE
2	01465-S30-000	Hose set - L. FR. BRAKE
3	01466-S30-000	Hose set - R. RR. BRAKE
4	01468-S30-000	Hose set - L. RR. BRAKE
6	46330-S30-A00	Pipe comp. c - BRAKE
7	46340-S30-000	Pipe comp. d - BRAKE
8	46374-S30-A51	Pipe comp. u - BRAKE
9	46375-S30-A51	Pipe comp. v - BRAKE
10	46376-S30-A53	Pipe comp. w - BRAKE
11	46377-S30-950	Pipe comp. x - BRAKE
12	46378-S30-950	Pipe comp. y - BRAKE
13	46379-S30-951	Pipe comp. z - BRAKE
14	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
15	46391-SL4-000	Clip - BRAKE PIPE
16	46391-SM4-J01	Clamp - BRAKE PIPE
17	46392-SM4-A01	Clip b - BRAKE PIPE
18	46393-SM4-951	Clip c
19	46395-S30-000	Clip - BRAKE PIPE
20	46396-ST7-951	Clip A
21	46435-SS0-000	Bracket b - R. RR. BRAKE HOSE
22	46436-SS0-000	Bracket b - L. RR. BRAKE HOSE
23	46438-SS0-000	Bracket - R. RR. BRAKE HOSE
24	46439-SS0-000	Bracket - L. RR. BRAKE HOSE
25	46462-SE0-000	Bolt - OIL
26	46472-568-000	Packing - OIL BOLT
27	90361-SV4-003	Nut - PAINT CUTTING, 6MM
28	90651-538-000	Clip - BRAKE HOSE
35	46210-S04-852	Valve assy. - PROPORTIONING

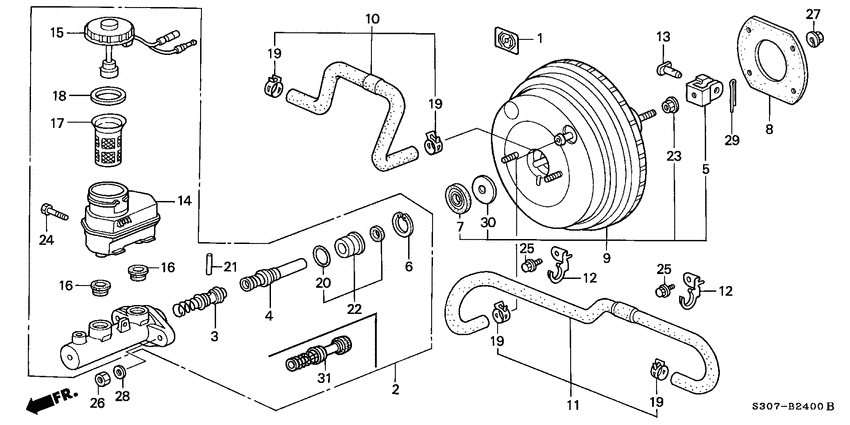

Brake master cylinder/ master power 22

#	OEM	部品名
1	46070-SL0-G01	Plate - SYMBOL MARK
2	46100-S30-A52	Cylinder assy. - MASTER
3	57520-SD4-023	Piston assy. - PRIMARY
4	57540-SD4-023	Piston assy. - SECONDARY
5	46151-SA7-951	Yoke comp - NISSIN
6	57562-SF1-003	Circlip
7	46185-SD4-932	Seal - ROD
8	46191-634-000	Gasket - MASTER CYLINDER BRACKET
9	46400-S30-A52	Power assy. - MASTER (8"+9")
10	46402-S30-A01	Tube assy - MASTER POWER
13	46512-SB2-000	Pin - PEDAL
14	46660-S47-003	Reservoir comp.
15	46662-S04-J01	Cap comp. - RESERVE TANK
16	46665-S04-J01	Grommet
17	46666-S04-J01	Filter - BRAKE RESERVOIR
18	46669-692-003	Seal - RESERVE TANK
19	53729-671-003	Clamp d - 15.5MM
20	57173-SB0-801	O-ring - CONNECTOR
21	57515-S30-003	Pin - STOP
22	57560-S04-J51	Guide assy - PISTON
23	90301-S30-003	Nut - FLANGE, 10MM
30	46445-SD4-931	Plate

Breather tube 4

#	OEM	部品名
1	11856-P13-000	Tube comp - PCV
2	17130-PK1-003	Valve assy. - PCV
4	17137-P13-010	Pipe comp - BREATHER
9	17139-P13-000	Grommet - PCV VALVE

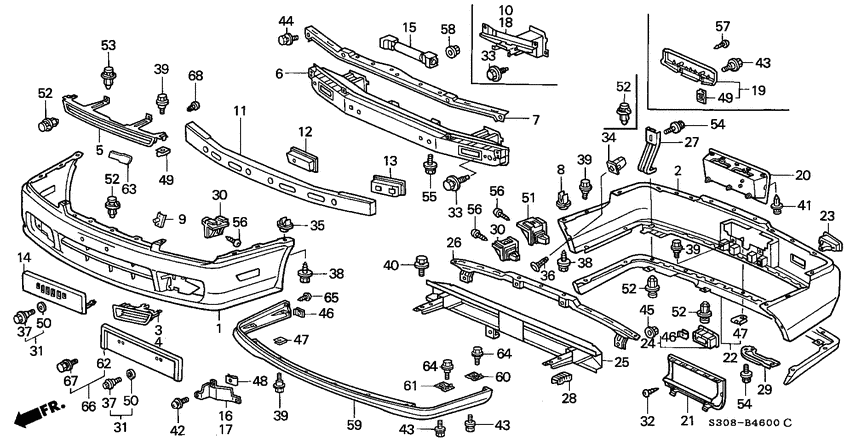

Bumpers 33

#	OEM	部品名
3	71102-S30-000	Cover - R. FR. BUMPER FOG
4	71107-S30-000	Cover - L. FR. BUMPER FOG
6	71139-S30-A00	Beam - FR. BUMPER
7	71141-S30-000	Beam - FR. BUMPER UPPER
8	71144-SR3-013	Grommet - BUMPER SIDE
9	71148-SG9-600	Nut
14	71180-SZ3-G02	Base - FR. LICENSE PLATE
15	71180-S30-A00	Absorber assy, FR. BUMPER SHOCK
21	71506-S30-G00	Bracket - RR. LICENSE
23	71515-S30-G00	Garnish - RR. FOG OUTSIDE
24	71516-S30-G00	Garnish - RR. FOG INSIDE
27	71556-SS0-000	Stay - R. RR. BUMPER BEAM LOWER
29	71559-S30-000	Stay - LOWER
30	71598-S30-013	Spacer assy. - RR. BUMPER SIDE
31	90101-SE0-010	Bolt assy. b - BUMPER
32	90103-SD4-000	Screw - TAPPING, 5X16
33	90104-SV4-000	Bolt-washer - 8X25
34	90106-SW3-003	Grommet - BUMPER SETTING
35	90107-SX0-003	Grommet - BUMPER END
36	90108-SW3-003	Clip - BUMPER SETTING
37	90109-SE0-003	Bolt b - BUMPER
38	90109-SS0-000	Screw - TAPPING, 5X20
39	90111-SM4-003	Bolt - BUMPER
41	90116-SP0-003	Clip - BUMPER SEAL
45	90301-SP0-003	Nut - PAINT CUTTING, 6MM
46	90303-SA5-003	Nut - FR. COMBINATION LIGHT
47	90305-SM4-000	Nut - AIR SPOILER CLIP
49	90323-SE1-000	Nut - CLIP, 6MM
49	90305-SH3-000	Nut - AIR SPOILER CLIP
50	90540-SA7-000	Washer - BUMPER
51	91501-SW5-003	Clip - BUMPER SIDE
52	91503-SZ3-003	Clip A
53	91512-SX0-003	Clip - INNER FENDER CLIP

Camshaft/timing belt (DOHC VTEC) 37

#	OEM	部品名
1	11810-P13-020	Cover - TIMING BELT LOWER
2	11811-P13-000	Seal - TIMING BELT LOWER RUBBER
3	11820-P13-020	Cover - TIMING BELT MIDDLE
4	11830-P13-020	Cover - TIMING BELT BACK
5	11831-P13-000	Rubber a - TIMING BELT BACK SEAL
6	11832-P13-000	Rubber b - TIMING BELT BACK SEAL
7	11833-P13-000	Rubber c - TIMING BELT BACK SEAL
8	11925-PT0-000	Rubber a - ENGINE MOUNTING BRACKET SEAL
9	11926-PT0-000	Rubber b - ENGINE MOUNTING BRACKET SEAL
10	13404-P13-003	Adjuster comp - BALANCER BELT
11	13405-PT0-004	Belt - BALANCER TIMING (UNITTA)
12	13407-P13-000	Spring b comp. - BELT ADJUSTER
13	13415-P0A-000	Bracket - BALANCER BELT ADJUSTER
14	14111-P5M-000	Camshaft - INTAKE
15	14121-P5M-000	Camshaft - EX.
16	14210-P13-013	Pulley - TIMING BELT DRIVEN
17	14400-P13-014	Belt - TIMING (155YU24 A-555)
18	14510-P13-003	Adjuster comp - TIMING BELT
19	14513-P13-003	Bolt - 8X1.25
20	14514-P13-003	Bolt - SPECIAL, 8X1.25
21	14517-P13-003	Gasket
22	14518-P8A-A01	Bolt - 7X0.75
23	14520-P13-013	Adjuster comp - AUTOMATIC
24	14530-P13-000	Collar - AUTO ADJUSTER
25	14540-P13-003	Stopper
27	90002-PT0-000	Bolt b - TIMING BELT COVER
28	90007-679-000	Bolt a - TIMING BELT COVER
29	90014-P13-003	Bolt - SPECIAL, 8X1.25
30	90016-P5M-000	Bolt - TIMING BELT ADJUSTER
31	90031-PV0-003	Bolt-washer - 10X30
31	90031-PV0-305	Bolt-washer (10x30)
32	90051-PT0-000	Bolt - SUB BELT ADJUSTER SPRING
33	90216-P0A-000	Nut - 10MM
34	90401-PT0-000	Rubber - TIMING BELT ADJUSTER
35	90401-P13-000	Rubber - TIMING BELT ADJUSTER
36	90501-MB7-610	Washer - 10.3X25
38	91213-PR3-004	Oil seal - 29X43X8 (ARAI)

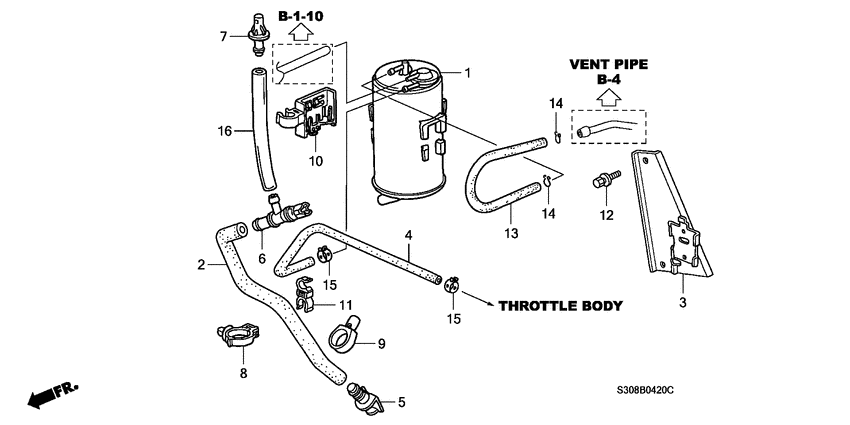

Canister (LH) 11

#	OEM	部品名
1	17300-S30-E01	Canister assy
2	17357-S30-A31	Tube - DRAIN (CANISTER)
3	17358-S30-A32	Bracket - CANISTER
4	17725-S30-G30	Hose - FUEL PURGE
5	17743-SM4-003	Cap - DRAIN TUBE
6	17745-ST0-003	Joint - CANISTER DRAIN
7	17745-SZ3-A31	Joint - DRAIN TUBE
8	90652-HC4-003	Clamp - HARNESS
9	91549-SE0-003	Holder - DRAIN HOSE
10	91594-SR3-G01	Clip - FUEL TUBE
11	91595-ST7-003	Clip - FUEL SUB TUBE

Clutch 48

#	OEM	部品名
1	22510-P6H-003	Guide comp - CLUTCH (1-2)
2	22521-P6H-003	Piston - CLUTCH
3	22523-P6H-003	Plate - CLUTCH (2.0MM)
4	22530-P6H-003	Piston comp - CLUTCH
5	22533-PX4-010	Seat - RETURN SPRING
6	22533-P6H-003	Retainer - RETURN SPRING
7	22533-P6H-901	Retainer - RETURN SPRING
8	22536-P6H-003	Spring - CLUTCH WAVE
9	22539-P0Z-003	Spring - CLUTCH DISK (NHK SPRING)
10	22541-PX4-004	Spring - CLUTCH RETURN (SANKO)
11	22541-P6H-013	Spring - CLUTCH RETURN
12	22543-P6H-003	Plate - CLUTCH
13	22544-P6H-003	Disk - CLUTCH
14	22545-P0Z-003	Disk - CLUTCH
15	22545-P6H-003	Disk - CLUTCH
16	22556-PX4-003	Plate - CLUTCH END (6) (2.6MM)
16	22551-PX4-003	Plate - CLUTCH END (1) (2.1MM)
16	22557-PX4-003	Plate - CLUTCH END (7) (2.7MM)
16	22552-PX4-003	Plate - CLUTCH END (2) (2.2MM)
16	22558-PX4-003	Plate - CLUTCH END (8) (2.8MM)
16	22553-PX4-003	Plate - CLUTCH END (3) (2.3MM)
16	22559-PX4-003	Plate - CLUTCH END (9) (2.9MM)
16	22554-PX4-003	Plate - CLUTCH END (4) (2.4MM)
16	22555-PX4-003	Plate - CLUTCH END (5) (2.5MM)
17	22558-P6H-003	Plate - CLUTCH END (3) (3.3MM)
17	22553-P6H-003	Plate - CLUTCH END (8) (2.8MM)
17	22559-P6H-003	Plate - CLUTCH END (4) (3.4MM)
17	22554-P6H-003	Plate - CLUTCH END (9) (2.9MM)
17	22555-P6H-003	Plate - CLUTCH END (0) (3.0MM)
17	22556-P6H-003	Plate - CLUTCH END (1) (3.1MM)
17	22551-P6H-003	Plate - CLUTCH END (6) (2.6MM)
17	22557-P6H-003	Plate - CLUTCH END (2) (3.2MM)
17	22552-P6H-003	Plate - CLUTCH END (7) (2.7MM)
18	22621-P6H-003	Piston - SECOND CLUTCH
19	22644-PX4-013	Plate b - SECOND CLUTCH
20	22651-P6H-003	Guide comp - CLUTCH (3-4)
21	22653-PX4-003	Plate - CLUTCH (2.3MM)
22	90603-PX4-000	Circlip - EXTERNAL, 47MM
23	90603-P6H-003	Circlip - EXTERNAL, 43MM
24	90605-PF4-000	Ring - SNAP, 125MM
25	90605-PX4-000	Ring - SNAP, 129MM
26	91302-PX4-004	O-ring - 46.8X2.2 (NOK)
27	91303-PF4-004	O-ring - 110X2.2 (NOK)
28	91303-PS5-003	O-ring - 94.0X2.2
29	91303-PX4-004	O-ring - 114X2.2 (NOK)
30	91304-P6H-003	O-ring - 90X2.2
31	91305-P6H-003	O-ring - 106X2.2
32	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)

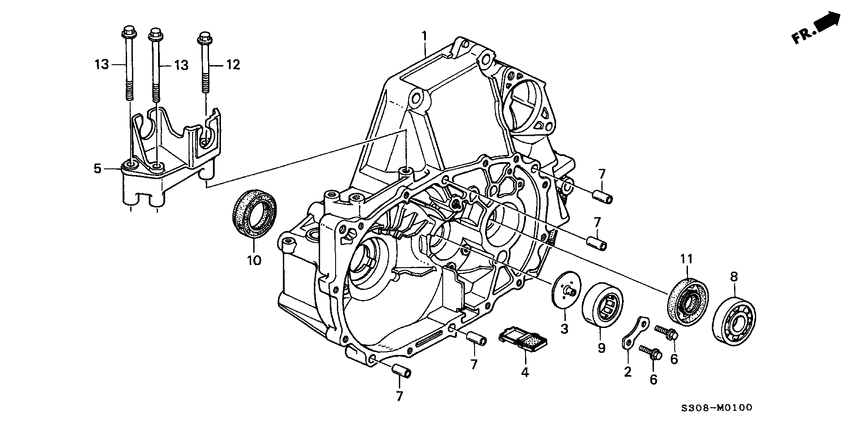

Clutch housing 13

#	OEM	部品名
1	21000-P16-030	Case comp. - CLUTCH
2	21101-PG2-000	Plate - NEEDLE BEARING SETTING
3	21103-PX5-010	Plate c - OIL GUIDE
4	21120-PG2-003	Magnet - TRANSMISSION
5	24600-PX5-000	Stay - CHANGE WIRE
6	90030-PG2-000	Bolt - SPECIAL, 6MM
7	90705-PG2-000	Dowel pin - 14X20
8	91002-PG1-018	Bearing - BALL, 63/28C (TOYO)
9	91103-P6J-004	Bearing - NEEDLE, 38X65X22 (KOYO)
10	91205-PX5-005	Oil seal - 35X56X8 (NOK)
10	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
11	91216-PH8-005	Oil seal - 28X41X7 (NOK)
11	91216-PH8-003	Oil seal - 28X41X7 (ARAI)

Clutch master cylinder (LH) 38

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-548-003	Cap - BLEEDER SCREW
3	46151-SA5-003	Yoke comp. - NISSIN
4	46182-500-013	Circlip
5	46184-611-000	Dust seal - MASTER CYLINDER
6	46472-SM4-000	Packing - OIL BOLT
7	46472-568-000	Packing - OIL BOLT
8	46912-SD4-000	Pin - CLUTCH PEDAL
9	46920-SM4-A03	Cylinder assy. - CLUTCH MASTER
10	46926-SF1-003	Piston assy.
11	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
12	46930-SM4-003	Cylinder assy. - SLAVE
13	46932-SD4-003	Piston - SLAVE CYLINDER
14	46933-SD4-013	Cup a - PISTON
15	46934-SD4-003	Cup b - PISTON
16	46935-SP0-000	Spring - SLAVE CYLINDER
17	46937-SD4-003	Boot - SLAVE CYLINDER
18	46938-SD4-003	Rod - PUSH
19	46939-SV4-003	Joint - CLUTCH HOSE
20	46950-SM4-950	Rod assy - PUSH
21	46952-SD4-003	Joint - TUBE
22	46953-SD4-003	Packing
23	46960-S30-A02	Pipe assy. - CLUTCH
24	46960-S30-900	Pipe assy. - CLUTCH
25	46961-SV4-003	Hose - CLUTCH
26	46963-SD4-020	Bolt - CLUTCH OIL
27	46964-SM4-020	Clamp - CLUTCH PIPE
28	46966-SM4-A01	Holder - TANK
29	46970-SM4-020	Pipe comp - CLUTCH
30	46971-S30-A00	Tube - CLUTCH FLUID
31	46972-SD4-003	Tank - CLUTCH FLUID
32	46973-SD4-003	Cap comp. - RESERVE TANK
33	46977-SF1-A00	Clip - CLUTCH PIPE
34	46993-SM4-G52	Damper assy. - CLUTCH
35	46995-SM4-G52	Bracket - CLUTCH PIPE
36	46999-SM4-010	Bracket - CLUTCH PIPE
37	90651-538-000	Clip - BRAKE HOSE
38	91597-SV4-003	Clip A - FUEL PIPE

Clutch release 13

#	OEM	部品名
1	22810-P21-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
2	22821-P0S-000	Fork - CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING
5	22841-PX5-000	Boot - RELEASE FORK
6	23815-P0A-A00	Holder comp - SPEEDOMETER GEAR
7	23820-P0A-900	Gear comp - SPEEDOMETER
8	78410-SV4-003	Sensor assy - SPEED (MATSUSHITA)
9	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)
10	90011-PT0-000	Bolt-washer - 8X26
11	90638-689-000	Clip - SPEEDOMETER GEAR
12	91304-PT0-000	O-ring - 14.8X1.9
13	91313-611-010	O-ring - 23.5X2

Clutch/torque converter 10

#	OEM	部品名
1	22100-P13-005	Flywheel comp.
2	22200-P5M-005	Disk comp - FRICTION
3	22300-P5M-005	Disk comp - PRESSURE
4	26000-PEA-315	Converter assy - TORQUE
5	26251-P13-003	Plate - DRIVE
6	90011-PH3-000	Bolt - FLANGE, 12MM
7	90023-PA9-000	Bolt - SPECIAL
8	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
9	90429-PC6-900	Washer - 40X86X2
10	91302-P7A-003	O-ring - 32X1.9

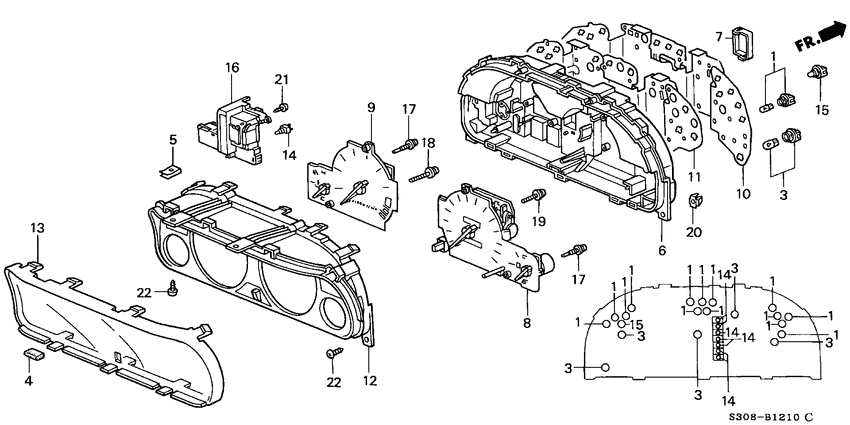

Combination meter components 20

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
3	37103-SD2-003	Bulb & socket
4	37115-SA0-601	Packing - NS
5	66871-611-000	Nut - CENTER PANEL
6	78110-S30-E11	Case assy.
7	78116-S30-003	Cover - MT
8	78120-S30-G01	Meter assy - SPEED & FUEL
9	78125-S30-A21	Meter assy - TACHOMETER & TEMPERATURE
9	78125-S30-A01	Meter assy - TACHOMETER & TEMPERATURE
10	78146-S30-J01	Panel - COMBINATION PRINT (1)
11	78147-S30-E01	Panel - COMBINATION PRINT (2)
12	78155-S30-J01	Visor assy - METER
13	78170-S30-003	Lens - METER
14	78181-SS0-003	Socket assy - BULB (14V 1.12W)
15	78181-S30-003	Socket assy - BULB (14V 1.4W)
16	78190-S30-J01	Circuit assy.
17	90132-S30-003	Screw-washer - 3X17
18	90133-SD5-003	Screw-washer - 3X22
19	90133-S30-003	Screw-washer - 3X16
20	91640-SM4-003	Grommet - SCREW, 4MM

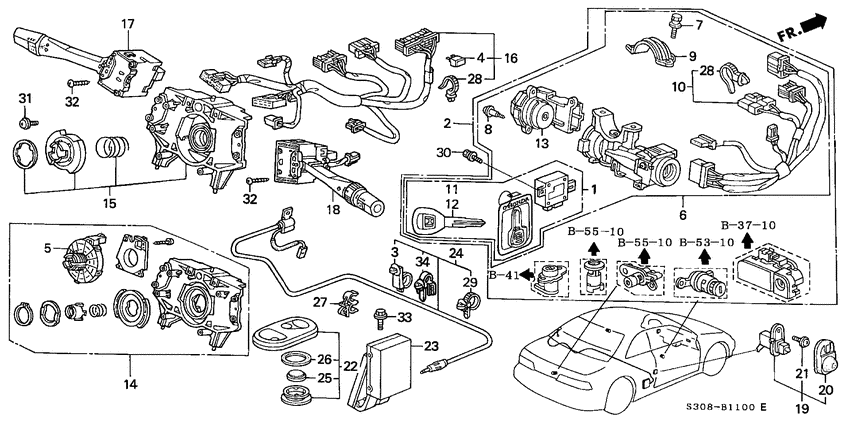

Combination switch (LH; 1) 32

#	OEM	部品名
1	04809-SX0-G04	Key & unit assy. - IMMOBILIZER (SERVICE)
3	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
4	32146-SH3-003	Connector - DIODE(2P)
5	35000-S30-003	Sensor assy - STEERING
6	35100-S30-G03	Lock assy - STEERING
6	35100-S30-G13	Lock assy - STEERING
7	35102-SV4-003	Bolt - BREAK HEAD
8	35103-S04-003	Screw - RECESSED
9	35108-S30-003	Holder - COLUMN
10	35110-S30-A01	Harness comp. - IGNITION WIRE
10	35110-S30-A11	Harness comp. - IGNITION WIRE
11	35113-SX0-G03	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
12	35114-SX0-G03	Key - BLANK (SUB) (GRAY) (IMMOBILIZER)
13	35130-S0A-003	Switch comp - STEERING
14	35251-S30-N01	Body - SWITCH (TCS)
14	35251-S30-N02	Body
16	35254-S30-G52	Cord assy - COMBINATION SWITCH
17	35255-SX0-G01	Switch assy - LIGHTING
18	35256-SM4-G81	Switch assy - WIPER
19	35400-SL4-013	Switch assy - DOOR
20	35401-SL4-003	Cover - DOOR SWITCH
21	35409-692-013	Screw - FLANGE, 4X12
22	72147-S30-G11	Transmitter assy - KEYLESS
23	72195-S30-G01	Control unit - KEYLESS (RF)
24	72196-S30-901	Feeder assy. - R. GLASS ANTENNA (KEYLESS)
25	72696-SZ3-003	Battery - CR2025
25	72148-S84-A10	Battery - CR2025
26	72697-SZ3-003	Seal - BATTERY BOX
27	91511-SJ8-003	Clip - WASHER TUBE
28	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
29	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
34	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)

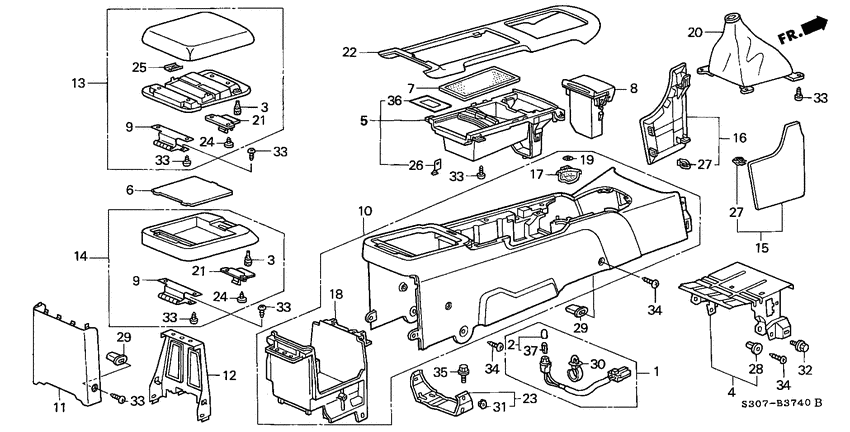

Console 18

#	OEM	部品名
1	34505-S30-003	Lamp assy. - ASHTRAY
2	35506-S30-003	Bulb assy - AMBER
3	66418-SA5-000	Stopper - GLOVE BOX LID
9	83401-SV4-003	Hinge comp - ARMREST
17	83411-S30-003	Cover - BRAKE
19	83413-S30-003	Nut - PUSH, 2.4MM
21	83415-S30-003	Knob - ARMREST
23	83425-SS0-J00	Bracket - RR. CONSOLE BASE
24	90144-SP0-000	Screw - TAPPING, 4X16 (PO)
25	90601-SW3-003	Washer - CONSOLE PUSH
26	90606-SS0-000	Spring - FR. ASHTRAY
27	90666-S10-003	Clip - SNAP FITTING
28	90672-671-811	Grommet - SCREW, 4MM
29	90681-693-000	Grommet - SCREW, 4MM
30	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
31	91641-SM4-003	Grommet - SCREW, 4MM
36	77232-S30-000	Film - CUP HOLDER
37	35505-S30-003	Bulb - T5) (14V 1.4W

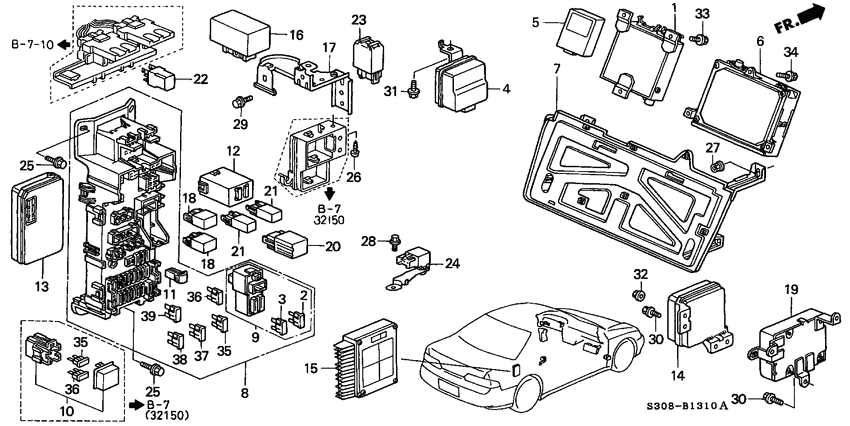

Control unit (CABIN; LH) 31

#	OEM	部品名
1	28100-P5M-G03	Control unit - AT
2	32503-SM4-003	Fuse - F10) (LITTEL
3	32504-SM4-003	Fuse - F15)(LITTEL
4	36700-S30-A11	Controller - AUTO CRUISE
4	36700-S30-A01	Controller - AUTO CRUISE
6	37820-P5M-G13	Control module - ENGINE
6	37820-P5M-G63	Control module - ENGINE
7	37821-P5M-A00	Cover comp. - L. ELECTRONIC CONTROL UNIT
8	38200-S30-N81	Box assy - FUSE
9	38210-ST3-E01	Fuser assy. - SRS
10	38224-SB2-003	Case - FUSE(2P)
11	38235-SA5-003	Puller - FUSE (SUMITOMO)
12	38300-SB0-004	Relay assy - TURN SIGNAL & HAZARD (DENSO)
12	38300-S30-003	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)
13	38800-S30-G02	System unit - MULTIPLEX CONTROL (DRIVER SIDE)
14	38850-S30-G02	System unit - MULTIPLEX CONTROL (PASSENGER SIDE)
15	39300-S30-J11	Control unit - 4WS
16	39400-S84-003	Relay assy - MAIN (MITSUBA)
17	39405-S30-A00	Bracket - RELAY & COUPLER
18	39762-SB0-003	Relay assy - POWER (5P) (MITSUBA)
18	39762-SB0-004	Relay assy - POWER (5P) (056700-6710) (DENSO)
19	39790-S30-A01	Abs unit
21	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
21	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
22	39794-S04-004	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
22	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
23	39797-SK3-E01	Relay assy - POWER (4P)
24	39799-S30-003	Relay assy - POWER (5P)
25	90137-SF1-000	Bolt-washer - 6X25
26	90150-SX0-005	Screw - TAPPING, 6X14
27	90301-SP0-003	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM) 24

#	OEM	部品名
1	38100-SX0-901	Horn assy - LOW (MITSUBA)
2	38150-SR3-003	Horn assy - HIGH (MITSUBA)
3	38151-S30-000	Bracket - HORN
4	38211-SM4-003	Fuse - BLOCK (30A)
5	38212-SM4-003	Fuse - BLOCK (40A)
6	38213-SM4-003	Fuse - BLOCK (50A)
7	38218-SM4-003	Fuse - BLOCK (100A)
8	38250-S30-G22	Box assy - RELAY
9	38251-SS0-003	Cover - LOWER
10	38251-S30-000	Bracket - RELAY BOX
11	38254-SS0-003	Cover - UPPER
12	38256-S30-G22	Cover - UPPER
13	39762-SG0-003	Relay assy - POWER (5P) (DENSO) (056700-8160)
14	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
14	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
15	39792-SP0-014	Relay assy - POWER (4P) (MITSUBA) (12V NO)
16	39793-SV4-003	Relay assy - POWER (5P) (MITSUBA)
17	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
17	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
18	39796-S30-A00	Bracket - RELAY
20	90114-SM4-900	Bolt - 6X15
21	90122-SM4-003	Screw-washer - 5X12
22	90138-SM4-003	Bolt-washer - 8X14
23	90182-SB6-000	Bolt-washer - 6X16

Countershaft 47

#	OEM	部品名
1	23220-PX5-A51	Countershaft comp.
1	21215-P6H-300	Holder - IDLE SHAFT
2	23421-P0S-J40	Gear - COUNTERSHAFT LOW
2	23221-P6H-010	Countershaft
3	23431-P16-N00	Gear - COUNTERSHAFT SECOND
3	23421-P6H-000	Gear - COUNTERSHAFT LOW
4	23461-P16-A00	Gear - COUNTERSHAFT FIFTH
4	23427-P6H-000	Gear - PARKING
5	23471-P16-N00	Gear - COUNTERSHAFT THIRD
5	23441-P6H-000	Gear - COUNTERSHAFT SECOND
6	23481-P16-A00	Gear - COUNTERSHAFT FOURTH
6	23451-P6H-000	Gear - COUNTERSHAFT THIRD
7	23521-P16-306	Sleeve set - SYNCHRONIZER (1-2)
7	23471-P6H-000	Gear - COUNTERSHAFT FOURTH
8	23918-P21-010	Collar - DISTANCE, 36.5X42X29 (0.07-0.09)
8	23491-P6H-010	Gear - COUNTERSHAFT IDLE
9	23921-PG1-000	Washer a - 40X54X1.96
9	23531-P6H-000	Gear - COUNTERSHAFT REVERSE
10	23926-PG1-010	Washer - SPRING, 23MM
10	23541-P6H-000	Gear - REVERSE IDLE
11	90202-PH8-000	Nut - HEX., 23MM
11	23542-P6H-000	Shaft - REVERSE IDLE GEAR
12	90602-PG1-770	Ring - SNAP, 56MM
12	23565-PX4-700	Selector - REVERSE GEAR
13	91003-PG2-008	Bearing - SPECIAL BALL (NTN)
13	23566-P0Z-010	Hub - SELECTOR
14	91102-PG2-008	Bearing - NEEDLE, 25X56.4X19
14	90201-P0Z-000	Nut - FLANGE, 24MM
15	91105-P16-008	Bearing - NEEDLE, 40X46X26.8 (NTN)
15	90402-P0Z-000	Washer - SPRING, 24MM
16	91105-P21-003	Bearing - NEEDLE, 42X47X24
16	90431-P6H-000	Cotter - 31MM
17	91211-PX5-008	Damper - FRICTION (LOW)
17	90441-P6H-000	Collar - 34X44X50.5
18	91212-PX5-018	Damper - FRICTION (SECOND)
18	90521-P6H-000	Holder - BEARING (B)
18	90523-P6H-000	Holder - BEARING (D)
18	90520-P6H-000	Holder - BEARING (A)
18	90522-P6H-000	Holder - BEARING (C)
19	90614-P6H-000	Ring - SNAP, 34MM
20	91009-P6H-003	Bearing - BALL, 60X78X10
21	91022-P6H-003	Bearing - THRUST NEEDLE, 42X67X3
22	91024-P6H-003	Bearing - NEEDLE, 40X46X14.5
23	91025-P0X-003	Bearing - NEEDLE, 15X20X16 (NTN)
24	91028-P6H-003	Bearing - NEEDLE, 34X40X26 (NTN)
25	91035-P6H-003	Bearing - NEEDLE, 42X50X19
26	91306-P0X-003	O-ring - 8.1X4 (NOK)

Cross beam 14

#	OEM	部品名
1	50100-S30-000	Beam - CENTER
2	50200-S30-A03	Beam - RR.
3	50210-S30-A01	Stiffener - RR. BEAM
4	50220-S30-010	Stiffener - STEERING GEAR BOX
5	50250-SS0-A01	Beam - FR.
7	50300-S30-G61	Beam - RR. SUSPENSION CROSS
8	90162-SS0-000	Bolt - FLANGE, 12X143
9	90164-S30-000	Bolt - FLANGE, 12X135
10	90166-SF1-010	Bolt-washer - 10X21
11	90174-SS0-003	Bolt - FLANGE, 10X23
12	90190-SM4-003	Bolt - FLANGE, 12X108
13	90191-SM4-003	Bolt - FLANGE, 12X95
14	90506-SE0-000	Washer - PLAIN, 12MM
15	91613-SE0-003	Grommet - SUB FRAME, 15MM

Cylinder block/oil pan (DOHC VTEC) 41

#	OEM	部品名
1	11000-P5M-040	Block assy - CYLINDER
2	11103-P13-300	Bolt - SEALING, 20MM
3	11106-PT0-300	Bolt - SEALING, 16MM
4	11107-PT0-000	Bolt - SEALING, 16MM
5	11107-PK2-003	Joint - OIL COOLER
7	11109-PK2-010	Seal - TIMING RUBBER
8	11126-PK1-003	Bolt - SEALING, 22MM
9	11130-PT0-030	Bridge comp - BEARING CAP
10	11200-P5K-010	Pan comp - OIL
11	11221-P5L-010	Plate - BAFFLE
12	11222-P13-010	Cover - L. BREATHER
13	11223-P13-010	Cover - R. BREATHER
14	11251-P5K-000	Packing - OIL PAN
18	11300-PAA-A01	Cover assy. - R. SIDE
20	11910-P13-000	Bracket - ENGINE MOUNTING
21	11912-PT0-000	Stay a - ENGINE MOUNTING BRACKET
22	11913-P13-010	Stay b comp. - ENGINE MOUNT BRACKET
23	12207-PC6-300	Washer - SEALING, 16MM
24	90401-PR4-000	Washer - SEALING, 28MM
27	13421-PT0-003	Metal - BALANCER SHAFT (NO.1) (DAIDO)
28	13422-PT0-013	Metal - BALANCER SHAFT (NO.2) (DAIDO)
29	13423-PT0-003	Metal - BALANCER SHAFT (NO.3) (DAIDO)
30	15280-P13-000	Body comp - OIL JET
31	15290-P13-000	Bolt comp - OIL JET
33	37240-P13-013	Switch assy - OIL PRESSURE (DENSO)
34	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
35	90002-PA6-003	Bolt-washer - 4X8 (DENSO)
36	90007-PAA-T01	Bolt-washer - 11X121
37	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5
38	90009-PY3-000	DRAIN PLUG BOLT, 14MM
39	90030-PT0-000	Bolt - STUD, 10X35
40	90041-PCA-000	Bolt - STUD, 6X32
41	90041-PT0-000	Bolt - STUD, 12X60
43	90051-PH7-000	Bolt - FLANGE, 6X18
44	90061-PT0-000	Bolt - DRAIN PLUG, 12MM
45	90705-PT0-000	Dowel pin - 16X22
46	90715-PC6-000	Dowel pin - 13X20
47	91214-PH1-013	Oil seal - 80X100X10 (NOK)
47	91214-PLE-003	Oil seal
47	91214-PH1-004	Oil seal - 80X100X10 (ARAI)
48	91323-PH7-003	Packing - BEARING CAP BRIDGE (ARAI)

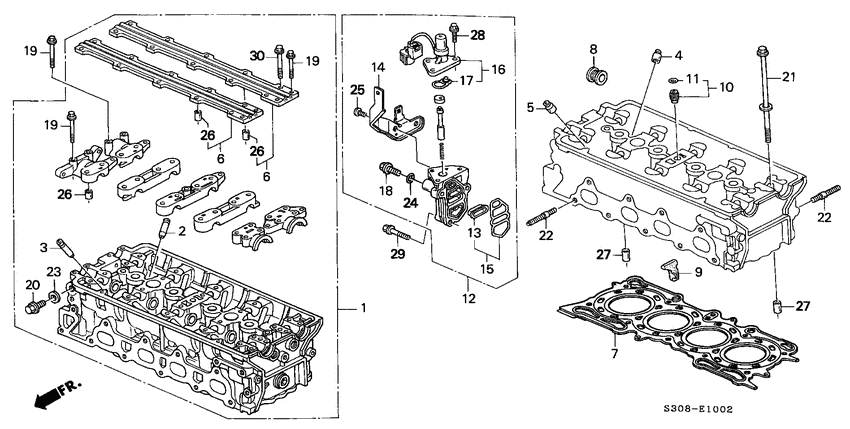

Cylinder head (DOHC VTEC) 25

#	OEM	部品名
1	12100-PCF-010	Head assy - CYLINDER
2	12204-P13-305	Guide - IN. VALVE (OS)
3	12205-P13-305	Guide - EX. VALVE (OS)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)
6	12237-P13-000	Pipe comp - CAM HOLDER
7	12251-P5M-004	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
8	12513-P30-000	Rubber comp - CYLINDER HEAD SEAL
9	12831-P13-000	Seal - POWER STEERING BRACKET RUBBER
10	15140-P13-000	Orifice assy - OIL CONTROL
11	15142-PH3-003	O-ring - 10.8X2.4 (ARAI)
12	15810-P0F-005	Valve assy. - SPOOL
13	15815-PR3-004	Filter comp - SPOOL VALVE
14	15816-P13-005	Stay - COUPLER HOLD
15	15825-P13-005	Filter assy - SPOOL VALVE
16	36171-P0F-005	Solenoid assy.
17	36172-P08-015	Packing, SOLENOID BASE
18	90001-P70-000	Bolt - FLANGE, 10X10.5
19	90002-PJ7-010	Bolt - FLANGE, 6X45
20	90004-PE2-005	Bolt - SEALING, 10MM
21	90005-PCB-003	Bolt-washer - 12X185
22	90026-PT0-000	Bolt - STUD, 8X38
23	90401-PE2-003	Washer - SEALING, 10MM
24	91319-PR3-000	O-ring - 13X1.5
24	91319-PR3-003	O-ring - 13X1.5 (ARAI)

Cylinder head cover (DOHC VTEC) 14

#	OEM	部品名
1	12030-P13-000	Packing set - HEAD COVER
2	12310-P13-000	Cover comp. - CYLINDER HEAD
3	12341-P13-000	Packing - CYLINDER HEAD COVER
4	12342-PG6-000	Packing b - HEAD COVER
4	12342-PT2-000	Packing b - HEAD COVER
5	12500-P13-000	Cover - HIGH TENSION CORD
6	15610-P2A-000	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler
8	53775-SS0-000	Clamp b - FEED HOSE
9	90012-PM7-000	Bolt B, Head Cover
10	90013-P13-000	Bolt b - HEAD COVER
11	90021-PV0-000	Bolt - SPECIAL, 6X15
12	90213-PH3-000	Nut - CAP, 6MM
13	90442-PR7-A00	Washer - HEAD COVER

Differential gear 74

#	OEM	部品名
1	41100-P16-N00	Case comp. - DIFFERENTIAL
1	41100-P6H-000	Case comp. - DIFFERENTIAL
2	41233-P6H-010	Gear - FINAL DRIVEN
3	41233-PX5-A51	Gear - FINAL DRIVEN
3	41445-PK4-000	Shim e - 76MM (2.40)
3	41443-PAX-000	Shim p - 76MM (2.325)
3	41456-PK4-000	Shim p - 76MM (2.95)
3	41440-PX4-700	Shim u - 76MM (2.15)
3	41438-PAX-000	Shim k - 76MM (2.075)
3	41454-PAX-000	Shim oa - 76MM (2.875)
3	41451-PK4-000	Shim k - 76MM (2.70)
3	41449-PAX-000	Shim v - 76MM (2.625)
3	41446-PK4-000	Shim f - 76MM (2.45)
3	41444-PAX-000	Shim q - 76MM (2.375)
3	41457-PK4-000	Shim q - 76MM (3.00)
3	41441-PK4-000	Shim a - 76MM (2.20)
3	41439-PAX-000	Shim l - 76MM (2.125)
3	41455-PAX-000	Shim ob - 76MM (2.925)
3	41452-PK4-000	Shim l - 76MM (2.75)
3	41450-PAX-000	Shim w - 76MM (2.675)
3	41447-PK4-000	Shim g - 76MM (2.50)
3	41445-PAX-000	Shim r - 76MM (2.425)
3	41442-PK4-000	Shim b - 76MM (2.25)
3	41456-PAX-000	Shim oc - 76MM (2.975)
3	41440-PAX-000	Shim m - 76MM (2.175)
3	41453-PK4-000	Shim m - 76MM (2.80)
3	41451-PAX-000	Shim x - 76MM (2.725)
3	41448-PK4-000	Shim h - 76MM (2.55)
3	41446-PAX-000	Shim s - 76MM (2.475)
3	41443-PK4-000	Shim c - 76MM (2.30)
3	41457-PAX-000	Shim od - 76MM (3.025)
3	41441-PAX-000	Shim n - 76MM (2.225)
3	41438-PX4-700	Shim s - 76MM (2.05)
3	41454-PK4-000	Shim n - 76MM (2.85)
3	41452-PAX-000	Shim y - 76MM (2.775)
3	41449-PK4-000	Shim i - 76MM (2.60)
3	41447-PAX-000	Shim t - 76MM (2.525)
3	41444-PK4-000	Shim d - 76MM (2.35)
3	41458-PK4-000	Shim r - 76MM (3.05)
3	41442-PAX-000	Shim o - 76MM (2.275)
3	41439-PX4-700	Shim t - 76MM (2.10)
3	41455-PK4-000	Shim o - 76MM (2.90)
3	41453-PAX-000	Shim z - 76MM (2.825)
3	41450-PK4-000	Shim j - 76MM (2.65)
3	41448-PAX-000	Shim u - 76MM (2.575)
4	41380-PG2-A10	Shim - 75MM
4	90003-PA9-003	Bolt - FLANGE, 10MM
5	41393-PX5-000	Shim m - 68MM (2.26)
5	41388-PX5-000	Shim h - 68MM (2.11)
5	41383-PX5-000	Shim c - 68MM (1.96)
5	41400-PX5-000	Shim t - 68MM (2.47)
5	41395-PX5-000	Shim o - 68MM (2.32)
5	41390-PX5-000	Shim j - 68MM (2.17)
5	41385-PX5-000	Shim e - 68MM (2.02)
5	41397-PX5-000	Shim q - 68MM (2.38)
5	41392-PX5-000	Shim l - 68MM (2.23)
5	41387-PX5-000	Shim g - 68MM (2.08)
5	41382-PX5-000	Shim b - 68MM (1.93)
5	41399-PX5-000	Shim s - 68MM (2.44)
5	41394-PX5-000	Shim n - 68MM (2.29)
5	41389-PX5-000	Shim i - 68MM (2.14)
5	41384-PX5-000	Shim d - 68MM (1.99)
5	41396-PX5-000	Shim p - 68MM (2.35)
5	41391-PX5-000	Shim k - 68MM (2.20)
5	41386-PX5-000	Shim f - 68MM (2.05)
5	41381-PX5-000	Shim a - 68MM (1.90)
5	41398-PX5-000	Shim r - 68MM (2.41)
5	91121-P6H-013	Bearing - SPECIAL TAPER, 40X80X18.75
6	90017-689-000	Bolt - SPECIAL, 10MM
6	91122-P6H-013	Bearing - SPECIAL TAPER, 40X76.2X16
7	91005-PG2-004	Bearing - TAPER, 40X75X21 (KOYO)
7	41381-P7Z-000	Spacer - 41X80X1
8	91006-PX5-008	Bearing - TAPER, 40X68X22 (NTN)
8	41382-P7Z-000	Spacer - 41X76.2X1

Distributor (TEC) 11

#	OEM	部品名
1	30100-P5M-004	Distributor assy - TD-89U)(TEC
2	30102-PT2-026	Distributor Cap
3	30103-P08-003	Distributor Rotor Head Assembly
4	30105-P5M-004	Housing comp - DISTRIBUTOR
5	30107-P08-006	Cover - LEAK
6	30110-PA1-732	O-ring - 26.4X3.1 (TEC)
7	30130-P06-006	Igniter unit - E12-303) (HITACHI
8	30132-PT2-006	Packing - CAP
9	30135-P08-006	Screw-washer - 5X12
9	30135-P73-004	Screw-washer - 5X12
10	30510-PT2-006	Ignition Coil

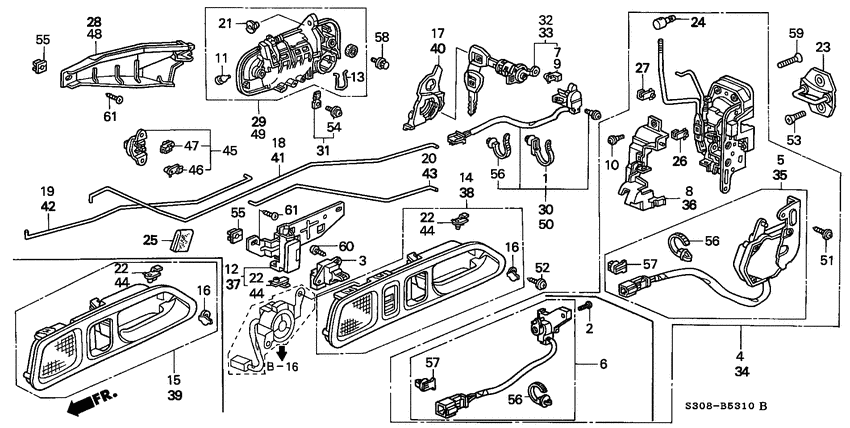

Door locks 42

#	OEM	部品名
4	72110-S30-A01	Lock assy - R. FR. DOOR POWER
5	72115-S03-G11	Actuator assy - R. FR. DOOR LOCK
7	72116-S04-003	Holder - ROD(SKY BLUE)
8	72117-S03-G01	Protector - R. FR. DOOR LOCK
9	72117-S04-003	Holder - ROD (YELLOW)
10	72118-ST7-003	Screw - TAPPING, 3X5
11	72119-S04-003	Stopper a - OUTSIDE HANDLE
13	72123-SR0-003	Ring - OUTSIDE HANDLE
17	72130-SW5-A01	Protector - R. DOOR CYLINDER
18	72131-S30-013	Rod - R. FR. INSIDE HANDLE
19	72132-S30-003	Rod - R. FR. INSIDE LOCK
20	72133-S30-003	Rod - R. RR. INSIDE LOCK
21	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT
22	72134-SM4-003	Snap - R. (VIOLET)
23	72135-SR3-003	Striker assy - DOOR LOCK
24	72136-SR3-003	Joint
25	72138-SX0-000	Cushion - LOCK ROD (35MMX58MM)
26	72139-SR3-003	Fastener - NATURAL
27	72139-SW5-003	Fastener - BLUE
28	72139-S03-G00	Protector - R. FR. DOOR ROD
31	72144-SL9-003	Hook
32	72145-S30-003	Cylinder - R. DOOR
33	72146-S30-003	Cylinder - L. DOOR
34	72150-S30-G01	Lock assy - L. FR. DOOR POWER
35	72155-S03-J11	Actuator assy - L. FR. DOOR LOCK
36	72157-S03-G01	Protector - L. FR. DOOR LOCK
40	72170-SW5-A01	Protector - L. DOOR CYLINDER
41	72171-S30-013	Rod - L. FR. INSIDE HANDLE
42	72172-S30-003	Rod - L. FR. INSIDE LOCK
43	72173-S30-003	Rod - L. RR. INSIDE LOCK
44	72174-SM4-003	Snap - L. (YELLOW)
45	72175-S30-003	Crank assy - LOCK ROD
46	72176-S03-003	Holder - 3.5MM
47	72177-S03-003	Holder - 4.0MM
48	72179-S03-G00	Protector - L. FR. DOOR ROD
51	90102-S03-003	Screw - TAPPING, 3X8
52	90111-SA0-000	Screw - TAPPING, 4X8
53	90120-SV4-000	Bolt - LOCK STRIKER
54	90125-SM1-J02	Screw - TAPPING, 4X8
55	90662-SB2-003	Grommet - SCREW, 5MM
56	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
57	91580-SM4-003	Clip - COUPLER(ORANGE)

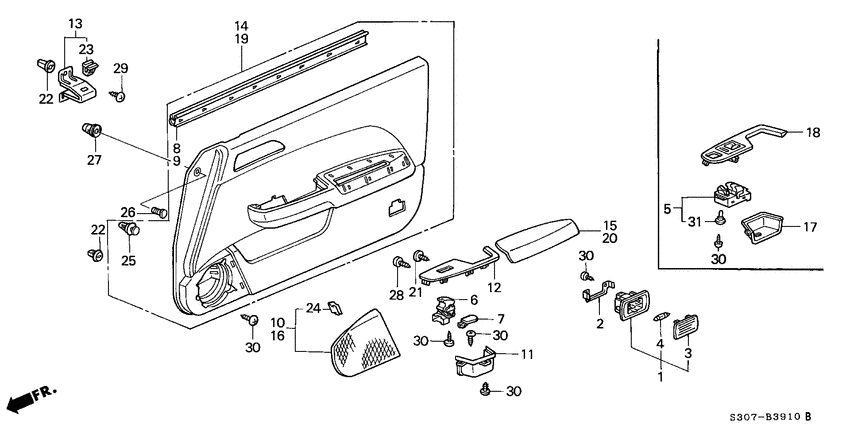

Door panels 18

#	OEM	部品名
13	72310-S30-003	Weatherstrip - R. FR. DOOR
14	72321-S30-900	Seal - R. FR. DOOR HOLE
15	72326-S30-000	Seal - FR. DOOR LOWER
16	72340-S30-003	Checker comp. - R. DOOR
17	72350-S30-003	Weatherstrip - L. FR. DOOR
18	72361-S30-900	Seal - L. FR. DOOR HOLE
19	72367-SK8-000	Seal - OUTER HANDLE HOLE
20	72380-S30-003	Checker comp. - L. DOOR
21	75891-SA7-000	Stopper - DOOR
22	90101-SE3-003	Bolt-washer - 8X23.5
23	90141-S04-000	Bolt - FLANGE, 8X22
24	90686-692-003	Cap - LINING MOUNT
25	91530-SH4-003	Clip - DOOR WEATHERSTRIP
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
27	91562-SM4-013	Grommet - DOOR LINING
28	91568-SR2-003	Clip - DOOR WEATHERSTRIP
29	91588-SV4-004	Clip - DOOR WEATHERSTRIP (B)
32	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)

Door windows 27

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72211-S30-003	Regulator, R. FR. DOOR POWER
3	72212-SH3-003	Spring - SPIRAL
4	72215-S30-A02	Motor assy. - R. FR. WINDOW
5	72226-S30-000	Sash - R. FR. DOOR CENTER LOWER
6	72230-S30-003	Sash - R. FR. DOOR FR. LOWER
7	72235-S30-003	Runchannel - R. FR. DOOR
8	72237-SM4-003	Clip - FR. DOOR GLASS GUIDE
9	72251-S30-003	Regulator - L. FR. DOOR POWER
10	72255-S30-A02	Motor assy. - L. FR. WINDOW
11	72266-S30-000	Sash - L. FR. DOOR CENTER LOWER
12	72270-S30-003	Sash - L. FR. DOOR FR. LOWER
13	72275-S30-003	Runchannel - L. FR. DOOR
14	72325-S30-G00	Sub seal - R. FR. DOOR
15	72365-S30-G00	Sub seal - L. FR. DOOR
16	73300-S30-E51	Glass assy - R. FR. DOOR (GREEN) (ASAHI)
17	73350-S30-E51	Glass assy - L. FR. DOOR (GREEN) (ASAHI)
18	90011-896-000	Bolt - FLANGE, 6X8
19	90115-SG0-003	Bolt - FLANGE, 6MM
20	90120-SE3-003	Bolt - FLANGE, 6X12
21	90126-SS0-000	Bolt-washer - 6X16
22	91530-SH4-003	Clip - DOOR WEATHERSTRIP
23	91534-SR3-003	Clip - DOOR SUB SEAL
24	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
25	91555-SM4-003	Clip - COUPLER (RED)
26	91588-SX0-003	Clip
27	91590-SV4-003	Clip - SUB SEAL (A)

Duct (LH) 3

#	OEM	部品名
1	77400-S30-A01	Duct assy - AIR CONDITIONER PASSENGER SIDE
2	77430-S30-A01	Duct assy - DRIVER SIDE AIR CONDITIONER
3	90302-SA4-003	Nut - SPRING, 4MM

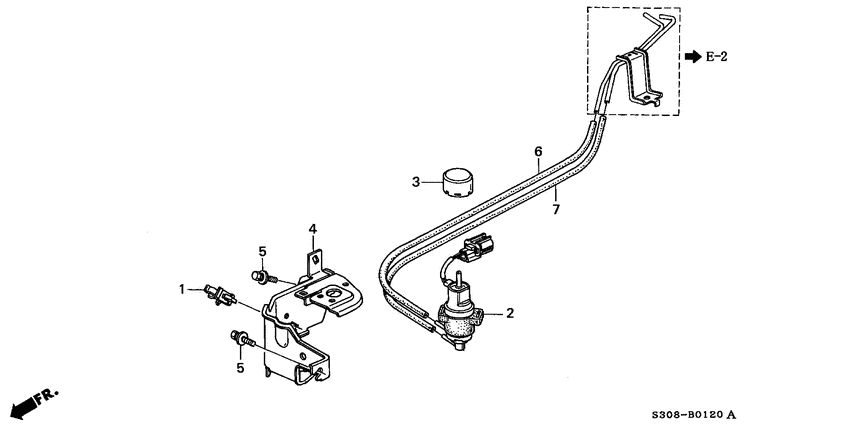

Egr control device 5

#	OEM	部品名
1	17363-PE2-013	Clamp - TUBE, 7.5X2
2	36190-P13-003	Valve assy. - FREQUENCY SOLENOID
3	36194-PD2-661	Filter assy - AIR
4	36233-P13-004	Stay comp
5	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Emblems 11

#	OEM	部品名
1	17669-SL0-A00	Label - FUEL FILLER CAUTION (PREMIUM UNLEADED GASOLINE)
3	42760-S30-G21	Plate - TIRE PRESSURE CAUTION
5	75701-SM4-900	Emblem - RR. CENTER (H)
6	75701-S30-G00	Emblem - RR. CENTER (H)
7	75711-SN7-G01	Emblem - RR. (HONDA)
12	75731-S30-G10	Emblem - RR. (VTEC 2.2VTI)
13	75765-S30-305	Sticker - RR. (PRELUDE)
15	77875-S84-G80	Label - SRS CAUTION
16	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
17	91512-SR3-004	Clip - TUBULAR
18	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)

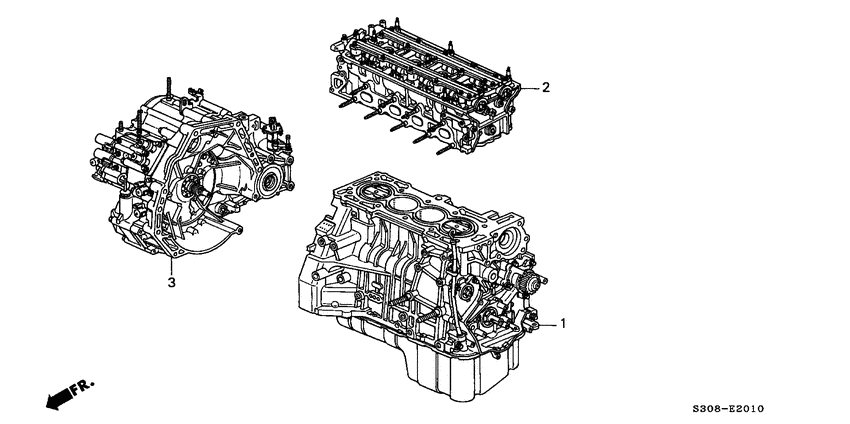

Engine assy./ transmission assy. 4

#	OEM	部品名
1	10002-P5M-E25	General assy. - CYLINDER BLOCK
2	10003-P5M-E22	General assy. - CYLINDER HEAD
3	20011-P16-V50	Transmission assy - MT
3	20021-P6H-J01	Transmission assy - AT

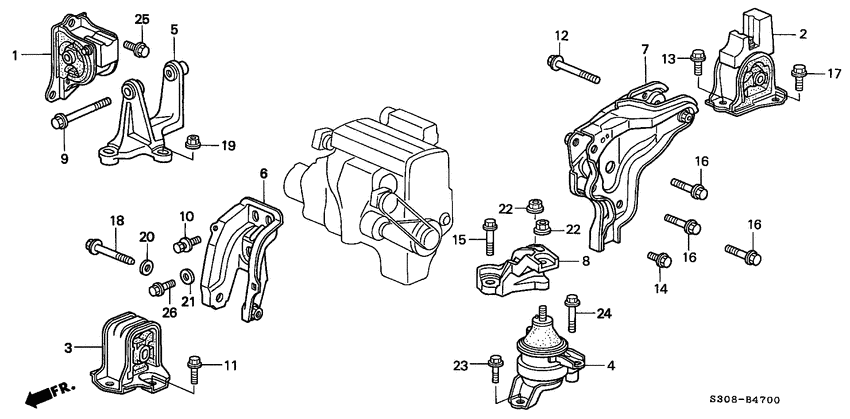

Engine mounts (AT) 21

#	OEM	部品名
1	50806-S30-000	Rubber - TRANSMISSION MOUNTING
2	50807-S30-980	Damper - MISSION MOUNT DYNAMIC (AT)
3	50810-S30-980	Mounting assy. - RR. ENGINE
4	50814-S30-980	Stopper - FR. ENGINE (AT)
5	50820-S30-J02	Rubber assy. - ENGINE SIDE MOUNTING
6	50825-S30-980	Bracket - TRANSMISSION MOUNTING
7	50826-SS0-000	Bracket - FR. ENGINE STOPPER
8	50827-S30-980	Bracket - ENGINE RR. MOUNTING
9	50830-S30-J01	Bracket
10	90162-SV4-000	Bolt-washer - 10X30
11	90163-SC2-000	Bolt - FLANGE, 12X25
12	90165-SM4-020	Bolt - FLANGE, 12X101
13	90166-S30-000	Bolt - FLANGE, 12X25
14	90169-SM4-000	Bolt - FLANGE, 12X30
15	90170-S30-000	Bolt - FLANGE, 12X45
16	90173-SM4-000	Bolt - FLANGE, 12X60
17	90175-SZ3-010	Bolt - TRAILING ARM BRACKET (12X47)
18	90176-SM4-000	Bolt - FLANGE, 12X95
19	90371-SM4-000	Nut - FLANGE, 10MM
20	90504-SB0-000	Washer - PLAIN, 12MM
21	90551-SB2-000	Washer - PLAIN, 10MM

Engine mounts (MT) 21

#	OEM	部品名
1	50805-S30-000	Rubber - TRANSMISSION MOUNTING
2	50810-S30-000	Mounting assy.RR. ENGINE
3	50814-SS0-000	Stopper - FR. ENGINE (MT)
4	50820-S30-J02	Rubber assy. - ENGINE SIDE MOUNTING
5	50825-S30-000	Bracket - TRANSMISSION MOUNTING
6	50826-SS0-000	Bracket - FR. ENGINE STOPPER
7	50827-S30-000	Bracket - ENGINE RR. MOUNTING
8	50830-S30-J01	Bracket
9	90161-S30-000	Bolt - FLANGE, 12X113
10	90162-SV4-000	Bolt-washer - 10X30
11	90163-SC2-000	Bolt - FLANGE, 12X25
12	90165-SM4-020	Bolt - FLANGE, 12X101
13	90166-S30-000	Bolt - FLANGE, 12X25
14	90169-SM4-000	Bolt - FLANGE, 12X30
15	90170-S30-000	Bolt - FLANGE, 12X45
16	90173-SM4-000	Bolt - FLANGE, 12X60
17	90175-SZ3-010	Bolt - TRAILING ARM BRACKET (12X47)
18	90176-SM4-000	Bolt - FLANGE, 12X95
19	90371-SM4-000	Nut - FLANGE, 10MM
20	90504-SB0-000	Washer - PLAIN, 12MM
21	90551-SB2-000	Washer - PLAIN, 10MM

Engine wire harness (LH) 21

#	OEM	部品名
1	32110-P5M-G00	Harness - ENGINE WIRE
1	32110-P5M-G50	Harness - ENGINE WIRE
2	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
3	32119-P2E-A01	Holder - CORRUGATED (DARK BLUE) (22MM)
4	32120-P5L-A01	Holder - CORRUGATED (DARK GREEN) (25MM)
6	32127-P13-000	Holder - WIRE HARNESS
8	32130-P13-000	Holder comp - ALTERNATOR WIRE HARNESS UPPER
9	32131-P13-000	Holder - ALTERNATOR WIRE HARNESS LOWER
10	32610-S30-910	Cable - SUB EARTH
11	32744-P13-000	Clamp d - ENGINE WIRE HARNESS (GREEN)
12	32745-P5K-000	Stay comp. e - ENGINE HARNESS
13	32746-P5K-000	Stay comp. f - ENGINE HARNESS
15	32755-P13-000	Clamp h - ENGINE WIRE HARNESS
16	32758-P13-000	Stay h - ENGINE WIRE HARNESS
17	90114-SM4-900	Bolt - 6X15
18	90149-SE0-003	Bolt - EARTH, 6X16
19	91506-PT0-003	Band - ENGINE WIRE HARNESS UP LOCK (GRAY)
20	91506-P0A-A01	Clip - ALTERNATOR CORD
21	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
22	91507-PT3-A01	Band - WIRE HARNESS (BLACK) (90.4MM)
23	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)

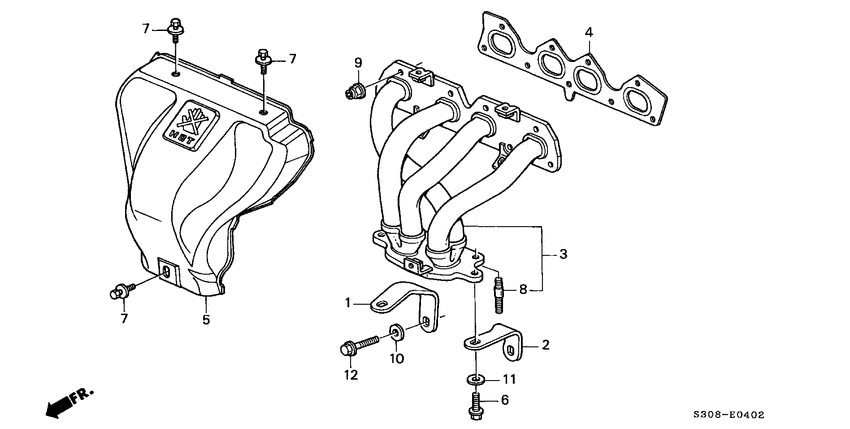

Exhaust manifold (DOHC VTEC) 12

#	OEM	部品名
1	11941-P13-000	Stay - R. EX. MANIFOLD
2	11942-P13-000	Stay - L. EX. MANIFOLD
3	18000-P5M-G00	Manifold comp - EX.
4	18115-P5M-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
5	18120-P13-J01	Cover comp. a - EX. MANIFOLD
6	90010-PE2-900	Bolt - SPECIAL, 10X22
7	90015-PT0-J00	Bolt-washer - 8X14
8	90065-PC1-300	Bolt - STUD, 10X34.5
9	90212-PD2-003	Nut - SELF-LOCK, 8MM
9	90212-RCA-A01	Nut - SELF-LOCK, 8MM
10	90451-PE2-000	Washer - SPECIAL, 11X28
11	90451-P13-000	Washer - SPECIAL, 11X24

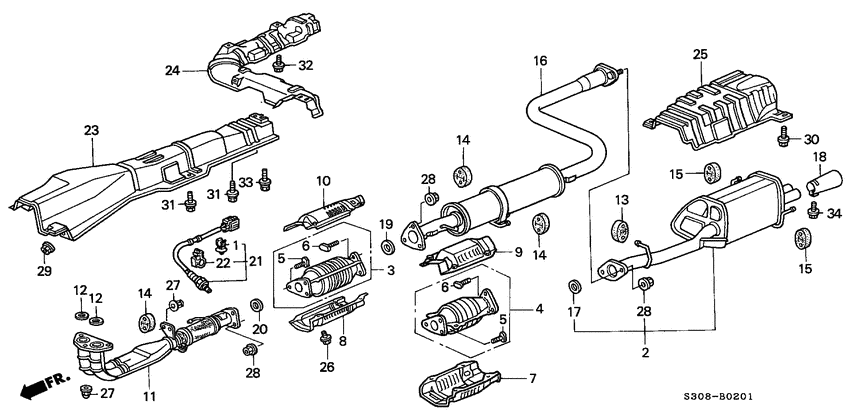

Exhaust pipe (DOHC) 28

#	OEM	部品名
1	17938-SE0-941	Clip - THROTTLE WIRE
2	18030-S30-980	Silencer set - EX.
3	18160-P5M-G00	Converter comp. - BNE7A5
5	18176-PT0-003	Bolt - CONVERTER
6	18176-P08-003	Bolt - CONVERTER
8	18181-P5N-G00	Cover - LOWER
10	18182-P5N-G00	Cover - UPPER
11	18210-S30-931	Pipe a - EX.
11	18210-S30-941	Pipe a - EX.
12	18212-SB2-961	Gasket - EX. PIPE (ISHINO)
13	18215-SA7-000	Rubber - SILENCER MOUNTING (70X45X25)
14	18215-SE0-G00	Rubber - EX. PIPE MOUNTING (60X50X20)
15	18215-SV4-000	Rubber - EX. MOUNTING
16	18220-S30-A32	Pipe b - EX.
17	18303-SM4-020	Gasket - SILENCER
18	18310-SS0-J30	Finisher - EX. PIPE
19	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
20	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
21	36531-P5M-014	Sensor - OXYGEN
22	36538-P5L-003	Clip - OXYGEN SENSOR
23	74601-S30-000	Plate - FLOOR HEAT BAFFLE
24	74651-S30-000	Plate - FUEL TANK BAFFLE
25	74655-SS0-000	Plate - SILENCER BAFFLE
26	90023-PK1-000	Bolt - FLANGE, 6X10
26	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
27	90212-SA5-003	Nut - SELF-LOCK, 10MM
28	90212-671-005	Nut - SELF-LOCK, 10MM
29	90301-SV7-000	Nut - PAINT CUTTING, 6MM

Floor mat 8

#	OEM	部品名
1	74251-S30-A10	Insulator - DASHBOARD LOWER OUTER
6	83311-S30-A00	Insulator - R. FR. FLOOR
7	83361-S30-A00	Insulator - L. FR. FLOOR
10	84521-S30-A00	Lid comp - SPARE TIRE
15	90301-SP0-003	Nut - PAINT CUTTING, 6MM
17	90676-SE0-003	Clip - JOINT COVER PLATE
18	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
19	91560-S04-003	Clip - SIDE GARNISH (NATURAL)

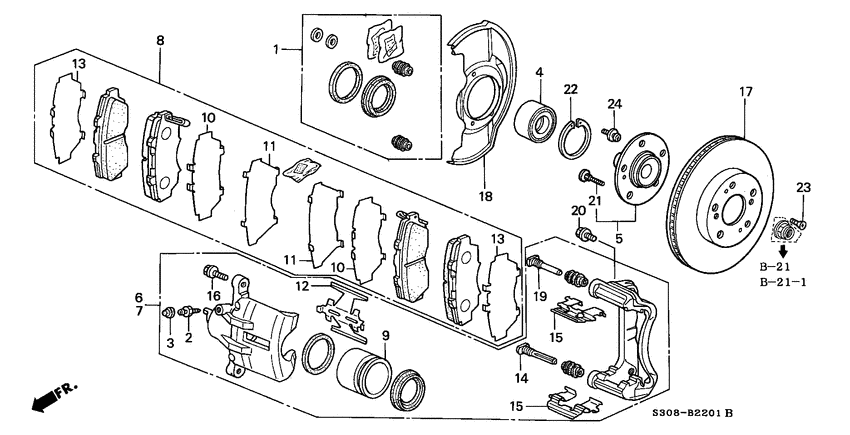

Front brake (DOHC VTEC) 24

#	OEM	部品名
1	01463-SM4-000	Caliper set - FR.
2	43352-SM4-951	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW
4	44300-S47-008	Bearing assy - HUB (NTN)
4	44300-S47-305	Bearing assy
5	44600-S47-000	Hub assy - FR.
6	45018-SS0-A00	Caliper sub assy. - R. FR.
7	45019-SS0-A00	Caliper sub assy. - L. FR.
8	45022-S30-A02	Pad set - FR.
9	45216-SM4-003	Piston
10	45225-SL0-003	Shim a - INNER
11	45226-SL0-003	Shim b - INNER
12	45227-SM4-003	Spring - PAD
13	45228-SL0-003	Shim - OUTER PAD
14	45235-SL0-003	Pin a
15	45237-SP0-003	Retainer
16	45240-SM4-003	Bolt - FLANGE, 10X24
17	45251-SZ3-000	Disk - FR. BRAKE (15")
18	45255-SS0-G00	Guard - FR. BRAKE SPLASH
19	45262-SL0-003	Pin b
20	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
21	90113-SD4-901	Bolt - WHEEL (MEIRA)
21	90113-SD4-902	Bolt - WHEEL (SAGA)
22	90681-SG0-000	Circlip - INTERNAL, 84MM

Front bulkhead 1

#	OEM	部品名
27	90105-SV1-000	Bolt-washer - 8X20

Front combination light 15

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33301-S30-G01	Lamp comp - R.
3	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
4	33304-S47-003	Socket comp.
5	33305-SM4-A01	Tube
6	33351-S30-G01	Lamp comp - L.
7	34300-SL4-003	Light assy - R. SIDE TURN
8	34301-SL4-003	Lamp unit - R. SIDE TURN
9	34304-SH3-A01	Socket comp.
10	34350-SL4-003	Light assy - L. SIDE TURN
11	34351-SL4-003	Lamp unit - L. SIDE TURN
12	90303-SA5-003	Nut - FR. COMBINATION LIGHT
13	90333-SM3-003	Screw - TAPPING, 4X16
14	33304-S47-901	Socket
15	33305-S47-003	Seal - PACKING

Front door lining (LH) 15

#	OEM	部品名
2	34257-SM4-000	Plate - COURTESY LIGHT
3	34261-SM4-G01	Lens - DAIICHI
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
5	35750-S30-A01	Switch assy - POWER WINDOW MASTER
6	35760-S30-A01	Sub switch assy. - POWER WINDOW
8	72335-S30-003	Weatherstrip - R. FR. DOOR INNER
9	72375-S30-003	Weatherstrip - L. FR. DOOR INNER
13	83531-SM4-000	Bracket - DOOR LINING
21	90132-SE3-003	Screw - TAPPING, 4X12
22	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)
23	90665-SM4-003	Grommet - SCREW, 4MM (YELLOW)
24	90678-SK7-003	Clip - SPEAKER
25	91560-SZ3-003	Clip, DOOR LINING (NATURAL)
27	91562-SM4-013	Grommet - DOOR LINING
31	35851-SZ3-003	Bulb - T4.2

Front driveshaft/ half shaft ('99-) 29

#	OEM	部品名
1	44014-S30-C60	Joint set - OUTBOARD
1	44014-S30-C63	JOINT SET, OUTBOARD
2	44017-S0A-J02	Boot set - INBOARD
2	44017-S0A-J03	BOOT SETINBOARD
3	44018-SX0-C20	Boot set - OUTBOARD
4	44305-S30-C51	Driveshaft assy. - R.
5	44306-S30-C51	Driveshaft assy. - L.
6	44310-S30-300	Joint comp - INBOARD
7	44310-S30-900	Joint comp - INBOARD
8	44319-SE0-000	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44327-S0K-C01	Band - OUTBOARD BOOT (OETIKER LIMITED)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)
13	44329-S0K-C01	Band - DRIVESHAFT (OETIKER LIMITED)
14	44337-SB0-300	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM
17	44500-S0A-000	Shaft assy - HALF
17	44500-S0E-000	Shaft assy - HALF
18	44511-S0A-300	Support - HALF SHAFT BEARING
18	44511-S0E-300	Support - HALF SHAFT BEARING (###)
19	90102-SF1-000	Bolt - HEX., 10X1.25
20	90165-SE0-000	Bolt - FLANGE, 10X37
21	90305-SD4-003	Nut - SPINDLE (24MM)
22	90681-SR3-000	Circlip - EXTERNAL, 33MM
23	91057-SR3-008	Bearing - HALF SHAFT(NTN)
24	91260-S0A-003	Seal - HALF SHAFT OUTER (NOK)

Front fenders 11

#	OEM	部品名
4	74101-S30-000	Fender - R. FR. INNER
5	74111-S30-000	Shield - FR. SPLASH
6	74151-S30-000	Fender - L. FR. INNER
7	90105-SL4-000	Bolt-washer - 6X20
8	90108-S0A-003	Bolt - FLANGE, 6X15
9	90114-SZ3-000	Screw-washer - 5X20
10	90149-SA0-003	Bolt - BUMPER
11	90305-SM4-003	Nut - CLIP, 6MM
12	90657-SB0-003	Clip, SPLASH SHIELD
13	90682-SB0-003	Grommet - SCREW, 5MM
14	91512-SX0-003	Clip - INNER FENDER CLIP

Front lower arm 27

#	OEM	部品名
1	51300-S30-003	Spring - FR. STABILIZER
2	51306-SM4-010	Bush - STABILIZER HOLDER
3	51308-SG0-020	Bracket - FR. STABILIZER
4	51312-SM4-000	Collar b - STABILIZER END (27.2MM)
5	51313-SS0-000	Washer - STABILIZER END
6	51314-SM4-020	Rubber - STABILIZER END
7	51320-S30-003	Link comp - FR. STABILIZER
8	51352-S30-013	Rod, FR. RADIUS
9	51355-S30-000	Arm comp - R. FR. LOWER
10	51365-S30-000	Arm comp - L. FR. LOWER
11	51381-SX0-013	Bush - FR. RADIUS ROD (RR.) (HOKUSHIN)
12	51391-SX0-013	Bush - FR. RADIUS ROD (FR.) (HOKUSHIN)
13	51393-SL5-013	Bush - FR. LOWER ARM
14	51394-SM4-010	Washer - CASTER ADJUSTER
15	51398-S30-000	Collar - RADIUS ROD
16	51399-S30-000	Washer - FR. RADIUS ARM (53MM)
17	51810-SS0-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)
18	51811-SS0-000	Fork - R. FR. SHOCK ABSORBER
19	51821-SS0-000	Fork - L. FR. SHOCK ABSORBER
20	90117-S0A-000	Bolt - DAMPER LOCK(10X44)
21	90118-S0A-000	Bolt - FR. LOWER ARM (12X84)
22	90121-S0A-000	Bolt - DAMPER FORK(12X98)
23	90178-SM4-013	Bolt - FR. RADIUS ROD (12X31)
24	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
25	90303-SF1-003	Nut - SELF-LOCK, 12MM
26	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
27	90362-SF1-003	Nut - SELF-LOCK, 8MM

Front seat (LH) 10

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
4	81132-S30-J01	Pad & frame comp. - R. FR. SEAT CUSHION
10	81223-S04-000	Clip - SHAFT, 8MM
11	81232-S30-J01	Pad & frame comp. - R. FR. SEATBACK
15	81532-S30-N01	Pad & frame comp. - L. FR. SEAT CUSHION
16	81627-S04-003	Spring - L. TORSION BAR
17	81632-S30-J01	Pad & frame comp. - L. FR. SEATBACK
19	90134-SE3-003	Screw - TAPPING, 5X10
20	90161-SB4-003	Screw - FLAT, 4X16

Front seat components (L.; 1) 13

#	OEM	部品名
1	77209-SB0-003	Washer - NYLON
2	81117-S47-003	Bush - NYLON(TS TECH)
3	81128-S30-003	Spring - PIVOT
4	81225-S04-000	Washer - HEIGHT PIN
5	81261-SH4-A21	Cap - END
7	81630-S04-J01	Adjuster - L. RECLINING
9	81660-S30-A01	Adjuster - L. OUTER SLIDE
10	81670-S30-A01	Adjuster - L. INNER SLIDE
11	90143-ST5-900	Bolt-washer - 8X22
12	90143-SV4-003	Bolt-washer - 10X22
14	90301-SA0-000	Nut - FLANGE CAP, 8MM
14	90443-KF9-900	Nut, cap (8mm)
18	81271-S0A-J01	Cap - SLIDE ADJUSTER END

Front seat components (R.; 1) 16

#	OEM	部品名
1	77209-SB0-003	Washer - NYLON
2	81117-S47-003	Bush - NYLON(TS TECH)
3	81128-S30-003	Spring - PIVOT
4	81230-S30-A01	Adjuster - R. RECLINING
6	81235-S30-A01	Cable - RECLINING CONTROL
7	81236-ST7-003	Knob a - R. RECLINING
8	81260-S30-J01	Adjuster - R. OUTER SLIDE
9	81261-SH4-A21	Cap - END
10	81270-S30-G11	Adjuster - R. INNER SLIDE
12	90143-ST5-900	Bolt-washer - 8X22
13	90143-SV4-003	Bolt-washer - 10X22
14	90143-S04-000	Bolt - FLANGE, 10X18
15	90301-SA0-000	Nut - FLANGE CAP, 8MM
15	90443-KF9-900	Nut, cap (8mm)
16	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)
20	81271-S0A-J01	Cap - SLIDE ADJUSTER END

Front shock absorber 17

#	OEM	部品名
1	51401-SS0-J01	Spring - FR. (SHOWA)
1	51401-SS0-901	Spring - FR. (SHOWA)
2	51601-S30-902	Absorber assy - R. FR. SHOCK
3	51602-S30-912	Absorber assy - L. FR. SHOCK
4	51605-S30-A01	Absorber unit - R. FR. SHOCK
5	51606-S30-A01	Absorber unit - L. FR. SHOCK
6	51621-SD4-004	Washer - SHOCK ABSORBER MOUNTING (SHOWA)
7	51631-SS0-004	Rubber - SHOCK ABSORBER MOUNTING
8	51675-SS0-004	Base - SHOCK ABSORBER MOUNTING
9	51685-SH3-014	Plate - DUST COVER(SHOWA)
10	51686-SM4-004	Rubber - FR. SPRING SEAT (SHOWA)
11	51687-SM4-024	Cover - FR. SLEEVE DUST
12	51689-SH3-004	Plate - BUMP STOP (SHOWA)
13	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
14	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
15	90304-SM4-000	Nut - FR. SHOCK ABSORBER FLANGE (10MM)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front windshield 5

#	OEM	部品名
1	73111-S30-E01	Glass - FR. WINDSHIELD (GREEN) (ASAHI)
2	73123-S30-000	Seal - FR. WINDSHIELD MOLDING CORNER
3	73132-S30-000	Rubber b - FR. WINDSHIELD DAM
8	73131-S30-000	Rubber a - FR. WINDSHIELD DAM
9	73150-S30-003	Molding - FR. WINDSHIELD

Front windshield wiper (LH) 19

#	OEM	部品名
1	76505-S30-G01	Motor comp - FR. WIPER
2	76516-SL4-003	Rubber - MOUNTING
3	76516-SM4-003	Rubber - MOUNTING
4	76517-SM4-003	Collar
5	76520-S30-E01	Link unit a
6	76524-SD4-003	Dust seal
7	76524-SE0-013	Dust seal
8	76530-S30-G01	Link comp - FR. WIPER
9	76540-SV4-003	Rod unit a
10	76550-S30-A01	Rod unit b
11	76558-SS0-003	Cap - PIVOT
12	76600-S30-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
13	76610-S30-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
14	76620-S30-G01	Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE)
15	76622-S30-G01	Rubber - BLADE (500MM)
16	76630-S30-G01	Blade - WINDSHIELD WIPER (450MM) (PASSENGER SIDE)
17	76632-S30-G01	Rubber - BLADE (450MM)
18	90126-SR3-000	Bolt-washer - 6X32
19	90201-SK7-000	Nut - HEX. CAP, 10MM

Fuel pipe 27

#	OEM	部品名
1	16010-ST5-933	Strainer set - FUEL (TOYO ROKI)
1	16010-ST5-E02	SETFUEL STRN COM
2	16720-P5K-003	Hose comp. - FUEL FEED
3	16918-S30-000	Stay - FUEL STRAINER
4	17700-S30-A00	Pipe comp - FUEL FEED
5	17701-SZ3-930	Mount - RUBBER
6	17720-S30-000	Pipe comp - VENT
8	17723-S30-930	Hose - PRESSURE REGULATOR RETURN
9	17740-S30-A00	Pipe comp - RETURN
10	17763-SM4-000	Stay c - FUEL PIPE
11	17763-SR3-000	Stay c - FUEL PIPE
12	17764-S30-010	Stay d - FUEL PIPE
13	17765-SM4-000	Stay e - FUEL PIPE
14	17766-SS0-000	Stay f - FUEL PIPE
15	17767-SS0-000	Stay g - FUEL PIPE
16	17768-S30-000	Stay h - FUEL PIPE
17	53728-SK7-A51	Clip - RETURN PIPE
18	90021-P0A-003	Bolt - SEALING, 12MM
19	90201-PD1-000	Nut a - SEALING, 12MM
20	90361-SV4-003	Nut - PAINT CUTTING, 6MM
21	90428-PD6-003	Washer - SEALING, 12MM
22	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM
22	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM
23	91591-S30-003	Clamp - FUEL PIPE
24	91597-SV4-003	Clip A - FUEL PIPE
25	91598-S30-931	Clamp b - FUEL PIPE
26	91599-S30-931	Clamp a - FUEL PIPE

Fuel tank 42

#	OEM	部品名
1	17040-S30-G50	Pump unit - FUEL
3	17371-SM4-A02	Valve - TWO WAY (TEC)
4	17500-S30-G21	Tank comp. - FUEL
5	17511-SS0-000	Bracket - FUEL TANK BAND
6	17516-S30-000	Filter set - FUEL PUMP
7	17519-SS0-A00	Protector - FUEL TANK
8	17521-S30-000	Band - R. FUEL TANK MOUNTING
9	17522-S30-000	Band - L. FUEL TANK MOUNTING
10	17525-SM4-000	Bolt-washer - 10X35
11	17570-S30-G21	Valve - FUEL CUT
12	17551-S84-A01	Packing
13	17574-SE0-000	Packing - BASE
14	17651-SS0-000	Tube - FILLER NECK
15	17652-SA5-000	Clip - FILLER TUBE
16	17658-S30-E00	Tube assy - BREATHER
18	17660-S30-E51	Pipe comp - FUEL FILLER
21	17668-S30-013	Cover - FUEL FILLER PIPE
22	17670-SM1-A03	Cap comp. - FUEL FILLER (STANT)
22	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)
23	17707-S30-A31	Tube comp - FEED (SANOH)
24	17710-S30-951	Tube comp - VENT
26	17711-ST0-004	Retainer - WHITE) (SANOH
27	17713-S30-A31	Tube comp - RETURN
28	17717-S30-003	Clip - TUBE
30	17733-SS0-000	Protector - FUEL HOSE JOINT
31	37800-S30-305	Meter unit - FUEL
32	37801-SL0-003	Packing - BASE
32	37801-SV4-L01	Packing - BASE
33	74660-SS0-000	Cap assy. - FLOOR MAINTENANCE HOLE
35	90114-SZ3-000	Screw-washer - 5X20
36	90301-SE0-J00	Nut - FLANGE, 6MM
37	90657-SH3-013	Clip - TWO WAY VALVE COVER
38	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
39	90682-SB0-003	Grommet - SCREW, 5MM
40	90700-SB0-003	Clip - AIR BLEED TUBE
41	91512-SX0-003	Clip - INNER FENDER CLIP
42	91594-SS0-003	Clip - FUEL PIPE
43	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)
53	17509-S30-930	Holder - VENT TUBE
54	17662-S04-003	Packing - FUEL FILLER (WITH CLIP)
55	90101-S84-000	Bolt-washer - 5X10
56	90150-S04-003	Bolt - EARTH, 6X16

Gasket kit 3

#	OEM	部品名
1	06110-P5M-000	Gasket kit - CYLINDER HEAD
2	06111-P5P-010	Gasket kit - CYLINDER BLOCK
3	06112-P6H-307	Gasket kit - AT TRANSMISSION (###)

Grommet 15

#	OEM	部品名
1	72206-SA5-000	Cap - FLOOR HOLE, 53MM
2	72849-SA5-000	Insulator b - SIDE SILL HOLD
3	82871-671-000	Grommet - DRAIN HOLE, 25MM
4	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
5	90615-SM4-000	Cap - WELD HOLE, 46X72
6	90851-SA6-000	Plug - HOLE
8	91606-SD2-003	Plug - HOLE, 15MM
9	91606-SK7-003	Plug - BLIND, 25MM
10	91610-SD4-000	Plug - HOLE, 28MM
12	91611-SM4-003	Plug - FLOOR HOLE, 25MM
13	91611-SS0-003	Plug - HOLE, 25MM
15	91616-SP0-000	Seal - FR. PILLAR INNER LOWER
16	91616-S30-000	Block - FR. INSIDE PANEL
17	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
19	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Harness band/bracket (LH) 30

#	OEM	部品名
1	32112-P5M-A00	Stay comp - COUPLER
2	32113-P13-A00	Stay b - ENGINE HARNESS COUPLER
3	32131-SV4-003	Cap - COUPLER (CP 2P, 3P)
4	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
5	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
6	32146-SH3-003	Connector - DIODE(2P)
7	32165-SA5-003	Clip - HARNESS, 9MM(WHITE)
7	90674-769-000	Clamp, p.t.o. cable (b)
8	32312-SM4-013	Holder - COUPLER
9	39320-SS0-J63	Protector - HARNESS (4WS)
10	57451-SM4-950	Bracket - COUPLER (L.)
11	66427-SA7-000	Cushion - WIRE HARNESS (45X70) (GRAY)
12	90112-SS0-000	Bolt - FLANGE, 6X12
13	91506-SS0-013	Clip - WIRE & WASHER TUBE
14	91531-SW5-003	Band - HARNESS, 6MM (NATURAL) (120MM)
15	91534-S03-003	Clip - COUPLER (NATURAL) (SEAL)
16	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
17	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
18	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
19	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
20	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
21	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
22	91554-SH3-003	Band - WIRE HARNESS (NATURAL) (100.5MM)
23	91555-SM4-003	Clip - COUPLER (RED)
25	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
26	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
27	91620-SM4-003	Grommet - WIPER MOTOR (BLACK)
28	91655-SP0-010	Seal a - DOOR PANEL HOLE (60X30)
29	91751-S30-003	Cover - POWER RELAY
33	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)

Headlight 7

#	OEM	部品名
1	33101-S30-G01	Headlight unit - R.
2	33116-SD4-961	Socket - BULB (OSRAM) (HALOGEN)
3	33126-SV4-003	Cover - RUBBER
4	33151-S30-G01	Headlight unit - L.
5	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
6	34303-SS1-003	Socket comp - 2P
7	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)

Heater blower (LH) 12

#	OEM	部品名
1	79305-S30-A01	Blower sub assy.
2	79310-S30-A01	Motor assy. - FAN
3	79311-S30-003	Hose - COOLING
4	79330-S30-003	Resistor - BLOWER
5	79350-S30-A01	Motor assy. - FRESH & RECIRCULAR
6	90121-S30-003	Screw - TAPPING, 5X12
7	90122-S30-003	Screw - TAPPING, 5X12
8	90137-SF1-000	Bolt-washer - 6X25
9	90155-SE0-003	Screw - TAPPING, 6X20
10	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
11	90123-S30-003	Screw - TAPPING, 5X12
12	90124-S30-003	Screw-washer - 5X12

Heater control (LH) 13

#	OEM	部品名
1	32180-S30-G00	Harness - HEATER
2	34354-SB0-003	Bulb - NEO WEDGE (14V 100MA)
3	39383-SA5-000	Clamp - CONTROL CABLE
4	79500-S30-G01	Control assy. - HEATER
5	79505-S30-003	Knob comp.
6	79542-S30-A00	Cable - TEMPERATURE CONTROL
8	79570-S30-003	Switch assy - HEATER FAN
9	79581-SS0-003	Knob - TEMPERATURE CONTROL
10	80411-SS0-003	Knob - AIR CONDITIONER SWITCH
11	91533-S04-003	Clip - COUPLER (NATURAL)
12	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
13	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
14	91657-SD5-000	Cap - SEALING (7.3MM)

Heater unit (LH) 13

#	OEM	部品名
1	79100-S30-A01	Heater unit
2	79105-S30-A01	Outlet a - HEATER
3	79106-S30-A01	Outlet b - HEATER
4	79110-S30-A02	Core comp - HEATER
5	79140-S30-A01	Motor assy. - MODE
6	79544-S30-A00	Cable - WATER VALVE CONTROL
7	79770-SE0-000	Grommet - WATER VALVE CABLE
8	90122-S30-003	Screw - TAPPING, 5X12
9	90123-S30-003	Screw - TAPPING, 5X12
10	90124-S30-003	Screw-washer - 5X12
11	90126-S30-003	Screw - TAPPING, 5X10
12	90155-SE0-003	Screw - TAPPING, 6X20
13	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

High tension cord/plug 11

#	OEM	部品名
1	32700-P5M-003	Cord assy - HIGH TENSION (SUMITOMO)(###)
2	32701-P5M-003	Cord comp - RESISTANCE (NO.1) (SUMITOMO)
3	32702-P5M-003	Cord comp - RESISTANCE (NO.2) (SUMITOMO)
4	32703-P5M-003	Cord comp - RESISTANCE (NO.3) (SUMITOMO)
5	32704-P5M-003	Cord comp - RESISTANCE (NO.4) (SUMITOMO)
7	32760-P13-000	Clamp a - HIGH TENSION CORD
8	32761-P13-000	Clamp b - HIGH TENSION CORD
9	32762-P13-000	Clamp c - HIGH TENSION CORD
15	32767-PT0-000	Grommet - HIGH TENSION CORD
17	90003-P01-000	Bolt-washer - 8X28
20	32700-P5M-405	Cord assy - HIGH TENSION

Hood (LH) 30

#	OEM	部品名
4	74120-S30-003	Lock assy - HOOD
5	74125-SZ3-A01	Cover - HOOD LOCK
6	74130-S30-A00	Wire assy. - HOOD
7	74134-SM4-000	Grommet - HOOD WIRE
9	74141-S30-000	Insulator - HOOD
10	74142-S30-000	Rubber - HOOD SEAL
11	74143-S30-003	Rubber - R. HOOD SEAL
12	74145-S30-000	Stay - HOOD OPENER
13	74193-S30-003	Rubber - L. HOOD SEAL
14	74200-S30-A00	Cowl top assy.
15	74203-SS0-000	Seal rubber - RR. HOOD
16	74211-S30-000	Cover - R. HOOD HINGE
17	74223-S30-000	Valve - AIR
18	74261-S30-000	Cover - L. HOOD HINGE
19	85268-SA5-003	Stopper - TAILGATE (BLACK)
20	90106-SE1-000	Bolt-washer - 6X15
21	90601-S30-003	Grommet - COWL TOP
22	90602-SX0-003	Clip - COWL TOP
23	90603-SX0-003	Grommet - COWL TOP
25	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
26	91501-SS0-003	Clip - COWL TOP
27	91503-SS0-003	Holder - ROD
28	91504-SL0-003	Clip - HOOD OPEN WIRE
29	91513-SE0-003	Clip - HOOD SEAL
30	91518-SM4-003	Clip - TRUNK MOLDING
31	91524-SE0-003	Clip - COWL TOP
32	91558-SE3-003	Clip - HOOD WIRE
33	91602-SZ5-000	Cushion - HOOD (11.6MM)
34	91603-SZ5-000	Cushion - HOOD (25MM)
35	91604-SD2-013	Grommet - HOOD STAY

Inner panels 1

#	OEM	部品名
33	90108-S0A-003	Bolt - FLANGE, 6X15

Install pipe/tubing (DOHC) 12

#	OEM	部品名
2	17205-PC6-000	Clamp - TUBE, 7.5X2
3	17324-PM6-000	Joint comp - TWO WAY (#60)
4	17400-P5M-000	Pipe a - INSTALL
5	17425-P13-J00	Pipe c - INSTALL
7	36145-PM4-004	Valve - CHECK
8	36163-P13-003	Valve assy. - BYPASS CONTROL SOLENOID
9	36361-PT2-014	Tank comp. - VACUUM
10	36365-P5L-000	Stay - TUBE CLAMP
11	36366-PT2-003	Clamp - TUBE, 7.5 (BLACK)
12	36367-P13-003	Clamp - TUBE, 7.5
16	91431-P5M-000	Tube comp - 3.5
17	91433-P13-A00	Tube comp - 3.5

Instrument panel (LH) 15

#	OEM	部品名
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
5	66871-611-000	Nut - CENTER PANEL
8	77105-S30-003	Seal - INSTRUMENT
9	77111-S30-A00	Bracket - INSTRUMENT PANEL
10	77115-S30-000	Frame comp
17	77982-S04-N81	Holder - COUPLER (2P)
18	90106-SD4-000	Bolt-washer - 8X16
19	90128-SA7-000	Bolt-washer - 6X25
20	90192-SL0-000	Bolt-washer - 6X25
21	90305-SA0-000	Nut - FLOATING, 4MM
22	90321-SP0-A80	Nut-washer - 6MM
23	90666-SD4-003	Clip - FITTING
24	90770-S30-000	Pin
25	91640-SM4-003	Grommet - SCREW, 4MM
26	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH) 21

#	OEM	部品名
1	35505-SW5-003	Bulb assy - WITH CAP) (BLUE GREEN
2	35832-S30-G01	Garnish assy
3	39600-S30-003	Lighter assy - CIGARETTE
6	66417-SA0-000	Rubber - GLOVE BOX STOPPER
7	77165-S30-000	Bracket - R. RADIO
8	77166-S30-000	Bracket - L. RADIO
10	77240-S1A-E01	Lid assy - AUDIO HOLE
11	77231-S30-003	Lid - AUDIO HOLE
15	77355-SG0-A00	Label - IGNITION INFORMATION
17	77371-SV4-000	Ring - COLUMN COVER
19	77506-SM4-900	Stopper - GLOVE BOX LID
20	77508-SX0-000	Arm - GLOVE BOX STOPPER
25	77542-SL4-000	Striker - GLOVE BOX
26	77551-S30-A01	Frame - GLOVE BOX
30	77721-S30-000	Protector - CIGARETTE LIGHTER
32	90107-SE3-000	Screw-washer - 4X12
33	90128-SA7-000	Bolt-washer - 6X25
34	90650-SE3-000	Clip - RADIO PANEL
35	90666-S10-003	Clip - SNAP FITTING
36	90667-SL4-003	Clip - SNAP FITTING
49	35506-SX0-A02	Bulb - 14V 1.4W

Intake manifold (DOHC) 33

#	OEM	部品名
1	06164-P5M-000	Packing set - INJECTOR
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)
4	16474-PT2-000	Insulator - INJECTOR
5	16610-P5K-000	Pipe comp - FUEL
6	16623-PT2-000	Cover - FUEL LINE
7	16638-P45-G00	Collar - FUEL PIPE
8	16740-P5L-J01	Regulator assy - PRESSURE
9	16741-PG7-005	O-ring - PRESSURE REGULATOR
10	17010-P5M-A01	Manifold comp. b - INTAKE
11	17100-P5M-020	Manifold comp. a - INTAKE
12	17105-P13-014	Packing - INTAKE MANIFOLD (NIPPON LEAKLESS)
13	17120-PT2-000	Body assy - BYPASS VALVE
14	17121-PT2-003	Packing - BYPASS VALVE (ISHINO GASKET)
14	17121-PT2-004	Packing - BYPASS VALVE (NIPPON LEAKLESS)
15	17125-P5L-000	Stay comp - INTAKE MANIFOLD
16	17129-PT2-000	Diaphragm assy.
17	17749-SS0-931	Clamp - RETURN HOSE
19	18011-P13-000	Valve set - EGR
21	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
22	19527-P13-000	Clamp - HEATER HOSE
23	32129-P13-000	Stay - HARNESS HOLDER
25	32742-P5M-A00	Clamp b - ENGINE HARNESS
26	32752-P5K-000	Stay d - ENGINE WIRE HARNESS
28	32759-P13-000	Clamp j - ENGINE WIRE HARNESS
29	37880-P05-A00	Sensor assy - AIR TEMP
30	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)
30	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)
30	16074-ZY3-000	O-ring
31	91301-PR3-003	O-ring - 23.8X1.9
32	91303-PK2-005	O-ring (7.5X1.5)

Interior light 7

#	OEM	部品名
3	34251-SM4-003	Lens
6	34253-671-003	Bulb - 12V 8W)(DAIICHI
6	04110-SWA-305	BULB T10X318W
7	34260-SW5-003	Light assy - TRUNK ROOM
8	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI
8	34351-657-921	Bulb - 12V/5W) (STANLEY
10	90107-SE3-000	Screw-washer - 4X12

Knuckle 13

#	OEM	部品名
1	51210-S30-902	Knuckle comp - R. FR. (ABS)
2	51215-S30-902	Knuckle comp - L. FR. (ABS)
3	51225-SL5-003	Boot - LOWER BALL DUST
4	51450-S30-003	Arm assy. - R. FR. UPPER
5	51460-S30-003	Arm assy. - L. FR. UPPER
6	51464-S04-013	Boot, UPPER BALL JOINT
7	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)
8	52338-SL0-003	Circlip - CONTROL ARM
9	57450-S30-000	Sensor assy - R. FR.
10	57455-S30-000	Sensor assy - L. FR.
11	90172-S0A-000	Bolt - FLANGE, 10X68
12	90307-SL5-000	Nut - CASTLE, 14MM
13	90321-SE0-000	Nut - UPPER BALL PIN, 10MM

Main valve body 12

#	OEM	部品名
1	22748-P24-J00	Pipe - 8X220
2	24630-P6H-000	Arm comp - CHANGE DETENT
3	24635-P6H-000	Shaft - CHANGE DETENT ARM
4	25145-PA9-010	Shaft - OIL PUMP GEAR
5	27000-P6H-010	Body assy - MAIN VALVE
5	27000-P6H-020	Body assy - MAIN VALVE
6	27112-P6H-J00	PLATE, MAIN SEPARATING
7	27122-P6H-000	Cap - 12MM
8	27132-P6H-000	Cap - 14MM
9	27142-P6H-000	Cap - 15MM
10	27524-P6H-000	Clip - CAP
11	27750-PL5-J01	Filter - SECONDARY BODY

Mainshaft 49

#	OEM	部品名
1	23210-P16-N00	Mainshaft comp.
1	22814-P0X-003	Ring - SEALING, 32MM
2	23261-PX5-A00	Shaft - REVERSE IDLE GEAR
2	22815-P4P-003	Ring - SEALING, 29MM
3	23440-P16-N00	Gear comp - MAINSHAFT THIRD
3	23210-P6H-030	Mainshaft comp.
4	23451-P16-A00	Gear - MAINSHAFT FOURTH
4	23455-P6H-000	Gear - MAINSHAFT THIRD
5	23540-P16-000	Gear comp - REVERSE IDLE
5	23461-P6H-010	Gear - MAINSHAFT FOURTH
6	23581-P16-A00	Gear - MAINSHAFT FIFTH
6	23481-PCJ-000	Gear - MAINSHAFT FIRST
7	23623-P21-315	Sleeve set - SYNCHRONIZER (3-4)
7	90203-P0Z-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)
8	23626-P16-316	Sleeve set - SYNCHRONIZER (5)
8	90402-P0Z-000	Washer - SPRING, 24MM
9	23645-PX5-010	Ring - BLOCKING (50S)
9	90415-P6H-010	Washer - THRUST, 41X72X6.40
9	90417-P6H-010	Washer - THRUST, 41X72X6.50
9	90419-P6H-010	Washer - THRUST, 41X72X6.60
9	90414-P6H-010	Washer - THRUST, 41X72X6.35
9	90416-P6H-010	Washer - THRUST, 41X72X6.45
9	90418-P6H-010	Washer - THRUST, 41X72X6.55
10	23646-PX5-000	Ring - BRAKE STOPPER
10	90423-P6H-000	Washer - THRUST, 27X47X5
11	90501-P6H-010	Collar - 27X34X49.4
12	23647-P16-000	Ring - TAPER CONE
12	90603-P0X-000	Set ring - 23MM
13	23652-PB6-000	Spring - SYNCHRONIZER (50MM)
13	91011-P6H-003	Bearing - NEEDLE, 34X40X18
14	23915-P21-000	Collar - DISTANCE, 31X38X56.5
14	91017-P24-J01	Bearing - NEEDLE, 23X29X18
15	91018-PW7-A01	Bearing - THRUST NEEDLE, 34X46X2
16	23916-P16-000	Collar - DISTANCE, 28X37X14.3
16	91021-P6H-003	Bearing - THRUST NEEDLE, 62X73X2 (NTN)
17	23927-PG2-A00	Washer - SPRING, 28MM
17	91023-PCJ-003	Bearing - THRUST NEEDLE, 34X53.5X2.5
18	23928-PS1-000	Washer - 28MM
18	91029-P6H-003	Bearing - NEEDLE, 56X61X18 (NTN)
19	90401-PG1-000	Washer - DRAIN PLUG, 10MM
19	91316-PR9-003	O-ring - 33X1.9 (ARAI)
20	91004-PX5-008	Bearing - BALL, 28X78X20
20	25310-PCJ-000	Pipe comp - PITOT
21	91104-P21-008	Bearing - NEEDLE, 38X43X26 (NTN)
21	25320-PCJ-000	Pipe comp - PITOT
22	91108-P16-008	Bearing - NEEDLE, 37X42X14 (TOYO)
22	25331-PCJ-000	Flange - PITOT
23	90005-PCJ-000	Bolt - FLANGE, 6X20
24	90007-PCJ-000	Bolt - SOCKET, 6X15

Mirror 13

#	OEM	部品名
3	76203-S30-J01	Mirror - R. (1400R)
4	76210-S30-A01	Actuator comp. - R.
5	76215-S30-A01	Actuator comp. - L.
9	76253-S30-J01	Mirror - L. (1400R)
9	76253-S04-J01	Mirror - L. (1400R)
11	76401-S30-003	Base - STAY
12	76403-SM4-000	Holder - RR. VIEW MIRROR
15	88147-SA5-003	Washer - TOOTHED (MATSUYAMA)
16	88148-SE0-003	Bolt - LOCK, 6X7 (MATSUYAMA)
17	90142-S30-003	Screw - ET, 5X25
18	90145-S04-006	Screw - 3X16
19	90615-SK7-003	Clip - MIRROR GARNISH
20	91565-SW5-003	Clamp - HARNESS

Molding/protector 10

#	OEM	部品名
3	72410-S30-003	Molding assy. - R. FR. DOOR
4	72450-S30-003	Molding assy. - L. FR. DOOR
5	74306-S30-003	Molding assy. - R. ROOF
6	74308-ST0-003	Bracket - ROOF MOLDING
7	74316-S30-003	Molding assy. - L. ROOF
8	74430-S30-A00	Protector - RR. WHEEL ARCH
9	90331-SD5-003	Nut - SPRING, 5MM
10	90505-SX0-003	Clip - GARNISH
11	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH
12	91527-SZ3-003	Clip - DOOR MOLDING

Oil level gauge 16

#	OEM	部品名
1	23815-P0A-000	Holder comp, SPEEDOMETER GEAR
2	23820-P0A-900	Gear comp - SPEEDOMETER
3	24901-PAA-000	Holder - CONTROL WIRE
4	25610-PAX-003	Gauge comp. - ATF
5	25910-P6H-010	Pipe comp. a - ATF
6	25920-P6H-010	Pipe comp. b - ATF
7	25950-PX4-000	Bolt comp - JOINT
8	25951-639-000	Bolt - JOINT
9	78410-SV4-003	Sensor assy - SPEED (MATSUSHITA)
10	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)
11	90001-PA9-000	Bolt - HEX., 6MM
12	90011-PT0-000	Bolt-washer - 8X26
13	90433-P0G-000	Washer - LOCK, 6MM
14	90638-689-000	Clip - SPEEDOMETER GEAR
15	91304-PT0-000	O-ring - 14.8X1.9
16	91313-611-010	O-ring - 23.5X2

Oil pump/oil strainer 31

#	OEM	部品名
4	15113-P13-003	Packing a - OIL PUMP (ARAI)
5	15114-PT0-003	Packing b - OIL PUMP (ARAI)
6	15200-P13-000	Pipe comp - OIL LEVEL
8	15220-P0A-C00	Strainer comp. - OIL
9	15221-PT0-000	Packing - OIL STRAINER
9	15221-P5K-004	Packing - OIL STRAINER
10	15231-PE0-000	Valve - RELIEF
11	15232-PG6-000	Spring - RELIEF VALVE
12	15233-PC6-000	Bolt - SEALING, 18MM
14	15400-PR3-014	OIL FILTER (TOYO ROKI)
14	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
15	15400-PR3-315	Cartridge set - OIL FILTER (TOYO ROKI)
16	15500-PT6-004	Cooler - ENGINE OIL (DENSO)
16	15500-PT6-003	Cooler - ENGINE OIL (TSUCHIYA)
18	15560-PT6-003	Bolt - OIL COOLER CENTER
19	15650-P5M-000	Gauge comp. - OIL LEVEL
23	90018-PT0-010	Bolt - BALANCER BELT ADJUSTER
24	90023-PT0-003	Bolt-washer - 8X33
26	90052-PK1-000	Bolt - FLANGE, 6X25
27	90063-PC6-000	Bolt - STUD, 6X25
28	90703-PT0-000	Dowel pin - 49X10
29	91212-PAA-A01	Oil seal - 40X52X7 (NOK)
29	91212-PAA-A02	Oil seal - 40X52X7 (ARAI)
30	91233-PT0-003	Oil seal - 27X40X8 (NOK)
31	91309-PJ7-010	O-ring - 11.5X3.5
33	91316-PT6-003	O-ring - 62.4X3.1
33	91316-PE7-730	O-ring - 62.4X3.1
46	13500-PAA-A00	Case comp. - GEAR
47	13511-PT0-020	Gear b - DRIVEN
48	13512-PT0-020	Washer - THRUST
49	15100-PCB-003	Pump assy. - OIL

Outer panels 9

#	OEM	部品名
22	70494-SE0-000	Spring - FUEL LID OPENER
23	70495-692-000	Cushion - FUEL FILLER LID
25	75450-SF1-900	Outlet assy - RR. AIR
26	75450-SS0-000	Outlet assy - RR. AIR
27	75451-SP0-000	Clip - RR. AIR OUTLET
28	90103-SM4-010	Bolt - FLANGE, 6X18
29	90108-S0A-003	Bolt - FLANGE, 6X15
30	90664-SB3-003	Grommet - SCREW, 5MM
32	61901-611-000	Grommet - EMBLEM HOLE

P.s. gear box (LH) 22

#	OEM	部品名
1	39331-S30-003	Cover
2	53010-SW5-003	End set - RACK
3	53411-SL4-951	Tube - AIR TRANSFER
4	53434-S04-J51	CLIP, TIE ROD
5	53434-S30-000	Bracket d - GEAR BOX
6	53436-S30-000	Cushion b - GEAR BOX
7	53438-S30-000	Bracket b - GEAR BOX
8	53447-S04-J51	Clip - TRANSFER TUBE
9	53449-SF1-J60	BAND, DRIVEN PINION
10	53449-S04-J51	Band b - BELLOWS
11	53534-SL4-J01	Dust seal comp. - TIE ROD (B)
12	53534-S30-003	Dust seal comp. - TIE ROD
13	53536-SS0-000	Washer - TIE ROD LOCK
14	53540-S30-005	End comp - R. TIE ROD
15	53546-S30-005	Boot - TIE ROD END
16	53560-S30-005	End comp - L. TIE ROD
17	53801-S30-G62	Box comp - FR. STEERING GEAR (4WS)
18	53685-SL5-000	Bush - STEERING GEAR BOX MOUNTING
19	53686-SL5-000	Collar - GEAR BOX MOUNTING
20	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)
21	90163-SL5-A00	Bolt - FLANGE, 10X50
25	90111-S04-J51	Clip - TUBE (B7)

P.s. gear box components (LH) 29

#	OEM	部品名
1	06531-S30-003	Seal kit a - POWER STEERING (ROTARY VALVE)
2	06532-S50-003	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)
7	53413-S30-J62	Spring - RACK GUIDE PRESSURE
9	53414-S30-J62	Screw - RACK GUIDE
10	53416-SS0-J61	Guide - STEERING RACK
11	53449-SF1-J60	BAND, DRIVEN PINION
12	53449-S04-J51	Band b - BELLOWS
13	53458-SM4-J60	Nut - RACK SCREW LOCK
14	53501-SW5-000	Cover - PINION DUST
15	53536-SS0-000	Washer - TIE ROD LOCK
16	53537-SW5-003	Rubber comp - STOPPER
17	53608-S30-A02	Housing sub assy. - STEERING GEAR BOX
18	53626-S30-G61	Rack comp - STEERING
19	53630-SZ5-003	End comp - CYLINDER
20	53641-S30-A02	Valve sub assy. - STEERING
21	53645-S30-A02	Housing comp - VALVE
22	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)
24	53666-S50-003	O-ring - 41.5X2 (SHOWA)
25	53670-S30-A02	Pipe comp. a - CYLINDER
26	53671-S30-A02	Pipe comp. b - CYLINDER
31	53803-S30-J61	Potentiometer - FR.
32	53922-S30-J61	O-ring - 21.8X2.4
33	53923-S30-J61	Plate set
34	53925-S30-J61	Cover - PROTECTOR
36	90601-S50-003	Circlip - EXTERNAL, 20MM
37	90105-S50-003	Bolt - FLANGE, 8X28
38	53661-S50-003	Washer - WAVE (SHOWA)

P.s. lines (LH) 24

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-SV4-003	Tank comp. - POWER STEERING OIL
3	53711-S30-000	Bracket - OIL TANK
4	53713-S30-A52	Hose comp. - FEED
5	53720-SV4-A00	Pipe comp - RETURN, 10MM
6	53721-SM4-013	Clamp d - 15.5MM
7	53729-SS0-003	Clip - RETURN HOSE
8	53729-671-003	Clamp d - 15.5MM
9	53731-S30-000	Tube - SUCTION
10	53732-SS0-010	Hose - OIL COOLER
11	53733-S30-000	Hose - OIL TANK
12	53734-S30-A00	Hose - RETURN
13	53735-SS0-000	Hose - OIL COOLER RETURN
14	53736-SM4-010	Holder b - POWER STEERING PIPE
15	53746-SV4-A00	Stay - RETURN PIPE, 10MM
16	53765-SS0-J00	Cooler comp - POWER STEERING OIL
17	53779-S30-A00	Pipe assy. - POWER STEERING COMBINATION RETURN
18	56490-P5K-003	Switch assy - POWER STEERING PRESSURE
19	90188-SM4-000	Bolt - FLANGE, 6X12 (BLACK)
20	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
20	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
21	91304-PA6-003	O-ring - 7.8X1.9
22	91370-SV4-000	O-ring - 14.4X1.9
23	91405-SS0-003	Clamp - TUBE (D21)

Parking brake 13

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
3	47142-671-010	Knob - PARKING BRAKE PUSH ROD
4	47143-SD4-300	Spring - PUSH ROD
5	47342-SV4-003	Switch - HAND BRAKE
6	47360-SB2-000	Equalizer
7	47365-538-000	Pin - EQUALIZER
8	47510-S30-003	Wire a - R. PARKING BRAKE
9	47522-594-000	Nut - PARKING BRAKE ADJUSTING
10	47537-671-670	Spring - PARKING BRAKE ROD
11	47560-S30-003	Wire - L. PARKING BRAKE
12	47572-SE0-300	Base - WIRE GUIDE
13	90651-538-000	Clip - BRAKE HOSE
14	90705-SD2-931	Pin - SNAP, 6MM

Pedal (LH) 24

#	OEM	部品名
2	17800-S30-G01	Pedal assy - ACCELERATOR
3	17816-SK7-000	Cover - ACCELERATOR PEDAL
4	17910-S30-A02	Wire - THROTTLE
5	17921-SA4-730	Seal - THROTTLE CABLE
6	17925-SS0-A01	Stay - THROTTLE WIRE
8	17931-SS0-A00	Stay - THROTTLE WIRE
10	36750-S04-003	Switch assy - STOP & CRUISE
11	36760-SM4-003	Switch assy - CLUTCH
12	46504-ST5-300	Bush - PEDAL
13	46505-SA5-000	Pad - PEDAL STOPPER
14	46505-SA7-000	Pad - PEDAL STOPPER
15	46545-SA5-000	Cover, Pedal
16	46545-S84-A81	Cover - PEDAL
17	46600-S30-G51	Pedal assy - BRAKE
18	46600-S30-G71	Pedal assy - BRAKE
19	46910-SS0-G00	Pedal comp - CLUTCH
20	46911-SD4-930	Bush - PEDAL PIN
21	46936-SM4-000	Collar - CLUTCH PEDAL
22	46980-SD4-931	Spring - CLUTCH ASSISTANT
23	46981-SD4-930	Bush a - CLUTCH ASSISTANT
24	46982-SD4-930	Bush b - CLUTCH ASSISTANT
25	46990-SM4-940	Bracket - CLUTCH PEDAL
26	46991-SS0-A01	Bracket - FOOTREST
27	75891-611-000	Cover - DOOR SWITCH

Pillar garnish (LH) 9

#	OEM	部品名
1	38205-S30-E01	Label - FUSE
2	72315-S30-003	Seal - R. FR. DOOR OPENING
3	72355-S30-003	Seal - L. FR. DOOR OPENING
14	90133-SG0-003	Bolt-washer - 5X30
15	90610-SR3-003	Clip - GARNISH (KATO)
16	90611-SM4-013	Clip - PILLAR GARNISH
17	91560-SP0-003	Clip - DOOR LINING (GRAY)
17	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
18	91560-SZ3-003	Clip, DOOR LINING (NATURAL)

Piston/crankshaft 47

#	OEM	部品名
1	13010-P5M-A00	Piston set a - STD.
1	13030-P5M-A00	Piston set - OS 0.25
1	13020-P5M-A00	Piston set b - STD.
2	13011-P5M-003	Ring set - PISTON (STD.) (TEIKOKU)
2	13021-P13-004	Ring set - PISTON (OS 0.25) (RIKEN)
2	13021-P13-003	Ring set - PISTON (OS 0.25) (TEIKOKU)
3	13014-PAA-810	Washer set - THRUST (TAIHO)
3	13014-PAA-800	Washer set - THRUST (DAIDO)
5	13111-P5A-000	Pin - PISTON
6	13115-P5A-000	Clip - PISTON PIN
7	13205-PH7-000	Nut - CONNECTING ROD
8	13210-P5M-000	Rod comp - CONNECTING
9	13213-ME2-000	Bolt - CONNECTING ROD
10	13310-P5M-000	Crankshaft comp.
11	13326-PCA-003	Bearing f - MAIN (PINK) (DAIDO)
11	13325-PCA-003	Bearing e - MAIN (YELLOW) (DAIDO)
11	13325-PCA-004	Bearing e - MAIN (YELLOW) (TAIHO)
11	13324-PCA-003	Bearing d - MAIN (GREEN) (DAIDO)
11	13324-PCA-004	Bearing d - MAIN (GREEN) (TAIHO)
11	13323-PCA-003	Bearing c - MAIN (BROWN) (DAIDO)
11	13323-PCA-004	Bearing c - MAIN (BROWN) (TAIHO)
11	13322-PCA-003	Bearing b - MAIN (BLACK) (DAIDO)
11	13322-PCA-004	Bearing b - MAIN (BLACK) (TAIHO)
11	13321-PCA-003	BEARING A - MAIN (BLUE) (DAIDO)
11	13326-PCA-004	Bearing f - MAIN (PINK) (TAIHO)
11	13321-PCA-004	BEARING A - MAIN (BLUE) (TAIHO)
12	13400-PT3-010	Shaft comp. - RR. BALANCER
13	13401-PT3-010	Shaft - FR. BALANCER
14	13402-PT0-000	Pulley b - FR. TIMING BELT DRIVEN
15	13406-PT0-000	Metal f - THRUST BALANCER SHAFT
16	13408-PT2-003	Pulley - BALANCER BELT DRIVE
17	13621-P13-003	Pulley - TIMING BELT DRIVE
19	13622-PT2-010	Plate - TIMING BELT GUIDE
20	13810-P13-003	Pulley comp - CRANKSHAFT
21	90017-PY3-003	Bolt-washer - 16X49
21	90017-RJA-003	Bolt-washer - 16X49
22	90019-PT0-000	Bolt - FLANGE, 6X18
23	90031-PT0-003	Bolt-washer - 8X22
23	90032-ZW5-003	Bolt-washer, 8x22
24	90704-PT0-000	Key - 4.5X38.5
25	13212-P13-014	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
25	13215-P13-014	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
25	13217-P13-014	Bearing g - CONNECTING ROD (RED) (TAIHO)
25	13213-P13-014	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
25	13211-P13-014	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
25	13214-P13-014	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
25	13216-P13-014	Bearing f - CONNECTING ROD (PINK) (TAIHO)

Power steering pump 25

#	OEM	部品名
1	11911-P13-000	Hanger - ENGINE
2	56110-P5M-013	Pump sub assy - POWER STEERING
3	56123-P5K-003	Joint - IN.
4	56167-P2A-003	Spacer - PUMP SEAL
5	56483-P5M-003	Pulley - POWER STEERING PUMP
6	56992-PDE-E01	Belt - POWER STEERING PUMP (MITSUBOSHI)
8	56994-P5M-000	Bracket - POWER STEERING PUMP
9	56995-P0A-000	Bolt - POWER STEERING PUMP ADJUSTING
10	56996-P5M-000	Bolt-washer - 8X85
11	56997-P5M-000	Nut - PLATE BASED
12	56998-P0A-000	Stay - POWER STEERING PUMP ADJUSTER
13	90091-P0A-000	Bolt - POWER STEERING PUMP ADJUSTING
14	90202-P0A-A01	Nut-washer - 8MM
15	90305-PAA-A01	Nut - POWER STEERING PULLEY
16	90693-P2A-003	Circlip - INTERNAL, 40MM
17	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12
18	91249-P2A-003	Seal - POWER STEERING PUMP
19	91345-PAA-A01	O-ring - 13.0X1.9
19	91345-PY3-000	O-ring - 13.0X1.9
20	91347-P2A-003	O-ring - 15.2X2.4
21	91348-P2A-003	O-ring - 51.0X2.4
22	91349-P2A-003	Seal - POWER STEERING PUMP COVER
25	91350-P8C-A01	Bolt - FLANGE, 6X20
26	90105-S50-003	Bolt - FLANGE, 8X28
30	91347-PAA-A01	O-ring - 16.7X1.8

Purge control solenoid valve (1) 3

#	OEM	部品名
2	36160-P5G-901	Valve assy. - PURGE CONTROL SOLENOID
3	36164-P5M-G01	Stay - PURGE CONTROL SOLENOID VALVE
4	36215-P5G-901	Screw-washer - 5X8

Radiator (DENSO) 14

#	OEM	部品名
1	19010-P5M-003	Radiator comp - DENSO
1	19010-P5M-901	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19015-P0A-003	Shroud comp - DENSO
5	19020-PAA-A01	Fan - COOLING (DENSO)
6	19030-P8C-A01	Motor - COOLING FAN (DENSO)
7	19033-P0A-003	Stay - COUPLER
8	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)
9	19046-PAA-A00	Label - RADIATOR CAP
10	90041-P5A-003	Screw-washer - 4X11
11	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
12	90043-PD2-003	Nut - HEX., 5MM (DENSO)
13	19013-PCA-003	Seal - DENSO

Radiator (TOYO) 16

#	OEM	部品名
1	19010-P5M-004	Radiator comp - TOYO
1	19010-P5M-902	Radiator comp - TOYO
2	19011-PH2-004	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)
4	19015-P0A-004	Shroud comp - TOYO
5	19017-PK1-004	Clip - HARNESS(T.RAD)
6	19020-P5M-004	Fan comp - COOLING (MITSUBA)
7	19030-P5M-004	Motor - COOLING FAN
8	19033-P0A-004	Stay - COUPLER
9	19045-PCA-004	Cap comp - TOYO
10	19046-PAA-A00	Label - RADIATOR CAP
11	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)
12	90042-PZ1-004	Bolt-washer - 6X20
13	90041-P5A-003	Screw-washer - 4X11
14	90403-P5M-004	Spacer - FAN, 8MM (MITSUBA)
15	19013-P5M-004	Seal - TOYO

Radiator hose 29

#	OEM	部品名
1	19025-P5K-000	Seal - R. RADIATOR SIDE
2	19101-P13-000	Tank - RESERVE
3	19102-PM5-A00	Cap - RESERVE TANK
4	19103-P5M-000	Hose - RESERVE TANK
5	19104-P5M-000	Hose comp. - RESERVE TANK
6	19106-PM3-000	Joint - RESERVE TANK
7	19108-PV0-003	Clamp a - RESERVE TANK TUBE (BLACK)
8	19501-P5M-000	Hose - WATER UPPER
9	19502-P5M-J00	Hose - WATER LOWER
9	19502-P5M-000	Hose - WATER LOWER
10	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
10	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
12	19519-P5K-000	Clamp - LOWER HOSE
13	19519-P13-900	Clamp - LOWER HOSE
14	21385-P5K-010	Clamp - BREATHER TUBE (8.5X39)
15	25210-P5K-000	Pipe comp. c - ATF
16	25212-P5K-000	Hose comp. - ATF, 280MM
17	25213-PT0-603	Hose - OIL COOLER, 140MM (BRIDGESTONE)
17	25213-PT0-305	Hose - OIL COOLER, 140MM (BRIDGESTONE)
18	25213-P5K-000	Hose comp. - ATF, 350MM
20	25216-PR3-000	Clamp - ATF HOSE (BLACK)
24	74170-SL9-000	Bracket comp. - RADIATOR MOUNTING
25	74171-S30-000	Bracket - RADIATOR MOUNT UPPER
26	74172-SS0-000	Cushion - RADIATOR MOUNTING LOWER
27	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
28	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)
29	90635-PT0-802	Clip, Oil Pipe
29	90635-RV0-003	CLIP, OIL PIPE
30	91564-SP0-003	Clip - DOOR CHECKER COVER

Radio antenna/speaker 18

#	OEM	部品名
1	39120-SV4-A01	Speaker assy - 6 1/2" SINGLE) (MATSUSHITA
2	39120-SV4-A11	Speaker assy - 6"X9" SINGLE) (MATSUSHITA
3	39120-S30-003	Speaker assy - 1 1/2") (TWEETER) (MATSUSHITA
4	39155-SZ3-G01	Coil assy - GLASS ANTENNA
5	39160-S30-A11	Feeder - ANTENNA
6	39166-S30-G01	Coil assy - GLASS ANTENNA
7	72123-S30-003	Bracket - R.
8	72127-S30-003	Screw
9	72163-S30-003	Bracket - L.
12	90131-S30-003	Screw-washer - ET, 6X16
13	90132-SV4-003	Screw - ET, 5X16
14	90610-SR3-003	Clip - GARNISH (KATO)
15	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
16	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
17	91554-SH3-003	Band - WIRE HARNESS (NATURAL) (100.5MM)
18	91563-SF4-003	Band - WIRE HARNESS (WHITE) (100.5MM)
19	91655-SP0-010	Seal a - DOOR PANEL HOLE (60X30)
23	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Rear brake (DISK) 44

#	OEM	部品名
1	01473-SM4-010	Caliper set - RR.
2	42200-S30-C51	Bearing assy - RR. HUB UNIT
4	42326-SG0-000	Cap - HUB UNIT
5	42510-S30-A00	Disk - RR. BRAKE
7	43018-SS0-010	Caliper sub assy. - R. RR.
8	43019-SS0-010	Caliper sub assy. - L. RR.
9	43022-SV4-A22	Pad set - RR.
10	43215-SM4-951	Piston assy.
11	43223-SD2-932	BEARING A
12	43224-SD2-931	Spring b - ADJUSTING
13	43224-SP0-003	Shim - BRAKE PAD OUTER
14	43225-SL5-A01	Shim - BRAKE PAD INNER
15	43227-SG0-013	Spring - PAD
16	43228-SD2-933	Shaft a
17	43229-SD2-931	Rod
18	43233-S5A-J01	Piston comp - SLEEVE
18	43233-TR0-A01	Piston, sleeve
19	43235-SD2-931	Pin a
20	43236-S04-003	Spacer
21	43238-SF1-003	Ring - RETAINING
22	43241-SF1-003	Guide - SPRING
23	43243-SD2-931	Nut - PARKING
24	43244-SG0-003	Retainer
25	43245-SS0-003	Lever - R.
26	43246-SS0-003	Spring - R. RETURN
27	43247-SS0-003	Arm - R.
28	43248-SD2-933	Shaft b
29	43249-S04-003	Bolt - ADJUSTER
30	43253-S30-950	Guard - R. RR. SPLASH
31	43254-S30-950	Guard - L. RR. SPLASH
32	43255-SS0-000	Protector - R. RR. CALIPER
33	43256-SS0-000	Protector - L. RR. CALIPER
34	43262-S04-003	Pin b
35	43265-SS0-003	Lever - L.
36	43266-SS0-003	Spring - L. RETURN
37	43267-SS0-003	Arm - L.
38	43352-SM4-951	Screw - BLEEDER
39	43353-SD5-003	Cap - BLEEDER SCREW
40	45240-SC2-003	Bolt - FLANGE, 8X22
41	90103-SN7-003	Bolt - FLANGE, 10X25
42	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
42	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
42	90113-SA0-006	Bolt - WHEEL (SAGA)
43	90305-S30-003	Nut - SPINDLE

Rear lower arm 46

#	OEM	部品名
1	42520-SS0-950	Bracket - R. ABS COUPLER
2	42521-SS0-950	Bracket - L. ABS COUPLER
3	47523-S30-950	Stay - R. BRAKE WIRE BRACKET
4	47524-S30-950	Stay - L. BRAKE WIRE BRACKET
5	51225-SL5-003	Boot - LOWER BALL DUST
6	52111-S30-010	Knuckle comp - R. RR.
7	52116-S30-010	Knuckle comp - L. RR.
8	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)
9	52250-S30-950	Spindle assy - R. RR. WHEEL
10	52260-S30-950	Spindle assy - L. RR. WHEEL
11	52300-S30-003	Spring - RR. STABILIZER
12	52308-SS0-000	Holder - RR. STABILIZER
13	52315-SS0-010	Bush - RR. STABILIZER HOLDER
14	52317-SS0-010	Bracket - R. RR. STABILIZER
15	52318-S30-000	Bracket - L. RR. STABILIZER
16	52320-S30-003	Link assy - RR. STABILIZER
17	52350-S30-900	Arm comp - R. RR. LOWER (ABS)
18	52353-SM4-962	Bush - LOWER ARM CONNECT (HOKUSHIN)
20	52360-S30-900	Arm comp - L. RR. LOWER (ABS)
22	52371-S30-A00	Arm comp - R. RR. RADIUS
23	52372-S30-A00	Arm comp - L. RR. RADIUS
25	52387-SM4-962	Bolt - LOWER ARM ADJUSTING
27	52388-SM4-960	Plate - CAM
27	52388-SM4-961	Plate - CAM
28	52390-S30-003	Arm comp - R. RR. UPPER
29	52400-S30-003	Arm comp - L. RR. UPPER
30	52622-SS0-003	Bush - RR. SHOCK ABSORBER LOWER
31	52677-SS0-000	Bracket - R. RR. RADIUS ARM
32	52678-SS0-000	Bracket - L. RR. RADIUS ARM
33	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
34	53548-SL0-A01	Circlip - TIE ROD
35	57470-S30-000	Sensor assy - R. RR.
36	57475-S30-000	Sensor assy - L. RR.
37	90020-SM4-962	Bolt - RADIUS ROD, 12X93.5
38	90022-SM4-003	Bolt - TRAILING ARM BRACKET, 12X69
39	90023-SM4-003	Bolt - TRAILING ARM BRACKET, 12X55.5
40	90028-SM4-000	Bolt - TRAILING, 8X19
41	90163-SS0-003	Bolt - RR. SPINDLE, 10X52
42	90164-SM4-961	Bolt - RR. SPINDLE, 10X37
43	90164-SS0-003	Bolt - RR. SPINDLE, 10X67
44	90166-SM4-003	Nut - SELF-LOCK
46	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
48	90307-SL5-000	Nut - CASTLE, 14MM
49	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
51	90366-SF1-J62	Nut - RR. LOWER ARM, 12MM
52	90438-SE0-000	Washer - TRAILING, 12MM

Rear seat 12

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	82122-S30-J01	Pad & frame comp. - RR. SEATBACK
5	82132-S30-J02	Pad & frame comp. - RR. SEAT CUSHION
6	82137-SS0-003	Clip - RR. SEAT CUSHION
7	82220-S30-003	Lock assy - RR. SEAT
8	82226-SH4-A04	Cylinder - RR. SEAT
10	82232-S30-003	Rod - SEAT FOLD DOWN
11	82290-S30-003	Bracket comp. - SEAT PIVOT
12	90131-S47-003	Screw - ET, 5X16
13	90135-S30-003	Bolt - SEAT PIVOT
15	91513-SR3-003	Snap

Rear shock absorber 18

#	OEM	部品名
1	52441-S30-921	Spring - RR. (SHOWA)
1	52441-S30-931	Spring - RR. (SHOWA)
2	52610-S30-904	Absorber assy - R. RR. SHOCK
3	52611-S30-A01	Absorber unit - R. RR. SHOCK
4	52612-S30-A01	Absorber unit - L. RR. SHOCK
5	52620-S30-G03	Absorber assy - L. RR. SHOCK
6	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
7	52675-SS0-014	Base - RR. SHOCK ABSORBER MOUNTING
8	52686-SS0-004	Rubber - RR. SPRING MOUNTING
9	52687-S30-004	Cover comp. - RR. SLEEVE DUST
10	52688-SE0-003	Plate - RR. BUMP STOP
11	52690-SG0-000	Plate - BUMP STOP
12	52722-S30-003	Rubber - RR. BUMP STOPPER
13	52725-SS0-004	Rubber - RR. SHOCK ABSORBER
14	52728-S30-004	Collar - RR. SHOCK ABSORBER MOUNTING
15	90020-SM4-962	Bolt - RADIUS ROD, 12X93.5
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
18	52689-SG0-014	End - DUST COVER

Rear tray/trunk garnish 8

#	OEM	部品名
7	84656-SE3-000	Stopper - TRUNK SIDE GARNISH
8	84657-S30-000	Belt comp - LASHING
10	90662-SB2-003	Grommet - SCREW, 5MM
13	91550-SS0-003	Clip - SRS COVER
15	91560-SP0-003	Clip - DOOR LINING (GRAY)
15	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
16	91560-S04-003	Clip - SIDE GARNISH (NATURAL)
18	90126-SR4-000	Screw-washer - 5X16

Rear windshield/ quarter glass 10

#	OEM	部品名
1	73211-S30-E11	Glass - RR. WINDSHIELD (GREEN) (ASAHI)
2	73221-SR4-000	Spacer - RR. WINDSHIELD
4	73224-SZ3-003	Base - TERMINAL COVER
5	73250-S30-003	Molding assy. - RR. WINDSHIELD
6	73511-S30-901	Glass - R. QUARTER (GREEN) (ASAHI)
7	73561-S30-901	Glass - L. QUARTER (GREEN) (ASAHI)
8	91563-SV4-003	Fastener a - RR. WINDSHIELD
9	91568-SV4-003	Fastener b - RR. WINDSHIELD
10	91568-SX0-003	Fastener a - WINDSHIELD
11	91569-SZ3-013	Fastener b - WINDSHIELD

Regulator 15

#	OEM	部品名
1	22750-P6H-000	Pipe comp - 8X22.5
2	22752-P6H-000	Pipe - 8X27
3	25155-P6H-000	Shaft assy - STATOR
4	27122-P6H-A00	Cap - 12MM
5	27200-PCJ-020	Body assy, Regulator
5	27200-PCJ-010	Body assy - REGULATOR
6	27212-PCJ-900	Plate - REGULATOR SEPARATING
7	27246-PN6-800	Cap - REGULATOR SPRING
8	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
9	27524-P6H-000	Clip - CAP
10	27750-PL5-J01	Filter - SECONDARY BODY
11	90089-PK4-000	Bolt - STOPPER, 6MM
12	90701-PK4-000	Dowel pin - 8X80
13	91316-PF4-003	O-ring - 31X1.7 (ARAI)
19	27201-PCJ-306	Body assy - REGULATOR

Resonator chamber 17

#	OEM	部品名
1	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
2	17216-PN3-000	Collar - AIR CLEANER MOUNTING
3	17230-P5K-000	Chamber assy - RESONATOR
4	17233-P13-000	Rubber - RESONATOR SEAL
5	17242-P5K-000	Tube comp - AIR INTAKE (A)
6	17245-P13-003	Diaphragm comp - VALVE CONTROL
7	17250-P13-000	Valve assy. - AIR CONTROL
9	17252-P5M-000	Tube assy - AIR IN. (B)
10	17255-PD6-000	Collar - RESONATOR
11	17256-PD6-000	Rubber - RESONATOR MOUNTING
12	17256-P13-000	Ring - SEAL
13	17257-PT0-000	Grommet - INTAKE
16	17307-P13-000	Rubber - AIR INTAKE SEAL
17	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
18	90006-PN4-000	Bolt-washer - SPECIAL, 6X25
19	90011-PL2-000	Screw-washer - 5X8

Right side cover 34

#	OEM	部品名
1	21240-P6H-020	Cover comp. - R. SIDE
3	21812-PCJ-000	Packing - R. SIDE COVER
4	21921-P6H-000	Holder - HARNESS
5	22713-PW4-000	Guide a - FEED PIPE
6	22713-PX4-000	Guide a - FEED PIPE
7	22715-P0Z-000	Pipe comp. b - FEED
8	22725-P6H-000	Pipe comp. b - FEED
9	24282-634-000	Bolt - SHAFT FORK SETTING
10	24532-PX4-000	Lever - PARKING BRAKE
11	24535-P0X-000	Spring - PARKING BRAKE
12	24537-PA9-003	Stopper - PARKING BRAKE (1)
12	24539-PA9-003	Stopper - PARKING BRAKE (3)
12	24538-PA9-003	Stopper - PARKING BRAKE (2)
13	24552-P6H-000	Spring - PARKING PAWL
14	24553-PN6-000	Roller - PARKING BRAKE
15	24555-PN6-000	Pin - ROLLER, 6MM
16	24561-P6H-000	Pawl - PARKING BRAKE
17	24562-P6H-000	Shaft - PARKING
18	28900-P6H-013	Sensor assy - POSITION (TEC)
19	90024-612-000	Bolt - SEALING, 8MM
20	90433-639-000	Washer - LOCK, 6MM
21	90471-580-000	Packing - 8MM
22	90602-PX4-000	Circlip b - INTERNAL, 47MM
23	90701-639-000	Dowel pin - 8X55
24	91006-P1B-003	Bearing - BALL, 9X20X6
25	91201-PA9-004	Oil seal - 9X18X7 (ARAI)
26	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
27	91305-PC9-003	O-ring - 34X1.9 (ARAI)
28	91305-PX4-003	O-ring - 40X1.9 (NOK)
29	91311-PA9-004	O-ring - 7.7X1.9 (NOK)
30	91314-PW4-003	O-ring - 11X1.9 (NOK)
31	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
40	91618-SA5-000	Grommet b - CONTROL WIRE, 16MM
41	21720-PCJ-000	Cover comp. - POSITION SENSOR

Roof lining 2

#	OEM	部品名
4	83202-SZ3-000	Clip - ROOF LINING
11	90136-S30-003	Screw - ET, 5X18

Roof slide components 30

#	OEM	部品名
1	70240-S30-J11	Channel comp. - DRAIN
2	70245-SR3-003	Clip - DRAIN CHANNEL
3	70251-S30-J11	Channel - R. FR. DRAIN
4	70256-S30-J11	Channel - L. FR. DRAIN
5	70302-SR3-003	Stopper - FR.
6	70310-S30-J11	Rail assy - R. GUIDE
7	70315-S30-J11	Rail assy - L. GUIDE
8	70320-S30-J11	Rail comp - R. SUNSHADE
9	70325-S30-J11	Rail comp - L. SUNSHADE
10	70330-S30-J11	Bracket - R. PANEL
11	70331-S30-J11	Stay - R. PANEL
12	70332-S30-J11	Slider a - GLASS LIFTER
13	70333-SS0-003	Slider - R.
14	70334-SP0-003	Stopper - GLASS STAY
15	70334-SS0-003	Slider b - LIFTER
16	70335-S30-J11	Bracket - L. PANEL
17	70336-S30-J11	Stay - L. PANEL
18	70338-SS0-003	Slider - L.
19	70340-SS0-003	Anchor comp. - R.
20	70345-SS0-003	Anchor comp. - L.
21	70347-SS0-003	Spring - ANCHOR
22	70351-SS0-003	Stopper - ANCHOR
23	70361-SS0-003	Link - R. SLIDE STOPPER
24	70366-SS0-003	Link - L. SLIDE STOPPER
25	70372-SS0-003	Lifter - R.
26	70377-SS0-003	Lifter - L.
27	70391-SR3-003	Screw - PAN, 5X10
28	70400-S30-J11	Cable assy - SUNROOF
29	70450-S30-J01	Motor assy. - SUNROOF
30	71997-692-920	Shim - STAY (1.0MM)

Seatbelts 2

#	OEM	部品名
7	81495-SE0-A00	Guide - WEBBING SHOULDER
16	90301-SS0-000	Nut - CLIP, 6MM

Secondary shaft 28

#	OEM	部品名
1	22816-P6H-003	Ring - SEAL (35MM)
2	23230-PAX-000	Shaft comp. - SECONDARY
3	23411-PCJ-000	Gear - SECONDARY SHAFT LOW
4	23431-P6H-000	Gear - SECONDARY SHAFT SECOND
5	23495-P6H-010	Gear - SECONDARY IDLE
6	90201-P0Z-000	Nut - FLANGE, 24MM
7	90402-P0Z-000	Washer - SPRING, 24MM
8	90411-P0Z-000	Washer - THRUST, 37X55X5.15
8	90406-P0Z-000	Washer - THRUST, 37X55X4.90
8	90408-P0Z-000	Washer - THRUST, 37X55X5.00
8	90410-P0Z-000	Washer - THRUST, 37X55X5.10
8	90412-P0Z-000	Washer - THRUST, 37X55X5.20
8	90407-P0Z-000	Washer - THRUST, 37X55X4.95
8	90409-P0Z-000	Washer - THRUST, 37X55X5.05
9	90431-P0Z-000	Cotter - 32MM
10	90432-P0Z-000	Retainer - COTTER
11	90503-P0Z-000	Washer - SPLINE, 38X56.5X6.90
11	90505-P0Z-000	Washer - SPLINE, 38X56.5X7.00
11	90507-P0Z-000	Washer - SPLINE, 38X56.5X7.10
11	90502-P0Z-000	Washer - SPLINE, 38X56.5X6.85
11	90504-P0Z-000	Washer - SPLINE, 38X56.5X6.95
11	90506-P0Z-000	Washer - SPLINE, 38X56.5X7.05
12	91009-P6H-003	Bearing - BALL, 60X78X10
13	91012-P6H-003	Bearing - NEEDLE, 38X44X29
14	91019-P6H-003	Bearing - THRUST NEEDLE, 38X57X2.5
15	91023-PCJ-003	Bearing - THRUST NEEDLE, 34X53.5X2.5
16	91027-P6H-013	Bearing - NEEDLE, 34X40X24
17	91316-PR9-003	O-ring - 33X1.9 (ARAI)

Select lever (LH) 29

#	OEM	部品名
1	35505-692-003	Bulb - 14V 1.4W
2	35745-S30-G01	Switch assy - SHIFT
3	39550-S30-003	Solenoid assy. - AT SHIFT LOCK
4	39551-S30-000	Sub cord - AT SOLENOID
5	54020-S30-A81	Bracket comp. - BASE
6	54030-S30-981	Release - SHIFT LOCK
7	54031-S30-981	Spring - RELEASE RETURN
8	54032-S30-981	Cushion - SHIFT LOCK STOPPER
9	54033-S30-981	Stopper - SHIFT LOCK
10	54034-S30-981	Stopper - REVERSE LOCK
11	54036-S30-A81	Clamp a
12	54037-S30-A81	Clamp b
13	54111-S30-981	Plunger - DETENT
14	54112-S30-981	Spring - DETENT
15	54131-S30-981	Knob comp. - SELECT
15	54130-S0A-J61	Knob comp. - SELECT LEVER (LEATHER)
17	54202-S30-A82	Bracket - DETENT
18	54206-S30-981	Collar - BRACKET
19	54217-S30-981	Cover - SLIDER
20	54221-S30-981	Ring - SELECT KNOB
21	54222-S30-981	Cover - SELECT LEVER
22	54315-S30-981	Wire - CONTROL
24	54714-S30-981	Lid - CONSOLE
25	54718-S30-A81	Plate - BACK UP
26	54719-S30-981	Plate - ESCUTCHEON
27	90156-SM4-000	Bolt-washer - 6X20
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM
29	90351-SB2-003	Nut - FLANGE, 8MM
30	91533-S04-003	Clip - COUPLER (NATURAL)

Sensor/solenoid 20

#	OEM	部品名
1	22750-P6H-000	Pipe comp - 8X22.5
3	28250-P6H-024	Solenoid assy. - LINEAR
4	28252-PAX-000	Packing - LINEAR SOLENOID
5	28300-PX4-003	Solenoid assy. - LOCK UP (KEIHIN)
5	28300-PX4-305	Solenoid assy.
6	28320-PX4-010	Filter assy - LOCK UP SOLENOID (KEIHIN)
7	28600-P6H-003	Switch assy - OIL PRESSURE (TEXAS INSTRUMENTS JAPAN)
8	28810-P4V-003	Pick up assy. - MAIN (TEC)
8	28810-P4V-004	Pick up assy. - MAIN (KEIHIN)
9	28810-P6H-004	Pick up assy. - TEC
9	28810-P6H-003	Pick up assy. - KEIHIN
10	90471-PW7-A00	PACKING, 10MM
11	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
12	91301-P6H-003	O-ring - 7.6X1.9 (KEIHIN)
13	91302-P6H-003	O-ring - 9.6X1.9 (KEIHIN)
13	91302-P7W-A00	O-ring - 9.6X1.9
14	91303-P6H-003	O-ring - 11.7X1.9 (KEIHIN)
15	91309-PX4-003	O-ring - 16X2.1 (NOK)
19	28400-P6H-003	Solenoid assy - A) (KEIHIN
20	28500-P6H-003	Solenoid assy - B) (KEIHIN

Servo body 14

#	OEM	部品名
1	22744-PX3-000	Pipe - TOP CLUTCH
2	24271-P6H-000	Shaft - SHIFT FORK
3	27122-P6H-000	Cap - 12MM
4	27132-P6H-000	Cap - 14MM
5	27263-P1V-000	Seat - VALVE SPRING
6	27400-P6H-000	Body assy - SERVO
7	27412-P6H-000	Plate - SERVO SEPARATING
9	27524-P6H-000	Clip - CAP
10	27561-P6H-000	Piston - LOW ACCUMULATOR
11	27562-P6H-000	Spring - LOW ACCUMULATOR
12	27580-P6H-000	Cover - TOP ACCUMULATOR
13	90002-P6H-000	Bolt - FLANGE, 6X115
14	91331-PC9-003	O-ring
15	91344-580-000	O-ring - 31X2.7 (ARAI)

Shift arm 16

#	OEM	部品名
1	24411-PX5-020	Arm - SHIFT
2	24431-P16-000	Interlock comp.
3	24433-PX5-000	Bolt - INTERLOCK
4	24440-PK5-000	Cam comp - REVERSE LOCK
5	24460-PX5-010	Lever comp - SELECT
6	24464-P0S-000	Spring - SELECT RETURN
7	24465-P0S-000	Spring - FIFTH & REVERSE SELECT
8	24470-PX5-000	Lever comp - SHIFT
9	24474-PK5-000	Boot - SHIFT LEVER
10	24480-PK5-000	Arm comp - SELECT
11	90028-PB6-010	Bolt - SPECIAL, 6X22.5
12	90029-PX5-010	Bolt - SPECIAL, 8X24
13	90406-PX5-010	Washer - LOCK
14	91209-PE9-005	Dust seal - 16X23X5(NOK)
14	91209-PE9-003	Dust seal - 16X23X5(ARAI)
15	91215-PK5-000	Oil seal - 16X27X14

Shift fork 19

#	OEM	部品名
1	24200-P16-020	Fork comp - FIFTH GEARSHIFT
1	24111-P6H-000	Fork - REVERSE SHIFT
2	24210-P16-010	Fork comp - GEARSHIFT (3-4)
2	24282-634-000	Bolt - SHAFT FORK SETTING
3	24220-PX5-J01	Fork comp - GEARSHIFT (1-2)
3	24300-P6H-000	Detent assy. - SERVO
4	24230-PX5-J00	Holder comp - REVERSE SHIFT
4	24410-P6H-000	Shaft comp. - CONTROL
5	24243-PX5-J00	Piece - FIFTH & REVERSE SHIFT
5	24634-P6H-000	Spring - DETENT ARM
6	24452-P16-000	Spring a - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING
7	90001-P6H-000	Bolt - FLANGE, 6X120
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5
8	90433-639-000	Washer - LOCK, 6MM
9	91209-612-000	Oil seal - 12X22X7
9	91209-612-003	Oil seal - 12X22X7 (ARAI)
13	25420-PAX-003	Strainer assy - ATF
14	91301-P7X-003	O-ring - 19.20X1.90(NOK)

Shift lever 14

#	OEM	部品名
1	54100-S30-003	Lever comp - CHANGE
2	54102-S30-A21	Knob comp. - CHANGE LEVER (LEATHER)
3	54116-SV4-000	Pin - LINKAGE
4	54117-S30-003	Rubber - FLOATING
5	54119-S30-003	Collar - FLOATING
6	54310-S30-003	Wire comp - CHANGE
7	54357-SF1-003	Plate - CHANGE WIRE
8	90114-SA0-000	Nut - SELF-LOCK, 6MM
9	90156-SM4-000	Bolt-washer - 6X20
10	90551-SV4-000	Washer - SHIFT WIRE
11	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
12	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
13	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
14	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Side lining 4

#	OEM	部品名
1	74514-S30-010	Seal - R. QUARTER HOLE
2	74554-S30-010	Seal - L. QUARTER HOLE
9	91560-SP0-003	Clip - DOOR LINING (GRAY)
9	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Sliding roof 14

#	OEM	部品名
1	15707-634-000	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM
3	70050-SS0-000	Tube - FR. DRAIN VINYL (SUNROOF)
4	70052-S30-000	Valve - FR. DRAIN (SUNROOF)
5	70060-S30-000	Tube - RR. DRAIN VINYL (SUNROOF)
6	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)
7	70080-S30-J11	Seal - SUNROOF FRAME
8	70090-SG0-000	Stopper - SUNSHADE
9	70100-S30-G21	Frame comp - SUNROOF
10	70200-S30-J11	Glass assy - ROOF
11	70620-S30-J11	Cover - R. STAY
12	70625-S30-J11	Cover - L. STAY
13	71986-692-920	Cap - STAY COVER
15	91504-SE3-920	Clip - SLIDE ROOF DRAIN TUBE

Srs unit (LH) 8

#	OEM	部品名
2	77900-S84-G11	Reel assy - CABLE (SUMITOMO)
4	77907-S04-003	Holder - CONNECTOR (2P)
5	77961-S30-G80	Harness - SRS MAIN
6	77969-SR3-003	Case - CONNECTOR
7	90137-S84-A01	Bolt - TORX EARTH, 6X20
9	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
10	91555-SM4-003	Clip - COUPLER (RED)
12	77960-S30-G82	Srs unit

Starter motor (MITSUBA) 11

#	OEM	部品名
1	31200-P5M-014	Motor assy. - STARTER (SM-44223) (MITSUBA)
1	31200-P5M-902	Motor assy. - STARTER (SM-44224) (MITSUBA)
2	31202-P0G-A01	Bolt - SETTING
3	31204-PAA-A02	Gear assy.
5	31207-P8A-A01	Armature assy.
6	31208-P8A-A01	Stay assy - BRUSH
7	31210-P5K-004	Switch assy
7	31210-P2A-004	Switch assy
9	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
12	31292-P5M-004	Stay assy - ENGINE HARNESS
14	31220-PAA-A02	Nut - TERMINAL (M)

Steering column 17

#	OEM	部品名
1	53200-S30-G03	Column assy - STEERING (LH)
2	53216-SR3-000	Holder b - STEERING COLUMN
3	53320-S30-G00	Cover - STEERING JOINT
4	53321-SF1-950	Guard - STEERING JOINT
5	53323-SW5-003	Joint comp. b - STEERING
6	53325-SB0-010	Clip A - JOINT COVER
7	53326-SB0-000	Clip b - JOINT COVER
8	53334-SS0-000	Dust seal comp. - JOINT
9	53363-S30-000	Pivot - COLUMN
10	53364-SL4-000	Collar - PIVOT
11	53365-SA0-961	Bush - PIVOT
12	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
13	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
14	90361-SR3-000	Nut - FLANGE, 8MM
15	90361-SV4-003	Nut - PAINT CUTTING, 6MM
16	90511-671-003	Washer - TOOTHED LOCK
17	90676-SB2-003	Clip - DASHBOARD INSULATOR

Steering wheel (SRS) 8

#	OEM	部品名
2	36770-S30-G81	Switch assy - AUTO CRUISE SET
5	78512-S30-A61	Tab
8	78516-S30-A61	Cover - BOSS PLATE
12	78552-S30-A81	Plate - AUTO CRUISE SET
13	90134-S04-A81	Bolt - HEX., 6X12
14	90136-SF1-A02	Screw - TAPPING, 4X18 (NIPPON PURASUTO)
15	90161-SV4-003	Bolt - STEERING HANDLE
16	90173-SL4-003	Screw-washer - 4X12

Switch (LH) 14

#	OEM	部品名
2	35170-S30-G01	Switch assy - RR. FOG
3	35190-ST7-A11	Switch assy - REMOTE CONTROL MIRROR (ALPS)
3	35190-SV4-A12	Switch assy - REMOTE CONTROL MIRROR (TOYO)
4	35510-S30-003	Switch assy - HAZARD
5	35820-S30-G02	Switch assy - HEADLIGHT ADJUSTER
6	35830-S30-003	Switch assy - ROOF
9	35850-SZ3-911	Bulb comp. - 14V 60MA
10	35850-S30-A01	Bulb comp. - 14V 40MA
11	35850-S30-003	Bulb comp. - 14V 60MA
12	35850-S30-911	Bulb comp.
14	35851-SS0-003	Bulb - NEO WEDGE (14V 60MA)
17	35910-S04-G01	Switch assy - INERTIA
18	36775-S30-A01	Switch assy - AUTO CRUISE MAIN
19	39700-S30-003	Clock assy - DIGITAL

Taillight 23

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-S30-003	Bulb - T20W 12V 21W
3	33303-692-003	Packing - STANLEY
3	33303-958-003	Gasket
4	33304-SF4-003	Screw - TAPPING, 4X45
5	33304-S30-003	Socket comp. - T20
6	33501-S30-G01	Lamp unit - R. TAIL
7	33502-S30-003	Cord comp
8	33503-S30-003	Gasket - BASE
9	33551-S30-G01	Lamp unit - L. TAIL
11	34100-S30-G01	Light assy - LICENSE
13	34101-SH3-G01	Lens
14	34102-SH3-A01	Housing
16	34103-SH3-A01	Packing
18	34104-S30-G01	Socket comp.
20	34401-SH3-G01	Lens
21	34450-SV2-G01	Light assy - L. RR. FOG
23	34906-S30-003	Bulb - T20 12V 21/5W
24	34908-SB6-741	Bulb - 12V 5W
24	34351-657-921	Bulb - 12V/5W) (STANLEY
25	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
26	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)
27	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)

Throttle body (DOHC) 20

#	OEM	部品名
1	16016-PM6-005	Screw set
2	16075-PE2-005	O-ring - 31.2X1.9
3	16075-P07-000	O-ring
4	16076-P64-000	O-ring
5	16077-P06-A00	O-ring
6	16078-P06-A00	O-ring - 15.8X1.9
7	16080-P07-000	Screw-washer - 4X16
8	16176-P30-004	Gasket - THROTTLE BODY (NIPPON LEAKLESS)
9	16179-P13-000	Binder
10	16400-P5L-Q02	Throttle Body Assy - GR63A
10	16400-P5L-Q52	Throttle Body Assy - GR63B
11	16411-PT2-000	Stay - THROTTLE WIRE
12	16500-P0A-A00	Valve assy. - FAST IDLE (AF41D)
12	16500-P75-900	Valve assy. - FAST IDLE (AF42D)
16	36450-P13-004	Valve assy. - ELECTRONIC AIR CONTROL (TEC)
17	36453-PV3-004	O-ring b - TEC
18	36454-PS4-003	Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)
19	36455-PM3-J01	Packing - ELECTRONIC AIR CONTROL VALVE (TEC)
20	37830-PAA-S00	Sensor set - MAP
30	17348-P5K-A01	Clamp - CRUISE CONTROL TUBE

Tire/wheel disks 26

#	OEM	部品名
1	42700-SZ3-E01	Disk - WHEEL (15X4T) (KANAI)
5	42700-S30-E91	Disk - R. ALUMINIUM WHEEL (16X6.5JJ) (ASAHI TEC)
7	42710-S30-E91	Disk - L. ALUMINIUM WHEEL (16X6 1/2JJ) (ASAHI TEC)
8	42751-S30-E01	Tire - 205/50R16 87V) (YOKOHAMA
9	42751-SV4-923	Tire - T135/80D15 99M) (BRIDGESTONE
9	42751-SV4-922	Tire - T135/80D15 99M) (DUNLOP
10	42753-SE0-A02	Valve - RIM (SCHRADER)
10	42753-SB8-661	Valve - RIM (SCHRADER)
11	42767-SS0-G20	Plate - SPARE TIRE CAUTION (T-TYPE) (GERMANY)
11	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
11	42767-SB2-620	Plate - SPARE TIRE CAUTION (T-TYPE)(FRENCH)
12	44728-SF1-A01	Weight - BALANCE (25G) (YAMATE)
12	44723-SF1-A01	Weight - BALANCE (30G) (YAMATE)
12	44727-SF1-A01	Weight - BALANCE (15G) (YAMATE)
12	44722-SF1-A01	Weight - BALANCE (20G) (YAMATE)
12	44726-SF1-A01	Weight - BALANCE (5G) (YAMATE)
12	44721-SF1-A01	Weight - BALANCE (10G) (YAMATE)
12	44730-SF1-A01	Weight - BALANCE (45G) (YAMATE)
12	44729-SF1-A01	Weight - BALANCE (35G) (YAMATE)
12	44724-SF1-A01	Weight - BALANCE (40G) (YAMATE)
14	44732-SW5-J00	Cap - ALUMINIUM WHEEL CENTER
18	44734-SR3-900	Plate - H MARK (38)
21	74654-SE0-A00	Bolt - ANCHOR
22	74665-SM4-A00	Adapter - ANCHOR BOLT
24	90304-SF0-751	Nut - WHEEL (FUSE RASHI)
25	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)

Tools/jack 8

#	OEM	部品名
1	71969-SA7-890	Wrench - SUNROOF
2	89000-SR3-962	Tool set - SUNROOF
3	89101-SW5-003	Bag - TOOL
4	89211-S05-003	Wrench - WHEEL
6	89217-355-000	Wrench - BOX (10MM)
7	89310-S30-003	Jack assy - PANTOGRAPH
8	89311-SV4-003	Plate - JACK CAUTION
9	89320-S05-003	Bar - JACK

Torque converter housing 16

#	OEM	部品名
1	21111-P6H-J00	Case - TORQUE CONVERTER
2	21236-P6H-010	Stay a - SHIFT SOLENOID
3	21514-P6H-000	Stay - SOLENOID HARNESS
4	23225-P6H-000	Plate - OIL GUIDE
5	23235-P6H-000	Plate - OIL GUIDE
6	90024-612-000	Bolt - SEALING, 8MM
7	90471-580-000	Packing - 8MM
8	90705-PA9-000	Dowel pin - 14X25
9	91001-PX4-003	Bearing - BALL, 40X68X9 (NTN)
9	91001-PX4-004	Bearing - BALL, 40X68X9 (KOYO)
10	91101-P6H-003	Bearing - NEEDLE, 34X46X14
11	91102-P6H-003	Bearing NEEDLE, 36X67X19
12	91205-PL3-A02	Oil seal - 35X56X8(NOK)
12	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
13	91207-P0X-004	Oil seal - 44X68X8 (ARAI)
13	91207-P0X-003	Oil seal - 44X68X8 (NOK)

Transmission housing 72

#	OEM	部品名
1	21104-PX5-010	Plate m - OIL GUIDE
1	21210-PCJ-010	Case comp. - TRANSMISSION
2	21200-P16-N00	Case comp. - TRANSMISSION
2	21231-P6H-010	Hanger comp. c - TRANSMISSION
3	21211-P16-010	Plate - OIL GUTTER
3	21232-P6H-010	Hanger a - TRANSMISSION
4	21222-PX5-000	Hanger b - TRANSMISSION
4	21233-P6H-000	Hanger comp. b - TRANSMISSION
5	21223-PX5-000	Hanger a - TRANSMISSION
5	21234-P6H-000	Stay - HARNESS
6	21396-P20-000	Cap - BREATHER
6	21235-P6H-000	Stay - SENSOR
7	21520-P0S-010	Cover comp. - SHIFT ARM
7	21322-P6H-020	Tube - BREATHER
8	23953-P16-000	Shim m - 78MM (1.56)
8	23980-P16-000	Shim an - 78MM (2.37)
8	23948-P16-000	Shim h - 78MM (1.41)
8	23975-P16-000	Shim ai - 78MM (2.22)
8	23943-P16-000	Shim c - 78MM (1.26)
8	23970-P16-000	Shim ad - 78MM (2.07)
8	23965-P16-000	Shim y - 78MM (1.92)
8	23960-P16-000	Shim t - 78MM (1.77)
8	23955-P16-000	Shim o - 78MM (1.62)
8	23950-P16-000	Shim j - 78MM (1.47)
8	23977-P16-000	Shim ak - 78MM (2.28)
8	23945-P16-000	Shim e - 78MM (1.32)
8	23972-P16-000	Shim af - 78MM (2.13)
8	23967-P16-000	Shim aa - 78MM (1.98)
8	23962-P16-000	Shim v - 78MM (1.83)
8	23957-P16-000	Shim q - 78MM (1.68)
8	23952-P16-000	Shim l - 78MM (1.53)
8	23979-P16-000	Shim am - 78MM (2.34)
8	23947-P16-000	Shim g - 78MM (1.38)
8	23974-P16-000	Shim ah - 78MM (2.19)
8	23942-P16-000	Shim b - 78MM (1.23)
8	23969-P16-000	Shim ac - 78MM (2.04)
8	23964-P16-000	Shim x - 78MM (1.89)
8	23959-P16-000	Shim s - 78MM (1.74)
8	23954-P16-000	Shim n - 78MM (1.59)
8	23949-P16-000	Shim i - 78MM (1.44)
8	23976-P16-000	Shim aj - 78MM (2.25)
8	23944-P16-000	Shim d - 78MM (1.29)
8	23971-P16-000	Shim ae - 78MM (2.10)
8	23966-P16-000	Shim z - 78MM (1.95)
8	23961-P16-000	Shim u - 78MM (1.80)
8	23956-P16-000	Shim p - 78MM (1.65)
8	23951-P16-000	Shim k - 78MM (1.50)
8	23978-P16-000	Shim al - 78MM (2.31)
8	23946-P16-000	Shim f - 78MM (1.35)
8	23941-P16-000	Shim a - 78MM (1.20)
8	23973-P16-000	Shim ag - 78MM (2.16)
8	23968-P16-000	Shim ab - 78MM (2.01)
8	23963-P16-000	Shim w - 78MM (1.86)
8	23958-P16-000	Shim r - 78MM (1.71)
8	21811-P6H-000	Packing - TORQUE CONVERTER CASE
9	35600-PK5-003	Switch assy - BACK UP LIGHT (TEC)
9	25422-PN6-801	Magnet comp. - TRANSMISSION
10	90042-PX5-010	Bolt - STUD, 10X50
10	90041-PCJ-000	Bolt - STUD, 10X25
11	90042-P16-003	Bolt - STUD, 10MM
11	90380-S50-N90	Bolt - STUD, 10X87
12	90081-PB6-000	Bolt - PLUG, 14MM
12	90081-PX4-003	Bolt - PLUG, 18MM
13	90081-PX5-000	Screw - SEALING, 32MM
13	90471-PX4-000	Washer - DRAIN PLUG, 18MM
14	91206-PX5-005	Oil seal - 40X58X8(NOK)
14	90615-PF4-000	Ring - SNAP, 75MM
15	90615-P6H-000	Ring - SNAP, 60MM
16	91002-PCJ-013	Bearing - BALL, 27X60X27 (NSK)
17	91007-PCJ-003	Bearing - BALL, 27X75X13
18	91006-P6H-003	Bearing - BALL, 31X75X16.5
19	91206-PK4-003	Oil seal - 40X66X8 (NOK)

Trunk lid (LH) 25

#	OEM	部品名
1	53723-SL4-951	Clip - SENSOR PIPE, 6MM
5	72134-SM4-003	Snap - R. (VIOLET)
6	73219-693-951	Seal - FUEL LID OPENER (GREEN)
7	74411-S30-A00	Cable - FUEL LID OPENER
8	74815-SL5-305	Garnish - TRUNK CYLINDER (CHROME PLATED)
9	74822-SW5-003	Cushion - TRUNK HINGE
10	74828-SX0-000	Stopper - TAILGATE
11	74850-S30-003	Lock assy - TRUNK
12	74851-S30-003	Lock - TRUNK
12	74851-S84-A01	Lock - TRUNK
13	74861-SW5-003	Cylinder - TRUNK
14	74862-SE3-003	Striker - TRUNK
15	74863-S30-003	Rod - TRUNK LOCK
16	74864-S30-003	Cover
16	74864-S84-A01	Cover - ###
17	74865-S30-010	Weatherstrip - TRUNK LID
18	74867-SW5-003	Holder - ROD
21	74873-S30-013	Clip - TRUNK OPENER SPRING
22	74880-S30-A00	Cable - TRUNK OPENER
27	74886-SH4-A03	Cylinder - TRUNK REMOTE CONTROL
28	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
29	90108-S0A-003	Bolt - FLANGE, 6X15
30	90109-SM4-000	Bolt - SPECIAL, 6X35
31	91558-SE3-003	Clip - HOOD WIRE
32	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Valve/rocker arm (DOHC VTEC) 24

#	OEM	部品名
1	12208-PR3-000	Bolt - SEALING, 20MM
2	12209-PR3-000	Washer - SEALING, 20MM
3	12250-PR7-A00	Orifice assy. a - ROCKER SHAFT
4	12260-P13-000	Orifice assy. b - ROCKER SHAFT
5	14620-P5M-000	Arm assy. - ROCKER
6	14631-P13-000	Shaft - ROCKER
7	14711-P13-000	Valve - IN.
8	14721-P13-000	Valve - EX.
9	14744-PR3-003	Screw - TAPPET ADJUSTING
10	14751-P13-004	Spring - IN. VALVE INNER (PINK) (CHUO SPRING)
10	14751-P13-003	Spring - IN. VALVE INNER (PINK) (NIPPON HATSUJO)
11	14752-P13-003	Spring - EX. VALVE INNER (WHITE) (NHK SPRING)
11	14752-P13-004	Spring - EX. VALVE INNER (WHITE) (CHUO SPRING)
12	14761-P13-003	Spring - IN. VALVE OUTER (PINK) (NIPPON HATSUJO)
12	14761-P13-004	Spring - IN. VALVE OUTER (PINK) (CHUO SPRING)
13	14762-P13-004	Spring - EX. VALVE OUTER (WHITE) (CHUO SPRING)
13	14762-P13-003	Spring - EX. VALVE OUTER (WHITE) (NIPPON HATSUJO)
14	14765-PCB-003	Retainer - VALVE SPRING
15	14775-P13-000	Seat - VALVE SPRING
16	14781-PR7-A01	Valve Cotter
17	14820-PCB-003	Motion assy. - LOST
18	90206-590-000	Nut - TAPPET ADJUSTING
18	90206-PT0-004	Nut - TAPPET ADJUSTING
19	91306-PJ4-000	O-ring - 6.8X1.9

Water hose (DOHC VTEC) 8

#	OEM	部品名
1	19507-P13-010	Hose a - FAST IDLE VALVE CONTROL
2	19512-PK2-003	Clip - HOSE, 18.7MM
4	19513-P13-000	Hose - ELECTRONIC AIR CONTROL VALVE
5	19514-P13-A00	Hose a - BREATHER HEATER
6	19515-P13-000	Hose b - BREATHER HEATER
7	19521-P13-000	Hose a - OIL COOLER
8	19522-PT2-000	Hose b - OIL COOLER
9	53740-SE0-953	Clip - SENSOR HOSE

Water pump/sensor 23

#	OEM	部品名
1	19200-P13-003	Pump comp - WATER (YAMADA)
2	19222-P13-300	Packing - WATER PUMP
3	19223-P13-300	Rubber - WATER PUMP SEAL
4	19301-P13-305	Thermostat assy - (FUJI THOMSON)
4	19301-P13-306	Thermostat assy - NIPPON THERMOSTAT
7	19305-P13-000	Rubber - THERMOSTAT MOUNTING
9	19311-P13-000	Cover - THERMOSTAT
10	19313-PT0-000	Packing - THERMOSTAT CASE
12	19320-P13-000	Case comp. - THERMOSTAT
13	19360-PT0-000	Cover - WATER OUTLET
14	19500-PT0-000	Joint - TUBE
15	19505-P13-000	Pipe comp - CONNECTING
16	19516-PC1-000	Bolt - BREATHING WATER
17	32751-P5K-000	Stay c - ENGINE WIRE HARNESS
19	37750-PH2-014	Thermo unit - DENSO
22	37773-P13-004	Sensor, Thermo (A-95) (TEC)
23	37870-PK2-005	Sensor assy - WATER TEMP (HADSYS)
24	90002-PD2-000	Bolt - FLANGE, 8X16
25	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
27	91307-611-000	O-ring (13.5X1.4)
27	91307-PH7-660	O-ring (13.5X1.4)
28	91312-P13-000	O-ring - 22.2X3.2
29	91314-PR7-A00	O-ring - 37.2X4.25

Water valve 9

#	OEM	部品名
2	79710-SS0-003	Valve assy. - WATER
3	79721-SS0-000	Hose a - WATER IN.
4	79721-S30-900	Hose a - WATER IN.
5	79725-S30-000	Hose - WATER OUTLET
6	79731-SH3-000	Grommet - HEATER PIPE
7	90361-SV4-003	Nut - PAINT CUTTING, 6MM
8	91405-PK1-003	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
10	91553-SM4-003	Clamp - HEATER HOSE (24MM & 39MM)

Windshield washer (1) 18

#	OEM	部品名
1	38516-SA5-671	Packing - T-TYPE) (MITSUBA
2	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
5	76802-SS0-003	Cap - MOUTH
6	76804-SE0-003	Float - WASHER
7	76805-SM4-A02	Hose - WASHER
8	76806-SE0-003	Motor - WASHER (MITSUBA)
10	76810-S30-003	Nozzle assy. - R. WINDSHIELD WASHER
11	76812-SS0-003	Mouth assy. - WASHER
12	76815-S30-003	Nozzle assy. - L. WINDSHIELD WASHER
13	76820-SE0-003	Grommet - WASHER TUBE
14	76830-SM4-003	Joint y - WASHER
15	76838-SK7-003	Grommet - WASHER TANK
16	76841-SS0-C01	Tank - WASHER
20	90652-SB2-023	Clip - TUBE, 7MM
22	91524-SK7-000	Clip - WASHER NOZZLE
23	91539-SS0-003	Clip - TUBE WASHER
33	76829-SM4-003	Joint i - WASHER
34	76839-SL0-G51	Tube f - 50MM) (BLACK

Wire harness (LH) 18

#	OEM	部品名
1	32100-S30-G01	Harness - R. CABIN WIRE
2	32108-S30-G22	Harness - RR. WIRE
3	32111-S30-G70	Harness - ELECTRONIC CONTROL UNIT WIRE
3	32111-S30-G51	Harness - ELECTRONIC CONTROL UNIT WIRE
4	32117-S30-G41	Harness - INSTRUMENT WIRE
4	32117-S30-G51	Harness - INSTRUMENT WIRE
5	32120-S30-G41	Harness - L. CABIN WIRE
6	32140-S30-G12	Harness - R. SIDE WIRE
7	32150-S30-F30	Harness - DASHBOARD WIRE
7	32150-S30-F50	Harness - DASHBOARD WIRE
8	32155-S30-E00	Harness - INTERIOR & SUNROOF WIRE
9	32202-S30-000	Cord - RR. DEFROSTER
10	32751-S30-G11	Harness - DRIVER DOOR WIRE
11	32752-S30-G11	Harness - PASSENGER DOOR WIRE
12	39156-S30-G00	Sub cord - RR. DEFROSTER COIL
13	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
14	90149-SE0-003	Bolt - EARTH, 6X16
15	90153-SE0-003	Bolt - EARTH, 6X12
