BB46

Toyota COASTER · 1993 · 5,584 parts · 271 categories
BB46 ×

← Back to categories

5,584 items

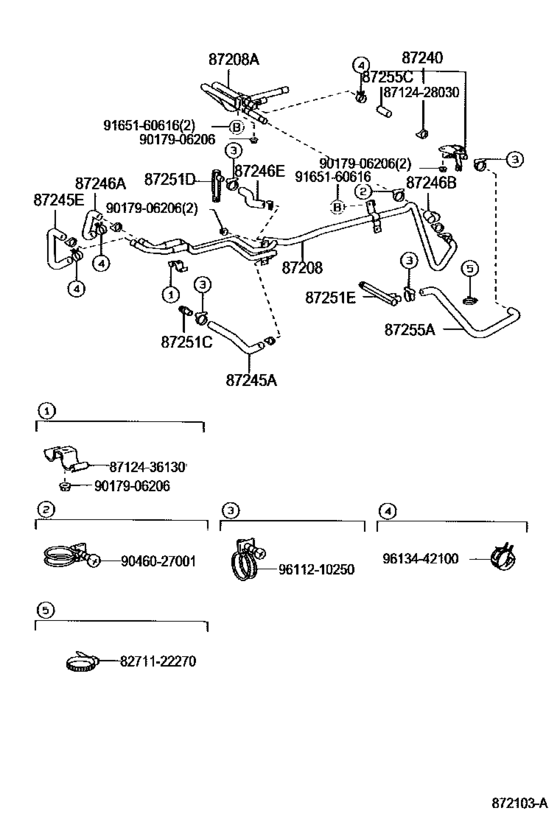

Heating & Air Conditioning - Water Piping ([01.1993 - 07.1999] ﾌﾛﾝﾄ (9301-9907)BB4#) 40
#OEMPart name
87208 87208-36390 Pipe Sub-Assy, Heater Water
87208 87208-36391 Pipe Sub-Assy, Heater Water
87208 87208-36410 Pipe Sub-Assy, Heater Water
87208 87208-36411 Pipe Sub-Assy, Heater Water
87208 87208-36430 Pipe Sub-Assy, Heater Water
87208 87208-36190 Pipe Sub-Assy, Heater Water, A
87208 87208-36730 Pipe Sub-Assy, Heater Water, A
87240 87240-36030 Valve Assy, Heater Water
87240 87240-36130 Valve Assy, Heater Water
87245 87245-36570 Hose, Heater Water, Inlet A
87245 87245-36571 Hose, Heater Water, Inlet A
87245 87245-3B410 Hose, Heater Water, Inlet A
87245 87245-3B430 Hose, Heater Water, Inlet A
87245 87245-3B431 Hose, Heater Water, Inlet A
87245 87245-3B390 Hose, Heater Water, Inlet E
87245 87245-3B391 Hose, Heater Water, Inlet E
87246 87245-3B400 Hose, Heater Water, Outlet A
87246 87245-3B401 Hose, Heater Water, Outlet A
87246 87245-3C440 Hose, Heater Water, Outlet B
87246 87245-3B440 Hose, Heater Water, Outlet E
87246 87245-3B441 Hose, Heater Water, Outlet E
87246 87245-3B450 Hose, Heater Water, Outlet E
87251 87251-30200 Union(For Water By-Pass Hose)
87251 87251-60010 Joint Or Union, Front Heater Hose Through Or Inlet Valve
87251 87251-95403 Joint Or Union, Water Hose Through
87251 87251-90B00 Joint Or Union, Water Hose Through
87251 87251-95400 Joint Or Union, Front Heater Hose Through Or Inlet Valve
87255 87245-36180 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-36181 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-3C730 Hose, Rear Heater Water Inlet, C
87255 99556-30100 Hose, Water Inlet
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8712428030 87124-28030 Clamp, Heater
8712436130 87124-36130 Clamp, Heater
9017906206 90179-06206 Nut
9046027001 90460-27001 Clamp Or Clip, Hose(for Water By-pass Hose)
9046027001 90467-21010 Clip(For Ventilation Hose No.2)
9165160616 91651-60616 BOLT
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
