BB40

Toyota COASTER · 1993 · 5,025 parts · 252 categories
BB40 ×
5,025 items
Abs & Vsc ([05.1997 - 07.1999] (9705-9907)) 15
#OEMPart name
91651 91651-B0625 New Genuine Part
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91652 91652-B0625 New Genuine Part
9011908 90119-08A46 BOLT WWASHER
9011906610 90119-06610 New Genuine Part
9011906610 90119-06493 BOLT WITH WASHER
9015950193 90159-50193 New Genuine Part
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814 91651-B0814 Bolt with washer
Accelerator Link ([01.1993 - 09.2003] (9301-0309)BB4#,50..RHD..DSL,TD) 27
#OEMPart name
78100 78100-36010 Link Assy, Accelerator
78100 78100-36011 Link Assy, Accelerator
78111 78111-95110 Pedal, Accelerator
78117 90541-06036 Cushion, No.1(For Clutch Pedal)
78119 78119-95J00 Stopper, Accelerator Pedal Rod
78119 78119-37010 Stopper, Accelerator Pedal Rod
78180 78180-36010 Cable Assy, Accelerator Control
78180 78180-36011 Cable Assy, Accelerator Control
78183 78183-36010 Clamp, Accelerator Control Cable
78185 78185-36020 Clamp, Accelerator Control Cable, No.2
91651 91651-B0822 BOLT WWASHER
4561914010 45619-14010 Cover, Knuckle Stopper
9016850027 90168-50027 New Genuine Part
9046110434 90461-10434 Clamp (For Accelerator Wire Set)
9046110669 90461-10669 New Genuine Part
9046400429 90464-00429 New Genuine Part
9046806009 90468-06009 New Genuine Part
9054105006 90541-05006 Cushion (For Accelerator Rod)
9113140870 91131-40870 Bolt(For Clutch Master Cylinder Setting)
9163160865 91631-60865 BOLT WWASHER
9163540616 91635-40616 New Genuine Part
9165140820 91651-40820 Bolt
9165160616 91651-60616 BOLT
9166140616 91661-40616 New Genuine Part
9166160865 91661-60865 New Genuine Part
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
Air Cleaner ([01.1993 - 07.1999] (9301-9907)14B,3B) 30
#OEMPart name
17700 17700-58390 Cleaner Assy, Air
17700 17700-58690 Cleaner Assy, Air
17700 90175-08008 Nut, Wing(For Air Cleaner)
17701 17701-44263 Case Sub-Assy, Air Cleaner
17801 17801-58010 Element Sub-Assy, Air Cleaner Filter
17807 17807-56011 Plate Sub-Assy, Air Cleaner Filter Set
17841 17841-44030 Gasket, Filter Element
17845 17845-56020 Gasket, Air Cleaner Cap
17881 17881-58200 Hose, Air Cleaner, No.1
17881 96111-10690 Clamp, Hose
17881 96111-10780 Clamp, Hose(For Air Connector)
17882 17882-58130 Hose, Air Cleaner, No.2
17882 96111-10750 Clamp, Hose(For Air Cleaner Duct)
17884 59132-36010 Hose, Air Cleaner, No.4
17885 17885-17010 Pipe, Air Cleaner
53199 53207-36020 Duct Sub-Assy, Cool Air Intake
55871 55871-36020 Seal, Air Duct
58257 58257-36030 Plate, Air Cleaner House
9011908362 90119-08362 BOLT
9011908565 90119-08565 BOLT
9016740045 90167-40045 SCREW
9038708016 90387-08016 Collar(For Intake Air Connector)
9048016005 90480-16005 Grommet(For Air Cleaner Bracket)
9099992002 90999-92002 Air Hose (300 mm)
9163160816 91631-60816 BOLT
9163160822 91631-60822 BOLT
9165160616 91651-60616 BOLT
9166160816 91661-60816 Bolt
9356054012 93560-54012 Screw
9611110850 96111-10850 Clamp, Hose(For Air Connector)
Alternator ([01.1993 - 08.2004] 24V 60A (9301-0408)14B,15B#,3B,1HZ) 34
#OEMPart name
27020 27060-58150 Alternator Assy
27020 90105-10240 Bolt(For Alternator)
27020 90148-10001 Bolt(For Alternator)
27039 27039-50090 Cover, Alternator Rear End
27039 27039-17230 Cover, Alternator Rear End
27064 27064-42010 Seal, Alternator Plate
27310 27310-58180 Frame Assy, Drive End, Alternator
27310 90099-10192 Bearing(For Alternator Drive End Frame)
27312 27312-42010 Plate, Bearing Retainer, Alternator
27330 27330-58050 Rotor Assy, Alternator
27330 90099-10140 Bearing(For Alternator Rotor)
27357 27357-17080 Holder, Alternator, W/rectifier
27359 27359-58050 Frame, Alternator Rectifier End
27365 27365-55080 Plate, Terminal
27370 27370-75060 Holder Assy, Alternator Brush
27384 27384-50030 Holder, Alternator Brush, A
27387 27387-42020 Insulator, Terminal
27387 27387-42021 Insulator, Terminal
27388 27388-42010 Cover, Alternator Brush
27389 27389-42010 Insulator, Terminal
27411 27411-58080 Pulley, Alternator
27443 27443-63020 Cover, Alternator Bearing
27700 27700-58040 Regulator Assy, Generator
27700 27700-58060 Regulator Assy, Generator
9009900195 90099-00195 New Genuine Part
9009900197 90099-00197 Screw
9009900243 90099-00243 SCREW WWASHER
9009900246 90099-00246 New Genuine Part
9009904966 90099-04966 Bearing(for Alternator Rotor)
9009905119 90099-05119 New Genuine Part
9009905171 90099-05171 Nut(For Alternator Pulley)
9009905172 90099-05172 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9331914025 93319-14025 Screw W Washer
Antenna ([01.1993 - 01.2015] (9301-1501)) 7
#OEMPart name
86300 86300-36030 Antenna Assy, W/holder
86300 86300-36040 Antenna Assy, W/holder
86300 86300-36070 Antenna Assy, W/holder
827111 82711-1A750 Clamp, No.1(For Back Door Lock Control Cable)
8271150400 82711-50400 Wire, Fuse To Fuse(for Combustion Heater)
9015040005 90150-40005 Bolt
9046905005 90469-05005 CLAMP
Armrest & Visor ([01.1993 - 01.2015] (9301-1501)) 29
#OEMPart name
61890 61890-90B01 Hammer Assy, Back Window Glass
74310 74310-36030-A1 Visor Assy, Rh
74310 74310-36030-B0 Visor Assy, Rh
74310 74310-36050-A0 Visor Assy, Rh
74317 74317-36010-A0 Cover, Visor Bracket, Lh
74317 74317-36010-B0 Cover, Visor Bracket, Rh
74317 74317-36010-A1 Cover, Visor Bracket, Rh
74320 74320-36030-A0 Visor Assy, Lh
74320 74320-36030-B0 Visor Assy, Lh
74320 74320-36030-A1 Visor Assy, Lh
74603 74610-60010-A0 Grip Sub-Assy, Assist, Front
74603 74610-60010-A1 Grip Sub-Assy, Assist, Front
74603 74610-10020-E1 Grip Assy, Assist, No.2 Rh
74615 74615-60010-A0 Plug, Front Assist Grip, No.1 Rh
74615 74615-60010-A1 Plug, Front Assist Grip, No.1 Rh
74616 74616-60010-A0 Plug, Front Assist Grip, No.1 Lh
74616 74616-60010-A1 Plug, Front Assist Grip, Upr Rh
74617 74617-14010-E1 Plug, Assist Grip
74617 74617-14010-B3 Plug, Assist Grip
91611 91611-B0616 Bolt(For Transaxle Case Receiver)
91631 91631-B0616 BOLT WWASHER
9016750060 90167-50060 SCREW PAN TAPPING
9016760015 90167-60015 New Genuine Part
9018906006 90189-06006 Grommet
9321016016 93210-16016 SCREW
9321016020 93210-16020 New Genuine Part
9321016025 93210-16025 New Genuine Part
9326056020 93260-56020 New Genuine Part
9331116014 93311-16014 Screw
Ash Receptacle ([01.1993 - ] (9301- )) 8
#OEMPart name
74102 74102-36010 Box Sub-Assy, Front Ash Receptacle
74104 74104-36010 Retainer Sub-Assy, Front Ash Receptacle
74130 74130-36010-E0 Receptacle Assy, Rear Ash
74130 74130-36010-B1 Receptacle Assy, Rear Ash
74145 74145-36010 Plate, Rear Ash Receptacle
9015050006 90150-50006 New Genuine Part
9015950068 90159-50068 SCREW
9326915010 93269-15010 New Genuine Part
Automatic Door ([01.1993 - 01.2015] AUTO DOOR OPENING SWITCH (9301-1501)) 9
#OEMPart name
84931 84931-36010 Switch, Automatic Door Control
84932 84932-36010 Bracket, Door Control Switch
84932 84932-36011 Bracket, Door Control Switch
85628 85628-36120 Label, Automatic Door
85628 85628-36121 Label, Automatic Door
9011908354 90119-08354 SCREW
9017906162 90179-06162 New Genuine Part
9017906162 90179-06308 NUT
9338315010 93383-15010 New Genuine Part
Automatic Door ([01.1993 - 09.2012] FOLDING TYPE (9301-1209)) 15
#OEMPart name
85610 85610-36020 Actuator Assy, Accel Inter Lock
85629 85629-90B01 Holder, Automatic Door
85980 85980-36090 Relay Assy, Door Control
85980 85980-36091 Relay Assy, Door Control - DOOR CONTROL (FOR AUTOMATIC DOOR)
86650 86650-36060 Buzzer Assy
86659 86659-36010 Bracket, Buzzer, Automatic Door
9011906255 90119-06255 New Genuine Part
9011908354 90119-08354 SCREW
9011908357 90119-08357 BOLT
9011908535 90119-08535 New Genuine Part
9155180608 91551-80608 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
Automatic Door ([01.1993 - 09.2012] FOLDING TYPE UNIT (9301-1209)) 24
#OEMPart name
85069 85069-36020 Housing Sub-Assy, Auto Door
85607 85607-36010 Gear Sub-Assy, Idle
85612 85612-36010 Gear, Automatic Door Worm Wheel
85612 85612-36011 Gear, Automatic Door Worm Wheel
85620 85620-36120 Motor Assy, Automatic Door Regulator
85620 85620-36160 Motor Assy, Automatic Door Regulator
85620 85620-36162 Motor Assy, Automatic Door Regulator
85620 85620-36161 Motor Assy, Automatic Door Regulator
85621 85621-36020 Motor & Link, Automatic Door Regulator
85621 85621-36021 Motor & Link, Automatic Door Regulator
85622 85622-36040 Motor & Gear, Automatic Door Regulator
85623 85623-36020 Link, Automatic Door Regulator
85623 85623-36030 Link, Automatic Door Regulator
85623 85623-36040 Link, Automatic Door Regulator
85623 85623-36021 Link, Automatic Door Regulator
85624 85624-36010 Lever, Automatic Door Regulator, No.1
85625 85625-36020 Rack, Automatic Door
85627 85627-36010 Stay, Automatic Door Regulator
85627 85627-36011 Stay, Automatic Door Regulator
85637 85637-90B00 Remover, Automatic Door
85980 85980-36050 Relay Assy, Door Control, No.2 (For Automatic Door)
85980 85980-36080 Relay Assy, Door Control, No.3 (For Automatic Door)
9046312005 90463-12005 New Genuine Part
9615001600 96150-01600 Ring, Snap (For Shift & Select Lever Shaft)
Automatic Door ([01.1993 - 09.2012] GLIDING TYPE (9301-1209)) 15
#OEMPart name
85610 85610-36020 Actuator Assy, Accel Inter Lock
85980 85980-36090 Relay Assy, Door Control
85980 85980-36091 Relay Assy, Door Control - DOOR CONTROL (FOR AUTOMATIC DOOR)
86650 86650-36060 Buzzer Assy
86659 86659-36010 Bracket, Buzzer, Automatic Door
9010906122 90109-06122 BOLT
9011906255 90119-06255 New Genuine Part
9011908511 90119-08511 BOLT
9020208039 90202-08039 WASHER
9155180608 91551-80608 New Genuine Part
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
Automatic Door ([01.1993 - ] GLIDING TYPE UNIT (9301- )) 22
#OEMPart name
85069 85069-36020 Housing Sub-Assy, Auto Door
85607 85607-36010 Gear Sub-Assy, Idle
85620 85620-36120 Motor Assy, Automatic Door Regulator
85620 85620-36160 Motor Assy, Automatic Door Regulator
85620 85620-36162 Motor Assy, Automatic Door Regulator
85620 85620-36161 Motor Assy, Automatic Door Regulator
85621 85621-36020 Motor & Link, Automatic Door Regulator
85621 85621-36021 Motor & Link, Automatic Door Regulator
85622 85622-36040 Motor & Gear, Automatic Door Regulator
85623 85623-36020 Link, Automatic Door Regulator
85623 85623-36030 Link, Automatic Door Regulator
85623 85623-36040 Link, Automatic Door Regulator
85623 85623-36021 Link, Automatic Door Regulator
85624 85624-36010 Lever, Automatic Door Regulator, No.1
85625 85625-36020 Rack, Automatic Door
85637 85637-90B00 Remover, Automatic Door
85980 85980-36050 Relay Assy, Door Control, No.2 (For Automatic Door)
85980 85980-36080 Relay Assy, Door Control, No.3 (For Automatic Door)
9015950131 90159-50131 New Genuine Part
9046312005 90463-12005 New Genuine Part
9054006004 90540-06004 Cushion, Rear Seat Back, No.1
9615001800 96150-01800 Ring, Snap(For Reaction Retainer)
Automatic Door ([01.1993 - ] LABEL (9301- )) 4
#OEMPart name
85628 85628-90B03 Label, Automatic Door, No.1
85628 85628-36050 Label, Automatic Door, No.2
85628 85628-36120 Label, Automatic Door
85628 85628-36121 Label, Automatic Door
Back Door Lock & Hinge ([01.1993 - 01.2015] DOUBLE SWING BACK DOOR (9301-1501)) 46
#OEMPart name
68830 68801-36010 Hinge Assy, Back Door, Rh
68830 68803-36010 Hinge Assy, Back Door, Rh
68861 68861-36010 Pad, Back Door Hinge
69090 69090-36010 Handle Assy, Back Door, Outside
69110 69110-36010 Lock Assy, Back Door W/motor
69278 69278-60010-A0 Bezel, Front Door Inside Handle, Lh
69278 69278-60010-A1 Bezel, Front Door Inside Handle, Lh
69291 69206-60040-A0 Handle Sub-Assy, Front Door Inside, Lh
69350 69350-90B06 Lock Assy, Back Door
69350 69880-36010 Lock Assy, Back Door, Upper
69377 69377-90A00 Snap, Back Door Upper Lock Rod
69430 69430-36010 Striker Assy, Back Door Lock
69430 69430-90B03 Striker Assy, Back Door Lock
69451 69451-90B00 Striker, Back Door Upper Lock
69789 69789-36010 Silencer, Back Door Lock Control Link
69792 69792-36010 Link, Back Door Lock Locking
91511 91511-B0614 BOLT, FLANGE
91611 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
6975914050 69759-14050 Snap(For Rear Door Inside Handle)
9010506082 90105-06082 BOLT
9010908128 90109-08128 BOLT
9011906983 90119-06983 New Genuine Part
9011908093 90119-08093 BOLT
9011910351 90119-10351 BOLT
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880028 90148-80028 SCREW, HEX LOBULAR
9014950064 90149-50064 SCREW
9015950241 90159-50241 New Genuine Part
9015960010 90159-60010 SCREW
9015960081 90159-60081 SCREW
9015960349 90159-60349 SCREW WWASHER
9015980036 90159-80036 SCREWWWASHER
9017005004 90170-05004 New Genuine Part
9018906018 90189-06018 GROMMET
9038610085 90386-10085 Grommet (For Accelerator Link Rod)
9038616007 90386-16007 BUSH
9046804049 90468-04049 Clamp, Jack Handle
9048018330 90480-18330 Grommet, No.3(For Front Brake Tube)
9054104018 90541-04018 Cushion(For Front Door Inside Handle)
9322955010 93229-55010 New Genuine Part
9338315010 93383-15010 New Genuine Part
9338515012 93385-15012 SCREW
9352054012 93520-54012 Screw
9453101000 94531-01000 WASHER
9454101000 94541-01000 New Genuine Part
Back Door Lock & Hinge ([01.1993 - 05.1997] SINGLE SWING BACK DOOR (9301-9705)ARL ; (9301-1501)ARL..4FC ; (9301-150 1)BB42..HRF ; (9301-1501)BB42..SRF. .WOC ; (9301-1501 )BB42..LHD..SRF..WC) 20
#OEMPart name
68830 68801-36010 Hinge Assy, Back Door, Rh
68830 68803-36010 Hinge Assy, Back Door, Rh
68852 68851-90K00 Cover, Back Door Hinge, Upper
68852 68852-36010 Cover, Back Door Hinge
68861 68861-36010 Pad, Back Door Hinge
69350 69350-90B06 Lock Assy, Back Door
69350 69880-36010 Lock Assy, Back Door, Upper
69377 69377-90A00 Snap, Back Door Upper Lock Rod
69430 69430-36010 Striker Assy, Back Door Lock
69430 69430-90B03 Striker Assy, Back Door Lock
69451 69451-90B00 Striker, Back Door Upper Lock
91511 91511-B0614 BOLT, FLANGE
9011906983 90119-06983 New Genuine Part
9011908093 90119-08093 BOLT
9011910351 90119-10351 BOLT
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9015960360 90159-60360 New Genuine Part
9048013001 90480-13001 New Genuine Part
9054108027 90541-08027 Cushion(For Fuel Inlet Box Cover)
Back Door Lock & Hinge ([01.1993 - ] LUGGAGE COMPARTMENT DOOR (9301- )) 8
#OEMPart name
68830 68801-36010 Hinge Assy, Back Door, Rh
68830 68803-36010 Hinge Assy, Back Door, Rh
69350 69350-90B06 Lock Assy, Back Door
69430 69430-36010 Striker Assy, Back Door Lock
69430 69430-90B03 Striker Assy, Back Door Lock
91511 91511-B0614 BOLT, FLANGE
91631 91631-B0818 BOLTWWASHER
9054109114 90541-09114 Cushion(For Luggage Compartment Door Panel)
Back Door Lock & Hinge ([05.1997 - 01.2015] SINGLE SWING BACK DOOR (9705-1501)ARL ; (9705-1501)XZB50..GEN..4FC ; (1 501- )ARL) 25
#OEMPart name
68830 68801-36010 Hinge Assy, Back Door, Rh
68830 68803-36010 Hinge Assy, Back Door, Rh
68852 68851-90K00 Cover, Back Door Hinge, Upper
68852 68852-36010 Cover, Back Door Hinge
68861 68861-36010 Pad, Back Door Hinge
69090 69090-36010 Handle Assy, Back Door, Outside
69110 69110-36010 Lock Assy, Back Door W/motor
69278 69278-60010-A0 Bezel, Front Door Inside Handle, Lh
69278 69278-60010-A1 Bezel, Front Door Inside Handle, Lh
69291 69206-60040-A0 Handle Sub-Assy, Front Door Inside, Lh
69430 69430-36010 Striker Assy, Back Door Lock
69430 69430-90B03 Striker Assy, Back Door Lock
69789 69789-36010 Silencer, Back Door Lock Control Link
69792 69792-36010 Link, Back Door Lock Locking
91611 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
6975914050 69759-14050 Snap(For Rear Door Inside Handle)
9010506082 90105-06082 BOLT
9011908093 90119-08093 BOLT
9011910351 90119-10351 BOLT
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880028 90148-80028 SCREW, HEX LOBULAR
9015960081 90159-60081 SCREW
9018906018 90189-06018 GROMMET
9352054012 93520-54012 Screw
Back Door Panel & Glass ([01.1993 - 01.2015] SINGLE SWING BACK DOOR(PANEL) (9301-1501)) 33
#OEMPart name
55521 55521-95260 Knob, Back Door Handle Cover
64561 68129-36020-A0 Glass, Emergency Back Door Windshield
64561 68129-36020-A1 Glass, Emergency Back Door Windshield
64561 68129-90B00 Glass, Emergency Back Door Windshield
64562 68297-90B00 Weatherstrip, Back Door Window Emergency Glass, Outer
64563 68298-90B00 Weatherstrip, Back Door Window Emergency Glass, Inner
67005 67006-36040 Panel Sub-Assy, Back Door - BACK DOOR, LH
67005 67006-36160 Panel Sub-Assy, Back Door
67005 67006-36110 Panel Sub-Assy, Back Door
67199 67199-36010 Cover, Back Door Handle
67297 67297-90B00 Weatherstrip, Back Door Cover
67807 67807-36010 Cover Sub-Assy, Back Door Service Hole
67848 67848-36010 Cover, Back Door Service Hole, Lh
67868 67868-30040 Retainer, Roof Side Rail, Rh
67881 67881-36020 Weatherstrip, Back Door
67881 67881-36021 Weatherstrip, Back Door
67883 67883-36010 Weatherstrip, Back Door, Lower Rh
68131 68132-36020 Glass, Back Door
68131 68132-36100 Glass, Back Door
68611 68611-90K00 Base, Back Door Check, Rh
68611 68611-60030 Base, Back Door Check, Rh
68617 68617-50010 Pin(For Front Door Check)
68650 68660-36010 Check Assy, Back Door
68650 68660-36011 Check Assy, Back Door
69411 69411-36010 Catch, Back Door
69411 69411-36020 Catch, Back Door
91511 91511-B0614 BOLT, FLANGE
9011906324 90119-06324 Bolt
9017906128 90179-06128 NUT
9033301009 90333-01009 New Genuine Part
9033335004 90333-35004 Plate, Noise Control, No.1
9155380614 91553-80614 BOLT FLANGE
9354014010 93540-14010 Clip, Headlining Retainer
Back Door Panel & Glass ([01.1993 - 08.2006] LUGGAGE DOOR(TRIM) (9301-0608)) 2
#OEMPart name
67751 90467-07054-A1 Clip(For Back Door Trim Board)
67751 90467-07054-B3 Clip(For Back Panel Upper Silencer) - color: Charcoal
Back Door Panel & Glass ([01.1993 - ] DOUBLE SWING BACK DOOR(PANEL) (9301- )) 14
#OEMPart name
67848 67848-36010 Cover, Back Door Service Hole, Lh
67868 67868-30040 Retainer, Roof Side Rail, Rh
67881 67881-36020 Weatherstrip, Back Door
67881 67881-36021 Weatherstrip, Back Door
68131 68132-36020 Glass, Back Door
68131 68132-36100 Glass, Back Door
68611 68611-90K00 Base, Back Door Check, Rh
68611 68611-60030 Base, Back Door Check, Rh
68617 68617-50010 Pin(For Front Door Check)
91511 91511-B0614 BOLT, FLANGE
9017906128 90179-06128 NUT
9033301009 90333-01009 New Genuine Part
9033335002 90333-35002 Plug, Hole(For Rear Door Panel)
9033335004 90333-35004 Plate, Noise Control, No.1
Back Door Panel & Glass ([01.1993 - ] DOUBLE SWING BACK DOOR(TRIM) (9301- )) 16
#OEMPart name
55521 55521-95260 Knob, Back Door Handle Cover
64790 64790-36020-E0 Panel Assy, Back Door Trim, Lh
64790 64790-36040-E0 Panel Assy, Back Door Trim, Lh
64790 64790-36040-B1 Panel Assy, Back Door Trim, Lh
64790 90339-10005-A0 Cap, Back Door Trim Panel
67751 90467-07054-A1 Clip(For Back Door Trim Board)
67751 90467-07054-B3 Clip(For Back Panel Upper Silencer) - color: Charcoal
67807 67807-36010 Cover Sub-Assy, Back Door Service Hole
68291 68292-36010 Weatherstrip, Back Door Glass
69411 69411-36010 Catch, Back Door
69411 69411-36020 Catch, Back Door
6777295 67772-95J01 Retainer, Front Door Lower Frame Bracket Garnish
9015950279 90159-50279 New Genuine Part
9018906006 90189-06006 Grommet
9155380614 91553-80614 BOLT FLANGE
9354014010 93540-14010 Clip, Headlining Retainer
Back Door Panel & Glass ([01.1993 - ] LUGGAGE DOOR(PANEL) (9301- )) 6
#OEMPart name
67005 67006-36040 Panel Sub-Assy, Back Door - BACK DOOR, LH
67005 67006-36160 Panel Sub-Assy, Back Door
67005 67006-36110 Panel Sub-Assy, Back Door
67868 67868-30040 Retainer, Roof Side Rail, Rh
67881 67881-36020 Weatherstrip, Back Door
67881 67881-36021 Weatherstrip, Back Door
Back Door Panel & Glass ([01.1993 - ] SINGLE SWING BACK DOOR(TRIM) (9301- )) 10
#OEMPart name
64790 64790-36020-E0 Panel Assy, Back Door Trim, Lh
64790 64790-36040-E0 Panel Assy, Back Door Trim, Lh
64790 64790-36040-B1 Panel Assy, Back Door Trim, Lh
64790 90339-10005-A0 Cap, Back Door Trim Panel
67751 90467-07054-A1 Clip(For Back Door Trim Board)
67751 90467-07054-B3 Clip(For Back Panel Upper Silencer) - color: Charcoal
68291 68292-36010 Weatherstrip, Back Door Glass
6777295 67772-95J01 Retainer, Front Door Lower Frame Bracket Garnish
9015950279 90159-50279 New Genuine Part
9018906006 90189-06006 Grommet
Battery & Battery Cable ([01.1993 - 08.2009] (9301-0908) ; (0908- )XZB50..IV ; (0908- ) BB42,50,BZB40,50,HZB50,TRB40,50) 10
#OEMPart name
28800 28800-30082 Battery
28800 28800-30061 Battery
28800 90982-05030 Terminal, Battery Positive
28800 90982-05035 Terminal, Battery Positive
28800 90982-05037 Terminal, Battery Positive
28800 82821-12150 Cover, Connector(For Battery Terminal)
28800 82821-22110 Cover, Connector(For Battery Terminal)
28800 90982-06013 Terminal, Battery Negative
28800 90982-06022 Terminal, Battery Negative
9415180801 94151-80801 NUT FLANGE
Battery Carrier ([01.1993 - ] (9301- )BB4#,5#,HZB50,RZB40,50,TRB40,50,XZB40 ,5#) 6
#OEMPart name
74411 74403-36070 Carrier, Battery
74413 74451-36100 Bolt, Battery Clamp
74453 74453-36100 Bar, Battery Set Plate
9011910764 90119-10764 New Genuine Part
9017906206 90179-06206 Nut
9017910067 90179-10067 Nut (For Rear Axle Shaft)
Brake Booster & Vacuum Tube ([01.1993 - ] (9301- )BB40,42..RHD) 43
#OEMPart name
44610 44610-36480 Booster Assy, Brake
44704 44704-36270 Reservoir Sub-Assy, Vacuum
44729 44729-36020 Gasket, Vacuum Tube
44730 90413-09037 Way(For Booster Vacuum)
44730 44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)
44731 44731-35120 Bracket, Brake Booster
44735 44735-30010 Ring, Booster Bracket Stopper
44743 90405-09131 Union(For Vacuum Pump)
44754 44754-36090 Bracket, Vacuum Tube, No.1
44754 44754-36110 Bracket, Vacuum Tube, No.2
44754 44754-36120 Bracket, Vacuum Tube, No.3
44754 44754-36130 Bracket, Vacuum Tube, No.3
44754 44754-36140 Bracket, Vacuum Tube, No.5
44756 44757-36060 Bracket, Vacuum Reservoir
44761 44761-36140 Tube, Intake Manifold Or Vacuum Pump To Connector
44761 44761-36180 Tube, Intake Manifold Or Vacuum Pump To Connector
44764 44764-36480 Tube, Connector To Brake Booster
44764 44764-36520 Tube, Connector To Brake Booster
44765 44765-36180 Tube, Connector To Brake Booster, No.2
44765 44765-36320 Tube, Connector To Brake Booster, No.2
44771 44771-36250 Hose, Vacuum Tube Connector
44771 44771-36300 Hose, Vacuum Tube Connector
44772 44772-36090 Hose, Check Valve To Connector Tube
44772 44772-36100 Hose, Check Valve To Connector Tube
44774 44774-36220 Hose, Union To Connector Tube
44775 44775-36030 Hose, No.3(For Clutch Booster Vacuum)
44775 44775-36100 Hose, No.3(For Clutch Booster Vacuum)
44776 44776-36090 Hose, Brake Booster
44776 44776-36170 Hose, Brake Booster
44778 44778-36100 Hose, Connector To Check Valve
47289 47289-60010 Label, Brake Master Cylinder Adjust Information
47289 47289-60020 Label, Brake Master Cylinder Adjust Information
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9017908038 90179-08038 Nut
9017908233 90179-08233 NUT
9046110780 90461-10780 New Genuine Part
9046400682 90464-00682 New Genuine Part
9094901843 90949-01843 New Genuine Part
9161160814 91611-60814 Bolt
9165160616 91651-60616 BOLT
9613341500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
Brake Master Cylinder ([01.1993 - 07.1999] (9301-9907)RHD ; (9907-1501)BZB50..EX ; (9907-15 01)XZB50..STD..GEN ; (9907-1501)BB4 #,50,59,HZB50..RH D..GEN..5F ; (0108-1108)BZB40,50,XZB40..STD) 27
#OEMPart name
4493 04493-36170 Cylinder Kit, Brake Master
4493 04493-36171 Cylinder Kit, Brake Master
47201 47201-36400 Cylinder Sub-Assy, Brake Master
47202 47220-36080 Reservoir Sub-Assy, Brake Master Cylinder
47210 90430-06104 Gasket(For Brake Actuator)
47210 90109-06008 Bolt(For Brake Master Cylinder)
47218 47218-36070 Plug, Master Cylinder Fluid Outlet
47218 90430-11001 Gasket(For Fluid Outlet Plug)
47219 47218-36080 Plug, Master Cylinder Fluid Outlet
47230 47230-24010 Cap Assy, Brake Master Cylinder Reservoir Filler
47230 47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 47233-36060 Bracket, Reservoir
47234 47234-36160 Tube, Reservoir, No.1
47235 47235-36160 Tube, Brake Master Cyrinder Reservoir, No.2
47264 47264-50010 Clevis, Master Cylinder Push Rod
47281 47281-30020 Valve Assy, Brake Master Cylinder Outlet Check
47299 47299-17010 Strainer, Brake Master Cylinder Reservoir
47299 47299-20060 Strainer, Brake Master Cylinder Reservoir
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9046725004 90467-25004 New Genuine Part
9050105012 90501-05012 Spring, Compression
9163540618 91635-40618 BOLT W-WASHER
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9613341500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
Brake Pedal & Bracket ([01.1993 - ] (9301- )) 20
#OEMPart name
47101 47101-36130 Pedal Sub-Assy, Brake
47101 90508-35322 Spring(For Brake Pedal Return)
47101 90386-13007 Bush(For Clutch Pedal)
47101 90386-13015 Bush(For Clutch Pedal)
47121 31321-14020 Pad, Clutch Pedal
47124 91121-61070 Shaft, Clutch Pedal
47124 90387-10004 Collar, Clutch Pedal Shaft
47131 90541-06036 Cushion, No.1(For Clutch Pedal)
47264 90240-10085 Pin, W/hole(For Brake Pedal Rod)
55106 55106-36010 Support Sub-Assy, Brake Pedal
91621 91621-B0816 BOLT WWASHER
91621 91621-J0612 BOLT W-WASHER
9017908038 90179-08038 Nut
9046816142 90468-16142 Clip(For Push Rod Clevis Pin)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165660616 91656-60616 BOLT
9165660616 91651-60616 BOLT
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Brake Tube & Clamp ([01.1993 - 07.1999] (9301-9907)30S..4FC ; (9301-9907)HZB50..TD ; (93 01-9907)HZB50..19S,22S ; (9301-9907 )BB40,50..ARL,EUR) 27
#OEMPart name
47316 96912-33805 Hose, Flexible(For Rear Brake Tube)
47318 47318-36210 Tube, Front Brake, No.8
47321 90412-12042 Way, No.1(For Rear Brake Tube)
47322 90413-10277 Way, No.2(For Rear Brake Tube)
47325 47325-36420 Tube, Rear Brake, No.5
47326 47326-36200 Tube, Rear Brake, No.6
47327 47327-36240 Tube, Rear Brake, No.5
47327 47327-36241 Tube, Rear Brake, No.5
47328 47328-36260 Tube, Rear Brake, No.8
47345 47345-36050 Tube, Wheel Cylinder, Rear Rh
47353 47353-36190 Bracket, Flexible Hose(For Rear)
47374 47371-36050 Clamp, Brake Tube, No.4
47374 47372-36060 Clamp, Brake Tube, No.4
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011908 90119-08A46 BOLT WWASHER
9011908703 90119-08703 New Genuine Part
9046108779 90461-08779 New Genuine Part
9046110616 90461-10616 New Genuine Part
9046808044 90468-08044 CLIP
9046808044 90468-08035 CLIP
9094901006 90949-01006 CLAMP
9094901834 90949-01834 New Genuine Part
9165160614 91651-60614 Bolt
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Brake Tube & Clamp ([01.1993 - 07.1999] (9301-9907)RHD..CBU) 54
#OEMPart name
47311 47311-36480 Tube, Front Brake, No.1
47311 90412-12045 Way, No.1(For Front Brake Tube)
47312 47312-36270 Tube, Front Brake, No.2
47312 47312-36271 Tube, Front Brake, No.2
47312 90412-10210 Way, No.2(For Front Brake Tube)
47313 47313-36250 Tube, Front Brake, No.3
47313 47313-36251 Tube, Front Brake, No.3
47313 90947-02707 Hose, Flexible, No.1(For Front)
47313 90401-10023 Bolt, Union(For Master Cylinder Fluid Outlet)
47313 90413-10270 Way, No.3(For Front Brake Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-36300 Tube, Front Brake, No.4
47315 47315-36220 Tube, Front Brake, No.5
47316 47316-36260 Tube, Front Brake, No.6
47317 47317-36120 Tube, Front Brake, No.7
47318 47318-36210 Tube, Front Brake, No.8
47321 47321-36300 Tube, Rear Brake, No.1
47322 47322-36330 Tube, Rear Brake, No.2
47322 47322-36331 Tube, Rear Brake, No.2
47324 47324-36290 Tube, Rear Brake, No.4
47351 47351-36210 Bracket, Flexible Hose, No.1
47352 47352-36200 Bracket, Flexible Hose, No.2
47353 47353-36210 Bracket, Flexible Hose, No.3
47354 47354-36090 Bracket, Flexible Hose, No.4
47371 47371-36040 Clamp, Brake Tube, No.1
47372 47371-36060 Clamp, Brake Tube, No.2
47373 47372-36050 Clamp, Brake Tube, No.3
47374 47307-36010 Connector, Tube
47374 47371-36050 Clamp, Brake Tube, No.4
47374 47372-36060 Clamp, Brake Tube, No.4
47381 47381-36120 Bracket, Brake Tube Clamp No.1
91611 91611-B0816 Bolt
9011908 90119-08A46 BOLT WWASHER
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046106112 90461-06112 Clamp, Brake Tube, No.6
9046110616 90461-10616 New Genuine Part
9046206017 90462-06017 New Genuine Part
9046400549 90464-00549 New Genuine Part
9046808044 90468-08044 CLIP
9046808044 90468-08035 CLIP
9048001187 90480-01187 New Genuine Part
9048001335 90480-01335 Clamp(For Resistive Cord)
9048001335 90464-00082 Clamp(For Resistive Cord)
9048001359 90480-01359 New Genuine Part
9090480004 90904-80004 New Genuine Part
9094902081 90949-02081 New Genuine Part
9094902085 90949-02085 New Genuine Part
9094902086 90949-02086 New Genuine Part
9164280825 91642-80825 New Genuine Part
9164280825 91641-80825 BOLT WWASHER
9165160614 91651-60614 Bolt
9165160616 91651-60616 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Brake Tube & Clamp ([01.1993 - ] (9301- )HZB50..TD ; (9301- )BB42..RHD..SRF ..WC ; (9301- )BB50,HZB50..19S,2 2S ; (9301- )B B40,50,RZB40,50,XZB50..ARL,CHI,EUR) 28
#OEMPart name
4477 04477-60010 Bush & Boot Kit, Load Sensing Spring
31478 31478-30010 Bleeder Plug Cap
47910 47910-36170 Valve Assy, Load Sensing Proportioning
47920 47920-36170 Spring Assy, Load Sensing
47920 90387-08099 Collar(For Load Sensing Spring)
47920 90467-31110 Clip(For Load Sensing Valve Boot)
47920 90202-10103 Washer(For Load Sensing Spring)
47931 47931-36120 Bracket, Load Sensing Valve
47933 47933-36060 Bracket, Load Sensing Shackle, No.1
47933 94130-00802 Nut, No.1 (For Center Support Bearing)
47933 47933-36061 Bracket, Load Sensing Shackle, No.1
47935 47935-35020 Shackle, Load Sensing Spring, No.1
47935 90385-10064 Bush(For Load Sensing Spring Shackle)
47936 47936-60020 Shackle, Load Sensing Spring, No.2
47937 47937-60010 Plate, Load Sensing Valve Set
90015 90015-AA103 New Genuine Part
91611 91611-B0816 Bolt
9011908703 90119-08703 New Genuine Part
9017008016 90170-08016 Nut
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9020108062 90201-08062 Retainer(For Load Sensing Spring Shackle)
9020123360 90201-23360 WASHER
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
9538102020 95381-02020 PIN

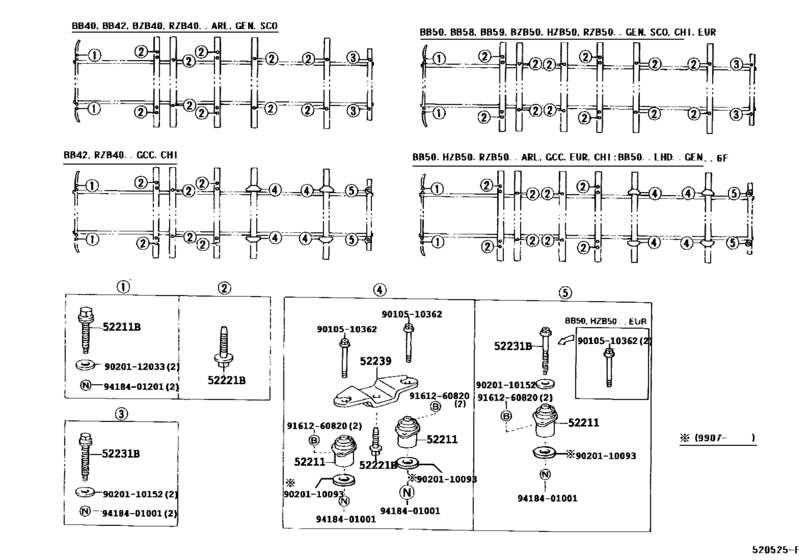

Cab Mounting & Body Mounting ([01.1993 - 08.2004] (9301-0408)) 13
#OEMPart name
52211 90119-12257 Bolt(For Body Mounting No.1 Cushion)
52211 90119-12275 Bolt(For Body Mounting No.1 Cushion)
52221 90119-10762 Bolt(For Body Mounting No.1 Cushion)
52231 90119-10748 Bolt(For Body Mount No.3 Cushion)
9010510362 90105-10362 New Genuine Part
9020110093 90201-10093 New Genuine Part
9020110093 90201-11093 New Genuine Part
9020110152 90201-10152 WASHER
9020112033 90201-12033 Washer, Shift Lever Shaft Housing, No.1
9161260820 91612-60820 Bolt(For Clutch Release Cylinder Setting)
9161260820 91611-G0820 Bolt
9418401001 94184-01001 Nut
9418401201 94184-01201 NUT
Camshaft & Valve ([01.1993 - ] (9301- )14B,3B) 55
#OEMPart name
11802 11802-56030 Bearing Set, Camshaft
11802 11802-56031 Bearing Set, Camshaft
11802 11802-58010 Bearing Set, Camshaft
13511 13511-56060 Camshaft
13511 90331-58001 Plug, Expansion(For Camshaft)
13523 13523-56040 Gear Or Sprocket, Camshaft Timing
13523 13523-58010 Gear Or Sprocket, Camshaft Timing
13523 95161-30519 Key(For Crankshaft Timing Gear)
13523 90201-10227 Washer, Plate(For Timing Gear)
13571 13571-56030 Plate, Camshaft Thrust
13613 22407-56030 Gear, Injection Pump Drive
13613 22407-58010 Gear, Injection Pump Drive
13711 13711-58020 Valve, Intake
13711 13711-58021 Valve, Intake
13711 90913-02076 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-33012 Spring, Compression(For Inner)
13711 90501-45032 Spring, Compression(For Outer)
13715 13715-58050 Valve, Exhaust
13715 13715-58051 Valve, Exhaust
13716 13716-56010 Cap, Valve Stem
13734 13734-56010 Seat, Valve Spring
13741 13741-56040 Retainer, Valve Spring
13741 90913-03024 Lock, Valve Spring Retainer
13751 13750-58010 Lifter, Valve
13751 13750-58011 Lifter, Valve
13781 13781-56020 Rod, Valve Push
13801 13811-56050 Arm Sub-Assy, Valve Rocker, No.1
13801 13811-58020 Arm Sub-Assy, Valve Rocker, No.1
13801 90179-08129 Nut, Hexagon(For Valve Adjusting)
13801 90179-08248 Nut, Hexagon(For Valve Adjusting)
13801 90913-05022 Screw, Valve Adjusting
13801 90913-05025 Screw, Valve Adjusting
13801 90501-16114 Spring, Compression(For Rocker Arm)
13801 90201-19009 Washer, Plate(For Valve Rocker Arm)
13802 13812-56040 Arm Sub-Assy, Valve Rocker, No.2
13802 13812-58020 Arm Sub-Assy, Valve Rocker, No.2
13901 13901-56030 Shaft Sub-Assy, Valve Rocker, No.1
13951 13951-56030 Support, Valve Rocker, No.1
13951 90105-08165 Bolt(For Rocker Support Set)
13951 90105-08177 Bolt(For Rocker Support Set)
13951 13958-56010 Screw Or Bolt(For Valve Rocker Shaft Lock)
13951 90201-06350 Washer, Seal(For Head Cover Set)
13952 13952-56030 Support, Valve Rocker, No.2
13953 13953-56030 Support, Valve Rocker, No.3
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9010510534 90105-10534 BOLT WASHER BASED
9010906147 90109-06147 New Genuine Part
9010910122 90109-10122 SPL BOLTCYL BLOCK
9011910657 90119-10657 Bolt(For Body Mount No.4 Cushion)
9043006004 90430-06004 New Genuine Part
9043010020 90430-10020 GASKETROUND TYPE
9043010026 90430-10026 New Genuine Part
9161160818 91611-60818 Bolt(For Oil Receiver Pipe)
9161160818 90119-08830 Bolt(For Oil Receiver Pipe)
Caution Plate & Name Plate (Engine) ([01.1993 - ] (9301- )N04C,14B,15B#,1BZFPE,3B,1HZ#,3RZ#) 6
#OEMPart name
11278 11278-54020 Plate, Engine Emission Identification
11284 11284-56040 Plate, Engine Bolt Information
11293 11293-56080 Plate, Engine Caution & Engine Name
17700 90917-07108 Plate, Air Cleaner Caution (For Engine Model)
23923 23923-64021 Plate, Fuel Sedimenter Caution
1356410010 13564-10010 Plate, Timing Belt Caution
Caution Plate ([01.1993 - ] (9301- )) 10
#OEMPart name
74526 74526-36020 Plate, Emergency Hammer Caution
74529 74535-36010 Plate, Back Door Caution
74529 74535-36030 Plate, Back Door Caution
74536 74536-36020 Label, Emergency Indicator Caution
74537 74537-36010 Label, Emergency Back Door Caution
74537 74537-36020 Label, Emergency Back Door Caution
74538 74538-36010 Label, Emergency Exit Caution
74539 74539-36010 Label, Emergency Exit Side Caution
74559 74559-14030 Plate, Fuel Caution (DIESEL+Jap)
74751 42661-36070 Label, Tire Pressure Information
Center Door Lock & Hinge ([01.1993 - 01.2015] FOLDING DOOR (9301-1501)) 19
#OEMPart name
67224 67224-90500 Gum, Door Cushion, No.2
67255 67255-36010 Stopper, Center Inside Lock
69302 69302-36010 Lock Sub-Assy, Center Door Inside Handle
69303 69303-36010 Handle Sub-Assy, Center Door Lock, Outside
69405 69405-90B00 Stopper, Center Inside Lock
91653 91653-A0616 BOLT WWASHER
6777158010 67771-58010 Clip, Front Pillar Garnish
6789736030 67897-36030 Cushion, Center Door
9016435037 90164-35037 SCREW
9017904001 90179-04001 NUT
9017905172 90179-05172 NUT
9017906266 90179-06266 New Genuine Part
9046705102 90467-05102-B1 New Genuine Part
9046710161 90467-10161 Clip
9054103010 90541-03010 Cushion(For Back Door Panel)
9054105008 90541-05008 CUSHION
9163140614 91631-40614 БОЛТ BOLT
9323924012 93239-24012 New Genuine Part
9326925010 93269-25010 SCREW
Center Door Lock & Hinge ([01.1993 - ] GLIDE DOOR (9301- )) 15
#OEMPart name
91511 91511-B0614 BOLT, FLANGE
9010906196 90109-06196 BOLTFOLDING SEAT
9011906680 90119-06680 BOLT WWASHER
9011908357 90119-08357 BOLT
9011908743 90119-08743 New Genuine Part
9011908842 90119-08842 BOLT WWASHER
9014880028 90148-80028 SCREW, HEX LOBULAR
9015940202 90159-40202 SCREW WWASHER
9017908138 90179-08138 New Genuine Part
9038606050 90386-06050 New Genuine Part
9155180608 91551-80608 New Genuine Part
9163160825 91631-60825 BOLT WWASHER
9338315008 93383-15008 New Genuine Part
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)

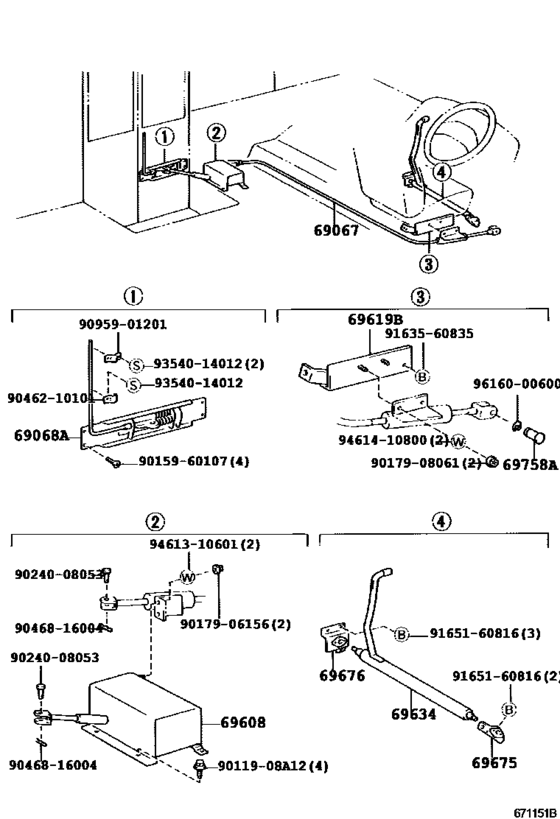

Center Door Lock & Hinge ([02.1994 - 05.1997] MECHANICAL DOOR (9402-9705)) 17
#OEMPart name
9011908 90119-08A12 New Genuine Part
9015960107 90159-60107 New Genuine Part
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017908061 90179-08061 Nut (For Connecting Rod Swivel)
9024008053 90240-08053 PIN WITH WHEEL
9046210101 90462-10101 New Genuine Part
9046816004 90468-16004 CLIP
9095901201 90959-01201 New Genuine Part
9163560835 91635-60835 New Genuine Part
9163560835 91631-G0830 BOLT WWASHER
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9354014012 93540-14012 Screw
9461310601 94613-10601 Washer (For Primary Regulator Valve)
9461410800 94614-10800 Spacer (For Control Select Lever Support)
9461410800 94613-10800 Spacer (For Control Select Lever Support)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)

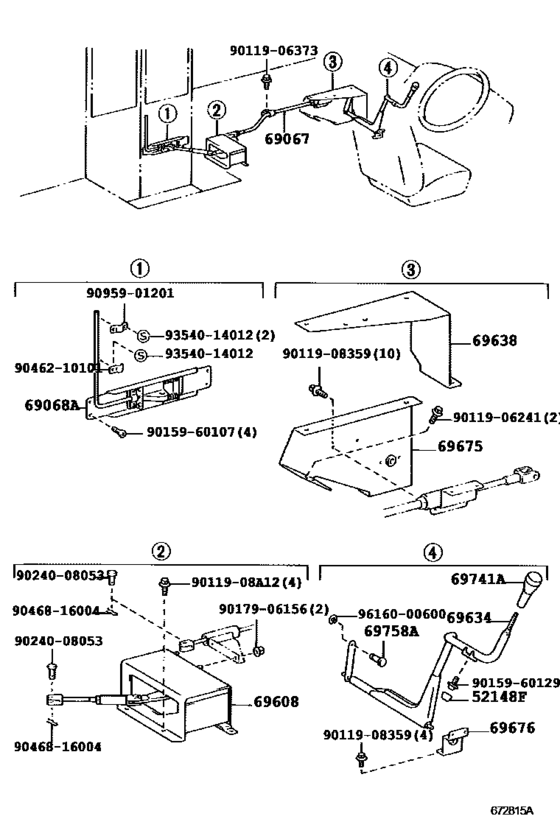

Center Door Lock & Hinge ([05.1997 - 06.1998] MECHANICAL DOOR (9705-9806)) 14
#OEMPart name
9011908 90119-08A12 New Genuine Part
9011906241 90119-06241 New Genuine Part
9011906241 90119-06482 New Genuine Part
9011906373 90119-06373 New Genuine Part
9011908359 90119-08359 New Genuine Part
9015960107 90159-60107 New Genuine Part
9015960129 90159-60129 New Genuine Part
9017906156 90179-06156 Nut (For Transmission Control Cable)
9024008053 90240-08053 PIN WITH WHEEL
9046210101 90462-10101 New Genuine Part
9046816004 90468-16004 CLIP
9095901201 90959-01201 New Genuine Part
9354014012 93540-14012 Screw
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
Center Door Lock & Hinge ([06.1998 - 09.2012] MECHANICAL DOOR (9806-1209)) 13
#OEMPart name
91631 91631-G0830 BOLT WWASHER
9011908 90119-08A12 New Genuine Part
9011908502 90119-08502 New Genuine Part
9015960107 90159-60107 New Genuine Part
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017908061 90179-08061 Nut (For Connecting Rod Swivel)
9024008053 90240-08053 PIN WITH WHEEL
9046210101 90462-10101 New Genuine Part
9046816004 90468-16004 CLIP
9095901201 90959-01201 New Genuine Part
9354014012 93540-14012 Screw
9461310601 94613-10601 Washer (For Primary Regulator Valve)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
Center Door Panel & Glass ([01.1993 - 08.2004] FOLDING DOOR (9301-0408)) 68
#OEMPart name
67003 67003-36020 Panel Sub-Assy, Center Door, Front
67003 67003-36021 Panel Sub-assy, Rear Door, Rh
67003 67897-36030 Cushion, Center Door
67003 90541-09125 Cushion, Luggage Compartment Door, No.2
67003 67003-36070 Panel Sub-Assy, Center Door, Front
67003 67003-36072 Panel Sub-assy, Rear Door, Rh
67003 67003-36071 Panel Sub-Assy, Center Door, Front
67004 67004-36030 Panel Sub-Assy, Center Door, Rear
67004 67004-36031 Panel Sub-Assy, Center Door, Rear
67087 67087-36010 Plate Sub-Assy, Center Door Dust Seal, Front
67087 67087-36011 Plate Sub-Assy, Center Door Dust Seal, Front
67088 67088-36010 Plate Sub-Assy, Center Door Dust Seal, Rear
67088 67088-36030 Plate Sub-Assy, Center Door Dust Seal, Rear
67088 67088-36011 Plate Sub-Assy, Center Door Dust Seal, Rear
67171 68163-90B00 Weatherstrip, Center Door Glass, Outer
67172 68173-90B00 Weatherstrip, Center Door Glass, Outer
67207 67207-36010 Cover Sub-Assy, Center Door, Outer
67219 67219-90501 Bush, Center Door Upper Bearing Case
67253 67253-36010 Piece, Center Door Guide
67253 67253-36030 Piece, Center Door Guide
67254 67254-90B00 Stopper, Center Door, Lower
67261 67261-36010 Case, Center Door Guide
67266 67266-36010 Stopper, Center Door Rail
67268 67268-90B00 Roller, Center Door Upper Guide
67855 67855-36030 Weatherstrip, Center Door Front
67856 67856-36030 Weatherstrip, Center Door, Rear
67856 67856-36040 Weatherstrip, Center Door, Rear
67857 67857-36030 Weatherstrip, Center Door, Center
67868 67868-30040 Retainer, Roof Side Rail, Rh
67869 67869-90B00 Clip, Center Door Weatherstrip
67873 67873-36010 Weatherstrip, Rear Door Glass, Front Rh
67874 67874-36020 Weatherstrip, Center Door, Upper No.2
68111 68113-36040 Glass, Center Door
68111 68113-36070 Glass, Center Door
68111 68113-90B01 Glass, Center Door
68705 68705-90B00 Hinge Sub-Assy, Center Door, Outer
68705 68705-90B01 Hinge Sub-Assy, Center Door, Outer
68706 68706-90B00 Hinge Sub-Assy, Center Door, Outer
68706 68706-90B01 Hinge Sub-Assy, Center Door, Outer
68709 68709-90B00 Case Sub-Assy, Center Door Upper Bearing
68737 68737-36010 Case, Center Door Lower Bearing
68739 68739-90B01 Ball, Center Door Front Lower Bearing
68759 68759-90B00 Packing, Center Door Hinge
68759 68769-90B00 Packing, Center Door Hinge
74642 74642-90B00 Handle Sub-Assy, Center Door Inside Pull
75741 75741-90B00 Moulding, Center Door, Upper
75742 75742-90B00 Moulding, Center Door, Upper
91621 91621-B0625 New Genuine Part
9015940052 90159-40052 New Genuine Part
9015950199 90159-50199 SCREW
9015960145 90159-60145 SCREW
9017606027 90176-06027 NUT CAP
9017906080 90179-06080 NUT
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9020110092 90201-10092 Washer, Plate(For Cylinder Head Set)
9020209005 90202-09005 New Genuine Part
9036310001 90363-10001 BEARINGBAL1026
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9165140640 91651-40640 New Genuine Part
9167180616 91671-80616 BOLT FLANGE
9322955012 93229-55012 SCREW
9331516014 93315-16014 Screw
9333018025 93330-18025 SCREW
9338126030 93381-26030 SCREW WWASHER
9354013012 93540-13012 SCREWTAPPING
9354024512 93540-24512 New Genuine Part
9461111001 94611-11001 Plate, Rear Seat Back Stopper
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
Center Door Panel & Glass ([01.1993 - 08.2004] GLIDE DOOR (9301-0408)) 10
#OEMPart name
67868 67868-30040 Retainer, Roof Side Rail, Rh
6777112050 67771-12050 Clip, Radiator Grille
6777128020 67771-28020 Retainer, Lower Back Finish Panel
6777130090 67771-30090 Retainer (For Quarter Inside Trim Board)
9033335002 90333-35002 Plug, Hole(For Rear Door Panel)
9165160616 91651-60616 BOLT
9322925012 93229-25012 New Genuine Part
9323925012 93239-25012 New Genuine Part
9323925012 93239-25016 New Genuine Part
9331925016 93319-25016 New Genuine Part

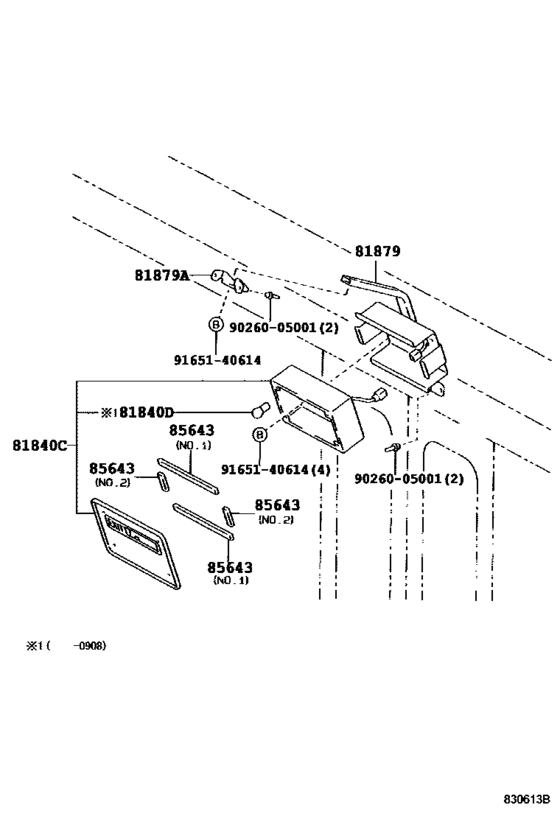

Center Stop Lamp ([05.1997 - ] (9705- )) 3
#OEMPart name
9015950267 90159-50267 SCREW WWASHER
9015960432 90159-60432 New Genuine Part
9018906057 90189-06057 GROMMET
Clutch & Release Fork ([01.1993 - ] (9301- )BB40,42 ; (9605- )BB50..EUR..5F) 14
#OEMPart name
31126 31126-36080 Boot, Clutch Release Fork
31210 31210-36160 Cover Assy, Clutch
31210 31210-36330 Cover Assy, Clutch
31210 31210-36210 Cover Assy, Clutch
31230 31230-36150 Bearing Assy, Clutch Release
31230 31230-36151 Bearing Assy, Clutch Release
31232 31232-36010 Clip Or Spring, Release Bearing Hub
31236 31236-35030 Ball, Release Fork
31240 31204-35031 Fork Sub-Assy, Clutch Release
31250 31250-36450 Disc Assy, Clutch
31250 31250-36632 Disc Assy, Clutch
33311 90363-12002 Bearing (For Input Shaft)
33311 90363-12024 Bearing, Radial Ball
9011908208 90119-08208 Bolt (For Roller Bearing Retainer)
Clutch Housing & Transmission Case (Mtm) ([01.1993 - ] M152,M155 (9301- )BB4#,BZB40,50,HZB50..ARL,GCC,GEN,SCO. .5F) 34
#OEMPart name
33101 33101-36080 Case Sub-Assy, Manual Transmission
33101 33101-36082 Case Sub-Assy, Manual Transmission
33101 33101-36081 Case Sub-Assy, Manual Transmission
33101 33101-36083 Case Sub-Assy, Manual Transmission
33101 33101-36084 Case Sub-Assy, Manual Transmission
33101 90341-18006 Plug (No magnet)
33101 90430-18008 Gasket
33101 90430-T0021 Gasket(For Manual Transmission Filler Plug)
33111 96411-11600 Plug
33111 90250-12002 Pin, Straight(For Manual Transmission Case)
33111 90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)
33111 90253-13017 Pin, Ring W/head
33124 33124-36030 Pipe, Oil Receiver, No.1(Mtm)
33125 33125-36020 Receiver, Manual Transmission Case
33131 33018-36050 Retainer, Bearing, Front(Mtm)
33131 33018-36060 Retainer, Bearing, Front(Mtm)
33131 90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)
33151 33017-36030 Retainer, Output Shaft Rear Bearing(Mtm)
33151 33017-36031 Retainer, Output Shaft Rear Bearing(Mtm)
33151 90311-48011 Seal, Oil(For Transmission Rear Bearing Retainer)
33161 33161-36010 Cover, Manual Transmission Power Take-Off
33162 33162-36020 Gasket, Transmission Power Take-Off Cover(Mtm)
33449 33449-36010 Magnet, Transmission
91611 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
91611 91611-B0812 Bolt
9011908332 90119-08332 Bolt(For Manual Transmission Oil Pump Cover)
9011908421 90119-08421 New Genuine Part
9011910186 90119-10186 BOLT
9011910390 90119-10390 Bolt (For Transfer Extension Rear Housing)
9011910398 90119-10398 BOLT
9011910970 90119-10970 BOLT WWASHER
9161261030 91612-61030 Bolt (For Transmission Control Cable Bracket)
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9165141020 91651-41020 BOLT W-WASHER
Clutch Housing & Transmission Case (Mtm) ([01.1993 - ] M152,M155 (9301- )BB40,42 ; (9605-0105)EUR) 14
#OEMPart name
31111 31111-36310 Housing, Clutch
31121 31121-36040 Cover, Clutch Housing, No.1
31121 31121-36110 Cover, Clutch Housing, No.1
31121 31121-28030 Cover, Clutch Housing, No.1
31123 31121-28040 Cover, Clutch Housing, No.1
31123 31121-28041 Cover, Clutch Housing, No.1
33118 33118-36021 Plate, Stiffener, Rh(Mtm)
33119 33119-36041 Plate, Stiffener, Lh(Mtm)
33119 33119-36042 Plate, Stiffener, Lh(Mtm)
9161261030 91612-61030 Bolt (For Transmission Control Cable Bracket)
9161261040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9161961235 91619-61235 BOLT
9161961250 91619-61250 Bolt
Clutch Master Cylinder ([01.1993 - ] (9301- )BB4#,HZB50..5F) 18
#OEMPart name
4311 04311-12110 Cylinder Kit, Clutch Master
4311 04311-36082 Cylinder Kit, Clutch Master
4311 04311-36180 Cylinder Kit, Clutch Master
31410 31420-36130 Cylinder Assy, Clutch Master
31410 90119-08472 Bolt(For Clutch Master Cylinder Setting)
31410 90119-08108 Bolt(For Clutch Master Cylinder Setting)
31434 31434-36260 Tube, Clutch Reservoir
31434 90467-13070 Clip(For Air Hose No.6)
31434 96132-51300 Clip(For Ventilation Hose No.2)
31451 31451-36040 Rod, Clutch Master Cylinder Push
31453 31404-35011 Clevis, Clutch Master Cylinder Push Rod
31453 31404-35013 Clevis, Clutch Master Cylinder Push Rod
31453 31404-36021 Clevis, Clutch Master Cylinder Push Rod
31453 31404-36031 Clevis, Clutch Master Cylinder Push Rod
31454 31454-14010 Boot, Clutch Master Cylinder
9046400312 90464-00312 New Genuine Part
9046725004 90467-25004 New Genuine Part
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
Clutch Master Cylinder ([01.1993 - ] TAIWAN SPEC (9301- )BB4#..HRF ; (9301- )BB42..SRF..WOC ; (9301- )BB42..LHD..SRF..WC) 19
#OEMPart name
4311 04311-12110 Cylinder Kit, Clutch Master
4311 04311-36082 Cylinder Kit, Clutch Master
4311 04311-36180 Cylinder Kit, Clutch Master
31410 31420-36130 Cylinder Assy, Clutch Master
31410 90119-08472 Bolt(For Clutch Master Cylinder Setting)
31410 90119-08108 Bolt(For Clutch Master Cylinder Setting)
31434 31434-36260 Tube, Clutch Reservoir
31434 90467-13070 Clip(For Air Hose No.6)
31434 96132-51300 Clip(For Ventilation Hose No.2)
31451 31451-36040 Rod, Clutch Master Cylinder Push
31453 31404-35011 Clevis, Clutch Master Cylinder Push Rod
31453 31404-35013 Clevis, Clutch Master Cylinder Push Rod
31453 31404-36021 Clevis, Clutch Master Cylinder Push Rod
31453 31404-36031 Clevis, Clutch Master Cylinder Push Rod
31454 31454-14010 Boot, Clutch Master Cylinder
9046725004 90467-25004 New Genuine Part
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
Clutch Pedal & Flexible Hose ([01.1993 - 07.1999] (9301-9907) ; (9907- )BB4#,5#,BZB40,50,RZB40, 50,TRB40,50,XZB40,5#..MTM) 17
#OEMPart name
31301 31301-36210 Pedal Sub-Assy, Clutch
31301 90508-35013 Spring(For Clutch Pedal)
31301 90541-06036 Cushion, No.1(For Clutch Pedal)
31301 90386-13007 Bush(For Clutch Pedal)
31301 90386-13015 Bush(For Clutch Pedal)
31301 90101-10085 Bolt(For Clutch Pedal Stopper)
31301 94120-41000 Nut(For Clutch Pedal Stopper)
31301 90170-A0002 Nut
31321 31321-14020 Pad, Clutch Pedal
31324 91121-61070 Shaft, Clutch Pedal
31324 90387-10004 Collar, Clutch Pedal Shaft
31453 90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453 90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)
55107 55136-36010 Support Sub-Assy, Clutch Pedal
9046816142 90468-16142 Clip(For Push Rod Clevis Pin)
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Clutch Pedal & Flexible Hose ([01.1993 - ] (9301- )BB40,42..RHD) 19
#OEMPart name
31481 31481-36390 Tube, Clutch Master Cylinder To Flexible Hose
31481 90947-02978 Hose, Clutch, No.1
31481 96932-33005 Hose, Clutch, No.1
31481 90412-12048 Way(For Clutch Tube)
31482 31482-36220 Tube, Clutch Release Cylinder To Flexible Hose
31484 31484-36200 Bracket, Flexible Hose(For Clutch)
31484 31484-36210 Bracket, Flexible Hose(For Clutch)
31487 31487-36190 Plate, Release Tube Set
31488 31488-36500 Tube, Connector To Tube Connector
31488 31488-36590 Tube, Connector To Tube Connector
31489 31489-36180 Tube, Tube Connector To Flexible Hose
31489 31489-36241 Tube, Tube Connector To Flexible Hose
31489 31489-36240 Tube, Tube Connector To Flexible Hose
91611 91611-B0816 Bolt
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046110781 90461-10781 Clamp, Brake Tube, No.6
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9165160616 91651-60616 BOLT
Clutch Release Cylinder ([01.1993 - ] (9301- )MTM) 7
#OEMPart name
4313 04313-12030 Cylinder Kit, Clutch Release
31470 31470-36221 Cylinder Assy, Clutch Release
31470 91611-G0820 Bolt
31473 31473-22010 Rod, Clutch Release Cylinder Push, No.1
31476 31476-22010 Boot, Clutch Release Cylinder
31477 47547-12010 Plug, Bleeder(For Release Cylinder)
31478 31478-30010 Bleeder Plug Cap
Crankshaft & Piston ([01.1993 - ] (9301- )14B,15BFT,3B) 93
#OEMPart name
11011 11011-56020 Washer Set, Crankshaft Thrust
11011 11011-58020 Washer Set, Crankshaft Thrust
11011 11012-56020 Washer Set, Crankshaft Thrust
11011 11012-58020 Washer Set, Crankshaft Thrust
11011 11013-56020 Washer Set, Crankshaft Thrust
11011 11013-58020 Washer Set, Crankshaft Thrust
11702 11704-56030 Bearing Set, Crankshaft
11702 11704-56032 Bearing Set, Crankshaft
11702 11704-56031 Bearing Set, Crankshaft
11702 11705-56030 Bearing Set, Crankshaft
11702 11705-56032 Bearing Set, Crankshaft
11702 11705-56031 Bearing Set, Crankshaft
11702 11707-56030 Bearing Set, Crankshaft
11702 11707-56032 Bearing Set, Crankshaft
11702 11707-56031 Bearing Set, Crankshaft
11711 11701-56020-01 Bearing, Crankshaft
11711 11701-58010-01 Bearing, Crankshaft
11711 11701-56020-02 Bearing, Crankshaft
11711 11701-58010-02 Bearing, Crankshaft
11711 11701-56021-01 Bearing, Crankshaft
11711 11701-56021-02 Bearing, Crankshaft
11711 11701-56022-01 Bearing, Crankshaft
11711 11701-56022-02 Bearing, Crankshaft
13011 13011-58050 Ring Set, Piston
13011 13011-58051 Ring Set, Piston
13011 13013-58050 Ring Set, Piston
13011 13013-58051 Ring Set, Piston
13011 13014-58050 Ring Set, Piston
13011 13014-58051 Ring Set, Piston
13011 13015-58050 Ring Set, Piston
13011 13015-58051 Ring Set, Piston
13041 13041-56040-01 Bearing, Connecting Rod
13041 13041-58050-01 Bearing, Connecting Rod
13041 13041-56040-02 Bearing, Connecting Rod
13041 13041-58050-02 Bearing, Connecting Rod
13041 13041-58020-01 Bearing, Connecting Rod
13041 13041-58020-02 Bearing, Connecting Rod
13041 13041-58031-01 Bearing, Connecting Rod
13041 13041-58031-02 Bearing, Connecting Rod
13041 13041-58032-01 Bearing, Connecting Rod
13041 13041-58032-02 Bearing, Connecting Rod
13101 13101-58050-01 Piston Sub-Assy, W/pin
13101 13101-58050-02 Piston Sub-Assy, W/pin
13101 13101-58050-03 Piston Sub-Assy, W/pin
13101 13103-58050 Piston Sub-Assy, W/pin
13101 13104-58050 Piston Sub-Assy, W/pin
13101 13105-58050 Piston Sub-Assy, W/pin
13101 90521-34002 Ring, Hole Snap(For Piston Pin)
13201 13201-59145 Rod Sub-Assy, Connecting
13201 13201-59266 Rod Sub-Assy, Connecting
13201 13201-59146 Rod Sub-Assy, Connecting
13201 90999-73124 Bush(For Connecting Rod Small End)
13202 13204-56040 Bearing Set, Connecting Rod
13202 13204-58020 Bearing Set, Connecting Rod
13202 13204-58050 Bearing Set, Connecting Rod (0.25)
13202 13204-58031 Bearing Set, Connecting Rod
13202 13204-58032 Bearing Set, Connecting Rod
13202 13205-56040 Bearing Set, Connecting Rod
13202 13205-58020 Bearing Set, Connecting Rod
13202 13205-58050 Bearing Set, Connecting Rod (0.50)
13202 13205-58031 Bearing Set, Connecting Rod
13202 13205-58032 Bearing Set, Connecting Rod
13202 13207-56040 Bearing Set, Connecting Rod
13202 13207-58020 Bearing Set, Connecting Rod
13202 13207-58050 Bearing Set, Connecting Rod (1.00)
13202 13207-58031 Bearing Set, Connecting Rod
13202 13207-58032 Bearing Set, Connecting Rod
13265 13265-58020 Bolt, Connecting Rod
13265 13266-58010 Nut, Hexagon(For Connecting Rod Bolt)
13405 13405-56040 Flywheel Sub-Assy
13405 13405-56041 Flywheel Sub-Assy
13405 90250-10192 Pin, Straight(For Timing Gear Cover Set)
13405 90913-01015 Bolt, Flywheel Setting
13411 13401-56040 Crankshaft
13411 13401-58061 CRANKSHAFT SUBASSY
13411 13401-58060 Crankshaft
13434 13519-56010 Spline, Oil Pump Drive
13434 13519-56011 Spline, Oil Pump Drive
13453 13453-56020 Gear, Flywheel Ring
13453 13453-56021 Gear, Flywheel Ring
13471 13470-58031 Pulley, Crankshaft
13471 13470-58032 Pulley, Crankshaft
13471 95161-30416 Pin, Straight(For Crankshaft)
13471 90105-16037 Bolt(For Crankshaft Pulley Set)
13471 90901-19032 Bolt(For Crankshaft Pulley Set)
13503 13504-56030 Shaft Sub-Assy, Idle Gear
13503 13504-58010 Shaft Sub-Assy, Idle Gear
13521 13521-56030 Gear Or Sprocket, Crankshaft Timing
13521 95161-30519 Key(For Crankshaft Timing Gear)
13525 13508-56010 Gear, Idle, No.1
13572 13572-56020 Plate, Idle Gear Thrust
13577 90105-10194 Bolt, Hexagon(For Idle Gear Bolt Lock)
13707 90401-10026 Union(For Oil Pipe, No.1)
Cylinder Block ([01.1993 - 05.1995] (9301-9505)14B,3B) 52
#OEMPart name
11401 11401-59416 Block Sub-Assy, Cylinder
11401 11401-59417 Block Sub-Assy, Cylinder
11401 11401-59535 Block Sub-Assy, Cylinder
11401 11381-58011 Retainer, Engine Rear Oil Seal
11401 96411-41200 Plug, Tight, No.1
11401 11401-59536 Block Sub-Assy, Cylinder
11401 11401-59537 Block Sub-Assy, Cylinder
11415 90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90910-09087 Plug, Water Drain Cock(For Cylinder Block)
11415 96432-23814 Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02082 Bolt(For Crankshaft Bearing Cap Set)
11416 90910-02083 Bolt(For Crankshaft Bearing Cap Set)
11431 96411-14500 Plug, Tight, No.1(For Cylinder Block)
11431 96411-64500 Plug, Tight
11431 90331-50003 Plug, Tight, No.2(For Cylinder Block)
11431 96411-45000 Plug, Tight, No.1(For Cam Housing)
11431 96411-43000 Plug, Tight, No.1
11431 96411-63000 Plug, Tight
11431 96411-43500 Plug, Tight, No.1
11431 96411-63500 Plug, Tight
11431 90331-14006 Plug, Tight, No.1
11431 96411-41400 Plug, Tight, No.5(For Cylinder Block)
11431 96411-65000 Plug, Tight, No.2(For Cylinder Block)
11432 90345-51007 Plug, W/head Taper Screw, No.1
11432 90345-53004 Plug, W/head Taper Screw, No.2
11432 90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)
11434 90250-08120 Pin, Straight, No.1
11434 90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)
11434 90253-15008 Pin, Straight (For Cylinder Head Set)
11452 11452-58030 Guide, Oil Level Gage
11452 96721-24010 Ring, O(For Timing Gear Case, Lower)
11459 11459-58020 Support, Oil Level Gage Guide
12101 12101-58140 Pan Sub-Assy, Oil
12101 90341-12026 Plug, Drain
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
13613 90915-01015 Nozzle, Oil
15301 15301-58030 Gage Sub-Assy, Oil Level
15605 15605-56010 Valve Sub-Assy, Oil Check
15708 15708-56010 Nozzle Sub-Assy, Oil, No.1
15708 15708-58020 Nozzle Sub-Assy, Oil, No.1
9011608194 90116-08194 Bolt
9011908505 90119-08505 Bolt, Washer
9012908007 90129-08007 New Genuine Part
9017908088 90179-08088 NUT
9017908088 94185-60800 NUT
9043018012 90430-18012 Gasket(For Oil Pump Outlet Pipe)
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
Cylinder Block ([05.1995 - ] (9505- )14B,15BFT,3B) 50
#OEMPart name
11401 11401-59416 Block Sub-Assy, Cylinder
11401 11401-59417 Block Sub-Assy, Cylinder
11401 11401-59535 Block Sub-Assy, Cylinder
11401 11381-58011 Retainer, Engine Rear Oil Seal
11401 96411-41200 Plug, Tight, No.1
11401 11401-59536 Block Sub-Assy, Cylinder
11401 11401-59537 Block Sub-Assy, Cylinder
11415 90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90910-09087 Plug, Water Drain Cock(For Cylinder Block)
11415 96432-23814 Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02082 Bolt(For Crankshaft Bearing Cap Set)
11416 90910-02083 Bolt(For Crankshaft Bearing Cap Set)
11431 96411-14500 Plug, Tight, No.1(For Cylinder Block)
11431 96411-64500 Plug, Tight
11431 90331-50003 Plug, Tight, No.2(For Cylinder Block)
11431 96411-45000 Plug, Tight, No.1(For Cam Housing)
11431 96411-43000 Plug, Tight, No.1
11431 96411-63000 Plug, Tight
11431 96411-43500 Plug, Tight, No.1
11431 96411-63500 Plug, Tight
11431 90331-14006 Plug, Tight, No.1
11431 96411-41400 Plug, Tight, No.5(For Cylinder Block)
11431 96411-65000 Plug, Tight, No.2(For Cylinder Block)
11432 90345-51007 Plug, W/head Taper Screw, No.1
11432 90345-53004 Plug, W/head Taper Screw, No.2
11432 90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)
11434 90250-08120 Pin, Straight, No.1
11434 90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)
11434 90253-15008 Pin, Straight (For Cylinder Head Set)
11452 11452-58030 Guide, Oil Level Gage
11452 96721-24010 Ring, O(For Timing Gear Case, Lower)
11459 11459-58020 Support, Oil Level Gage Guide
12101 12101-58140 Pan Sub-Assy, Oil
12101 90341-12026 Plug, Drain
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
13613 90915-01015 Nozzle, Oil
15301 15301-58030 Gage Sub-Assy, Oil Level
15605 15605-56010 Valve Sub-Assy, Oil Check
15708 15708-56010 Nozzle Sub-Assy, Oil, No.1
15708 15708-58020 Nozzle Sub-Assy, Oil, No.1
91622 91622-B1020 Bolt(For Transaxle & Engine Setting)
9011608194 90116-08194 Bolt
9011908505 90119-08505 Bolt, Washer
9012908007 90129-08007 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9043018012 90430-18012 Gasket(For Oil Pump Outlet Pipe)
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
Cylinder Head ([01.1993 - 05.1995] (9301-9505)14B,3B) 31
#OEMPart name
11101 11101-58050 Head Sub-Assy, Cylinder
11101 11101-58051 Head Sub-Assy, Cylinder
11101 90910-02084 Bolt(For Cylinder Head Set)
11115 11115-58080 Gasket, Cylinder Head
11115 11115-58081 Gasket, Cylinder Head
11116 90331-12004 Plug, Tight, No.1
11116 96411-41200 Plug, Tight, No.1
11116 96411-44000 Plug, Tight, No.1
11116 96411-64000 Plug, Tight, No.2
11116 90331-21001 Plug, Tight, No.3
11116 96411-62000 Plug, Tight
11116 96411-42800 Plug, Tight, No.1
11116 96411-62800 Plug, Tight, No.1
11117 90345-54005 Plug, W/head Taper Screw, No.1
11122 11122-56030 Bush, Intake Valve Guide
11158 90116-08282 Bolt, Stud(For Head To Cylinder Head Cover)
11158 92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)
11201 11201-56101 Cover Sub-Assy, Cylinder Head
11201 91511-B0850 Bolt
11201 11201-58050 Cover Sub-Assy, Cylinder Head
11201 11213-58030 Gasket, Cylinder Head Cover
11201 90179-08025 Nut, Cap(For Cylinder Head Cover)
11201 90176-08038 Nut, Cap(For Cylinder Head Cover)
11201 90179-08159 Nut, Cap(For Cylinder Head Cover)
11201 90179-08040 Nut, Cap(For Cylinder Head Cover)
11212 11228-56010 Cushion, Cylinder Head Cover
11213 11213-56030 Gasket, Cylinder Head Cover
12108 12180-13030 Cap Sub-Assy, Oil Filler
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37140 Gasket(For Oil Filler Cap)
9211260832 92112-60832 Bolt, Stud(For Water Outlet Housing)
Cylinder Head ([05.1995 - ] (9505- )14B,3B) 31
#OEMPart name
11101 11101-58050 Head Sub-Assy, Cylinder
11101 11101-58051 Head Sub-Assy, Cylinder
11101 90910-02084 Bolt(For Cylinder Head Set)
11115 11115-58080 Gasket, Cylinder Head
11115 11115-58081 Gasket, Cylinder Head
11116 90331-12004 Plug, Tight, No.1
11116 96411-41200 Plug, Tight, No.1
11116 96411-44000 Plug, Tight, No.1
11116 96411-64000 Plug, Tight, No.2
11116 90331-21001 Plug, Tight, No.3
11116 96411-62000 Plug, Tight
11116 96411-42800 Plug, Tight, No.1
11116 96411-62800 Plug, Tight, No.1
11117 90345-54005 Plug, W/head Taper Screw, No.1
11122 11122-56030 Bush, Intake Valve Guide
11158 90116-08282 Bolt, Stud(For Head To Cylinder Head Cover)
11158 92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)
11201 11201-56101 Cover Sub-Assy, Cylinder Head
11201 91511-B0850 Bolt
11201 11201-58050 Cover Sub-Assy, Cylinder Head
11201 11213-58030 Gasket, Cylinder Head Cover
11201 90179-08025 Nut, Cap(For Cylinder Head Cover)
11201 90176-08038 Nut, Cap(For Cylinder Head Cover)
11201 90179-08159 Nut, Cap(For Cylinder Head Cover)
11201 90179-08040 Nut, Cap(For Cylinder Head Cover)
11201 91511-60850 Bolt
11212 11228-56010 Cushion, Cylinder Head Cover
11213 11213-56030 Gasket, Cylinder Head Cover
12108 12180-13030 Cap Sub-Assy, Oil Filler
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37140 Gasket(For Oil Filler Cap)
Disc Wheel & Wheel Cap ([01.1993 - ] (9301- )) 32
#OEMPart name
42601 42610-36380 Wheel, Disc (For Spare)
42601 42633-55030 Nut, Hub (For Axle)
42601 42634-55030 Nut, Hub (For Axle)
42601 90942-01093 Nut, Hub (For Axle)
42601 90942-01094 Nut, Hub (For Axle)
42601 42610-36420 Wheel, Disc (For Rear)
42611 90468-10014 Clip (For Tube)
42611 90201-11009 Washer (For Tube)
42613 42613-36080 Ring, Disc Wheel Side
42618 42618-36020 Retainer, Wheel Cap
42621 42621-36130 Cap, Wheel
42621 42621-36140 Cap, Wheel
42621 42623-36020 Cap, Wheel
42622 42622-36020 Holder, Wheel Cap
42652 42605-36520 Tire Tube Set Or Tubeless Tire
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9010110202 90101-10202 BOLT HEXAGON
9010608004 90106-08004 BOLT ROUND HEXAGON
9020108057 90201-08057 New Genuine Part
9020110137 90201-10137 WASHER PLATE
9020408006 90204-08006 New Genuine Part
9020610015 90206-10015 WASHER WAVE
9094203053 90942-03053 Weight, Balance (For Disc Wheel)
9094203053 90942-03083 Weight, Balance (For Disc Wheel)
9094203053 90942-03366 Weight, Balance (For Disc Wheel)
9094203084 90942-03084 Weight, Balance (For Disc Wheel)
9094203085 90942-03085 Weight, Balance (For Disc Wheel)
9094203362 90942-03362 Weight, Balance (For Disc Wheel)
9094203364 90942-03364 Weight, Balance (For Disc Wheel)
9094203368 90942-03368 Weight, Balance (For Disc Wheel)
9323925010 93239-25010 SCREW
9331126012 93311-26012 New Genuine Part
Emblem & Name Plate ([01.1993 - ] (9301- )) 7
#OEMPart name
75310 75315-36010 Plate Assy, Front Panel
75310 75315-37011 Plate Assy, Front Panel
75431 75435-36010 Emblem, Radiator Grille (Or Front Panel)
75461 75472-36010-B2 Plate, Rear Name, No.2 (Model Mark)
75461 75472-36012 Plate, Rear Name, No.2 (Model Mark)
75461 75472-36010-B3 Plate, Rear Name, No.2 (Model Mark)
75461 75472-36011 Plate, Rear Name, No.2 (Model Mark)
Engine Oil Cooler ([01.1993 - 05.1995] (9301-9505)14B,3B) 19
#OEMPart name
15529 90341-18006 Plug (No magnet)
15710 15710-56110 Cooler Assy, Oil
15710 15710-58030 Cooler Assy, Oil
15710 90301-20001 Ring, O(For Oil Cooler)
15710 15785-58010 Gasket(For Oil Cooler)
15710 90923-05018 Gasket(For Oil Cooler)
15722 15725-56020 Gasket, Oil Cooler
15791 15701-56031 Case, Oil Cooler
15791 15701-58050 Case, Oil Cooler
9011008004 90110-08004 New Genuine Part
9017908088 90179-08088 NUT
9017908088 94185-60800 NUT
9034116012 90341-16012 Plug(For Transmission Case)
9034551007 90345-51007 Plug, W/head Taper Screw, No.1
9043016242 90430-16242 Gasket, W/head Straight Screw Plug
9043018019 90430-18019 New Genuine Part
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9212260828 92122-60828 New Genuine Part
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Engine Oil Cooler ([05.1995 - ] (9505- )14B,15B#,1BZFPE,3B) 17
#OEMPart name
15529 90341-18006 Plug (No magnet)
15710 15710-56110 Cooler Assy, Oil
15710 15710-58030 Cooler Assy, Oil
15710 15785-58010 Gasket(For Oil Cooler)
15710 90923-05018 Gasket(For Oil Cooler)
15722 15725-56020 Gasket, Oil Cooler
15791 15701-56031 Case, Oil Cooler
15791 15701-58050 Case, Oil Cooler
9011008004 90110-08004 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9034116012 90341-16012 Plug(For Transmission Case)
9034551007 90345-51007 Plug, W/head Taper Screw, No.1
9043016242 90430-16242 Gasket, W/head Straight Screw Plug
9043018019 90430-18019 New Genuine Part
9151180830 91511-80830 Bolt(For Alternator)
9212280828 92122-80828 Bolt, Stud(For Intake Manifold To Cylinder Head)
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Engine Oil Pump ([01.1993 - ] (9301- )14B,15B#,1BZFPE,3B) 19
#OEMPart name
15104 15104-58060 Strainer Sub-Assy, Oil
15104 15104-58061 Strainer Sub-Assy, Oil
15104 15149-56020 Gasket(For Oil Strainer)
15104 15149-58010 Gasket(For Oil Strainer)
15115 15115-56040 Cover, Oil Pump
15121 15121-56040 Gear, Oil Pump Drive
15122 15122-56040 Gear, Oil Pump Driven
15131 15131-24010 Valve, Oil Pump Relief
15132 15132-56080 Spring, Oil Pump Relief Valve
15133 15133-20010 Plug, Oil Pump Relief Valve
15134 15134-20010 Gasket, Oil Pump Relief Valve
15403 15403-56050 Pipe Sub-Assy, Oil Pump Outlet
15403 90401-20009 Union(For Oil Pump Outlet Pipe)
15403 90430-20018 Gasket(For Oil Pump Outlet Pipe)
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9162160818 91621-60818 Bolt(For Automatic Transmission Case Protector)
9162160818 91651-B0820 Bolt, Radiator Side Support Plate
9212260832 92122-60832 Bolt, Stud(For Oil Strainer)
9322016012 93220-16012 SCREW
Engine Overhaul Gasket Kit ([01.1993 - ] (9301- )3B) 9
#OEMPart name
4111 04111-58060 Gasket Kit, Engine Overhaul
4111 04111-58061 Gasket Kit, Engine Overhaul
4111 04111-58130 Gasket Kit, Engine Overhaul
4111 04111-58131 Gasket Kit, Engine Overhaul
4111 04111-58170 Gasket Kit, Engine Overhaul
4112 04112-58050 Gasket Kit, Engine Valve Grind
4112 04112-58051 Gasket Kit, Engine Valve Grind
4112 04112-58120 Gasket Kit, Engine Valve Grind
4112 04112-58121 Gasket Kit, Engine Valve Grind
Exhaust Brake Assembly & Vacuum Cylinder ([01.1993 - ] (9301- )BB40,42) 35
#OEMPart name
44653 44653-55010 Washer, Exhaust Valve Cover
44736 44736-36050 Bracket, Air Cleaner
46710 46710-36080 Valve Assy, Exhaust Brake
46710 46710-36250 Valve Assy, Exhaust Brake
46710 46712-36270 Cover, Exhaust Brake Bracket
46711 46711-36010 Cover, Exhaust Valve
46712 46712-36060 Cover, Exhaust Valve Link
46713 46713-36060 Bracket, Exhaust Valve
46714 46714-36010 Lever, Exhaust Valve
46715 46715-36010 Bush, Exhaust Valve, No.1
46715 46715-36060 Bush, Exhaust Valve, No.1
46717 46717-36010 Ring, Exhaust Valve Seal, No.1
46718 46718-36010 Ring, Exhaust Valve Seal, No.2
46740 46740-36090 Cleaner Assy, Exhaust Retarder
46740 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
46740 90430-12247 Gasket(For Solenoid To Air Cleaner Assy)
46744 46744-25010 Clevis, Exhaust Brake Rod Clevis
46759 46759-36030 Gasket, Exhaust Pipe
46760 46760-36250 Chamber Assy, Exhaust Brake
46765 46765-36010 Pin, Vacuum Cylinder Clevis
46766 46766-36010 Pin, Vacuum Cylinder Clevis Snap
46778 46778-36060 Bearing, Vacuum Cylinder
46781 46781-36060 Insulator, Exhaust Brake Chamber, No.1
46781 46781-28010 Insulator, Exhaust Brake Chamber, No.1
46782 46782-36130 Insulator, Exhaust Brake Chamber, No.2
46791 46791-36010 Bolt, Exhaust Valve Cover
46792 46792-36010 Bolt, Exhaust Valve Stopper
46793 46793-36010 Bolt, Exhaust Valve Link Cover
46795 46795-36010 Nut, Exhaust Valve Bracket
4679536260 46795-36260 Nut, Exhaust Valve Bracket
9011908486 90119-08486 BOLT WWASHER
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9165140614 91651-40614 Bolt
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
Exhaust Brake Tube & Clamp ([01.1993 - ] (9301- )BB4#,5#,HZB50) 11
#OEMPart name
44763 44763-36040 Tube, Hose To Hose, No.1
44773 44773-36160 Hose, Solenoido To Retarder
44773 44773-36180 Hose, Solenoido To Retarder
44775 44775-36030 Hose, No.3(For Clutch Booster Vacuum)
44775 44775-36100 Hose, No.3(For Clutch Booster Vacuum)
44779 44779-36100 Hose, Connector Tube To Solenoid, No.1
44779 44779-36120 Hose, Connector Tube To Solenoid, No.1
44912 90404-51319 Union, No.1
9046110780 90461-10780 New Genuine Part
9165160616 91651-60616 BOLT
9613341500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
Exhaust Pipe ([01.1993 - 02.2006] (9301-0602)14B,3B ; (0602-1501)14B..GEN) 45
#OEMPart name
17410 17401-58270 Pipe Assy, Exhaust, Front
17410 91651-B0835 BOLT
17410 17401-58271 Pipe Assy, Exhaust, Front
17410 17571-58301 Bracket, Exhaust Pipe Support, No.1
17410 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
17410 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
17410 90917-06059 Gasket, Exhaust Pipe
17420 17403-58400 Pipe Assy, Exhaust, Center
17420 17403-58401 Pipe Assy, Exhaust, Center
17420 90917-06042 Gasket, Exhaust Pipe
17420 90917-06062 Gasket, Exhaust Pipe
17420 90080-43034 Gasket, Exhaust Pipe
17430 17405-58490 Pipe Assy, Exhaust, Tail
17430 17405-58491 Pipe Assy, Exhaust, Tail
17430 17576-56040 Clamp No.1, Exhaust Pipe Center, Center
17430 17567-58010 Cushion, Exhaust Pipe Front (For Rear)
17430 17561-58020 Bracket, Exhaust Tail Pipe (For Rear)
17430 17567-17010 Cushion, Exhaust Pipe Center, Rear
17430 17504-56020 Clamp No.2, Exhaust Pipe Center, Center
17444 17444-58010 Spacer, Exhaust Front Pipe
17451 46759-36030 Gasket, Exhaust Pipe
17551 17551-17010 Insulator, Exhaust Pipe Heat, No.1
17551 17551-17011 Insulator, Exhaust Pipe Heat, No.1
17571 17571-58300 Bracket, Exhaust Pipe Support, No.1
17571 90461-32031 CLAMP
17572 17572-17030 Bracket, Exhaust Pipe Support, No.2
17572 17579-73010 Bracket, Exhaust Pipe Front (For Front)
17573 17572-58090 Bracket, Exhaust Pipe Support, No.3
17574 17574-17010 Bracket, Exhaust Pipe Support, No.4
91631 91631-B0820 BOLT WWASHER
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9011908486 90119-08486 BOLT WWASHER
9011908667 90119-08667 BOLT
9011910246 90119-10246 Bolt W Washer
9017906007 90179-06007 Nut
9046132007 90461-32007 Clamp No.1, Exhaust Tail Pipe (For Front)
9151561035 91515-61035 BOLT
9162261035 91622-61035 BOLT WWASHER
9163260820 91632-60820 New Genuine Part
9164180825 91641-80825 BOLT WWASHER
9165141020 91651-41020 BOLT W-WASHER
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9418560800 94185-60800 NUT
9418561000 94185-61000 NUTLOCK
Floor Mat & Silencer Pad ([01.1993 - 01.2015] (9301-1501)RHD) 49
#OEMPart name
58577 58577-36010 Set Plate, Rear Floor Mat Side, Rear Rh
58577 58577-36060 Set Plate, Rear Floor Mat Side, Rear Rh
58584 58584-36010 Plate, Rear Floor Mat Support Side, No.4
58584 58584-36050 Plate, Rear Floor Mat Support Side, No.4
58611 58611-36010-E0 Plate, Mat Set, No.1
58611 58611-36010-B0 Plate, Mat Set, No.1
58612 58612-36010-E0 Plate, Mat Set, No.2 Rh
58613 58613-36010-E0 Plate, Mat Set, No.3
58613 58613-36010-B1 Plate, Mat Set, No.3
58614 58614-36020-E0 Plate, Mat Set, No.4
58614 58614-36020-B1 Plate, Mat Set, No.4
58615 58615-36020 Plate, Mat Set, No.5 A
58615 58616-36030 Plate, Mat Set, No.5 A
58616 58624-36050 Plate, Mat Set, No.6 A
58617 58617-36040 Plate, Rear Wheel House Mat
58622 58622-36010-E0 Plate, Mat Set, No.2 Lh
58625 58625-36040 Plate, Rear Wheel House Mat, No.1
58625 58626-36050 Plate, Rear Wheel House Mat, No.1
58626 58627-36040 Plate, Rear Wheel House Mat, No.1
58632 58632-36010 Plate, Engine Service Hole Mat, Rear
58632 58632-36040 Plate, Engine Service Hole Mat, Rear
58632 58632-36020 Plate, Engine Service Hole Mat, Rear
58634 58634-36020 Plate, Engine Service Hole Mat, Rh
58634 58634-36040 Plate, Engine Service Hole Mat, Rh
58634 58634-36080 Plate, Engine Service Hole Mat, Rh
58644 58644-36020 Plate, Engine Service Hole Mat, Lh
58644 58644-36030 Plate, Engine Service Hole Mat, Lh
58644 58644-36050 Plate, Engine Service Hole Mat, Lh
58651 58651-36010-E0 Plate, Front Door Mat, No.1
58651 58651-36010-B0 Plate, Front Door Mat, No.1
58671 58671-36020 Plate, Center Door Step Mat, Front
58672 58672-36020 Plate, Center Door Step Mat, Rear
58673 58673-36020 Plate, Center Door Step Mat Side
58675 58675-36030-E0 Plate, Center Door Pillar Mat, Front
58675 58675-36030-B0 Plate, Center Door Pillar Mat, Front
58676 58676-36030-E0 Plate, Center Door Pillar Mat, Rear
58676 58676-36030-B1 Plate, Center Door Pillar Mat, Rear
9016235002 90162-35002 New Genuine Part
9016240037 90162-40037 New Genuine Part
9016750062 90167-50062 New Genuine Part
9018904013 90189-04013 New Genuine Part
9018904035 90189-04035 GROMMET
9018905127 90189-05127 New Genuine Part
9033903003 90339-03003 New Genuine Part
9046805112 90468-05112 Clip(For Cowl Side Trim)
9353015014 93530-15014 Screw
9356014014 93560-14014 SCREW
9356015016 93560-15016 New Genuine Part
9356054014 93560-54014 SCREW
Floor Mat & Silencer Pad ([01.1993 - ] (9301- )RHD) 17
#OEMPart name
58323 58323-36010 Mat, Footrest, Lh
58510 58510-36100-E0 Mat Assy, Front Floor, Front No.1
58510 58510-36400-E0 Mat Assy, Front Floor, Front No.1
58521 58521-36020-E0 Mat, Engine Service Hole Cover
58521 58521-36080-E0 Mat, Engine Service Hole Cover
58521 58521-36080-B0 Mat, Engine Service Hole Cover
58540 58540-36060-E0 Mat Assy, Floor, Rear
58540 58540-36200-E0 Mat Assy, Floor, Rear
58540 58540-36200-B0 Mat Assy, Floor, Rear
58581 58581-36610-E0 Mat, Rear Floor
58581 58581-36611-E0 Mat, Rear Floor
58581 58581-36612-E0 Mat, Rear Floor
58581 58581-3C450-E0 Mat, Rear Floor
58581 58581-3C450-B0 Mat, Rear Floor
5877590 58775-90B00 Retainer, Jack Rest
9053006001 90530-06001 Fastener, Hook
9354014010 93540-14010 Clip, Headlining Retainer
Frame ([01.1993 - 08.2004] (9301-0408)BB4#,BZB40) 34
#OEMPart name
51100 51003-3B640 Frame Sub-Assy
51100 51003-3B641 Frame Sub-Assy
51202 51201-36150 Crossmember Sub-Assy, Frame, No.1
51204 51203-36320 Crossmember Sub-Assy, Frame, No.3
51205 51204-36190 Crossmember Sub-Assy, Frame, No.4
51205 51204-36191 Crossmember Sub-Assy, Frame, No.4
51205 51204-36192 Crossmember Sub-Assy, Frame, No.4
51205 51204-36193 Crossmember Sub-Assy, Frame, No.4
51206 51206-36090 Crossmember Sub-Assy, Frame, No.6
51207 51207-36110 Crossmember Sub-Assy, Frame, No.7
51207 51207-36111 Crossmember Sub-Assy, Frame, No.7
51208 51281-36030 Crossmember Sub-Assy, Frame, No.8
51371 51371-36070 Gusset, Frame No.7 Crossmember, No.1
51401 51421-36210 Bracket Sub-Assy, Engine Front Mounting, Rh
51505 51505-36030 Support Sub-Assy, Upper Control Arm
51506 51506-36120 Support Sub-Assy, Upper Control Arm, Lh
51511 51511-36080 Seat, Front Spring Support
51717 51717-36010 Plate, Body Support Bracket
51751 51751-36060 Bracket, Body Support, No.1
51753 51753-36050 Bracket, Body Support, No.2
51753 51753-36051 Bracket, Body Support, No.2
51758 51758-36020 Bracket, Body Support, No.4 Rh
51761 51761-36040 Bracket, Body Support, No.5 Rh
51761 51761-36041 Bracket, Body Support, No.5 Rh
51763 51763-36060 Bracket, Body Support, No.6
51763 51763-36061 Bracket, Body Support, No.6
51765 51765-36050 Bracket, Frame Body Mounting, No.7 Rh
51765 51765-36051 Bracket, Frame Body Mounting, No.7 Rh
51767 51767-36150 Bracket, Frame Body Mounting, No.8 Rh
57107 57121-36020 Bracket Sub-Assy, Strut Bar, Rh
57108 57122-36020 Bracket Sub-Assy, Strut Bar, Lh
9011910326 90119-10326 New Genuine Part
9011910326 90119-10719 BOLT WWASHER
9095001743 90950-01743 PLUG HOLE
Front Axle Arm & Steering Knuckle ([01.1993 - ] (9301- )) 42
#OEMPart name
43132 43132-36080 Stopper, Steering Knuckle, Rh
43133 43133-36040 Stopper, Steering Knuckle, Lh
43211 43211-36150 Knuckle, Steering, Rh
43212 43212-36120 Knuckle, Steering, Lh
43330 90345-06014 Plug (For Ball Joint)
43346 43346-36010 Protector, Lower Ball Joint Dust Cover
43350 43350-39095 Joint Assy, Front Upper Ball
43350 94146-72000 Nut (For Front Upper Ball Joint Rh)
48066 48601-39015 Arm Sub-Assy, Front Suspension, Upper Rh
48066 48601-39025 Arm Sub-Assy, Front Suspension, Upper Rh
48067 48602-39015 Arm Sub-Assy, Front Suspension, Upper Lh
48067 48602-39025 Arm Sub-Assy, Front Suspension, Upper Lh
48068 48605-39015 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068 48607-36010 Arm Sub-Assy, Front Suspension, Lower No.2 Rh
48068 90171-22001 Nut(For Front Suspension Lower Arm No.1 Rh)
48068 90901-01002 Bolt(For Front Suspension Lower Arm No.1 Rh)
48069 48606-39015 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167 48106-36020 Arm, Front Suspension Torque, Rh
48167 90101-16012 Bolt(For Torque Arm Setting)
48194 48190-36010 Cam Assy, Camber Adjust
48194 48198-36020 Cam, Front Suspension Camber Adjust, No.2
48194 48190-36020 Cam, Front Suspension Camber Adjust, No.3 Rh
48331 48304-36140 Bumper, Front Spring, No.1 Rh
48332 48332-36030 Bumper, Front Spring, No.2 Rh
48631 96459-00609 Fitting, Grease
48654 48061-36020 Bush, Front Lower Arm, No.1 Rh
48655 48655-36010 Bush, Front Lower Arm, No.2 Rh
9010116013 90101-16013 BOLT
9010116014 90101-16014 BOLT
9010514015 90105-14015 Bolt, Upper Arm Set
9010516014 90105-16014 Bolt, Upper Arm Set
9011908251 90119-08251 BOLT
9011910792 90119-10792 BOLT WWASHER
9017014008 90170-14008 NUT
9017016003 90170-16003 NUT
9017018003 90170-18003 NUT
9025204005 90252-04005 PIN COTTER
9167480820 91674-80820 BOLT FLANGE
9413001602 94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)
9418041000 94180-41000 Nut
9418561000 94185-61000 NUTLOCK
9462211800 94622-11800 WASHER
Front Axle Hub ([01.1993 - 07.1999] DISC BRAKE (9301-9907)) 15
#OEMPart name
43501 90942-02071 Bolt, Hub (For Rear Axle Rh)
43501 90311-68001 Seal, Oil (For Front Axle Hub Rh)
43501 90170-26001 Nut (For Front Axle Shaft Rh)
43501 90214-27001 Washer, Claw (For Front Axle Hub Rh)
43501 90368-42045 Bearing (For Front Axle Hub Inner Rh)
43501 90368-28001 Bearing (For Front Axle Hub Outer Rh)
43502 90942-02072 Bolt, Hub (For Rear Axle Lh)
43510 43510-39055 Hub & Disc(Drum) Assy, Front Axle, Rh
43512 43512-36170 Disc, Front
43512 43512-36171 Disc, Front
43514 43514-36050 Cap, Front Axle Hub Grease, Rh
43520 43520-39035 Hub & Disc(Drum) Assy, Front Axle, Lh
43525 43525-36010 Cap, Front Wheel Adjusting Lock
9010514101 90105-14101 BOLT WASHER BASED
9025205001 90252-05001 PINCOTTER
Front Axle Hub ([01.1993 - 07.1999] DRUM BRAKE (9301-9907)) 13
#OEMPart name
42627 42627-36011 Bolt, Front Wheel Cap Set
43501 90942-02071 Bolt, Hub (For Rear Axle Rh)
43501 90311-68001 Seal, Oil (For Front Axle Hub Rh)
43501 90170-26001 Nut (For Front Axle Shaft Rh)
43501 90214-27001 Washer, Claw (For Front Axle Hub Rh)
43501 90368-42045 Bearing (For Front Axle Hub Inner Rh)
43501 90368-28001 Bearing (For Front Axle Hub Outer Rh)
43502 90942-02072 Bolt, Hub (For Rear Axle Lh)
43514 43514-36050 Cap, Front Axle Hub Grease, Rh
43525 43525-36010 Cap, Front Wheel Adjusting Lock
9010514101 90105-14101 BOLT WASHER BASED
9025205001 90252-05001 PINCOTTER
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
Front Bumper & Bumper Stay ([01.1993 - 08.2004] (9301-0408) ; (0408-0708)ARL,GCC,GEN,TAIW ; (070 8- )26S,30S..GEN) 4
#OEMPart name
52111 52018-36900 Bumper Assy, Front
52141 52141-36040 Stay, Front Bumper, Rh
52142 52142-36040 Stay, Front Bumper, Lh
91553 91553-A0816 BOLT FLANGE
Front Disc Brake Caliper & Dust Cover ([01.1993 - 05.1995] (9301-9505)) 29
#OEMPart name
4479 04479-36020 Cylinder Kit, Disc Brake, Front
4491 04491-36070 Pad Kit, Disc Brake, Front
4491 04465-36020 Pad Kit, Disc Brake, Front
4945 04945-36010 Shim Kit, Anti Squeal, Front
4947 04947-36020 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47703 47703-36040 Cover Sub-Assy, Disc Brake Dust, Front Rh
47704 47704-36040 Cover Sub-Assy, Disc Brake Dust, Front Lh
47716 47716-36020 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-36020 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-36030 Mounting, Front Disc Brake Cylinder, Rh
47721 90119-08992 Bolt(For Front Disc Brake Cylinder Slide)
47721 90119-12256 Bolt(For Front Disc Brake Cylinder Slide)
47722 47722-36030 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-36030 Cylinder Assy, Front Disc Brake, Rh
47731 47731-36020 Piston, Front Disc Brake
47731 90522-61001 Ring, Set(For Front Disc Brake Piston)
47743 47743-36020 Spring, Anti-Squeal(For Front Disc Brake)
47744 47742-36010 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744 47745-36010 Shim, Anti-Squeal, No.3(For Front Disc Brake)
47750 47750-36030 Cylinder Assy, Disc Brake, Lh
47769 47769-36030 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-36040 Boot, Bush Dust, No.1
47775 47775-36050 Boot, Bush Dust, No.1
47779 47779-36010 Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781 90105-16044 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47781 90105-16045 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
9413001602 94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)
Front Disc Brake Caliper & Dust Cover ([05.1995 - ] (9505- )BB4#,58,59,BZB40,HZB50,RZB40,50,TRB40 ,50,XZB59 ; (1108- )17S) 28
#OEMPart name
4465 04465-36020 Pad Kit, Disc Brake, Front
4479 04479-36020 Cylinder Kit, Disc Brake, Front
4945 04945-36010 Shim Kit, Anti Squeal, Front
4947 04947-36020 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47703 47703-36040 Cover Sub-Assy, Disc Brake Dust, Front Rh
47704 47704-36040 Cover Sub-Assy, Disc Brake Dust, Front Lh
47716 47716-36020 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-36020 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-36030 Mounting, Front Disc Brake Cylinder, Rh
47721 90119-08992 Bolt(For Front Disc Brake Cylinder Slide)
47721 90119-12256 Bolt(For Front Disc Brake Cylinder Slide)
47722 47722-36030 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-36030 Cylinder Assy, Front Disc Brake, Rh
47731 47731-36020 Piston, Front Disc Brake
47731 90522-61001 Ring, Set(For Front Disc Brake Piston)
47743 47743-36020 Spring, Anti-Squeal(For Front Disc Brake)
47744 47742-36010 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744 47745-36010 Shim, Anti-Squeal, No.3(For Front Disc Brake)
47750 47750-36030 Cylinder Assy, Disc Brake, Lh
47769 47769-36030 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-36040 Boot, Bush Dust, No.1
47775 47775-36050 Boot, Bush Dust, No.1
47779 47779-36010 Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781 90105-16044 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47781 90105-16045 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
9413001602 94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)
Front Door Lock & Handle ([01.1993 - ] (9301- )) 21
#OEMPart name
69205 69205-60030-A0 Handle Sub-Assy, Front Door Inside, Rh
69205 69205-60040-A0 Handle Sub-Assy, Front Door Inside, Rh
69205 90541-04018 Cushion(For Front Door Inside Handle)
69210 69210-36010 Handle Assy, Front Door, Outside Rh
69277 69277-60010-A0 Bezel, Front Door Inside Handle, Rh
69277 69277-60010-A1 Bezel, Front Door Inside Handle, Rh
69310 69310-36010 Lock Assy, Front Door, Rh
69310 69310-36020 Lock Assy, Front Door, Rh
69410 69410-87001 Plate Assy, Front Door Lock Striker
69410 69410-AA020 Plate Assy, Front Door Lock Striker
69749 69749-12010 Clamp(For Hood Lock Control Cable)
69759 69759-24070 Snap(For Rear Door Inside Handle)
69759 69759-30021 Silencer, Back Door Lock Link
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880028 90148-80028 SCREW, HEX LOBULAR
9015960081 90159-60081 SCREW
9018906018 90189-06018 GROMMET
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9352054012 93520-54012 Screw
Front Door Panel & Glass ([01.1993 - ] DOOR PANEL (9301- )) 51
#OEMPart name
61295 61295-36010 Bracket, Front Door Check Arm
62035 62035-36010 Frame Sub-Assy, Front Door Window, Outer Rh
62035 62035-36030 Frame Sub-Assy, Front Door Window, Outer Rh
62035 62035-36031 Frame Sub-Assy, Front Door Window, Outer Rh
62039 62039-36010 Frame Sub-Assy, Front Door Window, Center Rh
62039 62039-36011 Frame Sub-Assy, Front Door Window, Center Rh
62039 62039-36012 Frame Sub-Assy, Front Door Window, Center Rh
62269 62269-90K01 Film, Side Window Frame
62315 62315-36020 Glass, Front Door Window, Front Rh
62315 62315-36050 Glass, Front Door Window, Front Rh
62317 62317-36020 Glass, Front Door Window, Rear Rh
62317 62317-36050 Glass, Front Door Window, Rear Rh
62356 62255-36010 Weatherstrip, Front Door Window, Center
62357 62256-36010 Weatherstrip, Front Door Window, Center Rear
62357 62357-36011 Weatherstrip, Front Door Window, Center Rear
62375 62376-36010-A0 Clip, Front Door Window
62375 62376-36010-B0 Clip, Front Door Window
62375 62376-36010-A1 Clip, Front Door Window
62384 62384-36010-A0 Cap, Side Window
62384 62384-36010-A1 Cap, Side Window
62411 62411-36010 Run, Front Door Window, Rh
62411 62411-36020 Run, Front Door Window, Rh
62411 62411-36021 Run, Front Door Window, Rh
62746 62746-36010 Packing, Quarter Window
62746 62746-90K00 Weatherstrip, Side Window Glass, Rh
62777 62777-36010 Cap, Side Window Center Sash
62777 62777-36012 Cap, Side Window Center Sash
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62910 62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)
67001 67001-36120 Panel Sub-Assy, Front Door, Rh
67001 67001-36180 Panel Sub-Assy, Front Door, Rh
67831 67831-36010 Cover, Front Door Service Hole, Rh
67833 67833-36020 Cover, Front Door Service Hole, No.2 Rh
67861 67861-36010 Weatherstrip, Front Door, Rh
67863 67863-36010 Weatherstrip, Front Door, No.2 Rh
67867 67867-12150 Clip(For Hood Air Intake Duct Seal)
67867 67868-22020 Retainer, Front Door Weatherstrip, Rh
68610 68610-36010 Check Assy, Front Door
68617 68617-20011 Pin(For Door Check)
69271 69271-36010-E0 Handle, Front Door Inside, Rh
91553 91553-A0614 BOLT FLANGE
9017906128 90179-06128 NUT
9018906018 90189-06018 GROMMET
9033340001 90333-40001 Plate, Noise Control, No.1
9046805116 90468-05116 CLIP
9095001886 90950-01886 PLUG HOLE
9095001959 90950-01959 Cover, Console Box Hole
9354024010 93540-24010 Screw, Roof Headlining Trim
9354054014 93540-54014 SCREW
9354056025 93540-56025 SCREW
Front Door Panel & Glass ([01.1993 - ] DOOR TRIM (9301- )) 11
#OEMPart name
67601 67610-36030-E0 Board Sub-Assy, Front Door Trim, Rh
67601 67610-36050-E0 Board Sub-Assy, Front Door Trim, Rh
67601 67610-36050-E3 Board Sub-Assy, Front Door Trim, Rh
67777 67777-36010-A0 Pocket, Front Door Trim, Rh
67777 67777-36010-B0 Pocket, Front Door Trim, Rh
6777112050 67771-12050 Clip, Radiator Grille
9016840048 90168-40048 New Genuine Part
9018304057 90183-04057 New Genuine Part
9018906018 90189-06018 GROMMET
9046710161 90467-10161 Clip
9354056025 93540-56025 SCREW
Front Door Window Regulator & Hinge ([01.1993 - ] (9301- )) 3
#OEMPart name
68710 68710-36010 Hinge Assy, Front Door, Upper Rh
68730 68730-36010 Hinge Assy, Front Door, Lower Rh
9011908093 90119-08093 BOLT
Front Floor Panel & Front Floor Member ([01.1993 - 05.1997] (9301-9705)RHD) 127
#OEMPart name
53895 53895-36030 Shield, Side Floor Apron, Front
55123 55123-36010 Reinforcement, Steering Support
55149 55149-36010 Bracket, Dash Wiring Harness
57101 57101-36020 Crossmember Sub-Assy, Floor, No.1
57101 57101-36040 Crossmember Sub-Assy, Floor, No.1
58015 58015-36010 Panel Sub-Assy, Front Floor Housing, Front Rh
58015 58015-36011 Panel Sub-Assy, Front Floor Housing, Front Rh
58016 58016-36020 Panel Sub-Assy, Front Floor Housing, Front Lh
58017 58017-36010 Panel Sub-Assy, Front Floor Housing, Rear Rh
58017 58017-36011 Panel Sub-Assy, Front Floor Housing, Rear Rh
58018 58018-36020 Panel Sub-Assy, Front Floor Housing, Rear Lh
58103 58103-36010 Reinforcement Sub-Assy, Front Floor, Front
58111 58111-36020 Pan, Front Floor, Rh
58111 58111-36022 Pan, Front Floor, Rh
58111 58111-36021 Pan, Front Floor, Rh
58111 58111-36030 Pan, Front Floor, Rh
58111 58111-36032 Pan, Front Floor, Rh
58111 58111-36031 Pan, Front Floor, Rh
58112 58112-36030 Panel, Front Floor, Lh
58112 58112-36031 Panel, Front Floor, Lh
58113 58113-36020 Panel, Front Floor, Center
58113 58113-36021 Panel, Front Floor, Center
58113 90333-25001 Plug, Hole(For Hood)
58113 58113-36130 Panel, Front Floor, Center
58113 58113-36131 Panel, Front Floor, Center
58113 58431-36091 Silencer, Engine Room Side, Front Rh
58118 58118-36010 Reinforcement, Front Floor Panel, No.2
58157 58157-36010 Stay, Front Floor Housing, Rear Rh
58158 58158-36010 Stay, Front Floor Housing, Rear Lh
58171 58107-36010 Reinforcement, Parking Brake Base
58177 58177-36010 Extension, Front Floor Panel, Rh
58178 58178-36010 Extention, Front Floor Panel, Lh
58179 58179-36010 Bracket, Accelerator Cable Clamp
58181 58181-36010 Bracket, Front Seat Inside Mounting, Front Rh
58183 58184-36010 Bracket, Front Seat Mounting, Outside
58188 58188-36010 Bracket, Accelerator Pedal Stopper
58193 58193-36010 Bracket, Instrument Panel Brace Mounting
58193 58193-36011 Bracket, Instrument Panel Brace Mounting
58197 58197-36010 Plate, Vacuum Tube Bracket, Rh
58209 58209-36010 Cover Sub-Assy, Heater Air Intake
58217 58217-36010 Plate, Front Floor
58251 58251-36010 Reinforcement, Front Seat, Front Rh
58269 58269-36010 Cover, Parking Brake Cable, Rh
58286 58280-36010 Boot, Shift & Select Lever, No.1
58316 58316-36010-E0 Plate, Footrest, Rear
58316 58316-36010-B0 Plate, Footrest, Rear
58332 58332-36020 Board, Front Footrest, No.2
58334 58334-36010-E0 Mat, Front Footrest, No.2
58334 58334-36010-B0 Mat, Front Footrest, No.2
58341 58341-36040 Leg, Rh Footrest, Lh
58410 58410-36011-E1 Cover, Engine Service Hole
58410 58410-36031-E0 Cover, Engine Service Hole
58410 58410-36030 Cover, Engine Service Hole
58410 58410-36031 Cover, Engine Service Hole
58410 58410-36100 Cover, Engine Service Hole
58410 58410-36100-B1 Cover, Engine Service Hole
58420 58420-36030 Cover Assy, Engine Service Hole, No.2
58420 58420-36080 Cover Assy, Engine Service Hole, No.2
58424 58424-36020 Packing, Engine Cover
58431 58431-36030 Silencer, Engine Room Side, Front Rh
58431 58431-36100 Silencer, Engine Room Side, Front Rh
58432 58432-36010 Silencer, Engine Room Side, Rear Rh
58433 58433-36020 Silencer, Engine Room Side End
58433 58433-36070 Silencer, Engine Room Side End
58441 58441-36030 Silencer, Enging Room Side, Front Lh
58441 58441-36090 Silencer, Enging Room Side, Front Lh
58442 58442-36010 Silencer, Enging Room Side, Rear Lh
58442 58442-36100 Silencer, Enging Room Side, Rear Lh
58444 58444-36010 Packing, Engine Sub Cover
58444 58444-36050 Packing, Engine Sub Cover
58492 58492-36010 Packing, Relay Block Hole Cover
58493 58493-36010-E0 Retainer, Engine Cover, No.3
58493 58493-36010-B1 Retainer, Engine Cover, No.3
58701 58701-36010 Panel Sub-Assy, Engine Service Cover, Front
58701 58701-36011 Panel Sub-Assy, Engine Service Cover, Front
58701 58701-36080 Panel Sub-Assy, Engine Service Cover, Front
58704 58704-36010-E0 Hook Sub-Assy, Engine Service Cover Catch, Rear
58704 58704-36010-B0 Hook Sub-Assy, Engine Service Cover Catch, Rear
58704 58704-36040-E0 Hook Sub-Assy, Engine Service Cover Catch, Rear
58704 58704-36041 Hook Sub-Assy, Engine Service Cover Catch, Rear
58709 58709-36010-E0 Catch Sub-Assy, Engine Service Cover
58709 58709-36011-B0 Catch Sub-Assy, Engine Service Cover
58709 58709-36011-E0 Catch Sub-Assy, Engine Service Cover
58709 58709-36030-E0 Catch Sub-Assy, Engine Service Cover
58709 58709-36031 Catch Sub-Assy, Engine Service Cover
58726 58726-36010 Plate, Engine Service Cover, Front Upper
58728 58728-36010 Plate, Engine Service Cover, No.2
58733 58733-36010 Weatherstrip, Engine Service Cover, Front
58734 58734-36010 Weatherstrip, Engine Service Cover, Rear
58734 58734-36030 Weatherstrip, Engine Service Cover, Rear
58755 58755-95D00 Knob, Battery Service Hole Cover
59263 59263-95D00 Hook, Engine Cover Lock
76621 76621-36010 Mudguard, Front Body, Front Rh
76622 76622-36010 Mudguard, Front Body, Front Lh
76623 76623-36010 Mudguard, Front Body, Rear Rh
76623 76623-36011 Mudguard, Front Body, Rear Rh
76624 76624-36010 Mudguard, Front Body, Rear Lh
76624 76624-36011 Mudguard, Front Body, Rear Lh
8271136110 82711-36110 Wire, Fuse To Fuse(for Combustion Heater)
8271436010 82714-36010 New Genuine Part
9011906166 90119-06166 BOLT
9011906543 90119-06543 BOLT
9011906614 90119-06614 BOLT WWASHER
9011906614 90119-06877 BOLT WWASHER
9011906615 90119-06615 BOLT, WWASHER
9011906699 90119-06699 BOLT WWASHER
9015960120 90159-60120 New Genuine Part
9046707103 90467-07103 Clip(For Front Fender Mudguard)
9046707103 90467-07138-C0 Clip
9046707132 90467-07132 Clip
9046709123 90467-09123 Clip(For Deck Board No.1)
9054006032 90540-06032 CUSHION
9054109080 90541-09080 Cushion(For Luggage Compartment Door Panel)
9095001133 90950-01133 Plug, Hole(For Front Fender Apron)
9095001181 90950-01181 Plug, Hole(For Front Fender Apron)
9095001189 90950-01189 Plug, Hole, No.3(For Dash Panel)
9095001194 90950-01194 New Genuine Part
9095001345 90950-01345 New Genuine Part
9095001450 90950-01450 Plug
9095001557 90950-01557 PLUG
9165140625 91651-40625 New Genuine Part
9165160618 91651-60618 Bolt(For Oil Receiver Pipe)
9323955016 93239-55016 SCREW
9331116012 93311-16012 Screw, Rear Axle Bearing Lock Nut
9353053512 93530-53512 New Genuine Part
9353053512 93530-53012 New Genuine Part
9356714512 93567-14512 SCREW
Front Floor Panel & Front Floor Member ([01.1993 - ] (9301- )) 43
#OEMPart name
53711 53711-36010 Apron, Front Fender, Rh
53711 53711-36011 Apron, Front Fender, Rh
53712 53712-36010 Apron, Front Fender, Lh
53712 53712-36011 Apron, Front Fender, Lh
55161 55161-36020 Bracket, Heater Mounting, Rh
55162 55162-36020 Bracket, Heater Mounting, Lh
57011 57011-36010 Member Sub-Assy, Floor, Rh
57011 57011-36070 Member Sub-Assy, Floor, Rh
57012 57012-36010 Menber Sub-Assy
57102 57102-36010 Crossmenber Sub-Assy, Floor, No.2
57102 57102-36011 Crossmenber Sub-Assy, Floor, No.2
58115 58115-36010 Reinforcement, Front Floor Panel
58115 58115-36080 Reinforcement, Front Floor Panel
58127 58127-36010 Gusset, Shift & Select Lever Support
58127 58127-36020 Gusset, Shift & Select Lever Support
58173 58043-36030 Angle, Front Floor Side, Rh
58173 58043-36050 Angle, Front Floor Side, Rh
58173 58043-36051 Angle, Front Floor Side, Rh
58174 58174-36010 Angle Sub-Assy, Front Floor Side, Lh
58174 58174-36060 Angle Sub-Assy, Front Floor Side, Lh
58175 58108-36020 Reinforcement, Parking Brake Base, No.1
58175 58108-36030 Reinforcement, Parking Brake Base, No.1
58175 58108-36032 Reinforcement, Parking Brake Base, No.1
58175 90333-20001 PLUG
58440 58440-36010-E0 Cover Assy, Battery Service Hole
58440 58440-36010-B1 Cover Assy, Battery Service Hole
58449 58449-36010 Weatherstrip, Battery Service Cover
58497 58497-36010-E0 Plate, Battery Service Hole Cover Lock
58755 58755-95D00 Knob, Battery Service Hole Cover
59263 59263-95D00 Hook, Engine Cover Lock
8271526720 82715-26720 Bracket, Wiring Harness Clamp
9011906324 90119-06324 Bolt
9017605013 90176-05013 New Genuine Part
9017606009 90176-06009 New Genuine Part
9033330004 90333-30004 PLUG
9046707132 90467-07132 Clip
9090467033 90904-67033 Clip(For Deck Board No.1)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9324016008 93240-16008 New Genuine Part
9331116012 93311-16012 Screw, Rear Axle Bearing Lock Nut
9354055014 93540-55014 New Genuine Part
Front Floor Panel & Front Floor Member ([05.1997 - ] (9705- )RHD) 142
#OEMPart name
53895 53895-36030 Shield, Side Floor Apron, Front
55123 55123-36010 Reinforcement, Steering Support
55149 55149-36010 Bracket, Dash Wiring Harness
57101 57101-36020 Crossmember Sub-Assy, Floor, No.1
57101 57101-36040 Crossmember Sub-Assy, Floor, No.1
58015 58015-36010 Panel Sub-Assy, Front Floor Housing, Front Rh
58015 58015-36011 Panel Sub-Assy, Front Floor Housing, Front Rh
58016 58016-36020 Panel Sub-Assy, Front Floor Housing, Front Lh
58017 58017-36010 Panel Sub-Assy, Front Floor Housing, Rear Rh
58017 58017-36011 Panel Sub-Assy, Front Floor Housing, Rear Rh
58018 58018-36020 Panel Sub-Assy, Front Floor Housing, Rear Lh
58103 58103-36010 Reinforcement Sub-Assy, Front Floor, Front
58111 58111-36020 Pan, Front Floor, Rh
58111 58111-36022 Pan, Front Floor, Rh
58111 58111-36021 Pan, Front Floor, Rh
58111 58111-36030 Pan, Front Floor, Rh
58111 58111-36032 Pan, Front Floor, Rh
58111 58111-36031 Pan, Front Floor, Rh
58112 58112-36030 Panel, Front Floor, Lh
58112 58112-36031 Panel, Front Floor, Lh
58113 58113-36020 Panel, Front Floor, Center
58113 58113-36021 Panel, Front Floor, Center
58113 90333-25001 Plug, Hole(For Hood)
58113 58113-36130 Panel, Front Floor, Center
58113 58113-36131 Panel, Front Floor, Center
58113 58431-36091 Silencer, Engine Room Side, Front Rh
58118 58118-36010 Reinforcement, Front Floor Panel, No.2
58123 58123-36040 Panel, Front Floor, Center Lh
58157 58157-36010 Stay, Front Floor Housing, Rear Rh
58158 58158-36010 Stay, Front Floor Housing, Rear Lh
58171 58107-36010 Reinforcement, Parking Brake Base
58177 58177-36010 Extension, Front Floor Panel, Rh
58178 58178-36010 Extention, Front Floor Panel, Lh
58179 58179-36010 Bracket, Accelerator Cable Clamp
58181 58181-36010 Bracket, Front Seat Inside Mounting, Front Rh
58183 58184-36010 Bracket, Front Seat Mounting, Outside
58188 58188-36010 Bracket, Accelerator Pedal Stopper
58193 58193-36010 Bracket, Instrument Panel Brace Mounting
58193 58193-36011 Bracket, Instrument Panel Brace Mounting
58197 58197-36010 Plate, Vacuum Tube Bracket, Rh
58209 58209-36010 Cover Sub-Assy, Heater Air Intake
58217 58217-36010 Plate, Front Floor
58251 58251-36010 Reinforcement, Front Seat, Front Rh
58269 58269-36010 Cover, Parking Brake Cable, Rh
58286 58280-36010 Boot, Shift & Select Lever, No.1
58316 58316-36010-E0 Plate, Footrest, Rear
58316 58316-36010-B0 Plate, Footrest, Rear
58332 58332-36020 Board, Front Footrest, No.2
58334 58334-36010-E0 Mat, Front Footrest, No.2
58334 58334-36010-B0 Mat, Front Footrest, No.2
58341 58341-36040 Leg, Rh Footrest, Lh
58410 58410-36011-E1 Cover, Engine Service Hole
58410 58410-36031-E0 Cover, Engine Service Hole
58410 58410-36030 Cover, Engine Service Hole
58410 58410-36031 Cover, Engine Service Hole
58410 58410-36100 Cover, Engine Service Hole
58410 58410-36100-B1 Cover, Engine Service Hole
58420 58420-36030 Cover Assy, Engine Service Hole, No.2
58420 58420-36080 Cover Assy, Engine Service Hole, No.2
58424 58424-36020 Packing, Engine Cover
58431 58431-36030 Silencer, Engine Room Side, Front Rh
58431 58431-36100 Silencer, Engine Room Side, Front Rh
58432 58432-36010 Silencer, Engine Room Side, Rear Rh
58433 58433-36020 Silencer, Engine Room Side End
58433 58433-36070 Silencer, Engine Room Side End
58441 58441-36030 Silencer, Enging Room Side, Front Lh
58441 58441-36090 Silencer, Enging Room Side, Front Lh
58442 58442-36010 Silencer, Enging Room Side, Rear Lh
58442 58442-36100 Silencer, Enging Room Side, Rear Lh
58444 58444-36010 Packing, Engine Sub Cover
58444 58444-36050 Packing, Engine Sub Cover
58492 58492-36010 Packing, Relay Block Hole Cover
58493 58493-36010-E0 Retainer, Engine Cover, No.3
58493 58493-36010-B1 Retainer, Engine Cover, No.3
58701 58701-36010 Panel Sub-Assy, Engine Service Cover, Front
58701 58701-36011 Panel Sub-Assy, Engine Service Cover, Front
58701 58701-36080 Panel Sub-Assy, Engine Service Cover, Front
58704 58704-36010-E0 Hook Sub-Assy, Engine Service Cover Catch, Rear
58704 58704-36010-B0 Hook Sub-Assy, Engine Service Cover Catch, Rear
58704 58704-36040-E0 Hook Sub-Assy, Engine Service Cover Catch, Rear
58704 58704-36041 Hook Sub-Assy, Engine Service Cover Catch, Rear
58709 58709-36010-E0 Catch Sub-Assy, Engine Service Cover
58709 58709-36011-B0 Catch Sub-Assy, Engine Service Cover
58709 58709-36011-E0 Catch Sub-Assy, Engine Service Cover
58709 58709-36030-E0 Catch Sub-Assy, Engine Service Cover
58709 58709-36031 Catch Sub-Assy, Engine Service Cover
58726 58726-36010 Plate, Engine Service Cover, Front Upper
58728 58728-36010 Plate, Engine Service Cover, No.2
58733 58733-36010 Weatherstrip, Engine Service Cover, Front
58734 58734-36010 Weatherstrip, Engine Service Cover, Rear
58734 58734-36030 Weatherstrip, Engine Service Cover, Rear
58755 58755-95D00 Knob, Battery Service Hole Cover
59263 59263-95D00 Hook, Engine Cover Lock
65579 65579-36010 Bracket, Heater Pipe
76621 76621-36010 Mudguard, Front Body, Front Rh
76622 76622-36010 Mudguard, Front Body, Front Lh
76623 76623-36010 Mudguard, Front Body, Rear Rh
76623 76623-36011 Mudguard, Front Body, Rear Rh
76624 76624-36010 Mudguard, Front Body, Rear Lh
76624 76624-36011 Mudguard, Front Body, Rear Lh
8271136110 82711-36110 Wire, Fuse To Fuse(for Combustion Heater)
8271436010 82714-36010 New Genuine Part
9011906166 90119-06166 BOLT
9011906543 90119-06543 BOLT
9011906699 90119-06699 BOLT WWASHER
9011906846 90119-06846 New Genuine Part
9015960120 90159-60120 New Genuine Part
9033325003 90333-25003 Plug, Hole(For Hood)
9046707103 90467-07103 Clip(For Front Fender Mudguard)
9046707103 90467-07138-C0 Clip
9046707132 90467-07132 Clip
9046709006 90467-09006 Clip(For Hood Insulator)
9054006004 90540-06004 Cushion, Rear Seat Back, No.1
9054109080 90541-09080 Cushion(For Luggage Compartment Door Panel)
9090467033 90904-67033 Clip(For Deck Board No.1)
9095001133 90950-01133 Plug, Hole(For Front Fender Apron)
9095001181 90950-01181 Plug, Hole(For Front Fender Apron)
9095001189 90950-01189 Plug, Hole, No.3(For Dash Panel)
9095001194 90950-01194 New Genuine Part
9095001345 90950-01345 New Genuine Part
9095001450 90950-01450 Plug
9095001557 90950-01557 PLUG
9095001865 90950-01865 PLUG HOLE
9095001901 90950-01901 Cap, Spare Wheel Carrier Handle
9095006034 90950-06034 New Genuine Part
9155380614 91553-80614 BOLT FLANGE
9163540620 91635-40620 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140625 91651-40625 New Genuine Part
9165160616 91651-60616 BOLT
9165161028 91651-61028 New Genuine Part
9323955016 93239-55016 SCREW
9324056010 93240-56010 SCREW
9331116012 93311-16012 Screw, Rear Axle Bearing Lock Nut
9338316014 93383-16014 New Genuine Part
9353053012 93530-53012 New Genuine Part
9356714512 93567-14512 SCREW
9356754514 93567-54514 SCREW TAPPING
9356754514 93567-A5014 SCREW TAPPING
9418560600 94185-60600 Nut, Wire Adjusting, No.1
Front Panel & Windshield Glass ([01.1993 - ] (9301- )) 17
#OEMPart name
53301 53301-36040 Panel Sub-Assy, Front
53301 53301-36041 Panel Sub-Assy, Front
53301 55342-36050 Brace, Instrument Panel To Cowl, No.2
55212 55241-36010 Silencer, Front Panel, Lower
55212 55242-36040 Silencer, Front Panel, Lower
55242 55242-36010 Silencer, Front Panel Side, No.1 Lh
55243 55243-36010 Silencer, Front Panel Side, No.2 Rh
55243 55243-36030 Silencer, Front Panel Side, No.2 Rh
55244 55244-36010 Silencer, Front Panel Side, No.2 Lh
55244 55244-36030 Silencer, Front Panel Side, No.2 Lh
56111 56111-36020 Glass, Windshield
56111 56111-36070 Glass, Windshield
56111 56111-36040 Glass, Windshield
56111 56111-36080 Glass, Windshield
56121 56121-36010 Weatherstrip, Windshield
9095001011 90950-01011 Grommet(For Upper Back Panel)
9165160616 91651-60616 BOLT
Front Spring & Shock Absorber ([01.1993 - 03.1997] (9301-9703)) 25
#OEMPart name
48107 48107-36030 Arm Sub-Assy, Anchor, Rh
48108 48108-36030 Arm Sub-Assy, Anchor, Lh
48161 48161-36120 Spring, Torsion Bar, Rh
48162 48162-36120 Spring, Torsion Bar, Lh
48169 48169-36020 Swivel, Anchor Arm, Rh
48173 48173-36010 Seat, Anchor Arm Adjuster
48174 48174-36010 Cover, Torsion Bar Dust
48510 48511-80012 Absorber Assy, Shock, Front Rh
48510 48511-80093 Absorber Assy, Shock, Front
48510 90179-12016 NUT
48510 90109-12013 BOLT
48510 94130-61200 Nut
48510 90948-02009 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-02054 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 94512-01200 Washer
48510 94612-11200 Washer
48510 48511-80041 Absorber Assy, Shock, Front Rh
48510 90948-01004 Cushion, Front Shock Absorber
48514 48514-36050 Bracket, Front Shock Absorber, Lower Rh
9010118002 90101-18002 BOLT
9011908251 90119-08251 BOLT
9017012012 90170-12012 New Genuine Part
9017018002 90170-18002 NUT
9116261270 91162-61270 BOLT
9411541200 94115-41200 Nut
Front Spring & Shock Absorber ([03.1997 - ] (9703- )) 24
#OEMPart name
48107 48107-36030 Arm Sub-Assy, Anchor, Rh
48108 48108-36030 Arm Sub-Assy, Anchor, Lh
48161 48161-36120 Spring, Torsion Bar, Rh
48162 48162-36120 Spring, Torsion Bar, Lh
48169 48169-36020 Swivel, Anchor Arm, Rh
48173 48173-36010 Seat, Anchor Arm Adjuster
48174 48174-36010 Cover, Torsion Bar Dust
48510 48511-80012 Absorber Assy, Shock, Front Rh
48510 48511-80093 Absorber Assy, Shock, Front
48510 90179-12016 NUT
48510 90109-12013 BOLT
48510 94130-61200 Nut
48510 90948-02009 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-02054 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 94512-01200 Washer
48510 94612-11200 Washer
48510 48511-80041 Absorber Assy, Shock, Front Rh
48510 90948-01004 Cushion, Front Shock Absorber
48514 48514-36050 Bracket, Front Shock Absorber, Lower Rh
9010118002 90101-18002 BOLT
9011908251 90119-08251 BOLT
9017018002 90170-18002 NUT
9116261270 91162-61270 BOLT
9462211200 94622-11200 WASHER
Front Steering Gear & Link ([01.1993 - 07.1999] (9301-9907)) 25
#OEMPart name
44011 44011-36300 Piston Sub-Assy, Power
44015 44015-36300 Shaft Sub-Assy, Sector
44101 90029-21010 Seal, Type T Oil(For Steering Worm)
44101 90029-52002 Ring, Hole Snap(For Steering Worm Oil Seal)
44101 90029-20044 Ring, O(For Steering Worm)
44101 90029-20045 Ring, O(For Steering Worm)
44101 90029-20707 Seal, Dust(For Steering Worm)
44107 44107-36300 Housing Sub-Assy, Power Steering Gear
44107 96711-19009 Ring, O(For Oil Level Gage Guide)
44107 96711-35042 Ring, O(For Power Steering Gear Housing)
44107 90029-21023 Seal, Oil(For Power Steering Gear Housing)
44108 44108-36300 Cover Sub-Assy, Sector
44142 44142-37010 Nut, Lock
44152 90029-60008 Spring, Compression(For Power Piston Plunger)
44153 90029-38303 Guide, Power Piston Plunger
44154 90029-34001 Nut, Power Piston Plunger Guide
44154 96711-19014 O-Ring
44167 44167-37010 Cover, Sector Shaft Dust
44168 44168-36020 Cover, Worm Shaft Dust
45357 90029-02302 Screw, Sector Shaft Adjusting
8911099002 89110-99002 Relay Assy, Conlight, A
9002915801 90029-15801 Plunger, Power Piston
9002934002 90029-34002 New Genuine Part
9002938700 90029-38700 New Genuine Part
9671124020 96711-24020 Ring O(For Ventilation Hose No.4)
Front Steering Gear & Link ([01.1993 - ] (9301- )) 15
#OEMPart name
4445 04445-36100 Gasket Kit, Power Steering Gear(For Recirculating Ball)
44110 44110-36300 Gear Assy, Power Steering
44251 90170-30001 Nut, Castle(For Pitman Arm)
44251 90204-30040 Washer(For Pitman Arm)
45312 45312-36210 Bracket, Steering Gear Housing
45411 45411-36570 Arm, Pitman
9010114042 90101-14042 BOLT HEXAGON
9010612005 90106-12005 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
9017012018 90170-12018 Nut (For Propeller Shaft)
9017014026 90170-14026 Nut(For Front Support To Front Shock Absorber Rh)
9090101003 90901-01003 BOLT HEXAGON
9090101004 90901-01004 New Genuine Part
9462111600 94621-11600 Washer(For Rear Spring U Bolt)
9462211600 94622-11600 WASHER
9462251400 94622-51400 Washer(For Front Suspension Lower Arm No.1 Rh)
Front Steering Gear & Link ([01.1993 - ] (9301- )RHD) 55
#OEMPart name
45046 45046-39275 End Sub-Assy, Tie Rod
45046 94146-71800 Nut, Castle(For Relay Rod)
45046 90171-18003 Nut, Castle(For Relay Rod)
45070 45070-36030 Bracket Assy, Idler Arm
45406 45047-39165 Rod Sub-Assy, Tie, Rh
45410 45410-36030 Bracket Assy, Center Arm
45410 45410-36031 Bracket Assy, Center Arm
45421 45421-36020 Arm, Steering Center
45422 45422-36010 Shaft, Center Arm
45422 90311-36003 Seal(For Center Arm Shaft)
45422 90204-27020 Washer(For Pitman Arm)
45434 45434-36010 Cap, Center Arm Bracket
45434 45434-36011 Cap, Center Arm Bracket
45434 90345-06014 Plug (For Ball Joint)
45440 45440-39105 Link Assy, Steering Drag
45450 45450-39215 Rod Assy, Steering Relay
45460 45460-39385 Rod Assy, Tie, Rh
45461 45461-36040 Rod, Steering Tie
45466 45466-36020 Clamp, Steering Relay Rod End
45466 45466-55020 Clamp, Steering Relay Rod End
45490 45490-39425 Arm Assy, Steering Idler
45490 94146-51400 Nut, Castle(For Tie Rod End)
45495 45495-36010 Shaft, Idler Arm
45495 90311-25009 Seal, Type T Oil(For Bracket, Idler Arm)
45495 90501-32033 Spring, Compression(For Bracket, Idler Arm)
45497 45497-36020 Cap, Idler Arm Bracket
45611 45611-36240 Arm, Steering Knuckle, Rh
45611 45611-36242 Arm, Steering Knuckle, Rh
45611 90106-12022 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
45612 45612-36150 Arm, Steering Knuckle, Lh
45612 45612-36152 Arm, Steering Knuckle, Lh
45619 45619-36010 Cover, Knuckle Stopper
45700 45700-69025 Damper Assy, Steering
45700 45700-69135 Damper Assy, Steering
45700 45700-69075 Damper Assy, Steering
45721 45721-36020 Bracket, Steering Damper, No.3
4547936030 45479-36030 Seal, Dust(For Tie Rod)
9010116011 90101-16011 BOLT HEXAGON
9010512200 90105-12200 Bolt(For Torque Arm Setting)
9010514097 90105-14097 Bolt (For Rear Axle Bearing Case Rh)
9010612005 90106-12005 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
9017012018 90170-12018 Nut (For Propeller Shaft)
9017027033 90170-27033 Nut, Castle(For Pitman Arm)
9020416001 90204-16001 Washer(For Center Arm Shaft)
9025204003 90252-04003 PIN
9052234002 90522-34002 Ring, Set(For Tie Rod End Dust Seal)
9116261250 91162-61250 Bolt, Mounting
9116281235 91162-81235 Bolt(for Dust Cover Setting)
9413061200 94130-61200 Nut
9413061600 94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
9418401601 94184-01601 NUT LOCK
9418461201 94184-61201 Nut, Lock(For Power Steering Control Valve)
9453101200 94531-01200 WASHER
9461211600 94612-11600 Washer, Shift Lever Shaft Housing, No.2
9538103025 95381-03025 PIN
Front Turn Signal Lamp ([01.1993 - 01.2015] (9301-1501)TRB40,50,XZB50..ARL,GEN,TAIW..5F ; (9 301-1501)BB4#,5#,BZB40,50,HZB50,RZB 40,50,XZB59) 13
#OEMPart name
81510 81510-36270 Lamp Assy, Front Turn Signal, Rh
81510 81510-36271 Lamp Assy, Front Turn Signal, Rh
81510 81511-36271 Lens, Front Turn Signal Lamp, Rh
81510 81515-36270 Plug Assy, Front Turn Signal Lamp
81510 90981-12015 Bulb, Spot Lamp
81510 90981-16014 Bulb (For Front Turn Signal Lamp)
81511 81511-36270 Lens, Front Turn Signal Lamp, Rh
81520 81520-36210 Lamp Assy, Front Turn Signal, Lh
81520 81520-36211 Lamp Assy, Front Turn Signal, Lh
81520 81521-36211 Lens, Front Turn Signal Lamp, Lh
81521 81521-36210 Lens, Front Turn Signal Lamp, Lh
9015940254 90159-40254 New Genuine Part
9018904014 90189-04014 CLIP
Fuel Filter ([01.1993 - 07.1999] (9301-9907)14B,3B ; (9705-9907)15BFT..BB58 ; (97 05-9907)15BFT..BB50..GEN..IV) 13
#OEMPart name
23301 23301-58150 Cap Assy, Fuel Filter
23303 23303-56040 Element Sub-Assy, Fuel Filter
23322 23322-64020 Plug, Drain(For Fuel Filter)
23322 23344-54010 O-Ring (For Drain Plug)
23338 23344-64010 O-Ring (For Level Warning Switch)
23921 23921-17040 Support, Fuel Filter
84461 84461-36080 Switch, Level Warning
84461 84461-36090 Switch, Level Warning
9162160816 91621-60816 New Genuine Part
9162160816 91621-B0816 BOLT WWASHER
9162160835 91621-60835 BOLT
9162160835 91651-B0835 BOLT
9331915008 93319-15008 SCREW
Fuel Tank & Tube ([01.1993 - 02.2006] FUEL TANK (9301-0602)BB4#,5#,HZB50,RZB40,50) 79
#OEMPart name
77011 77011-12130 Pipe Sub-Assy, Fuel Tank Filler, Lower
77017 77017-36420 Tube Sub-Assy, Fuel Tank Vent
77023 77023-36010 Filter Sub-Assy, Fuel Suction Tube
77026 77026-36020 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-36020 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-36021 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-36022 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-36024 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-12050 Lock Sub-Assy, Fuel Filler Opening Lid
77037 77037-36010 Lock Sub-Assy, Fuel Filler Opening Lid
77051 77051-30060-E1 Lever Sub-Assy, Fuel Lid Open
77100 77001-3B260 Tank Assy, Fuel
77100 77001-3B262 Tank Assy, Fuel
77100 77011-36020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77135 77135-36040 Bracket, Check Valve
77169 77169-14020 Gasket, Fuel Tank Vent
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-36170 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-36180 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-36090 Hose, Fuel Tank To Filler Pipe
77219 77219-32030 Cover, Fuel Tank Filler Pipe
77259 77259-36070 Hose, Fuel(For Breather Tube)
77259 77259-36090 Hose, Fuel
77290 77291-12060 Shield Assy, Fuel Tank Filler Pipe
77293 77293-12030 Shield, Fuel Tank Filler Pipe, No.3
77310 77310-12150 Cap Assy, Fuel Tank
77310 77310-35110 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-36010 Lid Assy, Fuel Filler Opening
77350 77350-36011 Lid Assy, Fuel Filler Opening
77350 77350-36020 Lid Assy, Fuel Filler Opening
77366 77360-36010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-20030 Retainer, Fuel Filler Opening Lid Lock
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-14020 Ring, Fuel Inlet Box
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77611 77601-36120 Band, Fuel Tank
77611 90240-08047 Pin (For Fuel Tank Band)
77613 77613-36030 Bracket, Fuel Tank Band, No.1
77651 77651-36130 Cushion, Fuel Tank, No.1
77652 77652-36010 Cushion, Fuel Tank, No.2
77653 77653-36010 Cushion, Fuel Tank, No.3
77681 77681-36050 Seat, Fuel Tank Band
77701 90917-10020 Valve, Check (For Main Fuel Tank)
91651 91651-A0816 Bolt, Winch, No.1
91655 91655-B1040 BOLT WWASHER
93319 93319-A4010 SCREW WWASHER
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8271133170 82711-33170 Wire, Fuse To Fuse(for Combustion Heater)
9015950217 90159-50217 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950258 90159-50258 New Genuine Part
9015950278 90159-50278 New Genuine Part
9015960008 90159-60008 SCREW
9017905011 90179-05011 NUT
9017905011 90178-A0005 New Genuine Part
9017905042 90179-05042 NUT
9017906308 90179-06308 NUT
9017910074 90179-10074 New Genuine Part
9018305094 90183-05094 NUT
9018906013 90189-06013 CLIP
9018906099 90189-06099 New Genuine Part
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046709007 90467-09007 New Genuine Part
9046709123 90467-09123 Clip(For Deck Board No.1)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9048014003 90480-14003 New Genuine Part
9165160616 91651-60616 BOLT
9165161025 91651-61025 Bolt with washer
9356855014 93568-55014 Screw
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
Fuel Tank & Tube ([01.1993 - 07.1999] FUEL TUBE (9301-9907)BB4# ; (9705-9907)BB58 ; (9711-9907)G EN..IV) 26
#OEMPart name
77205 77205-36800 Tube Sub-Assy, Fuel Main
77207 77207-36040 Tube Sub-Assy, Fuel Main, No.3
77208 77208-36150 Tube Sub-Assy, Fuel Main, No.4
77251 77259-36160 Hose, Fuel
77252 95332-10015 Hose, Fuel, No.1 (For Main Tube, No.1)
77252 95332-10020 Hose, Fuel, No.2 (For Main Tube, No.1)
77253 95332-10018 Hose, Fuel, No.1 (For Main Tube, No.1)
77253 95338-10018 Hose, Fuel, No.1 (For Main Tube, No.1) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77253 95332-10019 Hose, Fuel
77253 95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77277 23273-58010 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23273-58011 Hose, Fuel, No.1(For Return Tube, No.1)
77278 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77278 95337-06020 Hose, Differential Pressure Control
77278 95333-06030 Hose, Fuel
77278 95338-06030 HOSE, FUEL
77286 77286-36010 Clamp, Fuel Tube, No.2
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046715012 90467-15012 Clip Or Clamp(For Ventilation Hose)
9048001552 90480-01552 Grommet, Fuel Tube
9094901600 90949-01600 New Genuine Part
9095902009 90959-02009 New Genuine Part
9165160616 91651-60616 BOLT
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
Gear Shift Fork & Lever Shaft (Mtm) ([01.1993 - ] M152,M155,M156 (9301- )BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40 ,50..5F) 49
#OEMPart name
33111 90930-03090 Plug, Breather(For Manual Transmission)
33203 90311-22009 Seal, Oil(For Shift Lever Shaft)
33205 33262-36050 Shaft Sub-Assy, Select Lever
33205 90311-13001 Seal, Oil(For Transmission Case)
33205 90201-13029 Washer(For Outer Lever Oil Setting)
33205 94612-11300 Washer(For Outer Lever Oil Setting)
33205 33205-36070 Shaft Sub-Assy, Gear Shift Fork, No.1
33205 33205-37030 Shaft Sub-Assy, Gear Shift Fork, No.1
33208 33207-36031 Housing Sub-Assy, Shift Lever Shaft
33208 33207-36041 Housing Sub-Assy, Shift Lever Shaft
33212 33212-36031 Fork, 1St & Reverse Shift
33213 90105-07001 Bolt(For Shift Fork Set)
33213 33213-36050 Fork, Gear Shift, No.2
33214 33214-36060 Fork, Gear Shift, No.3
33232 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33234 33234-36011 Head, Gear Shift, No.3
33243 33243-36070 Shaft, Gear Shift Fork, No.2
33243 33243-37020 Shaft, Gear Shift Fork, No.2
33244 33244-36041 Shaft, Gear Shift Fork, No.3
33244 33244-37020 Shaft, Gear Shift Fork, No.3
33251 33251-36090 Lever, Shift & Select
33251 90501-16090 Spring (For Shift & Select Lever)
33251 90501-18059 Spring (For Shift & Select Lever)
33252 33252-36010 Lever, Shift, Inner No.2
33252 90523-12001 Ring(For Reverse Shift Head)
33253 33253-36140 Lever, Shift Outer, No.1
33253 33282-36030 Pin, Lever Lock (For Shift Outer Lever)
33257 33257-36130 Lever, Select Outer
33257 33282-35010 Pin, Lever Lock (For Shift Outer Lever)
33261 33261-36070 Shaft Sub-Assy, Shift Lever, No.1
33263 33263-36010 Shaft, Shift Lever, No.2
33263 90250-04060 Pin (For Shift Lever Shaft)
33263 90331-14004 Plug, Manual Transmission Case
33264 90250-10011 Pin, Or Ball, Shift Inter Lock, No.1
33264 90361-05001 Roller, No.1 (For Shift Inter Lock )
33265 90250-10015 Plug, Inter Lock Hole
33266 90250-10014 Pin, Shift Inter Lock, No.2
33275 90501-16099 Spring, Compression (For Shift Detent Ball Low Side)
33275 90501-16145 Spring, Compression (For Shift Detent Ball Low Side)
33275 90360-10003 Ball(For Transmission Oil Pump Cover)
33276 33276-36011 Seat, Select Spring
33531 33531-36060 Boot, Dust (For Shift & Select Lever Shaft)
9011908332 90119-08332 Bolt(For Manual Transmission Oil Pump Cover)
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9453100600 94531-00600 Washer(For Outer Lever Oil Setting)
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Headlamp ([01.1993 - 08.2001] (9301-0108) ; (0108-0408)EX..TD) 13
#OEMPart name
81110 81110-36190 Headlamp Assy, Rh
81110 81110-36191 Headlamp Assy, Rh
81110 90981-17011 Bulb(For Headlamp, No.1)
81110 90981-17019 Bulb(For Headlamp, No.1)
81150 81150-36170 Headlamp Assy, Lh
81150 81150-36171 Headlamp Assy, Lh
8113722530 81137-22530 Nut, Headlamp Self Locking
8113722530 90075-10004 Nut, Headlamp Self Locking
8155916010 81559-16010 Moulding, Rear Combination Lamp, Rh
9015950335 90159-50335 New Genuine Part
9015960247 90159-60247 New Genuine Part
9018906006 90189-06006 Grommet
9018906111 90189-06111 CLIP
Headlamp ([01.1993 - ] SEMI-SEALD BEAM HEADLAMP (9301- )) 24
#OEMPart name
81105 81105-36190 Housing Sub-Assy, Headlamp, Rh
81106 81106-36170 Housing Sub-Assy, Headlamp, Lh
81110 81110-36190 Headlamp Assy, Rh
81110 81110-36191 Headlamp Assy, Rh
81110 90981-17015 Bulb(For Headlamp, No.1)
81110 90981-17011 Bulb(For Headlamp, No.1)
81110 90981-17019 Bulb(For Headlamp, No.1)
81110 90981-08025 Sealed Beam Unit, No.1
81110 90981-08027 Sealed Beam Unit, No.2
81111 81111-20280 Ring, Sealed Beam Retaining
81113 81153-95010 Ring, Sealed Beam Mounting, No.1 Rh
81114 81114-95010 Ring, Sealed Beam Mounting, No.2 Rh
81131 81131-20043 Screw, Headlamp Adjusting
81131 90075-00001 Screw, Headlamp Adjusting
81150 81150-36170 Headlamp Assy, Lh
81150 81150-36171 Headlamp Assy, Lh
81153 81113-95010 Ring, Sealed Beam Mounting, No.1 Lh
81154 81154-95010 Ring, Sealed Beam Mounting, No.2 Lh
8113612571 81136-12571 Screw
9007525515 90075-25515 New Genuine Part
9015950335 90159-50335 New Genuine Part
9015960247 90159-60247 New Genuine Part
9018906006 90189-06006 Grommet
9018906111 90189-06111 CLIP
Heating & Air Conditioning - Compressor ([01.1993 - 08.2004] (9301-0408)) 16
#OEMPart name
88308 88308-36010 Pump Assy, Cooler Compressor
88316 90099-13011 Key, Compressor Crankshaft
88320 90099-04924 Bolt, Service Valve
88321 88321-36090 Head, Cooler Compressor Cylinder
88321 88306-36020 Plate Sub-Assy, Valve
88321 88306-36030 Plate Sub-Assy, Valve
88323 88323-36070 Head, Cooler Compressor Cylinder
88325 90099-08058 Pin, Cylinder Block
88329 88329-36030 Bolt, Through
88329 88329-36040 Bolt, Through
88335 88335-36050 Gasket Kit, Overhaul
88343 88343-36040 Reed, Suction Valve
88360 88360-36060 Seal Assy, Cooler Compressor Shaft
88360 88360-36080 Seal Assy, Cooler Compressor Shaft
88360 90096-90006 Ring, Compressor Seal Plate Snap
88371 88371-36290 Valve, Suction
Heating & Air Conditioning - Compressor ([01.1993 - 08.2004] (9301-0408)BB4#,5#,BZB40,50) 28
#OEMPart name
88301 88412-36040 Rotor Sub-Assy, Magnet Clutch
88301 88412-36041 Rotor Sub-Assy, Magnet Clutch
88302 88411-36240 Stator Sub-Assy, Magnet Clutch
88320 88320-36350 Compressor Assy, Cooler
88320 88320-36560 Compressor Assy, Cooler
88320 88320-36520 Compressor Assy, Cooler
88330 88335-12050 Washer (For Magnet Clutch)
88403 88403-36040 Hub Sub-Assy, Magnet Clutch
88410 88410-36340 Clutch Assy, Magnet
88410 88410-36341 Clutch Assy, Magnet
88431 88431-36421 Bracket, Compressor Mounting, No.1
88440 88440-36130 Pulley Assy, Idle
88444 88444-36091 Bracket, Idle Pulley
88444 88444-36092 Bracket, Idle Pulley
88446 90099-04306 Bolt, Idle Pulley
88688 88688-36610 Bracket, Cooler Compressor
9009120608 90091-20608 BOLT
9009904313 90099-04313 BOLT
9009904914 90099-04914 New Genuine Part
9009905163 90099-05163 NUT
9009907132 90099-07132 SNAP RING
9009935012 90099-35012 CLIP
9011908086 90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908361 90119-08361 New Genuine Part
9011910038 90119-10038 New Genuine Part
9011910360 90119-10360 BOLT
9017910132 90179-10132 Nut
9338115008 93381-15008 SCREWWWASHER
Heating & Air Conditioning - Control & Air Duct ([01.1993 - 01.2015] ROOF AIR DUCT (9301-1501)HZB50,XZB5# ; (9301-1501)BB4#,50,58,B ZB40,50,RZB40,50,TRB40,50,XZB40..CB U) 36
#OEMPart name
63399 63399-36010-A0 Clip, Roof Headlining
63399 63399-36030-A0 Clip, Roof Headlining
63399 63399-36030-B0 Clip, Roof Headlining (Gray)
63399 63399-36030-A1 Clip, Roof Headlining
63610 63610-90B00-A0 Register Assy, Air Outlet, No.1
63610 63610-90B00-A1 Register Assy, Air Outlet, No.1
63610 63610-90B00-B0 Register Assy, Air Outlet, No.1
63620 63620-90B00-A0 Register Assy, Air Outlet, No.2
63620 63640-36010-A0 Register Assy, Air Outlet, No.2
63620 63620-90B00-A1 Register Assy, Air Outlet, No.2
63620 63640-36010-B0 Register Assy, Air Outlet, No.2
63620 63640-36010-A1 Register Assy, Air Outlet, No.2
63630 63630-36010-A0 Register Assy, Air Duct, No.3
63630 63630-36010-A1 Register Assy, Air Duct, No.3
63630 63630-36010-B0 Register Assy, Air Duct, No.3
63911 63911-36020 Duct, Cooler, Outer Rh
63915 63915-36030-A0 Duct, Cooler, Inner No.1 Rh
63915 63915-36030-B0 Duct, Cooler, Inner No.1 Rh
63915 63915-36030-A1 Duct, Cooler, Inner No.1 Rh
63925 63925-36030-A0 Duct, Cooler, Inner No.1 Lh
63925 63925-36030-B0 Duct, Cooler, Inner No.1 Lh
63925 63925-36030-A1 Duct, Cooler, Inner No.1 Lh
63927 63927-36010 Cover, Cooler Duct End, No.1
63927 63927-36040 Cover, Cooler Duct End, No.1
63928 63928-36010 Cover, Cooler Duct End, No.2
63928 63928-36040 Cover, Cooler Duct End, No.2
6335236020 63352-36020 Pad, Roof Headlining, Center
6338736050 63387-36050 Pad, Roof Headlining Forming
6363636010 63636-36010 Lining, Roof Side Inner, No.4 Rh
9016850031 90168-50031 New Genuine Part
9018304056 90183-04056 Nut, Spring
9046709037 90467-09037 CLIP
9046710018 90467-10018 Clip, Radiator Support To Frame
9046804137 90468-04137 Clip, Roof Headlining
9354014016 93540-14016 SCREW
9354014020 93540-14020 Screw
Heating & Air Conditioning - Control & Air Duct ([01.1993 - 08.2004] FRONT AIR DUCT & DAMPER (9301-0408)) 21
#OEMPart name
55084 55084-36010 Duct Sub-Assy, Heater To Register, No.1
55085 55085-36010 Duct Sub-Assy, Heater To Register, No.2
55845 55845-36010 Duct, Heater To Register, No.3
87114 87114-36010 Cover, Heater
87138 87138-36190 Resistor, Heater Blower
87210 87210-36060 Damper Assy, Air
87210 87210-36062 Damper Assy, Air
87316 85999-12050 Bracket, Main Relay
88630 90987-02005 Relay, Ignition, No.1
88650 88650-36100 Amplifier Assy, Airconditioner
8271114620 82711-14620 Bracket, Relay, No.3
8868836250 88688-36250 Bracket, Cooler Diaphragm
8868836720 88688-36720 Bracket, Cooler Diaphragm
9011906042 90119-06042 New Genuine Part
9011906042 90119-06341 BOLT
9015950068 90159-50068 SCREW
9018305103 90183-05103 NUT
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9356855014 93568-55014 Screw
Heating & Air Conditioning - Control & Air Duct ([01.1993 - 08.2004] ROOF AIR DUCT & DAMPER (9301-0408) ; (0408-1501)BB50..IV ; (0408-1501)B B50,BZB50..19S,20S,21S,30S ; (0408- 1501)BB42,58,59,H ZB50,RZB40,50,TRB40,50,XZB40,5#) 16
#OEMPart name
87106 87106-36060 Servo Sub-Assy, Damper(For Airmix)
88430 88430-36110 Duct Assy, Air, No.1
88430 88430-36240 Duct Assy, Air, No.2
88430 88430-36030 Duct Assy, Air, No.3
88430 88430-36031 Duct Assy, Air, No.3
88430 88430-36040 Duct Assy, Air, No.4
88430 88430-36041 Duct Assy, Air, No.4
88568 88568-36010 Filter, Air
88568 88568-36011 Filter, Air
88580 88580-36020 Damper Assy, Air
88635 88635-36090 Resistor, Cooler Air Duct, No.1
8856936170 88569-36170 Clamp (for Cooler Relay)
9009900081 90099-00081 New Genuine Part
9162140614 91621-40614 BOLT
9338315020 93383-15020 New Genuine Part
9351010410 93510-10410 New Genuine Part
Heating & Air Conditioning - Control & Air Duct ([01.1993 - ] HEATER CONTROL (9301- )) 21
#OEMPart name
55519 55519-36020 Plate, Heater Control Name
55905 55905-36030 Knob, Heater Control
55906 55906-36070 Cable Sub-Assy, Defroster Damper Control
55907 55907-36070 Cable Sub-Assy, Water Valve Control
55907 55907-36050 Cable Sub-Assy, Water Valve Control
55908 55908-36040 Cable Sub-Assy, Air Inlet Damper Control
55910 55910-36120 Control Assy, Heater Or Boost Ventilator
55910 55910-36121 Control Assy, Heater Or Boost Ventilator
9094901 90949-01C82 Clamp(For Clutch Master Cylinder Tube)
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
9017906206 90179-06206 Nut
9018904088 90189-04088 GROMMET
9046110723 90461-10723 New Genuine Part
9046110731 90461-10731 Clamp, Brake Tube, No.8
9046400298 90464-00298 Clamp, No.2 (For Transfer Vacuum)
9046400401 90464-00401 New Genuine Part
9046400458 90464-00458 New Genuine Part
9046400509 90464-00509 New Genuine Part
9165160616 91651-60616 BOLT
9165660616 91656-60616 BOLT
9356855014 93568-55014 Screw
Heating & Air Conditioning - Cooler Piping ([01.1993 - 01.2015] (9301-1501)RHD..4FC,5F..DSL,TD) 52
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88539 88539-36150 Hose, Drain Cooler
88578 88578-90B01 Packing, Cooler Pipe, No.1
88706 88706-36010 Tube Sub-Assy, Liquid, A
88706 88706-36050 Tube Sub-Assy, Liquid, A
88711 88711-36160 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-36161 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-36162 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-36170 Hose, Cooler Refrigerant Suction, No.1
88712 88712-36171 Hose, Cooler Refrigerant Suction, No.1
88715 88715-36120 Pipe, Cooler Refrigerant Discharge, E
88715 88715-36121 Pipe, Cooler Refrigerant Discharge, E
88715 88715-36130 Pipe, Cooler Refrigerant Discharge, F
88716 88716-36140 Pipe, Cooler Refrigerant Liquid, C
88716 88716-36260 Pipe, Cooler Refrigerant Liquid, C
88716 88716-36320 Pipe, Cooler Refrigerant Liquid, C
88716 88716-36150 Pipe, Cooler Refrigerant Liquid, D
88716 88716-36220 Pipe, Cooler Refrigerant Liquid, E
88717 88717-36110 Pipe, Cooler Refrigerant Suction, A
88717 88717-36160 Pipe, Cooler Refrigerant Suction, B
88723 88723-20040 Label, Cooler Service Caution
88897 88897-36040 Grommet, Cooler
8846712030 88467-12030 Cushion, Cooler Condenser, No.1
8846928010 88469-28010 Collar, Condenser Bracket, No.1
8856930560 88569-30560 Clamp, Piping, No.2
8856936080 88569-36080 Clamp (for Cooler Relay)
8856936090 88569-36090 Clamp (for Cooler Relay)
8856936100 88569-36100 Clamp (for Cooler Relay)
8856936120 88569-36120 Clamp, Cooler, No.2
8856936190 88569-36190 Clamp, Cooler, No.1
8856936220 88569-36220 Clamp, Cooler, No.2
8856936260 88569-36260 Clamp (for Cooler Relay)
8856936270 88569-36270 Clamp, Piping, No.1
8868836240 88688-36240 Bracket, Cooler Diaphragm
8868836260 88688-36260 Bracket, Cooler, No.1
8868836590 88688-36590 Bracket, Cooler, No.5
9009120609 90091-20609 BOLT
9009932130 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9011906100 90119-06100 BOLT
9017906274 90179-06274 Nut
9046310337 90463-10337 CLAMP
9046400277 90464-00277 New Genuine Part
9046719021 90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046721152 90467-21152 Clip Or Clamp(For Ventilation Hose)
9048001301 90480-01301 New Genuine Part
9162140616 91621-40616 Step Cover Bolt
9163160630 91631-60630 BOLT WWASHER
9163160630 91631-B0630 BOLT WWASHER
9163260630 91632-60630 New Genuine Part
9165160616 91651-60616 BOLT
9611110400 96111-10400 Clamp Or Clip, Hose(For Radiator Inlet)
Heating & Air Conditioning - Cooler Piping ([01.1993 - ] O-RING (9301- )) 5
#OEMPart name
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914122 90099-14122 O-RING
9009914126 90099-14126 OIL SEAL
Heating & Air Conditioning - Cooler Piping ([01.1993 - ] TYPE A (9301- )BB42..HRF ; (9301- )HZB50..TD ; (9 301- )BB42..SRF..WOC ; (9301- )BB42..LHD..SRF. .WC ; (9301- )BB40,43,5#,RZB40,50) 67
#OEMPart name
88385 88715-36080 Pipe, Cooler Refrigerant Discharge, No.1
88385 88715-36081 Pipe, Cooler Refrigerant Discharge, No.1
88407 88407-36020 Glass Sub-Assy, Sight
88415 88415-36060 Cover, Dust, No.1
88415 88415-36080 Cover, Dust, No.2
88415 88415-36100 Cover, Dust, No.3
88415 88415-36140 Cover, Dust, No.3
88415 88415-36110 Cover, Cooler Condenser Dust, No.4
88415 88415-36120 Cover, Cooler Condenser Dust, No.5
88440 88440-36160 Relay Assy, Cooler Condenser Fan
88450 88450-36111 Condenser Assy, W/receiver
88450 88450-36112 Condenser Assy, W/receiver
88450 88450-36150 Condenser Assy, W/receiver
88450 88450-36113 Condenser Assy, W/receiver
88450 88450-36210 Condenser Assy, W/receiver
88453 16361-13030 Fan
88454 88454-36070 Shroud, Fan
88454 88454-36071 Shroud, Fan
88454 88454-36080 Shroud, Fan
88454 88454-36081 Shroud, Fan
88460 88340-36010 Condenser Assy, Cooler
88460 88340-36070 Condenser Assy, Cooler
88463 88463-36020 Bracket, Cooler Condenser, No.1
88463 88688-36450 Bracket, Cooler Condenser, No.2
88463 88463-36050 Bracket, Cooler Condenser, No.2
88463 88688-36480 Bracket, Cooler Condenser, No.1
88463 88463-36060 Bracket, Cooler Condenser, No.3
88463 88688-36490 Bracket, Cooler Condenser, No.1
88467 88467-90B00 Cushion, Cooler Condenser, No.1
88467 88467-90B01 Cushion, Cooler Condenser, No.2
88469 88469-90B00 Collar, Condenser Bracket, No.1
88471 88471-30370 Tank, Receiver Air Conditioner
88471 88471-50020 Receiver & Dryer Assy, Cooler
88550 88550-36040 Motor Assy, Blower (For Condenser)
88550 88550-36041 Motor Assy, Blower (For Condenser)
88605 88605-36170 Harness Sub-Assy, Air Conditioner Wiring
88605 88605-36280 Harness Sub-Assy, Air Conditioner Wiring
88605 88605-36281 Harness Sub-Assy, Air Conditioner Wiring
88645 88645-36050 Switch, Pressure No.1
88645 88645-60030 Switch, Pressure No.1
88706 88706-36040 Pipe Sub-Assy, Liquid
88706 88706-36041 Pipe Sub-Assy, Liquid
88706 88706-36042 Pipe Sub-Assy, Liquid
88715 88715-36090 Pipe, Cooler Refrigerant Discharge, B
88715 88715-36091 Pipe, Cooler Refrigerant Discharge, B
88716 88716-36160 Pipe, Cooler Refrigerant Liquid, A
88716 88716-36161 Pipe, Cooler Refrigerant Liquid, A
88716 88716-36170 Pipe, Cooler Refrigerant Liquid, B
88716 88716-36171 Pipe, Cooler Refrigerant Liquid, B
88716 88716-36280 Pipe, Cooler Refrigerant Liquid, P
88716 88716-36281 Pipe, Cooler Refrigerant Liquid, P
88716 88716-36290 Pipe, Cooler Refrigerant Liquid, Q
88716 88716-36291 Pipe, Cooler Refrigerant Liquid, Q
88716 88716-36292 Pipe, Cooler Refrigerant Liquid, Q
8856936230 88569-36230 Clamp (for Cooler Relay)
9004464009 90044-64009 CLAMP
9009120621 90091-20621 New Genuine Part
9009905164 90099-05164 Nut
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914122 90099-14122 O-RING
9011906100 90119-06100 BOLT
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165160840 91651-60840 BOLT
Heating & Air Conditioning - Cooler Piping ([06.1995 - ] TYPE B (9506- )BB4#,5#,HZB50,RZB40,50,TRB40,50,XZB40 ,5#) 50
#OEMPart name
88385 88715-36080 Pipe, Cooler Refrigerant Discharge, No.1
88385 88715-36081 Pipe, Cooler Refrigerant Discharge, No.1
88407 88407-36020 Glass Sub-Assy, Sight
88450 88450-36111 Condenser Assy, W/receiver
88450 88450-36112 Condenser Assy, W/receiver
88450 88450-36150 Condenser Assy, W/receiver
88450 88450-36113 Condenser Assy, W/receiver
88450 88450-36210 Condenser Assy, W/receiver
88453 16361-13030 Fan
88454 88454-36070 Shroud, Fan
88454 88454-36071 Shroud, Fan
88454 88454-36080 Shroud, Fan
88454 88454-36081 Shroud, Fan
88460 88340-36010 Condenser Assy, Cooler
88460 88340-36070 Condenser Assy, Cooler
88471 88471-30370 Tank, Receiver Air Conditioner
88471 88471-50020 Receiver & Dryer Assy, Cooler
88550 88550-36040 Motor Assy, Blower (For Condenser)
88550 88550-36041 Motor Assy, Blower (For Condenser)
88605 88605-36170 Harness Sub-Assy, Air Conditioner Wiring
88605 88605-36280 Harness Sub-Assy, Air Conditioner Wiring
88605 88605-36281 Harness Sub-Assy, Air Conditioner Wiring
88645 88645-36050 Switch, Pressure No.1
88645 88645-60030 Switch, Pressure No.1
88706 88706-36040 Pipe Sub-Assy, Liquid
88706 88706-36041 Pipe Sub-Assy, Liquid
88706 88706-36042 Pipe Sub-Assy, Liquid
88715 88715-36090 Pipe, Cooler Refrigerant Discharge, B
88715 88715-36091 Pipe, Cooler Refrigerant Discharge, B
88716 88716-36160 Pipe, Cooler Refrigerant Liquid, A
88716 88716-36161 Pipe, Cooler Refrigerant Liquid, A
88716 88716-36170 Pipe, Cooler Refrigerant Liquid, B
88716 88716-36171 Pipe, Cooler Refrigerant Liquid, B
88716 88716-36280 Pipe, Cooler Refrigerant Liquid, P
88716 88716-36281 Pipe, Cooler Refrigerant Liquid, P
88716 88716-36290 Pipe, Cooler Refrigerant Liquid, Q
88716 88716-36291 Pipe, Cooler Refrigerant Liquid, Q
88716 88716-36292 Pipe, Cooler Refrigerant Liquid, Q
8856936260 88569-36260 Clamp (for Cooler Relay)
8868836340 88688-36340 Bracket, Cooler Diaphragm
8868836350 88688-36350 Bracket, Cooler Diaphragm
8889935010 88899-35010 Cover, Evaporator
9004464009 90044-64009 CLAMP
9009120621 90091-20621 New Genuine Part
9009905164 90099-05164 Nut
9009905284 90099-05284 NUT
9009919249 90099-19249 BUSHING
9009919250 90099-19250 BUSHING
9165140625 91651-40625 New Genuine Part
9338516016 93385-16016 New Genuine Part
Heating & Air Conditioning - Cooler Piping ([06.1995 - ] TYPE B (9506- )BB4#,50,59,HZB50,XZB40,5#..RHD) 17
#OEMPart name
88415 88415-36060 Cover, Dust, No.1
88415 88415-36080 Cover, Dust, No.2
88415 88415-36100 Cover, Dust, No.3
88415 88415-36140 Cover, Dust, No.3
88463 88463-36020 Bracket, Cooler Condenser, No.1
88463 88688-36450 Bracket, Cooler Condenser, No.2
88463 88463-36050 Bracket, Cooler Condenser, No.2
88463 88688-36480 Bracket, Cooler Condenser, No.1
88463 88463-36060 Bracket, Cooler Condenser, No.3
88463 88688-36490 Bracket, Cooler Condenser, No.1
88467 88467-90B00 Cushion, Cooler Condenser, No.1
88467 88467-90B01 Cushion, Cooler Condenser, No.2
88469 88469-90B00 Collar, Condenser Bracket, No.1
9155380840 91553-80840 New Genuine Part
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Heating & Air Conditioning - Cooler Unit ([01.1993 - 01.2015] O-RING (9301-1501)) 5
#OEMPart name
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914122 90099-14122 O-RING
9009914126 90099-14126 OIL SEAL
Heating & Air Conditioning - Cooler Unit ([01.1993 - 05.1999] COOL BOX (9301-9905)) 3
#OEMPart name
8271133270 82711-33270 Wire, Fuse To Fuse(for Combustion Heater)
9038708016 90387-08016 Collar(For Intake Air Connector)
9048016005 90480-16005 Grommet(For Air Cleaner Bracket)
Heating & Air Conditioning - Cooler Unit ([01.1993 - 07.1999] COOLER BOX STAY (9301-9907)) 9
#OEMPart name
9011906142 90119-06142 Bolt A/C
9011908301 90119-08301 BOLT
9038708016 90387-08016 Collar(For Intake Air Connector)
9048016005 90480-16005 Grommet(For Air Cleaner Bracket)
9095001153 90950-01153-A0 New Genuine Part
9155380822 91553-80822 New Genuine Part
9155380830 91553-80830 Bolt(For Transaxle & Engine Setting)
9326924014 93269-24014 New Genuine Part
9354024012 93540-24012 New Genuine Part
Heating & Air Conditioning - Cooler Unit ([01.1993 - 07.1999] COOLER UNIT (9301-9907)) 22
#OEMPart name
88361 87105-36060 Fan, Cooler Blower, No.1
88371 87105-36070 Fan, Cooler Blower, No.2
88421 88421-36010 Valve, Expansion, No.2
88421 88421-36050 Valve, Expansion, No.2
88421 88421-36011 Valve, Expansion, No.2
88501 88501-36080 Evaporator Sub-Assy, Cooler, No.1
88510 88510-36130 Unit Assy, Cooler
88510 88510-36131 Unit Assy, Cooler
88536 88536-36060 Bracket, Cooling Unit, No.1
88536 88536-36061 Bracket, Cooling Unit, No.1
88536 88536-36070 Bracket, Cooling Unit, No.2
88536 88536-36100 Bracket, Cooling Unit, No.3
88536 88536-36110 Bracket, Cooling Unit, No.4
88536 88536-36120 Bracket, Cooling Unit, No.5
88536 88536-36130 Bracket, Cooling Unit, No.5
88550 88550-36020 Motor Assy, Blower
88605 88605-36120 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-36140 Thermistor, Cooler, No.1
88800 88800-36020 Cooling Unit Servo
8271114890 82711-14890 Wire, Fuse To Fuse(for Combustion Heater)
8865336020 88653-36020 Pulley Assy, Idler (for Cooler)
9165160830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
Heating & Air Conditioning - Heater Unit & Blower ([01.1993 - 01.2015] REAR (9301-1501)BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40 ,50,XZB5#) 14
#OEMPart name
87104 87104-36240 Motor Sub-Assy, Rear Heater Blower
87107 87107-36160 Unit Sub-Assy, Rear Heater
87107 87107-36210 Unit Sub-Assy, Rear Heater
87120 87110-36410 Heater Assy, Rear
87120 87110-36530 Heater Assy, Rear
87120 87110-36590 Heater Assy, Rear
87120 87110-36B20 Heater Assy, Rear
87120 87110-36600 Heater Assy, Rear
87138 87138-36110 Resistor, Heater Blower
87187 87187-36010 Wire, Blower Motor Lead
87452 87452-36100 Bracket, Heater, Rear
9017906206 90179-06206 Nut
9033904024 90339-04024 Cap, Transfer, Rear Case
9048026012 90480-26012 New Genuine Part
Heating & Air Conditioning - Heater Unit & Blower ([01.1993 - ] FRONT HEATER (9301- )RHD) 23
#OEMPart name
87104 87104-36200 Motor Sub-Assy, Heater Blower
87105 87105-20110 Fan Sub-Assy, Heater Blower
87107 87107-36090 Unit Sub-Assy, Heater Radiator
87107 87107-36190 Unit Sub-Assy, Heater Radiator
87107 87107-36091 Unit Sub-Assy, Heater Radiator
87110 87110-36340 Heater Assy
87110 87110-36341 Heater Assy
87110 87110-36342 Heater Assy
87174 87174-36050 Guide, Air Heater
87211 87211-36080 Duct, Air
87211 87211-36100 Duct, Air
87211 87211-36140 Duct, Air
87248 87248-36200 Pipe, Front Heater Radiator Water
87248 87248-36210 Pipe, Front Heater Radiator Water
87452 87452-36030 Bracket, Heater, Front
87452 87452-36040 Bracket, Front Heater, No.2
9009900149 90099-00149 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9338316012 93383-16012 New Genuine Part
9338516012 93385-16012 New Genuine Part
9676119016 96761-19016 RING
Heating & Air Conditioning - Heater Unit & Blower ([07.1994 - ] FRONT BOOST VENTILATOR (9407- )) 11
#OEMPart name
87104 87104-36200 Motor Sub-Assy, Heater Blower
87105 87105-20110 Fan Sub-Assy, Heater Blower
87174 87174-36050 Guide, Air Heater
87452 87452-36030 Bracket, Heater, Front
87452 87452-36040 Bracket, Front Heater, No.2
9009900149 90099-00149 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9338316012 93383-16012 New Genuine Part
9338516012 93385-16012 New Genuine Part
Heating & Air Conditioning - Vacuum Piping ([01.1993 - ] (9301- )BB50..TD ; (9301- )BB50..6F..TDEFI ; (9301- )BB50..EX..TDEFI ; (93 01- )BB4#,58,5 9,HZB50) 3
#OEMPart name
88031 88031-36110 Actuator Set, Idle-Up
91511 91511-B0812 BOLT FLANGE
9164180816 91641-80816 BOLT W/WASHER
Heating & Air Conditioning - Water Piping ([01.1993 - 07.1999] FRONT (9301-9907)BB4#,5#,RZB40,50) 28
#OEMPart name
87208 87208-36390 Pipe Sub-Assy, Heater Water
87208 87208-36391 Pipe Sub-Assy, Heater Water
87208 87208-36190 Pipe Sub-Assy, Heater Water, A
87208 87208-36730 Pipe Sub-Assy, Heater Water, A
87240 87240-36030 Valve Assy, Heater Water
87240 87240-36130 Valve Assy, Heater Water
87245 87209-36850 Hose, Heater Water, Inlet A
87245 87245-3B430 Hose, Heater Water, Inlet A
87245 87245-3B431 Hose, Heater Water, Inlet A
87245 87245-3B390 Hose, Heater Water, Inlet E
87245 87245-3B391 Hose, Heater Water, Inlet E
87246 87245-3B400 Hose, Heater Water, Outlet A
87246 87245-3B401 Hose, Heater Water, Outlet A
87246 87245-3B410 Hose, Heater Water, Inlet A
87246 87245-3C440 Hose, Heater Water, Outlet B
87255 87245-36180 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-36181 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-3C730 Hose, Rear Heater Water Inlet, C
87255 99556-30100 Hose, Water Inlet
8712428030 87124-28030 Clamp, Heater
8712436130 87124-36130 Clamp, Heater
9017906206 90179-06206 Nut
9033916001 90339-16001 Plug, Heater Water
9046027001 90460-27001 Clamp Or Clip, Hose(for Water By-pass Hose)
9046027001 90467-21010 Clip(For Ventilation Hose No.2)
9165160616 91651-60616 BOLT
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
Heating & Air Conditioning - Water Piping ([01.1993 - 07.1999] FRONT (9301-9907)BB4#..RHD..ARL,GEN) 35
#OEMPart name
87208 87208-36390 Pipe Sub-Assy, Heater Water
87208 87208-36391 Pipe Sub-Assy, Heater Water
87208 87208-36190 Pipe Sub-Assy, Heater Water, A
87208 87208-36730 Pipe Sub-Assy, Heater Water, A
87240 87240-36030 Valve Assy, Heater Water
87240 87240-36130 Valve Assy, Heater Water
87245 87209-36850 Hose, Heater Water, Inlet A
87245 87245-3B430 Hose, Heater Water, Inlet A
87245 87245-3B431 Hose, Heater Water, Inlet A
87245 87245-3B390 Hose, Heater Water, Inlet E
87245 87245-3B391 Hose, Heater Water, Inlet E
87246 87245-3B400 Hose, Heater Water, Outlet A
87246 87245-3B401 Hose, Heater Water, Outlet A
87246 87245-3B410 Hose, Heater Water, Inlet A
87246 87245-3C440 Hose, Heater Water, Outlet B
87246 87245-3B440 Hose, Heater Water, Outlet E
87246 87245-3B441 Hose, Heater Water, Outlet E
87251 87251-30200 Union(For Water By-Pass Hose)
87251 87251-60010 Joint Or Union, Front Heater Hose Through Or Inlet Valve
87251 87251-95403 Joint Or Union, Water Hose Through
87251 87251-90B00 Joint Or Union, Water Hose Through
87251 87251-95400 Joint Or Union, Front Heater Hose Through Or Inlet Valve
87255 87245-36180 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-36181 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-3C730 Hose, Rear Heater Water Inlet, C
87255 99556-30100 Hose, Water Inlet
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8712428030 87124-28030 Clamp, Heater
8712436130 87124-36130 Clamp, Heater
9017906206 90179-06206 Nut
9046027001 90460-27001 Clamp Or Clip, Hose(for Water By-pass Hose)
9046027001 90467-21010 Clip(For Ventilation Hose No.2)
9165160616 91651-60616 BOLT
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
Heating & Air Conditioning - Water Piping ([01.1993 - 07.1999] REAR (9301-9907)BB4#..RHD..ARL,GEN) 34
#OEMPart name
87208 87208-36540 Pipe Sub-Assy, Heater Water, C
87208 87208-36590 Pipe Sub-Assy, Heater Water, H
87208 87208-36591 Pipe Sub-Assy, Heater Water, C
87208 87208-36530 Pipe Sub-Assy, Heater Water, D
87208 87208-36670 Pipe Sub-Assy, Heater Water, C
87208 87208-36690 Pipe Sub-Assy, Heater Water, C
87245 87245-3B220 Hose, Heater Water
87245 87245-3B230 Hose, Heater Water
87245 87245-3C550 Hose, Heater Water
87245 87245-3C560 Hose, Heater Water
87245 87245-3C710 Hose, Heater Water
87245 99556-30100 Hose, Water Inlet
87255 87245-3B680 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87255 87245-3B681 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87255 87245-3B660 Hose, Heater Water Inlet, H
87255 87245-3B661 Hose, Rear Heater Water Inlet, D
87255 87245-3B820 Hose, Heater Water Inlet, J
87255 87245-3B821 Hose, Rear Heater Water Inlet, G
87255 87245-3C690 Hose, Rear Heater Water Inlet, D
87255 99556-31000 Hose, Heater Water, Inlet B
87256 87245-3B670 Hose, Rear Heater Water Outlet, G
87256 87245-3B671 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87256 87245-3B830 Hose, Rear Heater Water Outlet, K
87256 87245-3B831 Hose, Rear Heater Water Outlet, C
87256 87245-3B650 Hose, Rear Heater Water Outlet, L
87256 87245-3B651 Hose, Rear Heater Water Outlet, B
8712490 87124-90B09 Clamp, Heater
8712436040 87124-36040 Clamp, Heater
8712436050 87124-36050 Clamp, Heater
8712436060 87124-36060 Clamp, Heater
9165160616 91651-60616 BOLT
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
9613442300 96134-42300 Clip Or Clamp(For Ventilation Hose)
Horn ([01.1993 - ] (9301- )) 3
#OEMPart name
86520 86520-36140 Horn Assy, Low Pitched
86591 86591-36010 Bracket, Horn
9011908827 90119-08827 New Genuine Part
Ignition Coil & Spark Plug ([01.1993 - 07.1999] (9301-9907)3B) 3
#OEMPart name
19850 19850-58010 Plug Assy, Glow
19850 90189-04024 Grommet, Screw(For Glow Plug)
19871 19871-56020 Connector, Glow Plug No.1
Indicator ([01.1993 - ] DOOR INDICATOR LAMP (9301- )ARL) 9
#OEMPart name
81840 81840-36020-A0 Lamp Assy, Door Indicator
81840 81840-36020-A1 Lamp Assy, Door Indicator
81840 99134-13060 Bulb(For Map Lamp)
81879 81879-36011 Bracket, Indicator Lamp
81879 81879-36030 Bracket, Indicator Lamp No.2
85643 85643-36010 Cushion, Auto Door Bracket Stopper
85643 85643-36020 Cushion, Auto Door Bracket Stopper
9026005001 90260-05001 New Genuine Part
9165140614 91651-40614 Bolt
Injection Nozzle ([01.1993 - 07.1999] (9301-9907)3B) 43
#OEMPart name
11106 11106-58020 Chamber Sub-Assy, Combustion
11176 11176-56010 Seat, Injection Nozzle
11177 11177-56010 Gasket, Injection Nozzle Seat
23600 23600-56020 Holder & Nozzle Set, Nozzle
23600 23600-58080 Holder & Nozzle Set, Nozzle
23618 23618-46010 Spring, Nozzle Holder Pressure
23618 23618-56010 Spring, Nozzle Holder Pressure
23619 23619-46010 Pin, Nozzle Holder Pressure
23620 23620-56020 Nozzle Assy
23620 23620-58080 Nozzle Assy
23624 23624-54020 Nut, Nozzle Retaining
23624 23624-58080 Nut, Nozzle Retaining
23626 23626-56020 Body Sub-Assy, Nozzle
23626 23626-58080 Body Sub-Assy, Nozzle
23628 23628-46010 Nut(For Ring Packing Setting)
23629 23629-46010 Piece, Distance(For Nozzle)
23631 23631-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23632-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23633-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23634-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23635-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23636-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23637-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23638-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23639-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23641-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23642-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23643-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23644-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23645-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23646-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23647-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23648-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23649-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23651-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23652-46010 Washer(For Nozzle Holder Pressure Spring)
23654 23654-46010 Washer(For Ring Packing)
23760 23760-56040 Pipe Assy, Nozzle Leakage
23770 23770-58050 Pipe Assy, Nozzle Leakage, No.2
23770 95333-04020 Hose, Lpg Injector
23770 96132-30400 Clip Or Clamp(For Ventilation Hose)
23770 96132-51000 Clip Or Clamp(For Ventilation Hose)
23770 96132-41000 Clip, No.1(For Idle-Up Hose)
Injection Pump Assembly ([01.1993 - 07.1999] (9301-9907)3B) 29
#OEMPart name
22100 22100-58880 Pump Assy, Injection Or Supply
22100 22100-5C320 Pump Assy, Injection Or Supply
22100 95332-10040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 96132-41500 Clip(For Ventilation Tube)
22811 22811-56050 Stay, Injection Pump, No.1
22811 22811-58030 Stay, Injection Pump, No.1
22811 22811-58031 Stay, Injection Pump, No.1
22821 90301-49003 Gasket, Injection Pump
23701 23701-58010 Pipe Sub-Assy, Injection, No.1
23701 23701-58011 Pipe Sub-Assy, Injection, No.1
23702 23702-58010 Pipe Sub-Assy, Injection, No.2
23702 23702-58011 Pipe Sub-Assy, Injection, No.2
23703 23703-58010 Pipe Sub-Assy, Injection, No.3
23703 23703-58011 Pipe Sub-Assy, Injection, No.3
23704 23704-58010 Pipe Sub-Assy, Injection, No.4
23704 23704-58011 Pipe Sub-Assy, Injection, No.4
23741 23741-56010 Clamp, Injection Pipe, No.1
23741 23741-58010 Clamp, Injection Pipe, No.1
23742 23741-56020 Clamp, Injection Pipe, No.2
23742 23741-56021 Clamp, Injection Pipe, No.2
91622 91622-B1020 Bolt(For Transaxle & Engine Setting)
9011606158 90116-06158 New Genuine Part
9011906775 90119-06775 BOLT WWASHER
9011908735 90119-08735 New Genuine Part
9017906274 90179-06274 Nut
9017908022 90179-08022 NUT
9165160818 91651-60818 BOLTWWASHER
9165161025 91651-61025 Bolt with washer
9166160628 91661-60628 New Genuine Part
Injection Pump Body ([01.1993 - 07.1999] (9301-9907)3B) 160
#OEMPart name
22101 22101-64250 Housing Sub-Assy, Injection Pump
22101 90099-14053 Ring, O(For Injection Pump Housing)
22104 22104-17010 Valve Sub-Assy, Injection Pump Delivery
22108 22108-54010 Ring Sub-Assy, Roller
22119 90201-12109 Washer, Air Bleeder Nipple
22128 22128-54010 Bolt, Distributive Head
22130 22130-58200 Camplate Sub-Assy, Face
22130 22130-5C150 Camplate Sub-Assy, Face
22131 22131-54730 Holder, Delivery Valve
22140 22140-58690 Head Sub-Assy, Distributive Pump
22140 22140-5C150 Head Sub-Assy, Distributive Pump
22141 22141-54010 Seat, Delivery Valve Spring
22143 22143-54010 Seat, Spring Upper
22144 22144-54180 Spring, Pump Plunger
22144 22144-54190 Spring, Pump Plunger
22145 22145-54010 Seat, Spring, Lower
22146 90099-13018 Key(For Drive Gear)
22146 22544-64740 Seal, Oil, Injection Pump Camshaft
22147 22161-54010 Washer, Drive Shaft
22147 22147-54290 Ring, Governor Sleeve
22148 22148-54010 Spring, Delivery Valve
22149 22149-56351 Gasket, Delivery Valve
22160 22160-64010 Screw Sub-Assy, Overflow
22162 22162-54010 Plate, Plunger Upper
22163 22163-54010 Plate, Plunger Lower
22169 22169-54180 Joint, Rubber
22170 22170-54180 Shaft Sub-Assy, Drive
22170 90099-13017 Key(For Drive Gear)
22174 22174-58201 Shaft, Spline
22176 22176-54020 Plug, Distributive Head
22176 22193-54772 Ring, O(For Distributive Head Plug)
22176 90099-14052 Ring, O(For Distributive Head Plug)
22178 22178-58890 Bracket, Idle Up
22179 22179-54010 Shim, Plunger Adjusting
22179 22179-54011 Shim, Plunger Adjusting
22179 22179-54012 Shim, Plunger Adjusting
22179 22179-54013 Shim, Plunger Adjusting
22179 22179-54014 Shim, Plunger Adjusting
22179 22179-54015 Shim, Plunger Adjusting
22179 22179-54016 Shim, Plunger Adjusting
22179 22179-54017 Shim, Plunger Adjusting
22179 22179-54018 Shim, Plunger Adjusting
22179 22179-54019 Shim, Plunger Adjusting
22179 22179-54020 Shim, Plunger Adjusting
22180 22180-58200 Valve Sub-Assy, Regulator
22182 22182-54010 Plate, Tappet Adjusting Shim
22182 22183-54010 Plate, Tappet Adjusting Shim
22182 22184-54010 Plate, Tappet Adjusting Shim
22182 22185-54010 Plate, Tappet Adjusting Shim
22182 22186-54010 Plate, Tappet Adjusting Shim
22182 22187-54010 Plate, Tappet Adjusting Shim
22182 22188-54010 Plate, Tappet Adjusting Shim
22192 22192-54010 Plate, Tappet Adjusting Shim
22193 22193-64750 Ring, O(For Lever Connecting Pin)
22193 22193-17020 Ring, O(For Lever Connecting Pin)
22193 22193-5B320 Ring, O(For Fuel Injection Pump Filter)
22314 22314-54010 Spring, Lever Support
22316 22316-64640 Sleeve, Governor
22316 90099-10148 Bearing, Ball(For Governor Sleeve)
22317 22317-54010 Spring, Governor Domper
22322 22322-54020 Spring, Return
22341 22341-54010 Gear, Governor Drive
22350 22350-58200 Governor Assy, Torque Control
22369 22369-54010 Seat, Governor Spring
22378 22378-64010 Washer, Governor Thrust
22384 22384-54010 Shaft, Governor
22384 90099-14049 Ring, O(For Governor Main Shaft)
22390 22390-56290 Solenoid Assy, Fuel Cut
22390 22390-56291 Solenoid Assy, Fuel Cut
22390 22390-6A510 Solenoid Assy, Fuel Cut
22390 22390-6A511 Solenoid Assy, Fuel Cut
22505 22505-54010 Pump Sub-Assy, Fuel Feed
22505 90099-00723 Screw(For Fuel Feed Pump)
22511 22511-54020 Cover, Feed Pump
22511 22511-58650 Cover, Feed Pump
22548 22548-17010 Nipple, Swivel
22582 22582-5C150 Piston Assy, Timer
22602 22602-56350 Filter Sub-Assy, Fuel Injection Pump
22602 22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2
22611 22611-58200 Nut, Timer Round
22612 22612-56350 Cover, Timer
22612 22612-17020 Cover, Timer
22612 22612-54450 Cover, Timer
22612 22193-17840 Ring, O(For Timer Cover)
22615 22615-17030 Spring, Timer Outer
22615 22615-54290 Spring, Timer Outer
22615 22615-54291 Spring, Timer Outer
22615 22615-58200 Spring, Timer Outer
22615 22615-17020 Spring, Timer Outer
22615 22615-17021 Spring, Timer Outer
22615 22615-17022 Spring, Timer Outer
22615 22615-5B374 Spring, Timer Outer
22621 22625-54272 Washer, Timer Adjusting
22625 22625-17020 Washer, Timer Adjusting
22632 22632-54010 Coupling, Injection Pump
22654 22654-58200 Piston, Timer
22655 22655-54010 Pin, Timer Slide
22656 22656-17840 Clip, Timer
22657 22657-54010 Clip, Timer
22658 22658-17020 Stopper, Timer
22658 22658-17840 Stopper, Timer
22658 22658-54450 Stopper, Timer
22659 22659-64150 Spring, Coupling
22689 22689-56350 Washer(For Swivel Nipple)
22701 22701-58890 Lever Sub-Assy, Adjusting
22701 22701-58891 Lever Sub-Assy, Adjusting
22703 22703-54132 Cover Sub-Assy, Governor
22713 22713-54010 Washer, Governor Gear Adjusting
22713 22714-54010 Washer, Governor Gear Adjusting
22713 22715-54010 Washer, Governor Gear Adjusting
22713 22716-54010 Washer, Governor Gear Adjusting
22713 22717-54010 Washer, Governor Gear Adjusting
22726 22726-58200 Spring, Speed Control
22739 22739-54020 Bolt, Governor Link Support
22740 22740-21910 Shaft Sub-Assy, Governor Adjusting
22740 22740-58480 Shaft Sub-Assy, Governor Adjusting
22740 22193-54770 Ring, O(For Governor Adjusting Shaft)
22741 22741-54020 Holder Sub-Assy, Flyweight
22745 22745-54010 Flyweight, Distributive Pump
22745 22745-5B640 Flyweight, Distributive Pump
22749 22749-56350 Collar, Smoke Set Adjusting
22751 22751-58880 Wire Sub-Assy, Fuel Cut Solenoid
22753 22753-54010 Washer, Flyweight, No.1
22753 22753-54020 Washer, Flyweight, No.2
22774 22774-54270 Gasket, Governor Cover
22775 22775-77121 Nut, Rock
22776 22776-54110 Screw, Smoke Set Adjusting
22776 22193-54771 Ring, O(For Smoke Set Screw)
22776 90099-14047 Ring, O(For Smoke Set Screw)
22787 22787-54026 Plug, Governor Sleeve
22787 22787-54027 Plug, Governor Sleeve
22787 22787-64641 Plug, Governor Sleeve
22787 22787-64642 Plug, Governor Sleeve
22787 22787-64643 Plug, Governor Sleeve
22787 22787-64660 Plug, Governor Sleeve
22787 22787-64661 Plug, Governor Sleeve
22787 22787-64662 Plug, Governor Sleeve
22787 22787-64663 Plug, Governor Sleeve
22787 22787-64664 Plug, Governor Sleeve
22787 22787-64665 Plug, Governor Sleeve
223785 22378-5C430 Washer, Governor Thrust
2214954771 22149-54771 Gasket, Delivery Valve
2214956200 22149-56200 Gasket, Delivery Valve
2217254263 22172-54263 Clip, Connector Support, Solenoid
2217254264 22172-54264 Clip, Connector Support, Solenoid
2239554010 22395-54010 Bolt, Socket(For Injection Pump Governor Cover)
2239556350 22395-56350 Bolt, Socket(for Injection Pump Governor Cover)
2239556351 22395-56351 Bolt, Socket(for Injection Pump Governor Cover)
2239558200 22395-58200 Bolt, Socket(For Injection Pump Governor Cover)
2272254470 22722-54470 Nut, Governor Shaft Rock
9009210608 90092-10608 New Genuine Part
9009690024 90096-90024 Ring, O(For Stopper Lever)
9009904576 90099-04576 BOLT
9009904946 90099-04946 Ring, O(For Bellows Cover)
9009905161 90099-05161 Nut, Timer Round
9009905225 90099-05225 NUT
9009905252 90099-05252 NUT HEXAGON
9009918022 90099-18022 SCREW
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
Inside Trim Board ([01.1993 - ] (9301- )BB4#,BZB40,XZB40..RHD) 64
#OEMPart name
61955 61955-36020-A0 Bracket, Side Trim, Upper No.1
61955 61955-36020-B0 Bracket, Side Trim, Upper No.1
61955 61955-36020-A1 Bracket, Side Trim, Upper No.1
62313 62313-36010-A0 Trim, Front Door Opening, Rh
62313 62313-36010-B0 Trim, Front Door Opening, Rh
62313 62313-36010-A1 Trim, Front Door Opening, Rh
62413 62413-36010-A0 Garnish, Center Pillar, Lower Rh
62413 62413-36010-B0 Garnish, Center Pillar, Lower Rh
62510 62510-36270-E0 Trim Assy, Side No.1, Rh
62519 62519-36010-A0 Trim, Side Lower Window
62519 62519-36010-B0 Trim, Side Lower Window
62520 62520-36380-E0 Trim Assy, Side No.1, Lh
62520 62520-36381-E0 Trim Assy, Side No.1, Lh
62530 62530-36300-E0 Trim Assy, Side No.2, Rh
62540 62540-36300-E0 Trim Assy, Side No.2, Lh
62540 62540-36301-E0 Trim Assy, Side No.2, Lh
62570 62550-36130-E0 Trim Assy, Side No.4
62580 62560-36130-E0 Board Assy, Side Heater Cover, Rh
62611 90467-08104-A1 Clip (For Luggage Partition Board)
62611 90467-05020-A0 Clip (For Roof Side Garnish)
62611 90467-05020-A4 Clip, Instrument Panel, No.1
62612 62612-36010-A0 Board, Side Trim No.2, Rh
62612 62612-36190-B0 Board, Side Trim No.2, Rh
62612 62612-36270-A0 Board, Side Trim No.2, Rh
62614 62614-36140-A0 Board, Side Trim No.4, Rh
62614 62670-36090-A0 Board, Side Trim No.4, Rh
62615 62615-36080-A0 Board, Side Trim No.5, Rh
62615 62615-36200-A0 Board, Side Trim No.5, Rh
62616 62616-36010-A0 Board, Side Trim No.6
62616 62616-36010-B0 Board, Side Trim No.6
62621 62621-36070-A0 Board, Side Trim No.1, Lh
62621 62621-36070-B0 Board, Side Trim No.1, Lh
62622 62622-36160-A0 Board, Side Trim No.2, Lh
62622 62622-36330-A0 Board, Side Trim No.2, Lh
62624 62624-36150-A0 Board, Side Trim No.4, Lh
62624 62680-36080-A0 Board, Side Trim No.4, Lh
62625 62625-36080-A0 Board, Side Trim No.5, Lh
62625 62625-36210-A0 Board, Side Trim No.5, Lh
62989 62989-36020-A0 Cover, Center Door Lock
62989 62989-36021-B0 Cover, Center Door Lock
62989 62989-36021-A0 Cover, Center Door Lock
62989 62989-36021-A1 Cover, Center Door Lock
63951 63951-36010-A0 Cover, Cooler Pipe
63951 63951-36020-B0 Cover, Cooler Pipe
63951 63951-36010-A1 Cover, Cooler Pipe
64745 64745-36030-A0 Cover, Rear Combination Lamp Service, Rh
64745 64745-36030-B0 Cover, Rear Combination Lamp Service, Rh
64745 67771-36030-A0 Clip (For Side Trim Board)
64746 64746-36030-A0 Cover, Rear Combination Lamp Service, Lh
64746 64746-36030-B0 Cover, Rear Combination Lamp Service, Lh
67676 67676-36010-A0 Cover, Side Trim Board, Front Lh
67676 67676-36031-B0 Cover, Side Trim Board, Front Lh
67676 67676-36030-A0 Cover, Side Trim Board, Front Lh
67745 67745-36010-A0 Moulding, Center Door Trim
67745 67745-36030-B0 Moulding, Center Door Trim
67745 67745-36010-A1 Moulding, Center Door Trim
6777112050 67771-12050 Clip, Radiator Grille
6777130070 67771-30070 Retainer(For Deck Side Trim Panel)
6777130090 67771-30090 Retainer (For Quarter Inside Trim Board)
6777136040 67771-36040 Weatherstrip, Back Door Trim, Rh
6777136050 67771-36050 Clip
9356055010 93560-55010 Screw(For Mat Set Plate)
9356055020 93560-55020 SCREW
9361055020 93610-55020 New Genuine Part
Instrument Panel & Glove Compartment ([01.1993 - 08.2007] (9301-0708)RHD) 74
#OEMPart name
55301 55301-36010-E0 Panel Sub-Assy, Instrument
55301 55301-36063-B0 Panel Sub-Assy, Instrument
55301 55539-60020-C0 Cover, Spare Switch Hole
55301 55549-36010-B0 Cover, Instrument Panel Hole, No.2
55305 55305-36010 Reinforcement Sub-Assy, Instrument Panel, No.1
55305 55305-36012 Reinforcement Sub-Assy, Instrument Panel, No.1
55306 55306-36020 Reinforcement Sub-Assy, Instrument Panel, No.2
55306 55306-36026 Reinforcement Sub-Assy, Instrument Panel, No.2
55307 55307-36010 Reinforcement Sub-Assy, Instrument Panel, No.3
55308 55308-36010 Bracket Sub-Assy, Instrument Panel, Center
55308 55308-36014 Bracket Sub-Assy, Instrument Panel, Center
55308 55308-36011 Bracket Sub-Assy, Instrument Panel, Center
55312 90467-07071-E3 Clip, Instrument Panel
55316 55316-36010 Spacer, Instrument Panel, No.2
55342 55342-36010 Brace, Instrument Panel To Cowl, No.2
55342 55342-36030 Brace, Instrument Panel To Cowl, No.2
55351 55351-36010 Brace, Instrument Panel To Floor
55352 55352-36010 Brace, Instrument Panel To Floor, No.2
55358 55358-36010 Protector, Instrument Panel
55403 55421-36010-E0 Hood Sub-Assy, Meter
55403 55421-36010-B0 Hood Sub-Assy, Meter
55407 55407-36010-E0 Cover Sub-Assy, Instrument, Lower
55407 55407-36010-B0 Cover Sub-Assy, Instrument, Lower
55411 55411-36010 Panel, Instrument Cluster Finish, No.1
55412 55412-36010-E0 Panel, Instrument Cluster Finish, Center
55412 55412-36012-E0 Panel, Instrument Cluster Finish, Center
55412 55412-36020-E0 Panel, Instrument Cluster Finish, Center
55412 55412-36022-B0 Panel, Instrument Cluster Finish, Center
55425 55425-36010 Bracket, Meter Hood Set
55432 55432-36010-E0 Panel, Instrument Panel Finish, Lower No.1
55432 55432-36010-B0 Panel, Instrument Panel Finish, Lower No.1
55441 55441-36010 Box, Instrument Panel
55477 55477-36010 Bezel, Cigarette Lighter Hole
55521 55521-16030 Cover, Radio Tuner Opening
55521 55521-16040 Cover, Stereo Opening
55521 55521-36020 Cover, Stereo Opening
55524 55524-36010-E0 Cover, Switch Bace Hole
55539 55546-36010-E0 Cover, Spare Switch Hole
55539 55546-36010-B0 Cover, Spare Switch Hole
55539 55539-20030-E1 Cover, Spare Switch Hole
55539 55539-32010-C0 Cover, Cooler Switch Hole (BLACK)
55547 55547-20020-E0 Cover, Remote Control Mirror Hole
55548 55548-36010-E0 Cover, Instrument Panel Hole
55617 55617-10010-E0 Cover, Throttle Knob Hole
55617 55617-10010-22 Cover, Choke Knob Hole
55650 55650-36010 Register Assy, Instrument Panel, No.1
55660 55660-36010 Register Assy, Instrument Panel, No.2
55670 55670-36010-E0 Register Assy, Instrument Panel, No.3
55670 55670-36030-B0 Register Assy, Instrument Panel, No.3
55670 55670-36030-E0 Register Assy, Instrument Panel, No.3
55950 55950-36010 Nozzle Assy, Defroster
55950 55950-36011 Nozzle Assy, Defroster
55961 55961-36010-E0 Nozzle, Side Defroster, No.1
55961 55961-36010-B0 Nozzle, Side Defroster, No.1
55962 55962-36010-E0 Nozzle, Side Defroster, No.2
55962 55962-36010-B0 Nozzle, Side Defroster, No.2
55972 55972-36010 Duct, Side Defroster Nozzle, No.2
9010906187 90109-06187 BOLT
9011906144 90119-06144 Bolt, Hexagon (For Shift Lever Plate)
9011908856 90119-08856 BOLT W-WASHER
9014950032 90149-50032 Screw
9015950068 90159-50068 SCREW
9016750048 90167-50048 New Genuine Part
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9018305094 90183-05094 NUT
9018305103 90183-05103 NUT
9046714009 90467-14009 CLIP
9046804147 90468-04147 Clip(For Back Door Trim Board)
9046805102 90468-05102 New Genuine Part
9162640618 91626-40618 BOLTWWASHER
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9356855012 93568-55012 SCREW
9356855014 93568-55014 Screw
Interior Lamp ([01.1993 - 08.2004] (9301-0408)) 17
#OEMPart name
81230 81230-90B00 Lamp Assy, Courtesy
81230 90981-16013 Bulb(For Courtesy Lamp)
81231 81231-30080 Lens, Courtesy Lamp
81236 81236-14016 Rim,step Lamp
81240 81240-36010-A0 Lamp Assy, Room, No.1
81240 81240-36011-B0 Lamp Assy, Room, No.1
81240 81240-36011-A1 Lamp Assy, Room, No.1
81240 99134-11120 Bulb, Room Lamp, No.1
81241 81241-90B00 Lens, Room Lamp, No.1
81361 81361-90511 Lens, Step Lamp
81364 81364-90501 Gasket, Step Lamp
81380 81380-36010 Lamp Assy, Step
81380 99134-12030 Bulb, Position Indicator Lamp
9015940063 90159-40063 New Genuine Part
9324914020 93249-14020 New Genuine Part
9338315016 93383-15016 New Genuine Part
9351024020 93510-24020 New Genuine Part
Lock Cylinder Set ([01.1993 - 01.2015] (9301-1501)RHD) 13
#OEMPart name
69051 69051-36070 Cylinder & Key Set, Door Lock, Rh
69051 69051-36071 Cylinder & Key Set, Door Lock, Rh
69054 69055-36020 Cylinder & Key Set, Back Door Lock
69057 69053-36010 Cylinder & Key Set, Door Lock, Rh
69057 69057-36010 Cylinder & Key Set, Ignition Switch Lock
69057 69057-36011 Cylinder & Key Set, Ignition Switch Lock
69503 69005-36110 Cylinder Set, Lock
69503 69005-36112 Cylinder Set, Lock
69503 69005-36111 Cylinder Set, Lock
69503 69005-36251 Cylinder Set, Lock
69503 69005-36252 Cylinder Set, Lock
69503 90999-00185 Key, Blank
69503 90999-00186 Key, Blank
Manifold ([01.1993 - ] (9301- )14B,3B) 29
#OEMPart name
17111 17111-56200 Manifold, Intake
17111 17111-58090 Manifold, Intake
17111 17171-58020 Gasket, Manifold To Cylinder Head
17111 90116-08352 Bolt, Stud(For Intake Manifold To Cylinder Head)
17141 17141-56060 Manifold, Exhaust
17141 90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17141 90116-10098 Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17152 90116-10087 Bolt, Stud(For Turbocharger)
17152 90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)
17167 17167-56060 Insulator, Exhaust Manifold Heat, No.1
17172 17171-56010 Gasket, Manifold To Cylinder Head
17173 17173-56040 Gasket, Exhaust Manifold To Head
21928 21928-58080 Support, Throttle Wire
91621 91621-B0816 BOLT WWASHER
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9010510057 90105-10057 Bolt (For Front Lower Ball Joint)
9011008018 90110-08018 New Genuine Part
9011910346 90119-10346 Bolt (For Front Lower Ball Joint)
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017910214 90179-10214 NUT
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9212260816 92122-60816 Bolt, Stud(For Water Pump Set)
9418461000 94184-61000 Nut(For Rear Spring)
9418461000 48284-37U70 Nut(For Rear Spring)
Meter ([01.1993 - 08.2009] W(TACHOMETER) (9301-0908)BB4#,5#,BZB40,50,HZB50,RZB40,50,XZB40 ,5#) 39
#OEMPart name
83100 83119-36020 Bulb, Combination Meter, No.1
83100 90981-11018 Bulb, Position Indicator Lamp
83100 90981-11022 Bulb, Ash Receptacle Lamp
83100 99134-12030 Bulb, Position Indicator Lamp
83101 83101-14040 Socket, Indicator Lamp
83101 83101-20040 Socket, Bulb(For Map Lamp)
83101 83101-89101 Socket Sub-Assy, Combination Meter Bulb
83101 83101-95020 Socket Sub-Assy, Combination Meter Bulb
83110 83110-36400 Speedometer Assy
83110 83220-36031 Speedometer Assy
83110 83220-36030 Speedometer Assy
83131 83131-36100 Droper Assy, Meter
83132 83132-36020 Case, Combination Meter
83134 83134-36080 Cover, Combination Meter, No.1
83145 83145-36080 Lens, Meter, No.1
83145 83145-36570 Lens, Meter, No.1
83145 83145-36580 Lens, Meter, No.1
83145 83145-36340 Lens, Meter, No.2
83145 83145-36360 Lens, Meter, No.2
83145 83145-36520 Lens, Meter, No.2
83145 83145-36500 Lens, Meter, No.2
83145 83145-89320 Lens, Meter, No.1
83242 83242-36160 Tachometer Assy, Engine
83242 83242-36260 Tachometer Assy, Engine
83247 83247-36080 Plate, Meter Circuit
83247 83247-36280 Plate, Meter Circuit
83247 83247-36240 Plate, Meter Circuit, No.2
83310 83243-36020 Gage Assy, Fuel Receiver
8316120100 83161-20100 Case, Combination Meter Mirror, No.1
8316120280 83161-20280 Case, Combination Meter Mirror, No.1
8316120340 83161-20340 Case, Combination Meter Mirror, No.1
8316120440 83161-20440 Case, Combination Meter Mirror, No.1
8316120480 83161-20480 Case, Combination Meter Mirror, No.1
8316120800 83161-20800 Case, Combination Meter Mirror, No.1
8316120820 83161-20820 Case, Combination Meter Mirror, No.1
8316136020 83161-36020 Case, Combination Meter Mirror, No.1
8316136020 83161-36040 Case, Combination Meter Mirror, No.1
9007600004 90076-00004 New Genuine Part
9356855014 93568-55014 Screw
Meter ([01.1993 - 08.2009] W/0(TACHOMETER) (9301-0908)BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40 ,50) 33
#OEMPart name
83100 83119-36020 Bulb, Combination Meter, No.1
83100 90981-11018 Bulb, Position Indicator Lamp
83100 90981-11022 Bulb, Ash Receptacle Lamp
83100 99134-12030 Bulb, Position Indicator Lamp
83101 83101-14040 Socket, Indicator Lamp
83101 83101-20040 Socket, Bulb(For Map Lamp)
83101 83101-89101 Socket Sub-Assy, Combination Meter Bulb
83101 83101-95020 Socket Sub-Assy, Combination Meter Bulb
83110 83110-36400 Speedometer Assy
83110 83220-36031 Speedometer Assy
83110 83220-36030 Speedometer Assy
83131 83131-36100 Droper Assy, Meter
83132 83132-36020 Case, Combination Meter
83134 83134-36080 Cover, Combination Meter, No.1
83145 83145-36080 Lens, Meter, No.1
83145 83145-36570 Lens, Meter, No.1
83145 83145-36580 Lens, Meter, No.1
83145 83145-36340 Lens, Meter, No.2
83145 83145-36360 Lens, Meter, No.2
83145 83145-36520 Lens, Meter, No.2
83145 83145-36500 Lens, Meter, No.2
83145 83145-89320 Lens, Meter, No.1
83247 83247-36080 Plate, Meter Circuit
83247 83247-36280 Plate, Meter Circuit
83247 83247-36240 Plate, Meter Circuit, No.2
83310 83243-36020 Gage Assy, Fuel Receiver
8316120340 83161-20340 Case, Combination Meter Mirror, No.1
8316120440 83161-20440 Case, Combination Meter Mirror, No.1
8316120480 83161-20480 Case, Combination Meter Mirror, No.1
8316120800 83161-20800 Case, Combination Meter Mirror, No.1
8316120820 83161-20820 Case, Combination Meter Mirror, No.1
8316136040 83161-36040 Case, Combination Meter Mirror, No.1
9356855014 93568-55014 Screw
Meter ([01.1993 - ] CLOCK & SPEED SENSOR (9301- )) 12
#OEMPart name
83180 83180-36050 Detector Assy, Revolution
83181 83181-36010 Sensor, Speedometer
83181 90301-18004 Ring, O (For Atm Speedometer Driven Hole Cover)
83910 83910-36040 Clock Assy
83910 83910-36040-A0 Clock Assy
83910 84999-50290 Bulb, Clock Indicator
83910 90072-01005 Socket Sub-Assy, Clock Bulb
83916 83916-36010 Clip, Clock, No.1
83916 83916-36010-A0 Clip, Clock, No.1
83916 83916-36020 Clip, Clock, No.2
83916 83916-36020-A0 Clip, Clock, No.2
9015960035 90159-60035 SCREW
Meter ([01.1993 - ] TACHOGRAPH ASSY (9301- )) 2
#OEMPart name
9014950032 90149-50032 Screw
9326955010 93269-55010 New Genuine Part
Mirror ([01.1993 - ] INNER MIRROR (9301- )) 6
#OEMPart name
87810 87810-36020-A0 Mirror Assy, Inner Rear View
87810 87810-36020-A1 Mirror Assy, Inner Rear View
87834 87834-20080-A0 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-B2 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-A1 Cover, Inner Rear View Mirror Stay Holder
9015960035 90159-60035 SCREW
Mirror ([01.1993 - ] OUTER MIRROR = W(SUB MIRROR) (9301- )) 8
#OEMPart name
87901 87097-36010 Mirror Sub-Assy, Outer Under View
87902 87902-36010 Arm Sub-Assy, Outer Rear View Mirror, Rh
87905 87905-36020 Arm Sub-Assy, Outer Rear View Mirror, Lh
87910 87901-36040 Mirror Assy, Outer Rear View - OUTER REAR VIEW, RH, LH
87941 87911-36010 Gasket, Outer Rear View Mirror, Lh
9015460029 90154-60029 SCREW
9015740017 90157-40017 SCREW CROSSRECESS
9162140616 91621-40616 Step Cover Bolt
Mirror ([01.1993 - ] OUTER MIRROR = W/O(SUB MIRROR) (9301- )) 7
#OEMPart name
87902 87902-36010 Arm Sub-Assy, Outer Rear View Mirror, Rh
87905 87905-36020 Arm Sub-Assy, Outer Rear View Mirror, Lh
87910 87901-36040 Mirror Assy, Outer Rear View - OUTER REAR VIEW, RH, LH
87941 87911-36010 Gasket, Outer Rear View Mirror, Lh
9015460029 90154-60029 SCREW
9015740017 90157-40017 SCREW CROSSRECESS
9162140616 91621-40616 Step Cover Bolt
Mirror ([01.1993 - ] REAR UNDER MIRROR (9301- )) 4
#OEMPart name
87907 87907-36010 Mirror Sub-Assy, Outer Under View
87950 87950-36010 Mirror Assy, Outer Under Rear View
87951 87951-36010 Gasket, Outer Under Rear View Mirror
9015460029 90154-60029 SCREW
Mounting ([01.1993 - ] (9301- )14B,15B#,1BZFPE,3B) 29
#OEMPart name
12311 12311-58080 Bracket, Engine Mounting, Front No.1 Rh
12311 12311-58081 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-58040 Bracket, Engine Mounting, Front No.1 Lh
12315 12315-58041 Bracket, Engine Mounting, Front No.1 Lh
12321 12321-17020 Bracket, Engine Mounting, Rear, No.1
12325 12325-17020 Bracket, Engine Mounting, No.3
12341 12341-58010 Spacer, Engine Mounting
12361 12361-58080 Insulator, Engine Mounting, Front
12361 12361-58084 Insulator, Engine Mounting, Front
12361 12361-58081 Insulator, Engine Mounting, Front
12371 12371-17040 Insulator, Engine Mounting, Rear No.1
12371 12371-17070 Insulator, Engine Mounting, Rear No.1
12381 12381-17020 Stabilizer, Engine Mounting
12381 12381-17021 Stabilizer, Engine Mounting
12511 12501-56010 Bracket Sub-Assy, Alternator
91512 91512-G1025 BOLTFLANGE
9010510203 90105-10203 New Genuine Part
9010512091 90105-12091 New Genuine Part
9017912024 90179-12024 NUT
9017912090 90179-12090 NUT
9017912127 90179-12127 Nut
9017912127 90178-A0071 New Genuine Part
9020110031 90201-10031 WASHERPLATE
9020112208 90201-12208 WASHER
9020112452 90201-12452 Nut(For Backing Plate To Steering Knuckle Setting)
9151281025 91512-81025 Bolt(For Torque Arm Setting)
9161161028 91611-61028 Bolt(For Transaxle Case & Engine Setting)
9161161028 91612-61028 Bolt(For Transaxle Case & Engine Setting)
9415011001 94150-11001 NUT
Oil Filter ([01.1993 - ] (9301- )14B,3B) 9
#OEMPart name
15601 15600-41010 Filter Assy, Oil
15601 90915-40002 Filter Assy, Oil
15609 15609-58020 Bracket Sub-Assy, Oil Filter
15691 15691-56040 Gasket, Oil Filter
15691 15691-56041 Gasket, Oil Filter
9034551007 90345-51007 Plug, W/head Taper Screw, No.1
9151161070 91511-61070 Bolt Or Ring, Exhaust Pipe Front (For Front)
9151161070 91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front)
9151261075 91512-61075 New Genuine Part
Parking Brake & Cable ([01.1993 - 07.1999] (9301-9907)ARL,GCC,GEN,SCO ; (9907- )) 26
#OEMPart name
46201 46210-36040-E0 Lever Sub-Assy, Parking Brake
46241 46241-36020-E0 Boot, Parking Brake Lever
46243 46243-36020-E0 Cover, Parking Brake Lever
46243 46243-36021-E0 Cover, Parking Brake Lever
46410 46410-36370 Cable Assy, Parking Brake, No.1
46420 90949-01839 Clamp, No.1(For Parking Brake Cable)
46420 90949-01841 Clamp, No.1(For Parking Brake Cable)
46420 90303-10001 Seal, Dust(For Parking Brake Cable)
46420 90501-14021 Spring(For Parking Cable Inner Wire Set)
46420 90560-08002 Spacer(For Parking Brake Handle)
46420 96160-00700 Ring, E(For Chain Tensioner Slipper)
46451 46451-36060 Bracket, Parking Brake Cable Support
46464 46464-36010 Plate, Cable Clamp Support
46464 46464-36020 Plate, Cable Clamp Support
91611 91611-G0820 Bolt
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9011906315 90119-06315 BOLT
9033904024 90339-04024 Cap, Transfer, Rear Case
9046108225 90461-08225 Clamp, No.3(For Parking Brake Cable)
9046808001 90468-08001 CLIP
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9331955016 93319-55016 New Genuine Part
9413060600 94130-60600 Nut, Wire Adjusting, No.1
Parking Brake & Cable ([01.1993 - ] (9301- )XZB40..17S ; (9301- )BB4#,BZB40,RZ B40,TRB40) 17
#OEMPart name
46501 46501-36190 Drum Sub-Assy, Parking Brake
46501 90114-11124 Bolt (For Transfer Output Shaft Companion Flange)
46503 46503-36022 Plate Sub-Assy, Parking Brake, Rh
46506 46506-36020 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center
46540 46540-36030 Shoe Assy, Parking Brake, Rh Or Center No.1
46540 46540-25010 Shoe Assy, Parking Brake, Rh Or Center No.1
46550 46550-36030 Shoe Assy, Parking Brake, Rh Or Center No.2
46550 46550-25010 Shoe Assy, Parking Brake, Rh Or Center No.2
46550 90506-18012 Spring, Tension, No.1(For Parking Brake Shoe Return)
46550 90213-06003 Washer, Type C(For Parking Brake Shoe)
46550 90506-14048 Spring, Tension, No.2(For Parking Brake Shoe Return)
46555 46555-35010 Spring, Brake Shoe Hold Down
46556 46556-35010 Pin, Shoe Hold Down Spring
46577 46577-36010 Cover, Adjusting Cam Hole
46601 46601-25011 Lever Sub-Assy, Parking Brake Shoe
9011910339 90119-10339 Bolt, Hexagon(For Front Disc Brake Caliper)
9461311200 94613-11200 WASHER
Partial Engine Assembly ([01.1993 - ] (9301- )) 2
#OEMPart name
11000 19000-58750 Engine Assy, Partial
11000 19000-5C120 Engine Assy, Partial
Power Steering Tube ([01.1993 - 05.1995] (9301-9505)BB4#..RHD) 38
#OEMPart name
44348 44348-36260 Hose, Oil Reservoir To Pump, No.1
44369 44369-36020 Bracket, Oil Reservoir, No.1
44379 44379-36150 Bracket, Oil Reservoir, No.2
44379 44379-37020 Bracket, Oil Reservoir, No.2
44386 44386-36100 Support, Oil Reservoir
44389 44389-36060 Bracket, Oil Reservoir, No.3
44411 44411-36401 Hose, Pressure Feed
44411 90404-16024 Bolt, Union(For Pressure Feed Hose)
44411 90430-16168 Gasket(For Pressure Feed Tube)
44416 44416-36350 Tube, Return(For Steering Gear Outlet)
44416 90401-14003 Bolt, Union(For Oil Cooler)
44416 90430-14235 Gasket, W/head Taper Screw Plug
44417 44417-36210 Tube, Return, No.2
44417 90445-18146 Hose, Return Tube (For Return Tube To Return Tube No.2)
44417 90445-18082 Hose(For Return Tube To Reservoir)
44423 44423-36310 Tube, Oil Pump To Gear Box
44447 44447-36200 Bracket, Hose Support, No.1
44457 44457-36040 Bracket, Tube Support, Vane Pump
91633 91633-B0840 New Genuine Part
91651 91651-B0620 New Genuine Part
91651 91651-B0816 New Genuine Part
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011908794 90119-08794 New Genuine Part
9046400621 90464-00621 Clamp, Throttle Cable
9046400691 90464-00691 New Genuine Part
9046716019 90467-16019 Clip(For Return No.1)
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9046808045 90468-08045 CLIP
9161160630 91611-60630 BOLT
9161161040 91611-61040 Bolt(For Transaxle Case & Engine Setting)
9161161040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9164280825 91642-80825 New Genuine Part
9164280825 91641-80825 BOLT WWASHER
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165161022 91651-61022 Bolt
9461310800 94613-10800 Spacer (For Control Select Lever Support)
Power Steering Tube ([05.1995 - 07.1999] (9505-9907)BB4#..RHD) 36
#OEMPart name
44348 44348-36260 Hose, Oil Reservoir To Pump, No.1
44369 44369-36020 Bracket, Oil Reservoir, No.1
44379 44379-36150 Bracket, Oil Reservoir, No.2
44379 44379-37020 Bracket, Oil Reservoir, No.2
44386 44386-36100 Support, Oil Reservoir
44389 44389-36060 Bracket, Oil Reservoir, No.3
44411 44411-36401 Hose, Pressure Feed
44411 90404-16024 Bolt, Union(For Pressure Feed Hose)
44411 90430-16168 Gasket(For Pressure Feed Tube)
44416 44416-36350 Tube, Return(For Steering Gear Outlet)
44416 90401-14003 Bolt, Union(For Oil Cooler)
44416 90430-14235 Gasket, W/head Taper Screw Plug
44417 44417-36210 Tube, Return, No.2
44417 90445-18146 Hose, Return Tube (For Return Tube To Return Tube No.2)
44417 90445-18082 Hose(For Return Tube To Reservoir)
44423 44423-36310 Tube, Oil Pump To Gear Box
44447 44447-36200 Bracket, Hose Support, No.1
44457 44457-36040 Bracket, Tube Support, Vane Pump
91651 91651-B0620 New Genuine Part
91651 91651-B0816 New Genuine Part
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9046400621 90464-00621 Clamp, Throttle Cable
9046400691 90464-00691 New Genuine Part
9046716019 90467-16019 Clip(For Return No.1)
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9046808045 90468-08045 CLIP
9161160630 91611-60630 BOLT
9161161040 91611-61040 Bolt(For Transaxle Case & Engine Setting)
9161161040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9163160840 91631-60840 New Genuine Part
9164280825 91642-80825 New Genuine Part
9164280825 91641-80825 BOLT WWASHER
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165161022 91651-61022 Bolt
Propeller Shaft & Universal Joint ([01.1993 - 05.1995] (9301-9505)BB4#,RZB40) 74
#OEMPart name
4371 04371-36030 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-60210 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-36050 Spider Kit, Universal Joint(For Propeller Shaft)
37100 37100-36710 Shaft Assy, Propeller W/center Bearing
37100 90105-11013 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90179-11005 Nut, No.1 (For Propeller Shaft & Differential Setting)
37100 90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting)
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01140 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37110 37110-36730 Shaft Assy, Propeller
37110 51569-36180 Guard, Propeller Shaft
37110 51569-36190 Guard, Propeller Shaft
37120 37120-36570 Shaft Assy, Propeller Intermediate
37120 90201-20005 Washer, Plate (For Flange Yoke)
37120 90179-20006 Nut (For Propeller Intermediate Shaft Setting)
37207 37207-35011 Cushion Sub-Assy, Center Support Bearing, No.1
37230 37230-36140 Bearing Assy, Center Support, No.1
37230 37230-36141 Bearing Assy, Center Support, No.1
37230 90363-30029 Bearing, No.1 (For Center Support)
37230 90521-66077 Ring, Snap, No.1 (For Center Support Bearing)
37230 90522-97001 Ring, Set, No.1 (For Center Support Bearing Cushion)
37230 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
37230 90101-08157 Bolt, No.1 (For Center Support Bearing)
37230 91112-80816 Bolt, No.1 (For Center Support Bearing)
37230 94110-50800 Nut(For Repair Actuator Set)
37230 94130-00802 Nut, No.1 (For Center Support Bearing)
37230 90170-A0001 New Genuine Part
37231 37231-36020 Housing, Center Support Bearing
37231 37231-36021 Housing, Center Support Bearing, No.1
37233 37233-36080 Housing, Center Support Bearing, No.2
37235 37235-36010 Cushion, Center Support Bearing
37236 37236-36061 Bolt, Center Support Bearing Housing
37237 37237-36020 Plate, Center Support Bearing, No.1
37237 37237-36030 Plate, Center Support Bearing, No.2
37237 37237-36040 Plate, Center Support Bearing, No.2
37237 37237-36050 Plate, Center Support Bearing, No.2
37237 37237-36060 Plate, Center Support Bearing, No.2
37237 37237-36070 Plate, Center Support Bearing, No.2
37237 37237-36080 Plate, Center Support Bearing, No.2
37237 37237-36090 Plate, Center Support Bearing, No.2
37237 37237-36100 Plate, Center Support Bearing, No.2
37237 37237-36110 Plate, Center Support Bearing, No.2
37237 37237-36120 Plate, Center Support Bearing, No.2
37302 37302-36020 Yoke Sub-Assy, Universal Joint Sleeve
37304 37304-36030 Flange Sub-Assy, Universal Joint
37305 37305-36020 Cover Sub-Assy, Sliding Shaft Dust
37315 37315-36020 Yoke, Universal Joint Flange
37315 37315-60090 YOKE
37341 37341-36010 Deflector, Propeller Shaft Dust, No.1
37342 37342-36010 Deflector, Propeller Shaft Dust, No.2
37344 37344-36010 Deflector, Propeller Shaft Dust, No.3
37345 37345-36010 Deflector, Propeller Shaft Dust, No.4
37401 90520-29024 Ring, Hole Snap (For Spider Bearing)
37401 90520-29025 Ring, Hole Snap (For Spider Bearing)
37401 90520-29026 Ring, Hole Snap (For Spider Bearing)
37401 90520-29027 Ring, Hole Snap (For Spider Bearing)
37402 37402-36070 Bearing Sub-Assy, Universal Joint Spider
37402 37402-36080 Bearing Sub-Assy, Universal Joint Spider
91611 91611-G0820 Bolt
9017910015 90179-10015 NUT
9645100600 96451-00600 Fitting, Grease Small(For Tail Gate Lock Link)
Propeller Shaft & Universal Joint ([05.1995 - ] (9505-0408)RZB40 ; (9505- )BB4#,BZB40) 62
#OEMPart name
4371 04371-36030 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-60210 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-36050 Spider Kit, Universal Joint(For Propeller Shaft)
37100 37100-36710 Shaft Assy, Propeller W/center Bearing
37100 90105-11013 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90179-11005 Nut, No.1 (For Propeller Shaft & Differential Setting)
37100 90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting)
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01140 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37110 37110-36730 Shaft Assy, Propeller
37110 51569-36180 Guard, Propeller Shaft
37110 51569-36190 Guard, Propeller Shaft
37120 37120-36570 Shaft Assy, Propeller Intermediate
37120 90201-20005 Washer, Plate (For Flange Yoke)
37120 90179-20006 Nut (For Propeller Intermediate Shaft Setting)
37207 37207-35011 Cushion Sub-Assy, Center Support Bearing, No.1
37230 37230-36140 Bearing Assy, Center Support, No.1
37230 37230-36141 Bearing Assy, Center Support, No.1
37230 90363-30029 Bearing, No.1 (For Center Support)
37230 90521-66077 Ring, Snap, No.1 (For Center Support Bearing)
37230 90522-97001 Ring, Set, No.1 (For Center Support Bearing Cushion)
37230 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
37230 90101-08157 Bolt, No.1 (For Center Support Bearing)
37230 91112-80816 Bolt, No.1 (For Center Support Bearing)
37230 94110-50800 Nut(For Repair Actuator Set)
37230 94130-00802 Nut, No.1 (For Center Support Bearing)
37230 90170-A0001 New Genuine Part
37231 37231-36020 Housing, Center Support Bearing
37231 37231-36021 Housing, Center Support Bearing, No.1
37233 37233-36080 Housing, Center Support Bearing, No.2
37302 37302-36020 Yoke Sub-Assy, Universal Joint Sleeve
37304 37304-36030 Flange Sub-Assy, Universal Joint
37305 37305-36020 Cover Sub-Assy, Sliding Shaft Dust
37315 37315-36020 Yoke, Universal Joint Flange
37315 37315-60090 YOKE
37341 37341-36010 Deflector, Propeller Shaft Dust, No.1
37342 37342-36010 Deflector, Propeller Shaft Dust, No.2
37344 37344-36010 Deflector, Propeller Shaft Dust, No.3
37345 37345-36010 Deflector, Propeller Shaft Dust, No.4
37401 90520-29024 Ring, Hole Snap (For Spider Bearing)
37401 90520-29025 Ring, Hole Snap (For Spider Bearing)
37401 90520-29026 Ring, Hole Snap (For Spider Bearing)
37401 90520-29027 Ring, Hole Snap (For Spider Bearing)
37402 37402-36070 Bearing Sub-Assy, Universal Joint Spider
37402 37402-36080 Bearing Sub-Assy, Universal Joint Spider
91611 91611-G0820 Bolt
9017910213 90179-10213 NUT W/WASHER
9038710143 90387-10143 Bolt, No.1 (For Center Support Bearing)
9164281050 91642-81050 New Genuine Part
Protector Pipe, Roll Bar & Handrail ([01.1993 - 01.2015] DOOR SIDE(GLIDING DOOR) (9301-1501)HZB50..RHD..TD ; (9301-1501)BB4#,50,B ZB40,50,XZB40,50..RHD..STD ; (9301- 1501)HZB50..RHD.. 20S,22S,30S..EX,STD..ARL,GEN) 3
#OEMPart name
9011906184 90119-06184 New Genuine Part
9015940052 90159-40052 New Genuine Part
9026906006 90269-06006 PIN
Protector Pipe, Roll Bar & Handrail ([01.1993 - 08.2004] DOOR SIDE(FOLDING DOOR) (9301-0408)HZB50..SCO ; (9301-0408)HZB50..LHD..T D ; (9301-0408)HZB50..RHD..STD ; (9 301-0408)BB40,42, 50..RHD..ARL,GEN..CBU..DSL,TD) 7
#OEMPart name
74703 74703-90B00 Frame Sub-Assy, Hand Grip Side
74730 74730-36030 Frame Assy, Hand Grip
74730 74730-36031 Frame Assy, Hand Grip
9011906184 90119-06184 New Genuine Part
9015940052 90159-40052 New Genuine Part
9026005001 90260-05001 New Genuine Part
9338526016 93385-26016 New Genuine Part
Radiator & Water Outlet ([01.1993 - ] (9301- )14B,15BFT,3B) 99
#OEMPart name
16261 16261-56012 Hose, Water By-Pass
16261 90467-28004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 90467-28007 Clip Or Clamp(For Ventilation Hose)
16261 90467-28005 Clamp Or Clip, Hose(For Water By-Pass Hose)
16331 16331-56020 Outlet, Water
16331 90916-03077 Thermostat
16331 90916-03102 Thermostat
16333 16333-56072 Housing, Water Outlet
16333 16333-58080 Housing, Water Outlet
16333 90341-12006 Plug(For Water Outlet)
16333 90430-12221 Gasket
16333 16333-58050 Housing, Water Outlet
16333 92112-60832 Bolt, Stud(For Water Outlet Housing)
16341 16341-56030 Gasket, Water Outlet
16343 16343-56022 Gasket, Water Outlet Housing
16343 16343-56023 Gasket, Water Outlet Housing
16361 16361-41070 Fan
16361 16361-41071 Fan
16381 16381-58040 Bar, Fan Belt Adjusting
16381 16381-58130 Bar, Fan Belt Adjusting
16400 16400-58380 Radiator Assy
16400 16400-58570 Radiator Assy
16400 16400-58571 Radiator Assy
16400 16417-15210 Plug, Radiator Drain Cock
16400 16417-24200 Plug, Radiator Drain Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16400 16418-24200 Packing(For Radiator Drain Cock)
16400 16418-50121 Packing(For Radiator Drain Cock)
16470 16470-17060 Tank Assy, Radiator Reserve
16470 16470-17062 Tank Assy, Radiator Reserve
16470 90467-12026 Clamp Or Clip(For Radiator Reserve Tank Hose)
16471 16405-17030 Cap Sub-Assy, Reserve Tank
16472 16472-17060 Hose, Breather
16520 16520-17010 Filler Assy, Water
16520 16401-72090 Cap Sub-Assy, Radiator
16520 16401-20353 Cap Sub-Assy, Radiator
16520 16401-36030 Cap Sub-Assy, Radiator
16537 16537-58010 Support, Radiator Pipe, No.1
16549 16549-61010 Collar, Radiator Support, No.2
16567 16567-17010 Hose(For Radiator Reserve Tank)
16567 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16567 90464-00460 Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
16567 90464-00618 Clamp Or Clip(For Radiator Reserve Tank Hose No.3)
16571 16571-58050 Hose, Radiator, Inlet
16571 16571-58051 Hose, Radiator, Inlet
16571 90467-41006 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16571 90467-42001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-43002 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-56091 Hose, Radiator, Outlet
16572 90467-41004 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572 90466-41003 Clip, Radiator Hose, No.1
16572 90467-41007 Clamp Or Clip, Hose(For Radiator Inlet)
16572 90467-48003 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572 96111-10490 Clamp Or Clip, Sub Radiator Hose
16572 96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572 16572-58070 Hose, Radiator, No.2
16572 16572-58090 Hose, Radiator, No.2
16573 16573-17010 Hose, Radiator, No.3
16573 90467-31003 Clip(For Ventilation Hose)
16577 16577-56050 Pipe, Radiator, No.7
16577 16577-58040 Pipe, Radiator, No.7
16582 16582-17010 Bracket, Radiator, No.1
16583 16583-17010 Bracket, Radiator, No.2
16584 16584-61020 Insulator, Radiator Mounting
16611 16611-16010 Bracket(For Radiator Reserve Tank)
16612 16612-17010 Bracket, Radiator Reserve Tank, No.2
16612 16612-17011 Bracket, Radiator Reserve Tank, No.2
16701 16711-58090 Shroud Sub-Assy, Fan
16701 16711-58092 Shroud Sub-Assy, Fan
16701 16711-58091 Shroud Sub-Assy, Fan
91621 91621-A0850 New Genuine Part
91621 91621-B0816 BOLT WWASHER
91641 91641-H0820 Bolt
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 91651-B0822 BOLT WWASHER
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9011908 90119-08B05 New Genuine Part
9011908 90119-08C37 BOLT WWASHER
9010512091 90105-12091 New Genuine Part
9011908539 90119-08539 BOLT
9011908888 90119-08888 New Genuine Part
9011910409 90119-10409 New Genuine Part
9011912323 90119-12323 New Genuine Part
9017906080 90179-06080 NUT
9017906110 90179-06110 New Genuine Part
9017906293 90179-06293 NUT
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017908143 90179-08143 NUT
9151261250 91512-61250 New Genuine Part
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9162160865 91621-60865 New Genuine Part
9165160616 91651-60616 BOLT
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9212260814 92122-60814 New Genuine Part
Radiator & Water Outlet ([05.1997 - 07.1999] (9705-9907)14B,15BFT,3B..ARL,GCC,GEN,SCO ; (9907 - )15B#,1BZFPE) 15
#OEMPart name
16400 16400-58380 Radiator Assy
16400 16400-58570 Radiator Assy
16400 16400-58571 Radiator Assy
16400 16417-15210 Plug, Radiator Drain Cock
16400 16417-24200 Plug, Radiator Drain Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16400 16418-24200 Packing(For Radiator Drain Cock)
16400 16418-50121 Packing(For Radiator Drain Cock)
16453 16453-17231 Plate, Radiator Side
16453 16453-17260 Plate, Radiator Side
16453 16453-17261 Plate, Radiator Side
16454 16454-17231 Plate, Radiator Side
16454 16454-17260 Plate, Radiator Side
16454 16454-17261 Plate, Radiator Side
16455 16455-67020 Bolt, Radiator Side Support Plate
Radiator Grille ([01.1993 - ] (9301- )) 9
#OEMPart name
53111 53111-36010 Grille, Radiator
53131 53131-36010 Door, Headlamp, Rh
53132 53132-36010 Door, Headlamp, Lh
58219 58219-36010 Bracket, Front Floor To Grille
9011906615 90119-06615 BOLT, WWASHER
9015940211 90159-40211 SCREW
9018904014 90189-04014 CLIP
9046710161 90467-10161 Clip
9046712020 90467-12020 CLIP
Radiator Support & Wind Guide ([01.1993 - ] (9301- )) 13
#OEMPart name
53167 53167-36100 Rod, Radiator Brace, Rh
53168 53169-36090 Rod, Radiator Brace, Lh
53188 53168-36010 Bracket, Radiator Brace Rod, Rh
91641 91641-H0820 Bolt
9044011043 90440-11043 Tube(For Radiator Brace Rod)
9048001547 90480-01547 New Genuine Part
9048010010 90480-10010 New Genuine Part
9054010022 90540-10022 Cushion(For Engine Under Cover Bracket)
9165140614 91651-40614 Bolt
9165140816 91651-40816 BOLT
9415080800 94150-80800 NUT, FLANGE
9461310800 94613-10800 Spacer (For Control Select Lever Support)
9622130905 96221-30905 CLAMP
Radio Receiver & Amplifier & Condenser ([01.1993 - 08.2007] RADIO & CONVERTER (9301-0708)RHD ; (9301-1209)LHD) 18
#OEMPart name
86120 86120-1A020 Receiver Assy, Radio
86120 86120-2B380 Receiver Assy, Radio
86120 86120-37040 Receiver Assy, Radio
86206 86206-36020 Converter Sub-Assy, Voltage
86206 86206-36120 Converter Sub-Assy, Voltage
86211 86211-36020 Bracket, Radio, No.1
86211 86211-36030 Bracket, Radio, No.1
86212 86212-36010 Bracket, Radio, No.2
86212 86212-36020 Bracket, Radio, No.2
86245 86245-36010 Bracket, Voltage Converter
9014950032 90149-50032 Screw
9015350010 90153-50010 BOLT
9017906058 90179-06058 Nut, Wire Adjusting, No.1
9017906058 90179-06299 Nut, Wire Adjusting, No.1
9017906128 90179-06128 NUT
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
Radio Receiver & Amplifier & Condenser ([01.1993 - ] RADIO & RADIO KNOB (9301- )) 19
#OEMPart name
8612802020 86128-02020 Knob, Radio Receiver
8612802030 86128-02030 Knob, Radio Receiver
8612804010 86128-04010 Knob, Radio Receiver
8612812160 86128-12160 Knob, Radio Receiver
8612812180 86128-12180 Knob, Radio Receiver Balance
8612812380 86128-12380 Knob, Radio Receiver Switch
8612812400 86128-12400 Knob, Radio Receiver Tone
8612814150 86128-14150 Knob, Radio Receiver Switch
8612814170 86128-14170 Knob, Radio Receiver Balance
8612814190 86128-14190 Knob, Radio Receiver Tone
8612816300 86128-16300 Knob, Radio Receiver Switch
8612817290 86128-17290 Knob, Radio Receiver
8612817410 86128-17410 Knob, Radio Receiver
8612835010 86128-35010 Knob, Radio Receiver
8612835050 86128-35050 Knob, Radio Receiver
8612837010 86128-37010 Knob, Radio Receiver
8612837030 86128-37030 Knob, Radio Receiver
9001123001 90011-23001 KNOB RADIO RECEIVER
9001123002 90011-23002 New Genuine Part
Radio Receiver & Amplifier & Condenser ([01.1993 - ] TAPE PLAYER & MIC (9301- )) 12
#OEMPart name
86011 90980-05277 Filter, Noise
86011 90980-05288 Filter, Noise
86250 86250-36030 Microphone Assy, Amplifier
86260 86260-36020 Tape Player Assy
86260 86260-36030 Tape Player Assy
86290 86290-36030 Amplifier Assy, Microphone
86290 86290-36031 Amplifier Assy, Microphone
86290 86290-36040 Amplifier Assy, Microphone
86290 86290-36041 Amplifier Assy, Microphone
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9015350010 90153-50010 BOLT
9016435010 90164-35010 New Genuine Part
Rear Axle Housing & Differential ([01.1993 - ] (9301- )) 128
#OEMPart name
4412 04412-36090 Gasket Kit, Rear Differential Carrier
41101 41101-36030 Carrier Sub-Assy, Differential, Rear
41101 41101-37010 Carrier Sub-Assy, Differential, Rear
41110 41110-36580 Carrier Assy, Differential, Rear
41110 41110-36661 Carrier Assy, Differential, Rear
41110 41110-36581 Carrier Assy, Differential, Rear
41110 90116-10082 Bolt,stud(For Timing Gear Case)
41110 90116-10211 Bolt, No.1 (For Rear Differential Carrier Set)
41114 90105-16022 Bolt, Rear Differential Bearing Cap
41115 41115-37010 Ring, Differential Oil Storage
41201 41201-80043 Final Gear Kit, Differential, Rear
41201 41201-80755 Final Gear Kit, Differential, Rear
41201 41204-36090 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41201 41201-80123 Final Gear Kit, Differential, Rear
41201 90366-40001 Bearing (For Rear Drive Pinion Rear)
41201 90366-40100 Bearing (For Rear Drive Pinion Rear)
41201 90366-35023 Bearing (For Rear Drive Pinion Rear)
41201 90366-35108 Bearing (For Rear Drive Pinion Front)
41201 90311-48019 Seal, Oil (For Front Differential Carrier)
41201 90311-48024 Seal, Oil (For Front Differential Carrier)
41201 90311-48135 Seal, Oil (For Front Differential Carrier)
41201 90201-40551 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40004 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40552 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40007 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40553 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40009 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40554 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40011 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40555 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40013 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40556 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40015 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40557 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40017 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40558 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40019 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40559 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40021 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40560 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40023 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-40561 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40025 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40006 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40008 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40010 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40012 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40014 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40016 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40018 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40020 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40022 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-40024 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35019 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35020 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35021 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35022 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35023 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35024 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35025 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35026 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35027 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35028 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35029 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35030 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35031 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35032 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35033 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35034 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35035 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35036 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35037 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35038 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35039 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41201 90564-35040 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
41204 41204-36050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-37010 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90201-23002 Washer, Plate (For Rear Drive Pinion)
41204 90179-22003 Nut (For Manual Transmission Output Shaft Rear Set)
41214 41214-36030 Slinger, Rear Differential Drive Pinion Oil
41214 41214-37010 Slinger, Rear Differential Drive Pinion Oil
41222 41222-36020 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-14315 Bolt (For Rear Differential Ring Gear Set)
41231 41231-36040 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-36010 Deflector, Dust (For Rear Differential)
41252 41252-37020 Deflector, Dust (For Rear Differential)
41301 41301-36030 Case Sub-Assy, Rear Differential
41301 90366-52004 Bearing(For Rear Differential Case)
41301 90368-52043 Bearing(For Rear Differential Case)
41302 90105-12087 Bolt(For Rear Differential Case)
41315 41315-36011 Nut, Rear Differential Bearing Adjusting
41316 41316-36011 Lock, Rear Differential Bearing Adjusting Nut
41316 41317-36011 Lock, Rear Differential Bearing Adjusting Nut
41331 41331-36020 Gear, Rear Differential Side
41341 41341-55012 Pinion, Rear Differential
41341 41341-55013 Pinion, Rear Differential
41351 41351-35011 Washer, Rear Differential Pinion Thrust
41361 41361-60010 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60011 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60020 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60021 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60030 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60031 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60040 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60041 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60480 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60490 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60500 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60510 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60520 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60530 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60540 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-60550 Washer, Rear Differential Side Gear Thrust, No.1
41371 41371-36011 Spider, Rear Differential
42110 42110-3B080 Housing Assy, Rear Axle
42110 90341-18006 Plug (No magnet)
42110 12157-10010 Gasket (For Drain Plug)
42110 90930-03031 Plug, Breather(For Parking Cover)
42110 90341-18057 Drain Plug (with Magnet)
42139 42108-36050 Deflector, Rear Axle Housing Oil
42181 42181-36060 Gasket, Rear Differential Carrier
9011910283 90119-10283 Bolt, No.1 (For Rear Differential Carrier Set)
9011910283 90119-10069 Bolt, No.1 (For Rear Differential Carrier Set)
9161160814 91611-60814 Bolt
9411051000 94110-51000 Nut(For Steering Center Arm)
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9453101000 94531-01000 WASHER
Rear Axle Shaft & Hub ([01.1993 - ] (9301- )) 25
#OEMPart name
42311 42311-36190 Shaft, Rear Axle
42311 90942-02071 Bolt, Hub (For Rear Axle Rh)
42311 90310-38033 Seal, Oil (For Rear Axle Shaft)
42312 90942-02072 Bolt, Hub (For Rear Axle Lh)
42321 42321-36050 Gasket, Rear Axle Shaft
42323 42323-36010 Washer, Cone (For Rear Axle Shaft)
42401 90116-10191 Bolt, Stud (For Rear Axle Hub Rh)
42401 90250-10055 Pin, Straight (For Rear Axle Hub Rh)
42401 90368-57010 Bearing (For Rear Axle Hub Inner Rh)
42401 90368-52043 Bearing(For Rear Differential Case)
42401 90311-75003 Seal, Oil (For Rear Axle Shaft)
42403 42431-36150 Drum Sub-Assy, Rear Brake
42403 90937-01122 Piece, Balance (For Rear Brake Drum)
42420 42420-39015 Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42427 42427-36030 Nut, Rear Axle Bearing Lock
42428 42428-36020 Plate, Rear Axle Lock Nut
42430 42430-39015 Hub (Or Shaft) & Brake Drum Rear Axle, Lh
42627 42627-36011 Bolt, Front Wheel Cap Set
42631 42631-55031 Bolt, Double Wheel Stop, Rh
42632 42632-55031 Bolt, Double Wheel Stop, Lh
9010514030 90105-14030 BOLT
9017910067 90179-10067 Nut (For Rear Axle Shaft)
9020110075 90201-10075 WASHER
9331116012 93311-16012 Screw, Rear Axle Bearing Lock Nut
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
Rear Bumper & Bumper Stay ([01.1993 - 08.2004] (9301-0408)BB50..TD ; (9301-0408)BB50..CBU..TDEF I ; (9301-0408)BB4#,58,59,BZB40,50, HZB50,RZB40,50 ; (0408-0512)ARL,GCC,GEN) 11
#OEMPart name
52151 52105-36900 Bumper Assy, Rear
52153 52153-36010 Stay, Rear Bumper Side, Rh
52154 52154-36010 Stay, Rear Bumper Side, Lh
52155 52155-36010 Support, Rear Bumper Side, Rh
52156 52156-36010 Support, Rear Bumper Side, Lh
61875 61875-36010 Lid, Spare Wheel Carrier, No.1
66248 66248-36010 Protector, Rear Body, No.1
91553 91553-A0816 BOLT FLANGE
9011908 90119-08B55 New Genuine Part
9015160004 90151-60004 SCREW
9418560600 94185-60600 Nut, Wire Adjusting, No.1
Rear Combination Lamp ([01.1993 - 08.2001] (9301-0108)ARL,EUR,GCC,GEN,SCO) 14
#OEMPart name
81550 81550-36300 Lamp Assy, Rear Combination, Rh
81550 81550-36301 Lamp Assy, Rear Combination, Rh
81550 90981-16014 Bulb (For Front Turn Signal Lamp)
81550 90981-16015 Bulb (For Front Turn Signal Lamp)
81551 81551-36290 Lens, Rear Combination Lamp, Rh
81551 81551-36301 Lens, Rear Combination Lamp, Rh
81554 81554-36260 Gasket, Rear Combination Lamp Body
81555 81555-36270 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
81555 81555-36280 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81560 81560-36210 Lamp Assy, Rear Combination, Lh
81560 81560-36211 Lamp Assy, Rear Combination, Lh
81561 81561-36200 Lens, Rear Combination Lamp, Lh
81561 81561-36211 Lens, Rear Combination Lamp, Lh
9418040500 94180-40500 Nut, Tilt Roof Housing
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.1993 - 08.2004] W(AUTO ADJUSTER) (9301-0408)BB50..TD ; (9301-0408)BB50..6F..TDEFI ; (9301-0408)BB50..EX..TDEFI ; (93 01-0408)BB4#,58,5 9,BZB40,50,HZB50,RZB40,50) 38
#OEMPart name
4474 04474-36040 Cylinder Kit, Rear Wheel
4474 04474-36041 Cylinder Kit, Rear Wheel
4474 04474-36050 Cylinder Kit, Rear Wheel
4474 04474-36051 Cylinder Kit, Rear Wheel
4495 04494-36180 Shoe Kit, Front Brake
4906 04906-36180 Cup Kit, Rear Wheel Cylinder
4906 04906-36181 Cup Kit, Rear Wheel Cylinder
47043 47043-36120 Plate Sub-Assy, Brake Backing, Rear Rh
47043 90170-10178 Nut(For Backing Plate To Rear Axle Housing Setting)
47043 94130-01002 Nut, Booster Sleeve Cylinder
47043 90114-10019 Bolt(For Backing Plate To Rear Axle Housing Setting)
47043 90114-10063 Bolt, No.1(For Rear Brake Backing Plate Rh)
47044 47044-36120 Plate Sub-Assy, Brake Backing, Rear Lh
47430 90501-20012 Spring(For Front Brake Shoe Hold Down)
47430 90507-29006 Spring, Tension(For Front Brake Shoe Return)
47447 47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47475 47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476 47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47496 47491-36010 Plug, Hole(For Front Brake)
47496 47491-36020 Plug, Hole(For Rear Brake)
47506 47506-36020 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47507 47507-36020 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47529 47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47548 31478-30010 Bleeder Plug Cap
47549 47549-36010 Seat, Front Brake Automatic Adjust Nut
47550 47550-36210 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90101-10127 Bolt(For Front Wheel Cylinder)
47559 47559-36010 Sping, Front Automatic Adjust Lever Support
47560 47560-36210 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-36210 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-36210 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
9002904904 90029-04904 New Genuine Part
9002904904 90149-50037 SCREW
9020110287 90201-10287 Washer(For Front Wheel Cylinder)
Rear Floor Panel & Rear Floor Member ([01.1993 - 01.2015] (9301-1501)) 3
#OEMPart name
9016140029 90161-40029 SCREW COUNTERSUNK
9016150002 90161-50002 New Genuine Part
9354014010 93540-14010 Clip, Headlining Retainer
Rear Floor Panel & Rear Floor Member ([01.1993 - 01.2015] HOLE PLUG (9301-1501)) 9
#OEMPart name
58285 62429-36010 Cover, Rear Floor Hole
9033325001 90333-25001 Plug, Hole(For Hood)
9033348001 90333-48001 Plate, Quarter Panel, Upper No.1
9095001348 90950-01348 New Genuine Part
9095001370 90950-01370 New Genuine Part
9095001444 90950-01444 PLUG
9095001506 90950-01506 Plug, Hole(For Luggage Compartment Door Panel)
9095001557 90950-01557 PLUG
9095006034 90950-06034 New Genuine Part
Rear Floor Panel & Rear Floor Member ([01.1993 - ] (9301- )RHD) 29
#OEMPart name
57108 57108-36050 Crossmember Sub-Assy, Floor, No.8
57108 57108-36051 Crossmember Sub-Assy, Floor, No.8
58305 58305-36020 Panel Sub-Assy, Center Door Step
58305 58305-36021 Panel Sub-Assy, Center Door Step
58305 90950-01348 New Genuine Part
58316 58316-36010-E0 Plate, Footrest, Rear
58316 58316-36010-B0 Plate, Footrest, Rear
58343 58343-36010-E0 Bracket, Fuel Hose Protector, Front
58343 58343-36010-B0 Mat, Front Footrest, No.2
58371 58307-36010 Panel, Body Lower Back, Upper
58398 58398-36020 Cover, Floor Under, No.1
58750 58750-36010-E0 Cover Assy, Fuel Tank Inspection Hole
58750 58750-36010-B1 Cover Assy, Fuel Tank Inspection Hole
76625 76625-36010 Mudguard, Rear Body, Rh
76626 76626-36010 Mudguard, Rear Body, Lh
76665 76665-36010 Brace, Rear Mudguard
77277 77277-36010 Protector, Fuel Tank Filler Pipe
9011906615 90119-06615 BOLT, WWASHER
9011906699 90119-06699 BOLT WWASHER
9015960120 90159-60120 New Genuine Part
9016250008 90162-50008 SCREW
9018905016 90189-05016 Grommet, Screw
9046708011 90467-08011 Clip(For Headlamp Cover Seal)
9046708011 90467-08011-TH CLIP
9046708011 90467-08011-83 Clip(For Headlamp Cover Seal)
9165160616 91651-60616 BOLT
9353025012 93530-25012 New Genuine Part
9353053012 93530-53012 New Genuine Part
9353053512 93530-53512 New Genuine Part
Rear License Plate Lamp ([01.1993 - ] LUGGAGE TYPE (9301- )) 15
#OEMPart name
81270 81270-36100 Lamp Assy, License Plate
81270 81270-36150 Lamp Assy, License Plate (for double-wing door type)
81270 81270-36151 Lamp Assy, License Plate (double-wing door type)
81270 90981-16016 Bulb
81271 81271-95700 Lens, License Plate Lamp
81272 81272-95700 Gasket, License Plate Lamp Lens
81276 81276-36100 Cover, License Plate Lamp
81276 81276-36150 Cover, License Plate Lamp
6295520040 62955-20040 Retainer, Quarter Vent Louver
8113722530 81137-22530 Nut, Headlamp Self Locking
8113722530 90075-10004 Nut, Headlamp Self Locking
8127720240 81277-20240 Shade, License Plate Lamp, Rh
8161920070 81619-20070 New Genuine Part
9418040600 94180-40600 Retainer, Roof Window Hinge
9418560600 94185-60600 Nut, Wire Adjusting, No.1
Rear License Plate Lamp ([01.1993 - ] SINGAPORE SPEC (9301- )XZB50..EX ; (9301- )HZB50..TD ; (9 301- )BB4#,5#,BZB40,RZB40,50,XZB 59 ; (9301- )B ZB50,HZB50..17S,19S,20S,21S,22S,30S) 16
#OEMPart name
81270 81270-36100 Lamp Assy, License Plate
81270 81270-36150 Lamp Assy, License Plate (for double-wing door type)
81270 81270-36151 Lamp Assy, License Plate (double-wing door type)
81270 90981-16016 Bulb
81271 81271-95700 Lens, License Plate Lamp
81272 81272-95700 Gasket, License Plate Lamp Lens
81274 81274-95700 Gasket, License Plate Lamp Body
81276 81276-36100 Cover, License Plate Lamp
81276 81276-36150 Cover, License Plate Lamp
9007502058 90075-02058 New Genuine Part
9351014012 93510-14012 New Genuine Part
9351014012 93540-A4014 SCREW TAPPING
9351014025 93510-14025 New Genuine Part
9418040500 94180-40500 Nut, Tilt Roof Housing
9418040600 94180-40600 Retainer, Roof Window Hinge
9418560600 94185-60600 Nut, Wire Adjusting, No.1
Rear License Plate Lamp ([01.1993 - ] SINGLE OR DOUBLE LEAF TYPE (9301- )) 13
#OEMPart name
81270 81270-36100 Lamp Assy, License Plate
81270 81270-36150 Lamp Assy, License Plate (for double-wing door type)
81270 81270-36151 Lamp Assy, License Plate (double-wing door type)
81270 90981-16016 Bulb
81271 81271-95700 Lens, License Plate Lamp
81272 81272-95700 Gasket, License Plate Lamp Lens
81274 81274-95700 Gasket, License Plate Lamp Body
81276 81276-36100 Cover, License Plate Lamp
81276 81276-36150 Cover, License Plate Lamp
9351014012 93510-14012 New Genuine Part
9351014012 93540-A4014 SCREW TAPPING
9418040600 94180-40600 Retainer, Roof Window Hinge
9418560600 94185-60600 Nut, Wire Adjusting, No.1
Rear Spring & Shock Absorber ([01.1993 - 03.1997] (9301-9703)) 38
#OEMPart name
4483 04483-36080 Shackle Kit, Rear Spring, Rh
4483 04483-36140 Shackle Kit, Rear Spring, Rh
48046 48046-36260 Seat Sub-Assy, Spring U Bolt, Rh
48046 48046-36240 Seat Sub-Assy, Spring U Bolt, Rh
48046 90117-16042 Bolt, U(For Rear Spring Rh)
48047 48047-36260 Seat Sub-Assy, Spring U Bolt, Lh
48047 48047-36240 Seat Sub-Assy, Spring U Bolt, Lh
48210 90385-23002 Bush(For Front Spring Pin)
48341 48306-36080 Bumper, Rear Spring, No.2 Rh
48341 48306-36081 Bumper, Rear Spring, No.2 Rh
48344 48344-36420 Stopper, Bumper, Rear
48344 48344-36450 Stopper, Bumper, Rear
48344 48345-36060 Stopper, Bumper, Rear
48414 48414-36330 Bracket, Spring, No.3 Rh
48415 48415-36110 Bracket, Spring, No.3 Lh
48416 48416-36290 Bracket, Spring, No.4 Rh
48416 48416-36291 Bracket, Spring, No.4 Rh
48417 48417-36160 Bracket, Spring, No.4 Lh
48417 48417-36161 Bracket, Spring, No.4 Lh
48422 48422-36030 Support, Front Spring Pin
48422 48422-37010 Support, Front Spring Pin
48530 48531-80154 Absorber Assy, Shock, Rear Rh
48530 48531-80581 Absorber Assy, Shock, Rear Rh
48531 90385-19006 Cushion, Shock Absorber
48531 90948-03011 Washer, Front Shock Absorber Cushion, No.1
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9010116026 90101-16026 BOLT HEXAGON
9011912088 90119-12088 BOLT
9017016016 90170-16016 NUT HEXAGON
9017016021 90170-16021 NUT HEXAGON
9090105006 90901-05006 BOLT WASHER BASED
9418401601 94184-01601 NUT LOCK
9418461000 94184-61000 Nut(For Rear Spring)
9418461000 48284-37U70 Nut(For Rear Spring)
9462111600 94621-11600 Washer(For Rear Spring U Bolt)
9462211600 94622-11600 WASHER
9512101036 95121-01036 RIVET
Rear Spring & Shock Absorber ([01.1993 - 08.2004] 2-LEAF (9301-0408) ; (0408- )ARL,GCC,GEN,TAIW) 11
#OEMPart name
48210 48210-3B870 Spring Assy, Rear Rh
48210 90389-16015 Bimetal Formed Bush(For Front Spring)
48210 90389-16030 BUSH
48210 90389-16018 Bush(For Rear Spring Leaf)
48212 48202-3B870 Leaf, Rear Spring, No.2
48220 48210-3B860 Spring Assy, Rear Rh
48247 48247-3B840 Bolt, Rear Spring, Center
48252 48252-3B800 Silencer, Front Spring, No.1
48253 48253-3B730 Spacer, Rear Spring, No.1
48284 48284-37130 Nut, Front Spring Center Bolt
9451100800 94511-00800 WASHERSPRING
Rear Spring & Shock Absorber ([01.1993 - 08.2004] 3-LEAF (9301-0408) ; (0408- )BB50,XZB50..IV) 10
#OEMPart name
48210 48210-3B870 Spring Assy, Rear Rh
48210 90389-16015 Bimetal Formed Bush(For Front Spring)
48210 90389-16030 BUSH
48210 90389-16018 Bush(For Rear Spring Leaf)
48212 48202-3B870 Leaf, Rear Spring, No.2
48220 48210-3B860 Spring Assy, Rear Rh
48247 48247-3B840 Bolt, Rear Spring, Center
48252 48252-3B800 Silencer, Front Spring, No.1
48253 48253-3B730 Spacer, Rear Spring, No.1
48284 48284-37130 Nut, Front Spring Center Bolt
Rear Spring & Shock Absorber ([01.1993 - ] W(STABILIZER) (9301- )) 4
#OEMPart name
91641 91641-K0822 BOLT WWASHER
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9017912047 90179-12047 Nut(For Front Stabilizer Link)
9017912128 90179-12128 Nut, No.1 (For Propeller Shaft & Differential Setting)
Rear Spring & Shock Absorber ([03.1997 - ] (9703- )) 39
#OEMPart name
4483 04483-36080 Shackle Kit, Rear Spring, Rh
4483 04483-36140 Shackle Kit, Rear Spring, Rh
48046 48046-36260 Seat Sub-Assy, Spring U Bolt, Rh
48046 48046-36240 Seat Sub-Assy, Spring U Bolt, Rh
48046 90117-16042 Bolt, U(For Rear Spring Rh)
48047 48047-36260 Seat Sub-Assy, Spring U Bolt, Lh
48047 48047-36240 Seat Sub-Assy, Spring U Bolt, Lh
48210 90385-23002 Bush(For Front Spring Pin)
48341 48306-36080 Bumper, Rear Spring, No.2 Rh
48341 48306-36081 Bumper, Rear Spring, No.2 Rh
48344 48344-36420 Stopper, Bumper, Rear
48344 48344-36450 Stopper, Bumper, Rear
48344 48345-36060 Stopper, Bumper, Rear
48414 48414-36330 Bracket, Spring, No.3 Rh
48415 48415-36110 Bracket, Spring, No.3 Lh
48416 48416-36290 Bracket, Spring, No.4 Rh
48416 48416-36291 Bracket, Spring, No.4 Rh
48417 48417-36160 Bracket, Spring, No.4 Lh
48417 48417-36161 Bracket, Spring, No.4 Lh
48422 48422-36030 Support, Front Spring Pin
48422 48422-37010 Support, Front Spring Pin
48530 48531-80154 Absorber Assy, Shock, Rear Rh
48530 48531-80581 Absorber Assy, Shock, Rear Rh
48531 90385-19006 Cushion, Shock Absorber
48531 90948-03011 Washer, Front Shock Absorber Cushion, No.1
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9010116026 90101-16026 BOLT HEXAGON
9011912088 90119-12088 BOLT
9017016016 90170-16016 NUT HEXAGON
9017016021 90170-16021 NUT HEXAGON
9090105006 90901-05006 BOLT WASHER BASED
9418401601 94184-01601 NUT LOCK
9418461000 94184-61000 Nut(For Rear Spring)
9418461000 48284-37U70 Nut(For Rear Spring)
9418461001 94184-61001 Nut(For Front Stabilizer Bar)
9462111600 94621-11600 Washer(For Rear Spring U Bolt)
9462211600 94622-11600 WASHER
9512101036 95121-01036 RIVET
Rear Ventilator & Roof Ventilator ([01.1993 - ] (9301- )) 9
#OEMPart name
62905 62905-36010 Louver, Quater Ventilation, Rh
62906 62906-36010 Louver, Quater Ventilation, Lh
62930 62930-36010 Duct Assy, Quarter Vent, Rh
62940 62940-36010 Duct Assy, Quarter Vent, Lh
62950 62950-36010 Duct Assy, Quarter Vent, No.2 Rh
62960 62960-36010 Duct Assy, Quarter Vent, No.2 Lh
9016840067 90168-40067 SCREW
9018904035 90189-04035 GROMMET
9046708080 90467-08080 CLIP
Rear Washer ([01.1993 - ] (9301- )HZB50..TD ; (9301- )XZB40..26S ; ( 9301- )XZB50..30S ; (9301- )B B4#,5#,BZB40,RZB4 0,50,TRB40) 4
#OEMPart name
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9011906098 90119-06098 BOLT
9048001147 90480-01147 New Genuine Part
9095901116 90959-01116 BRACKET
Rear Wiper ([01.1993 - ] (9301- )HZB50..TD ; (9301- )XZB40..26S ; ( 9301- )XZB50..30S ; (9301- )B B4#,5#,BZB40,RZB4 0,50,TRB40) 1
#OEMPart name
9165140614 91651-40614 Bolt
Reflex Reflector ([01.1993 - ] (9301- )) 6
#OEMPart name
81580 81580-36010 Reflector Assy, Reflex Side, Rh
81580 81580-36011 Reflector Assy, Reflex Side, Rh
81581 81581-36010 Lens And Body, Reflex Reflector
81581 81581-36011 Lens And Body, Reflex Reflector
81584 81584-36020 Gasket,reflex Reflec
9007599097 90075-99097 New Genuine Part
Roof Headlining & Silencer Pad ([01.1993 - 01.2015] (9301-1501)BB40,43,5#,BZB40,50,RZB40,50,TRB40,50 ,XZB40,5# ; (1501- )HRF) 9
#OEMPart name
63341 63349-36010 Pad, Roof Silencer, No.1
63341 63349-36031 Pad, Roof Silencer, No.1
63344 63344-36010 Pad, Roof Silencer, No.4
63347 63347-36010 Pad, Roof Silencer, No.7
63347 63347-36041 Pad, Roof Silencer, No.7
63347 63347-36060 Pad, Roof Silencer, No.7
63348 63348-36040 Pad, Roof Silencer, No.8
63351 63351-36010 Pad, Roof Silencer, No.10
63359 63347-36032 Pad, Roof Silencer, No.12
Roof Headlining & Silencer Pad ([01.1993 - 01.2015] (9301-1501)HZB50..LHD..HRF..WC..5F ; (9301-1501) BB4#,50,58,BZB40,50,RZB40,50,TRB40, 50,XZB40,50..HRF. .WC..CBU ; (1501- )HRF) 57
#OEMPart name
63301 63301-36010 Plate Sub-Assy, Roof Headlining Set
63310 90467-08104-A3 Clip
63311 63311-36010-A1 Headlining, Roof No.1
63311 63311-36010-B0 Headlining, Roof No.1
63311 63311-36160-A0 Headlining, Roof No.1
63311 63311-36160-B0 Headlining, Roof No.1
63312 63312-36020-A0 Headlining, Roof, No.2
63312 63312-36020-B0 Headlining, Roof, No.2
63312 63312-36040-A1 Headlining, Roof, No.2
63312 63312-36040-A3 Headlining, Roof, No.2
63313 63313-36020-A0 Headlining, Roof, No.3
63313 63313-36020-B0 Headlining, Roof, No.3
63313 63313-36030-A0 Headlining, Roof, No.3
63313 63313-36030-B0 Headlining, Roof, No.3
63313 63313-36070-A0 Headlining, Roof, No.3
63313 63313-36070-B0 Headlining, Roof, No.3
63313 63313-36070-A1 Headlining, Roof, No.3
63314 63314-36120-A0 Headlining, Roof, No.4
63314 63314-36120-B0 Headlining, Roof, No.4
63314 63314-36250-A0 Headlining, Roof, No.4
63314 63314-36250-B0 Headlining, Roof, No.4
63314 63314-36270-A0 Headlining, Roof, No.4
63314 63314-36270-B0 Headlining, Roof, No.4
63314 63314-36270-A1 Headlining, Roof, No.4
63316 63316-36200-A0 Headlining, Roof, No.6
63316 63316-36200-B0 Headlining, Roof, No.6
63316 63316-36200-A1 Headlining, Roof, No.6
63371 63371-36020-A0 Moulding, Roof Board Set, No.1
63371 63371-36020-B0 Moulding, Roof Board Set, No.1
63371 63371-36020-A1 Moulding, Roof Board Set, No.1
63379 63373-36020-A0 Cover, Roof Headlining Moulding End
63379 63373-36020-B0 Cover, Roof Headlining Moulding End
63379 63373-36020-A1 Cover, Roof Headlining Moulding End
63379 63374-36010-A0 Cover, Roof Headlining Moulding End
63379 63374-36010-B0 Cover, Roof Headlining Moulding End
63379 63374-36010-A1 Cover, Roof Headlining Moulding End
63379 63379-36010-A0 Cover, Roof Headlining Moulding End
63379 63379-36010-B0 Cover, Roof Headlining Moulding End
63379 63379-36010-A1 Cover, Roof Headlining Moulding End
63381 63381-36010 Retainer, Roof Headlining Trim, Front
63381 63385-36010 Retainer, Roof Headlining Trim, Front
63383 63384-36010 Retainer, Roof Headlining Trim, Rear
63383 63383-36020 Retainer, Roof Headlining, Rear
63399 63399-36020 Clip, Roof Headlining
63651 63651-36010-A0 Net, Air Intake
63651 63651-36011-B0 Net, Air Intake
63651 63656-36010-B0 Cover, Air Intake, Center
63651 63651-36010-A1 Net, Air Intake
63651 63651-36011-A1 Net, Air Intake
63656 63656-36010-A0 Cover, Air Intake, Center
63943 63943-36010-A1 Cover, Cooler Thermistor
63943 63943-36010-B0 Cover, Cooler Thermistor
9015950351 90159-50351 SCREW W-WASHER
9018304046 90183-04046 New Genuine Part
9155380825 91553-80825 New Genuine Part
9356015014 93560-15014 SCREW
9356855016 93568-55016 Screw
Roof Panel & Back Panel ([01.1993 - ] *SSBD OR *DSBD (9301- )) 13
#OEMPart name
61277 61277-36010 Joint, Roof Drip Channel
64001 64001-36020 Panel Sub-Assy, Back
64001 64001-36030 Panel Sub-Assy, Back
64001 64001-36040 Panel Sub-Assy, Back
64811 64813-36040 Glass, Back Window
64811 64813-36080 Glass, Back Window
64811 64813-36060 Glass, Back Window
64811 64813-36100 Glass, Back Window
64811 64814-36020 Glass, Back Window
64811 64814-36041 Glass, Back Window
64811 64814-36040 Glass, Back Window
64831 64831-36020 Weatherstrip, Back Window Glass (Rh side)
64831 64832-36010 Weatherstrip, Back Window Glass (Lh side)
Roof Panel & Back Panel ([01.1993 - ] LUGGAGE DOOR (9301- )) 9
#OEMPart name
64811 64813-36040 Glass, Back Window
64811 64813-36080 Glass, Back Window
64811 64813-36060 Glass, Back Window
64811 64813-36100 Glass, Back Window
64811 64814-36020 Glass, Back Window
64811 64814-36041 Glass, Back Window
64811 64814-36040 Glass, Back Window
64831 64831-36020 Weatherstrip, Back Window Glass (Rh side)
64831 64832-36010 Weatherstrip, Back Window Glass (Lh side)
Roof Panel & Back Panel ([01.1993 - ] ROOF PANEL (9301- )) 22
#OEMPart name
63083 63083-36010 Panel Sub-Assy, Roof Ventilator
63111 63111-36010 Panel, Roof, No.1
63111 63111-36011 Panel, Roof, No.1
63112 63116-36040 Panel, Roof, No.2
63113 63117-36070 Panel, Roof, No.3
63114 63118-36010 Support, Roof Panel, Front Lh
63115 63115-36180 Panel, Roof, No.4
63115 63115-36190 Panel, Roof, No.4
63119 63119-36010 Support, Roof Panel, Rear Rh
63132 63132-36010 Panel, Windshield Header, Inner
63137 63137-36010 Retainer, Outer Under Rear View Mirror
63139 63139-36010 Bracket, Windshield Header Clock Support
63154 63154-36010 Reinforcement, Windshield Header Panel, Center
63171 63171-36010 Bracket, Inner Mirror Base
63211 63211-36030 Panel, Removable Roof
63236 63236-36010 Bracket, Room Speaker
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9015960530 90159-60530 New Genuine Part
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9095001824 90950-01824 PLUG HOLE
Roof Panel & Back Panel ([01.1993 - ] ROOF VENTILATOR (9301- )) 16
#OEMPart name
62956 62955-36020 Retainer, Quarter Vent Louver, Lh
62956 62956-36010 Retainer, Quarter Vent Louver, Lh
62956 90467-10127 Retainer, Quarter Vent Louver, Lh
63085 63085-36010 Louver Sub-Assy, Roof Ventilator, Rh
63085 63085-36011 Louver Sub-Assy, Roof Ventilator, Rh
63086 63086-36010 Louver Sub-Assy, Roof Ventilator, Lh
63086 63086-36011 Louver Sub-Assy, Roof Ventilator, Lh
63669 63669-36010 Grommet, Sliding Roof Drain
63830 63830-36010 Duct Assy, Roof Ventilator
63849 63849-36010 Hose, Roof Ventilator Drain
63859 63859-36010 Hose, Roof Ventilator Drain, No.2
9018906134 90189-06134 GROMMET
9048040013 90480-40013 New Genuine Part
9354054512 93540-54512 New Genuine Part
9359016020 93590-16020 New Genuine Part
9613641901 96136-41901 Clip Or Clamp(For Ventilation Hose)
Roof Panel & Back Panel ([05.1997 - ] (9705- )BB4#,BZB40,RZB40,TRB40,XZB40..HRF) 37
#OEMPart name
63021 63021-36010 Strength Sub-Assy, Roof Panel
63023 63023-36010 Strength Sub-Assy, Roof Panel, Center No.2
63024 63024-36010 Strength Sub-Assy, Roof Panel, Center No.4
63044 63125-36010 Reinforcement Sub-Assy, Roof Panel, No.2 A
63044 63125-36011 Reinforcement Sub-Assy, Roof Panel, No.2 A
63045 63045-36010 Reinforcement Sub-Assy, Roof Panel, No.3
63046 63046-36010 Reinforcement Sub-Assy, Roof Panel, No.4 A
63051 63051-36010 Strength Sub-Assy, Roof Panel, Center
63052 63052-36010 Strength Sub-Assy, Roof Panel, Front
63052 63052-36011 Strength Sub-Assy, Roof Panel, Front
63103 63104-36011 Reinforcement Sub-Assy, Roof Panel, No.3
63103 63104-36012 Reinforcement Sub-Assy, Roof Panel, No.3
63143 63143-36010 Reinforcement, Roof Panel, No.3
63177 63177-36010 Reinforcement, Roof Panel, Rh No.7
63177 63177-36011 Reinforcement, Roof Panel, Rh No.7
63187 63187-36010 Reinforcement, Roof Panel, Lh No.7
63255 63255-36010 Strength, Roof Panel, Center No.5
63257 63257-36010 Strength, Roof Panel, Center No.7 Rh
63267 63267-36010 Strength, Roof Panel, Center No.7 Lh
63271 63271-36010 Strength, Roof Panel, No.1 Rh
63272 63272-36010 Strength, Roof Panel, No.2 Rh
63273 63273-36010 Strength, Roof Panel, No.3
63276 63276-36010 Strength, Roof Panel, No.6 Rh
63277 63277-36010 Strength, Roof Panel, No.7 Rh
63279 63279-36010 Strength, Roof Panel, No.9 Rh
63282 63282-36010 Strength, Roof Panel, No.2 Lh
63283 63283-36010 Strength, Roof Panel, No.3 Lh
63285 63285-36010 Strength, Roof Panel, No.5 Rh
63285 63285-36011 Strength, Roof Panel, No.5 Rh
63285 82817-37170 Protector, Wiring Harness, No.5
63286 63286-36010 Strength, Roof Panel, No.6 Lh
63287 63287-36010 Strength, Roof Panel, No.7 Lh
63289 63289-36010 Strength, Roof Panel, No.9 Lh
63427 63427-36010 Bracket, Room Rack Flame
63427 63427-36011 Bracket, Room Rack Flame
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
Room Curtain & Room Rack ([02.1994 - ] (9402- )RHD..SRF..WOC ; (9402- )BB4#,BZB40 ..RHD..HRF) 11
#OEMPart name
65923 65923-36020 Hook, Curtain
9018304022 90183-04022 Nut, Spring
9038607018 90386-07018 Bush
9046815004 90468-15004 CLIP
9046815004 90468-15001 CLIP
9354014020 93540-14020 Screw
9354014025 93540-14025 New Genuine Part
9354015016 93540-15016 New Genuine Part
9354024020 93540-24020 New Genuine Part
9354024025 93540-24025 New Genuine Part
9354025016 93540-25016 New Genuine Part
Seat & Seat Track ([01.1993 - 01.2015] LAST ROW SEAT(NO.8)=FIX BENCH TYPE (9301-1501)) 31
#OEMPart name
79083 79013-36030-E4 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79014-36090-E1 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79023-36010-E4 Cover Sub-Assy, No.2 Seat Back, Rh
79083 79023-36040-E2 Cover Sub-Assy, No.2 Seat Back, Rh
79087 79027-36030 Pad Sub-Assy, No.7 Seat Back, Rh
79087 79037-36010 Pad Sub-Assy, No.2 Seat Back, Rh
79088 79017-36090 Pad Sub-Assy, No.1 Seat Back, Lh
79088 79017-36130 Pad Sub-Assy, No.1 Seat Back, Lh
79803 79103-36010 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36011 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36060 Frame Sub-Assy, No.2 Seat Back, Rh
79804 79103-36040 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36041 Frame Sub-Assy, No.1 Seat Back, Lh - NO.2 SEAT BACK, LH
79804 79103-36070 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36071 Frame Sub-Assy, No.2 Seat Back, Lh
79840 79250-36090-E4 Back Assy, No.2 Seat, Rh
79840 79250-36091-E4 Back Assy, No.2 Seat, Rh
79840 79250-36100-E2 Back Assy, No.2 Seat, Rh
79850 79150-36090-E3 Back Assy, No.1 Seat, Lh
79850 79150-36140-E1 Back Assy, No.1 Seat, Lh
79850 79850-36090-E1 Back Assy, No.8 Seat, Lh
91622 91622-B1025 Bolt(For Front Transaxle Case Cover)
9010908227 90109-08227 New Genuine Part
9015960589 90159-60589 SCREW WWASHER
9016735014 90167-35014 New Genuine Part
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9164180835 91641-80835 Bolt, Compressor, No.1
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9165161030 91651-61030 Bolt (For Transfer Case)
9167381022 91673-81022 BOLT FLANGE
Seat & Seat Track ([01.1993 - 01.2015] LAST ROW SEAT(NO.8)=FOLDING BENCH (9301-1501)) 50
#OEMPart name
79083 79013-36030-E4 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79014-36090-E1 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79023-36010-E4 Cover Sub-Assy, No.2 Seat Back, Rh
79083 79023-36040-E2 Cover Sub-Assy, No.2 Seat Back, Rh
79087 79027-36030 Pad Sub-Assy, No.7 Seat Back, Rh
79087 79037-36010 Pad Sub-Assy, No.2 Seat Back, Rh
79088 79017-36090 Pad Sub-Assy, No.1 Seat Back, Lh
79088 79017-36130 Pad Sub-Assy, No.1 Seat Back, Lh
79803 79103-36010 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36011 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36060 Frame Sub-Assy, No.2 Seat Back, Rh
79804 79103-36040 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36041 Frame Sub-Assy, No.1 Seat Back, Lh - NO.2 SEAT BACK, LH
79804 79103-36070 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36071 Frame Sub-Assy, No.2 Seat Back, Lh
79806 71309-36050-E0 Leg Sub Assy, Fold Seat Rear
79806 71309-36051-E0 Leg Sub Assy, Fold Seat Rear
79840 79250-36090-E4 Back Assy, No.2 Seat, Rh
79840 79250-36091-E4 Back Assy, No.2 Seat, Rh
79840 79250-36100-E2 Back Assy, No.2 Seat, Rh
79850 79150-36090-E3 Back Assy, No.1 Seat, Lh
79850 79150-36140-E1 Back Assy, No.1 Seat, Lh
79850 79850-36090-E1 Back Assy, No.8 Seat, Lh
6477836020 64778-36020 Fastener, Spare Wheel Cover
7296960010 72969-60010 Pin, Seat Turn Lock Guide
7896736020 78967-36020 New Genuine Part
8271112120 82711-12120 Clamp(Rear Seat)
9010908277 90109-08277 BOLT
9011910493 90119-10493 BOLT W-WASHER
9015960035 90159-60035 SCREW
9015960058 90159-60058 New Genuine Part
9015960589 90159-60589 SCREW WWASHER
9016735014 90167-35014 New Genuine Part
9016840043 90168-40043 SCREW
9017908200 90179-08200 New Genuine Part
9020507002 90205-07002 New Genuine Part
9020610009 90206-10009 New Genuine Part
9020612003 90206-12003 Washer, Wave (For Selecting Bellcrank No.1)
9020615002 90206-15002 New Genuine Part
9038710070 90387-10070 New Genuine Part
9038910031 90389-10031 New Genuine Part
9050608035 90506-08035 New Genuine Part
9050610038 90506-10038 New Genuine Part
9155281025 91552-81025 BOLT TLANGE
9163160825 91631-60825 BOLT WWASHER
9164180835 91641-80835 Bolt, Compressor, No.1
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9165161022 91651-61022 Bolt
9165161030 91651-61030 Bolt (For Transfer Case)
Seat & Seat Track ([01.1993 - 01.2015] LAST ROW SEAT(NO.8)FIX BENCH,W(*HBS (9301-1501)) 31
#OEMPart name
79083 79013-36030-E4 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79014-36090-E1 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79023-36010-E4 Cover Sub-Assy, No.2 Seat Back, Rh
79083 79023-36040-E2 Cover Sub-Assy, No.2 Seat Back, Rh
79087 79027-36030 Pad Sub-Assy, No.7 Seat Back, Rh
79087 79037-36010 Pad Sub-Assy, No.2 Seat Back, Rh
79088 79017-36090 Pad Sub-Assy, No.1 Seat Back, Lh
79088 79017-36130 Pad Sub-Assy, No.1 Seat Back, Lh
79803 79103-36010 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36011 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36060 Frame Sub-Assy, No.2 Seat Back, Rh
79804 79103-36040 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36041 Frame Sub-Assy, No.1 Seat Back, Lh - NO.2 SEAT BACK, LH
79804 79103-36070 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36071 Frame Sub-Assy, No.2 Seat Back, Lh
79840 79250-36090-E4 Back Assy, No.2 Seat, Rh
79840 79250-36091-E4 Back Assy, No.2 Seat, Rh
79840 79250-36100-E2 Back Assy, No.2 Seat, Rh
79850 79150-36090-E3 Back Assy, No.1 Seat, Lh
79850 79150-36140-E1 Back Assy, No.1 Seat, Lh
79850 79850-36090-E1 Back Assy, No.8 Seat, Lh
91622 91622-B1025 Bolt(For Front Transaxle Case Cover)
9010908277 90109-08277 BOLT
9015960589 90159-60589 SCREW WWASHER
9016735014 90167-35014 New Genuine Part
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9164180835 91641-80835 Bolt, Compressor, No.1
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9165161030 91651-61030 Bolt (For Transfer Case)
9167381022 91673-81022 BOLT FLANGE
Seat & Seat Track ([01.1993 - 01.2015] PART NAME CODE TABLE (9301-1501)) 154
#OEMPart name
79012 79012-36250-E0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79012 79012-36251-E0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79012 79012-36252-E0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79012 79012-36260-E0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79014 79013-36030-E4 Cover Sub-Assy, No.1 Seat Back, Lh
79014 79014-36090-E1 Cover Sub-Assy, No.1 Seat Back, Lh
79016 79016-36020 Pad Sub-Assy, No.1 Seat Cushion, Lh
79016 79016-36021 Pad Sub-Assy, No.1 Seat Cushion, Lh
79018 79017-36090 Pad Sub-Assy, No.1 Seat Back, Lh
79018 79017-36130 Pad Sub-Assy, No.1 Seat Back, Lh
79021 79021-36220-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-36221-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-36340-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-36222-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-36230-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79022 79012-36140-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79022 79012-36141-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79022 79012-36142-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79022 79012-36160-E3 Cover Sub-Assy, No.1 Seat Cushion, Lh
79023 79023-36010-E4 Cover Sub-Assy, No.2 Seat Back, Rh
79023 79023-36040-E2 Cover Sub-Assy, No.2 Seat Back, Rh
79025 79035-36050 Pad Sub-Assy, No.2 Seat Cushion, Rh
79025 79035-36051 Pad Sub-Assy, No.2 Seat Cushion, Rh
79026 79016-36120 Pad Sub-Assy, No.1 Seat Cushion, Lh
79026 79016-36121 Pad Sub-Assy, No.1 Seat Cushion, Lh
79027 79027-36030 Pad Sub-Assy, No.7 Seat Back, Rh
79027 79037-36010 Pad Sub-Assy, No.2 Seat Back, Rh
79042 79012-36290-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79042 79012-36291-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79042 79012-36590-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79042 79012-36292-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79042 79012-36300-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79062 79032-36130-E0 Cover Sub-Assy, No.6 Seat Cushion, Lh
79062 79032-36131-E0 Cover Sub-Assy, No.6 Seat Cushion, Lh
79062 79032-36132-E0 Cover Sub-Assy, No.6 Seat Cushion, Lh
79062 79032-36140-E0 Cover Sub-Assy, No.6 Seat Cushion, Lh
79063 79013-36140-E0 Cover Sub-Assy, No.6 Seat Back, Rh
79064 79024-36050-E0 Cover Sub-Assy, No.6 Seat Back, Lh
79066 79016-36131 Pad Sub-Assy, No.6 Seat Cushion, Lh
79071 79011-36170-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79011-36171-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79011-36090-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79011-36172-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79011-36180-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79021-36142-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79071 79021-36060-E1 Cover Sub-Assy, No.2 Seat Cushion, Rh
79071 79071-36010-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79071-36012-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79071-36020-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79075 79015-36070 Pad Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36140-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36141-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36150-E3 Cover Sub-Assy, No.2 Seat Cushion, Rh
79102 79102-36020-E0 Frame Sub-Assy, No.1 Seat Cushion, Lh
79102 79102-36020-B0 Frame Sub-Assy, No.1 Seat Cushion, Lh
79104 79103-36040 Frame Sub-Assy, No.1 Seat Back, Lh
79104 79103-36041 Frame Sub-Assy, No.1 Seat Back, Lh - NO.2 SEAT BACK, LH
79104 79103-36070 Frame Sub-Assy, No.1 Seat Back, Lh
79104 79103-36071 Frame Sub-Assy, No.2 Seat Back, Lh
79106 79106-36040-C0 Leg Sub Assy, No.1 Seat, Lh
79106 79106-36040-E0 Leg Sub Assy, No.1 Seat, Lh
79125 79125-36010 Plate, No.1 Seat Cushion Hinge, No.2 Rh
79130 79130-36130-E4 Cushion Assy, No.1 Seat, Lh
79130 79130-36131-E4 Cushion Assy, No.1 Seat, Lh
79130 79130-36132-E4 Cushion Assy, No.1 Seat, Lh
79130 79130-36140-E1 Cushion Assy, No.1 Seat, Lh
79150 79150-36090-E3 Back Assy, No.1 Seat, Lh
79150 79150-36140-E1 Back Assy, No.1 Seat, Lh
79179 79179-36010 Pad, No.1 Seat Back Headrest, Lh
79201 79101-36120-E0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79201 79101-36120-B0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79202 79202-36040-E0 Frame Sub-Assy, No.2 Seat Cushion, Lh
79202 79202-36040-B0 Frame Sub-Assy, No.2 Seat Cushion, Lh
79203 79103-36010 Frame Sub-Assy, No.2 Seat Back, Rh
79203 79103-36011 Frame Sub-Assy, No.2 Seat Back, Rh
79203 79103-36060 Frame Sub-Assy, No.2 Seat Back, Rh
79205 79505-36010-C0 Leg Sub-Assy, No.2 Seat, Rh
79205 79505-36010-E0 Leg Sub-Assy, No.2 Seat, Rh
79205 79505-36010-B0 Leg Sub-Assy, No.2 Seat, Rh
79206 79206-36010-C0 Leg Sub-Assy, No.2 Seat, Lh
79206 79206-36010-E0 Leg Sub-Assy, No.2 Seat, Lh
79206 79206-36010-B0 Leg Sub-Assy, No.2 Seat, Lh
79220 79220-36130-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36131-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36250-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36132-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36140-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36140-E2 Cushion Assy, No.2 Seat, Rh
79230 79230-36110-E0 Cushion Assy, No.2 Seat, Lh
79230 79230-36191-E2 Cushion Assy, No.2 Seat, Lh
79230 79230-36192-E2 Cushion Assy, No.2 Seat, Lh
79240 79250-36090-E4 Back Assy, No.2 Seat, Rh
79240 79250-36091-E4 Back Assy, No.2 Seat, Rh
79240 79250-36100-E2 Back Assy, No.2 Seat, Rh
79402 79102-36150-E0 Frame Sub-Assy, No.4 Seat Cushion, Lh
79402 79102-36150-B0 Frame Sub-Assy, No.4 Seat Cushion, Lh
79406 79406-36010-C0 Leg Sub-Assy, No.4 Seat, Rh
79406 79406-36010-E0 Leg Sub-Assy, No.4 Seat, Rh
79406 79406-36010-B0 Leg Sub-Assy, No.4 Seat, Lh
79430 79130-36160-E0 Cushion Assy, No.4 Seat, Lh
79430 79130-36161-E0 Cushion Assy, No.4 Seat, Lh
79430 79130-36162-E0 Cushion Assy, No.4 Seat, Lh
79430 79130-36170-E0 Cushion Assy, No.4 Seat, Lh
79602 79602-36080-E0 Frame Sub-Assy, No.6 Seat Cushion, Lh
79602 79602-36080-B0 Frame Sub-Assy, No.6 Seat Cushion, Lh
79605 79705-36010-C0 Leg Sub-Assy, No.6 Seat, Rh
79605 79705-36010-E0 Leg Sub-Assy, No.6 Seat, Rh
79605 79705-36010-B0 Leg Sub-Assy, No.6 Seat, Rh
79606 79606-36030-C0 Leg Sub-Assy, No.6 Seat, Lh
79606 79606-36030-E0 Leg Sub-Assy, No.6 Seat, Lh
79606 79644-36010-C0 Leg Sub-Assy, No.6 Seat, Rh
79630 79630-36140-E0 Cushion Assy, No.6 Seat, Lh
79630 79630-36150-E0 Cushion Assy, No.6 Seat, Lh
79630 79630-36151-E0 Cushion Assy, No.6 Seat, Lh
79630 79630-36152-E0 Cushion Assy, No.6 Seat, Lh
79640 79240-36030-E3 Back Assy, No.2 Seat, Rh
79640 79250-36010-E0 Back Assy, No.6 Seat, Rh
79640 79250-36010-E2 Back Assy, No.6 Seat, Rh
79650 79150-36160-E0 Back Assy, No.6 Seat, Lh
79650 79150-36160-E2 Back Assy, No.6 Seat, Lh
79701 79102-36050-E0 Frame Sub-Assy, No.7 Seat Cushion, Rh
79702 79702-36050-E0 Frame Sub-Assy, No.7 Seat Cushion, Lh
79703 79104-36010 Frame Sub-Assy, No.1 Seat Back, Rh
79703 79104-36070 Frame Sub-Assy, No.7 Seat Back, Rh
79705 79099-36010-E0 Leg Sub-Assy, No.7 Seat, Rh
79705 79306-36010-C0 Leg Sub-Assy, No.2 Seat, Lh
79706 79706-36010-C0 Leg Sub-Assy, No.7 Seat, Lh
79706 79706-36010-E0 Leg Sub-Assy, No.7 Seat, Lh
79720 79730-36050-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36052-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36060-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36061-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36062-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36070-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36080-E0 Cushion Assy, No.7 Seat, Rh
79730 79730-36110-E4 Cushion Assy, No.7 Seat, Lh
79730 79730-36111-E4 Cushion Assy, No.7 Seat, Lh
79730 79730-36112-E4 Cushion Assy, No.7 Seat, Lh
79730 79730-36120-E0 Cushion Assy, No.7 Seat, Lh
79736 79236-36010 Cover, No.6 Seat Leg, Rh
79740 79140-36020-E4 Back Assy, No.1 Seat, Rh
79740 79750-36060-E0 Back Assy, No.7 Seat, Rh
79801 79101-36040-E0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79801 79101-36040-B0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79801 79801-36040-E0 Frame Sub-Assy, No.8 Seat Cushion, Rh
79802 79802-36010-E0 Frame Sub-Assy, No.8 Seat Cushion, Lh
79820 79820-36150-E2 Cushion Assy, No.8 Seat, Rh
79820 79820-36151-E2 Cushion Assy, No.8 Seat, Rh
79820 79820-36260-E0 Cushion Assy, No.8 Seat, Rh
79830 79830-36030-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36031-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36032-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36040-E2 Cushion Assy, No.8 Seat, Lh
79850 79850-36090-E1 Back Assy, No.8 Seat, Lh
Seat & Seat Track ([01.1993 - 01.2015] REAR SEAT FITTING PARTS (9301-1501)RHD..19S,21S,22S) 8
#OEMPart name
91622 91622-B1025 Bolt(For Front Transaxle Case Cover)
9011908 90119-08A54 BOLT WWASHER
7270236010 72702-36010 Bracket Sub-assy, Rear Seat Back Striker
9165160830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165160840 91651-60840 BOLT
9166160825 91661-60825 New Genuine Part
9166160835 91661-60835 New Genuine Part
Seat & Seat Track ([01.1993 - 01.2015] REAR SEAT NO.1-NO.8(19S,21S,22S) (9301-1501)BB40,HZB50,XZB50..RHD) 169
#OEMPart name
79012 79012-36250-E0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79012 79012-36251-E0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79012 79012-36252-E0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79012 79012-36260-E0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79014 79013-36030-E4 Cover Sub-Assy, No.1 Seat Back, Lh
79014 79014-36090-E1 Cover Sub-Assy, No.1 Seat Back, Lh
79016 79016-36020 Pad Sub-Assy, No.1 Seat Cushion, Lh
79016 79016-36021 Pad Sub-Assy, No.1 Seat Cushion, Lh
79018 79017-36090 Pad Sub-Assy, No.1 Seat Back, Lh
79018 79017-36130 Pad Sub-Assy, No.1 Seat Back, Lh
79021 79021-36220-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-36221-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-36340-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-36222-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-36230-E0 Cover Sub-Assy, No.2 Seat Cushion, Rh
79022 79012-36140-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79022 79012-36141-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79022 79012-36142-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79022 79012-36160-E3 Cover Sub-Assy, No.1 Seat Cushion, Lh
79023 79023-36010-E4 Cover Sub-Assy, No.2 Seat Back, Rh
79023 79023-36040-E2 Cover Sub-Assy, No.2 Seat Back, Rh
79025 79035-36050 Pad Sub-Assy, No.2 Seat Cushion, Rh
79025 79035-36051 Pad Sub-Assy, No.2 Seat Cushion, Rh
79026 79016-36120 Pad Sub-Assy, No.1 Seat Cushion, Lh
79026 79016-36121 Pad Sub-Assy, No.1 Seat Cushion, Lh
79027 79027-36030 Pad Sub-Assy, No.7 Seat Back, Rh
79027 79037-36010 Pad Sub-Assy, No.2 Seat Back, Rh
79042 79012-36290-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79042 79012-36291-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79042 79012-36590-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79042 79012-36292-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79042 79012-36300-E0 Cover Sub-Assy, No.4 Seat Cushion, Lh
79062 79032-36130-E0 Cover Sub-Assy, No.6 Seat Cushion, Lh
79062 79032-36131-E0 Cover Sub-Assy, No.6 Seat Cushion, Lh
79062 79032-36132-E0 Cover Sub-Assy, No.6 Seat Cushion, Lh
79062 79032-36140-E0 Cover Sub-Assy, No.6 Seat Cushion, Lh
79063 79013-36140-E0 Cover Sub-Assy, No.6 Seat Back, Rh
79064 79024-36050-E0 Cover Sub-Assy, No.6 Seat Back, Lh
79066 79016-36131 Pad Sub-Assy, No.6 Seat Cushion, Lh
79071 79011-36170-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79011-36171-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79011-36090-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79011-36172-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79011-36180-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79021-36142-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79071 79021-36060-E1 Cover Sub-Assy, No.2 Seat Cushion, Rh
79071 79071-36010-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79071-36012-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79071 79071-36020-E0 Cover Sub-Assy, No.7 Seat Cushion, Rh
79075 79015-36070 Pad Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36140-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36141-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36150-E3 Cover Sub-Assy, No.2 Seat Cushion, Rh
79102 79102-36020-E0 Frame Sub-Assy, No.1 Seat Cushion, Lh
79102 79102-36020-B0 Frame Sub-Assy, No.1 Seat Cushion, Lh
79104 79103-36040 Frame Sub-Assy, No.1 Seat Back, Lh
79104 79103-36041 Frame Sub-Assy, No.1 Seat Back, Lh - NO.2 SEAT BACK, LH
79104 79103-36070 Frame Sub-Assy, No.1 Seat Back, Lh
79104 79103-36071 Frame Sub-Assy, No.2 Seat Back, Lh
79106 79106-36040-C0 Leg Sub Assy, No.1 Seat, Lh
79106 79106-36040-E0 Leg Sub Assy, No.1 Seat, Lh
79119 79107-36020-C0 Leg Sub Assy, No.1 Seat, Lh
79119 79107-36020-E0 Bracket, No.1 Seat Leg, No.2
79125 79125-36010 Plate, No.1 Seat Cushion Hinge, No.2 Rh
79130 79130-36130-E4 Cushion Assy, No.1 Seat, Lh
79130 79130-36131-E4 Cushion Assy, No.1 Seat, Lh
79130 79130-36132-E4 Cushion Assy, No.1 Seat, Lh
79130 79130-36140-E1 Cushion Assy, No.1 Seat, Lh
79150 79150-36090-E3 Back Assy, No.1 Seat, Lh
79150 79150-36140-E1 Back Assy, No.1 Seat, Lh
79201 79101-36120-E0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79201 79101-36120-B0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79202 79202-36040-E0 Frame Sub-Assy, No.2 Seat Cushion, Lh
79202 79202-36040-B0 Frame Sub-Assy, No.2 Seat Cushion, Lh
79203 79103-36010 Frame Sub-Assy, No.2 Seat Back, Rh
79203 79103-36011 Frame Sub-Assy, No.2 Seat Back, Rh
79203 79103-36060 Frame Sub-Assy, No.2 Seat Back, Rh
79205 79505-36010-C0 Leg Sub-Assy, No.2 Seat, Rh
79205 79505-36010-E0 Leg Sub-Assy, No.2 Seat, Rh
79205 79505-36010-B0 Leg Sub-Assy, No.2 Seat, Rh
79206 79206-36010-C0 Leg Sub-Assy, No.2 Seat, Lh
79206 79206-36010-E0 Leg Sub-Assy, No.2 Seat, Lh
79206 79206-36010-B0 Leg Sub-Assy, No.2 Seat, Lh
79220 79220-36130-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36131-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36250-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36132-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36140-E0 Cushion Assy, No.2 Seat, Rh
79220 79220-36140-E2 Cushion Assy, No.2 Seat, Rh
79230 79230-36110-E0 Cushion Assy, No.2 Seat, Lh
79230 79230-36191-E2 Cushion Assy, No.2 Seat, Lh
79230 79230-36192-E2 Cushion Assy, No.2 Seat, Lh
79240 79250-36090-E4 Back Assy, No.2 Seat, Rh
79240 79250-36091-E4 Back Assy, No.2 Seat, Rh
79240 79250-36100-E2 Back Assy, No.2 Seat, Rh
79402 79102-36150-E0 Frame Sub-Assy, No.4 Seat Cushion, Lh
79402 79102-36150-B0 Frame Sub-Assy, No.4 Seat Cushion, Lh
79406 79406-36010-C0 Leg Sub-Assy, No.4 Seat, Rh
79406 79406-36010-E0 Leg Sub-Assy, No.4 Seat, Rh
79406 79406-36010-B0 Leg Sub-Assy, No.4 Seat, Lh
79430 79130-36160-E0 Cushion Assy, No.4 Seat, Lh
79430 79130-36161-E0 Cushion Assy, No.4 Seat, Lh
79430 79130-36162-E0 Cushion Assy, No.4 Seat, Lh
79430 79130-36170-E0 Cushion Assy, No.4 Seat, Lh
79466 79366-36020 Cover, No.2 Seat Leg, No.2
79602 79602-36080-E0 Frame Sub-Assy, No.6 Seat Cushion, Lh
79602 79602-36080-B0 Frame Sub-Assy, No.6 Seat Cushion, Lh
79605 79705-36010-C0 Leg Sub-Assy, No.6 Seat, Rh
79605 79705-36010-E0 Leg Sub-Assy, No.6 Seat, Rh
79605 79705-36010-B0 Leg Sub-Assy, No.6 Seat, Rh
79606 79606-36030-C0 Leg Sub-Assy, No.6 Seat, Lh
79606 79606-36030-E0 Leg Sub-Assy, No.6 Seat, Lh
79606 79644-36010-C0 Leg Sub-Assy, No.6 Seat, Rh
79630 79630-36140-E0 Cushion Assy, No.6 Seat, Lh
79630 79630-36150-E0 Cushion Assy, No.6 Seat, Lh
79630 79630-36151-E0 Cushion Assy, No.6 Seat, Lh
79630 79630-36152-E0 Cushion Assy, No.6 Seat, Lh
79636 79236-36010 Cover, No.6 Seat Leg, Rh
79640 79240-36030-E3 Back Assy, No.2 Seat, Rh
79640 79250-36010-E0 Back Assy, No.6 Seat, Rh
79640 79250-36010-E2 Back Assy, No.6 Seat, Rh
79650 79150-36160-E0 Back Assy, No.6 Seat, Lh
79650 79150-36160-E2 Back Assy, No.6 Seat, Lh
79701 79102-36050-E0 Frame Sub-Assy, No.7 Seat Cushion, Rh
79702 79702-36050-E0 Frame Sub-Assy, No.7 Seat Cushion, Lh
79703 79104-36010 Frame Sub-Assy, No.1 Seat Back, Rh
79703 79104-36070 Frame Sub-Assy, No.7 Seat Back, Rh
79705 79099-36010-E0 Leg Sub-Assy, No.7 Seat, Rh
79705 79306-36010-C0 Leg Sub-Assy, No.2 Seat, Lh
79706 79706-36010-C0 Leg Sub-Assy, No.7 Seat, Lh
79706 79706-36010-E0 Leg Sub-Assy, No.7 Seat, Lh
79720 79730-36050-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36052-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36060-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36061-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36062-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36070-E0 Cushion Assy, No.7 Seat, Rh
79720 79730-36080-E0 Cushion Assy, No.7 Seat, Rh
79730 79730-36110-E4 Cushion Assy, No.7 Seat, Lh
79730 79730-36111-E4 Cushion Assy, No.7 Seat, Lh
79730 79730-36112-E4 Cushion Assy, No.7 Seat, Lh
79730 79730-36120-E0 Cushion Assy, No.7 Seat, Lh
79740 79140-36020-E4 Back Assy, No.1 Seat, Rh
79740 79750-36060-E0 Back Assy, No.7 Seat, Rh
79801 79101-36040-E0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79801 79101-36040-B0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79801 79801-36040-E0 Frame Sub-Assy, No.8 Seat Cushion, Rh
79802 79802-36010-E0 Frame Sub-Assy, No.8 Seat Cushion, Lh
79820 79820-36150-E2 Cushion Assy, No.8 Seat, Rh
79820 79820-36151-E2 Cushion Assy, No.8 Seat, Rh
79820 79820-36260-E0 Cushion Assy, No.8 Seat, Rh
79830 79830-36030-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36031-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36032-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36040-E2 Cushion Assy, No.8 Seat, Lh
79850 79850-36090-E1 Back Assy, No.8 Seat, Lh
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
7133236020 71332-36020 Bracket, Rear Seat Cushion Set
9010908228 90109-08228 New Genuine Part
9011908366 90119-08366 New Genuine Part
9011908366 90119-08326 New Genuine Part
9020616001 90206-16001 New Genuine Part
9163160845 91631-60845 New Genuine Part
9165160830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9165161032 91651-61032 BOLT
9166260825 91662-60825 New Genuine Part
9166260825 91661-60825 New Genuine Part
Seat & Seat Track ([01.1993 - 07.1999] LAST ROW SEAT(NO.8),W(*SSBD & *HBS) (9301-9907)) 56
#OEMPart name
79081 79021-36140-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36141-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36060-E1 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36142-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36150-E3 Cover Sub-Assy, No.2 Seat Cushion, Rh
79082 79012-36140-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79082 79012-36141-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79082 79012-36142-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79082 79012-36160-E3 Cover Sub-Assy, No.1 Seat Cushion, Lh
79083 79013-36030-E4 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79014-36090-E1 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79023-36010-E4 Cover Sub-Assy, No.2 Seat Back, Rh
79083 79023-36040-E2 Cover Sub-Assy, No.2 Seat Back, Rh
79085 79035-36050 Pad Sub-Assy, No.2 Seat Cushion, Rh
79085 79035-36051 Pad Sub-Assy, No.2 Seat Cushion, Rh
79086 79016-36120 Pad Sub-Assy, No.1 Seat Cushion, Lh
79086 79016-36121 Pad Sub-Assy, No.1 Seat Cushion, Lh
79087 79027-36030 Pad Sub-Assy, No.7 Seat Back, Rh
79087 79037-36010 Pad Sub-Assy, No.2 Seat Back, Rh
79088 79017-36090 Pad Sub-Assy, No.1 Seat Back, Lh
79088 79017-36130 Pad Sub-Assy, No.1 Seat Back, Lh
79801 79101-36040-E0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79801 79101-36040-B0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79801 79801-36040-E0 Frame Sub-Assy, No.8 Seat Cushion, Rh
79802 79802-36010-E0 Frame Sub-Assy, No.8 Seat Cushion, Lh
79803 79103-36010 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36011 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36060 Frame Sub-Assy, No.2 Seat Back, Rh
79804 79103-36040 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36041 Frame Sub-Assy, No.1 Seat Back, Lh - NO.2 SEAT BACK, LH
79804 79103-36070 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36071 Frame Sub-Assy, No.2 Seat Back, Lh
79805 79505-36010-C0 Leg Sub-Assy, No.2 Seat, Rh
79805 79505-36010-E0 Leg Sub-Assy, No.2 Seat, Rh
79805 79505-36010-B0 Leg Sub-Assy, No.2 Seat, Rh
79820 79820-36150-E2 Cushion Assy, No.8 Seat, Rh
79820 79820-36151-E2 Cushion Assy, No.8 Seat, Rh
79820 79820-36260-E0 Cushion Assy, No.8 Seat, Rh
79830 79830-36030-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36031-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36032-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36040-E2 Cushion Assy, No.8 Seat, Lh
79840 79250-36090-E4 Back Assy, No.2 Seat, Rh
79840 79250-36091-E4 Back Assy, No.2 Seat, Rh
79840 79250-36100-E2 Back Assy, No.2 Seat, Rh
79850 79150-36090-E3 Back Assy, No.1 Seat, Lh
79850 79150-36140-E1 Back Assy, No.1 Seat, Lh
79850 79850-36090-E1 Back Assy, No.8 Seat, Lh
79879 79179-36010 Pad, No.1 Seat Back Headrest, Lh
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9010908228 90109-08228 New Genuine Part
9011908993 90119-08993 Bolt(For Transaxle & Engine Setting)
9011908993 91553-80830 Bolt(For Transaxle & Engine Setting)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
Seat & Seat Track ([01.1993 - 07.1999] LAST ROW SEAT(NO.8),W(*SSBD) (9301-9907)) 55
#OEMPart name
79081 79021-36140-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36141-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36060-E1 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36142-E4 Cover Sub-Assy, No.2 Seat Cushion, Rh
79081 79021-36150-E3 Cover Sub-Assy, No.2 Seat Cushion, Rh
79082 79012-36140-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79082 79012-36141-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79082 79012-36142-E4 Cover Sub-Assy, No.1 Seat Cushion, Lh
79082 79012-36160-E3 Cover Sub-Assy, No.1 Seat Cushion, Lh
79083 79013-36030-E4 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79014-36090-E1 Cover Sub-Assy, No.1 Seat Back, Lh
79083 79023-36010-E4 Cover Sub-Assy, No.2 Seat Back, Rh
79083 79023-36040-E2 Cover Sub-Assy, No.2 Seat Back, Rh
79085 79035-36050 Pad Sub-Assy, No.2 Seat Cushion, Rh
79085 79035-36051 Pad Sub-Assy, No.2 Seat Cushion, Rh
79086 79016-36120 Pad Sub-Assy, No.1 Seat Cushion, Lh
79086 79016-36121 Pad Sub-Assy, No.1 Seat Cushion, Lh
79087 79027-36030 Pad Sub-Assy, No.7 Seat Back, Rh
79087 79037-36010 Pad Sub-Assy, No.2 Seat Back, Rh
79088 79017-36090 Pad Sub-Assy, No.1 Seat Back, Lh
79088 79017-36130 Pad Sub-Assy, No.1 Seat Back, Lh
79801 79101-36040-E0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79801 79101-36040-B0 Frame Sub-Assy, No.2 Seat Cushion, Rh
79801 79801-36040-E0 Frame Sub-Assy, No.8 Seat Cushion, Rh
79802 79802-36010-E0 Frame Sub-Assy, No.8 Seat Cushion, Lh
79803 79103-36010 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36011 Frame Sub-Assy, No.2 Seat Back, Rh
79803 79103-36060 Frame Sub-Assy, No.2 Seat Back, Rh
79804 79103-36040 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36041 Frame Sub-Assy, No.1 Seat Back, Lh - NO.2 SEAT BACK, LH
79804 79103-36070 Frame Sub-Assy, No.1 Seat Back, Lh
79804 79103-36071 Frame Sub-Assy, No.2 Seat Back, Lh
79805 79505-36010-C0 Leg Sub-Assy, No.2 Seat, Rh
79805 79505-36010-E0 Leg Sub-Assy, No.2 Seat, Rh
79805 79505-36010-B0 Leg Sub-Assy, No.2 Seat, Rh
79820 79820-36150-E2 Cushion Assy, No.8 Seat, Rh
79820 79820-36151-E2 Cushion Assy, No.8 Seat, Rh
79820 79820-36260-E0 Cushion Assy, No.8 Seat, Rh
79830 79830-36030-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36031-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36032-E1 Cushion Assy, No.8 Seat, Lh
79830 79830-36040-E2 Cushion Assy, No.8 Seat, Lh
79840 79250-36090-E4 Back Assy, No.2 Seat, Rh
79840 79250-36091-E4 Back Assy, No.2 Seat, Rh
79840 79250-36100-E2 Back Assy, No.2 Seat, Rh
79850 79150-36090-E3 Back Assy, No.1 Seat, Lh
79850 79150-36140-E1 Back Assy, No.1 Seat, Lh
79850 79850-36090-E1 Back Assy, No.8 Seat, Lh
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9010908228 90109-08228 New Genuine Part
9011908993 90119-08993 Bolt(For Transaxle & Engine Setting)
9011908993 91553-80830 Bolt(For Transaxle & Engine Setting)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
Seat & Seat Track ([01.1993 - 08.2004] DRIVER & SUB SEAT NO.1-NO.7 (9301-0408)RHD) 81
#OEMPart name
55560 55560-95J00-E0 Lock Assy, Seat Under Tray
55560 72250-36010-E0 Lock Assy, Seat Under Tray
71071 71071-36020-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-36021-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-36021-E5 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-36021-E4 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71073-36020-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-36090-E0 Cover, Front Seat Back, Rh(For Separate Type)
71108 71108-36010-C0 Leg Sub-Assy, Front Seat, Rh
71108 71108-36011-C0 Leg Sub-Assy, Front Seat, Rh
71108 71108-36010-E0 Leg Sub-Assy, Front Seat, Rh
71108 71108-36011-B0 Leg Sub-Assy, Front Seat, Rh
71149 71149-36010 Wire, Front Seat Cushion Connecting
71410 71410-36020-E0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-36022-E0 Cushion Assy, Front Seat, Rh(For Separate Type)
71430 71430-36080-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-36081-E2 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-36082-E2 Back Assy, Front Seat, Rh(For Separate Type)
71511 71501-36010 Pad, Front Seat Cushion, Rh(For Separate Type)
71511 71501-36011 Pad, Front Seat Cushion, Rh(For Separate Type)
71524 71524-36010 Pad, Front Seat Cushion Silencer, D
71551 71551-36010 Pad, Front Seat Back, Rh(For Separate Type)
71610 71610-36010 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610 71610-36011 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630 71630-36040 Spring Assy, Front Seat Back, Rh(For Separate Type)
71630 71630-36081 Spring Assy, Front Seat Back, Rh(For Separate Type)
71750 71750-36010-E0 Tray Assy, Front Seat Under
71750 71750-36010-B0 Tray Assy, Front Seat Under
71811 71811-20160-E0 Shield, Front Seat Cushion, Rh
71811 71811-20160-B0 Shield, Front Seat Cushion, Rh
71910 71910-60040-E2 Headrest Assy, Front Seat
71910 71910-60040-B1 Headrest Assy, Front Seat
71931 71930-10070-E1 Support, Front Seat Headrest
71931 71930-10070-22 Support, Front Seat Headrest
71931 71930-10070-E4 Support, Front Seat Headrest
71931 71931-10020-E1 Support, Front Seat Headrest
71931 71931-10020-22 Support, Front Seat Headrest
71931 71931-10020-E4 Support, Front Seat Headrest
72110 72110-36010 Track Assy, Front Seat, Outer Rh
72130 72130-36010 Track Assy, Front Seat, Inner Rh
72301 72301-36020 Wire Sub-Assy, Seat Track Equalizing
72301 72301-60020 Wire Sub-Assy, Seat Track Equalizing
72510 72510-36010 Adjuster Assy, Reclining Seat Back, Rh
72510 72510-36011 Adjuster Assy, Reclining Seat Back, Rh
72525 72525-60030-E2 Handle, Reclining Adjuster Release, Rh
72525 72525-95700-E0 Handle, Reclining Adjuster Release, Rh
72750 72750-22081 Adjuster Assy, Lumbar Support, Rh
72791 72791-20030-E2 Lever, Lumbar Support
72791 72791-20030-B2 Lever, Lumbar Support
7873890 78738-90B00 Pin, Sub Seat Cushion Pin
9010110055 90101-10055 Bolt(For Clutch Pedal Stopper)
9011905008 90119-05008 BOLT
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908080 90119-08080 BOLT
9011908301 90119-08301 BOLT
9011908873 90119-08873 New Genuine Part
9011910037 90119-10037 BOLT
9011910428 90119-10428 New Genuine Part
9016740044 90167-40044 BOLT
9017608039 90176-08039 NUT, CAP
9020208039 90202-08039 WASHER
9020214007 90202-14007 WASHER
9024008044 90240-08044 PIN
9025508007 90255-08007 PIN STRAIGHT WHOL
9038608053 90386-08053 BUSH
9038612051 90386-12051 Bush (For Front Seat Hinge Pin)
9038908037 90389-08037 BUSH
9038908037 90387-08052 BUSH
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9052001274 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
9056010026 90560-10026 SPACER
9165160830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
9356013520 93560-13520 New Genuine Part
9356054010 93560-54010 SCREW
9356054020 93560-54020 New Genuine Part
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9454301200 94543-01200 WASHER
9461410400 94614-10400 New Genuine Part
Seat & Seat Track ([01.1993 - ] CLIP (9301- )) 2
#OEMPart name
9046816019 90468-16019 Clip (For Rear Seat Back)
9046818008 90468-18008 Clip (For Rear Seat Back)
Seat Belt ([01.1993 - 01.2015] FRONT & REAR (9301-1501)RHD) 30
#OEMPart name
73019 73019-36010-E0 Shaft Sub-Assy, Seat Belt
73019 73019-36010-B0 Shaft Sub-Assy, Seat Belt
73019 73019-36010-E1 Shaft Sub-Assy, Seat Belt
73210 73210-36010-E0 Belt Assy, Front Seat Outer, Rh
73210 73210-36010-E1 Belt Assy, Front Seat Outer, Rh
73210 73210-36050-E0 Belt Assy, Front Seat Outer, Rh
73210 73210-36051-E0 Belt Assy, Front Seat Outer, Rh
73220 73370-36020-E0 Belt Assy, Front Seat Outer, Lh
73220 73370-36030-E0 Belt Assy, Front Seat Outer, Lh
73220 73370-36040-E0 Belt Assy, Front Seat Outer, Lh
73220 73370-36041-E0 Belt Assy, Front Seat Outer, Lh
73224 73173-90K00-E0 Cover, Front Seat Belt Retractor, Lh
73224 73173-90K00-B0 Cover, Front Seat Belt Retractor, Lh
73224 73173-90K00-E1 Cover, Front Seat Belt Retractor, Lh
73230 73230-36020-E0 Belt Assy, Front Seat Inner, Rh
73230 73230-36020-E1 Belt Assy, Front Seat Inner, Rh
73230 73230-36050-E0 Belt Assy, Front Seat Inner, Rh
73240 73380-36010-E0 Belt Assy, Front Seat Inner, Lh
73240 73380-36010-E1 Belt Assy, Front Seat Inner, Lh
73240 73380-36050-E0 Belt Assy, Front Seat Inner, Lh
9010908095 90109-08095 BOLT
9011908357 90119-08357 BOLT
9011910493 90119-10493 BOLT W-WASHER
9020612003 90206-12003 Washer, Wave (For Selecting Bellcrank No.1)
9090119040 90901-19040 BOLT WWASHER
9090119040 90084-11055 New Genuine Part
9155281020 91552-81020 Bolt(For Alternator)
9162140614 91621-40614 BOLT
9356014014 93560-14014 SCREW
9356054014 93560-54014 SCREW
Shift Lever & Retainer ([01.1993 - 05.1997] (9301-9705)BB4#,HZB50..RHD..5F ; (9301- )HZB5 0..RHD..5F ; (9301- )BB40,42,50. .RHD..STD..5F..DS L,TD) 34
#OEMPart name
33580 33580-36080 Bellcrank Assy, Shifting (For Floor Shift)
33590 33590-36110 Crank Assy, Selecting Bell (For Floor Shift)
33590 90386-13007 Bush(For Clutch Pedal)
33705 33705-36350 Support Sub-Assy, Cross Shaft, No.1 (For Floor Shift)
33706 33706-36160 Support Sub-Assy, Cross Shaft, No.2 (For Floor Shift)
33709 33709-36360 Shaft Sub-Assy, Cross, No.1 (For Floor Shift)
33709 33709-36361 Shaft Sub-Assy, Cross, No.1 (For Floor Shift)
33709 90386-13020 Bush(For Clutch Pedal)
33730 33730-36300 Rod Assy, Gear Shifting, No.2 (For Floor Shift)
33736 33790-36580 Rod, Gear Selecting, No.2(For Floor Shift)
33772 33772-26010 Bush (For Cross Shaft)
33772 96151-01600 Ring, Snap
33773 33773-36150 Support, Cross Shaft, No.1
33773 33773-36160 Support, Cross Shaft, No.1
33773 90520-12256 Ring, Shaft Snap (For Shifting Bellcrank)
33775 33775-34010 Cover, Cross Shaft Dust, No.2 (For Column Shift)
33775 33775-28030 Cover, Cross Shaft Dust (For Column Shift)
33786 33786-36030 Insulator, Cross Shaft Lever Heat, No.2 (For Floor Shift)
33789 33789-36020 Cover, Cross Shaft Dust(For Column Shift)
33840 33840-36420 Rod Assy, Gear Shifting, No.3
33850 33850-36300 Rod Assy, Gear Selecting, No.3
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9010510103 90105-10103 Bolt, Hexagon
9017908038 90179-08038 Nut
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9020113018 90201-13018 New Genuine Part
9038710075 90387-10075 Collar (For Cross Shaft)
9165140820 91651-40820 Bolt
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9453101000 94531-01000 WASHER
Shift Lever & Retainer ([01.1993 - ] (9301- )HZB50..RHD..5F ; (9301- )BB40,42,5 0..RHD..STD..5F..DSL,TD) 26
#OEMPart name
33502 33502-36100 Plate Sub-Assy, Shift Lever
33502 90386-13192 Bush(For Over Center Plate)
33502 90101-08107 Bolt, Hexagon (For Shift Lever Plate)
33502 90508-32033 Spring, Torsion (For Shift Lever Plate)
33502 90387-08064 Collar (For Shift Lever Plate)
33503 90387-08063 Collar(For Shift Lever)
33503 90387-08065 Collar(For Shift Lever)
33503 33055-36050 Lever Sub-Assy, Shift(For Floor Shift)
33503 33055-36080 Lever Sub-Assy, Shift(For Floor Shift)
33503 90389-11002 Bush(For Shift Lever)
33503 96711-24018 Ring, O
33504 33504-36051-E0 Knob Sub-Assy, Shift Lever
33504 33504-36051-C0 Knob Sub-Assy, Shift Lever
33504 33504-36060-E0 Knob Sub-Assy, Shift Lever
33506 33571-36210 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
33710 33710-36260 Rod Assy, Gear Shifting, No.1
9011908766 90119-08766 BOLT WWASHER
9017908038 90179-08038 Nut
9111260850 91112-60850 New Genuine Part
9111260855 91112-60855 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9166140830 91661-40830 New Genuine Part
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
Shift Lever & Retainer ([01.1993 - ] (9301-9705)BB4#,HZB50..RHD..5F ; (9301- )HZB5 0..RHD..5F ; (9301- )BB40,42,50. .RHD..STD..5F..DS L,TD) 34
#OEMPart name
33580 33580-36080 Bellcrank Assy, Shifting (For Floor Shift)
33590 33590-36110 Crank Assy, Selecting Bell (For Floor Shift)
33590 90386-13007 Bush(For Clutch Pedal)
33705 33705-36350 Support Sub-Assy, Cross Shaft, No.1 (For Floor Shift)
33706 33706-36160 Support Sub-Assy, Cross Shaft, No.2 (For Floor Shift)
33709 33709-36360 Shaft Sub-Assy, Cross, No.1 (For Floor Shift)
33709 33709-36361 Shaft Sub-Assy, Cross, No.1 (For Floor Shift)
33709 90386-13020 Bush(For Clutch Pedal)
33730 33730-36300 Rod Assy, Gear Shifting, No.2 (For Floor Shift)
33736 33790-36580 Rod, Gear Selecting, No.2(For Floor Shift)
33772 33772-26010 Bush (For Cross Shaft)
33772 96151-01600 Ring, Snap
33773 33773-36150 Support, Cross Shaft, No.1
33773 33773-36160 Support, Cross Shaft, No.1
33773 90520-12256 Ring, Shaft Snap (For Shifting Bellcrank)
33775 33775-34010 Cover, Cross Shaft Dust, No.2 (For Column Shift)
33775 33775-28030 Cover, Cross Shaft Dust (For Column Shift)
33786 33786-36030 Insulator, Cross Shaft Lever Heat, No.2 (For Floor Shift)
33789 33789-36020 Cover, Cross Shaft Dust(For Column Shift)
33840 33840-36420 Rod Assy, Gear Shifting, No.3
33850 33850-36300 Rod Assy, Gear Selecting, No.3
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9010510103 90105-10103 Bolt, Hexagon
9017908038 90179-08038 Nut
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9020113018 90201-13018 New Genuine Part
9038710075 90387-10075 Collar (For Cross Shaft)
9165140820 91651-40820 Bolt
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9453101000 94531-01000 WASHER
Short Block Assembly ([01.1993 - ] (9301- )) 2
#OEMPart name
11400 11400-58110 Block Assy, Short
11400 11400-58180 Block Assy, Short
Side Member ([01.1993 - 01.2015] (9301-1501)BB4#,BZB40,XZB40..RHD) 27
#OEMPart name
61013 61013-36010 Pillar Sub-Assy, No.3 Rh
61013 61013-36050 Pillar Sub-Assy, No.3 Rh
61014 61014-36040 Pillar Sub-Assy, No.4 Rh
61015 61015-36050 Pillar Sub-Assy, No.5 Rh
61016 61016-36060 Pillar Sub-Assy, No.6 Rh
61016 61016-36100 Pillar Sub-Assy, No.6 Rh
61017 61017-36010 Pillar Sub-Assy, No.7 Rh
61017 61017-36011 Pillar Sub-Assy, No.7 Rh
61018 61018-36010 Pillar Sub-Assy, No.8 Rh
61018 61018-36070 Pillar Sub-Assy, No.8 Rh
61022 61022-36020 Pillar Sub-Assy, No.2 Lh
61025 61025-36050 Pillar Sub-Assy, No.5 Lh
61026 61026-36060 Pillar Sub-Assy, No.6 Lh
61026 61026-36100 Pillar Sub-Assy, No.6 Lh
61027 61027-36010 Pillar Sub-Assy, No.7, Lh
61027 61027-36012 Pillar Sub-Assy, No.7, Lh
61027 61027-36011 Pillar Sub-Assy, No.7, Lh
61027 61027-36050 Pillar Sub-Assy, No.7, Lh
61028 61028-36010 Pillar Sub-Assy, No.8 Lh
61028 61028-36070 Pillar Sub-Assy, No.8 Lh
61033 61033-36080 Pillar Sub-Assy, No.2 Inner, Rh
61033 61033-36082 Pillar Sub-Assy, No.2 Inner, Rh
61254 61254-36030 Pillar, No.3 Inner, Rh
61709 61709-36010 Reinforcement Sub-Assy, Seat Belt Anchor, Lh
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
Side Member ([01.1993 - ] (9301- )BB4#,BZB40,XZB40..RHD) 44
#OEMPart name
61055 61055-36030 Rail Sub-Assy, No.2 Center, Inner, Lh
61055 61055-36031 Rail Sub-Assy, No.2 Center, Inner, Lh
61058 61058-36010 Rail Sub-Assy, No.3 Center, Inner, Rh
61059 61059-36020 Rail Sub-Assy, No.4 Center, Inner, Rh
61065 61065-36010 Rail Sub-Assy, No.5 Seat Anchor, Lh
61065 61065-36011 Rail Sub-Assy, No.5 Seat Anchor, Lh
61065 90333-15003 New Genuine Part
61067 61067-36030 Rail Sub-Assy, No.7 Seat Anchor, Lh
61091 61091-36010 Rail Sub-Assy, No.2 Lower Inner, Rh
61093 61442-36010 Rail Sub-Assy, No.2 Lower Inner, Lh
61164 61163-36902 Stiffener, Side Panel, Upper No.4
61191 61191-36010 Reinforcement, Side Lower Window, Lh
61352 61352-36020 Rail, No.2 Center Outer, Rh
61361 61361-36010 Rail, No.1 Center Outer, Lh
61364 61354-36010 Rail, No.4 Center Outer, Lh
61403 61403-36010 Rail Sub-Assy, No.6 Lower Outer, Rh
61404 61404-36010 Rail Sub-Assy, No.6 Lower Outer, Lh
61414 61414-36010 Rail,no.4 Lower Outer, Rh
61415 61415-36010 Rail, No.5 Lower Outer, Rh
61417 61417-36010 Rail, No.7 Lower Outer, Rh
61417 61417-36011 Rail, No.7 Lower Outer, Rh
61425 61425-36010 Rail, No.5 Lower Outer, Lh
61426 61426-36010 Rail, No.6 Lower Outer, Lh
61441 61441-36010 Rail, No.1 Lower Inner, Lh
61441 61441-36011 Rail, No.1 Lower Inner, Lh
61501 61501-36010 Rail Sub-Assy, Seat Anchor, Rh
61501 61501-36021 Rail Sub-Assy, Seat Anchor, Rh - SEAT ANCHOR, LH
61501 61501-36011 Rail Sub-Assy, Seat Anchor, Rh
61502 61502-36010 Rail Sub-Assy, No.2 Seat Anchor, Rh
61503 61503-36060 Rail Sub-Assy, No.3 Seat Anchor
61503 61503-36030 Rail Sub-Assy, No.3 Seat Anchor, Rh
61505 61505-36010 Rail Sub-Assy, No.5 Seat Anchor, Rh
61505 61505-36011 Rail Sub-Assy, No.5 Seat Anchor, Rh
61506 61506-36010 Rail Sub-Assy, No.6
61506 61506-36011 Rail Sub-Assy, No.6
61508 61508-36040 Rail Sub-Assy, No.8 Seat Anchor
61508 61508-36100 Rail Sub-Assy, No.8 Seat Anchor
61599 61599-36010 Bracket, Stiffener, No.6, Lh
61608 61608-36020 Brace Sub-Assy, Quarter Wheel House, Lh
61609 61609-36020 Brace Sub-Assy, Quarter Panel
61635 61053-36040 Brace, Quarter Wheel House, Rh
61636 61063-36040 Brace, Quarter Wheel House, Lh
61803 61803-36010 Rail Sub-Assy, No.4 Lower Outer, Rh
65579 65579-36010 Bracket, Heater Pipe
Side Member ([01.1993 - ] CENTER DOOR (9301- )RHD) 47
#OEMPart name
61084 61084-36010 Rail Sub-Assy, Center Door, Lh
61084 61084-36011 Rail Sub-Assy, Center Door, Lh
61161 61162-36020 Stiffener, Side Panel, Upper No.1
61161 61162-36902 Stiffener, Side Panel, Upper No.1
61164 61163-36902 Stiffener, Side Panel, Upper No.4
61201 61201-36902 Stiffener Sub-Assy, Side Panel, No.1
61216 61216-36020 Pillar, No.3
61217 61217-36020 Pillar, No.4
61265 61265-36020 Pillar, No.3 Inner, Upper Lh
61265 61265-36021 Pillar, No.3 Inner, Upper Lh
61267 61267-36020 Pillar, No.4 Inner, Upper Lh
61267 61267-36021 Pillar, No.4 Inner, Upper Lh
61288 61288-36020 Pillar, No.3 Corner, Lh
61288 61288-36041 Pillar, No.3 Corner, Lh
61288 61288-36040 Pillar, No.3 Corner, Lh
61288 61288-36042 Pillar, No.3 Corner, Lh
61289 61289-36020 Pillar, No.4 Corner, Lh
61289 61289-36061 Pillar, No.4 Corner, Lh
61289 61289-36060 Pillar, No.4 Corner, Lh
61289 61289-36062 Pillar, No.4 Corner, Lh
61307 61307-36040 Pillar Sub-Assy, Center Body, Inner Front
61308 61308-36030 Pillar Sub-Assy, Center Body, Inner Rear
61319 61319-36020 Plate, Center Body Pillar, Outer Rh
61329 61329-36020 Plate, Center Body Pillar, Outer Lh
61342 61342-36030 Rail, No.1 Upper Inner, Rear Lh
61406 61406-36030 Rail Sub-Assy, No.7 Lower Inner, Lower Lh
61471 61471-36010 Rail, Center Door, Outer
61471 61471-36041 Rail, Center Door, Outer
61471 61471-36040 Rail, Center Door, Outer
61532 61532-36010 Gusset, Seat Anchor, No.2
61547 61547-36010 Gusset, Seat Anchor, No.7 Lh
61585 61585-36020 Gusset, Rear Door Pillar, Front
61585 61585-36031 Gusset, Rear Door Pillar, Front
61585 61585-36030 Gusset, Rear Door Pillar, Front
61586 61586-36020 Gusset, Rear Door Pillar, Rear
61586 61586-36031 Gusset, Rear Door Pillar, Rear
61586 61586-36030 Gusset, Rear Door Pillar, Rear
61587 61587-36010 Gusset, Center Door Pillar, Front Lh
61588 61588-36010 Gusset, Center Door Pillar, Rear Lh
61593 61593-36010 Bracket, Stiffener, No.3
63147 63147-36010 Bracket, Roof Panel Reinforcement
63147 63147-36011 Bracket, Roof Panel Reinforcement
6197436020 61974-36020 New Genuine Part
9033325001 90333-25001 Plug, Hole(For Hood)
9046705096 90467-05096-A1 New Genuine Part
9046705096 90467-05096-B3 New Genuine Part
9165140816 91651-40816 BOLT
Side Member ([01.1993 - ] LH SIDE (1/2) (9301- )RHD) 86
#OEMPart name
53137 53137-36010 Retainer, Headlamp Door
61039 61039-36010-A0 Step Sub-Assy, Emergency
61039 61039-36012-A0 Step Sub-Assy, Emergency
61039 61039-36010-A1 Step Sub-Assy, Emergency
61039 61039-36011-A0 Step Sub-Assy, Emergency
61039 61039-36011-A1 Step Sub-Assy, Emergency
61039 61039-36012-A1 Step Sub-Assy, Emergency
61039 61039-36020-A0 Step Sub-Assy, Emergency
61039 61039-36020-A2 Step Sub-Assy, Emergency
61094 61094-36030 Rail Sub-Assy, No.3 Lower Inner, Lh
61099 61099-36010 Stiffener Sub-Assy, Pillar No.10, Inner Lh
61117 61117-36020 Retainer, Washer Tank
61122 61122-36020 Panel, No.2 Side, Lh
61125 61125-36020 Panel, No.4 Side, Lh
61136 61135-36010 Reinforcement, Front Body Pillar, Outer
61144 61144-36010 Support, Front Bumper Side, Lh
61159 61159-36010 Retainer, Side Panel, No.2 Rh
61182 61183-36010 Bracket, Instrument Side, Lh
61221 61221-36010 Pillar, No.1 Outer, Upper Lh
61222 61222-36010 Pillar, No.1 Outer, Lower Lh
61247 61247-36010 Pillar, No.9 Outer, Upper Lh
61248 61248-36010 Pillar, No.9 Outer, Lower Lh
61249 61041-36020 Retainer, Roof Side Rail, Outer Lh
61249 61041-36021 Retainer, Roof Side Rail, Outer Lh
61261 61261-36020 Pillar, No.1 Inner, Lh
61261 61261-36021 Pillar, No.1 Inner, Lh
61261 90333-35001 New Genuine Part
61278 61277-36010 Joint, Roof Drip Channel
61282 61282-36060 Pillar, No.9 Inner, Lh
61282 61282-36061 Pillar, No.9 Inner, Lh
61283 61283-36010 Pillar, No.9 Inner, Lower Lh
61283 61283-36030 Pillar, No.9 Inner, Lower Lh
61284 61284-36020 Pillar, No.10 Inner, Lh
61284 61284-36030 Pillar, No.10 Inner, Lh
61328 61328-36010 Rail, No.6 Upper Outer, Lh
61348 61348-36010 Rail, Rear Side No.2, Lh
61358 61357-36010 Channel, Roof Drip Side, Center No.1
61366 61366-36010 Channel, Roof Drip Side, Front Lh
61368 61367-36010 Channel, Roof Drip Side, Center No.1
61368 61368-36010 Channel, Roof Drip Side, Rear Lh
61391 61391-36020 Packing, Center Body Pillar, No.1
61391 61391-36030 Packing, Center Body Pillar, No.1
61421 61421-36010 Rail, No.1 Lower Outer, Lh
61526 61525-36010 Bracket, Seat Anchor, No.2 Lh
61526 61526-36010 Bracket, Seat Anchor, No.2 Rh
61567 61567-36010 Gusset, Pillar To Rail, No.2 Lh
61582 61582-36010 Bracket, Rear Seat, No.2
61594 61594-36010 Bracket, Stiffener, No.4
61596 61596-36010 Bracket, Computer Set, Lower Lh
61596 61596-36011 Bracket, Computer Set, Lower Lh
61614 61704-12060 Panel, Quarter, Inner Lh
61625 61625-36010 Pillar, No.10 Outer, Upper Lh
61625 61625-36011 Pillar, No.10 Outer, Upper Lh
61625 90480-30033 New Genuine Part
61632 61632-36010 Panel, Rear Wheel House, Outer Lh
61633 61633-36010 Panel, Wheel House
61633 61633-36011 Panel, Wheel House
61661 61661-36010 Gusset, Pillar Shear, No.1 Lh
61688 61688-36010 Bracket, Mudguard, Rear Lh
61723 61723-36010 Bracket, Switch Relay
61823 61823-36010 Plate, Dust Proof, No.1 Lh
61824 61824-36010 Plate, Dust Ploof, No.2 Lh
61888 61888-36010 Rail, Side Panel Dust Proof, No.1 Lh
61888 61888-36030 Rail, Side Panel Dust Proof, No.1 Lh
61896 61896-36040 Rail, Side Panel Dust Proof, No.2 Lh
61898 61898-36010 Rail, Side Panel Dust Proof, No.3 Lh
62429 62429-36010 Cover, Rear Floor Hole
63215 63215-36010 Channel, Roof Drip, Rear, Lh
65416 65416-36090 Panel, Rear Body, Front Lh
65614 65614-36010 Panel, Rear Body, Rear Lh
77689 77689-36010 Bracket, Fuel Tank Filler Pipe Protector, No.3
5199860020 51998-60020 Pad, Spare Wheel Bracket
9015940104 90159-40104 New Genuine Part
9017906185 90179-06185 CLIP BUMPER
9018904014 90189-04014 CLIP
9033330004 90333-30004 PLUG
9046705096 90467-05096-A1 New Genuine Part
9046705096 90467-05096-B3 New Genuine Part
9046706039 90467-06039-B1 Clip, Deck Board
9095001056 90950-01056 Plug, Hole(For Floor Panel)
9095001056 90950-01826 Plug, Hole(For Floor Panel)
9095001404 90950-01404 CLIP
9095001444 90950-01444 PLUG
9095001901 90950-01901 Cap, Spare Wheel Carrier Handle
9165160616 91651-60616 BOLT
904670603913 90467-06039-13 Clip, Front Mudguard
Side Member ([01.1993 - ] RH SIDE (1/2) (9301- )RHD) 87
#OEMPart name
53137 53137-36010 Retainer, Headlamp Door
53762 53762-36010 Reinforcement, Radiator Reserve Tank Mount
53827 53827-36010 Protector, Front Fender Side Panel, Rh
55149 55149-36010 Bracket, Dash Wiring Harness
58169 58169-90A00 Retainer, Rear Heater Mounting
61071 61071-36010 Reinforce Sub-Assy, No.1 Pillar, Upper Rh
61073 61073-36010 Reinforcement Sub-Assy, Center Body Pillar, Lh
61092 61092-36030 Rail Sub-Assy, No.3 Lower Inner, Rh
61098 61098-36010 Stiffener Sub-Assy, Pillar No.10, Inner Rh
61112 61112-36020 Panel, No.2 Side, Rh
61115 61115-36030 Panel, No.4 Side, Rh
61131 61131-36010 Pillar, Front Body, Upper Outer Rh
61131 61131-36020 Pillar, Front Body, Upper Outer Rh
61133 61133-36010 Pillar, Front Body, Lower Outer Rh
61143 61143-36010 Support, Front Bumper Side, Rh
61145 61145-36010 Gusset, Front Body Pillar, Lower Rh
61159 61159-36010 Retainer, Side Panel, No.2 Rh
61171 61171-20020 Bracket, Antenna Pole Mounting
61171 61171-36010 Stiffener, Side Panel, No.1
61177 61177-36010 Reinforcement, No.1 Pillar, Center
61178 61178-36010 Reinforcement, No.1 Pillar, Lower Rh
61181 61181-36010 Bracket, Instrument Side, Rh
61193 61193-36010-A0 Cover, Front Pillar Service Hole
61193 61193-36010-B0 Cover, Front Pillar Service Hole
61193 61193-36010-A1 Cover, Front Pillar Service Hole
61225 61225-36010 Rail, Roof Side Outer Upper No.1, Rh
61237 61238-36010 Rail, Roof Side, Inner No.4 Rh
61237 61237-36010 Pillar, No.9 Outer, Upper Rh
61239 61031-36030 Pillar, No.10 Rh
61251 61251-36010 Pillar, No.1 Inner, Rh
61251 61034-36030 Pillar, No.1 Inner, Rh
61251 90333-35001 New Genuine Part
61272 61272-36030 Pillar, No.9 Inner, Rh
61272 61272-36031 Pillar, No.9 Inner, Rh
61273 61273-36010 Pillar, No.9 Inner, Lower Rh
61273 61273-36030 Pillar, No.9 Inner, Lower Rh
61274 61274-36030 Pillar, No.10 Inner, Rh
61277 61277-36010 Joint, Roof Drip Channel
61318 61318-36010 Rail, No.6 Upper Outer, Rh
61338 61338-36020 Rail, Rear Side No.2, Rh
61356 61356-36010 Channel, Roof Drip Side, Front Rh
61357 61357-36010 Channel, Roof Drip Side, Center No.1
61358 61358-36010 Channel, Roof Drip Side, Rear Rh
61367 61367-36010 Channel, Roof Drip Side, Center No.1
61452 61452-36010 Panel, Rocker Inner, Front Rh
61453 61453-36010 Panel, Rocker Inner, Rear Rh
61455 61159-60010 Retainer, Side Panel, No.1
61455 61455-36010 Retainer, Front Step, Rh
61526 61509-36010 Bracket, Seat Anchor, No.2 Rh
61526 61509-36011 Bracket, Seat Anchor, No.2 Rh
61532 61532-36010 Gusset, Seat Anchor, No.2
61557 61557-36020 Gusset, Pillar To Rail, No.2
61582 61582-36010 Bracket, Rear Seat, No.2
61592 61592-36010 Bracket, Stiffener, No.2
61594 61594-36010 Bracket, Stiffener, No.4
61631 61631-36010 Panel, Rear Wheel House, Outer Rh
61651 61651-36010 Gusset, Pillar Shear, No.1 Rh
61669 61669-36010 Retainer, Front Door Open Switch Set
61687 61687-36010 Bracket, Mudguard, Rear Rh
61705 61705-36010 Cover Sub-Assy, Cooler Condenser Air Intake
61705 61705-36011 Cover Sub-Assy, Cooler Condenser Air Intake
61705 61705-36012 Cover Sub-Assy, Cooler Condenser Air Intake
61793 61793-36010 Bracket, Cooler Condenser, No.1
61793 61793-36011 Bracket, Cooler Condenser, No.1
61813 61813-36010 Plate, Dustproof, No.1 Rh
61859 61859-36010 Cover, Front Door Step, Rh
61887 61887-36010 Rail, Side Panel Dust Proof, No.1 Rh
61895 61895-36020 Rail, Side Panel Dust Proof, No.2 Rh
61897 61897-36010 Rail, Side Panel Dust Proof, No.3 Rh
63147 63147-36010 Bracket, Roof Panel Reinforcement
63147 63147-36011 Bracket, Roof Panel Reinforcement
65415 65415-36070 Panel, Rear Body, Front Rh
65417 65417-36010 Panel, Rear Body, Rear Rh
91631 91631-J0612 BRACKET
9015940104 90159-40104 New Genuine Part
9015960454 90159-60454 New Genuine Part
9018904014 90189-04014 CLIP
9033325001 90333-25001 Plug, Hole(For Hood)
9033330002 90333-30002 Cover, Front Floor Hole
9054107093 90541-07093 Cushion, Instrument Panel, No.1
9095001056 90950-01056 Plug, Hole(For Floor Panel)
9095001056 90950-01826 Plug, Hole(For Floor Panel)
9095001167 90950-01167 Plug, Hole, No.3(For Dash Panel)
9095001599 90950-01599 New Genuine Part
9095001763 90950-01763 New Genuine Part
9095006028 90950-06028 New Genuine Part
9338316014 93383-16014 New Genuine Part
Side Window ([01.1993 - 01.2015] (9301-1501)BZB50..STD ; (9301-1501)BB4#,50,BZB40 ,HZB50,XZB40,5#..RHD) 34
#OEMPart name
62015 62015-36010 Frame Sub-Assy, Side Window, Rh
62015 62015-36011 Frame Sub-Assy, Side Window, Rh
62015 62015-36012 Frame Sub-Assy, Side Window, Rh
62019 62019-36010 Frame Sub-Assy, Side Window, Center Rh
62019 62019-36031 Frame Sub-Assy, Side Window, Center Rh
62019 62019-36034 Frame Sub-Assy, Side Window, Center Rh
62019 62019-36032 Frame Sub-Assy, Side Window, Center Rh
62019 62019-36033 Frame Sub-Assy, Side Window, Center Rh
62211 62221-36020 Glass, Side Window, Rear Rh
62211 62221-36070 Glass, Side Window, Rear Rh
62211 62211-36020 Glass, Side Window, Rear Lh
62211 62211-36080 Glass, Side Window, Rear Lh
62269 62269-90K01 Film, Side Window Frame
62279 62279-36010 Spacer, Side Window Frame, Upper
62374 62792-95A00 Packing, Side Rear Window, Rh
62377 62376-36010-A0 Clip, Front Door Window
62377 62376-36010-B0 Clip, Front Door Window
62377 62376-36010-A1 Clip, Front Door Window
62384 62384-36010-A0 Cap, Side Window
62384 62384-36010-A1 Cap, Side Window
62451 62451-36030 Run, Rear Side Window, Rh
62451 62451-36031 Run, Rear Side Window, Rh
62777 62777-36010 Cap, Side Window Center Sash
62777 62777-36012 Cap, Side Window Center Sash
62777 62777-36011 Cap, Side Window Center Sash
62793 62793-95J00 Retainer, Side Window Lock, No.1
62793 62793-36010 Retainer, Side Window Lock, Lh
62910 62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)
9046805116 90468-05116 CLIP
9354023010 93540-23010 SCREW
9354023010 93540-13010 SCREW
9354024010 93540-24010 Screw, Roof Headlining Trim
9354054014 93540-54014 SCREW
9354054016 93540-54016 SCREW
Side Window ([01.1993 - ] (9301- )ARL ; (9301- )XZB40,59..HRF) 35
#OEMPart name
62029 62029-36010 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36031 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36034 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36032 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36033 Frame Sub-Assy, Side Window, Center Lh
62221 62211-36020 Glass, Side Window, Rear Lh
62221 62211-36080 Glass, Side Window, Rear Lh
62221 62221-36020 Glass, Side Window, Rear Rh
62221 62221-36070 Glass, Side Window, Rear Rh
62269 62269-90K01 Film, Side Window Frame
62279 62279-36010 Spacer, Side Window Frame, Upper
62377 62376-36010-A0 Clip, Front Door Window
62377 62376-36010-B0 Clip, Front Door Window
62377 62376-36010-A1 Clip, Front Door Window
62384 62384-36010-A0 Cap, Side Window
62384 62384-36010-A1 Cap, Side Window
62391 62391-36010 Stopper, Side Window, No.1 Lh
62461 62461-36040 Run, Rear Side Window, Lh
62461 62461-36042 Run, Rear Side Window, Lh
62461 62461-36041 Run, Rear Side Window, Lh
62708 62706-36010 Frame Sub-Assy, Side Rear Window, Lh
62708 62706-36011 Frame Sub-Assy, Side Rear Window, Lh
62708 62706-36012 Frame Sub-Assy, Side Rear Window, Lh
62777 62777-36010 Cap, Side Window Center Sash
62777 62777-36012 Cap, Side Window Center Sash
62777 62777-36011 Cap, Side Window Center Sash
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62910 62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)
9046805116 90468-05116 CLIP
9354023010 93540-23010 SCREW
9354023010 93540-13010 SCREW
9354024008 93540-24008 SCREW
9354024010 93540-24010 Screw, Roof Headlining Trim
9354054014 93540-54014 SCREW
Side Window ([01.1993 - ] (9301- )ARL) 30
#OEMPart name
62019 62019-36010 Frame Sub-Assy, Side Window, Center Rh
62019 62019-36031 Frame Sub-Assy, Side Window, Center Rh
62019 62019-36034 Frame Sub-Assy, Side Window, Center Rh
62019 62019-36033 Frame Sub-Assy, Side Window, Center Rh
62019 62019-36032 Frame Sub-Assy, Side Window, Center Rh
62211 62711-36010 Glass, Side Window, Front Lh
62211 62711-36070 Glass, Side Window, Front Lh
62269 62269-90K01 Film, Side Window Frame
62279 62279-36010 Spacer, Side Window Frame, Upper
62377 62376-36010-A0 Clip, Front Door Window
62377 62376-36010-B0 Clip, Front Door Window
62377 62376-36010-A1 Clip, Front Door Window
62384 62384-36010-A0 Cap, Side Window
62384 62384-36010-A1 Cap, Side Window
62391 62391-36010 Stopper, Side Window, No.1 Lh
62451 62451-36070 Run, Rear Side Window, Rh
62451 62451-36072 Run, Rear Side Window, Rh
62451 62451-36071 Run, Rear Side Window, Rh
62707 62707-36040 Frame Sub-Assy, Side Front Window, Rh
62707 62707-36041 Frame Sub-Assy, Side Front Window, Rh
62707 62707-36042 Frame Sub-Assy, Side Rear Window, Rh
62777 62777-36010 Cap, Side Window Center Sash
62777 62777-36012 Cap, Side Window Center Sash
62777 62777-36011 Cap, Side Window Center Sash
9046805116 90468-05116 CLIP
9354023010 93540-23010 SCREW
9354023010 93540-13010 SCREW
9354024008 93540-24008 SCREW
9354024010 93540-24010 Screw, Roof Headlining Trim
9354054014 93540-54014 SCREW
Side Window ([01.1993 - ] (9301- )RHD) 48
#OEMPart name
61421 62171-36020 Glass, Side Lower Window
61421 62171-36080 Glass, Side Lower Window
62021 62021-36010 Frame Sub-Assy, Front Side Window, Outer Lh
62021 93540-13010 SCREW
62021 62021-36011 Frame Sub-Assy, Front Side Window, Outer Lh
62021 62256-36020 New Genuine Part
62021 62021-36012 Frame Sub-Assy, Front Side Window, Outer Lh
62029 62029-36010 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36030 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36031 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36034 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36032 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36033 Frame Sub-Assy, Side Window, Center Lh
62121 62121-36020 Glass, Front Side Window, Front Lh
62121 62121-36021 Glass, Front Side Window, Front Lh
62121 62121-36050 Glass, Front Side Window, Front Lh
62179 62179-36010 Dam, Side Lower Window
62211 62211-36020 Glass, Side Window, Rear Lh
62211 62211-36080 Glass, Side Window, Rear Lh
62269 62269-90K01 Film, Side Window Frame
62279 62279-36010 Spacer, Side Window Frame, Upper
62279 62279-36030 Spacer, Side Window Frame, Upper
62376 62376-36010-A0 Clip, Front Door Window
62376 62376-36010-B0 Clip, Front Door Window
62376 62376-36010-A1 Clip, Front Door Window
62391 62391-36010 Stopper, Side Window, No.1 Lh
62777 62777-36010 Cap, Side Window Center Sash
62777 62777-36012 Cap, Side Window Center Sash
62777 62777-36020 Cap, Side Window Center Sash
62777 62777-36021 Cap, Side Window Center Sash
62778 62778-36010-A0 Cap, Side Window Front Sash
62778 62778-36010-A1 Cap, Side Window Front Sash
62792 62792-95A00 Packing, Side Rear Window, Rh
62793 62793-95J00 Retainer, Side Window Lock, No.1
62910 62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)
68142 68142-36010 Run, Side Front Window, Lh
68142 68142-36011 Run, Side Front Window, Lh
68142 68142-36013 Run, Side Front Window, Lh
68142 68142-36012 Run, Side Front Window, Lh
68217 68217-36010 Pin, Front Door Fix Window
68217 68217-36020 Pin, Front Door Fix Window
68217 68217-36030 Pin, Side Window , No.1
68218 68218-36010 Bush, Front Door Fix Window
9046805116 90468-05116 CLIP
9354023010 93540-23010 SCREW
9354024008 93540-24008 SCREW
9354024010 93540-24010 Screw, Roof Headlining Trim
9354054014 93540-54014 SCREW
Side Window ([01.1993 - ] FOLDING DOOR (9301- )BB4#,50,59,BZB40,50,HZB50,XZB40,50..R HD) 34
#OEMPart name
62026 62026-36010 Frame Sub-Assy, Side No.2 Window, Outer Lh
62026 62026-36011 Frame Sub-Assy, Side No.2 Window, Outer Lh
62026 62026-36012 Frame Sub-Assy, Side No.2 Window, Outer Lh
62029 62029-36010 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36031 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36034 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36032 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36033 Frame Sub-Assy, Side Window, Center Lh
62221 62221-36020 Glass, Side Window, Rear Rh
62221 62221-36070 Glass, Side Window, Rear Rh
62221 62211-36020 Glass, Side Window, Rear Lh
62221 62211-36080 Glass, Side Window, Rear Lh
62269 62269-90K01 Film, Side Window Frame
62279 62279-36010 Spacer, Side Window Frame, Upper
62374 62792-95A00 Packing, Side Rear Window, Rh
62377 62376-36010-A0 Clip, Front Door Window
62377 62376-36010-B0 Clip, Front Door Window
62377 62376-36010-A1 Clip, Front Door Window
62384 62384-36010-A0 Cap, Side Window
62384 62384-36010-A1 Cap, Side Window
62461 62461-36030 Run, Rear Side Window, Lh
62461 62461-36031 Run, Rear Side Window, Lh
62777 62777-36010 Cap, Side Window Center Sash
62777 62777-36012 Cap, Side Window Center Sash
62777 62777-36011 Cap, Side Window Center Sash
62793 62793-95J00 Retainer, Side Window Lock, No.1
62793 62793-36010 Retainer, Side Window Lock, Lh
62910 62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)
9046805116 90468-05116 CLIP
9354023010 93540-23010 SCREW
9354023010 93540-13010 SCREW
9354024010 93540-24010 Screw, Roof Headlining Trim
9354054014 93540-54014 SCREW
9354054016 93540-54016 SCREW
Side Window ([01.1993 - ] GLIDE DOOR (9301- )BZB50..CBU ; (9301- )BB4#,50,59,BZ B40,HZB50,XZB40,50..RHD) 33
#OEMPart name
62026 62026-36010 Frame Sub-Assy, Side No.2 Window, Outer Lh
62026 62026-36011 Frame Sub-Assy, Side No.2 Window, Outer Lh
62026 62026-36012 Frame Sub-Assy, Side No.2 Window, Outer Lh
62029 62029-36010 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36031 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36034 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36032 Frame Sub-Assy, Side Window, Center Lh
62029 62029-36033 Frame Sub-Assy, Side Window, Center Lh
62221 62221-36020 Glass, Side Window, Rear Rh
62221 62221-36070 Glass, Side Window, Rear Rh
62221 62211-36020 Glass, Side Window, Rear Lh
62221 62211-36080 Glass, Side Window, Rear Lh
62269 62269-90K01 Film, Side Window Frame
62279 62279-36010 Spacer, Side Window Frame, Upper
62374 62792-95A00 Packing, Side Rear Window, Rh
62377 62376-36010-A0 Clip, Front Door Window
62377 62376-36010-B0 Clip, Front Door Window
62377 62376-36010-A1 Clip, Front Door Window
62384 62384-36010-A0 Cap, Side Window
62384 62384-36010-A1 Cap, Side Window
62461 62461-36030 Run, Rear Side Window, Lh
62461 62461-36031 Run, Rear Side Window, Lh
62777 62777-36010 Cap, Side Window Center Sash
62777 62777-36012 Cap, Side Window Center Sash
62777 62777-36011 Cap, Side Window Center Sash
62793 62793-36010 Retainer, Side Window Lock, Lh
62920 62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)
9046805116 90468-05116 CLIP
9354023010 93540-23010 SCREW
9354023010 93540-13010 SCREW
9354024008 93540-24008 SCREW
9354024010 93540-24010 Screw, Roof Headlining Trim
9354054016 93540-54016 SCREW
Spare Wheel Carrier ([01.1993 - ] (9301- )) 9
#OEMPart name
51900 51900-36140 Carrier Assy, Spare Wheel
51900 51900-36141 Carrier Assy, Spare Wheel
51933 51903-36070 Stopper, Spare Wheel, No.1
51933 51903-36071 Stopper, Spare Wheel, No.1
51934 51904-36050 Stopper, Spare Wheel, No.2
51934 51904-36051 Stopper, Spare Wheel, No.2
51941 51941-36050 Bracket, Spare Wheel Carrier
91611 91611-G0820 Bolt
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
Speaker ([01.1993 - ] (9301- )) 3
#OEMPart name
86150 86150-36090-A0 Speaker Assy, W/box, No.1
86150 86150-36090-A1 Speaker Assy, W/box, No.1
9321915020 93219-15020 New Genuine Part
Speedometer Driven Gear (Mtm) ([01.1993 - 10.1996] H260,M152,M155,M156 (9301-9610)5F ; (9610- )BB4#,5#,BZB40,50,HZB5 0,RZB40,50,TRB40,50..MTM..ARL,CHI,G CC,GEN,SCO) 3
#OEMPart name
33403 33482-39455 Gear Sub-Assy, Speedometer Driven (Mtm)
33404 90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)
91611 91611-G0820 Bolt
Speedometer Driven Gear (Mtm) ([10.1996 - ] H260,M152,M155,M156 (9301-9610)5F ; (9610- )BB4#,5#,BZB40,50,HZB5 0,RZB40,50,TRB40,50..MTM..ARL,CHI,G CC,GEN,SCO) 3
#OEMPart name
33403 33482-39455 Gear Sub-Assy, Speedometer Driven (Mtm)
33404 90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)
91611 91611-G0820 Bolt
Standard Tool ([01.1993 - ] (9301- )) 16
#OEMPart name
9110 09110-36260 Jack Assy
9113 09113-36160 Handle, Jack
9120 09120-36070 Bag, Tool
9130 99913-11500 Pliers (China) - No Toyota stamp
9135 99915-10700 Driver, Screw - No Toyota stamp
9135 90089-99009 Driver, Screw (ATC) (Thailand) - Screw Driver (ATC)
9141 99914-10810 Spanner (China) - No Toyota stamp
9141 09141-0K030 Spanner (ATC) (Thailand) - 8x10
9141 99914-11012 Spanner (No Toyota) - (China)
9141 99914-11214 Spanner (China) - No Toyota stamp
9141 09141-0K040 Spanner (Thailand)
9141 99914-11417 Spanner (No Toyota) - (Made in China)
9145 99911-11200 Monkey Wrench (China) No Toyota Stamp
9150 09150-36030 Wrench, Hub Nut Box
9150 09150-37030 Wrench, Hub Nut Box
9187 09187-36070 Handle, Spare Wheel Carrier
Starter ([01.1993 - 07.2010] 12V 2.5KW, 24V 4.5KW (9301-1007)14B,15B#,3B) 51
#OEMPart name
28011 28011-54010 Clutch Sub-Assy, Starter
28011 90099-12009 Ball, Starter Clutch
28100 28100-56290 Starter Assy
28100 28100-56292 Starter Assy
28100 28100-56291 Starter Assy
28110 28110-56130 Housing Assy, Starter Drive
28110 28110-56131 Housing Assy, Starter Drive
28118 28118-77090 Plate(For Starter Yoke)
28119 28119-46080 Cover, Starter End Frame
28119 28199-46080 Cover, Starter End Frame
28120 28120-56071 Yoke Assy, Starter
28130 28130-17030 Frame Assy, Starter Commutator End
28130 28130-56300 Frame Assy, Starter Commutator End
28130 90099-04207 New Genuine Part
28139 28139-54250 Wire, Lead, No.1(For Starter)
28139 28139-56290 Wire, Lead, No.1(For Starter)
28139 28139-54251 Wire, Lead, No.1(For Starter)
28140 28140-77090 Holder Assy, Starter Brush
28150 28150-56290 Switch Assy, Magnet Starter
28159 28159-17030 Cover, Magnet Switch
28160 28160-77090 Armature Assy, Starter
28160 90099-10107 Bearing, Starter Armature
28160 90099-10119 Bearing, Starter Armature
28165 28165-77090 Spring, Starter Magnet Switch Return
28175 28175-56310 Gasket, Magnet Switch Cover
28199 28199-54190 Cover, Starter End Frame
28222 28222-77090 Washer, Starter Idle Gear Clutch
28226 28226-54320 Starter Kit, Battery Terminal
28226 28226-56300 Starter Kit, Motor Terminal
28228 28228-56080 Roller, Starter Idle Gear Clutch
28229 28229-56080 Retainer, Starter Idle Gear
28235 28235-17030 Plunger, Magnet Switch
28254 28254-77090 Pinion, Starter Drive
9009221001 90092-21001 NUT
9009900158 90099-00158 SCREW
9009900254 90099-00254 New Genuine Part
9009901436 90099-01436 New Genuine Part
9009902205 90099-02205 Washer, Felt, Starter
9009902325 90099-02325 WASHER
9009904297 90099-04297 BOLT
9009904473 90099-04473 New Genuine Part
9017910195 90179-10195 NUT WWASHER
9111241465 91112-41465 BOLT
9111261465 91112-61465 Bolt
9331915008 93319-15008 SCREW
9411541400 94115-41400 Nut(For Backing Plate To Steering Knuckle Setting)
9413061400 94130-61400 Nut, Lock
9451100600 94511-00600 Washer, Lock, No.2
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9451101400 94511-01400 WASHER
9453101400 94531-01400 New Genuine Part
Steering Column & Shaft ([01.1993 - ] (9301- )BB50,XZB50..MTM..CHI,EUR,GEN,TAIW ; ( 9301- )BB4#,58,59,BZB40,50,HZB50 ,RZB40,50,TRB40,5 0,XZB40,59) 29
#OEMPart name
45025 45025-36140 Cover Sub-Assy, Steering Column Hole, No.1
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45201 96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)
45204 45204-36190 Tube Assy, Steering Column, Lower
45205 45205-36200 Tube Sub-Assy, Steering Column, Upper
45210 45210-36090 Shaft Assy, Steering Main
45225 45225-26010 Ring, Shaft Snap(For Steering Main Shaft)
45263 45263-32010 Ring, Steering Column, No.1
45275 45307-36230 Bracket, Steering Column, Upper
45283 45283-22010 Plate, Safety Caution
45286 45286-36820-E0 Cover, Steering Column, Upr
45286 45286-36830-E0 Cover, Steering Column, Upr
45287 45287-36350-E0 Cover, Steering Column, Lwr
45287 45287-36350-B0 Cover, Steering Column, Lwr
45292 45292-27020 Seal, Main Shaft Lower Dust
45872 45872-36040 Cover, Steering Column Tube
45897 45897-12030 Bolt, Hexagon(For Steering Column Bracket)
91611 91611-G0820 Bolt
91631 91631-B0820 BOLT WWASHER
91661 91661-B0820 Bolt
9011906936 90119-06936 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9016450048 90164-50048 SCREW
9161260820 91612-60820 Bolt(For Clutch Release Cylinder Setting)
9165140820 91651-40820 Bolt
9331514012 93315-14012 Screw with washer
9356855014 93568-55014 Screw
Steering Wheel ([01.1993 - ] 2-SPOKE,POLYPROPYLENE (9301- )BB50,XZB50..MTM..CHI,EUR,GEN,TAIW ; ( 9301- )BB4#,58,59,BZB40,50,RZB40 ,50,TRB40,50,XZB4 0,59) 9
#OEMPart name
45100 45100-36110-E0 Wheel Assy, Steering
45105 45105-36010 Plate Sub-Assy, Horn Button Contact, No.1
45130 45130-36090-E0 Button Assy, Horn
45130 45130-36100-E0 Button Assy, Horn
45176 45176-36010 Ring, Horn Contact
45201 90179-12071 Nut, Steering Wheel Set
45201 90179-12086 Nut, Steering Wheel Set
9331514010 93315-14010 SCREW
9351013010 93510-13010 Bolt Or Pin (For Shift Lever Knob Setting)
Suspension Crossmember & Under Cover ([01.1993 - 07.1999] (9301-9907)BB4#,58,HZB50,RZB40,50 ; (9705-9907)G EN..IV ; (9705-9907)BB50..EX) 23
#OEMPart name
51201 51201-36160 Crossmember Sub-Assy, Front Suspension, Rh
51202 51202-36170 Crossmenber Sub-Assy, Front Suspension, Lower
51202 51202-36171 Crossmenber Sub-Assy, Front Suspension, Lower
51203 51203-36330 Crossmenber Sub-Assy, Front Suspension, Lh
51328 51328-36020 Support, Front Suspension Member, Rh
51329 51329-36010 Support, Front Suspension Member, Lh
51441 51441-36280 Cover, Engine Under, No.1
51441 51441-36281 Cover, Engine Under, No.1
51445 51445-36040 Bracket, Engine Under Cover
51446 51446-36040 Bracket, Engine Under Cover, No.2
51963 51963-36060 Hook, Transport, Rear Lh
9011908 90119-08A46 BOLT WWASHER
9010514092 90105-14092 New Genuine Part
9010514093 90105-14093 New Genuine Part
9011908162 90119-08162 New Genuine Part
9011912170 90119-12170 New Genuine Part
9017014026 90170-14026 Nut(For Front Support To Front Shock Absorber Rh)
9046709013 90467-09013 Clip, Step Plate Cover
9046711038 90467-11038 CLAMP
9161261030 91612-61030 Bolt (For Transmission Control Cable Bracket)
9163160616 91631-60616 BOLT WWASHER
9163160616 91631-B0616 BOLT WWASHER
9462211400 94622-11400 New Genuine Part
Switch & Relay & Computer ([01.1993 - 05.1997] ENGINE ROOM (9301-9705)BB4#,50,HZB50) 40
#OEMPart name
27690 27690-56150 Solenoid Assy, W/bracket(For Exhaust Brake)
28521 28521-56090 Timer, Preheating
28521 28521-58220 Timer, Preheating
28529 28529-56010 Bracket, Preheating Timer, No.1
28610 28610-58110 Relay Assy, Glow Plug
28610 28610-58250 Relay Assy, Glow Plug
28610 28610-58120 Relay Assy, Glow Plug(Sub)
28611 28611-58060 Cover, Glow Plug Relay
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82600 90982-09004 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82600 82683-36010 Plate, Caution(For Fuse)
82600 82683-36030 Plate, Caution(For Fuse)
82600 82683-36120 Plate, Caution(For Fuse)
82600 90982-10001 Instrument Panel Fusible Link
82660 82660-36010 Block Assy, Relay
82663 82663-36010 Cover, Relay Block, Lower
82816 82816-36010 Bracket, Wiring Harness Grommet
83390 83390-36020 Switch Assy, Vacuum Warning
85909 85909-36010 Bracket Sub-Assy, Relay Block
85909 85909-36011 Bracket Sub-Assy, Relay Block
85909 85909-36030 Bracket Sub-Assy, Relay Block
85909 85909-36031 Bracket Sub-Assy, Relay Block
85910 90987-02005 Relay, Ignition, No.1
85959 85959-36040 Holder, Relay
85959 85959-36060 Holder, Relay
89593 89593-26010 Sensor, Air Cleaner Warning
9011905007 90119-05007 New Genuine Part
9011906166 90119-06166 BOLT
9011906186 90119-06186 BOLT
9011906186 90119-06420 BOLT WWASHER
9011908827 90119-08827 New Genuine Part
9011908873 90119-08873 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9046708104 90467-08104 Clip (For Side Trim Board)
9165160616 91651-60616 BOLT
9354014010 93540-14010 Clip, Headlining Retainer
9361055020 93610-55020 New Genuine Part
Switch & Relay & Computer ([01.1993 - 07.1999] DOOR,ROOF,FLOOR & BACK DOOR 1/2 (9301-9907) ; (9907-0608)STD..IV) 20
#OEMPart name
82611 82611-36030 Cover, Fuse Block
82615 82615-36020 Bracket, Fuse
82620 82620-36020 Block Assy, Fusible Link
82620 82620-36030 Block Assy, Fusible Link
82671 82671-30350 Block, Junction
83320 83320-80261 Gage Assy, Fuel Sender
84231 84231-36020 Switch, Courtesy Lamp
84233 84231-22060 Switch Assy, Courtesy Lamp (For Front Door)
84233 84234-22010 Cushion, Courtesy Switch (For Front Door)
85980 85980-36090 Relay Assy, Door Control
85980 85980-36091 Relay Assy, Door Control - DOOR CONTROL (FOR AUTOMATIC DOOR)
85980 85980-36100 Relay Assy, Door Lock, No.2
86650 86650-36100 Buzzer Assy, Back
93319 93319-A4010 SCREW WWASHER
9155380618 91553-80618 Direct
9165140614 91651-40614 Bolt
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160614 91651-60614 Bolt
Switch & Relay & Computer ([01.1993 - 07.1999] INSTRUMENT PANEL & COWL (9301-9907)RHD) 39
#OEMPart name
28300 28300-56040 Relay Assy, Starter
81980 81980-60010 Flasher Assy, Turn Signal
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82600 90982-09004 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82600 90982-10001 Instrument Panel Fusible Link
82602 82602-36010 Block Sub-Assy, Relay
82616 82616-12010 Lever, Fuse
82661 82661-36030 Cover, Relay Block, No.1
82661 82661-36031 Cover, Relay Block, No.1
82661 82661-36032 Cover, Relay Block, No.1
82671 82671-30340 Block, Junction
84340 84340-36070 Switch Assy, Stop Lamp
84340 84340-36071 Switch Assy, Stop Lamp
84550 84550-36040 Switch Assy, Parking Brake
84640 84640-36060 Switch Assy, Exhaust Brake
84956 84956-36040 Bracket, Hand Brake Signal Switch
85910 85913-90K00 Relay Assy (For Heater Blower Motor)
85915 90987-02005 Relay, Ignition, No.1
85916 90987-02007 Relay, Light Control
85940 85940-36040 Relay Assy, Windshield Wiper
85959 85959-36040 Holder, Relay
85959 85959-36060 Holder, Relay
86530 90987-01004 Relay, Heater Pump
86650 86650-36080 Buzzer Assy, Vacuum Indicator
86650 86650-36140 Buzzer Assy, Vacuum Warning
86650 86650-36110 Buzzer Assy, Emergency
86659 86659-36020 Bracket, Buzzer
88630 90987-03002 Relay, Turbo Indicator
91611 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9017908026 90179-08026 Nut (For Front Wiper Arm Setting)
9163140618 91631-40618 BOLT
9163140618 91631-A0618 New Genuine Part
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165160616 91651-60616 BOLT
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
Switch & Relay & Computer ([01.1993 - 08.2004] STEERING (9301-0408)) 19
#OEMPart name
84110 84112-80143 Switch Assy, Light Control, No.1
84140 84140-36150 Switch Assy, Headlamp Dimmer
84310 84310-36510 Switch Assy, Turn Signal
84310 84310-36530 Switch Assy, Turn Signal
84312 84312-20011 Plate, Horn Contact
84329 84329-36050 Switch, Turn Signal
84329 84329-37020 Switch, Turn Signal
84450 84450-36090 Switch Assy, Ignition Or Starter
84650 84652-36410 Switch Assy, Windshield Wiper
84650 84652-36430 Switch Assy, Windshield Wiper
91611 91611-G0612 Bolt
8271130130 82711-30130 Wire, Fuse To Fuse(for Combustion Heater)
8281736030 82817-36030 Protector, Wiring Harness
9008046104 90080-46104 New Genuine Part
9014940013 90149-40013 New Genuine Part
9016840129 90168-40129 SCREW TAPPING
9046313003 90463-13003 Clamp, Hood Lock Control Wire
9046400232 90464-00232 New Genuine Part
9331915012 93319-15012 Screw
Switch & Relay & Computer ([01.1993 - 08.2007] INSTRUMENT PANEL (9301-0708)RHD) 23
#OEMPart name
74534 74534-90K00 Plate, Fog Lamp Switch Caution, No.2
84170 84170-36040 Switch Assy, Room Lamp No.1
84170 84170-36050 Switch Assy, Room Lamp No.2
84170 84999-10610 Bulb, Fog Lamp Switch
84170 84998-10270 Cap, Fog Lamp Bulb
84330 84332-36090 Switch Assy, Hazard Warning Signal
84660 81936-32010 Bulb Assy, Cooler Control
84730 84732-36040 Switch Assy, Heater Blower
84730 84999-10590 Bulb, Heater Blower Switch
84730 84998-10050 Cap, Satellite Switch
84730 84732-35010 Switch Assy, Heater Blower
84732 84732-36050 Switch, Rear Heater Blower
84790 84790-36030 Switch Assy, Rear Window Defogger
84790 84999-10370 Bulb, Dpr Swich Assy
84790 84998-10060 Cap, Dpr Switch Bulb
84930 84930-36020 Switch Assy, Door Control
85500 85500-36020 Lighter Assy, Cigarette
85520 85520-95400 Knob And Element Assy, Cigarette Lighter
85533 85533-30040 Lens, Cigarette Lighter Indicator
85533 85533-30041 Lens, Cigarette Lighter Indicator
88660 84660-36020 Switch Assy, Cooler Control
88660 84660-36021 Switch Assy, Cooler Control
5553828010 55538-28010 Cover, Cooler Switch Hole
Switch & Relay & Computer ([01.1993 - ] DOOR,ROOF,FLOOR & BACK DOOR 2/2 (9301- )) 3
#OEMPart name
84235 84231-28010 Switch Assy, Courtesy Lamp
84235 84231-36040 Switch Assy, Courtesy Lamp(For Back Door)
84235 84535-22080 Switch Assy, Courtesy Lamp(For Back Door)
Switch & Relay & Computer ([01.1993 - ] ENGINE & TRANSMISSION (9301- )BB40,42) 20
#OEMPart name
28621 28621-57011 Resistor, Glow Plug
83420 83420-16040 Gage Assy, Water Temperature Sender
83530 83530-14070 Switch Assy, Oil Pressure (For Engine)
83530 83530-28010 Switch Assy, Oil Pressure (For Engine)
84210 84210-12040 Switch Assy, Back-Up Lamp
84210 84210-52050 Switch Assy, Back-Up Lamp
84540 84540-36090 Switch Assy, Neutral (For Exhaust Brake)
89422 89422-20010 Sensor, Water Temperature (For E.f.i.)
89491 89491-36070 Sensor, Engine Oil Level
89491 89491-36071 Sensor, Engine Oil Level
89491 90430-27001 Gasket, Engine Oil Level Sensor
1987766010 19877-66010 Insulator Sub-Assy, Glow Plug, No.1
8271136080 82711-36080 Wire, Fuse To Fuse(for Combustion Heater)
9017905032 90179-05032 NUT
9017905032 90179-05011 NUT
9018905006 90189-05006 GROMMET
9043012221 90430-12221 Gasket
9043018008 90430-18008 Gasket
9043018008 90430-T0021 Gasket(For Manual Transmission Filler Plug)
9165160614 91651-60614 Bolt
Switch & Relay & Computer ([05.1997 - 08.2007] ENGINE ROOM (9705-0708)BB4#,5#,BZB40,50,HZB50,XZB5#) 50
#OEMPart name
27690 27690-56150 Solenoid Assy, W/bracket(For Exhaust Brake)
28300 28300-56040 Relay Assy, Starter
28521 28521-56090 Timer, Preheating
28521 28521-58220 Timer, Preheating
28529 28529-56010 Bracket, Preheating Timer, No.1
28610 28610-58110 Relay Assy, Glow Plug
28610 28610-58250 Relay Assy, Glow Plug
28610 28610-58120 Relay Assy, Glow Plug(Sub)
28611 28611-58060 Cover, Glow Plug Relay
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82600 90982-09004 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82600 82683-36010 Plate, Caution(For Fuse)
82600 82683-36030 Plate, Caution(For Fuse)
82600 82683-36120 Plate, Caution(For Fuse)
82600 90982-10001 Instrument Panel Fusible Link
82660 82660-36010 Block Assy, Relay
82663 82663-36010 Cover, Relay Block, Lower
82816 82816-36010 Bracket, Wiring Harness Grommet
83390 83390-36020 Switch Assy, Vacuum Warning
85909 85909-36010 Bracket Sub-Assy, Relay Block
85909 85909-36011 Bracket Sub-Assy, Relay Block
85909 85909-36030 Bracket Sub-Assy, Relay Block
85909 85909-36031 Bracket Sub-Assy, Relay Block
85910 90987-02005 Relay, Ignition, No.1
85915 90987-03002 Relay, Turbo Indicator
85959 85959-36040 Holder, Relay
85959 85959-36060 Holder, Relay
89593 89593-26010 Sensor, Air Cleaner Warning
9011908 90119-08A46 BOLT WWASHER
5379736010 53797-36010 Protector, Side Turn Signal Lamp
5399736010 53997-36010 Packing, Air Cleaner Inlet
8271236031 82712-36031 Support, Wiring Harness
8271236080 82712-36080 Support, Wiring Harness
9011905007 90119-05007 New Genuine Part
9011906142 90119-06142 Bolt A/C
9011906166 90119-06166 BOLT
9011908827 90119-08827 New Genuine Part
9011908873 90119-08873 New Genuine Part
9016440050 90164-40050 SCREW
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9017906200 90179-06200 New Genuine Part
9165160614 91651-60614 Bolt
9165160616 91651-60616 BOLT
9331915010 93319-15010 SCREW
9354014010 93540-14010 Clip, Headlining Retainer
9356055020 93560-55020 SCREW
9361055020 93610-55020 New Genuine Part
Timing Gear Cover & Rear End Plate ([01.1993 - 05.1995] (9301-9505)14B,3B) 33
#OEMPart name
11301 11301-56080 Case Sub-Assy, Timing Gear
11301 11301-58021 Case Sub-Assy, Timing Gear
11301 11301-58020 Case Sub-Assy, Timing Gear
11301 90250-08120 Pin, Straight, No.1
11301 90116-08169 Bolt,stud(For Timing Gear Case)
11302 11302-56061 Cover Sub-Assy, Timing Chain Or Belt
11302 11302-58010 Cover Sub-Assy, Timing Chain Or Belt
11302 11302-58011 Cover Sub-Assy, Timing Chain Or Belt
11302 90311-50013 Seal, Oil(For Timing Chain Or Belt Cover)
11312 11312-56040 Gasket, Front End Plate
11328 11328-56050 Gasket, Timing Gear Or Chain Cover
11328 11328-58010 Gasket, Timing Gear Or Chain Cover
11345 11345-48010 Bearing, Injection Pump Gear Thrust
11355 11355-56061 Plate, Rear End
11381 11381-56033 Retainer, Engine Rear Oil Seal
11381 11381-58011 Retainer, Engine Rear Oil Seal
11381 11381-58010 Retainer, Engine Rear Oil Seal
11381 90311-95008 Seal, Engine Rear Oil
11381 90311-95010 Seal, Engine Rear Oil
11381 90311-95011 Seal, Engine Rear Oil
11383 11383-56040 Gasket, Engine Rear Oil Seal Retainer
91611 91611-B0816 Bolt
9011908145 90119-08145 Bolt(For Front Disc Brake Cylinder)
9011910073 90119-10073 New Genuine Part
9011910073 91512-61085 New Genuine Part
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9161160840 91611-60840 BOLT
9161161016 91611-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161060 91611-61060 Bolt(for Clutch Release Cylinder Setting)
9161161060 91612-61060 Bolt(for Clutch Release Cylinder Setting)
Timing Gear Cover & Rear End Plate ([05.1995 - ] (9505- )14B,15BFT,3B) 25
#OEMPart name
11301 11301-56080 Case Sub-Assy, Timing Gear
11301 11301-58021 Case Sub-Assy, Timing Gear
11301 11301-58020 Case Sub-Assy, Timing Gear
11301 90250-08120 Pin, Straight, No.1
11301 90116-08169 Bolt,stud(For Timing Gear Case)
11302 11302-56061 Cover Sub-Assy, Timing Chain Or Belt
11302 11302-58010 Cover Sub-Assy, Timing Chain Or Belt
11302 11302-58011 Cover Sub-Assy, Timing Chain Or Belt
11302 90311-50013 Seal, Oil(For Timing Chain Or Belt Cover)
11312 11312-56040 Gasket, Front End Plate
11328 11328-56050 Gasket, Timing Gear Or Chain Cover
11328 11328-58010 Gasket, Timing Gear Or Chain Cover
11345 11345-48010 Bearing, Injection Pump Gear Thrust
11355 11355-56061 Plate, Rear End
11381 11381-56033 Retainer, Engine Rear Oil Seal
11381 11381-58011 Retainer, Engine Rear Oil Seal
11381 11381-58010 Retainer, Engine Rear Oil Seal
11381 90311-95008 Seal, Engine Rear Oil
11381 90311-95010 Seal, Engine Rear Oil
11381 90311-95011 Seal, Engine Rear Oil
11383 11383-56040 Gasket, Engine Rear Oil Seal Retainer
91611 91611-B0816 Bolt
91622 91622-B1018 BOLT WWASHER
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9161261016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
Timing Gear Cover & Rear End Plate ([05.1995 - ] (9505- )1BZFPE..BZB50..CBU ; (9505- )14B,1 5BFT,1BZFPE,3B..BB4#,50,58,BZB40) 8
#OEMPart name
91511 91511-B0835 Bolt(For Cylinder Head Set Sub)
91511 90105-08200 Bolt(For Cylinder Head Set Sub)
91511 91511-J0840 Bolt(For Alternator)
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9010508267 90105-08267 BOLT WASHER BASED
9151261060 91512-61060 Bolt(For Transaxle Case & Engine Setting)
9151261080 91512-61080 Bolt
9151261085 91512-61085 New Genuine Part
Tool Box & License Plate Bracket ([01.1993 - ] (9301- )) 15
#OEMPart name
58705 58705-27010 Band Sub-Assy, Tool Bag
58706 58706-36010 Clamp Sub-Assy, Jack Handle
58706 58706-36010-E0 Clamp Sub-Assy, Jack Handle
58785 58785-90B00-E0 Bracket, Tool Bag Band
58785 58785-90B00-02 Bracket, Tool Bag Band
58795 58795-20011 Band, Tool Bag
58796 58796-20012 Hook, Jack Clamp
74701 90959-01021-E0 Clamp Sub-Assy, Tool Bag
74701 90959-01021-B1 Clamp Sub-Assy, Tool Bag (Gray)
75299 75299-95407 Base, Jack Holder
9011906775 90119-06775 BOLT WWASHER
9015960477 90159-60477 SCREW, WWASHER
9163140616 91631-40616 Bolt(For Head To Camshaft Bearing Cap)
9354016020 93540-16020 New Genuine Part
9427100800 94271-00800 Nut, Wing(For Air Cleaner)
Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([01.1993 - ] M152,M155,M156 (9301- )BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40 ,50..5F) 5
#OEMPart name
4331 04331-36080 Gasket Kit, Manual Transmission Overhaul
33110 33110-3J360 Transmission Assy, Manual
33110 33120-3E430 Transmission Assy, Manual
33110 33120-3E440 Transmission Assy, Manual
33110 33120-3E710 Transmission Assy, Manual
Transmission Gear (Mtm) ([01.1993 - 05.1995] M152,M155 (9301-9505)BB4#,HZB50..5F) 92
#OEMPart name
33038 33038-36010 Ring Set, Synchronizer, No.2
33039 33039-36010 Ring Set, Synchronizer, No.3
33311 33301-36140 Shaft, Input
33311 33301-37050 Shaft, Input
33311 90363-45010 Bearing (For Input Shaft Front)
33311 90520-42002 Ring, Shaft Snap (For Front Bearing)
33311 90520-42003 Ring, Shaft Snap (For Front Bearing)
33311 90520-42004 Ring, Shaft Snap (For Front Bearing)
33311 90520-42005 Ring, Shaft Snap (For Front Bearing)
33311 90520-42006 Ring, Shaft Snap (For Front Bearing)
33311 90520-42007 Ring, Shaft Snap (For Front Bearing)
33311 90361-09001 Bearing, Input Shaft
33311 90361-09002 Bearing, Input Shaft
33311 90520-96001 Ring, Shaft Snap (For Front Bearing)
33321 33321-36100 Shaft, Output
33321 33321-37030 Shaft, Output
33321 90363-40034 Bearing (For Input Shaft Front)
33321 90520-88001 Ring, Shaft Snap (For Front Bearing)
33321 90179-24008 Nut (For Manual Transmission Output Shaft Rear Set)
33321 90301-31003 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)
33323 33323-36010 Spacer, Synchronizer Ring
33331 33031-36030 Gear, Reverse
33331 33331-37030 Gear, Reverse
33331 90364-54004 Bearing (For Reverse Gear)
33332 33033-36090 Gear, 2Nd
33332 90364-54003 Bearing, Needle Roller (For 2Nd Gear)
33333 33034-36080 Gear, 3Rd
33333 90364-47007 Bearing, Needle Roller (For 3Rd Gear)
33335 33032-36070 Gear, 1St
33335 33335-36180 Gear, 1St
33335 90364-58005 Bearing, Needle Roller(For 1St Gear)
33336 33036-36040 Gear, 5Th
33336 33036-36050 Gear, 5Th
33336 33036-37010 Gear, 5Th
33336 90364-37012 Bearing, Needle Roller (For 5Th Gear)
33336 90560-37003 Spacer (For 5Th Gear Bearing)
33338 90360-06004 Ball, Detent(For Gear Shift Head No.4)
33338 90080-36191 Ball, Check Valve
33342 90250-04056 Pin, Straight (For Gear Thrust Washer)
33342 90520-34010 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34011 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34012 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34015 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34016 Ring, Shaft Snap (For Gear Thrust Washer)
33342 33342-36020 Washer, Gear Thrust
33342 33342-36021 Washer, Gear Thrust
33354 33354-36010 Race, Reverse Gear Bearing, Inner
33361 33361-36030 Hub, Transmission Clutch, No.1
33362 33362-36040 Hub, Transmission Clutch, No.2
33362 90520-43002 Ring, Shaft Snap (For Front Bearing)
33362 90520-43003 Ring, Shaft Snap (For Front Bearing)
33362 90520-43004 Ring, Shaft Snap (For Front Bearing)
33362 90520-43005 Ring, Shaft Snap (For Front Bearing)
33362 90520-43006 Ring, Shaft Snap (For Front Bearing)
33362 90520-43007 Ring, Shaft Snap (For Front Bearing)
33363 33363-36030 Sleeve, Transmission Hub, No.1
33363 33363-37020 Sleeve, Transmission Hub, No.1
33364 33364-36080 Sleeve, Transmission Hub, No.2
33365 33365-36030 Key, Synchromesh Shifting, No.1
33366 33366-36040 Key, Synchromesh Shifting, No.2
33367 33367-36050 Ring, Synchronizer, No.1
33369 33369-36010 Ring, Synchronizer, No.3
33371 33371-36030 Spring, Synchromesh Shifting Key, No.1
33392 33392-36010 Spring, Synchromesh Shifting Key, No.3
33393 33393-36060 Hub, Transmission Clutch, No.3
33393 90520-28054 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28055 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28056 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28057 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28058 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28059 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33394 33394-36020 Key, Synchromesh Shifting, No.3
33395 33395-36030 Sleeve, Transmission Hub, No.3
33402 33461-36090 Gear Sub-Assy, Reverse Idler
33411 90365-37006 Bearing Or Roller(For Counter Gear Front)
33411 90363-30049 Bearing Or Roller(For Counter Gear Rear)
33411 90520-26030 Ring, Shaft Snap (For Front Bearing)
33411 90520-26031 Ring, Shaft Snap (For Front Bearing)
33411 90520-26032 Ring, Shaft Snap (For Front Bearing)
33411 90520-26033 Ring, Shaft Snap (For Front Bearing)
33411 90520-26034 Ring, Shaft Snap (For Front Bearing)
33411 90520-26035 Ring, Shaft Snap (For Front Bearing)
33421 33421-36200 Gear, Counter
33421 33421-36210 Gear, Counter
33421 33421-36240 Gear, Counter
33451 33451-36050 Shaft, Reverse Idler Gear
33451 90280-03002 Key, Woodruff (For Reverse Idler Gear Shaft)
33461 90364-28018 Bearing, Reverse Idler Gear
33462 33462-60020 Washer, Reverse Idler Thrust
33464 33464-60010 Washer, Reverse Idler Thrust, No.2
33481 33481-36160 Gear, Speedometer Drive (Mtm)
33481 33487-36070 Spacer (For Speedometer Drive Gear)
Transmission Gear (Mtm) ([05.1995 - ] M152,M155 (9505- )BB4#,5#,BZB40,50,HZB50..5F) 94
#OEMPart name
33038 33038-36010 Ring Set, Synchronizer, No.2
33039 33039-36010 Ring Set, Synchronizer, No.3
33311 33301-36140 Shaft, Input
33311 33301-37050 Shaft, Input
33311 90363-45010 Bearing (For Input Shaft Front)
33311 90520-42002 Ring, Shaft Snap (For Front Bearing)
33311 90520-42003 Ring, Shaft Snap (For Front Bearing)
33311 90520-42004 Ring, Shaft Snap (For Front Bearing)
33311 90520-42005 Ring, Shaft Snap (For Front Bearing)
33311 90520-42006 Ring, Shaft Snap (For Front Bearing)
33311 90520-42007 Ring, Shaft Snap (For Front Bearing)
33311 96151-04500 Ring, Hole Snap (For Needle Roller)
33311 90361-09001 Bearing, Input Shaft
33311 90361-09002 Bearing, Input Shaft
33311 90560-38004 Spacer (For Input Shaft)
33311 90520-96001 Ring, Shaft Snap (For Front Bearing)
33321 33321-36100 Shaft, Output
33321 33321-37030 Shaft, Output
33321 90363-40034 Bearing (For Input Shaft Front)
33321 90520-88001 Ring, Shaft Snap (For Front Bearing)
33321 90179-24008 Nut (For Manual Transmission Output Shaft Rear Set)
33321 90301-31003 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)
33323 33323-36010 Spacer, Synchronizer Ring
33331 33031-36030 Gear, Reverse
33331 33331-37030 Gear, Reverse
33331 90364-54004 Bearing (For Reverse Gear)
33332 33033-36090 Gear, 2Nd
33332 90364-54003 Bearing, Needle Roller (For 2Nd Gear)
33333 33034-36080 Gear, 3Rd
33333 90364-47007 Bearing, Needle Roller (For 3Rd Gear)
33335 33032-36070 Gear, 1St
33335 33335-36180 Gear, 1St
33335 90364-58005 Bearing, Needle Roller(For 1St Gear)
33336 33036-36040 Gear, 5Th
33336 33036-36050 Gear, 5Th
33336 33036-37010 Gear, 5Th
33336 90364-37012 Bearing, Needle Roller (For 5Th Gear)
33336 90560-37003 Spacer (For 5Th Gear Bearing)
33338 90360-06004 Ball, Detent(For Gear Shift Head No.4)
33338 90080-36191 Ball, Check Valve
33342 90250-04056 Pin, Straight (For Gear Thrust Washer)
33342 90520-34010 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34011 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34012 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34015 Ring, Shaft Snap (For Gear Thrust Washer)
33342 90520-34016 Ring, Shaft Snap (For Gear Thrust Washer)
33342 33342-36020 Washer, Gear Thrust
33342 33342-36021 Washer, Gear Thrust
33354 33354-36010 Race, Reverse Gear Bearing, Inner
33361 33361-36030 Hub, Transmission Clutch, No.1
33362 33362-36040 Hub, Transmission Clutch, No.2
33362 90520-43002 Ring, Shaft Snap (For Front Bearing)
33362 90520-43003 Ring, Shaft Snap (For Front Bearing)
33362 90520-43004 Ring, Shaft Snap (For Front Bearing)
33362 90520-43005 Ring, Shaft Snap (For Front Bearing)
33362 90520-43006 Ring, Shaft Snap (For Front Bearing)
33362 90520-43007 Ring, Shaft Snap (For Front Bearing)
33363 33363-36030 Sleeve, Transmission Hub, No.1
33363 33363-37020 Sleeve, Transmission Hub, No.1
33364 33364-36080 Sleeve, Transmission Hub, No.2
33365 33365-36030 Key, Synchromesh Shifting, No.1
33366 33366-36040 Key, Synchromesh Shifting, No.2
33367 33367-36050 Ring, Synchronizer, No.1
33369 33369-36010 Ring, Synchronizer, No.3
33371 33371-36030 Spring, Synchromesh Shifting Key, No.1
33392 33392-36010 Spring, Synchromesh Shifting Key, No.3
33393 33393-36060 Hub, Transmission Clutch, No.3
33393 90520-28054 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28055 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28056 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28057 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28058 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33393 90520-28059 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33394 33394-36020 Key, Synchromesh Shifting, No.3
33395 33395-36030 Sleeve, Transmission Hub, No.3
33402 33461-36090 Gear Sub-Assy, Reverse Idler
33411 90365-37006 Bearing Or Roller(For Counter Gear Front)
33411 90363-30049 Bearing Or Roller(For Counter Gear Rear)
33411 90520-26030 Ring, Shaft Snap (For Front Bearing)
33411 90520-26031 Ring, Shaft Snap (For Front Bearing)
33411 90520-26032 Ring, Shaft Snap (For Front Bearing)
33411 90520-26033 Ring, Shaft Snap (For Front Bearing)
33411 90520-26034 Ring, Shaft Snap (For Front Bearing)
33411 90520-26035 Ring, Shaft Snap (For Front Bearing)
33421 33421-36200 Gear, Counter
33421 33421-36210 Gear, Counter
33421 33421-36240 Gear, Counter
33451 33451-36050 Shaft, Reverse Idler Gear
33451 90280-03002 Key, Woodruff (For Reverse Idler Gear Shaft)
33461 90364-28018 Bearing, Reverse Idler Gear
33462 33462-60020 Washer, Reverse Idler Thrust
33464 33464-60010 Washer, Reverse Idler Thrust, No.2
33481 33481-36160 Gear, Speedometer Drive (Mtm)
33481 33487-36070 Spacer (For Speedometer Drive Gear)
V-Belt ([01.1993 - ] (9301- )N04C,14B,15B#,1BZFPE,3B,1HZ#,3RZ#) 2
#OEMPart name
16361 90916-02215 Belt, V(For Fan & Alternator)
88310 90916-02227 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
Vacuum Piping ([01.1993 - ] (9301- )14B,3B) 18
#OEMPart name
17630 17630-15010 Valve Assy, Air Control
17650 90910-12136 Valve Assy, Vacuum Switching
17650 90910-12213 Valve, Vacuum Switching
23285 90917-10049 Valve, Check, No.1
25706 25706-58050 Pipe Sub-Assy, Vacuum Transmitting, No.1
25860 25860-17030 Valve Assy, Vacuum Switching, No.1
25860 25860-17060 Valve Assy, Vacuum Switching, No.1
91621 91621-B0816 BOLT WWASHER
9017906060 90179-06060 Nut, Wing(For Air Cleaner)
9041205001 90412-05001 Way, 2
9041304004 90413-04004 Way, 3(For Canister)
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9041304008 90413-04008 Way, 3(For Transfer Breather Hose)
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9046400079 90464-00079 Clamp, Vacuum Tube
9046400576 90464-00576 Clamp, No.1 (For Transfer Vacuum)
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
Vacuum Pump ([01.1993 - 02.1999] (9301-9902)14B,15BFT,3B) 22
#OEMPart name
29300 29300-58050 Pump Assy, Vacuum
29300 29300-58060 Pump Assy, Vacuum
29311 29311-76010 Pin, Vacuum Pump Dowel, No.1
29322 90099-10185 Bearing, Ball
29331 29331-58050 Blade, Vacuum Pump, A
29331 29331-67020 Blade, Vacuum Pump, A
29336 29336-58050 Shaft, Vacuum Pump
29336 29336-58060 Shaft, Vacuum Pump
29336 29336-58040 Shaft, Vacuum Pump
29342 29342-58010 Packing, Vacuum Pump
29342 29342-64010 Packing, Vacuum Pump
29351 29351-58050 Gear, Vacuum Pump
29364 29364-66010 Washer, Vacuum Pump
29369 29369-64030 Valve Sub-Assy, Check
9009690031 90096-90031 RING HOLE SNAP
9009904577 90099-04577 New Genuine Part
9009905185 90099-05185 NUT
9020114099 90201-14099 Gasket(For Vacuum Pump Union)
9040109001 90401-09001 Bolt, Union(For Vacuum Pump Union)
9040109001 90401-09003 Bolt, Union(For Vacuum Pump Union)
9161261032 91612-61032 New Genuine Part
9516110413 95161-10413 Key(For Alternator Pulley)
Vacuum Pump ([02.1999 - ] (9902- )14B,15B#,1BZFPE,3B) 22
#OEMPart name
29300 29300-58050 Pump Assy, Vacuum
29300 29300-58060 Pump Assy, Vacuum
29311 29311-76010 Pin, Vacuum Pump Dowel, No.1
29322 90099-10185 Bearing, Ball
29331 29331-58050 Blade, Vacuum Pump, A
29331 29331-67020 Blade, Vacuum Pump, A
29336 29336-58050 Shaft, Vacuum Pump
29336 29336-58060 Shaft, Vacuum Pump
29336 29336-58040 Shaft, Vacuum Pump
29342 29342-58010 Packing, Vacuum Pump
29342 29342-64010 Packing, Vacuum Pump
29351 29351-58050 Gear, Vacuum Pump
29364 29364-66010 Washer, Vacuum Pump
29369 29369-64030 Valve Sub-Assy, Check
9009690031 90096-90031 RING HOLE SNAP
9009904577 90099-04577 New Genuine Part
9009905185 90099-05185 NUT
9020114099 90201-14099 Gasket(For Vacuum Pump Union)
9040109001 90401-09001 Bolt, Union(For Vacuum Pump Union)
9040109001 90401-09003 Bolt, Union(For Vacuum Pump Union)
9161261032 91612-61032 New Genuine Part
9516110413 95161-10413 Key(For Alternator Pulley)
Vane Pump & Reservoir (Power Steering) ([01.1993 - 07.1999] (9301-9907)BB4#,5# ; (9907- )BB4#,50,BZB40,50 ..DSL,LPG,TD) 30
#OEMPart name
4446 04446-36081 Gasket Kit, Power Steering Pump
44033 44033-36030 Rotor Sub-Assy, W/cam & Vane
44033 44033-36060 Rotor Sub-Assy, W/cam & Vane
44302 44302-36160 Housing Sub-Assy, Vane Pump, Front
44302 44302-36210 Housing Sub-Assy, Vane Pump, Front
44302 90029-20003 Ring, O, No.1(For Vane Pump Housing)
44302 90029-21018 Seal, Oil, No.2(For Vane Pump Housing)
44302 96151-04000 Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)
44304 44304-36160 Housing Sub-Assy, Vane Pump, Rear
44310 90301-60002 Ring, O(For Vane Pump)
44311 90029-18001 Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)
44312 44312-36110 Shaft, Vane Pump
44312 90029-36003 Bearing(For Vane Pump Shaft)
44312 90029-52402 Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)
44316 44316-36020 Gear, Vane Pump
44316 96150-01700 Ring
44320 44320-36170 Pump Assy, Vane
44326 44347-89101 Pin, Straight(For Vane Pump Cam Ring)
44328 44328-89101 End, Vane Pump Housing
44328 96711-19020 Ring, O(For Power Steering Actuator)
44330 44330-36110 Valve Assy, Flow Control
44330 44330-36120 Valve Assy, Flow Control
44330 44330-36130 Valve Assy, Flow Control
44330 90029-60002 Spring, Compression(For Flow Control Valve)
44336 44336-89101 Retainer, Vane Pump Oil Seal
44342 44342-89102 Plate, Vane Pump Side, Rear
44342 96711-24060 Ring, O(For Power Steering Control Valve)
44342 90029-60003 Spring, Compression(For Vane Pump Side Plate Rear)
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
9161261035 91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
Vane Pump & Reservoir (Power Steering) ([01.1993 - ] (9301- )BB4#,5#) 11
#OEMPart name
44305 44037-36080 Cover Sub-Assy, Oil Reservoir
44310 44337-36020 Union(For Vane Pump)
44310 96711-19019 Ring, O(For Vane Pump Union)
44360 44360-36320 Reservoir Assy, Vane Pump Oil
44363 44363-36040 Strainer, Oil(For Vane Pump)
44391 44391-36020 Plate, Power Steering Oil Reservoir Caution
91611 91611-G0612 Bolt
9002910600 90029-10600 TOOL
9002920701 90029-20701 Seal, Dust(For Oil Reservoir Cover)
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
Ventilation Hose ([01.1993 - ] (9301- )14B,3B) 3
#OEMPart name
12261 12261-56020 Hose, Ventilation
12261 90467-23002 Clip Or Clamp(For Ventilation Hose)
12261 90464-00521 Clip Or Clamp(For Ventilation Hose)
Venturi ([01.1993 - 07.1999] (9301-9907)3B) 9
#OEMPart name
21905 21905-57020 Rod, Accelerator Connecting(For Venturi)
21905 21905-58040 Rod, Accelerator Connecting(For Venturi)
21905 21905-58070 Rod, Accelerator Connecting(For Venturi)
26100 26100-58140 Venturi Assy
26100 26100-58141 Venturi Assy
26171 26171-56050 Gasket, Venturi
7819710010 78197-10010 Clip(For Throttle Link Connecting Rod)
9161160630 91611-60630 BOLT
9162160630 91621-60630 New Genuine Part
Water Pump ([01.1993 - ] (9301- )14B,15BFT,3B) 19
#OEMPart name
16100 16100-59185 Pump Assy, Engine Water
16100 16100-59187 Pump Assy, Engine Water
16100 16100-59186 Pump Assy, Engine Water
16117 16117-58010 Plate, Water Pump
16124 16124-58010 Gasket, Water Pump Cover
16198 16198-41170 Bolt, Stud(For Water Pump Pulley Seat)
16210 16210-58041 Coupling Assy, Fluid
16271 16271-56030 Gasket, Water Pump
16271 16271-58010 Gasket, Water Pump
16271 16271-56031 Gasket, Water Pump
16371 16371-58040 Pulley, Fan
16371 16371-58041 Pulley, Fan
9011908272 90119-08272 New Genuine Part
9011908272 91643-80845 New Genuine Part
9011908273 90119-08273 New Genuine Part
9011908273 91643-80865 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9034552001 90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)
9322016014 93220-16014 SCREW
Windshield Washer ([01.1993 - 03.2007] (9301-0703)XZB50..CBU ; (9301-0703)BB4#,5#,BZB40 ,50,HZB50,RZB40,50,XZB59) 19
#OEMPart name
85035 85381-36010 Nozzle Sub-Assy, Washer
85310 85330-36160 Motor And Pump Assy, Windshield Washer
85330 85315-36130 Jar Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85332 85316-36130 Cap, Windshield Washer Jar
85348 85348-12250 Joint, Windshield Washer Hose, No.1
85348 85349-89122 Valve Sub-Assy, Washer
85355 85355-14481 Joint, Windshield Washer Elbow, No.1
85361 85361-36160 Bracket, Windshield Washer, No.1
85361 85361-95A00 Bracket Assy, Windshield Washer
85361 85361-95A02 Bracket Assy, Windshield Washer
85371 90446-06013 Hose, Windshield Washer (From Motor To Joint)
85383 85383-36010 Holder, Front Washer Nozzle
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9046709007 90467-09007 New Genuine Part
9165160616 91651-60616 BOLT
9321015012 93210-15012 New Genuine Part
Windshield Wiper ([01.1993 - ] (9301- )RHD) 37
#OEMPart name
55795 55795-36010 Bracket, Front Wiper Motor
85070 85070-36050 Motor & Bracket Assy, Front Wiper
85150 85150-36010 Link Assy, Wiper
85154 85154-36010 Packing, Front Wiper Shaft
85168 85186-90B00 Nut, Windshield Wiper Link Pivot
85168 90099-05157 Nut, Windshield Wiper Link Pivot
85169 90209-20001 Washer, Windshield Wiper Link Pivot, No.1
85178 90179-08026 Nut (For Front Wiper Arm Setting)
85192 85292-28010 Cover, Windshield Wiper Arm
85211 85211-36020 Arm, Front Wiper, Rh
85211 85211-36021 Arm, Front Wiper, Rh
85212 85212-28040 Blade, Fr Wiper, Rh
85212 85212-28041 Blade, Fr Wiper, Rh
85212 85212-36020 Blade, Fr Wiper, Rh
85212 85212-32241 Blade, Fr Wiper, Rh
85213 85213-36020 Rubber, Wiper Blade, Rh
85213 85214-40080 Rubber, Wiper, Lh
85214 85214-20280 Rubber, Wiper, Rh
85214 85214-48031 Rubber, Wiper, Rh
85214 85214-33060 Rubber, Wiper, Rh
85221 85221-36010 Arm, Front Wiper, Lh
85221 85221-36011 Arm, Front Wiper, Lh
85222 85222-36010 Blade, Fr Wiper, Lh
85222 85222-36030 Blade, Fr Wiper, Lh
85222 85222-60241 Blade, Fr Wiper, Lh
85223 85223-36010 Rubber, Front Wiper Blade, Lh
85224 85224-20280 Plate, Wiper Rubber Backing, No.1
85224 85224-36010 Plate, Wiper Rubber Backing, No.1
85224 85224-33050 Plate, Wiper Rubber Backing, No.1
85224 85224-36020 Plate, Wiper Rubber Backing, No.2
85224 85224-26020 Plate, Wiper Rubber Backing, No.3
85224 85224-36030 Plate, Wiper Rubber Backing, No.3
85224 85224-36040 Plate, Wiper Rubber Backing, No.4
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160616 91651-60616 BOLT
Wiring & Clamp ([01.1993 - 01.2015] ENGINE (9301-1501)BB4#,5#,HZB50) 26
#OEMPart name
82121 82121-36030 Wire, Engine
82121 82121-36031 Wire, Engine
82121 82121-36032 Wire, Engine
82122 82122-36070 Wire, Engine, No.2
82122 82122-36071 Wire, Engine, No.2
82122 82122-36072 Wire, Engine, No.2
82124 82124-36010 Cable, Battery To Battery
82124 82124-36011 Cable, Battery To Battery
82822 82822-36010 Bracket, Connector Block
82823 82823-22050 Cap, Terminal, No.1
82823 82823-30100 Cap, Terminal, No.1
91622 91622-G1014 BOLT WWASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011906915 90119-06915 BOLT W-WASHER
9011908063 90119-08063 BOLT
9011908827 90119-08827 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9151261014 91512-61014 BOLT FLANGE
9164180812 91641-80812 New Genuine Part
9165140620 91651-40620 BOLT
9165160620 91651-60620 BOLTWWASHER
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Wiring & Clamp ([01.1993 - 01.2015] FLOOR (9301-1501)) 10
#OEMPart name
82132 82132-36011 Wire, Cowl, No.2
82132 82132-36040 Wire, Cowl, No.2
82161 82161-36040 Wire, Floor
82161 82161-36041 Wire, Floor
82161 82161-36300 Wire, Floor
82281 82281-36020 Wire, Gage
82281 82281-36021 Wire, Gage
82824 82824-36050 Connector, Wiring Harness
9011906915 90119-06915 BOLT W-WASHER
9011906923 90119-06923 BOLT WWASHER
Wiring & Clamp ([01.1993 - 01.2015] FLOOR W(BACK DOOR) (9301-1501)) 9
#OEMPart name
82132 82132-36011 Wire, Cowl, No.2
82132 82132-36040 Wire, Cowl, No.2
82161 82161-36040 Wire, Floor
82161 82161-36041 Wire, Floor
82161 82161-36300 Wire, Floor
82281 82281-36020 Wire, Gage
82281 82281-36021 Wire, Gage
9011906915 90119-06915 BOLT W-WASHER
9011906923 90119-06923 BOLT WWASHER
Wiring & Clamp ([01.1993 - 01.2015] ROOF, DOOR (9301-1501)) 21
#OEMPart name
82151 82151-36010 Wire, Front Door, Rh
82171 82171-36060 Wire, Roof, No.1
82171 82171-36070 Wire, Roof, No.1
82172 82172-36040 Wire, Roof, No.2
82172 82172-36050 Wire, Roof, No.2
82173 82173-36010 Wire, Roof, No.3
82174 82174-36020 Wire, Roof, No.4
82184 82184-36040 Wire, Back Door, No.1
82184 82184-36041 Wire, Back Door, No.1
82184 82184-36050 Wire, Back Door, No.1
82186 82186-36040 Wire, Rear Window, No.1
82817 82817-60040 Protector, Wiring Harness, No.1
8271136130 82711-36130 Wire, Fuse To Fuse(for Combustion Heater)
9011906915 90119-06915 BOLT W-WASHER
9046708043 90467-08043 Clamp, Hood Lock Control Cable
9048025010 90480-25010 Grommet(For Instrument Panel)
9098010789 90980-10789 HOUSING CONNECTOR
9098012002 90980-12002 New Genuine Part
9098012350 90980-12350 New Genuine Part
9098012350 90980-11537 New Genuine Part
9356014012 93560-14012 SCREW
Wiring & Clamp ([01.1993 - 01.2015] ROOF, DOOR W(BACK DOOR) (9301-1501)) 20
#OEMPart name
82151 82151-36010 Wire, Front Door, Rh
82171 82171-36060 Wire, Roof, No.1
82171 82171-36070 Wire, Roof, No.1
82172 82172-36040 Wire, Roof, No.2
82172 82172-36050 Wire, Roof, No.2
82173 82173-36010 Wire, Roof, No.3
82174 82174-36020 Wire, Roof, No.4
82184 82184-36040 Wire, Back Door, No.1
82184 82184-36041 Wire, Back Door, No.1
82184 82184-36050 Wire, Back Door, No.1
82186 82186-36040 Wire, Rear Window, No.1
82223 82223-36030 Wire, Switch
82223 82223-36031 Wire, Switch
8281712630 82817-12630 Protector, Wiring Harness, No.2
9011906915 90119-06915 BOLT W-WASHER
9011910718 90119-10718 New Genuine Part
9048030033 90480-30033 New Genuine Part
9098010789 90980-10789 HOUSING CONNECTOR
9098012350 90980-12350 New Genuine Part
9098012350 90980-11537 New Genuine Part
Wiring & Clamp ([01.1993 - 07.1999] ENGINE ROOM (9301-9907)RHD ; (9907-0608)RHD..IV..6F) 28
#OEMPart name
82111 82111-36330 Wire, Engine Room Main
82111 82111-36331 Wire, Engine Room Main
82111 82111-36332 Wire, Engine Room Main
82210 90982-08188 Fusible Link
82210 90982-08202 Fusible Link
82210 90982-08203 Fusible Link
82210 90982-08216 Fusible Link
82210 90982-08223 Fusible Link
82210 90982-08228 Fusible Link
82210 90982-08246 Fusible Link
82210 90982-08280 Fusible Link
82214 82214-36030 Wire, Lamp
82214 82214-36031 Wire, Lamp
82214 82214-36040 Wire, Lamp
82241 82241-36030 Wire, Relay
82241 82241-36031 Wire, Relay
82241 82241-36032 Wire, Relay
82241 82241-36070 Wire, Relay
82822 82822-36030 Bracket,connector Block
82822 82822-36070 Bracket,connector Block
82822 82822-36010 Bracket, Connector Block
82823 82823-22050 Cap, Terminal, No.1
9011906005 90119-06005 New Genuine Part
9011906915 90119-06915 BOLT W-WASHER
9017906200 90179-06200 New Genuine Part
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9165160616 91651-60616 BOLT
Wiring & Clamp ([01.1993 - 08.2004] COWL & INSTRUMENT PANEL (9301-0408)RHD) 29
#OEMPart name
82131 82131-36320 Wire, Cowl
82131 82131-36321 Wire, Cowl
82131 82131-36530 Wire, Cowl
82141 82141-36040 Wire, Instrument Panel
82141 82141-36041 Wire, Instrument Panel
82141 82141-36042 Wire, Instrument Panel
82141 82141-36043 Wire, Instrument Panel
82142 82142-36110 Wire, Instrument Panel, No.2
82142 82142-36111 Wire, Instrument Panel, No.2
82142 82142-36112 Wire, Instrument Panel, No.2
82345 82345-12050 Diode
82345 82345-22051 Diode
82345 82345-32020 Diode
82372 82372-36010 Wire, Radio Installation
82666 82666-36010 Holder, Connector No.2
82666 82666-36011 Holder, Connector No.2
82666 82666-36020 Holder, Connector No.3
82824 82824-22060 Connector, Wiring Harness
82824 82824-36060 Connector, Wiring Harness
85996 85996-36010 Bracket, Relay, No.2
8599936100 85999-36100 Bracket, Relay
9011906048 90119-06048 BOLT
9011906166 90119-06166 BOLT
9011906915 90119-06915 BOLT W-WASHER
9046312008 90463-12008 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9356855014 93568-55014 Screw
Wiring & Clamp ([01.1993 - ] CLAMP & BRACKET (9301- )) 150
#OEMPart name
0 82711-1E320 Clamp, Wiring Harness
0 82711-1E360 Clamp, Wiring Harness
91511 91511-B0825 Bolt (For Transfer Stiffener Plate)
91611 91611-G0820 Bolt
91611 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
91621 91621-B0816 BOLT WWASHER
91621 91621-J0612 BOLT W-WASHER
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91641 91641-C0612 New Genuine Part
91641 91641-H0820 Bolt
91641 91641-C0814 BOLT W-WASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91651 91651-B0822 BOLT WWASHER
91671 91671-A0612 BOLT FLANGE
827112 82711-2A710 Wire, Fuse To Fuse(for Combustion Heater)
6477790 64777-90A00 Protector, Quarter, Inner
6477790 64777-60030 Protector, Sun Roof Headlining, Center
8271190 82711-90B02 Wire, Fuse To Fuse(for Combustion Heater)
8271195 82711-95J12 Wire, Fuse To Fuse(for Combustion Heater)
8271526 82715-26G10 Bracket,wiring Harness Clamp
8271535 82715-35A90 Bracket,wiring Harness Clamp
8271535 82715-35B10 Bracket,wiring Harness Clamp
8271537 82715-37B00 Bracket,wiring Harness Clamp
8271537 82715-37D50 Bracket,wiring Harness Clamp
8271537 82715-37D60 Bracket,wiring Harness Clamp
8271537 82715-37T70 Bracket,wiring Harness Clamp
8271537 82715-E1170 Bracket,wiring Harness Clamp
8281990 82819-90B00 Grommet, Wiring Harness
8281990 82819-90B02 Grommet, Wiring Harness
8270236020 82702-36020 Bracket Sub-assy, Wiring Harness
8270236020 82702-E0S60 Bracket Sub-assy, Wiring Harness
8270237461 82702-37461 Bracket Sub-assy, Wiring Harness
8270237480 82702-37480 Bracket Sub-assy, Wiring Harness
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8271112290 82711-12290 Wire, Fuse To Fuse(for Combustion Heater)
8271120870 82711-20870 Wire, Fuse To Fuse(for Combustion Heater)
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8271126070 82711-26070 Wire, Fuse To Fuse(for Combustion Heater)
8271133170 82711-33170 Wire, Fuse To Fuse(for Combustion Heater)
8271133270 82711-33270 Wire, Fuse To Fuse(for Combustion Heater)
8271136120 82711-36120 Wire, Fuse To Fuse(for Combustion Heater)
8271136130 82711-36130 Wire, Fuse To Fuse(for Combustion Heater)
8271160150 82711-60150 Wire, Fuse To Fuse(for Combustion Heater)
8271160230 82711-60230 Bracket,wiring Harness Clamp
8271160230 82715-36170 Bracket,wiring Harness Clamp
8271160340 82711-60340 Wire, Fuse To Fuse(for Combustion Heater)
8271160410 82711-60410 Wire, Fuse To Fuse(for Combustion Heater)
8271195015 82711-95015 Wire, Fuse To Fuse(for Combustion Heater)
8271236060 82712-36060 Hose, Suction
8271525150 82715-25150 Bracket,wiring Harness Clamp
8271525830 82715-25830 Bracket,wiring Harness Clamp
8271525850 82715-25850 Bracket,wiring Harness Clamp
8271526240 82715-26240 Bracket,wiring Harness Clamp
8271526380 82715-26380 Bracket,wiring Harness Clamp
8271526390 82715-26390 Bracket,wiring Harness Clamp
8271528360 82715-28360 Bracket,wiring Harness Clamp
8271534080 82715-34080 Bracket,wiring Harness Clamp
8271534160 82715-34160 Bracket,wiring Harness Clamp
8271534240 82715-34240 Bracket,wiring Harness Clamp
8271535590 82715-35590 Bracket,wiring Harness Clamp
8271535600 82715-35600 Bracket,wiring Harness Clamp
8271535650 82715-35650 Bracket,wiring Harness Clamp
8271535780 82715-35780 Bracket,wiring Harness Clamp
8271536010 82715-36010 Bracket,wiring Harness Clamp
8271536020 82715-36020 Bracket,wiring Harness Clamp
8271536030 82715-36030 Bracket,wiring Harness Clamp
8271536040 82715-36040 Bracket,wiring Harness Clamp
8271536050 82715-36050 Bracket,wiring Harness Clamp
8271536060 82715-36060 Bracket,wiring Harness Clamp
8271536070 82715-36070 Bracket,wiring Harness Clamp
8271536080 82715-36080 Bracket,wiring Harness Clamp
8271536090 82715-36090 Bracket,wiring Harness Clamp
8271536100 82715-36100 Bracket,wiring Harness Clamp
8271536110 82715-36110 Bracket,wiring Harness Clamp
8271536120 82715-36120 Bracket,wiring Harness Clamp
8271536130 82715-36130 Bracket,wiring Harness Clamp
8271536140 82715-36140 Bracket,wiring Harness Clamp
8271536150 82715-36150 Bracket,wiring Harness Clamp
8271536160 82715-36160 Bracket,wiring Harness Clamp
8271536360 82715-36360 Bracket,wiring Harness Clamp
8271536370 82715-36370 Bracket,wiring Harness Clamp
8271536380 82715-36380 Bracket,wiring Harness Clamp
8271536390 82715-36390 Bracket,wiring Harness Clamp
8271536430 82715-36430 Bracket,wiring Harness Clamp
8271536430 82715-E0710 Bracket,wiring Harness Clamp
8271536440 82715-36440 Bracket,wiring Harness Clamp
8271536440 82715-E0Q90 Bracket,wiring Harness Clamp
8271536460 82715-36460 Bracket,wiring Harness Clamp
8271536470 82715-36470 Bracket,wiring Harness Clamp
8271536480 82715-36480 Bracket,wiring Harness Clamp
8271536560 82715-36560 Bracket,wiring Harness Clamp
8271536580 82715-36580 Bracket,wiring Harness Clamp
8271536610 82715-36610 Bracket,wiring Harness Clamp
8271536620 82715-36620 Bracket,wiring Harness Clamp
8271537150 82715-37150 Bracket,wiring Harness Clamp
8271537160 82715-37160 Bracket,wiring Harness Clamp
8271537240 82715-37240 Bracket,wiring Harness Clamp
8271560040 82715-60040 Bracket,wiring Harness Clamp
8271560110 82715-60110 Bracket,wiring Harness Clamp
8271560170 82715-60170 Bracket,wiring Harness Clamp
8271560280 82715-60280 Bracket,wiring Harness Clamp
8271560360 82715-60360 Bracket,wiring Harness Clamp
8271560380 82715-60380 Bracket,wiring Harness Clamp
8271560480 82715-60480 Bracket,wiring Harness Clamp
8271589119 82715-89119 Bracket,wiring Harness Clamp
8272935040 82729-35040 New Genuine Part
8272937030 82729-37030 New Genuine Part
8281737170 82817-37170 Protector, Wiring Harness, No.5
9003105123 90031-05123 Bolt(For Cylinder Head Cover)
9003105124 90031-05124 New Genuine Part
9011906915 90119-06915 BOLT W-WASHER
9017008204 90170-08204 Nut (For Propeller Shaft)
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046110275 90461-10275 New Genuine Part
9046310031 90463-10031 New Genuine Part
9046310521 90463-10521 CLAMP
9046312008 90463-12008 New Genuine Part
9046315002 90463-15002 Clamp (For Accelerator Wire Set)
9046315003 90463-15003 New Genuine Part
9046400299 90464-00299 New Genuine Part
9046400311 90464-00311 New Genuine Part
9046400598 90464-00598 New Genuine Part
9046400783 90464-00783 New Genuine Part
9046710007 90467-10007 New Genuine Part
9048012002 90480-12002 New Genuine Part
9048019374 90480-19374 Grommet(For Compressor To Dryer Tube)
9048036508 90480-36508 New Genuine Part
9048040507 90480-40507 New Genuine Part
9151160612 91511-60612 BOLT
9151261014 91512-61014 BOLT FLANGE
9153160610 91531-60610 New Genuine Part
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9155281014 91552-81014 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160612 91651-60612 BOLT
9165160616 91651-60616 BOLT
9165160620 91651-60620 BOLTWWASHER
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165161016 91651-61016 Bolt
9167180814 91671-80814 BOLT FLANGE WWASER
9167180814 90119-A0165 New Genuine Part
9167380612 91673-80612 BOLT FLANGE
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
Wiring & Clamp ([01.1993 - ] CONNECTOR (9301- )) 14
#OEMPart name
8282460460 82824-60460 Connector, Wiring Harness
9098010619 90980-10619 Housing, Connector
9098010825 90980-10825 Filter, Noise
9098010942 90980-10942 Housing, Connector
9098010988 90980-10988 HOUSING CONNECTOR
9098011016 90980-11016 Housing, Connector
9098011051 90980-11051 HOUSING CONNECTOR
9098011148 90980-11148 Housing, Connector
9098011149 90980-11149 Connector, housing
9098011159 90980-11159 HOUSING CONNECTOR
9098011162 90980-11162 Housing, Connector
9098011290 90980-11290 HOUSING, CONNECTOR
9098011314 90980-11314 HOUSING, CONNECTOR
9098012211 90980-12211 New Genuine Part
Wiring & Clamp ([01.1993 - ] DIODE (9301- )) 3
#OEMPart name
82345 82345-12050 Diode
82345 82345-22051 Diode
82345 82345-32020 Diode
Source
Public OEM parts-catalog data
Variants
1 / 11
Category
252
Collected
2026-08-02
