| 16264-28070 |
Hose, Water By-Pass No.2 |

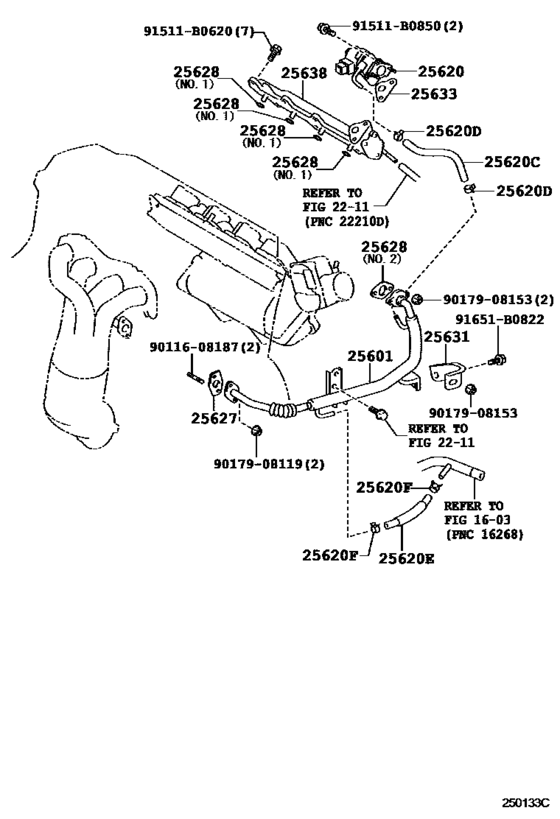

Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25611-28010 |
Pipe Sub-Assy, Egr, No.1 |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25611-28011 |
Pipe Sub-Assy, Egr, No.1 |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25620-28100 |
Valve Assy, Egr |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25620-28101 |
Valve Assy, Egr |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25627-74080 |
Gasket(For Pipe, Egr, No.2) |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25628-28010 |
Gasket, Egr Inlet |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25628-28030 |
Gasket, Egr Inlet |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25631-28010 |
Stay, Egr Pipe, No.1 |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25633-28010 |
Gasket, Egr Valve |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25638-28030 |
Chamber, Egr Delivery |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 25638-28031 |
Chamber, Egr Delivery |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 90116-08187 |
Bolt, Stud(For Oxygen Sensor) |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 90179-08119 |
NUT |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 90179-08153 |
NUT |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 90466-W0002 |
Clamp Or Clip, Hose(For Water By-Pass Hose, No.1) |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 91511-B0620 |
Bolt(For Clutch Release Bearing Hub Retainer) |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 91511-B0850 |
Bolt |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 91651-B0822 |
BOLT WWASHER |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 96135-51300 |
Clamp, Hose |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 99555-10100 |
Hose, Water By-Pass, No.2 |
Exhaust Gas Recirculation System ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
