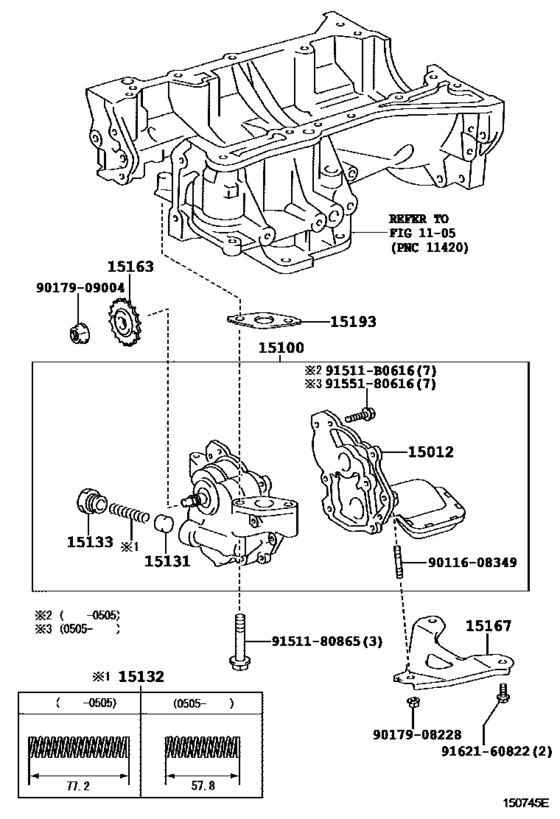

| 15012-28040 |
Cover Sub-Assy, Oil Pump |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 15100-28040 |
Pump Assy, Oil |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 15131-46040 |
Valve, Oil Pump Relief |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 15132-28020 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 15132-46020 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 15133-28020 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 15163-28020 |
Gear, Oil Pump Drive Shaft |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 15167-28010 |
Bracket, Oil Pump |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 15193-28010 |
Gasket, Oil Pump |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 90080-10164 |
BOLT, FLANGE |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 90116-08349 |
New Genuine Part |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 90179-08228 |
NUT |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 90179-09004 |
NUT |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 91511-80865 |
Bolt(For Cylinder Head Set Sub) |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 91511-B0616 |
BOLT, FLANGE |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 91551-80616 |
BOLT FLANGE |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
| 91621-60822 |
Bolt, W/washer(For Repair Actuator Set) |
Engine Oil Pump ([09.2003 - ] (0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..A ZT255) |
