AZK10

Toyota SAI · 2009 · 5,923 parts · 233 categories
AZK10 ×

← Back to categories

5,923 items

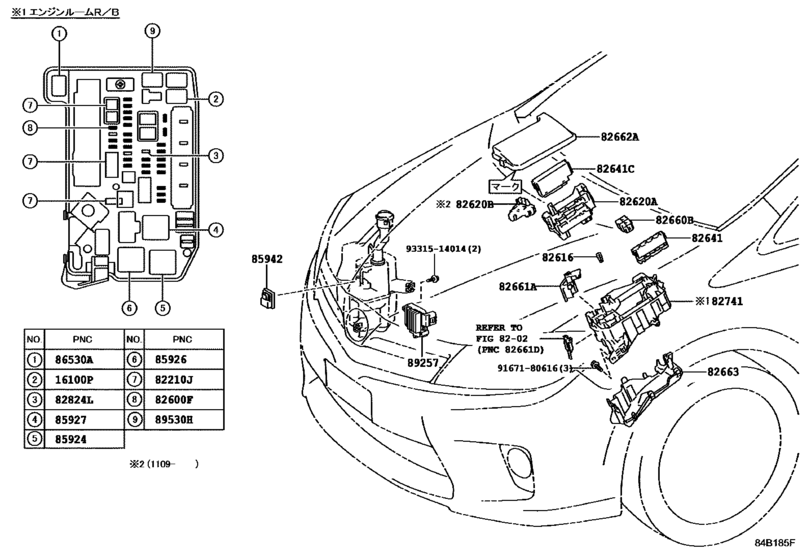

Switch & Relay & Computer ([11.2009 - 08.2013] ｴﾝｼﾞﾝﾙｰﾑ (0911-1308)) 44
#OEMPart name
16100 90987-02028 Relay, Water Pump
82210 90982-08295 Fusible Link
82210 90982-08297 Fusible Link
82210 90982-08301 Fusible Link
82210 90982-08304 Fusible Link
82210 90982-08306 Fusible Link
82210 90982-08308 Fusible Link
82600 90982-09020 Fusible Link
82600 90982-09021 Fusible Link
82600 90982-09022 Instrument Panel Fuse
82600 90982-09023 Instrument Panel Fuse
82600 90982-09024 Instrument Panel Fuse
82600 90982-09025 Instrument Panel Fuse
82616 82616-58010 Puller, Fuse
82620 82620-75010 Block Assy, Fusible Link
82620 82620-75040 Block Assy, Fusible Link
82620 82620-75030 Block Assy, Fusible Link
82641 82641-71010 Relay, Integration No.1
82641 82641-47031 Relay, Integration No.1
82641 82641-75080 Relay, Integration No.1
82641 82641-75091 Relay, Integration No.2
82641 82641-75062 Relay, Integration No.2
82641 82641-75070 Relay, Integration No.1
82641 82641-75090 Relay, Integration No.2
82660 82660-75010 Block Assy, Relay
82661 82661-75010 Cover, Relay Block, No.2
82662 82662-75010 Cover, Relay Block, Upper, No.1
82662 82662-75011 Cover, Relay Block, Upper, No.1
82662 82662-75012 Cover, Relay Block, Upper, No.1
82662 82662-75020 Cover, Relay Block, Upper, No.1
82662 82662-75030 Cover, Relay Block, Upper, No.1
82663 82663-75010 Cover, Relay Block, Lower
82741 82741-47020 Block, Engine Room Relay
82741 82741-75010 Block, Engine Room Relay
82824 82824-41010 Pin, Short
85924 90987-02025 Relay
85926 90987-04010 Relay Assy (For Heater Blower Motor)
85942 85942-30040 Relay, Cleaner Control
85942 85942-48020 Relay, Headlamp Cleaner Control
85942 85942-58010 Relay, Cleaner Control
86530 90987-02027 Relay
89257 89257-30080 Computer, Cooling Fan
9167180616 91671-80616 BOLT FLANGE
9331514014 93315-14014 SCREW
